nwkObj.c File Reference

#include "nwk.h"

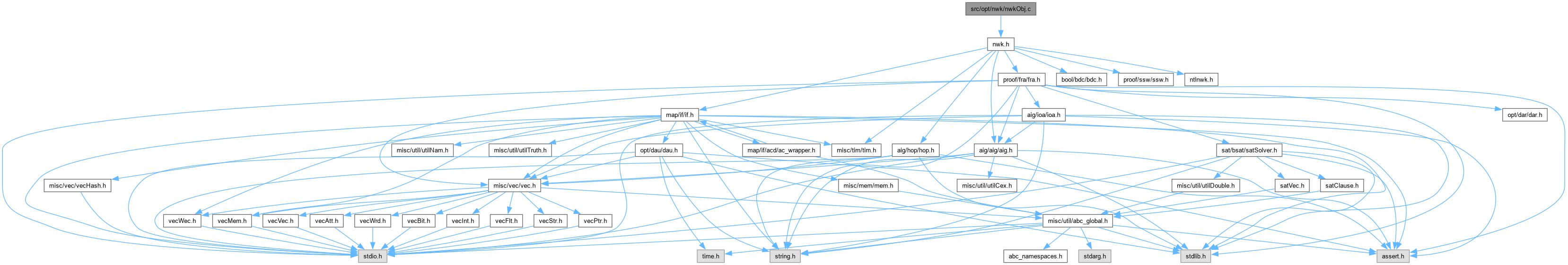

Include dependency graph for nwkObj.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Nwk_Obj_t *	Nwk_ManCreateObj (Nwk_Man_t *p, int nFanins, int nFanouts)
	DECLARATIONS ///.
Nwk_Obj_t *	Nwk_ManCreateCi (Nwk_Man_t *p, int nFanouts)
Nwk_Obj_t *	Nwk_ManCreateCo (Nwk_Man_t *p)
Nwk_Obj_t *	Nwk_ManCreateLatch (Nwk_Man_t *p)
Nwk_Obj_t *	Nwk_ManCreateNode (Nwk_Man_t *p, int nFanins, int nFanouts)
void	Nwk_ManDeleteNode (Nwk_Obj_t *pObj)
void	Nwk_ManDeleteNode_rec (Nwk_Obj_t *pObj)

Function Documentation

Nwk_ManCreateCi()

Nwk_Obj_t * Nwk_ManCreateCi	(	Nwk_Man_t *	p,
		int	nFanouts )

Function*************************************************************

Synopsis [Creates a primary input.]

Description []

SideEffects []

SeeAlso []

Definition at line 70 of file nwkObj.c.

{
    Nwk_Obj_t * pObj;
    pObj = Nwk_ManCreateObj( p, 1, nFanouts );
    pObj->PioId = Vec_PtrSize( p->vCis );
    Vec_PtrPush( p->vCis, pObj );
    pObj->Type = NWK_OBJ_CI;
    p->nObjs[NWK_OBJ_CI]++;
    return pObj;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Nwk_ManCreateCo()

Nwk_Obj_t * Nwk_ManCreateCo

(

Nwk_Man_t *

p

)

Function*************************************************************

Synopsis [Creates a primary output.]

Description []

SideEffects []

SeeAlso []

Definition at line 92 of file nwkObj.c.

{
    Nwk_Obj_t * pObj;
    pObj = Nwk_ManCreateObj( p, 1, 1 );
    pObj->PioId = Vec_PtrSize( p->vCos );
    Vec_PtrPush( p->vCos, pObj );
    pObj->Type = NWK_OBJ_CO;
    p->nObjs[NWK_OBJ_CO]++;
    return pObj;
}

Here is the call graph for this function:

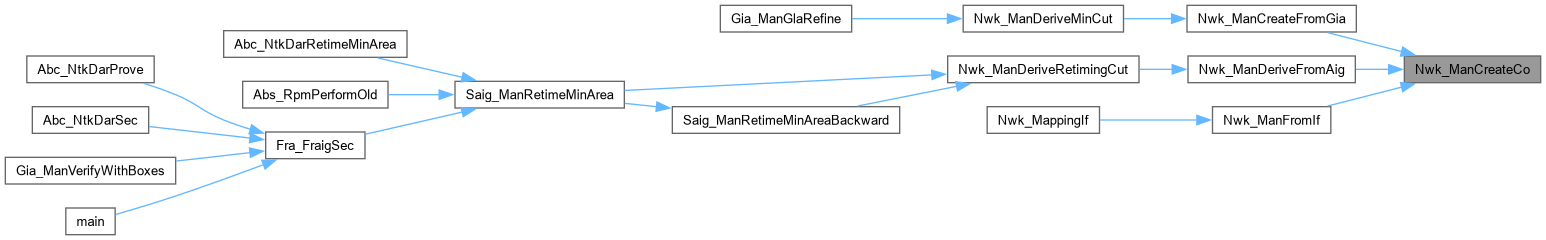

Here is the caller graph for this function:

Nwk_ManCreateLatch()

Nwk_Obj_t * Nwk_ManCreateLatch

(

Nwk_Man_t *

p

)

Function*************************************************************

Synopsis [Creates a latch.]

Description []

SideEffects []

SeeAlso []

Definition at line 114 of file nwkObj.c.

{
    Nwk_Obj_t * pObj;
    pObj = Nwk_ManCreateObj( p, 1, 1 );
    pObj->Type = NWK_OBJ_LATCH;
    p->nObjs[NWK_OBJ_LATCH]++;
    return pObj;
}

Here is the call graph for this function:

Nwk_ManCreateNode()

Nwk_Obj_t * Nwk_ManCreateNode	(	Nwk_Man_t *	p,
		int	nFanins,
		int	nFanouts )

Function*************************************************************

Synopsis [Creates a node.]

Description []

SideEffects []

SeeAlso []

Definition at line 134 of file nwkObj.c.

{
    Nwk_Obj_t * pObj;
    pObj = Nwk_ManCreateObj( p, nFanins, nFanouts );
    pObj->Type = NWK_OBJ_NODE;
    p->nObjs[NWK_OBJ_NODE]++;
    return pObj;
}

Here is the call graph for this function:

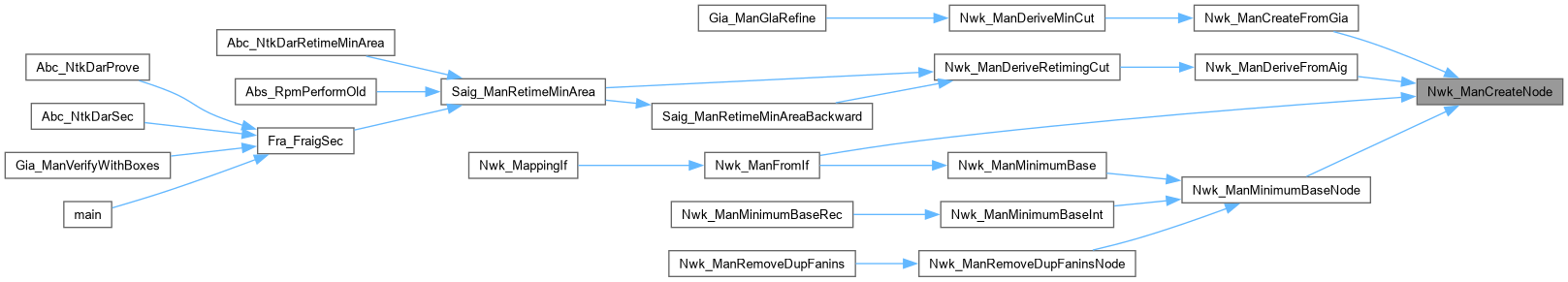

Here is the caller graph for this function:

Nwk_ManCreateObj()

ABC_NAMESPACE_IMPL_START Nwk_Obj_t * Nwk_ManCreateObj	(	Nwk_Man_t *	p,
		int	nFanins,
		int	nFanouts )

DECLARATIONS ///.

CFile****************************************************************

FileName [nwkObj.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Logic network representation.]

Synopsis [Manipulation of objects.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

nwkObj.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Creates an object.]

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file nwkObj.c.

{
    Nwk_Obj_t * pObj;
    pObj = (Nwk_Obj_t *)Aig_MmFlexEntryFetch( p->pMemObjs, sizeof(Nwk_Obj_t) + (nFanins + nFanouts + p->nFanioPlus) * sizeof(Nwk_Obj_t *) );
    memset( pObj, 0, sizeof(Nwk_Obj_t) );
    pObj->pFanio = (Nwk_Obj_t **)((char *)pObj + sizeof(Nwk_Obj_t));
    pObj->Id = Vec_PtrSize( p->vObjs );
    Vec_PtrPush( p->vObjs, pObj );
    pObj->pMan        = p;
    pObj->nFanioAlloc = nFanins + nFanouts + p->nFanioPlus;
    return pObj;
}

Here is the call graph for this function:

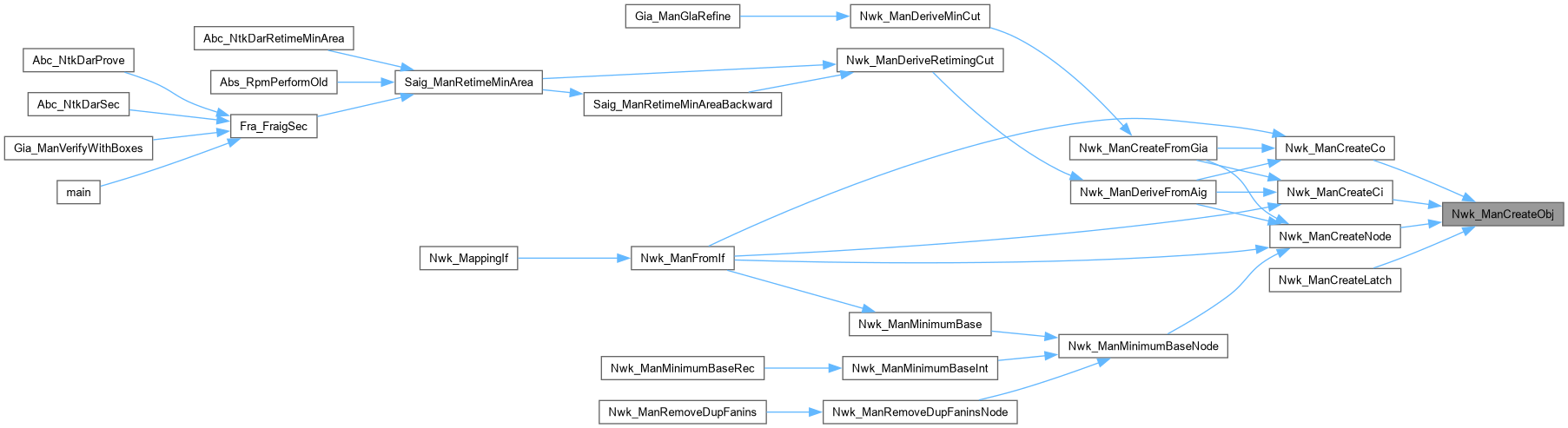

Here is the caller graph for this function:

Nwk_ManDeleteNode()

void Nwk_ManDeleteNode

(

Nwk_Obj_t *

pObj

)

Function*************************************************************

Synopsis [Deletes the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 155 of file nwkObj.c.

{
    Vec_Ptr_t * vNodes = pObj->pMan->vTemp;
    Nwk_Obj_t * pTemp;
    int i;
    assert( Nwk_ObjFanoutNum(pObj) == 0 );
    // delete fanins
    Nwk_ObjCollectFanins( pObj, vNodes );
    Vec_PtrForEachEntry( Nwk_Obj_t *, vNodes, pTemp, i )
        Nwk_ObjDeleteFanin( pObj, pTemp );
    // remove from the list of objects
    Vec_PtrWriteEntry( pObj->pMan->vObjs, pObj->Id, NULL );
    pObj->pMan->nObjs[pObj->Type]--;
    memset( pObj, 0, sizeof(Nwk_Obj_t) );
    pObj->Id = -1;
}

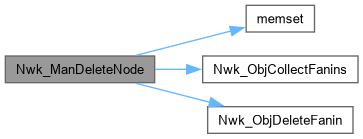

Here is the call graph for this function:

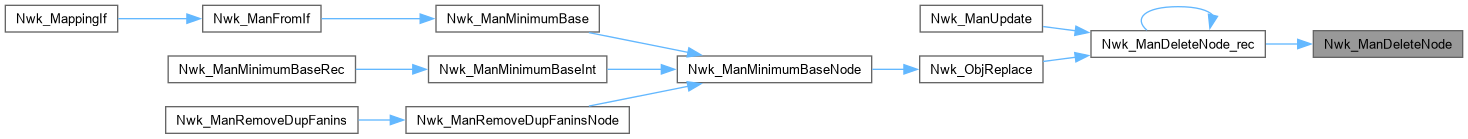

Here is the caller graph for this function:

Nwk_ManDeleteNode_rec()

void Nwk_ManDeleteNode_rec

(

Nwk_Obj_t *

pObj

)

Function*************************************************************

Synopsis [Deletes the node and MFFC of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 183 of file nwkObj.c.

{
    Vec_Ptr_t * vNodes;
    int i;
    assert( !Nwk_ObjIsCi(pObj) );
    assert( Nwk_ObjFanoutNum(pObj) == 0 );
    vNodes = Vec_PtrAlloc( 100 );
    Nwk_ObjCollectFanins( pObj, vNodes );
    Nwk_ManDeleteNode( pObj );
    Vec_PtrForEachEntry( Nwk_Obj_t *, vNodes, pObj, i )
        if ( Nwk_ObjIsNode(pObj) && Nwk_ObjFanoutNum(pObj) == 0 )
            Nwk_ManDeleteNode_rec( pObj );
    Vec_PtrFree( vNodes );
}

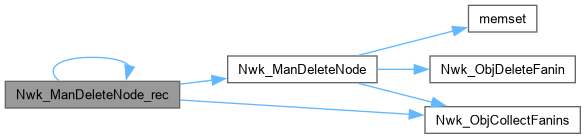

Here is the call graph for this function:

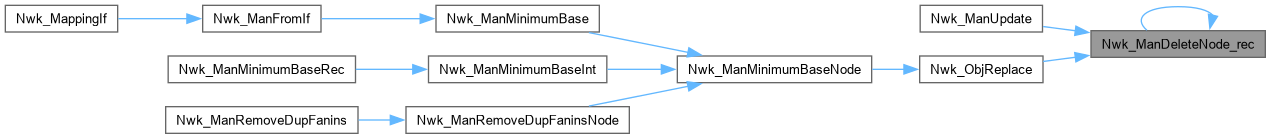

Here is the caller graph for this function:
