nwkStrash.c File Reference

#include "nwk.h"

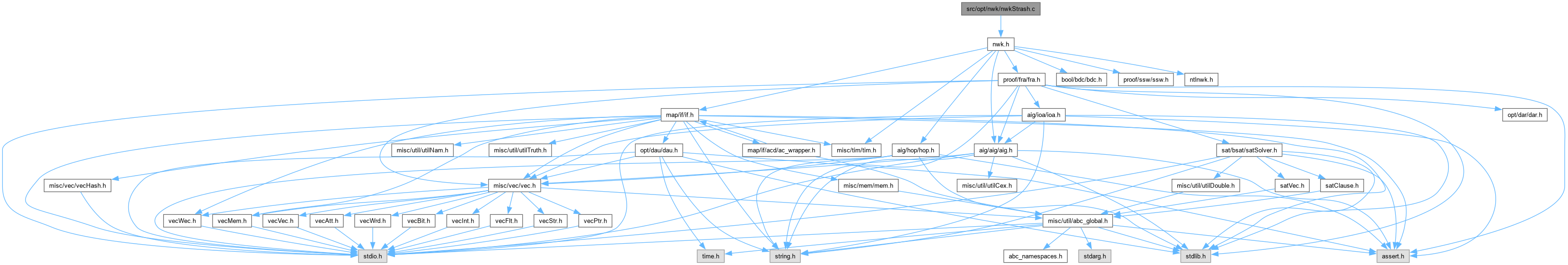

Include dependency graph for nwkStrash.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Nwk_ManStrashNode_rec (Aig_Man_t *p, Hop_Obj_t *pObj)
	DECLARATIONS ///.
Aig_Obj_t *	Nwk_ManStrashNode (Aig_Man_t *p, Nwk_Obj_t *pObj)
Aig_Man_t *	Nwk_ManStrash (Nwk_Man_t *pNtk)

Function Documentation

Nwk_ManStrash()

Aig_Man_t * Nwk_ManStrash

(

Nwk_Man_t *

pNtk

)

Function*************************************************************

Synopsis [Derives AIG from the logic network.]

Description [Assumes topological ordering of nodes.]

SideEffects []

SeeAlso []

Definition at line 99 of file nwkStrash.c.

{
    Vec_Ptr_t * vObjs;
    Aig_Man_t * pMan;
    Aig_Obj_t * pObjNew = NULL;
    Nwk_Obj_t * pObj;
    int i, Level;
    pMan = Aig_ManStart( Nwk_ManGetAigNodeNum(pNtk) );
    pMan->pName = Abc_UtilStrsav( pNtk->pName );
    pMan->pSpec = Abc_UtilStrsav( pNtk->pSpec );
    pMan->pManTime = Tim_ManDup( (Tim_Man_t *)pNtk->pManTime, 1 );
    Tim_ManIncrementTravId( (Tim_Man_t *)pMan->pManTime );
    Nwk_ManForEachObj( pNtk, pObj, i )
        pObj->pCopy = NULL;
//    Nwk_ManForEachObj( pNtk, pObj, i )
    vObjs = Nwk_ManDfs( pNtk );
    Vec_PtrForEachEntry( Nwk_Obj_t *, vObjs, pObj, i )
    {
        if ( Nwk_ObjIsCi(pObj) )
        {
            pObjNew = Aig_ObjCreateCi(pMan);
            Level = Tim_ManGetCiArrival( (Tim_Man_t *)pMan->pManTime, pObj->PioId );
            Aig_ObjSetLevel( pObjNew, Level );
        }
        else if ( Nwk_ObjIsCo(pObj) )
        {
            pObjNew = Aig_ObjCreateCo( pMan, Aig_NotCond((Aig_Obj_t *)Nwk_ObjFanin0(pObj)->pCopy, pObj->fInvert) );
            Level = Aig_ObjLevel( pObjNew );
            Tim_ManSetCoArrival( (Tim_Man_t *)pMan->pManTime, pObj->PioId, (float)Level );
        }
        else if ( Nwk_ObjIsNode(pObj) )
        {
            pObjNew = Nwk_ManStrashNode( pMan, pObj );
        }
        else
            assert( 0 );
        pObj->pCopy = pObjNew;
    }
    Vec_PtrFree( vObjs );
    Aig_ManCleanup( pMan );
    Aig_ManSetRegNum( pMan, 0 );
    return pMan;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Nwk_ManStrashNode()

Aig_Obj_t * Nwk_ManStrashNode	(	Aig_Man_t *	p,
		Nwk_Obj_t *	pObj )

Function*************************************************************

Synopsis [Derives AIG from the local functions of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 68 of file nwkStrash.c.

{
    Hop_Man_t * pMan = pObj->pMan->pManHop;
    Hop_Obj_t * pRoot = pObj->pFunc;
    Nwk_Obj_t * pFanin;
    int i;
    assert( Nwk_ObjIsNode(pObj) );
    // check the constant case
    if ( Hop_Regular(pRoot) == Hop_ManConst1(pMan) )
        return Aig_NotCond( Aig_ManConst1(p), Hop_IsComplement(pRoot) );
    // set elementary variables
    Nwk_ObjForEachFanin( pObj, pFanin, i )
        Hop_IthVar(pMan, i)->pData = pFanin->pCopy;
    // strash the AIG of this node
    Nwk_ManStrashNode_rec( p, Hop_Regular(pRoot) );
    Hop_ConeUnmark_rec( Hop_Regular(pRoot) );
    // return the final node
    return Aig_NotCond( (Aig_Obj_t *)Hop_Regular(pRoot)->pData, Hop_IsComplement(pRoot) );
}

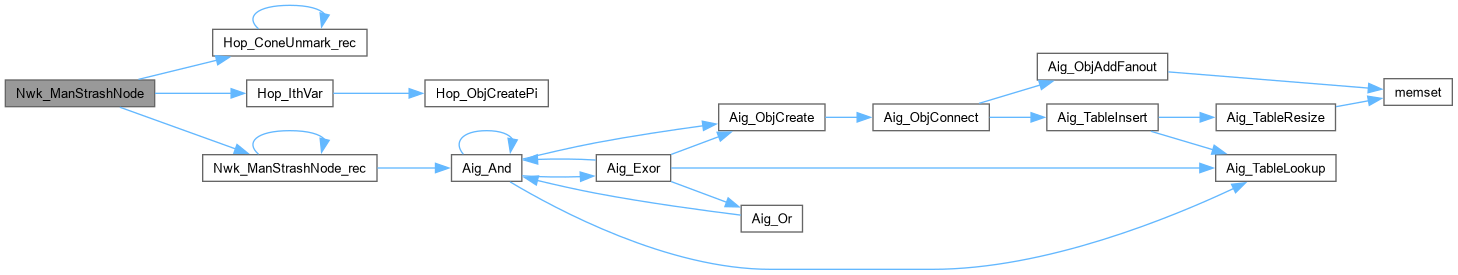

Here is the call graph for this function:

Here is the caller graph for this function:

Nwk_ManStrashNode_rec()

ABC_NAMESPACE_IMPL_START void Nwk_ManStrashNode_rec	(	Aig_Man_t *	p,
		Hop_Obj_t *	pObj )

DECLARATIONS ///.

CFile****************************************************************

FileName [nwkStrash.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Logic network representation.]

Synopsis [Performs structural hashing for the network.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

nwkStrash.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Derives AIG from the local functions of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file nwkStrash.c.

{
    assert( !Hop_IsComplement(pObj) );
    if ( !Hop_ObjIsNode(pObj) || Hop_ObjIsMarkA(pObj) )
        return;
    Nwk_ManStrashNode_rec( p, Hop_ObjFanin0(pObj) );
    Nwk_ManStrashNode_rec( p, Hop_ObjFanin1(pObj) );
    pObj->pData = Aig_And( p, (Aig_Obj_t *)Hop_ObjChild0Copy(pObj), (Aig_Obj_t *)Hop_ObjChild1Copy(pObj) );
    assert( !Hop_ObjIsMarkA(pObj) ); // loop detection
    Hop_ObjSetMarkA( pObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:
