pair.c File Reference

#include "espresso.h"

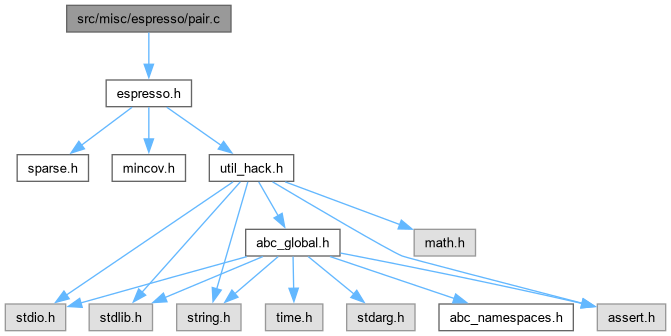

Include dependency graph for pair.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	set_pair (pPLA PLA)
void	set_pair1 (pPLA PLA, bool adjust_labels)
pcover	pairvar (pcover A, ppair pair)
pcover	delvar (pcover A, paired)
void	find_optimal_pairing (pPLA PLA, int strategy)
int **	find_pairing_cost (pPLA PLA, int strategy)
void	print_pair (ppair pair)
int	greedy_best_cost (int **cost_array_local, ppair *pair_p)
ppair	pair_best_cost (int **cost_array_local)
void	find_best_cost (ppair pair)
void	pair_all (pPLA PLA, int pair_strategy)
void	minimize_pair (ppair pair)
void	generate_all_pairs (ppair pair, int n, pset candidate, int *action)
ppair	pair_new (int n)
ppair	pair_save (ppair pair, int n)
void	pair_free (ppair pair)

Function Documentation

delvar()

pcover delvar	(	pcover	A,
		paired	)

Definition at line 164 of file pair.c.

{
    bool run;
    int first_run = 0; // Suppress "might be used uninitialized"
    int run_length, var, offset = 0;

    run = FALSE; run_length = 0;
    for(var = 0; var < cube.num_binary_vars; var++)
    if (paired[var])
        if (run)
        run_length += cube.part_size[var];
        else {
        run = TRUE;
        first_run = cube.first_part[var];
        run_length = cube.part_size[var];
        }
    else
        if (run) {
        A = sf_delcol(A, first_run-offset, run_length);
        run = FALSE;
        offset += run_length;
        }
    if (run)
    A = sf_delcol(A, first_run-offset, run_length);
    return A;
}

Here is the call graph for this function:

find_best_cost()

void find_best_cost

(

ppair

pair

)

Definition at line 448 of file pair.c.

{
    register int i, cost;

    cost = 0;
    for(i = 0; i < pair->cnt; i++)
    cost += cost_array[pair->var1[i]-1][pair->var2[i]-1];
    if (cost > best_cost) {
    best_cost = cost;
    best_pair = pair_save(pair, pair->cnt);
    }
    if ((debug & MINCOV) && trace) {
    printf("cost is %d ", cost);
    print_pair(pair);
    }
}

Here is the call graph for this function:

find_optimal_pairing()

void find_optimal_pairing	(	pPLA	PLA,
		int	strategy )

Definition at line 226 of file pair.c.

{
    int i, j, **cost_array;

    cost_array = find_pairing_cost(PLA, strategy);

    if (summary) {
    printf("    ");
    for(i = 0; i < cube.num_binary_vars; i++)
        printf("%3d ", i+1);
    printf("\n");
    for(i = 0; i < cube.num_binary_vars; i++) {
        printf("%3d ", i+1);
        for(j = 0; j < cube.num_binary_vars; j++)
        printf("%3d ", cost_array[i][j]);
        printf("\n");
    }
    }

    if (cube.num_binary_vars <= 14) {
    PLA->pair = pair_best_cost(cost_array);
    } else {
    (void) greedy_best_cost(cost_array, &(PLA->pair));
    }
    printf("# ");
    print_pair(PLA->pair);

    for(i = 0; i < cube.num_binary_vars; i++)
    FREE(cost_array[i]);
    FREE(cost_array);

    set_pair(PLA);
    EXEC_S(PLA->F=espresso(PLA->F,PLA->D,PLA->R),"ESPRESSO  ",PLA->F);
}

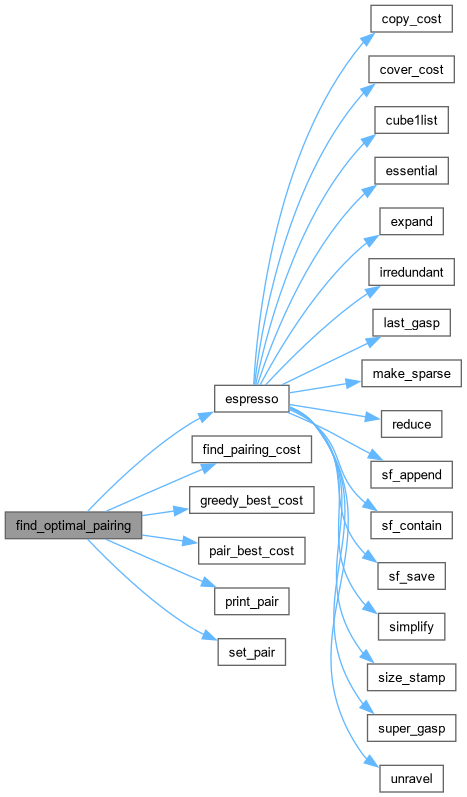

Here is the call graph for this function:

find_pairing_cost()

int ** find_pairing_cost	(	pPLA	PLA,
		int	strategy )

Definition at line 263 of file pair.c.

{
    int var1, var2, **cost_array;
    int i, j;
    int xnum_binary_vars = 0, xnum_vars = 0, *xpart_size = NULL, cost = 0; // Suppress "might be used uninitialized"
    pcover T;
    pcover Fsave = NULL, Dsave = NULL, Rsave = NULL; // Suppress "might be used uninitialized"
    pset mask;
/*    char *s;*/

    /* data is returned in the cost array */
    cost_array = ALLOC(int *, cube.num_binary_vars);
    for(i = 0; i < cube.num_binary_vars; i++)
    cost_array[i] = ALLOC(int, cube.num_binary_vars);
    for(i = 0; i < cube.num_binary_vars; i++)
    for(j = 0; j < cube.num_binary_vars; j++)
        cost_array[i][j] = 0;

    /* Setup the pair structure for pairing variables together */
    PLA->pair = pair_new(1);
    PLA->pair->cnt = 1;

    for(var1 = 0; var1 < cube.num_binary_vars-1; var1++) {
    for(var2 = var1+1; var2 < cube.num_binary_vars; var2++) {
        /* if anything but simple strategy, perform setup */
        if (strategy > 0) {
        /* save the original covers */
        Fsave = sf_save(PLA->F);
        Dsave = sf_save(PLA->D);
        Rsave = sf_save(PLA->R);

        /* save the original cube structure */
        xnum_binary_vars = cube.num_binary_vars;
        xnum_vars = cube.num_vars;
        xpart_size = ALLOC(int, cube.num_vars);
        for(i = 0; i < cube.num_vars; i++)
            xpart_size[i] = cube.part_size[i];

        /* pair two variables together */
        PLA->pair->var1[0] = var1 + 1;
        PLA->pair->var2[0] = var2 + 1;
        set_pair1(PLA, /* adjust_labels */ FALSE);
        }


        /* decide how to best estimate worth of this pairing */
        switch(strategy) {
        case 3:
            /*s = "exact minimization";*/
            PLA->F = minimize_exact(PLA->F, PLA->D, PLA->R, 1);
            cost = Fsave->count - PLA->F->count;
            break;
        case 2:
            /*s = "full minimization";*/
            PLA->F = espresso(PLA->F, PLA->D, PLA->R);
            cost = Fsave->count - PLA->F->count;
            break;
        case 1:
            /*s = "strong division";*/
            PLA->F = reduce(PLA->F, PLA->D);
            PLA->F = expand(PLA->F, PLA->R, FALSE);
            PLA->F = irredundant(PLA->F, PLA->D);
            cost = Fsave->count - PLA->F->count;
            break;
        case 0:
            /*s = "weak division";*/
            mask = new_cube();
            set_or(mask, cube.var_mask[var1], cube.var_mask[var2]);
            T = dist_merge(sf_save(PLA->F), mask);
            cost = PLA->F->count - T->count;
            sf_free(T);
            set_free(mask);
        }

        cost_array[var1][var2] = cost;

        if (strategy > 0) {
        /* restore the original cube structure -- free the new ones */
        setdown_cube();
        FREE(cube.part_size);
        cube.num_binary_vars = xnum_binary_vars;
        cube.num_vars = xnum_vars;
        cube.part_size = xpart_size;
        cube_setup();

        /* restore the original cover(s) -- free the new ones */
        sf_free(PLA->F);
        sf_free(PLA->D);
        sf_free(PLA->R);
        PLA->F = Fsave;
        PLA->D = Dsave;
        PLA->R = Rsave;
        }
    }
    }

    pair_free(PLA->pair);
    PLA->pair = NULL;
    return cost_array;
}

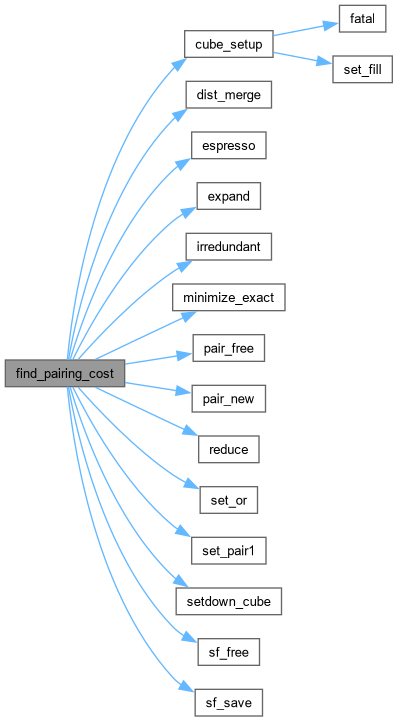

Here is the call graph for this function:

generate_all_pairs()

void generate_all_pairs	(	ppair	pair,
		int	n,
		pset	candidate,
		int *	action )

Definition at line 593 of file pair.c.

{
    int i, j;
    pset recur_candidate;
    ppair recur_pair;

    if (set_ord(candidate) < 2) {
    (*action)(pair);
    return;
    }

    recur_pair = pair_save(pair, n);
    recur_candidate = set_save(candidate);

    /* Find first variable still in the candidate set */
    for(i = 0; i < n; i++)
    if (is_in_set(candidate, i))
        break;

    /* Try all pairs of i with other variables */
    for(j = i+1; j < n; j++)
    if (is_in_set(candidate, j)) {
        /* pair (i j) -- remove from candidate set for future pairings */
        set_remove(recur_candidate, i);
        set_remove(recur_candidate, j);

        /* add to the pair array */
        recur_pair->var1[recur_pair->cnt] = i+1;
        recur_pair->var2[recur_pair->cnt] = j+1;
        recur_pair->cnt++;

        /* recur looking for the end ... */
        generate_all_pairs(recur_pair, n, recur_candidate, action);

        /* now break this pair, and restore candidate set */
        recur_pair->cnt--;
        set_insert(recur_candidate, i);
        set_insert(recur_candidate, j);
    }

    /* if odd, generate all pairs which do NOT include i */
    if ((set_ord(candidate) % 2) == 1) {
    set_remove(recur_candidate, i);
    generate_all_pairs(recur_pair, n, recur_candidate, action);
    }

    pair_free(recur_pair);
    set_free(recur_candidate);
}

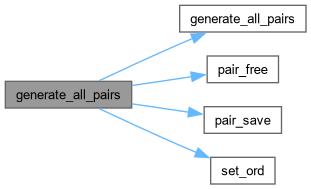

Here is the call graph for this function:

greedy_best_cost()

int greedy_best_cost	(	int **	cost_array_local,
		ppair *	pair_p )

Definition at line 387 of file pair.c.

{
    int i, j;
    int besti = 0, bestj = 0;
    int maxcost, total_cost;
    pset cand;
    ppair pair;

    pair = pair_new(cube.num_binary_vars);
    cand = set_full(cube.num_binary_vars);
    total_cost = 0;

    while (set_ord(cand) >= 2) {
    maxcost = -1;
    for(i = 0; i < cube.num_binary_vars; i++) {
        if (is_in_set(cand, i)) {
        for(j = i+1; j < cube.num_binary_vars; j++) {
            if (is_in_set(cand, j)) {
            if (cost_array_local[i][j] > maxcost) {
                maxcost = cost_array_local[i][j];
                besti = i;
                bestj = j;
            }
            }
        }
        }
    }
    pair->var1[pair->cnt] = besti+1;
    pair->var2[pair->cnt] = bestj+1;
    pair->cnt++;
    set_remove(cand, besti);
    set_remove(cand, bestj);
    total_cost += maxcost;
    }
    set_free(cand);
    *pair_p = pair;
    return total_cost;
}

Here is the call graph for this function:

minimize_pair()

void minimize_pair

(

ppair

pair

)

Definition at line 518 of file pair.c.

{
    pcover Fsave, Dsave, Rsave;
    int i, xnum_binary_vars, xnum_vars, *xpart_size;

    /* save the original covers */
    Fsave = sf_save(global_PLA->F);
    Dsave = sf_save(global_PLA->D);
    Rsave = sf_save(global_PLA->R);

    /* save the original cube structure */
    xnum_binary_vars = cube.num_binary_vars;
    xnum_vars = cube.num_vars;
    xpart_size = ALLOC(int, cube.num_vars);
    for(i = 0; i < cube.num_vars; i++)
    xpart_size[i] = cube.part_size[i];

    /* setup the paired variables */
    global_PLA->pair = pair;
    set_pair1(global_PLA, /* adjust_labels */ FALSE);

    /* call the minimizer */
    if (summary)
    print_pair(pair);
    switch(pair_minim_strategy) {
    case 2:
        EXEC_S(phase_assignment(global_PLA,0), "OPO       ", global_PLA->F);
        if (summary)
        printf("# phase is %s\n", pc1(global_PLA->phase));
        break;
    case 1:
        EXEC_S(global_PLA->F = minimize_exact(global_PLA->F, global_PLA->D,
        global_PLA->R, 1), "EXACT     ", global_PLA->F);
        break;
    case 0:
        EXEC_S(global_PLA->F = espresso(global_PLA->F, global_PLA->D,
        global_PLA->R), "ESPRESSO  ", global_PLA->F);
        break;
    default:
        break;
    }

    /* see if we have a new best solution */
    if (global_PLA->F->count < best_cost) {
    best_cost = global_PLA->F->count;
    best_pair = pair_save(pair, pair->cnt);
    best_phase = global_PLA->phase!=NULL?set_save(global_PLA->phase):NULL;
    if (best_F != NULL) sf_free(best_F);
    if (best_D != NULL) sf_free(best_D);
    if (best_R != NULL) sf_free(best_R);
    best_F = sf_save(global_PLA->F);
    best_D = sf_save(global_PLA->D);
    best_R = sf_save(global_PLA->R);
    }

    /* restore the original cube structure -- free the new ones */
    setdown_cube();
    FREE(cube.part_size);
    cube.num_binary_vars = xnum_binary_vars;
    cube.num_vars = xnum_vars;
    cube.part_size = xpart_size;
    cube_setup();

    /* restore the original cover(s) -- free the new ones */
    sf_free(global_PLA->F);
    sf_free(global_PLA->D);
    sf_free(global_PLA->R);
    global_PLA->F = Fsave;
    global_PLA->D = Dsave;
    global_PLA->R = Rsave;
    global_PLA->pair = NULL;
    global_PLA->phase = NULL;
}

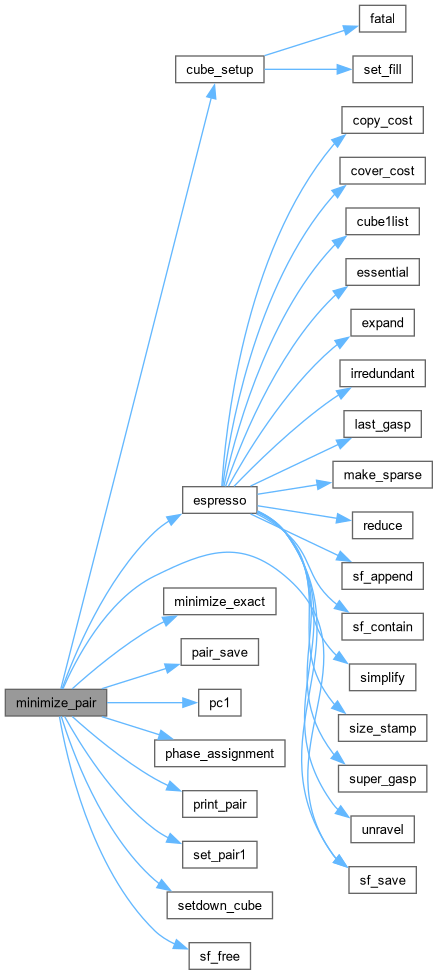

Here is the call graph for this function:

pair_all()

void pair_all	(	pPLA	PLA,
		int	pair_strategy )

Definition at line 475 of file pair.c.

{
    ppair pair;
    pset candidate;

    global_PLA = PLA;
    pair_minim_strategy = pair_strategy;
    best_cost = PLA->F->count + 1;
    best_pair = NULL;
    best_phase = NULL;
    best_F = best_D = best_R = NULL;
    pair = pair_new(cube.num_binary_vars);
    candidate = set_fill(set_new(cube.num_binary_vars), cube.num_binary_vars);

    generate_all_pairs(pair, cube.num_binary_vars, candidate, minimize_pair);

    pair_free(pair);
    set_free(candidate);

    PLA->pair = best_pair;
    PLA->phase = best_phase;
/* not really necessary
    if (phase != NULL)
    (void) set_phase(PLA->phase);
*/
    set_pair(PLA);
    printf("# ");
    print_pair(PLA->pair);

    sf_free(PLA->F);
    sf_free(PLA->D);
    sf_free(PLA->R);
    PLA->F = best_F;
    PLA->D = best_D;
    PLA->R = best_R;
}

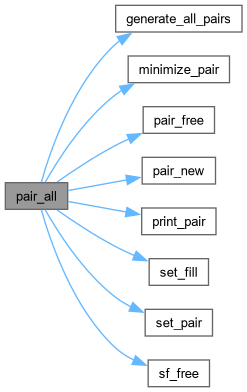

Here is the call graph for this function:

pair_best_cost()

ppair pair_best_cost

(

int **

cost_array_local

)

Definition at line 429 of file pair.c.

{
    ppair pair;
    pset candidate;

    best_cost = -1;
    best_pair = NULL;
    cost_array = cost_array_local;

    pair = pair_new(cube.num_binary_vars);
    candidate = set_full(cube.num_binary_vars);
    generate_all_pairs(pair, cube.num_binary_vars, candidate, find_best_cost);
    pair_free(pair);
    set_free(candidate);
    return best_pair;
}

Here is the call graph for this function:

pair_free()

void pair_free

(

ppair

pair

)

Definition at line 677 of file pair.c.

{
    FREE(pair->var1);
    FREE(pair->var2);
    FREE(pair);
}

pair_new()

ppair pair_new

(

int

n

)

Definition at line 647 of file pair.c.

{
    register ppair pair1;

    pair1 = ALLOC(pair_t, 1);
    pair1->cnt = 0;
    pair1->var1 = ALLOC(int, n);
    pair1->var2 = ALLOC(int, n);
    return pair1;
}

pair_save()

ppair pair_save	(	ppair	pair,
		int	n )

Definition at line 660 of file pair.c.

{
    register int k;
    register ppair pair1;

    pair1 = pair_new(n);
    pair1->cnt = pair->cnt;
    for(k = 0; k < pair->cnt; k++) {
    pair1->var1[k] = pair->var1[k];
    pair1->var2[k] = pair->var2[k];
    }
    return pair1;
}

Here is the call graph for this function:

pairvar()

pcover pairvar	(	pcover	A,
		ppair	pair )

Definition at line 124 of file pair.c.

{
    register pcube last, p;
    register int val, p1, p2, b1, b0;
    int insert_col, pairnum;

    insert_col = cube.first_part[cube.num_vars - 1];

    /* stretch the cover matrix to make room for the paired variables */
    A = sf_delcol(A, insert_col, -4*pair->cnt);

    /* compute the paired values */
    foreach_set(A, last, p) {
    for(pairnum = 0; pairnum < pair->cnt; pairnum++) {
        p1 = cube.first_part[pair->var1[pairnum] - 1];
        p2 = cube.first_part[pair->var2[pairnum] - 1];
        b1 = is_in_set(p, p2+1);
        b0 = is_in_set(p, p2);
        val = insert_col + pairnum * 4;
        if (/* a0 */ is_in_set(p, p1)) {
        if (b0)
            set_insert(p, val + 3);
        if (b1)
            set_insert(p, val + 2);
        }
        if (/* a1 */ is_in_set(p, p1+1)) {
        if (b0)
            set_insert(p, val + 1);
        if (b1)
            set_insert(p, val);
        }
    }
    }
    return A;
}

Here is the call graph for this function:

print_pair()

void print_pair

(

ppair

pair

)

Definition at line 375 of file pair.c.

{
    int i;

    printf("pair is");
    for(i = 0; i < pair->cnt; i++)
    printf (" (%d %d)", pair->var1[i], pair->var2[i]);
    printf("\n");
}

set_pair()

ABC_NAMESPACE_IMPL_START void set_pair

(

pPLA

PLA

)

Definition at line 15 of file pair.c.

{
    set_pair1(PLA, TRUE);
}

Here is the call graph for this function:

set_pair1()

void set_pair1	(	pPLA	PLA,
		bool	adjust_labels )

Definition at line 21 of file pair.c.

{
    int i, var, *paired, newvar;
    int old_num_vars, old_num_binary_vars, old_size, old_mv_start;
    int *new_part_size, new_num_vars, new_num_binary_vars, new_mv_start;
    ppair pair = PLA->pair;
    char scratch[1000], **oldlabel, *var1, *var1bar, *var2, *var2bar;

    if (adjust_labels)
    makeup_labels(PLA);

    /* Check the pair structure for valid entries and see which binary
    variables are left unpaired
    */
    paired = ALLOC(bool, cube.num_binary_vars);
    for(var = 0; var < cube.num_binary_vars; var++)
    paired[var] = FALSE;
    for(i = 0; i < pair->cnt; i++)
    if ((pair->var1[i] > 0 && pair->var1[i] <= cube.num_binary_vars) &&
         (pair->var2[i] > 0 && pair->var2[i] <= cube.num_binary_vars)) {
        paired[pair->var1[i]-1] = TRUE;
        paired[pair->var2[i]-1] = TRUE;
    } else
        fatal("can only pair binary-valued variables");

    PLA->F = delvar(pairvar(PLA->F, pair), paired);
    PLA->R = delvar(pairvar(PLA->R, pair), paired);
    PLA->D = delvar(pairvar(PLA->D, pair), paired);

    /* Now painfully adjust the cube size */
    old_size = cube.size;
    old_num_vars = cube.num_vars;
    old_num_binary_vars = cube.num_binary_vars;
    old_mv_start = cube.first_part[cube.num_binary_vars];
    /* Create the new cube.part_size vector and setup the cube structure */
    new_num_binary_vars = 0;
    for(var = 0; var < old_num_binary_vars; var++)
    new_num_binary_vars += (paired[var] == FALSE);
    new_num_vars = new_num_binary_vars + pair->cnt;
    new_num_vars += old_num_vars - old_num_binary_vars;
    new_part_size = ALLOC(int, new_num_vars);
    for(var = 0; var < pair->cnt; var++)
    new_part_size[new_num_binary_vars + var] = 4;
    for(var = 0; var < old_num_vars - old_num_binary_vars; var++)
    new_part_size[new_num_binary_vars + pair->cnt + var] =
        cube.part_size[old_num_binary_vars + var];
    setdown_cube();
    FREE(cube.part_size);
    cube.num_vars = new_num_vars;
    cube.num_binary_vars = new_num_binary_vars;
    cube.part_size = new_part_size;
    cube_setup();

    /* hack with the labels to get them correct */
    if (adjust_labels) {
    oldlabel = PLA->label;
    PLA->label = ALLOC(char *, cube.size);
    for(var = 0; var < pair->cnt; var++) {
        newvar = cube.num_binary_vars*2 + var*4;
        var1 = oldlabel[ (pair->var1[var]-1) * 2 + 1];
        var2 = oldlabel[ (pair->var2[var]-1) * 2 + 1];
        var1bar = oldlabel[ (pair->var1[var]-1) * 2];
        var2bar = oldlabel[ (pair->var2[var]-1) * 2];
        (void) sprintf(scratch, "%s+%s", var1bar, var2bar);
        PLA->label[newvar] = util_strsav(scratch);
        (void) sprintf(scratch, "%s+%s", var1bar, var2);
        PLA->label[newvar+1] = util_strsav(scratch);
        (void) sprintf(scratch, "%s+%s", var1, var2bar);
        PLA->label[newvar+2] = util_strsav(scratch);
        (void) sprintf(scratch, "%s+%s", var1, var2);
        PLA->label[newvar+3] = util_strsav(scratch);
    }
    /* Copy the old labels for the unpaired binary vars */
    i = 0;
    for(var = 0; var < old_num_binary_vars; var++) {
        if (paired[var] == FALSE) {
        PLA->label[2*i] = oldlabel[2*var];
        PLA->label[2*i+1] = oldlabel[2*var+1];
        oldlabel[2*var] = oldlabel[2*var+1] = (char *) NULL;
        i++;
        }
    }
    /* Copy the old labels for the remaining unpaired vars */
    new_mv_start = cube.num_binary_vars*2 + pair->cnt*4;
    for(i = old_mv_start; i < old_size; i++) {
        PLA->label[new_mv_start + i - old_mv_start] = oldlabel[i];
        oldlabel[i] = (char *) NULL;
    }
    /* free remaining entries in oldlabel */
    for(i = 0; i < old_size; i++)
        if (oldlabel[i] != (char *) NULL)
        FREE(oldlabel[i]);
    FREE(oldlabel);
    }

    /* the paired variables should not be sparse (cf. mv_reduce/raise_in)*/
    for(var = 0; var < pair->cnt; var++)
    cube.sparse[cube.num_binary_vars + var] = 0;
    FREE(paired);
}

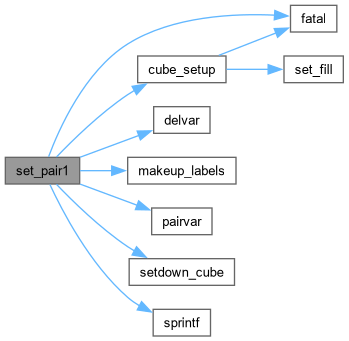

Here is the call graph for this function:
