resSim_old.c File Reference

#include "base/abc/abc.h"
#include "resInt.h"

Include dependency graph for resSim_old.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Res_Sim_t *	Res_SimAlloc (int nWords)
	DECLARATIONS ///.
void	Res_SimAdjust (Res_Sim_t *p, Abc_Ntk_t *pAig)
void	Res_SimFree (Res_Sim_t *p)
void	Res_SimSetRandom (Res_Sim_t *p)
void	Res_SimSetGiven (Res_Sim_t *p, Vec_Ptr_t *vInfo)
void	Res_SimPerformOne (Abc_Obj_t *pNode, Vec_Ptr_t *vSimInfo, int nSimWords)
void	Res_SimTransferOne (Abc_Obj_t *pNode, Vec_Ptr_t *vSimInfo, int nSimWords)
void	Res_SimPerformRound (Res_Sim_t *p)
void	Res_SimProcessPats (Res_Sim_t *p)
void	Res_SimPadSimInfo (Vec_Ptr_t *vPats, int nPats, int nWords)
void	Res_SimDeriveInfoReplicate (Res_Sim_t *p)
void	Res_SimDeriveInfoComplement (Res_Sim_t *p)
void	Res_SimReportOne (Res_Sim_t *p)
void	Res_SimPrintOutPatterns (Res_Sim_t *p, Abc_Ntk_t *pAig)
int	Res_SimPrepare (Res_Sim_t *p, Abc_Ntk_t *pAig, int nTruePis, int fVerbose)

Function Documentation

Res_SimAdjust()

void Res_SimAdjust	(	Res_Sim_t *	p,
		Abc_Ntk_t *	pAig )

Function*************************************************************

Synopsis [Allocate simulation engine.]

Description []

SideEffects []

SeeAlso []

Definition at line 77 of file resSim_old.c.

{
    srand( 0xABC );

    assert( Abc_NtkIsStrash(pAig) );
    p->pAig = pAig;
    if ( Vec_PtrSize(p->vPats) < Abc_NtkObjNumMax(pAig)+1 )
    {
        Vec_PtrFree( p->vPats );
        p->vPats = Vec_PtrAllocSimInfo( Abc_NtkObjNumMax(pAig)+1, p->nWords );
    }
    if ( Vec_PtrSize(p->vPats0) < Abc_NtkPiNum(pAig) )
    {
        Vec_PtrFree( p->vPats0 );
        p->vPats0 = Vec_PtrAllocSimInfo( Abc_NtkPiNum(pAig), p->nWords );
    }
    if ( Vec_PtrSize(p->vPats1) < Abc_NtkPiNum(pAig) )
    {
        Vec_PtrFree( p->vPats1 );
        p->vPats1 = Vec_PtrAllocSimInfo( Abc_NtkPiNum(pAig), p->nWords );
    }
    if ( Vec_PtrSize(p->vOuts) < Abc_NtkPoNum(pAig) )
    {
        Vec_PtrFree( p->vOuts );
        p->vOuts = Vec_PtrAllocSimInfo( Abc_NtkPoNum(pAig), p->nWordsOut );
    }
    // clean storage info for patterns
    Abc_InfoClear( Vec_PtrEntry(p->vPats0,0), p->nWords * Abc_NtkPiNum(pAig) );
    Abc_InfoClear( Vec_PtrEntry(p->vPats1,0), p->nWords * Abc_NtkPiNum(pAig) );
    p->nPats0 = 0;
    p->nPats1 = 0;
}

Here is the caller graph for this function:

Res_SimAlloc()

ABC_NAMESPACE_IMPL_START Res_Sim_t * Res_SimAlloc

(

int

nWords

)

DECLARATIONS ///.

CFile****************************************************************

FileName [resSim.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Resynthesis package.]

Synopsis [Simulation engine.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - January 15, 2007.]

Revision [

Id

resSim.c,v 1.00 2007/01/15 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Allocate simulation engine.]

Description []

SideEffects []

SeeAlso []

Definition at line 46 of file resSim_old.c.

{
    Res_Sim_t * p;
    p = ALLOC( Res_Sim_t, 1 );
    memset( p, 0, sizeof(Res_Sim_t) );
    // simulation parameters
    p->nWords    = nWords;
    p->nPats     = 8 * sizeof(unsigned) * p->nWords;
    p->nWordsOut = p->nPats * p->nWords;
    p->nPatsOut  = p->nPats * p->nPats;
    // simulation info
    p->vPats     = Vec_PtrAllocSimInfo( 1024, p->nWords );
    p->vPats0    = Vec_PtrAllocSimInfo( 128,  p->nWords );
    p->vPats1    = Vec_PtrAllocSimInfo( 128,  p->nWords );
    p->vOuts     = Vec_PtrAllocSimInfo( 128,  p->nWordsOut );
    // resub candidates
    p->vCands    = Vec_VecStart( 16 );
    return p;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Res_SimDeriveInfoComplement()

void Res_SimDeriveInfoComplement

(

Res_Sim_t *

p

)

Function*************************************************************

Synopsis [Complement the simulation info if necessary.]

Description []

SideEffects []

SeeAlso []

Definition at line 384 of file resSim_old.c.

{
    unsigned * pInfo, * pInfo2;
    Abc_Obj_t * pObj;
    int i, j, w;
    Abc_NtkForEachPo( p->pAig, pObj, i )
    {
        pInfo = Vec_PtrEntry( p->vPats, pObj->Id );
        pInfo2 = Vec_PtrEntry( p->vOuts, i );
        for ( j = 0; j < p->nPats; j++, pInfo2 += p->nWords )
            if ( Abc_InfoHasBit( pInfo, j ) )
                for ( w = 0; w < p->nWords; w++ )
                    pInfo2[w] = ~pInfo2[w];
    }
}

Here is the caller graph for this function:

Res_SimDeriveInfoReplicate()

void Res_SimDeriveInfoReplicate

(

Res_Sim_t *

p

)

Function*************************************************************

Synopsis [Duplicates the simulation info to fill the space.]

Description []

SideEffects []

SeeAlso []

Definition at line 358 of file resSim_old.c.

{
    unsigned * pInfo, * pInfo2;
    Abc_Obj_t * pObj;
    int i, j, w;
    Abc_NtkForEachPo( p->pAig, pObj, i )
    {
        pInfo = Vec_PtrEntry( p->vPats, pObj->Id );
        pInfo2 = Vec_PtrEntry( p->vOuts, i );
        for ( j = 0; j < p->nPats; j++ )
            for ( w = 0; w < p->nWords; w++ )
                *pInfo2++ = pInfo[w];
    }
}

Here is the caller graph for this function:

Res_SimFree()

void Res_SimFree

(

Res_Sim_t *

p

)

Function*************************************************************

Synopsis [Free simulation engine.]

Description []

SideEffects []

SeeAlso []

Definition at line 121 of file resSim_old.c.

{
    Vec_PtrFree( p->vPats );
    Vec_PtrFree( p->vPats0 );
    Vec_PtrFree( p->vPats1 );
    Vec_PtrFree( p->vOuts );
    Vec_VecFree( p->vCands );
    free( p );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Res_SimPadSimInfo()

void Res_SimPadSimInfo	(	Vec_Ptr_t *	vPats,
		int	nPats,
		int	nWords )

Function*************************************************************

Synopsis [Pads the extra space with duplicated simulation info.]

Description []

SideEffects []

SeeAlso []

Definition at line 325 of file resSim_old.c.

{
    unsigned * pInfo;
    int i, w, iWords;
    assert( nPats > 0 && nPats < nWords * 8 * (int) sizeof(unsigned) );
    // pad the first word
    if ( nPats < 8 * sizeof(unsigned) )
    {
        Vec_PtrForEachEntry( unsigned *, vPats, pInfo, i )
            if ( pInfo[0] & 1 )
                pInfo[0] |= ((~0) << nPats);
        nPats = 8 * sizeof(unsigned);
    }
    // pad the empty words
    iWords = nPats / (8 * sizeof(unsigned));
    Vec_PtrForEachEntry( unsigned *, vPats, pInfo, i )
    {
        for ( w = iWords; w < nWords; w++ )
            pInfo[w] = pInfo[0];
    }
}

Here is the caller graph for this function:

Res_SimPerformOne()

void Res_SimPerformOne	(	Abc_Obj_t *	pNode,
		Vec_Ptr_t *	vSimInfo,
		int	nSimWords )

Function*************************************************************

Synopsis [Simulates one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 191 of file resSim_old.c.

{
    unsigned * pInfo, * pInfo1, * pInfo2;
    int k, fComp1, fComp2;
    // simulate the internal nodes
    assert( Abc_ObjIsNode(pNode) );
    pInfo  = Vec_PtrEntry(vSimInfo, pNode->Id);
    pInfo1 = Vec_PtrEntry(vSimInfo, Abc_ObjFaninId0(pNode));
    pInfo2 = Vec_PtrEntry(vSimInfo, Abc_ObjFaninId1(pNode));
    fComp1 = Abc_ObjFaninC0(pNode);
    fComp2 = Abc_ObjFaninC1(pNode);
    if ( fComp1 && fComp2 )
        for ( k = 0; k < nSimWords; k++ )
            pInfo[k] = ~pInfo1[k] & ~pInfo2[k];
    else if ( fComp1 && !fComp2 )
        for ( k = 0; k < nSimWords; k++ )
            pInfo[k] = ~pInfo1[k] &  pInfo2[k];
    else if ( !fComp1 && fComp2 )
        for ( k = 0; k < nSimWords; k++ )
            pInfo[k] =  pInfo1[k] & ~pInfo2[k];
    else // if ( fComp1 && fComp2 )
        for ( k = 0; k < nSimWords; k++ )
            pInfo[k] =  pInfo1[k] &  pInfo2[k];
}

Here is the caller graph for this function:

Res_SimPerformRound()

void Res_SimPerformRound

(

Res_Sim_t *

p

)

Function*************************************************************

Synopsis [Performs one round of simulation.]

Description []

SideEffects []

SeeAlso []

Definition at line 255 of file resSim_old.c.

{
    Abc_Obj_t * pObj;
    int i;
    Abc_InfoFill( Vec_PtrEntry(p->vPats,0), p->nWords );
    Abc_AigForEachAnd( p->pAig, pObj, i )
        Res_SimPerformOne( pObj, p->vPats, p->nWords );
    Abc_NtkForEachPo( p->pAig, pObj, i )
        Res_SimTransferOne( pObj, p->vPats, p->nWords );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Res_SimPrepare()

int Res_SimPrepare	(	Res_Sim_t *	p,
		Abc_Ntk_t *	pAig,
		int	nTruePis,
		int	fVerbose )

Function*************************************************************

Synopsis [Prepares simulation info for candidate filtering.]

Description []

SideEffects []

SeeAlso []

Definition at line 477 of file resSim_old.c.

{
    int Limit;
    // prepare the manager
    Res_SimAdjust( p, pAig );
    // collect 0/1 simulation info
    for ( Limit = 0; Limit < 10; Limit++ )
    {
        Res_SimSetRandom( p );
        Res_SimPerformRound( p );
        Res_SimProcessPats( p );
        if ( !(p->nPats0 < p->nPats || p->nPats1 < p->nPats) )
            break;
    }
//    printf( "%d   ", Limit );
    // report the last set of patterns
//    Res_SimReportOne( p );
//    printf( "\n" );
    // quit if there is not enough
//    if ( p->nPats0 < 4 || p->nPats1 < 4 )
    if ( p->nPats0 < 4 || p->nPats1 < 4 )
    {
//        Res_SimReportOne( p );
        return 0;
    }
    // create bit-matrix info
    if ( p->nPats0 < p->nPats )
        Res_SimPadSimInfo( p->vPats0, p->nPats0, p->nWords );
    if ( p->nPats1 < p->nPats )
        Res_SimPadSimInfo( p->vPats1, p->nPats1, p->nWords );
    // resimulate 0-patterns
    Res_SimSetGiven( p, p->vPats0 );
    Res_SimPerformRound( p );
    Res_SimDeriveInfoReplicate( p );
    // resimulate 1-patterns
    Res_SimSetGiven( p, p->vPats1 );
    Res_SimPerformRound( p );
    Res_SimDeriveInfoComplement( p );
    // print output patterns
//    Res_SimPrintOutPatterns( p, pAig );
    return 1;
}

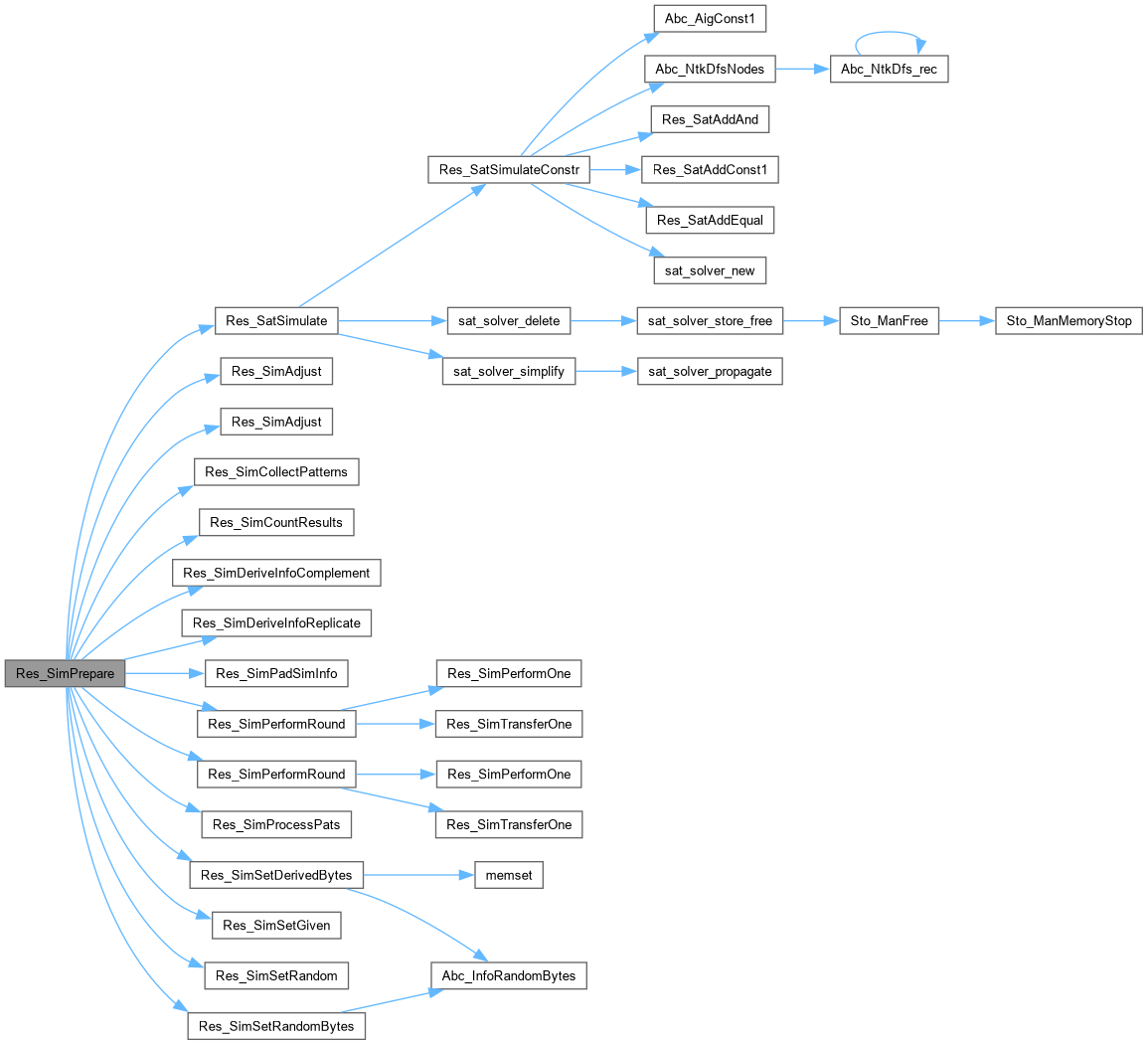

Here is the call graph for this function:

Here is the caller graph for this function:

Res_SimPrintOutPatterns()

void Res_SimPrintOutPatterns	(	Res_Sim_t *	p,
		Abc_Ntk_t *	pAig )

Function*************************************************************

Synopsis [Prints output patterns.]

Description []

SideEffects []

SeeAlso []

Definition at line 453 of file resSim_old.c.

{
    Abc_Obj_t * pObj;
    unsigned * pInfo2;
    int i;
    Abc_NtkForEachPo( pAig, pObj, i )
    {
        pInfo2 = Vec_PtrEntry( p->vOuts, i );
        Extra_PrintBinary( stdout, pInfo2, p->nPatsOut );
        printf( "\n" );
    }
}

Here is the call graph for this function:

Res_SimProcessPats()

void Res_SimProcessPats

(

Res_Sim_t *

p

)

Function*************************************************************

Synopsis [Processes simulation patterns.]

Description []

SideEffects []

SeeAlso []

Definition at line 277 of file resSim_old.c.

{
    Abc_Obj_t * pObj;
    unsigned * pInfoCare, * pInfoNode;
    int i, j, nDcs = 0;
    pInfoCare = Vec_PtrEntry( p->vPats, Abc_NtkPo(p->pAig, 0)->Id );
    pInfoNode = Vec_PtrEntry( p->vPats, Abc_NtkPo(p->pAig, 1)->Id );
    for ( i = 0; i < p->nPats; i++ )
    {
        // skip don't-care patterns
        if ( !Abc_InfoHasBit(pInfoCare, i) )
        {
            nDcs++;
            continue;
        }
        // separate offset and onset patterns
        if ( !Abc_InfoHasBit(pInfoNode, i) )
        {
            if ( p->nPats0 >= p->nPats )
                continue;
            Abc_NtkForEachPi( p->pAig, pObj, j )
                if ( Abc_InfoHasBit( Vec_PtrEntry(p->vPats, pObj->Id), i ) )
                    Abc_InfoSetBit( Vec_PtrEntry(p->vPats0, j), p->nPats0 );
            p->nPats0++;
        }
        else
        {
            if ( p->nPats1 >= p->nPats )
                continue;
            Abc_NtkForEachPi( p->pAig, pObj, j )
                if ( Abc_InfoHasBit( Vec_PtrEntry(p->vPats, pObj->Id), i ) )
                    Abc_InfoSetBit( Vec_PtrEntry(p->vPats1, j), p->nPats1 );
            p->nPats1++;
        }
    }
}

Here is the caller graph for this function:

Res_SimReportOne()

void Res_SimReportOne

(

Res_Sim_t *

p

)

Function*************************************************************

Synopsis [Free simulation engine.]

Description []

SideEffects []

SeeAlso []

Definition at line 411 of file resSim_old.c.

{
    unsigned * pInfoCare, * pInfoNode;
    int i, nDcs, nOnes, nZeros;
    pInfoCare = Vec_PtrEntry( p->vPats, Abc_NtkPo(p->pAig, 0)->Id );
    pInfoNode = Vec_PtrEntry( p->vPats, Abc_NtkPo(p->pAig, 1)->Id );
    nDcs = nOnes = nZeros = 0;
    for ( i = 0; i < p->nPats; i++ )
    {
        // skip don't-care patterns
        if ( !Abc_InfoHasBit(pInfoCare, i) )
        {
            nDcs++;
            continue;
        }
        // separate offset and onset patterns
        if ( !Abc_InfoHasBit(pInfoNode, i) )
            nZeros++;
        else
            nOnes++;
    }
    printf( "On = %3d (%7.2f %%)  ",  nOnes,  100.0*nOnes/p->nPats );
    printf( "Off = %3d (%7.2f %%)  ", nZeros, 100.0*nZeros/p->nPats );
    printf( "Dc = %3d (%7.2f %%)  ",  nDcs,   100.0*nDcs/p->nPats );
    printf( "P0 = %3d ", p->nPats0 );
    printf( "P1 = %3d ", p->nPats1 );
    if ( p->nPats0 < 4 || p->nPats1 < 4 )
        printf( "*" );
    printf( "\n" );
}

Res_SimSetGiven()

void Res_SimSetGiven	(	Res_Sim_t *	p,
		Vec_Ptr_t *	vInfo )

Function*************************************************************

Synopsis [Sets given PI simulation info.]

Description []

SideEffects []

SeeAlso []

Definition at line 166 of file resSim_old.c.

{
    Abc_Obj_t * pObj;
    unsigned * pInfo, * pInfo2;
    int i, w;
    Abc_NtkForEachPi( p->pAig, pObj, i )
    {
        pInfo = Vec_PtrEntry( p->vPats, pObj->Id );
        pInfo2 = Vec_PtrEntry( vInfo, i );
        for ( w = 0; w < p->nWords; w++ )
            pInfo[w] = pInfo2[w];
    }
}

Here is the caller graph for this function:

Res_SimSetRandom()

void Res_SimSetRandom

(

Res_Sim_t *

p

)

Function*************************************************************

Synopsis [Sets random PI simulation info.]

Description []

SideEffects []

SeeAlso []

Definition at line 143 of file resSim_old.c.

{
    Abc_Obj_t * pObj;
    unsigned * pInfo;
    int i;
    Abc_NtkForEachPi( p->pAig, pObj, i )
    {
        pInfo = Vec_PtrEntry( p->vPats, pObj->Id );
        Abc_InfoRandom( pInfo, p->nWords );
    }
}

Here is the caller graph for this function:

Res_SimTransferOne()

void Res_SimTransferOne	(	Abc_Obj_t *	pNode,
		Vec_Ptr_t *	vSimInfo,
		int	nSimWords )

Function*************************************************************

Synopsis [Simulates one CO node.]

Description []

SideEffects []

SeeAlso []

Definition at line 227 of file resSim_old.c.

{
    unsigned * pInfo, * pInfo1;
    int k, fComp1;
    // simulate the internal nodes
    assert( Abc_ObjIsCo(pNode) );
    pInfo  = Vec_PtrEntry(vSimInfo, pNode->Id);
    pInfo1 = Vec_PtrEntry(vSimInfo, Abc_ObjFaninId0(pNode));
    fComp1 = Abc_ObjFaninC0(pNode);
    if ( fComp1 )
        for ( k = 0; k < nSimWords; k++ )
            pInfo[k] = ~pInfo1[k];
    else
        for ( k = 0; k < nSimWords; k++ )
            pInfo[k] =  pInfo1[k];
}

Here is the caller graph for this function:
