retInit.c File Reference

#include "retInt.h"

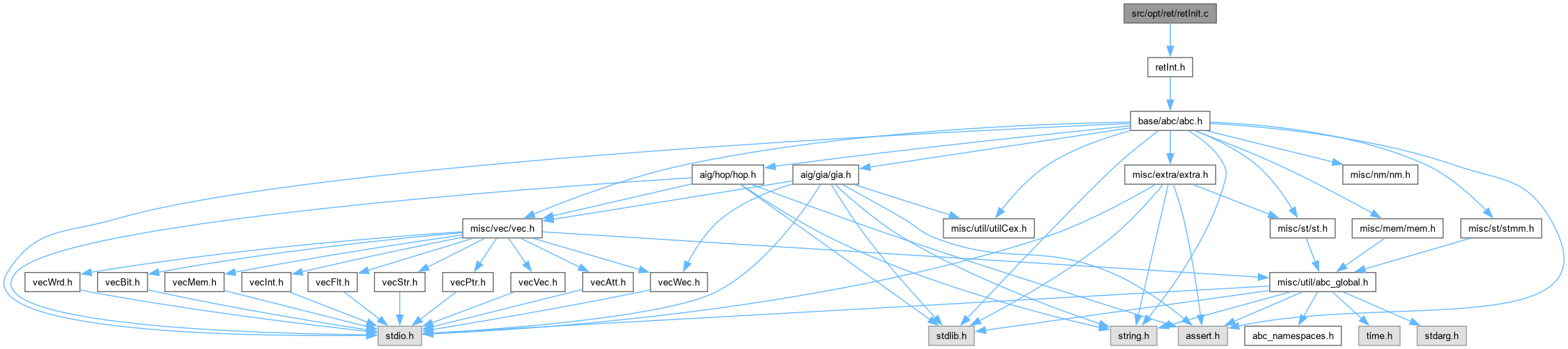

Include dependency graph for retInit.c:

Go to the source code of this file.

Functions
Vec_Int_t *	Abc_NtkRetimeInitialValues (Abc_Ntk_t *pNtkCone, Vec_Int_t *vValues, int fVerbose)
	FUNCTION DEFINITIONS ///.
int	Abc_ObjSopSimulate (Abc_Obj_t *pObj)
void	Abc_NtkRetimeTranferToCopy (Abc_Ntk_t *pNtk)
void	Abc_NtkRetimeTranferFromCopy (Abc_Ntk_t *pNtk)
Vec_Int_t *	Abc_NtkRetimeCollectLatchValues (Abc_Ntk_t *pNtk)
void	Abc_NtkRetimeInsertLatchValues (Abc_Ntk_t *pNtk, Vec_Int_t *vValues)
Abc_Ntk_t *	Abc_NtkRetimeBackwardInitialStart (Abc_Ntk_t *pNtk)
void	Abc_NtkRetimeBackwardInitialFinish (Abc_Ntk_t *pNtk, Abc_Ntk_t *pNtkNew, Vec_Int_t *vValuesOld, int fVerbose)
void	Abc_NtkCycleInitStateSop (Abc_Ntk_t *pNtk, int nFrames, int fVerbose)

Function Documentation

Abc_NtkCycleInitStateSop()

void Abc_NtkCycleInitStateSop	(	Abc_Ntk_t *	pNtk,
		int	nFrames,
		int	fVerbose )

Function*************************************************************

Synopsis [Cycles the circuit to create a new initial state.]

Description [Simulates the circuit with random input for the given number of timeframes to get a better initial state.]

SideEffects []

SeeAlso []

Definition at line 314 of file retInit.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pObj;
    int i, f;
    assert( Abc_NtkIsSopLogic(pNtk) );
    srand( 0x12341234 );
    // initialize the values
    Abc_NtkForEachPi( pNtk, pObj, i )
        pObj->pCopy = (Abc_Obj_t *)(ABC_PTRUINT_T)(rand() & 1);
    Abc_NtkForEachLatch( pNtk, pObj, i )
        pObj->pCopy = (Abc_Obj_t *)(ABC_PTRUINT_T)Abc_LatchIsInit1(pObj);
    // simulate for the given number of timeframes
    vNodes = Abc_NtkDfs( pNtk, 0 );
    for ( f = 0; f < nFrames; f++ )
    {
        // simulate internal nodes
        Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
            pObj->pCopy = (Abc_Obj_t *)(ABC_PTRUINT_T)Abc_ObjSopSimulate( pObj );
        // bring the results to the COs
        Abc_NtkForEachCo( pNtk, pObj, i )
            pObj->pCopy = Abc_ObjFanin0(pObj)->pCopy;
        // assign PI values
        Abc_NtkForEachPi( pNtk, pObj, i )
            pObj->pCopy = (Abc_Obj_t *)(ABC_PTRUINT_T)(rand() & 1);
        // transfer the latch values
        Abc_NtkForEachLatch( pNtk, pObj, i )
            Abc_ObjFanout0(pObj)->pCopy = Abc_ObjFanin0(pObj)->pCopy;
    }
    Vec_PtrFree( vNodes );
    // set the final values
    Abc_NtkForEachLatch( pNtk, pObj, i )
        pObj->pData = (void *)(ABC_PTRUINT_T)(Abc_ObjFanout0(pObj)->pCopy ? ABC_INIT_ONE : ABC_INIT_ZERO);
}

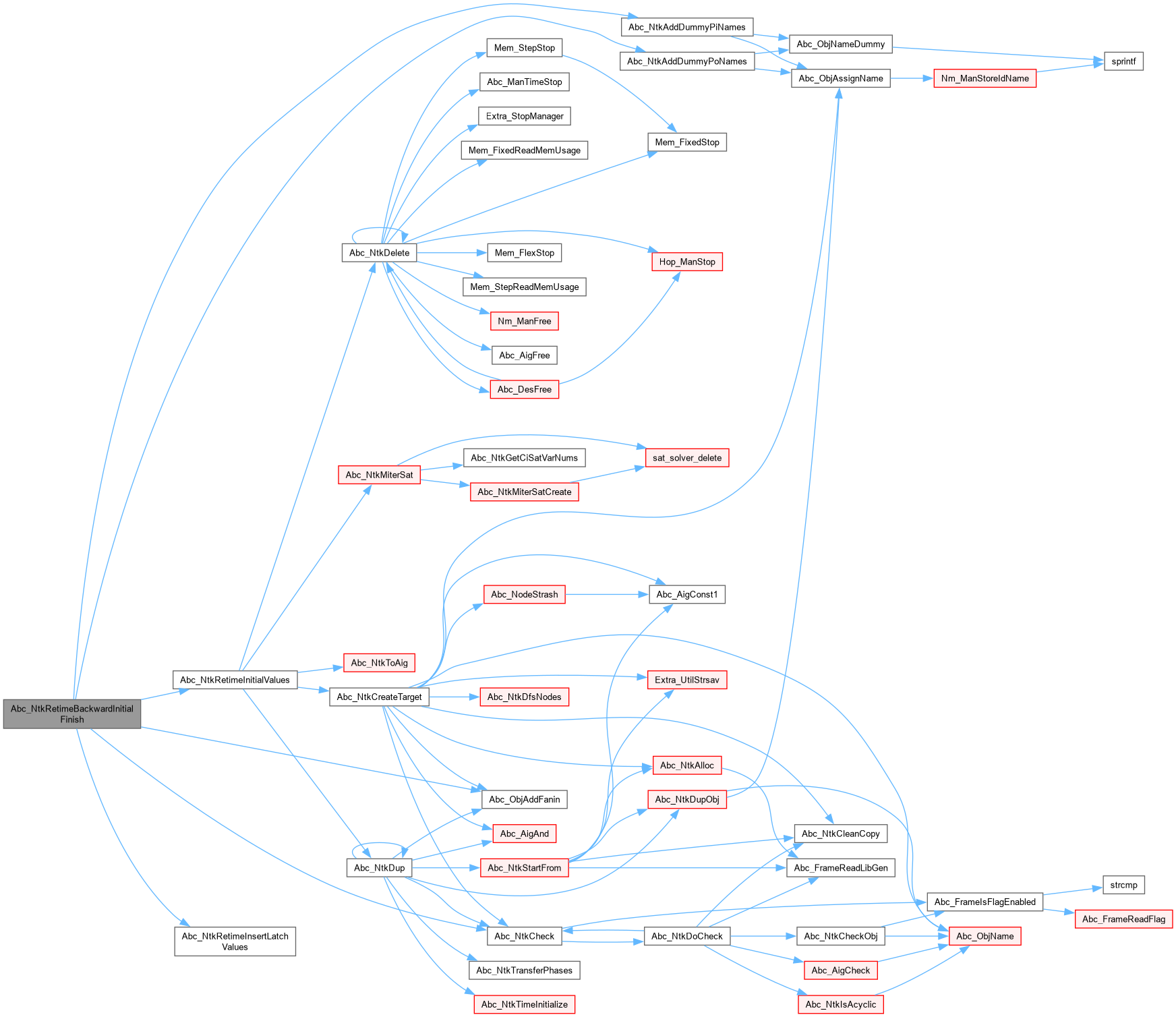

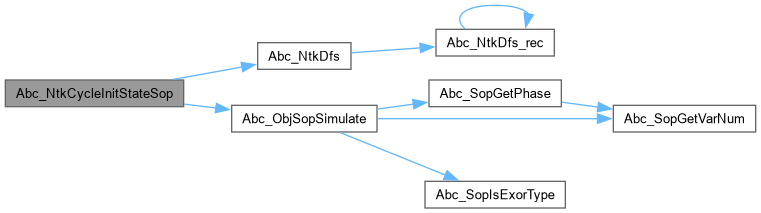

Here is the call graph for this function:

Abc_NtkRetimeBackwardInitialFinish()

void Abc_NtkRetimeBackwardInitialFinish	(	Abc_Ntk_t *	pNtk,
		Abc_Ntk_t *	pNtkNew,
		Vec_Int_t *	vValuesOld,
		int	fVerbose )

Function*************************************************************

Synopsis [Transfer latch initial values to pCopy.]

Description []

SideEffects []

SeeAlso []

Definition at line 279 of file retInit.c.

{
    Vec_Int_t * vValuesNew;
    Abc_Obj_t * pObj;
    int i;
    // create PIs corresponding to the initial values
    Abc_NtkForEachObj( pNtk, pObj, i )
        if ( Abc_ObjIsLatch(pObj) )
            Abc_ObjAddFanin( pObj->pCopy, Abc_NtkCreatePi(pNtkNew) );
    // assign dummy node names
    Abc_NtkAddDummyPiNames( pNtkNew );
    Abc_NtkAddDummyPoNames( pNtkNew );
    // check the network
    if ( !Abc_NtkCheck( pNtkNew ) )
        fprintf( stdout, "Abc_NtkRetimeBackwardInitialFinish(): Network check has failed.\n" );
    // derive new initial values
    vValuesNew = Abc_NtkRetimeInitialValues( pNtkNew, vValuesOld, fVerbose );
    // insert new initial values
    Abc_NtkRetimeInsertLatchValues( pNtk, vValuesNew );
    if ( vValuesNew ) Vec_IntFree( vValuesNew );
}

Here is the call graph for this function:

Abc_NtkRetimeBackwardInitialStart()

Abc_Ntk_t * Abc_NtkRetimeBackwardInitialStart

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Transfer latch initial values to pCopy.]

Description []

SideEffects []

SeeAlso []

Definition at line 254 of file retInit.c.

{
    Abc_Ntk_t * pNtkNew;
    Abc_Obj_t * pObj;
    int i;
    // create the network used for the initial state computation
    pNtkNew = Abc_NtkAlloc( ABC_NTK_LOGIC, ABC_FUNC_SOP, 1 );
    // create POs corresponding to the initial values
    Abc_NtkForEachObj( pNtk, pObj, i )
        if ( Abc_ObjIsLatch(pObj) )
            pObj->pCopy = Abc_NtkCreatePo(pNtkNew);
    return pNtkNew;
}

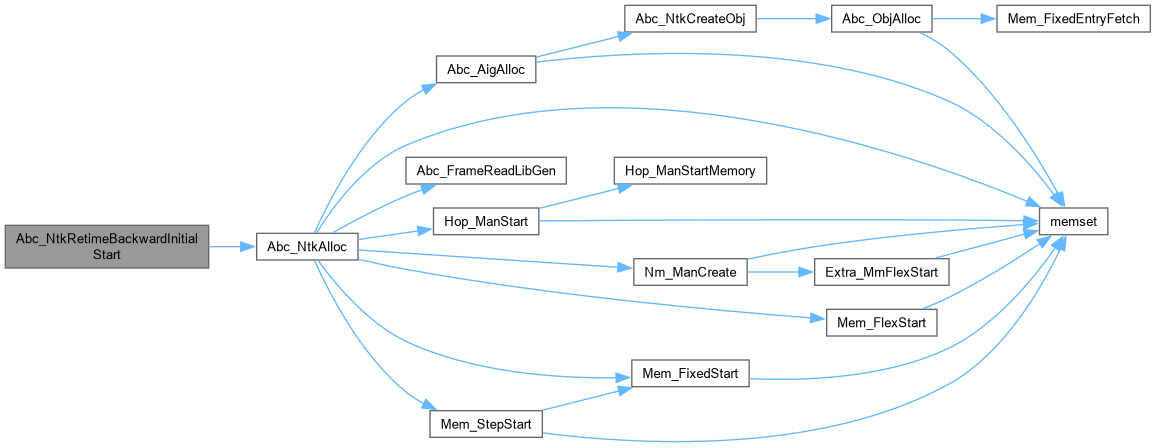

Here is the call graph for this function:

Abc_NtkRetimeCollectLatchValues()

Vec_Int_t * Abc_NtkRetimeCollectLatchValues

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Transfer latch initial values to pCopy.]

Description []

SideEffects []

SeeAlso []

Definition at line 208 of file retInit.c.

{
    Vec_Int_t * vValues;
    Abc_Obj_t * pObj;
    int i;
    vValues = Vec_IntAlloc( Abc_NtkLatchNum(pNtk) );
    Abc_NtkForEachObj( pNtk, pObj, i )
        if ( Abc_ObjIsLatch(pObj) )
            Vec_IntPush( vValues, Abc_LatchIsInit1(pObj) );
    return vValues;
}

Abc_NtkRetimeInitialValues()

Vec_Int_t * Abc_NtkRetimeInitialValues	(	Abc_Ntk_t *	pNtkCone,
		Vec_Int_t *	vValues,
		int	fVerbose )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Computes initial values of the new latches.]

Description []

SideEffects []

SeeAlso []

Definition at line 47 of file retInit.c.

{
    Vec_Int_t * vSolution;
    Abc_Ntk_t * pNtkMiter, * pNtkLogic;
    int RetValue;
    abctime clk;
    if ( pNtkCone == NULL )
        return Vec_IntDup( vValues );
    // convert the target network to AIG
    pNtkLogic = Abc_NtkDup( pNtkCone );
    Abc_NtkToAig( pNtkLogic );
    // get the miter
    pNtkMiter = Abc_NtkCreateTarget( pNtkLogic, pNtkLogic->vCos, vValues );
    if ( fVerbose )
        printf( "The miter for initial state computation has %d AIG nodes. ", Abc_NtkNodeNum(pNtkMiter) );
    // solve the miter
    clk = Abc_Clock();
    RetValue = Abc_NtkMiterSat( pNtkMiter, (ABC_INT64_T)500000, (ABC_INT64_T)50000000, 0, NULL, NULL );
    if ( fVerbose )
        { ABC_PRT( "SAT solving time", Abc_Clock() - clk ); }
    // analyze the result
    if ( RetValue == 1 )
        printf( "Abc_NtkRetimeInitialValues(): The problem is unsatisfiable. DC latch values are used.\n" );
    else if ( RetValue == -1 )
        printf( "Abc_NtkRetimeInitialValues(): The SAT problem timed out. DC latch values are used.\n" );
    else if ( !Abc_NtkRetimeVerifyModel( pNtkCone, vValues, pNtkMiter->pModel ) )
        printf( "Abc_NtkRetimeInitialValues(): The computed counter-example is incorrect.\n" );
    // set the values of the latches
    vSolution = RetValue? NULL : Vec_IntAllocArray( pNtkMiter->pModel, Abc_NtkPiNum(pNtkLogic) );
    pNtkMiter->pModel = NULL;
    Abc_NtkDelete( pNtkMiter );
    Abc_NtkDelete( pNtkLogic );
    return vSolution;
}

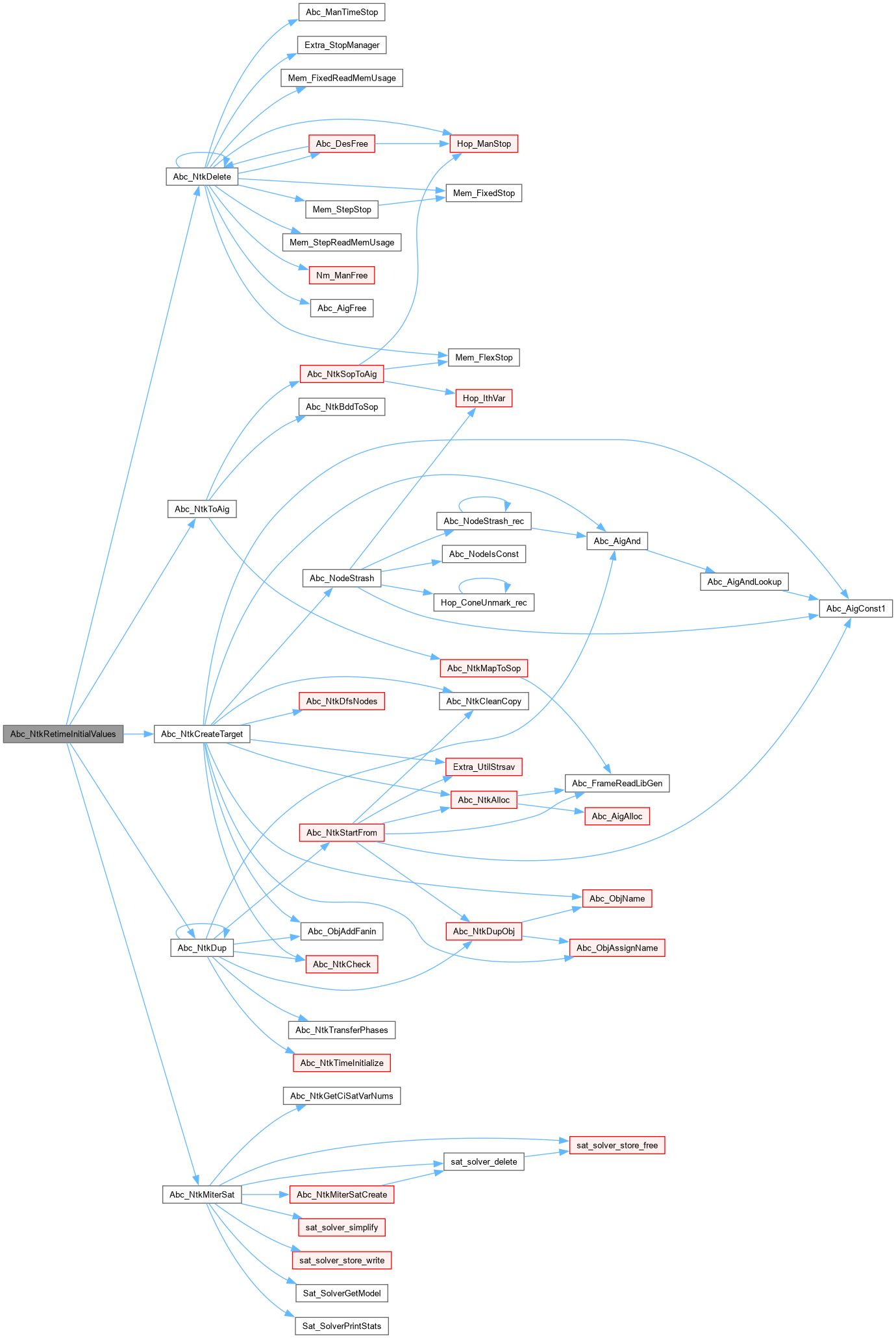

Here is the call graph for this function:

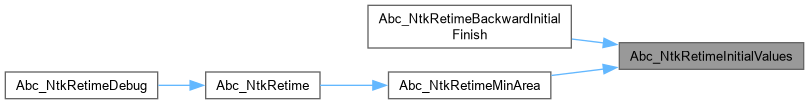

Here is the caller graph for this function:

Abc_NtkRetimeInsertLatchValues()

void Abc_NtkRetimeInsertLatchValues	(	Abc_Ntk_t *	pNtk,
		Vec_Int_t *	vValues )

Function*************************************************************

Synopsis [Transfer latch initial values from pCopy.]

Description []

SideEffects []

SeeAlso []

Definition at line 231 of file retInit.c.

{
    Abc_Obj_t * pObj;
    int i, Counter = 0;
    Abc_NtkForEachObj( pNtk, pObj, i )
        if ( Abc_ObjIsLatch(pObj) )
            pObj->pCopy = (Abc_Obj_t *)(ABC_PTRUINT_T)Counter++;
    Abc_NtkForEachObj( pNtk, pObj, i )
        if ( Abc_ObjIsLatch(pObj) )
            pObj->pData = (Abc_Obj_t *)(ABC_PTRUINT_T)(vValues? (Vec_IntEntry(vValues,(int)(ABC_PTRUINT_T)pObj->pCopy)? ABC_INIT_ONE : ABC_INIT_ZERO) : ABC_INIT_DC);
}

Here is the caller graph for this function:

Abc_NtkRetimeTranferFromCopy()

void Abc_NtkRetimeTranferFromCopy

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Transfer latch initial values from pCopy.]

Description []

SideEffects []

SeeAlso []

Definition at line 188 of file retInit.c.

{
    Abc_Obj_t * pObj;
    int i;
    Abc_NtkForEachObj( pNtk, pObj, i )
        if ( Abc_ObjIsLatch(pObj) )
            pObj->pData = (void *)(ABC_PTRUINT_T)(pObj->pCopy? ABC_INIT_ONE : ABC_INIT_ZERO);
}

Abc_NtkRetimeTranferToCopy()

void Abc_NtkRetimeTranferToCopy

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Transfer latch initial values to pCopy.]

Description []

SideEffects []

SeeAlso []

Definition at line 168 of file retInit.c.

{
    Abc_Obj_t * pObj;
    int i;
    Abc_NtkForEachObj( pNtk, pObj, i )
        if ( Abc_ObjIsLatch(pObj) )
            pObj->pCopy = (Abc_Obj_t *)(ABC_PTRUINT_T)Abc_LatchIsInit1(pObj);
}

Abc_ObjSopSimulate()

int Abc_ObjSopSimulate

(

Abc_Obj_t *

pObj

)

Function*************************************************************

Synopsis [Computes the results of simulating one node.]

Description [Assumes that fanins have pCopy set to the input values.]

SideEffects []

SeeAlso []

Definition at line 93 of file retInit.c.

{
    char * pCube, * pSop = (char *)pObj->pData;
    int nVars, Value, v, ResOr, ResAnd, ResVar;
    assert( pSop && !Abc_SopIsExorType(pSop) );
    // simulate the SOP of the node
    ResOr = 0;
    nVars = Abc_SopGetVarNum(pSop);
    Abc_SopForEachCube( pSop, nVars, pCube )
    {
        ResAnd = 1;
        Abc_CubeForEachVar( pCube, Value, v )
        {
            if ( Value == '0' )
                ResVar = 1 ^ ((int)(ABC_PTRUINT_T)Abc_ObjFanin(pObj, v)->pCopy);
            else if ( Value == '1' )
                ResVar = (int)(ABC_PTRUINT_T)Abc_ObjFanin(pObj, v)->pCopy;
            else
                continue;
            ResAnd &= ResVar;
        }
        ResOr |= ResAnd;
    }
    // complement the result if necessary
    if ( !Abc_SopGetPhase(pSop) )
        ResOr ^= 1;
    return ResOr;
}

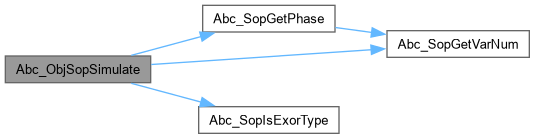

Here is the call graph for this function:

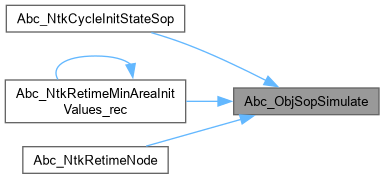

Here is the caller graph for this function:
