rwrUtil.c File Reference

#include "rwr.h"

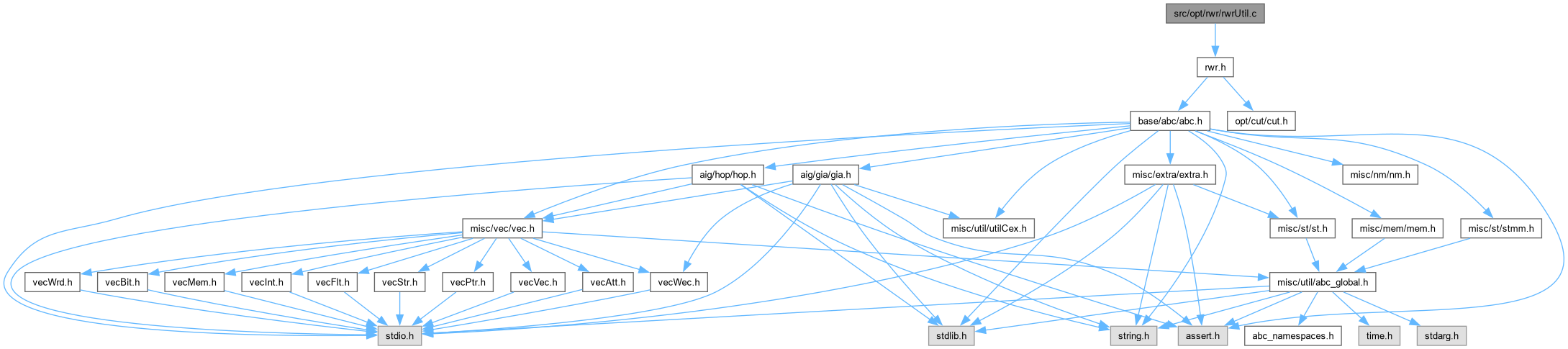

Include dependency graph for rwrUtil.c:

Go to the source code of this file.

Functions
void	Rwr_ManWriteToArray (Rwr_Man_t *p)
	FUNCTION DEFINITIONS ///.
void	Rwr_ManLoadFromArray (Rwr_Man_t *p, int fVerbose)
void	Rwr_ManWriteToFile (Rwr_Man_t *p, char *pFileName)
void	Rwr_ManLoadFromFile (Rwr_Man_t *p, char *pFileName)
void	Rwr_ListAddToTail (Rwr_Node_t **ppList, Rwr_Node_t *pNode)
char *	Rwr_ManGetPractical (Rwr_Man_t *p)

Function Documentation

Rwr_ListAddToTail()

void Rwr_ListAddToTail	(	Rwr_Node_t **	ppList,
		Rwr_Node_t *	pNode )

Function*************************************************************

Synopsis [Adds the node to the end of the list.]

Description []

SideEffects []

SeeAlso []

Definition at line 619 of file rwrUtil.c.

{
    Rwr_Node_t * pTemp;
    // find the last one
    for ( pTemp = *ppList; pTemp; pTemp = pTemp->pNext )
        ppList = &pTemp->pNext;
    // attach at the end
    *ppList = pNode;
}

Here is the caller graph for this function:

Rwr_ManGetPractical()

char * Rwr_ManGetPractical

(

Rwr_Man_t *

p

)

Function*************************************************************

Synopsis [Create practical classes.]

Description []

SideEffects []

SeeAlso []

Definition at line 640 of file rwrUtil.c.

{
    char * pPractical;
    int i;
    pPractical = ABC_ALLOC( char, p->nFuncs );
    memset( pPractical, 0, sizeof(char) * p->nFuncs );
    pPractical[0] = 1;
    for ( i = 1; ; i++ )
    {
        if ( s_RwrPracticalClasses[i] == 0 )
            break;
        pPractical[ s_RwrPracticalClasses[i] ] = 1;
    }
    return pPractical;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rwr_ManLoadFromArray()

void Rwr_ManLoadFromArray	(	Rwr_Man_t *	p,
		int	fVerbose )

Function*************************************************************

Synopsis [Loads data.]

Description []

SideEffects []

SeeAlso []

Definition at line 472 of file rwrUtil.c.

{
    unsigned short * pArray = s_RwtAigSubgraphs;
    Rwr_Node_t * p0, * p1;
    unsigned Entry0, Entry1;
    int Level, Volume, nEntries, fExor;
    int i;
    abctime clk = Abc_Clock();

    // reconstruct the forest
    for ( i = 0; ; i++ )
    {
        Entry0 = pArray[2*i + 0];
        Entry1 = pArray[2*i + 1];
        if ( Entry0 == 0 && Entry1 == 0 )
            break;
        // get EXOR flag
        fExor = (Entry0 & 1);
        Entry0 >>= 1;
        // get the nodes
        p0 = (Rwr_Node_t *)p->vForest->pArray[Entry0 >> 1];
        p1 = (Rwr_Node_t *)p->vForest->pArray[Entry1 >> 1];
        // compute the level and volume of the new nodes
        Level  = 1 + Abc_MaxInt( p0->Level, p1->Level );
        Volume = 1 + Rwr_ManNodeVolume( p, p0, p1 );
        // set the complemented attributes
        p0 = Rwr_NotCond( p0, (Entry0 & 1) );
        p1 = Rwr_NotCond( p1, (Entry1 & 1) );
        // add the node
//        Rwr_ManTryNode( p, p0, p1, Level, Volume );
        Rwr_ManAddNode( p, p0, p1, fExor, Level, Volume + fExor );
    }
    nEntries = i - 1;
    if ( fVerbose )
    {
        printf( "The number of classes = %d. Canonical nodes = %d.\n", p->nClasses, p->nAdded );
        printf( "The number of nodes loaded = %d.  ", nEntries );  ABC_PRT( "Loading", Abc_Clock() - clk );
    }
}

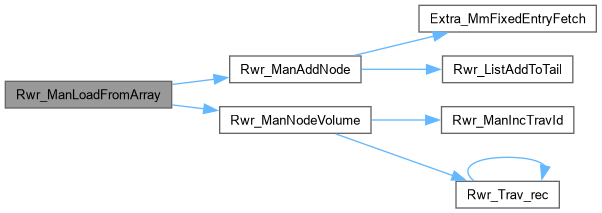

Here is the call graph for this function:

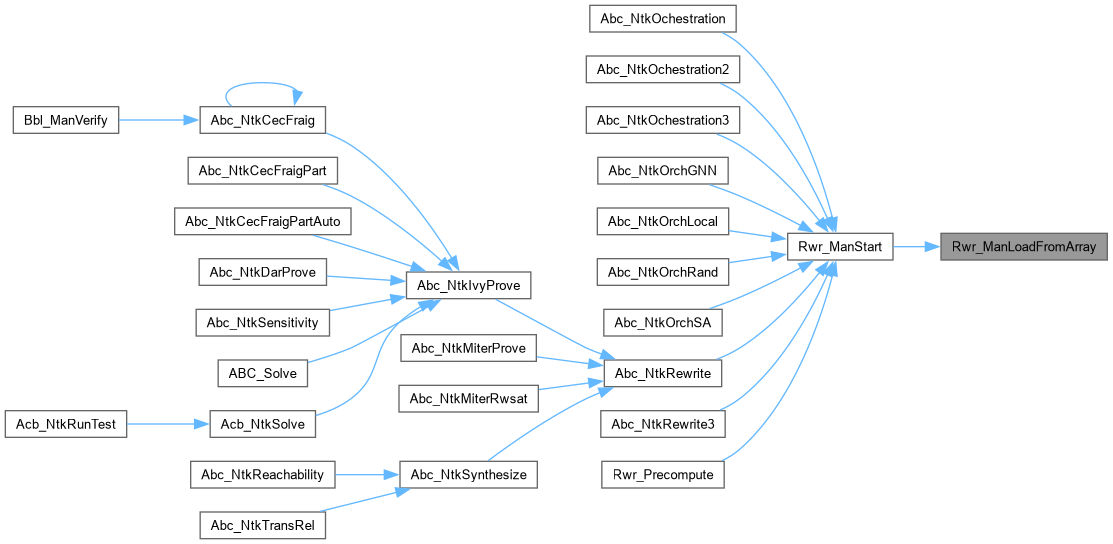

Here is the caller graph for this function:

Rwr_ManLoadFromFile()

void Rwr_ManLoadFromFile	(	Rwr_Man_t *	p,
		char *	pFileName )

Function*************************************************************

Synopsis [Loads data.]

Description []

SideEffects []

SeeAlso []

Definition at line 562 of file rwrUtil.c.

{
    FILE * pFile;
    Rwr_Node_t * p0, * p1;
    unsigned * pBuffer;
    int Level, Volume, nEntries, fExor;
    int i;
    abctime clk = Abc_Clock();
    int RetValue;

    // load the data
    pFile = fopen( pFileName, "rb" );
    if ( pFile == NULL )
    {
        printf( "Rwr_ManLoadFromFile: Cannot open file \"%s\".\n", pFileName );
        return;
    }
    RetValue = fread( &nEntries, sizeof(int), 1, pFile );
    pBuffer = ABC_ALLOC( unsigned, nEntries * 2 );
    RetValue = fread( pBuffer, sizeof(unsigned), nEntries * 2, pFile );
    fclose( pFile );
    // reconstruct the forest
    for ( i = 0; i < nEntries; i++ )
    {
        // get EXOR flag
        fExor = (pBuffer[2*i + 0] & 1);
        pBuffer[2*i + 0] = (pBuffer[2*i + 0] >> 1);
        // get the nodes
        p0 = (Rwr_Node_t *)p->vForest->pArray[pBuffer[2*i + 0] >> 1];
        p1 = (Rwr_Node_t *)p->vForest->pArray[pBuffer[2*i + 1] >> 1];
        // compute the level and volume of the new nodes
        Level  = 1 + Abc_MaxInt( p0->Level, p1->Level );
        Volume = 1 + Rwr_ManNodeVolume( p, p0, p1 );
        // set the complemented attributes
        p0 = Rwr_NotCond( p0, (pBuffer[2*i + 0] & 1) );
        p1 = Rwr_NotCond( p1, (pBuffer[2*i + 1] & 1) );
        // add the node
//        Rwr_ManTryNode( p, p0, p1, Level, Volume );
        Rwr_ManAddNode( p, p0, p1, fExor, Level, Volume + fExor );
    }
    ABC_FREE( pBuffer );
    printf( "The number of classes = %d. Canonical nodes = %d.\n", p->nClasses, p->nAdded );
    printf( "The number of nodes loaded = %d.   ", nEntries );  ABC_PRT( "Loading", Abc_Clock() - clk );
}

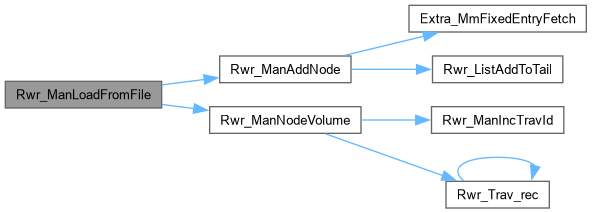

Here is the call graph for this function:

Rwr_ManWriteToArray()

void Rwr_ManWriteToArray

(

Rwr_Man_t *

p

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Writes data.]

Description []

SideEffects []

SeeAlso []

Definition at line 426 of file rwrUtil.c.

{
    FILE * pFile;
    Rwr_Node_t * pNode;
    unsigned Entry0, Entry1;
    int i, nEntries;
    abctime clk = Abc_Clock();
    // prepare the buffer
    nEntries = p->vForest->nSize - 5;
    pFile = fopen( "npn4_aig_array.txt", "w" );
    fprintf( pFile, "static unsigned short s_RwtAigSubgraphs[] = \n{" );
    for ( i = 0; i < nEntries; i++ )
    {
        if ( i % 5 == 0 )
            fprintf( pFile, "\n    " );
        pNode = (Rwr_Node_t *)p->vForest->pArray[i+5];
        Entry0 = (Rwr_Regular(pNode->p0)->Id << 1) | Rwr_IsComplement(pNode->p0);
        Entry1 = (Rwr_Regular(pNode->p1)->Id << 1) | Rwr_IsComplement(pNode->p1);
        Entry0 = (Entry0 << 1) | pNode->fExor;
        Extra_PrintHex( pFile, &Entry0, 4 );
        fprintf( pFile, "," );
        Extra_PrintHex( pFile, &Entry1, 4 );
        fprintf( pFile, ", " );
    }
    if ( i % 5 == 0 )
        fprintf( pFile, "\n    " );
    Entry0 = 0;
    Extra_PrintHex( pFile, &Entry0, 4 );
    fprintf( pFile, "," );
    Extra_PrintHex( pFile, &Entry0, 4 );
    fprintf( pFile, " \n};\n" );
    fclose( pFile );
    printf( "The number of nodes saved = %d.   ", nEntries );  ABC_PRT( "Saving", Abc_Clock() - clk );
}

Here is the call graph for this function:

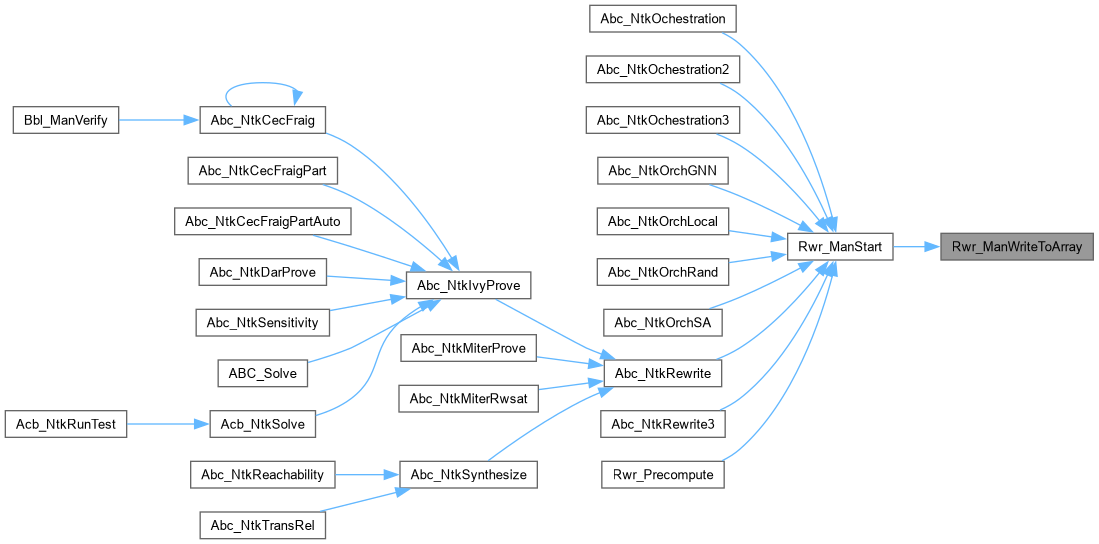

Here is the caller graph for this function:

Rwr_ManWriteToFile()

void Rwr_ManWriteToFile	(	Rwr_Man_t *	p,
		char *	pFileName )

Function*************************************************************

Synopsis [Writes.]

Description []

SideEffects []

SeeAlso []

Definition at line 524 of file rwrUtil.c.

{
    FILE * pFile;
    Rwr_Node_t * pNode;
    unsigned * pBuffer;
    int i, nEntries;
    abctime clk = Abc_Clock();
    // prepare the buffer
    nEntries = p->vForest->nSize - 5;
    pBuffer = ABC_ALLOC( unsigned, nEntries * 2 );
    for ( i = 0; i < nEntries; i++ )
    {
        pNode = (Rwr_Node_t *)p->vForest->pArray[i+5];
        pBuffer[2*i + 0] = (Rwr_Regular(pNode->p0)->Id << 1) | Rwr_IsComplement(pNode->p0);
        pBuffer[2*i + 1] = (Rwr_Regular(pNode->p1)->Id << 1) | Rwr_IsComplement(pNode->p1);
        // save EXOR flag
        pBuffer[2*i + 0] = (pBuffer[2*i + 0] << 1) | pNode->fExor;

    }
    pFile = fopen( pFileName, "wb" );
    fwrite( &nEntries, sizeof(int), 1, pFile );
    fwrite( pBuffer, sizeof(unsigned), nEntries * 2, pFile );
    ABC_FREE( pBuffer );
    fclose( pFile );
    printf( "The number of nodes saved = %d.   ", nEntries );  ABC_PRT( "Saving", Abc_Clock() - clk );
}
