rwr.h File Reference

#include "base/abc/abc.h"
#include "opt/cut/cut.h"

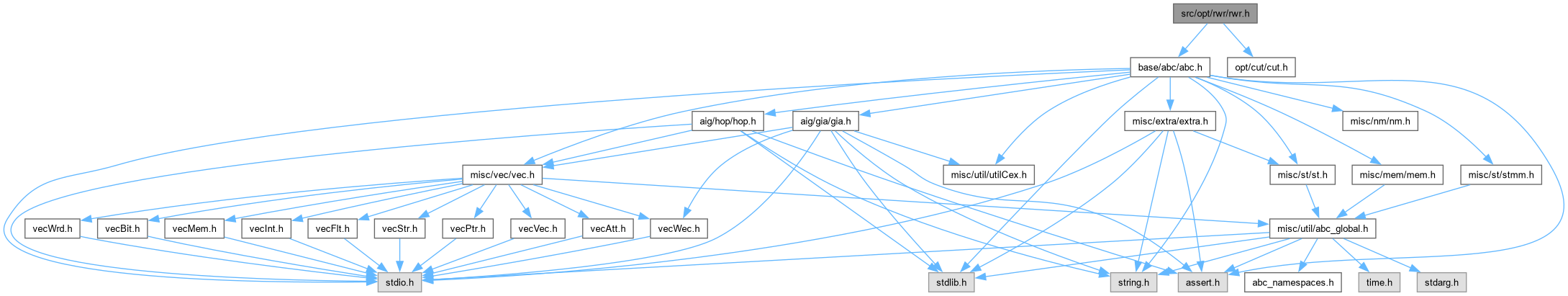

Include dependency graph for rwr.h:

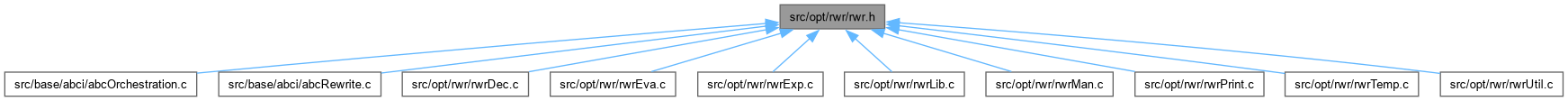

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	Rwr_Man_t_
struct	Rwr_Node_t_

Macros
#define	RWR_LIMIT   1048576/4
	INCLUDES ///.

Typedefs
typedef struct Rwr_Man_t_	Rwr_Man_t
typedef struct Rwr_Node_t_	Rwr_Node_t

Functions
void	Rwr_ManPreprocess (Rwr_Man_t *p)
	MACRO DEFINITIONS ///.
int	Rwr_NodeRewrite (Rwr_Man_t *p, Cut_Man_t *pManCut, Abc_Obj_t *pNode, int fUpdateLevel, int fUseZeros, int fPlaceEnable)
	FUNCTION DEFINITIONS ///.
void	Rwr_ScoresClean (Rwr_Man_t *p)
void	Rwr_ScoresReport (Rwr_Man_t *p)
void	Rwr_ManPrecompute (Rwr_Man_t *p)
	FUNCTION DEFINITIONS ///.
Rwr_Node_t *	Rwr_ManAddVar (Rwr_Man_t *p, unsigned uTruth, int fPrecompute)
Rwr_Node_t *	Rwr_ManAddNode (Rwr_Man_t *p, Rwr_Node_t *p0, Rwr_Node_t *p1, int fExor, int Level, int Volume)
int	Rwr_ManNodeVolume (Rwr_Man_t *p, Rwr_Node_t *p0, Rwr_Node_t *p1)
void	Rwr_ManIncTravId (Rwr_Man_t *p)

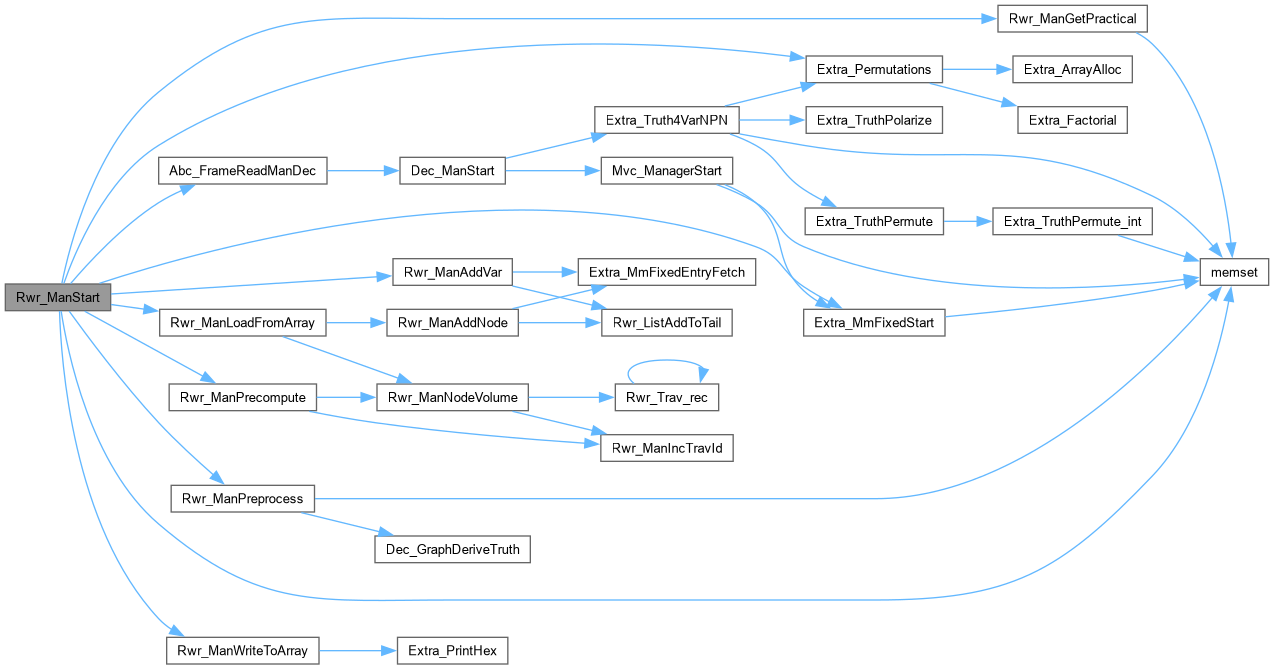

Rwr_Man_t *	Rwr_ManStart (int fPrecompute)
	DECLARATIONS ///.
void	Rwr_ManStop (Rwr_Man_t *p)

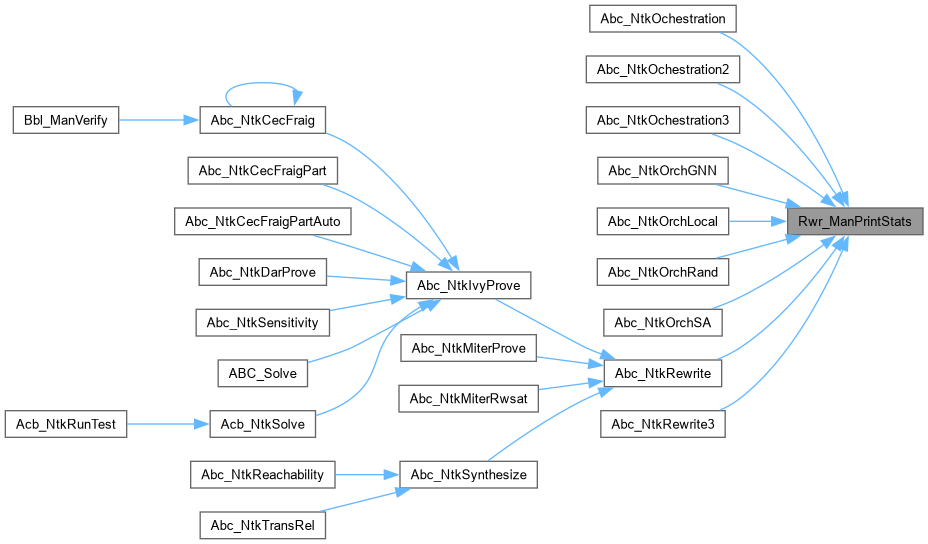

void	Rwr_ManPrintStats (Rwr_Man_t *p)
void	Rwr_ManPrintStatsFile (Rwr_Man_t *p)
void *	Rwr_ManReadDecs (Rwr_Man_t *p)
Vec_Ptr_t *	Rwr_ManReadLeaves (Rwr_Man_t *p)
int	Rwr_ManReadCompl (Rwr_Man_t *p)
void	Rwr_ManAddTimeCuts (Rwr_Man_t *p, abctime Time)
void	Rwr_ManAddTimeUpdate (Rwr_Man_t *p, abctime Time)
void	Rwr_ManAddTimeTotal (Rwr_Man_t *p, abctime Time)

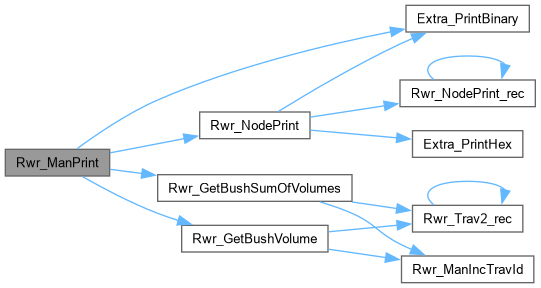

void	Rwr_ManPrint (Rwr_Man_t *p)
void	Rwr_ManWriteToArray (Rwr_Man_t *p)
	FUNCTION DEFINITIONS ///.
void	Rwr_ManLoadFromArray (Rwr_Man_t *p, int fVerbose)
void	Rwr_ManWriteToFile (Rwr_Man_t *p, char *pFileName)
void	Rwr_ManLoadFromFile (Rwr_Man_t *p, char *pFileName)
void	Rwr_ListAddToTail (Rwr_Node_t **ppList, Rwr_Node_t *pNode)
char *	Rwr_ManGetPractical (Rwr_Man_t *p)

Macro Definition Documentation

RWR_LIMIT

#define RWR_LIMIT   1048576/4

INCLUDES ///.

CFile****************************************************************

FileName [rwr.h]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [DAG-aware AIG rewriting package.]

Synopsis [External declarations.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

rwr.h,v 1.00 2005/06/20 00:00:00 alanmi Exp

] PARAMETERS /// BASIC TYPES ///

Definition at line 45 of file rwr.h.

Typedef Documentation

Rwr_Man_t

typedef struct Rwr_Man_t_ Rwr_Man_t

Definition at line 47 of file rwr.h.

Rwr_Node_t

typedef struct Rwr_Node_t_ Rwr_Node_t

Definition at line 48 of file rwr.h.

Function Documentation

Rwr_ListAddToTail()

void Rwr_ListAddToTail ( Rwr_Node_t ** ppList, Rwr_Node_t * pNode )

extern

Function*************************************************************

Synopsis [Adds the node to the end of the list.]

Description []

SideEffects []

SeeAlso []

Definition at line 619 of file rwrUtil.c.

{
    Rwr_Node_t * pTemp;
    // find the last one
    for ( pTemp = *ppList; pTemp; pTemp = pTemp->pNext )
        ppList = &pTemp->pNext;
    // attach at the end
    *ppList = pNode;
}

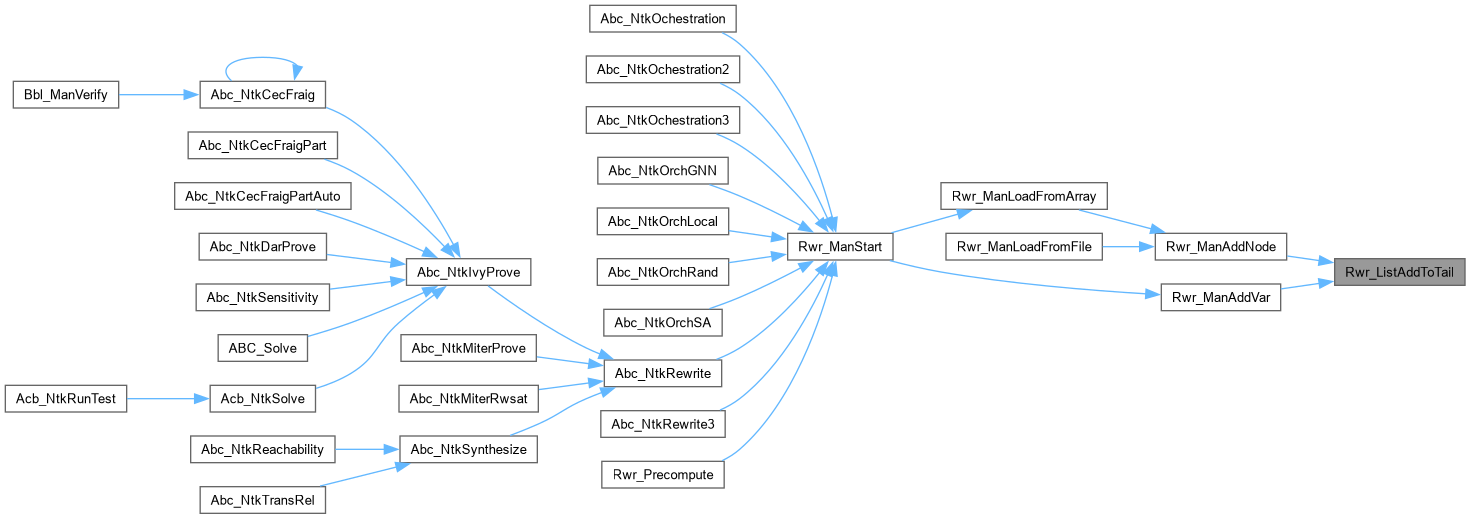

Here is the caller graph for this function:

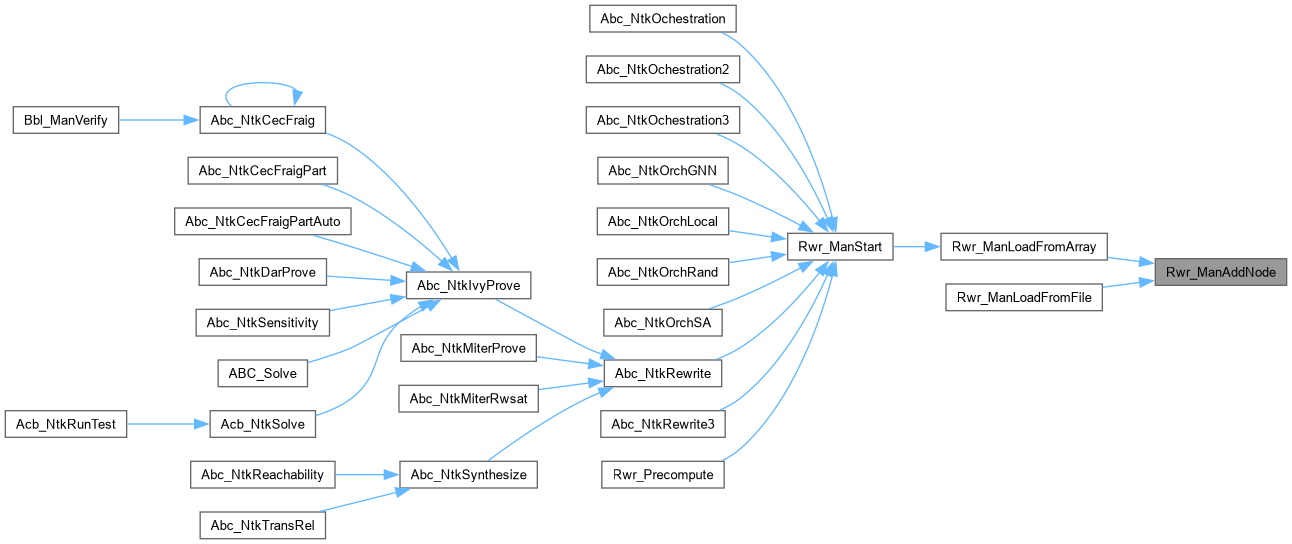

Rwr_ManAddNode()

Rwr_Node_t * Rwr_ManAddNode ( Rwr_Man_t * p, Rwr_Node_t * p0, Rwr_Node_t * p1, int fExor, int Level, int Volume )

extern

Function*************************************************************

Synopsis [Adds one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 206 of file rwrLib.c.

{
    Rwr_Node_t * pNew;
    unsigned uTruth;
    // compute truth table, leve, volume
    p->nConsidered++;
    if ( fExor )
        uTruth = (p0->uTruth ^ p1->uTruth);
    else
        uTruth = (Rwr_IsComplement(p0)? ~Rwr_Regular(p0)->uTruth : Rwr_Regular(p0)->uTruth) &
                 (Rwr_IsComplement(p1)? ~Rwr_Regular(p1)->uTruth : Rwr_Regular(p1)->uTruth) & 0xFFFF;
    // create the new node
    pNew = (Rwr_Node_t *)Extra_MmFixedEntryFetch( p->pMmNode );
    pNew->Id     = p->vForest->nSize;
    pNew->TravId = 0;
    pNew->uTruth = uTruth;
    pNew->Level  = Level;
    pNew->Volume = Volume;
    pNew->fUsed  = 0;
    pNew->fExor  = fExor;
    pNew->p0     = p0;
    pNew->p1     = p1;
    pNew->pNext  = NULL;
    Vec_PtrPush( p->vForest, pNew );
    // do not add if the node is not essential
    if ( uTruth != p->puCanons[uTruth] )
        return pNew;

    // add to the list
    p->nAdded++;
    if ( p->pTable[uTruth] == NULL )
        p->nClasses++;
    Rwr_ListAddToTail( p->pTable + uTruth, pNew );
    return pNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

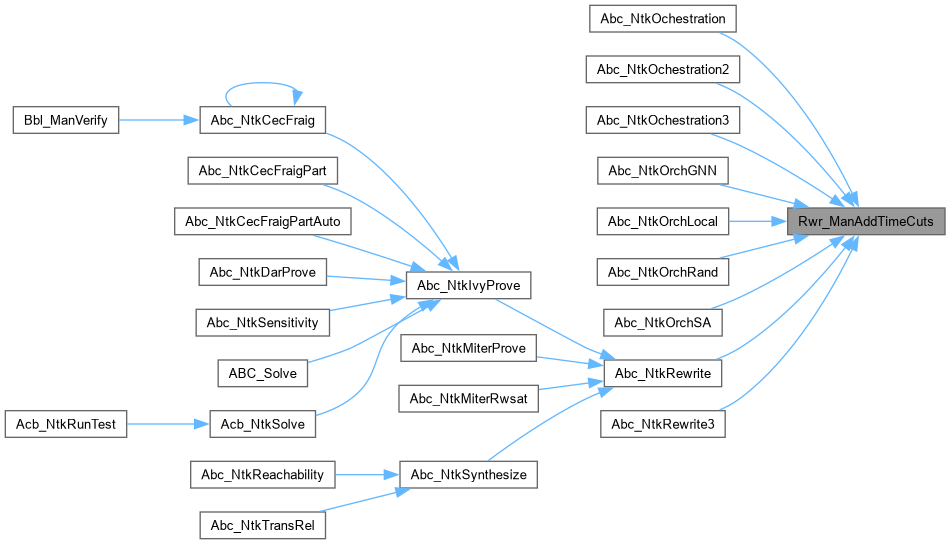

Rwr_ManAddTimeCuts()

void Rwr_ManAddTimeCuts ( Rwr_Man_t * p, abctime Time )

extern

Function*************************************************************

Synopsis [Stops the resynthesis manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 261 of file rwrMan.c.

{
    p->timeCut += Time;
}

Here is the caller graph for this function:

Rwr_ManAddTimeTotal()

void Rwr_ManAddTimeTotal ( Rwr_Man_t * p, abctime Time )

extern

Function*************************************************************

Synopsis [Stops the resynthesis manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 293 of file rwrMan.c.

{
    p->timeTotal += Time;
}

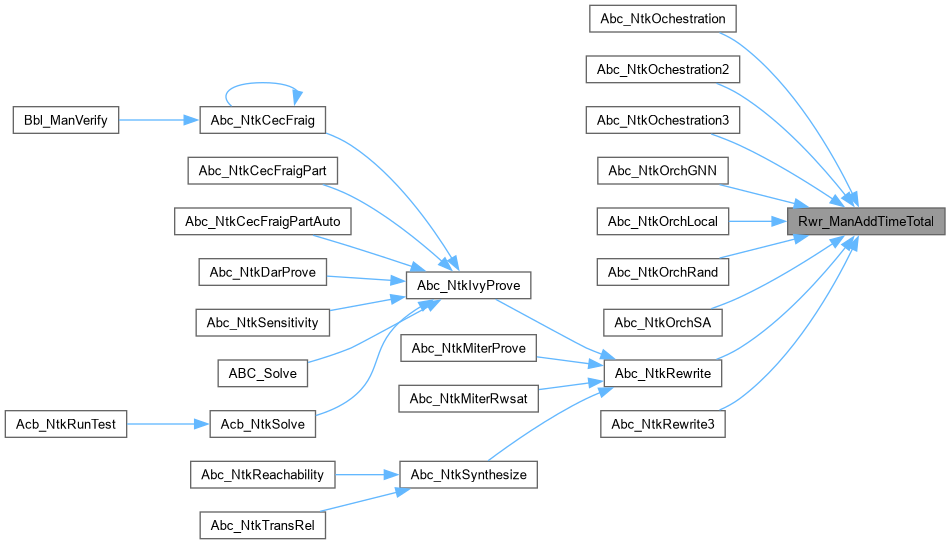

Here is the caller graph for this function:

Rwr_ManAddTimeUpdate()

void Rwr_ManAddTimeUpdate ( Rwr_Man_t * p, abctime Time )

extern

Function*************************************************************

Synopsis [Stops the resynthesis manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 277 of file rwrMan.c.

{
    p->timeUpdate += Time;
}

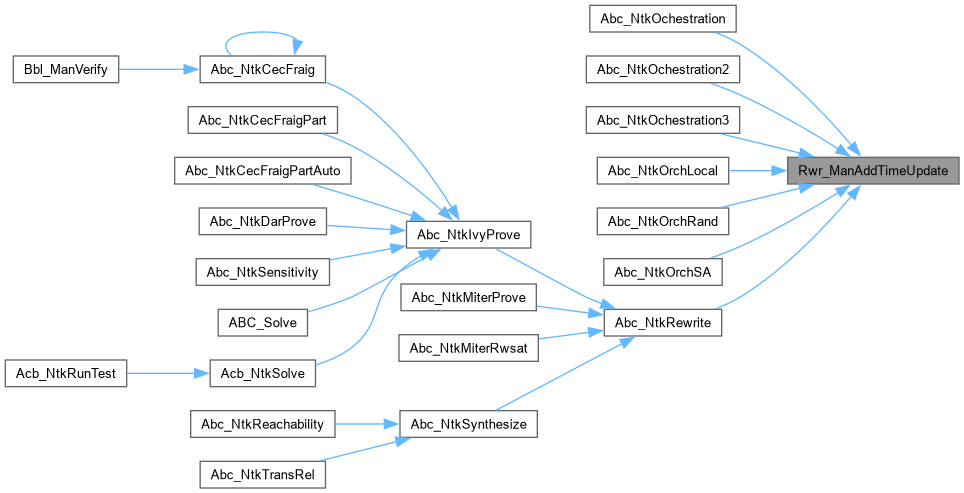

Here is the caller graph for this function:

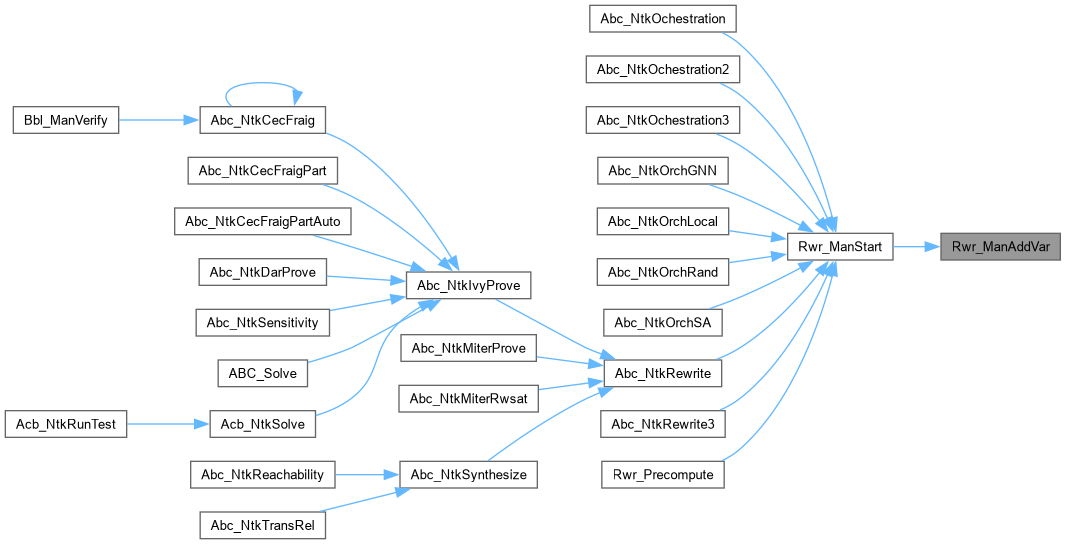

Rwr_ManAddVar()

Rwr_Node_t * Rwr_ManAddVar ( Rwr_Man_t * p, unsigned uTruth, int fPrecompute )

extern

Function*************************************************************

Synopsis [Adds one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 253 of file rwrLib.c.

{
    Rwr_Node_t * pNew;
    pNew = (Rwr_Node_t *)Extra_MmFixedEntryFetch( p->pMmNode );
    pNew->Id     = p->vForest->nSize;
    pNew->TravId = 0;
    pNew->uTruth = uTruth;
    pNew->Level  = 0;
    pNew->Volume = 0;
    pNew->fUsed  = 1;
    pNew->fExor  = 0;
    pNew->p0     = NULL;
    pNew->p1     = NULL;
    pNew->pNext  = NULL;
    Vec_PtrPush( p->vForest, pNew );
    if ( fPrecompute )
        Rwr_ListAddToTail( p->pTable + uTruth, pNew );
    return pNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rwr_ManGetPractical()

char * Rwr_ManGetPractical ( Rwr_Man_t * p )

extern

Function*************************************************************

Synopsis [Create practical classes.]

Description []

SideEffects []

SeeAlso []

Definition at line 640 of file rwrUtil.c.

{
    char * pPractical;
    int i;
    pPractical = ABC_ALLOC( char, p->nFuncs );
    memset( pPractical, 0, sizeof(char) * p->nFuncs );
    pPractical[0] = 1;
    for ( i = 1; ; i++ )
    {
        if ( s_RwrPracticalClasses[i] == 0 )
            break;
        pPractical[ s_RwrPracticalClasses[i] ] = 1;
    }
    return pPractical;
}

Here is the call graph for this function:

Here is the caller graph for this function:

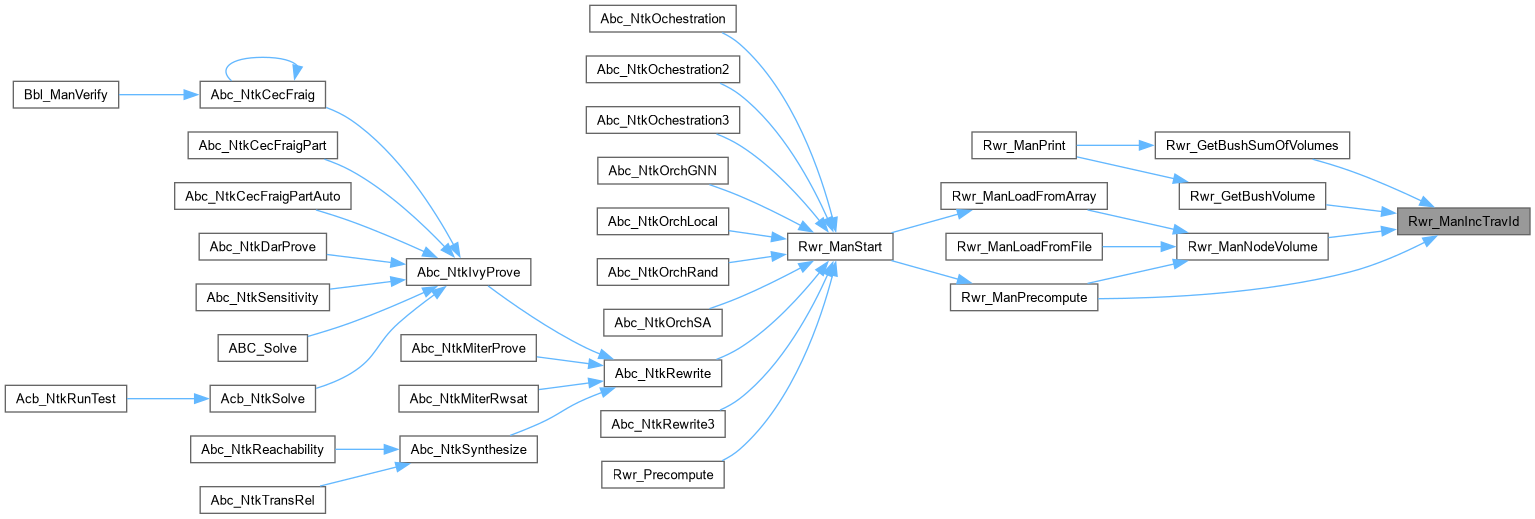

Rwr_ManIncTravId()

void Rwr_ManIncTravId ( Rwr_Man_t * p )

extern

Function*************************************************************

Synopsis [Adds one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 350 of file rwrLib.c.

{
    Rwr_Node_t * pNode;
    int i;
    if ( p->nTravIds++ < 0x8FFFFFFF )
        return;
    Vec_PtrForEachEntry( Rwr_Node_t *, p->vForest, pNode, i )
        pNode->TravId = 0;
    p->nTravIds = 1;
}

Here is the caller graph for this function:

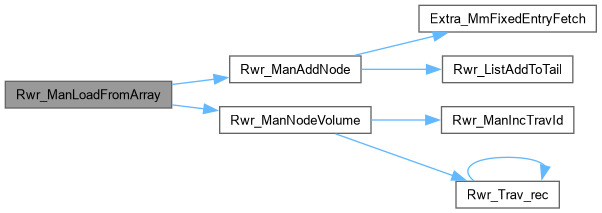

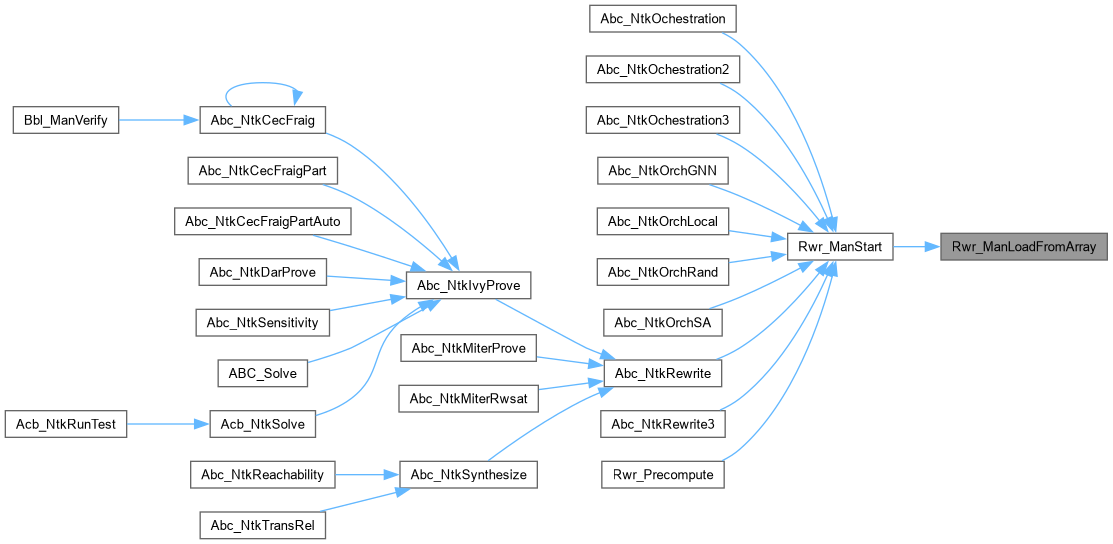

Rwr_ManLoadFromArray()

void Rwr_ManLoadFromArray ( Rwr_Man_t * p, int fVerbose )

extern

Function*************************************************************

Synopsis [Loads data.]

Description []

SideEffects []

SeeAlso []

Definition at line 472 of file rwrUtil.c.

{
    unsigned short * pArray = s_RwtAigSubgraphs;
    Rwr_Node_t * p0, * p1;
    unsigned Entry0, Entry1;
    int Level, Volume, nEntries, fExor;
    int i;
    abctime clk = Abc_Clock();

    // reconstruct the forest
    for ( i = 0; ; i++ )
    {
        Entry0 = pArray[2*i + 0];
        Entry1 = pArray[2*i + 1];
        if ( Entry0 == 0 && Entry1 == 0 )
            break;
        // get EXOR flag
        fExor = (Entry0 & 1);
        Entry0 >>= 1;
        // get the nodes
        p0 = (Rwr_Node_t *)p->vForest->pArray[Entry0 >> 1];
        p1 = (Rwr_Node_t *)p->vForest->pArray[Entry1 >> 1];
        // compute the level and volume of the new nodes
        Level  = 1 + Abc_MaxInt( p0->Level, p1->Level );
        Volume = 1 + Rwr_ManNodeVolume( p, p0, p1 );
        // set the complemented attributes
        p0 = Rwr_NotCond( p0, (Entry0 & 1) );
        p1 = Rwr_NotCond( p1, (Entry1 & 1) );
        // add the node
//        Rwr_ManTryNode( p, p0, p1, Level, Volume );
        Rwr_ManAddNode( p, p0, p1, fExor, Level, Volume + fExor );
    }
    nEntries = i - 1;
    if ( fVerbose )
    {
        printf( "The number of classes = %d. Canonical nodes = %d.\n", p->nClasses, p->nAdded );
        printf( "The number of nodes loaded = %d.  ", nEntries );  ABC_PRT( "Loading", Abc_Clock() - clk );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rwr_ManLoadFromFile()

void Rwr_ManLoadFromFile ( Rwr_Man_t * p, char * pFileName )

extern

Function*************************************************************

Synopsis [Loads data.]

Description []

SideEffects []

SeeAlso []

Definition at line 562 of file rwrUtil.c.

{
    FILE * pFile;
    Rwr_Node_t * p0, * p1;
    unsigned * pBuffer;
    int Level, Volume, nEntries, fExor;
    int i;
    abctime clk = Abc_Clock();
    int RetValue;

    // load the data
    pFile = fopen( pFileName, "rb" );
    if ( pFile == NULL )
    {
        printf( "Rwr_ManLoadFromFile: Cannot open file \"%s\".\n", pFileName );
        return;
    }
    RetValue = fread( &nEntries, sizeof(int), 1, pFile );
    pBuffer = ABC_ALLOC( unsigned, nEntries * 2 );
    RetValue = fread( pBuffer, sizeof(unsigned), nEntries * 2, pFile );
    fclose( pFile );
    // reconstruct the forest
    for ( i = 0; i < nEntries; i++ )
    {
        // get EXOR flag
        fExor = (pBuffer[2*i + 0] & 1);
        pBuffer[2*i + 0] = (pBuffer[2*i + 0] >> 1);
        // get the nodes
        p0 = (Rwr_Node_t *)p->vForest->pArray[pBuffer[2*i + 0] >> 1];
        p1 = (Rwr_Node_t *)p->vForest->pArray[pBuffer[2*i + 1] >> 1];
        // compute the level and volume of the new nodes
        Level  = 1 + Abc_MaxInt( p0->Level, p1->Level );
        Volume = 1 + Rwr_ManNodeVolume( p, p0, p1 );
        // set the complemented attributes
        p0 = Rwr_NotCond( p0, (pBuffer[2*i + 0] & 1) );
        p1 = Rwr_NotCond( p1, (pBuffer[2*i + 1] & 1) );
        // add the node
//        Rwr_ManTryNode( p, p0, p1, Level, Volume );
        Rwr_ManAddNode( p, p0, p1, fExor, Level, Volume + fExor );
    }
    ABC_FREE( pBuffer );
    printf( "The number of classes = %d. Canonical nodes = %d.\n", p->nClasses, p->nAdded );
    printf( "The number of nodes loaded = %d.   ", nEntries );  ABC_PRT( "Loading", Abc_Clock() - clk );
}

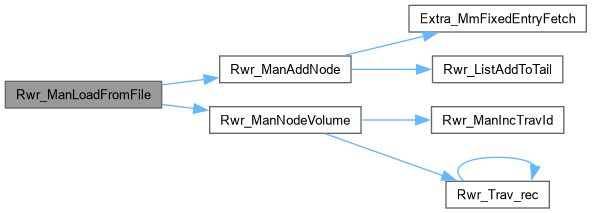

Here is the call graph for this function:

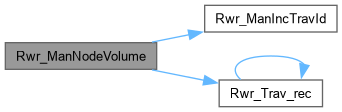

Rwr_ManNodeVolume()

int Rwr_ManNodeVolume ( Rwr_Man_t * p, Rwr_Node_t * p0, Rwr_Node_t * p1 )

extern

Function*************************************************************

Synopsis [Adds one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 330 of file rwrLib.c.

{
    int Volume = 0;
    Rwr_ManIncTravId( p );
    Rwr_Trav_rec( p, p0, &Volume );
    Rwr_Trav_rec( p, p1, &Volume );
    return Volume;
}

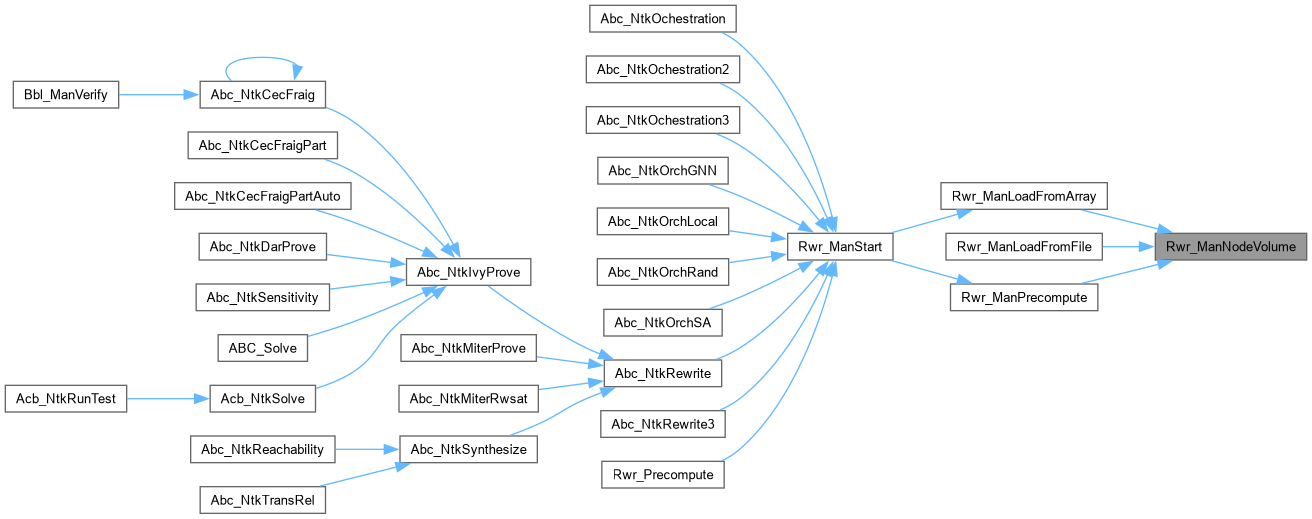

Here is the call graph for this function:

Here is the caller graph for this function:

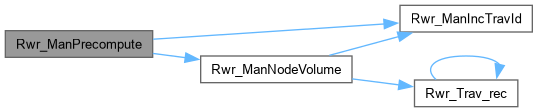

Rwr_ManPrecompute()

void Rwr_ManPrecompute ( Rwr_Man_t * p )

extern

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Precomputes the forest in the manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 48 of file rwrLib.c.

{
    Rwr_Node_t * p0, * p1;
    int i, k, Level, Volume;
    int LevelOld = -1;
    int nNodes;

    Vec_PtrForEachEntryStart( Rwr_Node_t *, p->vForest, p0, i, 1 )
    Vec_PtrForEachEntryStart( Rwr_Node_t *, p->vForest, p1, k, 1 )
    {
        if ( LevelOld < (int)p0->Level )
        {
            LevelOld = p0->Level;
            printf( "Starting level %d  (at %d nodes).\n", LevelOld+1, i );
            printf( "Considered = %5d M.   Found = %8d.   Classes = %6d.   Trying %7d.\n",
                p->nConsidered/1000000, p->vForest->nSize, p->nClasses, i );
        }

        if ( k == i )
            break;
//        if ( p0->Level + p1->Level > 6 ) // hard
//            break;

        if ( p0->Level + p1->Level > 5 ) // easy
            break;

//        if ( p0->Level + p1->Level > 6 || (p0->Level == 3 && p1->Level == 3) )
//            break;

        // compute the level and volume of the new nodes
        Level  = 1 + Abc_MaxInt( p0->Level, p1->Level );
        Volume = 1 + Rwr_ManNodeVolume( p, p0, p1 );
        // try four different AND nodes
        Rwr_ManTryNode( p,         p0 ,         p1 , 0, Level, Volume );
        Rwr_ManTryNode( p, Rwr_Not(p0),         p1 , 0, Level, Volume );
        Rwr_ManTryNode( p,         p0 , Rwr_Not(p1), 0, Level, Volume );
        Rwr_ManTryNode( p, Rwr_Not(p0), Rwr_Not(p1), 0, Level, Volume );
        // try EXOR
        Rwr_ManTryNode( p,         p0 ,         p1 , 1, Level, Volume + 1 );
        // report the progress
        if ( p->nConsidered % 50000000 == 0 )
            printf( "Considered = %5d M.   Found = %8d.   Classes = %6d.   Trying %7d.\n",
                p->nConsidered/1000000, p->vForest->nSize, p->nClasses, i );
        // quit after some time
        if ( p->vForest->nSize == RWR_LIMIT + 5 )
        {
            printf( "Considered = %5d M.   Found = %8d.   Classes = %6d.   Trying %7d.\n",
                p->nConsidered/1000000, p->vForest->nSize, p->nClasses, i );
            goto save;
        }
    }
save :

    // mark the relevant ones
    Rwr_ManIncTravId( p );
    k = 5;
    nNodes = 0;
    Vec_PtrForEachEntryStart( Rwr_Node_t *, p->vForest, p0, i, 5 )
        if ( p0->uTruth == p->puCanons[p0->uTruth] )
        {
            Rwr_MarkUsed_rec( p, p0 );
            nNodes++;
        }

    // compact the array by throwing away non-canonical
    k = 5;
    Vec_PtrForEachEntryStart( Rwr_Node_t *, p->vForest, p0, i, 5 )
        if ( p0->fUsed )
        {
            p->vForest->pArray[k] = p0;
            p0->Id = k++;
        }
    p->vForest->nSize = k;
    printf( "Total canonical = %4d. Total used = %5d.\n", nNodes, p->vForest->nSize );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rwr_ManPreprocess()

void Rwr_ManPreprocess ( Rwr_Man_t * p )

extern

MACRO DEFINITIONS ///.

FUNCTION DECLARATIONS ///

MACRO DEFINITIONS ///.

Function*************************************************************

Synopsis [Preprocesses computed library of subgraphs.]

Description []

SideEffects []

SeeAlso []

Definition at line 49 of file rwrDec.c.

{
    Dec_Graph_t * pGraph;
    Rwr_Node_t * pNode;
    int i, k;
    // put the nodes into the structure
    p->pMapInv  = ABC_ALLOC( unsigned short, 222 );
    memset( p->pMapInv, 0, sizeof(unsigned short) * 222 );
    p->vClasses = Vec_VecStart( 222 );
    for ( i = 0; i < p->nFuncs; i++ )
    {
        if ( p->pTable[i] == NULL )
            continue;
        // consider all implementations of this function
        for ( pNode = p->pTable[i]; pNode; pNode = pNode->pNext )
        {
            assert( pNode->uTruth == p->pTable[i]->uTruth );
            assert( p->pMap[pNode->uTruth] < 222 ); // Guaranteed to be >=0 b/c unsigned
            Vec_VecPush( p->vClasses, p->pMap[pNode->uTruth], pNode );
            p->pMapInv[ p->pMap[pNode->uTruth] ] = p->puCanons[pNode->uTruth];
        }
    }
    // compute decomposition forms for each node and verify them
    Vec_VecForEachEntry( Rwr_Node_t *, p->vClasses, pNode, i, k )
    {
        pGraph = Rwr_NodePreprocess( p, pNode );
        pNode->pNext = (Rwr_Node_t *)pGraph;
        assert( pNode->uTruth == (Dec_GraphDeriveTruth(pGraph) & 0xFFFF) );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rwr_ManPrint()

void Rwr_ManPrint ( Rwr_Man_t * p )

extern

Function*************************************************************

Synopsis [Prints one rwr node.]

Description []

SideEffects []

SeeAlso []

Definition at line 237 of file rwrPrint.c.

{
    FILE * pFile;
    Rwr_Node_t * pNode;
    unsigned uTruth;
    int Limit, Counter, Volume, nFuncs, i;
    pFile = fopen( "graph_lib.txt", "w" );
    Counter = 0;
    Limit = (1 << 16);
    for ( i = 0; i < Limit; i++ )
    {
        if ( p->pTable[i] == NULL )
            continue;
        if ( i != p->puCanons[i] )
            continue;
        fprintf( pFile, "\nClass %3d. Func %6d.  ", p->pMap[i], Counter++ );
        Rwr_GetBushVolume( p, i, &Volume, &nFuncs );
        fprintf( pFile, "Roots = %3d. Vol = %3d. Sum = %3d.  ", nFuncs, Volume, Rwr_GetBushSumOfVolumes(p, i) );
        uTruth = i;
        Extra_PrintBinary( pFile, &uTruth, 16 );
        fprintf( pFile, "\n" );
        for ( pNode = p->pTable[i]; pNode; pNode = pNode->pNext )
            if ( pNode->uTruth == p->puCanons[pNode->uTruth] )
                Rwr_NodePrint( pFile, p, pNode );
    }
    fclose( pFile );
}

Here is the call graph for this function:

Rwr_ManPrintStats()

void Rwr_ManPrintStats ( Rwr_Man_t * p )

extern

Function*************************************************************

Synopsis [Stops the resynthesis manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 143 of file rwrMan.c.

{
    int i, Counter = 0;
    for ( i = 0; i < 222; i++ )
        Counter += (p->nScores[i] > 0);

    printf( "Rewriting statistics:\n" );
    printf( "Total cuts tries  = %8d.\n", p->nCutsGood );
    printf( "Bad cuts found    = %8d.\n", p->nCutsBad );
    printf( "Total subgraphs   = %8d.\n", p->nSubgraphs );
    printf( "Used NPN classes  = %8d.\n", Counter );
    printf( "Nodes considered  = %8d.\n", p->nNodesConsidered );
    printf( "Nodes rewritten   = %8d.\n", p->nNodesRewritten );
    printf( "Gain              = %8d. (%6.2f %%).\n", p->nNodesBeg-p->nNodesEnd, 100.0*(p->nNodesBeg-p->nNodesEnd)/p->nNodesBeg );
    ABC_PRT( "Start       ", p->timeStart );
    ABC_PRT( "Cuts        ", p->timeCut );
    ABC_PRT( "Resynthesis ", p->timeRes );
    ABC_PRT( "    Mffc    ", p->timeMffc );
    ABC_PRT( "    Eval    ", p->timeEval );
    ABC_PRT( "Update      ", p->timeUpdate );
    ABC_PRT( "TOTAL       ", p->timeTotal );

/*
    printf( "The scores are:\n" );
    for ( i = 0; i < 222; i++ )
        if ( p->nScores[i] > 0 )
        {
            extern void Ivy_TruthDsdComputePrint( unsigned uTruth );
            printf( "%3d = %8d  canon = %5d  ", i, p->nScores[i], p->pMapInv[i] );
            Ivy_TruthDsdComputePrint( (unsigned)p->pMapInv[i] | ((unsigned)p->pMapInv[i] << 16) );
        }
*/
    printf( "\n" );

}

Here is the caller graph for this function:

Rwr_ManPrintStatsFile()

void Rwr_ManPrintStatsFile ( Rwr_Man_t * p )

extern

Function*************************************************************

Synopsis [Stops the resynthesis manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 190 of file rwrMan.c.

{
    FILE * pTable;
    pTable = fopen( "stats.txt", "a+" );
    fprintf( pTable, "%d ", p->nCutsGood );
    fprintf( pTable, "%d ", p->nSubgraphs );
    fprintf( pTable, "%d ", p->nNodesRewritten );
    fprintf( pTable, "%d", p->nNodesGained );
    fprintf( pTable, "\n" );
    fclose( pTable );
}

Rwr_ManReadCompl()

int Rwr_ManReadCompl ( Rwr_Man_t * p )

extern

Function*************************************************************

Synopsis [Stops the resynthesis manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 245 of file rwrMan.c.

{
    return p->fCompl;
}

Here is the caller graph for this function:

Rwr_ManReadDecs()

void * Rwr_ManReadDecs ( Rwr_Man_t * p )

extern

Function*************************************************************

Synopsis [Stops the resynthesis manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 213 of file rwrMan.c.

{
    return p->pGraph;
}

Here is the caller graph for this function:

Rwr_ManReadLeaves()

Vec_Ptr_t * Rwr_ManReadLeaves ( Rwr_Man_t * p )

extern

Function*************************************************************

Synopsis [Stops the resynthesis manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 229 of file rwrMan.c.

{
    return p->vFanins;
}

Rwr_ManStart()

Rwr_Man_t * Rwr_ManStart ( int fPrecompute )

extern

DECLARATIONS ///.

CFile****************************************************************

FileName [rwrMan.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [DAG-aware AIG rewriting package.]

Synopsis [Rewriting manager.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

rwrMan.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Starts rewriting manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 47 of file rwrMan.c.

{
    Dec_Man_t * pManDec;
    Rwr_Man_t * p;
    abctime clk = Abc_Clock();
clk = Abc_Clock();
    p = ABC_ALLOC( Rwr_Man_t, 1 );
    memset( p, 0, sizeof(Rwr_Man_t) );
    p->nFuncs = (1<<16);
    pManDec   = (Dec_Man_t *)Abc_FrameReadManDec();
    p->puCanons = pManDec->puCanons;
    p->pPhases  = pManDec->pPhases;
    p->pPerms   = pManDec->pPerms;
    p->pMap     = pManDec->pMap;
    // initialize practical NPN classes
    p->pPractical  = Rwr_ManGetPractical( p );
    // create the table
    p->pTable = ABC_ALLOC( Rwr_Node_t *, p->nFuncs );
    memset( p->pTable, 0, sizeof(Rwr_Node_t *) * p->nFuncs );
    // create the elementary nodes
    p->pMmNode  = Extra_MmFixedStart( sizeof(Rwr_Node_t) );
    p->vForest  = Vec_PtrAlloc( 100 );
    Rwr_ManAddVar( p, 0x0000, fPrecompute ); // constant 0
    Rwr_ManAddVar( p, 0xAAAA, fPrecompute ); // var A
    Rwr_ManAddVar( p, 0xCCCC, fPrecompute ); // var B
    Rwr_ManAddVar( p, 0xF0F0, fPrecompute ); // var C
    Rwr_ManAddVar( p, 0xFF00, fPrecompute ); // var D
    p->nClasses = 5;
    // other stuff
    p->nTravIds   = 1;
    p->pPerms4    = Extra_Permutations( 4 );
    p->vLevNums   = Vec_IntAlloc( 50 );
    p->vFanins    = Vec_PtrAlloc( 50 );
    p->vFaninsCur = Vec_PtrAlloc( 50 );
    p->vNodesTemp = Vec_PtrAlloc( 50 );
    if ( fPrecompute )
    {   // precompute subgraphs
        Rwr_ManPrecompute( p );
//        Rwr_ManPrint( p );
        Rwr_ManWriteToArray( p );
    }
    else
    {   // load saved subgraphs
        Rwr_ManLoadFromArray( p, 0 );
//        Rwr_ManPrint( p );
        Rwr_ManPreprocess( p );
    }
p->timeStart = Abc_Clock() - clk;
    return p;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rwr_ManStop()

void Rwr_ManStop ( Rwr_Man_t * p )

extern

Function*************************************************************

Synopsis [Stops rewriting manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 109 of file rwrMan.c.

{
    if ( p->vClasses )
    {
        Rwr_Node_t * pNode;
        int i, k;
        Vec_VecForEachEntry( Rwr_Node_t *, p->vClasses, pNode, i, k )
            Dec_GraphFree( (Dec_Graph_t *)pNode->pNext );
    }
    if ( p->vClasses )  Vec_VecFree( p->vClasses );
    Vec_PtrFree( p->vNodesTemp );
    Vec_PtrFree( p->vForest );
    Vec_IntFree( p->vLevNums );
    Vec_PtrFree( p->vFanins );
    Vec_PtrFree( p->vFaninsCur );
    Extra_MmFixedStop( p->pMmNode );
    ABC_FREE( p->pMapInv );
    ABC_FREE( p->pTable );
    ABC_FREE( p->pPractical );
    ABC_FREE( p->pPerms4 );
    ABC_FREE( p );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rwr_ManWriteToArray()

void Rwr_ManWriteToArray ( Rwr_Man_t * p )

extern

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Writes data.]

Description []

SideEffects []

SeeAlso []

Definition at line 426 of file rwrUtil.c.

{
    FILE * pFile;
    Rwr_Node_t * pNode;
    unsigned Entry0, Entry1;
    int i, nEntries;
    abctime clk = Abc_Clock();
    // prepare the buffer
    nEntries = p->vForest->nSize - 5;
    pFile = fopen( "npn4_aig_array.txt", "w" );
    fprintf( pFile, "static unsigned short s_RwtAigSubgraphs[] = \n{" );
    for ( i = 0; i < nEntries; i++ )
    {
        if ( i % 5 == 0 )
            fprintf( pFile, "\n    " );
        pNode = (Rwr_Node_t *)p->vForest->pArray[i+5];
        Entry0 = (Rwr_Regular(pNode->p0)->Id << 1) | Rwr_IsComplement(pNode->p0);
        Entry1 = (Rwr_Regular(pNode->p1)->Id << 1) | Rwr_IsComplement(pNode->p1);
        Entry0 = (Entry0 << 1) | pNode->fExor;
        Extra_PrintHex( pFile, &Entry0, 4 );
        fprintf( pFile, "," );
        Extra_PrintHex( pFile, &Entry1, 4 );
        fprintf( pFile, ", " );
    }
    if ( i % 5 == 0 )
        fprintf( pFile, "\n    " );
    Entry0 = 0;
    Extra_PrintHex( pFile, &Entry0, 4 );
    fprintf( pFile, "," );
    Extra_PrintHex( pFile, &Entry0, 4 );
    fprintf( pFile, " \n};\n" );
    fclose( pFile );
    printf( "The number of nodes saved = %d.   ", nEntries );  ABC_PRT( "Saving", Abc_Clock() - clk );
}

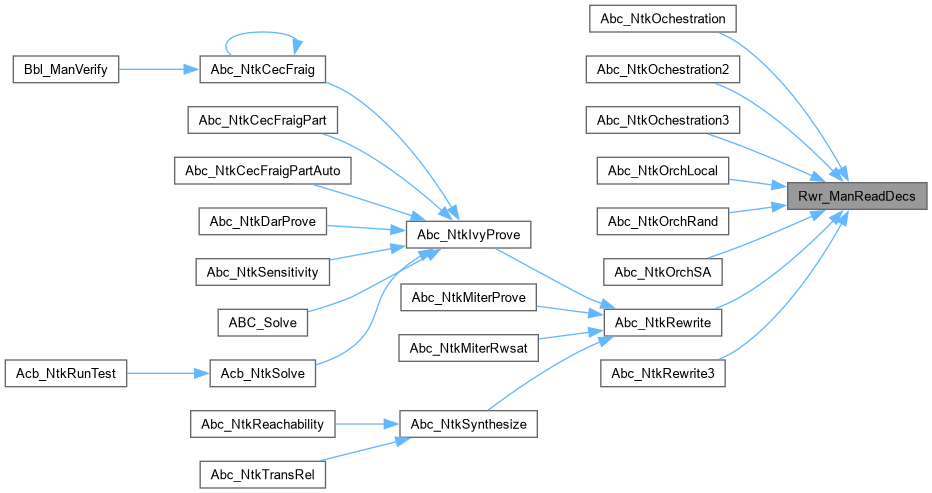

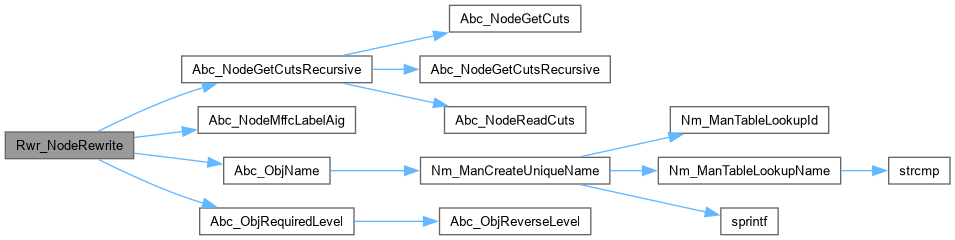

Here is the call graph for this function:

Here is the caller graph for this function:

Rwr_ManWriteToFile()

void Rwr_ManWriteToFile ( Rwr_Man_t * p, char * pFileName )

extern

Function*************************************************************

Synopsis [Writes.]

Description []

SideEffects []

SeeAlso []

Definition at line 524 of file rwrUtil.c.

{
    FILE * pFile;
    Rwr_Node_t * pNode;
    unsigned * pBuffer;
    int i, nEntries;
    abctime clk = Abc_Clock();
    // prepare the buffer
    nEntries = p->vForest->nSize - 5;
    pBuffer = ABC_ALLOC( unsigned, nEntries * 2 );
    for ( i = 0; i < nEntries; i++ )
    {
        pNode = (Rwr_Node_t *)p->vForest->pArray[i+5];
        pBuffer[2*i + 0] = (Rwr_Regular(pNode->p0)->Id << 1) | Rwr_IsComplement(pNode->p0);
        pBuffer[2*i + 1] = (Rwr_Regular(pNode->p1)->Id << 1) | Rwr_IsComplement(pNode->p1);
        // save EXOR flag
        pBuffer[2*i + 0] = (pBuffer[2*i + 0] << 1) | pNode->fExor;

    }
    pFile = fopen( pFileName, "wb" );
    fwrite( &nEntries, sizeof(int), 1, pFile );
    fwrite( pBuffer, sizeof(unsigned), nEntries * 2, pFile );
    ABC_FREE( pBuffer );
    fclose( pFile );
    printf( "The number of nodes saved = %d.   ", nEntries );  ABC_PRT( "Saving", Abc_Clock() - clk );
}

Rwr_NodeRewrite()

int Rwr_NodeRewrite ( Rwr_Man_t * p, Cut_Man_t * pManCut, Abc_Obj_t * pNode, int fUpdateLevel, int fUseZeros, int fPlaceEnable )

extern

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Performs rewriting for one node.]

Description [This procedure considers all the cuts computed for the node and tries to rewrite each of them using the "forest" of different AIG structures precomputed and stored in the RWR manager. Determines the best rewriting and computes the gain in the number of AIG nodes in the final network. In the end, p->vFanins contains information about the best cut that can be used for rewriting, while p->pGraph gives the decomposition dag (represented using decomposition graph data structure). Returns gain in the number of nodes or -1 if node cannot be rewritten.]

SideEffects []

SeeAlso []

Definition at line 59 of file rwrEva.c.

{
    int fVeryVerbose = 0;
    Dec_Graph_t * pGraph;
    Cut_Cut_t * pCut;//, * pTemp;
    Abc_Obj_t * pFanin;
    unsigned uPhase;
    unsigned uTruthBest = 0; // Suppress "might be used uninitialized"
    unsigned uTruth;
    char * pPerm;
    int Required, nNodesSaved;
    int nNodesSaveCur = -1; // Suppress "might be used uninitialized"
    int i, GainCur = -1, GainBest = -1;
    abctime clk, clk2;//, Counter;

    p->nNodesConsidered++;
    // get the required times
    Required = fUpdateLevel? Abc_ObjRequiredLevel(pNode) : ABC_INFINITY;

    // get the node's cuts
clk = Abc_Clock();
    pCut = (Cut_Cut_t *)Abc_NodeGetCutsRecursive( pManCut, pNode, 0, 0 );
    assert( pCut != NULL );
p->timeCut += Abc_Clock() - clk;

//printf( " %d", Rwr_CutCountNumNodes(pNode, pCut) );
/*
    Counter = 0;
    for ( pTemp = pCut->pNext; pTemp; pTemp = pTemp->pNext )
        Counter++;
    printf( "%d ", Counter );
*/
    // go through the cuts
clk = Abc_Clock();
    for ( pCut = pCut->pNext; pCut; pCut = pCut->pNext )
    {
        // consider only 4-input cuts
        if ( pCut->nLeaves < 4 )
            continue;
//            Cut_CutPrint( pCut, 0 ), printf( "\n" );

        // get the fanin permutation
        uTruth = 0xFFFF & *Cut_CutReadTruth(pCut);
        pPerm = p->pPerms4[ (int)p->pPerms[uTruth] ];
        uPhase = p->pPhases[uTruth];
        // collect fanins with the corresponding permutation/phase
        Vec_PtrClear( p->vFaninsCur );
        Vec_PtrFill( p->vFaninsCur, (int)pCut->nLeaves, 0 );
        for ( i = 0; i < (int)pCut->nLeaves; i++ )
        {
            pFanin = Abc_NtkObj( pNode->pNtk, pCut->pLeaves[(int)pPerm[i]] );
            if ( pFanin == NULL )
                break;
            pFanin = Abc_ObjNotCond(pFanin, ((uPhase & (1<<i)) > 0) );
            Vec_PtrWriteEntry( p->vFaninsCur, i, pFanin );
        }
        if ( i != (int)pCut->nLeaves )
        {
            p->nCutsBad++;
            continue;
        }
        p->nCutsGood++;

        {
            int Counter = 0;
            Vec_PtrForEachEntry( Abc_Obj_t *, p->vFaninsCur, pFanin, i )
                if ( Abc_ObjFanoutNum(Abc_ObjRegular(pFanin)) == 1 )
                    Counter++;
            if ( Counter > 2 )
                continue;
        }

clk2 = Abc_Clock();
/*
        printf( "Considering: (" );
        Vec_PtrForEachEntry( Abc_Obj_t *, p->vFaninsCur, pFanin, i )
            printf( "%d ", Abc_ObjFanoutNum(Abc_ObjRegular(pFanin)) );
        printf( ")\n" );
*/
        // mark the fanin boundary
        Vec_PtrForEachEntry( Abc_Obj_t *, p->vFaninsCur, pFanin, i )
            Abc_ObjRegular(pFanin)->vFanouts.nSize++;

        // label MFFC with current ID
        Abc_NtkIncrementTravId( pNode->pNtk );
        nNodesSaved = Abc_NodeMffcLabelAig( pNode );
        // unmark the fanin boundary
        Vec_PtrForEachEntry( Abc_Obj_t *, p->vFaninsCur, pFanin, i )
            Abc_ObjRegular(pFanin)->vFanouts.nSize--;
p->timeMffc += Abc_Clock() - clk2;

        // evaluate the cut
clk2 = Abc_Clock();
        pGraph = Rwr_CutEvaluate( p, pNode, pCut, p->vFaninsCur, nNodesSaved, Required, &GainCur, fPlaceEnable );
p->timeEval += Abc_Clock() - clk2;

        // check if the cut is better than the current best one
        if ( pGraph != NULL && GainBest < GainCur )
        {
            // save this form
            nNodesSaveCur = nNodesSaved;
            GainBest  = GainCur;
            p->pGraph  = pGraph;
            p->fCompl = ((uPhase & (1<<4)) > 0);
            uTruthBest = 0xFFFF & *Cut_CutReadTruth(pCut);
            // collect fanins in the
            Vec_PtrClear( p->vFanins );
            Vec_PtrForEachEntry( Abc_Obj_t *, p->vFaninsCur, pFanin, i )
                Vec_PtrPush( p->vFanins, pFanin );
        }
    }
p->timeRes += Abc_Clock() - clk;

    if ( GainBest == -1 )
        return -1;
/*
    if ( GainBest > 0 )
    {
        printf( "Class %d  ", p->pMap[uTruthBest] );
        printf( "Gain = %d. Node %d : ", GainBest, pNode->Id );
        Vec_PtrForEachEntry( Abc_Obj_t *, p->vFanins, pFanin, i )
            printf( "%d ", Abc_ObjRegular(pFanin)->Id );
        Dec_GraphPrint( stdout, p->pGraph, NULL, NULL );
        printf( "\n" );
    }
*/

//    printf( "%d", nNodesSaveCur - GainBest );
/*
    if ( GainBest > 0 )
    {
        if ( Rwr_CutIsBoolean( pNode, p->vFanins ) )
            printf( "b" );
        else
        {
            printf( "Node %d : ", pNode->Id );
            Vec_PtrForEachEntry( Abc_Obj_t *, p->vFanins, pFanin, i )
                printf( "%d ", Abc_ObjRegular(pFanin)->Id );
            printf( "a" );
        }
    }
*/
/*
    if ( GainBest > 0 )
        if ( p->fCompl )
            printf( "c" );
        else
            printf( "." );
*/

    // copy the leaves
    Vec_PtrForEachEntry( Abc_Obj_t *, p->vFanins, pFanin, i )
        Dec_GraphNode((Dec_Graph_t *)p->pGraph, i)->pFunc = pFanin;
/*
    printf( "(" );
    Vec_PtrForEachEntry( Abc_Obj_t *, p->vFanins, pFanin, i )
        printf( " %d", Abc_ObjRegular(pFanin)->vFanouts.nSize - 1 );
    printf( " )  " );
*/
//    printf( "%d ", Rwr_NodeGetDepth_rec( pNode, p->vFanins ) );

    p->nScores[p->pMap[uTruthBest]]++;
    p->nNodesGained += GainBest;
    if ( fUseZeros || GainBest > 0 )
    {
        p->nNodesRewritten++;
    }

    // report the progress
    if ( fVeryVerbose && GainBest > 0 )
    {
        printf( "Node %6s :   ", Abc_ObjName(pNode) );
        printf( "Fanins = %d. ", p->vFanins->nSize );
        printf( "Save = %d.  ", nNodesSaveCur );
        printf( "Add = %d.  ",  nNodesSaveCur-GainBest );
        printf( "GAIN = %d.  ", GainBest );
        printf( "Cone = %d.  ", p->pGraph? Dec_GraphNodeNum((Dec_Graph_t *)p->pGraph) : 0 );
        printf( "Class = %d.  ", p->pMap[uTruthBest] );
        printf( "\n" );
    }
    return GainBest;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rwr_ScoresClean()

void Rwr_ScoresClean ( Rwr_Man_t * p )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 504 of file rwrEva.c.

{
    Vec_Ptr_t * vSubgraphs;
    Rwr_Node_t * pNode;
    int i, k;
    for ( i = 0; i < p->vClasses->nSize; i++ )
    {
        vSubgraphs = Vec_VecEntry( p->vClasses, i );
        Vec_PtrForEachEntry( Rwr_Node_t *, vSubgraphs, pNode, k )
            pNode->nScore = pNode->nGain = pNode->nAdded = 0;
    }
}

Here is the caller graph for this function:

Rwr_ScoresReport()

void Rwr_ScoresReport ( Rwr_Man_t * p )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 550 of file rwrEva.c.

{
    extern void Ivy_TruthDsdComputePrint( unsigned uTruth );
    int Perm[222];
    Vec_Ptr_t * vSubgraphs;
    Rwr_Node_t * pNode;
    int i, iNew, k;
    unsigned uTruth;
    // collect total gains
    assert( p->vClasses->nSize == 222 );
    for ( i = 0; i < p->vClasses->nSize; i++ )
    {
        Perm[i] = i;
        Gains[i] = 0;
        vSubgraphs = Vec_VecEntry( p->vClasses, i );
        Vec_PtrForEachEntry( Rwr_Node_t *, vSubgraphs, pNode, k )
            Gains[i] += pNode->nGain;
    }
    // sort the gains
    qsort( Perm, (size_t)222, sizeof(int), (int (*)(const void *, const void *))Rwr_ScoresCompare );

    // print classes
    for ( i = 0; i < p->vClasses->nSize; i++ )
    {
        iNew = Perm[i];
        if ( Gains[iNew] == 0 )
            break;
        vSubgraphs = Vec_VecEntry( p->vClasses, iNew );
        printf( "CLASS %3d: Subgr = %3d. Total gain = %6d.  ", iNew, Vec_PtrSize(vSubgraphs), Gains[iNew] );
        uTruth = (unsigned)p->pMapInv[iNew];
        Extra_PrintBinary( stdout, &uTruth, 16 );
        printf( "  " );
        Ivy_TruthDsdComputePrint( (unsigned)p->pMapInv[iNew] | ((unsigned)p->pMapInv[iNew] << 16) );
        Vec_PtrForEachEntry( Rwr_Node_t *, vSubgraphs, pNode, k )
        {
            if ( pNode->nScore == 0 )
                continue;
            printf( "    %2d: S=%5d. A=%5d. G=%6d. ", k, pNode->nScore, pNode->nAdded, pNode->nGain );
            Dec_GraphPrint( stdout, (Dec_Graph_t *)pNode->pNext, NULL, NULL );
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:
