rwrEva.c File Reference

#include "rwr.h"
#include "bool/dec/dec.h"
#include "aig/ivy/ivy.h"

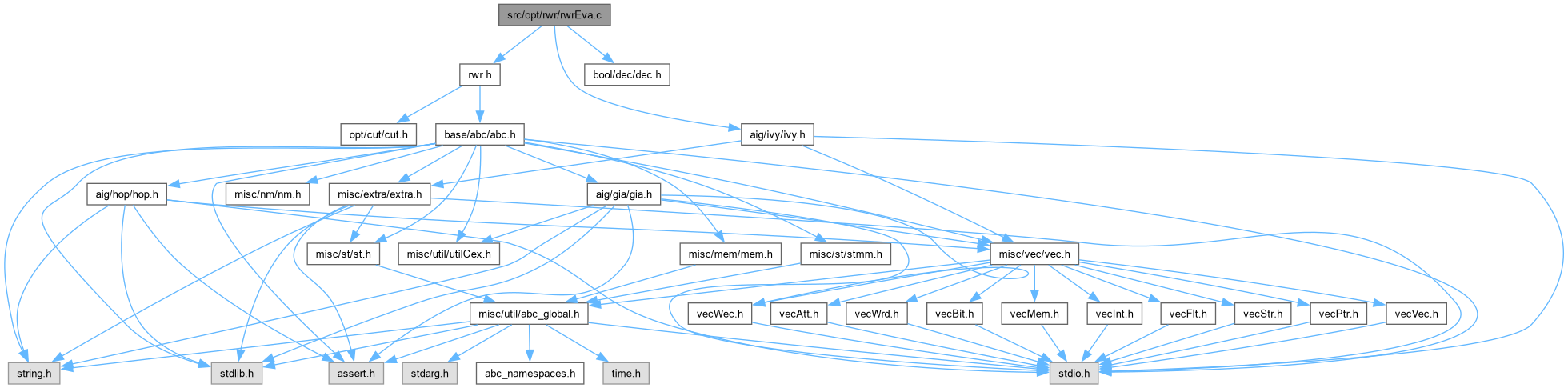

Include dependency graph for rwrEva.c:

Go to the source code of this file.

Functions
int	Rwr_NodeRewrite (Rwr_Man_t *p, Cut_Man_t *pManCut, Abc_Obj_t *pNode, int fUpdateLevel, int fUseZeros, int fPlaceEnable)
	FUNCTION DEFINITIONS ///.
void	Rwr_CutIsBoolean_rec (Abc_Obj_t *pObj, Vec_Ptr_t *vLeaves, int fMarkA)
void	Rwr_CutCountNumNodes_rec (Abc_Obj_t *pObj, Cut_Cut_t *pCut, Vec_Ptr_t *vNodes)
void	Rwr_ScoresClean (Rwr_Man_t *p)
int	Rwr_ScoresCompare (int *pNum1, int *pNum2)
void	Rwr_ScoresReport (Rwr_Man_t *p)

Function Documentation

Rwr_CutCountNumNodes_rec()

void Rwr_CutCountNumNodes_rec	(	Abc_Obj_t *	pObj,
		Cut_Cut_t *	pCut,
		Vec_Ptr_t *	vNodes )

Function*************************************************************

Synopsis [Count the nodes in the cut space of a node.]

Description []

SideEffects []

SeeAlso []

Definition at line 412 of file rwrEva.c.

{
    int i;
    for ( i = 0; i < (int)pCut->nLeaves; i++ )
        if ( pCut->pLeaves[i] == pObj->Id )
        {
            // check if the node is collected
            if ( pObj->fMarkC == 0 )
            {
                pObj->fMarkC = 1;
                Vec_PtrPush( vNodes, pObj );
            }
            return;
        }
    assert( Abc_ObjIsNode(pObj) );
    // check if the node is collected
    if ( pObj->fMarkC == 0 )
    {
        pObj->fMarkC = 1;
        Vec_PtrPush( vNodes, pObj );
    }
    // traverse the fanins
    Rwr_CutCountNumNodes_rec( Abc_ObjFanin0(pObj), pCut, vNodes );
    Rwr_CutCountNumNodes_rec( Abc_ObjFanin1(pObj), pCut, vNodes );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rwr_CutIsBoolean_rec()

void Rwr_CutIsBoolean_rec	(	Abc_Obj_t *	pObj,
		Vec_Ptr_t *	vLeaves,
		int	fMarkA )

Function*************************************************************

Synopsis [Checks the type of the cut.]

Description []

SideEffects []

SeeAlso []

Definition at line 353 of file rwrEva.c.

{
    if ( Vec_PtrFind(vLeaves, pObj) >= 0 || Vec_PtrFind(vLeaves, Abc_ObjNot(pObj)) >= 0 )
    {
        if ( fMarkA )
            pObj->fMarkA = 1;
        else
            pObj->fMarkB = 1;
        return;
    }
    assert( !Abc_ObjIsCi(pObj) );
    Rwr_CutIsBoolean_rec( Abc_ObjFanin0(pObj), vLeaves, fMarkA );
    Rwr_CutIsBoolean_rec( Abc_ObjFanin1(pObj), vLeaves, fMarkA );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rwr_NodeRewrite()

int Rwr_NodeRewrite	(	Rwr_Man_t *	p,
		Cut_Man_t *	pManCut,
		Abc_Obj_t *	pNode,
		int	fUpdateLevel,
		int	fUseZeros,
		int	fPlaceEnable )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Performs rewriting for one node.]

Description [This procedure considers all the cuts computed for the node and tries to rewrite each of them using the "forest" of different AIG structures precomputed and stored in the RWR manager. Determines the best rewriting and computes the gain in the number of AIG nodes in the final network. In the end, p->vFanins contains information about the best cut that can be used for rewriting, while p->pGraph gives the decomposition dag (represented using decomposition graph data structure). Returns gain in the number of nodes or -1 if node cannot be rewritten.]

SideEffects []

SeeAlso []

Definition at line 59 of file rwrEva.c.

{
    int fVeryVerbose = 0;
    Dec_Graph_t * pGraph;
    Cut_Cut_t * pCut;//, * pTemp;
    Abc_Obj_t * pFanin;
    unsigned uPhase;
    unsigned uTruthBest = 0; // Suppress "might be used uninitialized"
    unsigned uTruth;
    char * pPerm;
    int Required, nNodesSaved;
    int nNodesSaveCur = -1; // Suppress "might be used uninitialized"
    int i, GainCur = -1, GainBest = -1;
    abctime clk, clk2;//, Counter;

    p->nNodesConsidered++;
    // get the required times
    Required = fUpdateLevel? Abc_ObjRequiredLevel(pNode) : ABC_INFINITY;

    // get the node's cuts
clk = Abc_Clock();
    pCut = (Cut_Cut_t *)Abc_NodeGetCutsRecursive( pManCut, pNode, 0, 0 );
    assert( pCut != NULL );
p->timeCut += Abc_Clock() - clk;

//printf( " %d", Rwr_CutCountNumNodes(pNode, pCut) );
/*
    Counter = 0;
    for ( pTemp = pCut->pNext; pTemp; pTemp = pTemp->pNext )
        Counter++;
    printf( "%d ", Counter );
*/
    // go through the cuts
clk = Abc_Clock();
    for ( pCut = pCut->pNext; pCut; pCut = pCut->pNext )
    {
        // consider only 4-input cuts
        if ( pCut->nLeaves < 4 )
            continue;
//            Cut_CutPrint( pCut, 0 ), printf( "\n" );

        // get the fanin permutation
        uTruth = 0xFFFF & *Cut_CutReadTruth(pCut);
        pPerm = p->pPerms4[ (int)p->pPerms[uTruth] ];
        uPhase = p->pPhases[uTruth];
        // collect fanins with the corresponding permutation/phase
        Vec_PtrClear( p->vFaninsCur );
        Vec_PtrFill( p->vFaninsCur, (int)pCut->nLeaves, 0 );
        for ( i = 0; i < (int)pCut->nLeaves; i++ )
        {
            pFanin = Abc_NtkObj( pNode->pNtk, pCut->pLeaves[(int)pPerm[i]] );
            if ( pFanin == NULL )
                break;
            pFanin = Abc_ObjNotCond(pFanin, ((uPhase & (1<<i)) > 0) );
            Vec_PtrWriteEntry( p->vFaninsCur, i, pFanin );
        }
        if ( i != (int)pCut->nLeaves )
        {
            p->nCutsBad++;
            continue;
        }
        p->nCutsGood++;

        {
            int Counter = 0;
            Vec_PtrForEachEntry( Abc_Obj_t *, p->vFaninsCur, pFanin, i )
                if ( Abc_ObjFanoutNum(Abc_ObjRegular(pFanin)) == 1 )
                    Counter++;
            if ( Counter > 2 )
                continue;
        }

clk2 = Abc_Clock();
/*
        printf( "Considering: (" );
        Vec_PtrForEachEntry( Abc_Obj_t *, p->vFaninsCur, pFanin, i )
            printf( "%d ", Abc_ObjFanoutNum(Abc_ObjRegular(pFanin)) );
        printf( ")\n" );
*/
        // mark the fanin boundary
        Vec_PtrForEachEntry( Abc_Obj_t *, p->vFaninsCur, pFanin, i )
            Abc_ObjRegular(pFanin)->vFanouts.nSize++;

        // label MFFC with current ID
        Abc_NtkIncrementTravId( pNode->pNtk );
        nNodesSaved = Abc_NodeMffcLabelAig( pNode );
        // unmark the fanin boundary
        Vec_PtrForEachEntry( Abc_Obj_t *, p->vFaninsCur, pFanin, i )
            Abc_ObjRegular(pFanin)->vFanouts.nSize--;
p->timeMffc += Abc_Clock() - clk2;

        // evaluate the cut
clk2 = Abc_Clock();
        pGraph = Rwr_CutEvaluate( p, pNode, pCut, p->vFaninsCur, nNodesSaved, Required, &GainCur, fPlaceEnable );
p->timeEval += Abc_Clock() - clk2;

        // check if the cut is better than the current best one
        if ( pGraph != NULL && GainBest < GainCur )
        {
            // save this form
            nNodesSaveCur = nNodesSaved;
            GainBest  = GainCur;
            p->pGraph  = pGraph;
            p->fCompl = ((uPhase & (1<<4)) > 0);
            uTruthBest = 0xFFFF & *Cut_CutReadTruth(pCut);
            // collect fanins in the
            Vec_PtrClear( p->vFanins );
            Vec_PtrForEachEntry( Abc_Obj_t *, p->vFaninsCur, pFanin, i )
                Vec_PtrPush( p->vFanins, pFanin );
        }
    }
p->timeRes += Abc_Clock() - clk;

    if ( GainBest == -1 )
        return -1;
/*
    if ( GainBest > 0 )
    {
        printf( "Class %d  ", p->pMap[uTruthBest] );
        printf( "Gain = %d. Node %d : ", GainBest, pNode->Id );
        Vec_PtrForEachEntry( Abc_Obj_t *, p->vFanins, pFanin, i )
            printf( "%d ", Abc_ObjRegular(pFanin)->Id );
        Dec_GraphPrint( stdout, p->pGraph, NULL, NULL );
        printf( "\n" );
    }
*/

//    printf( "%d", nNodesSaveCur - GainBest );
/*
    if ( GainBest > 0 )
    {
        if ( Rwr_CutIsBoolean( pNode, p->vFanins ) )
            printf( "b" );
        else
        {
            printf( "Node %d : ", pNode->Id );
            Vec_PtrForEachEntry( Abc_Obj_t *, p->vFanins, pFanin, i )
                printf( "%d ", Abc_ObjRegular(pFanin)->Id );
            printf( "a" );
        }
    }
*/
/*
    if ( GainBest > 0 )
        if ( p->fCompl )
            printf( "c" );
        else
            printf( "." );
*/

    // copy the leaves
    Vec_PtrForEachEntry( Abc_Obj_t *, p->vFanins, pFanin, i )
        Dec_GraphNode((Dec_Graph_t *)p->pGraph, i)->pFunc = pFanin;
/*
    printf( "(" );
    Vec_PtrForEachEntry( Abc_Obj_t *, p->vFanins, pFanin, i )
        printf( " %d", Abc_ObjRegular(pFanin)->vFanouts.nSize - 1 );
    printf( " )  " );
*/
//    printf( "%d ", Rwr_NodeGetDepth_rec( pNode, p->vFanins ) );

    p->nScores[p->pMap[uTruthBest]]++;
    p->nNodesGained += GainBest;
    if ( fUseZeros || GainBest > 0 )
    {
        p->nNodesRewritten++;
    }

    // report the progress
    if ( fVeryVerbose && GainBest > 0 )
    {
        printf( "Node %6s :   ", Abc_ObjName(pNode) );
        printf( "Fanins = %d. ", p->vFanins->nSize );
        printf( "Save = %d.  ", nNodesSaveCur );
        printf( "Add = %d.  ",  nNodesSaveCur-GainBest );
        printf( "GAIN = %d.  ", GainBest );
        printf( "Cone = %d.  ", p->pGraph? Dec_GraphNodeNum((Dec_Graph_t *)p->pGraph) : 0 );
        printf( "Class = %d.  ", p->pMap[uTruthBest] );
        printf( "\n" );
    }
    return GainBest;
}

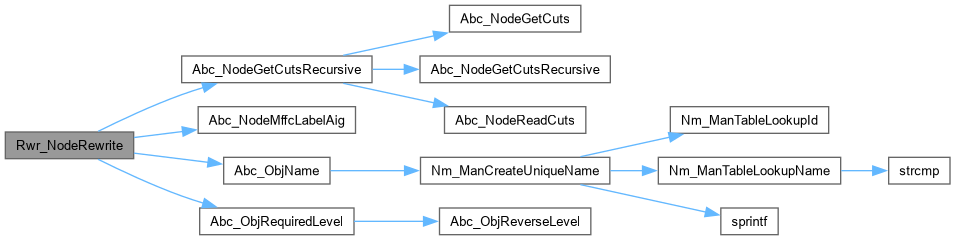

Here is the call graph for this function:

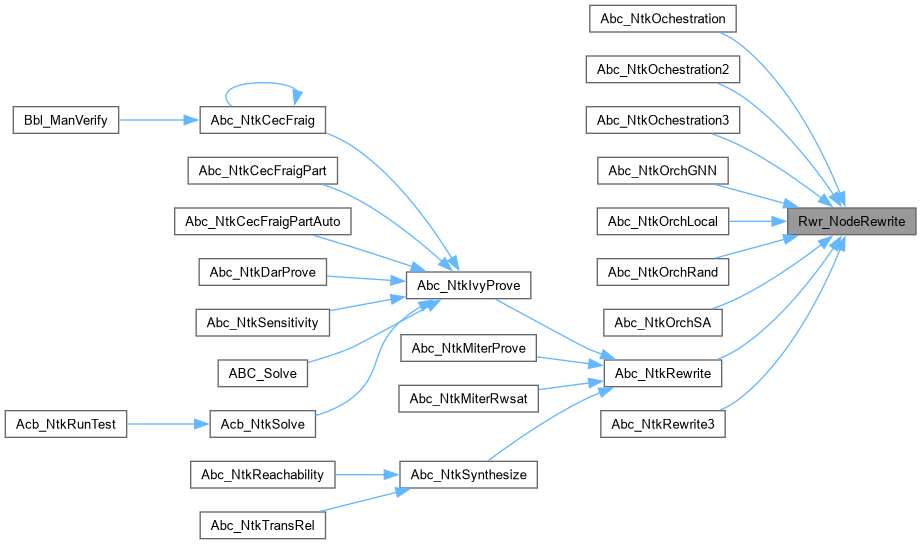

Here is the caller graph for this function:

Rwr_ScoresClean()

void Rwr_ScoresClean

(

Rwr_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 504 of file rwrEva.c.

{
    Vec_Ptr_t * vSubgraphs;
    Rwr_Node_t * pNode;
    int i, k;
    for ( i = 0; i < p->vClasses->nSize; i++ )
    {
        vSubgraphs = Vec_VecEntry( p->vClasses, i );
        Vec_PtrForEachEntry( Rwr_Node_t *, vSubgraphs, pNode, k )
            pNode->nScore = pNode->nGain = pNode->nAdded = 0;
    }
}

Here is the caller graph for this function:

Rwr_ScoresCompare()

int Rwr_ScoresCompare	(	int *	pNum1,
		int *	pNum2 )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 530 of file rwrEva.c.

{
    if ( Gains[*pNum1] > Gains[*pNum2] )
        return -1;
    if ( Gains[*pNum1] < Gains[*pNum2] )
        return 1;
    return 0;
}

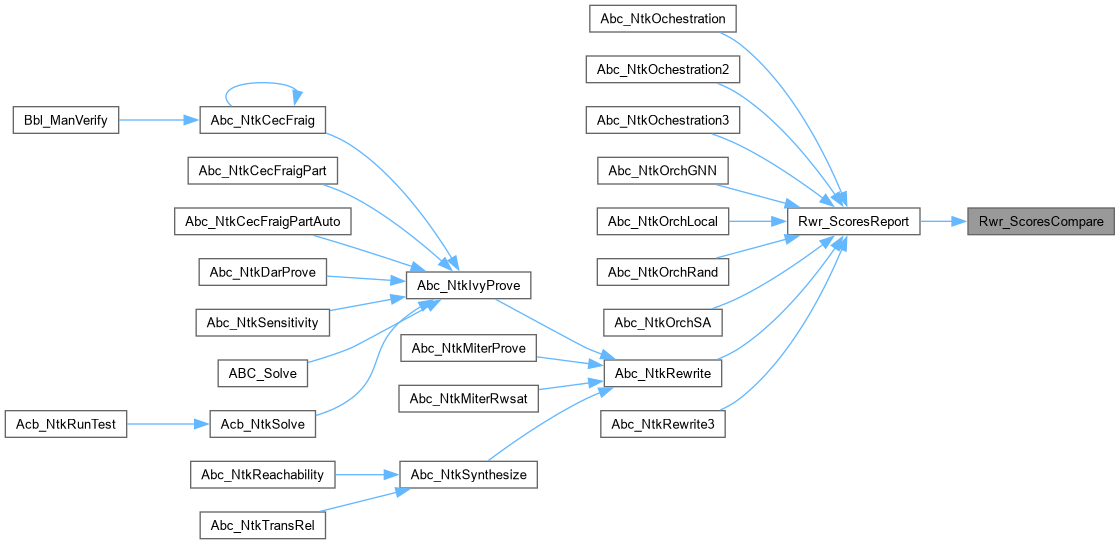

Here is the caller graph for this function:

Rwr_ScoresReport()

void Rwr_ScoresReport

(

Rwr_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 550 of file rwrEva.c.

{
    extern void Ivy_TruthDsdComputePrint( unsigned uTruth );
    int Perm[222];
    Vec_Ptr_t * vSubgraphs;
    Rwr_Node_t * pNode;
    int i, iNew, k;
    unsigned uTruth;
    // collect total gains
    assert( p->vClasses->nSize == 222 );
    for ( i = 0; i < p->vClasses->nSize; i++ )
    {
        Perm[i] = i;
        Gains[i] = 0;
        vSubgraphs = Vec_VecEntry( p->vClasses, i );
        Vec_PtrForEachEntry( Rwr_Node_t *, vSubgraphs, pNode, k )
            Gains[i] += pNode->nGain;
    }
    // sort the gains
    qsort( Perm, (size_t)222, sizeof(int), (int (*)(const void *, const void *))Rwr_ScoresCompare );

    // print classes
    for ( i = 0; i < p->vClasses->nSize; i++ )
    {
        iNew = Perm[i];
        if ( Gains[iNew] == 0 )
            break;
        vSubgraphs = Vec_VecEntry( p->vClasses, iNew );
        printf( "CLASS %3d: Subgr = %3d. Total gain = %6d.  ", iNew, Vec_PtrSize(vSubgraphs), Gains[iNew] );
        uTruth = (unsigned)p->pMapInv[iNew];
        Extra_PrintBinary( stdout, &uTruth, 16 );
        printf( "  " );
        Ivy_TruthDsdComputePrint( (unsigned)p->pMapInv[iNew] | ((unsigned)p->pMapInv[iNew] << 16) );
        Vec_PtrForEachEntry( Rwr_Node_t *, vSubgraphs, pNode, k )
        {
            if ( pNode->nScore == 0 )
                continue;
            printf( "    %2d: S=%5d. A=%5d. G=%6d. ", k, pNode->nScore, pNode->nAdded, pNode->nGain );
            Dec_GraphPrint( stdout, (Dec_Graph_t *)pNode->pNext, NULL, NULL );
        }
    }
}

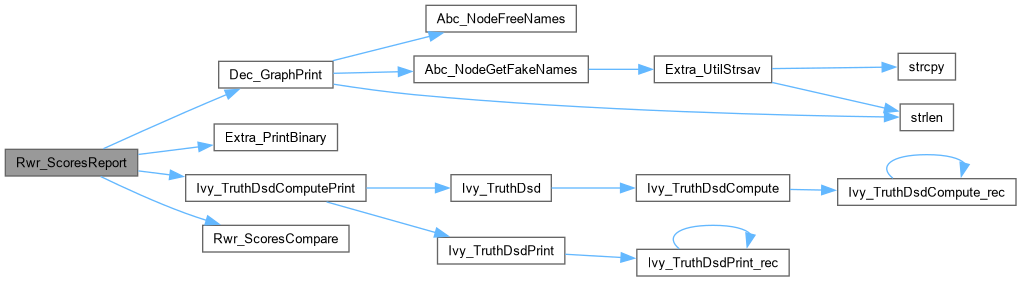

Here is the call graph for this function:

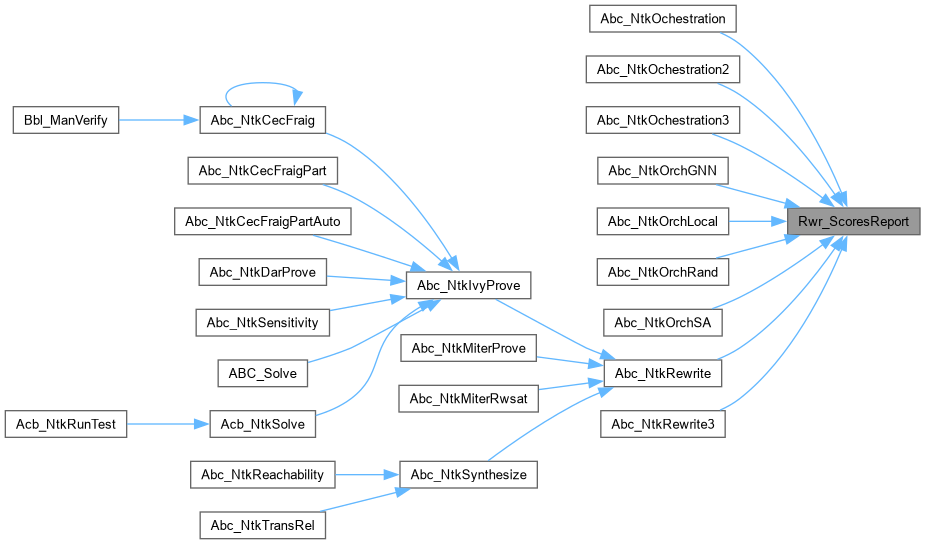

Here is the caller graph for this function:
