rwrMan.c File Reference

#include "rwr.h"
#include "base/main/main.h"
#include "bool/dec/dec.h"

Include dependency graph for rwrMan.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Rwr_Man_t *	Rwr_ManStart (int fPrecompute)
	DECLARATIONS ///.
void	Rwr_ManStop (Rwr_Man_t *p)
void	Rwr_ManPrintStats (Rwr_Man_t *p)
void	Rwr_ManPrintStatsFile (Rwr_Man_t *p)
void *	Rwr_ManReadDecs (Rwr_Man_t *p)
Vec_Ptr_t *	Rwr_ManReadLeaves (Rwr_Man_t *p)
int	Rwr_ManReadCompl (Rwr_Man_t *p)
void	Rwr_ManAddTimeCuts (Rwr_Man_t *p, abctime Time)
void	Rwr_ManAddTimeUpdate (Rwr_Man_t *p, abctime Time)
void	Rwr_ManAddTimeTotal (Rwr_Man_t *p, abctime Time)
void	Rwr_Precompute ()

Function Documentation

Rwr_ManAddTimeCuts()

void Rwr_ManAddTimeCuts	(	Rwr_Man_t *	p,
		abctime	Time )

Function*************************************************************

Synopsis [Stops the resynthesis manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 261 of file rwrMan.c.

{
    p->timeCut += Time;
}

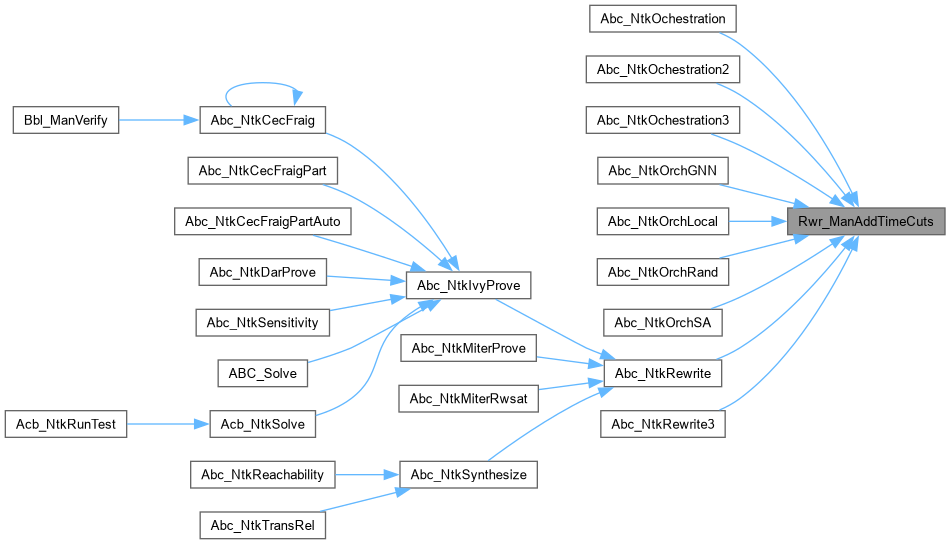

Here is the caller graph for this function:

Rwr_ManAddTimeTotal()

void Rwr_ManAddTimeTotal	(	Rwr_Man_t *	p,
		abctime	Time )

Function*************************************************************

Synopsis [Stops the resynthesis manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 293 of file rwrMan.c.

{
    p->timeTotal += Time;
}

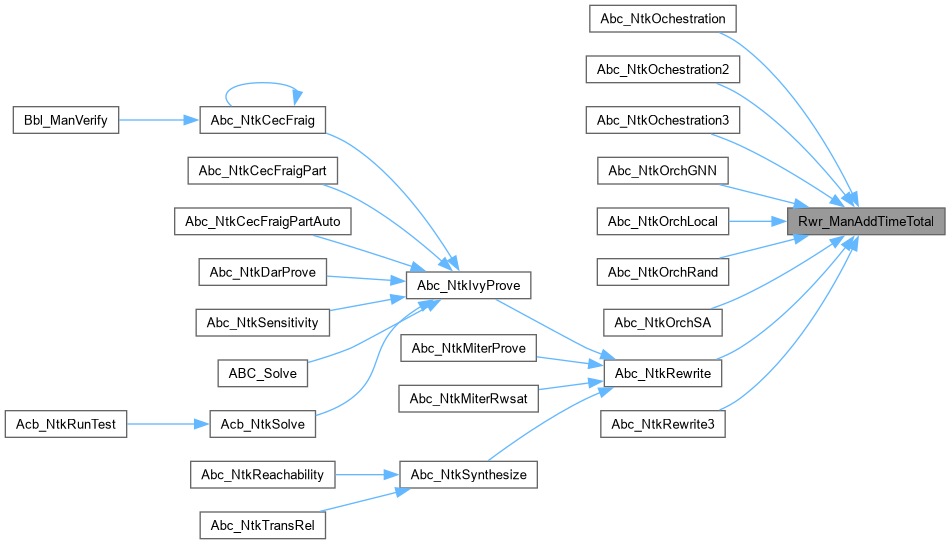

Here is the caller graph for this function:

Rwr_ManAddTimeUpdate()

void Rwr_ManAddTimeUpdate	(	Rwr_Man_t *	p,
		abctime	Time )

Function*************************************************************

Synopsis [Stops the resynthesis manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 277 of file rwrMan.c.

{
    p->timeUpdate += Time;
}

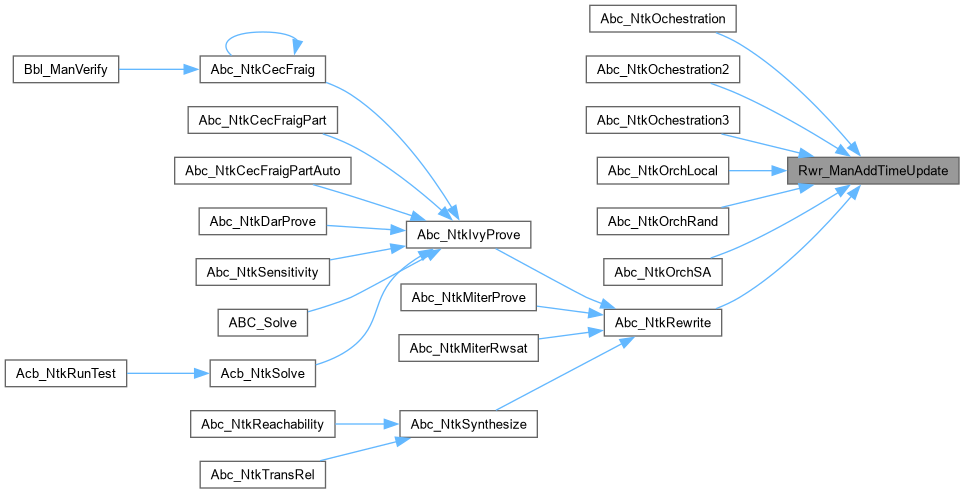

Here is the caller graph for this function:

Rwr_ManPrintStats()

void Rwr_ManPrintStats

(

Rwr_Man_t *

p

)

Function*************************************************************

Synopsis [Stops the resynthesis manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 143 of file rwrMan.c.

{
    int i, Counter = 0;
    for ( i = 0; i < 222; i++ )
        Counter += (p->nScores[i] > 0);

    printf( "Rewriting statistics:\n" );
    printf( "Total cuts tries  = %8d.\n", p->nCutsGood );
    printf( "Bad cuts found    = %8d.\n", p->nCutsBad );
    printf( "Total subgraphs   = %8d.\n", p->nSubgraphs );
    printf( "Used NPN classes  = %8d.\n", Counter );
    printf( "Nodes considered  = %8d.\n", p->nNodesConsidered );
    printf( "Nodes rewritten   = %8d.\n", p->nNodesRewritten );
    printf( "Gain              = %8d. (%6.2f %%).\n", p->nNodesBeg-p->nNodesEnd, 100.0*(p->nNodesBeg-p->nNodesEnd)/p->nNodesBeg );
    ABC_PRT( "Start       ", p->timeStart );
    ABC_PRT( "Cuts        ", p->timeCut );
    ABC_PRT( "Resynthesis ", p->timeRes );
    ABC_PRT( "    Mffc    ", p->timeMffc );
    ABC_PRT( "    Eval    ", p->timeEval );
    ABC_PRT( "Update      ", p->timeUpdate );
    ABC_PRT( "TOTAL       ", p->timeTotal );

/*
    printf( "The scores are:\n" );
    for ( i = 0; i < 222; i++ )
        if ( p->nScores[i] > 0 )
        {
            extern void Ivy_TruthDsdComputePrint( unsigned uTruth );
            printf( "%3d = %8d  canon = %5d  ", i, p->nScores[i], p->pMapInv[i] );
            Ivy_TruthDsdComputePrint( (unsigned)p->pMapInv[i] | ((unsigned)p->pMapInv[i] << 16) );
        }
*/
    printf( "\n" );

}

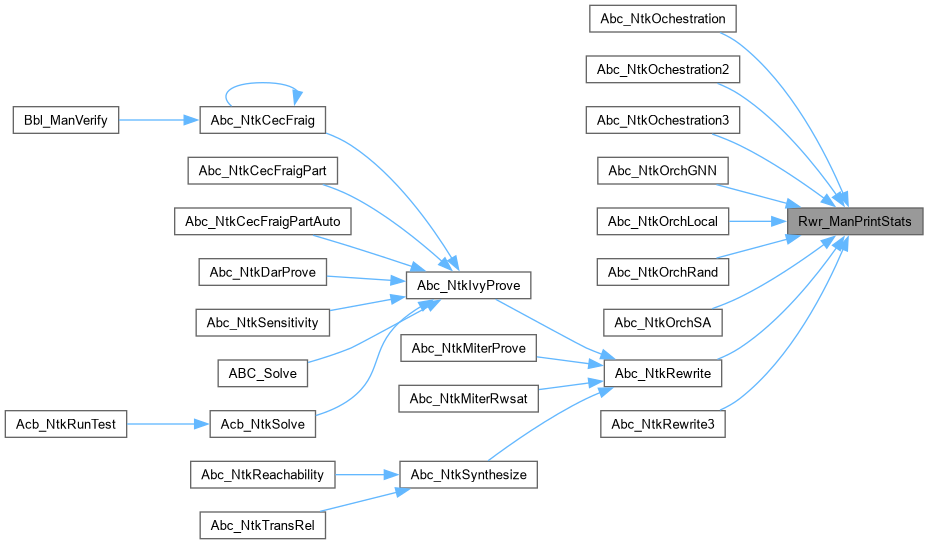

Here is the caller graph for this function:

Rwr_ManPrintStatsFile()

void Rwr_ManPrintStatsFile

(

Rwr_Man_t *

p

)

Function*************************************************************

Synopsis [Stops the resynthesis manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 190 of file rwrMan.c.

{
    FILE * pTable;
    pTable = fopen( "stats.txt", "a+" );
    fprintf( pTable, "%d ", p->nCutsGood );
    fprintf( pTable, "%d ", p->nSubgraphs );
    fprintf( pTable, "%d ", p->nNodesRewritten );
    fprintf( pTable, "%d", p->nNodesGained );
    fprintf( pTable, "\n" );
    fclose( pTable );
}

Rwr_ManReadCompl()

int Rwr_ManReadCompl

(

Rwr_Man_t *

p

)

Function*************************************************************

Synopsis [Stops the resynthesis manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 245 of file rwrMan.c.

{
    return p->fCompl;
}

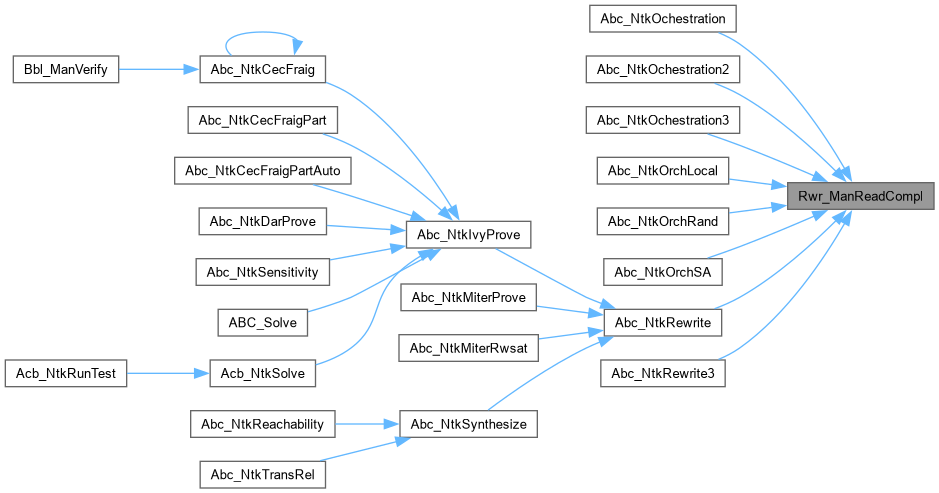

Here is the caller graph for this function:

Rwr_ManReadDecs()

void * Rwr_ManReadDecs

(

Rwr_Man_t *

p

)

Function*************************************************************

Synopsis [Stops the resynthesis manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 213 of file rwrMan.c.

{
    return p->pGraph;
}

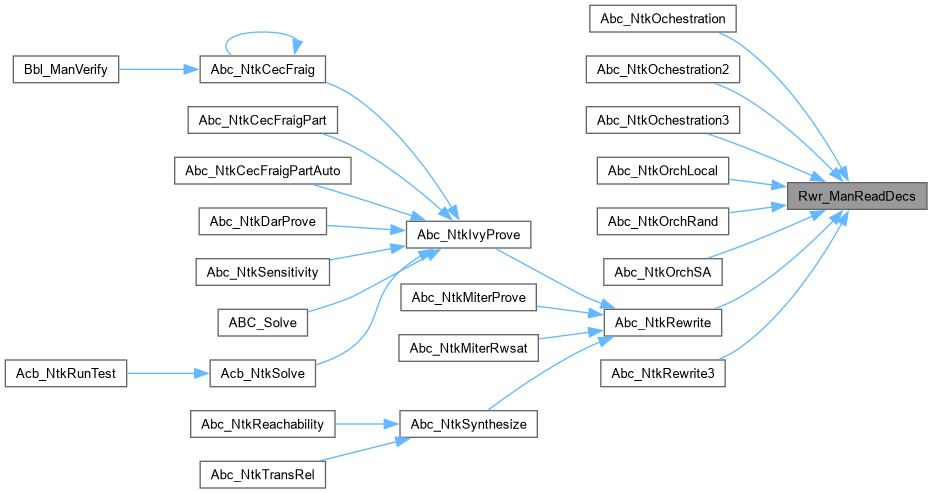

Here is the caller graph for this function:

Rwr_ManReadLeaves()

Vec_Ptr_t * Rwr_ManReadLeaves

(

Rwr_Man_t *

p

)

Function*************************************************************

Synopsis [Stops the resynthesis manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 229 of file rwrMan.c.

{
    return p->vFanins;
}

Rwr_ManStart()

ABC_NAMESPACE_IMPL_START Rwr_Man_t * Rwr_ManStart

(

int

fPrecompute

)

DECLARATIONS ///.

CFile****************************************************************

FileName [rwrMan.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [DAG-aware AIG rewriting package.]

Synopsis [Rewriting manager.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

rwrMan.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Starts rewriting manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 47 of file rwrMan.c.

{
    Dec_Man_t * pManDec;
    Rwr_Man_t * p;
    abctime clk = Abc_Clock();
clk = Abc_Clock();
    p = ABC_ALLOC( Rwr_Man_t, 1 );
    memset( p, 0, sizeof(Rwr_Man_t) );
    p->nFuncs = (1<<16);
    pManDec   = (Dec_Man_t *)Abc_FrameReadManDec();
    p->puCanons = pManDec->puCanons;
    p->pPhases  = pManDec->pPhases;
    p->pPerms   = pManDec->pPerms;
    p->pMap     = pManDec->pMap;
    // initialize practical NPN classes
    p->pPractical  = Rwr_ManGetPractical( p );
    // create the table
    p->pTable = ABC_ALLOC( Rwr_Node_t *, p->nFuncs );
    memset( p->pTable, 0, sizeof(Rwr_Node_t *) * p->nFuncs );
    // create the elementary nodes
    p->pMmNode  = Extra_MmFixedStart( sizeof(Rwr_Node_t) );
    p->vForest  = Vec_PtrAlloc( 100 );
    Rwr_ManAddVar( p, 0x0000, fPrecompute ); // constant 0
    Rwr_ManAddVar( p, 0xAAAA, fPrecompute ); // var A
    Rwr_ManAddVar( p, 0xCCCC, fPrecompute ); // var B
    Rwr_ManAddVar( p, 0xF0F0, fPrecompute ); // var C
    Rwr_ManAddVar( p, 0xFF00, fPrecompute ); // var D
    p->nClasses = 5;
    // other stuff
    p->nTravIds   = 1;
    p->pPerms4    = Extra_Permutations( 4 );
    p->vLevNums   = Vec_IntAlloc( 50 );
    p->vFanins    = Vec_PtrAlloc( 50 );
    p->vFaninsCur = Vec_PtrAlloc( 50 );
    p->vNodesTemp = Vec_PtrAlloc( 50 );
    if ( fPrecompute )
    {   // precompute subgraphs
        Rwr_ManPrecompute( p );
//        Rwr_ManPrint( p );
        Rwr_ManWriteToArray( p );
    }
    else
    {   // load saved subgraphs
        Rwr_ManLoadFromArray( p, 0 );
//        Rwr_ManPrint( p );
        Rwr_ManPreprocess( p );
    }
p->timeStart = Abc_Clock() - clk;
    return p;
}

Here is the call graph for this function:

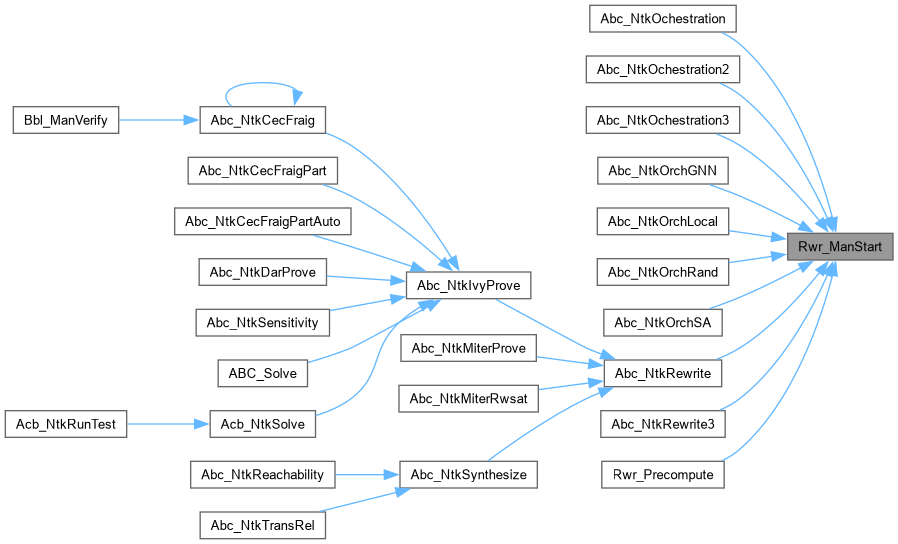

Here is the caller graph for this function:

Rwr_ManStop()

void Rwr_ManStop

(

Rwr_Man_t *

p

)

Function*************************************************************

Synopsis [Stops rewriting manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 109 of file rwrMan.c.

{
    if ( p->vClasses )
    {
        Rwr_Node_t * pNode;
        int i, k;
        Vec_VecForEachEntry( Rwr_Node_t *, p->vClasses, pNode, i, k )
            Dec_GraphFree( (Dec_Graph_t *)pNode->pNext );
    }
    if ( p->vClasses )  Vec_VecFree( p->vClasses );
    Vec_PtrFree( p->vNodesTemp );
    Vec_PtrFree( p->vForest );
    Vec_IntFree( p->vLevNums );
    Vec_PtrFree( p->vFanins );
    Vec_PtrFree( p->vFaninsCur );
    Extra_MmFixedStop( p->pMmNode );
    ABC_FREE( p->pMapInv );
    ABC_FREE( p->pTable );
    ABC_FREE( p->pPractical );
    ABC_FREE( p->pPerms4 );
    ABC_FREE( p );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rwr_Precompute()

void Rwr_Precompute

(

)

Function*************************************************************

Synopsis [Precomputes AIG subgraphs.]

Description []

SideEffects []

SeeAlso []

Definition at line 310 of file rwrMan.c.

{
    Rwr_Man_t * p;
    p = Rwr_ManStart( 1 );
    Rwr_ManStop( p );
}

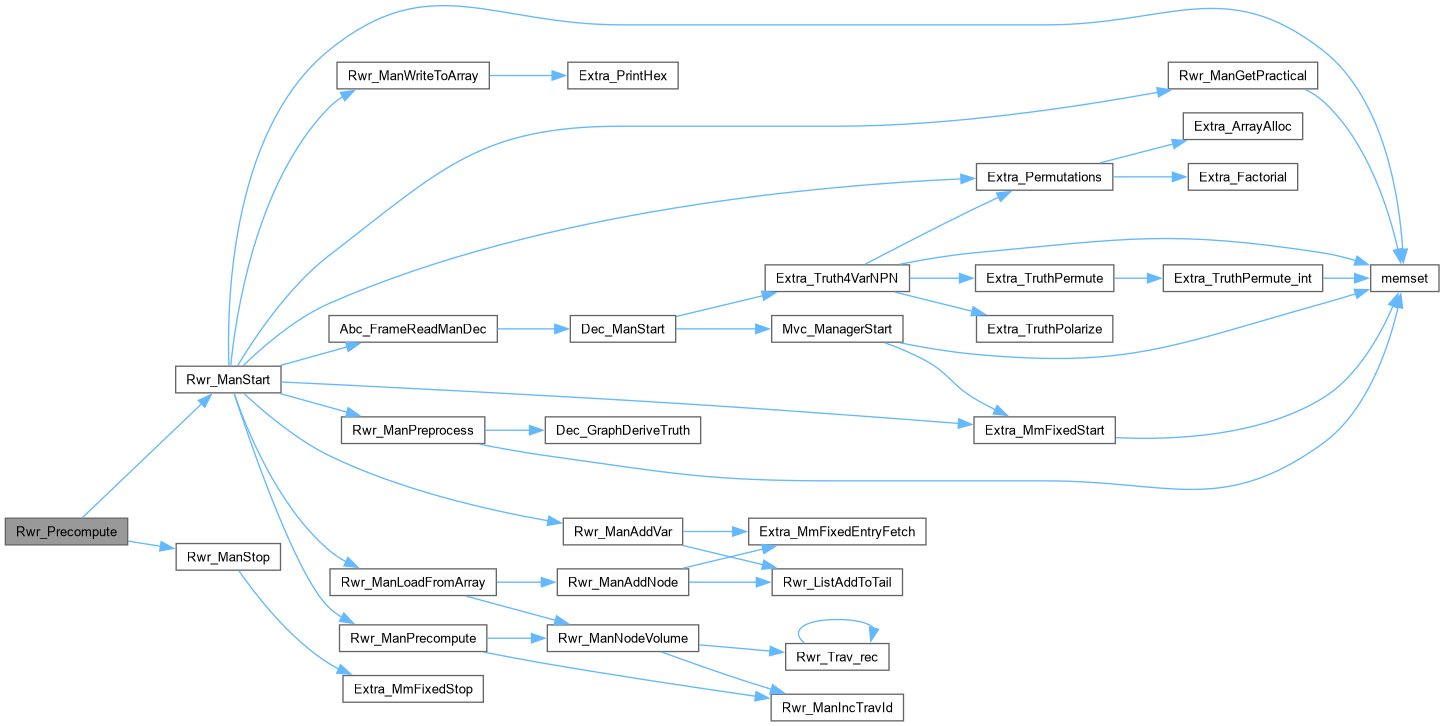

Here is the call graph for this function:
