saigCone.c File Reference

#include "saig.h"

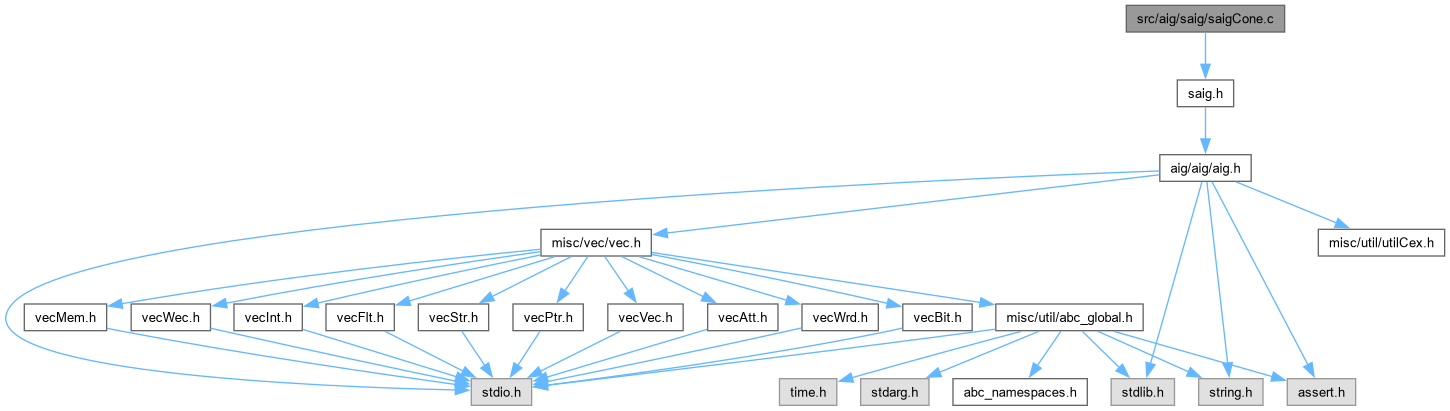

Include dependency graph for saigCone.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Saig_ManSupport_rec (Aig_Man_t *p, Aig_Obj_t *pObj, Vec_Ptr_t *vSupp)
	DECLARATIONS ///.
Vec_Ptr_t *	Saig_ManSupport (Aig_Man_t *p, Vec_Ptr_t *vNodes)
void	Saig_ManPrintConeOne (Aig_Man_t *p, Aig_Obj_t *pObj)
void	Saig_ManPrintCones (Aig_Man_t *p)
	FUNCTION DECLARATIONS ///.

Function Documentation

Saig_ManPrintConeOne()

void Saig_ManPrintConeOne	(	Aig_Man_t *	p,
		Aig_Obj_t *	pObj )

Function*************************************************************

Synopsis [Prints information about cones of influence of the POs.]

Description []

SideEffects []

SeeAlso []

Definition at line 103 of file saigCone.c.

{
    Vec_Ptr_t * vPrev, * vCur, * vTotal;
    int s, i, nCurNew, nCurPrev, nCurOld;
    assert( Saig_ObjIsPo(p, pObj) );
    // start the array
    vPrev = Vec_PtrAlloc( 100 );
    Vec_PtrPush( vPrev, pObj );
    // get the current support
    vCur = Saig_ManSupport( p, vPrev );
    Vec_PtrClear( vPrev );
    printf( "    PO %3d  ", Aig_ObjCioId(pObj) );
    // continue computing supports as long as there are now nodes
    vTotal = Vec_PtrAlloc( 100 );
    for ( s = 0; ; s++ )
    {
        // classify current into those new, prev, and older
        nCurNew = nCurPrev = nCurOld = 0;
        Vec_PtrForEachEntry( Aig_Obj_t *, vCur, pObj, i )
        {
            if ( Vec_PtrFind(vTotal, pObj) == -1 )
            {
                Vec_PtrPush( vTotal, pObj );
                nCurNew++;
            }
            else if ( Vec_PtrFind(vPrev, pObj) >= 0 )
                nCurPrev++;
            else
                nCurOld++;
        }
        assert( nCurNew + nCurPrev + nCurOld == Vec_PtrSize(vCur) );
        // print the result
        printf( "%d:%d %d=%d+%d+%d  ", s, Vec_PtrSize(vTotal), Vec_PtrSize(vCur), nCurNew, nCurPrev, nCurOld );
        if ( nCurNew == 0 )
            break;
        // compute one more step
        Vec_PtrFree( vPrev );
        vCur = Saig_ManSupport( p, vPrev = vCur );
    }
    printf( "\n" );
    Vec_PtrFree( vPrev );
    Vec_PtrFree( vCur );
    Vec_PtrFree( vTotal );
}

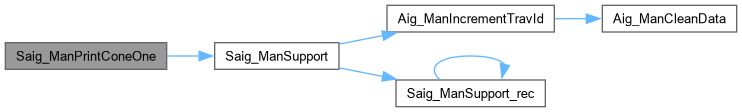

Here is the call graph for this function:

Here is the caller graph for this function:

Saig_ManPrintCones()

void Saig_ManPrintCones

(

Aig_Man_t *

p

)

FUNCTION DECLARATIONS ///.

Function*************************************************************

Synopsis [Prints information about cones of influence of the POs.]

Description []

SideEffects []

SeeAlso []

Definition at line 159 of file saigCone.c.

{
    Aig_Obj_t * pObj;
    int i;
    printf( "The format of this print-out: For each PO, x:a b=c+d+e, where \n" );
    printf( "- x is the time-frame counting back from the PO\n" );
    printf( "- a is the total number of registers in the COI of the PO so far\n" );
    printf( "- b is the number of registers in the COI of the PO in this time-frame\n" );
    printf( "- c is the number of registers in b that are new (appear for the first time)\n" );
    printf( "- d is the number of registers in b in common with the previous time-frame\n" );
    printf( "- e is the number of registers in b in common with other time-frames\n" );
    Aig_ManSetCioIds( p );
    Saig_ManForEachPo( p, pObj, i )
        Saig_ManPrintConeOne( p, pObj );
}

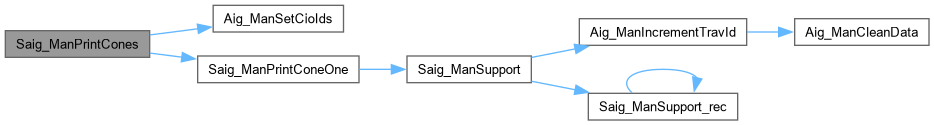

Here is the call graph for this function:

Here is the caller graph for this function:

Saig_ManSupport()

Vec_Ptr_t * Saig_ManSupport	(	Aig_Man_t *	p,
		Vec_Ptr_t *	vNodes )

Function*************************************************************

Synopsis [Counts the support size of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 77 of file saigCone.c.

{
    Vec_Ptr_t * vSupp;
    Aig_Obj_t * pObj;
    int i;
    vSupp = Vec_PtrAlloc( 100 );
    Aig_ManIncrementTravId( p );
    Vec_PtrForEachEntry( Aig_Obj_t *, vNodes, pObj, i )
    {
        assert( Aig_ObjIsCo(pObj) );
        Saig_ManSupport_rec( p, Aig_ObjFanin0(pObj), vSupp );
    }
    return vSupp;
}

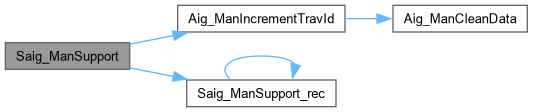

Here is the call graph for this function:

Here is the caller graph for this function:

Saig_ManSupport_rec()

ABC_NAMESPACE_IMPL_START void Saig_ManSupport_rec	(	Aig_Man_t *	p,
		Aig_Obj_t *	pObj,
		Vec_Ptr_t *	vSupp )

DECLARATIONS ///.

CFile****************************************************************

FileName [saigCone.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Sequential AIG package.]

Synopsis [Cone of influence computation.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

saigCone.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Counts the support size of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file saigCone.c.

{
    if ( Aig_ObjIsTravIdCurrent(p, pObj) )
        return;
    Aig_ObjSetTravIdCurrent(p, pObj);
    if ( Aig_ObjIsConst1(pObj) )
        return;
    if ( Aig_ObjIsCi(pObj) )
    {
        if ( Saig_ObjIsLo(p,pObj) )
        {
            pObj = Saig_ManLi( p, Aig_ObjCioId(pObj)-Saig_ManPiNum(p) );
            Vec_PtrPush( vSupp, pObj );
        }
        return;
    }
    assert( Aig_ObjIsNode(pObj) );
    Saig_ManSupport_rec( p, Aig_ObjFanin0(pObj), vSupp );
    Saig_ManSupport_rec( p, Aig_ObjFanin1(pObj), vSupp );
}

Here is the call graph for this function:

Here is the caller graph for this function:
