sbdPath.c File Reference

#include "sbdInt.h"
#include "misc/tim/tim.h"

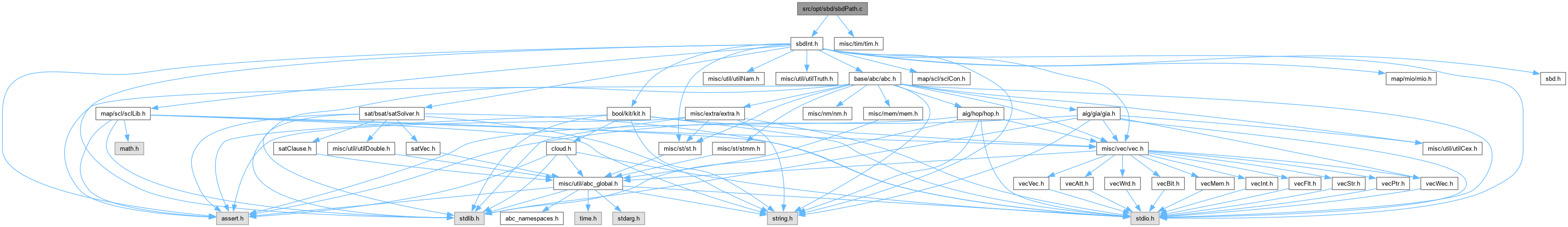

Include dependency graph for sbdPath.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START int	Sbc_ManAddInternalToPath_rec (Gia_Man_t *p, int iObj, Vec_Bit_t *vPath)
	DECLARATIONS ///.
void	Sbc_ManAddInternalToPath (Gia_Man_t *p, Vec_Bit_t *vPath)
void	Sbc_ManCriticalPath_rec (Gia_Man_t *p, int *pLevels, int iObj, int LevelFan, Vec_Bit_t *vPath, int Slack)
Vec_Bit_t *	Sbc_ManCriticalPath (Gia_Man_t *p)
void	Sbc_ManDelayTrace (Gia_Man_t *p)

Function Documentation

Sbc_ManAddInternalToPath()

void Sbc_ManAddInternalToPath	(	Gia_Man_t *	p,
		Vec_Bit_t *	vPath )

Definition at line 63 of file sbdPath.c.

{
    int k, iFan, iObj;
    Gia_ManForEachLut( p, iObj )
    {
        if ( !Vec_BitEntry(vPath, iObj) )
            continue;
        Gia_ManIncrementTravId( p );
        Gia_LutForEachFanin( p, iObj, iFan, k )
            Gia_ObjSetTravIdCurrentId(p, iFan);
        Sbc_ManAddInternalToPath_rec( p, iObj, vPath );
    }
}

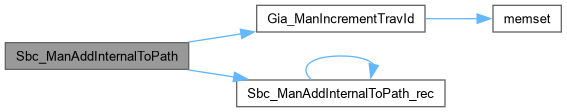

Here is the call graph for this function:

Here is the caller graph for this function:

Sbc_ManAddInternalToPath_rec()

ABC_NAMESPACE_IMPL_START int Sbc_ManAddInternalToPath_rec	(	Gia_Man_t *	p,
		int	iObj,
		Vec_Bit_t *	vPath )

DECLARATIONS ///.

CFile****************************************************************

FileName [sbdPath.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [SAT-based optimization using internal don't-cares.]

Synopsis [Critical path.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

sbdPath.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 46 of file sbdPath.c.

{
    Gia_Obj_t * pObj;
    int k, iFan, Value = 0;
    if ( Gia_ObjIsTravIdCurrentId(p, iObj) )
        return Vec_BitEntry(vPath, iObj);
    Gia_ObjSetTravIdCurrentId(p, iObj);
    pObj = Gia_ManObj( p, iObj );
    if ( Gia_ObjIsCi(pObj) )
        return Vec_BitEntry(vPath, iObj);
    assert( Gia_ObjIsAnd(pObj) );
    Gia_LutForEachFanin( p, iObj, iFan, k )
        Value |= Sbc_ManAddInternalToPath_rec( p, iFan, vPath );
    if ( Value )
        Vec_BitWriteEntry( vPath, iObj, 1 );
    return Value;
}

Here is the call graph for this function:

Here is the caller graph for this function:

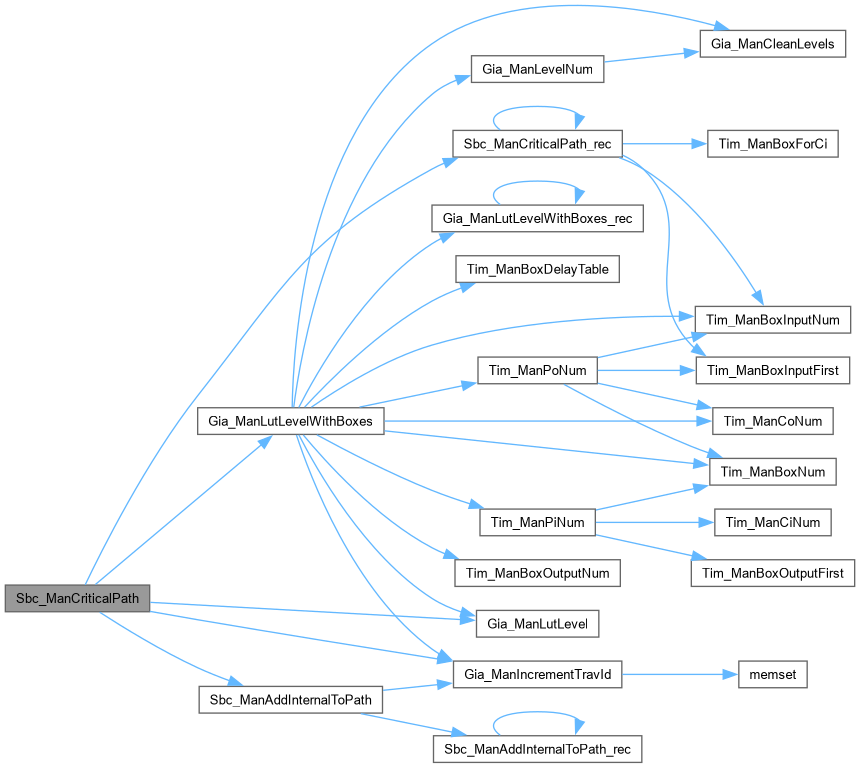

Sbc_ManCriticalPath()

Vec_Bit_t * Sbc_ManCriticalPath

(

Gia_Man_t *

p

)

Definition at line 119 of file sbdPath.c.

{
    int * pLevels = NULL, k, iDriver, Slack = 1;
    int nLevels = p->pManTime ? Gia_ManLutLevelWithBoxes(p) : Gia_ManLutLevel(p, &pLevels);
    Vec_Bit_t * vPath = Vec_BitStart( Gia_ManObjNum(p) );
    if ( p->pManTime )
        pLevels = Vec_IntArray( p->vLevels );
    Gia_ManIncrementTravId( p );
    Gia_ManForEachCoDriverId( p, iDriver, k )
        if ( (pLevels[iDriver] == nLevels) && iDriver )
            Sbc_ManCriticalPath_rec( p, pLevels, iDriver, pLevels[iDriver], vPath, Slack );
    if ( !p->pManTime )
        ABC_FREE( pLevels );
    Sbc_ManAddInternalToPath( p, vPath );
    return vPath;
}

Here is the call graph for this function:

Here is the caller graph for this function:

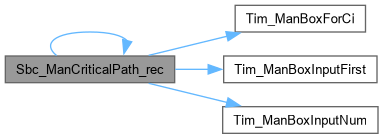

Sbc_ManCriticalPath_rec()

void Sbc_ManCriticalPath_rec	(	Gia_Man_t *	p,
		int *	pLevels,
		int	iObj,
		int	LevelFan,
		Vec_Bit_t *	vPath,
		int	Slack )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 88 of file sbdPath.c.

{
    Gia_Obj_t * pObj; int k, iFan;
    if ( Gia_ObjIsTravIdCurrentId(p, iObj) )
        return;
    Gia_ObjSetTravIdCurrentId(p, iObj);
    pObj = Gia_ManObj( p, iObj );
    Vec_BitWriteEntry( vPath, iObj, 1 );
    if ( Gia_ObjIsCi(pObj) )
    {
        Tim_Man_t * pManTime = (Tim_Man_t *)p->pManTime;
        int iBox = pManTime ? Tim_ManBoxForCi( pManTime, Gia_ObjCioId(pObj) ) : -1;
        if ( iBox >= 0 )
        {
            int curCo = Tim_ManBoxInputFirst( pManTime, iBox );
            int nBoxInputs = Tim_ManBoxInputNum( pManTime, iBox );
            for ( k = 0; k < nBoxInputs; k++ )
            {
                Gia_Obj_t * pCo = Gia_ManCo( p, curCo + k );
                int iDriver = Gia_ObjFaninId0p( p, pCo );
                if ( (pLevels[iDriver]+Slack >= LevelFan-1) && iDriver )
                    Sbc_ManCriticalPath_rec( p, pLevels, iDriver, pLevels[iDriver], vPath, Abc_MaxInt(0, pLevels[iDriver]+Slack-(LevelFan-1)) );
            }
        }
        return;
    }
    assert( Gia_ObjIsAnd(pObj) );
    Gia_LutForEachFanin( p, iObj, iFan, k )
        if ( pLevels[iFan]+Slack >= LevelFan-1 )
            Sbc_ManCriticalPath_rec( p, pLevels, iFan, pLevels[iFan], vPath, Abc_MaxInt(0, pLevels[iFan]+Slack-(LevelFan-1)) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sbc_ManDelayTrace()

void Sbc_ManDelayTrace

(

Gia_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 148 of file sbdPath.c.

{
    Vec_Bit_t * vPath = Vec_BitStart( Gia_ManObjNum(p) );
    int i, k, iFan, nLevels, * pLevels;
    int nLuts = 0, nNodes = 0, nEdges = 0, nEdgesAll = 0;
    if ( !Gia_ManHasMapping(p) )
    {
        printf( "No mapping is available.\n" );
        return;
    }
    assert( Gia_ManHasMapping(p) );
    // set critical CO drivers
    nLevels = Gia_ManLutLevel( p, &pLevels );
    Gia_ManForEachCoDriverId( p, iFan, i )
        if ( pLevels[iFan] == nLevels )
            Vec_BitWriteEntry( vPath, iFan, 1 );
    // set critical internal nodes
    Gia_ManForEachLutReverse( p, i )
    {
        nLuts++;
        if ( !Vec_BitEntry(vPath, i) )
            continue;
        nNodes++;
        Gia_LutForEachFanin( p, i, iFan, k )
        {
            if ( pLevels[iFan] +1 < pLevels[i] )
                continue;
            assert( pLevels[iFan] + 1 == pLevels[i] );
            Vec_BitWriteEntry( vPath, iFan, 1 );
            nEdges++;
            //printf( "%d -> %d\n", i, iFan );
        }
    }
    Gia_ManForEachLut( p, i )
        Gia_LutForEachFanin( p, i, iFan, k )
            nEdgesAll += (Vec_BitEntry(vPath, i) && Vec_BitEntry(vPath, iFan));

    ABC_FREE( pLevels );
    Vec_BitFree( vPath );
    printf( "AIG = %d. LUT = %d. Lev = %d.   Path nodes = %d.  Path edges = %d. (%d.)\n",
        Gia_ManAndNum(p), nLuts, nLevels, nNodes, nEdges, nEdgesAll );
}

Here is the call graph for this function:
