sclBufSize.c File Reference

#include "sclSize.h"
#include "map/mio/mio.h"
#include "base/main/main.h"

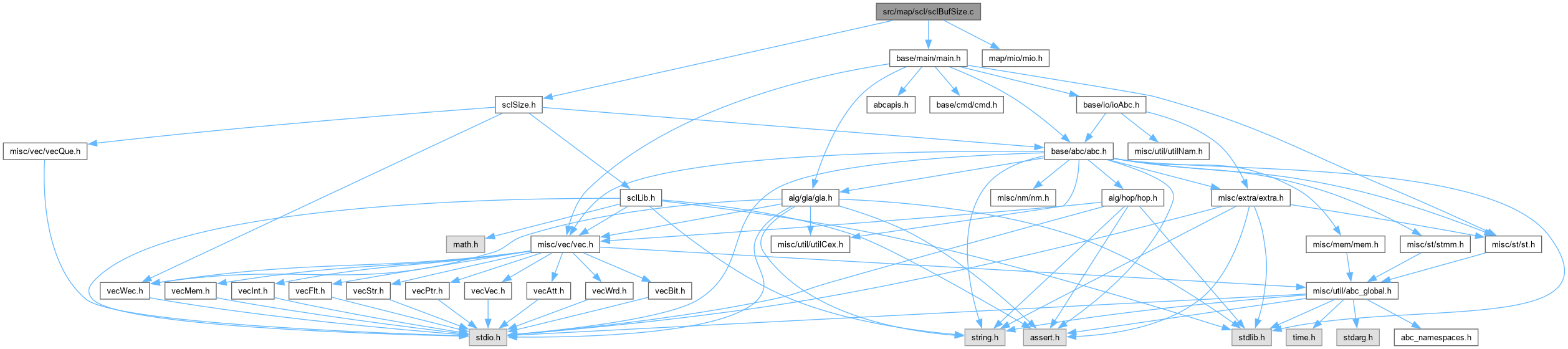

Include dependency graph for sclBufSize.c:

Go to the source code of this file.

Classes
struct	Bus_Man_t_

Typedefs
typedef typedefABC_NAMESPACE_IMPL_START struct Bus_Man_t_	Bus_Man_t
	DECLARATIONS ///.

Functions
Bus_Man_t *	Bus_ManStart (Abc_Ntk_t *pNtk, SC_Lib *pLib, SC_BusPars *pPars)
	FUNCTION DEFINITIONS ///.
void	Bus_ManStop (Bus_Man_t *p)
void	Bus_ManReadInOutLoads (Bus_Man_t *p)
float	Abc_NtkComputeNodeDeparture (Abc_Obj_t *pObj, float Slew)
void	Abc_NtkComputeFanoutInfo (Abc_Obj_t *pObj, float Slew)
float	Abc_NtkComputeNodeLoad (Bus_Man_t *p, Abc_Obj_t *pObj)
float	Abc_NtkComputeFanoutLoad (Bus_Man_t *p, Vec_Ptr_t *vFanouts)
void	Abc_NtkPrintFanoutProfile (Abc_Obj_t *pObj)
void	Abc_NtkPrintFanoutProfileVec (Abc_Obj_t *pObj, Vec_Ptr_t *vFanouts)
int	Bus_SclCompareFanouts (Abc_Obj_t **pp1, Abc_Obj_t **pp2)
void	Bus_SclInsertFanout (Vec_Ptr_t *vFanouts, Abc_Obj_t *pObj)
void	Bus_SclCheckSortedFanout (Vec_Ptr_t *vFanouts)
void	Abc_SclOneNodePrint (Bus_Man_t *p, Abc_Obj_t *pObj)
Abc_Obj_t *	Abc_SclAddOneInv (Bus_Man_t *p, Abc_Obj_t *pObj, Vec_Ptr_t *vFanouts, float Gain)
void	Abc_SclBufSize (Bus_Man_t *p, float Gain)
Abc_Ntk_t *	Abc_SclBufferingPerform (Abc_Ntk_t *pNtk, SC_Lib *pLib, SC_BusPars *pPars)

Typedef Documentation

Bus_Man_t

typedef typedefABC_NAMESPACE_IMPL_START struct Bus_Man_t_ Bus_Man_t

DECLARATIONS ///.

CFile****************************************************************

FileName [sclBufSize.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Standard-cell library representation.]

Synopsis [Buffering and sizing combined.]

Author [Alan Mishchenko, Niklas Een]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - August 24, 2012.]

Revision [

Id

sclBufSize.c,v 1.0 2012/08/24 00:00:00 alanmi Exp

]

Definition at line 32 of file sclBufSize.c.

Function Documentation

Abc_NtkComputeFanoutInfo()

void Abc_NtkComputeFanoutInfo	(	Abc_Obj_t *	pObj,
		float	Slew )

Definition at line 192 of file sclBufSize.c.

{
    Abc_Obj_t * pFanout;
    int i;
    Abc_ObjForEachFanout( pObj, pFanout, i )
    {
        if ( Abc_ObjIsBarBuf(pFanout) )
        {
            Bus_SclObjSetETime( pFanout, Bus_SclObjDept(pFanout) );
            Bus_SclObjSetCin( pFanout, Bus_SclObjLoad(pFanout) );
        }
        else if ( !Abc_ObjIsCo(pFanout) )
        {
            int iFanin = Abc_NodeFindFanin(pFanout, pObj);
            Bus_SclObjSetETime( pFanout, Abc_NtkComputeEdgeDept(pFanout, iFanin, Slew) );
            Bus_SclObjSetCin( pFanout, SC_CellPinCap( Abc_SclObjCell(pFanout), iFanin ) );
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkComputeFanoutLoad()

float Abc_NtkComputeFanoutLoad	(	Bus_Man_t *	p,
		Vec_Ptr_t *	vFanouts )

Definition at line 223 of file sclBufSize.c.

{
    Abc_Obj_t * pFanout;
    float Load;
    int i;
    Load = Abc_SclFindWireLoad( p->vWireCaps, Vec_PtrSize(vFanouts) );
    Vec_PtrForEachEntry( Abc_Obj_t *, vFanouts, pFanout, i )
        Load += Bus_SclObjCin( pFanout );
    return Load;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkComputeNodeDeparture()

float Abc_NtkComputeNodeDeparture	(	Abc_Obj_t *	pObj,
		float	Slew )

Definition at line 178 of file sclBufSize.c.

{
    Abc_Obj_t * pFanout;
    int i;
    assert( Bus_SclObjDept(pObj) == 0 );
    Abc_ObjForEachFanout( pObj, pFanout, i )
    {
        if ( Abc_ObjIsBarBuf(pFanout) )
            Bus_SclObjUpdateDept( pObj, Bus_SclObjDept(pFanout) );
        else if ( !Abc_ObjIsCo(pFanout) ) // add required times here
            Bus_SclObjUpdateDept( pObj, Abc_NtkComputeEdgeDept(pFanout, Abc_NodeFindFanin(pFanout, pObj), Slew) );
    }
    return Bus_SclObjDept( pObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkComputeNodeLoad()

float Abc_NtkComputeNodeLoad	(	Bus_Man_t *	p,
		Abc_Obj_t *	pObj )

Definition at line 211 of file sclBufSize.c.

{
    Abc_Obj_t * pFanout;
    float Load;
    int i;
    assert( Bus_SclObjLoad(pObj) == 0 );
    Load = Abc_SclFindWireLoad( p->vWireCaps, Abc_ObjFanoutNum(pObj) );
    Abc_ObjForEachFanout( pObj, pFanout, i )
        Load += Bus_SclObjCin( pFanout );
    Bus_SclObjSetLoad( pObj, Load );
    return Load;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkPrintFanoutProfile()

void Abc_NtkPrintFanoutProfile

(

Abc_Obj_t *

pObj

)

Definition at line 233 of file sclBufSize.c.

{
    Abc_Obj_t * pFanout;
    int i;
    printf( "Obj %6d fanouts (%d):\n", Abc_ObjId(pObj), Abc_ObjFanoutNum(pObj) );
    Abc_ObjForEachFanout( pObj, pFanout, i )
    {
        printf( "%3d : time = %7.2f ps   load = %7.2f ff  ", i, Bus_SclObjETime(pFanout), Bus_SclObjCin(pFanout) );
        printf( "%s\n", Abc_ObjFaninPhase( pFanout, Abc_NodeFindFanin(pFanout, pObj) ) ? "*" : " " );
    }
    printf( "\n" );
}

Here is the call graph for this function:

Abc_NtkPrintFanoutProfileVec()

void Abc_NtkPrintFanoutProfileVec	(	Abc_Obj_t *	pObj,
		Vec_Ptr_t *	vFanouts )

Definition at line 245 of file sclBufSize.c.

{
    Abc_Obj_t * pFanout;
    int i;
    printf( "Fanout profile (%d):\n", Vec_PtrSize(vFanouts) );
    Vec_PtrForEachEntry( Abc_Obj_t *, vFanouts, pFanout, i )
    {
        printf( "%3d : time = %7.2f ps   load = %7.2f ff  ", i, Bus_SclObjETime(pFanout), Bus_SclObjCin(pFanout) );
        if ( pObj->pNtk->vPhases )
            printf( "%s", (pObj && Abc_ObjFanoutNum(pObj) == Vec_PtrSize(vFanouts) && Abc_ObjFaninPhase( pFanout, Abc_NodeFindFanin(pFanout, pObj) )) ? "*" : " " );
        printf( "\n" );
    }
    printf( "\n" );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_SclAddOneInv()

Abc_Obj_t * Abc_SclAddOneInv	(	Bus_Man_t *	p,
		Abc_Obj_t *	pObj,
		Vec_Ptr_t *	vFanouts,
		float	Gain )

Definition at line 343 of file sclBufSize.c.

{
    SC_Cell * pCellNew;
    Abc_Obj_t * pFanout, * pInv;
    float Target = SC_CellPinCap(p->pInv, 0) * Gain;
    float LoadWirePrev, LoadWireThis, Load = 0;
    int Limit = Abc_MinInt( p->pPars->nDegree, Vec_PtrSize(vFanouts) );
    int i, iStop;
    Bus_SclCheckSortedFanout( vFanouts );
    Vec_PtrForEachEntryStop( Abc_Obj_t *, vFanouts, pFanout, iStop, Limit )
    {
        LoadWirePrev = Abc_SclFindWireLoad( p->vWireCaps, iStop );
        LoadWireThis = Abc_SclFindWireLoad( p->vWireCaps, iStop+1 );
        Load += Bus_SclObjCin( pFanout ) - LoadWirePrev + LoadWireThis;
        if ( Load > Target )
        {
            iStop++;
            break;
        }
    }
    // create inverter
    if ( p->pPars->fAddBufs )
        pInv = Abc_NtkCreateNodeBuf( p->pNtk, NULL );
    else
        pInv = Abc_NtkCreateNodeInv( p->pNtk, NULL );
    assert( (int)Abc_ObjId(pInv) == Vec_FltSize(p->vCins) );
    Vec_FltPush( p->vCins,   0 );
    Vec_FltPush( p->vETimes, 0 );
    Vec_FltPush( p->vLoads,  0 );
    Vec_FltPush( p->vDepts,  0 );
    Limit = Abc_MinInt( Abc_MaxInt(iStop, 2), Vec_PtrSize(vFanouts) );
    Vec_PtrForEachEntryStop( Abc_Obj_t *, vFanouts, pFanout, i, Limit )
    {
        Vec_PtrWriteEntry( vFanouts, i, NULL );
        if ( Abc_ObjFaninNum(pFanout) == 0 )
            Abc_ObjAddFanin( pFanout, pInv );
        else
            Abc_ObjPatchFanin( pFanout, pObj, pInv );
    }
    // set the gate
    pCellNew = Abc_SclFindSmallestGate( p->pInv, Load / Gain );
    Vec_IntSetEntry( p->pNtk->vGates, Abc_ObjId(pInv), pCellNew->Id );
    // set departure and load
    Abc_NtkComputeNodeDeparture( pInv, p->pPars->Slew );
    Abc_NtkComputeNodeLoad( p, pInv );
    // set fanout info for the inverter
    Bus_SclObjSetCin( pInv, SC_CellPinCap(pCellNew, 0) );
    Bus_SclObjSetETime( pInv, Abc_NtkComputeEdgeDept(pInv, 0, p->pPars->Slew) );
    // update phases
    if ( p->pNtk->vPhases && Abc_SclIsInv(pInv) )
        Abc_NodeInvUpdateFanPolarity( pInv );
    return pInv;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_SclBufferingPerform()

Abc_Ntk_t * Abc_SclBufferingPerform	(	Abc_Ntk_t *	pNtk,
		SC_Lib *	pLib,
		SC_BusPars *	pPars )

Definition at line 491 of file sclBufSize.c.

{
    Abc_Ntk_t * pNtkNew;
    Bus_Man_t * p;
    if ( !Abc_SclCheckNtk( pNtk, 0 ) )
        return NULL;
    Abc_SclReportDupFanins( pNtk );
    Abc_SclMioGates2SclGates( pLib, pNtk );
    p = Bus_ManStart( pNtk, pLib, pPars );
    Bus_ManReadInOutLoads( p );
    Abc_SclBufSize( p, 0.01 * pPars->GainRatio );
    Bus_ManStop( p );
    Abc_SclSclGates2MioGates( pLib, pNtk );
    if ( pNtk->vPhases )
        Vec_IntFillExtra( pNtk->vPhases, Abc_NtkObjNumMax(pNtk), 0 );
    pNtkNew = Abc_NtkDupDfs( pNtk );
    return pNtkNew;
}

Here is the call graph for this function:

Abc_SclBufSize()

void Abc_SclBufSize	(	Bus_Man_t *	p,
		float	Gain )

Definition at line 396 of file sclBufSize.c.

{
    SC_Cell * pCell, * pCellNew;
    Abc_Obj_t * pObj, * pFanout;
    abctime clk = Abc_Clock();
    int i, k, nObjsOld = Abc_NtkObjNumMax(p->pNtk);
    float GainGate, GainInv, Load, Cin, DeptMax = 0;
    GainGate = p->pPars->fAddBufs ? (float)pow( (double)Gain, (double)2.0 ) : Gain;
    GainInv  = p->pPars->fAddBufs ? (float)pow( (double)Gain, (double)2.0 ) : Gain;
    Abc_NtkForEachObjReverse( p->pNtk, pObj, i )
    {
        if ( !((Abc_ObjIsNode(pObj) && Abc_ObjFaninNum(pObj) > 0) || (Abc_ObjIsCi(pObj) && p->pPiDrive)) )
            continue;
        if ( 2 * nObjsOld < Abc_NtkObjNumMax(p->pNtk) )
        {
            printf( "Buffering could not be completed because the gain value (%d) is too low.\n", p->pPars->GainRatio );
            break;
        }
        // compute load
        Abc_NtkComputeFanoutInfo( pObj, p->pPars->Slew );
        Load = Abc_NtkComputeNodeLoad( p, pObj );
        // consider the gate
        if ( Abc_ObjIsCi(pObj) || Abc_ObjIsBarBuf(pObj) )
        {
            pCell = p->pPiDrive;
            // if PI driver is not given, assume Cin to be equal to Load
            // this way, buffering of the PIs is performed
            Cin = pCell ? SC_CellPinCapAve(pCell) : Load;
        }
        else
        {
            pCell = Abc_SclObjCell( pObj );
            Cin = SC_CellPinCapAve( pCell->pAve );
//        Cin = SC_CellPinCapAve( pCell->pRepr->pNext );
        }
        // consider buffering this gate
        if ( !p->pPars->fSizeOnly && (Abc_ObjFanoutNum(pObj) > p->pPars->nDegree || Load > GainGate * Cin) )
        {
            // add one or more inverters
//            Abc_NtkPrintFanoutProfile( pObj );
            Abc_NodeCollectFanouts( pObj, p->vFanouts );
            Vec_PtrSort( p->vFanouts, (int(*)(const void *, const void *))Bus_SclCompareFanouts );
            do
            {
                Abc_Obj_t * pInv;
                if ( p->pPars->fVeryVerbose )//|| Vec_PtrSize(p->vFanouts) == Abc_ObjFanoutNum(pObj) )
                    Abc_NtkPrintFanoutProfileVec( pObj, p->vFanouts );
                pInv = Abc_SclAddOneInv( p, pObj, p->vFanouts, GainInv );
                if ( p->pPars->fVeryVerbose )
                    Abc_SclOneNodePrint( p, pInv );
                Bus_SclInsertFanout( p->vFanouts, pInv );
                Load = Abc_NtkComputeFanoutLoad( p, p->vFanouts );
            }
            while ( Vec_PtrSize(p->vFanouts) > p->pPars->nDegree || (Vec_PtrSize(p->vFanouts) > 1 && Load > GainGate * Cin) );
            // update node fanouts
            Vec_PtrForEachEntry( Abc_Obj_t *, p->vFanouts, pFanout, k )
                if ( Abc_ObjFaninNum(pFanout) == 0 )
                    Abc_ObjAddFanin( pFanout, pObj );
            Bus_SclObjSetLoad( pObj, 0 );
            Abc_NtkComputeNodeLoad( p, pObj );
        }
        if ( Abc_ObjIsCi(pObj) )
            continue;
        Abc_NtkComputeNodeDeparture( pObj, p->pPars->Slew );
        if ( Abc_ObjIsBarBuf(pObj) )
            continue;
        // create cell
        pCellNew = Abc_SclFindSmallestGate( pCell, Load / GainGate );
        Abc_SclObjSetCell( pObj, pCellNew );
        if ( p->pPars->fVeryVerbose )
            Abc_SclOneNodePrint( p, pObj );
        assert( p->pPars->fSizeOnly || Abc_ObjFanoutNum(pObj) <= p->pPars->nDegree );
    }
    // compute departure time of the PI
    if ( i < 0 ) // finished buffering
    Abc_NtkForEachCi( p->pNtk, pObj, i )
    {
        float DeptCur = Abc_NtkComputeNodeDeparture(pObj, p->pPars->Slew);
        if ( p->pPiDrive )
        {
            float Load = Bus_SclObjLoad( pObj );
            SC_Pair ArrOut, SlewOut, LoadIn = { Load, Load };
            Scl_LibHandleInputDriver( p->pPiDrive, &LoadIn, &ArrOut, &SlewOut );
            DeptCur += 0.5 * ArrOut.fall +  0.5 * ArrOut.rise;
        }
        DeptMax = Abc_MaxFloat( DeptMax, DeptCur );
    }
    if ( p->pPars->fVerbose )
    {
        printf( "WireLoads = %d  Degree = %d  Target slew =%4d ps   Gain2 =%5d  Buf = %6d  Delay =%7.0f ps   ",
            p->pPars->fUseWireLoads, p->pPars->nDegree, p->pPars->Slew, p->pPars->GainRatio,
            Abc_NtkObjNumMax(p->pNtk) - nObjsOld, DeptMax );
        Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
    }
}

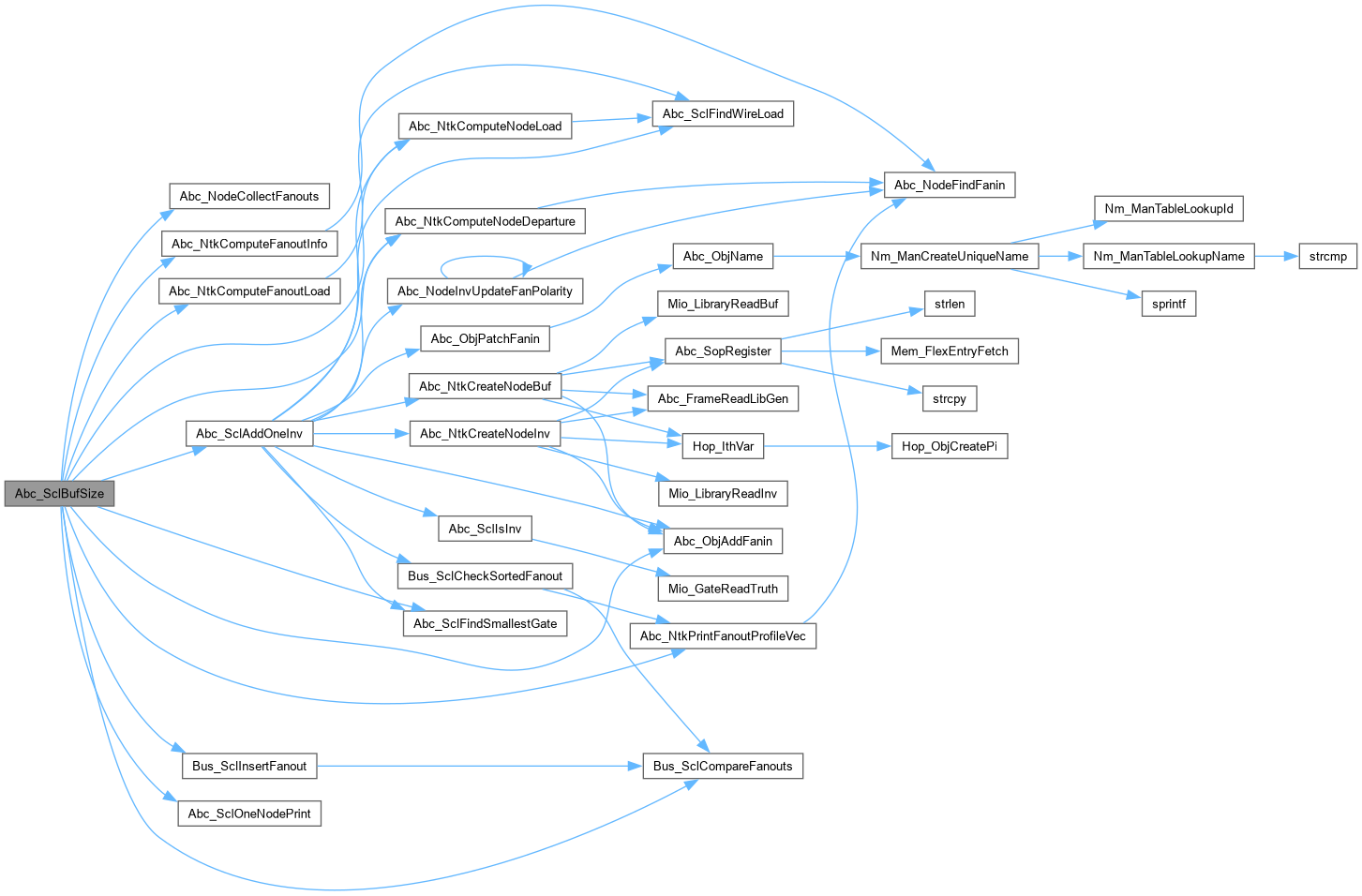

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_SclOneNodePrint()

void Abc_SclOneNodePrint	(	Bus_Man_t *	p,
		Abc_Obj_t *	pObj )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 332 of file sclBufSize.c.

{
    SC_Cell * pCell = Abc_SclObjCell(pObj);
    printf( "%s%7d :  ",        (Abc_ObjFaninNum(pObj) == 0) ? " Inv" : "Node", Abc_ObjId(pObj) );
    printf( "%d/%2d   ",        Abc_ObjFaninNum(pObj) ? Abc_ObjFaninNum(pObj) : 1, Abc_ObjFanoutNum(pObj) );
    printf( "%12s ",            pCell->pName );
    printf( "(%2d/%2d)  ",      pCell->Order, pCell->nGates );
    printf( "gain =%5d  ",      (int)(100.0 * Bus_SclObjLoad(pObj) / SC_CellPinCapAve(pCell)) );
    printf( "dept =%7.0f ps  ", Bus_SclObjDept(pObj) );
    printf( "\n" );
}

Here is the caller graph for this function:

Bus_ManReadInOutLoads()

void Bus_ManReadInOutLoads

(

Bus_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 133 of file sclBufSize.c.

{
    if ( Abc_FrameReadMaxLoad() )
    {
        Abc_Obj_t * pObj; int i;
        float MaxLoad = Abc_FrameReadMaxLoad();
        Abc_NtkForEachCo( p->pNtk, pObj, i )
            Bus_SclObjSetCin( pObj, MaxLoad );
//        printf( "Default output load is specified (%f ff).\n", MaxLoad );
    }
    if ( Abc_FrameReadDrivingCell() )
    {
        int iCell = Abc_SclCellFind( p->pLib, Abc_FrameReadDrivingCell() );
        if ( iCell == -1 )
            printf( "Cannot find the default PI driving cell (%s) in the library.\n", Abc_FrameReadDrivingCell() );
        else
        {
//            printf( "Default PI driving cell is specified (%s).\n", Abc_FrameReadDrivingCell() );
            p->pPiDrive = SC_LibCell( p->pLib, iCell );
            assert( p->pPiDrive != NULL );
            assert( p->pPiDrive->n_inputs == 1 );
//            printf( "Default input driving cell is specified (%s).\n", p->pPiDrive->pName );
        }
    }
}

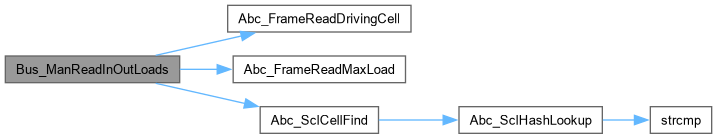

Here is the call graph for this function:

Here is the caller graph for this function:

Bus_ManStart()

Bus_Man_t * Bus_ManStart	(	Abc_Ntk_t *	pNtk,
		SC_Lib *	pLib,
		SC_BusPars *	pPars )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 78 of file sclBufSize.c.

{
    Bus_Man_t * p;
    p = ABC_CALLOC( Bus_Man_t, 1 );
    p->pPars     = pPars;
    p->pNtk      = pNtk;
    p->pLib      = pLib;
    p->pInv      = Abc_SclFindInvertor(pLib, pPars->fAddBufs)->pRepr->pPrev;//->pAve;
    if ( pPars->fUseWireLoads )
    {
        if ( pNtk->pWLoadUsed == NULL )
        {
            p->pWLoadUsed = Abc_SclFindWireLoadModel( pLib, Abc_SclGetTotalArea(pNtk) );
            if ( p->pWLoadUsed )
            pNtk->pWLoadUsed = Abc_UtilStrsav( p->pWLoadUsed->pName );
        }
        else
            p->pWLoadUsed = Abc_SclFetchWireLoadModel( pLib, pNtk->pWLoadUsed );
    }
    if ( p->pWLoadUsed )
    p->vWireCaps = Abc_SclFindWireCaps( p->pWLoadUsed, Abc_NtkGetFanoutMax(pNtk) );
    p->vFanouts  = Vec_PtrAlloc( 100 );
    p->vCins     = Vec_FltAlloc( 2*Abc_NtkObjNumMax(pNtk) + 1000 );
    p->vETimes   = Vec_FltAlloc( 2*Abc_NtkObjNumMax(pNtk) + 1000 );
    p->vLoads    = Vec_FltAlloc( 2*Abc_NtkObjNumMax(pNtk) + 1000 );
    p->vDepts    = Vec_FltAlloc( 2*Abc_NtkObjNumMax(pNtk) + 1000 );
    Vec_FltFill( p->vCins,   Abc_NtkObjNumMax(pNtk), 0 );
    Vec_FltFill( p->vETimes, Abc_NtkObjNumMax(pNtk), 0 );
    Vec_FltFill( p->vLoads,  Abc_NtkObjNumMax(pNtk), 0 );
    Vec_FltFill( p->vDepts,  Abc_NtkObjNumMax(pNtk), 0 );
    pNtk->pBSMan = p;
    return p;
}

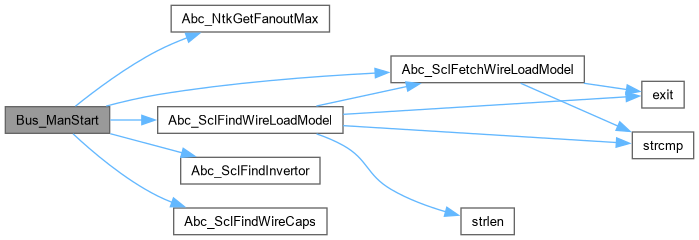

Here is the call graph for this function:

Here is the caller graph for this function:

Bus_ManStop()

void Bus_ManStop

(

Bus_Man_t *

p

)

Definition at line 111 of file sclBufSize.c.

{
    Vec_PtrFreeP( &p->vFanouts );
    Vec_FltFreeP( &p->vWireCaps );
    Vec_FltFreeP( &p->vCins );
    Vec_FltFreeP( &p->vETimes );
    Vec_FltFreeP( &p->vLoads );
    Vec_FltFreeP( &p->vDepts );
    ABC_FREE( p );
}

Here is the caller graph for this function:

Bus_SclCheckSortedFanout()

void Bus_SclCheckSortedFanout

(

Vec_Ptr_t *

vFanouts

)

Definition at line 304 of file sclBufSize.c.

{
    Abc_Obj_t * pObj, * pNext;
    int i;
    for ( i = 0; i < Vec_PtrSize(vFanouts) - 1; i++ )
    {
        pObj  = (Abc_Obj_t *)Vec_PtrEntry(vFanouts, i);
        pNext = (Abc_Obj_t *)Vec_PtrEntry(vFanouts, i+1);
        if ( Bus_SclCompareFanouts( &pObj, &pNext ) != -1 )
        {
            printf( "Fanouts %d and %d are out of order.\n", i, i+1 );
            Abc_NtkPrintFanoutProfileVec( NULL, vFanouts );
            return;
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Bus_SclCompareFanouts()

int Bus_SclCompareFanouts	(	Abc_Obj_t **	pp1,
		Abc_Obj_t **	pp2 )

Function*************************************************************

Synopsis [Compare two fanouts by their departure times.]

Description []

SideEffects []

SeeAlso []

Definition at line 271 of file sclBufSize.c.

{
    float Espilon = 0;//10; // 10 ps
    if ( Bus_SclObjETime(*pp1) < Bus_SclObjETime(*pp2) - Espilon )
        return -1;
    if ( Bus_SclObjETime(*pp1) > Bus_SclObjETime(*pp2) + Espilon )
        return 1;
    if ( Bus_SclObjCin(*pp1) > Bus_SclObjCin(*pp2) )
        return -1;
    if ( Bus_SclObjCin(*pp1) < Bus_SclObjCin(*pp2) )
        return 1;
    return -1;
}

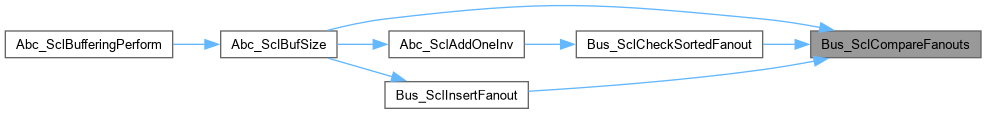

Here is the caller graph for this function:

Bus_SclInsertFanout()

void Bus_SclInsertFanout	(	Vec_Ptr_t *	vFanouts,
		Abc_Obj_t *	pObj )

Definition at line 284 of file sclBufSize.c.

{
    Abc_Obj_t * pCur;
    int i, k;
    // compact array
    for ( i = k = 0; i < Vec_PtrSize(vFanouts); i++ )
        if ( Vec_PtrEntry(vFanouts, i) != NULL )
            Vec_PtrWriteEntry( vFanouts, k++, Vec_PtrEntry(vFanouts, i) );
    Vec_PtrShrink( vFanouts, k );
    // insert new entry
    Vec_PtrPush( vFanouts, pObj );
    for ( i = Vec_PtrSize(vFanouts) - 1; i > 0; i-- )
    {
        pCur = (Abc_Obj_t *)Vec_PtrEntry(vFanouts, i-1);
        pObj = (Abc_Obj_t *)Vec_PtrEntry(vFanouts, i);
        if ( Bus_SclCompareFanouts( &pCur, &pObj ) == -1 )
            break;
        ABC_SWAP( void *, Vec_PtrArray(vFanouts)[i-1], Vec_PtrArray(vFanouts)[i] );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:
