sclSize.c File Reference

#include "sclSize.h"
#include "map/mio/mio.h"
#include "misc/vec/vecWec.h"
#include "base/main/main.h"

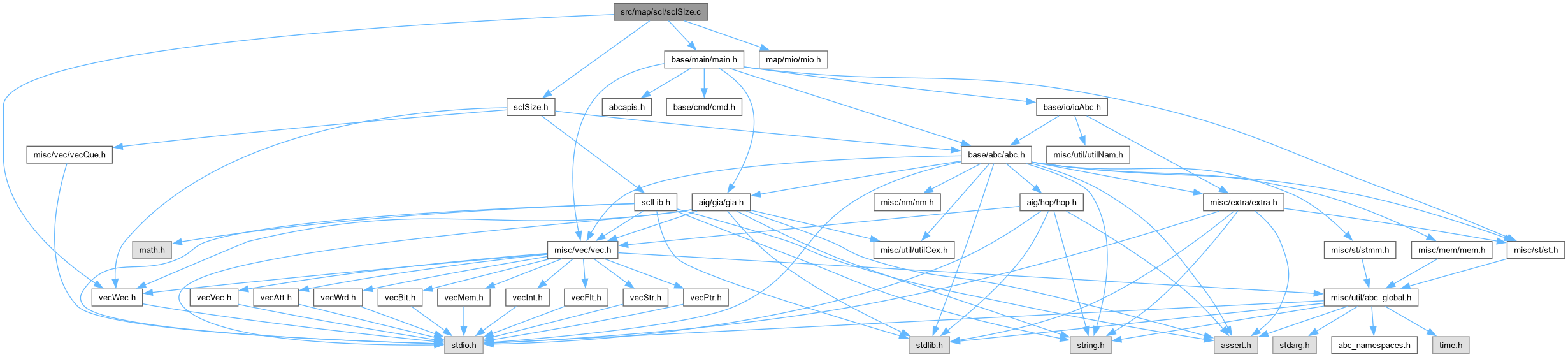

Include dependency graph for sclSize.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Abc_Obj_t *	Abc_SclFindCriticalCo (SC_Man *p, int *pfRise)
	DECLARATIONS ///.
Abc_Obj_t *	Abc_SclFindMostCriticalFanin2 (SC_Man *p, int *pfRise, Abc_Obj_t *pNode)
Abc_Obj_t *	Abc_SclFindMostCriticalFanin (SC_Man *p, int *pfRise, Abc_Obj_t *pNode)
void	Abc_SclTimeNtkPrint (SC_Man *p, int fShowAll, int fPrintPath)
void	Abc_SclTimeNode (SC_Man *p, Abc_Obj_t *pObj, int fDept)
void	Abc_SclTimeCone (SC_Man *p, Vec_Int_t *vCone)
void	Abc_SclTimeNtkRecompute (SC_Man *p, float *pArea, float *pDelay, int fReverse, float DUser)
void	Abc_SclTimeIncCheckLevel (Abc_Ntk_t *pNtk)
int	Abc_SclTimeIncUpdate (SC_Man *p)
void	Abc_SclTimeIncInsert (SC_Man *p, Abc_Obj_t *pObj)
void	Abc_SclTimeIncUpdateLevel_rec (Abc_Obj_t *pObj)
void	Abc_SclTimeIncUpdateLevel (Abc_Obj_t *pObj)
void	Abc_SclManReadSlewAndLoad (SC_Man *p, Abc_Ntk_t *pNtk)
SC_Man *	Abc_SclManStart (SC_Lib *pLib, Abc_Ntk_t *pNtk, int fUseWireLoads, int fDept, float DUser, int nTreeCRatio)
void	Abc_SclTimePerformInt (SC_Lib *pLib, Abc_Ntk_t *pNtk, int nTreeCRatio, int fUseWireLoads, int fShowAll, int fPrintPath, int fDumpStats)
void	Abc_SclTimePerform (SC_Lib *pLib, Abc_Ntk_t *pNtk, int nTreeCRatio, int fUseWireLoads, int fShowAll, int fPrintPath, int fDumpStats)
int	Abc_SclCheckCommonInputs (Abc_Obj_t *pObj, Abc_Obj_t *pFanin)
void	Abc_SclPrintFaninPairs (SC_Man *p, Abc_Ntk_t *pNtk)
int	Abc_SclHasBufferFanout (Abc_Obj_t *pObj)
int	Abc_SclCountBufferFanoutsInt (Abc_Obj_t *pObj)
int	Abc_SclCountBufferFanouts (Abc_Obj_t *pObj)
int	Abc_SclCountNonBufferFanoutsInt (Abc_Obj_t *pObj)
int	Abc_SclCountNonBufferFanouts (Abc_Obj_t *pObj)
float	Abc_SclCountNonBufferDelayInt (SC_Man *p, Abc_Obj_t *pObj)
float	Abc_SclCountNonBufferDelay (SC_Man *p, Abc_Obj_t *pObj)
float	Abc_SclCountNonBufferLoadInt (SC_Man *p, Abc_Obj_t *pObj)
float	Abc_SclCountNonBufferLoad (SC_Man *p, Abc_Obj_t *pObj)
void	Abc_SclPrintBuffersOne (SC_Man *p, Abc_Obj_t *pObj, int nOffset)
void	Abc_SclPrintBuffersInt (SC_Man *p, Abc_Obj_t *pObj, int nOffset)
void	Abc_SclPrintBufferTrees (SC_Man *p, Abc_Ntk_t *pNtk)
void	Abc_SclPrintBuffers (SC_Lib *pLib, Abc_Ntk_t *pNtk, int fVerbose)

Function Documentation

Abc_SclCheckCommonInputs()

int Abc_SclCheckCommonInputs	(	Abc_Obj_t *	pObj,
		Abc_Obj_t *	pFanin )

Function*************************************************************

Synopsis [Printing out fanin information.]

Description []

SideEffects []

SeeAlso []

Definition at line 730 of file sclSize.c.

{
    Abc_Obj_t * pTemp;
    int i;
    Abc_ObjForEachFanin( pObj, pTemp, i )
        if ( Abc_NodeFindFanin( pFanin, pTemp ) >= 0 )
        {
            printf( "Node %d and its fanin %d have common fanin %d.\n", Abc_ObjId(pObj), Abc_ObjId(pFanin), Abc_ObjId(pTemp) );

            printf( "%-16s : ", Mio_GateReadName((Mio_Gate_t *)pObj->pData) );
            Abc_ObjPrint( stdout, pObj );

            printf( "%-16s : ", Mio_GateReadName((Mio_Gate_t *)pFanin->pData) );
            Abc_ObjPrint( stdout, pFanin );

            if ( pTemp->pData )
            printf( "%-16s : ", Mio_GateReadName((Mio_Gate_t *)pTemp->pData) );
            Abc_ObjPrint( stdout, pTemp );
            return 1;
        }
    return 0;
}

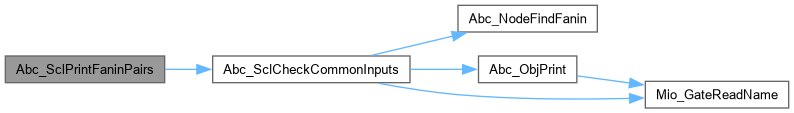

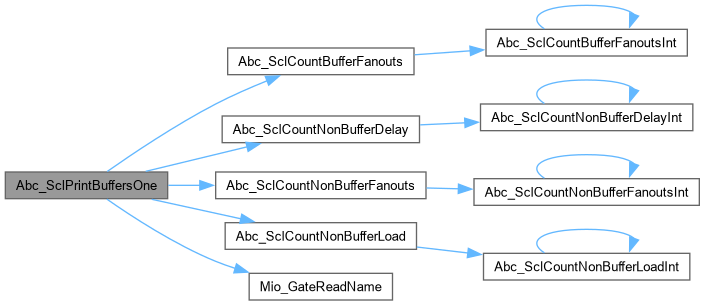

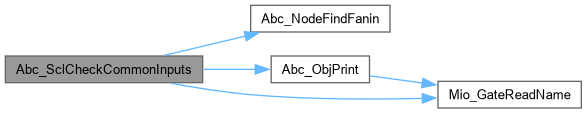

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_SclCountBufferFanouts()

int Abc_SclCountBufferFanouts

(

Abc_Obj_t *

pObj

)

Definition at line 792 of file sclSize.c.

{
    return Abc_SclCountBufferFanoutsInt(pObj) - Abc_ObjIsBuffer(pObj);
}

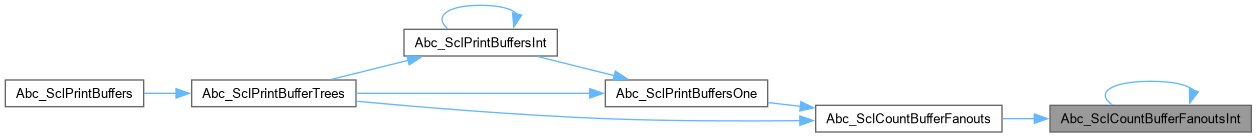

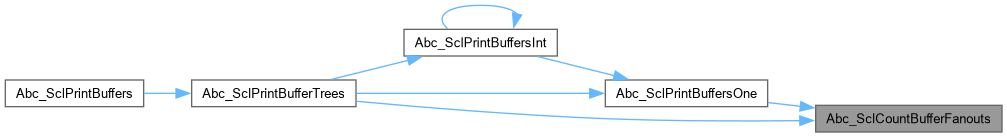

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_SclCountBufferFanoutsInt()

int Abc_SclCountBufferFanoutsInt

(

Abc_Obj_t *

pObj

)

Definition at line 783 of file sclSize.c.

{
    Abc_Obj_t * pFanout;
    int i, Counter = 0;
    Abc_ObjForEachFanout( pObj, pFanout, i )
        if ( Abc_ObjIsBuffer(pFanout) )
            Counter += Abc_SclCountBufferFanoutsInt( pFanout );
    return Counter + Abc_ObjIsBuffer(pObj);
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_SclCountNonBufferDelay()

float Abc_SclCountNonBufferDelay	(	SC_Man *	p,
		Abc_Obj_t *	pObj )

Definition at line 825 of file sclSize.c.

{
    Abc_Obj_t * pFanout;
    float Delay = 0;
    int i;
    Abc_ObjForEachFanout( pObj, pFanout, i )
        Delay += Abc_SclCountNonBufferDelayInt( p, pFanout );
    return Delay;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_SclCountNonBufferDelayInt()

float Abc_SclCountNonBufferDelayInt	(	SC_Man *	p,
		Abc_Obj_t *	pObj )

Definition at line 814 of file sclSize.c.

{
    Abc_Obj_t * pFanout;
    float Delay = 0;
    int i;
    if ( !Abc_ObjIsBuffer(pObj) )
        return Abc_SclObjTimeMax(p, pObj);
    Abc_ObjForEachFanout( pObj, pFanout, i )
        Delay += Abc_SclCountNonBufferDelayInt( p, pFanout );
    return Delay;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_SclCountNonBufferFanouts()

int Abc_SclCountNonBufferFanouts

(

Abc_Obj_t *

pObj

)

Definition at line 806 of file sclSize.c.

{
    Abc_Obj_t * pFanout;
    int i, Counter = 0;
    Abc_ObjForEachFanout( pObj, pFanout, i )
        Counter += Abc_SclCountNonBufferFanoutsInt( pFanout );
    return Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_SclCountNonBufferFanoutsInt()

int Abc_SclCountNonBufferFanoutsInt

(

Abc_Obj_t *

pObj

)

Definition at line 796 of file sclSize.c.

{
    Abc_Obj_t * pFanout;
    int i, Counter = 0;
    if ( !Abc_ObjIsBuffer(pObj) )
        return 1;
    Abc_ObjForEachFanout( pObj, pFanout, i )
        Counter += Abc_SclCountNonBufferFanoutsInt( pFanout );
    return Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_SclCountNonBufferLoad()

float Abc_SclCountNonBufferLoad	(	SC_Man *	p,
		Abc_Obj_t *	pObj )

Definition at line 847 of file sclSize.c.

{
    Abc_Obj_t * pFanout;
    float Load = 0;
    int i;
    Abc_ObjForEachFanout( pObj, pFanout, i )
        Load += Abc_SclCountNonBufferLoadInt( p, pFanout );
    Load += 0.5 * Abc_SclObjLoad(p, pObj)->rise + 0.5 * Abc_SclObjLoad(p, pObj)->fall;
    return Load;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_SclCountNonBufferLoadInt()

float Abc_SclCountNonBufferLoadInt	(	SC_Man *	p,
		Abc_Obj_t *	pObj )

Definition at line 834 of file sclSize.c.

{
    Abc_Obj_t * pFanout;
    float Load = 0;
    int i;
    if ( !Abc_ObjIsBuffer(pObj) )
        return 0;
    Abc_ObjForEachFanout( pObj, pFanout, i )
        Load += Abc_SclCountNonBufferLoadInt( p, pFanout );
    Load += 0.5 * Abc_SclObjLoad(p, pObj)->rise + 0.5 * Abc_SclObjLoad(p, pObj)->fall;
    Load -= 0.5 * SC_CellPin(Abc_SclObjCell(pObj), 0)->rise_cap + 0.5 * SC_CellPin(Abc_SclObjCell(pObj), 0)->fall_cap;
    return Load;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_SclFindCriticalCo()

ABC_NAMESPACE_IMPL_START Abc_Obj_t * Abc_SclFindCriticalCo	(	SC_Man *	p,
		int *	pfRise )

DECLARATIONS ///.

CFile****************************************************************

FileName [sclSize.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Standard-cell library representation.]

Synopsis [Core timing analysis used in gate-sizing.]

Author [Alan Mishchenko, Niklas Een]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - August 24, 2012.]

Revision [

Id

sclSize.c,v 1.0 2012/08/24 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Finding most critical objects.]

Description []

SideEffects []

SeeAlso []

Definition at line 52 of file sclSize.c.

{
    Abc_Obj_t * pObj, * pPivot = NULL;
    float fMaxArr = 0;
    int i;
    assert( Abc_NtkPoNum(p->pNtk) > 0 );
    Abc_NtkForEachCo( p->pNtk, pObj, i )
    {
        SC_Pair * pArr = Abc_SclObjTime( p, pObj );
        if ( fMaxArr < pArr->rise )  fMaxArr = pArr->rise, *pfRise = 1, pPivot = pObj;
        if ( fMaxArr < pArr->fall )  fMaxArr = pArr->fall, *pfRise = 0, pPivot = pObj;
    }
    if ( fMaxArr == 0 )
        pPivot = Abc_NtkPo(p->pNtk, 0);
    assert( pPivot != NULL );
    return pPivot;
}

Here is the caller graph for this function:

Abc_SclFindMostCriticalFanin()

Abc_Obj_t * Abc_SclFindMostCriticalFanin	(	SC_Man *	p,
		int *	pfRise,
		Abc_Obj_t *	pNode )

Definition at line 84 of file sclSize.c.

{
    Abc_Obj_t * pFanin, * pPivot = NULL;
    float fMinSlack = ABC_INFINITY;
    SC_Pair * pArr;
    int i;
    *pfRise = 0;
    // find min-slack node
    Abc_ObjForEachFanin( pNode, pFanin, i )
        if ( fMinSlack > Abc_SclObjGetSlack( p, pFanin, p->MaxDelay0 ) )
        {
            fMinSlack = Abc_SclObjGetSlack( p, pFanin, p->MaxDelay0 );
            pPivot = pFanin;
        }
    if ( pPivot == NULL )
        return NULL;
    // find its leading phase
    pArr = Abc_SclObjTime( p, pPivot );
    *pfRise = (pArr->rise >= pArr->fall);
    return pPivot;
}

Here is the caller graph for this function:

Abc_SclFindMostCriticalFanin2()

Abc_Obj_t * Abc_SclFindMostCriticalFanin2	(	SC_Man *	p,
		int *	pfRise,
		Abc_Obj_t *	pNode )

Definition at line 70 of file sclSize.c.

{
    Abc_Obj_t * pFanin, * pPivot = NULL;
    float fMaxArr = 0;
    int i;
    Abc_ObjForEachFanin( pNode, pFanin, i )
    {
        SC_Pair * pArr = Abc_SclObjTime( p, pFanin );
        if ( fMaxArr < pArr->rise )  fMaxArr = pArr->rise, *pfRise = 1, pPivot = pFanin;
        if ( fMaxArr < pArr->fall )  fMaxArr = pArr->fall, *pfRise = 0, pPivot = pFanin;
    }
    return pPivot;
}

Abc_SclHasBufferFanout()

int Abc_SclHasBufferFanout

(

Abc_Obj_t *

pObj

)

Definition at line 774 of file sclSize.c.

{
    Abc_Obj_t * pFanout;
    int i;
    Abc_ObjForEachFanout( pObj, pFanout, i )
        if ( Abc_ObjIsBuffer(pFanout) )
            return 1;
    return 0;
}

Abc_SclManReadSlewAndLoad()

void Abc_SclManReadSlewAndLoad	(	SC_Man *	p,
		Abc_Ntk_t *	pNtk )

Function*************************************************************

Synopsis [Read input slew and output load.]

Description []

SideEffects []

SeeAlso []

Definition at line 609 of file sclSize.c.

{
    if ( Abc_FrameReadMaxLoad() )
    {
        Abc_Obj_t * pObj;  int i;
        float MaxLoad = Abc_FrameReadMaxLoad();
//        printf( "Default output load is specified (%.2f ff).\n", MaxLoad );
        Abc_NtkForEachPo( pNtk, pObj, i )
        {
            SC_Pair * pLoad = Abc_SclObjLoad( p, pObj );
            pLoad->rise = pLoad->fall = MaxLoad;
        }
    }
    if ( Abc_FrameReadDrivingCell() )
    {
        int iCell = Abc_SclCellFind( p->pLib, Abc_FrameReadDrivingCell() );
        if ( iCell == -1 )
            printf( "Cannot find the default PI driving cell (%s) in the library.\n", Abc_FrameReadDrivingCell() );
        else
        {
//            printf( "Default PI driving cell is specified (%s).\n", Abc_FrameReadDrivingCell() );
            p->pPiDrive = SC_LibCell( p->pLib, iCell );
            assert( p->pPiDrive != NULL );
            assert( p->pPiDrive->n_inputs == 1 );
        }
    }
}

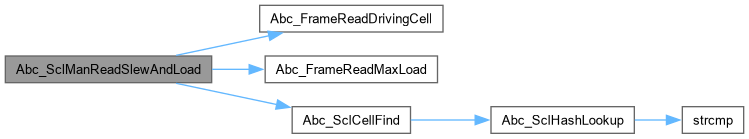

Here is the call graph for this function:

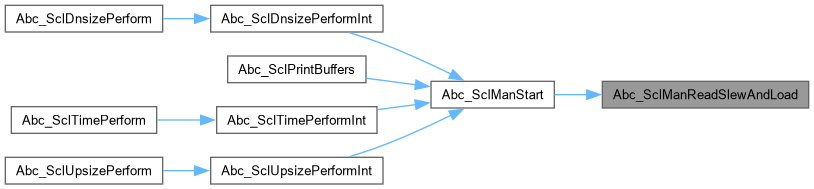

Here is the caller graph for this function:

Abc_SclManStart()

SC_Man * Abc_SclManStart	(	SC_Lib *	pLib,
		Abc_Ntk_t *	pNtk,
		int	fUseWireLoads,
		int	fDept,
		float	DUser,
		int	nTreeCRatio )

Function*************************************************************

Synopsis [Prepare timing manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 648 of file sclSize.c.

{
    SC_Man * p = Abc_SclManAlloc( pLib, pNtk );
    if ( nTreeCRatio )
    {
        p->EstLoadMax = 0.01 * nTreeCRatio;  // max ratio of Cout/Cave when the estimation is used
        p->EstLinear  = 100;                  // linear coefficient
    }
    Abc_SclMioGates2SclGates( pLib, pNtk );
    Abc_SclManReadSlewAndLoad( p, pNtk );
    if ( fUseWireLoads )
    {
        if ( pNtk->pWLoadUsed == NULL )
        {
            p->pWLoadUsed = Abc_SclFindWireLoadModel( pLib, Abc_SclGetTotalArea(p->pNtk) );
            if ( p->pWLoadUsed )
            pNtk->pWLoadUsed = Abc_UtilStrsav( p->pWLoadUsed->pName );
        }
        else
            p->pWLoadUsed = Abc_SclFetchWireLoadModel( pLib, pNtk->pWLoadUsed );
    }
    Abc_SclTimeNtkRecompute( p, &p->SumArea0, &p->MaxDelay0, fDept, DUser );
    p->SumArea  = p->SumArea0;
    p->MaxDelay = p->MaxDelay0;
    return p;
}

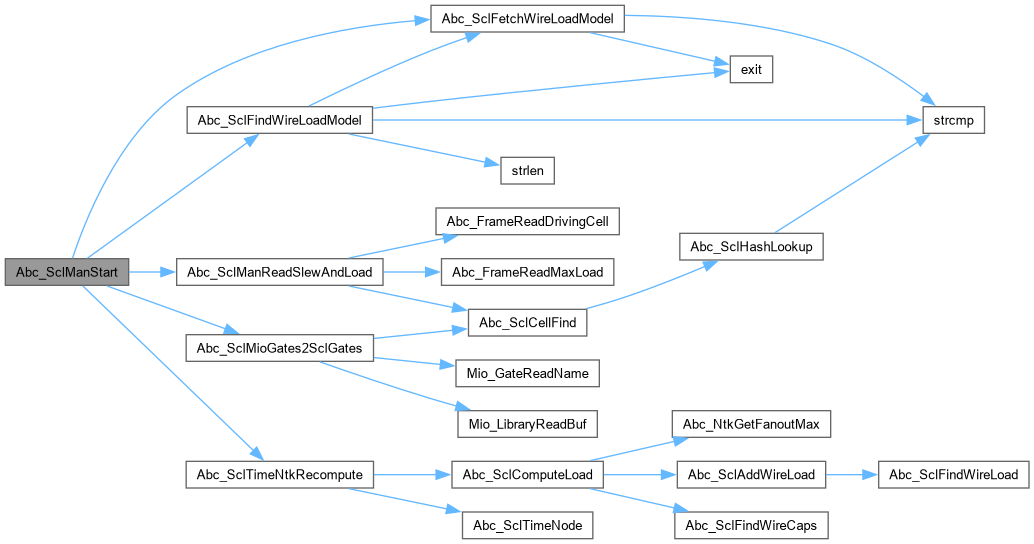

Here is the call graph for this function:

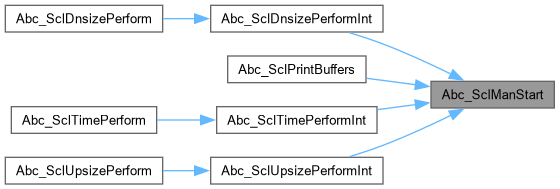

Here is the caller graph for this function:

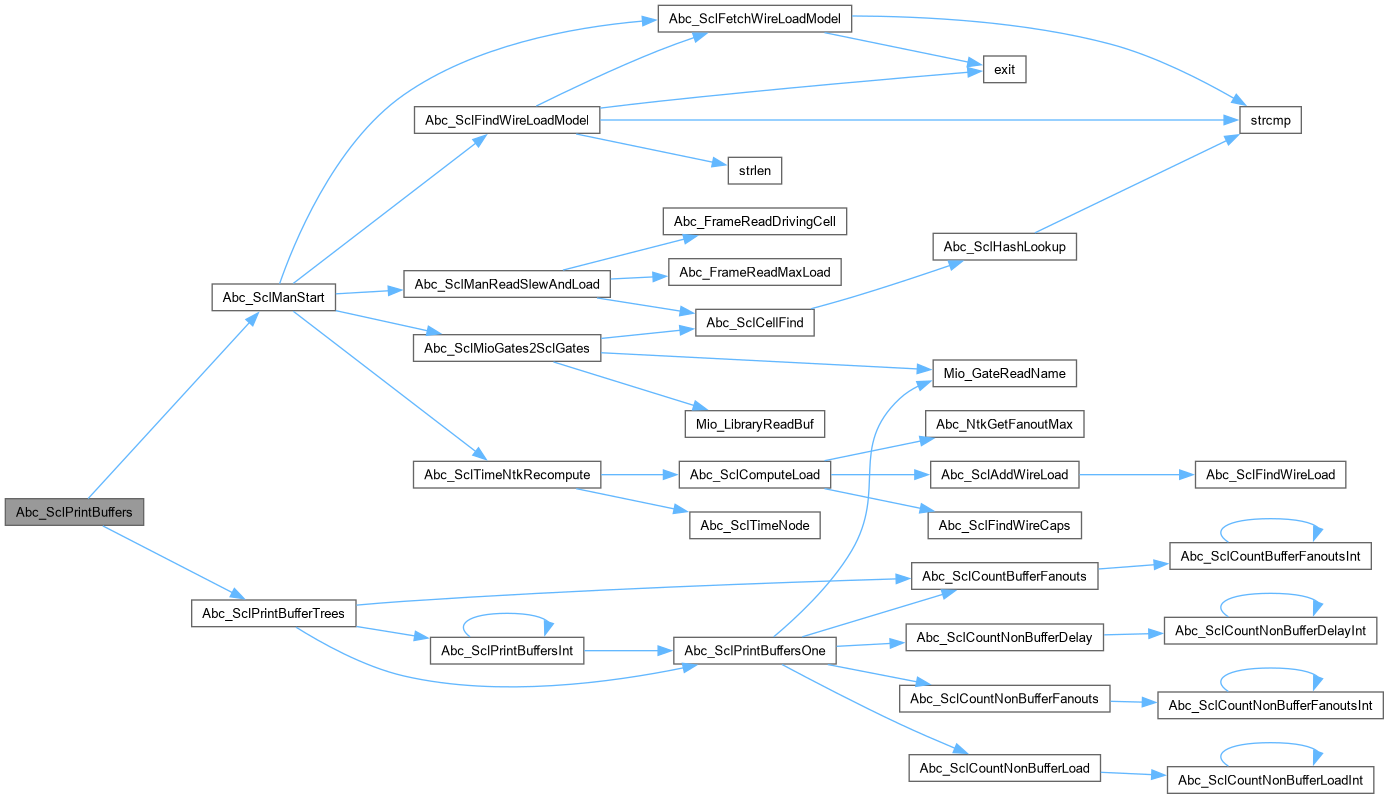

Abc_SclPrintBuffers()

void Abc_SclPrintBuffers	(	SC_Lib *	pLib,
		Abc_Ntk_t *	pNtk,
		int	fVerbose )

Definition at line 912 of file sclSize.c.

{
    int fUseWireLoads = 0;
    SC_Man * p;
    assert( Abc_NtkIsMappedLogic(pNtk) );
    p = Abc_SclManStart( pLib, pNtk, fUseWireLoads, 1, 0, 10000 );
    Abc_SclPrintBufferTrees( p, pNtk );
//    Abc_SclPrintFaninPairs( p, pNtk );
    Abc_SclManFree( p );
}

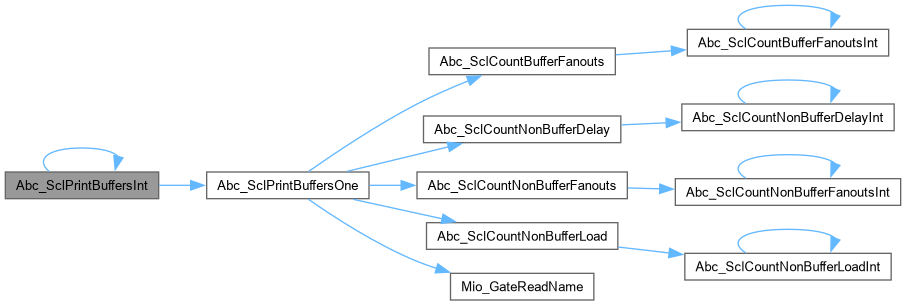

Here is the call graph for this function:

Abc_SclPrintBuffersInt()

void Abc_SclPrintBuffersInt	(	SC_Man *	p,
		Abc_Obj_t *	pObj,
		int	nOffset )

Definition at line 886 of file sclSize.c.

{
    Abc_Obj_t * pFanout;
    int i;
    Abc_SclPrintBuffersOne( p, pObj, nOffset );
    assert( Abc_ObjIsBuffer(pObj) );
    Abc_ObjForEachFanout( pObj, pFanout, i )
        if ( Abc_ObjIsBuffer(pFanout) )
            Abc_SclPrintBuffersInt( p, pFanout, nOffset + 1 );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_SclPrintBuffersOne()

void Abc_SclPrintBuffersOne	(	SC_Man *	p,
		Abc_Obj_t *	pObj,
		int	nOffset )

Definition at line 857 of file sclSize.c.

{
    int i;
    for ( i = 0; i < nOffset; i++ )
        printf( "    " );
    printf( "%6d: %-16s (%2d:%3d:%3d)  ",
        Abc_ObjId(pObj),
        Abc_ObjIsPi(pObj) ? "pi" : Mio_GateReadName((Mio_Gate_t *)pObj->pData),
        Abc_ObjFanoutNum(pObj),
        Abc_SclCountBufferFanouts(pObj),
        Abc_SclCountNonBufferFanouts(pObj) );
    for ( ; i < 4; i++ )
        printf( "    " );
    printf( "a =%5.2f  ",      Abc_ObjIsPi(pObj) ? 0 : Abc_SclObjCell(pObj)->area );
    printf( "d = (" );
    printf( "%6.0f ps; ",      Abc_SclObjTimeOne(p, pObj, 1) );
    printf( "%6.0f ps)  ",     Abc_SclObjTimeOne(p, pObj, 0) );
    printf( "l =%5.0f ff  ",   Abc_SclObjLoadMax(p, pObj) );
    printf( "s =%5.0f ps   ",  Abc_SclObjSlewMax(p, pObj) );
    printf( "sl =%5.0f ps   ", Abc_SclObjSlackMax(p, pObj, p->MaxDelay0) );
    if ( nOffset == 0 )
    {
    printf( "L =%5.0f ff   ",  Abc_SclCountNonBufferLoad(p, pObj) );
    printf( "Lx =%5.0f ff  ",  100.0*Abc_SclCountNonBufferLoad(p, pObj)/p->EstLoadAve );
    printf( "Dx =%5.0f ps  ",  Abc_SclCountNonBufferDelay(p, pObj)/Abc_SclCountNonBufferFanouts(pObj) - Abc_SclObjTimeOne(p, pObj, 1) );
    printf( "Cx =%5.0f ps",    (Abc_SclCountNonBufferDelay(p, pObj)/Abc_SclCountNonBufferFanouts(pObj) - Abc_SclObjTimeOne(p, pObj, 1))/log(Abc_SclCountNonBufferLoad(p, pObj)/p->EstLoadAve) );
    }
    printf( "\n" );
}

Here is the call graph for this function:

Here is the caller graph for this function:

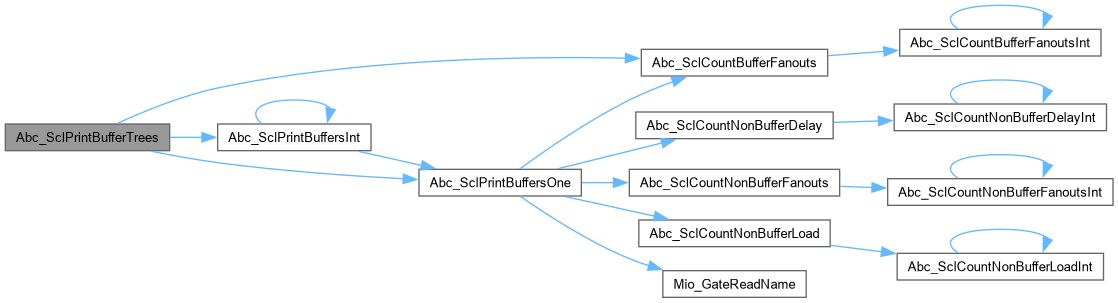

Abc_SclPrintBufferTrees()

void Abc_SclPrintBufferTrees	(	SC_Man *	p,
		Abc_Ntk_t *	pNtk )

Definition at line 896 of file sclSize.c.

{
    Abc_Obj_t * pObj, * pFanout;
    int i, k;
    Abc_NtkForEachObj( pNtk, pObj, i )
    {
        if ( !Abc_ObjIsBuffer(pObj) && Abc_SclCountBufferFanouts(pObj) > 3 )
        {
            Abc_SclPrintBuffersOne( p, pObj, 0 );
            Abc_ObjForEachFanout( pObj, pFanout, k )
                if ( Abc_ObjIsBuffer(pFanout) )
                    Abc_SclPrintBuffersInt( p, pFanout, 1 );
            printf( "\n" );
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_SclPrintFaninPairs()

void Abc_SclPrintFaninPairs	(	SC_Man *	p,
		Abc_Ntk_t *	pNtk )

Definition at line 752 of file sclSize.c.

{
    Abc_Obj_t * pObj, * pFanin;
    int i, k;
    Abc_NtkForEachNode( pNtk, pObj, i )
        Abc_ObjForEachFanin( pObj, pFanin, k )
            if ( Abc_ObjIsNode(pFanin) && Abc_ObjFanoutNum(pFanin) == 1 )
                Abc_SclCheckCommonInputs( pObj, pFanin );
}

Here is the call graph for this function:

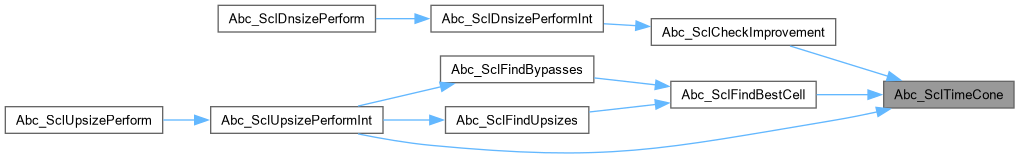

Abc_SclTimeCone()

void Abc_SclTimeCone	(	SC_Man *	p,
		Vec_Int_t *	vCone )

Definition at line 398 of file sclSize.c.

{
    int fVerbose = 0;
    Abc_Obj_t * pObj;
    int i;
    Abc_SclConeClean( p, vCone );
    Abc_NtkForEachObjVec( vCone, p->pNtk, pObj, i )
    {
        if ( fVerbose && Abc_ObjIsNode(pObj) )
        printf( "  Updating node %d with gate %s\n", Abc_ObjId(pObj), Abc_SclObjCell(pObj)->pName );
        if ( fVerbose && Abc_ObjIsNode(pObj) )
        printf( "    before (%6.1f ps  %6.1f ps)   ", Abc_SclObjTimeOne(p, pObj, 1), Abc_SclObjTimeOne(p, pObj, 0) );
        Abc_SclTimeNode( p, pObj, 0 );
        if ( fVerbose && Abc_ObjIsNode(pObj) )
        printf( "after (%6.1f ps  %6.1f ps)\n", Abc_SclObjTimeOne(p, pObj, 1), Abc_SclObjTimeOne(p, pObj, 0) );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_SclTimeIncCheckLevel()

void Abc_SclTimeIncCheckLevel

(

Abc_Ntk_t *

pNtk

)

Definition at line 547 of file sclSize.c.

{
    Abc_Obj_t * pObj;
    int i;
    Abc_NtkForEachObj( pNtk, pObj, i )
        if ( (int)pObj->Level != Abc_ObjLevelNew(pObj) )
            printf( "Level of node %d is out of date!\n", i );
}

Here is the call graph for this function:

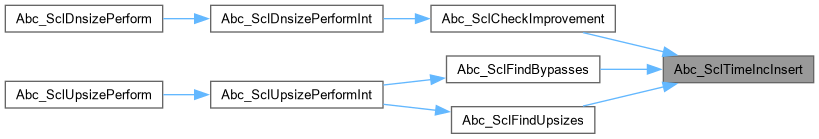

Abc_SclTimeIncInsert()

void Abc_SclTimeIncInsert	(	SC_Man *	p,
		Abc_Obj_t *	pObj )

Definition at line 577 of file sclSize.c.

{
    Vec_IntPush( p->vChanged, Abc_ObjId(pObj) );
}

Here is the caller graph for this function:

Abc_SclTimeIncUpdate()

int Abc_SclTimeIncUpdate

(

SC_Man *

p

)

Definition at line 555 of file sclSize.c.

{
    Abc_Obj_t * pObj;
    int i, RetValue;
    if ( Vec_IntSize(p->vChanged) == 0 )
        return 0;
//    Abc_SclTimeIncCheckLevel( p->pNtk );
    Abc_NtkForEachObjVec( p->vChanged, p->pNtk, pObj, i )
    {
        Abc_SclTimeIncAddFanins( p, pObj );
        if ( pObj->fMarkC )
            continue;
        Abc_SclTimeIncAddNode( p, pObj );
    }
    Vec_IntClear( p->vChanged );
    Abc_SclTimeIncUpdateArrival( p );
    Abc_SclTimeIncUpdateDeparture( p );
    Abc_SclTimeIncUpdateClean( p );
    RetValue = p->nIncUpdates;
    p->nIncUpdates = 0;
    return RetValue;
}

Here is the caller graph for this function:

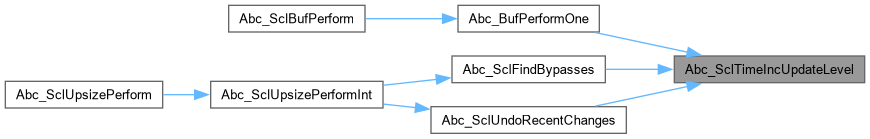

Abc_SclTimeIncUpdateLevel()

void Abc_SclTimeIncUpdateLevel

(

Abc_Obj_t *

pObj

)

Definition at line 591 of file sclSize.c.

{
    Abc_SclTimeIncUpdateLevel_rec( pObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:

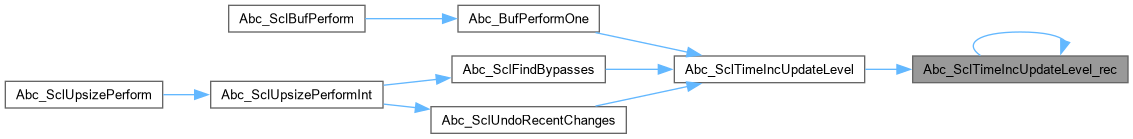

Abc_SclTimeIncUpdateLevel_rec()

void Abc_SclTimeIncUpdateLevel_rec

(

Abc_Obj_t *

pObj

)

Definition at line 581 of file sclSize.c.

{
    Abc_Obj_t * pFanout;
    int i, LevelNew = Abc_ObjLevelNew(pObj);
    if ( LevelNew == (int)pObj->Level && Abc_ObjIsNode(pObj) && Abc_ObjFaninNum(pObj) > 0 )
        return;
    pObj->Level = LevelNew;
    Abc_ObjForEachFanout( pObj, pFanout, i )
        Abc_SclTimeIncUpdateLevel_rec( pFanout );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_SclTimeNode()

void Abc_SclTimeNode	(	SC_Man *	p,
		Abc_Obj_t *	pObj,
		int	fDept )

Definition at line 323 of file sclSize.c.

{
    SC_Timing * pTime;
    SC_Cell * pCell;
    int k;
    SC_Pair * pLoad = Abc_SclObjLoad( p, pObj );
    float LoadRise = pLoad->rise;
    float LoadFall = pLoad->fall;
    float DeptRise = 0;
    float DeptFall = 0;
    float Value = p->EstLoadMax ? Abc_SclObjLoadValue( p, pObj ) : 0;
    Abc_Obj_t * pFanin;
    if ( Abc_ObjIsCi(pObj) )
    {
        assert( !fDept );
        Abc_SclTimeCi( p, pObj );
        return;
    }
    if ( Abc_ObjIsCo(pObj) )
    {
        if ( !fDept )
        {
            Abc_SclObjDupFanin( p, pObj );
            Vec_FltWriteEntry( p->vTimesOut, pObj->iData, Abc_SclObjTimeMax(p, pObj) );
            Vec_QueUpdate( p->vQue, pObj->iData );
        }
        return;
    }
    assert( Abc_ObjIsNode(pObj) );
//    if ( !(Abc_ObjFaninNum(pObj) == 1 && Abc_ObjIsPi(Abc_ObjFanin0(pObj))) && p->EstLoadMax && Value > 1 )
    if ( p->EstLoadMax && Value > 1 )
    {
        pLoad->rise = p->EstLoadAve * p->EstLoadMax;
        pLoad->fall = p->EstLoadAve * p->EstLoadMax;
        if ( fDept )
        {
            SC_Pair * pDepOut  = Abc_SclObjDept( p, pObj );
            float EstDelta = p->EstLinear * log( Value );
            DeptRise = pDepOut->rise;
            DeptFall = pDepOut->fall;
            pDepOut->rise += EstDelta;
            pDepOut->fall += EstDelta;
        }
        p->nEstNodes++;
    }
    // get the library cell
    pCell = Abc_SclObjCell( pObj );
    // compute for each fanin
    Abc_ObjForEachFanin( pObj, pFanin, k )
    {
        pTime = Scl_CellPinTime( pCell, k );
        if ( fDept )
            Abc_SclDeptFanin( p, pTime, pObj, pFanin, k );
        else
            Abc_SclTimeFanin( p, pTime, pObj, pFanin, k );
    }
    if ( p->EstLoadMax && Value > 1 )
    {
        pLoad->rise = LoadRise;
        pLoad->fall = LoadFall;
        if ( fDept )
        {
            SC_Pair * pDepOut  = Abc_SclObjDept( p, pObj );
            pDepOut->rise = DeptRise;
            pDepOut->fall = DeptFall;
        }
        else
        {
            SC_Pair * pArrOut  = Abc_SclObjTime( p, pObj );
            float EstDelta = p->EstLinear * log( Value );
            pArrOut->rise += EstDelta;
            pArrOut->fall += EstDelta;
        }
    }
}

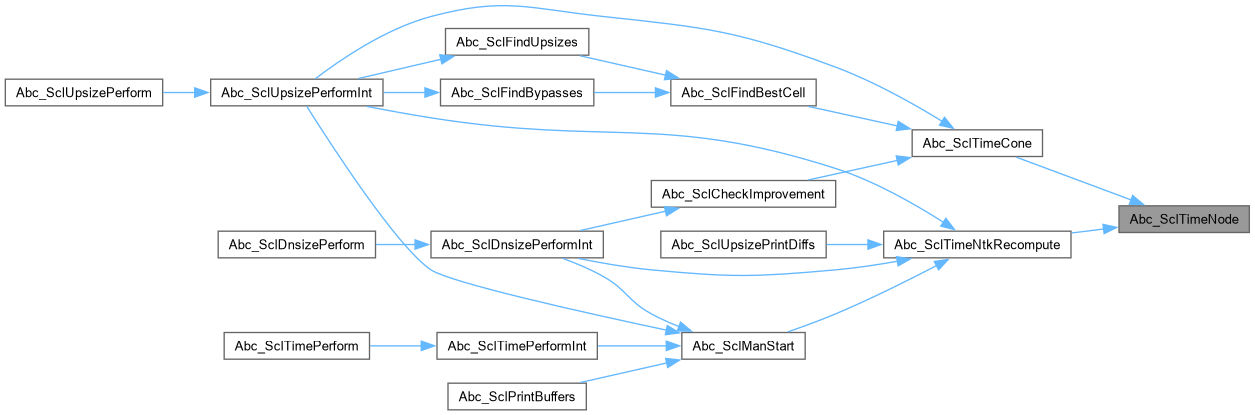

Here is the caller graph for this function:

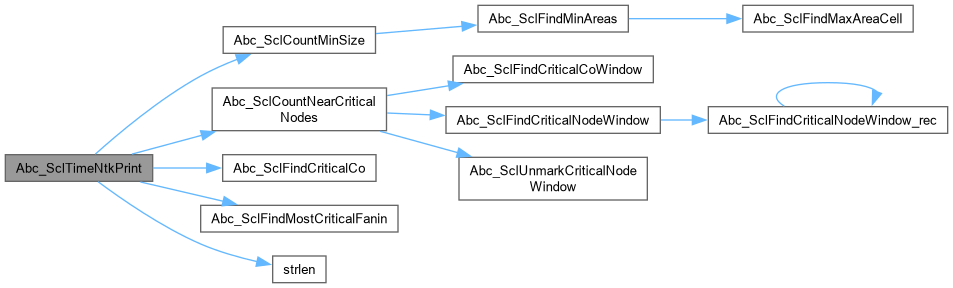

Abc_SclTimeNtkPrint()

void Abc_SclTimeNtkPrint	(	SC_Man *	p,
		int	fShowAll,
		int	fPrintPath )

Definition at line 136 of file sclSize.c.

{
    int fReversePath = 1;
    int i, nLength = 0, fRise = 0;
    Abc_Obj_t * pObj, * pPivot = Abc_SclFindCriticalCo( p, &fRise );
    float maxDelay = Abc_SclObjTimeOne( p, pPivot, fRise );
    p->ReportDelay = maxDelay;
    // used for Floyds cycle detection algorithm
    unsigned int tortoiseIndex = 0;
    int tortoiseStep = 0;

#ifdef WIN32
    printf( "WireLoad = \"%s\"  ", p->pWLoadUsed ? p->pWLoadUsed->pName : "none" );
    SetConsoleTextAttribute( GetStdHandle(STD_OUTPUT_HANDLE), 14 ); // yellow
    printf( "Gates =%7d ",         Abc_NtkNodeNum(p->pNtk) );
    SetConsoleTextAttribute( GetStdHandle(STD_OUTPUT_HANDLE), 7 );  // normal
    printf( "(%5.1f %%)   ",       100.0 * Abc_SclGetBufInvCount(p->pNtk) / Abc_NtkNodeNum(p->pNtk) );
    SetConsoleTextAttribute( GetStdHandle(STD_OUTPUT_HANDLE), 10 ); // green
    printf( "Cap =%5.1f ff ",      p->EstLoadAve );
    SetConsoleTextAttribute( GetStdHandle(STD_OUTPUT_HANDLE), 7 );  // normal
    printf( "(%5.1f %%)   ",       Abc_SclGetAverageSize(p->pNtk) );
    SetConsoleTextAttribute( GetStdHandle(STD_OUTPUT_HANDLE), 11 ); // blue
    printf( "Area =%12.2f ",       Abc_SclGetTotalArea(p->pNtk) );
    SetConsoleTextAttribute( GetStdHandle(STD_OUTPUT_HANDLE), 7 );  // normal
    printf( "(%5.1f %%)   ",       100.0 * Abc_SclCountMinSize(p->pLib, p->pNtk, 0) / Abc_NtkNodeNum(p->pNtk) );
    SetConsoleTextAttribute( GetStdHandle(STD_OUTPUT_HANDLE), 13 ); // magenta
    printf( "Delay =%9.2f ps  ",   maxDelay );
    SetConsoleTextAttribute( GetStdHandle(STD_OUTPUT_HANDLE), 7 );  // normal
    printf( "(%5.1f %%)   ",       100.0 * Abc_SclCountNearCriticalNodes(p) / Abc_NtkNodeNum(p->pNtk) );
    printf( "            \n" );
#else
    Abc_Print( 1, "WireLoad = \"%s\"  ",   p->pWLoadUsed ? p->pWLoadUsed->pName : "none" );
    Abc_Print( 1, "%sGates =%7d%s ",       "\033[1;33m", Abc_NtkNodeNum(p->pNtk),      "\033[0m" ); // yellow
    Abc_Print( 1, "(%5.1f %%)   ",         100.0 * Abc_SclGetBufInvCount(p->pNtk) / Abc_NtkNodeNum(p->pNtk) );
    Abc_Print( 1, "%sCap =%5.1f ff%s ",    "\033[1;32m", p->EstLoadAve,                "\033[0m" ); // green
    Abc_Print( 1, "(%5.1f %%)   ",         Abc_SclGetAverageSize(p->pNtk) );
    Abc_Print( 1, "%sArea =%12.2f%s ",     "\033[1;36m", Abc_SclGetTotalArea(p->pNtk), "\033[0m" ); // blue
    Abc_Print( 1, "(%5.1f %%)   ",         100.0 * Abc_SclCountMinSize(p->pLib, p->pNtk, 0) / Abc_NtkNodeNum(p->pNtk) );
    Abc_Print( 1, "%sDelay =%9.2f ps%s  ", "\033[1;35m", maxDelay,                     "\033[0m" ); // magenta
    Abc_Print( 1, "(%5.1f %%)   ",         100.0 * Abc_SclCountNearCriticalNodes(p) / Abc_NtkNodeNum(p->pNtk) );
    Abc_Print( 1, "            \n" );
#endif

    if ( fShowAll )
    {
//        printf( "Timing information for all nodes: \n" );
        // find the longest cell name
        Abc_NtkForEachNodeReverse( p->pNtk, pObj, i )
            if ( Abc_ObjFaninNum(pObj) > 0 )
                nLength = Abc_MaxInt( nLength, strlen(Abc_SclObjCell(pObj)->pName) );
        // print timing
        Abc_NtkForEachNodeReverse( p->pNtk, pObj, i )
            if ( Abc_ObjFaninNum(pObj) > 0 )
                Abc_SclTimeNodePrint( p, pObj, -1, nLength, maxDelay );
    }
    if ( fPrintPath )
    {
        Abc_Obj_t * pTemp, * pPrev = NULL;
        int iStart = -1, iEnd = -1;
        Vec_Ptr_t * vPath;
//        printf( "Critical path: \n" );
        // find the longest cell name
        pObj = Abc_ObjFanin0(pPivot);
        i = 0;
        while ( pObj && Abc_ObjIsNode(pObj) )
        {
            i++;
            nLength = Abc_MaxInt( nLength, Abc_SclObjCell(pObj) ? strlen(Abc_SclObjCell(pObj)->pName) : 2 /* strlen("pi") */ );
            pObj = Abc_SclFindMostCriticalFanin( p, &fRise, pObj );
        }

        // print timing
        if ( !fReversePath )
        {
            // print timing
            pObj = Abc_ObjFanin0(pPivot);
            while ( pObj )//&& Abc_ObjIsNode(pObj) )
            {
                printf( "Path%3d --", i-- );
                Abc_SclTimeNodePrint( p, pObj, fRise, nLength, maxDelay );
                pPrev = pObj;
                pObj = Abc_SclFindMostCriticalFanin( p, &fRise, pObj );
            }
        }
        else
        {
            // collect path nodes
            vPath = Vec_PtrAlloc( 100 );
            Vec_PtrPush( vPath, pPivot );
            pObj = Abc_ObjFanin0(pPivot);
            while ( pObj )//&& Abc_ObjIsNode(pObj) )
            {
                Vec_PtrPush( vPath, pObj );
                pPrev = pObj;
                pObj = Abc_SclFindMostCriticalFanin( p, &fRise, pObj );

                // move the tortoise at half the speed (trailing)
                tortoiseStep = (tortoiseStep + 1) % 2;
                tortoiseIndex += tortoiseStep;
                // if they see the same element, we are in a loop
                if(vPath->pArray[tortoiseIndex] == pObj) {
                    break;
                }
            }
            Vec_PtrForEachEntryReverse( Abc_Obj_t *, vPath, pObj, i )
            {
                printf( "Path%3d --", Vec_PtrSize(vPath)-1-i );
                Abc_SclTimeNodePrint( p, pObj, fRise, nLength, maxDelay );
                if ( i == 1 )
                    break;
            }
            Vec_PtrFree( vPath );
        }
        // print start-point and end-point
        Abc_NtkForEachPi( p->pNtk, pTemp, iStart )
            if ( pTemp == pPrev )
                break;
        Abc_NtkForEachPo( p->pNtk, pTemp, iEnd )
            if ( pTemp == pPivot )
                break;
        printf( "Start-point = pi%0*d.  End-point = po%0*d.\n",
            Abc_Base10Log( Abc_NtkPiNum(p->pNtk) ), iStart,
            Abc_Base10Log( Abc_NtkPoNum(p->pNtk) ), iEnd );
    }
}

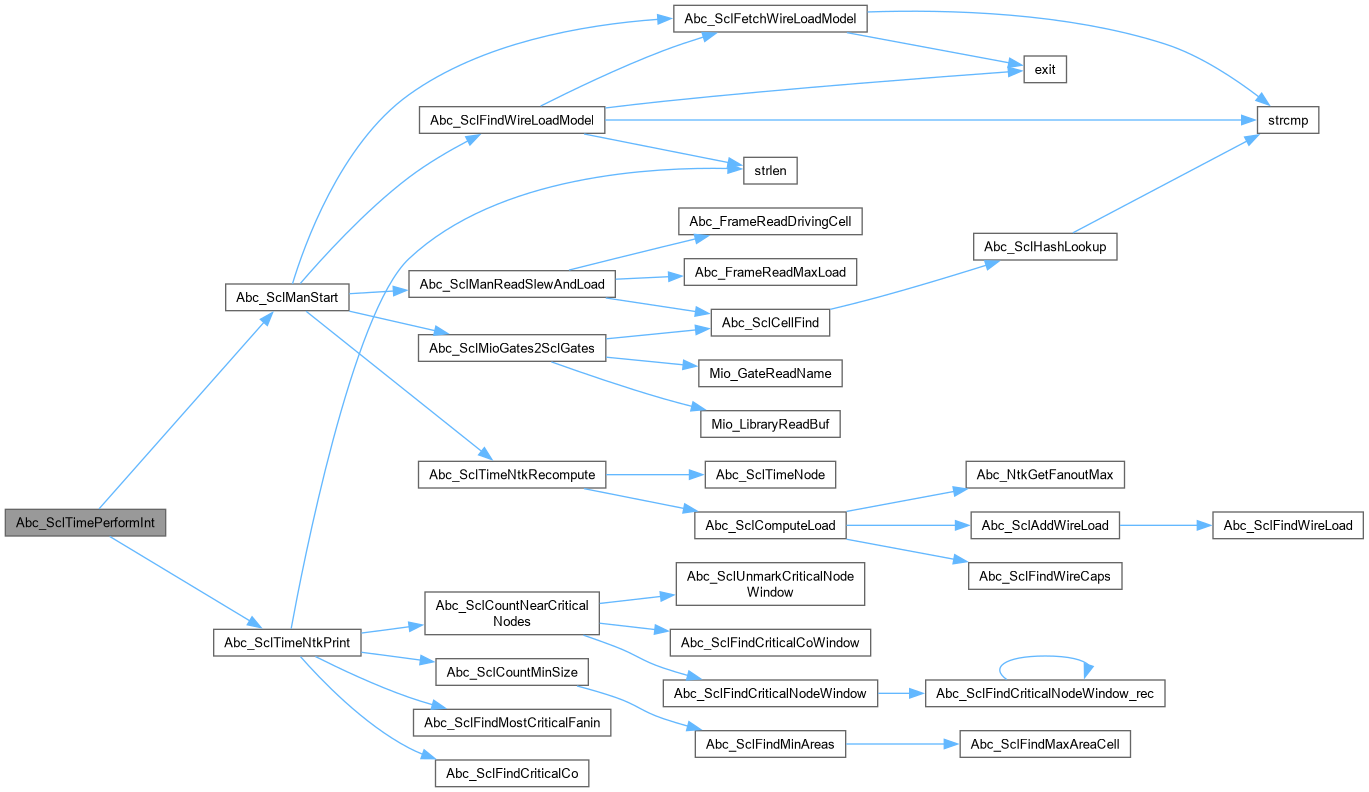

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_SclTimeNtkRecompute()

void Abc_SclTimeNtkRecompute	(	SC_Man *	p,
		float *	pArea,
		float *	pDelay,
		int	fReverse,
		float	DUser )

Definition at line 415 of file sclSize.c.

{
    Abc_Obj_t * pObj;
    float D;
    int i;
    Abc_SclComputeLoad( p );
    Abc_SclManCleanTime( p );
    p->nEstNodes = 0;
    Abc_NtkForEachCi( p->pNtk, pObj, i )
        Abc_SclTimeNode( p, pObj, 0 );
    Abc_NtkForEachNode1( p->pNtk, pObj, i )
        Abc_SclTimeNode( p, pObj, 0 );
    Abc_NtkForEachCo( p->pNtk, pObj, i )
        Abc_SclTimeNode( p, pObj, 0 );
    D = Abc_SclReadMaxDelay( p );
    if ( fReverse && DUser > 0 && D < DUser )
        D = DUser;
    if ( pArea )
        *pArea = Abc_SclGetTotalArea(p->pNtk);
    if ( pDelay )
        *pDelay = D;
    if ( fReverse )
    {
        p->nEstNodes = 0;
        Abc_NtkForEachNodeReverse1( p->pNtk, pObj, i )
            Abc_SclTimeNode( p, pObj, 1 );
    }
}

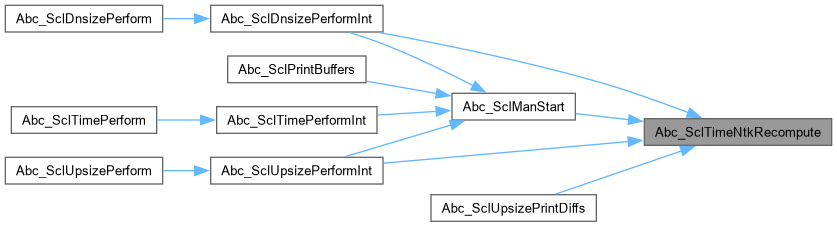

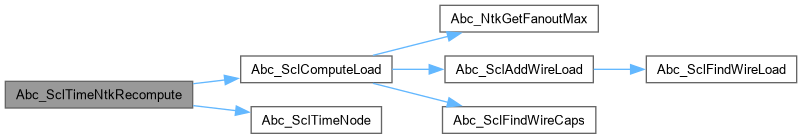

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_SclTimePerform()

void Abc_SclTimePerform	(	SC_Lib *	pLib,
		Abc_Ntk_t *	pNtk,
		int	nTreeCRatio,
		int	fUseWireLoads,
		int	fShowAll,
		int	fPrintPath,
		int	fDumpStats )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 707 of file sclSize.c.

{
    Abc_Ntk_t * pNtkNew = pNtk;
    if ( pNtk->nBarBufs2 > 0 )
        pNtkNew = Abc_NtkDupDfsNoBarBufs( pNtk );
    Abc_SclTimePerformInt( pLib, pNtkNew, nTreeCRatio, fUseWireLoads, fShowAll, fPrintPath, fDumpStats );
    if ( pNtk->nBarBufs2 > 0 )
        Abc_NtkDelete( pNtkNew );
}

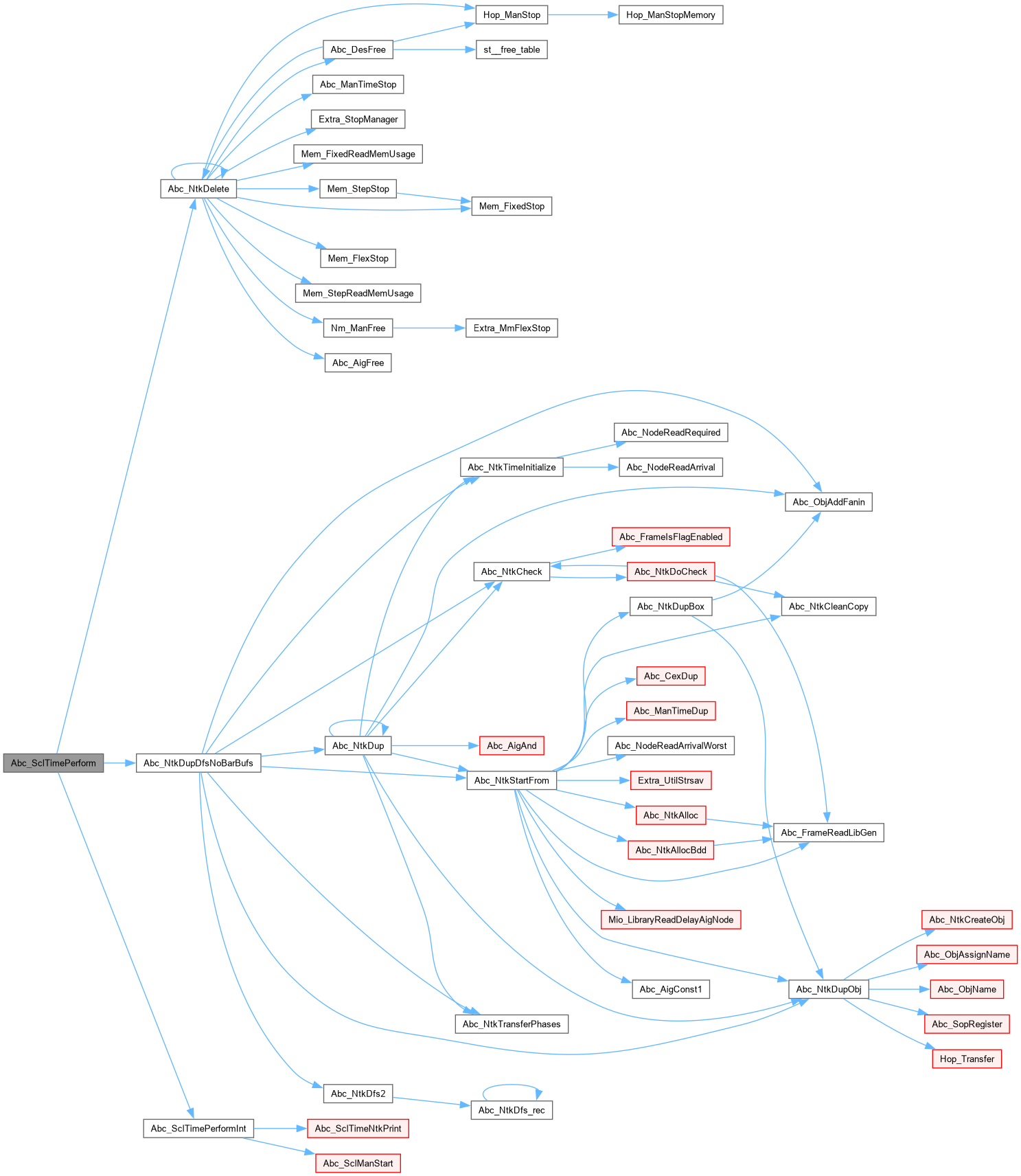

Here is the call graph for this function:

Abc_SclTimePerformInt()

void Abc_SclTimePerformInt	(	SC_Lib *	pLib,
		Abc_Ntk_t *	pNtk,
		int	nTreeCRatio,
		int	fUseWireLoads,
		int	fShowAll,
		int	fPrintPath,
		int	fDumpStats )

Function*************************************************************

Synopsis [Printing out timing information for the network.]

Description []

SideEffects []

SeeAlso []

Definition at line 686 of file sclSize.c.

{
    SC_Man * p;
    p = Abc_SclManStart( pLib, pNtk, fUseWireLoads, 1, 0, nTreeCRatio );
    Abc_SclTimeNtkPrint( p, fShowAll, fPrintPath );
    if ( fDumpStats )
        Abc_SclDumpStats( p, "stats.txt", 0 );
    Abc_SclManFree( p );
}

Here is the call graph for this function:

Here is the caller graph for this function:
