scl.c File Reference

#include "sclSize.h"
#include "base/main/mainInt.h"
#include "misc/util/utilNam.h"
#include "sclCon.h"
#include "map/mio/mio.h"

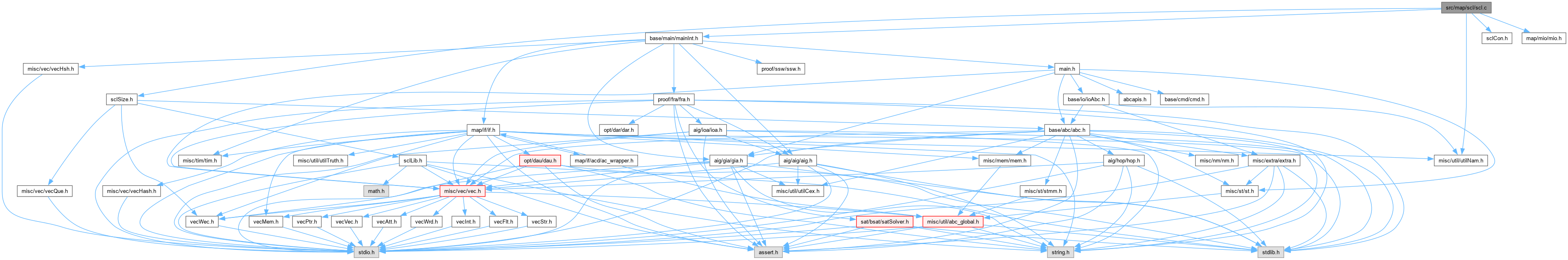

Include dependency graph for scl.c:

Go to the source code of this file.

Functions
Scl_Con_t *	Scl_ConReadMan ()
void	Abc_SclLoad (SC_Lib *pLib, SC_Lib **ppScl)
	FUNCTION DEFINITIONS ///.
void	Scl_Init (Abc_Frame_t *pAbc)
void	Scl_End (Abc_Frame_t *pAbc)
SC_Lib *	Scl_ReadLibraryFile (Abc_Frame_t *pAbc, char *pFileName, int fVerbose, int fVeryVerbose, SC_DontUse dont_use, int fSkipMultiOuts)

Function Documentation

Abc_SclLoad()

void Abc_SclLoad	(	SC_Lib *	pLib,
		SC_Lib **	ppScl )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Updating library in the frameframe.]

Description []

SideEffects []

SeeAlso []

Definition at line 79 of file scl.c.

{
    if ( *ppScl )
    {
        Abc_SclLibFree( *ppScl );
        *ppScl = NULL;
    }
    assert( *ppScl == NULL );
    if ( pLib )
        *(SC_Lib **)ppScl = pLib;
}

Here is the caller graph for this function:

Scl_ConReadMan()

Scl_Con_t * Scl_ConReadMan

(

)

Function*************************************************************

Synopsis [External APIs.]

Description []

SideEffects []

SeeAlso []

Definition at line 62 of file scl.c.

{ return Scl_ConGetMan( Abc_FrameGetGlobalFrame() );       }

Here is the call graph for this function:

Here is the caller graph for this function:

Scl_End()

void Scl_End

(

Abc_Frame_t *

pAbc

)

Definition at line 127 of file scl.c.

{
    Abc_SclLoad( NULL, (SC_Lib **)&pAbc->pLibScl );
    Scl_ConUpdateMan( pAbc, NULL );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Scl_Init()

void Scl_Init

(

Abc_Frame_t *

pAbc

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 102 of file scl.c.

{
    Cmd_CommandAdd( pAbc, "SCL mapping",  "read_lib",      Scl_CommandReadLib,     0 );
    Cmd_CommandAdd( pAbc, "SCL mapping",  "write_lib",     Scl_CommandWriteLib,    0 );
    Cmd_CommandAdd( pAbc, "SCL mapping",  "print_lib",     Scl_CommandPrintLib,    0 );
    Cmd_CommandAdd( pAbc, "SCL mapping",  "leak2area",     Scl_CommandLeak2Area,   0 );
    Cmd_CommandAdd( pAbc, "SCL mapping",  "read_scl",      Scl_CommandReadScl,     0 );
    Cmd_CommandAdd( pAbc, "SCL mapping",  "write_scl",     Scl_CommandWriteScl,    0 );
    Cmd_CommandAdd( pAbc, "SCL mapping",  "dump_genlib",   Scl_CommandDumpGen,     0 );
    Cmd_CommandAdd( pAbc, "SCL mapping",  "print_gs",      Scl_CommandPrintGS,     0 );
    Cmd_CommandAdd( pAbc, "SCL mapping",  "stime",         Scl_CommandStime,       0 );
    Cmd_CommandAdd( pAbc, "SCL mapping",  "topo",          Scl_CommandTopo,        1 );
    Cmd_CommandAdd( pAbc, "SCL mapping",  "unbuffer",      Scl_CommandUnBuffer,    1 );
    Cmd_CommandAdd( pAbc, "SCL mapping",  "buffer",        Scl_CommandBuffer,      1 );
//    Cmd_CommandAdd( pAbc, "SCL mapping",  "_buffer",       Scl_CommandBufferOld,   1 );
    Cmd_CommandAdd( pAbc, "SCL mapping",  "minsize",       Scl_CommandMinsize,     1 );
    Cmd_CommandAdd( pAbc, "SCL mapping",  "maxsize",       Scl_CommandMaxsize,     1 );
    Cmd_CommandAdd( pAbc, "SCL mapping",  "upsize",        Scl_CommandUpsize,      1 );
    Cmd_CommandAdd( pAbc, "SCL mapping",  "dnsize",        Scl_CommandDnsize,      1 );
    Cmd_CommandAdd( pAbc, "SCL mapping",  "print_buf",     Scl_CommandPrintBuf,    0 );
    Cmd_CommandAdd( pAbc, "SCL mapping",  "read_constr",   Scl_CommandReadConstr,  0 );
    Cmd_CommandAdd( pAbc, "SCL mapping",  "write_constr",  Scl_CommandWriteConstr, 0 );
    Cmd_CommandAdd( pAbc, "SCL mapping",  "print_constr",  Scl_CommandPrintConstr, 0 );
    Cmd_CommandAdd( pAbc, "SCL mapping",  "reset_constr",  Scl_CommandResetConstr, 0 );
}

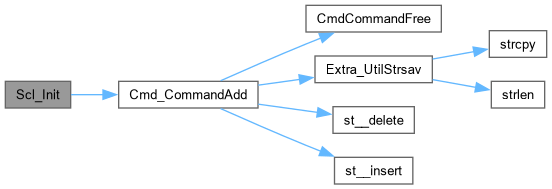

Here is the call graph for this function:

Here is the caller graph for this function:

Scl_ReadLibraryFile()

SC_Lib * Scl_ReadLibraryFile	(	Abc_Frame_t *	pAbc,
		char *	pFileName,
		int	fVerbose,
		int	fVeryVerbose,
		SC_DontUse	dont_use,
		int	fSkipMultiOuts )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 144 of file scl.c.

{
    SC_Lib * pLib;
    FILE * pFile;
    if ( (pFile = fopen( pFileName, "rb" )) == NULL )
    {
        fprintf( pAbc->Err, "Cannot open input file \"%s\". \n", pFileName );
        return NULL;
    }
    fclose( pFile );
    // read new library
    pLib = Abc_SclReadLiberty( pFileName, fVerbose, fVeryVerbose, dont_use, fSkipMultiOuts);
    if ( pLib == NULL )
    {
        fprintf( pAbc->Err, "Reading SCL library from file \"%s\" has failed. \n", pFileName );
        return NULL;
    }
    return pLib;
}

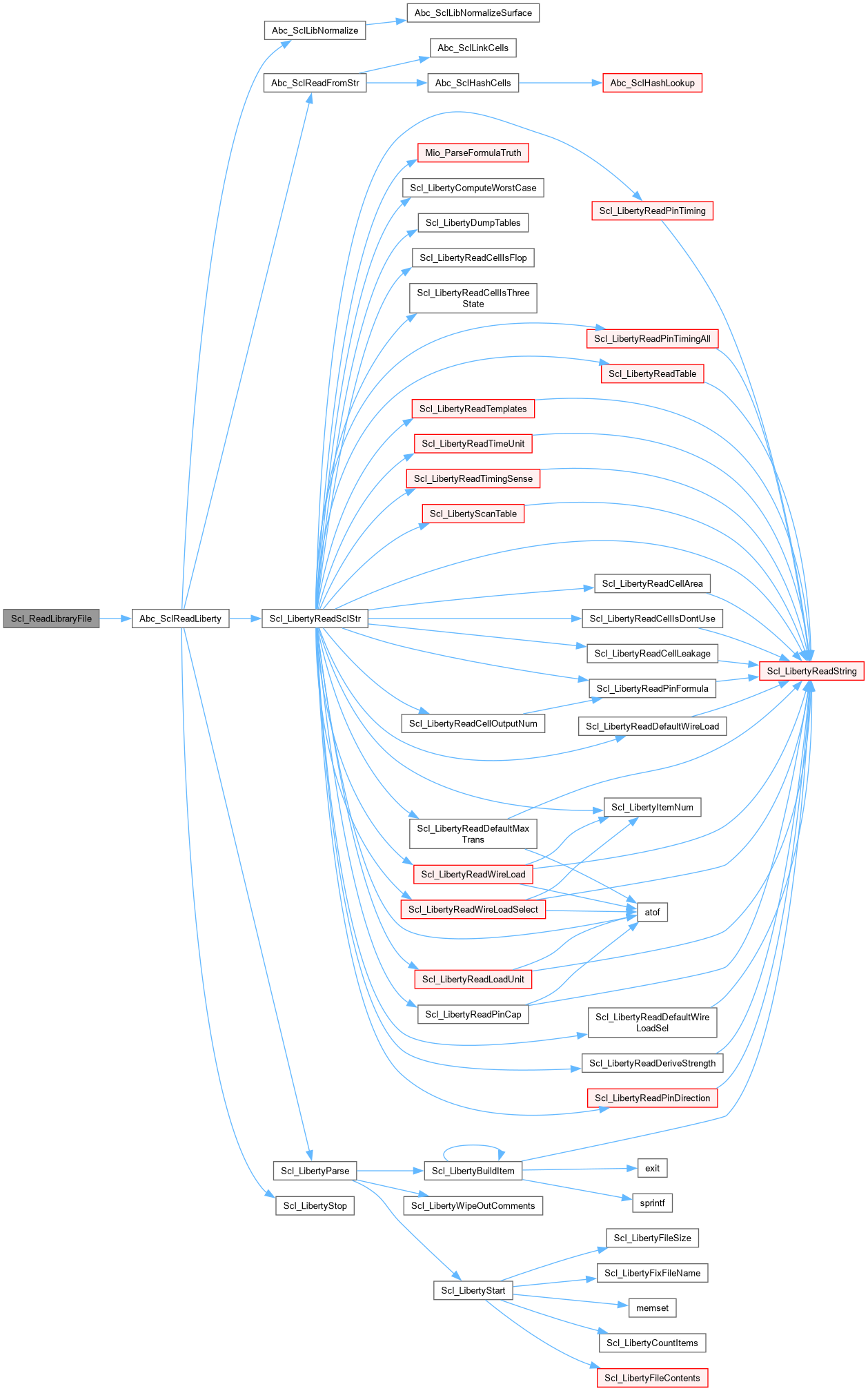

Here is the call graph for this function:
