cmd.h File Reference

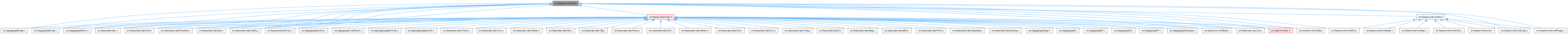

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
typedef typedefABC_NAMESPACE_HEADER_START struct MvCommand	Abc_Command
	INCLUDES ///.
typedef struct MvAlias	Abc_Alias
typedef int(*	Cmd_CommandFuncType) (Abc_Frame_t *, int, char **)

Functions
void	Cmd_Init (Abc_Frame_t *pAbc)
	MACRO DEFINITIONS ///.
void	Cmd_End (Abc_Frame_t *pAbc)
int	Cmd_CommandIsDefined (Abc_Frame_t *pAbc, const char *sName)
	DECLARATIONS ///.
void	Cmd_CommandAdd (Abc_Frame_t *pAbc, const char *sGroup, const char *sName, Cmd_CommandFuncType pFunc, int fChanges)
ABC_DLL int	Cmd_CommandExecute (Abc_Frame_t *pAbc, const char *sCommand)
char *	Cmd_FlagReadByName (Abc_Frame_t *pAbc, char *flag)
	DECLARATIONS ///.
void	Cmd_FlagDeleteByName (Abc_Frame_t *pAbc, const char *key)
void	Cmd_FlagUpdateValue (Abc_Frame_t *pAbc, const char *key, char *value)
void	Cmd_HistoryAddCommand (Abc_Frame_t *pAbc, const char *command)
	FUNCTION DEFINITIONS ///.
void	Cmd_HistoryRead (Abc_Frame_t *p)
void	Cmd_HistoryWrite (Abc_Frame_t *p, int Limit)
void	Cmd_HistoryPrint (Abc_Frame_t *p, int Limit)
int	CmdCommandLoad (Abc_Frame_t *pAbc, int argc, char **argv)
	DECLARATIONS ///.

Typedef Documentation

Abc_Alias

typedef struct MvAlias Abc_Alias

Definition at line 40 of file cmd.h.

Abc_Command

typedef typedefABC_NAMESPACE_HEADER_START struct MvCommand Abc_Command

INCLUDES ///.

CFile****************************************************************

FileName [cmd.h]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Command processing package.]

Synopsis [External declarations of the command package.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

cmd.h,v 1.00 2005/06/20 00:00:00 alanmi Exp

] PARAMETERS /// STRUCTURE DEFINITIONS ///

Definition at line 39 of file cmd.h.

Cmd_CommandFuncType

typedef int(* Cmd_CommandFuncType) (Abc_Frame_t *, int, char **)

Definition at line 54 of file cmd.h.

Function Documentation

Cmd_CommandAdd()

void Cmd_CommandAdd ( Abc_Frame_t * pAbc, const char * sGroup, const char * sName, Cmd_CommandFuncType pFunc, int fChanges )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 63 of file cmdApi.c.

{
    const char * key;
    char * value;
    Abc_Command * pCommand;
    int fStatus;

    key = sName;
    if ( st__delete( pAbc->tCommands, &key, &value ) )
    {
        // delete existing definition for this command
        fprintf( pAbc->Err, "Cmd warning: redefining '%s'\n", sName );
        CmdCommandFree( (Abc_Command *)value );
    }

    // create the new command
    pCommand = ABC_ALLOC( Abc_Command, 1 );
    pCommand->sName   = Extra_UtilStrsav( sName );
    pCommand->sGroup  = Extra_UtilStrsav( sGroup );
    pCommand->pFunc   = pFunc;
    pCommand->fChange = fChanges;
    fStatus = st__insert( pAbc->tCommands, pCommand->sName, (char *)pCommand );
    assert( !fStatus );  // the command should not be in the table
}

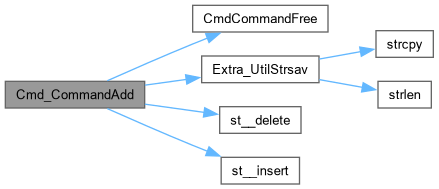

Here is the call graph for this function:

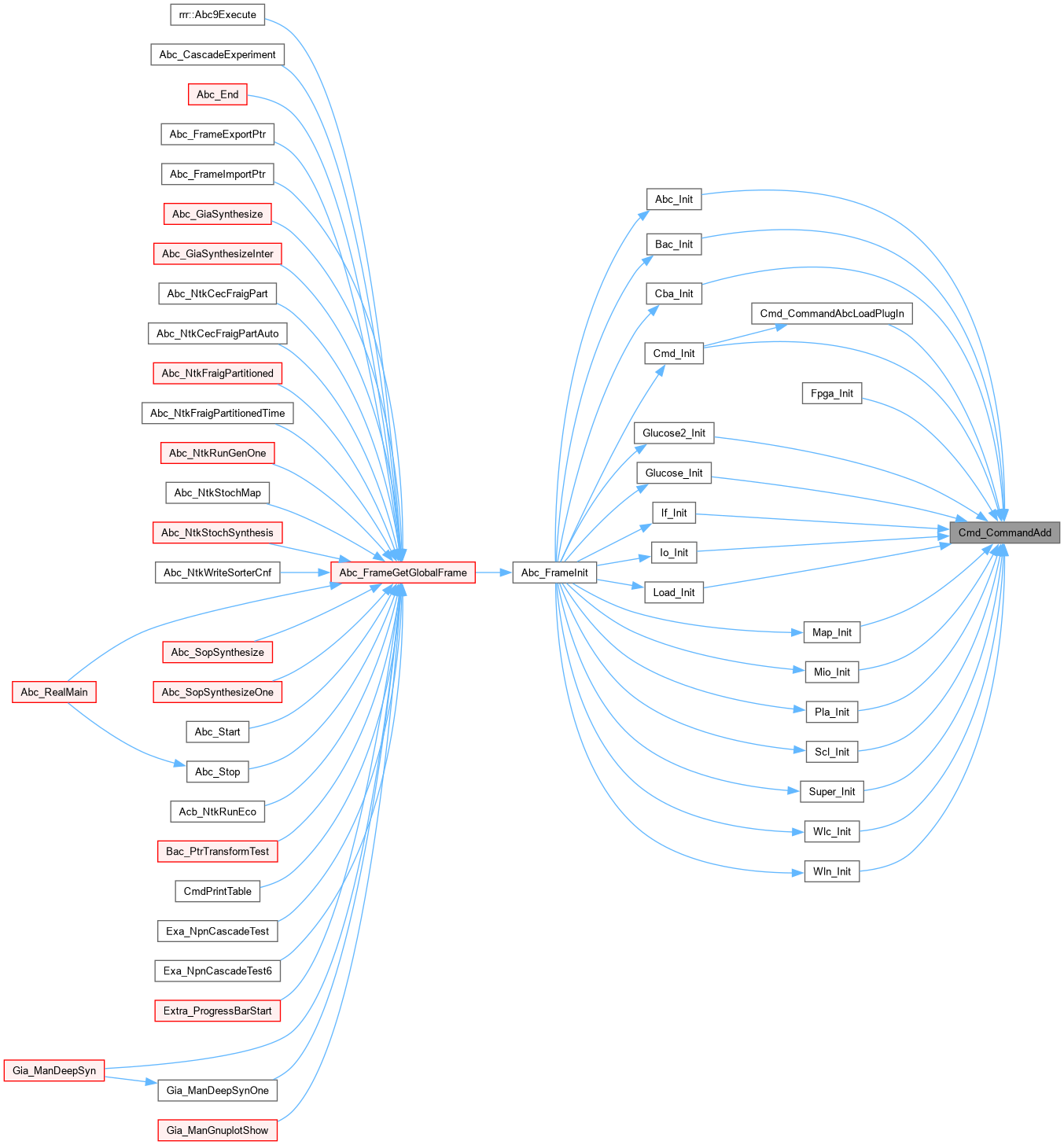

Here is the caller graph for this function:

Cmd_CommandExecute()

ABC_DLL int Cmd_CommandExecute ( Abc_Frame_t * pAbc, const char * sCommand )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 193 of file cmdApi.c.

{
    int fStatus = 0, argc, loop;
    const char * sCommandNext;
    char **argv;

    if ( !pAbc->fAutoexac && !pAbc->fSource )
        Cmd_HistoryAddCommand(pAbc, sCommand);
    sCommandNext = sCommand;
    do
    {
        if ( sCommandNext[0] == '#' && Cmd_CommandHandleSpecial( pAbc, sCommandNext ) )
            break;
        sCommandNext = CmdSplitLine( pAbc, sCommandNext, &argc, &argv );
        loop = 0;
        fStatus = CmdApplyAlias( pAbc, &argc, &argv, &loop );
        if ( fStatus == 0 )
            fStatus = CmdCommandDispatch( pAbc, &argc, &argv );
        CmdFreeArgv( argc, argv );
    }
    while ( fStatus == 0 && *sCommandNext != '\0' );
    return fStatus;
}

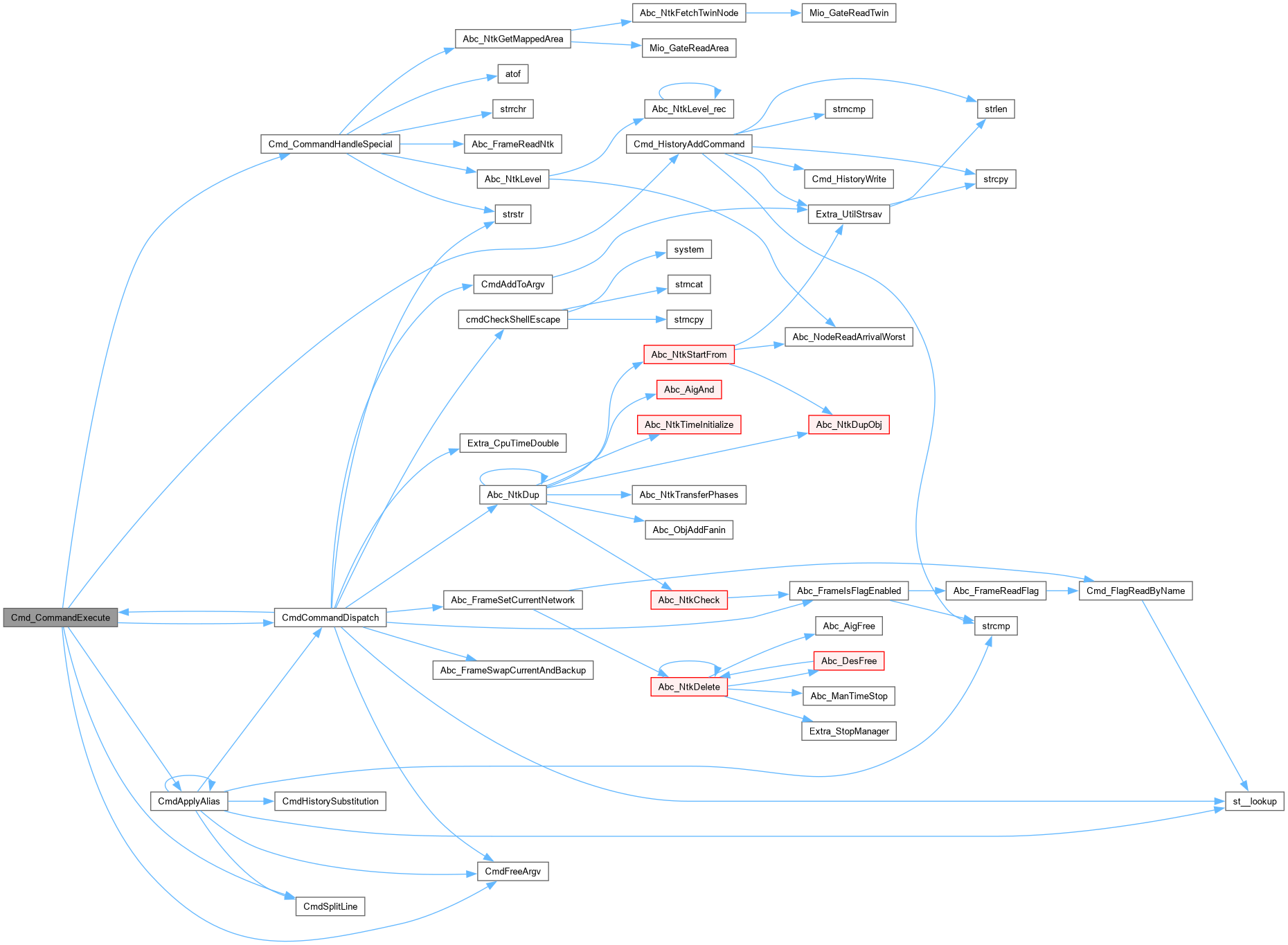

Here is the call graph for this function:

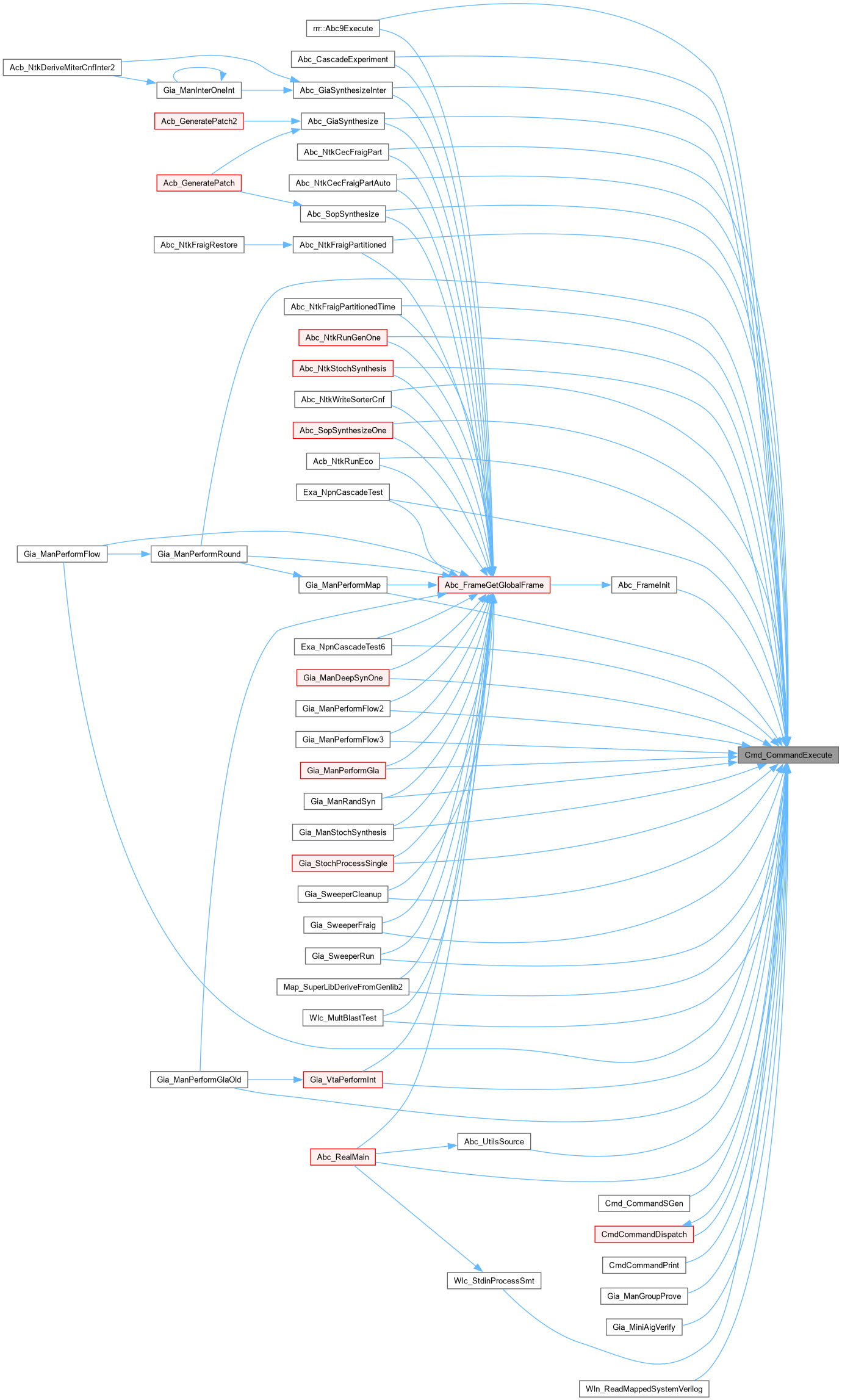

Here is the caller graph for this function:

Cmd_CommandIsDefined()

int Cmd_CommandIsDefined ( Abc_Frame_t * pAbc, const char * sName )

extern

DECLARATIONS ///.

CFile****************************************************************

FileName [cmdApi.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Command processing package.]

Synopsis [External procedures of the command package.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

cmdApi.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 47 of file cmdApi.c.

{
    return st__is_member( pAbc->tCommands, sName );
}

Cmd_End()

void Cmd_End ( Abc_Frame_t * pAbc )

extern

Function********************************************************************

Synopsis [Ends the command package.]

Description [Ends the command package. Tables are freed.]

SideEffects []

SeeAlso []

Definition at line 139 of file cmd.c.

{
    st__generator * gen;
    char * pKey, * pValue;
    Cmd_HistoryWrite( pAbc, ABC_INFINITY );

//    st__free_table( pAbc->tCommands, (void (*)()) 0, CmdCommandFree );
//    st__free_table( pAbc->tAliases,  (void (*)()) 0, CmdCommandAliasFree );
//    st__free_table( pAbc->tFlags,    free, free );

    st__foreach_item( pAbc->tCommands, gen, (const char **)&pKey, (char **)&pValue )
        CmdCommandFree( (Abc_Command *)pValue );
    st__free_table( pAbc->tCommands );

    st__foreach_item( pAbc->tAliases, gen, (const char **)&pKey, (char **)&pValue )
        CmdCommandAliasFree( (Abc_Alias *)pValue );
    st__free_table( pAbc->tAliases );

    st__foreach_item( pAbc->tFlags, gen, (const char **)&pKey, (char **)&pValue )
        ABC_FREE( pKey ), ABC_FREE( pValue );
    st__free_table( pAbc->tFlags );

    Vec_PtrFreeFree( pAbc->aHistory );
}

Cmd_FlagDeleteByName()

void Cmd_FlagDeleteByName ( Abc_Frame_t * pAbc, const char * key )

extern

Function********************************************************************

Synopsis [Deletes a set value by calling instead of unset command.]

Description [Deletes a set value by calling instead of unset command.]

SideEffects []

Definition at line 90 of file cmdFlag.c.

{
    char *value;
    if ( !key )
        return;
    if ( st__delete( pAbc->tFlags, &key, &value ) )
    {
        ABC_FREE(key);
        ABC_FREE(value);
    }
}

Here is the call graph for this function:

Cmd_FlagReadByName()

char * Cmd_FlagReadByName ( Abc_Frame_t * pAbc, char * flag )

extern

DECLARATIONS ///.

CFile****************************************************************

FileName [cmdFlag.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Command processing package.]

Synopsis [Procedures working with flags.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

cmdFlag.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function********************************************************************

Synopsis [Looks up value of flag in table of named values.]

Description [The command parser maintains a table of named values. These are manipulated using the 'set' and 'unset' commands. The value of the named flag is returned, or NULL is returned if the flag has not been set.]

SideEffects []

Definition at line 47 of file cmdFlag.c.

{
    char * value;
    if ( st__lookup(pAbc->tFlags, flag, &value) )
        return value;
    return NULL;
}

Here is the call graph for this function:

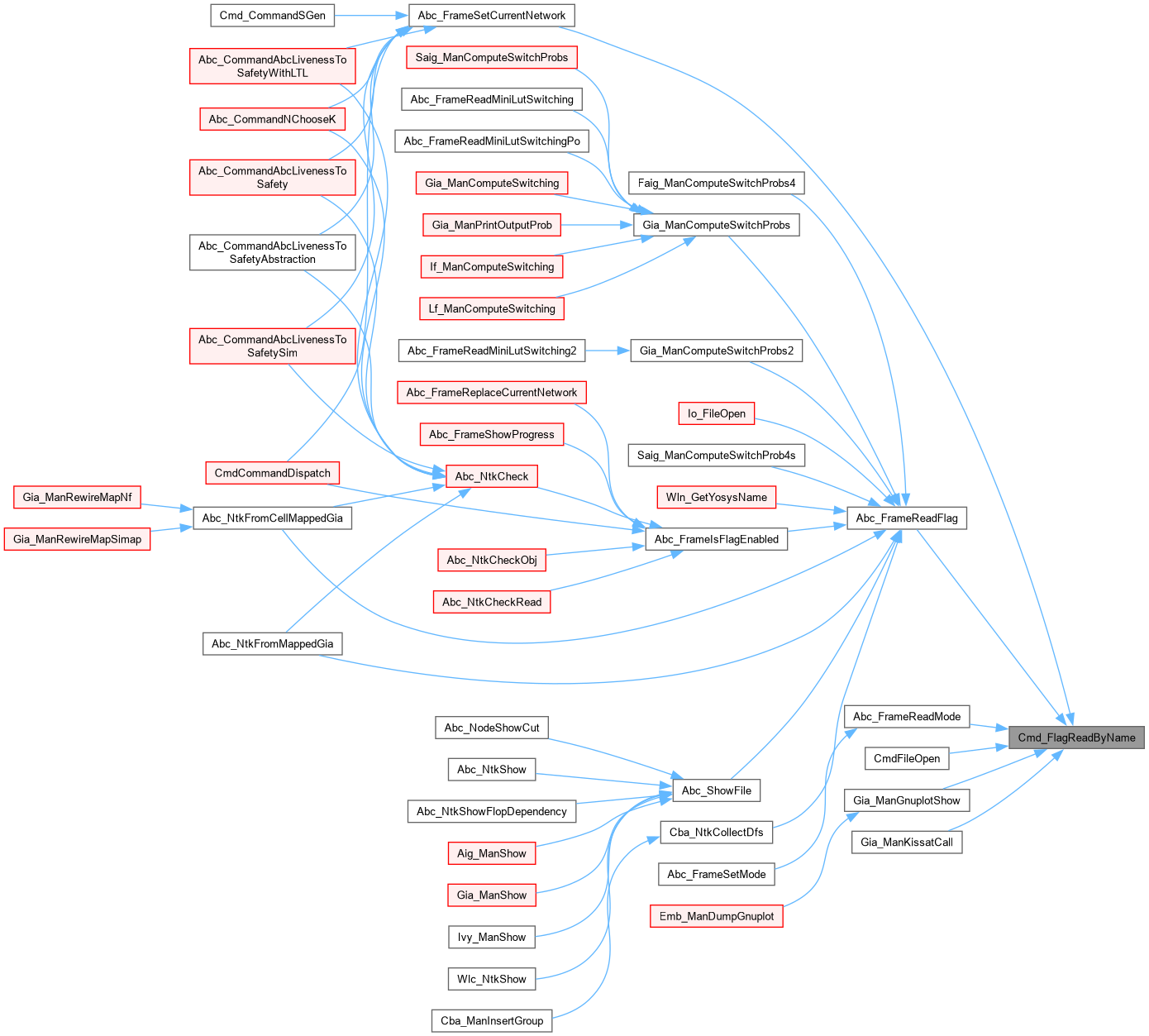

Here is the caller graph for this function:

Cmd_FlagUpdateValue()

void Cmd_FlagUpdateValue ( Abc_Frame_t * pAbc, const char * key, char * value )

extern

Function********************************************************************

Synopsis [Updates a set value by calling instead of set command.]

Description [Updates a set value by calling instead of set command.]

SideEffects []

Definition at line 65 of file cmdFlag.c.

{
    char * oldValue, * newValue;
    if ( !key )
        return;
    if ( value )
        newValue = Extra_UtilStrsav(value);
    else
        newValue = Extra_UtilStrsav("");
//        newValue = NULL;
    if ( st__delete(pAbc->tFlags, &key, &oldValue) )
        ABC_FREE(oldValue);
    st__insert( pAbc->tFlags, key, newValue );
}

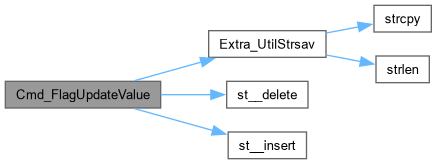

Here is the call graph for this function:

Here is the caller graph for this function:

Cmd_HistoryAddCommand()

void Cmd_HistoryAddCommand ( Abc_Frame_t * p, const char * command )

extern

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 50 of file cmdHist.c.

{
    int nLastLooked =    10;  // do not add history if the same entry appears among the last entries
    int nLastSaved  = 10000;  // when saving a file, save no more than this number of last entries
    char Buffer[ABC_MAX_STR];
    int Len;
    if ( p->fBatchMode )
        return;
    Len = strlen(command);
    strcpy( Buffer, command );
    if ( Len > 0 && Buffer[Len-1] == '\n' )
        Buffer[Len-1] = 0;
    if ( strlen(Buffer) > 3 &&
         strncmp(Buffer,"set",3) &&
         strncmp(Buffer,"unset",5) &&
         strncmp(Buffer,"time",4) &&
         strncmp(Buffer,"quit",4) &&
         strncmp(Buffer,"alias",5) &&
         strncmp(Buffer,"source abc.rc",13) &&
         strncmp(Buffer,"source ..\\abc.rc",16) &&
         strncmp(Buffer,"history",7) && strncmp(Buffer,"hi ", 3) && strcmp(Buffer,"hi") &&
         Buffer[strlen(Buffer)-1] != '?' )
    {
        char * pStr = NULL;
        int i, Start = Abc_MaxInt( 0, Vec_PtrSize(p->aHistory) - nLastLooked );
        // do not enter if the same command appears among nLastLooked commands
        Vec_PtrForEachEntryStart( char *, p->aHistory, pStr, i, Start )
            if ( !strcmp(pStr, Buffer) )
                break;
        if ( i == Vec_PtrSize(p->aHistory) )
        { // add new entry
            Vec_PtrPush( p->aHistory, Extra_UtilStrsav(Buffer) );
            Cmd_HistoryWrite( p, nLastSaved );
        }
        else
        { // put at the end
            Vec_PtrRemove( p->aHistory, pStr );
            Vec_PtrPush( p->aHistory, pStr );
        }
    }
}

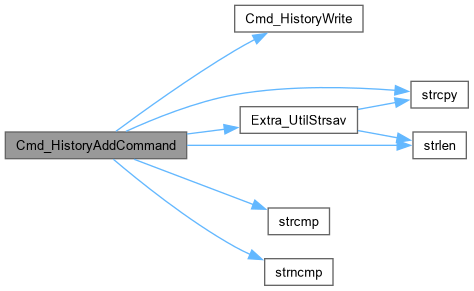

Here is the call graph for this function:

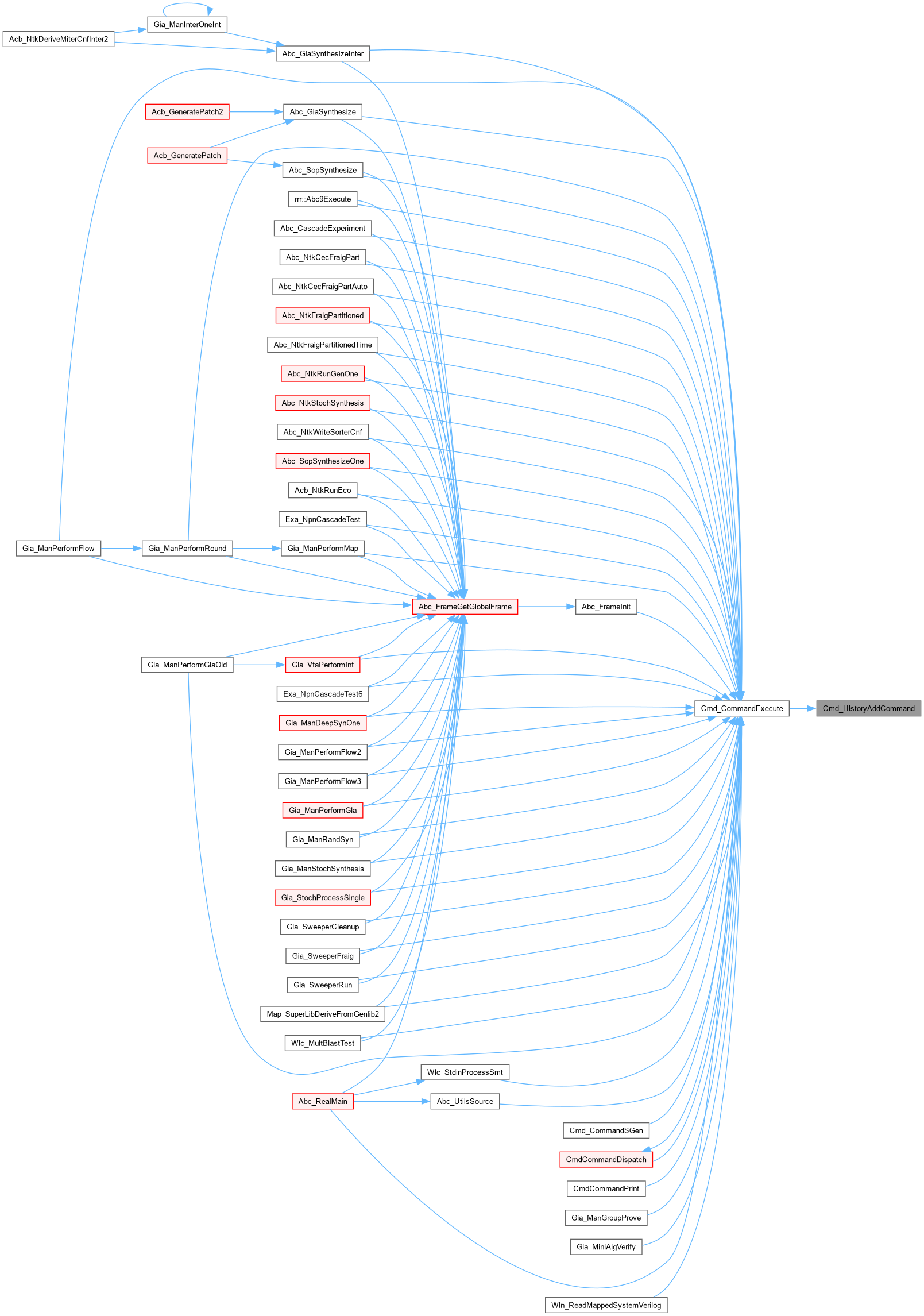

Here is the caller graph for this function:

Cmd_HistoryPrint()

void Cmd_HistoryPrint ( Abc_Frame_t * p, int Limit )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 164 of file cmdHist.c.

{
#if defined(ABC_USE_HISTORY)
    char * pStr;
    int i;
    Limit = Abc_MaxInt( 0, Vec_PtrSize(p->aHistory)-Limit );
    printf( "================== Command history ==================\n" );
    Vec_PtrForEachEntryStart( char *, p->aHistory, pStr, i, Limit )
        printf( "%s\n", pStr );
    printf( "=====================================================\n" );
#endif
}

Here is the caller graph for this function:

Cmd_HistoryRead()

void Cmd_HistoryRead ( Abc_Frame_t * p )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 103 of file cmdHist.c.

{
#if defined(ABC_USE_HISTORY)
    char Buffer[ABC_MAX_STR];
    FILE * pFile;
    assert( Vec_PtrSize(p->aHistory) == 0 );
    pFile = fopen( "abc.history", "rb" );
    if ( pFile == NULL )
        return;
    while ( fgets( Buffer, ABC_MAX_STR, pFile ) != NULL )
    {
        int Len = strlen(Buffer);
        if ( Buffer[Len-1] == '\n' )
            Buffer[Len-1] = 0;
        Vec_PtrPush( p->aHistory, Extra_UtilStrsav(Buffer) );
    }
    fclose( pFile );
#endif
}

Here is the call graph for this function:

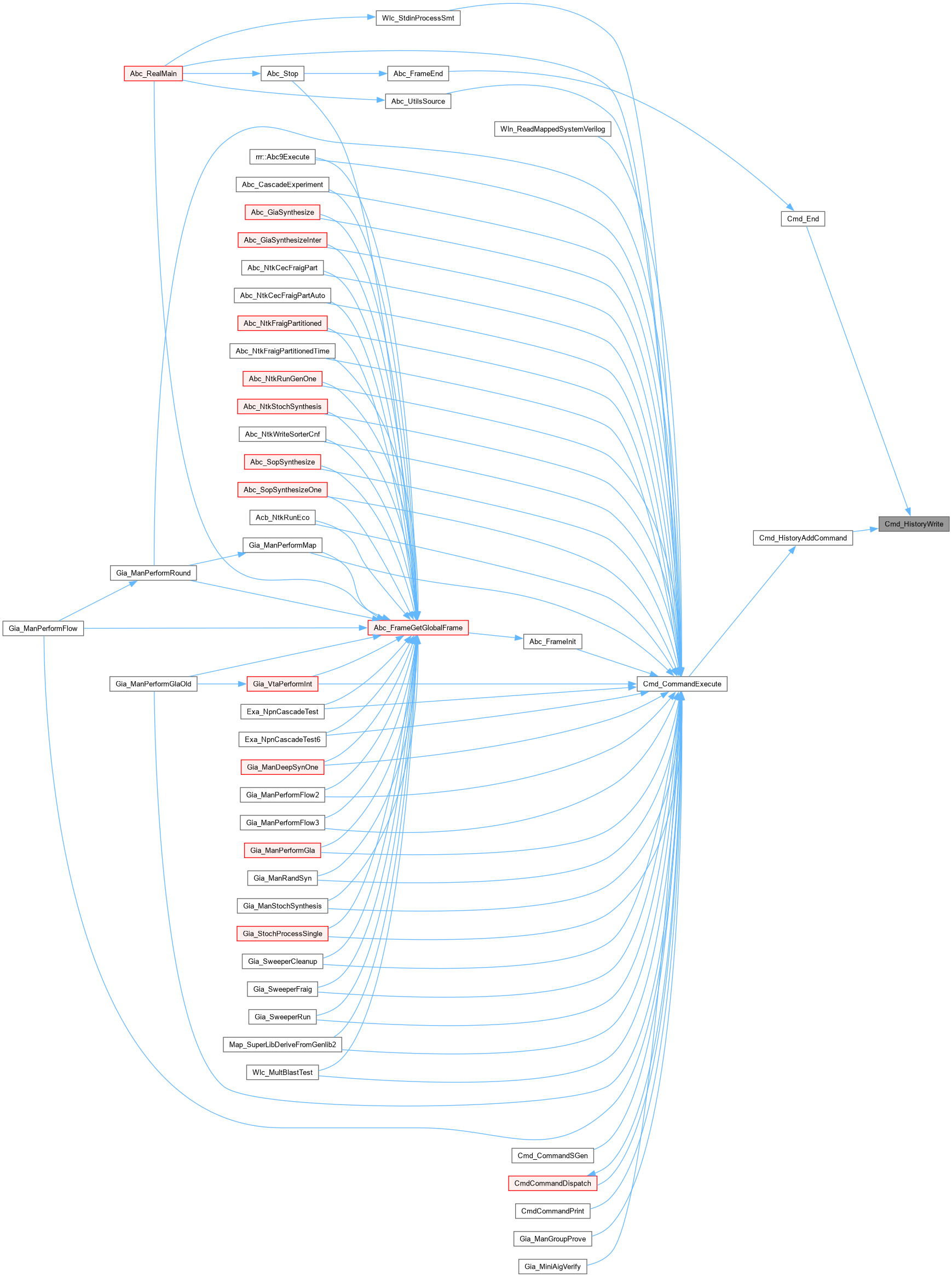

Here is the caller graph for this function:

Cmd_HistoryWrite()

void Cmd_HistoryWrite ( Abc_Frame_t * p, int Limit )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 134 of file cmdHist.c.

{
#if defined(ABC_USE_HISTORY)
    FILE * pFile;
    char * pStr;
    int i;
    pFile = fopen( "abc.history", "wb" );
    if ( pFile == NULL )
    {
        Abc_Print( 0, "Cannot open file \"abc.history\" for writing.\n" );
        return;
    }
    Limit = Abc_MaxInt( 0, Vec_PtrSize(p->aHistory)-Limit );
    Vec_PtrForEachEntryStart( char *, p->aHistory, pStr, i, Limit )
        fprintf( pFile, "%s\n", pStr );
    fclose( pFile );
#endif
}

Here is the caller graph for this function:

Cmd_Init()

void Cmd_Init ( Abc_Frame_t * pAbc )

extern

MACRO DEFINITIONS ///.

FUNCTION DEFINITIONS ///

MACRO DEFINITIONS ///.

Function********************************************************************

Synopsis [Initializes the command package.]

SideEffects [Commands are added to the command table.]

SeeAlso [Cmd_End]

Definition at line 85 of file cmd.c.

{
    pAbc->tCommands = st__init_table(strcmp, st__strhash);
    pAbc->tAliases  = st__init_table(strcmp, st__strhash);
    pAbc->tFlags    = st__init_table(strcmp, st__strhash);
    pAbc->aHistory  = Vec_PtrAlloc( 100 );
    Cmd_HistoryRead( pAbc );

    Cmd_CommandAdd( pAbc, "Basic", "time",          CmdCommandTime,            0 );
    Cmd_CommandAdd( pAbc, "Basic", "sleep",         CmdCommandSleep,           0 );
    Cmd_CommandAdd( pAbc, "Basic", "echo",          CmdCommandEcho,            0 );
    Cmd_CommandAdd( pAbc, "Basic", "quit",          CmdCommandQuit,            0 );
    Cmd_CommandAdd( pAbc, "Basic", "abcrc",         CmdCommandAbcrc,           0 );
    Cmd_CommandAdd( pAbc, "Basic", "history",       CmdCommandHistory,         0 );
    Cmd_CommandAdd( pAbc, "Basic", "alias",         CmdCommandAlias,           0 );
    Cmd_CommandAdd( pAbc, "Basic", "unalias",       CmdCommandUnalias,         0 );
    Cmd_CommandAdd( pAbc, "Basic", "help",          CmdCommandHelp,            0 );
    Cmd_CommandAdd( pAbc, "Basic", "source",        CmdCommandSource,          0 );
    Cmd_CommandAdd( pAbc, "Basic", "set",           CmdCommandSetVariable,     0 );
    Cmd_CommandAdd( pAbc, "Basic", "unset",         CmdCommandUnsetVariable,   0 );
    Cmd_CommandAdd( pAbc, "Basic", "undo",          CmdCommandUndo,            0 );
    Cmd_CommandAdd( pAbc, "Basic", "recall",        CmdCommandRecall,          0 );
    Cmd_CommandAdd( pAbc, "Basic", "empty",         CmdCommandEmpty,           0 );
#if defined(WIN32)
    Cmd_CommandAdd( pAbc, "Basic", "scandir",       CmdCommandScanDir,         0 );
    Cmd_CommandAdd( pAbc, "Basic", "renamefiles",   CmdCommandRenameFiles,     0 );
    Cmd_CommandAdd( pAbc, "Basic", "ls",            CmdCommandLs,              0 );
    Cmd_CommandAdd( pAbc, "Basic", "scrgen",        CmdCommandScrGen,          0 );
#else
    Cmd_CommandAdd( pAbc, "Basic", "scrgen",        CmdCommandScrGenLinux,     0 );
#endif
    Cmd_CommandAdd( pAbc, "Basic", "version",       CmdCommandVersion,         0 );
    Cmd_CommandAdd( pAbc, "Basic", "sgen",          CmdCommandSGen,            0 );

    Cmd_CommandAdd( pAbc, "Various", "sis",         CmdCommandSis,             1 );
    Cmd_CommandAdd( pAbc, "Various", "mvsis",       CmdCommandMvsis,           1 );
    Cmd_CommandAdd( pAbc, "Various", "capo",        CmdCommandCapo,            0 );
    Cmd_CommandAdd( pAbc, "Various", "starter",     CmdCommandStarter,         0 );
    Cmd_CommandAdd( pAbc, "Various", "autotuner",   CmdCommandAutoTuner,       0 );

    Cmd_CommandAdd( pAbc, "Various", "load_plugin", Cmd_CommandAbcLoadPlugIn,  0 );
}

CmdCommandLoad()

int CmdCommandLoad ( Abc_Frame_t * pAbc, int argc, char ** argv )

extern

DECLARATIONS ///.

CFile****************************************************************

FileName [cmdApi.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Command processing package.]

Synopsis [External procedures of the command package.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

cmdApi.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function********************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 48 of file cmdLoad.c.

{
    Vec_Str_t * vCommand;
    FILE * pFile;
    int i;
    vCommand = Vec_StrAlloc( 100 );
    Vec_StrAppend( vCommand, "abccmd_" );
    Vec_StrAppend( vCommand, argv[0] );
    Vec_StrAppend( vCommand, ".exe" );
    Vec_StrPush( vCommand, 0 );
    // check if there is the binary
    if ( (pFile = fopen( Vec_StrArray(vCommand), "r" )) == NULL )
    {
        Abc_Print( -1, "Cannot run the binary \"%s\".\n\n", Vec_StrArray(vCommand) );
        Vec_StrFree( vCommand );
        return 1;
    }
    fclose( pFile );
    Vec_StrPop( vCommand );
    // add other arguments
    for ( i = 1; i < argc; i++ )
    {
        Vec_StrAppend( vCommand, " " );
        Vec_StrAppend( vCommand, argv[i] );
    }
    Vec_StrPush( vCommand, 0 );
    // run the command line
    if ( Util_SignalSystem( Vec_StrArray(vCommand) ) )
    {
        Abc_Print( -1, "The following command has returned non-zero exit status:\n" );
        Abc_Print( -1, "\"%s\"\n", Vec_StrArray(vCommand) );
        Vec_StrFree( vCommand );
        return 1;
    }
    Vec_StrFree( vCommand );
    return 0;
}

Here is the call graph for this function:

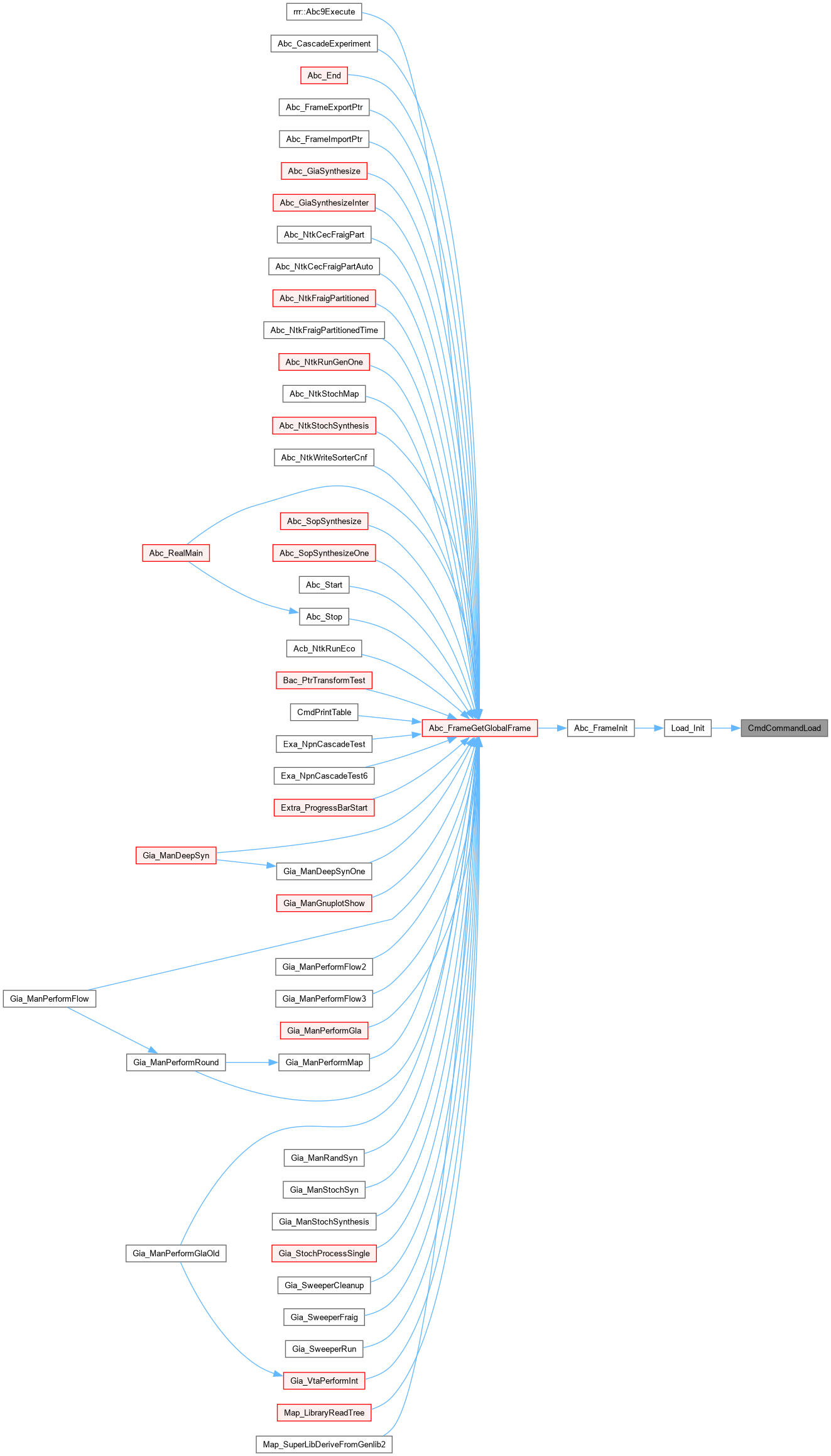

Here is the caller graph for this function:
