cmdApi.c File Reference

#include "base/abc/abc.h"
#include "base/main/mainInt.h"
#include "cmdInt.h"

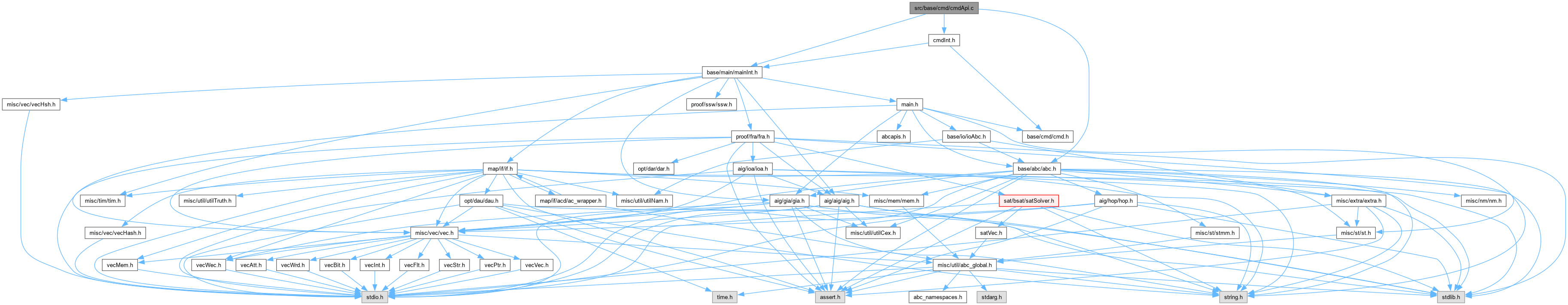

Include dependency graph for cmdApi.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START int	Cmd_CommandIsDefined (Abc_Frame_t *pAbc, const char *sName)
	DECLARATIONS ///.
void	Cmd_CommandAdd (Abc_Frame_t *pAbc, const char *sGroup, const char *sName, Cmd_CommandFuncType pFunc, int fChanges)
int	Cmd_CommandHandleSpecial (Abc_Frame_t *pAbc, const char *sCommand)
int	Cmd_CommandExecute (Abc_Frame_t *pAbc, const char *sCommand)

Function Documentation

Cmd_CommandAdd()

void Cmd_CommandAdd	(	Abc_Frame_t *	pAbc,
		const char *	sGroup,
		const char *	sName,
		Cmd_CommandFuncType	pFunc,
		int	fChanges )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 63 of file cmdApi.c.

{
    const char * key;
    char * value;
    Abc_Command * pCommand;
    int fStatus;

    key = sName;
    if ( st__delete( pAbc->tCommands, &key, &value ) )
    {
        // delete existing definition for this command
        fprintf( pAbc->Err, "Cmd warning: redefining '%s'\n", sName );
        CmdCommandFree( (Abc_Command *)value );
    }

    // create the new command
    pCommand = ABC_ALLOC( Abc_Command, 1 );
    pCommand->sName   = Extra_UtilStrsav( sName );
    pCommand->sGroup  = Extra_UtilStrsav( sGroup );
    pCommand->pFunc   = pFunc;
    pCommand->fChange = fChanges;
    fStatus = st__insert( pAbc->tCommands, pCommand->sName, (char *)pCommand );
    assert( !fStatus );  // the command should not be in the table
}

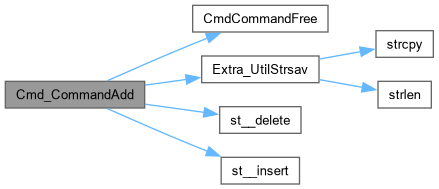

Here is the call graph for this function:

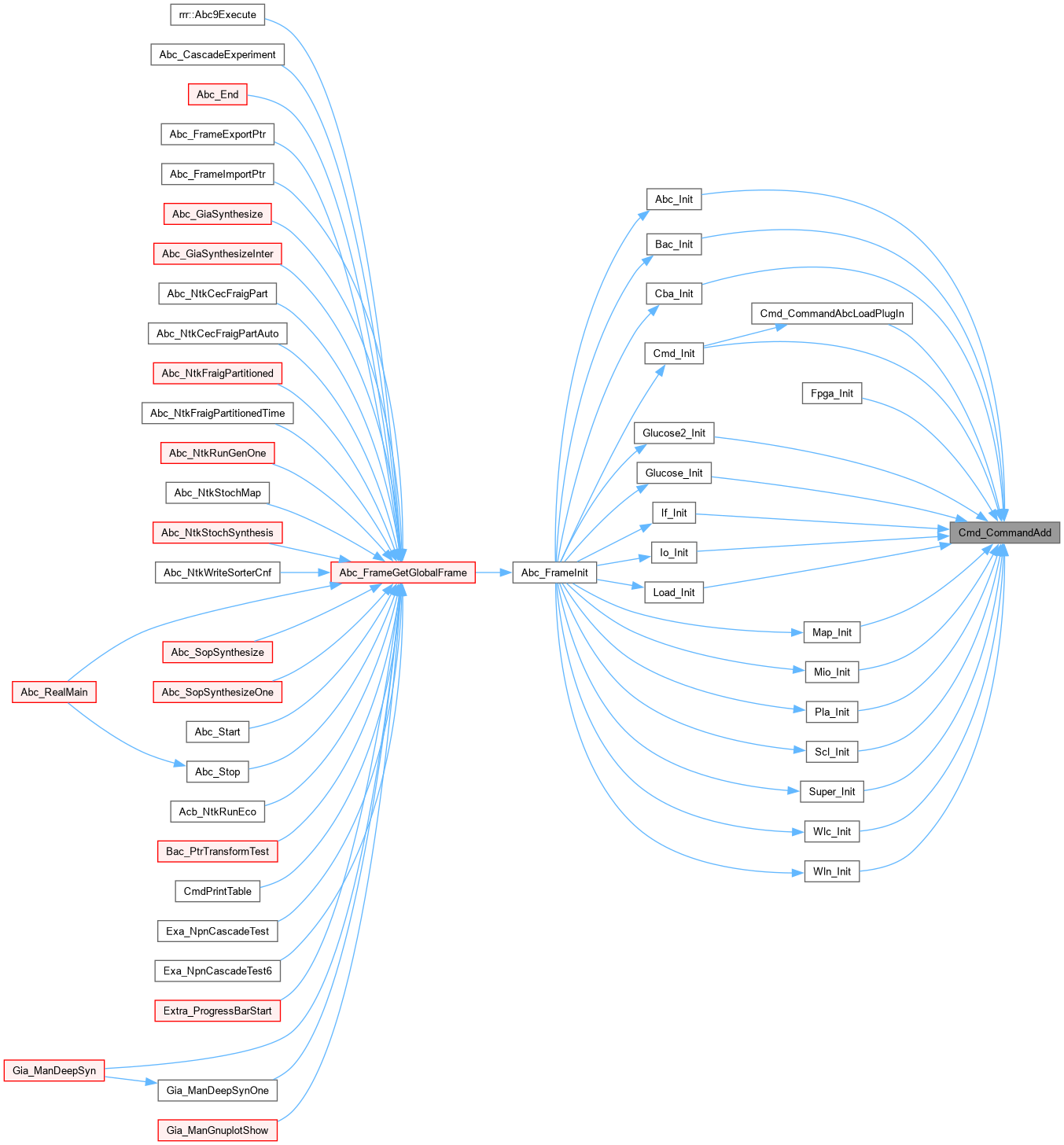

Here is the caller graph for this function:

Cmd_CommandExecute()

int Cmd_CommandExecute	(	Abc_Frame_t *	pAbc,
		const char *	sCommand )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 193 of file cmdApi.c.

{
    int fStatus = 0, argc, loop;
    const char * sCommandNext;
    char **argv;

    if ( !pAbc->fAutoexac && !pAbc->fSource )
        Cmd_HistoryAddCommand(pAbc, sCommand);
    sCommandNext = sCommand;
    do
    {
        if ( sCommandNext[0] == '#' && Cmd_CommandHandleSpecial( pAbc, sCommandNext ) )
            break;
        sCommandNext = CmdSplitLine( pAbc, sCommandNext, &argc, &argv );
        loop = 0;
        fStatus = CmdApplyAlias( pAbc, &argc, &argv, &loop );
        if ( fStatus == 0 )
            fStatus = CmdCommandDispatch( pAbc, &argc, &argv );
        CmdFreeArgv( argc, argv );
    }
    while ( fStatus == 0 && *sCommandNext != '\0' );
    return fStatus;
}

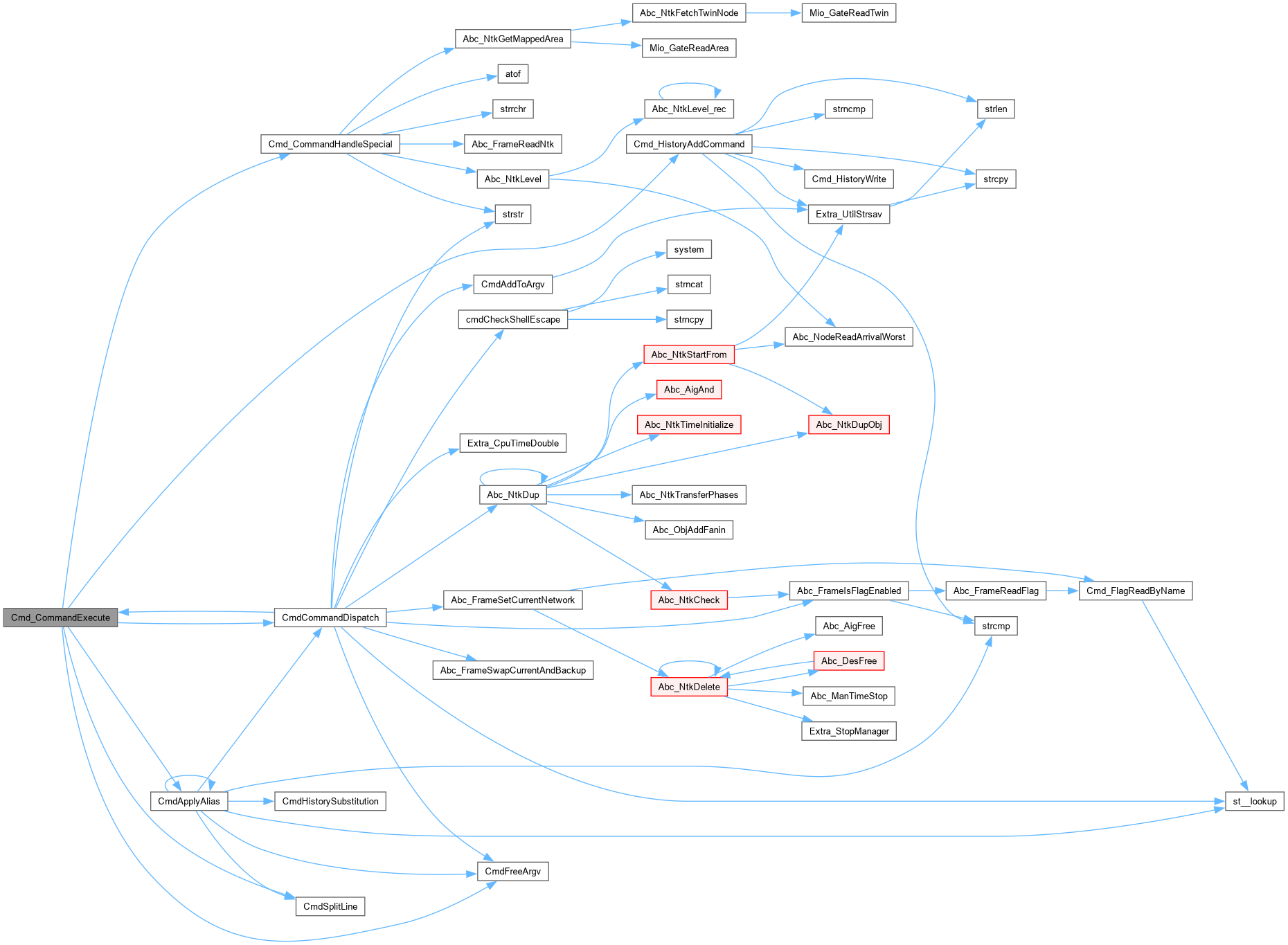

Here is the call graph for this function:

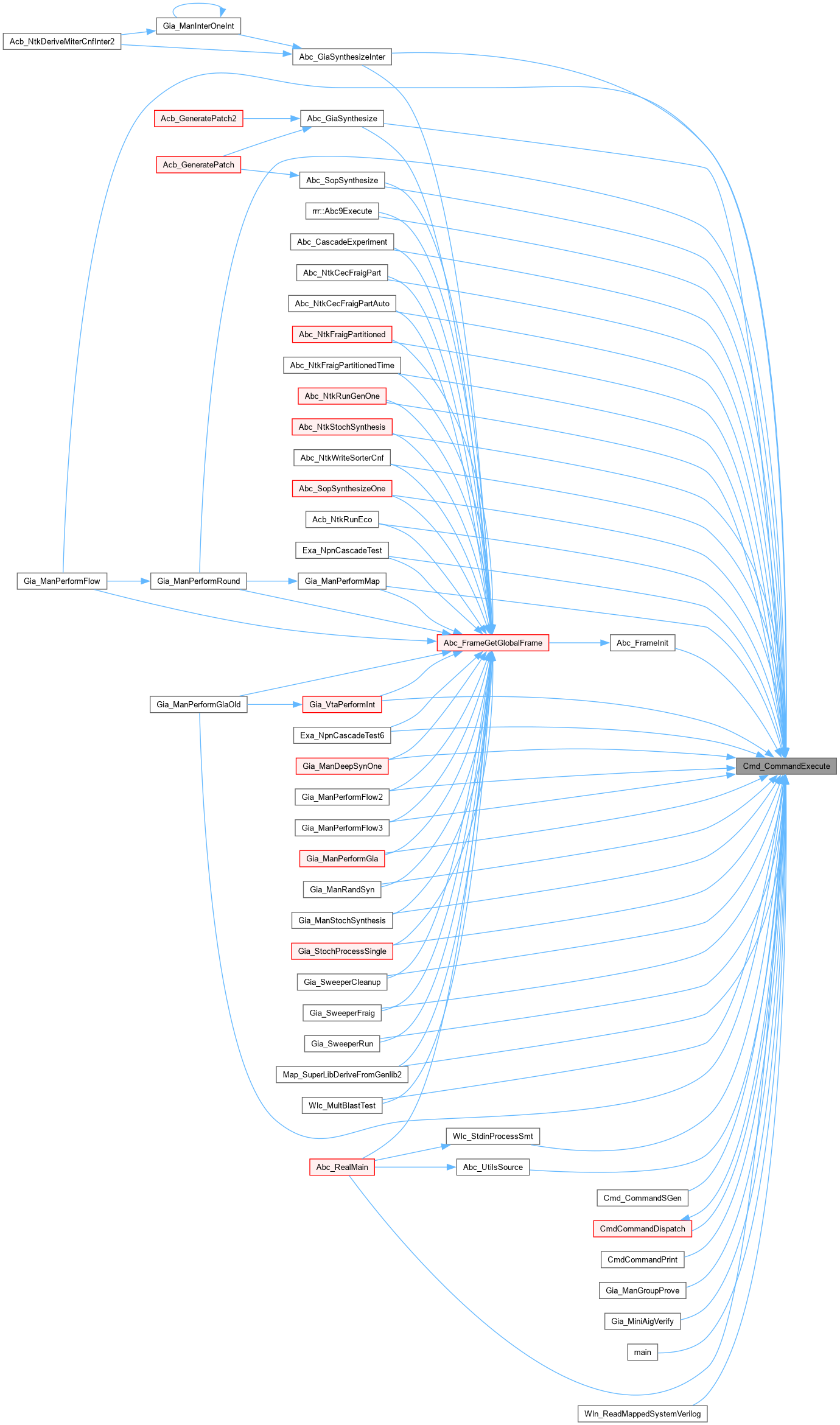

Here is the caller graph for this function:

Cmd_CommandHandleSpecial()

int Cmd_CommandHandleSpecial	(	Abc_Frame_t *	pAbc,
		const char *	sCommand )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 99 of file cmdApi.c.

{
    Abc_Ntk_t * pNtk = Abc_FrameReadNtk(pAbc);
    int piCountNew = (pNtk && Abc_NtkHasMapping(pNtk)) ? Abc_NtkCiNum(pNtk)         : 0, piCount = 0;
    int poCountNew = (pNtk && Abc_NtkHasMapping(pNtk)) ? Abc_NtkCoNum(pNtk)         : 0, poCount = 0;
    int ndCountNew = (pNtk && Abc_NtkHasMapping(pNtk)) ? Abc_NtkNodeNum(pNtk)       : 0, ndCount = 0;
    double AreaNew = (pNtk && Abc_NtkHasMapping(pNtk)) ? Abc_NtkGetMappedArea(pNtk) : 0, Area    = 0;
    int DepthNew   = (pNtk && Abc_NtkHasMapping(pNtk)) ? Abc_NtkLevel(pNtk)         : 0, Depth   = 0;
    if ( strstr(sCommand, "#PS") )
    {
        printf( "pi=%d ",   piCountNew );
        printf( "po=%d ",   poCountNew );
        printf( "fn=%d ",   ndCountNew );
        printf( "ma=%.1f ", AreaNew    );
        printf( "de=%d ",   DepthNew   );
        printf( "\n" );
        return 1;
    }
    if ( strstr(sCommand, "#CEC") )
    {
        //int proofStatus = Abc_NtkVerifyUsingCec(pNtk);
        int proofStatus = 1;
        // -1 (undecided), 0 (different), 1 (equivalent)
        printf( "proofStatus=%d\n", proofStatus );
        return 1;
    }
    if ( strstr(sCommand, "#ASSERT") )
    {
        int Status    = 0;
        char * pNumb  = strrchr( (char *)sCommand, '=' );
        if ( strstr(sCommand, "_PI_") )
        {
            piCount = pNumb ? atoi(pNumb+1) : 0;
            if ( strstr( sCommand, "==" ) )
                Status = piCountNew == piCount;
            else if ( strstr( sCommand, "<=" ) )
                Status = piCountNew <= piCount;
            else return 0;
        }
        else if ( strstr(sCommand, "_PO_") )
        {
            poCount = pNumb ? atoi(pNumb+1) : 0;
            if ( strstr( sCommand, "==" ) )
                Status = poCountNew == poCount;
            else if ( strstr( sCommand, "<=" ) )
                Status = poCountNew <= poCount;
            else return 0;
        }
        else if ( strstr(sCommand, "_NODE_") )
        {
            ndCount = pNumb ? atoi(pNumb+1) : 0;
            if ( strstr( sCommand, "==" ) )
                Status = ndCountNew == ndCount;
            else if ( strstr( sCommand, "<=" ) )
                Status = ndCountNew <= ndCount;
            else return 0;
        }
        else if ( strstr(sCommand, "_AREA_") )
        {
            double Eplison = 1.0;
            Area = pNumb ? atof(pNumb+1) : 0;
            if ( strstr( sCommand, "==" ) )
                Status = AreaNew >= Area - Eplison && AreaNew <= Area + Eplison;
            else if ( strstr( sCommand, "<=" ) )
                Status = AreaNew <= Area + Eplison;
            else return 0;
        }
        else if ( strstr(sCommand, "_DEPTH_") )
        {
            Depth = pNumb ? atoi(pNumb+1) : 0;
            if ( strstr( sCommand, "==" ) )
                Status = DepthNew == Depth;
            else if ( strstr( sCommand, "<=" ) )
                Status = DepthNew <= Depth;
            else return 0;
        }
        else return 0;
        printf( "%s\n", Status ? "succeeded" : "failed" );
        return 1;
    }
    return 0;
}

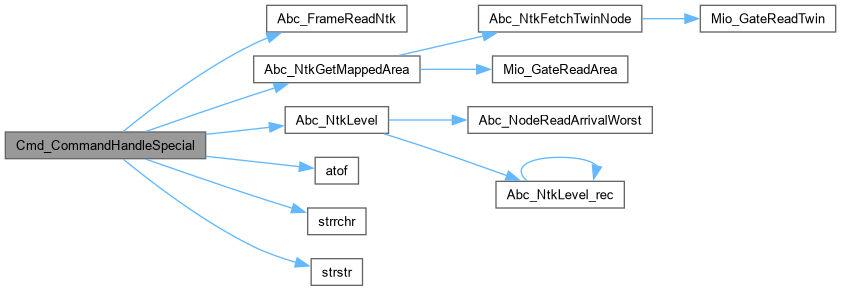

Here is the call graph for this function:

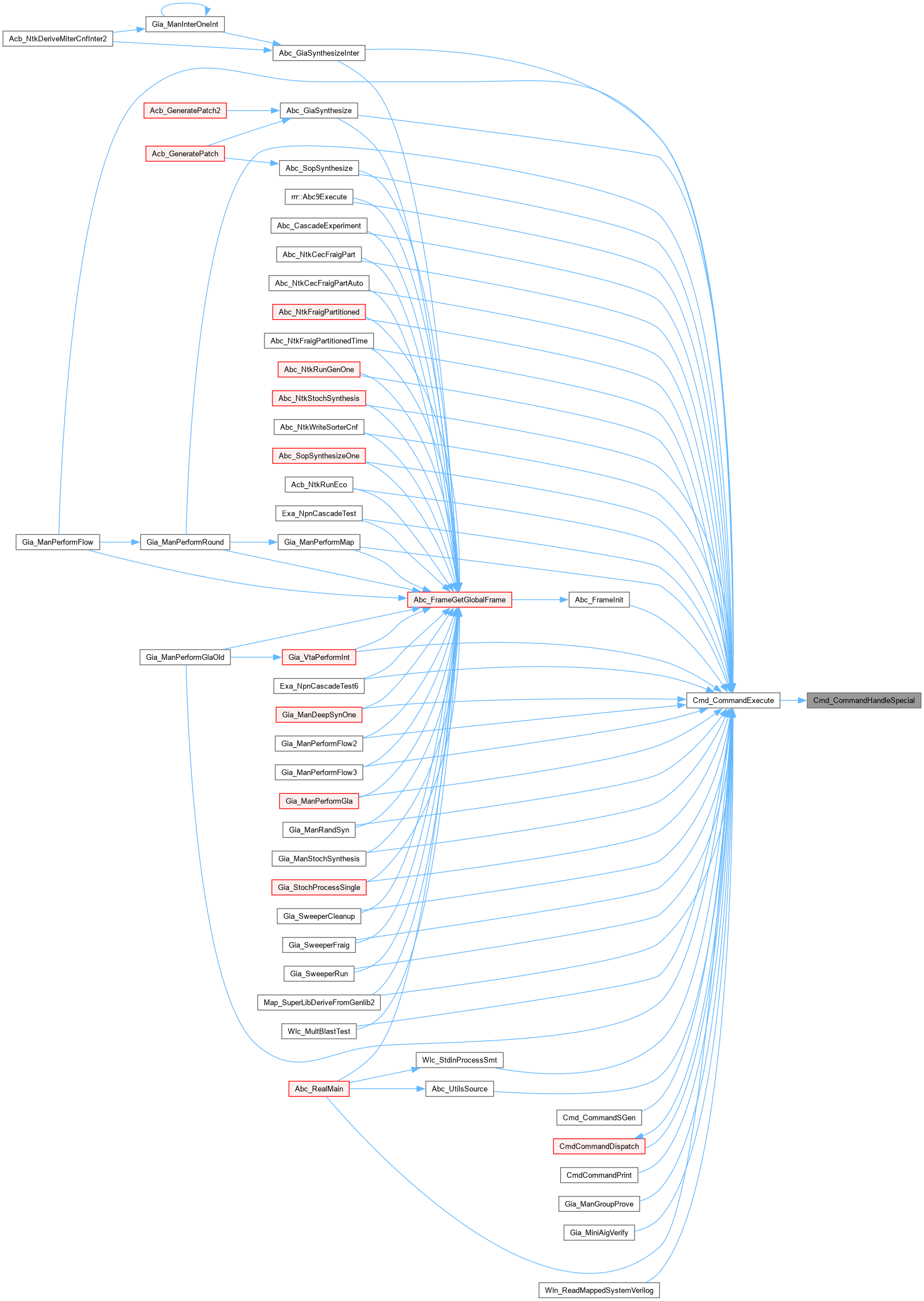

Here is the caller graph for this function:

Cmd_CommandIsDefined()

ABC_NAMESPACE_IMPL_START int Cmd_CommandIsDefined	(	Abc_Frame_t *	pAbc,
		const char *	sName )

DECLARATIONS ///.

CFile****************************************************************

FileName [cmdApi.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Command processing package.]

Synopsis [External procedures of the command package.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

cmdApi.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 47 of file cmdApi.c.

{
    return st__is_member( pAbc->tCommands, sName );
}
