cmd.c File Reference

#include <unistd.h>
#include <dirent.h>
#include "base/abc/abc.h"
#include "base/main/mainInt.h"
#include "cmdInt.h"
#include "misc/util/utilSignal.h"

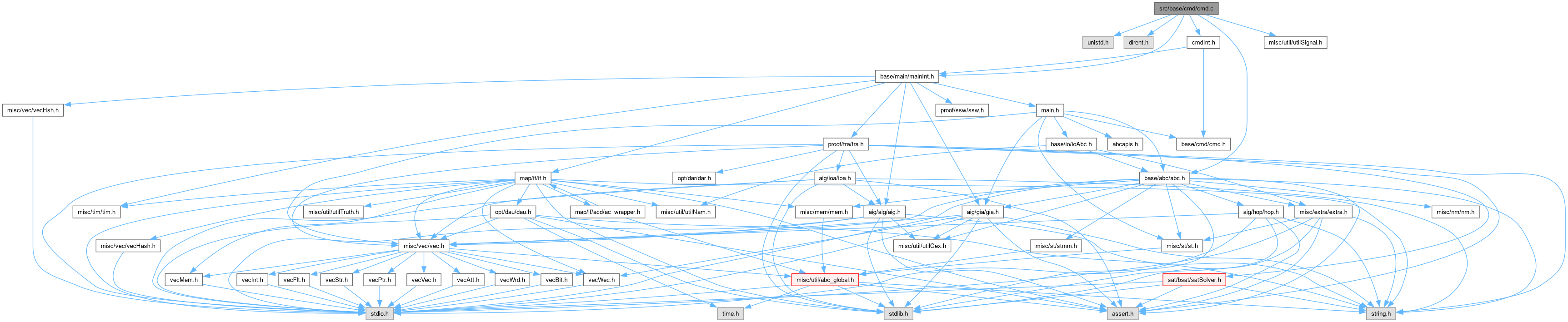

Include dependency graph for cmd.c:

Go to the source code of this file.

Functions
int	Cmd_CommandAbcLoadPlugIn (Abc_Frame_t *pAbc, int argc, char **argv)
void	Cmd_Init (Abc_Frame_t *pAbc)
	FUNCTION DEFINITIONS ///.
void	Cmd_End (Abc_Frame_t *pAbc)
Vec_Ptr_t *	CmdReturnFileNames (char *pDirStr)
void	Gia_ManGnuplotShow (char *pPlotFileName)

Function Documentation

Cmd_CommandAbcLoadPlugIn()

int Cmd_CommandAbcLoadPlugIn ( Abc_Frame_t * pAbc, int argc, char ** argv )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 631 of file cmdPlugin.c.

{
    int fPath, fVerbose;
    int fd = -1, RetValue = -1, c;
    FILE * pFile = NULL;
    char * pStrDirBin = NULL, * pStrSection = NULL;
    Vec_Str_t * sCommandLine = NULL;
    char * pTempFile = NULL;
    char pBuffer[1000];

    // set defaults
    fPath = 0;
    fVerbose = 0;

    Extra_UtilGetoptReset();
    while ( ( c = Extra_UtilGetopt( argc, argv, "vph" ) ) != EOF )
    {
        switch ( c )
        {
        case 'p':
            fPath ^= 1;
            break;
        case 'v':
            fVerbose ^= 1;
            break;
        default:
        goto usage;
    }
    }

    if ( argc != globalUtilOptind + 2 )
        goto usage;

    pStrDirBin  = argv[argc-2];
    pStrSection = argv[argc-1];

    // check if the file exists
    if ( !fPath )
    {
        FILE* pFile = fopen( pStrDirBin, "r" );

        if ( !pFile )
        {
            Abc_Print( ABC_ERROR, "Cannot run the binary \"%s\". File does not exist.\n", pStrDirBin );
            goto cleanup;
    }

    fclose( pFile );
    }

    // create temp file
    fd = Util_SignalTmpFile( "__abctmp_", ".txt", &pTempFile );

    if ( fd == -1 )
    {
        Abc_Print( ABC_ERROR, "Cannot create a temporary file.\n" );
        goto cleanup;
    }

#ifdef WIN32
    _close( fd );
#else
    close( fd );
#endif

    // get command list
    sCommandLine = Vec_StrAlloc(1000);

    Vec_StrPrintF(sCommandLine, "%s -abc -list-commands > %s", pStrDirBin, pTempFile );
    Vec_StrPush(sCommandLine, '\0');

    if(fVerbose)
    {
        Abc_Print(ABC_VERBOSE, "Running command %s\n", Vec_StrArray(sCommandLine));
    }

    RetValue = Util_SignalSystem( Vec_StrArray(sCommandLine) );

    if ( RetValue != 0 )
    {
        Abc_Print( ABC_ERROR, "Command \"%s\" failed.\n", Vec_StrArray(sCommandLine) );
        goto cleanup;
    }

    // create commands
    pFile = fopen( pTempFile, "r" );

    if ( pFile == NULL )
    {
        Abc_Print( -1, "Cannot open file with the list of commands.\n" );

        RetValue = -1;
        goto cleanup;
    }

    while ( fgets( pBuffer, 1000, pFile ) != NULL )
    {
        if ( pBuffer[strlen(pBuffer)-1] == '\n' )
            pBuffer[strlen(pBuffer)-1] = 0;

        Cmd_CommandAdd( pAbc, pStrSection, pBuffer, Cmd_CommandAbcPlugIn, 1 );

        Vec_PtrPush( pAbc->vPlugInComBinPairs, Extra_UtilStrsav(pBuffer) );
        Vec_PtrPush( pAbc->vPlugInComBinPairs, Extra_UtilStrsav(pStrDirBin) );

        if ( fVerbose )
        {
            Abc_Print(ABC_VERBOSE, "Creating command %s with binary %s\n", pBuffer, pStrDirBin);
    }
    }

cleanup:

    if( pFile )
    fclose( pFile );

    if( pTempFile )
    Util_SignalTmpFileRemove( pTempFile, 0 );

    Vec_StrFreeP(&sCommandLine);

    ABC_FREE( pTempFile );

    return RetValue;

usage:

    Abc_Print( -2, "usage: load_plugin [-pvh] <plugin_dir\\binary_name> <section_name>\n" );
    Abc_Print( -2, "\t        loads external binary as a plugin\n" );
    Abc_Print( -2, "\t-p    : toggle searching the command in PATH [default = %s].\n", fPath? "yes": "no" );
    Abc_Print( -2, "\t-v    : enable verbose output [default = %s].\n", fVerbose? "yes": "no" );
    Abc_Print( -2, "\t-h    : print the command usage\n");

    return 1;
}

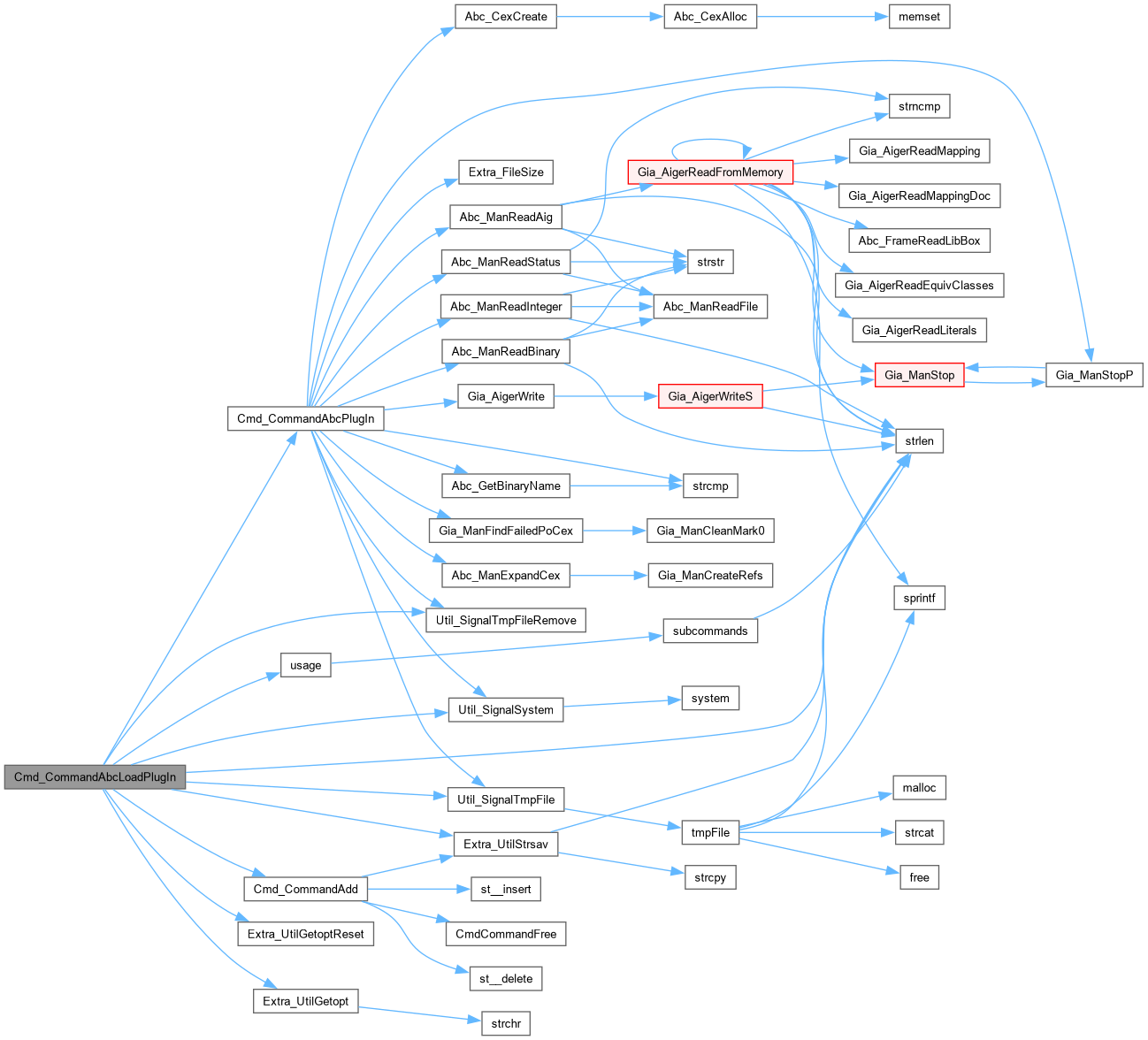

Here is the call graph for this function:

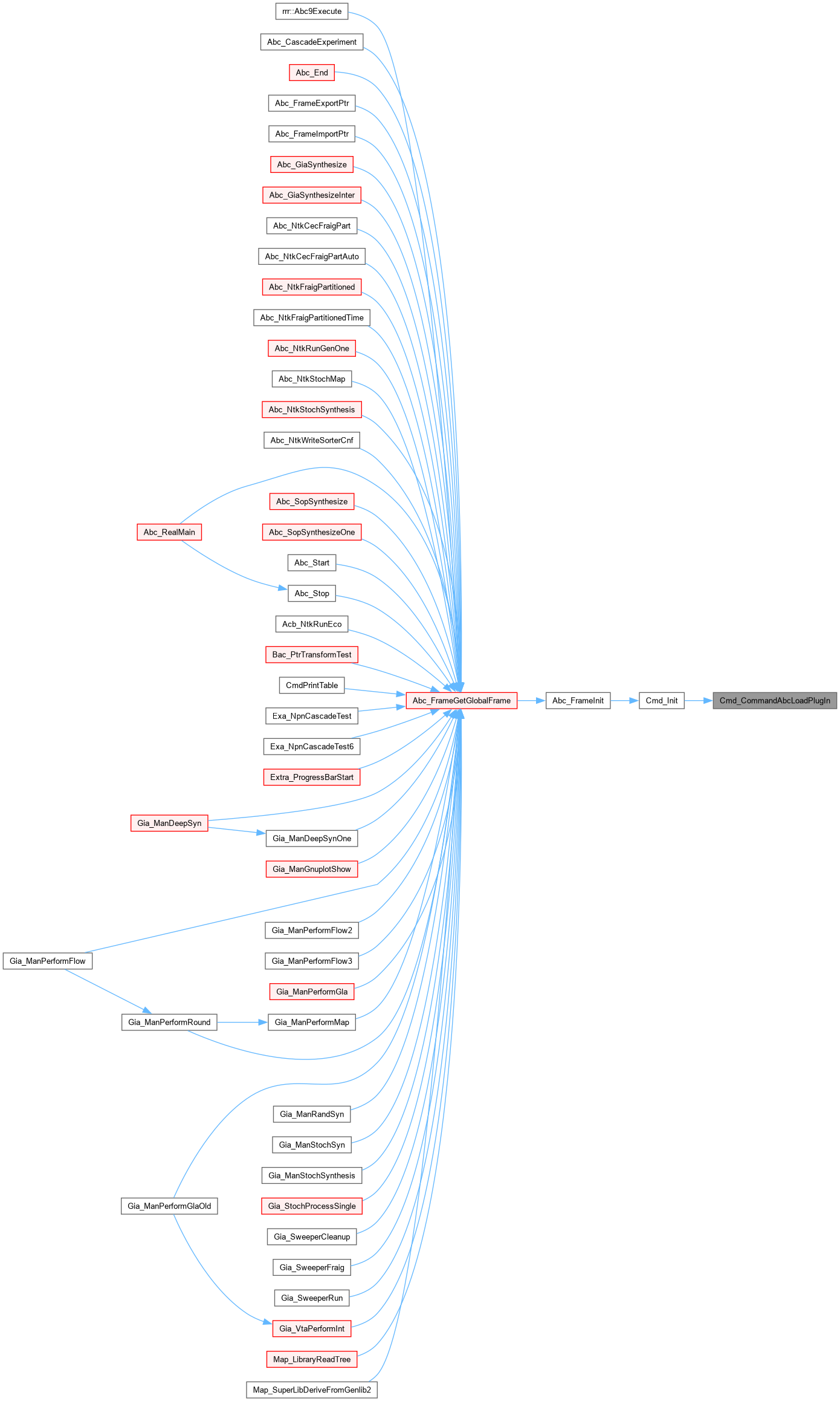

Here is the caller graph for this function:

Cmd_End()

void Cmd_End

(

Abc_Frame_t *

pAbc

)

Function********************************************************************

Synopsis [Ends the command package.]

Description [Ends the command package. Tables are freed.]

SideEffects []

SeeAlso []

Definition at line 139 of file cmd.c.

{
    st__generator * gen;
    char * pKey, * pValue;
    Cmd_HistoryWrite( pAbc, ABC_INFINITY );

//    st__free_table( pAbc->tCommands, (void (*)()) 0, CmdCommandFree );
//    st__free_table( pAbc->tAliases,  (void (*)()) 0, CmdCommandAliasFree );
//    st__free_table( pAbc->tFlags,    free, free );

    st__foreach_item( pAbc->tCommands, gen, (const char **)&pKey, (char **)&pValue )
        CmdCommandFree( (Abc_Command *)pValue );
    st__free_table( pAbc->tCommands );

    st__foreach_item( pAbc->tAliases, gen, (const char **)&pKey, (char **)&pValue )
        CmdCommandAliasFree( (Abc_Alias *)pValue );
    st__free_table( pAbc->tAliases );

    st__foreach_item( pAbc->tFlags, gen, (const char **)&pKey, (char **)&pValue )
        ABC_FREE( pKey ), ABC_FREE( pValue );
    st__free_table( pAbc->tFlags );

    Vec_PtrFreeFree( pAbc->aHistory );
}

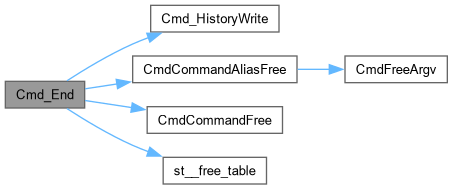

Here is the call graph for this function:

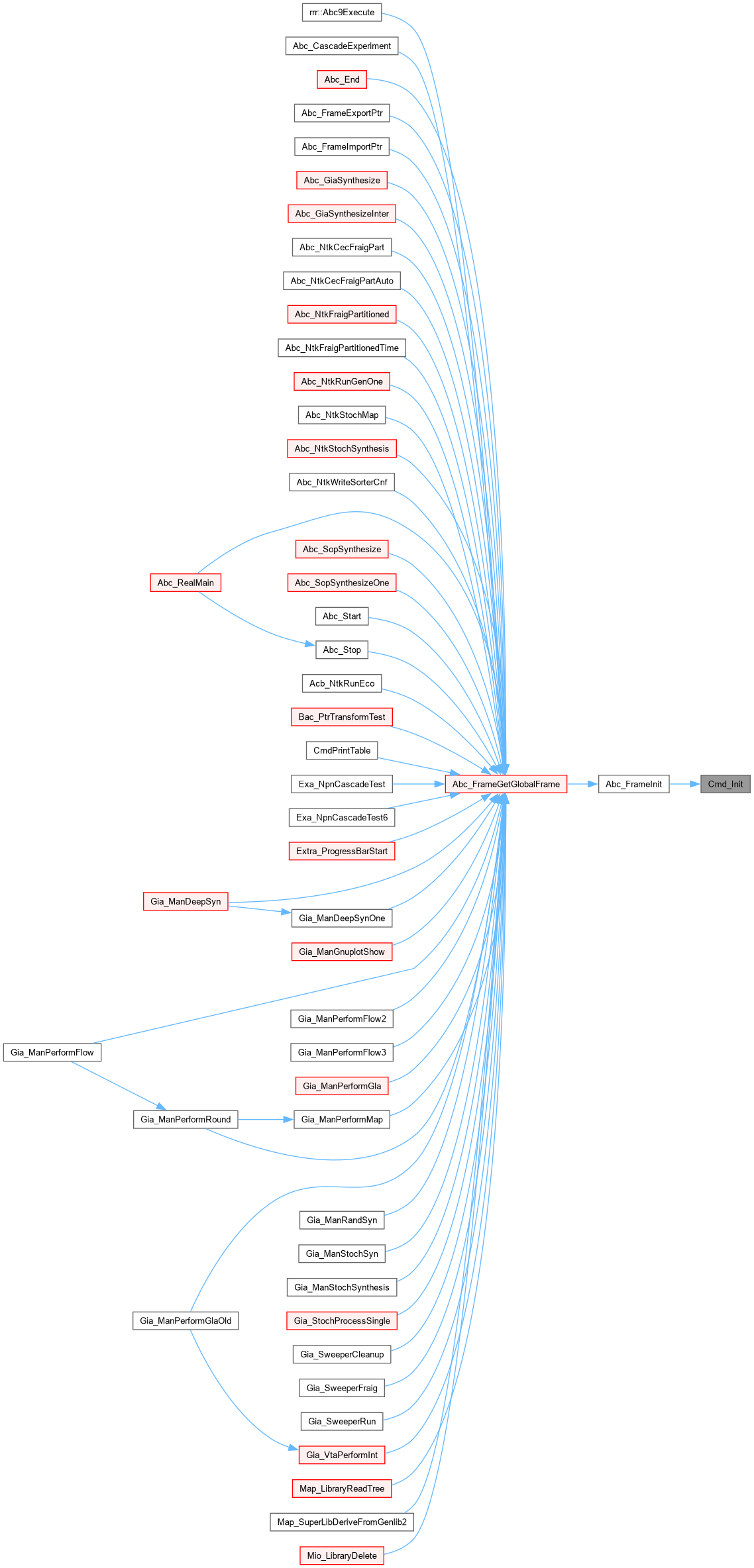

Here is the caller graph for this function:

Cmd_Init()

void Cmd_Init

(

Abc_Frame_t *

pAbc

)

FUNCTION DEFINITIONS ///.

MACRO DEFINITIONS ///.

Function********************************************************************

Synopsis [Initializes the command package.]

SideEffects [Commands are added to the command table.]

SeeAlso [Cmd_End]

Definition at line 85 of file cmd.c.

{
    pAbc->tCommands = st__init_table(strcmp, st__strhash);
    pAbc->tAliases  = st__init_table(strcmp, st__strhash);
    pAbc->tFlags    = st__init_table(strcmp, st__strhash);
    pAbc->aHistory  = Vec_PtrAlloc( 100 );
    Cmd_HistoryRead( pAbc );

    Cmd_CommandAdd( pAbc, "Basic", "time",          CmdCommandTime,            0 );
    Cmd_CommandAdd( pAbc, "Basic", "sleep",         CmdCommandSleep,           0 );
    Cmd_CommandAdd( pAbc, "Basic", "echo",          CmdCommandEcho,            0 );
    Cmd_CommandAdd( pAbc, "Basic", "quit",          CmdCommandQuit,            0 );
    Cmd_CommandAdd( pAbc, "Basic", "abcrc",         CmdCommandAbcrc,           0 );
    Cmd_CommandAdd( pAbc, "Basic", "history",       CmdCommandHistory,         0 );
    Cmd_CommandAdd( pAbc, "Basic", "alias",         CmdCommandAlias,           0 );
    Cmd_CommandAdd( pAbc, "Basic", "unalias",       CmdCommandUnalias,         0 );
    Cmd_CommandAdd( pAbc, "Basic", "help",          CmdCommandHelp,            0 );
    Cmd_CommandAdd( pAbc, "Basic", "source",        CmdCommandSource,          0 );
    Cmd_CommandAdd( pAbc, "Basic", "set",           CmdCommandSetVariable,     0 );
    Cmd_CommandAdd( pAbc, "Basic", "unset",         CmdCommandUnsetVariable,   0 );
    Cmd_CommandAdd( pAbc, "Basic", "undo",          CmdCommandUndo,            0 );
    Cmd_CommandAdd( pAbc, "Basic", "recall",        CmdCommandRecall,          0 );
    Cmd_CommandAdd( pAbc, "Basic", "empty",         CmdCommandEmpty,           0 );
#if defined(WIN32)
    Cmd_CommandAdd( pAbc, "Basic", "scandir",       CmdCommandScanDir,         0 );
    Cmd_CommandAdd( pAbc, "Basic", "renamefiles",   CmdCommandRenameFiles,     0 );
    Cmd_CommandAdd( pAbc, "Basic", "ls",            CmdCommandLs,              0 );
    Cmd_CommandAdd( pAbc, "Basic", "scrgen",        CmdCommandScrGen,          0 );
#else
    Cmd_CommandAdd( pAbc, "Basic", "scrgen",        CmdCommandScrGenLinux,     0 );
#endif
    Cmd_CommandAdd( pAbc, "Basic", "version",       CmdCommandVersion,         0 );
    Cmd_CommandAdd( pAbc, "Basic", "sgen",          CmdCommandSGen,            0 );

    Cmd_CommandAdd( pAbc, "Various", "sis",         CmdCommandSis,             1 );
    Cmd_CommandAdd( pAbc, "Various", "mvsis",       CmdCommandMvsis,           1 );
    Cmd_CommandAdd( pAbc, "Various", "capo",        CmdCommandCapo,            0 );
    Cmd_CommandAdd( pAbc, "Various", "starter",     CmdCommandStarter,         0 );
    Cmd_CommandAdd( pAbc, "Various", "autotuner",   CmdCommandAutoTuner,       0 );

    Cmd_CommandAdd( pAbc, "Various", "load_plugin", Cmd_CommandAbcLoadPlugIn,  0 );
}

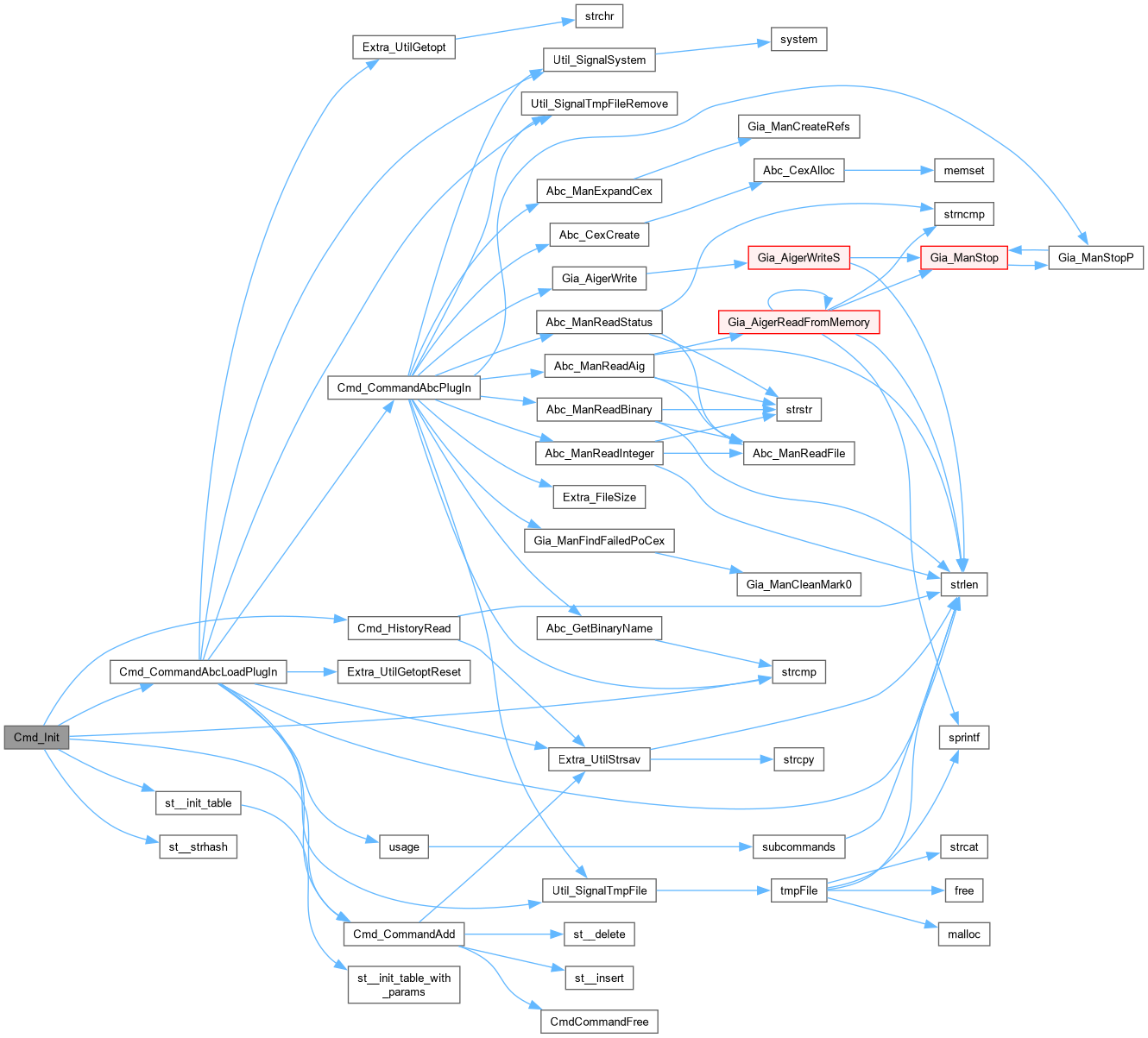

Here is the call graph for this function:

Here is the caller graph for this function:

CmdReturnFileNames()

Vec_Ptr_t * CmdReturnFileNames

(

char *

pDirStr

)

Definition at line 1908 of file cmd.c.

{
    Vec_Ptr_t * vRes = Vec_PtrAlloc( 100 );
    struct dirent **namelist;
    int num_files = scandir(pDirStr, &namelist, NULL, alphasort);
    if (num_files == -1) {
        printf("Error opening directory.\n");
        return NULL;
    }
    for (int i = 0; i < num_files; i++) {
        char * pExt = strstr(namelist[i]->d_name, ".");
        if ( !pExt || !strcmp(pExt, ".") || !strcmp(pExt, "..") || !strcmp(pExt, ".s") || !strcmp(pExt, ".txt") )
            continue;
        Vec_PtrPush( vRes, Abc_UtilStrsav(namelist[i]->d_name) );
        free(namelist[i]);
    }
    free(namelist);
    return vRes;
}

Here is the call graph for this function:

Gia_ManGnuplotShow()

void Gia_ManGnuplotShow

(

char *

pPlotFileName

)

Function*************************************************************

Synopsis [Computes dimentions of the graph.]

Description []

SideEffects []

SeeAlso []

Definition at line 2368 of file cmd.c.

{
    FILE * pFile;
    void * pAbc;
    char * pProgNameGnuplotWin  = "wgnuplot.exe";
    char * pProgNameGnuplotUnix = "gnuplot";
    char * pProgNameGnuplot = NULL;

    // read in the Capo plotting output
    if ( (pFile = fopen( pPlotFileName, "r" )) == NULL )
    {
        fprintf( stdout, "Cannot open the plot file \"%s\".\n\n", pPlotFileName );
        return;
    }
    fclose( pFile );

    pAbc = Abc_FrameGetGlobalFrame();

    // get the names from the plotting software
    if ( Cmd_FlagReadByName((Abc_Frame_t *)pAbc, "gnuplotwin") )
        pProgNameGnuplotWin = Cmd_FlagReadByName((Abc_Frame_t *)pAbc, "gnuplotwin");
    if ( Cmd_FlagReadByName((Abc_Frame_t *)pAbc, "gnuplotunix") )
        pProgNameGnuplotUnix = Cmd_FlagReadByName((Abc_Frame_t *)pAbc, "gnuplotunix");

    // check if Gnuplot is available
    if ( (pFile = fopen( pProgNameGnuplotWin, "r" )) )
        pProgNameGnuplot = pProgNameGnuplotWin;
    else if ( (pFile = fopen( pProgNameGnuplotUnix, "r" )) )
        pProgNameGnuplot = pProgNameGnuplotUnix;
    else if ( pFile == NULL )
    {
        fprintf( stdout, "Cannot find \"%s\" or \"%s\" in the current directory.\n", pProgNameGnuplotWin, pProgNameGnuplotUnix );
        return;
    }
    fclose( pFile );

    // spawn the viewer
#ifdef WIN32
    if ( _spawnl( _P_NOWAIT, pProgNameGnuplot, pProgNameGnuplot, pPlotFileName, NULL ) == -1 )
    {
        fprintf( stdout, "Cannot find \"%s\".\n", pProgNameGnuplot );
        return;
    }
#else
    {
        char Command[1000];
        sprintf( Command, "%s %s ", pProgNameGnuplot, pPlotFileName );
#if defined(__wasm)
        if ( 1 )
#else
        if ( system( Command ) == -1 )
#endif
        {
            fprintf( stdout, "Cannot execute \"%s\".\n", Command );
            return;
        }
    }
#endif
}

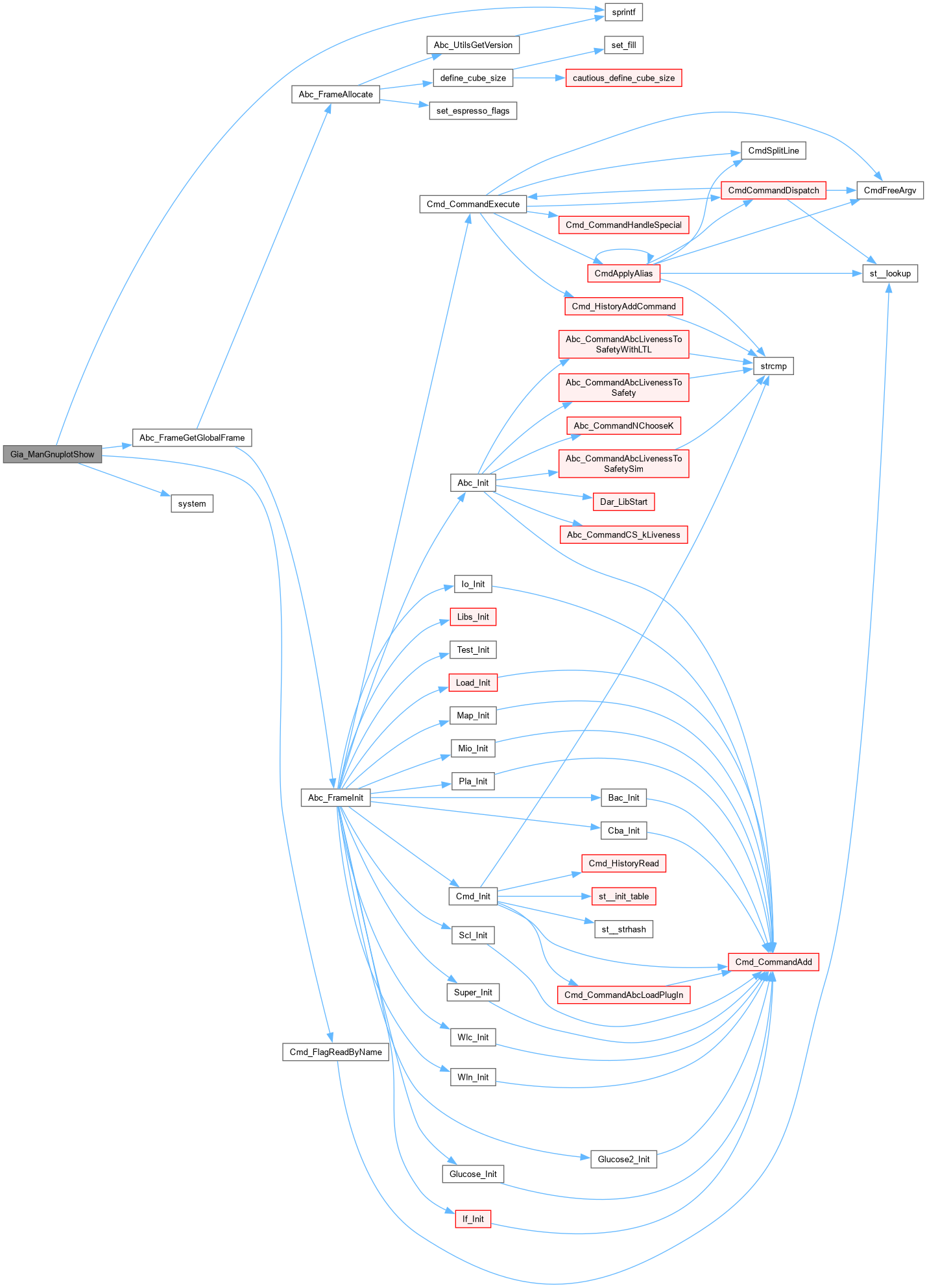

Here is the call graph for this function:

Here is the caller graph for this function:
