utilBSet.c File Reference

#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include <assert.h>
#include "misc/vec/vec.h"
#include "misc/extra/extra.h"
#include "misc/util/utilTruth.h"

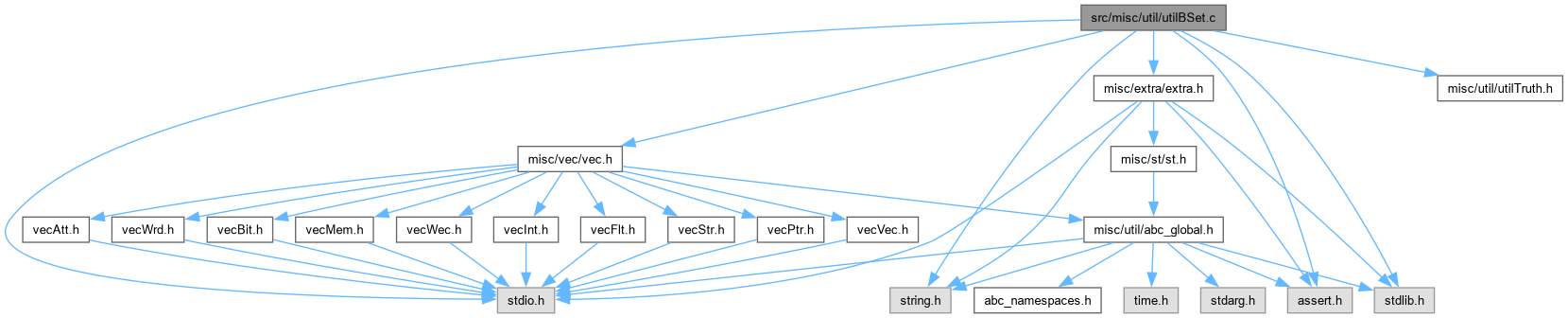

Include dependency graph for utilBSet.c:

Go to the source code of this file.

Classes
struct	Abc_BSEval_t_

Macros
#define	MAX_TT_SIZE   24
	DECLARATIONS ///.

Functions
int	Abc_TtGetCM1 (word *p, int nVars)
	FUNCTION DEFINITIONS ///.
int	Abc_TtGetCM2 (word *p, int nVars)
int	Abc_TtGetCM3 (word *p, int nVars, int *pCounts, Vec_Int_t *vUsed)
int	Abc_TtGetCM4 (word *p, int nVars, int *pCounts, Vec_Int_t *vUsed)
int	Abc_TtGetKey (unsigned char *p, int nSize, int nTableSize)
int	Abc_TtHashLookup5 (int Entry, Vec_Int_t *vTable, Vec_Wrd_t *vStore, Vec_Int_t *vUsed)
int	Abc_TtGetCM5 (word *p, int nVars, Vec_Int_t *vTable, Vec_Wrd_t *vStore, Vec_Int_t *vUsed)
int	Abc_TtHashLookup6 (word *pEntry, int nWords, Vec_Int_t *vTable, Vec_Wrd_t *vStore, Vec_Int_t *vUsed)
int	Abc_TtGetCM6 (word *p, int nVars, int nFVars, Vec_Int_t *vTable, Vec_Wrd_t *vStore, Vec_Int_t *vUsed)
int	Abc_TtGetCMCount (word *p, int nVars, int nFVars, Vec_Int_t *vCounts, Vec_Int_t *vTable, Vec_Wrd_t *vStore, Vec_Int_t *vUsed)
int	Abc_TtGetCM1Pat (word *p, int nVars, word *pPat)
int	Abc_TtGetCM2Pat (word *p, int nVars, word *pPat)
int	Abc_TtGetCM3Pat (word *p, int nVars, int *pMap, Vec_Int_t *vUsed, word *pPat)
int	Abc_TtGetCM4Pat (word *p, int nVars, int *pMap, Vec_Int_t *vUsed, word *pPat)
int	Abc_TtGetCM5Pat (word *p, int nVars, Vec_Int_t *vTable, Vec_Wrd_t *vStore, Vec_Int_t *vUsed, word *pPat)
int	Abc_TtGetCM6Pat (word *p, int nVars, int nFVars, Vec_Int_t *vTable, Vec_Wrd_t *vStore, Vec_Int_t *vUsed, word *pPat)
void	Abc_TtPrintPat (word *pPat, int nVars, int nMyu)
int	Abc_TtCheck1Shared (word *pPat, int nVars, int nFVars, int nMyu)
int	Abc_TtGetCMInt (word *p, int nVars, int nFVars, Vec_Int_t *vCounts, Vec_Int_t *vTable, Vec_Wrd_t *vStore, Vec_Int_t *vUsed, word *pPat)
int	Abc_TtGetCMPat (word *p, int nVars, int nFVars, Vec_Int_t *vCounts, Vec_Int_t *vTable, Vec_Wrd_t *vStore, Vec_Int_t *vUsed)
int	Abc_TtGetCM (word *p, int nVars, int nFVars, Vec_Int_t *vCounts, Vec_Int_t *vTable, Vec_Wrd_t *vStore, Vec_Int_t *vUsed, int fShared)
void	Abc_TtPermGenTest ()
void	Abc_GenChaseNext (int a[], int w[], int *r)
Vec_Int_t *	Abc_GenChasePairs (int N, int T)
void	Abc_GenChasePrint (int Count, int *pPerm, int nVars, int nFVars, int Var0, int Var1)
void	Abc_GenChaseTest ()
Abc_BSEval_t *	Abc_BSEvalAlloc ()
void	Abc_BSEvalFree (Abc_BSEval_t *p)
void	Abc_BSEvalOneTest (word *pT, int nVars, int nLVars, int fVerbose)
int	Abc_BSEvalBest (Abc_BSEval_t *p, word *pIn, word *pBest, word *pBest2, int nVars, int nCVars, int nFVars, int fVerbose, int *pPermBest, int *pPermBest2, int fShared, int nJRatio)
void	Abc_BSEvalBestTest (word *pIn, int nVars, int nLVars, int fShared, int fVerbose)
void	Abc_BSEvalBestGen (int nVars, int nLVars, int nFuncs, int nMints, int fTryAll, int fShared, int fVerbose)
void	Abc_BSEvalCreateCofs (int iSet, int nVars, Vec_Wrd_t *vCofs, Vec_Wrd_t *vElems)
Vec_Wrd_t *	Abc_BSEvalCreateCofactorSets (int nVars, Vec_Wec_t **pvSets)
int	Abc_SharedEvalBest (Abc_BSEval_t *p, word *pTruth, int nVars, int nCVars, int nFVars, int MyuMin, int nRails, int fVerbose, int *pSetShared, int *pnSetSize, word *pPat)
word	Abc_TtFindBVarsSVars (word *pTruth, int nVars, int nRVars, int nRails, int nLutSize, int fVerbose, int *pMyu, int nJRatio)
word	Abc_BSEvalEncode (int *pPermBest, int nVars, int nLutSize, int Shared, int MyuMin, int SharedSize)
Vec_Wrd_t *	Abc_TtFindBVarsSVars2 (Abc_BSEval_t *p, word *pTruth, int nVars, int nCVars, int nRails, int nLutSize, int fVerbose, int *pMyu, int nMyuIncrease)

Macro Definition Documentation

MAX_TT_SIZE

#define MAX_TT_SIZE   24

DECLARATIONS ///.

CFile****************************************************************

FileName [utilBSet.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Bound set evaluation.]

Synopsis [Bound set evaluation.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - December 25, 2024.]

Revision [

Id

utilBSet.c,v 1.00 2024/12/25 00:00:00 alanmi Exp

]

Definition at line 41 of file utilBSet.c.

Function Documentation

Abc_BSEvalAlloc()

Abc_BSEval_t * Abc_BSEvalAlloc

(

)

Function*************************************************************

Synopsis [Bound-set evalution for one function.]

Description []

SideEffects []

SeeAlso []

Definition at line 556 of file utilBSet.c.

{
    Abc_BSEval_t * p = ABC_CALLOC( Abc_BSEval_t, 1 );
    p->vCounts  = Vec_IntStartFull( 1 << 16 );
    p->vTable   = Vec_IntStartFull( 997 );
    p->vUsed    = Vec_IntAlloc(100);
    p->vStore   = Vec_WrdAlloc(1000);
    return p;
}

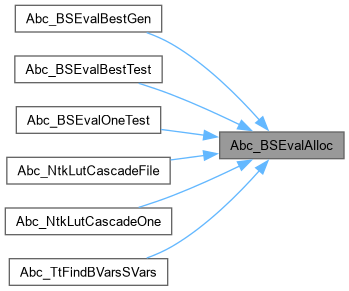

Here is the caller graph for this function:

Abc_BSEvalBest()

int Abc_BSEvalBest	(	Abc_BSEval_t *	p,
		word *	pIn,
		word *	pBest,
		word *	pBest2,
		int	nVars,
		int	nCVars,
		int	nFVars,
		int	fVerbose,
		int *	pPermBest,
		int *	pPermBest2,
		int	fShared,
		int	nJRatio )

Definition at line 596 of file utilBSet.c.

{
    int i, k, Var0, Var1, Pla2Var[32], Var2Pla[32];
    int nPermVars = nVars-nCVars, Count = 0;
    assert( p->nVars == nPermVars && p->nLVars == nVars-nFVars );
    for ( i = 0; i < nVars; i++ )
        Pla2Var[i] = Var2Pla[i] = i;
    if ( pPermBest )
        for ( i = 0; i < nVars; i++ )
            pPermBest[i] = i;
    int CostBest = 1 << nVars;
    int CostBest2 = 1 << nVars;
    int iSave = nJRatio ? (Abc_Random(0) % Vec_IntSize(p->vPairs[p->nVars][p->nLVars])/2) : -1;
    //printf( "The number of pairs = %d.\n", Vec_IntSize(p->vPairs[p->nVars][p->nLVars])/2 );
    //int Count = 0;
    Vec_IntForEachEntryDouble( p->vPairs[p->nVars][p->nLVars], Var0, Var1, i ) {
        //Abc_GenChasePrint( Count++, Pla2Var, nVars, nFVars, Var0, Var1 );
        int  CostThis = Abc_TtGetCM( pIn, nVars, nFVars, p->vCounts, p->vTable, p->vStore, p->vUsed, fShared );
        if ( iSave == i/2 ) {
            CostBest2 = CostThis;
            if ( pBest2 )     Abc_TtCopy( pBest2, pIn, Abc_Truth6WordNum(nVars), 0 );
            if ( pPermBest2 ) memcpy( pPermBest2, Pla2Var, sizeof(int)*nVars );
        }
        if ( CostBest > CostThis ) {
            CostBest = CostThis;
            if ( pBest )     Abc_TtCopy( pBest, pIn, Abc_Truth6WordNum(nVars), 0 );
            if ( pPermBest ) memcpy( pPermBest, Pla2Var, sizeof(int)*nVars );
            Count = 1;
        }
        else if ( CostBest == CostThis && (Abc_Random(0) % ++Count) == 0 ) {
            if ( pBest )     Abc_TtCopy( pBest, pIn, Abc_Truth6WordNum(nVars), 0 );
            if ( pPermBest ) memcpy( pPermBest, Pla2Var, sizeof(int)*nVars );
        }
        if ( fVerbose )
        {
            printf( "%3d : ", i/2 );
            for ( k = nCVars-1; k >= 0; k-- )
                printf( " %d", nVars-nCVars+k );
            printf( " " );
            for ( k = nPermVars-1; k >= nFVars; k-- )
                printf( " %d", Pla2Var[k] );
            printf( " " );
            for ( k = nFVars-1; k >= 0; k-- )
                printf( " %d", Pla2Var[k] );
            printf( "  : Myu = %3d", CostThis );
            //printf( "\n" );
        }
        if ( 0 ) {
            //word pPat[MAX_PAT_WORD_SIZE];
            int nRails = 1, Shared = 0, nSetSize = 0;
            if ( CostThis > (1 << nRails) ) {
                extern int Abc_SharedEvalBest( Abc_BSEval_t * p, word * pTruth, int nVars, int nCVars, int nFVars, int MyuMin, int nRails, int fVerbose, int * pSetShared, int * pSetSize, word * pPat );
                int nRailsMin = Abc_SharedEvalBest( p, pIn, nVars, nCVars, nFVars, CostThis, nRails, 0, &Shared, &nSetSize, p->pPat );
                printf( "  RailMin = %d. Shared = %2d. ", nRailsMin, Shared );
            }
        }
        if ( fVerbose )
            printf( "\n" );

        int iPlace0 = Var2Pla[Var0];
        int iPlace1 = Var2Pla[Var1];
        if ( iPlace0 == iPlace1 )
            continue;
        Abc_TtSwapVars( pIn, nVars, iPlace0, iPlace1 );
        Var2Pla[Pla2Var[iPlace0]] = iPlace1;
        Var2Pla[Pla2Var[iPlace1]] = iPlace0;
        Pla2Var[iPlace0] ^= Pla2Var[iPlace1];
        Pla2Var[iPlace1] ^= Pla2Var[iPlace0];
        Pla2Var[iPlace0] ^= Pla2Var[iPlace1];
    }
    for ( i = 0; i < nPermVars; i++ )
    {
        int iPlace0 = i;
        int iPlace1 = Var2Pla[i];
        if ( iPlace0 == iPlace1 )
            continue;
        Abc_TtSwapVars( pIn, nVars, iPlace0, iPlace1 );
        Var2Pla[Pla2Var[iPlace0]] = iPlace1;
        Var2Pla[Pla2Var[iPlace1]] = iPlace0;
        Pla2Var[iPlace0] ^= Pla2Var[iPlace1];
        Pla2Var[iPlace1] ^= Pla2Var[iPlace0];
        Pla2Var[iPlace0] ^= Pla2Var[iPlace1];
    }
    if ( nJRatio && Abc_Random(0) % nJRatio == 0 ) {
        CostBest = CostBest2;
        if ( pBest2 )     Abc_TtCopy( pBest, pBest2, Abc_Truth6WordNum(nVars), 0 );
        if ( pPermBest2 ) memcpy( pPermBest, pPermBest2, sizeof(int)*nVars );
    }
    return CostBest;
}

Here is the call graph for this function:

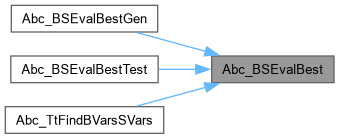

Here is the caller graph for this function:

Abc_BSEvalBestGen()

void Abc_BSEvalBestGen	(	int	nVars,
		int	nLVars,
		int	nFuncs,
		int	nMints,
		int	fTryAll,
		int	fShared,
		int	fVerbose )

Function*************************************************************

Synopsis [Testing on random functions.]

Description []

SideEffects []

SeeAlso []

Definition at line 723 of file utilBSet.c.

{
    assert( nVars > nLVars );
    abctime clkTotal = Abc_Clock();
    Abc_BSEval_t * p = Abc_BSEvalAlloc();
    Vec_Int_t * vCounts[2] = { Vec_IntStart(1 << nVars), Vec_IntStart(1 << nVars) };
    int i, k, Count, nWords = Abc_TtWordNum(nVars);
    word * pFun = ABC_ALLOC( word, nWords );
    word * pFun2 = ABC_ALLOC( word, nWords );
    if ( p->nVars != nVars || p->nLVars != nLVars ) {
        p->nVars = nVars;
        p->nLVars = nLVars;
        if ( p->vPairs[p->nVars][p->nLVars] == NULL )
            p->vPairs[p->nVars][p->nLVars] = Abc_GenChasePairs( nVars, nLVars );
    }
    Abc_Random(1);
    for ( i = 0; i < nFuncs; i++ ) {
        if ( nMints == 0 )
            for ( k = 0; k < nWords; k++ )
                pFun[k] = Abc_RandomW(0);
        else {
            Abc_TtClear( pFun, nWords );
            for ( k = 0; k < nMints; k++ ) {
                int iMint = 0;
                do iMint = Abc_Random(0) % (1 << nVars);
                while ( Abc_TtGetBit(pFun, iMint) );
                Abc_TtSetBit( pFun, iMint );
            }
        }
        if ( fVerbose ) {
            printf( "Function %5d ", i );
            if ( nMints )
                printf( "with %d positive minterms ", nMints );
            if ( nVars <= 8 ) {
                printf( "has truth table: " );
                Extra_PrintHex( stdout, (unsigned *)pFun, nVars );
            }
            if ( fTryAll )
                printf( "\n" );
            else
                printf( "  " );
        }

        if ( fTryAll )
            Count = Abc_BSEvalBest( p, pFun, pFun2, NULL, nVars, 0, nVars-nLVars, fVerbose, NULL, NULL, fShared, 0 );
        else
            Count = Abc_TtGetCM( pFun, nVars, nVars-nLVars, p->vCounts, p->vTable, p->vStore, p->vUsed, fShared );
        if ( fVerbose )
            printf( "Myu = %d\n", Count );
        Vec_IntAddToEntry( vCounts[0], Count, 1 );
        Vec_IntAddToEntry( vCounts[1], Abc_Base2Log(Count), 1 );
    }
    ABC_FREE( pFun );
    ABC_FREE( pFun2 );
    Abc_BSEvalFree(p);
    if ( nMints )
        printf( "Generated %d random %d-var functions with %d positive minterms.\n", nFuncs, nVars, nMints );
    else
        printf( "Generated %d random %d-var functions.\n", nFuncs, nVars );
    if ( fShared ) {
        printf( "Distribution of the %s number of rails for bound set size %d with one shared variable:\n", fTryAll ? "MINIMUM": "ORIGINAL", nLVars );
        assert( Vec_IntSum(vCounts[0]) == nFuncs );
        Vec_IntForEachEntry( vCounts[0], Count, i )
            if ( Count ) printf( "%d=%d (%.2f %%)  ", i, Count, 100.0*Count/nFuncs );
        printf( "\n" );
    }
    else {
        printf( "Distribution of the %s column multiplicity for bound set size %d with no shared variables:\n", fTryAll ? "MINIMUM": "ORIGINAL", nLVars );
        assert( Vec_IntSum(vCounts[0]) == nFuncs );
        Vec_IntForEachEntry( vCounts[0], Count, i )
            if ( Count ) printf( "%d=%d (%.2f %%)  ", i, Count, 100.0*Count/nFuncs );
        printf( "\n" );
        printf( "Distribution of the %s number of rails for bound set size %d with no shared variables:\n", fTryAll ? "MINIMUM": "ORIGINAL", nLVars );
        assert( Vec_IntSum(vCounts[1]) == nFuncs );
        Vec_IntForEachEntry( vCounts[1], Count, i )
            if ( Count ) printf( "%d=%d (%.2f %%)  ", i, Count, 100.0*Count/nFuncs );
        printf( "\n" );
    }
    Vec_IntFree( vCounts[0] );
    Vec_IntFree( vCounts[1] );
    Abc_PrintTime( 1, "Total runtime", Abc_Clock() - clkTotal );
}

Here is the call graph for this function:

Abc_BSEvalBestTest()

void Abc_BSEvalBestTest	(	word *	pIn,
		int	nVars,
		int	nLVars,
		int	fShared,
		int	fVerbose )

Definition at line 686 of file utilBSet.c.

{
    assert( nVars > nLVars );
    Abc_BSEval_t * p = Abc_BSEvalAlloc(); int i, pPerm[32] = {0}, pPerm2[32] = {0};
    if ( p->nVars != nVars || p->nLVars != nLVars ) {
        p->nVars = nVars;
        p->nLVars = nLVars;
        if ( p->vPairs[p->nVars][p->nLVars] == NULL )
            p->vPairs[p->nVars][p->nLVars] = Abc_GenChasePairs( nVars, nLVars );
    }
    word * pFun = ABC_ALLOC( word, Abc_TtWordNum(nVars) );
    word * pFun2 = ABC_ALLOC( word, Abc_TtWordNum(nVars) );
    int Best = Abc_BSEvalBest( p, pIn, pFun, pFun2, nVars, 0, nVars-nLVars, fVerbose, pPerm, pPerm2, fShared, 0 );
    printf( "The minimum %s of the %d-var function with bound-sets of size %d is %d.\n",
        fShared ? "number of rails" : "column multiplicity", nVars, nLVars, Best );
    printf( "Original: " ); Extra_PrintHex( stdout, (unsigned *)pIn,  nVars ); printf( "\n" );
    printf( "Permuted: " ); Extra_PrintHex( stdout, (unsigned *)pFun, nVars ); printf( "\n" );
    printf( "Permutation is " );
    for ( i = 0; i < nVars; i++ )
        printf( "%d ", pPerm[i] );
    printf( "\n" );
    ABC_FREE( pFun );
    ABC_FREE( pFun2 );
    Abc_BSEvalFree(p);
}

Here is the call graph for this function:

Abc_BSEvalCreateCofactorSets()

Vec_Wrd_t * Abc_BSEvalCreateCofactorSets	(	int	nVars,
		Vec_Wec_t **	pvSets )

Definition at line 833 of file utilBSet.c.

{
    Vec_Wrd_t * vElems = Vec_WrdStartTruthTables6( nVars );
    Vec_Wrd_t * vCofs  = Vec_WrdAlloc( 1000 );
    Vec_Wec_t * vSets  = Vec_WecStart( nVars+1 );
    int m, nMints = 1 << nVars;
    for ( m = 0; m < nMints; m++ )
    {
        int nOnes = __builtin_popcount(m);
        Vec_WecPushTwo( vSets, nOnes, m, Vec_WrdSize(vCofs) );
        Abc_BSEvalCreateCofs( m, nVars, vCofs, vElems );
    }
    Vec_WrdFree( vElems );
    *pvSets = vSets;
    return vCofs;
}

Here is the call graph for this function:

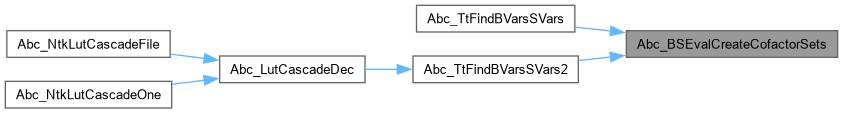

Here is the caller graph for this function:

Abc_BSEvalCreateCofs()

void Abc_BSEvalCreateCofs	(	int	iSet,
		int	nVars,
		Vec_Wrd_t *	vCofs,
		Vec_Wrd_t *	vElems )

Function*************************************************************

Synopsis [Finds shared variables.]

Description []

SideEffects []

SeeAlso []

Definition at line 818 of file utilBSet.c.

{
    int nWords = Abc_Truth6WordNum(nVars);
    int m, i, nUsed = 0, pUsed[32], Start = Vec_WrdSize(vCofs);
    for ( i = 0; i < nVars; i++ )
        if ( (iSet >> i) & 1 )
            pUsed[nUsed++] = i;
    Vec_WrdFillExtra( vCofs, Start + nWords*(1 << nUsed), ~(word)0 );
    for ( m = 0; m < (1 << nUsed); m++ )
    {
        word * pCof = Vec_WrdEntryP(vCofs, Start + m*nWords);
        for ( i = 0; i < nUsed; i++ )
            Abc_TtAndSharp( pCof, pCof, Vec_WrdEntryP(vElems, nWords*pUsed[i]), nWords, ((m >> i) & 1) == 0 );
    }
}

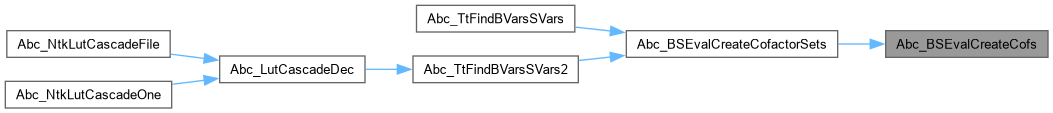

Here is the caller graph for this function:

Abc_BSEvalEncode()

word Abc_BSEvalEncode	(	int *	pPermBest,
		int	nVars,
		int	nLutSize,
		int	Shared,
		int	MyuMin,
		int	SharedSize )

Definition at line 997 of file utilBSet.c.

{
    int v;
    word mBVars = 0;
    for ( v = 0; v < nLutSize; v++ )
        mBVars |= (word)1 << pPermBest[nVars-nLutSize+v];
    word mSVars = 0;
    for ( v = 0; v < nLutSize; v++ )
        if ( (Shared >> v) & 1 )
            mSVars |= (word)1 << (nVars-nLutSize+v);
    return ((word)MyuMin << 48) | (mSVars << 24) | mBVars;
}

Here is the caller graph for this function:

Abc_BSEvalFree()

void Abc_BSEvalFree

(

Abc_BSEval_t *

p

)

Definition at line 565 of file utilBSet.c.

{
    for ( int i = 0; i < MAX_TT_SIZE; i++ )
    for ( int k = 0; k < MAX_TT_SIZE; k++ )
        Vec_IntFreeP( &p->vPairs[i][k] );
    Vec_IntFree( p->vCounts );
    Vec_IntFree( p->vTable  );
    Vec_IntFree( p->vUsed   );
    Vec_WrdFree( p->vStore  );
    for ( int i = 0; i < MAX_TT_SIZE; i++ )
        Vec_WecFreeP( &p->vSets[i] );
    for ( int i = 0; i < MAX_TT_SIZE; i++ )
        Vec_WrdFreeP( &p->vCofs[i] );
    ABC_FREE( p->pPat );
    ABC_FREE( p );
}

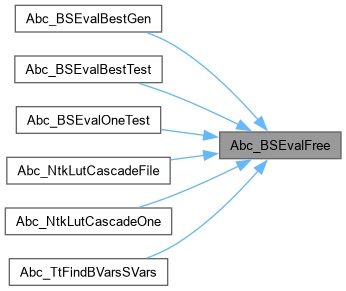

Here is the caller graph for this function:

Abc_BSEvalOneTest()

void Abc_BSEvalOneTest	(	word *	pT,
		int	nVars,
		int	nLVars,
		int	fVerbose )

Definition at line 581 of file utilBSet.c.

{
    assert( nVars > nLVars );
    Abc_BSEval_t * p = Abc_BSEvalAlloc();
    if ( p->nVars != nVars || p->nLVars != nLVars ) {
        p->nVars = nVars;
        p->nLVars = nLVars;
        if ( p->vPairs[p->nVars][p->nLVars] == NULL )
            p->vPairs[p->nVars][p->nLVars] = Abc_GenChasePairs( nVars, nLVars );
    }
    int Best = Abc_TtGetCM( pT, nVars, nVars-nLVars, p->vCounts, p->vTable, p->vStore, p->vUsed, 0 );
    printf( "Function: " ); Extra_PrintHex( stdout, (unsigned *)pT, nVars ); printf( "\n" );
    printf( "The column multiplicity of the %d-var function with bound-sets of size %d is %d.\n", nVars, nLVars, Best );
    Abc_BSEvalFree(p);
}

Here is the call graph for this function:

Abc_GenChaseNext()

void Abc_GenChaseNext	(	int	a[],
		int	w[],
		int *	r )

Function*************************************************************

Synopsis [Combination generation.]

Description [https://stackoverflow.com/questions/22650522/how-to-generate-chases-sequence]

SideEffects []

SeeAlso []

Definition at line 456 of file utilBSet.c.

{
    int found_r = 0;
    int j;
    for (j = *r; !w[j]; j++) {
        int b = a[j] + 1;
        int n = a[j + 1];
        if (b < (w[j + 1] ? n - (2 - (n & 1)) : n)) {
            if ((b & 1) == 0 && b + 1 < n) b++;
            a[j] = b;
            if (!found_r) *r = j > 1 ? j - 1 : 0;
            return;
        }
        w[j] = a[j] - 1 >= j;
        if (w[j] && !found_r) {
            *r = j;
            found_r = 1;
        }
    }
    int b = a[j] - 1;
    if ((b & 1) != 0 && b - 1 >= j) b--;
    a[j] = b;
    w[j] = b - 1 >= j;
    if (!found_r) *r = j;
}

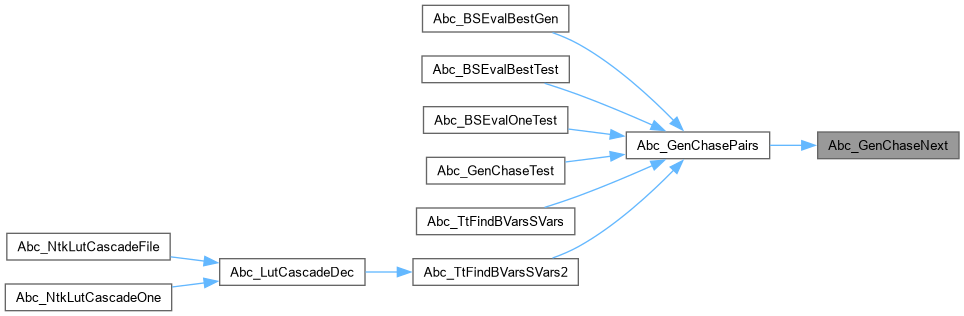

Here is the caller graph for this function:

Abc_GenChasePairs()

Vec_Int_t * Abc_GenChasePairs	(	int	N,
		int	T )

Definition at line 481 of file utilBSet.c.

{
    Vec_Int_t * vPairs = Vec_IntAlloc( 100 );
    int j, z, r = 0, Count = 0, a[32], b[32], w[32];
    for ( j = 0; j < T + 1; j++ ) {
        a[j] = N - (T - j);
        w[j] = 1;
    }
    do {
        for ( z = 0; z <= T; z++ )
            b[z] = a[z];
        Abc_GenChaseNext( a, w, &r );
        for ( z = 0; z < T; z++ ) {
            if ( a[z] == b[z] )
                continue;
            Vec_IntPushTwo( vPairs, b[z], a[z] );
            if ( 0 ) {
                printf( "%3d : ", Count++ );
                for (j = T - 1; j > -1; j--) printf("%x", b[j]);
                printf( "  %d <-> %d  ", b[z], a[z] );
                for (j = T - 1; j > -1; j--) printf("%x", a[j]);
                printf( "\n" );
            }
            break;
        }
    } while (a[T] == N);
    Vec_IntPushTwo( vPairs, 0, 0 );
    return vPairs;
}

Here is the call graph for this function:

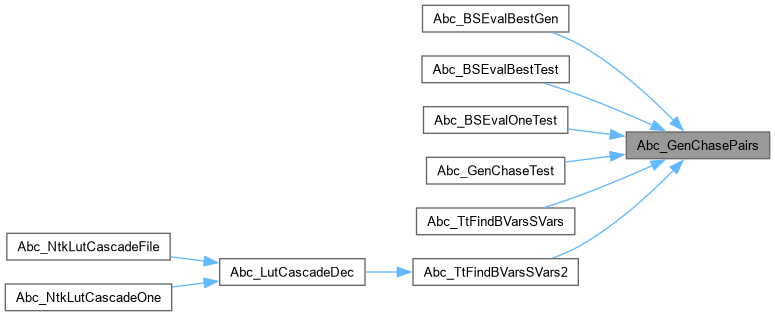

Here is the caller graph for this function:

Abc_GenChasePrint()

void Abc_GenChasePrint	(	int	Count,
		int *	pPerm,
		int	nVars,
		int	nFVars,
		int	Var0,
		int	Var1 )

Definition at line 510 of file utilBSet.c.

{
    int k;
    printf( "%3d :  ", Count++ );
    for ( k = nVars-1; k >= nFVars; k-- )
        printf( "%d", pPerm[k] );
    printf( " " );
    for ( k = nFVars-1; k >= 0; k-- )
        printf( "%d", pPerm[k] );
    printf( "  %d <-> %d\n", Var0, Var1 );
}

Here is the caller graph for this function:

Abc_GenChaseTest()

void Abc_GenChaseTest

(

)

Definition at line 521 of file utilBSet.c.

{
    int nVars  = 4;
    int nFVars = 2;
    Vec_Int_t * vPairs = Abc_GenChasePairs( nVars, nVars-nFVars );
    int i, Var0, Var1, Pla2Var[32], Var2Pla[32];
    for ( i = 0; i < nVars; i++ )
        Pla2Var[i] = Var2Pla[i] = i;
    int Count = 0;
    Vec_IntForEachEntryDouble( vPairs, Var0, Var1, i ) {
        Abc_GenChasePrint( Count++, Pla2Var, nVars, nFVars, Var0, Var1 );
        int iPlace0 = Var2Pla[Var0];
        int iPlace1 = Var2Pla[Var1];
        //Abc_TtSwapVars( pTruth, nVars, iPlace0, iPlace1 );
        Var2Pla[Pla2Var[iPlace0]] = iPlace1;
        Var2Pla[Pla2Var[iPlace1]] = iPlace0;
        Pla2Var[iPlace0] ^= Pla2Var[iPlace1];
        Pla2Var[iPlace1] ^= Pla2Var[iPlace0];
        Pla2Var[iPlace0] ^= Pla2Var[iPlace1];
    }
    Vec_IntFree( vPairs );
}

Here is the call graph for this function:

Abc_SharedEvalBest()

int Abc_SharedEvalBest	(	Abc_BSEval_t *	p,
		word *	pTruth,
		int	nVars,
		int	nCVars,
		int	nFVars,
		int	MyuMin,
		int	nRails,
		int	fVerbose,
		int *	pSetShared,
		int *	pnSetSize,
		word *	pPat )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 883 of file utilBSet.c.

{
    int nBSWords = Abc_Truth6WordNum( nVars - nFVars ), CVarMask = nCVars ? Abc_InfoMask(nCVars) << (nVars - nCVars - nFVars) : 0;
    int MyuCur, Myu = Abc_TtGetCMInt( pTruth, nVars, nFVars, p->vCounts, p->vTable, p->vStore, p->vUsed, pPat );
    int nRailsCur = Abc_Base2Log( Myu ); Vec_Int_t * vLevel;
    assert( Myu == MyuMin && nRailsCur >= nRails );
    int i, k, iSet, iStart, nSharedMax = nVars - nFVars - nRails, nRailsMin = 100;
    Vec_WecForEachLevelStartStop( p->vSets[p->nBVars], vLevel, i, 1, nSharedMax ) {
        Vec_IntForEachEntryDouble( vLevel, iSet, iStart, k ) {
            if ( iSet & CVarMask )
                continue;
            //printf( "\nTrying set " ); Extra_PrintBinary( stdout, &iSet, nVars-nFVars ); printf( "\n" );
            MyuCur = Abc_BSEvalCountUniqueMax( pPat, Myu, nBSWords, Vec_WrdEntryP(p->vCofs[p->nBVars], iStart), i, 1 << nRails );
            //printf( "  Res = %d", MyuCur );
            if ( MyuCur == 0 || MyuCur > (1 << nRails) )
                continue;
            nRailsCur = Abc_Base2Log(MyuCur);
            if ( nRailsCur > nRails )
                continue;
            if ( nRailsMin > nRailsCur ) {
                 nRailsMin = nRailsCur;
                *pSetShared = iSet;
                *pnSetSize = i;
            }
        }
        if ( nRailsMin <= nRails )
            break;
    }
    return nRailsMin;
}

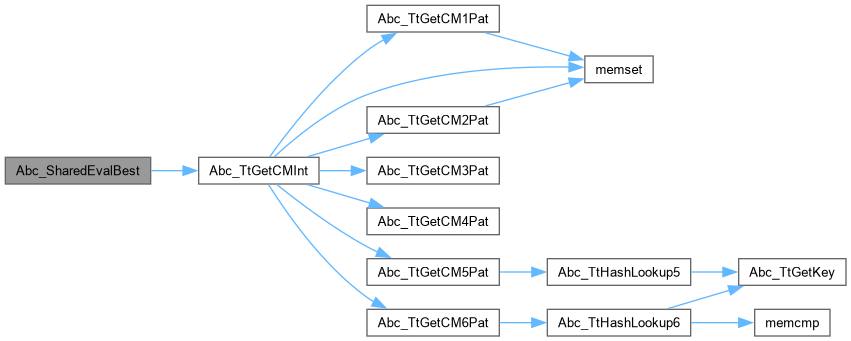

Here is the call graph for this function:

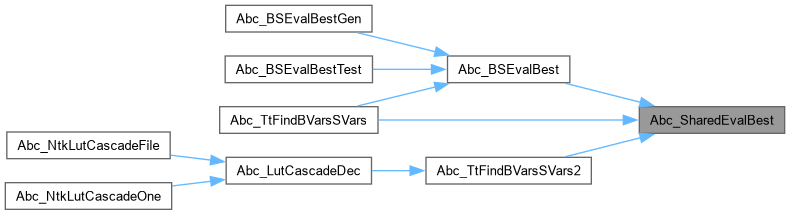

Here is the caller graph for this function:

Abc_TtCheck1Shared()

int Abc_TtCheck1Shared	(	word *	pPat,
		int	nVars,
		int	nFVars,
		int	nMyu )

Definition at line 322 of file utilBSet.c.

{
    int fVerbose = 0;
    if ( fVerbose ) Abc_TtPrintPat( pPat, nVars-nFVars, nMyu );
    assert( nMyu > 2 );
    int nRails  = Abc_Base2Log(nMyu);
    int nMyuMax = 1 << (nRails - 1);
    for ( int v = 0; v < nVars - nFVars; v++ ) {
        int m, n, Counts[2] = {0};
        for ( n = 0; n < 2; n++ ) {
            for ( m = 0; m < nMyu; m++ )
                if ( (Counts[n] += ((s_Truth26[n][v] & pPat[m]) != 0)) > nMyuMax )
                    break;
            if ( m < nMyu )
                break;
        }
        if ( fVerbose ) printf( "%d : %2d %2d  %2d\n", v, Counts[0], Counts[1], nMyuMax );
        if ( n == 2 ) {
            //Abc_TtPrintPat( pPat, nVars-nFVars, nMyu );
            //printf( "%d : %2d %2d  %2d\n", v, Counts[0], Counts[1], nMyuMax );
            return nRails - 1;
        }
    }
    if ( fVerbose ) printf( "Not found\n" );
    return nRails;
}

Here is the call graph for this function:

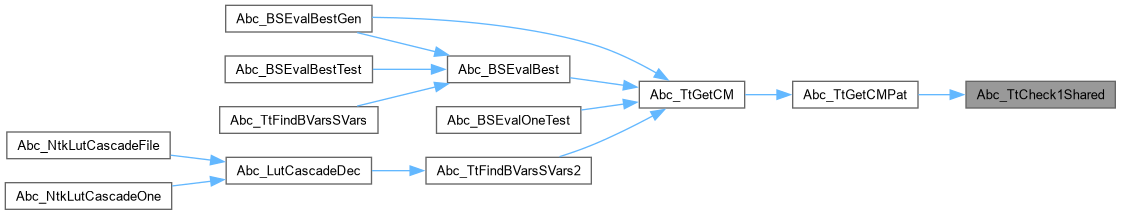

Here is the caller graph for this function:

Abc_TtFindBVarsSVars()

word Abc_TtFindBVarsSVars	(	word *	pTruth,
		int	nVars,
		int	nRVars,
		int	nRails,
		int	nLutSize,
		int	fVerbose,
		int *	pMyu,
		int	nJRatio )

Function*************************************************************

Synopsis [Computes bound set and shared set of the next stage.]

Description []

SideEffects []

SeeAlso []

Definition at line 925 of file utilBSet.c.

{
    Abc_BSEval_t * p = Abc_BSEvalAlloc();
    int nPermVars = nVars-nRVars;
    if ( p->nVars != nPermVars ) {
        p->nVars = nPermVars;
        p->nLVars = nLutSize-nRVars;
        if ( p->vPairs[p->nVars][p->nLVars] == NULL )
            p->vPairs[p->nVars][p->nLVars] = Abc_GenChasePairs( p->nVars, p->nLVars );
    }
    if ( p->nBVars != nLutSize ) {
        if ( p->vCofs[nLutSize] == NULL )
            p->vCofs[nLutSize] = Abc_BSEvalCreateCofactorSets( nLutSize, &p->vSets[nLutSize] );
        if ( p->nBVars < nLutSize ) {
            ABC_FREE( p->pPat );
            p->pPat = ABC_ALLOC( word, (1 << nLutSize)*Abc_TtWordNum(nLutSize) );
        }
        p->nBVars = nLutSize;
    }

    int v, r, nWords = Abc_TtWordNum(nVars);
    word * pCopy = ABC_ALLOC( word, nWords );
    Abc_TtCopy( pCopy, pTruth, nWords, 0 );
    //word pPat[MAX_PAT_WORD_SIZE];

    int pPermBest[32] = {0};
    int pPermBest2[32] = {0};
    word * pBest = ABC_ALLOC( word, nWords );
    word * pBest2 = ABC_ALLOC( word, nWords );
    //printf("Function before: "); Abc_TtPrintHexRev( stdout, pCopy, nVars ); printf( "\n" );
    int MyuMin = Abc_BSEvalBest( p, pCopy, pBest, pBest2, nVars, nRVars, nVars-nLutSize, 0, pPermBest, pPermBest2, 0, nJRatio );
    //printf("Function before: "); Abc_TtPrintHexRev( stdout, pCopy, nVars ); printf( "\n" );
    if ( pMyu ) *pMyu = MyuMin;

    if ( fVerbose ) {
        printf( "Best perm: " );
        for ( v = 0; v < nVars; v++ )
            printf( "%d ", pPermBest[v] );
        printf( "  Myu = %d.  ", MyuMin );
    }

    int Shared = 0, nSetSize = 0, nRailsMin = Abc_Base2Log( MyuMin );
    for ( r = 1; r <= nRails && nRailsMin > r; r++ ) {
        int nRailsMinNew = Abc_SharedEvalBest( p, pBest, nVars, nRVars, nVars-nLutSize, MyuMin, r, 0, &Shared, &nSetSize, p->pPat );
        if ( nRailsMinNew < 100 )
            nRailsMin = nRailsMinNew;
    }
    MyuMin = 1 << nRailsMin;

    ABC_FREE( pCopy );
    ABC_FREE( pBest );
    ABC_FREE( pBest2 );
    Abc_BSEvalFree(p);

    if ( fVerbose )
        printf( "Myu min = %d.  Rail min = %d. Shared = %x.\n", MyuMin, nRailsMin, Shared );

    if ( nRailsMin > nRails )
        return 0;

    word mBVars = 0;
    for ( v = 0; v < nLutSize; v++ )
        mBVars |= (word)1 << pPermBest[nVars-nLutSize+v];

    word mSVars = 0;
    for ( v = 0; v < nLutSize; v++ )
        if ( (Shared >> v) & 1 )
            mSVars |= (word)1 << (nVars-nLutSize+v);

    return ((word)MyuMin << 48) | (mSVars << 24) | mBVars;
}

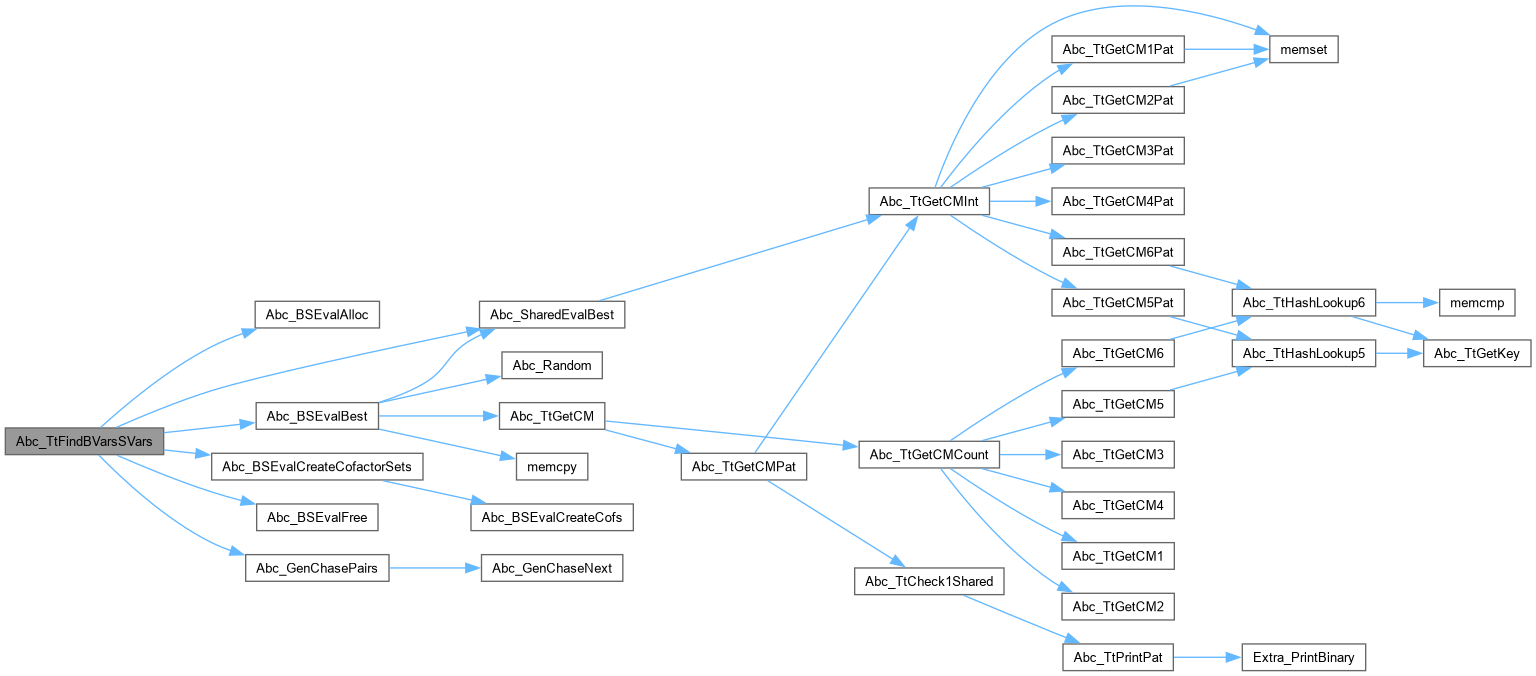

Here is the call graph for this function:

Abc_TtFindBVarsSVars2()

Vec_Wrd_t * Abc_TtFindBVarsSVars2	(	Abc_BSEval_t *	p,
		word *	pTruth,
		int	nVars,
		int	nCVars,
		int	nRails,
		int	nLutSize,
		int	fVerbose,
		int *	pMyu,
		int	nMyuIncrease )

Definition at line 1009 of file utilBSet.c.

{
//    Abc_BSEval_t * p = Abc_BSEvalAlloc();
    int nFVars = nVars-nLutSize;
    int nPermVars = nVars-nCVars;

    if ( p->nVars != nPermVars ) {
        p->nVars = nPermVars;
        p->nLVars = nLutSize-nCVars;
        if ( p->vPairs[p->nVars][p->nLVars] == NULL )
            p->vPairs[p->nVars][p->nLVars] = Abc_GenChasePairs( p->nVars, p->nLVars );
    }
    if ( p->nBVars != nLutSize ) {
        if ( p->vCofs[nLutSize] == NULL )
            p->vCofs[nLutSize] = Abc_BSEvalCreateCofactorSets( nLutSize, &p->vSets[nLutSize] );
        if ( p->nBVars < nLutSize ) {
            ABC_FREE( p->pPat );
            p->pPat = ABC_ALLOC( word, (1 << nLutSize)*Abc_TtWordNum(nLutSize) );
        }
        p->nBVars = nLutSize;
    }

    int nWords = Abc_TtWordNum(nVars);
    word * pCopy = ABC_ALLOC( word, nWords );
    Abc_TtCopy( pCopy, pTruth, nWords, 0 );

    Vec_Wrd_t * vRes = Vec_WrdAlloc( 10 );
    int i, k, Var0, Var1, Pla2Var[32], Var2Pla[32];
    for ( i = 0; i < nVars; i++ )
        Pla2Var[i] = Var2Pla[i] = i;
    int MyuOrigBest  = 1 << nVars;
    int MyuBest      = 1 << nVars;
    int nSetSizeBest = nVars;

    if ( pMyu ) *pMyu = 1 << nVars;
    Vec_IntForEachEntryDouble( p->vPairs[p->nVars][p->nLVars], Var0, Var1, i ) {
        int  MyuThis = Abc_TtGetCM( pCopy, nVars, nFVars, p->vCounts, p->vTable, p->vStore, p->vUsed, 0 );
        MyuOrigBest = Abc_MinInt( MyuOrigBest, MyuThis );
        if ( pMyu ) *pMyu = Abc_MinInt( *pMyu, MyuThis );
        if ( fVerbose )
        {
            printf( "%3d : ", i/2 );
            for ( k = nCVars-1; k >= 0; k-- )
                printf( " %d", nVars-nCVars+k );
            printf( " " );
            for ( k = nPermVars-1; k >= nFVars; k-- )
                printf( " %d", Pla2Var[k] );
            printf( " " );
            for ( k = nFVars-1; k >= 0; k-- )
                printf( " %d", Pla2Var[k] );
            printf( "  : Myu = %3d", MyuThis );
        }
        if ( MyuThis <= MyuOrigBest + nMyuIncrease ) {
            int Shared = 0, nSetSize = 0;
            if ( MyuThis > 2 ) {
                int SharedThis = 0, nSetSizeThis = 0;
                int nRailsMin = 100;
                for ( int r = 1; r <= nRails && nRailsMin > r; r++ ) {
                    int nRailsMinNew = Abc_SharedEvalBest( p, pCopy, nVars, nCVars, nFVars, MyuThis, r, 0, &SharedThis, &nSetSizeThis, p->pPat );
                    if ( nRailsMinNew < 100 )
                        nRailsMin = nRailsMinNew;
                }
                if ( fVerbose )
                    printf( "  RailsMyu = %3d. RailsMin = %3d. Shared = %2d. SetSize = %d.", Abc_Base2Log(MyuThis), nRailsMin, SharedThis, nSetSizeThis );
                if ( nRailsMin <= nRails ) {
                    MyuThis  = 1 << nRailsMin;
                    Shared   = SharedThis;
                    nSetSize = nSetSizeThis;
                }
            }
            if ( MyuBest > MyuThis || (MyuBest == MyuThis && nSetSizeBest >= nSetSize) ) {
                int fSave = (MyuBest == MyuThis && nSetSizeBest == nSetSize);
                MyuBest = MyuThis;
                nSetSizeBest = nSetSize;
                word Result = Abc_BSEvalEncode( Pla2Var, nVars, nLutSize, Shared, MyuBest, nSetSize );
                if ( fSave )
                    Vec_WrdPush( vRes, Result );
                else
                    Vec_WrdFill( vRes, 1, Result );
                if ( fVerbose )
                    printf( " <== best" );
            }
        }
        if ( fVerbose )
            printf( "\n" );
        int iPlace0 = Var2Pla[Var0];
        int iPlace1 = Var2Pla[Var1];
        if ( iPlace0 == iPlace1 )
            continue;
        Abc_TtSwapVars( pCopy, nVars, iPlace0, iPlace1 );
        Var2Pla[Pla2Var[iPlace0]] = iPlace1;
        Var2Pla[Pla2Var[iPlace1]] = iPlace0;
        Pla2Var[iPlace0] ^= Pla2Var[iPlace1];
        Pla2Var[iPlace1] ^= Pla2Var[iPlace0];
        Pla2Var[iPlace0] ^= Pla2Var[iPlace1];
    }
    for ( i = 0; i < nPermVars; i++ )
    {
        int iPlace0 = i;
        int iPlace1 = Var2Pla[i];
        if ( iPlace0 == iPlace1 )
            continue;
        Abc_TtSwapVars( pCopy, nVars, iPlace0, iPlace1 );
        Var2Pla[Pla2Var[iPlace0]] = iPlace1;
        Var2Pla[Pla2Var[iPlace1]] = iPlace0;
        Pla2Var[iPlace0] ^= Pla2Var[iPlace1];
        Pla2Var[iPlace1] ^= Pla2Var[iPlace0];
        Pla2Var[iPlace0] ^= Pla2Var[iPlace1];
    }
    if ( !Abc_TtEqual(pCopy, pTruth, nWords) )
        printf( "Internal truth table check failed.\n" );

//    Abc_BSEvalFree(p);
    if ( MyuBest > (1 << nRails) ) {
        Vec_WrdFree(vRes);
        return NULL;
    }
    if ( fVerbose )
        printf( "COllected %d solutions with MyuMin = %d and SharedSize = %d.\n", Vec_WrdSize(vRes), MyuBest, nSetSizeBest );
    return vRes;
}

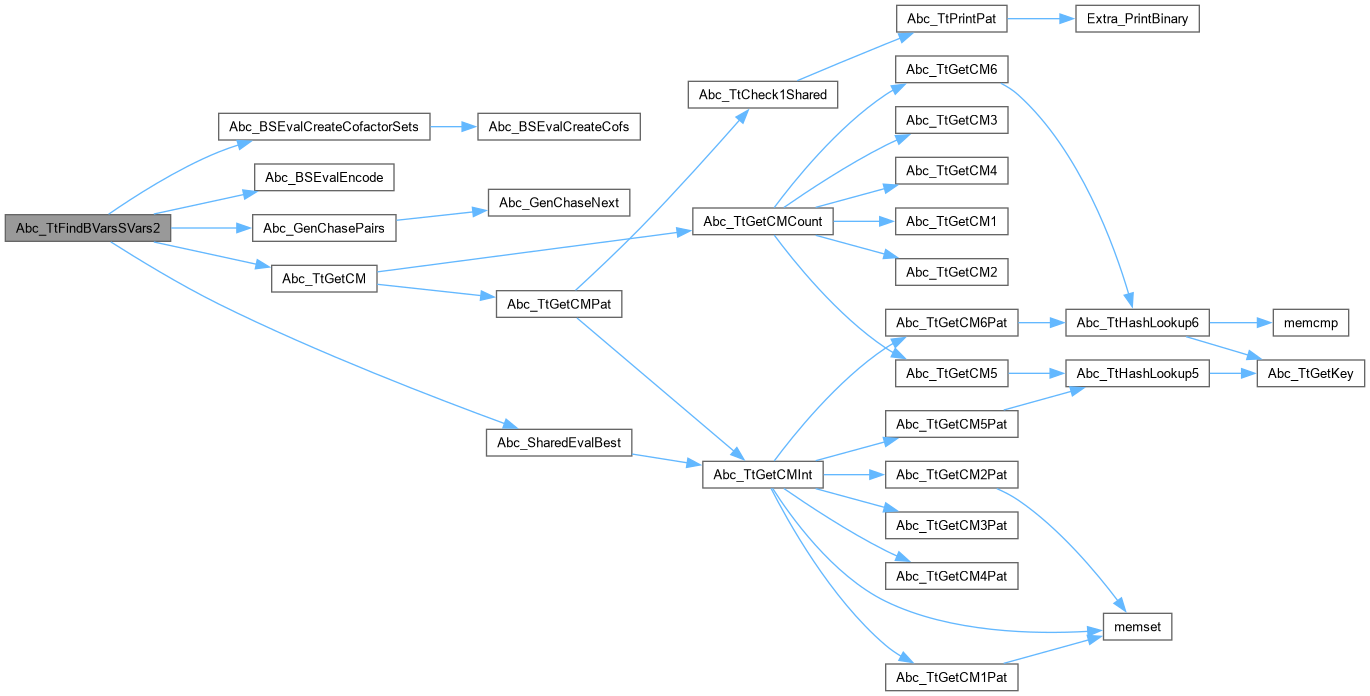

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_TtGetCM()

int Abc_TtGetCM	(	word *	p,
		int	nVars,
		int	nFVars,
		Vec_Int_t *	vCounts,
		Vec_Int_t *	vTable,
		Vec_Wrd_t *	vStore,
		Vec_Int_t *	vUsed,
		int	fShared )

Definition at line 380 of file utilBSet.c.

{
    if ( fShared )
        return Abc_TtGetCMPat( p, nVars, nFVars, vCounts, vTable, vStore, vUsed );
    return Abc_TtGetCMCount( p, nVars, nFVars, vCounts, vTable, vStore, vUsed );
}

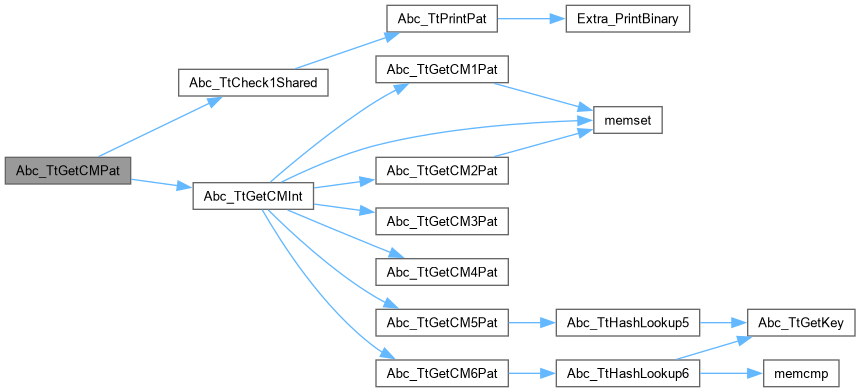

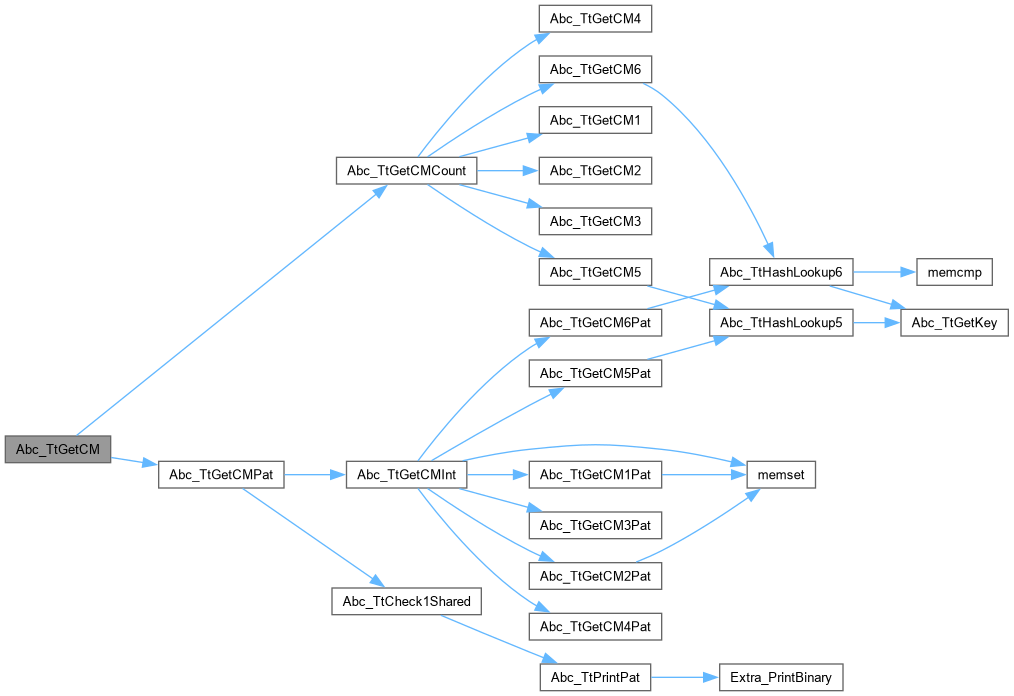

Here is the call graph for this function:

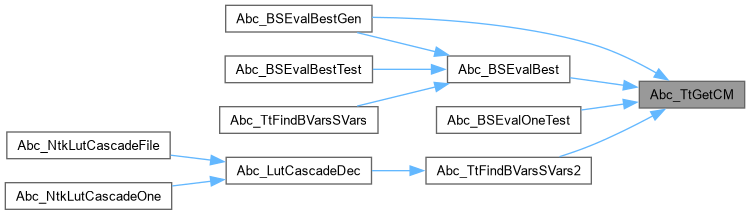

Here is the caller graph for this function:

Abc_TtGetCM1()

int Abc_TtGetCM1	(	word *	p,
		int	nVars )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Bound-set evalution.]

Description []

SideEffects []

SeeAlso []

Definition at line 74 of file utilBSet.c.

{
    int Counts[4] = {0};
    int i, Res = 0, nDigits = 1 << (nVars - 1);
    for ( i = 0; i < nDigits; i++ )
        Counts[Abc_TtGetQua(p, i)]++;
    for ( i = 0; i < 4; i++ )
        Res += Counts[i] > 0;
    return Res;
}

Here is the caller graph for this function:

Abc_TtGetCM1Pat()

int Abc_TtGetCM1Pat	(	word *	p,
		int	nVars,
		word *	pPat )

Function*************************************************************

Synopsis [Bound-set evalution.]

Description []

SideEffects []

SeeAlso []

Definition at line 221 of file utilBSet.c.

{
    int nUsed = 0, pUsed[4], pMap[4];
    int i, nDigits = 1 << (nVars - 1), nWordsBS = Abc_TtWordNum(nVars - 1);
    memset( pMap, 0xFF, 16 );
    for ( i = 0; i < nDigits; i++ ) {
        int Digit = Abc_TtGetQua(p, i);
        if ( pMap[Digit] == -1 ) {
            pMap[Digit] = nUsed;
            pUsed[nUsed++] = Digit;
        }
        if ( pPat ) Abc_TtSetBit( pPat + nWordsBS*pMap[Digit], i );
    }
    return nUsed;
}

Here is the call graph for this function:

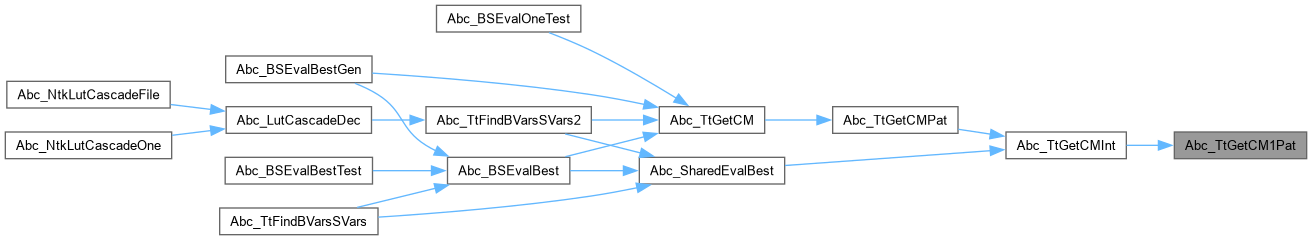

Here is the caller graph for this function:

Abc_TtGetCM2()

int Abc_TtGetCM2	(	word *	p,
		int	nVars )

Definition at line 84 of file utilBSet.c.

{
    int Counts[16] = {0};
    int i, Res = 0, nDigits = 1 << (nVars - 2);
    for ( i = 0; i < nDigits; i++ )
        Counts[Abc_TtGetHex(p, i)]++;
    for ( i = 0; i < 16; i++ )
        Res += Counts[i] > 0;
    return Res;
}

Here is the caller graph for this function:

Abc_TtGetCM2Pat()

int Abc_TtGetCM2Pat	(	word *	p,
		int	nVars,
		word *	pPat )

Definition at line 236 of file utilBSet.c.

{
    int nUsed = 0, pUsed[16], pMap[16];
    int i, nDigits = 1 << (nVars - 2), nWordsBS = Abc_TtWordNum(nVars - 2);
    memset( pMap, 0xFF, 64 );
    for ( i = 0; i < nDigits; i++ ) {
        int Digit = Abc_TtGetHex(p, i);
        if ( pMap[Digit] == -1 ) {
            pMap[Digit] = nUsed;
            pUsed[nUsed++] = Digit;
        }
        if ( pPat ) Abc_TtSetBit( pPat + nWordsBS*pMap[Digit], i );
    }
    return nUsed;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_TtGetCM3()

int Abc_TtGetCM3	(	word *	p,
		int	nVars,
		int *	pCounts,
		Vec_Int_t *	vUsed )

Definition at line 94 of file utilBSet.c.

{
    unsigned char * q = (unsigned char *)p;
    int i, Digit, nDigits = 1 << (nVars - 3);
    Vec_IntClear( vUsed );
    for ( i = 0; i < nDigits; i++ ) {
        if ( pCounts[q[i]] == 1 )
            continue;
        pCounts[q[i]] = 1;
        Vec_IntPush(vUsed, q[i]);
    }
    Vec_IntForEachEntry( vUsed, Digit, i )
        pCounts[Digit] = -1;
    return Vec_IntSize(vUsed);
}

Here is the caller graph for this function:

Abc_TtGetCM3Pat()

int Abc_TtGetCM3Pat	(	word *	p,
		int	nVars,
		int *	pMap,
		Vec_Int_t *	vUsed,
		word *	pPat )

Definition at line 251 of file utilBSet.c.

{
    unsigned char * q = (unsigned char *)p;
    int i, Digit, nDigits = 1 << (nVars - 3), nWordsBS = Abc_TtWordNum(nVars - 3);
    Vec_IntClear( vUsed );
    for ( i = 0; i < nDigits; i++ ) {
        if ( pMap[q[i]] == -1 ) {
            pMap[q[i]] = Vec_IntSize(vUsed);
            Vec_IntPush(vUsed, q[i]);
        }
        if ( pPat ) Abc_TtSetBit( pPat + nWordsBS*pMap[q[i]], i );
    }
    Vec_IntForEachEntry( vUsed, Digit, i )
        pMap[Digit] = -1;
    return Vec_IntSize(vUsed);
}

Here is the caller graph for this function:

Abc_TtGetCM4()

int Abc_TtGetCM4	(	word *	p,
		int	nVars,
		int *	pCounts,
		Vec_Int_t *	vUsed )

Definition at line 109 of file utilBSet.c.

{
    unsigned short * q = (unsigned short *)p;
    int i, Digit, nDigits = 1 << (nVars - 4);
    Vec_IntClear( vUsed );
    for ( i = 0; i < nDigits; i++ ) {
        if ( pCounts[q[i]] == 1 )
            continue;
        pCounts[q[i]] = 1;
        Vec_IntPush(vUsed, q[i]);
    }
    Vec_IntForEachEntry( vUsed, Digit, i )
        pCounts[Digit] = -1;
    return Vec_IntSize(vUsed);
}

Here is the caller graph for this function:

Abc_TtGetCM4Pat()

int Abc_TtGetCM4Pat	(	word *	p,
		int	nVars,
		int *	pMap,
		Vec_Int_t *	vUsed,
		word *	pPat )

Definition at line 267 of file utilBSet.c.

{
    unsigned short * q = (unsigned short *)p;
    int i, Digit, nDigits = 1 << (nVars - 4), nWordsBS = Abc_TtWordNum(nVars - 4);
    Vec_IntClear( vUsed );
    for ( i = 0; i < nDigits; i++ ) {
        if ( pMap[q[i]] == -1 ) {
            pMap[q[i]] = Vec_IntSize(vUsed);
            Vec_IntPush(vUsed, q[i]);
        }
        if ( pPat ) Abc_TtSetBit( pPat + nWordsBS*pMap[q[i]], i );
    }
    Vec_IntForEachEntry( vUsed, Digit, i )
        pMap[Digit] = -1;
    return Vec_IntSize(vUsed);
}

Here is the caller graph for this function:

Abc_TtGetCM5()

int Abc_TtGetCM5	(	word *	p,
		int	nVars,
		Vec_Int_t *	vTable,
		Vec_Wrd_t *	vStore,
		Vec_Int_t *	vUsed )

Definition at line 153 of file utilBSet.c.

{
    unsigned * q = (unsigned *)p;
    int i, Item, nDigits = 1 << (nVars - 5);
    Vec_WrdClear( vStore );
    Vec_IntClear( vUsed );
    for ( i = 0; i < nDigits; i++ )
        Abc_TtHashLookup5( q[i], vTable, vStore, vUsed );
    Vec_IntForEachEntry( vUsed, Item, i )
        Vec_IntWriteEntry( vTable, Item, -1 );
    return Vec_IntSize(vUsed);
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_TtGetCM5Pat()

int Abc_TtGetCM5Pat	(	word *	p,
		int	nVars,
		Vec_Int_t *	vTable,
		Vec_Wrd_t *	vStore,
		Vec_Int_t *	vUsed,
		word *	pPat )

Definition at line 283 of file utilBSet.c.

{
    unsigned * q = (unsigned *)p;
    int i, Item, nDigits = 1 << (nVars - 5), nWordsBS = Abc_TtWordNum(nVars - 5);
    Vec_WrdClear( vStore );
    Vec_IntClear( vUsed );
    if ( pPat )
        for ( i = 0; i < nDigits; i++ )
            Abc_TtSetBit( pPat + nWordsBS*Abc_TtHashLookup5(q[i], vTable, vStore, vUsed), i );
    else
        for ( i = 0; i < nDigits; i++ )
            Abc_TtHashLookup5( q[i], vTable, vStore, vUsed );
    Vec_IntForEachEntry( vUsed, Item, i )
        Vec_IntWriteEntry( vTable, Item, -1 );
    return Vec_IntSize(vUsed);
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_TtGetCM6()

int Abc_TtGetCM6	(	word *	p,
		int	nVars,
		int	nFVars,
		Vec_Int_t *	vTable,
		Vec_Wrd_t *	vStore,
		Vec_Int_t *	vUsed )

Definition at line 179 of file utilBSet.c.

{
    assert( nFVars >= 6 && nFVars < nVars );
    int i, Item, nDigits = 1 << (nVars - nFVars), nWords = 1 << (nFVars - 6);
    Vec_WrdClear( vStore );
    Vec_IntClear( vUsed );
    //assert( Vec_IntSum(vTable) == -Vec_IntSize(vTable) );
    for ( i = 0; i < nDigits; i++ )
        Abc_TtHashLookup6( p + i*nWords, nWords, vTable, vStore, vUsed );
    Vec_IntForEachEntry( vUsed, Item, i )
        Vec_IntWriteEntry( vTable, Item, -1 );
    return Vec_IntSize(vUsed);
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_TtGetCM6Pat()

int Abc_TtGetCM6Pat	(	word *	p,
		int	nVars,
		int	nFVars,
		Vec_Int_t *	vTable,
		Vec_Wrd_t *	vStore,
		Vec_Int_t *	vUsed,
		word *	pPat )

Definition at line 299 of file utilBSet.c.

{
    assert( nFVars >= 6 && nFVars < nVars );
    int i, Item, nDigits = 1 << (nVars - nFVars), nWords = 1 << (nFVars - 6), nWordsBS = Abc_TtWordNum(nVars - nFVars);
    Vec_WrdClear( vStore );
    Vec_IntClear( vUsed );
    if ( pPat )
        for ( i = 0; i < nDigits; i++ )
            Abc_TtSetBit( pPat + nWordsBS*Abc_TtHashLookup6(p + i*nWords, nWords, vTable, vStore, vUsed), i );
    else
        for ( i = 0; i < nDigits; i++ )
            Abc_TtHashLookup6( p + i*nWords, nWords, vTable, vStore, vUsed );
    Vec_IntForEachEntry( vUsed, Item, i )
        Vec_IntWriteEntry( vTable, Item, -1 );
    return Vec_IntSize(vUsed);
}

Here is the call graph for this function:

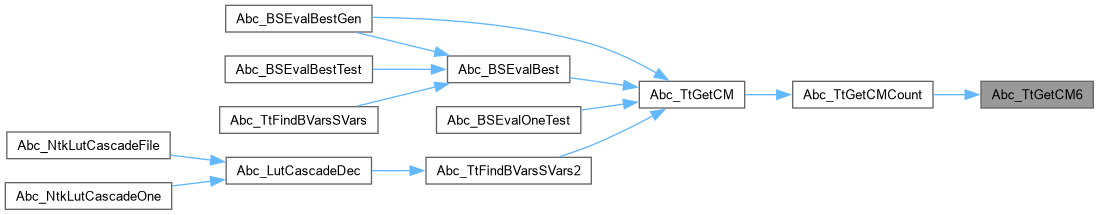

Here is the caller graph for this function:

Abc_TtGetCMCount()

int Abc_TtGetCMCount	(	word *	p,
		int	nVars,
		int	nFVars,
		Vec_Int_t *	vCounts,
		Vec_Int_t *	vTable,
		Vec_Wrd_t *	vStore,
		Vec_Int_t *	vUsed )

Definition at line 192 of file utilBSet.c.

{
    if ( nFVars == 1 )
        return Abc_TtGetCM1( p, nVars );
    if ( nFVars == 2 )
        return Abc_TtGetCM2( p, nVars );
    if ( nFVars == 3 )
        return Abc_TtGetCM3( p, nVars, Vec_IntArray(vCounts), vUsed );
    if ( nFVars == 4 )
        return Abc_TtGetCM4( p, nVars, Vec_IntArray(vCounts), vUsed );
    if ( nFVars == 5 )
        return Abc_TtGetCM5( p, nVars, vTable, vStore, vUsed );
    if ( nFVars >= 6 )
        return Abc_TtGetCM6( p, nVars, nFVars, vTable, vStore, vUsed );
    assert( 0 );
    return 0;
}

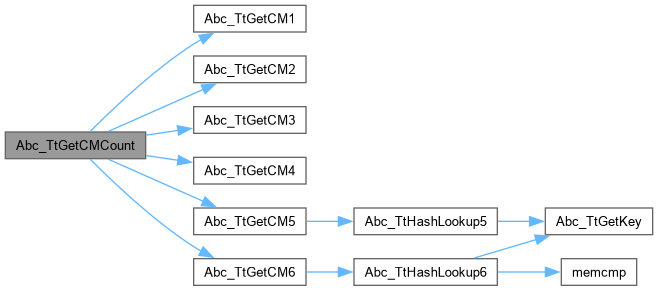

Here is the call graph for this function:

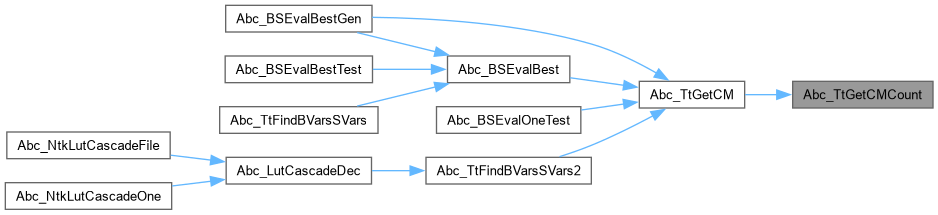

Here is the caller graph for this function:

Abc_TtGetCMInt()

int Abc_TtGetCMInt	(	word *	p,
		int	nVars,
		int	nFVars,
		Vec_Int_t *	vCounts,
		Vec_Int_t *	vTable,
		Vec_Wrd_t *	vStore,
		Vec_Int_t *	vUsed,
		word *	pPat )

Definition at line 348 of file utilBSet.c.

{
    int nMintsBS = 1 << (nVars - nFVars);
    int nWordsBS = Abc_TtWordNum(nVars - nFVars);
    //assert( nMintsBS * nWordsBS <= MAX_PAT_WORD_SIZE );
    memset( pPat, 0, 8 * nMintsBS * nWordsBS );
    int nMyu = 0;
    if ( nFVars == 1 )
        nMyu = Abc_TtGetCM1Pat( p, nVars, pPat );
    else if ( nFVars == 2 )
        nMyu = Abc_TtGetCM2Pat( p, nVars, pPat );
    else if ( nFVars == 3 )
        nMyu = Abc_TtGetCM3Pat( p, nVars, Vec_IntArray(vCounts), vUsed, pPat );
    else if ( nFVars == 4 )
        nMyu = Abc_TtGetCM4Pat( p, nVars, Vec_IntArray(vCounts), vUsed, pPat );
    else if ( nFVars == 5 )
        nMyu = Abc_TtGetCM5Pat( p, nVars, vTable, vStore, vUsed, pPat );
    else if ( nFVars >= 6 )
        nMyu = Abc_TtGetCM6Pat( p, nVars, nFVars, vTable, vStore, vUsed, pPat );
    else assert( 0 );
    return nMyu;
}

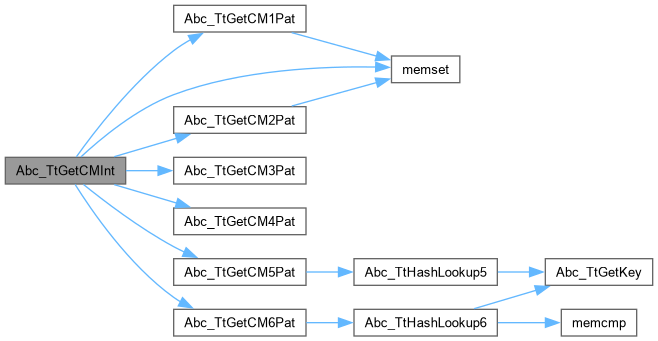

Here is the call graph for this function:

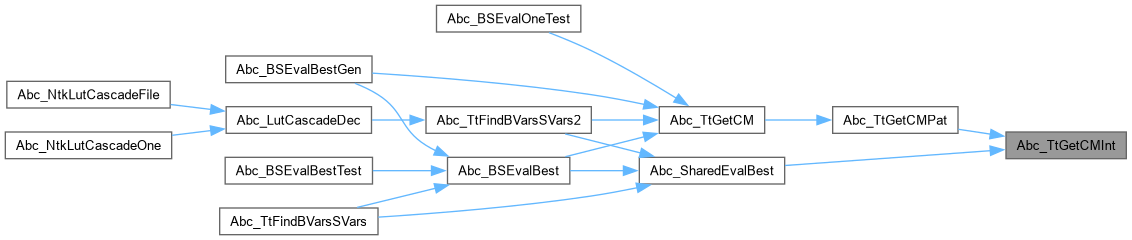

Here is the caller graph for this function:

Abc_TtGetCMPat()

int Abc_TtGetCMPat	(	word *	p,
		int	nVars,
		int	nFVars,
		Vec_Int_t *	vCounts,
		Vec_Int_t *	vTable,
		Vec_Wrd_t *	vStore,
		Vec_Int_t *	vUsed )

Definition at line 371 of file utilBSet.c.

{
    int nRails, nMyu = Abc_TtGetCMInt( p, nVars, nFVars, vCounts, vTable, vStore, vUsed, NULL );
    if ( nMyu <= 2 )
        nRails = 1;
    else
        nRails = Abc_TtCheck1Shared( NULL, nVars, nFVars, nMyu );
    return nRails;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_TtGetKey()

int Abc_TtGetKey	(	unsigned char *	p,
		int	nSize,
		int	nTableSize )

Definition at line 126 of file utilBSet.c.

{
    int i = 0; unsigned hash = 0;
    while ( i != nSize )
    {
        hash += p[i++];
        hash += hash << 10;
        hash ^= hash >> 6;
    }
    hash += hash << 3;
    hash ^= hash >> 11;
    hash += hash << 15;
    return (int)(hash % nTableSize);
}

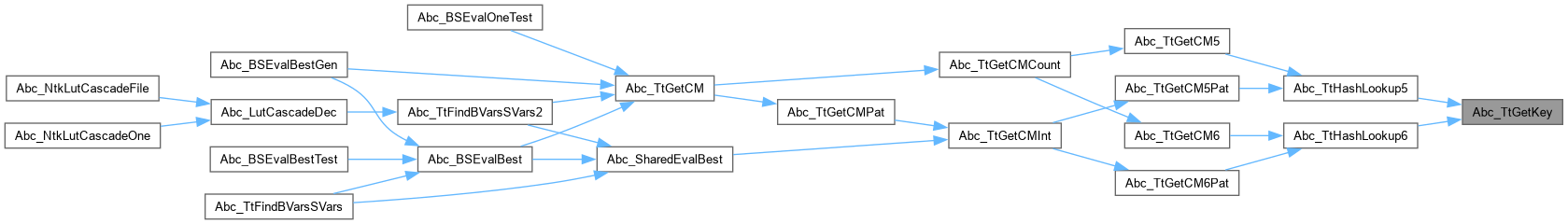

Here is the caller graph for this function:

Abc_TtHashLookup5()

int Abc_TtHashLookup5	(	int	Entry,
		Vec_Int_t *	vTable,
		Vec_Wrd_t *	vStore,
		Vec_Int_t *	vUsed )

Definition at line 140 of file utilBSet.c.

{
    int Key = Abc_TtGetKey( (unsigned char*)&Entry, 4, Vec_IntSize(vTable) );
    int * pTable = Vec_IntArray(vTable);
    for ( ; pTable[Key] >= 0; Key = (Key + 1) % Vec_IntSize(vTable) )
        if ( Entry == (int)Vec_WrdEntry(vStore, pTable[Key]) )
            return pTable[Key];
    assert( pTable[Key] == -1 );
    pTable[Key] = Vec_WrdSize(vStore);
    Vec_WrdPush( vStore, (word)Entry );
    Vec_IntPush( vUsed, Key );
    return pTable[Key];
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_TtHashLookup6()

int Abc_TtHashLookup6	(	word *	pEntry,
		int	nWords,
		Vec_Int_t *	vTable,
		Vec_Wrd_t *	vStore,
		Vec_Int_t *	vUsed )

Definition at line 165 of file utilBSet.c.

{
    int i, Key = Abc_TtGetKey( (unsigned char*)pEntry, 8*nWords, Vec_IntSize(vTable) );
    int * pTable = Vec_IntArray(vTable);
    for ( ; pTable[Key] >= 0; Key = (Key + 1) % Vec_IntSize(vTable) )
        if ( !memcmp(pEntry, Vec_WrdEntryP(vStore, nWords*pTable[Key]), 8*nWords) )
            return pTable[Key];
    assert( pTable[Key] == -1 );
    pTable[Key] = Vec_WrdSize(vStore)/nWords;
    for ( i = 0; i < nWords; i++ )
        Vec_WrdPush( vStore, pEntry[i] );
    Vec_IntPush( vUsed, Key );
    return pTable[Key];
}

Here is the call graph for this function:

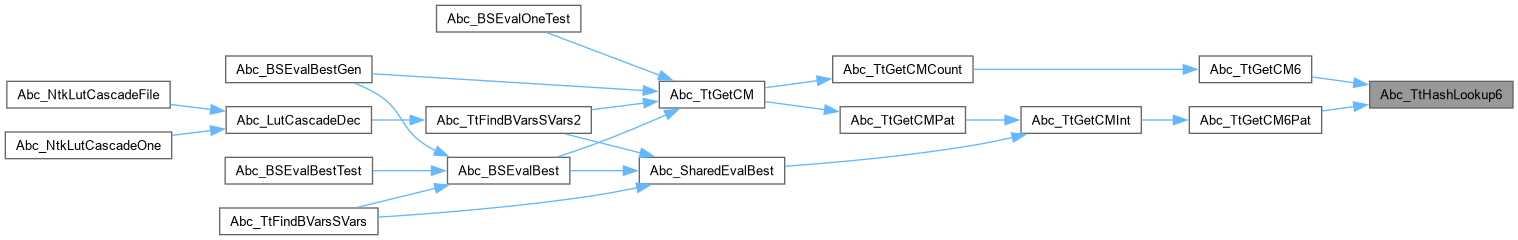

Here is the caller graph for this function:

Abc_TtPermGenTest()

void Abc_TtPermGenTest

(

)

Definition at line 429 of file utilBSet.c.

{
    int i, k, nVars = 5, currPerm[5] = {0};
    for ( i = 0; i < nVars; i++ )
        currPerm[i] = i;
    int fact = Abc_TtFactorial( nVars );
    for ( i = 0; i < fact; i++ )
    {
        printf( "%3d :", i );
        for ( k = 0; k < nVars; k++ )
            printf( " %d", currPerm[k] );
        printf( "\n" );
        Abc_TtPermGen( currPerm, nVars, NULL, 0 );
    }
}

Abc_TtPrintPat()

void Abc_TtPrintPat	(	word *	pPat,
		int	nVars,
		int	nMyu )

Definition at line 316 of file utilBSet.c.

{
    printf( "ACD i-sets with %d variables and column multiplicity %d:\n", nVars, nMyu );
    for ( int m = 0; m < nMyu; m++ )
        Extra_PrintBinary( stdout, (unsigned *)&pPat[m], (1 << nVars) ), printf("\n");
}

Here is the call graph for this function:

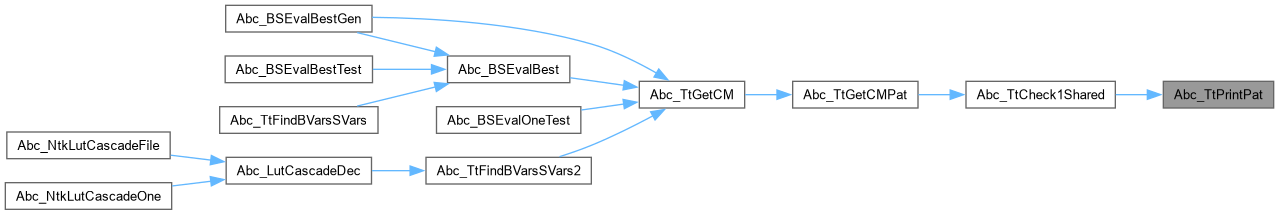

Here is the caller graph for this function:
