wlcNtk.c File Reference

#include <math.h>
#include "wlc.h"
#include "misc/vec/vecWec.h"

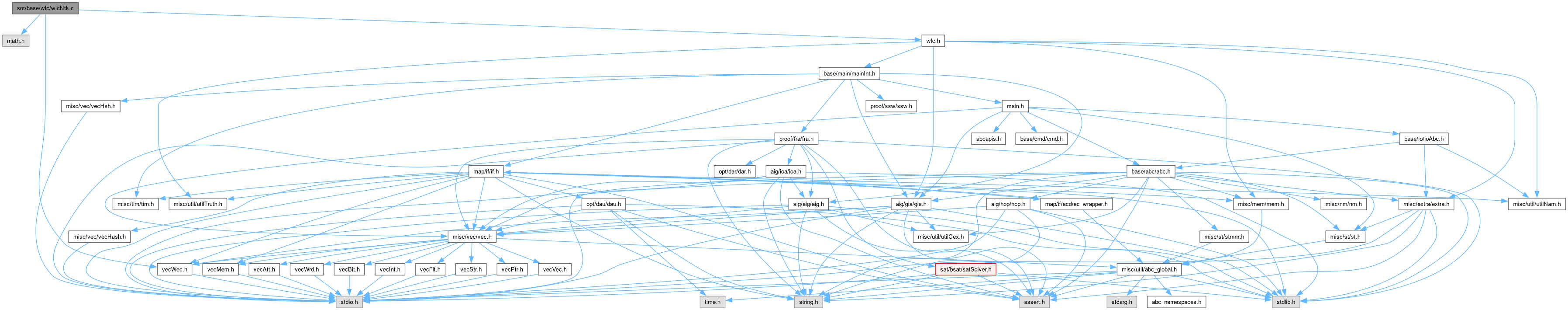

Include dependency graph for wlcNtk.c:

Go to the source code of this file.

Functions
char *	Wlc_ObjTypeName (Wlc_Obj_t *p)
void	Wlc_ManSetDefaultParams (Wlc_Par_t *pPars)
	FUNCTION DEFINITIONS ///.
Wlc_Ntk_t *	Wlc_NtkAlloc (char *pName, int nObjsAlloc)
void	Wlc_ObjSetCi (Wlc_Ntk_t *p, Wlc_Obj_t *pObj)
void	Wlc_ObjSetCo (Wlc_Ntk_t *p, Wlc_Obj_t *pObj, int fFlopInput)

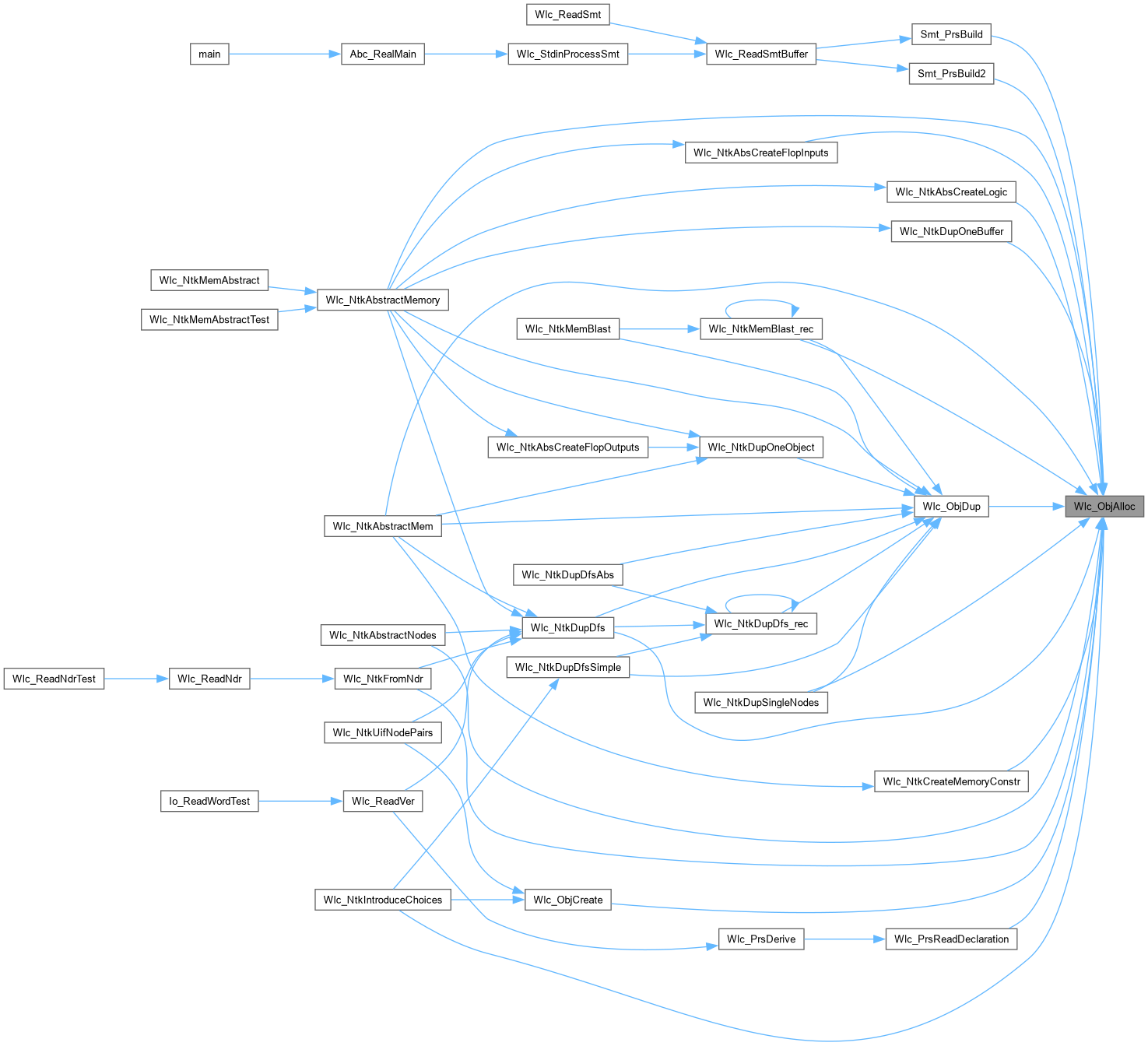

int	Wlc_ObjAlloc (Wlc_Ntk_t *p, int Type, int Signed, int End, int Beg)
int	Wlc_ObjCreate (Wlc_Ntk_t *p, int Type, int Signed, int End, int Beg, Vec_Int_t *vFanins)
char *	Wlc_ObjName (Wlc_Ntk_t *p, int iObj)
void	Wlc_ObjUpdateType (Wlc_Ntk_t *p, Wlc_Obj_t *pObj, int Type)
void	Wlc_ObjAddFanins (Wlc_Ntk_t *p, Wlc_Obj_t *pObj, Vec_Int_t *vFanins)

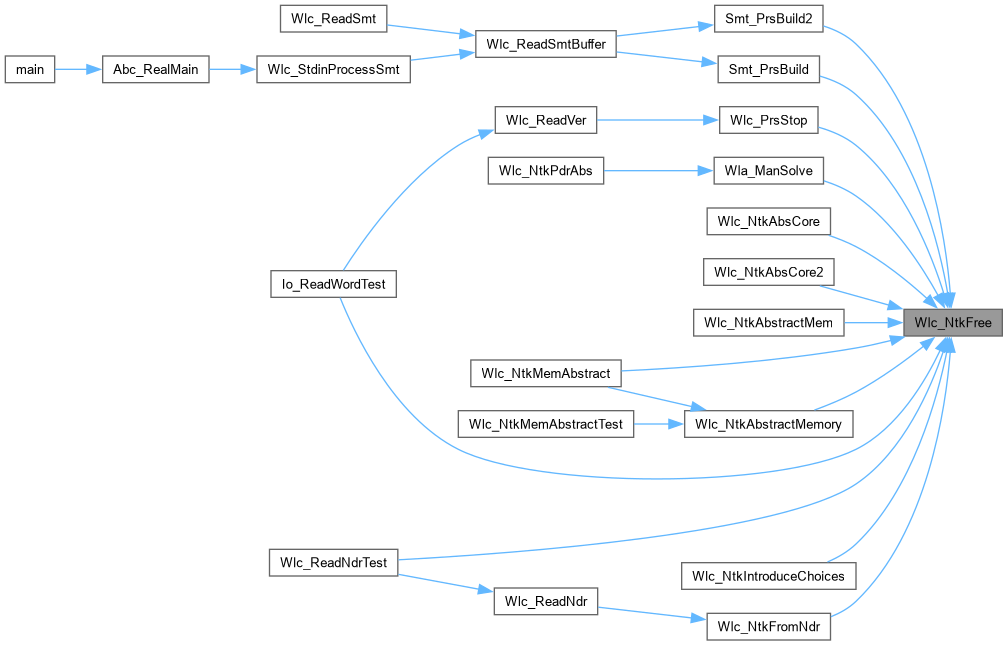

void	Wlc_NtkFree (Wlc_Ntk_t *p)
int	Wlc_NtkMemUsage (Wlc_Ntk_t *p)
int	Wlc_NtkCreateLevels_ (Wlc_Ntk_t *p)
int	Wlc_NtkCreateLevelsRev (Wlc_Ntk_t *p)
void	Wlc_NtkCreateLevels_rec (Wlc_Ntk_t *p, Wlc_Obj_t *pObj)
int	Wlc_NtkCreateLevels (Wlc_Ntk_t *p)
int	Wlc_NtkRemapLevels (Wlc_Ntk_t *p, Vec_Int_t *vObjs, int nLevels)
void	Wlc_NtkCollectStats (Wlc_Ntk_t *p, int nObjs[2][WLC_OBJ_NUMBER])
int	Wlc_NtkCountRealPis (Wlc_Ntk_t *p)
void	Wlc_NtkPrintDistribSortOne (Vec_Ptr_t *vTypes, Vec_Ptr_t *vOccurs, int Type)
void	Wlc_NtkPrintDistrib (Wlc_Ntk_t *p, int fTwoSides, int fVerbose)

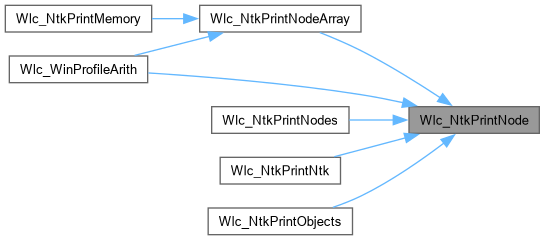

void	Wlc_NtkPrintNode (Wlc_Ntk_t *p, Wlc_Obj_t *pObj)
void	Wlc_NtkPrintNodeArray (Wlc_Ntk_t *p, Vec_Int_t *vArray)
void	Wlc_NtkPrintNodes (Wlc_Ntk_t *p, int Type)

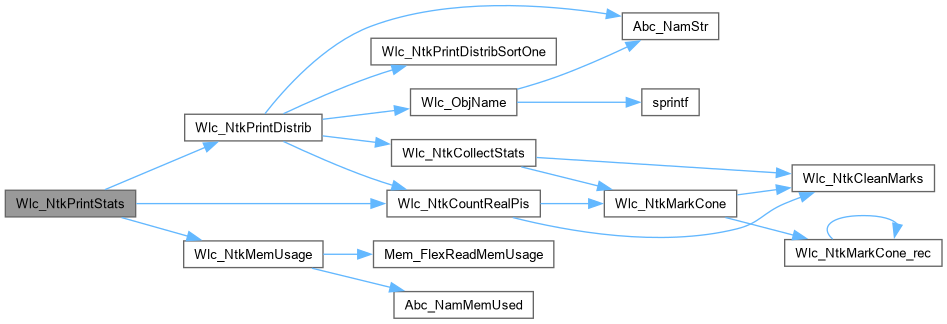

void	Wlc_NtkPrintStats (Wlc_Ntk_t *p, int fDistrib, int fTwoSides, int fVerbose)
void	Wlc_NtkPrintObjects (Wlc_Ntk_t *p)
void	Wlc_NtkTransferNames (Wlc_Ntk_t *pNew, Wlc_Ntk_t *p)
char *	Wlc_NtkNewName (Wlc_Ntk_t *p, int iCoId, int fSeq)
Vec_Int_t *	Wlc_ReduceMarkedInitVec (Wlc_Ntk_t *p, Vec_Int_t *vInit)
char *	Wlc_ReduceMarkedInitStr (Wlc_Ntk_t *p, char *pInit)
void	Wlc_ObjCollectCopyFanins (Wlc_Ntk_t *p, int iObj, Vec_Int_t *vFanins)
int	Wlc_ObjDup (Wlc_Ntk_t *pNew, Wlc_Ntk_t *p, int iObj, Vec_Int_t *vFanins)

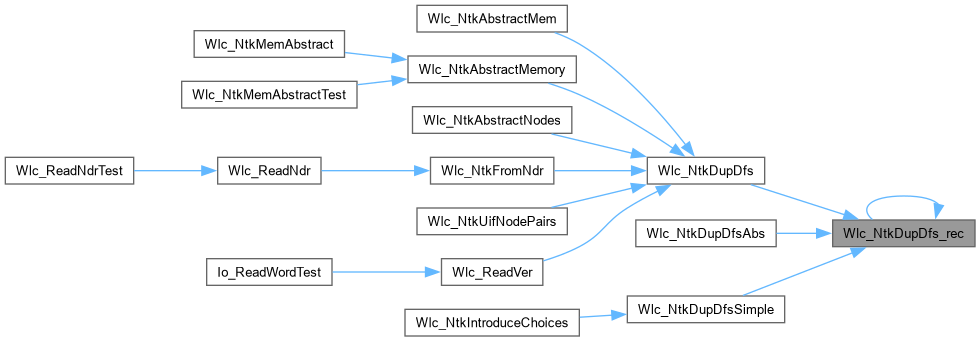

void	Wlc_NtkDupDfs_rec (Wlc_Ntk_t *pNew, Wlc_Ntk_t *p, int iObj, Vec_Int_t *vFanins)
Wlc_Ntk_t *	Wlc_NtkDupDfsSimple (Wlc_Ntk_t *p)
Wlc_Ntk_t *	Wlc_NtkDupDfs (Wlc_Ntk_t *p, int fMarked, int fSeq)
Wlc_Ntk_t *	Wlc_NtkDupDfsAbs (Wlc_Ntk_t *p, Vec_Int_t *vPisOld, Vec_Int_t *vPisNew, Vec_Int_t *vFlops)
void	Wlc_NtkCleanMarks (Wlc_Ntk_t *p)
int	Wlc_NtkCountMarked (Wlc_Ntk_t *p, int *pnPis, int *pnFos, int *pnAdders, int *pnMults)

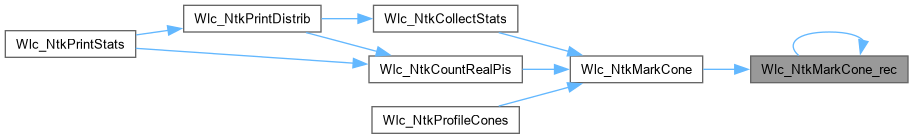

void	Wlc_NtkMarkCone_rec (Wlc_Ntk_t *p, Wlc_Obj_t *pObj, Vec_Int_t *vFlops)

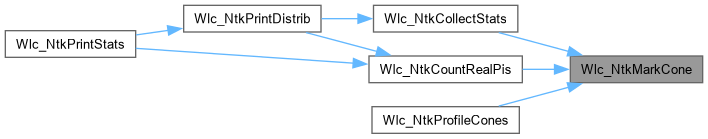

void	Wlc_NtkMarkCone (Wlc_Ntk_t *p, int iCoId, int Range, int fSeq, int fAllPis)
void	Wlc_NtkProfileCones (Wlc_Ntk_t *p)

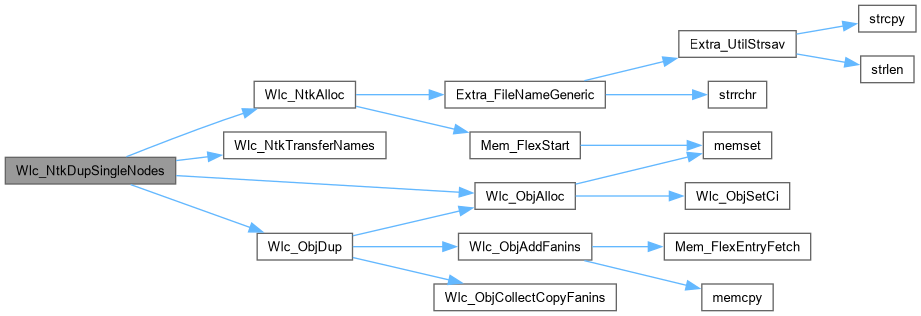

Wlc_Ntk_t *	Wlc_NtkDupSingleNodes (Wlc_Ntk_t *p)
void	Wlc_NtkShortNames (Wlc_Ntk_t *p)
int	Wlc_NtkDcFlopNum (Wlc_Ntk_t *p)
void	Wlc_NtkSetRefs (Wlc_Ntk_t *p)
int	Wlc_NtkCountObjBits (Wlc_Ntk_t *p, Vec_Int_t *vPisNew)

Function Documentation

Wlc_ManSetDefaultParams()

void Wlc_ManSetDefaultParams

(

Wlc_Par_t *

pPars

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 114 of file wlcNtk.c.

{
    memset( pPars, 0, sizeof(Wlc_Par_t) );
    pPars->nBitsAdd      = ABC_INFINITY;   // adder bit-width
    pPars->nBitsMul      = ABC_INFINITY;   // multiplier bit-widht
    pPars->nBitsMux      = ABC_INFINITY;   // MUX bit-width
    pPars->nBitsFlop     = ABC_INFINITY;   // flop bit-width
    pPars->nIterMax      =         1000;   // the max number of iterations
    pPars->nLimit        = ABC_INFINITY;   // the max number of signals
    pPars->fXorOutput    =            1;   // XOR outputs of word-level miter
    pPars->fCheckClauses =            1;   // Check clauses in the reloaded trace
    pPars->fPushClauses  =            0;   // Push clauses in the reloaded trace
    pPars->fMFFC         =            1;   // Refine the entire MFFC of a PPI
    pPars->fPdra         =            0;   // Use pdr -nct
    pPars->fLoadTrace    =            1;   // Load previous PDR traces
    pPars->fProofRefine  =            0;   // Use proof-based refinement
    pPars->fHybrid       =            1;   // Use a hybrid of CBR and PBR
    pPars->fCheckCombUnsat =          0;   // Check if ABS becomes comb. unsat
    pPars->fAbs2         =            0;   // Use UFAR style createAbs
    pPars->fProofUsePPI  =            0;   // Use PPI values in PBR
    pPars->fUseBmc3      =            0;   // Run BMC3 in parallel
    pPars->fShrinkAbs    =            0;   // Shrink Abs with BMC
    pPars->fShrinkScratch=            0;   // Restart pdr from scratch after shrinking
    pPars->fVerbose      =            0;   // verbose output`
    pPars->fPdrVerbose   =            0;   // show verbose PDR output
}

Here is the call graph for this function:

Wlc_NtkAlloc()

Wlc_Ntk_t * Wlc_NtkAlloc	(	char *	pName,
		int	nObjsAlloc )

Function*************************************************************

Synopsis [Working with models.]

Description []

SideEffects []

SeeAlso []

Definition at line 152 of file wlcNtk.c.

{
    Wlc_Ntk_t * p;
    p = ABC_CALLOC( Wlc_Ntk_t, 1 );
    p->pName = pName ? Extra_FileNameGeneric( pName ) : NULL;
    Vec_IntGrow( &p->vPis, 111 );
    Vec_IntGrow( &p->vPos, 111 );
    Vec_IntGrow( &p->vCis, 111 );
    Vec_IntGrow( &p->vCos, 111 );
    Vec_IntGrow( &p->vFfs, 111 );
    p->pMemFanin = Mem_FlexStart();
    p->nObjsAlloc = nObjsAlloc;
    p->pObjs = ABC_CALLOC( Wlc_Obj_t, p->nObjsAlloc );
    p->iObj = 1;
    return p;
}

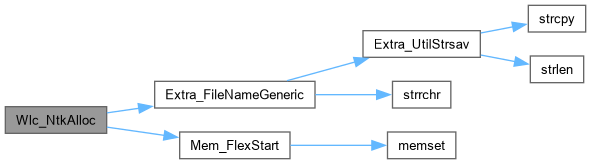

Here is the call graph for this function:

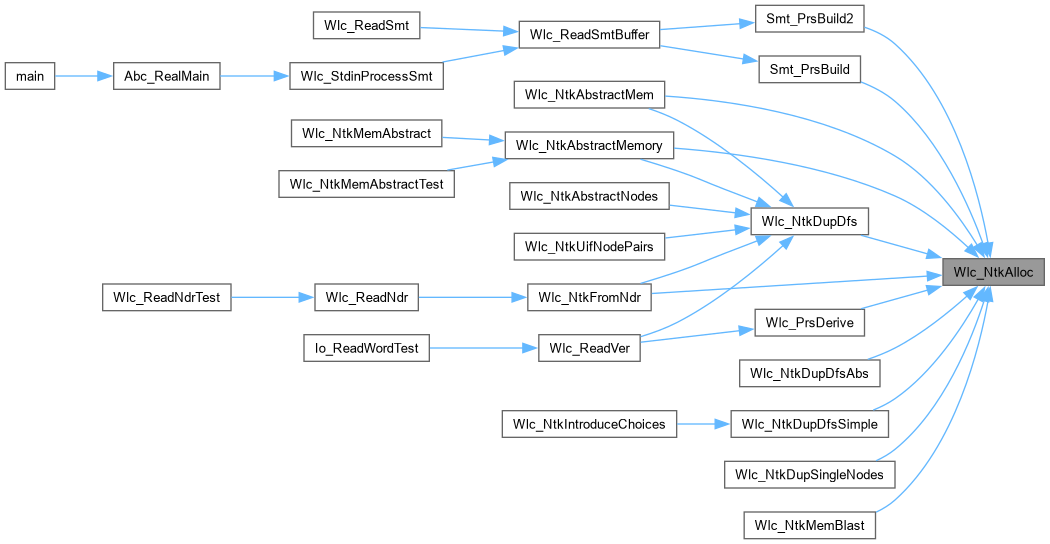

Here is the caller graph for this function:

Wlc_NtkCleanMarks()

void Wlc_NtkCleanMarks

(

Wlc_Ntk_t *

p

)

Function*************************************************************

Synopsis [Select the cone of the given output.]

Description []

SideEffects []

SeeAlso []

Definition at line 1135 of file wlcNtk.c.

{
    Wlc_Obj_t * pObj;
    int i;
    Wlc_NtkForEachObj( p, pObj, i )
        pObj->Mark = 0;
}

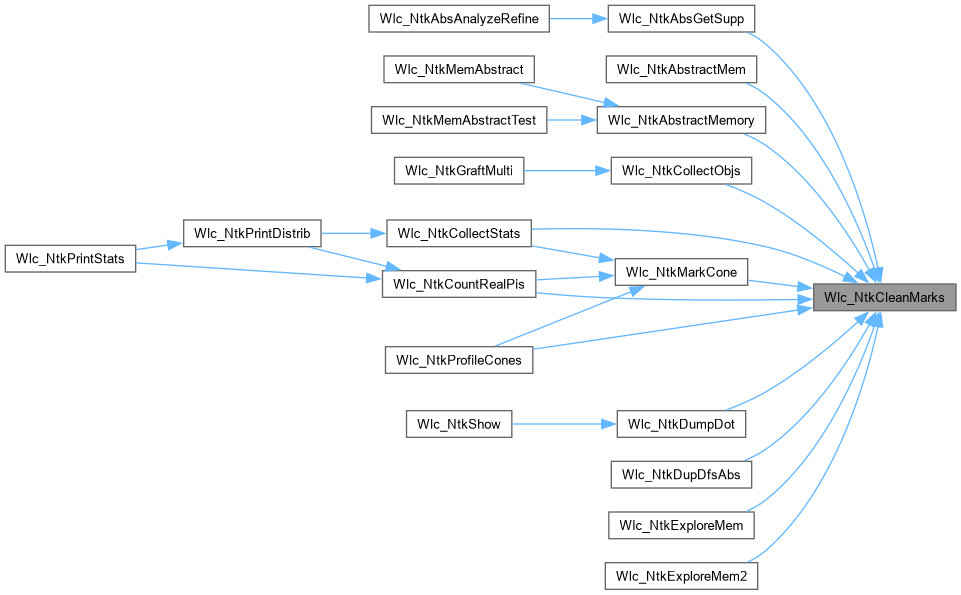

Here is the caller graph for this function:

Wlc_NtkCollectStats()

void Wlc_NtkCollectStats	(	Wlc_Ntk_t *	p,
		int	nObjs[2][WLC_OBJ_NUMBER] )

Function*************************************************************

Synopsis [Collects statistics for each side of the miter.]

Description []

SideEffects []

SeeAlso []

Definition at line 430 of file wlcNtk.c.

{
    Wlc_Obj_t * pObj;
    int n, i;
    if ( Wlc_NtkPoNum(p) != 2 )
        return;
    for ( n = 0; n < 2; n++ )
    {
        Wlc_NtkMarkCone( p, n, 1, 1, 0 );
        Wlc_NtkForEachObj( p, pObj, i )
            if ( pObj->Mark )
                nObjs[n][pObj->Type]++;
    }
    Wlc_NtkCleanMarks( p );
}

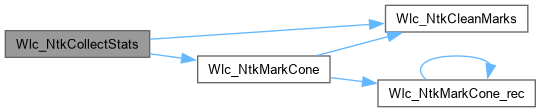

Here is the call graph for this function:

Here is the caller graph for this function:

Wlc_NtkCountMarked()

int Wlc_NtkCountMarked	(	Wlc_Ntk_t *	p,
		int *	pnPis,
		int *	pnFos,
		int *	pnAdders,
		int *	pnMults )

Definition at line 1142 of file wlcNtk.c.

{
    Wlc_Obj_t * pObj;
    int i, nNodes = 0;
    *pnPis = *pnFos = *pnAdders = *pnMults = 0;
    Wlc_NtkForEachObj( p, pObj, i )
    {
        if ( !pObj->Mark )
            continue;
        if ( Wlc_ObjIsPi(pObj) )
            (*pnPis)++;
        else if ( Wlc_ObjIsCi(pObj) )
            (*pnFos)++;
        else if ( pObj->Mark )
        {
            nNodes++;
            if ( pObj->Type == WLC_OBJ_ARI_ADD || pObj->Type == WLC_OBJ_ARI_SUB )
                (*pnAdders)++;
            else if ( pObj->Type == WLC_OBJ_ARI_MULTI )
                (*pnMults)++;
        }
    }
    return nNodes;
}

Here is the caller graph for this function:

Wlc_NtkCountObjBits()

int Wlc_NtkCountObjBits	(	Wlc_Ntk_t *	p,
		Vec_Int_t *	vPisNew )

Function*************************************************************

Synopsis [This procedure simply count the number of PPI bits.]

Description []

SideEffects []

SeeAlso []

Definition at line 1395 of file wlcNtk.c.

{
    Wlc_Obj_t * pObj;
    int i, Count = 0;
    Wlc_NtkForEachObjVec( vPisNew, p, pObj, i )
        Count += Wlc_ObjRange(pObj);
    return Count;
}

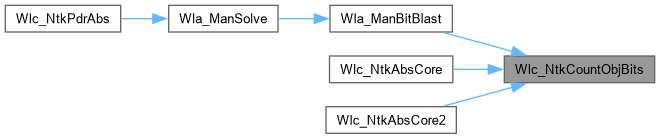

Here is the caller graph for this function:

Wlc_NtkCountRealPis()

int Wlc_NtkCountRealPis

(

Wlc_Ntk_t *

p

)

Definition at line 445 of file wlcNtk.c.

{
    Wlc_Obj_t * pObj;
    int i, Count = 0;
    Wlc_NtkMarkCone( p, -1, -1, 1, 0 );
    Wlc_NtkForEachPi( p, pObj, i )
        Count += pObj->Mark;
    Wlc_NtkCleanMarks( p );
    return Count;
}

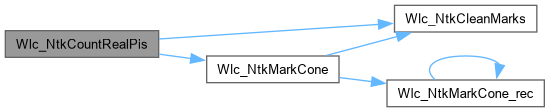

Here is the call graph for this function:

Here is the caller graph for this function:

Wlc_NtkCreateLevels()

int Wlc_NtkCreateLevels

(

Wlc_Ntk_t *

p

)

Definition at line 372 of file wlcNtk.c.

{
    Wlc_Obj_t * pObj;  int i, LeveMax = 0;
    Vec_IntFill( &p->vLevels, Wlc_NtkObjNumMax(p), 0 );
    Wlc_NtkForEachObj( p, pObj, i )
        Wlc_NtkCreateLevels_rec( p, pObj );
    Wlc_NtkForEachObj( p, pObj, i )
        if ( !Wlc_ObjIsCi(pObj) && Wlc_ObjFaninNum(pObj) )
            Vec_IntAddToEntry( &p->vLevels, i, 1 );
    LeveMax = Vec_IntFindMax( &p->vLevels );
    Wlc_NtkForEachFf2( p, pObj, i )
        Vec_IntWriteEntry( &p->vLevels, Wlc_ObjId(p, pObj), LeveMax+1 );
    //Wlc_NtkPrintObjects( p );
    return LeveMax+1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Wlc_NtkCreateLevels_()

int Wlc_NtkCreateLevels_

(

Wlc_Ntk_t *

p

)

Function*************************************************************

Synopsis [Assigns object levels.]

Description []

SideEffects []

SeeAlso []

Definition at line 311 of file wlcNtk.c.

{
    Wlc_Obj_t * pObj;
    int i, k, iFanin, Level, LevelMax = 0;
    Vec_IntFill( &p->vLevels, Wlc_NtkObjNumMax(p), 0 );
    Wlc_NtkForEachObj( p, pObj, i )
    {
        Level = 0;
        Wlc_ObjForEachFanin( pObj, iFanin, k )
            Level = Abc_MaxInt( Level, Wlc_ObjLevelId(p, iFanin) + 1 );
        Vec_IntWriteEntry( &p->vLevels, i, Level );
        LevelMax = Abc_MaxInt( LevelMax, Level );
    }
    return LevelMax;
}

Wlc_NtkCreateLevels_rec()

void Wlc_NtkCreateLevels_rec	(	Wlc_Ntk_t *	p,
		Wlc_Obj_t *	pObj )

Function*************************************************************

Synopsis [Assigns object levels.]

Description []

SideEffects []

SeeAlso []

Definition at line 361 of file wlcNtk.c.

{
    int k, iFanin, Level = 0, iObj = Wlc_ObjId(p, pObj);
    if ( Wlc_ObjIsCi(pObj) || Wlc_ObjIsFf(p, iObj) || Wlc_ObjFaninNum(pObj) == 0 || Wlc_ObjLevel(p, pObj) > 0 )
        return;
    Wlc_ObjForEachFanin( pObj, iFanin, k ) if ( iFanin )
        Wlc_NtkCreateLevels_rec( p, Wlc_NtkObj(p, iFanin) );
    Wlc_ObjForEachFanin( pObj, iFanin, k ) if ( iFanin )
        Level = Abc_MaxInt( Level, Wlc_ObjLevelId(p, iFanin) );
    Vec_IntWriteEntry( &p->vLevels, Wlc_ObjId(p, pObj), Level + 1 );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Wlc_NtkCreateLevelsRev()

int Wlc_NtkCreateLevelsRev

(

Wlc_Ntk_t *

p

)

Definition at line 326 of file wlcNtk.c.

{
    Wlc_Obj_t * pObj;
    int i, k, iFanin, Level, LevelMax = 0;
    Vec_IntFill( &p->vLevels, Wlc_NtkObjNumMax(p), 0 );
    Wlc_NtkForEachObjReverse( p, pObj, i )
    {
        if ( Wlc_ObjIsCi(pObj) )
            continue;
        Level = Wlc_ObjLevel(p, pObj) + 1;
        Wlc_ObjForEachFanin( pObj, iFanin, k )
            Vec_IntUpdateEntry( &p->vLevels, iFanin, Level );
        LevelMax = Abc_MaxInt( LevelMax, Level );
    }
    // reverse the values
    Wlc_NtkForEachObj( p, pObj, i )
        Vec_IntWriteEntry( &p->vLevels, i, LevelMax - Wlc_ObjLevelId(p, i) );
    Wlc_NtkForEachCi( p, pObj, i )
        Vec_IntWriteEntry( &p->vLevels, Wlc_ObjId(p, pObj), 0 );
    //Wlc_NtkForEachObj( p, pObj, i )
    //    printf( "%d -> %d\n", i, Wlc_ObjLevelId(p, i) );
    return LevelMax;
}

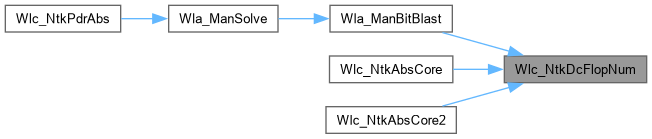

Wlc_NtkDcFlopNum()

int Wlc_NtkDcFlopNum

(

Wlc_Ntk_t *

p

)

Function*************************************************************

Synopsis [Count the number of flops initialized to DC value.]

Description []

SideEffects []

SeeAlso []

Definition at line 1351 of file wlcNtk.c.

{
    int i, nFlops, Count = 0;
    if ( p->pInits == NULL )
        return 0;
    nFlops = strlen(p->pInits);
    for ( i = 0; i < nFlops; i++ )
        Count += (p->pInits[i] == 'x' || p->pInits[i] == 'X');
    return Count;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Wlc_NtkDupDfs()

Wlc_Ntk_t * Wlc_NtkDupDfs	(	Wlc_Ntk_t *	p,
		int	fMarked,
		int	fSeq )

Definition at line 986 of file wlcNtk.c.

{
    Wlc_Ntk_t * pNew;
    Wlc_Obj_t * pObj, * pObjNew;
    Vec_Int_t * vFanins;
    int i, k, iObj, iFanin;
    vFanins = Vec_IntAlloc( 100 );
    Wlc_NtkCleanCopy( p );
    pNew = Wlc_NtkAlloc( p->pName, p->nObjsAlloc );
    pNew->fSmtLib = p->fSmtLib;
    pNew->fAsyncRst = p->fAsyncRst;
    pNew->fMemPorts = p->fMemPorts;
    pNew->fEasyFfs = p->fEasyFfs;
    Wlc_NtkForEachCi( p, pObj, i )
        if ( !fMarked || pObj->Mark )
        {
            unsigned Type = pObj->Type;
            if ( !fSeq ) pObj->Type = WLC_OBJ_PI;
            Wlc_ObjDup( pNew, p, Wlc_ObjId(p, pObj), vFanins );
            pObj->Type = Type;
        }
    Wlc_NtkForEachFf2( p, pObj, i )
    {
        int iObjNew = Wlc_ObjAlloc( pNew, pObj->Type, Wlc_ObjIsSigned(pObj), pObj->End, pObj->Beg );
        Wlc_ObjSetCopy( p, Wlc_ObjId(p, pObj), iObjNew );
        Vec_IntPush( &pNew->vFfs2, iObjNew );
    }
    Wlc_NtkForEachCo( p, pObj, i )
        if ( !fMarked || pObj->Mark )
            Wlc_NtkDupDfs_rec( pNew, p, Wlc_ObjId(p, pObj), vFanins );
    Wlc_NtkForEachCo( p, pObj, i )
        if ( !fMarked || pObj->Mark )
            Wlc_ObjSetCo( pNew, Wlc_ObjCopyObj(pNew, p, pObj), fSeq ? pObj->fIsFi : 0 );
    Wlc_NtkForEachFf2( p, pObj, i )
    {
        iObj = Wlc_ObjId(p, pObj);
        Wlc_ObjForEachFanin( pObj, iFanin, k )
            Wlc_NtkDupDfs_rec( pNew, p, iFanin, vFanins );
        Wlc_ObjCollectCopyFanins( p, iObj, vFanins );
        pObjNew = Wlc_NtkObj( pNew, Wlc_ObjCopy(p, iObj) );
        Wlc_ObjAddFanins( pNew, pObjNew, vFanins );
        pObjNew->fXConst = pObj->fXConst;
    }
    Vec_IntFree( vFanins );
    if ( fSeq && p->vInits )
    {
        if ( fMarked )
        {
            if ( p->vInits )
                pNew->vInits = Wlc_ReduceMarkedInitVec( p, p->vInits );
            if ( p->pInits )
                pNew->pInits = Wlc_ReduceMarkedInitStr( p, p->pInits );
        }
        else
        {
            if ( p->vInits )
                pNew->vInits = Vec_IntDup( p->vInits );
            if ( p->pInits )
                pNew->pInits = Abc_UtilStrsav( p->pInits );
        }
    }
    if ( p->pSpec )
        pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    if ( Wlc_NtkHasNameId(p) )
        Wlc_NtkTransferNames( pNew, p );
    if ( Vec_IntSize(&p->vPoPairs) )
        Vec_IntAppend( &pNew->vPoPairs, &p->vPoPairs );
    return pNew;
}

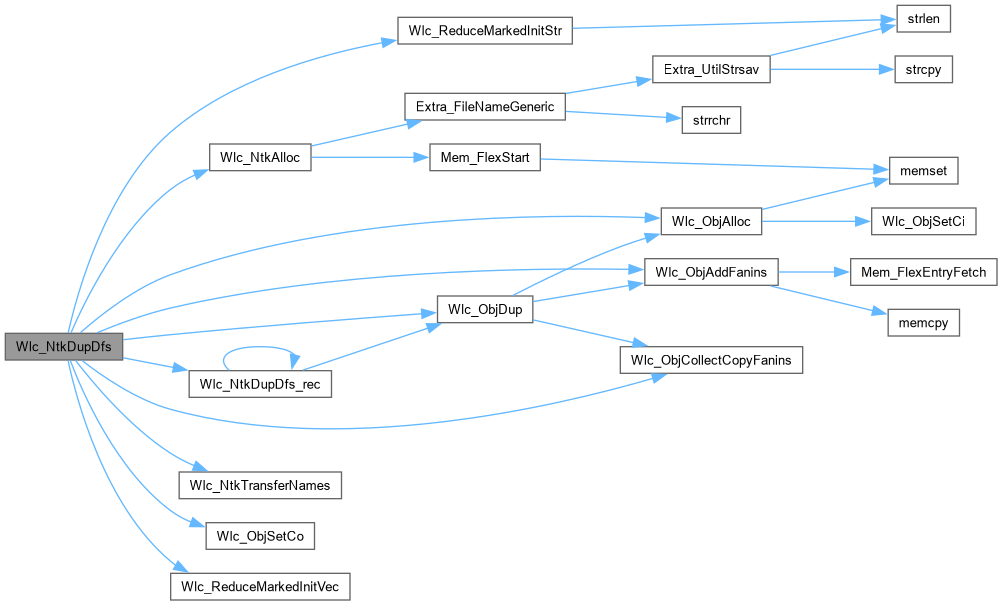

Here is the call graph for this function:

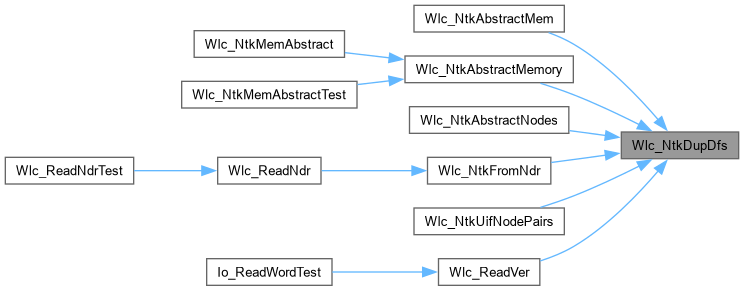

Here is the caller graph for this function:

Wlc_NtkDupDfs_rec()

void Wlc_NtkDupDfs_rec	(	Wlc_Ntk_t *	pNew,
		Wlc_Ntk_t *	p,
		int	iObj,
		Vec_Int_t *	vFanins )

Definition at line 941 of file wlcNtk.c.

{
    Wlc_Obj_t * pObj;
    int i, iFanin;
    if ( iObj == 0 )
        return;
    if ( Wlc_ObjCopy(p, iObj) )
        return;
    pObj = Wlc_NtkObj( p, iObj );
    //printf( "Visiting node %16s (ID %6d) of type %5s (type ID %2d)\n", Wlc_ObjName(p, iObj), iObj, Wlc_ObjTypeName(pObj), Wlc_NtkObj(p, iObj)->Type );
    assert( pObj->Type != WLC_OBJ_FF );
    Wlc_ObjForEachFanin( pObj, iFanin, i )
        Wlc_NtkDupDfs_rec( pNew, p, iFanin, vFanins );
    Wlc_ObjDup( pNew, p, iObj, vFanins );
}

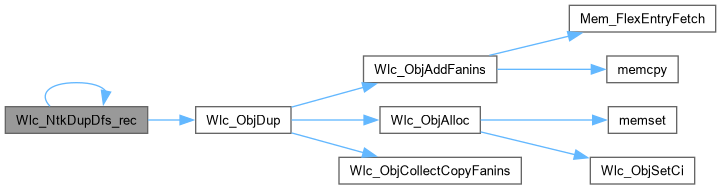

Here is the call graph for this function:

Here is the caller graph for this function:

Wlc_NtkDupDfsAbs()

Wlc_Ntk_t * Wlc_NtkDupDfsAbs	(	Wlc_Ntk_t *	p,
		Vec_Int_t *	vPisOld,
		Vec_Int_t *	vPisNew,
		Vec_Int_t *	vFlops )

Definition at line 1055 of file wlcNtk.c.

{
    Wlc_Ntk_t * pNew;
    Wlc_Obj_t * pObj;
    Vec_Int_t * vFanins;
    int i;
    Wlc_NtkCleanCopy( p );
    pNew = Wlc_NtkAlloc( p->pName, p->nObjsAlloc );
    pNew->fSmtLib = p->fSmtLib;
    pNew->fAsyncRst = p->fAsyncRst;
    pNew->fMemPorts = p->fMemPorts;
    pNew->fEasyFfs = p->fEasyFfs;

    // duplicate marked PIs
    vFanins = Vec_IntAlloc( 100 );
    Wlc_NtkForEachObjVec( vPisOld, p, pObj, i )
    {
        assert( Wlc_ObjIsPi(pObj) );
        Wlc_ObjDup( pNew, p, Wlc_ObjId(p, pObj), vFanins );
    }
    // duplicate additional PIs
    Wlc_NtkForEachObjVec( vPisNew, p, pObj, i )
    {
        unsigned Type = pObj->Type;
        int nFanins = Wlc_ObjFaninNum(pObj);
        assert( !Wlc_ObjIsPi(pObj) );
        pObj->Type = WLC_OBJ_PI;
        pObj->nFanins = 0;
        Wlc_ObjDup( pNew, p, Wlc_ObjId(p, pObj), vFanins );
        pObj->Type = Type;
        pObj->nFanins = (unsigned)nFanins;
    }
    // duplicate flop outputs
    Wlc_NtkForEachObjVec( vFlops, p, pObj, i )
    {
        assert( !Wlc_ObjIsPi(pObj) && Wlc_ObjIsCi(pObj) );
        Wlc_ObjDup( pNew, p, Wlc_ObjId(p, pObj), vFanins );
    }

    // duplicate logic cones of primary outputs
    Wlc_NtkForEachPo( p, pObj, i )
        Wlc_NtkDupDfs_rec( pNew, p, Wlc_ObjId(p, pObj), vFanins );
    // duplidate logic cone of flop inputs
    Wlc_NtkForEachObjVec( vFlops, p, pObj, i )
        Wlc_NtkDupDfs_rec( pNew, p, Wlc_ObjId(p, Wlc_ObjFo2Fi(p, pObj)), vFanins );

    // duplicate POs
    Wlc_NtkForEachPo( p, pObj, i )
        Wlc_ObjSetCo( pNew, Wlc_ObjCopyObj(pNew, p, pObj), 0 );
    // duplicate flop inputs
    Wlc_NtkForEachObjVec( vFlops, p, pObj, i )
        Wlc_ObjSetCo( pNew, Wlc_ObjCopyObj(pNew, p, Wlc_ObjFo2Fi(p, pObj)), 1 );
    Vec_IntFree( vFanins );

    // mark flop outputs
    Wlc_NtkForEachObjVec( vFlops, p, pObj, i )
        pObj->Mark = 1;
    if ( p->vInits )
        pNew->vInits = Wlc_ReduceMarkedInitVec( p, p->vInits );
    if ( p->pInits )
        pNew->pInits = Wlc_ReduceMarkedInitStr( p, p->pInits );
    Wlc_NtkCleanMarks( p );

    if ( p->pSpec )
        pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    //Wlc_NtkTransferNames( pNew, p );
    return pNew;
}

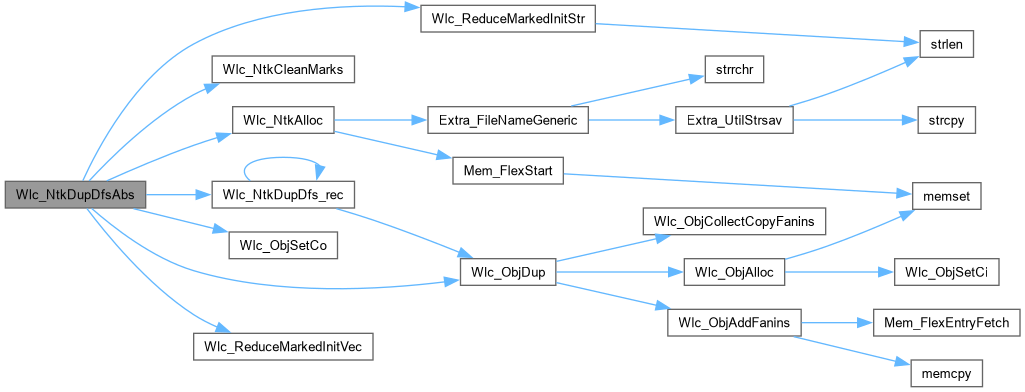

Here is the call graph for this function:

Wlc_NtkDupDfsSimple()

Wlc_Ntk_t * Wlc_NtkDupDfsSimple

(

Wlc_Ntk_t *

p

)

Definition at line 957 of file wlcNtk.c.

{
    Wlc_Ntk_t * pNew;
    Wlc_Obj_t * pObj;
    Vec_Int_t * vFanins;
    int i;
    Wlc_NtkCleanCopy( p );
    vFanins = Vec_IntAlloc( 100 );
    pNew = Wlc_NtkAlloc( p->pName, p->nObjsAlloc );
    pNew->fSmtLib = p->fSmtLib;
    pNew->fAsyncRst = p->fAsyncRst;
    pNew->fMemPorts = p->fMemPorts;
    pNew->fEasyFfs = p->fEasyFfs;
    Wlc_NtkForEachCi( p, pObj, i )
        Wlc_ObjDup( pNew, p, Wlc_ObjId(p, pObj), vFanins );
    Wlc_NtkForEachCo( p, pObj, i )
        Wlc_NtkDupDfs_rec( pNew, p, Wlc_ObjId(p, pObj), vFanins );
    Wlc_NtkForEachCo( p, pObj, i )
        Wlc_ObjSetCo( pNew, Wlc_ObjCopyObj(pNew, p, pObj), pObj->fIsFi );
    if ( p->vInits )
    pNew->vInits = Vec_IntDup( p->vInits );
    if ( p->pInits )
    pNew->pInits = Abc_UtilStrsav( p->pInits );
    Vec_IntFree( vFanins );
    if ( p->pSpec )
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    return pNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Wlc_NtkDupSingleNodes()

Wlc_Ntk_t * Wlc_NtkDupSingleNodes

(

Wlc_Ntk_t *

p

)

Function*************************************************************

Synopsis [Duplicates the network by copying each node.]

Description []

SideEffects []

SeeAlso []

Definition at line 1232 of file wlcNtk.c.

{
    Wlc_Ntk_t * pNew;
    Vec_Int_t * vFanins;
    Wlc_Obj_t * pObj, * pObjNew;
    Wlc_Obj_t * pFanin, * pFaninNew;
    int i, k, iFanin, iFaninNew, iObjNew, Count = 0;
    // count objects
    Wlc_NtkForEachObj( p, pObj, i )
        if ( !Wlc_ObjIsCi(pObj) )
            Count += 1 + Wlc_ObjFaninNum(pObj);
    // copy objects
    Wlc_NtkCleanCopy( p );
    vFanins = Vec_IntAlloc( 100 );
    pNew = Wlc_NtkAlloc( p->pName, p->nObjsAlloc );
    pNew->fSmtLib = p->fSmtLib;
    pNew->fAsyncRst = p->fAsyncRst;
    pNew->fMemPorts = p->fMemPorts;
    pNew->fEasyFfs = p->fEasyFfs;
    Wlc_NtkForEachObj( p, pObj, i )
    {
        if ( Wlc_ObjIsCi(pObj) )
            continue;
        if ( pObj->Type == WLC_OBJ_ARI_MULTI )
            continue;
        if ( pObj->Type == WLC_OBJ_MUX && Wlc_ObjFaninNum(pObj) > 3 )
            continue;
        // create CIs for the fanins
        Wlc_ObjForEachFanin( pObj, iFanin, k )
        {
            pFanin = Wlc_NtkObj(p, iFanin);
            iFaninNew = Wlc_ObjAlloc( pNew, WLC_OBJ_PI, pFanin->Signed, pFanin->End, pFanin->Beg );
            pFaninNew = Wlc_NtkObj(pNew, iFaninNew);
            Wlc_ObjSetCopy( p, iFanin, iFaninNew );
            //Wlc_ObjSetCi( pNew, pFaninNew );
        }
        // create object
        iObjNew = Wlc_ObjDup( pNew, p, i, vFanins );
        pObjNew = Wlc_NtkObj(pNew, iObjNew);
        pObjNew->fIsPo = 1;
        Vec_IntPush( &pNew->vPos, iObjNew );
    }
    Vec_IntFree( vFanins );
    Wlc_NtkTransferNames( pNew, p );
    if ( p->pSpec )
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    return pNew;
}

Here is the call graph for this function:

Wlc_NtkFree()

void Wlc_NtkFree

(

Wlc_Ntk_t *

p

)

Definition at line 253 of file wlcNtk.c.

{
    if ( p->pManName )
        Abc_NamStop( p->pManName );
    if ( p->pMemFanin )
        Mem_FlexStop( p->pMemFanin, 0 );
    if ( p->pMemTable )
        Mem_FlexStop( p->pMemTable, 0 );
    ABC_FREE( p->vPoPairs.pArray );
    Vec_PtrFreeP( &p->vTables );
    Vec_WrdFreeP( &p->vLutTruths );
    ABC_FREE( p->vPis.pArray );
    ABC_FREE( p->vPos.pArray );
    ABC_FREE( p->vCis.pArray );
    ABC_FREE( p->vCos.pArray );
    ABC_FREE( p->vFfs.pArray );
    ABC_FREE( p->vFfs2.pArray );
    Vec_IntFreeP( &p->vInits );
    Vec_IntFreeP( &p->vArsts );
    ABC_FREE( p->vTravIds.pArray );
    ABC_FREE( p->vNameIds.pArray );
    ABC_FREE( p->vValues.pArray );
    ABC_FREE( p->vCopies.pArray );
    ABC_FREE( p->vBits.pArray );
    ABC_FREE( p->vLevels.pArray );
    ABC_FREE( p->vRefs.pArray );
    ABC_FREE( p->pInits );
    ABC_FREE( p->pObjs );
    ABC_FREE( p->pName );
    ABC_FREE( p->pSpec );
    ABC_FREE( p );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Wlc_NtkMarkCone()

void Wlc_NtkMarkCone	(	Wlc_Ntk_t *	p,
		int	iCoId,
		int	Range,
		int	fSeq,
		int	fAllPis )

Definition at line 1181 of file wlcNtk.c.

{
    Vec_Int_t * vFlops;
    Wlc_Obj_t * pObj;
    int i, CiId, CoId;
    Wlc_NtkCleanMarks( p );
    if ( fAllPis )
    Wlc_NtkForEachPi( p, pObj, i )
        pObj->Mark = 1;
    vFlops = Vec_IntAlloc( 100 );
    Wlc_NtkForEachCo( p, pObj, i )
        if ( iCoId == -1 || (i >= iCoId && i < iCoId + Range) )
            Wlc_NtkMarkCone_rec( p, pObj, vFlops );
    if ( fSeq )
    Vec_IntForEachEntry( vFlops, CiId, i )
    {
        CoId = Wlc_NtkPoNum(p) + CiId - Wlc_NtkPiNum(p);
        Wlc_NtkMarkCone_rec( p, Wlc_NtkCo(p, CoId), vFlops );
    }
    Vec_IntFree( vFlops );
}

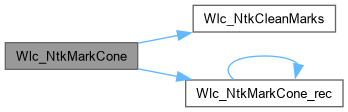

Here is the call graph for this function:

Here is the caller graph for this function:

Wlc_NtkMarkCone_rec()

void Wlc_NtkMarkCone_rec	(	Wlc_Ntk_t *	p,
		Wlc_Obj_t *	pObj,
		Vec_Int_t *	vFlops )

Definition at line 1166 of file wlcNtk.c.

{
    int i, iFanin;
    if ( pObj->Mark )
        return;
    pObj->Mark = 1;
    if ( Wlc_ObjIsCi(pObj) )
    {
        if ( !Wlc_ObjIsPi(pObj) )
            Vec_IntPush( vFlops, Wlc_ObjCiId(pObj) );
        return;
    }
    Wlc_ObjForEachFanin( pObj, iFanin, i ) if ( iFanin )
        Wlc_NtkMarkCone_rec( p, Wlc_NtkObj(p, iFanin), vFlops );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Wlc_NtkMemUsage()

int Wlc_NtkMemUsage

(

Wlc_Ntk_t *

p

)

Definition at line 285 of file wlcNtk.c.

{
    int Mem = sizeof(Wlc_Ntk_t);
    Mem += 4 * p->vPis.nCap;
    Mem += 4 * p->vPos.nCap;
    Mem += 4 * p->vCis.nCap;
    Mem += 4 * p->vCos.nCap;
    Mem += 4 * p->vFfs.nCap;
    Mem += 4 * p->vFfs2.nCap;
    Mem += sizeof(Wlc_Obj_t) * p->nObjsAlloc;
    Mem += Abc_NamMemUsed(p->pManName);
    Mem += Mem_FlexReadMemUsage(p->pMemFanin);
    return Mem;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Wlc_NtkNewName()

char * Wlc_NtkNewName	(	Wlc_Ntk_t *	p,
		int	iCoId,
		int	fSeq )

Definition at line 847 of file wlcNtk.c.

{
    static char pBuffer[1000];
    sprintf( pBuffer, "%s_o%d_%s", p->pName, iCoId, fSeq ? "seq": "comb" );
    return pBuffer;
}

Here is the call graph for this function:

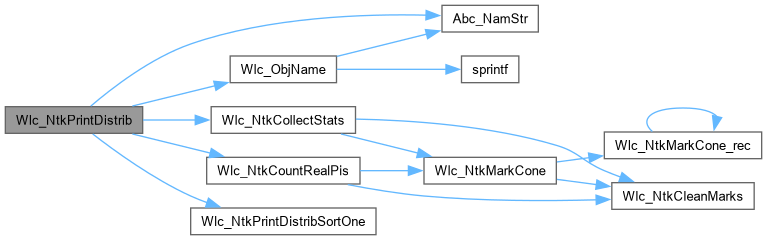

Wlc_NtkPrintDistrib()

void Wlc_NtkPrintDistrib	(	Wlc_Ntk_t *	p,
		int	fTwoSides,
		int	fVerbose )

Definition at line 510 of file wlcNtk.c.

{
    int nObjs[2][WLC_OBJ_NUMBER] = {{0}}; // counter of objects of each type
    Wlc_Obj_t * pObj, * pObjRange = NULL; int nCountRange = 0;
    Vec_Ptr_t * vTypes, * vOccurs;
    Vec_Int_t * vAnds = Vec_IntStart( WLC_OBJ_NUMBER );
    word Sign = 0;
    int i, k, s, s0, s1;
    if ( Wlc_NtkPoNum(p) != 2 )
        fTwoSides = 0;
    if ( fTwoSides )
        Wlc_NtkCollectStats( p, nObjs );
    // allocate statistics arrays
    vTypes  = Vec_PtrStart( WLC_OBJ_NUMBER );
    vOccurs = Vec_PtrStart( WLC_OBJ_NUMBER );
    for ( i = 0; i < WLC_OBJ_NUMBER; i++ )
        Vec_PtrWriteEntry( vTypes, i, Vec_WrdAlloc(16) );
    for ( i = 0; i < WLC_OBJ_NUMBER; i++ )
        Vec_PtrWriteEntry( vOccurs, i, Vec_WrdAlloc(16) );
    // add nodes
    Wlc_NtkForEachObj( p, pObj, i )
    {
//        char * pName = Wlc_ObjName(p, i);
        if ( Wlc_ObjSign(pObj) > 0x1FFFFF )
            printf( "Object %6d has range %d, which is reduced to %d in the statistics.\n",
                i, Wlc_ObjRange(pObj), Wlc_ObjRange(pObj) & 0xFFFFF );
        if ( pObj->Beg )
        {
            if ( pObjRange == NULL )
                pObjRange = pObj;
            nCountRange++;
        }
        // 0-input types
        if ( Wlc_ObjIsCi(pObj) || pObj->Type == WLC_OBJ_CONST || pObj->Type == WLC_OBJ_BIT_CONCAT )
            Sign = Wlc_NtkPrintDistribMakeSign( Wlc_ObjSign(pObj), 0, 0 );
        // 1-input types
        else if ( pObj->Type == WLC_OBJ_BUF    || pObj->Type == WLC_OBJ_BIT_SELECT  || pObj->Type == WLC_OBJ_TABLE ||
             pObj->Type == WLC_OBJ_BIT_ZEROPAD || pObj->Type == WLC_OBJ_BIT_SIGNEXT ||
             pObj->Type == WLC_OBJ_BIT_NOT     || pObj->Type == WLC_OBJ_LOGIC_NOT   || pObj->Type == WLC_OBJ_ARI_MINUS )
            Sign = Wlc_NtkPrintDistribMakeSign( Wlc_ObjSign(pObj), Wlc_ObjSign(Wlc_ObjFanin0(p, pObj)), 0 );
        // 2-input types (including MUX)
        else if ( Wlc_ObjFaninNum(pObj) == 0 )
            printf( "Object %d with name \"%s\" has type 0. Looks like it was declared by not defined...\n", i, Wlc_ObjName(p, i) );
        else if ( Wlc_ObjFaninNum(pObj) == 1 )
            Sign = Wlc_NtkPrintDistribMakeSign( Wlc_ObjSign(pObj), Wlc_ObjSign(Wlc_ObjFanin0(p, pObj)), 0 );
        else
        {
            assert( Wlc_ObjFaninNum(pObj) >= 2 );
            Sign = Wlc_NtkPrintDistribMakeSign( Wlc_ObjSign(pObj), Wlc_ObjFaninId(pObj, 0) ? Wlc_ObjSign(Wlc_ObjFanin0(p, pObj)) : 0, Wlc_ObjFaninId(pObj, 1) ? Wlc_ObjSign(Wlc_ObjFanin1(p, pObj)) : 0 );
        }
        // add to storage
        Wlc_NtkPrintDistribAddOne( vTypes, vOccurs, pObj->Type, Sign );
        // count the number of AIG nodes
        if ( pObj->Type == WLC_OBJ_MUX )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_MUX,      3 * Wlc_ObjRange(pObj) * (Wlc_ObjFaninNum(pObj) - 2) );
        else if ( pObj->Type == WLC_OBJ_SHIFT_R )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_SHIFT_R,  Abc_MinInt(Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)), Abc_Base2Log(Wlc_ObjRange(pObj))) * 3 );
        else if ( pObj->Type == WLC_OBJ_SHIFT_RA )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_SHIFT_RA, Wlc_ObjRange(pObj) * Abc_MinInt(Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)), Abc_Base2Log(Wlc_ObjRange(pObj))) * 3 );
        else if ( pObj->Type == WLC_OBJ_SHIFT_L )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_SHIFT_L,  Wlc_ObjRange(pObj) * Abc_MinInt(Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)), Abc_Base2Log(Wlc_ObjRange(pObj))) * 3 );
        else if ( pObj->Type == WLC_OBJ_SHIFT_LA )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_SHIFT_LA, Wlc_ObjRange(pObj) * Abc_MinInt(Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)), Abc_Base2Log(Wlc_ObjRange(pObj))) * 3 );
        else if ( pObj->Type == WLC_OBJ_ROTATE_R )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_ROTATE_R, Wlc_ObjRange(pObj) * Abc_MinInt(Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)), Abc_Base2Log(Wlc_ObjRange(pObj))) * 3 );
        else if ( pObj->Type == WLC_OBJ_ROTATE_L )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_ROTATE_L, Wlc_ObjRange(pObj) * Abc_MinInt(Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)), Abc_Base2Log(Wlc_ObjRange(pObj))) * 3 );
        else if ( pObj->Type == WLC_OBJ_BIT_NOT )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_BIT_NOT, 0 );
        else if ( pObj->Type == WLC_OBJ_BIT_AND )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_BIT_AND,      Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) );
        else if ( pObj->Type == WLC_OBJ_BIT_OR )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_BIT_OR,       Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) );
        else if ( pObj->Type == WLC_OBJ_BIT_XOR )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_BIT_XOR,  3 * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) );
        else if ( pObj->Type == WLC_OBJ_BIT_NAND )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_BIT_NAND,     Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) );
        else if ( pObj->Type == WLC_OBJ_BIT_NOR )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_BIT_NOR,      Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) );
        else if ( pObj->Type == WLC_OBJ_BIT_NXOR )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_BIT_NXOR, 3 * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) );
        else if ( pObj->Type == WLC_OBJ_BIT_SELECT )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_BIT_SELECT, 0 );
        else if ( pObj->Type == WLC_OBJ_BIT_CONCAT )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_BIT_CONCAT, 0 );
        else if ( pObj->Type == WLC_OBJ_BIT_ZEROPAD )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_BIT_ZEROPAD, 0 );
        else if ( pObj->Type == WLC_OBJ_BIT_SIGNEXT )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_BIT_SIGNEXT, 0 );
        else if ( pObj->Type == WLC_OBJ_LOGIC_NOT )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_LOGIC_NOT,        Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) - 1 );
        else if ( pObj->Type == WLC_OBJ_LOGIC_IMPL )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_LOGIC_IMPL,       Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) + Wlc_ObjRange(Wlc_ObjFanin1(p, pObj)) - 1 );
        else if ( pObj->Type == WLC_OBJ_LOGIC_AND )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_LOGIC_AND,        Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) + Wlc_ObjRange(Wlc_ObjFanin1(p, pObj)) - 1 );
        else if ( pObj->Type == WLC_OBJ_LOGIC_OR )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_LOGIC_OR,         Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) + Wlc_ObjRange(Wlc_ObjFanin1(p, pObj)) - 1 );
        else if ( pObj->Type == WLC_OBJ_LOGIC_XOR )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_LOGIC_XOR,        Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) + Wlc_ObjRange(Wlc_ObjFanin1(p, pObj)) + 1 );
        else if ( pObj->Type == WLC_OBJ_COMP_EQU )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_COMP_EQU,     4 * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) - 1 );
        else if ( pObj->Type == WLC_OBJ_COMP_NOTEQU )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_COMP_NOTEQU,  4 * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) - 1 );
        else if ( pObj->Type == WLC_OBJ_COMP_LESS )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_COMP_LESS,    6 * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) - 6 );
        else if ( pObj->Type == WLC_OBJ_COMP_MORE )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_COMP_MORE,    6 * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) - 6 );
        else if ( pObj->Type == WLC_OBJ_COMP_LESSEQU )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_COMP_LESSEQU, 6 * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) - 6 );
        else if ( pObj->Type == WLC_OBJ_COMP_MOREEQU )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_COMP_MOREEQU, 6 * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) - 6 );
        else if ( pObj->Type == WLC_OBJ_REDUCT_AND )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_REDUCT_AND,       Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) - 1 );
        else if ( pObj->Type == WLC_OBJ_REDUCT_OR )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_REDUCT_OR,        Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) - 1 );
        else if ( pObj->Type == WLC_OBJ_REDUCT_XOR )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_REDUCT_XOR,   3 * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) - 3 );
        else if ( pObj->Type == WLC_OBJ_REDUCT_NAND )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_REDUCT_NAND,      Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) - 1 );
        else if ( pObj->Type == WLC_OBJ_REDUCT_NOR )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_REDUCT_NOR,       Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) - 1 );
        else if ( pObj->Type == WLC_OBJ_REDUCT_NXOR )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_REDUCT_NXOR,  3 * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) - 3 );
        else if ( pObj->Type == WLC_OBJ_ARI_ADD )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_ARI_ADD,      9 * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) );
        else if ( pObj->Type == WLC_OBJ_ARI_SUB )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_ARI_SUB,      9 * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) );
        else if ( pObj->Type == WLC_OBJ_ARI_MULTI )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_ARI_MULTI,    9 * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) * Wlc_ObjRange(Wlc_ObjFanin1(p, pObj)) );
        else if ( pObj->Type == WLC_OBJ_ARI_DIVIDE )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_ARI_DIVIDE,  13 * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) - 19 * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) + 10 );
        else if ( pObj->Type == WLC_OBJ_ARI_REM )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_ARI_REM,     13 * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) - 7 * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) - 2  );
        else if ( pObj->Type == WLC_OBJ_ARI_MODULUS )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_ARI_MODULUS, 13 * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) - 7 * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) - 2  );
        else if ( pObj->Type == WLC_OBJ_ARI_POWER )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_ARI_POWER,   10 * (int)pow((double)Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)),(double)Wlc_ObjRange(Wlc_ObjFanin0(p, pObj))) );
        else if ( pObj->Type == WLC_OBJ_ARI_MINUS )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_ARI_MINUS,    4 * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) );
        else if ( pObj->Type == WLC_OBJ_ARI_SQRT )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_ARI_SQRT,    11 * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) / 8 + 5 * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) / 2 - 5  );
        else if ( pObj->Type == WLC_OBJ_ARI_SQUARE )
            Vec_IntAddToEntry( vAnds, WLC_OBJ_ARI_SQUARE,   5 * Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)) * Wlc_ObjRange(Wlc_ObjFanin1(p, pObj))  );
    }
    if ( nCountRange && Vec_IntSize(&p->vNameIds) > 0 )
    {
        printf( "Warning: %d objects of the design have non-zero-based ranges.\n", nCountRange );
        printf( "In particular, object %6d with name \"%s\" has range %d=[%d:%d]\n", Wlc_ObjId(p, pObjRange),
            Abc_NamStr(p->pManName, Wlc_ObjNameId(p, Wlc_ObjId(p, pObjRange))), Wlc_ObjRange(pObjRange), pObjRange->End, pObjRange->Beg );
    }
    // print by occurrence
    printf( "ID  :  name  occurrence%s    and2 (occurrence)<output_range>=<input_range>.<input_range> ...\n", fTwoSides ? "     Left Share Right":"" );
    for ( i = 0; i < WLC_OBJ_NUMBER; i++ )
    {
        Vec_Wrd_t * vType  = (Vec_Wrd_t *)Vec_PtrEntry( vTypes, i );
        Vec_Wrd_t * vOccur = (Vec_Wrd_t *)Vec_PtrEntry( vOccurs, i );
        if ( p->nObjs[i] == 0 )
            continue;
        printf( "%2d  :  %-8s  %6d", i, Wlc_Names[i], p->nObjs[i] );
        if ( fTwoSides )
        {
            int nTotal = i == WLC_OBJ_PI ? Wlc_NtkCountRealPis(p) : p->nObjs[i];
            printf( "   " );
            printf( "%6d", nObjs[0][i] );
            printf( "%6d", nObjs[0][i]+nObjs[1][i]-nTotal );
            printf( "%6d", nObjs[1][i] );
        }
        printf( "%8d ", Vec_IntEntry(vAnds, i) );
        // sort by occurence
        Wlc_NtkPrintDistribSortOne( vTypes, vOccurs, i );
        Vec_WrdForEachEntry( vType, Sign, k )
        {
            Wlc_NtkPrintDistribFromSign( Sign, &s, &s0, &s1 );
            if ( ((k % 6) == 5 && s1) || ((k % 8) == 7 && !s1) )
            {
                printf( "\n                                " );
                if ( fTwoSides )
                    printf( "                     " );
            }
            printf( "(%d)", (int)Vec_WrdEntry( vOccur, k ) );
            printf( "%s%d",      Abc_LitIsCompl(s)?"-":"",  Abc_Lit2Var(s) );
            if ( s0 )
                printf( "=%s%d", Abc_LitIsCompl(s0)?"-":"", Abc_Lit2Var(s0) );
            if ( s1 )
                printf( ".%s%d", Abc_LitIsCompl(s1)?"-":"", Abc_Lit2Var(s1) );
            printf( " " );
        }
        printf( "\n" );
    }
    Vec_VecFree( (Vec_Vec_t *)vTypes );
    Vec_VecFree( (Vec_Vec_t *)vOccurs );
    Vec_IntFree( vAnds );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Wlc_NtkPrintDistribSortOne()

void Wlc_NtkPrintDistribSortOne	(	Vec_Ptr_t *	vTypes,
		Vec_Ptr_t *	vOccurs,
		int	Type )

Definition at line 502 of file wlcNtk.c.

{
    Vec_Wrd_t * vType  = (Vec_Wrd_t *)Vec_PtrEntry( vTypes, Type );
    Vec_Wrd_t * vOccur = (Vec_Wrd_t *)Vec_PtrEntry( vOccurs, Type );
    Vec_WrdSelectSortCost2( Vec_WrdArray(vType), Vec_WrdSize(vType), Vec_WrdArray(vOccur) );
    Vec_WrdReverseOrder( vType );
    Vec_WrdReverseOrder( vOccur );
}

Here is the caller graph for this function:

Wlc_NtkPrintNode()

void Wlc_NtkPrintNode	(	Wlc_Ntk_t *	p,
		Wlc_Obj_t *	pObj )

Definition at line 703 of file wlcNtk.c.

{
    printf( "%8d  :  ", Wlc_ObjId(p, pObj) );
    if ( Vec_IntSize(&p->vLevels) )
        printf( "Lev = %2d  ", Vec_IntEntry(&p->vLevels, Wlc_ObjId(p,pObj)) );
    printf( "%6d%s = ", Wlc_ObjRange(pObj), Wlc_ObjIsSigned(pObj) ? "s" : " " );
    if ( pObj->Type == WLC_OBJ_PI )
    {
        printf( "            PI                   :    %-12s\n", Wlc_ObjName(p, Wlc_ObjId(p, pObj)) );
        return;
    }
    if ( pObj->Type == WLC_OBJ_FO )
    {
        printf( "            FO                   :    %-12s = %-12s\n", Wlc_ObjName(p, Wlc_ObjId(p, pObj)), Wlc_ObjName(p, Wlc_ObjId(p, Wlc_ObjFo2Fi(p, pObj))) );
        return;
    }
    if ( pObj->Type != WLC_OBJ_CONST && Wlc_ObjFaninNum(pObj) == 0 )
    {
        printf( "Unknown object without fanins    :    %-12s\n", Wlc_ObjName(p, Wlc_ObjId(p, pObj)) );
        return;
    }
    if ( pObj->Type != WLC_OBJ_CONST )
    {
        printf( "%6d%s  %5s  ",  Wlc_ObjRange(Wlc_ObjFanin0(p, pObj)), Wlc_ObjIsSigned(Wlc_ObjFanin0(p, pObj)) ? "s" : " ", Wlc_Names[(int)pObj->Type] );
        if ( Wlc_ObjFaninNum(pObj) > 1 )
            printf( "%6d%s ",       Wlc_ObjRange(Wlc_ObjFanin1(p, pObj)), Wlc_ObjIsSigned(Wlc_ObjFanin1(p, pObj)) ? "s" : " " );
        else
            printf( "        " );
        if ( Wlc_ObjFaninNum(pObj) > 2 )
            printf( "%6d%s ",       Wlc_ObjRange(Wlc_ObjFanin2(p, pObj)), Wlc_ObjIsSigned(Wlc_ObjFanin2(p, pObj)) ? "s" : " " );
        else
            printf( "        " );
    }
    else
        printf( "                                " );
    printf( " :    " );
    printf( "%-12s",   Wlc_ObjName(p, Wlc_ObjId(p, pObj)) );
    if ( pObj->Type == WLC_OBJ_CONST )
    {
        printf( " = %d\'%sh", Wlc_ObjRange(pObj), Wlc_ObjIsSigned(pObj) ? "s":"" );
        if ( pObj->fXConst )
        {
            int k;
            for ( k = 0; k < (Wlc_ObjRange(pObj) + 3) / 4; k++ )
                printf( "x" );
        }
        else
            Abc_TtPrintHexArrayRev( stdout, (word *)Wlc_ObjConstValue(pObj), (Wlc_ObjRange(pObj) + 3) / 4 );
    }
    else
    {
        printf( " =  %-12s  %5s  ", Wlc_ObjName(p, Wlc_ObjFaninId0(pObj)), Wlc_Names[(int)pObj->Type] );
        if ( Wlc_ObjFaninNum(pObj) > 1 )
            printf( "%-12s ",       Wlc_ObjName(p, Wlc_ObjFaninId1(pObj)) );
        else
            printf( "             " );
        if ( Wlc_ObjFaninNum(pObj) > 2 )
            printf( "%-12s ",       Wlc_ObjName(p, Wlc_ObjFaninId2(pObj)) );
    }
    printf( "\n" );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Wlc_NtkPrintNodeArray()

void Wlc_NtkPrintNodeArray	(	Wlc_Ntk_t *	p,
		Vec_Int_t *	vArray )

Definition at line 764 of file wlcNtk.c.

{
    Wlc_Obj_t * pObj;
    int i;
    Wlc_NtkForEachObjVec( vArray, p, pObj, i )
        Wlc_NtkPrintNode( p, pObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Wlc_NtkPrintNodes()

void Wlc_NtkPrintNodes	(	Wlc_Ntk_t *	p,
		int	Type )

Definition at line 771 of file wlcNtk.c.

{
    Wlc_Obj_t * pObj;
    int i, Counter = 0;
    printf( "Operation %s\n", Wlc_Names[Type] );
    Wlc_NtkForEachObj( p, pObj, i )
    {
        if ( (int)pObj->Type != Type )
            continue;
        printf( "%8d  :", Counter++ );
        Wlc_NtkPrintNode( p, pObj );
    }
}

Here is the call graph for this function:

Wlc_NtkPrintObjects()

void Wlc_NtkPrintObjects

(

Wlc_Ntk_t *

p

)

Definition at line 812 of file wlcNtk.c.

{
    Wlc_Obj_t * pObj; int i;
    Wlc_NtkForEachObj( p, pObj, i )
        Wlc_NtkPrintNode( p, pObj );
}

Here is the call graph for this function:

Wlc_NtkPrintStats()

void Wlc_NtkPrintStats	(	Wlc_Ntk_t *	p,
		int	fDistrib,
		int	fTwoSides,
		int	fVerbose )

Definition at line 784 of file wlcNtk.c.

{
    int i;
    printf( "%-20s : ",        p->pName );
    printf( "PI = %4d  ",      Wlc_NtkCountRealPis(p) ); //Wlc_NtkPiNum(p) );
    printf( "PO = %4d  ",      Wlc_NtkPoNum(p) );
    printf( "FF = %4d  ",      Wlc_NtkFfNum(p) );
    printf( "Obj = %6d  ",     Wlc_NtkObjNum(p) - Wlc_NtkPiNum(p) - Wlc_NtkPoNum(p) - Wlc_NtkFfNum(p) );
    printf( "Mem = %.3f MB",   1.0*Wlc_NtkMemUsage(p)/(1<<20) );
    printf( "\n" );
    if ( fDistrib )
    {
        Wlc_NtkPrintDistrib( p, fTwoSides, fVerbose );
        return;
    }
    if ( !fVerbose )
        return;
    printf( "Node type statistics:\n" );
    for ( i = 1; i < WLC_OBJ_NUMBER; i++ )
    {
        if ( !p->nObjs[i] )
            continue;
        if ( p->nAnds[0] && p->nAnds[i] )
            printf( "%2d  :  %-8s  %6d  %7.2f %%\n", i, Wlc_Names[i], p->nObjs[i], 100.0*p->nAnds[i]/p->nAnds[0] );
        else
            printf( "%2d  :  %-8s  %6d\n", i, Wlc_Names[i], p->nObjs[i] );
    }
}

Here is the call graph for this function:

Wlc_NtkProfileCones()

void Wlc_NtkProfileCones

(

Wlc_Ntk_t *

p

)

Definition at line 1202 of file wlcNtk.c.

{
    Wlc_Obj_t * pObj;
    int i, nPis, nFos, nNodes, nAdders, nMults;
    Wlc_NtkForEachCo( p, pObj, i )
    {
        Wlc_NtkMarkCone( p, i, 1, 0, 0 );
        nNodes = Wlc_NtkCountMarked( p, &nPis, &nFos, &nAdders, &nMults );
        printf( "Cone %5d : ", i );
        printf( "PI = %4d  ", nPis );
        printf( "FO = %4d  ", nFos );
        printf( "Node = %6d  ", nNodes );
        printf( "Add/Sub = %4d  ", nAdders );
        printf( "Mult = %4d  ", nMults );
        printf( "\n" );
    }
    Wlc_NtkCleanMarks( p );
}

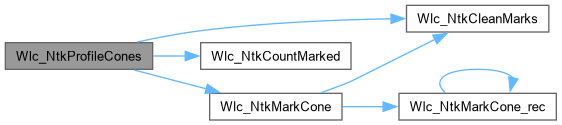

Here is the call graph for this function:

Wlc_NtkRemapLevels()

int Wlc_NtkRemapLevels	(	Wlc_Ntk_t *	p,
		Vec_Int_t *	vObjs,
		int	nLevels )

Definition at line 387 of file wlcNtk.c.

{
    int i, k, iFanin, iObj, Entry, Level = 0, Res = nLevels;
    Vec_Int_t * vMap  = Vec_IntStart( nLevels+1 );
    Vec_Int_t * vUsed = Vec_IntStart( nLevels+1 );
    // mark used levels
    Vec_IntWriteEntry( vUsed, nLevels, 1 );
    Vec_IntForEachEntry( vObjs, iObj, i )
    {
        Vec_IntWriteEntry( vUsed, Wlc_ObjLevelId(p, iObj), 1 );
        Wlc_ObjForEachFanin( Wlc_NtkObj(p, iObj), iFanin, k ) if ( iFanin )
            Vec_IntWriteEntry( vUsed, Wlc_ObjLevelId(p, iFanin), 1 );
    }
    // create level map
    Vec_IntForEachEntry( vUsed, Entry, i )
        if ( Entry )
            Vec_IntWriteEntry( vMap, i, Level++ );
    //printf( "Total used levels %d -> %d\n", nLevels, Level );
    // remap levels
    Vec_IntForEachEntry( &p->vLevels, Level, i )
    {
        if ( Vec_IntEntry(vUsed, Level) )
            Vec_IntWriteEntry( &p->vLevels, i, Vec_IntEntry(vMap, Level) );
        else
            Vec_IntWriteEntry( &p->vLevels, i, -1 );
    }
    Res = Vec_IntEntry( vMap, nLevels );
    Vec_IntFree( vUsed );
    Vec_IntFree( vMap );
    return Res;
}

Here is the caller graph for this function:

Wlc_NtkSetRefs()

void Wlc_NtkSetRefs

(

Wlc_Ntk_t *

p

)

Function*************************************************************

Synopsis [Create references.]

Description []

SideEffects []

SeeAlso []

Definition at line 1373 of file wlcNtk.c.

{
    Wlc_Obj_t * pObj; int i, k, Fanin;
    Vec_IntFill( &p->vRefs, Wlc_NtkObjNumMax(p), 0 );
    Wlc_NtkForEachObj( p, pObj, i )
        Wlc_ObjForEachFanin( pObj, Fanin, k )
            Vec_IntAddToEntry( &p->vRefs, Fanin, 1 );
    Wlc_NtkForEachCo( p, pObj, i )
        Vec_IntAddToEntry( &p->vRefs, Wlc_ObjId(p, pObj), 1 );
}

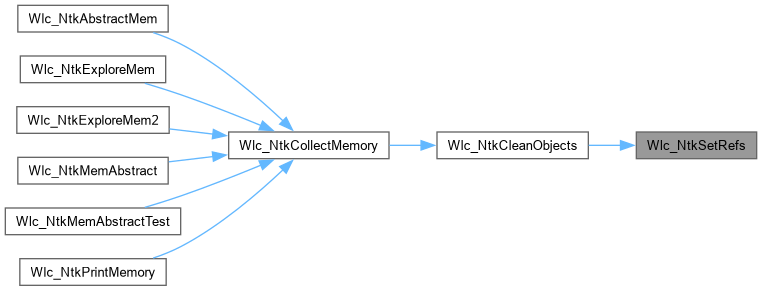

Here is the caller graph for this function:

Wlc_NtkShortNames()

void Wlc_NtkShortNames

(

Wlc_Ntk_t *

p

)

Function*************************************************************

Synopsis [Creates short names for all objects.]

Description []

SideEffects []

SeeAlso []

Definition at line 1292 of file wlcNtk.c.

{
    Wlc_Obj_t * pObj;
    char pBuffer[1000];
    int NameId, fFound, i;
    int nFlops = Wlc_NtkCoNum(p) - Wlc_NtkPoNum(p);
    unsigned char nDigits = (unsigned char)Abc_Base10Log( nFlops );
    Wlc_NtkForEachCo( p, pObj, i )
    {
        if ( Wlc_ObjIsPo(pObj) )
            continue;
        sprintf( pBuffer, "%s%0*d", "fi", nDigits, i - Wlc_NtkPoNum(p) );
        NameId = Abc_NamStrFindOrAdd( p->pManName, pBuffer, &fFound );
        Wlc_ObjSetNameId( p, Wlc_ObjId(p, pObj), NameId );
    }
    Wlc_NtkForEachCi( p, pObj, i )
    {
        if ( Wlc_ObjIsPi(pObj) )
            continue;
        sprintf( pBuffer, "%s%0*d", "fo", nDigits, i - Wlc_NtkPiNum(p) );
        NameId = Abc_NamStrFindOrAdd( p->pManName, pBuffer, &fFound );
        Wlc_ObjSetNameId( p, Wlc_ObjId(p, pObj), NameId );
    }
    nDigits = Abc_Base10Log( Wlc_NtkPoNum(p) );
    Wlc_NtkForEachPo( p, pObj, i )
    {
        sprintf( pBuffer, "%s%0*d", "po", nDigits, i );
        NameId = Abc_NamStrFindOrAdd( p->pManName, pBuffer, &fFound );
        Wlc_ObjSetNameId( p, Wlc_ObjId(p, pObj), NameId );
    }
    nDigits = Abc_Base10Log( Wlc_NtkPiNum(p) );
    Wlc_NtkForEachPi( p, pObj, i )
    {
        sprintf( pBuffer, "%s%0*d", "pi", nDigits, i );
        NameId = Abc_NamStrFindOrAdd( p->pManName, pBuffer, &fFound );
        Wlc_ObjSetNameId( p, Wlc_ObjId(p, pObj), NameId );
    }
    nDigits = Abc_Base10Log( Wlc_NtkObjNum(p) );
    Wlc_NtkForEachObj( p, pObj, i )
    {
        if ( Wlc_ObjIsCi(pObj) || Wlc_ObjIsCo(pObj) )
            continue;
        sprintf( pBuffer, "%s%0*d", "n", nDigits, i );
        NameId = Abc_NamStrFindOrAdd( p->pManName, pBuffer, &fFound );
        Wlc_ObjSetNameId( p, Wlc_ObjId(p, pObj), NameId );
    }
}

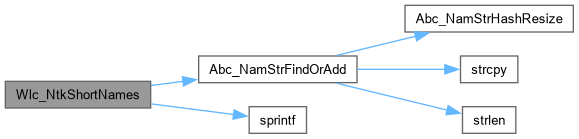

Here is the call graph for this function:

Wlc_NtkTransferNames()

void Wlc_NtkTransferNames	(	Wlc_Ntk_t *	pNew,
		Wlc_Ntk_t *	p )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 830 of file wlcNtk.c.

{
    int i;
    assert( !Wlc_NtkHasCopy(pNew)   && Wlc_NtkHasCopy(p)   );
    assert( !Wlc_NtkHasNameId(pNew) && Wlc_NtkHasNameId(p) );
    assert( pNew->pManName  == NULL && p->pManName != NULL );
    Wlc_NtkCleanNameId( pNew );
    for ( i = 0; i < p->nObjsAlloc; i++ )
        if ( Wlc_ObjCopy(p, i) > 0 && i < Vec_IntSize(&p->vNameIds) && Wlc_ObjNameId(p, i) )
            Wlc_ObjSetNameId( pNew, Wlc_ObjCopy(p, i), Wlc_ObjNameId(p, i) );
    pNew->pManName = p->pManName;
    p->pManName = NULL;
    Vec_IntErase( &p->vNameIds );
    // transfer table
    pNew->pMemTable = p->pMemTable;  p->pMemTable = NULL;
    pNew->vTables = p->vTables;      p->vTables = NULL;
}

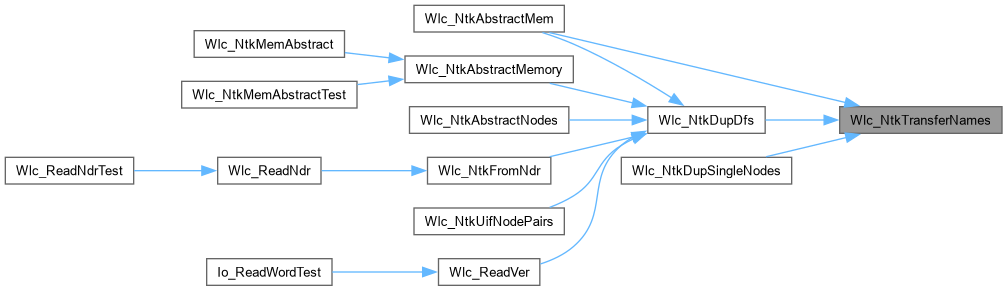

Here is the caller graph for this function:

Wlc_ObjAddFanins()

void Wlc_ObjAddFanins	(	Wlc_Ntk_t *	p,
		Wlc_Obj_t *	pObj,
		Vec_Int_t *	vFanins )

Definition at line 240 of file wlcNtk.c.

{
    assert( pObj->nFanins == 0 );
    pObj->nFanins = Vec_IntSize(vFanins);
    // special treatment of CONST, SELECT and TABLE
    if ( pObj->Type == WLC_OBJ_CONST )
        pObj->nFanins = 0;
    else if ( pObj->Type == WLC_OBJ_BIT_SELECT || pObj->Type == WLC_OBJ_TABLE )
        pObj->nFanins = 1;
    if ( Wlc_ObjHasArray(pObj) )
        pObj->pFanins[0] = (int *)Mem_FlexEntryFetch( p->pMemFanin, Vec_IntSize(vFanins) * sizeof(int) );
    memcpy( Wlc_ObjFanins(pObj), Vec_IntArray(vFanins), sizeof(int) * Vec_IntSize(vFanins) );
}

Here is the call graph for this function:

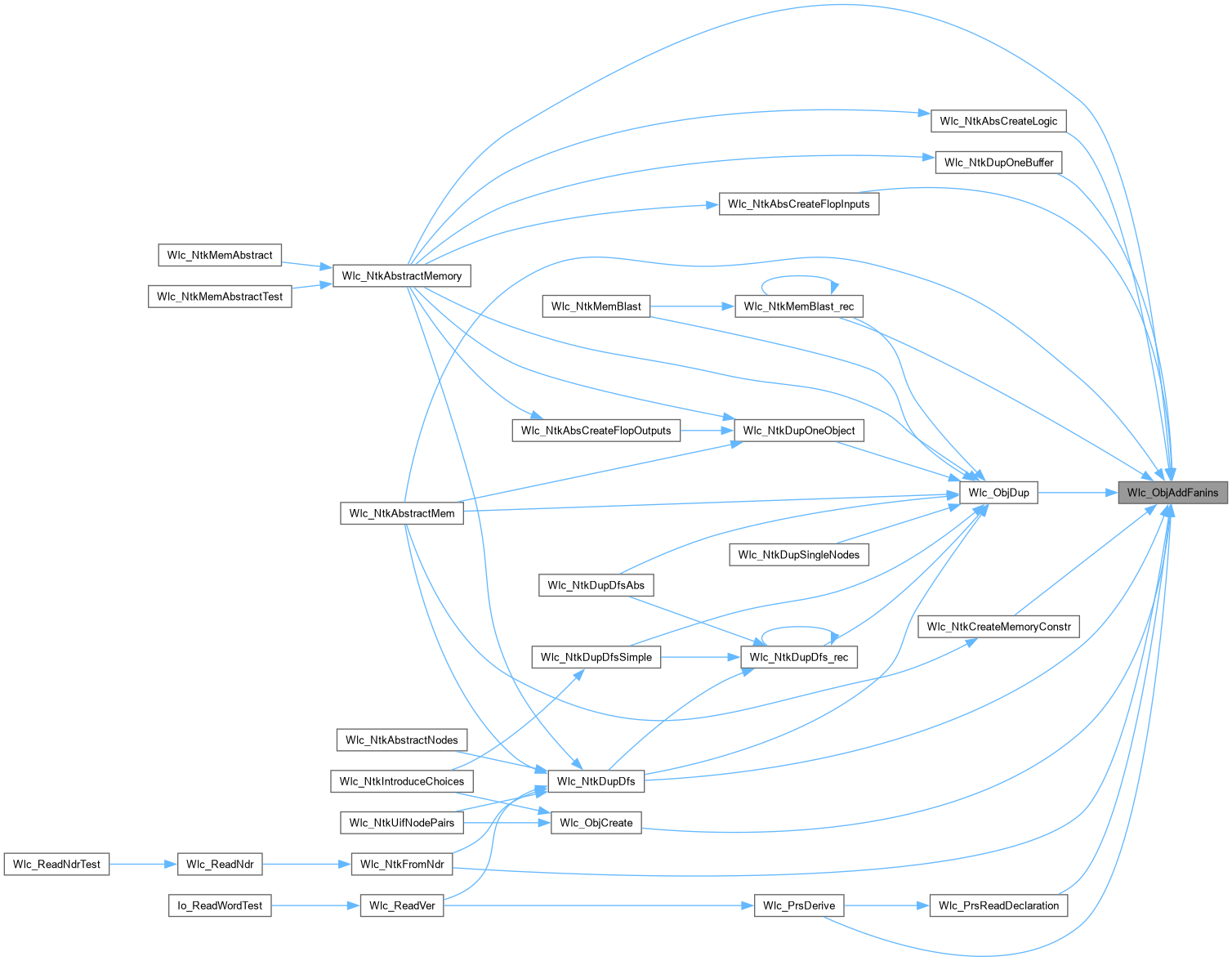

Here is the caller graph for this function:

Wlc_ObjAlloc()

int Wlc_ObjAlloc	(	Wlc_Ntk_t *	p,
		int	Type,
		int	Signed,
		int	End,
		int	Beg )

Definition at line 199 of file wlcNtk.c.

{
    Wlc_Obj_t * pObj;
    assert( Type != WLC_OBJ_PO && Type != WLC_OBJ_FI );
    if ( p->iObj == p->nObjsAlloc )
    {
        p->pObjs = ABC_REALLOC( Wlc_Obj_t, p->pObjs, 2 * p->nObjsAlloc );
        memset( p->pObjs + p->nObjsAlloc, 0, sizeof(Wlc_Obj_t) * p->nObjsAlloc );
        p->nObjsAlloc *= 2;
    }
    pObj = Wlc_NtkObj( p, p->iObj );
    pObj->Type   = Type;
    pObj->Signed = Signed;
    pObj->End    = End;
    pObj->Beg    = Beg;
    if ( Wlc_ObjIsCi(pObj) )
        Wlc_ObjSetCi( p, pObj );
    p->nObjs[Type]++;
    return p->iObj++;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Wlc_ObjCollectCopyFanins()

void Wlc_ObjCollectCopyFanins	(	Wlc_Ntk_t *	p,
		int	iObj,
		Vec_Int_t *	vFanins )

Function*************************************************************

Synopsis [Duplicates the network in a topological order.]

Description []

SideEffects []

SeeAlso []

Definition at line 904 of file wlcNtk.c.

{
    int i, iFanin;
    Wlc_Obj_t * pObj = Wlc_NtkObj( p, iObj );
    Vec_IntClear( vFanins );
    Wlc_ObjForEachFanin( pObj, iFanin, i )
        Vec_IntPush( vFanins, Wlc_ObjCopy(p, iFanin) );
    // special treatment of CONST and SELECT
    if ( pObj->Type == WLC_OBJ_CONST )
    {
        int * pInts = Wlc_ObjConstValue( pObj );
        int nInts = Abc_BitWordNum( Wlc_ObjRange(pObj) );
        for ( i = 0; i < nInts; i++ )
            Vec_IntPush( vFanins, pInts[i] );
    }
    else if ( pObj->Type == WLC_OBJ_BIT_SELECT )
    {
        assert( Vec_IntSize(vFanins) == 1 );
        Vec_IntPushTwo( vFanins, Wlc_ObjRangeEnd(pObj), Wlc_ObjRangeBeg(pObj) );
    }
    else if ( pObj->Type == WLC_OBJ_TABLE )
    {
        assert( Vec_IntSize(vFanins) == 1 );
        Vec_IntPush( vFanins, pObj->Fanins[1] );
    }
}

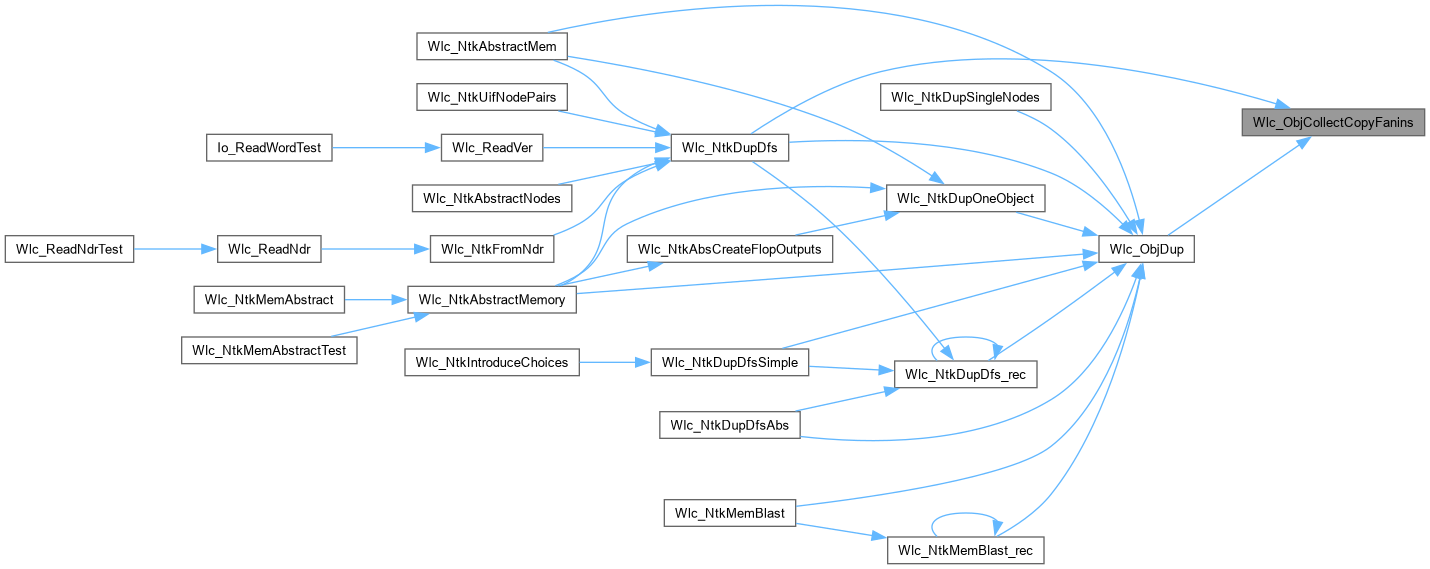

Here is the caller graph for this function:

Wlc_ObjCreate()

int Wlc_ObjCreate	(	Wlc_Ntk_t *	p,
		int	Type,
		int	Signed,
		int	End,
		int	Beg,
		Vec_Int_t *	vFanins )

Definition at line 219 of file wlcNtk.c.

{
    int iFaninNew = Wlc_ObjAlloc( p, Type, Signed, End, Beg );
    Wlc_ObjAddFanins( p, Wlc_NtkObj(p, iFaninNew), vFanins );
    return iFaninNew;
}

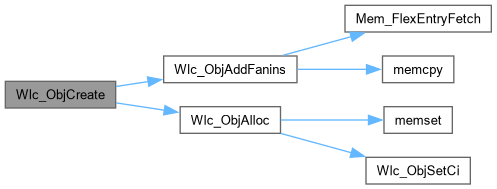

Here is the call graph for this function:

Here is the caller graph for this function:

Wlc_ObjDup()

int Wlc_ObjDup	(	Wlc_Ntk_t *	pNew,
		Wlc_Ntk_t *	p,
		int	iObj,
		Vec_Int_t *	vFanins )

Definition at line 930 of file wlcNtk.c.

{
    Wlc_Obj_t * pObj = Wlc_NtkObj( p, iObj );
    int iFaninNew = Wlc_ObjAlloc( pNew, pObj->Type, Wlc_ObjIsSigned(pObj), pObj->End, pObj->Beg );
    Wlc_Obj_t * pObjNew = Wlc_NtkObj(pNew, iFaninNew);
    Wlc_ObjCollectCopyFanins( p, iObj, vFanins );
    Wlc_ObjAddFanins( pNew, pObjNew, vFanins );
    Wlc_ObjSetCopy( p, iObj, iFaninNew );
    pObjNew->fXConst = pObj->fXConst;
    return iFaninNew;
}

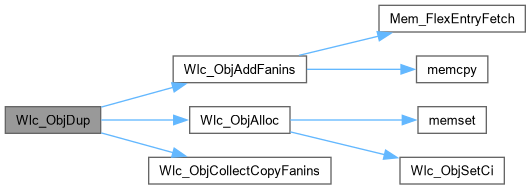

Here is the call graph for this function:

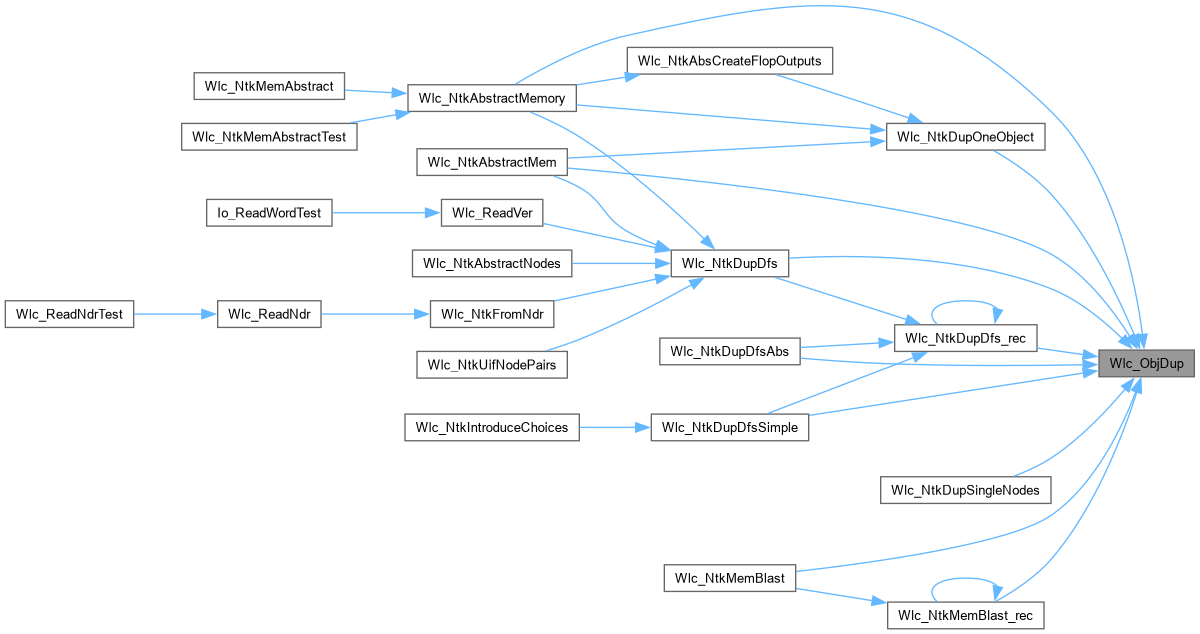

Here is the caller graph for this function:

Wlc_ObjName()

char * Wlc_ObjName	(	Wlc_Ntk_t *	p,
		int	iObj )

Definition at line 225 of file wlcNtk.c.

{
    static char Buffer[100];
    if ( Wlc_NtkHasNameId(p) && Wlc_ObjNameId(p, iObj) )
        return Abc_NamStr( p->pManName, Wlc_ObjNameId(p, iObj) );
    sprintf( Buffer, "n%d", iObj );
    return Buffer;
}

Here is the call graph for this function:

Here is the caller graph for this function:

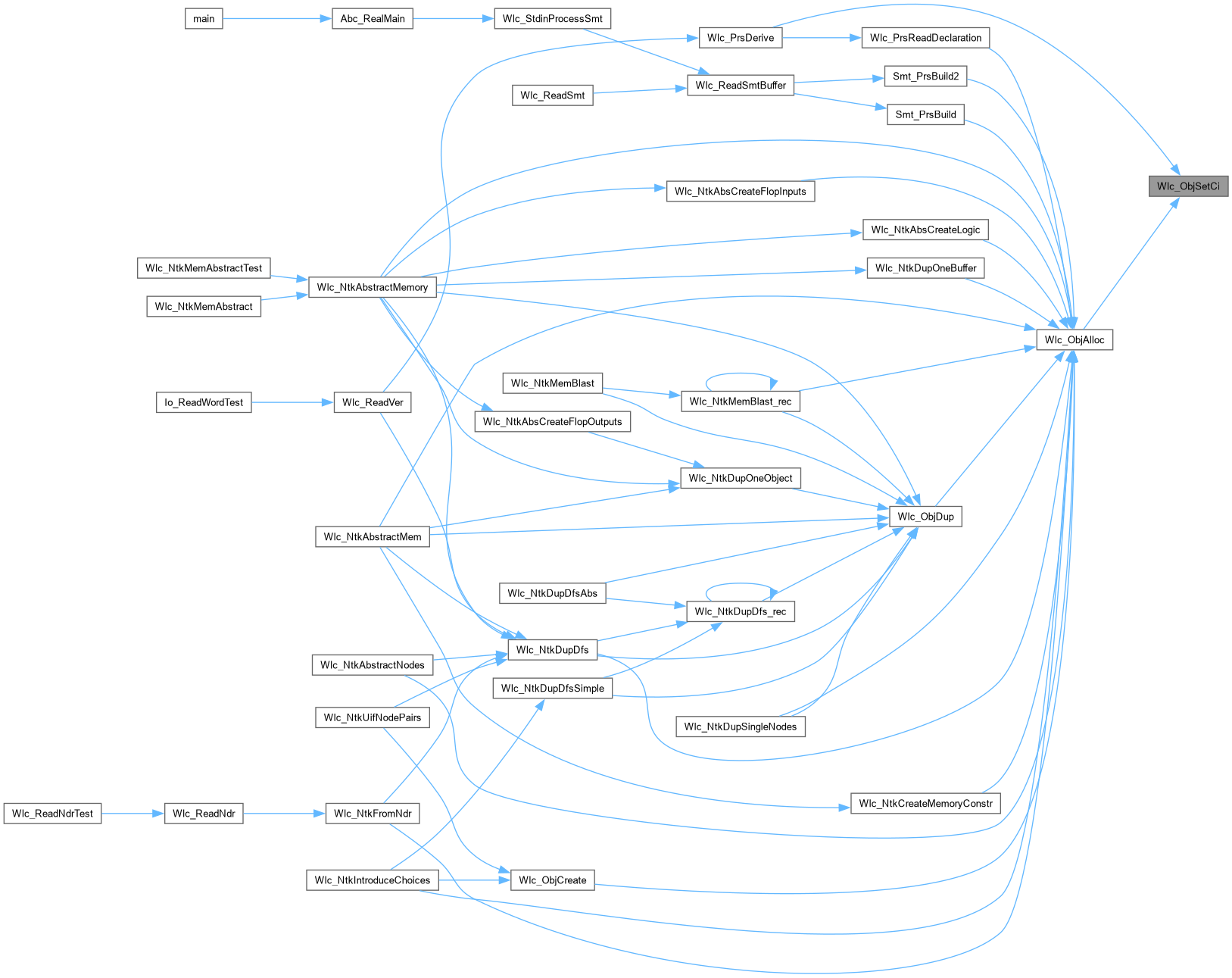

Wlc_ObjSetCi()

void Wlc_ObjSetCi	(	Wlc_Ntk_t *	p,
		Wlc_Obj_t *	pObj )

Definition at line 168 of file wlcNtk.c.

{
    assert( Wlc_ObjIsCi(pObj) );
    assert( Wlc_ObjFaninNum(pObj) == 0 );
    if ( Wlc_NtkPiNum(p) == Wlc_NtkCiNum(p) || pObj->Type != WLC_OBJ_PI )
    {
        pObj->Fanins[1] = Vec_IntSize(&p->vCis);
        Vec_IntPush( &p->vCis, Wlc_ObjId(p, pObj) );
    }
    else // insert in the array of CI at the end of PIs
    {
        Wlc_Obj_t * pTemp; int i;
        Vec_IntInsert( &p->vCis, Wlc_NtkPiNum(p), Wlc_ObjId(p, pObj) );
        // other CI IDs are invalidated... naive fix!
        Wlc_NtkForEachCi( p, pTemp, i )
            pTemp->Fanins[1] = i;
    }
    if ( pObj->Type == WLC_OBJ_PI )
        Vec_IntPush( &p->vPis, Wlc_ObjId(p, pObj) );
}

Here is the caller graph for this function:

Wlc_ObjSetCo()

void Wlc_ObjSetCo	(	Wlc_Ntk_t *	p,
		Wlc_Obj_t *	pObj,
		int	fFlopInput )

Definition at line 188 of file wlcNtk.c.

{
//    pObj->Fanins[1] = Vec_IntSize(&p->vCos);
    Vec_IntPush( &p->vCos, Wlc_ObjId(p, pObj) );
    if ( !fFlopInput )
        Vec_IntPush( &p->vPos, Wlc_ObjId(p, pObj) );
    if ( fFlopInput )
        pObj->fIsFi = 1;
    else
        pObj->fIsPo = 1;
}

Here is the caller graph for this function:

Wlc_ObjTypeName()

char * Wlc_ObjTypeName

(

Wlc_Obj_t *

p

)

Definition at line 97 of file wlcNtk.c.

{ return p ? (p->Type < WLC_OBJ_NUMBER ? Wlc_Names[p->Type] : (char *)"out_of_bound") : (char *)"no_obj"; }

Here is the caller graph for this function:

Wlc_ObjUpdateType()

void Wlc_ObjUpdateType	(	Wlc_Ntk_t *	p,
		Wlc_Obj_t *	pObj,
		int	Type )

Definition at line 233 of file wlcNtk.c.

{
    assert( pObj->Type == WLC_OBJ_NONE );
    p->nObjs[pObj->Type]--;
    pObj->Type = Type;
    p->nObjs[pObj->Type]++;
}

Here is the caller graph for this function:

Wlc_ReduceMarkedInitStr()

char * Wlc_ReduceMarkedInitStr	(	Wlc_Ntk_t *	p,
		char *	pInit )

Definition at line 876 of file wlcNtk.c.

{
    char * pInitNew = Abc_UtilStrsav( pInit );
    Wlc_Obj_t * pObj; int i, b, nBits = 0, k = 0;
    Wlc_NtkForEachCi( p, pObj, i )
    {
        if ( !Wlc_ObjIsPi(pObj) && pObj->Mark )
            for ( b = 0; b < Wlc_ObjRange(pObj); b++ )
                pInitNew[k++] = pInitNew[nBits+b];
        if ( !Wlc_ObjIsPi(pObj) )
            nBits += Wlc_ObjRange(pObj);
    }
    pInitNew[k] = '\0';
    assert( nBits == (int)strlen(pInit) );
    return pInitNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Wlc_ReduceMarkedInitVec()

Vec_Int_t * Wlc_ReduceMarkedInitVec	(	Wlc_Ntk_t *	p,
		Vec_Int_t *	vInit )

Function*************************************************************

Synopsis [Reduce init vector.]

Description []

SideEffects []

SeeAlso []

Definition at line 865 of file wlcNtk.c.

{
    Vec_Int_t * vInitNew = Vec_IntDup( vInit );
    Wlc_Obj_t * pObj; int i, k = 0;
    assert( Vec_IntSize(vInit) == Wlc_NtkCiNum(p) - Wlc_NtkPiNum(p) );
    Wlc_NtkForEachCi( p, pObj, i )
        if ( !Wlc_ObjIsPi(pObj) && pObj->Mark )
            Vec_IntWriteEntry( vInitNew, k++, Vec_IntEntry(vInit, i - Wlc_NtkPiNum(p)) );
    Vec_IntShrink( vInitNew, k );
    return vInitNew;
}

Here is the caller graph for this function:
