wlcSim.c File Reference

#include "wlc.h"

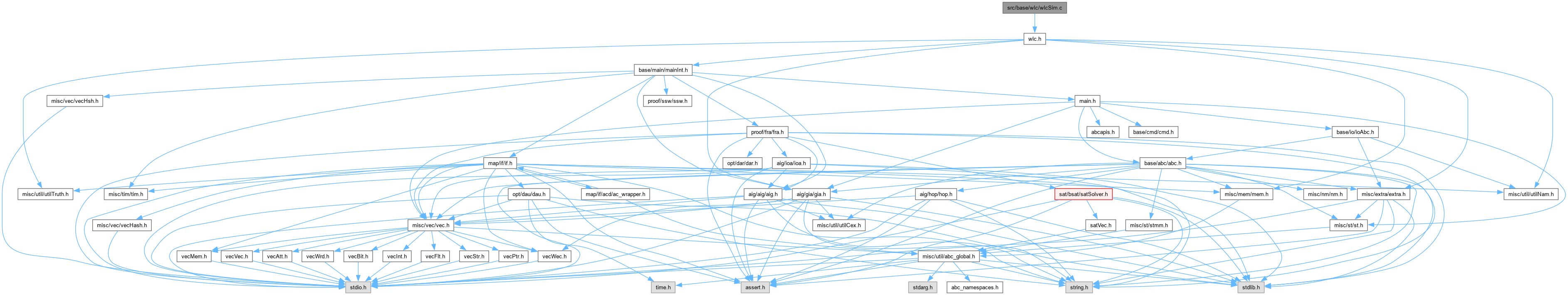

Include dependency graph for wlcSim.c:

Go to the source code of this file.

Functions
void	Wlc_NtkDeleteSim (Vec_Ptr_t *p)
Vec_Ptr_t *	Wlc_NtkSimulate (Wlc_Ntk_t *p, Vec_Int_t *vNodes, int nWords, int nFrames)
void	Wlc_NtkSimulatePrint (Wlc_Ntk_t *p, Vec_Int_t *vNodes, Vec_Ptr_t *vRes, int nWords, int nFrames)
void	Wlc_NtkSimulateTest (Wlc_Ntk_t *p)

Function Documentation

Wlc_NtkDeleteSim()

void Wlc_NtkDeleteSim

(

Vec_Ptr_t *

p

)

Function*************************************************************

Synopsis [Performs simulation of a word-level network.]

Description [Returns vRes, a 2D array of simulation information for the output of each bit of each object listed in vNodes. In particular, Vec_Ptr_t * vSimObj = (Vec_Ptr_t *)Vec_PtrEntry(vRes, iObj) and Vec_Ptr_t * vSimObjBit = (Vec_Ptr_t *)Vec_PtrEntry(vSimObj, iBit) are arrays containing the simulation info for each object (vSimObj) and for each output bit of this object (vSimObjBit). Alternatively, Vec_Ptr_t * vSimObjBit = Vec_VecEntryEntry( (Vec_Vec_t *)vRes, iObj, iBit ). The output bitwidth of an object is Wlc_ObjRange( Wlc_NtkObj(pNtk, iObj) ). Simulation information is binary data constaining the given number (nWords) of 64-bit machine words for the given number (nFrames) of consecutive timeframes. The total number of timeframes is nWords * nFrames for each bit of each object.]

SideEffects []

SeeAlso []

Definition at line 120 of file wlcSim.c.

{
    word * pInfo; int i, k;
    Vec_Vec_t * vVec = (Vec_Vec_t *)p;
    Vec_VecForEachEntry( word *, vVec, pInfo, i, k )
        ABC_FREE( pInfo );
    Vec_VecFree( vVec );
}

Here is the caller graph for this function:

Wlc_NtkSimulate()

Vec_Ptr_t * Wlc_NtkSimulate	(	Wlc_Ntk_t *	p,
		Vec_Int_t *	vNodes,
		int	nWords,
		int	nFrames )

Definition at line 128 of file wlcSim.c.

{
    Gia_Obj_t * pObj;
    Vec_Ptr_t * vOne, * vRes;
    Gia_Man_t * pGia = Wlc_NtkBitBlast( p, NULL );
    Wlc_Obj_t * pWlcObj;
    int f, i, k, w, nBits, Counter = 0;
    // allocate simulation info for one timeframe
    Vec_WrdFreeP( &pGia->vSims );
    pGia->vSims = Vec_WrdStart( Gia_ManObjNum(pGia) * nWords );
    pGia->nSimWords = nWords;
    // allocate resulting simulation info
    vRes = Vec_PtrAlloc( Vec_IntSize(vNodes) );
    Wlc_NtkForEachObjVec( vNodes, p, pWlcObj, i )
    {
        nBits = Wlc_ObjRange(pWlcObj);
        vOne = Vec_PtrAlloc( nBits );
        for ( k = 0; k < nBits; k++ )
            Vec_PtrPush( vOne, ABC_CALLOC(word, nWords * nFrames) );
        Vec_PtrPush( vRes, vOne );
    }
    // perform simulation (const0 and flop outputs are already initialized)
    Gia_ManRandomW( 1 );
    for ( f = 0; f < nFrames; f++ )
    {
        Gia_ManForEachObj1( pGia, pObj, i )
        {
            if ( Gia_ObjIsAnd(pObj) )
                Wlc_ObjSimAnd( pGia, i );
            else if ( Gia_ObjIsCo(pObj) )
                Wlc_ObjSimCo( pGia, i );
            else if ( Gia_ObjIsPi(pGia, pObj) )
                Wlc_ObjSimPi( pGia, i );
            else if ( Gia_ObjIsRo(pGia, pObj) )
                Wlc_ObjSimRo( pGia, i );
        }
        // collect simulation data
        Wlc_NtkForEachObjVec( vNodes, p, pWlcObj, i )
        {
            int nBits = Wlc_ObjRange(pWlcObj);
            int iFirst = Vec_IntEntry( &p->vCopies, Wlc_ObjId(p, pWlcObj) );
            for ( k = 0; k < nBits; k++ )
            {
                int iLit = Vec_IntEntry( &p->vBits, iFirst + k );
                word * pInfo = (word*)Vec_VecEntryEntry( (Vec_Vec_t *)vRes, i, k );
                if ( iLit == -1 )
                {
                    Counter++;
                    for ( w = 0; w < nWords; w++ )
                        pInfo[f * nWords + w] = 0;
                }
                else
                {
                    word * pInfoObj = Wlc_ObjSim( pGia, Abc_Lit2Var(iLit) );
                    for ( w = 0; w < nWords; w++ )
                        pInfo[f * nWords + w] = Abc_LitIsCompl(iLit) ? ~pInfoObj[w] : pInfoObj[w];
                }
            }
        }
        if ( f == 0 && Counter )
            printf( "Replaced %d dangling internal bits with constant 0.\n", Counter );
    }
    Vec_WrdFreeP( &pGia->vSims );
    pGia->nSimWords = 0;
    Gia_ManStop( pGia );
    return vRes;
}

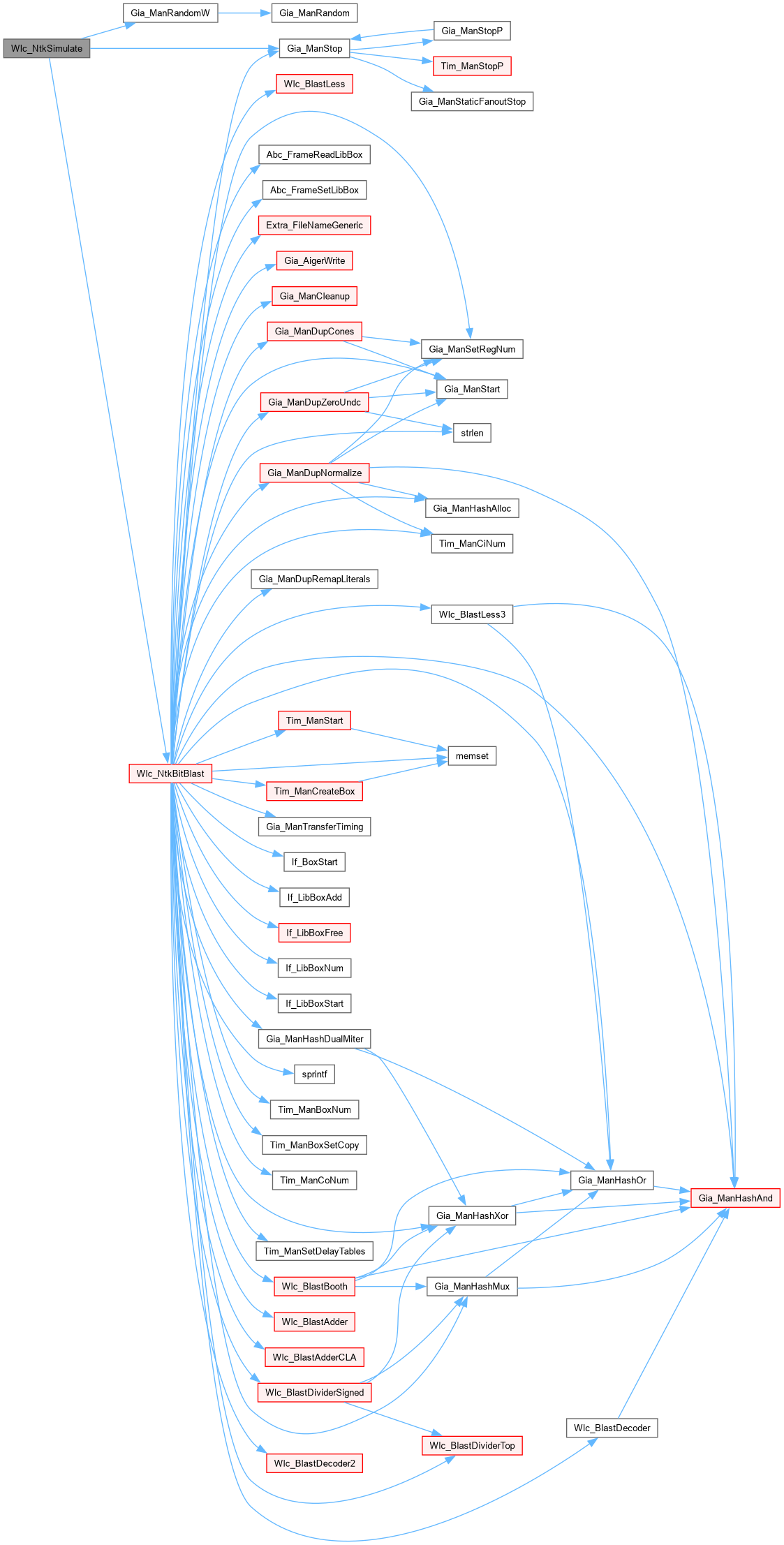

Here is the call graph for this function:

Here is the caller graph for this function:

Wlc_NtkSimulatePrint()

void Wlc_NtkSimulatePrint	(	Wlc_Ntk_t *	p,
		Vec_Int_t *	vNodes,
		Vec_Ptr_t *	vRes,
		int	nWords,
		int	nFrames )

Function*************************************************************

Synopsis [Testing procedure.]

Description [This testing procedure assumes that the WLC network has one node, which is a multiplier. It simulates the node and checks the word-level interpretation of the bit-level simulation info to make sure that it indeed represents multiplication.]

SideEffects []

SeeAlso []

Definition at line 210 of file wlcSim.c.

{
    Wlc_Obj_t * pWlcObj;
    int f, w, b, i, k, iPat = 0;
    for ( f = 0; f < nFrames; f++, printf("\n") )
      for ( w = 0; w < nWords; w++ )
        for ( b = 0; b < 64; b++, iPat++, printf("\n") )
        {
            Wlc_NtkForEachObjVec( vNodes, p, pWlcObj, i )
            {
                int nBits = Wlc_ObjRange(pWlcObj);
                for ( k = nBits-1; k >= 0; k-- )
                {
                    word * pInfo = (word*)Vec_VecEntryEntry( (Vec_Vec_t *)vRes, i, k );
                    printf( "%d", Abc_InfoHasBit((unsigned *)pInfo, iPat) );
                }
                printf( " " );
            }
        }
}

Here is the caller graph for this function:

Wlc_NtkSimulateTest()

void Wlc_NtkSimulateTest

(

Wlc_Ntk_t *

p

)

Definition at line 230 of file wlcSim.c.

{
    int nWords = 2;
    int nFrames = 2;
    Vec_Ptr_t * vRes;
    Vec_Int_t * vNodes = Vec_IntAlloc( 3 );
    Vec_IntPush( vNodes, 1 );
    Vec_IntPush( vNodes, 2 );
    Vec_IntPush( vNodes, 3 );
    vRes = Wlc_NtkSimulate( p, vNodes, nWords, nFrames );
    Wlc_NtkSimulatePrint( p, vNodes, vRes, nWords, nFrames );
    Wlc_NtkDeleteSim( vRes );
    Vec_IntFree( vNodes );
}

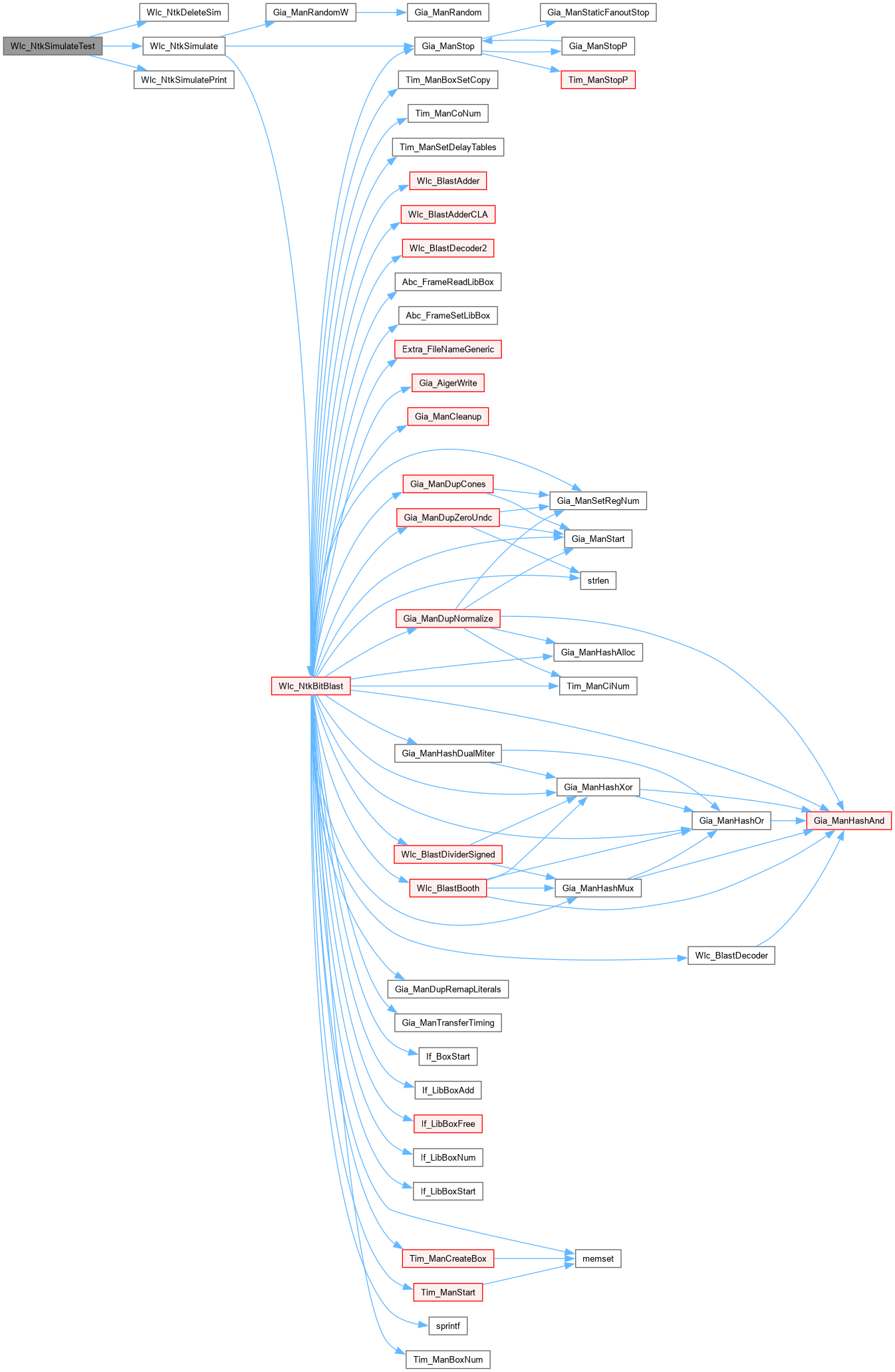

Here is the call graph for this function:
