wlnNtk.c File Reference

#include "wln.h"

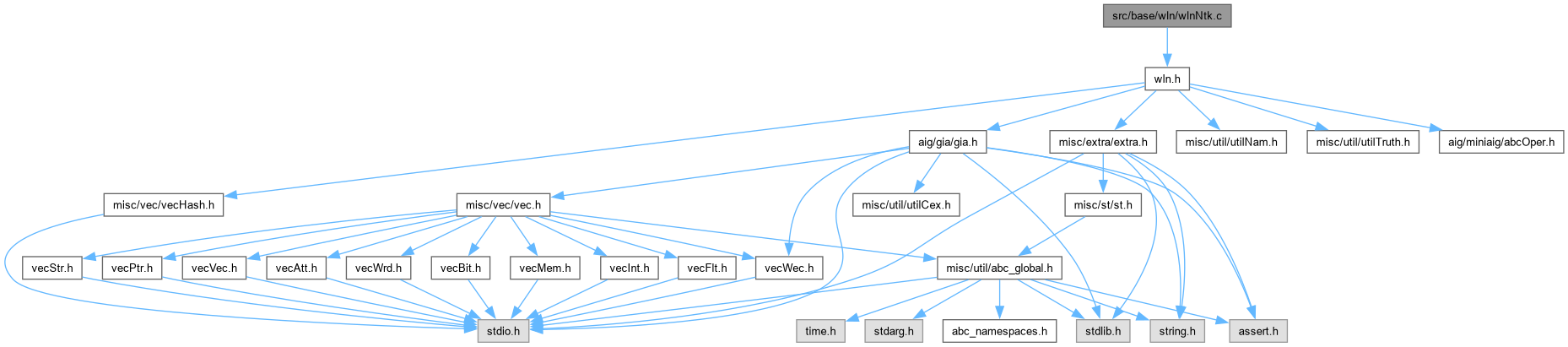

Include dependency graph for wlnNtk.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Wln_Ntk_t *	Wln_NtkAlloc (char *pName, int nObjsMax)
	DECLARATIONS ///.
void	Wln_NtkFree (Wln_Ntk_t *p)
int	Wln_NtkMemUsage (Wln_Ntk_t *p)
void	Wln_NtkPrint (Wln_Ntk_t *p)
int	Wln_NtkIsAcyclic_rec (Wln_Ntk_t *p, int iObj)
int	Wln_NtkIsAcyclic (Wln_Ntk_t *p)
void	Wln_NtkTransferNames (Wln_Ntk_t *pNew, Wln_Ntk_t *p)
int	Wln_ObjDup (Wln_Ntk_t *pNew, Wln_Ntk_t *p, int iObj)
int	Wln_NtkDupDfs_rec (Wln_Ntk_t *pNew, Wln_Ntk_t *p, int iObj)
Wln_Ntk_t *	Wln_NtkDupDfs (Wln_Ntk_t *p)
void	Wln_NtkCreateRefs (Wln_Ntk_t *p)
int	Wln_NtkFaninNum (Wln_Ntk_t *p)
void	Wln_NtkStartFaninMap (Wln_Ntk_t *p, Vec_Int_t *vFaninMap, int nMulti)
void	Wln_NtkStartFanoutMap (Wln_Ntk_t *p, Vec_Int_t *vFanoutMap, Vec_Int_t *vFanoutNums, int nMulti)
void	Wln_NtkStaticFanoutStart (Wln_Ntk_t *p)
void	Wln_NtkStaticFanoutStop (Wln_Ntk_t *p)
void	Wln_NtkStaticFanoutTest (Wln_Ntk_t *p)

Function Documentation

Wln_NtkAlloc()

ABC_NAMESPACE_IMPL_START Wln_Ntk_t * Wln_NtkAlloc	(	char *	pName,
		int	nObjsMax )

DECLARATIONS ///.

CFile****************************************************************

FileName [wlnNtk.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Word-level network.]

Synopsis [Network construction procedures.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - September 23, 2018.]

Revision [

Id

wlnNtk.c,v 1.00 2018/09/23 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Creating networks.]

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file wlnNtk.c.

{
    Wln_Ntk_t * p; int i;
    p = ABC_CALLOC( Wln_Ntk_t, 1 );
    p->pName = pName ? Extra_FileNameGeneric( pName ) : NULL;
    Vec_IntGrow( &p->vCis, 111 );
    Vec_IntGrow( &p->vCos, 111 );
    Vec_IntGrow( &p->vFfs, 111 );
    Vec_IntGrow( &p->vTypes,  nObjsMax+1 );
    Vec_StrGrow( &p->vSigns,  nObjsMax+1 );
    Vec_IntGrow( &p->vRanges, nObjsMax+1 );
    Vec_IntPush( &p->vTypes,  -1 );
    Vec_StrPush( &p->vSigns,  -1 );
    Vec_IntPush( &p->vRanges, -1 );
    p->vFanins = ABC_CALLOC( Wln_Vec_t, nObjsMax+1 );
    p->pRanges = Hash_IntManStart( 1000 );
    for ( i = 0; i < 65; i++ )
        Hash_Int2ManInsert( p->pRanges, i, i, 0 );
    for ( i = 1; i < 64; i++ )
        Hash_Int2ManInsert( p->pRanges, i, 0, 0 );
    assert( Hash_IntManEntryNum(p->pRanges) == 128 );
    return p;
}

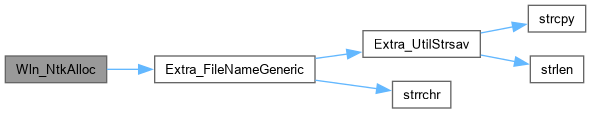

Here is the call graph for this function:

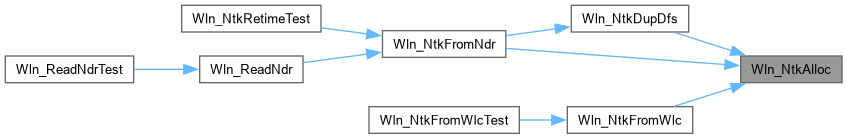

Here is the caller graph for this function:

Wln_NtkCreateRefs()

void Wln_NtkCreateRefs

(

Wln_Ntk_t *

p

)

Function*************************************************************

Synopsis [Create fanin/fanout map.]

Description []

SideEffects []

SeeAlso []

Definition at line 357 of file wlnNtk.c.

{
    int k, iObj, iFanin;
    Wln_NtkCleanRefs( p );
    Wln_NtkForEachObj( p, iObj )
        Wln_ObjForEachFanin( p, iObj, iFanin, k )
            Wln_ObjRefsInc( p, iFanin );
}

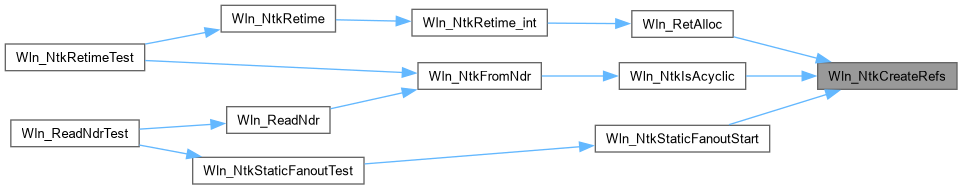

Here is the caller graph for this function:

Wln_NtkDupDfs()

Wln_Ntk_t * Wln_NtkDupDfs

(

Wln_Ntk_t *

p

)

Definition at line 325 of file wlnNtk.c.

{
    int i, k, iObj, iFanin;
    Wln_Ntk_t * pNew = Wln_NtkAlloc( p->pName, Wln_NtkObjNum(p) );
    pNew->fSmtLib = p->fSmtLib;
    if ( p->pSpec ) pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    Wln_NtkCleanCopy( p );
    Wln_NtkForEachCi( p, iObj, i )
        Wln_ObjDup( pNew, p, iObj );
    Wln_NtkForEachFf( p, iObj, i )
        Wln_ObjSetCopy( p, iObj, Wln_ObjClone(pNew, p, iObj) );
    Wln_NtkForEachCo( p, iObj, i )
        Wln_NtkDupDfs_rec( pNew, p, iObj );
    Wln_NtkForEachFf( p, iObj, i )
        Wln_ObjForEachFanin( p, iObj, iFanin, k )
            Wln_ObjAddFanin( pNew, Wln_ObjCopy(p, iObj), Wln_NtkDupDfs_rec(pNew, p, iFanin) );
    if ( Wln_NtkHasNameId(p) )
        Wln_NtkTransferNames( pNew, p );
    return pNew;
}

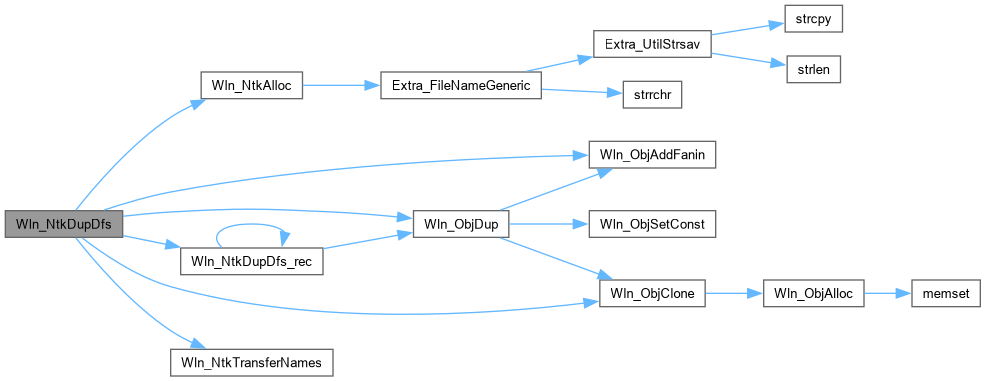

Here is the call graph for this function:

Here is the caller graph for this function:

Wln_NtkDupDfs_rec()

int Wln_NtkDupDfs_rec	(	Wln_Ntk_t *	pNew,
		Wln_Ntk_t *	p,
		int	iObj )

Definition at line 312 of file wlnNtk.c.

{
    int i, iFanin;
    if ( iObj == 0 )
        return 0;
    if ( Wln_ObjCopy(p, iObj) )
        return Wln_ObjCopy(p, iObj);
    //printf( "Visiting node %16s (ID %6d) of type %5s (type ID %2d)\n", Wln_ObjName(p, iObj), iObj, Abc_OperName(Wln_ObjType(p, iObj)), Wln_ObjType(p, iObj) );
    assert( !Wln_ObjIsFf(p, iObj) );
    Wln_ObjForEachFanin( p, iObj, iFanin, i )
        Wln_NtkDupDfs_rec( pNew, p, iFanin );
    return Wln_ObjDup( pNew, p, iObj );
}

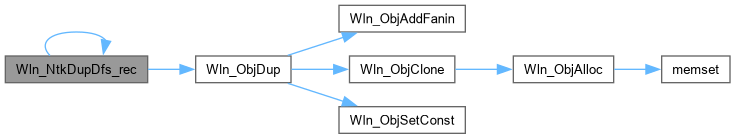

Here is the call graph for this function:

Here is the caller graph for this function:

Wln_NtkFaninNum()

int Wln_NtkFaninNum

(

Wln_Ntk_t *

p

)

Definition at line 365 of file wlnNtk.c.

{
    int iObj, nEdges = 0;
    Wln_NtkForEachObj( p, iObj )
        nEdges += Wln_ObjFaninNum(p, iObj);
    return nEdges;
}

Here is the caller graph for this function:

Wln_NtkFree()

void Wln_NtkFree

(

Wln_Ntk_t *

p

)

Definition at line 68 of file wlnNtk.c.

{
    int i;
    for ( i = 0; i < Wln_NtkObjNum(p); i++ )
        if ( Wln_ObjFaninNum(p, i) > 2 )
            ABC_FREE( p->vFanins[i].pArray[0] );
    ABC_FREE( p->vFanins );

    if ( p->pRanges )  Hash_IntManStop( p->pRanges );
    if ( p->pManName ) Abc_NamStop( p->pManName );

    ABC_FREE( p->vCis.pArray );
    ABC_FREE( p->vCos.pArray );
    ABC_FREE( p->vFfs.pArray );

    ABC_FREE( p->vTypes.pArray );
    ABC_FREE( p->vSigns.pArray );
    ABC_FREE( p->vRanges.pArray );
    ABC_FREE( p->vNameIds.pArray );
    ABC_FREE( p->vInstIds.pArray );
    ABC_FREE( p->vTravIds.pArray );
    ABC_FREE( p->vCopies.pArray );
    ABC_FREE( p->vBits.pArray );
    ABC_FREE( p->vLevels.pArray );
    ABC_FREE( p->vRefs.pArray );
    ABC_FREE( p->vFanout.pArray );
    ABC_FREE( p->vFaninAttrs.pArray );
    ABC_FREE( p->vFaninLists.pArray );

    ABC_FREE( p->pName );
    ABC_FREE( p->pSpec );
    ABC_FREE( p );
}

Here is the call graph for this function:

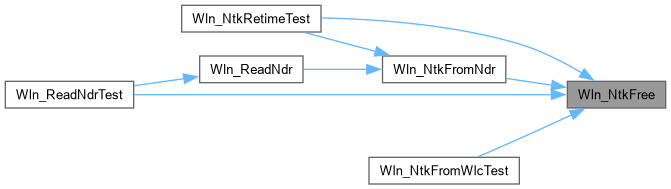

Here is the caller graph for this function:

Wln_NtkIsAcyclic()

int Wln_NtkIsAcyclic

(

Wln_Ntk_t *

p

)

Wln_ObjRefs(p, iObj) &&

Definition at line 192 of file wlnNtk.c.

{
    int fAcyclic, i, iObj, nUnvisited = 0 ;
    // set the traversal ID for this DFS ordering
    Wln_NtkIncrementTravId( p );
    Wln_NtkIncrementTravId( p );
    // iObj->TravId == pNet->nTravIds      means "iObj is on the path"
    // iObj->TravId == pNet->nTravIds - 1  means "iObj is visited but is not on the path"
    // iObj->TravId <  pNet->nTravIds - 1  means "iObj is not visited"
    // traverse the network to detect cycles
    fAcyclic = 1;
    Wln_NtkForEachCo( p, iObj, i )
    {
        // traverse the output logic cone
        if ( (fAcyclic = Wln_NtkIsAcyclic_rec(p, iObj)) )
            continue;
        // stop as soon as the first loop is detected
        fprintf( stdout, "Primary output %16s (ID %6d)\n", Wln_ObjName(p, iObj), iObj );
        goto finish;
    }
    Wln_NtkForEachFf( p, iObj, i )
    {
        // traverse the output logic cone
        if ( (fAcyclic = Wln_NtkIsAcyclic_rec(p, iObj)) )
            continue;
        // stop as soon as the first loop is detected
        fprintf( stdout, "Flip-flop %16s (ID %6d)\n", Wln_ObjName(p, iObj), iObj );
        goto finish;
    }
    Wln_NtkForEachObj( p, iObj )
        nUnvisited += !Wln_ObjIsTravIdPrevious(p, iObj) && !Wln_ObjIsCi(p, iObj);
    if ( nUnvisited )
    {
        int nSinks = 0;
        Wln_NtkCreateRefs(p);
        printf( "The network has %d objects and %d (%6.2f %%) of them are not connected to the outputs.\n",
            Wln_NtkObjNum(p), nUnvisited, 100.0*nUnvisited/Wln_NtkObjNum(p) );
        Wln_NtkForEachObj( p, iObj )
            if ( !Wln_ObjRefs(p, iObj) && !Wln_ObjIsCi(p, iObj) && !Wln_ObjIsCo(p, iObj) && !Wln_ObjIsFf(p, iObj) )
                nSinks++;
        if ( nSinks )
        {
            int nPrinted = 0;
            printf( "These unconnected objects feed into %d sink objects without fanout:\n", nSinks );
            Wln_NtkForEachObj( p, iObj )
                if ( !Wln_ObjRefs(p, iObj) && !Wln_ObjIsCi(p, iObj) && !Wln_ObjIsCo(p, iObj) && !Wln_ObjIsFf(p, iObj) )
                {
                    fprintf( stdout, "Node %16s (ID %6d) of type %5s (type ID %2d)\n",
                        Wln_ObjName(p, iObj), iObj, Abc_OperName(Wln_ObjType(p, iObj)), Wln_ObjType(p, iObj) );
                    if ( ++nPrinted == 5 )
                        break;
                }
            if ( nPrinted < nSinks )
                printf( "...\n" );
        }
        Wln_NtkForEachObj( p, iObj )
            if (  !Wln_ObjIsTravIdPrevious(p, iObj) && !Wln_ObjIsCi(p, iObj) )
            {
                // traverse the output logic cone
                if ( (fAcyclic = Wln_NtkIsAcyclic_rec(p, iObj)) )
                    continue;
                // stop as soon as the first loop is detected
                fprintf( stdout, "Unconnected object %s\n", Wln_ObjName(p, iObj) );
                goto finish;
            }
    }
finish:
    return fAcyclic;
}

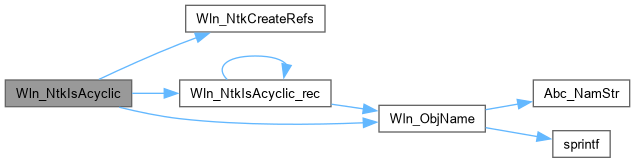

Here is the call graph for this function:

Here is the caller graph for this function:

Wln_NtkIsAcyclic_rec()

int Wln_NtkIsAcyclic_rec	(	Wln_Ntk_t *	p,
		int	iObj )

Function*************************************************************

Synopsis [Detects combinational loops.]

Description [This procedure is based on the idea suggested by Donald Chai. As we traverse the network and visit the nodes, we need to distinquish three types of nodes: (1) those that are visited for the first time, (2) those that have been visited in this traversal but are currently not on the traversal path, (3) those that have been visited and are currently on the travesal path. When the node of type (3) is encountered, it means that there is a combinational loop. To mark the three types of nodes, two new values of the traversal IDs are used.]

SideEffects []

SeeAlso []

Definition at line 152 of file wlnNtk.c.

{
    int i, iFanin;
    //printf( "Visiting node %d\n", iObj );
    // skip the node if it is already visited
    if ( Wln_ObjIsTravIdPrevious(p, iObj) )
        return 1;
    // check if the node is part of the combinational loop
    if ( Wln_ObjIsTravIdCurrent(p, iObj) )
    {
        fprintf( stdout, "Network contains combinational loop!\n" );
        fprintf( stdout, "Node %16s is encountered twice on the following path:\n", Wln_ObjName(p, iObj) );
        fprintf( stdout, "Node %16s (ID %6d) of type %5s (type ID %2d) ->\n",
            Wln_ObjName(p, iObj), iObj, Abc_OperName(Wln_ObjType(p, iObj)), Wln_ObjType(p, iObj) );
        return 0;
    }
    // mark this node as a node on the current path
    Wln_ObjSetTravIdCurrent( p, iObj );
    // quit if it is a CI or constant node
    if ( Wln_ObjIsCi(p, iObj) || Wln_ObjIsFf(p, iObj) || Wln_ObjFaninNum(p, iObj) == 0 )
    {
        // mark this node as a visited node
        Wln_ObjSetTravIdPrevious( p, iObj );
        return 1;
    }
    // traverse the fanin's cone searching for the loop
    Wln_ObjForEachFanin( p, iObj, iFanin, i )
    {
        if ( !Wln_NtkIsAcyclic_rec(p, iFanin) )
        {
            // return as soon as the loop is detected
            fprintf( stdout, "Node %16s (ID %6d) of type %5s (type ID %2d) ->\n",
                Wln_ObjName(p, iObj), iObj, Abc_OperName(Wln_ObjType(p, iObj)), Wln_ObjType(p, iObj) );
            return 0;
        }
    }
    // mark this node as a visited node
    Wln_ObjSetTravIdPrevious( p, iObj );
    return 1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Wln_NtkMemUsage()

int Wln_NtkMemUsage

(

Wln_Ntk_t *

p

)

Definition at line 101 of file wlnNtk.c.

{
    int Mem = sizeof(Wln_Ntk_t);
    Mem += 4 * p->vCis.nCap;
    Mem += 4 * p->vCos.nCap;
    Mem += 4 * p->vFfs.nCap;
    Mem += 1 * p->vTypes.nCap;
    Mem += 4 * p->vRanges.nCap;
    Mem += 4 * p->vNameIds.nCap;
    Mem += 4 * p->vInstIds.nCap;
    Mem += 4 * p->vTravIds.nCap;
    Mem += 4 * p->vCopies.nCap;
    Mem += 4 * p->vBits.nCap;
    Mem += 4 * p->vLevels.nCap;
    Mem += 4 * p->vRefs.nCap;
    Mem += 4 * p->vFanout.nCap;
    Mem += 4 * p->vFaninAttrs.nCap;
    Mem += 4 * p->vFaninLists.nCap;
    Mem += 20 * Hash_IntManEntryNum(p->pRanges);
    Mem += Abc_NamMemUsed(p->pManName);
    return Mem;
}

Here is the call graph for this function:

Wln_NtkPrint()

void Wln_NtkPrint

(

Wln_Ntk_t *

p

)

Definition at line 123 of file wlnNtk.c.

{
    int iObj;
    printf( "Printing %d objects of network \"%s\":\n", Wln_NtkObjNum(p), p->pName );
    Wln_NtkForEachObj( p, iObj )
        Wln_ObjPrint( p, iObj );
    printf( "\n" );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Wln_NtkStartFaninMap()

void Wln_NtkStartFaninMap	(	Wln_Ntk_t *	p,
		Vec_Int_t *	vFaninMap,
		int	nMulti )

Definition at line 372 of file wlnNtk.c.

{
    int iObj, iOffset = Wln_NtkObjNum(p);
    Vec_IntFill( vFaninMap, iOffset + nMulti * Wln_NtkFaninNum(p), 0 );
    Wln_NtkForEachObj( p, iObj )
    {
        Vec_IntWriteEntry( vFaninMap, iObj, iOffset );
        iOffset += nMulti * Wln_ObjFaninNum(p, iObj);
    }
    assert( iOffset == Vec_IntSize(vFaninMap) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Wln_NtkStartFanoutMap()

void Wln_NtkStartFanoutMap	(	Wln_Ntk_t *	p,
		Vec_Int_t *	vFanoutMap,
		Vec_Int_t *	vFanoutNums,
		int	nMulti )

Definition at line 383 of file wlnNtk.c.

{
    int iObj, iOffset = Wln_NtkObjNum(p);
    Vec_IntFill( vFanoutMap, iOffset + nMulti * Vec_IntSum(vFanoutNums), 0 );
    Wln_NtkForEachObj( p, iObj )
    {
        Vec_IntWriteEntry( vFanoutMap, iObj, iOffset );
        iOffset += nMulti * Wln_ObjRefs(p, iObj);
    }
    assert( iOffset == Vec_IntSize(vFanoutMap) );
}

Here is the caller graph for this function:

Wln_NtkStaticFanoutStart()

void Wln_NtkStaticFanoutStart

(

Wln_Ntk_t *

p

)

Function*************************************************************

Synopsis [Static fanout.]

Description []

SideEffects []

SeeAlso []

Definition at line 406 of file wlnNtk.c.

{
    int k, iObj, iFanin;
    Vec_Int_t * vRefsCopy = Vec_IntAlloc(0);
    Wln_NtkCreateRefs( p );
    Wln_NtkStartFanoutMap( p, &p->vFanout, &p->vRefs, 1 );
    ABC_SWAP( Vec_Int_t, *vRefsCopy, p->vRefs );
    // add fanouts
    Wln_NtkCleanRefs( p );
    Wln_NtkForEachObj( p, iObj )
        Wln_ObjForEachFanin( p, iObj, iFanin, k )
            Wln_ObjSetFanout( p, iFanin, Wln_ObjRefsInc(p, iFanin), iObj );
    // double-check the current number of fanouts added
    Wln_NtkForEachObj( p, iObj )
        assert( Wln_ObjRefs(p, iObj) == Vec_IntEntry(vRefsCopy, iObj) );
    Vec_IntFree( vRefsCopy );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Wln_NtkStaticFanoutStop()

void Wln_NtkStaticFanoutStop

(

Wln_Ntk_t *

p

)

Definition at line 423 of file wlnNtk.c.

{
    Vec_IntErase( &p->vRefs );
    Vec_IntErase( &p->vFanout );
}

Here is the caller graph for this function:

Wln_NtkStaticFanoutTest()

void Wln_NtkStaticFanoutTest

(

Wln_Ntk_t *

p

)

Definition at line 428 of file wlnNtk.c.

{
    int k, iObj, iFanout;
    printf( "Printing fanouts of %d objects of network \"%s\":\n", Wln_NtkObjNum(p), p->pName );
    Wln_NtkStaticFanoutStart( p );
    Wln_NtkForEachObj( p, iObj )
    {
        Wln_ObjPrint( p, iObj );
        printf( "   Fanouts : " );
        Wln_ObjForEachFanoutStatic( p, iObj, iFanout, k )
            printf( "%5d ", iFanout );
        printf( "\n" );
    }
    Wln_NtkStaticFanoutStop( p );
    printf( "\n" );
}

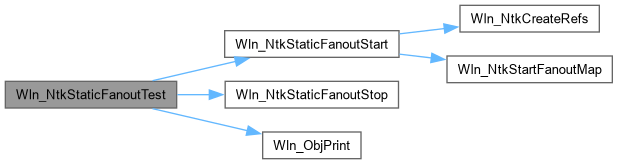

Here is the call graph for this function:

Here is the caller graph for this function:

Wln_NtkTransferNames()

void Wln_NtkTransferNames	(	Wln_Ntk_t *	pNew,
		Wln_Ntk_t *	p )

Function*************************************************************

Synopsis [Duplicating network.]

Description []

SideEffects []

SeeAlso []

Definition at line 273 of file wlnNtk.c.

{
    assert( pNew->pManName  == NULL && p->pManName != NULL );
    pNew->pManName = p->pManName;
    p->pManName = NULL;
    assert( !Wln_NtkHasCopy(pNew)   && Wln_NtkHasCopy(p)   );
    if ( Wln_NtkHasNameId(p) )
    {
        int i;
        assert( !Wln_NtkHasNameId(pNew) && Wln_NtkHasNameId(p) );
        Wln_NtkCleanNameId( pNew );
        Wln_NtkForEachObj( p, i )
            if ( Wln_ObjCopy(p, i) && i < Vec_IntSize(&p->vNameIds) && Wln_ObjNameId(p, i) )
                Wln_ObjSetNameId( pNew, Wln_ObjCopy(p, i), Wln_ObjNameId(p, i) );
        Vec_IntErase( &p->vNameIds );
    }
    if ( Wln_NtkHasInstId(p) )
    {
        int i;
        assert( !Wln_NtkHasInstId(pNew) && Wln_NtkHasInstId(p) );
        Wln_NtkCleanInstId( pNew );
        Wln_NtkForEachObj( p, i )
            if ( Wln_ObjCopy(p, i) && i < Vec_IntSize(&p->vInstIds) && Wln_ObjInstId(p, i) )
                Wln_ObjSetInstId( pNew, Wln_ObjCopy(p, i), Wln_ObjInstId(p, i) );
        Vec_IntErase( &p->vInstIds );
    }
}

Here is the caller graph for this function:

Wln_ObjDup()

int Wln_ObjDup	(	Wln_Ntk_t *	pNew,
		Wln_Ntk_t *	p,
		int	iObj )

Definition at line 300 of file wlnNtk.c.

{
    int i, iFanin, iObjNew = Wln_ObjClone( pNew, p, iObj );
    Wln_ObjForEachFanin( p, iObj, iFanin, i )
        Wln_ObjAddFanin( pNew, iObjNew, Wln_ObjCopy(p, iFanin) );
    if ( Wln_ObjIsConst(p, iObj) )
        Wln_ObjSetConst( pNew, iObjNew, Wln_ObjFanin0(p, iObj) );
    else if ( Wln_ObjIsSlice(p, iObj) || Wln_ObjIsRotate(p, iObj) || Wln_ObjIsTable(p, iObj) )
        Wln_ObjSetFanin( pNew, iObjNew, 1, Wln_ObjFanin1(p, iObj) );
    Wln_ObjSetCopy( p, iObj, iObjNew );
    return iObjNew;
}

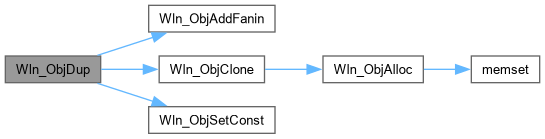

Here is the call graph for this function:

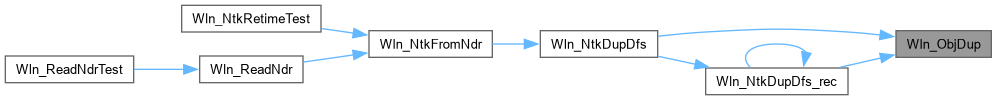

Here is the caller graph for this function:
