abcBarBuf.c File Reference

#include "abc.h"

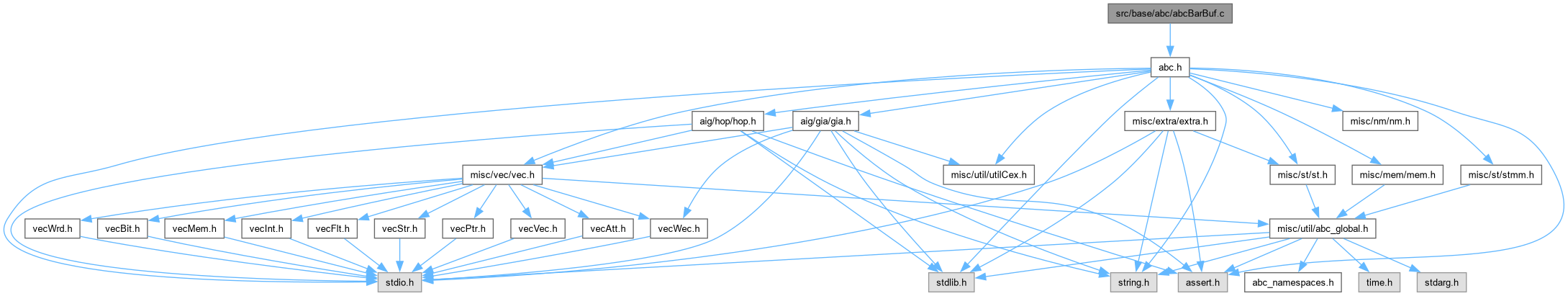

Include dependency graph for abcBarBuf.c:

Go to the source code of this file.

Macros
#define	ABC_OBJ_VOID   ((Abc_Obj_t *)(ABC_PTRINT_T)1)
	DECLARATIONS ///.

Functions
int	Abc_NtkCheckSingleInstance (Abc_Ntk_t *pNtk)
	FUNCTION DEFINITIONS ///.
int	Abc_NtkCollectPiPos_rec (Abc_Obj_t *pNet, Vec_Ptr_t *vLiMaps, Vec_Ptr_t *vLoMaps)
int	Abc_NtkCollectPiPos_int (Abc_Obj_t *pBox, Abc_Ntk_t *pNtk, Vec_Ptr_t *vLiMaps, Vec_Ptr_t *vLoMaps)
int	Abc_NtkCollectPiPos (Abc_Ntk_t *pNtk, Vec_Ptr_t **pvLiMaps, Vec_Ptr_t **pvLoMaps)
Abc_Obj_t *	Abc_NtkToBarBufs_rec (Abc_Ntk_t *pNtkNew, Abc_Obj_t *pNet)
Abc_Ntk_t *	Abc_NtkToBarBufs (Abc_Ntk_t *pNtk)
Abc_Obj_t *	Abc_NtkFromBarBufs_rec (Abc_Ntk_t *pNtkNew, Abc_Obj_t *pObj)
Abc_Ntk_t *	Abc_NtkFromBarBufs (Abc_Ntk_t *pNtkBase, Abc_Ntk_t *pNtk)
void	Abc_NtkToBarBufsCollect_rec (Abc_Obj_t *pObj, Vec_Ptr_t *vNodes)
Vec_Ptr_t *	Abc_NtkToBarBufsCollect (Abc_Ntk_t *pNtk)
int	Abc_NtkCountBarBufs (Abc_Ntk_t *pNtk)
Abc_Ntk_t *	Abc_NtkBarBufsToBuffers (Abc_Ntk_t *pNtk)
Abc_Ntk_t *	Abc_NtkBarBufsFromBuffers (Abc_Ntk_t *pNtkBase, Abc_Ntk_t *pNtk)
Abc_Ntk_t *	Abc_NtkBarBufsOnOffTest (Abc_Ntk_t *pNtk)

Macro Definition Documentation

ABC_OBJ_VOID

#define ABC_OBJ_VOID   ((Abc_Obj_t *)(ABC_PTRINT_T)1)

DECLARATIONS ///.

CFile****************************************************************

FileName [abcHie.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Network and node package.]

Synopsis [Procedures to handle hierarchy.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

abcHie.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 30 of file abcBarBuf.c.

Function Documentation

Abc_NtkBarBufsFromBuffers()

Abc_Ntk_t * Abc_NtkBarBufsFromBuffers	(	Abc_Ntk_t *	pNtkBase,
		Abc_Ntk_t *	pNtk )

Definition at line 462 of file abcBarBuf.c.

{
    Abc_Ntk_t * pNtkNew;
    Abc_Obj_t * pObj, * pFanin, * pLatch;
    int i, k, nBarBufs;
    assert( Abc_NtkIsLogic(pNtkBase) );
    assert( Abc_NtkIsLogic(pNtk) );
    assert( pNtkBase->nBarBufs == Abc_NtkLatchNum(pNtkBase) );
    // start the network
    pNtkNew = Abc_NtkStartFrom( pNtkBase, pNtk->ntkType, pNtk->ntkFunc );
    // transfer PI pointers
    Abc_NtkForEachPi( pNtk, pObj, i )
        pObj->pCopy = Abc_NtkPi(pNtkNew, i);
    // assuming that the order/number of barbufs remains the same
    nBarBufs = 0;
    Abc_NtkForEachNode( pNtk, pObj, i )
    {
        if ( Abc_ObjIsBarBuf(pObj) )
        {
            pLatch = Abc_NtkBox(pNtkNew, nBarBufs++);
            Abc_ObjAddFanin( Abc_ObjFanin0(pLatch), Abc_ObjFanin0(pObj)->pCopy );
            pObj->pCopy = Abc_ObjFanout0(pLatch);
        }
        else
        {
            Abc_NtkDupObj( pNtkNew, pObj, 1 );
            Abc_ObjForEachFanin( pObj, pFanin, k )
                Abc_ObjAddFanin( pObj->pCopy, pFanin->pCopy );
        }
    }
    assert( nBarBufs == pNtkBase->nBarBufs );
    // connect POs
    Abc_NtkForEachPo( pNtk, pObj, i )
        Abc_ObjAddFanin( Abc_NtkPo(pNtkNew, i), Abc_ObjFanin0(pObj)->pCopy );
    return pNtkNew;
}

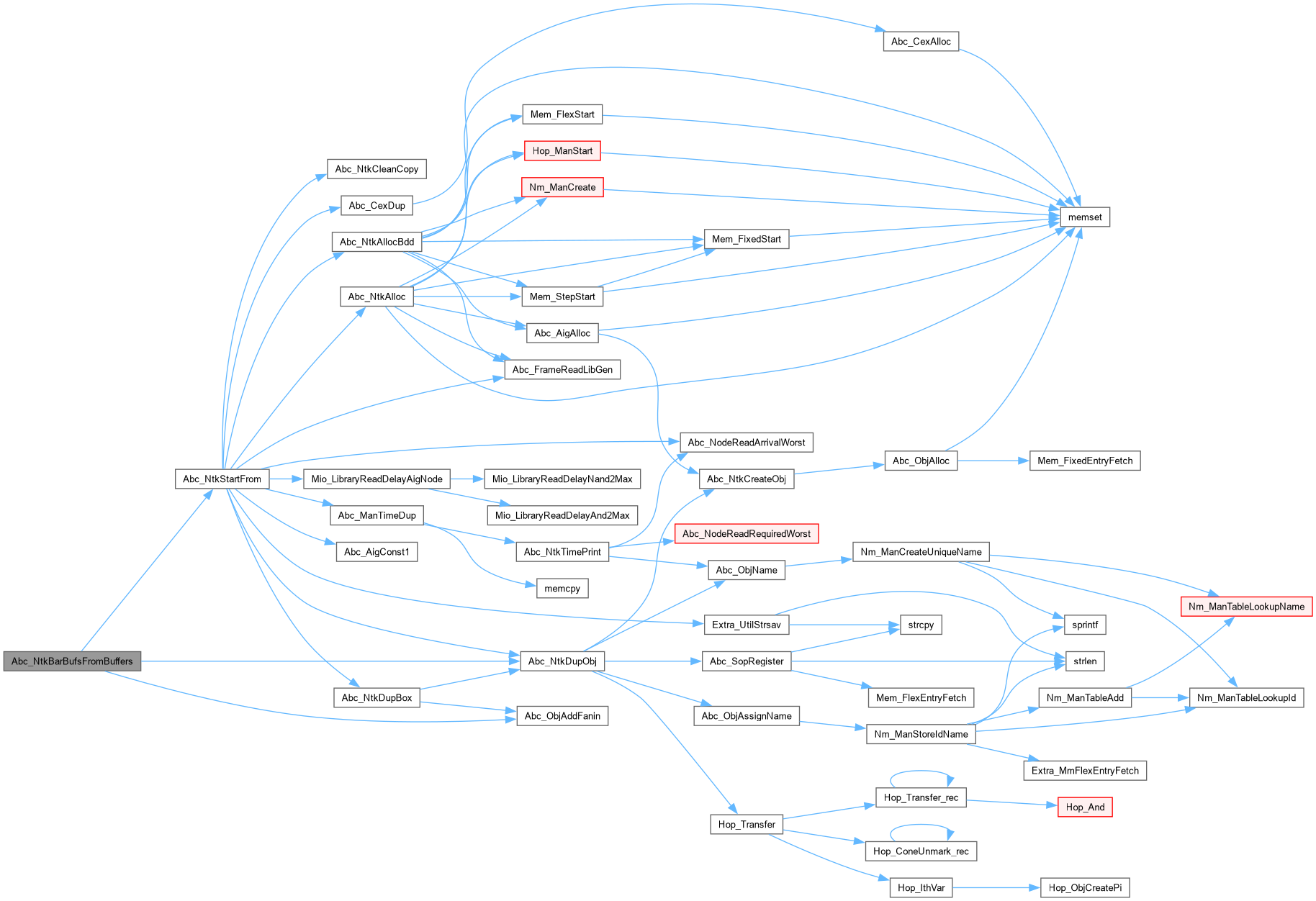

Here is the call graph for this function:

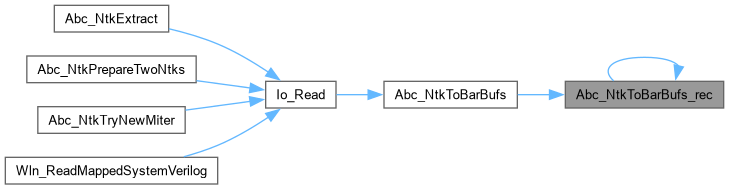

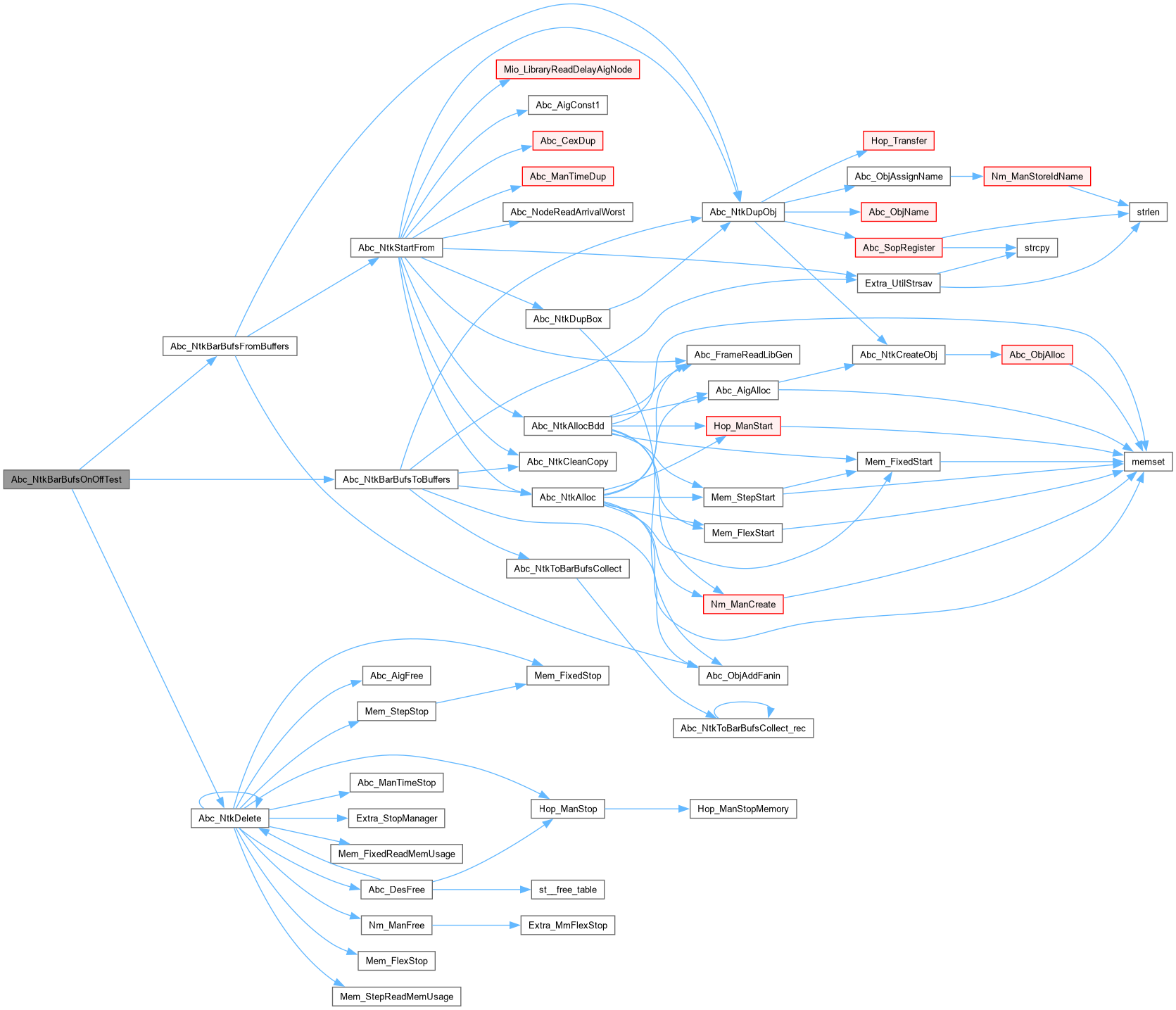

Here is the caller graph for this function:

Abc_NtkBarBufsOnOffTest()

Abc_Ntk_t * Abc_NtkBarBufsOnOffTest

(

Abc_Ntk_t *

pNtk

)

Definition at line 498 of file abcBarBuf.c.

{
    Abc_Ntk_t * pNtkNew, * pNtkNew2;
    pNtkNew  = Abc_NtkBarBufsToBuffers( pNtk );
    pNtkNew2 = Abc_NtkBarBufsFromBuffers( pNtk, pNtkNew );
    Abc_NtkDelete( pNtkNew );
    return pNtkNew2;
}

Here is the call graph for this function:

Abc_NtkBarBufsToBuffers()

Abc_Ntk_t * Abc_NtkBarBufsToBuffers

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Converts the network to dedicated barbufs and back.]

Description []

SideEffects []

SeeAlso []

Definition at line 424 of file abcBarBuf.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Ntk_t * pNtkNew;
    Abc_Obj_t * pObj, * pFanin;
    int i, k;
    assert( Abc_NtkIsLogic(pNtk) );
    assert( pNtk->pDesign == NULL );
    assert( pNtk->nBarBufs > 0 );
    assert( pNtk->nBarBufs == Abc_NtkLatchNum(pNtk) );
    vNodes = Abc_NtkToBarBufsCollect( pNtk );
    // start the network
    pNtkNew = Abc_NtkAlloc( ABC_NTK_LOGIC, pNtk->ntkFunc, 1 );
    pNtkNew->pName = Extra_UtilStrsav(pNtk->pName);
    pNtkNew->pSpec = Extra_UtilStrsav(pNtk->pSpec);
    // create objects
    Abc_NtkCleanCopy( pNtk );
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
    {
        if ( Abc_ObjIsPi(pObj) )
            Abc_NtkDupObj( pNtkNew, pObj, 1 );
        else if ( Abc_ObjIsPo( pObj) )
            Abc_ObjAddFanin( Abc_NtkDupObj(pNtkNew, pObj, 1), Abc_ObjFanin0(pObj)->pCopy );
        else if ( Abc_ObjIsBi(pObj) || Abc_ObjIsBo(pObj) )
            pObj->pCopy = Abc_ObjFanin0(pObj)->pCopy;
        else if ( Abc_ObjIsLatch(pObj) )
            Abc_ObjAddFanin( (pObj->pCopy = Abc_NtkCreateNode(pNtkNew)), Abc_ObjFanin0(pObj)->pCopy );
        else if ( Abc_ObjIsNode(pObj) )
        {
            Abc_NtkDupObj( pNtkNew, pObj, 1 );
            Abc_ObjForEachFanin( pObj, pFanin, k )
                Abc_ObjAddFanin( pObj->pCopy, pFanin->pCopy );
        }
        else assert( 0 );
    }
    Vec_PtrFree( vNodes );
    return pNtkNew;
}

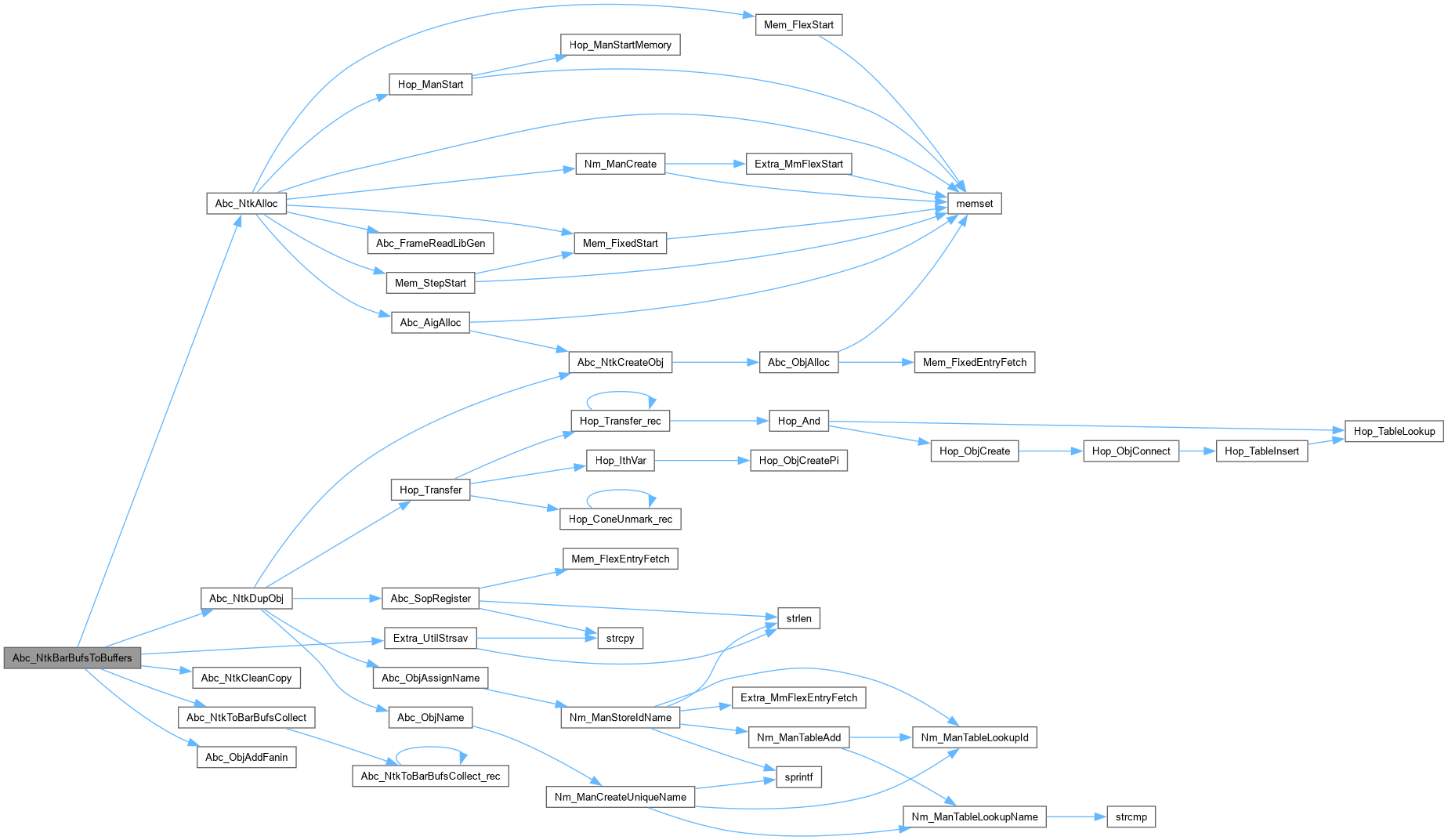

Here is the call graph for this function:

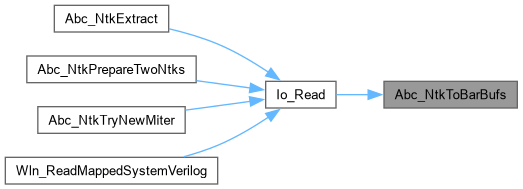

Here is the caller graph for this function:

Abc_NtkCheckSingleInstance()

int Abc_NtkCheckSingleInstance

(

Abc_Ntk_t *

pNtk

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Checks the the hie design has no duplicated networks.]

Description []

SideEffects []

SeeAlso []

Definition at line 47 of file abcBarBuf.c.

{
    Abc_Ntk_t * pTemp, * pModel;
    Abc_Obj_t * pBox;
    int i, k, RetValue = 1;
    if ( pNtk->pDesign == NULL )
        return 1;
    Vec_PtrForEachEntry( Abc_Ntk_t *, pNtk->pDesign->vModules, pTemp, i )
        pTemp->fHieVisited = 0;
    Vec_PtrForEachEntry( Abc_Ntk_t *, pNtk->pDesign->vModules, pTemp, i )
        Abc_NtkForEachBox( pTemp, pBox, k )
        {
            pModel = (Abc_Ntk_t *)pBox->pData;
            if ( pModel == NULL )
                continue;
            if ( Abc_NtkLatchNum(pModel) > 0 )
            {
                printf( "Network \"%s\" contains %d flops.\n",
                    Abc_NtkName(pNtk), Abc_NtkLatchNum(pModel) );
                RetValue = 0;
            }
            if ( pModel->fHieVisited )
            {
                printf( "Network \"%s\" contains box \"%s\" whose model \"%s\" is instantiated more than once.\n",
                    Abc_NtkName(pNtk), Abc_ObjName(pBox), Abc_NtkName(pModel) );
                RetValue = 0;
            }
            pModel->fHieVisited = 1;
        }
    Vec_PtrForEachEntry( Abc_Ntk_t *, pNtk->pDesign->vModules, pTemp, i )
        pTemp->fHieVisited = 0;
    return RetValue;
}

Here is the call graph for this function:

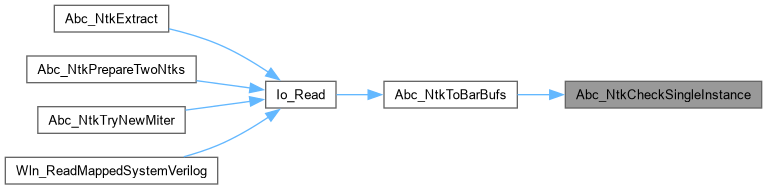

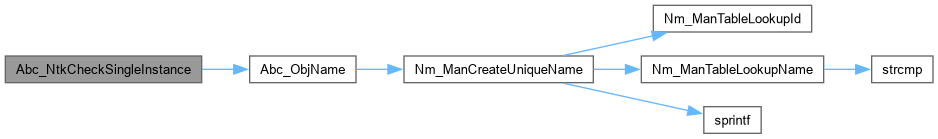

Here is the caller graph for this function:

Abc_NtkCollectPiPos()

int Abc_NtkCollectPiPos	(	Abc_Ntk_t *	pNtk,
		Vec_Ptr_t **	pvLiMaps,
		Vec_Ptr_t **	pvLoMaps )

Definition at line 147 of file abcBarBuf.c.

{
    assert( Abc_NtkIsNetlist(pNtk) );
    *pvLiMaps = Vec_PtrAlloc( 1000 );
    *pvLoMaps = Vec_PtrAlloc( 1000 );
    return Abc_NtkCollectPiPos_int( NULL, pNtk, *pvLiMaps, *pvLoMaps );
}

Here is the call graph for this function:

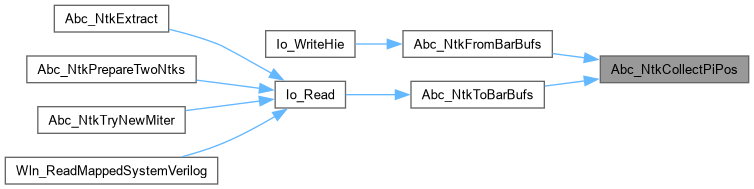

Here is the caller graph for this function:

Abc_NtkCollectPiPos_int()

int Abc_NtkCollectPiPos_int	(	Abc_Obj_t *	pBox,
		Abc_Ntk_t *	pNtk,
		Vec_Ptr_t *	vLiMaps,
		Vec_Ptr_t *	vLoMaps )

Definition at line 117 of file abcBarBuf.c.

{
    Abc_Obj_t * pObj;
    int i, Counter = 0;
    // mark primary inputs
    Abc_NtkIncrementTravId( pNtk );
    Abc_NtkForEachPi( pNtk, pObj, i )
        Abc_NodeSetTravIdCurrent( Abc_ObjFanout0(pObj) );
    // add primary inputs
    if ( pBox )
    {
        Abc_ObjForEachFanin( pBox, pObj, i )
            Vec_PtrPush( vLiMaps, pObj );
        Abc_NtkForEachPi( pNtk, pObj, i )
            Vec_PtrPush( vLoMaps, pObj );
    }
    // visit primary outputs
    Abc_NtkForEachPo( pNtk, pObj, i )
        Counter += Abc_NtkCollectPiPos_rec( Abc_ObjFanin0(pObj), vLiMaps, vLoMaps );
    // add primary outputs
    if ( pBox )
    {
        Abc_NtkForEachPo( pNtk, pObj, i )
            Vec_PtrPush( vLiMaps, pObj );
        Abc_ObjForEachFanout( pBox, pObj, i )
            Vec_PtrPush( vLoMaps, pObj );
        Counter++;
    }
    return Counter;
}

Here is the call graph for this function:

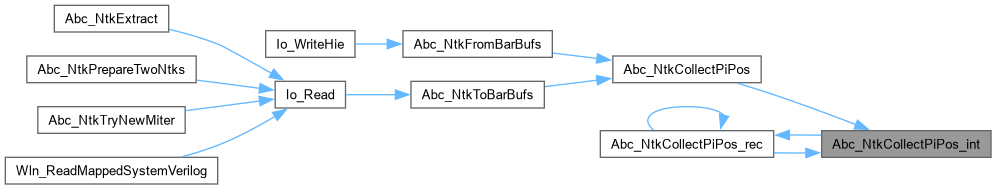

Here is the caller graph for this function:

Abc_NtkCollectPiPos_rec()

int Abc_NtkCollectPiPos_rec	(	Abc_Obj_t *	pNet,
		Vec_Ptr_t *	vLiMaps,
		Vec_Ptr_t *	vLoMaps )

Function*************************************************************

Synopsis [Collect PIs and POs of internal networks in the topo order.]

Description []

SideEffects []

SeeAlso []

Definition at line 92 of file abcBarBuf.c.

{
    extern int Abc_NtkCollectPiPos_int( Abc_Obj_t * pBox, Abc_Ntk_t * pNtk, Vec_Ptr_t * vLiMaps, Vec_Ptr_t * vLoMaps );
    Abc_Obj_t * pObj, * pFanin;
    int i, Counter = 0;
    assert( Abc_ObjIsNet(pNet) );
    if ( Abc_NodeIsTravIdCurrent( pNet ) )
        return 0;
    Abc_NodeSetTravIdCurrent( pNet );
    pObj = Abc_ObjFanin0(pNet);
    if ( Abc_ObjIsNode(pObj) )
        Abc_ObjForEachFanin( pObj, pFanin, i )
            Counter += Abc_NtkCollectPiPos_rec( pFanin, vLiMaps, vLoMaps );
    if ( Abc_ObjIsNode(pObj) )
        return Counter;
    if ( Abc_ObjIsBo(pObj) )
        pObj = Abc_ObjFanin0(pObj);
    assert( Abc_ObjIsBox(pObj) );
    Abc_ObjForEachFanout( pObj, pFanin, i )
        Abc_NodeSetTravIdCurrent( Abc_ObjFanout0(pFanin) );
    Abc_ObjForEachFanin( pObj, pFanin, i )
        Counter += Abc_NtkCollectPiPos_rec( Abc_ObjFanin0(pFanin), vLiMaps, vLoMaps );
    Counter += Abc_NtkCollectPiPos_int( pObj, Abc_ObjModel(pObj), vLiMaps, vLoMaps );
    return Counter;
}

Here is the call graph for this function:

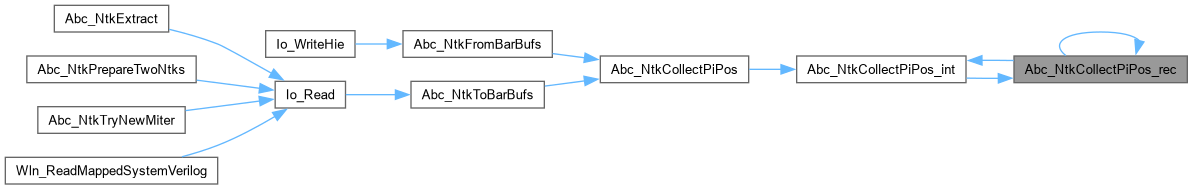

Here is the caller graph for this function:

Abc_NtkCountBarBufs()

int Abc_NtkCountBarBufs

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Count barrier buffers.]

Description []

SideEffects []

SeeAlso []

Definition at line 404 of file abcBarBuf.c.

{
    Abc_Obj_t * pObj;
    int i, Counter = 0;
    Abc_NtkForEachNode( pNtk, pObj, i )
        Counter += Abc_ObjIsBarBuf( pObj );
    return Counter;
}

Abc_NtkFromBarBufs()

Abc_Ntk_t * Abc_NtkFromBarBufs	(	Abc_Ntk_t *	pNtkBase,
		Abc_Ntk_t *	pNtk )

Definition at line 263 of file abcBarBuf.c.

{
    Abc_Ntk_t * pNtkNew, * pTemp;
    Vec_Ptr_t * vLiMaps, * vLoMaps;
    Abc_Obj_t * pObj, * pLiMap, * pLoMap;
    int i, k;
    assert( pNtkBase->pDesign != NULL );
    assert( Abc_NtkIsNetlist(pNtk) );
    assert( Abc_NtkIsNetlist(pNtkBase) );
    assert( Abc_NtkLatchNum(pNtkBase) == 0 );
    assert( Abc_NtkLatchNum(pNtk) == pNtk->nBarBufs );
    assert( Abc_NtkWhiteboxNum(pNtk) == 0 );
    assert( Abc_NtkBlackboxNum(pNtk) == 0 );
    assert( Abc_NtkPiNum(pNtk) == Abc_NtkPiNum(pNtkBase) );
    assert( Abc_NtkPoNum(pNtk) == Abc_NtkPoNum(pNtkBase) );
    // start networks
    Abc_NtkCleanCopy_rec( pNtkBase );
    Vec_PtrForEachEntry( Abc_Ntk_t *, pNtkBase->pDesign->vModules, pTemp, i )
        pTemp->pCopy = Abc_NtkStartFrom( pTemp, pNtk->ntkType, pNtk->ntkFunc );
    Vec_PtrForEachEntry( Abc_Ntk_t *, pNtkBase->pDesign->vModules, pTemp, i )
        pTemp->pCopy->pAltView = pTemp->pAltView ? pTemp->pAltView->pCopy : NULL;
    // update box models
    Vec_PtrForEachEntry( Abc_Ntk_t *, pNtkBase->pDesign->vModules, pTemp, i )
        Abc_NtkForEachBox( pTemp, pObj, k )
            if ( Abc_ObjIsWhitebox(pObj) || Abc_ObjIsBlackbox(pObj) )
                pObj->pCopy->pData = Abc_ObjModel(pObj)->pCopy;
    // create the design
    pNtkNew = pNtkBase->pCopy;
    pNtkNew->pDesign = Abc_DesCreate( pNtkBase->pDesign->pName );
    Vec_PtrForEachEntry( Abc_Ntk_t *, pNtkBase->pDesign->vModules, pTemp, i )
        Abc_DesAddModel( pNtkNew->pDesign, pTemp->pCopy );
    Vec_PtrForEachEntry( Abc_Ntk_t *, pNtkBase->pDesign->vTops, pTemp, i )
        Vec_PtrPush( pNtkNew->pDesign->vTops, pTemp->pCopy );
    assert( Vec_PtrEntry(pNtkNew->pDesign->vTops, 0) == pNtkNew );
    // transfer copy attributes to pNtk
    Abc_NtkCleanCopy( pNtk );
    Abc_NtkForEachPi( pNtk, pObj, i )
        pObj->pCopy = Abc_NtkPi(pNtkNew, i);
    Abc_NtkForEachPo( pNtk, pObj, i )
        pObj->pCopy = Abc_NtkPo(pNtkNew, i);
    Abc_NtkCollectPiPos( pNtkBase, &vLiMaps, &vLoMaps );
    assert( Vec_PtrSize(vLiMaps) == Abc_NtkLatchNum(pNtk) );
    assert( Vec_PtrSize(vLoMaps) == Abc_NtkLatchNum(pNtk) );
    Vec_PtrForEachEntryTwo( Abc_Obj_t *, vLiMaps, Abc_Obj_t *, vLoMaps, pLiMap, pLoMap, i )
    {
        pObj = Abc_NtkBox( pNtk, i );
        Abc_ObjFanin0(pObj)->pCopy = pLiMap->pCopy;
        Abc_ObjFanout0(pObj)->pCopy = pLoMap->pCopy;
    }
    Vec_PtrFree( vLiMaps );
    Vec_PtrFree( vLoMaps );
    // create internal nodes
    Abc_NtkForEachCo( pNtk, pObj, i )
        Abc_ObjAddFanin( pObj->pCopy, Abc_NtkFromBarBufs_rec(pObj->pCopy->pNtk, Abc_ObjFanin0(pObj)) );
    // transfer net names
    Abc_NtkForEachCi( pNtk, pObj, i )
    {
        if ( Abc_ObjFanoutNum(pObj->pCopy) == 0 ) // handle PI without fanout
            Abc_ObjAddFanin( Abc_NtkCreateNet(pObj->pCopy->pNtk), pObj->pCopy );
        Nm_ManStoreIdName( pObj->pCopy->pNtk->pManName, Abc_ObjFanout0(pObj->pCopy)->Id, Abc_ObjFanout0(pObj->pCopy)->Type, Abc_ObjName(Abc_ObjFanout0(pObj)), NULL );
    }
    Abc_NtkForEachCo( pNtk, pObj, i )
        Nm_ManStoreIdName( pObj->pCopy->pNtk->pManName, Abc_ObjFanin0(pObj->pCopy)->Id, Abc_ObjFanin0(pObj->pCopy)->Type, Abc_ObjName(Abc_ObjFanin0(pObj)), NULL );
    return pNtkNew;
}

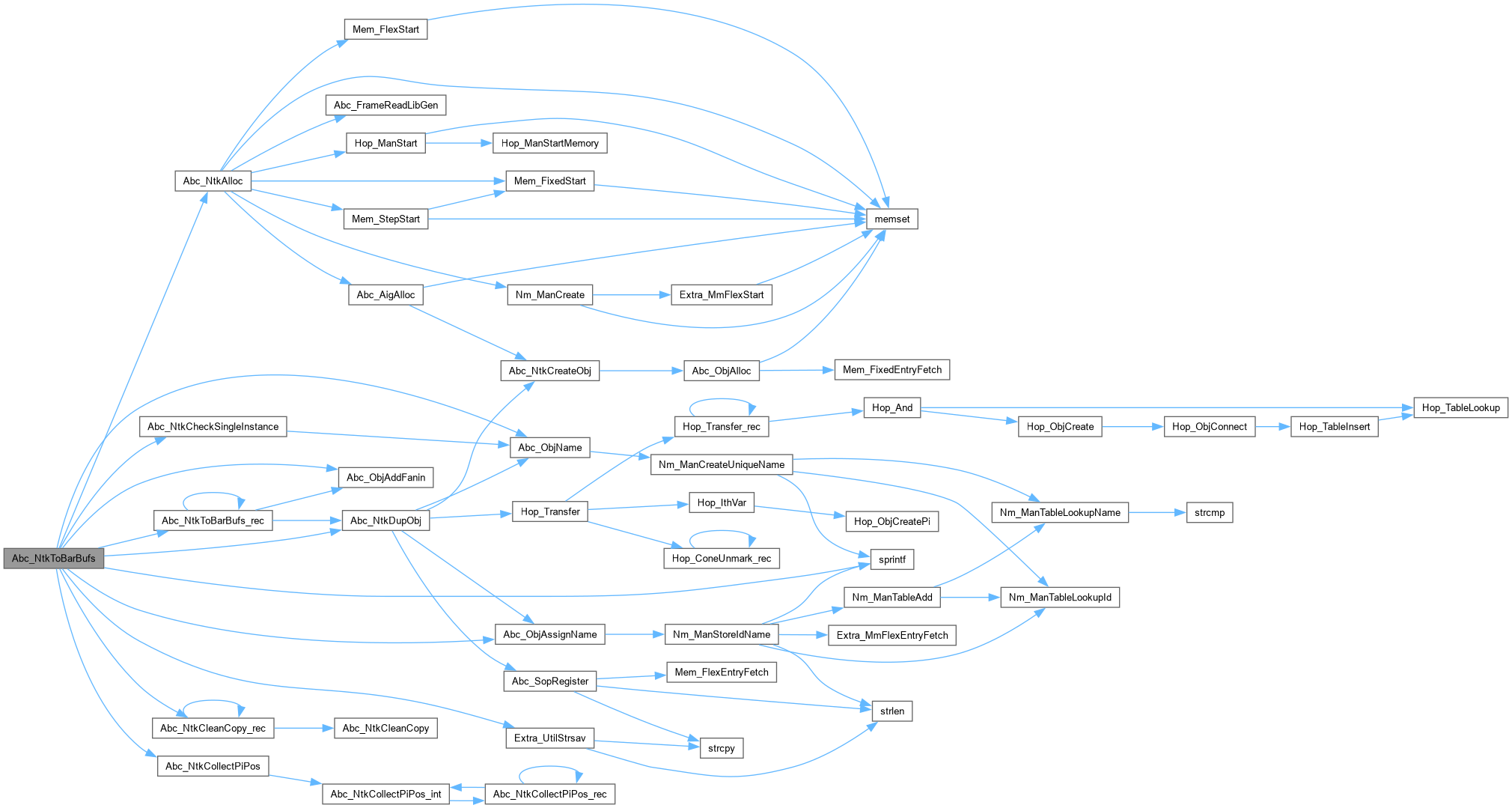

Here is the call graph for this function:

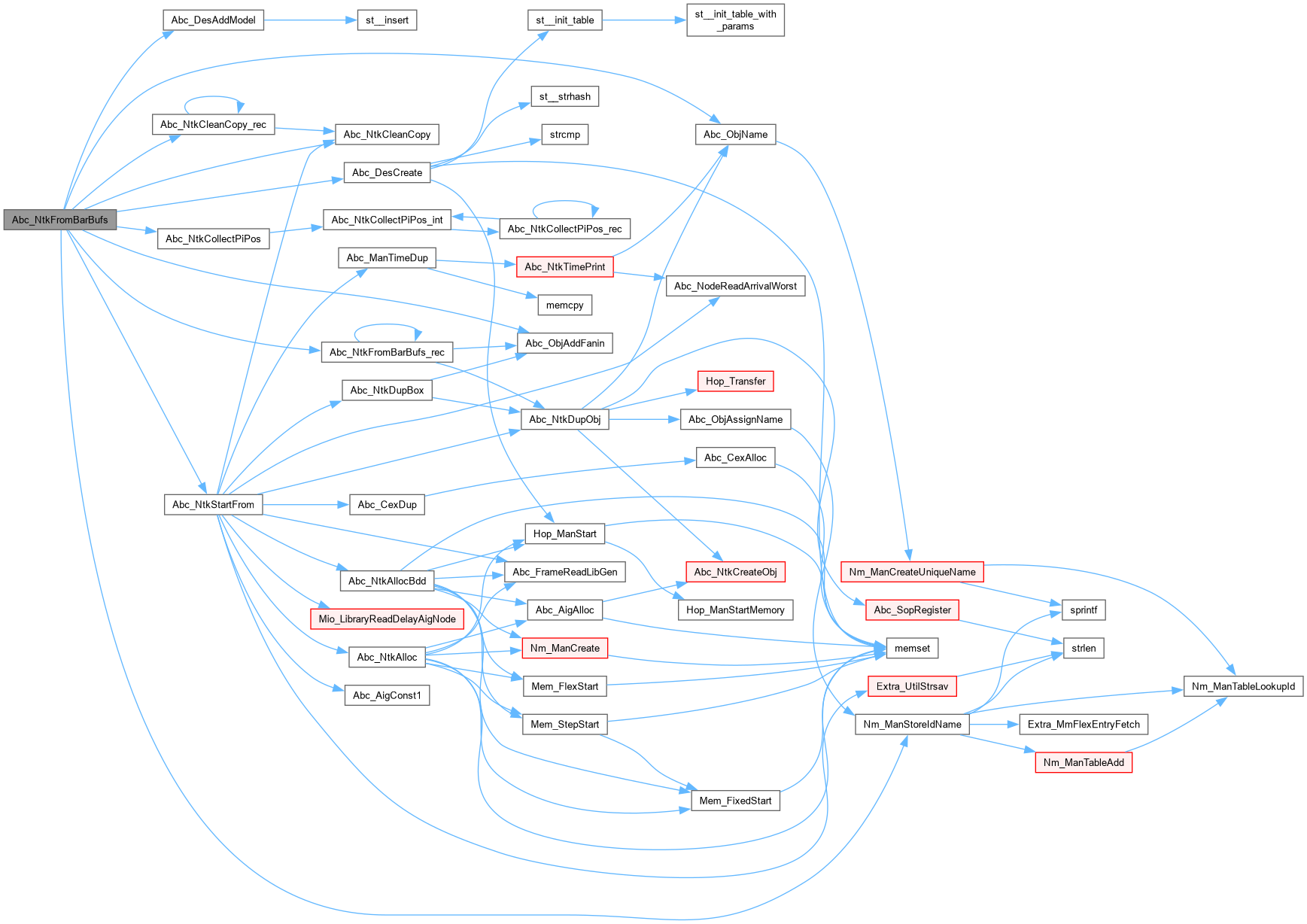

Here is the caller graph for this function:

Abc_NtkFromBarBufs_rec()

Abc_Obj_t * Abc_NtkFromBarBufs_rec	(	Abc_Ntk_t *	pNtkNew,
		Abc_Obj_t *	pObj )

Function*************************************************************

Synopsis [Converts the logic with barbufs into a hierarchical network.]

Description [The base network is the original hierarchical network. The second argument is the optimized network with barbufs. This procedure reconstructs the original hierarcical network which adding logic from the optimized network. It is assumed that the PIs/POs of the original network one-to-one mapping with the flops of the optimized network.]

SideEffects []

SeeAlso []

Definition at line 252 of file abcBarBuf.c.

{
    Abc_Obj_t * pFanin;
    int i;
    if ( pObj->pCopy )
        return pObj->pCopy;
    Abc_NtkDupObj( pNtkNew, pObj, 0 );
    Abc_ObjForEachFanin( pObj, pFanin, i )
        Abc_ObjAddFanin( pObj->pCopy, Abc_NtkFromBarBufs_rec(pNtkNew, pFanin) );
    return pObj->pCopy;
}

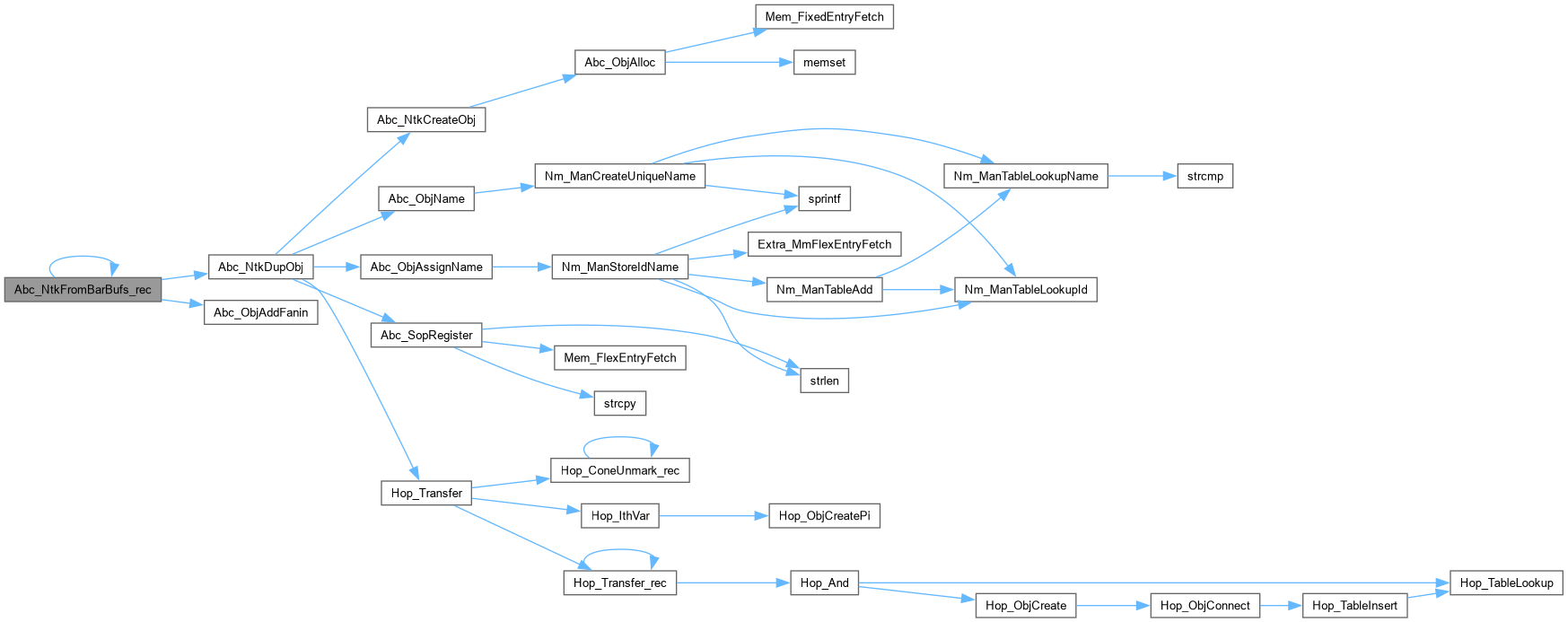

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkToBarBufs()

Abc_Ntk_t * Abc_NtkToBarBufs

(

Abc_Ntk_t *

pNtk

)

Definition at line 180 of file abcBarBuf.c.

{
    char Buffer[1000];
    Vec_Ptr_t * vLiMaps, * vLoMaps;
    Abc_Ntk_t * pNtkNew, * pTemp;
    Abc_Obj_t * pLatch, * pObjLi, * pObjLo;
    Abc_Obj_t * pObj, * pLiMap, * pLoMap;
    int i, k, nBoxes;
    assert( Abc_NtkIsNetlist(pNtk) );
    if ( !Abc_NtkCheckSingleInstance(pNtk) )
        return NULL;
    assert( pNtk->pDesign != NULL );
    // start the network
    pNtkNew = Abc_NtkAlloc( ABC_NTK_LOGIC, pNtk->ntkFunc, 1 );
    pNtkNew->pName = Extra_UtilStrsav(pNtk->pName);
    pNtkNew->pSpec = Extra_UtilStrsav(pNtk->pSpec);
    // clone CIs/CIs/boxes
    Abc_NtkCleanCopy_rec( pNtk );
    Abc_NtkForEachPi( pNtk, pObj, i )
        Abc_ObjFanout0(pObj)->pCopy = Abc_NtkDupObj( pNtkNew, pObj, 1 );
    Abc_NtkForEachPo( pNtk, pObj, i )
        Abc_NtkDupObj( pNtkNew, pObj, 1 );
    // create latches and transfer copy labels
    nBoxes = Abc_NtkCollectPiPos( pNtk, &vLiMaps, &vLoMaps );
    Vec_PtrForEachEntryTwo( Abc_Obj_t *, vLiMaps, Abc_Obj_t *, vLoMaps, pLiMap, pLoMap, i )
    {
        pObjLi = Abc_NtkCreateBi(pNtkNew);
        pLatch = Abc_NtkCreateLatch(pNtkNew);
        pObjLo = Abc_NtkCreateBo(pNtkNew);
        Abc_ObjAddFanin( pLatch, pObjLi );
        Abc_ObjAddFanin( pObjLo, pLatch );
        pLatch->pData = (void *)ABC_INIT_ZERO;
        pTemp = NULL;
        if ( Abc_ObjFanin0(pLiMap)->pNtk != pNtk )
            pTemp = Abc_ObjFanin0(pLiMap)->pNtk;
        else if ( Abc_ObjFanout0(pLoMap)->pNtk != pNtk )
            pTemp = Abc_ObjFanout0(pLoMap)->pNtk;
        else assert( 0 );
        sprintf( Buffer, "_%s_in", Abc_NtkName(pTemp) );
        Abc_ObjAssignName( pObjLi, Abc_ObjName(Abc_ObjFanin0(pLiMap)), Buffer );
        sprintf( Buffer, "_%s_out", Abc_NtkName(pTemp) );
        Abc_ObjAssignName( pObjLo, Abc_ObjName(Abc_ObjFanout0(pLoMap)), Buffer );
        pLiMap->pCopy = pObjLi;
        Abc_ObjFanout0(pLoMap)->pCopy = pObjLo;
        assert( Abc_ObjIsNet(Abc_ObjFanout0(pLoMap)) );
    }
    Vec_PtrFree( vLiMaps );
    Vec_PtrFree( vLoMaps );
    // rebuild networks
    Vec_PtrForEachEntry( Abc_Ntk_t *, pNtk->pDesign->vModules, pTemp, i )
        Abc_NtkForEachCo( pTemp, pObj, k )
            Abc_ObjAddFanin( pObj->pCopy, Abc_NtkToBarBufs_rec(pNtkNew, Abc_ObjFanin0(pObj)) );
    pNtkNew->nBarBufs = Abc_NtkLatchNum(pNtkNew);
    printf( "Hierarchy reader flattened %d instances of logic boxes and introduced %d barbufs.\n", nBoxes, pNtkNew->nBarBufs );
    return pNtkNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkToBarBufs_rec()

Abc_Obj_t * Abc_NtkToBarBufs_rec	(	Abc_Ntk_t *	pNtkNew,
		Abc_Obj_t *	pNet )

Function*************************************************************

Synopsis [Derives logic network with barbufs from the netlist.]

Description []

SideEffects []

SeeAlso []

Definition at line 166 of file abcBarBuf.c.

{
    Abc_Obj_t * pObj, * pFanin;
    int i;
    assert( Abc_ObjIsNet(pNet) );
    if ( pNet->pCopy )
        return pNet->pCopy;
    pObj = Abc_ObjFanin0(pNet);
    assert( Abc_ObjIsNode(pObj) );
    pNet->pCopy = Abc_NtkDupObj( pNtkNew, pObj, 0 );
    Abc_ObjForEachFanin( pObj, pFanin, i )
        Abc_ObjAddFanin( pObj->pCopy, Abc_NtkToBarBufs_rec(pNtkNew, pFanin) );
    return pNet->pCopy;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkToBarBufsCollect()

Vec_Ptr_t * Abc_NtkToBarBufsCollect

(

Abc_Ntk_t *

pNtk

)

Definition at line 352 of file abcBarBuf.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pObj;
    int i;
    assert( Abc_NtkIsLogic(pNtk) );
    assert( pNtk->nBarBufs > 0 );
    assert( pNtk->nBarBufs == Abc_NtkLatchNum(pNtk) );
    vNodes = Vec_PtrAlloc( Abc_NtkObjNum(pNtk) );
    Abc_NtkIncrementTravId( pNtk );
    Abc_NtkForEachCi( pNtk, pObj, i )
    {
        if ( i >= Abc_NtkCiNum(pNtk) - pNtk->nBarBufs )
            break;
        Vec_PtrPush( vNodes, pObj );
        Abc_NodeSetTravIdCurrent( pObj );
    }
    Abc_NtkForEachCo( pNtk, pObj, i )
    {
        if ( i < Abc_NtkCoNum(pNtk) - pNtk->nBarBufs )
            continue;
        Abc_NtkToBarBufsCollect_rec( Abc_ObjFanin0(pObj), vNodes );
        Vec_PtrPush( vNodes, pObj );
        Vec_PtrPush( vNodes, Abc_ObjFanout0(pObj) );
        Vec_PtrPush( vNodes, Abc_ObjFanout0(Abc_ObjFanout0(pObj)) );
        Abc_NodeSetTravIdCurrent( pObj );
        Abc_NodeSetTravIdCurrent( Abc_ObjFanout0(pObj) );
        Abc_NodeSetTravIdCurrent( Abc_ObjFanout0(Abc_ObjFanout0(pObj)) );
    }
    Abc_NtkForEachCo( pNtk, pObj, i )
    {
        if ( i >= Abc_NtkCoNum(pNtk) - pNtk->nBarBufs )
            break;
        Abc_NtkToBarBufsCollect_rec( Abc_ObjFanin0(pObj), vNodes );
        Vec_PtrPush( vNodes, pObj );
        Abc_NodeSetTravIdCurrent( pObj );
    }
    assert( Vec_PtrSize(vNodes) == Abc_NtkObjNum(pNtk) );
    return vNodes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkToBarBufsCollect_rec()

void Abc_NtkToBarBufsCollect_rec	(	Abc_Obj_t *	pObj,
		Vec_Ptr_t *	vNodes )

Function*************************************************************

Synopsis [Collect nodes in the barbuf-friendly order.]

Description []

SideEffects []

SeeAlso []

Definition at line 340 of file abcBarBuf.c.

{
    Abc_Obj_t * pFanin;
    int i;
    if ( Abc_NodeIsTravIdCurrent( pObj ) )
        return;
    Abc_NodeSetTravIdCurrent( pObj );
    assert( Abc_ObjIsNode(pObj) );
    Abc_ObjForEachFanin( pObj, pFanin, i )
        Abc_NtkToBarBufsCollect_rec( pFanin, vNodes );
    Vec_PtrPush( vNodes, pObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:
