abcDfs.c File Reference

#include "abc.h"
#include "proof/cec/cec.h"

Include dependency graph for abcDfs.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Abc_NtkDfs_rec (Abc_Obj_t *pNode, Vec_Ptr_t *vNodes)
	DECLARATIONS ///.
Vec_Ptr_t *	Abc_NtkDfs (Abc_Ntk_t *pNtk, int fCollectAll)
Vec_Ptr_t *	Abc_NtkDfs2 (Abc_Ntk_t *pNtk)
Vec_Ptr_t *	Abc_NtkDfsNodes (Abc_Ntk_t *pNtk, Abc_Obj_t **ppNodes, int nNodes)
void	Abc_NtkDfsReverse_rec (Abc_Obj_t *pNode, Vec_Ptr_t *vNodes)
Vec_Ptr_t *	Abc_NtkDfsReverse (Abc_Ntk_t *pNtk)
void	Abc_NtkDfsReverseNodes_rec (Abc_Obj_t *pNode, Vec_Ptr_t *vNodes)
Vec_Ptr_t *	Abc_NtkDfsReverseNodes (Abc_Ntk_t *pNtk, Abc_Obj_t **ppNodes, int nNodes)
Vec_Ptr_t *	Abc_NtkDfsReverseNodesContained (Abc_Ntk_t *pNtk, Abc_Obj_t **ppNodes, int nNodes)
void	Abc_NtkDfsSeq_rec (Abc_Obj_t *pNode, Vec_Ptr_t *vNodes)
Vec_Ptr_t *	Abc_NtkDfsSeq (Abc_Ntk_t *pNtk)
void	Abc_NtkDfsSeqReverse_rec (Abc_Obj_t *pNode, Vec_Ptr_t *vNodes)
Vec_Ptr_t *	Abc_NtkDfsSeqReverse (Abc_Ntk_t *pNtk)
void	Abc_NtkDfs_iter (Vec_Ptr_t *vStack, Abc_Obj_t *pRoot, Vec_Ptr_t *vNodes)
Vec_Ptr_t *	Abc_NtkDfsIter (Abc_Ntk_t *pNtk, int fCollectAll)
Vec_Ptr_t *	Abc_NtkDfsIterNodes (Abc_Ntk_t *pNtk, Vec_Ptr_t *vRoots)
void	Abc_NtkDfsHie_rec (Abc_Obj_t *pObj, Vec_Ptr_t *vNodes)
Vec_Ptr_t *	Abc_NtkDfsHie (Abc_Ntk_t *pNtk, int fCollectAll)
int	Abc_NtkIsDfsOrdered (Abc_Ntk_t *pNtk)
void	Abc_NtkDfsNets_rec (Abc_Obj_t *pNet, Vec_Ptr_t *vNets)
Vec_Ptr_t *	Abc_NtkDfsNets (Abc_Ntk_t *pNtk)
void	Abc_NtkDfsWithBoxes_rec (Abc_Obj_t *pNode, Vec_Ptr_t *vNodes)
Vec_Ptr_t *	Abc_NtkDfsWithBoxes (Abc_Ntk_t *pNtk)
void	Abc_NtkNodeSupport_rec (Abc_Obj_t *pNode, Vec_Ptr_t *vNodes)
Vec_Ptr_t *	Abc_NtkSupport (Abc_Ntk_t *pNtk)
Vec_Ptr_t *	Abc_NtkNodeSupport (Abc_Ntk_t *pNtk, Abc_Obj_t **ppNodes, int nNodes)
void	Abc_NtkNodeSupportInt_rec (Abc_Obj_t *pNode, Vec_Int_t *vNodes)
Vec_Int_t *	Abc_NtkNodeSupportInt (Abc_Ntk_t *pNtk, int iCo)
int	Abc_NtkFunctionalIsoGia_rec (Gia_Man_t *pNew, Abc_Obj_t *pNode)
Gia_Man_t *	Abc_NtkFunctionalIsoGia (Abc_Ntk_t *pNtk, int iCo1, int iCo2, int fCommon)
int	Abc_NtkFunctionalIsoInt (Abc_Ntk_t *pNtk, int iCo1, int iCo2, int fCommon)
int	Abc_NtkFunctionalIso (Abc_Ntk_t *pNtk, int iCo1, int iCo2, int fCommon)
int	Abc_ObjSuppSize_rec (Abc_Obj_t *pObj)
int	Abc_ObjSuppSize (Abc_Obj_t *pObj)
int	Abc_NtkSuppSizeTest (Abc_Ntk_t *p)
void	Abc_NtkSupportSum (Abc_Ntk_t *pNtk)
void	Abc_AigDfs_rec (Abc_Obj_t *pNode, Vec_Ptr_t *vNodes)
Vec_Ptr_t *	Abc_AigDfs (Abc_Ntk_t *pNtk, int fCollectAll, int fCollectCos)
Vec_Ptr_t *	Abc_AigDfsMap (Abc_Ntk_t *pNtk)
void	Abc_DfsLevelizedTfo_rec (Abc_Obj_t *pNode, Vec_Vec_t *vLevels)
Vec_Vec_t *	Abc_DfsLevelized (Abc_Obj_t *pNode, int fTfi)
int	Abc_NtkLevel_rec (Abc_Obj_t *pNode)
int	Abc_NtkLevelReverse_rec (Abc_Obj_t *pNode)
Vec_Vec_t *	Abc_NtkLevelize (Abc_Ntk_t *pNtk)
int	Abc_NtkLevel (Abc_Ntk_t *pNtk)
int	Abc_NtkLevelReverse (Abc_Ntk_t *pNtk)
int	Abc_NtkLevelR (Abc_Ntk_t *pNtk)
int	Abc_NtkIsAcyclic_rec (Abc_Obj_t *pNode)
int	Abc_NtkIsAcyclic (Abc_Ntk_t *pNtk)
int	Abc_NtkIsAcyclicWithBoxes_rec (Abc_Obj_t *pNode)
int	Abc_NtkIsAcyclicWithBoxes (Abc_Ntk_t *pNtk)
int	Abc_NodeSetChoiceLevel_rec (Abc_Obj_t *pNode, int fMaximum)
int	Abc_AigSetChoiceLevels (Abc_Ntk_t *pNtk)
Vec_Ptr_t *	Abc_AigGetLevelizedOrder (Abc_Ntk_t *pNtk, int fCollectCis)
int	Abc_ObjSugraphSize (Abc_Obj_t *pObj)
int	Abc_NtkPrintSubraphSizes (Abc_Ntk_t *pNtk)

Function Documentation

Abc_AigDfs()

Vec_Ptr_t * Abc_AigDfs	(	Abc_Ntk_t *	pNtk,
		int	fCollectAll,
		int	fCollectCos )

Function*************************************************************

Synopsis [Returns the DFS ordered array of logic nodes.]

Description [Collects only the internal nodes, leaving out CIs/COs. However it marks both CIs and COs with the current TravId.]

SideEffects []

SeeAlso []

Definition at line 1198 of file abcDfs.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pNode;
    int i;
    assert( Abc_NtkIsStrash(pNtk) );
    // set the traversal ID
    Abc_NtkIncrementTravId( pNtk );
    // start the array of nodes
    vNodes = Vec_PtrAlloc( 100 );
    // go through the PO nodes and call for each of them
    Abc_NtkForEachCo( pNtk, pNode, i )
    {
        Abc_AigDfs_rec( Abc_ObjFanin0(pNode), vNodes );
        Abc_NodeSetTravIdCurrent( pNode );
        if ( fCollectCos )
            Vec_PtrPush( vNodes, pNode );
    }
    // collect dangling nodes if asked to
    if ( fCollectAll )
    {
        Abc_NtkForEachNode( pNtk, pNode, i )
            if ( !Abc_NodeIsTravIdCurrent(pNode) )
                Abc_AigDfs_rec( pNode, vNodes );
    }
    return vNodes;
}

Here is the call graph for this function:

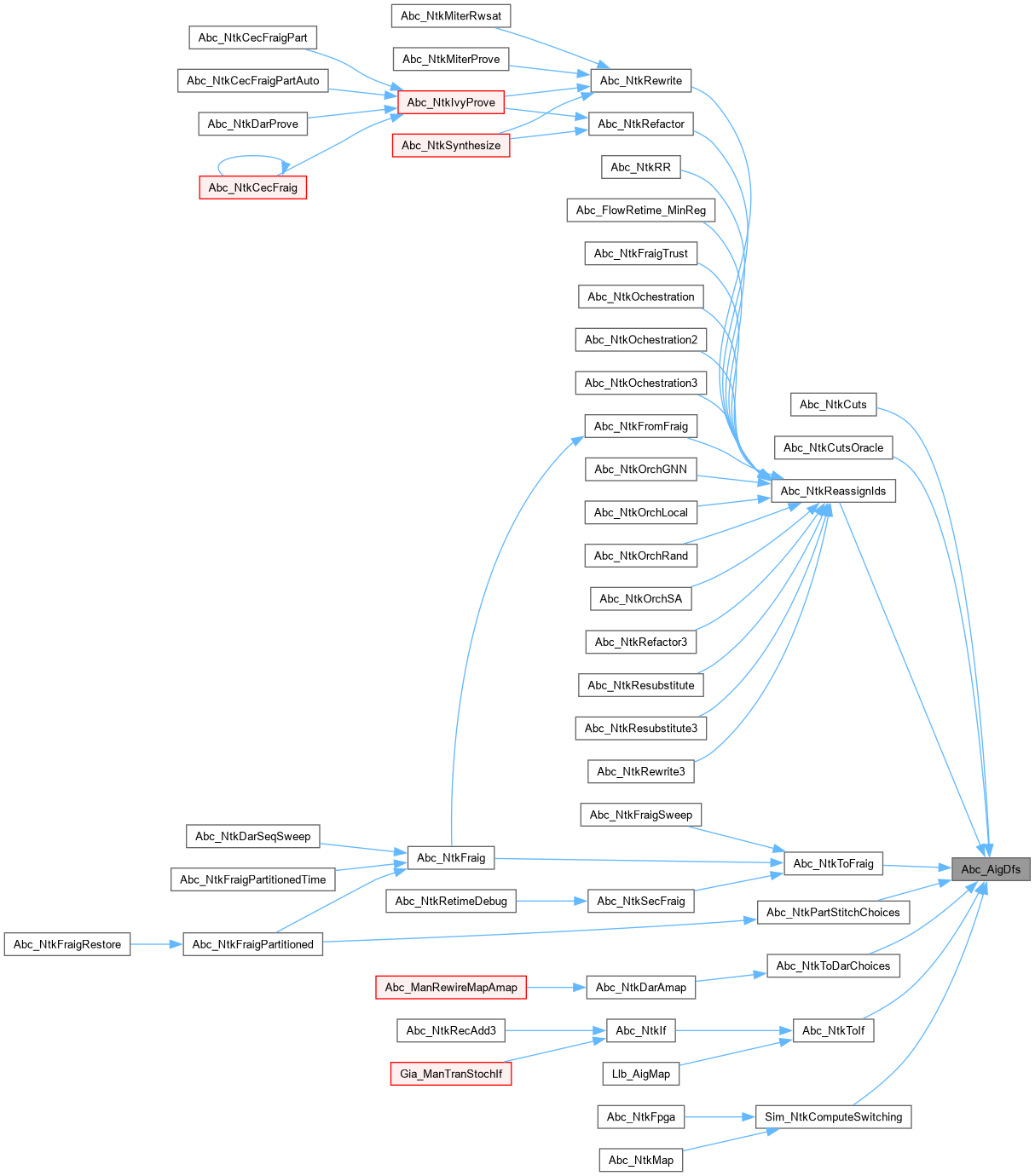

Here is the caller graph for this function:

Abc_AigDfs_rec()

void Abc_AigDfs_rec	(	Abc_Obj_t *	pNode,
		Vec_Ptr_t *	vNodes )

Function*************************************************************

Synopsis [Performs DFS for one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 1162 of file abcDfs.c.

{
    Abc_Obj_t * pFanin;
    int i;
    // if this node is already visited, skip
    if ( Abc_NodeIsTravIdCurrent( pNode ) )
        return;
    // mark the node as visited
    Abc_NodeSetTravIdCurrent( pNode );
    // skip the PI
    if ( Abc_ObjIsCi(pNode) || Abc_AigNodeIsConst(pNode) )
        return;
    assert( Abc_ObjIsNode( pNode ) );
    // visit the transitive fanin of the node
    Abc_ObjForEachFanin( pNode, pFanin, i )
        Abc_AigDfs_rec( pFanin, vNodes );
    // visit the equivalent nodes
    if ( Abc_AigNodeIsChoice( pNode ) )
        for ( pFanin = (Abc_Obj_t *)pNode->pData; pFanin; pFanin = (Abc_Obj_t *)pFanin->pData )
            Abc_AigDfs_rec( pFanin, vNodes );
    // add the node after the fanins have been added
    Vec_PtrPush( vNodes, pNode );
}

Here is the call graph for this function:

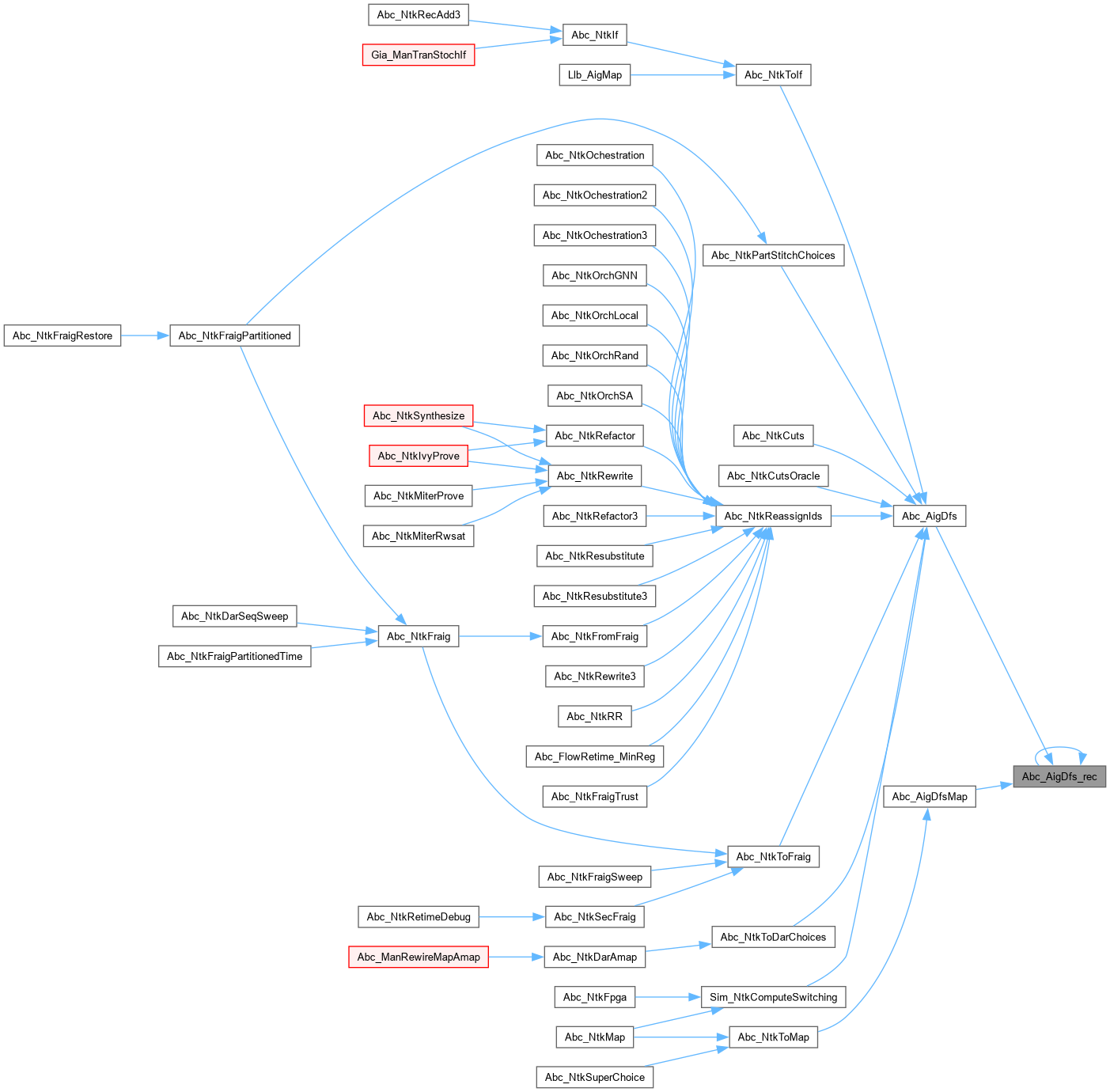

Here is the caller graph for this function:

Abc_AigDfsMap()

Vec_Ptr_t * Abc_AigDfsMap

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Returns the DFS ordered array of logic nodes.]

Description [Collects only the internal nodes, leaving out CIs/COs. However it marks both CIs and COs with the current TravId.]

SideEffects []

SeeAlso []

Definition at line 1238 of file abcDfs.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pNode;
    int i;
    assert( Abc_NtkIsStrash(pNtk) );
    // set the traversal ID
    Abc_NtkIncrementTravId( pNtk );
    // start the array of nodes
    vNodes = Vec_PtrAlloc( 100 );
    // collect cones of barbufs
    Abc_NtkForEachCo( pNtk, pNode, i )
    {
        if ( i < Abc_NtkCoNum(pNtk) - pNtk->nBarBufs )
            continue;
        Abc_AigDfs_rec( Abc_ObjFanin0(pNode), vNodes );
        Abc_NodeSetTravIdCurrent( pNode );
        // collect latch as a placeholder
        assert( Abc_ObjIsLatch(Abc_ObjFanout0(pNode)) );
        Vec_PtrPush( vNodes, Abc_ObjFanout0(pNode) );
    }
    // collect nodes of real POs
    Abc_NtkForEachCo( pNtk, pNode, i )
    {
        if ( i >= Abc_NtkCoNum(pNtk) - pNtk->nBarBufs )
            break;
        Abc_AigDfs_rec( Abc_ObjFanin0(pNode), vNodes );
        assert( Abc_ObjIsCo(pNode) );
        Abc_NodeSetTravIdCurrent( pNode );
    }
    return vNodes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_AigGetLevelizedOrder()

Vec_Ptr_t * Abc_AigGetLevelizedOrder	(	Abc_Ntk_t *	pNtk,
		int	fCollectCis )

Function*************************************************************

Synopsis [Returns nodes by level from the smallest to the largest.]

Description [Correctly handles the case of choice nodes, by first spreading them out across several levels and then collecting.]

SideEffects [What happens with dangling nodes???]

SeeAlso []

Definition at line 1841 of file abcDfs.c.

{
    Vec_Ptr_t * vNodes, * vLevels;
    Abc_Obj_t * pNode, ** ppHead;
    int LevelMax, i;
    assert( Abc_NtkIsStrash(pNtk) );
    // set the correct levels
    Abc_NtkCleanCopy( pNtk );
    LevelMax = Abc_AigSetChoiceLevels( pNtk );
    // relink nodes by level
    vLevels = Vec_PtrStart( LevelMax + 1 );
    Abc_NtkForEachNode( pNtk, pNode, i )
    {
        ppHead = ((Abc_Obj_t **)vLevels->pArray) + (int)(ABC_PTRINT_T)pNode->pCopy;
        pNode->pCopy = *ppHead;
        *ppHead = pNode;
    }
    // recollect nodes
    vNodes = Vec_PtrStart( Abc_NtkNodeNum(pNtk) );
    Vec_PtrForEachEntryStart( Abc_Obj_t *, vLevels, pNode, i, !fCollectCis )
        for ( ; pNode; pNode = pNode->pCopy )
            Vec_PtrPush( vNodes, pNode );
    Vec_PtrFree( vLevels );
    return vNodes;
}

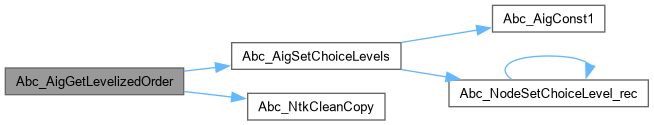

Here is the call graph for this function:

Abc_AigSetChoiceLevels()

int Abc_AigSetChoiceLevels

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Resets the levels of the nodes in the choice graph.]

Description [Makes the level of the choice nodes to be equal to the maximum of the level of the nodes in the equivalence class. This way sorting by level leads to the reverse topological order, which is needed for the required time computation.]

SideEffects []

SeeAlso []

Definition at line 1803 of file abcDfs.c.

{
    Abc_Obj_t * pObj;
    int i, LevelMax, LevelCur;
    assert( Abc_NtkIsStrash(pNtk) );
    // set the new travid counter
    Abc_NtkIncrementTravId( pNtk );
    // set levels of the CI and constant
    Abc_NtkForEachCi( pNtk, pObj, i )
    {
        Abc_NodeSetTravIdCurrent( pObj );
        pObj->pCopy = NULL;
    }
    pObj = Abc_AigConst1( pNtk );
    Abc_NodeSetTravIdCurrent( pObj );
    pObj->pCopy = NULL;
    // set levels of all other nodes
    LevelMax = 0;
    Abc_NtkForEachCo( pNtk, pObj, i )
    {
        LevelCur = Abc_NodeSetChoiceLevel_rec( Abc_ObjFanin0(pObj), 1 );
        LevelMax = Abc_MaxInt( LevelMax, LevelCur );
    }
    return LevelMax;
}

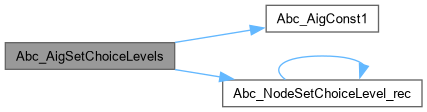

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_DfsLevelized()

Vec_Vec_t * Abc_DfsLevelized	(	Abc_Obj_t *	pNode,
		int	fTfi )

Function*************************************************************

Synopsis [Collects nodes in the DFS manner by level.]

Description [The number of levels should be set!!!]

SideEffects []

SeeAlso []

Definition at line 1313 of file abcDfs.c.

{
    Vec_Vec_t * vLevels;
    Abc_Obj_t * pFanout;
    int i;
    assert( fTfi == 0 );
    assert( !Abc_NtkIsNetlist(pNode->pNtk) );
    // set the traversal ID
    Abc_NtkIncrementTravId( pNode->pNtk );
    vLevels = Vec_VecAlloc( 100 );
    if ( Abc_ObjIsNode(pNode) )
        Abc_DfsLevelizedTfo_rec( pNode, vLevels );
    else
    {
        assert( Abc_ObjIsCi(pNode) );
        Abc_NodeSetTravIdCurrent( pNode );
        Abc_ObjForEachFanout( pNode, pFanout, i )
            Abc_DfsLevelizedTfo_rec( pFanout, vLevels );
    }
    return vLevels;
}

Here is the call graph for this function:

Abc_DfsLevelizedTfo_rec()

void Abc_DfsLevelizedTfo_rec	(	Abc_Obj_t *	pNode,
		Vec_Vec_t *	vLevels )

Function*************************************************************

Synopsis [Collects nodes in the DFS manner by level.]

Description [The number of levels should be set!!!]

SideEffects []

SeeAlso []

Definition at line 1282 of file abcDfs.c.

{
    Abc_Obj_t * pFanout;
    int i;
    // if this node is already visited, skip
    if ( Abc_NodeIsTravIdCurrent( pNode ) )
        return;
    // mark the node as visited
    Abc_NodeSetTravIdCurrent( pNode );
    // skip the terminals
    if ( Abc_ObjIsCo(pNode) )
        return;
    assert( Abc_ObjIsNode(pNode) );
    // add the node to the structure
    Vec_VecPush( vLevels, pNode->Level, pNode );
    // visit the TFO
    Abc_ObjForEachFanout( pNode, pFanout, i )
        Abc_DfsLevelizedTfo_rec( pFanout, vLevels );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NodeSetChoiceLevel_rec()

int Abc_NodeSetChoiceLevel_rec	(	Abc_Obj_t *	pNode,
		int	fMaximum )

Function*************************************************************

Synopsis [Analyses choice nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 1762 of file abcDfs.c.

{
    Abc_Obj_t * pTemp;
    int Level1, Level2, Level, LevelE;
    // skip the visited node
    if ( Abc_NodeIsTravIdCurrent( pNode ) )
        return (int)(ABC_PTRINT_T)pNode->pCopy;
    Abc_NodeSetTravIdCurrent( pNode );
    // compute levels of the children nodes
    Level1 = Abc_NodeSetChoiceLevel_rec( Abc_ObjFanin0(pNode), fMaximum );
    Level2 = Abc_NodeSetChoiceLevel_rec( Abc_ObjFanin1(pNode), fMaximum );
    Level  = 1 + Abc_MaxInt( Level1, Level2 );
    if ( pNode->pData )
    {
        LevelE = Abc_NodeSetChoiceLevel_rec( (Abc_Obj_t *)pNode->pData, fMaximum );
        if ( fMaximum )
            Level = Abc_MaxInt( Level, LevelE );
        else
            Level = Abc_MinInt( Level, LevelE );
        // set the level of all equivalent nodes to be the same minimum
        for ( pTemp = (Abc_Obj_t *)pNode->pData; pTemp; pTemp = (Abc_Obj_t *)pTemp->pData )
            pTemp->pCopy = (Abc_Obj_t *)(ABC_PTRINT_T)Level;
    }
    pNode->pCopy = (Abc_Obj_t *)(ABC_PTRINT_T)Level;
    return Level;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkDfs()

Vec_Ptr_t * Abc_NtkDfs	(	Abc_Ntk_t *	pNtk,
		int	fCollectAll )

Function*************************************************************

Synopsis [Returns the DFS ordered array of logic nodes.]

Description [Collects only the internal nodes, leaving out CIs and CO. However it marks with the current TravId both CIs and COs.]

SideEffects []

SeeAlso []

Definition at line 82 of file abcDfs.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pObj;
    int i;
    // set the traversal ID
    Abc_NtkIncrementTravId( pNtk );
    // start the array of nodes
    vNodes = Vec_PtrAlloc( 100 );
    if ( pNtk->nBarBufs2 > 0 )
    {
        Abc_NtkForEachBarBuf( pNtk, pObj, i )
        {
            Abc_NodeSetTravIdCurrent( pObj );
            Abc_NtkDfs_rec( Abc_ObjFanin0Ntk(Abc_ObjFanin0(pObj)), vNodes );
            Vec_PtrPush( vNodes, pObj );
        }
    }
    Abc_NtkForEachCo( pNtk, pObj, i )
    {
        Abc_NodeSetTravIdCurrent( pObj );
        Abc_NtkDfs_rec( Abc_ObjFanin0Ntk(Abc_ObjFanin0(pObj)), vNodes );
    }
    // collect dangling nodes if asked to
    if ( fCollectAll )
    {
        Abc_NtkForEachNode( pNtk, pObj, i )
            if ( !Abc_NodeIsTravIdCurrent(pObj) )
                Abc_NtkDfs_rec( pObj, vNodes );
    }
    return vNodes;
}

Here is the call graph for this function:

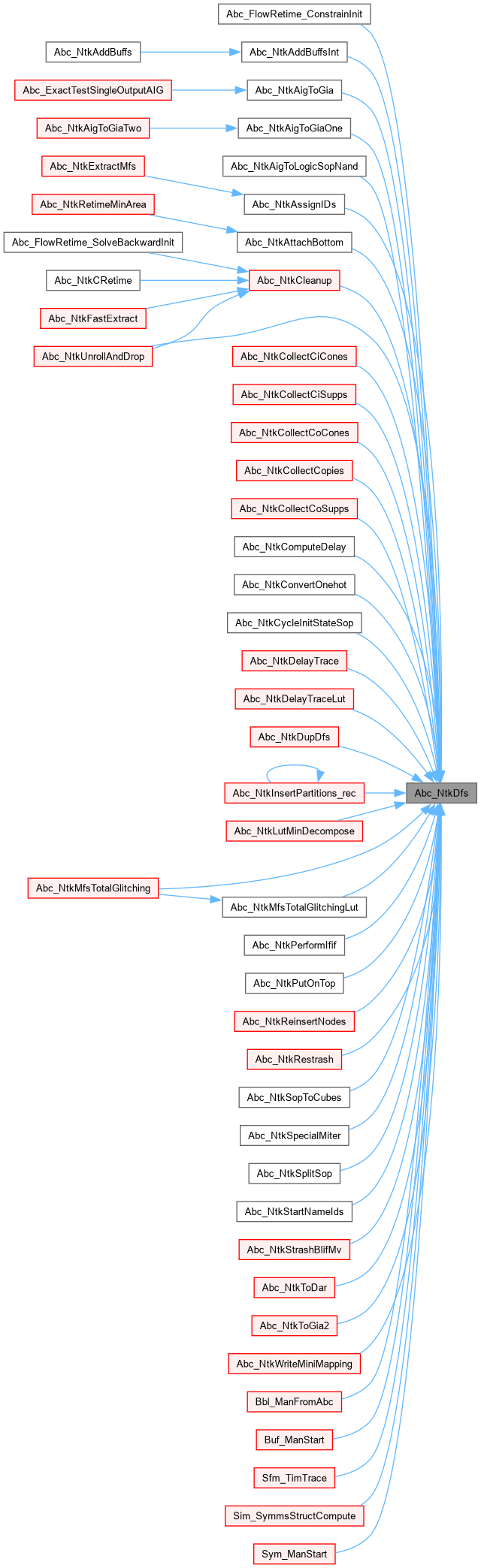

Here is the caller graph for this function:

Abc_NtkDfs2()

Vec_Ptr_t * Abc_NtkDfs2

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Returns the DFS ordered array of logic nodes.]

Description [Collects only the internal nodes, leaving out CIs and CO. However it marks with the current TravId both CIs and COs.]

SideEffects []

SeeAlso []

Definition at line 127 of file abcDfs.c.

{
    Vec_Ptr_t * vNodes = Vec_PtrAlloc( 100 );
    Abc_Obj_t * pObj;  int i;
    Abc_NtkIncrementTravId( pNtk );
    Abc_NtkForEachCo( pNtk, pObj, i )
    {
        Abc_NodeSetTravIdCurrent( pObj );
        Abc_NtkDfs_rec( Abc_ObjFanin0Ntk(Abc_ObjFanin0(pObj)), vNodes );
    }
    return vNodes;
}

Here is the call graph for this function:

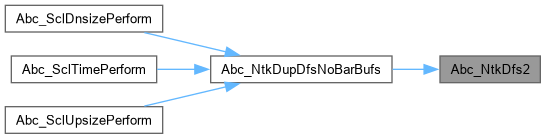

Here is the caller graph for this function:

Abc_NtkDfs_iter()

void Abc_NtkDfs_iter	(	Vec_Ptr_t *	vStack,
		Abc_Obj_t *	pRoot,
		Vec_Ptr_t *	vNodes )

Function*************************************************************

Synopsis [Iterative version of the DFS procedure.]

Description []

SideEffects []

SeeAlso []

Definition at line 515 of file abcDfs.c.

{
    Abc_Obj_t * pNode, * pFanin;
    int iFanin;
    // if this node is already visited, skip
    if ( Abc_NodeIsTravIdCurrent( pRoot ) )
        return;
    // mark the node as visited
    Abc_NodeSetTravIdCurrent( pRoot );
    // skip the CI
    if ( Abc_ObjIsCi(pRoot) || (Abc_NtkIsStrash(pRoot->pNtk) && Abc_AigNodeIsConst(pRoot)) )
        return;
    // add the CI
    Vec_PtrClear( vStack );
    Vec_PtrPush( vStack, pRoot );
    Vec_PtrPush( vStack, (void *)0 );
    while ( Vec_PtrSize(vStack) > 0 )
    {
        // get the node and its fanin
        iFanin = (int)(ABC_PTRINT_T)Vec_PtrPop(vStack);
        pNode  = (Abc_Obj_t *)Vec_PtrPop(vStack);
        assert( !Abc_ObjIsNet(pNode) );
        // add it to the array of nodes if we finished
        if ( iFanin == Abc_ObjFaninNum(pNode) )
        {
            Vec_PtrPush( vNodes, pNode );
            continue;
        }
        // explore the next fanin
        Vec_PtrPush( vStack, pNode );
        Vec_PtrPush( vStack, (void *)(ABC_PTRINT_T)(iFanin+1) );
        // get the fanin
        pFanin = Abc_ObjFanin0Ntk( Abc_ObjFanin(pNode,iFanin) );
        // if this node is already visited, skip
        if ( Abc_NodeIsTravIdCurrent( pFanin ) )
            continue;
        // mark the node as visited
        Abc_NodeSetTravIdCurrent( pFanin );
        // skip the CI
        if ( Abc_ObjIsCi(pFanin) || (Abc_NtkIsStrash(pFanin->pNtk) && Abc_AigNodeIsConst(pFanin)) )
            continue;
        Vec_PtrPush( vStack, pFanin );
        Vec_PtrPush( vStack, (void *)0 );
    }
}

Here is the caller graph for this function:

Abc_NtkDfs_rec()

ABC_NAMESPACE_IMPL_START void Abc_NtkDfs_rec	(	Abc_Obj_t *	pNode,
		Vec_Ptr_t *	vNodes )

DECLARATIONS ///.

CFile****************************************************************

FileName [abcDfs.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Network and node package.]

Synopsis [Procedures that use depth-first search.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

abcDfs.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Performs DFS for one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 46 of file abcDfs.c.

{
    Abc_Obj_t * pFanin;
    int i;
    assert( !Abc_ObjIsNet(pNode) );
    // if this node is already visited, skip
    if ( Abc_NodeIsTravIdCurrent( pNode ) )
        return;
    // mark the node as visited
    Abc_NodeSetTravIdCurrent( pNode );
    // skip the CI
    if ( Abc_ObjIsCi(pNode) || (Abc_NtkIsStrash(pNode->pNtk) && Abc_AigNodeIsConst(pNode)) )
        return;
    assert( Abc_ObjIsNode( pNode ) || Abc_ObjIsBox( pNode ) );
    // visit the transitive fanin of the node
    Abc_ObjForEachFanin( pNode, pFanin, i )
    {
//        pFanin = Abc_ObjFanin( pNode, Abc_ObjFaninNum(pNode)-1-i );
        Abc_NtkDfs_rec( Abc_ObjFanin0Ntk(pFanin), vNodes );
    }
    // add the node after the fanins have been added
    Vec_PtrPush( vNodes, pNode );
}

Here is the call graph for this function:

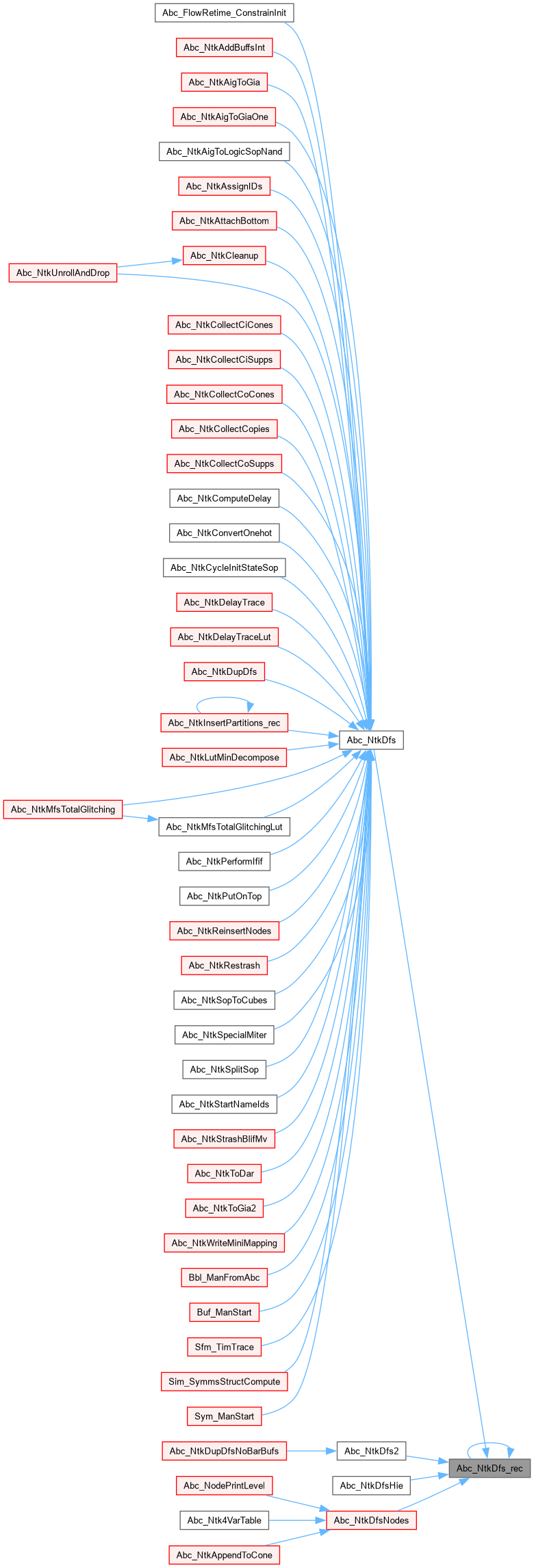

Here is the caller graph for this function:

Abc_NtkDfsHie()

Vec_Ptr_t * Abc_NtkDfsHie	(	Abc_Ntk_t *	pNtk,
		int	fCollectAll )

Function*************************************************************

Synopsis [Returns the DFS ordered array of all objects.]

Description [This procedure collects everything from POs to PIs.]

SideEffects []

SeeAlso []

Definition at line 665 of file abcDfs.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pObj;
    int i;
    // set the traversal ID
    Abc_NtkIncrementTravId( pNtk );
    // start the array of nodes
    vNodes = Vec_PtrAlloc( 100 );
    Abc_NtkForEachPo( pNtk, pObj, i )
        Abc_NtkDfsHie_rec( pObj, vNodes );
    // collect dangling nodes if asked to
    if ( fCollectAll )
    {
        Abc_NtkForEachObj( pNtk, pObj, i )
            if ( !Abc_NodeIsTravIdCurrent(pObj) )
                Abc_NtkDfs_rec( pObj, vNodes );
    }
    return vNodes;
}

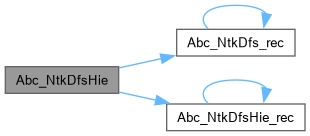

Here is the call graph for this function:

Abc_NtkDfsHie_rec()

void Abc_NtkDfsHie_rec	(	Abc_Obj_t *	pObj,
		Vec_Ptr_t *	vNodes )

Function*************************************************************

Synopsis [Performs DFS for one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 638 of file abcDfs.c.

{
    Abc_Obj_t * pFanin;
    int i;
    // if this node is already visited, skip
    if ( Abc_NodeIsTravIdCurrent( pObj ) )
        return;
    // mark the node as visited
    Abc_NodeSetTravIdCurrent( pObj );
    // visit the transitive fanin of the node
    Abc_ObjForEachFanin( pObj, pFanin, i )
        Abc_NtkDfsHie_rec( pFanin, vNodes );
    // add the node after the fanins have been added
    Vec_PtrPush( vNodes, pObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkDfsIter()

Vec_Ptr_t * Abc_NtkDfsIter	(	Abc_Ntk_t *	pNtk,
		int	fCollectAll )

Function*************************************************************

Synopsis [Returns the DFS ordered array of logic nodes.]

Description [Collects only the internal nodes, leaving CIs and CO. However it marks with the current TravId both CIs and COs.]

SideEffects []

SeeAlso []

Definition at line 573 of file abcDfs.c.

{
    Vec_Ptr_t * vNodes, * vStack;
    Abc_Obj_t * pObj;
    int i;
    // set the traversal ID
    Abc_NtkIncrementTravId( pNtk );
    // start the array of nodes
    vNodes = Vec_PtrAlloc( 1000 );
    vStack = Vec_PtrAlloc( 1000 );
    Abc_NtkForEachCo( pNtk, pObj, i )
    {
        Abc_NodeSetTravIdCurrent( pObj );
        Abc_NtkDfs_iter( vStack, Abc_ObjFanin0Ntk(Abc_ObjFanin0(pObj)), vNodes );
    }
    // collect dangling nodes if asked to
    if ( fCollectAll )
    {
        Abc_NtkForEachNode( pNtk, pObj, i )
            if ( !Abc_NodeIsTravIdCurrent(pObj) )
                Abc_NtkDfs_iter( vStack, pObj, vNodes );
    }
    Vec_PtrFree( vStack );
    return vNodes;
}

Here is the call graph for this function:

Abc_NtkDfsIterNodes()

Vec_Ptr_t * Abc_NtkDfsIterNodes	(	Abc_Ntk_t *	pNtk,
		Vec_Ptr_t *	vRoots )

Function*************************************************************

Synopsis [Returns the DFS ordered array of logic nodes.]

Description [Collects only the internal nodes, leaving CIs and CO. However it marks with the current TravId both CIs and COs.]

SideEffects []

SeeAlso []

Definition at line 611 of file abcDfs.c.

{
    Vec_Ptr_t * vNodes, * vStack;
    Abc_Obj_t * pObj;
    int i;
    Abc_NtkIncrementTravId( pNtk );
    vNodes = Vec_PtrAlloc( 1000 );
    vStack = Vec_PtrAlloc( 1000 );
    Vec_PtrForEachEntry( Abc_Obj_t *, vRoots, pObj, i )
        if ( !Abc_NodeIsTravIdCurrent(Abc_ObjRegular(pObj)) )
            Abc_NtkDfs_iter( vStack, Abc_ObjRegular(pObj), vNodes );
    Vec_PtrFree( vStack );
    return vNodes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkDfsNets()

Vec_Ptr_t * Abc_NtkDfsNets

(

Abc_Ntk_t *

pNtk

)

Definition at line 750 of file abcDfs.c.

{
    Vec_Ptr_t * vNets;
    Abc_Obj_t * pObj; int i;
    vNets = Vec_PtrAlloc( 100 );
    Abc_NtkIncrementTravId( pNtk );
    Abc_NtkForEachCi( pNtk, pObj, i )
        Abc_NodeSetTravIdCurrent( Abc_ObjFanout0(pObj) );
    Abc_NtkForEachCi( pNtk, pObj, i )
        Vec_PtrPush( vNets, Abc_ObjFanout0(pObj) );
    Abc_NtkForEachCo( pNtk, pObj, i )
        Abc_NtkDfsNets_rec( Abc_ObjFanin0(pObj), vNets );
    return vNets;
}

Here is the call graph for this function:

Abc_NtkDfsNets_rec()

void Abc_NtkDfsNets_rec	(	Abc_Obj_t *	pNet,
		Vec_Ptr_t *	vNets )

Function*************************************************************

Synopsis [Create DFS ordering of nets.]

Description []

SideEffects []

SeeAlso []

Definition at line 736 of file abcDfs.c.

{
    Abc_Obj_t * pNext;
    Abc_Obj_t * pNode; int i;
    assert( Abc_ObjIsNet(pNet) );
    if ( Abc_NodeIsTravIdCurrent( pNet ) )
        return;
    Abc_NodeSetTravIdCurrent( pNet );
    pNode = Abc_ObjFanin0( pNet );
    Abc_ObjForEachFanin( pNode, pNext, i )
        Abc_NtkDfsNets_rec( pNext, vNets );
    Abc_ObjForEachFanout( pNode, pNext, i )
        Vec_PtrPush( vNets, pNext );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkDfsNodes()

Vec_Ptr_t * Abc_NtkDfsNodes	(	Abc_Ntk_t *	pNtk,
		Abc_Obj_t **	ppNodes,
		int	nNodes )

Function*************************************************************

Synopsis [Returns the DFS ordered array of logic nodes.]

Description [Collects only the internal nodes, leaving out PIs, POs and latches.]

SideEffects []

SeeAlso []

Definition at line 151 of file abcDfs.c.

{
    Vec_Ptr_t * vNodes;
    int i;
    // set the traversal ID
    Abc_NtkIncrementTravId( pNtk );
    // start the array of nodes
    vNodes = Vec_PtrAlloc( 100 );
    // go through the PO nodes and call for each of them
    for ( i = 0; i < nNodes; i++ )
    {
        if ( Abc_NtkIsStrash(pNtk) && Abc_AigNodeIsConst(ppNodes[i]) )
            continue;
        if ( Abc_ObjIsCo(ppNodes[i]) )
        {
            Abc_NodeSetTravIdCurrent(ppNodes[i]);
            Abc_NtkDfs_rec( Abc_ObjFanin0Ntk(Abc_ObjFanin0(ppNodes[i])), vNodes );
        }
        else if ( Abc_ObjIsNode(ppNodes[i]) || Abc_ObjIsCi(ppNodes[i]) )
            Abc_NtkDfs_rec( ppNodes[i], vNodes );
    }
    return vNodes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkDfsReverse()

Vec_Ptr_t * Abc_NtkDfsReverse

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Returns the reverse DFS ordered array of logic nodes.]

Description [Collects only the internal nodes, leaving out CIs/COs. However it marks both CIs and COs with the current TravId.]

SideEffects []

SeeAlso []

Definition at line 221 of file abcDfs.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pObj, * pFanout;
    int i, k;
    // set the traversal ID
    Abc_NtkIncrementTravId( pNtk );
    // start the array of nodes
    vNodes = Vec_PtrAlloc( 100 );
    Abc_NtkForEachCi( pNtk, pObj, i )
    {
        Abc_NodeSetTravIdCurrent( pObj );
        pObj = Abc_ObjFanout0Ntk(pObj);
        Abc_ObjForEachFanout( pObj, pFanout, k )
            Abc_NtkDfsReverse_rec( pFanout, vNodes );
    }
    // add constant nodes in the end
    if ( !Abc_NtkIsStrash(pNtk) ) {
        Abc_NtkForEachNode( pNtk, pObj, i )
            if ( Abc_NodeIsConst(pObj) )
                Vec_PtrPush( vNodes, pObj );
    }
    return vNodes;
}

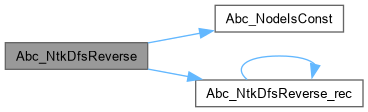

Here is the call graph for this function:

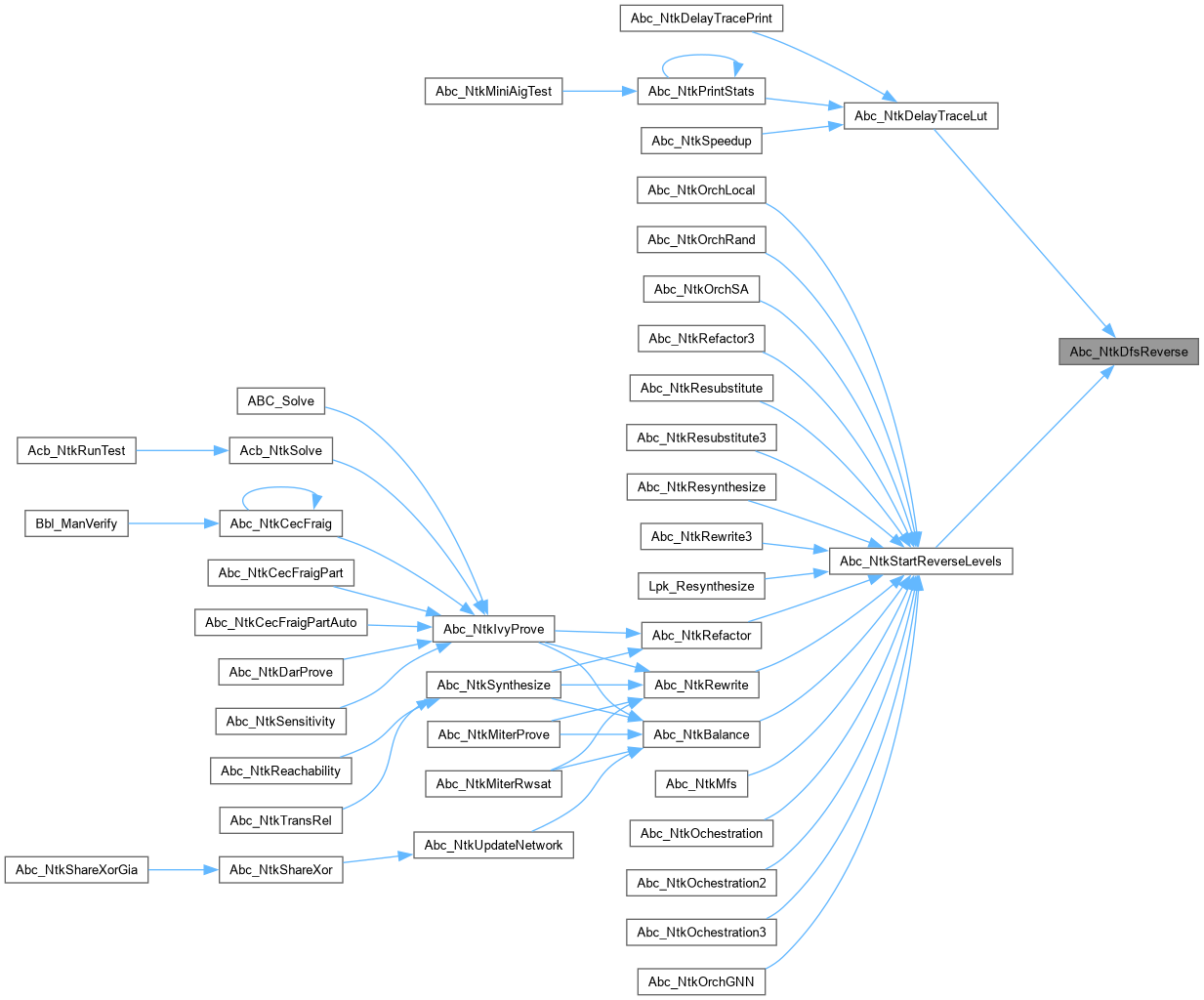

Here is the caller graph for this function:

Abc_NtkDfsReverse_rec()

void Abc_NtkDfsReverse_rec	(	Abc_Obj_t *	pNode,
		Vec_Ptr_t *	vNodes )

Function*************************************************************

Synopsis [Performs DFS for one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 187 of file abcDfs.c.

{
    Abc_Obj_t * pFanout;
    int i;
    assert( !Abc_ObjIsNet(pNode) );
    // if this node is already visited, skip
    if ( Abc_NodeIsTravIdCurrent( pNode ) )
        return;
    // mark the node as visited
    Abc_NodeSetTravIdCurrent( pNode );
    // skip the CI
    if ( Abc_ObjIsCo(pNode) )
        return;
    assert( Abc_ObjIsNode( pNode ) );
    // visit the transitive fanin of the node
    pNode = Abc_ObjFanout0Ntk(pNode);
    Abc_ObjForEachFanout( pNode, pFanout, i )
        Abc_NtkDfsReverse_rec( pFanout, vNodes );
    // add the node after the fanins have been added
    Vec_PtrPush( vNodes, pNode );
}

Here is the call graph for this function:

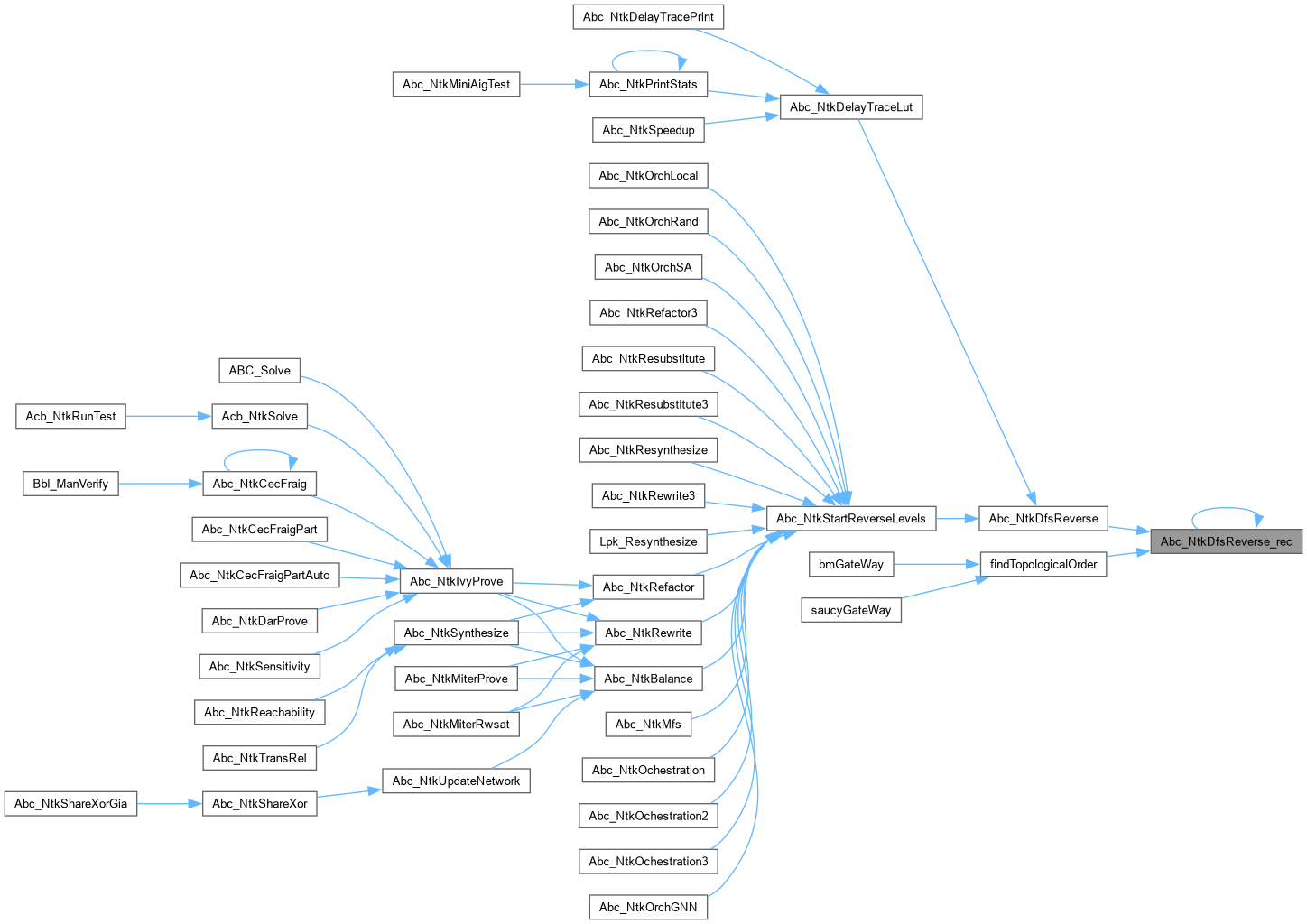

Here is the caller graph for this function:

Abc_NtkDfsReverseNodes()

Vec_Ptr_t * Abc_NtkDfsReverseNodes	(	Abc_Ntk_t *	pNtk,
		Abc_Obj_t **	ppNodes,
		int	nNodes )

Function*************************************************************

Synopsis [Returns the levelized array of TFO nodes.]

Description [Collects the levelized array of internal nodes, leaving out CIs/COs. However it marks both CIs and COs with the current TravId.]

SideEffects []

SeeAlso []

Definition at line 294 of file abcDfs.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pObj, * pFanout;
    int i, k;
    assert( Abc_NtkIsStrash(pNtk) );
    // set the traversal ID
    Abc_NtkIncrementTravId( pNtk );
    // start the array of nodes
    vNodes = Vec_PtrStart( Abc_AigLevel(pNtk) + 1 );
    for ( i = 0; i < nNodes; i++ )
    {
        pObj = ppNodes[i];
        assert( Abc_ObjIsCi(pObj) );
        Abc_NodeSetTravIdCurrent( pObj );
        pObj = Abc_ObjFanout0Ntk(pObj);
        Abc_ObjForEachFanout( pObj, pFanout, k )
            Abc_NtkDfsReverseNodes_rec( pFanout, vNodes );
    }
    return vNodes;
}

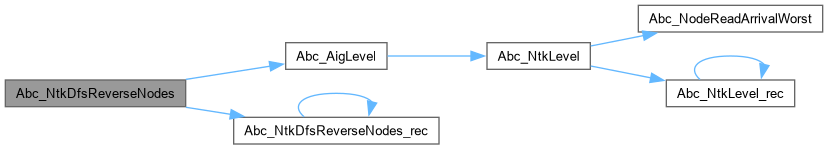

Here is the call graph for this function:

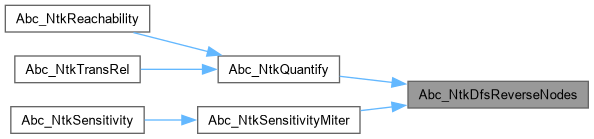

Here is the caller graph for this function:

Abc_NtkDfsReverseNodes_rec()

void Abc_NtkDfsReverseNodes_rec	(	Abc_Obj_t *	pNode,
		Vec_Ptr_t *	vNodes )

Function*************************************************************

Synopsis [Performs DFS for one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 257 of file abcDfs.c.

{
    Abc_Obj_t * pFanout;
    int i;
    assert( !Abc_ObjIsNet(pNode) );
    // if this node is already visited, skip
    if ( Abc_NodeIsTravIdCurrent( pNode ) )
        return;
    // mark the node as visited
    Abc_NodeSetTravIdCurrent( pNode );
    // skip the CI
    if ( Abc_ObjIsCo(pNode) )
        return;
    assert( Abc_ObjIsNode( pNode ) );
    // visit the transitive fanin of the node
    pNode = Abc_ObjFanout0Ntk(pNode);
    Abc_ObjForEachFanout( pNode, pFanout, i )
        Abc_NtkDfsReverseNodes_rec( pFanout, vNodes );
    // add the node after the fanins have been added
//    Vec_PtrPush( vNodes, pNode );
    Vec_PtrFillExtra( vNodes, pNode->Level + 1, NULL );
    pNode->pCopy = (Abc_Obj_t *)Vec_PtrEntry( vNodes, pNode->Level );
    Vec_PtrWriteEntry( vNodes, pNode->Level, pNode );
}

Here is the call graph for this function:

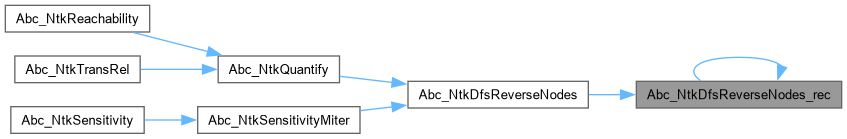

Here is the caller graph for this function:

Abc_NtkDfsReverseNodesContained()

Vec_Ptr_t * Abc_NtkDfsReverseNodesContained	(	Abc_Ntk_t *	pNtk,
		Abc_Obj_t **	ppNodes,
		int	nNodes )

Function*************************************************************

Synopsis [Returns the levelized array of TFO nodes.]

Description [Collects the levelized array of internal nodes, leaving out CIs/COs. However it marks both CIs and COs with the current TravId. Collects only the nodes whose support does not exceed the set of given CI nodes.]

SideEffects []

SeeAlso []

Definition at line 329 of file abcDfs.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pObj, * pFanout, * pFanin;
    int i, k, m, nLevels;
    // set the levels
    nLevels = Abc_NtkLevel( pNtk );
    // set the traversal ID
    Abc_NtkIncrementTravId( pNtk );
    // start the array of nodes
    vNodes = Vec_PtrStart( nLevels + 2 );
    for ( i = 0; i < nNodes; i++ )
    {
        pObj = ppNodes[i];
        assert( Abc_ObjIsCi(pObj) );
        Abc_NodeSetTravIdCurrent( pObj );
        // add to the array
        assert( pObj->Level == 0 );
        pObj->pCopy = (Abc_Obj_t *)Vec_PtrEntry( vNodes, pObj->Level );
        Vec_PtrWriteEntry( vNodes, pObj->Level, pObj );
    }
    // iterate through the levels
    for ( i = 0; i <= nLevels; i++ )
    {
        // iterate through the nodes on each level
        for ( pObj = (Abc_Obj_t *)Vec_PtrEntry(vNodes, i); pObj; pObj = pObj->pCopy )
        {
            // iterate through the fanouts of each node
            Abc_ObjForEachFanout( pObj, pFanout, k )
            {
                // skip visited nodes
                if ( Abc_NodeIsTravIdCurrent(pFanout) )
                    continue;
                // visit the fanins of this fanout
                Abc_ObjForEachFanin( pFanout, pFanin, m )
                {
                    if ( !Abc_NodeIsTravIdCurrent(pFanin) )
                        break;
                }
                if ( m < Abc_ObjFaninNum(pFanout) )
                    continue;
                // all fanins are already collected

                // mark the node as visited
                Abc_NodeSetTravIdCurrent( pFanout );
                // handle the COs
                if ( Abc_ObjIsCo(pFanout) )
                    pFanout->Level = nLevels + 1;
                // add to the array
                pFanout->pCopy = (Abc_Obj_t *)Vec_PtrEntry( vNodes, pFanout->Level );
                Vec_PtrWriteEntry( vNodes, pFanout->Level, pFanout );
                // handle the COs
                if ( Abc_ObjIsCo(pFanout) )
                    pFanout->Level = 0;
            }
        }
    }
    return vNodes;
}

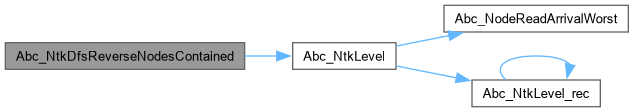

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkDfsSeq()

Vec_Ptr_t * Abc_NtkDfsSeq

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Returns the array of nodes and latches reachable from POs.]

Description []

SideEffects []

SeeAlso []

Definition at line 428 of file abcDfs.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pObj;
    int i;
    assert( !Abc_NtkIsNetlist(pNtk) );
    // set the traversal ID
    Abc_NtkIncrementTravId( pNtk );
    // start the array of nodes
    vNodes = Vec_PtrAlloc( 100 );
    Abc_NtkForEachPo( pNtk, pObj, i )
        Abc_NtkDfsSeq_rec( pObj, vNodes );
    // mark the PIs
    Abc_NtkForEachPi( pNtk, pObj, i )
        Abc_NtkDfsSeq_rec( pObj, vNodes );
    return vNodes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkDfsSeq_rec()

void Abc_NtkDfsSeq_rec	(	Abc_Obj_t *	pNode,
		Vec_Ptr_t *	vNodes )

Function*************************************************************

Synopsis [Performs DFS for one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 401 of file abcDfs.c.

{
    Abc_Obj_t * pFanin;
    int i;
    // if this node is already visited, skip
    if ( Abc_NodeIsTravIdCurrent( pNode ) )
        return;
    // mark the node as visited
    Abc_NodeSetTravIdCurrent( pNode );
    // visit the transitive fanin of the node
    Abc_ObjForEachFanin( pNode, pFanin, i )
        Abc_NtkDfsSeq_rec( pFanin, vNodes );
    // add the node after the fanins have been added
    Vec_PtrPush( vNodes, pNode );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkDfsSeqReverse()

Vec_Ptr_t * Abc_NtkDfsSeqReverse

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Returns the array of nodes and latches reachable from POs.]

Description []

SideEffects []

SeeAlso []

Definition at line 485 of file abcDfs.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pObj;
    int i;
    assert( !Abc_NtkIsNetlist(pNtk) );
    // set the traversal ID
    Abc_NtkIncrementTravId( pNtk );
    // start the array of nodes
    vNodes = Vec_PtrAlloc( 100 );
    Abc_NtkForEachPi( pNtk, pObj, i )
        Abc_NtkDfsSeqReverse_rec( pObj, vNodes );
    // mark the logic feeding into POs
    Abc_NtkForEachPo( pNtk, pObj, i )
        Abc_NtkDfsSeq_rec( pObj, vNodes );
    return vNodes;
}

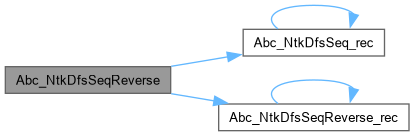

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkDfsSeqReverse_rec()

void Abc_NtkDfsSeqReverse_rec	(	Abc_Obj_t *	pNode,
		Vec_Ptr_t *	vNodes )

Function*************************************************************

Synopsis [Performs DFS for one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 458 of file abcDfs.c.

{
    Abc_Obj_t * pFanout;
    int i;
    // if this node is already visited, skip
    if ( Abc_NodeIsTravIdCurrent( pNode ) )
        return;
    // mark the node as visited
    Abc_NodeSetTravIdCurrent( pNode );
    // visit the transitive fanin of the node
    Abc_ObjForEachFanout( pNode, pFanout, i )
        Abc_NtkDfsSeqReverse_rec( pFanout, vNodes );
    // add the node after the fanins have been added
    Vec_PtrPush( vNodes, pNode );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkDfsWithBoxes()

Vec_Ptr_t * Abc_NtkDfsWithBoxes

(

Abc_Ntk_t *

pNtk

)

Definition at line 799 of file abcDfs.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pObj;
    int i;
    Abc_NtkIncrementTravId( pNtk );
    vNodes = Vec_PtrAlloc( 100 );
    Abc_NtkForEachPo( pNtk, pObj, i )
    {
        assert( Abc_ObjIsNet(Abc_ObjFanin0(pObj)) );
        Abc_NtkDfsWithBoxes_rec( Abc_ObjFanin0Ntk(Abc_ObjFanin0(pObj)), vNodes );
    }
    return vNodes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkDfsWithBoxes_rec()

void Abc_NtkDfsWithBoxes_rec	(	Abc_Obj_t *	pNode,
		Vec_Ptr_t *	vNodes )

Function*************************************************************

Synopsis [Returns the DFS ordered array of logic nodes.]

Description [Collects only the internal nodes, leaving out CIs and CO. However it marks with the current TravId both CIs and COs.]

SideEffects []

SeeAlso []

Definition at line 777 of file abcDfs.c.

{
    Abc_Obj_t * pFanin;
    int i;
    assert( !Abc_ObjIsNet(pNode) );
    if ( Abc_ObjIsBo(pNode) )
        pNode = Abc_ObjFanin0(pNode);
    if ( Abc_ObjIsPi(pNode) )
        return;
    assert( Abc_ObjIsNode( pNode ) || Abc_ObjIsBox( pNode ) );
    if ( Abc_NodeIsTravIdCurrent( pNode ) )
        return;
    Abc_NodeSetTravIdCurrent( pNode );
    Abc_ObjForEachFanin( pNode, pFanin, i )
    {
        if ( Abc_ObjIsBox(pNode) )
            pFanin = Abc_ObjFanin0(pFanin);
        assert( Abc_ObjIsNet(pFanin) );
        Abc_NtkDfsWithBoxes_rec( Abc_ObjFanin0Ntk(pFanin), vNodes );
    }
    Vec_PtrPush( vNodes, pNode );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkFunctionalIso()

int Abc_NtkFunctionalIso	(	Abc_Ntk_t *	pNtk,
		int	iCo1,
		int	iCo2,
		int	fCommon )

Definition at line 1048 of file abcDfs.c.

{
    Abc_Ntk_t * pNtkNew; int Result;
    if ( Abc_NtkIsStrash(pNtk) )
        return Abc_NtkFunctionalIsoInt( pNtk, iCo1, iCo2, fCommon );
    pNtkNew = Abc_NtkStrash( pNtk, 0, 0, 0 );
    Result = Abc_NtkFunctionalIsoInt( pNtkNew, iCo1, iCo2, fCommon );
    Abc_NtkDelete( pNtkNew );
    return Result;
}

Here is the call graph for this function:

Abc_NtkFunctionalIsoGia()

Gia_Man_t * Abc_NtkFunctionalIsoGia	(	Abc_Ntk_t *	pNtk,
		int	iCo1,
		int	iCo2,
		int	fCommon )

Definition at line 983 of file abcDfs.c.

{
    Gia_Man_t * pNew = NULL, * pTemp;
    Vec_Int_t * vSupp1 = Abc_NtkNodeSupportInt( pNtk, iCo1 );
    Vec_Int_t * vSupp2 = Abc_NtkNodeSupportInt( pNtk, iCo2 );
    if ( Vec_IntSize(vSupp1) == Vec_IntSize(vSupp2) )
    {
        Abc_Obj_t * pObj;
        int i, iCi, iLit1, iLit2;
        pNew = Gia_ManStart( 1000 );
        pNew->pName = Abc_UtilStrsav( pNtk->pName );
        pNew->pSpec = Abc_UtilStrsav( pNtk->pSpec );
        Gia_ManHashStart( pNew );
        // put commom together
        if ( fCommon )
        {
            Vec_Int_t * vCommon = Vec_IntAlloc( Vec_IntSize(vSupp1) );
            Vec_IntTwoRemoveCommon( vSupp1, vSupp2, vCommon );
            Vec_IntAppend( vSupp1, vCommon );
            Vec_IntAppend( vSupp2, vCommon );
            Vec_IntFree( vCommon );
            assert( Vec_IntSize(vSupp1) == Vec_IntSize(vSupp2) );
        }
        // primary inputs
        Abc_AigConst1(pNtk)->iTemp = 1;
        Vec_IntForEachEntry( vSupp1, iCi, i )
            Abc_NtkCi(pNtk, iCi)->iTemp = Gia_ManAppendCi(pNew);
        // create the first cone
        Abc_NtkIncrementTravId( pNtk );
        pObj = Abc_NtkCo( pNtk, iCo1 );
        iLit1 = Abc_NtkFunctionalIsoGia_rec( pNew, Abc_ObjFanin0(pObj) );
        iLit1 = Abc_LitNotCond( iLit1, Abc_ObjFaninC0(pObj) );
        // primary inputs
        Vec_IntForEachEntry( vSupp2, iCi, i )
            Abc_NtkCi(pNtk, iCi)->iTemp = Gia_ManCiLit(pNew, i);
        // create the second cone
        Abc_NtkIncrementTravId( pNtk );
        pObj = Abc_NtkCo( pNtk, iCo2 );
        iLit2 = Abc_NtkFunctionalIsoGia_rec( pNew, Abc_ObjFanin0(pObj) );
        iLit2 = Abc_LitNotCond( iLit2, Abc_ObjFaninC0(pObj) );
        Gia_ManAppendCo( pNew, iLit1 );
        Gia_ManAppendCo( pNew, iLit2 );
        // perform cleanup
        pNew = Gia_ManCleanup( pTemp = pNew );
        Gia_ManStop( pTemp );
    }
    Vec_IntFree( vSupp1 );
    Vec_IntFree( vSupp2 );
    return pNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkFunctionalIsoGia_rec()

int Abc_NtkFunctionalIsoGia_rec	(	Gia_Man_t *	pNew,
		Abc_Obj_t *	pNode )

Function*************************************************************

Synopsis [Derives GIA comparing two outputs.]

Description []

SideEffects []

SeeAlso []

Definition at line 970 of file abcDfs.c.

{
    int iLit0, iLit1;
    if ( Abc_NodeIsTravIdCurrent(pNode) || Abc_ObjFaninNum(pNode) == 0 || Abc_ObjIsCi(pNode) )
        return pNode->iTemp;
    assert( Abc_ObjIsNode( pNode ) );
    Abc_NodeSetTravIdCurrent( pNode );
    iLit0 = Abc_NtkFunctionalIsoGia_rec( pNew, Abc_ObjFanin0(pNode) );
    iLit1 = Abc_NtkFunctionalIsoGia_rec( pNew, Abc_ObjFanin1(pNode) );
    iLit0 = Abc_LitNotCond( iLit0, Abc_ObjFaninC0(pNode) );
    iLit1 = Abc_LitNotCond( iLit1, Abc_ObjFaninC1(pNode) );
    return (pNode->iTemp = Gia_ManHashAnd(pNew, iLit0, iLit1));
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkFunctionalIsoInt()

int Abc_NtkFunctionalIsoInt	(	Abc_Ntk_t *	pNtk,
		int	iCo1,
		int	iCo2,
		int	fCommon )

Definition at line 1033 of file abcDfs.c.

{
    Gia_Man_t * pGia; int Value;
    assert( Abc_NtkIsStrash(pNtk) );
    if ( iCo1 < 0 || iCo1 >= Abc_NtkCoNum(pNtk) )
        return 0;
    if ( iCo2 < 0 || iCo2 >= Abc_NtkCoNum(pNtk) )
        return 0;
    pGia = Abc_NtkFunctionalIsoGia( pNtk, iCo1, iCo2, fCommon );
    if ( pGia == NULL )
        return 0;
    Value = Cec_ManVerifySimple( pGia );
    Gia_ManStop( pGia );
    return (int)(Value == 1);
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkIsAcyclic()

int Abc_NtkIsAcyclic

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Detects combinational loops.]

Description [This procedure is based on the idea suggested by Donald Chai. As we traverse the network and visit the nodes, we need to distinquish three types of nodes: (1) those that are visited for the first time, (2) those that have been visited in this traversal but are currently not on the traversal path, (3) those that have been visited and are currently on the travesal path. When the node of type (3) is encountered, it means that there is a combinational loop. To mark the three types of nodes, two new values of the traversal IDs are used.]

SideEffects []

SeeAlso []

Definition at line 1614 of file abcDfs.c.

{
    Abc_Obj_t * pNode;
    int fAcyclic;
    int i;
    // set the traversal ID for this DFS ordering
    Abc_NtkIncrementTravId( pNtk );
    Abc_NtkIncrementTravId( pNtk );
    // pNode->TravId == pNet->nTravIds      means "pNode is on the path"
    // pNode->TravId == pNet->nTravIds - 1  means "pNode is visited but is not on the path"
    // pNode->TravId <  pNet->nTravIds - 1  means "pNode is not visited"
    // traverse the network to detect cycles
    fAcyclic = 1;
    Abc_NtkForEachCo( pNtk, pNode, i )
    {
        pNode = Abc_ObjFanin0Ntk(Abc_ObjFanin0(pNode));
        if ( Abc_NodeIsTravIdPrevious(pNode) )
            continue;
        // traverse the output logic cone
        if ( (fAcyclic = Abc_NtkIsAcyclic_rec(pNode)) )
            continue;
        // stop as soon as the first loop is detected
        fprintf( stdout, " CO \"%s\"\n", Abc_ObjName(Abc_ObjFanout0(pNode)) );
        break;
    }
    return fAcyclic;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkIsAcyclic_rec()

int Abc_NtkIsAcyclic_rec

(

Abc_Obj_t *

pNode

)

Function*************************************************************

Synopsis [Recursively detects combinational loops.]

Description []

SideEffects []

SeeAlso []

Definition at line 1538 of file abcDfs.c.

{
    Abc_Ntk_t * pNtk = pNode->pNtk;
    Abc_Obj_t * pFanin;
    int fAcyclic, i;
    assert( !Abc_ObjIsNet(pNode) );
    if ( Abc_ObjIsCi(pNode) || Abc_ObjIsBox(pNode) || (Abc_NtkIsStrash(pNode->pNtk) && Abc_AigNodeIsConst(pNode)) )
        return 1;
    assert( Abc_ObjIsNode(pNode) );
    // make sure the node is not visited
    assert( !Abc_NodeIsTravIdPrevious(pNode) );
    // check if the node is part of the combinational loop
    if ( Abc_NodeIsTravIdCurrent(pNode) )
    {
        fprintf( stdout, "Network \"%s\" contains combinational loop!\n", Abc_NtkName(pNtk) );
        fprintf( stdout, "Node \"%s\" is encountered twice on the following path to the COs:\n", Abc_ObjName(pNode) );
        return 0;
    }
    // mark this node as a node on the current path
    Abc_NodeSetTravIdCurrent( pNode );
    // visit the transitive fanin
    Abc_ObjForEachFanin( pNode, pFanin, i )
    {
        pFanin = Abc_ObjFanin0Ntk(pFanin);
        // make sure there is no mixing of networks
        assert( pFanin->pNtk == pNode->pNtk );
        // check if the fanin is visited
        if ( Abc_NodeIsTravIdPrevious(pFanin) )
            continue;
        // traverse the fanin's cone searching for the loop
        if ( (fAcyclic = Abc_NtkIsAcyclic_rec(pFanin)) )
            continue;
        // return as soon as the loop is detected
        fprintf( stdout, " %s ->", Abc_ObjName(pFanin) );
        return 0;
    }
    // visit choices
    if ( Abc_NtkIsStrash(pNode->pNtk) && Abc_AigNodeIsChoice(pNode) )
    {
        for ( pFanin = (Abc_Obj_t *)pNode->pData; pFanin; pFanin = (Abc_Obj_t *)pFanin->pData )
        {
            // check if the fanin is visited
            if ( Abc_NodeIsTravIdPrevious(pFanin) )
                continue;
            // traverse the fanin's cone searching for the loop
            if ( (fAcyclic = Abc_NtkIsAcyclic_rec(pFanin)) )
                continue;
            // return as soon as the loop is detected
            fprintf( stdout, " %s", Abc_ObjName(pFanin) );
            fprintf( stdout, " (choice of %s) -> ", Abc_ObjName(pNode) );
            return 0;
        }
    }
    // mark this node as a visited node
    Abc_NodeSetTravIdPrevious( pNode );
    return 1;
}

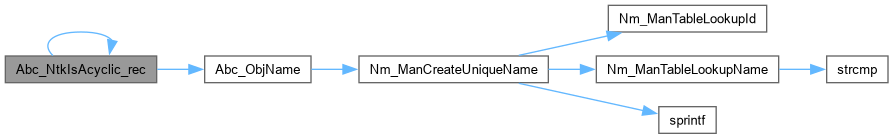

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkIsAcyclicWithBoxes()

int Abc_NtkIsAcyclicWithBoxes

(

Abc_Ntk_t *

pNtk

)

Definition at line 1702 of file abcDfs.c.

{
    Abc_Obj_t * pNode;
    int fAcyclic;
    int i;
    // set the traversal ID for this DFS ordering
    Abc_NtkIncrementTravId( pNtk );
    Abc_NtkIncrementTravId( pNtk );
    // pNode->TravId == pNet->nTravIds      means "pNode is on the path"
    // pNode->TravId == pNet->nTravIds - 1  means "pNode is visited but is not on the path"
    // pNode->TravId <  pNet->nTravIds - 1  means "pNode is not visited"
    // traverse the network to detect cycles
    fAcyclic = 1;
    Abc_NtkForEachPo( pNtk, pNode, i )
    {
        pNode = Abc_ObjFanin0Ntk(Abc_ObjFanin0(pNode));
        if ( Abc_ObjIsBo(pNode) )
            pNode = Abc_ObjFanin0(pNode);
        if ( Abc_NodeIsTravIdPrevious(pNode) )
            continue;
        // traverse the output logic cone
        if ( (fAcyclic = Abc_NtkIsAcyclicWithBoxes_rec(pNode)) )
            continue;
        // stop as soon as the first loop is detected
        fprintf( stdout, " PO \"%s\"\n", Abc_ObjName(Abc_ObjFanout0(pNode)) );
        break;
    }
    if ( fAcyclic )
    {
        Abc_NtkForEachLatchInput( pNtk, pNode, i )
        {
            pNode = Abc_ObjFanin0Ntk(Abc_ObjFanin0(pNode));
            if ( Abc_ObjIsBo(pNode) )
                pNode = Abc_ObjFanin0(pNode);
            if ( Abc_NodeIsTravIdPrevious(pNode) )
                continue;
            // traverse the output logic cone
            if ( (fAcyclic = Abc_NtkIsAcyclicWithBoxes_rec(pNode)) )
                continue;
            // stop as soon as the first loop is detected
            fprintf( stdout, " PO \"%s\"\n", Abc_ObjName(Abc_ObjFanout0(pNode)) );
            break;
        }
    }
    return fAcyclic;
}

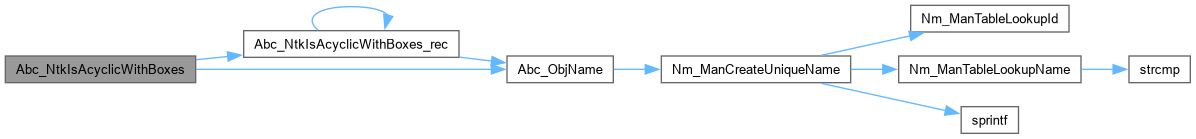

Here is the call graph for this function:

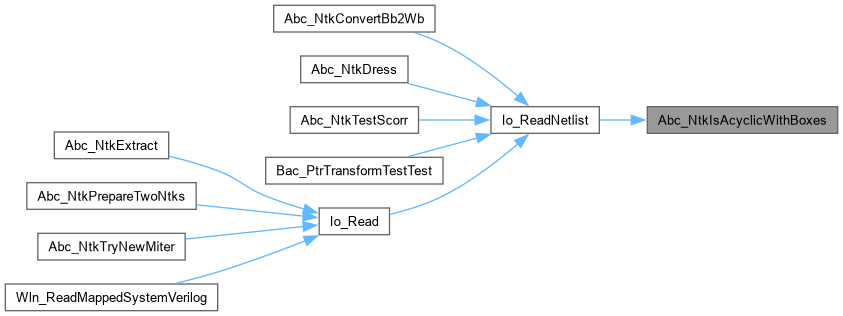

Here is the caller graph for this function:

Abc_NtkIsAcyclicWithBoxes_rec()

int Abc_NtkIsAcyclicWithBoxes_rec

(

Abc_Obj_t *

pNode

)

Function*************************************************************

Synopsis [Checks for the loops with boxes.]

Description []

SideEffects []

SeeAlso []

Definition at line 1653 of file abcDfs.c.

{
    Abc_Ntk_t * pNtk = pNode->pNtk;
    Abc_Obj_t * pFanin;
    int fAcyclic, i;
    assert( !Abc_ObjIsNet(pNode) );
    if ( Abc_ObjIsPi(pNode) || Abc_ObjIsLatch(pNode) || Abc_ObjIsBlackbox(pNode) )
        return 1;
    assert( Abc_ObjIsNode(pNode) || Abc_ObjIsBox(pNode) );
    // make sure the node is not visited
    assert( !Abc_NodeIsTravIdPrevious(pNode) );
    // check if the node is part of the combinational loop
    if ( Abc_NodeIsTravIdCurrent(pNode) )
    {
        fprintf( stdout, "Network \"%s\" contains combinational loop!\n", Abc_NtkName(pNtk) );
        if ( Abc_ObjIsBox(pNode) )
            fprintf( stdout, "Box \"%s\" is encountered twice on the following path to the COs:\n", Abc_ObjName(pNode) );
        else
            fprintf( stdout, "Node \"%s\" is encountered twice on the following path to the COs:\n", Abc_ObjName(Abc_ObjFanout0(pNode)) );
        return 0;
    }
    // mark this node as a node on the current path
    Abc_NodeSetTravIdCurrent( pNode );
    // visit the transitive fanin
    Abc_ObjForEachFanin( pNode, pFanin, i )
    {
        if ( Abc_ObjIsBox(pNode) )
            pFanin = Abc_ObjFanin0(pFanin);
        pFanin = Abc_ObjFanin0Ntk(pFanin);
        if ( Abc_ObjIsBo(pFanin) )
            pFanin = Abc_ObjFanin0(pFanin);
        // check if the fanin is visited
        if ( Abc_ObjIsPi(pFanin) || Abc_ObjIsLatch(pFanin) || Abc_ObjIsBlackbox(pFanin) )
            continue;
        assert( Abc_ObjIsNode(pFanin) || Abc_ObjIsBox(pFanin) );
        if ( Abc_NodeIsTravIdPrevious(pFanin) )
            continue;
        // traverse the fanin's cone searching for the loop
        if ( (fAcyclic = Abc_NtkIsAcyclicWithBoxes_rec(pFanin)) )
            continue;
        // return as soon as the loop is detected
        fprintf( stdout, " %s ->", Abc_ObjName( Abc_ObjIsBox(pFanin) ? pFanin : Abc_ObjFanout0(pFanin) ) );
        return 0;
    }
    // mark this node as a visited node
    assert( Abc_ObjIsNode(pNode) || Abc_ObjIsBox(pNode) );
    Abc_NodeSetTravIdPrevious( pNode );
    return 1;
}

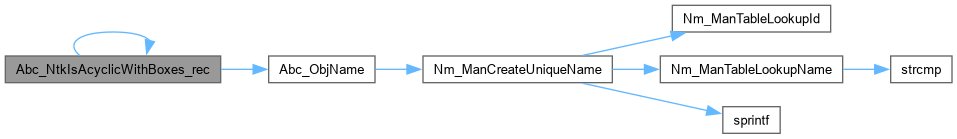

Here is the call graph for this function:

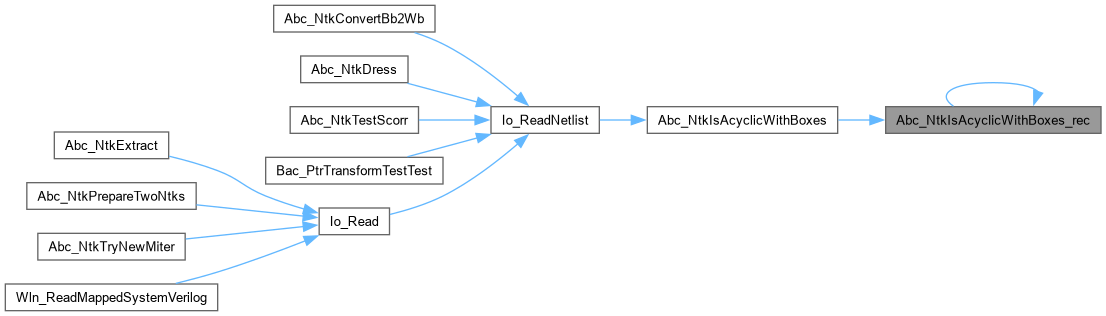

Here is the caller graph for this function:

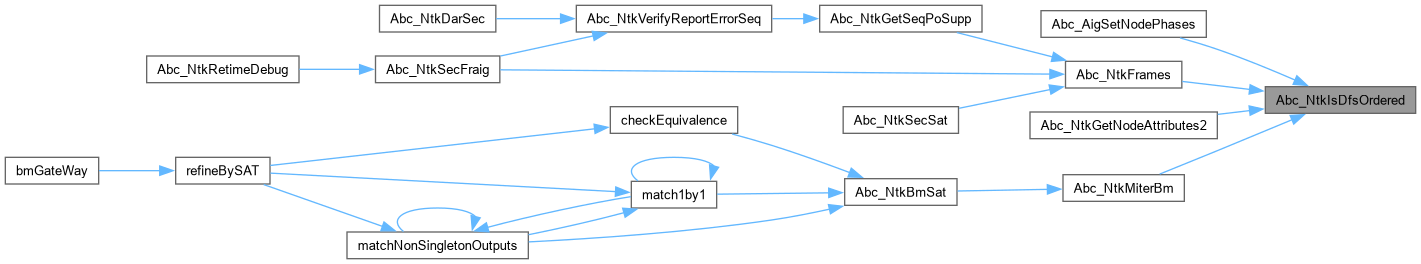

Abc_NtkIsDfsOrdered()

int Abc_NtkIsDfsOrdered

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Returns 1 if the ordering of nodes is DFS.]

Description []

SideEffects []

SeeAlso []

Definition at line 698 of file abcDfs.c.

{
    Abc_Obj_t * pNode, * pFanin;
    int i, k;
    // set the traversal ID
    Abc_NtkIncrementTravId( pNtk );
    // mark the CIs
    Abc_NtkForEachCi( pNtk, pNode, i )
        Abc_NodeSetTravIdCurrent( pNode );
    // go through the nodes
    Abc_NtkForEachNode( pNtk, pNode, i )
    {
        // check the fanins of the node
        Abc_ObjForEachFanin( pNode, pFanin, k )
            if ( !Abc_NodeIsTravIdCurrent(pFanin) )
                return 0;
        // check the choices of the node
        if ( Abc_NtkIsStrash(pNtk) && Abc_AigNodeIsChoice(pNode) )
            for ( pFanin = (Abc_Obj_t *)pNode->pData; pFanin; pFanin = (Abc_Obj_t *)pFanin->pData )
                if ( !Abc_NodeIsTravIdCurrent(pFanin) )
                    return 0;
        // mark the node as visited
        Abc_NodeSetTravIdCurrent( pNode );
    }
    return 1;
}

Here is the caller graph for this function:

Abc_NtkLevel()

int Abc_NtkLevel

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Computes the number of logic levels not counting PIs/POs.]

Description []

SideEffects []

SeeAlso []

Definition at line 1449 of file abcDfs.c.

{
    Abc_Obj_t * pNode;
    int i, LevelsMax;
    // set the CI levels
    if ( pNtk->pManTime == NULL || pNtk->AndGateDelay <= 0 )
        Abc_NtkForEachCi( pNtk, pNode, i )
            pNode->Level = 0;
    else
        Abc_NtkForEachCi( pNtk, pNode, i )
            pNode->Level = (int)(Abc_MaxFloat(0, Abc_NodeReadArrivalWorst(pNode)) / pNtk->AndGateDelay);
    // perform the traversal
    LevelsMax = 0;
    Abc_NtkIncrementTravId( pNtk );
    if ( pNtk->nBarBufs == 0 )
    {
        Abc_NtkForEachNode( pNtk, pNode, i )
        {
            Abc_NtkLevel_rec( pNode );
            if ( LevelsMax < (int)pNode->Level )
                LevelsMax = (int)pNode->Level;
        }
    }
    else
    {
        Abc_NtkForEachLiPo( pNtk, pNode, i )
        {
            Abc_Obj_t * pDriver = Abc_ObjFanin0(pNode);
            Abc_NtkLevel_rec( pDriver );
            if ( LevelsMax < (int)pDriver->Level )
                LevelsMax = (int)pDriver->Level;
            // transfer the delay
            if ( i < pNtk->nBarBufs )
                Abc_ObjFanout0(Abc_ObjFanout0(pNode))->Level = pDriver->Level;
        }
    }
    return LevelsMax;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkLevel_rec()

int Abc_NtkLevel_rec

(

Abc_Obj_t *

pNode

)

Function*************************************************************

Synopsis [Recursively counts the number of logic levels of one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 1347 of file abcDfs.c.

{
    Abc_Obj_t * pNext;
    int i, Level;
    assert( !Abc_ObjIsNet(pNode) );
    // skip the PI
    if ( Abc_ObjIsCi(pNode) )
        return pNode->Level;
    assert( Abc_ObjIsNode( pNode ) || pNode->Type == ABC_OBJ_CONST1);
    // if this node is already visited, return
    if ( Abc_NodeIsTravIdCurrent( pNode ) )
        return pNode->Level;
    // mark the node as visited
    Abc_NodeSetTravIdCurrent( pNode );
    // visit the transitive fanin
    pNode->Level = 0;
    Abc_ObjForEachFanin( pNode, pNext, i )
    {
        Level = Abc_NtkLevel_rec( Abc_ObjFanin0Ntk(pNext) );
        if ( pNode->Level < (unsigned)Level )
            pNode->Level = Level;
    }
    if ( Abc_ObjFaninNum(pNode) > 0 && !Abc_ObjIsBarBuf(pNode) )
        pNode->Level++;
    return pNode->Level;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkLevelize()

Vec_Vec_t * Abc_NtkLevelize

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Computes the number of logic levels not counting PIs/POs.]

Description []

SideEffects []

SeeAlso []

Definition at line 1423 of file abcDfs.c.

{
    Abc_Obj_t * pObj;
    Vec_Vec_t * vLevels;
    int nLevels, i;
    nLevels = Abc_NtkLevel( pNtk );
    vLevels = Vec_VecStart( nLevels + 1 );
    Abc_NtkForEachNode( pNtk, pObj, i )
    {
        assert( (int)pObj->Level <= nLevels );
        Vec_VecPush( vLevels, pObj->Level, pObj );
    }
    return vLevels;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkLevelR()

int Abc_NtkLevelR

(

Abc_Ntk_t *

pNtk

)

Definition at line 1517 of file abcDfs.c.

{
    int i, LevelMax = Abc_NtkLevelReverse( pNtk );
    Abc_Obj_t * pNode;
    Abc_NtkForEachObj( pNtk, pNode, i )
        pNode->Level = (int)(LevelMax - pNode->Level + 1);
    return LevelMax;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkLevelReverse()

int Abc_NtkLevelReverse

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Computes the number of logic levels not counting PIs/POs.]

Description []

SideEffects []

SeeAlso []

Definition at line 1499 of file abcDfs.c.

{
    Abc_Obj_t * pNode;
    int i, LevelsMax;
    // set the CO levels to zero
    Abc_NtkForEachCo( pNtk, pNode, i )
        pNode->Level = 0;
    // perform the traversal
    LevelsMax = 0;
    Abc_NtkIncrementTravId( pNtk );
    Abc_NtkForEachNode( pNtk, pNode, i )
    {
        Abc_NtkLevelReverse_rec( pNode );
        if ( LevelsMax < (int)pNode->Level )
            LevelsMax = (int)pNode->Level;
    }
    return LevelsMax;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkLevelReverse_rec()

int Abc_NtkLevelReverse_rec

(

Abc_Obj_t *

pNode

)

Function*************************************************************

Synopsis [Recursively counts the number of logic levels of one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 1385 of file abcDfs.c.

{
    Abc_Obj_t * pNext;
    int i, Level;
    assert( !Abc_ObjIsNet(pNode) );
    // skip the PI
    if ( Abc_ObjIsCo(pNode) )
        return pNode->Level;
    assert( Abc_ObjIsNode( pNode ) || pNode->Type == ABC_OBJ_CONST1);
    // if this node is already visited, return
    if ( Abc_NodeIsTravIdCurrent( pNode ) )
        return pNode->Level;
    // mark the node as visited
    Abc_NodeSetTravIdCurrent( pNode );
    // visit the transitive fanin
    pNode->Level = 0;
    Abc_ObjForEachFanout( pNode, pNext, i )
    {
        Level = Abc_NtkLevelReverse_rec( Abc_ObjFanout0Ntk(pNext) );
        if ( pNode->Level < (unsigned)Level )
            pNode->Level = Level;
    }
    if ( Abc_ObjFaninNum(pNode) > 0 && !Abc_ObjIsBarBuf(pNode) )
        pNode->Level++;
    return pNode->Level;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkNodeSupport()

Vec_Ptr_t * Abc_NtkNodeSupport	(	Abc_Ntk_t *	pNtk,
		Abc_Obj_t **	ppNodes,
		int	nNodes )

Function*************************************************************

Synopsis [Returns the set of CI nodes in the support of the given nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 890 of file abcDfs.c.

{
    Vec_Ptr_t * vNodes;
    int i;
    // set the traversal ID
    Abc_NtkIncrementTravId( pNtk );
    // start the array of nodes
    vNodes = Vec_PtrAlloc( 100 );
    // go through the PO nodes and call for each of them
    for ( i = 0; i < nNodes; i++ )
        if ( Abc_ObjIsCo(ppNodes[i]) && Abc_ObjFaninNum(Abc_ObjFanin0(ppNodes[i])) != 0 )
            Abc_NtkNodeSupport_rec( Abc_ObjFanin0(ppNodes[i]), vNodes );
        else if ( !Abc_ObjIsCo(ppNodes[i]) && Abc_ObjFaninNum(ppNodes[i]) != 0 )
            Abc_NtkNodeSupport_rec( ppNodes[i], vNodes );
    return vNodes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkNodeSupport_rec()

void Abc_NtkNodeSupport_rec	(	Abc_Obj_t *	pNode,
		Vec_Ptr_t *	vNodes )

Function*************************************************************

Synopsis [Performs DFS for one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 826 of file abcDfs.c.

{
    Abc_Obj_t * pFanin;
    int i;
    assert( !Abc_ObjIsNet(pNode) );
    // if this node is already visited, skip
    if ( Abc_NodeIsTravIdCurrent( pNode ) )
        return;
    // mark the node as visited
    Abc_NodeSetTravIdCurrent( pNode );
    // collect the CI
    if ( Abc_ObjIsCi(pNode) || (Abc_NtkIsStrash(pNode->pNtk) && Abc_ObjFaninNum(pNode) == 0) )
    {
        Vec_PtrPush( vNodes, pNode );
        return;
    }
    assert( Abc_ObjIsNode( pNode ) );
    // visit the transitive fanin of the node
    Abc_ObjForEachFanin( pNode, pFanin, i )
        Abc_NtkNodeSupport_rec( Abc_ObjFanin0Ntk(pFanin), vNodes );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkNodeSupportInt()

Vec_Int_t * Abc_NtkNodeSupportInt	(	Abc_Ntk_t *	pNtk,
		int	iCo )

Definition at line 940 of file abcDfs.c.

{
    Vec_Int_t * vNodes;
    Abc_Obj_t * pObj;
    int i;
    if ( iCo < 0 || iCo >= Abc_NtkCoNum(pNtk) )
        return NULL;
    // save node indices in the CI nodes
    Abc_NtkForEachCi( pNtk, pObj, i )
        pObj->iTemp = i;
    // collect the indexes of CI nodes in the TFI of the CO node
    Abc_NtkIncrementTravId( pNtk );
    pObj = Abc_NtkCo( pNtk, iCo );
    vNodes = Vec_IntAlloc( 100 );
    Abc_NtkNodeSupportInt_rec( Abc_ObjFanin0(pObj), vNodes );
    Vec_IntSort( vNodes, 0 );
    return vNodes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkNodeSupportInt_rec()

void Abc_NtkNodeSupportInt_rec	(	Abc_Obj_t *	pNode,
		Vec_Int_t *	vNodes )

Function*************************************************************

Synopsis [Returns the set of CI node IDs in the support of the given node.]

Description []

SideEffects []

SeeAlso []

Definition at line 918 of file abcDfs.c.

{
    Abc_Obj_t * pFanin;
    int i;
    assert( !Abc_ObjIsNet(pNode) );
    // if this node is already visited, skip
    if ( Abc_NodeIsTravIdCurrent( pNode ) )
        return;
    // mark the node as visited
    Abc_NodeSetTravIdCurrent( pNode );
    // collect the CI
    if ( Abc_ObjIsCi(pNode) || (Abc_NtkIsStrash(pNode->pNtk) && Abc_ObjFaninNum(pNode) == 0) )
    {
        if ( Abc_ObjIsCi(pNode) )
            Vec_IntPush( vNodes, pNode->iTemp );
        return;
    }
    assert( Abc_ObjIsNode( pNode ) );
    // visit the transitive fanin of the node
    Abc_ObjForEachFanin( pNode, pFanin, i )
        Abc_NtkNodeSupportInt_rec( Abc_ObjFanin0Ntk(pFanin), vNodes );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkPrintSubraphSizes()

int Abc_NtkPrintSubraphSizes

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Prints subgraphs.]

Description []

SideEffects []

SeeAlso []

Definition at line 1899 of file abcDfs.c.

{
    Abc_Obj_t * pObj;
    int i;
    assert( Abc_NtkIsStrash(pNtk) );
    Abc_NtkForEachNode( pNtk, pObj, i )
        if ( Abc_ObjFanoutNum(pObj) > 1 && !Abc_NodeIsExorType(pObj) )
            printf( "%d(%d) ", 1 + Abc_ObjSugraphSize(Abc_ObjFanin0(pObj)) +
                Abc_ObjSugraphSize(Abc_ObjFanin1(pObj)), Abc_ObjFanoutNum(pObj) );
    printf( "\n" );
    return 1;
}

Here is the call graph for this function:

Abc_NtkSupport()

Vec_Ptr_t * Abc_NtkSupport

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Returns the set of CI nodes in the support of the given nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 859 of file abcDfs.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pNode;
    int i;
    // set the traversal ID
    Abc_NtkIncrementTravId( pNtk );
    // start the array of nodes
    vNodes = Vec_PtrAlloc( 100 );
    // go through the PO nodes and call for each of them
    Abc_NtkForEachCo( pNtk, pNode, i )
        Abc_NtkNodeSupport_rec( Abc_ObjFanin0(pNode), vNodes );
    // add unused CIs
    Abc_NtkForEachCi( pNtk, pNode, i )
        if ( !Abc_NodeIsTravIdCurrent( pNode ) )
            Vec_PtrPush( vNodes, pNode );
    assert( Vec_PtrSize(vNodes) == Abc_NtkCiNum(pNtk) );
    return vNodes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkSupportSum()

void Abc_NtkSupportSum

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Computes the sum total of supports of all outputs.]

Description []

SideEffects []

SeeAlso []

Definition at line 1136 of file abcDfs.c.

{
    Vec_Ptr_t * vSupp;
    Abc_Obj_t * pObj;
    int i, nTotalSupps = 0;
    Abc_NtkForEachCo( pNtk, pObj, i )
    {
        vSupp = Abc_NtkNodeSupport( pNtk, &pObj, 1 );
        nTotalSupps += Vec_PtrSize( vSupp );
        Vec_PtrFree( vSupp );
    }
    printf( "Total supports = %d.\n", nTotalSupps );
}

Here is the call graph for this function:

Abc_NtkSuppSizeTest()

int Abc_NtkSuppSizeTest

(

Abc_Ntk_t *

p

)

Function*************************************************************

Synopsis [Computes support size of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 1112 of file abcDfs.c.

{
    Abc_Obj_t * pObj;
    int i, Counter = 0;
    abctime clk = Abc_Clock();
    Abc_NtkForEachObj( p, pObj, i )
        if ( Abc_ObjIsNode(pObj) )
            Counter += (Abc_ObjSuppSize(pObj) <= 16);
    printf( "Nodes with small support %d (out of %d)\n", Counter, Abc_NtkNodeNum(p) );
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
    return Counter;
}

Here is the call graph for this function:

Abc_ObjSugraphSize()

int Abc_ObjSugraphSize

(

Abc_Obj_t *

pObj

)

Function*************************************************************

Synopsis [Count the number of nodes in the subgraph.]

Description []

SideEffects []

SeeAlso []

Definition at line 1878 of file abcDfs.c.

{
    if ( Abc_ObjIsCi(pObj) )
        return 0;
    if ( Abc_ObjFanoutNum(pObj) > 1 )
        return 0;
    return 1 + Abc_ObjSugraphSize(Abc_ObjFanin0(pObj)) +
        Abc_ObjSugraphSize(Abc_ObjFanin1(pObj));
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_ObjSuppSize()

int Abc_ObjSuppSize

(

Abc_Obj_t *

pObj

)

Function*************************************************************

Synopsis [Computes support size of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 1096 of file abcDfs.c.

{
    Abc_NtkIncrementTravId( Abc_ObjNtk(pObj) );
    return Abc_ObjSuppSize_rec( pObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_ObjSuppSize_rec()

int Abc_ObjSuppSize_rec

(

Abc_Obj_t *

pObj

)

Function*************************************************************

Synopsis [Computes support size of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 1071 of file abcDfs.c.

{
    Abc_Obj_t * pFanin;
    int i, Counter = 0;
    if ( Abc_NodeIsTravIdCurrent(pObj) )
        return 0;
    Abc_NodeSetTravIdCurrent(pObj);
    if ( Abc_ObjIsPi(pObj) )
        return 1;
    assert( Abc_ObjIsNode(pObj) || Abc_ObjIsBox(pObj) );
    Abc_ObjForEachFanin( pObj, pFanin, i )
        Counter += Abc_ObjSuppSize_rec( pFanin );
    return Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:
