abcMeasure.c File Reference

#include "base/abc/abc.h"
#include "bool/kit/kit.h"

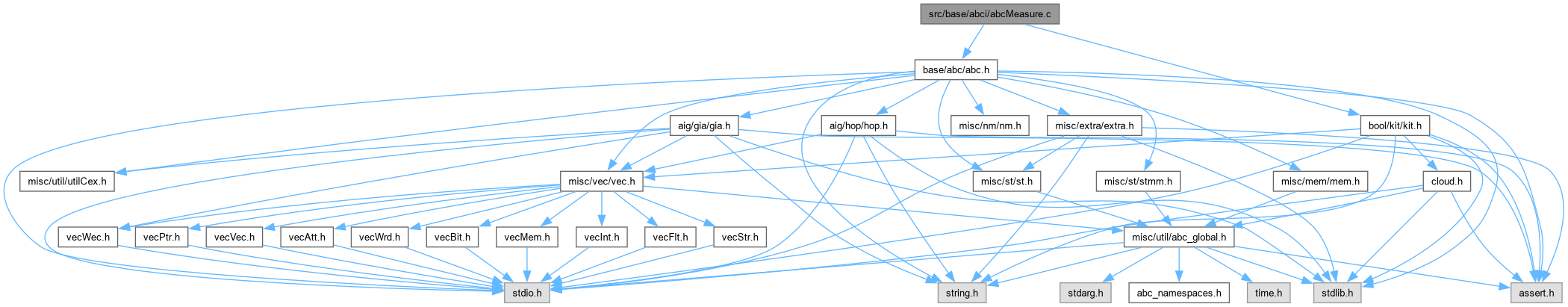

Include dependency graph for abcMeasure.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Abc_NtkPrintMeasures (unsigned *pTruth, int nVars)
	DECLARATIONS ///.
void	Abc_Ntk4VarObjPrint_rec (Abc_Obj_t *pObj)
unsigned	Abc_Ntk4VarObj (Vec_Ptr_t *vNodes)
void	Abc_Ntk4VarTable (Abc_Ntk_t *pNtk)
int	Abc_NtkPrintOneDecompCheckCofList (unsigned *uCofs, int nCofs)
int	Abc_NtkPrintOneDecompCheck (unsigned *uCofs, int nCofs, unsigned uMask)
void	Abc_NtkPrintOneDecomp_rec (unsigned *uCofs, int nCofs, int nVars, unsigned uMask, int *pBestSize, unsigned *puBestMask)
void	Abc_NtkPrintOneDecomp (unsigned *pTruth, int nVars)
void	Abc_NtkPrintOneDec (unsigned *pTruth, int nVars)

Function Documentation

Abc_Ntk4VarObj()

unsigned Abc_Ntk4VarObj

(

Vec_Ptr_t *

vNodes

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 144 of file abcMeasure.c.

{
    Abc_Obj_t * pObj;
    unsigned uTruth0, uTruth1;
    int i;
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
    {
        uTruth0 = (unsigned)(Abc_ObjFanin0(pObj)->pCopy);
        uTruth1 = (unsigned)(Abc_ObjFanin1(pObj)->pCopy);
        if ( Abc_ObjFaninC0(pObj) )
            uTruth0 = ~uTruth0;
        if ( Abc_ObjFaninC1(pObj) )
            uTruth1 = ~uTruth1;
        pObj->pCopy = (Abc_Obj_t *)(uTruth0 & uTruth1);
    }
    return uTruth0 & uTruth1;
}

Here is the caller graph for this function:

Abc_Ntk4VarObjPrint_rec()

void Abc_Ntk4VarObjPrint_rec

(

Abc_Obj_t *

pObj

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 110 of file abcMeasure.c.

{
    if ( pObj == Abc_AigConst1(pObj->pNtk) )
    {
        printf( "1" );
        return;
    }
    if ( Abc_ObjIsPi(pObj) )
    {
        printf( "%c", pObj->Id - 1 + 'a' );
        return;
    }

    printf( "(" );
    Abc_Ntk4VarObjPrint_rec( Abc_ObjFanin0(pObj) );
    if ( Abc_ObjFaninC0(pObj) )
        printf( "\'" );
    Abc_Ntk4VarObjPrint_rec( Abc_ObjFanin1(pObj) );
    if ( Abc_ObjFaninC1(pObj) )
        printf( "\'" );
    printf( ")" );
}

Here is the call graph for this function:

Here is the caller graph for this function:

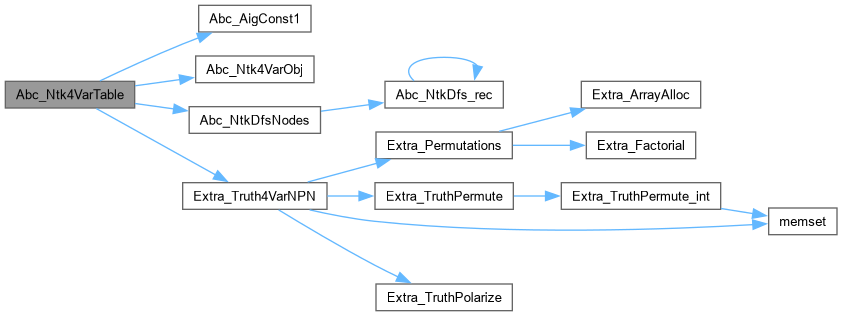

Abc_Ntk4VarTable()

void Abc_Ntk4VarTable

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 173 of file abcMeasure.c.

{
    static unsigned u4VarTruths[4] = { 0xAAAAAAAA, 0xCCCCCCCC, 0xF0F0F0F0, 0xFF00FF00 };
    static unsigned u4VarTts[222] = {
        0x0000, 0x0001, 0x0003, 0x0006, 0x0007, 0x000f, 0x0016, 0x0017, 0x0018, 0x0019,
        0x001b, 0x001e, 0x001f, 0x003c, 0x003d, 0x003f, 0x0069, 0x006b, 0x006f, 0x007e,
        0x007f, 0x00ff, 0x0116, 0x0117, 0x0118, 0x0119, 0x011a, 0x011b, 0x011e, 0x011f,
        0x012c, 0x012d, 0x012f, 0x013c, 0x013d, 0x013e, 0x013f, 0x0168, 0x0169, 0x016a,
        0x016b, 0x016e, 0x016f, 0x017e, 0x017f, 0x0180, 0x0181, 0x0182, 0x0183, 0x0186,
        0x0187, 0x0189, 0x018b, 0x018f, 0x0196, 0x0197, 0x0198, 0x0199, 0x019a, 0x019b,
        0x019e, 0x019f, 0x01a8, 0x01a9, 0x01aa, 0x01ab, 0x01ac, 0x01ad, 0x01ae, 0x01af,
        0x01bc, 0x01bd, 0x01be, 0x01bf, 0x01e8, 0x01e9, 0x01ea, 0x01eb, 0x01ee, 0x01ef,
        0x01fe, 0x033c, 0x033d, 0x033f, 0x0356, 0x0357, 0x0358, 0x0359, 0x035a, 0x035b,
        0x035e, 0x035f, 0x0368, 0x0369, 0x036a, 0x036b, 0x036c, 0x036d, 0x036e, 0x036f,
        0x037c, 0x037d, 0x037e, 0x03c0, 0x03c1, 0x03c3, 0x03c5, 0x03c6, 0x03c7, 0x03cf,
        0x03d4, 0x03d5, 0x03d6, 0x03d7, 0x03d8, 0x03d9, 0x03db, 0x03dc, 0x03dd, 0x03de,
        0x03fc, 0x0660, 0x0661, 0x0662, 0x0663, 0x0666, 0x0667, 0x0669, 0x066b, 0x066f,
        0x0672, 0x0673, 0x0676, 0x0678, 0x0679, 0x067a, 0x067b, 0x067e, 0x0690, 0x0691,
        0x0693, 0x0696, 0x0697, 0x069f, 0x06b0, 0x06b1, 0x06b2, 0x06b3, 0x06b4, 0x06b5,
        0x06b6, 0x06b7, 0x06b9, 0x06bd, 0x06f0, 0x06f1, 0x06f2, 0x06f6, 0x06f9, 0x0776,
        0x0778, 0x0779, 0x077a, 0x077e, 0x07b0, 0x07b1, 0x07b4, 0x07b5, 0x07b6, 0x07bc,
        0x07e0, 0x07e1, 0x07e2, 0x07e3, 0x07e6, 0x07e9, 0x07f0, 0x07f1, 0x07f2, 0x07f8,
        0x0ff0, 0x1668, 0x1669, 0x166a, 0x166b, 0x166e, 0x167e, 0x1681, 0x1683, 0x1686,
        0x1687, 0x1689, 0x168b, 0x168e, 0x1696, 0x1697, 0x1698, 0x1699, 0x169a, 0x169b,
        0x169e, 0x16a9, 0x16ac, 0x16ad, 0x16bc, 0x16e9, 0x177e, 0x178e, 0x1796, 0x1798,
        0x179a, 0x17ac, 0x17e8, 0x18e7, 0x19e1, 0x19e3, 0x19e6, 0x1bd8, 0x1be4, 0x1ee1,
        0x3cc3, 0x6996
    };
    int Counters[222] = {0};
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pObj;
    unsigned uTruth;
    int i, k, Count = 0;

    unsigned short * puCanons = NULL;
    unsigned char * puMap = NULL;
    Extra_Truth4VarNPN( &puCanons, NULL, NULL, &puMap );

    // set elementary truth tables
    assert( Abc_NtkPiNum(pNtk) == 4 );
    Abc_AigConst1(pNtk)->pCopy = (Abc_Obj_t *)0xFFFFFFFF;
    Abc_NtkForEachPi( pNtk, pObj, i )
        pObj->pCopy = (Abc_Obj_t *)u4VarTruths[i];

    // create truth tables
    Abc_NtkForEachPo( pNtk, pObj, i )
    {
        vNodes = Abc_NtkDfsNodes( pNtk, &pObj, 1 );
        if ( Vec_PtrSize(vNodes) == 0 )
            uTruth = (unsigned)Abc_ObjFanin0(pObj)->pCopy;
        else
            uTruth = Abc_Ntk4VarObj( vNodes );

        if ( (uTruth & 0xFFFF) < (~uTruth & 0xFFFF) )
            uTruth = uTruth & 0xFFFF;
        else
            uTruth = ~uTruth & 0xFFFF;

        for ( k = 0; k < 222; k++ )
            if ( u4VarTts[k] == uTruth )
                break;
        if ( k == 222 )
            continue;
/*
//        if ( uTruth == 1725 )
        if ( k == 96 )
        {
            printf( "%d : ", Vec_PtrSize(vNodes) );
            Abc_Ntk4VarObjPrint_rec( Abc_ObjFanin0(pObj) );
            printf( "\n" );
        }
*/
        Counters[k]++;

//        Counters[ puMap[uTruth & 0xFFFF] ]++;
        Vec_PtrFree( vNodes );
    }
    ABC_FREE( puCanons );
    ABC_FREE( puMap );

    Count = 0;
    for ( k = 0; k < 222; k++ )
    {
        printf( "%d/%x/%d ", k, u4VarTts[k], Counters[k] );
        Count += Counters[k];
    }
    printf( " Total = %d\n", Count );
}

Here is the call graph for this function:

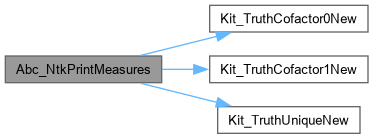

Abc_NtkPrintMeasures()

ABC_NAMESPACE_IMPL_START void Abc_NtkPrintMeasures	(	unsigned *	pTruth,
		int	nVars )

DECLARATIONS ///.

CFile****************************************************************

FileName [abc_.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Network and node package.]

Synopsis []

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

abc_.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 46 of file abcMeasure.c.

{
    unsigned uCofs[10][32];
    int i, k, nOnes;

    // total pairs
    nOnes =  Kit_TruthCountOnes( uCofs[0], nVars );
    printf( "Total = %d.\n", nOnes * ((1 << nVars) - nOnes) );

    // print measures for individual variables
    for ( i = 0; i < nVars; i++ )
    {
        Kit_TruthUniqueNew( uCofs[0], pTruth, nVars, i );
        nOnes = Kit_TruthCountOnes( uCofs[0], nVars );
        printf( "%7d ", nOnes );
    }
    printf( "\n" );

    // consider pairs
    for ( i = 0; i < nVars; i++ )
    for ( k = 0; k < nVars; k++ )
    {
        if ( i == k )
        {
            printf( "        " );
            continue;
        }
        Kit_TruthCofactor0New( uCofs[0], pTruth, nVars, i );
        Kit_TruthCofactor1New( uCofs[1], pTruth, nVars, i );

        Kit_TruthCofactor0New( uCofs[2], uCofs[0], nVars, k ); // 00
        Kit_TruthCofactor1New( uCofs[3], uCofs[0], nVars, k ); // 01
        Kit_TruthCofactor0New( uCofs[4], uCofs[1], nVars, k ); // 10
        Kit_TruthCofactor1New( uCofs[5], uCofs[1], nVars, k ); // 11

        Kit_TruthAndPhase( uCofs[6], uCofs[2], uCofs[5], nVars, 0, 1 ); // 00  & 11'
        Kit_TruthAndPhase( uCofs[7], uCofs[2], uCofs[5], nVars, 1, 0 ); // 00' & 11
        Kit_TruthAndPhase( uCofs[8], uCofs[3], uCofs[4], nVars, 0, 1 ); // 01  & 10'
        Kit_TruthAndPhase( uCofs[9], uCofs[3], uCofs[4], nVars, 1, 0 ); // 01' & 10

        nOnes = Kit_TruthCountOnes( uCofs[6], nVars ) +
                Kit_TruthCountOnes( uCofs[7], nVars ) +
                Kit_TruthCountOnes( uCofs[8], nVars ) +
                Kit_TruthCountOnes( uCofs[9], nVars );

        printf( "%7d ", nOnes );
        if ( k == nVars - 1 )
            printf( "\n" );
    }
    printf( "\n" );
}

Here is the call graph for this function:

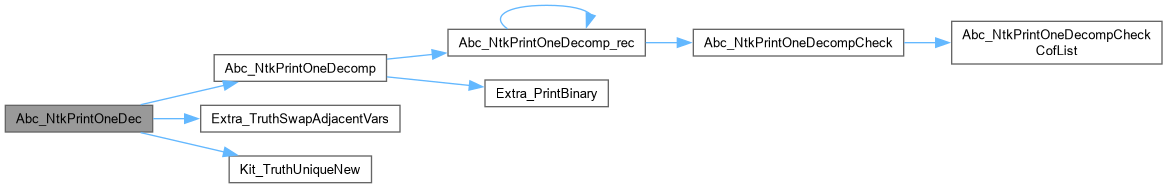

Abc_NtkPrintOneDec()

void Abc_NtkPrintOneDec	(	unsigned *	pTruth,
		int	nVars )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 430 of file abcMeasure.c.

{
    unsigned uCof[(1<<11)], * pOut = uCof, * pIn = pTruth, * pTemp;
    int nDiffs[16];
    int Order[16];
    int i, fChange, Temp, Counter;

    // find the ordering
    for ( i = 0; i < nVars; i++ )
    {
        Kit_TruthUniqueNew( uCof, pTruth, nVars, i );
        nDiffs[i] = Kit_TruthCountOnes( uCof, nVars );
        Order[i] = i;
    }

    // permute truth table to least active variable first
    Counter = 0;
    do {
        fChange = 0;
        for ( i = 0; i < nVars-1; i++ )
        {
            if ( nDiffs[i] <= nDiffs[i+1] )
                continue;
            fChange = 1;
            Counter++;

            Temp = nDiffs[i];
            nDiffs[i] = nDiffs[i+1];
            nDiffs[i+1] = Temp;

            Temp = Order[i];
            Order[i] = Order[i+1];
            Order[i+1] = Temp;

            Extra_TruthSwapAdjacentVars( pOut, pIn, nVars, i );
            pTemp = pIn; pIn = pOut; pOut = pTemp;
        }
    } while ( fChange );

    // swap if it was moved an even number of times
    if ( Counter & 1 )
        Extra_TruthCopy( pOut, pIn, nVars );

    // call the decomposition
    Abc_NtkPrintOneDecomp( pTruth, nVars );
}

Here is the call graph for this function:

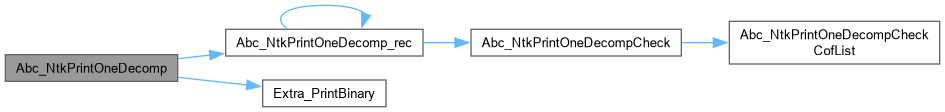

Abc_NtkPrintOneDecomp()

void Abc_NtkPrintOneDecomp	(	unsigned *	pTruth,
		int	nVars )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 388 of file abcMeasure.c.

{
    int BoundSet = 6;
    unsigned uCofs[64], uMask, uBestMask = 0;
    int i, nCofs, nMints, nMintShift, BestSize = 1;

    assert( nVars >  BoundSet );
    assert( nVars <= BoundSet + 5 ); // at most 5 variable cofactors

    // collect the cofactors
    nCofs = (1 << BoundSet);
    nMints = (1 << (nVars-BoundSet));
    nMintShift = 0;
    uMask = Kit_CubeMask( nMints );
    for ( i = 0; i < nCofs; i++ )
    {
        uCofs[i] = (pTruth[nMintShift/32] >> (nMintShift % 32)) & uMask;
        nMintShift += nMints;
    }

    // try removing variables
    for ( i = 0; i < BoundSet; i++ )
        Abc_NtkPrintOneDecomp_rec( uCofs, nCofs, nVars, (1 << i), &BestSize, &uBestMask );

    printf( "Best size = %d  ", BestSize );
    printf( "Best mask = " );
    Extra_PrintBinary( stdout, &uBestMask, nVars );
    printf( "\n" );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkPrintOneDecomp_rec()

void Abc_NtkPrintOneDecomp_rec	(	unsigned *	uCofs,
		int	nCofs,
		int	nVars,
		unsigned	uMask,
		int *	pBestSize,
		unsigned *	puBestMask )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 348 of file abcMeasure.c.

{
    unsigned uMaskNew;
    int v, last, Counter = 0;
    // find the last variable in the mask
    for ( v = 0; v < nVars; v++ )
        if ( uMask & (1<<v) )
        {
            last = v;
            Counter++;
        }
    if ( Counter > 3 )
        return;
    // try adding one variable after the last
    for ( v = last + 1; v < nVars; v++ )
    {
        uMaskNew = uMask | (1 << v);
        if ( !Abc_NtkPrintOneDecompCheck( uCofs, nCofs, uMaskNew ) )
            continue;
        if ( *pBestSize < Counter + 1 )
        {
            *pBestSize = Counter + 1;
            *puBestMask = uMaskNew;
        }
        // try other masks
        Abc_NtkPrintOneDecomp_rec( uCofs, nCofs, nVars, uMaskNew, pBestSize, puBestMask );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkPrintOneDecompCheck()

int Abc_NtkPrintOneDecompCheck	(	unsigned *	uCofs,
		int	nCofs,
		unsigned	uMask )

Function*************************************************************

Synopsis [Checks all cofactors with the given mask.]

Description []

SideEffects []

SeeAlso []

Definition at line 307 of file abcMeasure.c.

{
    unsigned pCofs[32][32];
    int nCofNums[32] = {0};
    int uMasks[32];
    int nGroups = 0;
    int i, k;
    for ( i = 0; i < nCofs; i++ )
    {
        // find group of this cof
        for ( k = 0; k < nGroups; k++ )
            if ( (int)(i & uMask) == uMasks[k] )
                break;
        if ( k == nGroups )
        {
            uMasks[k] = (i & uMask);
            nGroups++;
        }
        // save cof in the group
        pCofs[k][ nCofNums[k]++ ] = uCofs[i];
        assert( nCofNums[k] <= 32 );
        assert( nGroups <= 32 );
    }
    // check the groups
    for ( i = 0; i < nGroups; i++ )
        if ( !Abc_NtkPrintOneDecompCheckCofList(pCofs[i], nCofNums[i]) )
            return 0;
    return 1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkPrintOneDecompCheckCofList()

int Abc_NtkPrintOneDecompCheckCofList	(	unsigned *	uCofs,
		int	nCofs )

Function*************************************************************

Synopsis [Returns 1 if there are no more than 2 unique cofactors.]

Description []

SideEffects []

SeeAlso []

Definition at line 276 of file abcMeasure.c.

{
    int i, Ind = -1;
    assert( nCofs > 2 );
    for ( i = 1; i < nCofs; i++ )
    {
        if ( uCofs[i] == uCofs[0] )
            continue;
        if ( Ind == -1 )
        {
            Ind = i;
            continue;
        }
        if ( uCofs[i] == uCofs[Ind] )
            continue;
        return 0;
    }
    return 1;
}

Here is the caller graph for this function:
