abcMfs.c File Reference

#include "base/abc/abc.h"
#include "bool/kit/kit.h"
#include "opt/sfm/sfm.h"
#include "base/io/ioAbc.h"
#include "misc/util/utilTruth.h"

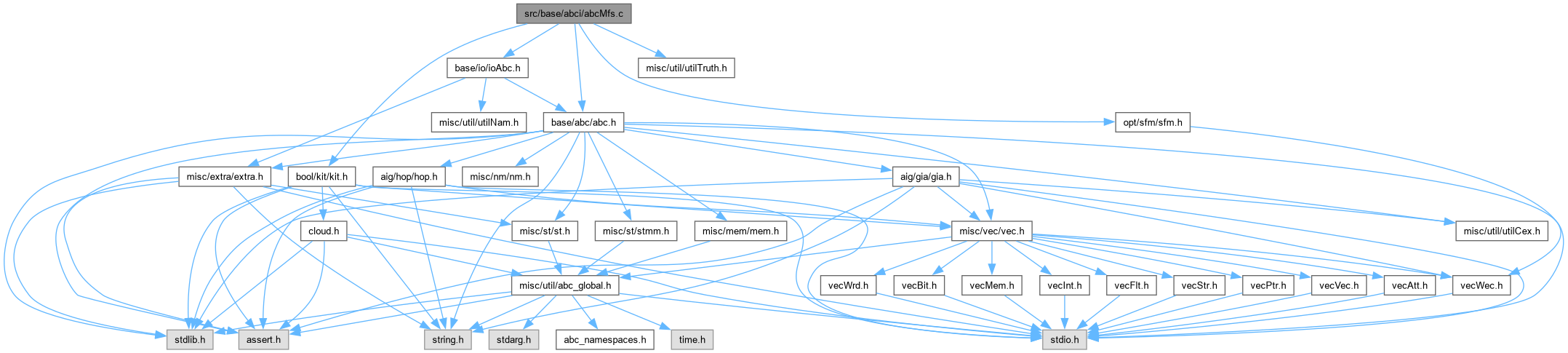

Include dependency graph for abcMfs.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Vec_Ptr_t *	Abc_NtkAssignIDs (Abc_Ntk_t *pNtk)
	DECLARATIONS ///.
Vec_Ptr_t *	Abc_NtkAssignIDs2 (Abc_Ntk_t *pNtk)
Vec_Int_t *	Abc_NtkAssignStarts (Abc_Ntk_t *pNtk, Vec_Ptr_t *vNodes, int *pnTotal)
void	Abc_NtkFillTruthStore (word TruthStore[16][1<< 10])
Sfm_Ntk_t *	Abc_NtkExtractMfs (Abc_Ntk_t *pNtk, int nFirstFixed)
Sfm_Ntk_t *	Abc_NtkExtractMfs2 (Abc_Ntk_t *pNtk, int iPivot)
void	Abc_NtkInsertMfs (Abc_Ntk_t *pNtk, Sfm_Ntk_t *p)
int	Abc_NtkPerformMfs (Abc_Ntk_t *pNtk, Sfm_Par_t *pPars)
Abc_Ntk_t *	Abc_NtkUnrollAndDrop (Abc_Ntk_t *p, int nFrames, int nFramesAdd, Vec_Int_t *vFlops, int *piPivot)
void	Abc_NtkReinsertNodes (Abc_Ntk_t *p, Abc_Ntk_t *pNtk, int iPivot)
int	Abc_NtkMfsAfterICheck (Abc_Ntk_t *p, int nFrames, int nFramesAdd, Vec_Int_t *vFlops, Sfm_Par_t *pPars)

Function Documentation

Abc_NtkAssignIDs()

ABC_NAMESPACE_IMPL_START Vec_Ptr_t * Abc_NtkAssignIDs

(

Abc_Ntk_t *

pNtk

)

DECLARATIONS ///.

CFile****************************************************************

FileName [abcMfs.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Network and node package.]

Synopsis [Optimization with don't-cares.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

abcMfs.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 49 of file abcMfs.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pObj;
    int i;
    vNodes = Abc_NtkDfs( pNtk, 0 );
    Abc_NtkCleanCopy( pNtk );
    Abc_NtkForEachCi( pNtk, pObj, i )
        pObj->iTemp = i;
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
        pObj->iTemp = Abc_NtkCiNum(pNtk) + i;
    Abc_NtkForEachCo( pNtk, pObj, i )
        pObj->iTemp = Abc_NtkCiNum(pNtk) + Vec_PtrSize(vNodes) + i;
    return vNodes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkAssignIDs2()

Vec_Ptr_t * Abc_NtkAssignIDs2

(

Abc_Ntk_t *

pNtk

)

Definition at line 64 of file abcMfs.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pObj;
    int i;
    Abc_NtkCleanCopy( pNtk );
    Abc_NtkForEachCi( pNtk, pObj, i )
        pObj->iTemp = i;
    vNodes = Vec_PtrAlloc( Abc_NtkNodeNum(pNtk) );
    Abc_NtkForEachNode( pNtk, pObj, i )
    {
        pObj->iTemp = Abc_NtkCiNum(pNtk) + Vec_PtrSize(vNodes);
        Vec_PtrPush( vNodes, pObj );
    }
    assert( Vec_PtrSize(vNodes) == Abc_NtkNodeNum(pNtk) );
    Abc_NtkForEachCo( pNtk, pObj, i )
        pObj->iTemp = Abc_NtkCiNum(pNtk) + Vec_PtrSize(vNodes) + i;
    return vNodes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkAssignStarts()

Vec_Int_t * Abc_NtkAssignStarts	(	Abc_Ntk_t *	pNtk,
		Vec_Ptr_t *	vNodes,
		int *	pnTotal )

Function*************************************************************

Synopsis [Assign truth table sizes.]

Description []

SideEffects []

SeeAlso []

Definition at line 95 of file abcMfs.c.

{
    Abc_Obj_t * pObj; int i, Counter = 0;
    Vec_Int_t * vStarts = Vec_IntStart( Abc_NtkObjNum(pNtk) );
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
    {
        Vec_IntWriteEntry( vStarts, pObj->iTemp, Counter );
        Counter += Abc_Truth6WordNum( Abc_ObjFaninNum(pObj) );
    }
    Abc_NtkForEachCo( pNtk, pObj, i )
        Vec_IntWriteEntry( vStarts, pObj->iTemp, Counter++ );
    *pnTotal = Counter;
    return vStarts;
}

Here is the caller graph for this function:

Abc_NtkExtractMfs()

Sfm_Ntk_t * Abc_NtkExtractMfs	(	Abc_Ntk_t *	pNtk,
		int	nFirstFixed )

Function*************************************************************

Synopsis [Extracts information about the network.]

Description []

SideEffects []

SeeAlso []

Definition at line 146 of file abcMfs.c.

{
    word TruthStore[16][1<<10] = {{0}}, * pTruths[16] = {NULL}, pCube[1<<10] = {0};
    Vec_Ptr_t * vNodes;
    Vec_Wec_t * vFanins;
    Vec_Str_t * vFixed;
    Vec_Wrd_t * vTruths;
    Vec_Int_t * vArray;
    Vec_Int_t * vStarts;
    Vec_Wrd_t * vTruths2;
    Abc_Obj_t * pObj, * pFanin;
    int i, k, nObjs, nTotal = 0;
    vNodes  = nFirstFixed ? Abc_NtkAssignIDs2(pNtk) : Abc_NtkAssignIDs(pNtk);
    nObjs   = Abc_NtkCiNum(pNtk) + Vec_PtrSize(vNodes) + Abc_NtkCoNum(pNtk);
    vFanins = Vec_WecStart( nObjs );
    vFixed  = Vec_StrStart( nObjs );
    vTruths = Vec_WrdStart( nObjs );
    vStarts = Abc_NtkAssignStarts( pNtk, vNodes, &nTotal );
    vTruths2= Vec_WrdStart( nTotal );
    Abc_NtkFillTruthStore( TruthStore );
    for ( i = 0; i < 16; i++ )
        pTruths[i] = TruthStore[i];
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
    {
        if ( Abc_ObjFaninNum(pObj) <= 6 )
        {
            word uTruth = Abc_SopToTruth((char *)pObj->pData, Abc_ObjFaninNum(pObj));
            int Offset  = Vec_IntEntry( vStarts, pObj->iTemp );
            Vec_WrdWriteEntry( vTruths2, Offset, uTruth );
            Vec_WrdWriteEntry( vTruths, pObj->iTemp, uTruth );
            if ( uTruth == 0 || ~uTruth == 0 )
                continue;
        }
        else
        {
            int nWords  = Abc_Truth6WordNum( Abc_ObjFaninNum(pObj) );
            int Offset  = Vec_IntEntry( vStarts, pObj->iTemp );
            word * pRes = Vec_WrdEntryP( vTruths2, Offset );
            Abc_SopToTruthBig( (char *)pObj->pData, Abc_ObjFaninNum(pObj), pTruths, pCube, pRes );
            Vec_WrdWriteEntry( vTruths, pObj->iTemp, pRes[0] );
            // check const0
            for ( k = 0; k < nWords; k++ )
                if ( pRes[k] )
                    break;
            if ( k == nWords )
                continue;
            // check const1
            for ( k = 0; k < nWords; k++ )
                if ( ~pRes[k] )
                    break;
            if ( k == nWords )
                continue;
        }
        vArray = Vec_WecEntry( vFanins, pObj->iTemp );
        Vec_IntGrow( vArray, Abc_ObjFaninNum(pObj) );
        Abc_ObjForEachFanin( pObj, pFanin, k )
            Vec_IntPush( vArray, pFanin->iTemp );
        //Vec_IntPrint( vArray );
    }
    Abc_NtkForEachCo( pNtk, pObj, i )
    {
        vArray = Vec_WecEntry( vFanins, pObj->iTemp );
        Vec_IntGrow( vArray, Abc_ObjFaninNum(pObj) );
        Abc_ObjForEachFanin( pObj, pFanin, k )
            Vec_IntPush( vArray, pFanin->iTemp );
    }
    Vec_PtrFree( vNodes );
    for ( i = Abc_NtkCiNum(pNtk); i < Abc_NtkCiNum(pNtk) + nFirstFixed; i++ )
        Vec_StrWriteEntry( vFixed, i, (char)1 );
    // update fixed
    assert( nFirstFixed >= 0 && nFirstFixed < Abc_NtkNodeNum(pNtk) );
//    for ( i = Abc_NtkCiNum(pNtk); i + Abc_NtkCoNum(pNtk) < Abc_NtkObjNum(pNtk); i++ )
//        if ( rand() % 10 == 0 )
//            Vec_StrWriteEntry( vFixed, i, (char)1 );
    return Sfm_NtkConstruct( vFanins, Abc_NtkCiNum(pNtk), Abc_NtkCoNum(pNtk), vFixed, NULL, vTruths, vStarts, vTruths2 );
}

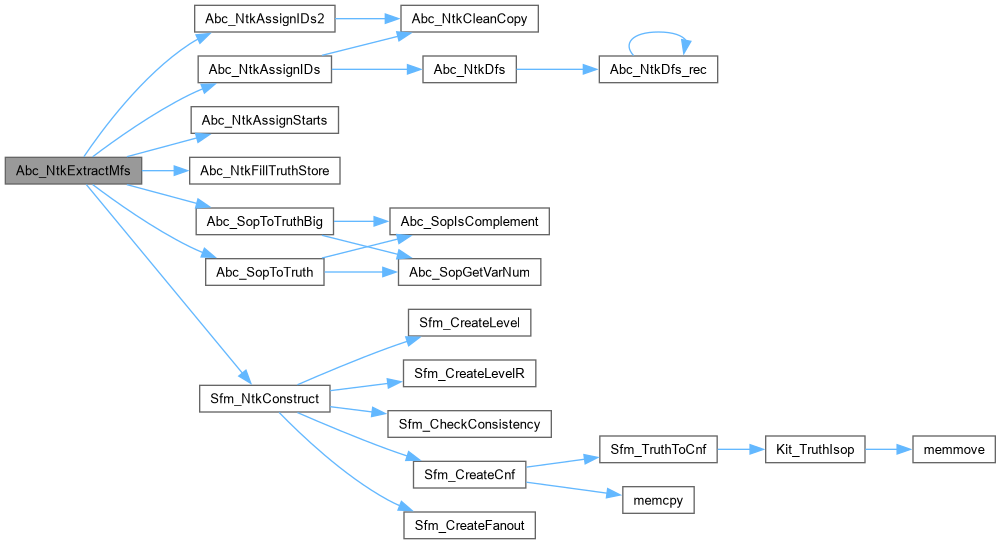

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkExtractMfs2()

Sfm_Ntk_t * Abc_NtkExtractMfs2	(	Abc_Ntk_t *	pNtk,
		int	iPivot )

Definition at line 222 of file abcMfs.c.

{
    word TruthStore[16][1<<10] = {{0}}, * pTruths[16] = {NULL}, pCube[1<<10] = {0};
    Vec_Ptr_t * vNodes;
    Vec_Wec_t * vFanins;
    Vec_Str_t * vFixed;
    Vec_Wrd_t * vTruths;
    Vec_Int_t * vArray;
    Vec_Int_t * vStarts;
    Vec_Wrd_t * vTruths2;
    Abc_Obj_t * pObj, * pFanin;
    int i, k, nObjs, nTotal = 0;
    vNodes  = Abc_NtkAssignIDs2(pNtk);
    nObjs   = Abc_NtkCiNum(pNtk) + Vec_PtrSize(vNodes) + Abc_NtkCoNum(pNtk);
    vFanins = Vec_WecStart( nObjs );
    vFixed  = Vec_StrStart( nObjs );
    vTruths = Vec_WrdStart( nObjs );
    vStarts = Abc_NtkAssignStarts( pNtk, vNodes, &nTotal );
    vTruths2= Vec_WrdAlloc( nTotal );
    Abc_NtkFillTruthStore( TruthStore );
    for ( i = 0; i < 16; i++ )
        pTruths[i] = TruthStore[i];
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
    {
        if ( Abc_ObjFaninNum(pObj) <= 6 )
        {
            word uTruth = Abc_SopToTruth((char *)pObj->pData, Abc_ObjFaninNum(pObj));
            Vec_WrdWriteEntry( vTruths, pObj->iTemp, uTruth );
            if ( uTruth == 0 || ~uTruth == 0 )
                continue;
        }
        else
        {
            int nWords  = Abc_Truth6WordNum( Abc_ObjFaninNum(pObj) );
            int Offset  = Vec_IntEntry( vStarts, pObj->iTemp );
            word * pRes = Vec_WrdEntryP( vTruths2, Offset );
            Abc_SopToTruthBig( (char *)pObj->pData, Abc_ObjFaninNum(pObj), pTruths, pCube, pRes );
            // check const0
            for ( k = 0; k < nWords; k++ )
                if ( pRes[k] )
                    break;
            if ( k == nWords )
                continue;
            // check const1
            for ( k = 0; k < nWords; k++ )
                if ( ~pRes[k] )
                    break;
            if ( k == nWords )
                continue;
        }
        vArray = Vec_WecEntry( vFanins, pObj->iTemp );
        Vec_IntGrow( vArray, Abc_ObjFaninNum(pObj) );
        Abc_ObjForEachFanin( pObj, pFanin, k )
            Vec_IntPush( vArray, pFanin->iTemp );
    }
    Abc_NtkForEachCo( pNtk, pObj, i )
    {
        vArray = Vec_WecEntry( vFanins, pObj->iTemp );
        Vec_IntGrow( vArray, Abc_ObjFaninNum(pObj) );
        Abc_ObjForEachFanin( pObj, pFanin, k )
            Vec_IntPush( vArray, pFanin->iTemp );
    }
    Vec_PtrFree( vNodes );
    // set fixed attributes
    Abc_NtkForEachNode( pNtk, pObj, i )
        if ( i >= iPivot )
            Vec_StrWriteEntry( vFixed, pObj->iTemp, (char)1 );
    return Sfm_NtkConstruct( vFanins, Abc_NtkCiNum(pNtk), Abc_NtkCoNum(pNtk), vFixed, NULL, vTruths, vStarts, vTruths2 );
}

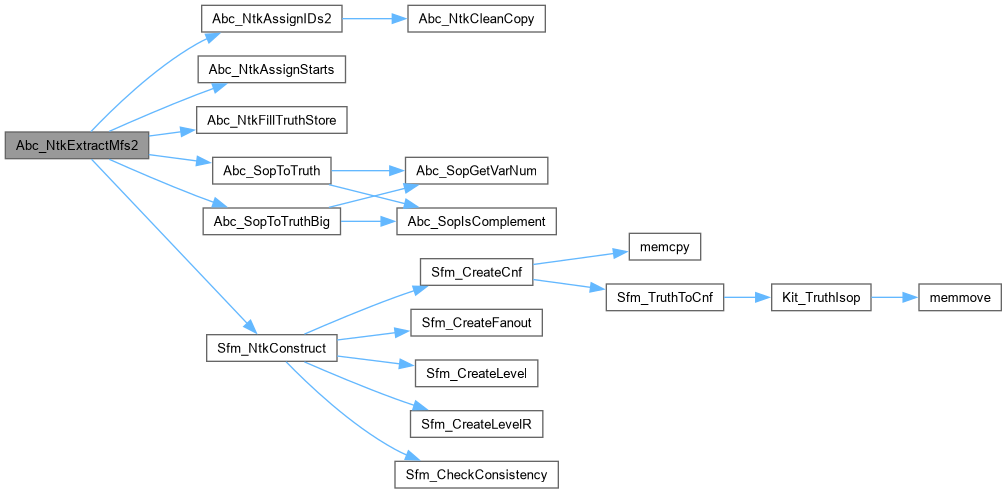

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkFillTruthStore()

void Abc_NtkFillTruthStore

(

word

TruthStore[16][1<< 10]

)

Definition at line 110 of file abcMfs.c.

{
    if ( TruthStore[0][0] == 0 )
    {
        static word Truth6[6] = {
            0xAAAAAAAAAAAAAAAA,
            0xCCCCCCCCCCCCCCCC,
            0xF0F0F0F0F0F0F0F0,
            0xFF00FF00FF00FF00,
            0xFFFF0000FFFF0000,
            0xFFFFFFFF00000000
        };
        int nVarsMax = 16;
        int nWordsMax = (1 << 10);
        int i, k;
        assert( nVarsMax <= 16 );
        for ( i = 0; i < 6; i++ )
            for ( k = 0; k < nWordsMax; k++ )
                TruthStore[i][k] = Truth6[i];
        for ( i = 6; i < nVarsMax; i++ )
            for ( k = 0; k < nWordsMax; k++ )
                TruthStore[i][k] = ((k >> (i-6)) & 1) ? ~(word)0 : 0;
    }
}

Here is the caller graph for this function:

Abc_NtkInsertMfs()

void Abc_NtkInsertMfs	(	Abc_Ntk_t *	pNtk,
		Sfm_Ntk_t *	p )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 303 of file abcMfs.c.

{
    Vec_Int_t * vCover, * vMap, * vArray;
    Abc_Obj_t * pNode;
    word * pTruth;
    int i, k, Fanin;
    // map new IDs into old nodes
    vMap = Vec_IntStart( Abc_NtkObjNumMax(pNtk) );
    Abc_NtkForEachCi( pNtk, pNode, i )
        Vec_IntWriteEntry( vMap, pNode->iTemp, Abc_ObjId(pNode) );
    Abc_NtkForEachNode( pNtk, pNode, i )
        if ( pNode->iTemp > 0 )
            Vec_IntWriteEntry( vMap, pNode->iTemp, Abc_ObjId(pNode) );
    // remove old fanins
    Abc_NtkForEachNode( pNtk, pNode, i )
        if ( !Sfm_NodeReadFixed(p, pNode->iTemp) )
            Abc_ObjRemoveFanins( pNode );
    // create new fanins
    vCover = Vec_IntAlloc( 1 << 16 );
    Abc_NtkForEachNode( pNtk, pNode, i )
    {
        if ( pNode->iTemp == 0 || Sfm_NodeReadFixed(p, pNode->iTemp) )
            continue;
        if ( !Sfm_NodeReadUsed(p, pNode->iTemp) )
        {
            Abc_NtkDeleteObj( pNode );
            continue;
        }
        // update fanins
        vArray = Sfm_NodeReadFanins( p, pNode->iTemp );
        pTruth = Sfm_NodeReadTruth( p, pNode->iTemp );
        Abc_TtFlipVar5( pTruth, Vec_IntSize(vArray) );
        pNode->pData = Abc_SopCreateFromTruthIsop( (Mem_Flex_t *)pNtk->pManFunc, Vec_IntSize(vArray), pTruth, vCover );
        if ( Abc_SopGetVarNum((char *)pNode->pData) == 0 )
            continue;
        assert( Abc_SopGetVarNum((char *)pNode->pData) == Vec_IntSize(vArray) );
        Vec_IntForEachEntry( vArray, Fanin, k )
            Abc_ObjAddFanin( pNode, Abc_NtkObj(pNtk, Vec_IntEntry(vMap, Fanin)) );
    }
    Vec_IntFree( vCover );
    Vec_IntFree( vMap );
}

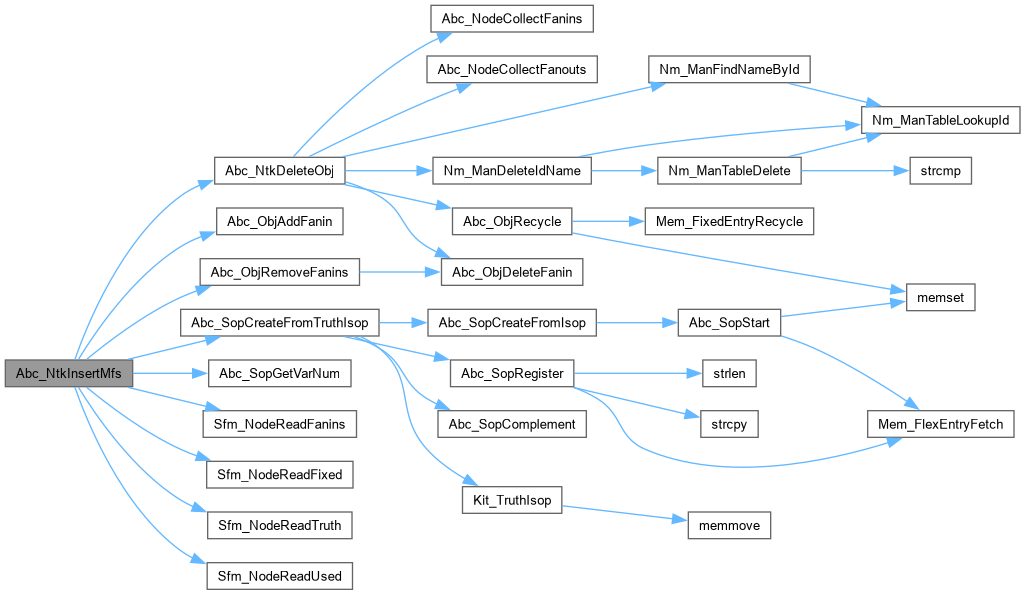

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkMfsAfterICheck()

int Abc_NtkMfsAfterICheck	(	Abc_Ntk_t *	p,
		int	nFrames,
		int	nFramesAdd,
		Vec_Int_t *	vFlops,
		Sfm_Par_t *	pPars )

Function*************************************************************

Synopsis [Performs MFS for the unrolled network.]

Description []

SideEffects []

SeeAlso []

Definition at line 537 of file abcMfs.c.

{
    Sfm_Ntk_t * pp;
    int nFaninMax, nNodes;
    Abc_Ntk_t * pNtk;
    int iPivot;
    assert( Abc_NtkIsLogic(p) );
    // count fanouts
    nFaninMax = Abc_NtkGetFaninMax( p );
    if ( nFaninMax > 15 )
    {
        Abc_Print( 1, "Currently \"mfs\" cannot process the network containing nodes with more than 15 fanins.\n" );
        return 0;
    }
    if ( !Abc_NtkHasSop(p) )
        Abc_NtkToSop( p, -1, ABC_INFINITY );
    // derive unfolded network
    pNtk = Abc_NtkUnrollAndDrop( p, nFrames, nFramesAdd, vFlops, &iPivot );
    Io_WriteBlifLogic( pNtk, "unroll_dump.blif", 0 );
    // collect information
    pp = Abc_NtkExtractMfs2( pNtk, iPivot );
    // perform optimization
    nNodes = Sfm_NtkPerform( pp, pPars );
    if ( nNodes == 0 )
    {
//        Abc_Print( 1, "The network is not changed by \"mfs\".\n" );
    }
    else
    {
        Abc_NtkInsertMfs( pNtk, pp );
        if( pPars->fVerbose )
            Abc_Print( 1, "The network has %d nodes changed by \"mfs\".\n", nNodes );
        Abc_NtkReinsertNodes( p, pNtk, iPivot );
    }
    Abc_NtkDelete( pNtk );
    Sfm_NtkFree( pp );
    // perform final sweep
    Abc_NtkSweep( p, 0 );
    if ( !Abc_NtkHasSop(p) )
        Abc_NtkToSop( p, -1, ABC_INFINITY );
    return 1;

}

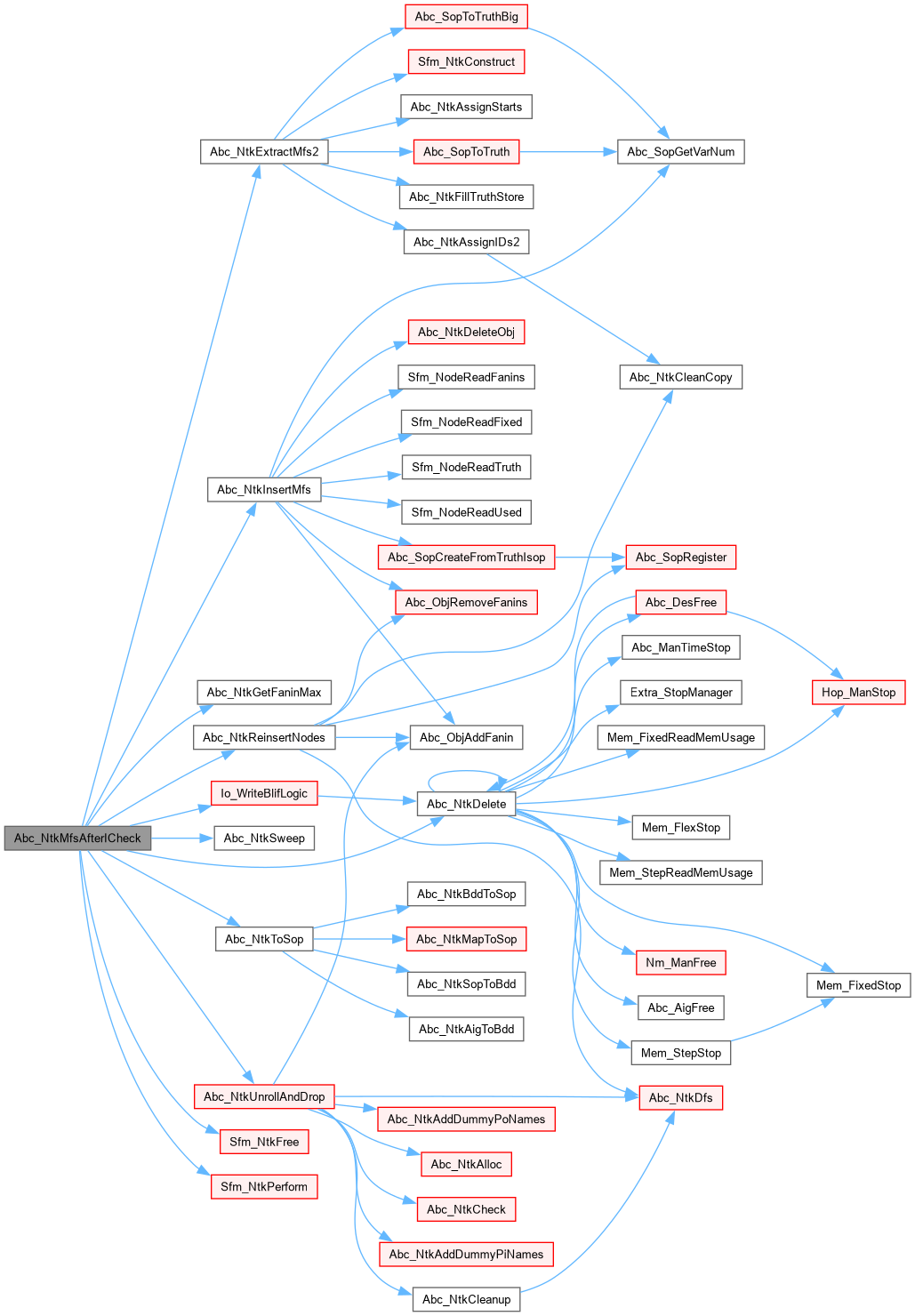

Here is the call graph for this function:

Abc_NtkPerformMfs()

int Abc_NtkPerformMfs	(	Abc_Ntk_t *	pNtk,
		Sfm_Par_t *	pPars )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 357 of file abcMfs.c.

{
    Sfm_Ntk_t * p;
    int nFaninMax, nNodes;
    assert( Abc_NtkIsLogic(pNtk) );
    Abc_NtkSweep( pNtk, 0 );
    // count fanouts
    nFaninMax = Abc_NtkGetFaninMax( pNtk );
    if ( nFaninMax > 15 )
    {
        Abc_Print( 1, "Currently \"mfs\" cannot process the network containing nodes with more than 15 fanins.\n" );
        return 1;
    }
    if ( !Abc_NtkHasSop(pNtk) )
        if ( !Abc_NtkToSop( pNtk, -1, ABC_INFINITY ) )
        {
            printf( "Conversion to SOP has failed due to low resource limit.\n" );
            return 0;
        }
    // collect information
    p = Abc_NtkExtractMfs( pNtk, pPars->nFirstFixed );
    // perform optimization
    nNodes = Sfm_NtkPerform( p, pPars );
    if ( nNodes == 0 )
    {
//        Abc_Print( 1, "The network is not changed by \"mfs\".\n" );
    }
    else
    {
        Abc_NtkInsertMfs( pNtk, p );
        if( pPars->fVerbose )
            Abc_Print( 1, "The network has %d nodes changed by \"mfs\".\n", nNodes );
    }
    Sfm_NtkFree( p );
    return 1;
}

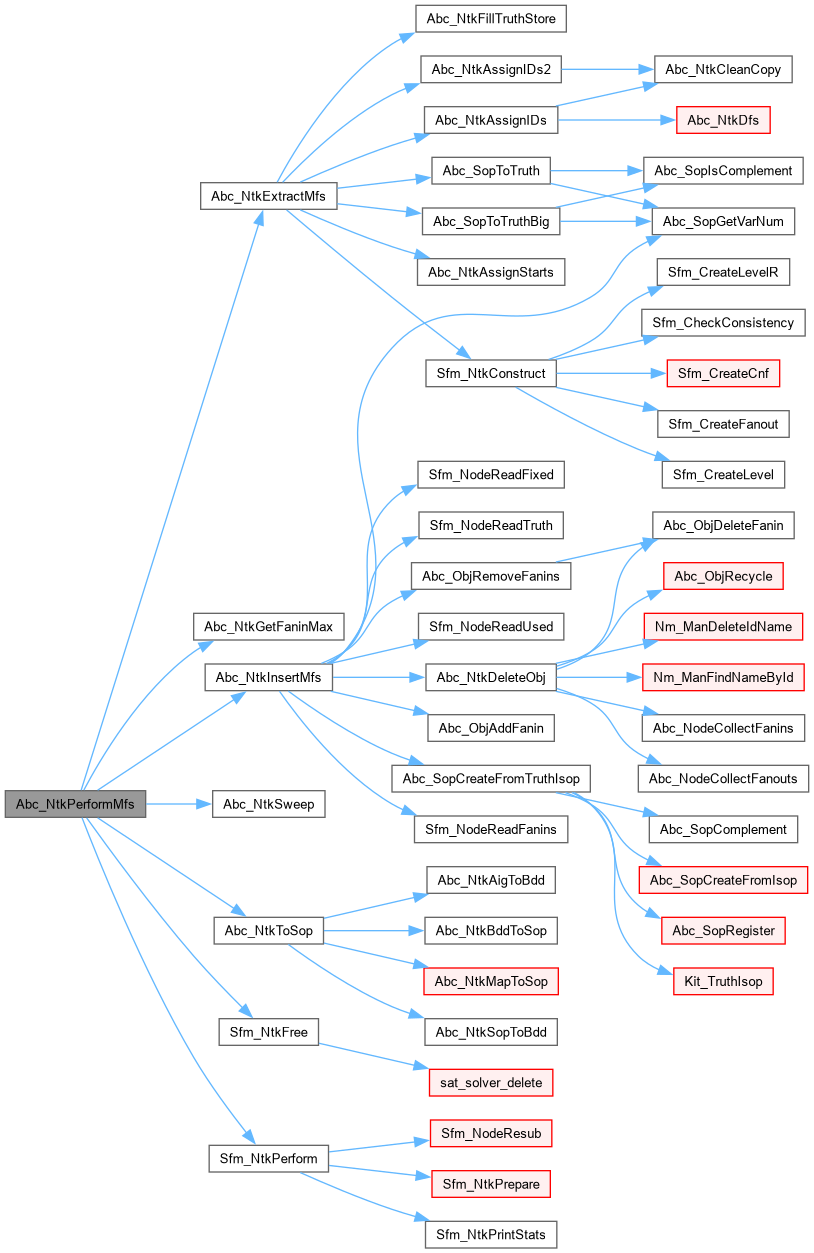

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkReinsertNodes()

void Abc_NtkReinsertNodes	(	Abc_Ntk_t *	p,
		Abc_Ntk_t *	pNtk,
		int	iPivot )

Function*************************************************************

Synopsis [Updates the original network to include optimized nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 485 of file abcMfs.c.

{
    Abc_Obj_t * pNode, * pNodeNew, * pFaninNew;
    Vec_Ptr_t * vNodes;
    int i, k;
    assert( Abc_NtkIsLogic(p) );
    assert( Abc_NtkCiNum(p) <= Abc_NtkCiNum(pNtk) );
    vNodes = Abc_NtkDfs( p, 0 );
    // clean old network
    Abc_NtkCleanCopy( p );
    Abc_NtkForEachNode( p, pNode, i )
    {
        Abc_ObjRemoveFanins( pNode );
        pNode->pData = Abc_SopRegister( (Mem_Flex_t *)p->pManFunc, (char *)" 0\n" );
    }
    // map CIs
    Abc_NtkForEachCi( p, pNode, i )
        Abc_NtkCi(pNtk, i)->pCopy = pNode;
    // map internal nodes
    assert( Vec_PtrSize(vNodes) + Abc_NtkCiNum(p) + Abc_NtkPoNum(p) == iPivot );
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pNode, i )
    {
        pNodeNew = Abc_NtkObj( pNtk, Abc_NtkCiNum(p) + i + 1 );
        if ( pNodeNew == NULL )
            continue;
        pNodeNew->pCopy = pNode;
    }
    // connect internal nodes
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pNode, i )
    {
        pNodeNew = Abc_NtkObj( pNtk, Abc_NtkCiNum(p) + i + 1 );
        if ( pNodeNew == NULL )
            continue;
        assert( pNodeNew->pCopy == pNode );
        Abc_ObjForEachFanin( pNodeNew, pFaninNew, k )
            Abc_ObjAddFanin( pNodeNew->pCopy, pFaninNew->pCopy );
        pNode->pData = Abc_SopRegister( (Mem_Flex_t *)p->pManFunc, (char *)pNodeNew->pData );
    }
    Vec_PtrFree( vNodes );
}

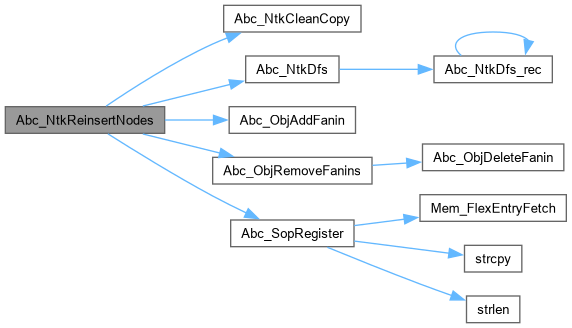

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkUnrollAndDrop()

Abc_Ntk_t * Abc_NtkUnrollAndDrop	(	Abc_Ntk_t *	p,
		int	nFrames,
		int	nFramesAdd,
		Vec_Int_t *	vFlops,
		int *	piPivot )

Function*************************************************************

Synopsis [Unrolls logic network while dropping some next-state functions.]

Description [Returns the unrolled network.]

SideEffects []

SeeAlso []

Definition at line 407 of file abcMfs.c.

{
    Abc_Ntk_t * pNtk;
    Abc_Obj_t * pFanin, * pNode;
    Vec_Ptr_t * vNodes;
    int i, k, f, Value;
    assert( nFramesAdd >= 0 );
    assert( Abc_NtkIsLogic(p) );
    assert( Vec_IntSize(vFlops) == Abc_NtkLatchNum(p) );
    *piPivot = -1;
    // start the network
    pNtk = Abc_NtkAlloc( p->ntkType, p->ntkFunc, 1 );
    pNtk->pName = Extra_UtilStrsav(Abc_NtkName(p));
    // add CIs for the new network
    Abc_NtkForEachCi( p, pNode, i )
        pNode->pCopy = Abc_NtkCreatePi( pNtk );
    // iterate unrolling
    vNodes = Abc_NtkDfs( p, 0 );
    for ( f = 0; f <= nFrames + nFramesAdd; f++ )
    {
        if ( f > 0 )
        {
            Abc_NtkForEachPi( p, pNode, i )
                pNode->pCopy = Abc_NtkCreatePi( pNtk );
        }
        Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pNode, i )
        {
            Abc_NtkDupObj( pNtk, pNode, 0 );
            Abc_ObjForEachFanin( pNode, pFanin, k )
                Abc_ObjAddFanin( pNode->pCopy, pFanin->pCopy );
        }
        Abc_NtkForEachCo( p, pNode, i )
            pNode->pCopy = Abc_ObjFanin0(pNode)->pCopy;
        Abc_NtkForEachPo( p, pNode, i )
            Abc_ObjAddFanin( Abc_NtkCreatePo(pNtk), pNode->pCopy );
        // add buffers
        if ( f == 0 )
        {
            *piPivot = Abc_NtkObjNum(pNtk);
//            Abc_NtkForEachLatchInput( p, pNode, i )
//                pNode->pCopy = Abc_NtkCreateNodeBuf( pNtk, pNode->pCopy );
        }
        // transfer to flop outputs
        Abc_NtkForEachLatch( p, pNode, i )
            Abc_ObjFanout0(pNode)->pCopy = Abc_ObjFanin0(pNode)->pCopy;
        // add final POs
        if ( f > nFramesAdd )
        {
            Vec_IntForEachEntry( vFlops, Value, i )
            {
                if ( Value == 0 )
                    continue;
                pNode = Abc_NtkCo( p, Abc_NtkPoNum(p) + i );
                Abc_ObjAddFanin( Abc_NtkCreatePo(pNtk), pNode->pCopy );
            }
        }
    }
    Vec_PtrFree( vNodes );
    Abc_NtkAddDummyPiNames( pNtk );
    Abc_NtkAddDummyPoNames( pNtk );
    // perform combinational cleanup
    Abc_NtkCleanup( pNtk, 0 );
    if ( !Abc_NtkCheck( pNtk ) )
        fprintf( stdout, "Abc_NtkCreateFromNode(): Network check has failed.\n" );
    return pNtk;
}

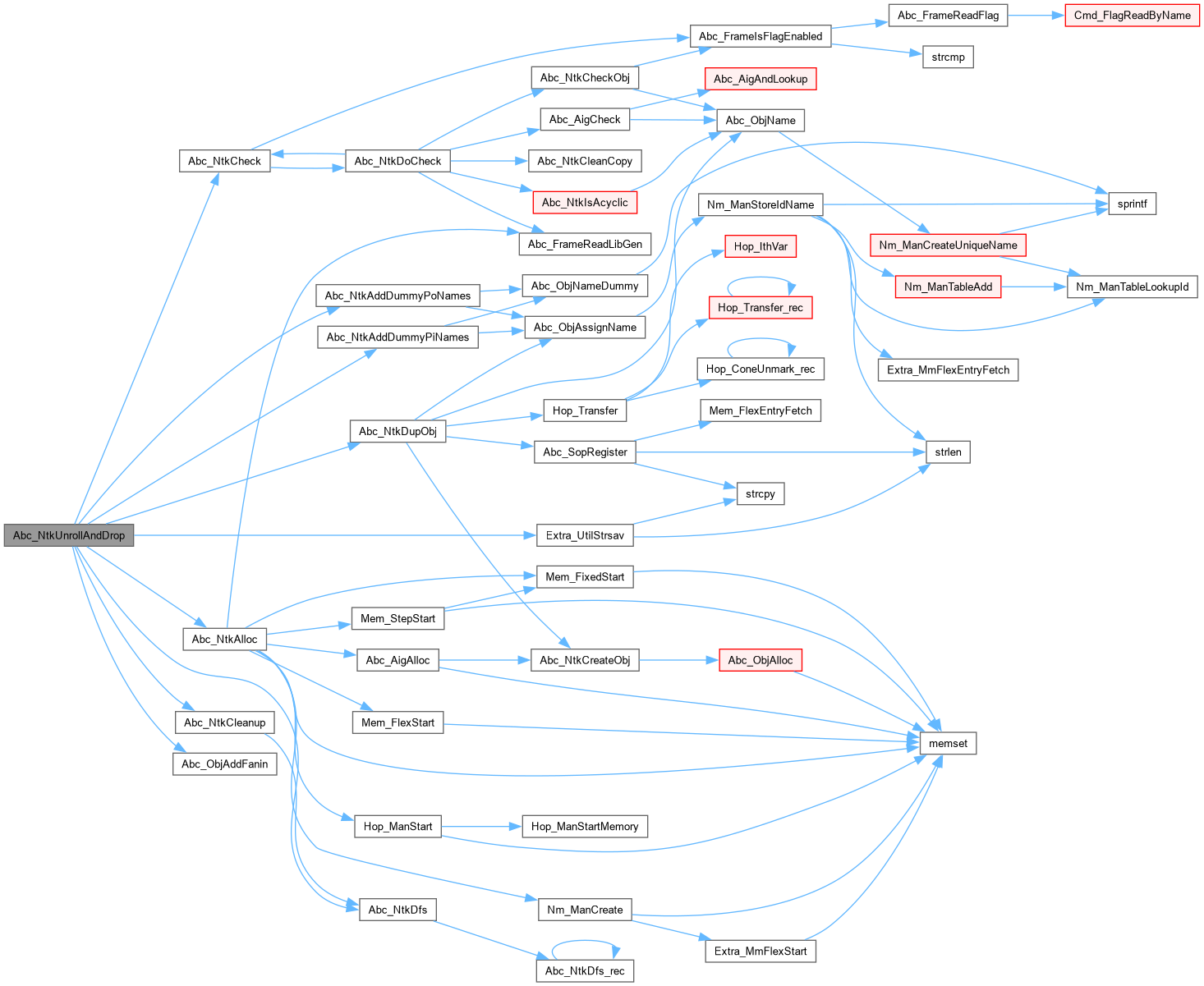

Here is the call graph for this function:

Here is the caller graph for this function:
