abcShow.c File Reference

#include <unistd.h>
#include "abc.h"
#include "base/main/main.h"
#include "base/io/ioAbc.h"

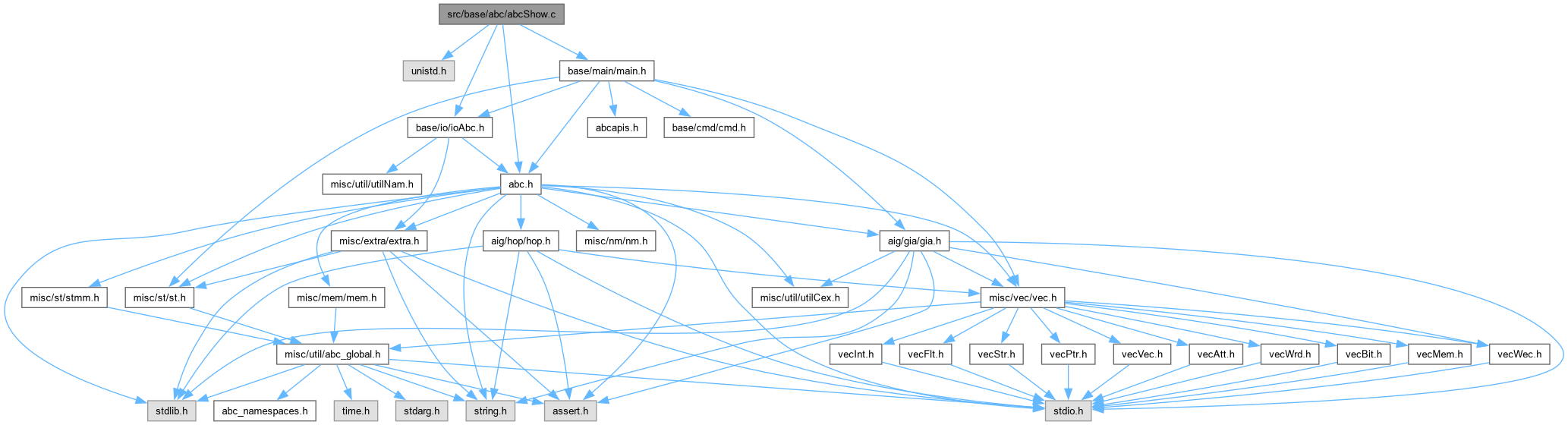

Include dependency graph for abcShow.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Abc_ShowFile (char *FileNameDot, int fKeepDot)
	DECLARATIONS ///.
void	Abc_NodeShowBdd (Abc_Obj_t *pNode, int fCompl)
	FUNCTION DEFINITIONS ///.
void	Abc_NtkShowBdd (Abc_Ntk_t *pNtk, int fCompl, int fReorder)
void	Abc_NodeShowCut (Abc_Obj_t *pNode, int nNodeSizeMax, int nConeSizeMax)
void	Abc_NtkShow (Abc_Ntk_t *pNtk0, int fGateNames, int fSeq, int fUseReverse, int fKeepDot, int fAigIds)
void	Abc_NtkWriteFlopDependency (Abc_Ntk_t *pNtk, char *pFileName)
void	Abc_NtkShowFlopDependency (Abc_Ntk_t *pNtk)

Function Documentation

Abc_NodeShowBdd()

void Abc_NodeShowBdd	(	Abc_Obj_t *	pNode,
		int	fCompl )

FUNCTION DEFINITIONS ///.

Definition at line 188 of file abcShow.c.

{}

Abc_NodeShowCut()

void Abc_NodeShowCut	(	Abc_Obj_t *	pNode,
		int	nNodeSizeMax,
		int	nConeSizeMax )

Function*************************************************************

Synopsis [Visualizes a reconvergence driven cut at the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 203 of file abcShow.c.

{
    FILE * pFile;
    char FileNameDot[200];
    Abc_ManCut_t * p;
    Vec_Ptr_t * vCutSmall;
    Vec_Ptr_t * vCutLarge;
    Vec_Ptr_t * vInside;
    Vec_Ptr_t * vNodesTfo;
    Abc_Obj_t * pTemp;
    int i;

    assert( Abc_NtkIsStrash(pNode->pNtk) );

    // start the cut computation manager
    p = Abc_NtkManCutStart( nNodeSizeMax, nConeSizeMax, 2, ABC_INFINITY );
    // get the recovergence driven cut
    vCutSmall = Abc_NodeFindCut( p, pNode, 1 );
    // get the containing cut
    vCutLarge = Abc_NtkManCutReadCutLarge( p );
    // get the array for the inside nodes
    vInside = Abc_NtkManCutReadVisited( p );
    // get the inside nodes of the containing cone
    Abc_NodeConeCollect( &pNode, 1, vCutLarge, vInside, 1 );

    // add the nodes in the TFO
    vNodesTfo = Abc_NodeCollectTfoCands( p, pNode, vCutSmall, ABC_INFINITY );
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodesTfo, pTemp, i )
        Vec_PtrPushUnique( vInside, pTemp );

    // create the file name
    Abc_ShowGetFileName( Abc_ObjName(pNode), FileNameDot );
    // check that the file can be opened
    if ( (pFile = fopen( FileNameDot, "w" )) == NULL )
    {
        fprintf( stdout, "Cannot open the intermediate file \"%s\".\n", FileNameDot );
        return;
    }
    // add the root node to the cone (for visualization)
    Vec_PtrPush( vCutSmall, pNode );
    // write the DOT file
    Io_WriteDotNtk( pNode->pNtk, vInside, vCutSmall, FileNameDot, 0, 0, 0 );
    // stop the cut computation manager
    Abc_NtkManCutStop( p );

    // visualize the file
    Abc_ShowFile( FileNameDot, 0 );
}

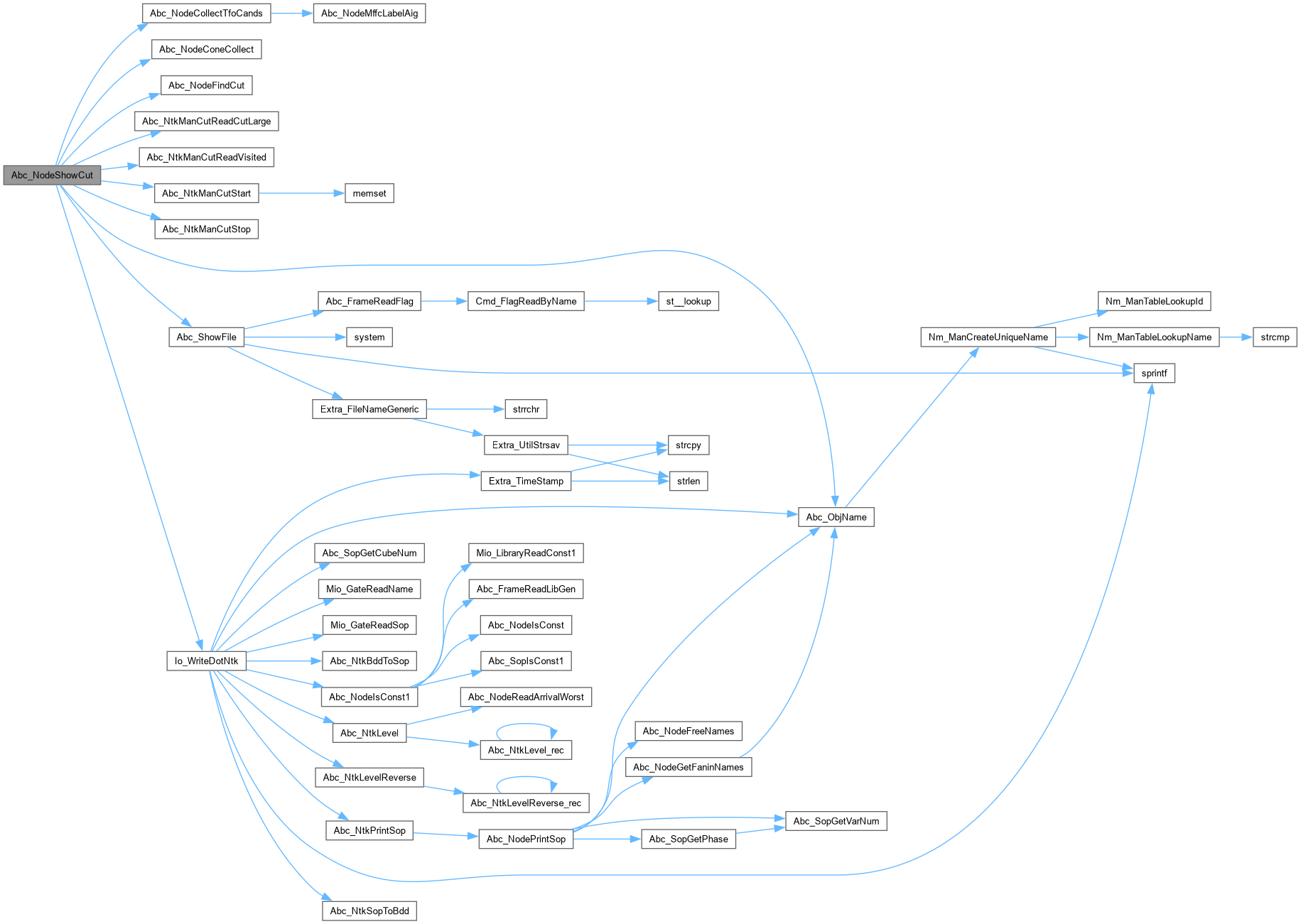

Here is the call graph for this function:

Abc_NtkShow()

void Abc_NtkShow	(	Abc_Ntk_t *	pNtk0,
		int	fGateNames,
		int	fSeq,
		int	fUseReverse,
		int	fKeepDot,
		int	fAigIds )

Function*************************************************************

Synopsis [Visualizes AIG with choices.]

Description []

SideEffects []

SeeAlso []

Definition at line 263 of file abcShow.c.

{
    FILE * pFile;
    Abc_Ntk_t * pNtk;
    Abc_Obj_t * pNode;
    Vec_Ptr_t * vNodes;
    int nBarBufs;
    char FileNameDot[200];
    int i;

    assert( Abc_NtkIsStrash(pNtk0) || Abc_NtkIsLogic(pNtk0) );
    if ( Abc_NtkIsStrash(pNtk0) && Abc_NtkGetChoiceNum(pNtk0) )
    {
        printf( "Temporarily visualization of AIGs with choice nodes is disabled.\n" );
        return;
    }
    // create the file name
    Abc_ShowGetFileName( pNtk0->pName, FileNameDot );
    // check that the file can be opened
    if ( (pFile = fopen( FileNameDot, "w" )) == NULL )
    {
        fprintf( stdout, "Cannot open the intermediate file \"%s\".\n", FileNameDot );
        return;
    }
    fclose( pFile );


    // convert to logic SOP
    pNtk = Abc_NtkDup( pNtk0 );
    if ( Abc_NtkIsLogic(pNtk) && !Abc_NtkHasMapping(pNtk) )
        Abc_NtkToSop( pNtk, -1, ABC_INFINITY );

    // collect all nodes in the network
    vNodes = Vec_PtrAlloc( 100 );
    Abc_NtkForEachObj( pNtk, pNode, i )
        Vec_PtrPush( vNodes, pNode );
    // write the DOT file
    nBarBufs = pNtk->nBarBufs;
    pNtk->nBarBufs = 0;
    if ( fSeq )
        Io_WriteDotSeq( pNtk, vNodes, NULL, FileNameDot, fGateNames, fUseReverse );
    else
        Io_WriteDotNtk( pNtk, vNodes, NULL, FileNameDot, fGateNames, fUseReverse, fAigIds );
    pNtk->nBarBufs = nBarBufs;
    Vec_PtrFree( vNodes );

    // visualize the file
    Abc_ShowFile( FileNameDot, fKeepDot );
    Abc_NtkDelete( pNtk );
}

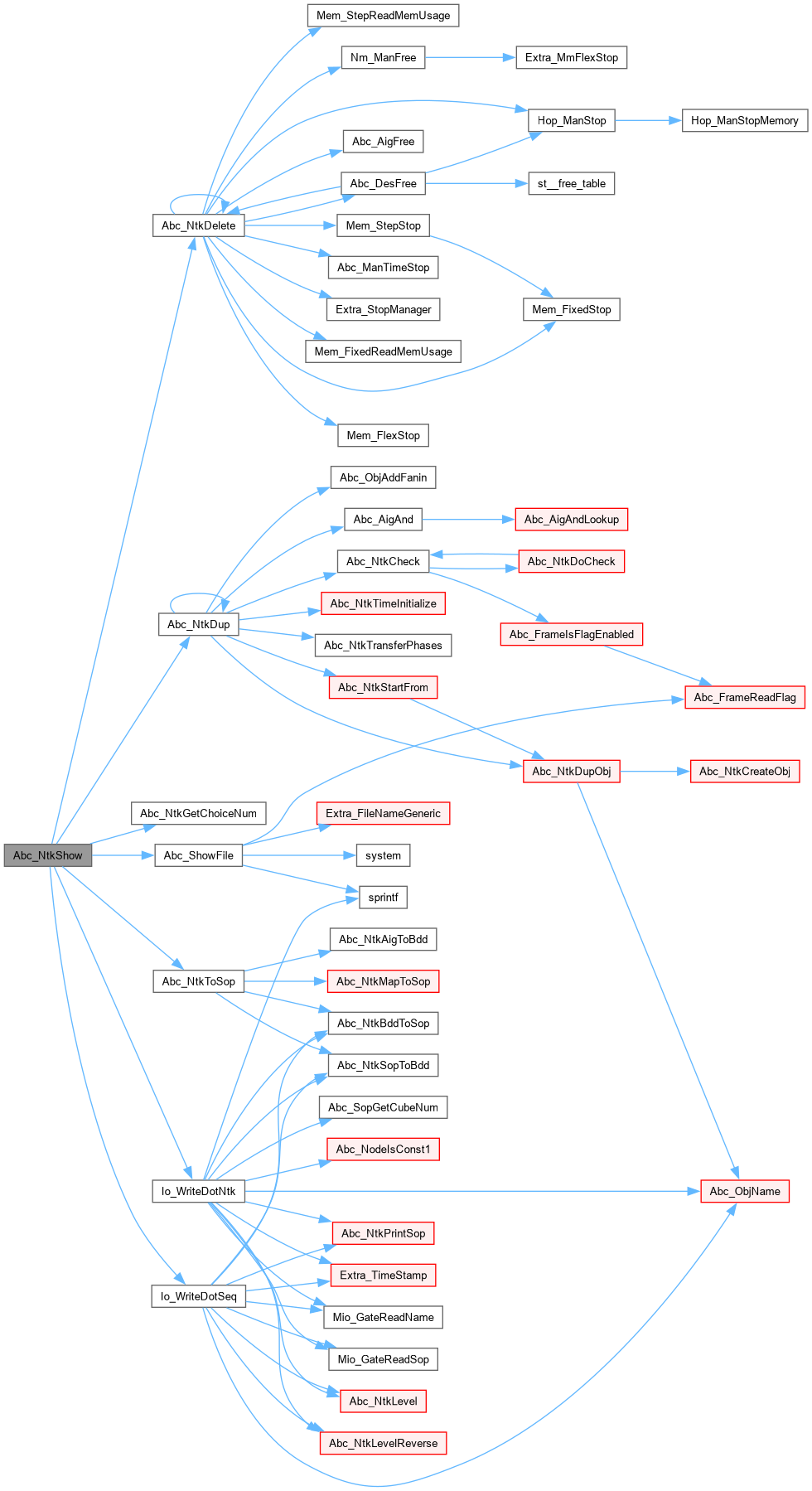

Here is the call graph for this function:

Abc_NtkShowBdd()

void Abc_NtkShowBdd	(	Abc_Ntk_t *	pNtk,
		int	fCompl,
		int	fReorder )

Definition at line 189 of file abcShow.c.

{}

Abc_NtkShowFlopDependency()

void Abc_NtkShowFlopDependency

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Visualizes AIG with choices.]

Description []

SideEffects []

SeeAlso []

Definition at line 510 of file abcShow.c.

{
    FILE * pFile;
    char FileNameDot[200];
    assert( Abc_NtkIsStrash(pNtk) || Abc_NtkIsLogic(pNtk) );
    // create the file name
    Abc_ShowGetFileName( pNtk->pName, FileNameDot );
    // check that the file can be opened
    if ( (pFile = fopen( FileNameDot, "w" )) == NULL )
    {
        fprintf( stdout, "Cannot open the intermediate file \"%s\".\n", FileNameDot );
        return;
    }
    fclose( pFile );
    // write the DOT file
    Abc_NtkWriteFlopDependency( pNtk, FileNameDot );
    // visualize the file
    Abc_ShowFile( FileNameDot, 0 );
}

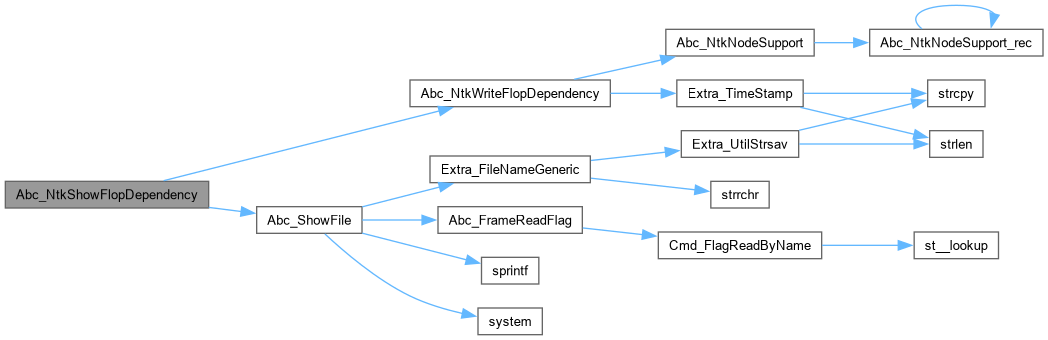

Here is the call graph for this function:

Abc_NtkWriteFlopDependency()

void Abc_NtkWriteFlopDependency	(	Abc_Ntk_t *	pNtk,
		char *	pFileName )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 456 of file abcShow.c.

{
    FILE * pFile;
    Vec_Ptr_t * vSupp;
    Abc_Obj_t * pObj, * pTemp;
    int i, k, Count;
    pFile = fopen( pFileName, "w" );
    if ( pFile == NULL )
    {
        printf( "Cannot open input file %s.\n", pFileName );
        return;
    }
    fprintf( pFile, "# Flop dependency for \"%s\" generated by ABC on %s\n", Abc_NtkName(pNtk), Extra_TimeStamp() );
    fprintf( pFile, "digraph G {\n" );
    fprintf( pFile, "  graph [splines=true overlap=false];\n" );
    fprintf( pFile, "  size = \"7.5,10\";\n" );
    fprintf( pFile, "  center = true;\n" );
//    fprintf( pFile, "  edge [len=3,dir=forward];\n" );
    fprintf( pFile, "  edge [dir=forward];\n" );
    Abc_NtkForEachLatchInput( pNtk, pObj, i )
    {
        Abc_ObjFanout0( Abc_ObjFanout0(pObj) )->iTemp = i;
        vSupp = Abc_NtkNodeSupport( pNtk, &pObj, 1 );
        Count = 0;
        Vec_PtrForEachEntry( Abc_Obj_t *, vSupp, pTemp, k )
            Count += Abc_ObjIsPi(pTemp);
        Vec_PtrFree( vSupp );
        fprintf( pFile, "  { rank = same; %d [label=\"%d(%d)\"]; }\n", i, i, Count );
    }
    Abc_NtkForEachLatchInput( pNtk, pObj, i )
    {
        vSupp = Abc_NtkNodeSupport( pNtk, &pObj, 1 );
        Count = 0;
        Vec_PtrForEachEntry( Abc_Obj_t *, vSupp, pTemp, k )
            if ( !Abc_ObjIsPi(pTemp) )
                fprintf( pFile, "  %4d -> %4d\n", pTemp->iTemp, i );
        Vec_PtrFree( vSupp );
    }
    fprintf( pFile, "}\n" );
    fclose( pFile );
}

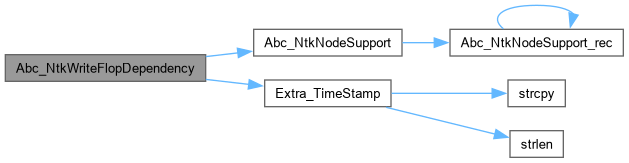

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_ShowFile()

void Abc_ShowFile ( char * FileNameDot, int fKeepDot )

extern

DECLARATIONS ///.

CFile****************************************************************

FileName [abcShow.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Network and node package.]

Synopsis [Visualization procedures using DOT software and GSView.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

abcShow.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Function*************************************************************

Synopsis [Shows the given DOT file.]

Description []

SideEffects []

SeeAlso []

Definition at line 326 of file abcShow.c.

{
    FILE * pFile;
    char * FileGeneric;
    char FileNamePs[200];
    char CommandDot[1000];
    char * pDotName;
    char * pDotNameWin = "dot.exe";
    char * pDotNameUnix = "dot";
    char * pGsNameWin = "gsview32.exe";
    char * pGsNameUnix = "gv";
    int RetValue;

    // get DOT names from the resource file
    if ( Abc_FrameReadFlag("dotwin") )
        pDotNameWin = Abc_FrameReadFlag("dotwin");
    if ( Abc_FrameReadFlag("dotunix") )
        pDotNameUnix = Abc_FrameReadFlag("dotunix");

#ifdef WIN32
    pDotName = pDotNameWin;
#else
    pDotName = pDotNameUnix;
#endif

    // check if the input DOT file is okay
    if ( (pFile = fopen( FileNameDot, "r" )) == NULL )
    {
        fprintf( stdout, "Cannot open the intermediate file \"%s\".\n", FileNameDot );
        return;
    }
    fclose( pFile );

    // create the PostScript file name
    FileGeneric = Extra_FileNameGeneric( FileNameDot );
    sprintf( FileNamePs,  "%s.ps",  FileGeneric );
    ABC_FREE( FileGeneric );

    // generate the PostScript file using DOT
    sprintf( CommandDot,  "%s -Tps -o %s %s", pDotName, FileNamePs, FileNameDot );
#if defined(__wasm)
    RetValue = -1;
#else
    RetValue = system( CommandDot );
#endif
    if ( RetValue == -1 )
    {
        fprintf( stdout, "Command \"%s\" did not succeed.\n", CommandDot );
        return;
    }
    // check that the input PostScript file is okay
    if ( (pFile = fopen( FileNamePs, "r" )) == NULL )
    {
        fprintf( stdout, "Cannot open intermediate file \"%s\".\n", FileNamePs );
        return;
    }
    fclose( pFile );


    // get GSVIEW names from the resource file
    if ( Abc_FrameReadFlag("gsviewwin") )
        pGsNameWin = Abc_FrameReadFlag("gsviewwin");
    if ( Abc_FrameReadFlag("gsviewunix") )
        pGsNameUnix = Abc_FrameReadFlag("gsviewunix");

    // spawn the viewer
#ifdef WIN32
    if ( !fKeepDot ) _unlink( FileNameDot );
    if ( _spawnl( _P_NOWAIT, pGsNameWin, pGsNameWin, FileNamePs, NULL ) == -1 )
        if ( _spawnl( _P_NOWAIT, "C:\\Program Files\\Ghostgum\\gsview\\gsview32.exe",
            "C:\\Program Files\\Ghostgum\\gsview\\gsview32.exe", FileNamePs, NULL ) == -1 )
            if ( _spawnl( _P_NOWAIT, "C:\\Program Files\\Ghostgum\\gsview\\gsview64.exe",
                "C:\\Program Files\\Ghostgum\\gsview\\gsview64.exe", FileNamePs, NULL ) == -1 )
            {
                fprintf( stdout, "Cannot find \"%s\".\n", pGsNameWin );
                return;
            }
#else
    {
        char CommandPs[1000];
        if ( !fKeepDot ) unlink( FileNameDot );
        sprintf( CommandPs,  "%s %s &", pGsNameUnix, FileNamePs );
#if defined(__wasm)
        if ( 1 )
#else
        if ( system( CommandPs ) == -1 )
#endif
        {
            fprintf( stdout, "Cannot execute \"%s\".\n", CommandPs );
            return;
        }
    }
#endif
}

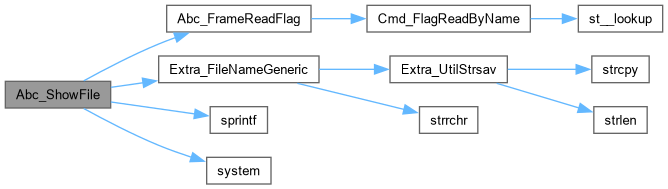

Here is the call graph for this function:

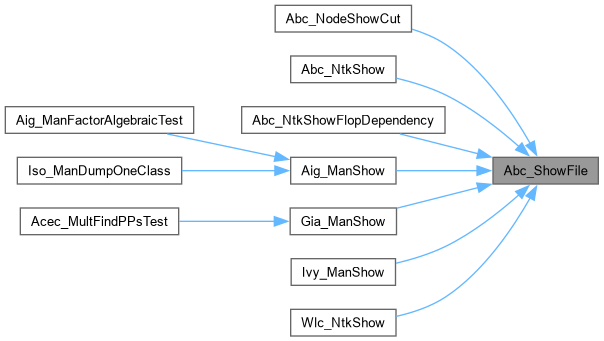

Here is the caller graph for this function:
