abcStrash.c File Reference

#include "base/abc/abc.h"
#include "bool/dec/dec.h"

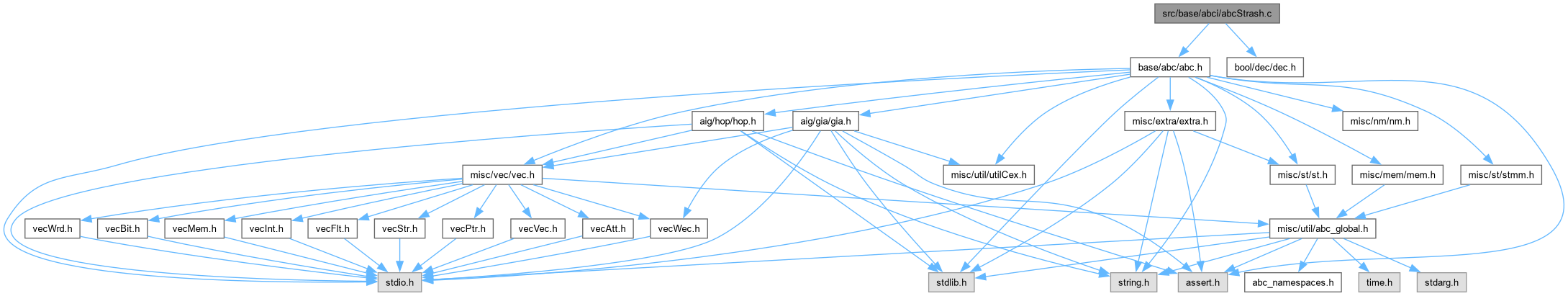

Include dependency graph for abcStrash.c:

Go to the source code of this file.

Functions
Abc_Ntk_t *	Abc_NtkRestrash (Abc_Ntk_t *pNtk, int fCleanup)
	FUNCTION DEFINITIONS ///.
void	Abc_NtkRestrashRandom_rec (Abc_Ntk_t *pNtk, Abc_Obj_t *pObj)
Abc_Ntk_t *	Abc_NtkRestrashRandom (Abc_Ntk_t *pNtk)
Abc_Ntk_t *	Abc_NtkRestrashZero (Abc_Ntk_t *pNtk, int fCleanup)
Abc_Ntk_t *	Abc_NtkStrash (Abc_Ntk_t *pNtk, int fAllNodes, int fCleanup, int fRecord)
int	Abc_NtkAppend (Abc_Ntk_t *pNtk1, Abc_Ntk_t *pNtk2, int fAddPos)
void	Abc_NodeStrash_rec (Abc_Aig_t *pMan, Hop_Obj_t *pObj)
Abc_Obj_t *	Abc_NodeStrash (Abc_Ntk_t *pNtkNew, Abc_Obj_t *pNodeOld, int fRecord)
Abc_Obj_t *	Abc_NtkTopmost_rec (Abc_Ntk_t *pNtkNew, Abc_Obj_t *pNode, int LevelCut)
Abc_Ntk_t *	Abc_NtkTopmost (Abc_Ntk_t *pNtk, int nLevels)
Abc_Obj_t *	Abc_NtkBottommost_rec (Abc_Ntk_t *pNtkNew, Abc_Obj_t *pNode, int LevelCut)
Abc_Ntk_t *	Abc_NtkBottommost (Abc_Ntk_t *pNtk, int nLevels)
Vec_Ptr_t *	Abc_NodeGetSuper (Abc_Obj_t *pNode)
Abc_Ntk_t *	Abc_NtkTopAnd (Abc_Ntk_t *pNtk)
void	Abc_NtkWriteAig (Abc_Ntk_t *pNtk, char *pFileName)
Abc_Ntk_t *	Abc_NtkPutOnTop (Abc_Ntk_t *pNtk, Abc_Ntk_t *pNtk2)

Function Documentation

Abc_NodeGetSuper()

Vec_Ptr_t * Abc_NodeGetSuper

(

Abc_Obj_t *

pNode

)

Function*************************************************************

Synopsis [Collects the large supergate.]

Description []

SideEffects []

SeeAlso []

Definition at line 683 of file abcStrash.c.

{
    Vec_Ptr_t * vSuper, * vFront;
    Abc_Obj_t * pAnd, * pFanin;
    int i;
    assert( Abc_ObjIsNode(pNode) && !Abc_ObjIsComplement(pNode) );
    vSuper = Vec_PtrAlloc( 100 );
    // explore the frontier
    vFront = Vec_PtrAlloc( 100 );
    Vec_PtrPush( vFront, pNode );
    Vec_PtrForEachEntry( Abc_Obj_t *, vFront, pAnd, i )
    {
        pFanin = Abc_ObjChild0(pAnd);
        if ( Abc_ObjIsNode(pFanin) && !Abc_ObjIsComplement(pFanin) && Abc_ObjFanoutNum(pFanin) == 1 )
            Vec_PtrPush( vFront, pFanin );
        else
            Vec_PtrPush( vSuper, pFanin );

        pFanin = Abc_ObjChild1(pAnd);
        if ( Abc_ObjIsNode(pFanin) && !Abc_ObjIsComplement(pFanin) && Abc_ObjFanoutNum(pFanin) == 1 )
            Vec_PtrPush( vFront, pFanin );
        else
            Vec_PtrPush( vSuper, pFanin );
    }
    Vec_PtrFree( vFront );
    // reverse the array of pointers to start with lower IDs
    vFront = Vec_PtrAlloc( Vec_PtrSize(vSuper) );
    Vec_PtrForEachEntryReverse( Abc_Obj_t *, vSuper, pNode, i )
        Vec_PtrPush( vFront, pNode );
    Vec_PtrFree( vSuper );
    vSuper = vFront;
    // uniquify and return the frontier
    Vec_PtrUniqify( vSuper, (int (*)(const void *, const void *))Vec_CompareNodeIds );
    return vSuper;
}

Here is the caller graph for this function:

Abc_NodeStrash()

Abc_Obj_t * Abc_NodeStrash	(	Abc_Ntk_t *	pNtkNew,
		Abc_Obj_t *	pNodeOld,
		int	fRecord )

Function*************************************************************

Synopsis [Strashes one logic node.]

Description [Assume the network is in the AIG form]

SideEffects []

SeeAlso []

Definition at line 468 of file abcStrash.c.

{
    Hop_Man_t * pMan;
    Hop_Obj_t * pRoot;
    Abc_Obj_t * pFanin;
    int i;
    assert( Abc_ObjIsNode(pNodeOld) );
    assert( Abc_NtkHasAig(pNodeOld->pNtk) && !Abc_NtkIsStrash(pNodeOld->pNtk) );
    // get the local AIG manager and the local root node
    pMan = (Hop_Man_t *)pNodeOld->pNtk->pManFunc;
    pRoot = (Hop_Obj_t *)pNodeOld->pData;
    // check the constant case
    if ( Abc_NodeIsConst(pNodeOld) || Hop_Regular(pRoot) == Hop_ManConst1(pMan) )
        return Abc_ObjNotCond( Abc_AigConst1(pNtkNew), Hop_IsComplement(pRoot) );
    // perform special case-strashing using the record of AIG subgraphs
/*
    if ( fRecord && Abc_NtkRecIsRunning() && Abc_ObjFaninNum(pNodeOld) > 2 && Abc_ObjFaninNum(pNodeOld) <= Abc_NtkRecVarNum() )
    {
        extern Vec_Int_t * Abc_NtkRecMemory();
        extern int Abc_NtkRecStrashNode( Abc_Ntk_t * pNtkNew, Abc_Obj_t * pObj, unsigned * pTruth, int nVars );
        int nVars = Abc_NtkRecVarNum();
        Vec_Int_t * vMemory = Abc_NtkRecMemory();
        unsigned * pTruth = Hop_ManConvertAigToTruth( pMan, Hop_Regular(pRoot), nVars, vMemory, 0 );
        assert( Extra_TruthSupportSize(pTruth, nVars) == Abc_ObjFaninNum(pNodeOld) ); // should be swept
        if ( Hop_IsComplement(pRoot) )
            Extra_TruthNot( pTruth, pTruth, nVars );
        if ( Abc_NtkRecStrashNode( pNtkNew, pNodeOld, pTruth, nVars ) )
            return pNodeOld->pCopy;
    }
*/
    // set elementary variables
    Abc_ObjForEachFanin( pNodeOld, pFanin, i )
        Hop_IthVar(pMan, i)->pData = pFanin->pCopy;
    // strash the AIG of this node
    Abc_NodeStrash_rec( (Abc_Aig_t *)pNtkNew->pManFunc, Hop_Regular(pRoot) );
    Hop_ConeUnmark_rec( Hop_Regular(pRoot) );
    // return the final node
    return Abc_ObjNotCond( (Abc_Obj_t *)Hop_Regular(pRoot)->pData, Hop_IsComplement(pRoot) );
}

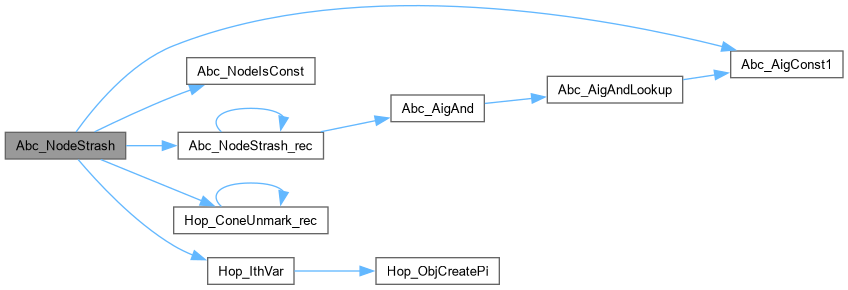

Here is the call graph for this function:

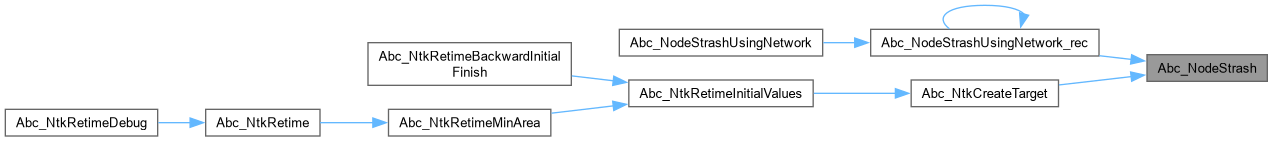

Here is the caller graph for this function:

Abc_NodeStrash_rec()

void Abc_NodeStrash_rec	(	Abc_Aig_t *	pMan,
		Hop_Obj_t *	pObj )

Function*************************************************************

Synopsis [Transfers the AIG from one manager into another.]

Description []

SideEffects []

SeeAlso []

Definition at line 445 of file abcStrash.c.

{
    assert( !Hop_IsComplement(pObj) );
    if ( !Hop_ObjIsNode(pObj) || Hop_ObjIsMarkA(pObj) )
        return;
    Abc_NodeStrash_rec( pMan, Hop_ObjFanin0(pObj) );
    Abc_NodeStrash_rec( pMan, Hop_ObjFanin1(pObj) );
    pObj->pData = Abc_AigAnd( pMan, (Abc_Obj_t *)Hop_ObjChild0Copy(pObj), (Abc_Obj_t *)Hop_ObjChild1Copy(pObj) );
    assert( !Hop_ObjIsMarkA(pObj) ); // loop detection
    Hop_ObjSetMarkA( pObj );
}

Here is the call graph for this function:

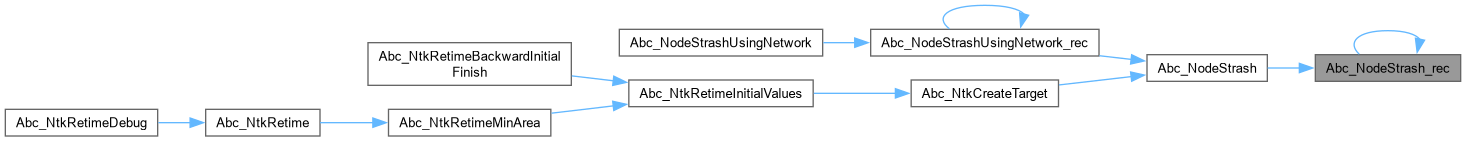

Here is the caller graph for this function:

Abc_NtkAppend()

int Abc_NtkAppend	(	Abc_Ntk_t *	pNtk1,
		Abc_Ntk_t *	pNtk2,
		int	fAddPos )

Function*************************************************************

Synopsis [Appends the second network to the first.]

Description [Modifies the first network by adding the logic of the second. Performs structural hashing while appending the networks. Does not change the second network. Returns 0 if the appending failed, 1 otherise.]

SideEffects []

SeeAlso []

Definition at line 320 of file abcStrash.c.

{
    Abc_Obj_t * pObj;
    char * pName;
    int i, nNewCis;
    // the first network should be an AIG
    assert( Abc_NtkIsStrash(pNtk1) );
    assert( Abc_NtkIsLogic(pNtk2) || Abc_NtkIsStrash(pNtk2) );
    if ( Abc_NtkIsLogic(pNtk2) && !Abc_NtkToAig(pNtk2) )
    {
        printf( "Converting to AIGs has failed.\n" );
        return 0;
    }
    // check that the networks have the same PIs
    // reorder PIs of pNtk2 according to pNtk1
    if ( !Abc_NtkCompareSignals( pNtk1, pNtk2, 1, 1 ) )
        printf( "Abc_NtkAppend(): The union of the network PIs is computed (warning).\n" );
    // perform strashing
    nNewCis = 0;
    Abc_NtkCleanCopy( pNtk2 );
    if ( Abc_NtkIsStrash(pNtk2) )
        Abc_AigConst1(pNtk2)->pCopy = Abc_AigConst1(pNtk1);
    Abc_NtkForEachCi( pNtk2, pObj, i )
    {
        pName = Abc_ObjName(pObj);
        pObj->pCopy = Abc_NtkFindCi(pNtk1, Abc_ObjName(pObj));
        if ( pObj->pCopy == NULL )
        {
            pObj->pCopy = Abc_NtkDupObj(pNtk1, pObj, 1);
            nNewCis++;
        }
    }
    if ( nNewCis )
        printf( "Warning: Procedure Abc_NtkAppend() added %d new CIs.\n", nNewCis );
    // add pNtk2 to pNtk1 while strashing
    if ( Abc_NtkIsLogic(pNtk2) )
        Abc_NtkStrashPerform( pNtk2, pNtk1, 1, 0 );
    else
        Abc_NtkForEachNode( pNtk2, pObj, i )
            pObj->pCopy = Abc_AigAnd( (Abc_Aig_t *)pNtk1->pManFunc, Abc_ObjChild0Copy(pObj), Abc_ObjChild1Copy(pObj) );
    // add the COs of the second network
    if ( fAddPos )
    {
        Abc_NtkForEachPo( pNtk2, pObj, i )
        {
            Abc_NtkDupObj( pNtk1, pObj, 0 );
            Abc_ObjAddFanin( pObj->pCopy, Abc_ObjChild0Copy(pObj) );
            Abc_ObjAssignName( pObj->pCopy, Abc_ObjName(pObj), NULL );
        }
    }
    else
    {
        Abc_Obj_t * pObjOld, * pDriverOld, * pDriverNew;
        int fCompl, iNodeId;
        // OR the choices
        Abc_NtkForEachCo( pNtk2, pObj, i )
        {
            iNodeId = Nm_ManFindIdByNameTwoTypes( pNtk1->pManName, Abc_ObjName(pObj), ABC_OBJ_PO, ABC_OBJ_BI );
//            if ( iNodeId < 0 )
//                continue;
            assert( iNodeId >= 0 );
            pObjOld = Abc_NtkObj( pNtk1, iNodeId );
            // derive the new driver
            pDriverOld = Abc_ObjChild0( pObjOld );
            pDriverNew = Abc_ObjChild0Copy( pObj );
            pDriverNew = Abc_AigOr( (Abc_Aig_t *)pNtk1->pManFunc, pDriverOld, pDriverNew );
            if ( Abc_ObjRegular(pDriverOld) == Abc_ObjRegular(pDriverNew) )
                continue;
            // replace the old driver by the new driver
            fCompl = Abc_ObjRegular(pDriverOld)->fPhase ^ Abc_ObjRegular(pDriverNew)->fPhase;
            Abc_ObjPatchFanin( pObjOld, Abc_ObjRegular(pDriverOld), Abc_ObjNotCond(Abc_ObjRegular(pDriverNew), fCompl) );
        }
    }
    // make sure that everything is okay
    if ( !Abc_NtkCheck( pNtk1 ) )
    {
        printf( "Abc_NtkAppend: The network check has failed.\n" );
        return 0;
    }
    return 1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkBottommost()

Abc_Ntk_t * Abc_NtkBottommost	(	Abc_Ntk_t *	pNtk,
		int	nLevels )

Function*************************************************************

Synopsis [Copies the topmost levels of the network.]

Description []

SideEffects []

SeeAlso []

Definition at line 617 of file abcStrash.c.

{
    Abc_Ntk_t * pNtkNew;
    Abc_Obj_t * pObj, * pObjNew;
    int i;
    assert( Abc_NtkIsStrash(pNtk) );
    assert( nLevels >= 0 );
    // start the network
    pNtkNew = Abc_NtkAlloc( ABC_NTK_STRASH, ABC_FUNC_AIG, 1 );
    pNtkNew->pName = Extra_UtilStrsav(pNtk->pName);
    // create PIs below the cut and nodes above the cut
    Abc_NtkCleanCopy( pNtk );
    Abc_AigConst1(pNtk)->pCopy = Abc_AigConst1(pNtkNew);
    Abc_NtkForEachCi( pNtk, pObj, i )
        pObj->pCopy = Abc_NtkCreatePi( pNtkNew );
    Abc_NtkForEachCo( pNtk, pObj, i )
        Abc_NtkBottommost_rec( pNtkNew, Abc_ObjFanin0(pObj), nLevels );
    // add POs to nodes without fanout
    Abc_NtkForEachNode( pNtkNew, pObjNew, i )
        if ( Abc_ObjFanoutNum(pObjNew) == 0 )
            Abc_ObjAddFanin( Abc_NtkCreatePo(pNtkNew), pObjNew );
    Abc_NtkAddDummyPiNames( pNtkNew );
    Abc_NtkAddDummyPoNames( pNtkNew );
    // make sure everything is okay
    if ( !Abc_NtkCheck( pNtkNew ) )
    {
        printf( "Abc_NtkBottommost: The network check has failed.\n" );
        Abc_NtkDelete( pNtkNew );
        return NULL;
    }
    return pNtkNew;
}

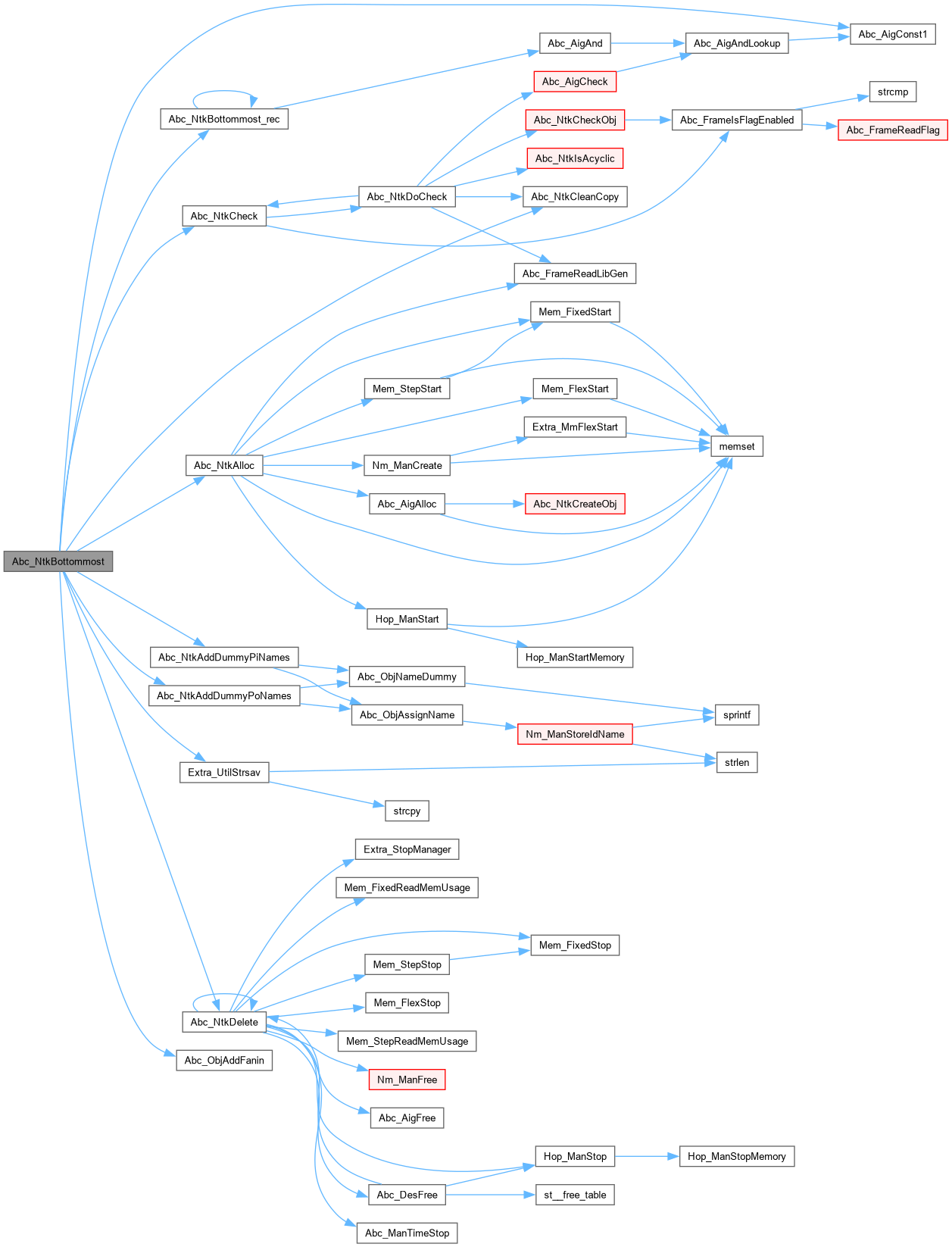

Here is the call graph for this function:

Abc_NtkBottommost_rec()

Abc_Obj_t * Abc_NtkBottommost_rec	(	Abc_Ntk_t *	pNtkNew,
		Abc_Obj_t *	pNode,
		int	LevelCut )

Function*************************************************************

Synopsis [Copies the bottommost levels of the network.]

Description []

SideEffects []

SeeAlso []

Definition at line 594 of file abcStrash.c.

{
    assert( !Abc_ObjIsComplement(pNode) );
    if ( pNode->pCopy )
        return pNode->pCopy;
    Abc_NtkBottommost_rec( pNtkNew, Abc_ObjFanin0(pNode), LevelCut );
    Abc_NtkBottommost_rec( pNtkNew, Abc_ObjFanin1(pNode), LevelCut );
    if ( pNode->Level > (unsigned)LevelCut )
        return NULL;
    return pNode->pCopy = Abc_AigAnd( (Abc_Aig_t *)pNtkNew->pManFunc, Abc_ObjChild0Copy(pNode), Abc_ObjChild1Copy(pNode) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkPutOnTop()

Abc_Ntk_t * Abc_NtkPutOnTop	(	Abc_Ntk_t *	pNtk,
		Abc_Ntk_t *	pNtk2 )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 861 of file abcStrash.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Ntk_t * pNtkNew;
    Abc_Obj_t * pObj, * pFanin;
    int i, k;
    assert( Abc_NtkIsLogic(pNtk) );
    assert( Abc_NtkIsLogic(pNtk2) );
    assert( Abc_NtkPoNum(pNtk) == Abc_NtkPiNum(pNtk2) );
    // clean the node copy fields
    Abc_NtkCleanCopy( pNtk );
    Abc_NtkCleanCopy( pNtk2 );
    // duplicate the name and the spec
    pNtkNew = Abc_NtkAlloc( pNtk->ntkType, pNtk->ntkFunc, 1 );
    pNtkNew->pName = Extra_UtilStrsav(pNtk->pName);
    pNtkNew->pSpec = Extra_UtilStrsav(pNtk->pSpec);
    // clone CIs/CIs/boxes
    Abc_NtkForEachPi( pNtk, pObj, i )
        Abc_NtkDupObj( pNtkNew, pObj, 1 );
    // add internal nodes
    vNodes = Abc_NtkDfs( pNtk, 0 );
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
    {
        Abc_NtkDupObj( pNtkNew, pObj, 0 );
        Abc_ObjForEachFanin( pObj, pFanin, k )
            Abc_ObjAddFanin( pObj->pCopy, pFanin->pCopy );
    }
    Vec_PtrFree( vNodes );
    // transfer to the POs
    Abc_NtkForEachPi( pNtk2, pObj, i )
        pObj->pCopy = Abc_ObjChild0Copy( Abc_NtkPo(pNtk, i) );
    // add internal nodes
    vNodes = Abc_NtkDfs( pNtk2, 0 );
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
    {
        Abc_NtkDupObj( pNtkNew, pObj, 0 );
        Abc_ObjForEachFanin( pObj, pFanin, k )
            Abc_ObjAddFanin( pObj->pCopy, pFanin->pCopy );
    }
    Vec_PtrFree( vNodes );
    // clone CIs/CIs/boxes
    Abc_NtkForEachPo( pNtk2, pObj, i )
    {
        Abc_NtkDupObj( pNtkNew, pObj, 1 );
        Abc_ObjAddFanin( pObj->pCopy, Abc_ObjChild0Copy(pObj) );
    }
    if ( !Abc_NtkCheck( pNtkNew ) )
        fprintf( stdout, "Abc_NtkPutOnTop(): Network check has failed.\n" );
    return pNtkNew;
}

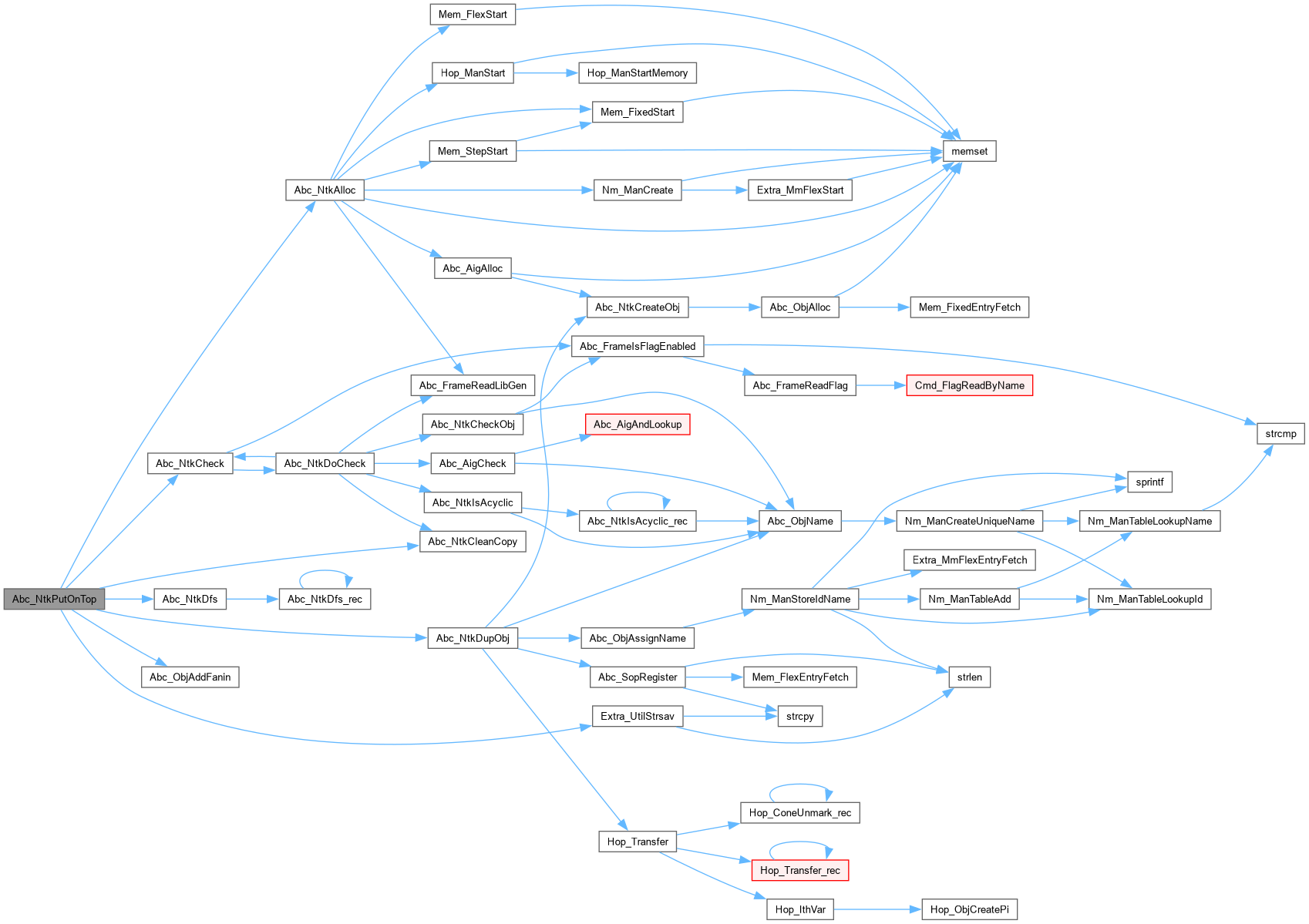

Here is the call graph for this function:

Abc_NtkRestrash()

Abc_Ntk_t * Abc_NtkRestrash	(	Abc_Ntk_t *	pNtk,
		int	fCleanup )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Reapplies structural hashing to the AIG.]

Description [Because of the structural hashing, this procedure should not change the number of nodes. It is useful to detect the bugs in the original AIG.]

SideEffects []

SeeAlso []

Definition at line 49 of file abcStrash.c.

{
//    extern int timeRetime;
    Vec_Ptr_t * vNodes;
    Abc_Ntk_t * pNtkAig;
    Abc_Obj_t * pObj;
    int i, nNodes;//, RetValue;
    assert( Abc_NtkIsStrash(pNtk) );
//timeRetime = Abc_Clock();
    // print warning about choice nodes
    if ( Abc_NtkGetChoiceNum( pNtk ) )
        printf( "Warning: The choice nodes in the original AIG are removed by strashing.\n" );
    // start the new network (constants and CIs of the old network will point to the their counterparts in the new network)
    pNtkAig = Abc_NtkStartFrom( pNtk, ABC_NTK_STRASH, ABC_FUNC_AIG );
    // restrash the nodes (assuming a topological order of the old network)
    vNodes = Abc_NtkDfs( pNtk, 0 );
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
        pObj->pCopy = Abc_AigAnd( (Abc_Aig_t *)pNtkAig->pManFunc, Abc_ObjChild0Copy(pObj), Abc_ObjChild1Copy(pObj) );
    Vec_PtrFree( vNodes );
    // finalize the network
    Abc_NtkFinalize( pNtk, pNtkAig );
    // print warning about self-feed latches
//    if ( Abc_NtkCountSelfFeedLatches(pNtkAig) )
//        printf( "Warning: The network has %d self-feeding latches.\n", Abc_NtkCountSelfFeedLatches(pNtkAig) );
    // perform cleanup if requested
    if ( fCleanup && (nNodes = Abc_AigCleanup((Abc_Aig_t *)pNtkAig->pManFunc)) )
    {
//        printf( "Abc_NtkRestrash(): AIG cleanup removed %d nodes (this is a bug).\n", nNodes );
    }
    // duplicate EXDC
    if ( pNtk->pExdc )
        pNtkAig->pExdc = Abc_NtkDup( pNtk->pExdc );
    // make sure everything is okay
    if ( !Abc_NtkCheck( pNtkAig ) )
    {
        printf( "Abc_NtkStrash: The network check has failed.\n" );
        Abc_NtkDelete( pNtkAig );
        return NULL;
    }
//timeRetime = Abc_Clock() - timeRetime;
//    if ( RetValue = Abc_NtkRemoveSelfFeedLatches(pNtkAig) )
//        printf( "Modified %d self-feeding latches. The result may not verify.\n", RetValue );
    return pNtkAig;

}

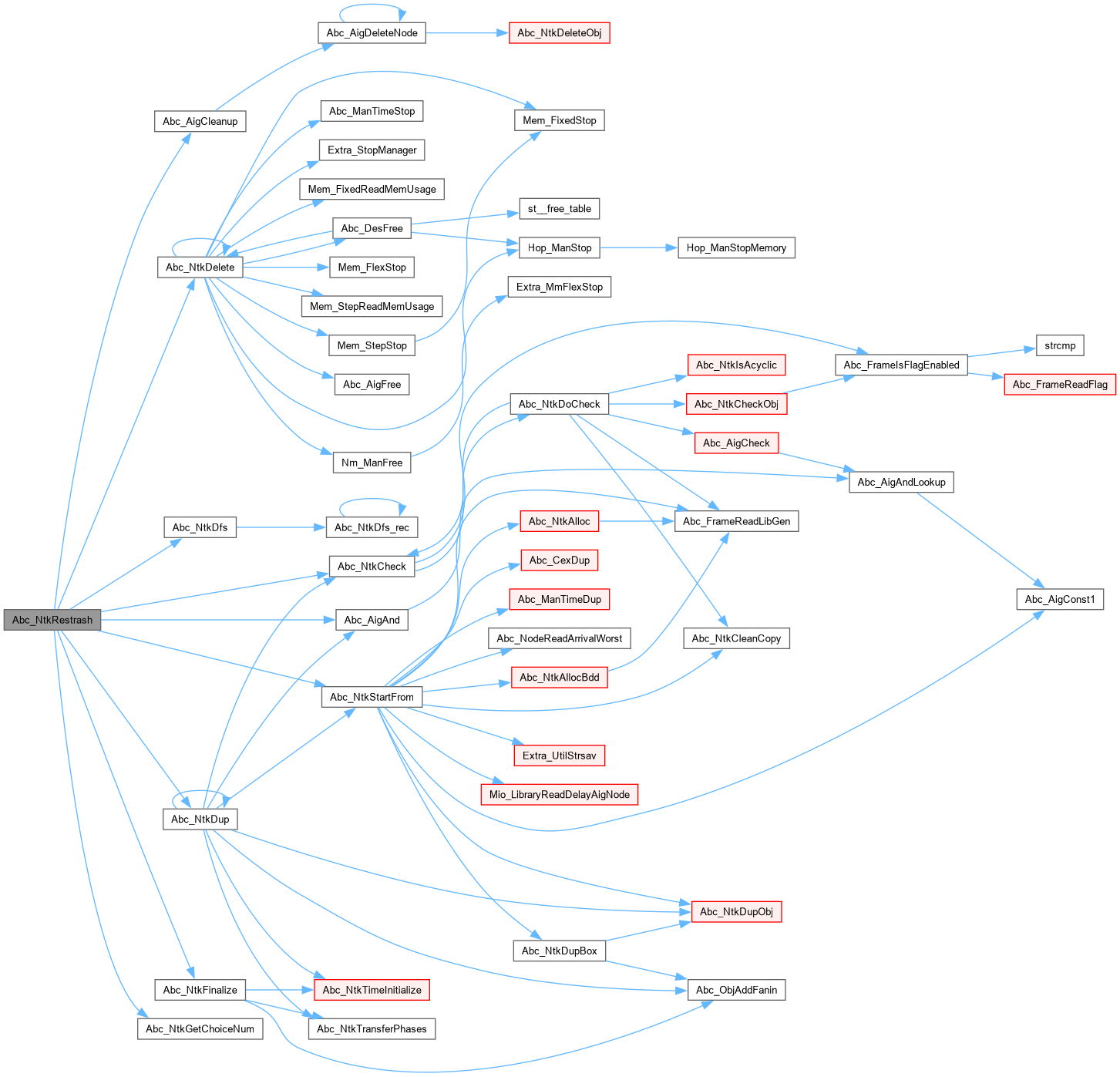

Here is the call graph for this function:

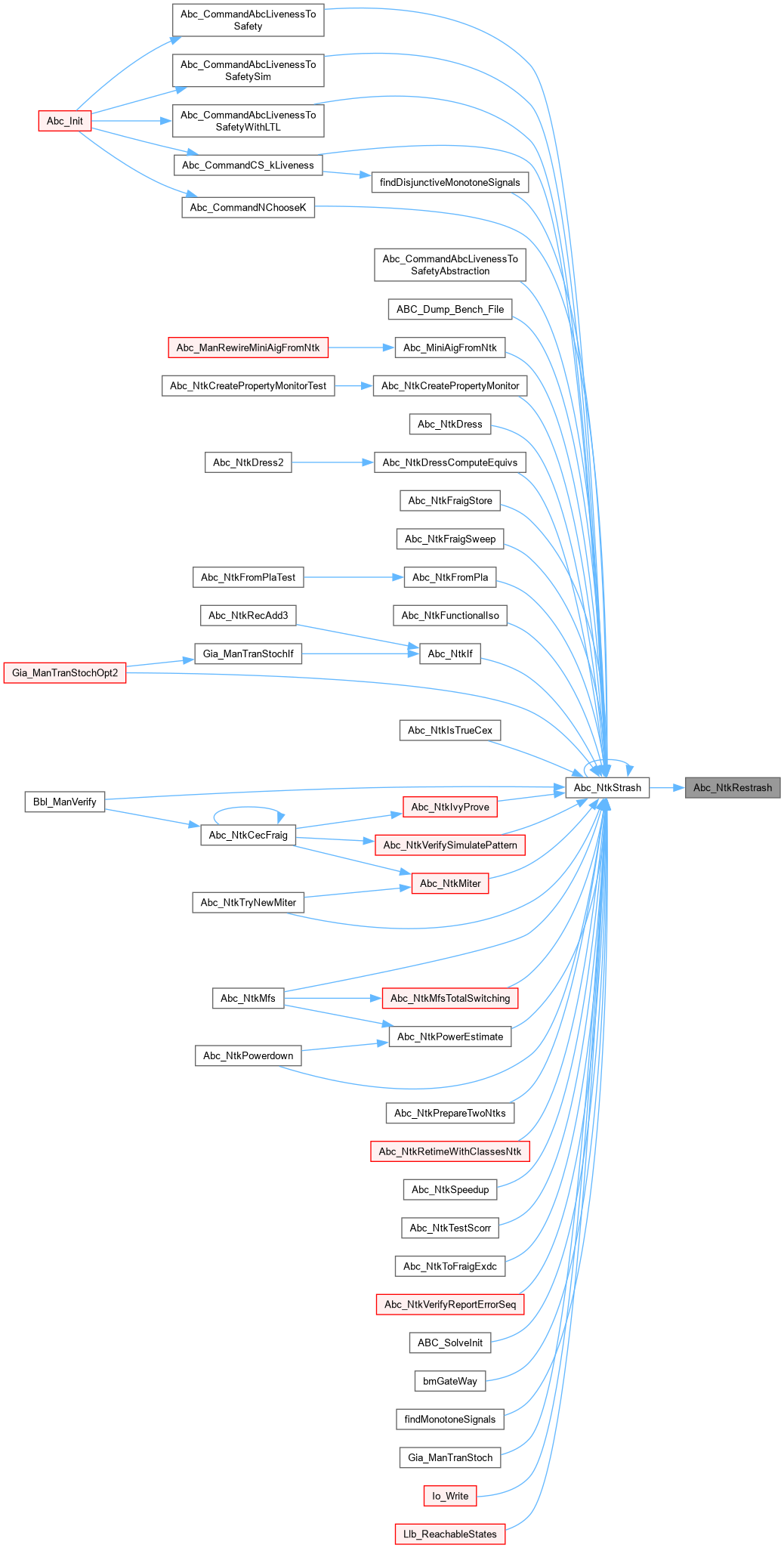

Here is the caller graph for this function:

Abc_NtkRestrashRandom()

Abc_Ntk_t * Abc_NtkRestrashRandom

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Reapplies structural hashing to the AIG.]

Description [Because of the structural hashing, this procedure should not change the number of nodes. It is useful to detect the bugs in the original AIG.]

SideEffects []

SeeAlso []

Definition at line 138 of file abcStrash.c.

{
    Abc_Ntk_t * pNtkAig;
    Abc_Obj_t * pObj;
    int i;
    assert( Abc_NtkIsStrash(pNtk) );
    // print warning about choice nodes
    if ( Abc_NtkGetChoiceNum( pNtk ) )
        printf( "Warning: The choice nodes in the original AIG are removed by strashing.\n" );
    // start the new network (constants and CIs of the old network will point to the their counterparts in the new network)
    pNtkAig = Abc_NtkStartFrom( pNtk, ABC_NTK_STRASH, ABC_FUNC_AIG );
    // restrash the nodes (assuming a topological order of the old network)
    Abc_NtkIncrementTravId( pNtk );
    Abc_NtkForEachCo( pNtk, pObj, i )
        Abc_NtkRestrashRandom_rec( pNtkAig, Abc_ObjFanin0(pObj) );
    // finalize the network
    Abc_NtkFinalize( pNtk, pNtkAig );
    // duplicate EXDC
    if ( pNtk->pExdc )
        pNtkAig->pExdc = Abc_NtkDup( pNtk->pExdc );
    // make sure everything is okay
    if ( !Abc_NtkCheck( pNtkAig ) )
    {
        printf( "Abc_NtkStrash: The network check has failed.\n" );
        Abc_NtkDelete( pNtkAig );
        return NULL;
    }
    return pNtkAig;

}

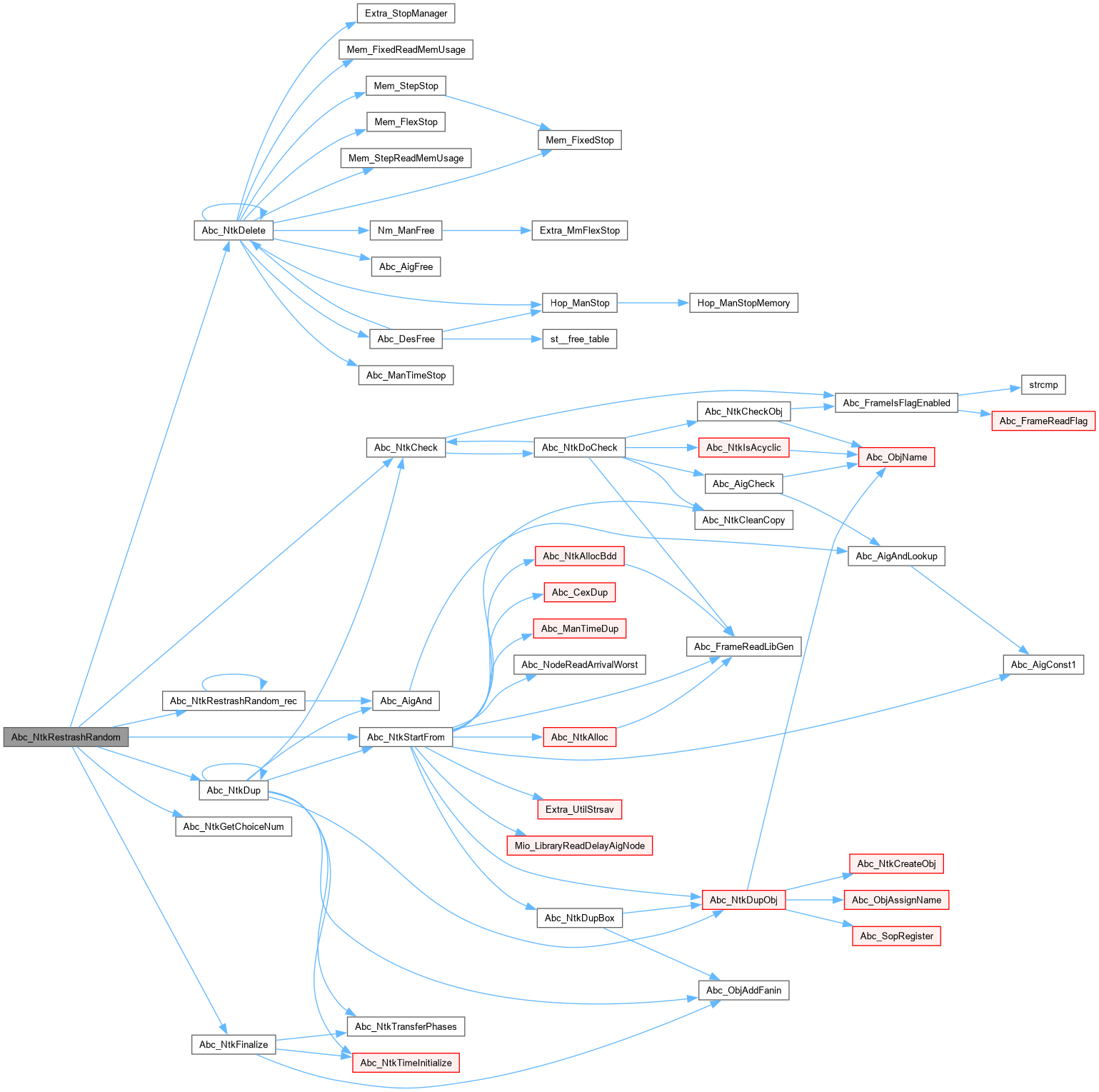

Here is the call graph for this function:

Abc_NtkRestrashRandom_rec()

void Abc_NtkRestrashRandom_rec	(	Abc_Ntk_t *	pNtk,
		Abc_Obj_t *	pObj )

Function*************************************************************

Synopsis [Performs structural hashing by generating random number.]

Description []

SideEffects []

SeeAlso []

Definition at line 106 of file abcStrash.c.

{
    if ( Abc_NodeIsTravIdCurrent( pObj ) )
        return;
    Abc_NodeSetTravIdCurrent( pObj );
    if ( !Abc_ObjIsNode(pObj) )
        return;
    if ( rand() & 1 )
    {
        Abc_NtkRestrashRandom_rec( pNtk, Abc_ObjFanin0(pObj) );
        Abc_NtkRestrashRandom_rec( pNtk, Abc_ObjFanin1(pObj) );
    }
    else
    {
        Abc_NtkRestrashRandom_rec( pNtk, Abc_ObjFanin1(pObj) );
        Abc_NtkRestrashRandom_rec( pNtk, Abc_ObjFanin0(pObj) );
    }
    pObj->pCopy = Abc_AigAnd( (Abc_Aig_t *)pNtk->pManFunc, Abc_ObjChild0Copy(pObj), Abc_ObjChild1Copy(pObj) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkRestrashZero()

Abc_Ntk_t * Abc_NtkRestrashZero	(	Abc_Ntk_t *	pNtk,
		int	fCleanup )

Function*************************************************************

Synopsis [Reapplies structural hashing to the AIG.]

Description [Because of the structural hashing, this procedure should not change the number of nodes. It is useful to detect the bugs in the original AIG.]

SideEffects []

SeeAlso []

Definition at line 181 of file abcStrash.c.

{
//    extern int timeRetime;
    Abc_Ntk_t * pNtkAig;
    Abc_Obj_t * pObj;
    int i, nNodes;//, RetValue;
    int Counter = 0;
    assert( Abc_NtkIsStrash(pNtk) );
//timeRetime = Abc_Clock();
    // print warning about choice nodes
    if ( Abc_NtkGetChoiceNum( pNtk ) )
        printf( "Warning: The choice nodes in the original AIG are removed by strashing.\n" );
    // start the new network (constants and CIs of the old network will point to the their counterparts in the new network)
    pNtkAig = Abc_NtkStartFrom( pNtk, ABC_NTK_STRASH, ABC_FUNC_AIG );
    // complement the 1-values registers
    Abc_NtkForEachLatch( pNtk, pObj, i )
    {
        if ( Abc_LatchIsInitDc(pObj) )
            Counter++;
        else if ( Abc_LatchIsInit1(pObj) )
            Abc_ObjFanout0(pObj)->pCopy = Abc_ObjNot(Abc_ObjFanout0(pObj)->pCopy);
    }
    if ( Counter )
    printf( "Converting %d flops from don't-care to zero initial value.\n", Counter );
    // restrash the nodes (assuming a topological order of the old network)
    Abc_NtkForEachNode( pNtk, pObj, i )
        pObj->pCopy = Abc_AigAnd( (Abc_Aig_t *)pNtkAig->pManFunc, Abc_ObjChild0Copy(pObj), Abc_ObjChild1Copy(pObj) );
    // finalize the network
    Abc_NtkFinalize( pNtk, pNtkAig );
    // complement the 1-valued registers
    Abc_NtkForEachLatch( pNtkAig, pObj, i )
        if ( Abc_LatchIsInit1(pObj) )
        {
            Abc_ObjXorFaninC( Abc_ObjFanin0(pObj), 0 );
            // if latch has PO as one of its fanouts change latch name
            if ( Abc_NodeFindCoFanout( Abc_ObjFanout0(pObj) ) )
            {
                Nm_ManDeleteIdName( pObj->pNtk->pManName, Abc_ObjFanout0(pObj)->Id );
                Abc_ObjAssignName( Abc_ObjFanout0(pObj), Abc_ObjName(Abc_ObjFanout0(pObj)), "_inv" );
            }
        }
    // set all constant-0 values
    Abc_NtkForEachLatch( pNtkAig, pObj, i )
        Abc_LatchSetInit0( pObj );

    // print warning about self-feed latches
//    if ( Abc_NtkCountSelfFeedLatches(pNtkAig) )
//        printf( "Warning: The network has %d self-feeding latches.\n", Abc_NtkCountSelfFeedLatches(pNtkAig) );
    // perform cleanup if requested
    if ( fCleanup && (nNodes = Abc_AigCleanup((Abc_Aig_t *)pNtkAig->pManFunc)) )
        printf( "Abc_NtkRestrash(): AIG cleanup removed %d nodes (this is a bug).\n", nNodes );
    // duplicate EXDC
    if ( pNtk->pExdc )
        pNtkAig->pExdc = Abc_NtkDup( pNtk->pExdc );
    // transfer name IDs
    if ( pNtk->vNameIds )
        Abc_NtkTransferNameIds( pNtk, pNtkAig );
    if ( pNtk->vNameIds )
        Abc_NtkUpdateNameIds( pNtkAig );
    // make sure everything is okay
    if ( !Abc_NtkCheck( pNtkAig ) )
    {
        printf( "Abc_NtkStrash: The network check has failed.\n" );
        Abc_NtkDelete( pNtkAig );
        return NULL;
    }
//timeRetime = Abc_Clock() - timeRetime;
//    if ( RetValue = Abc_NtkRemoveSelfFeedLatches(pNtkAig) )
//        printf( "Modified %d self-feeding latches. The result may not verify.\n", RetValue );
    return pNtkAig;

}

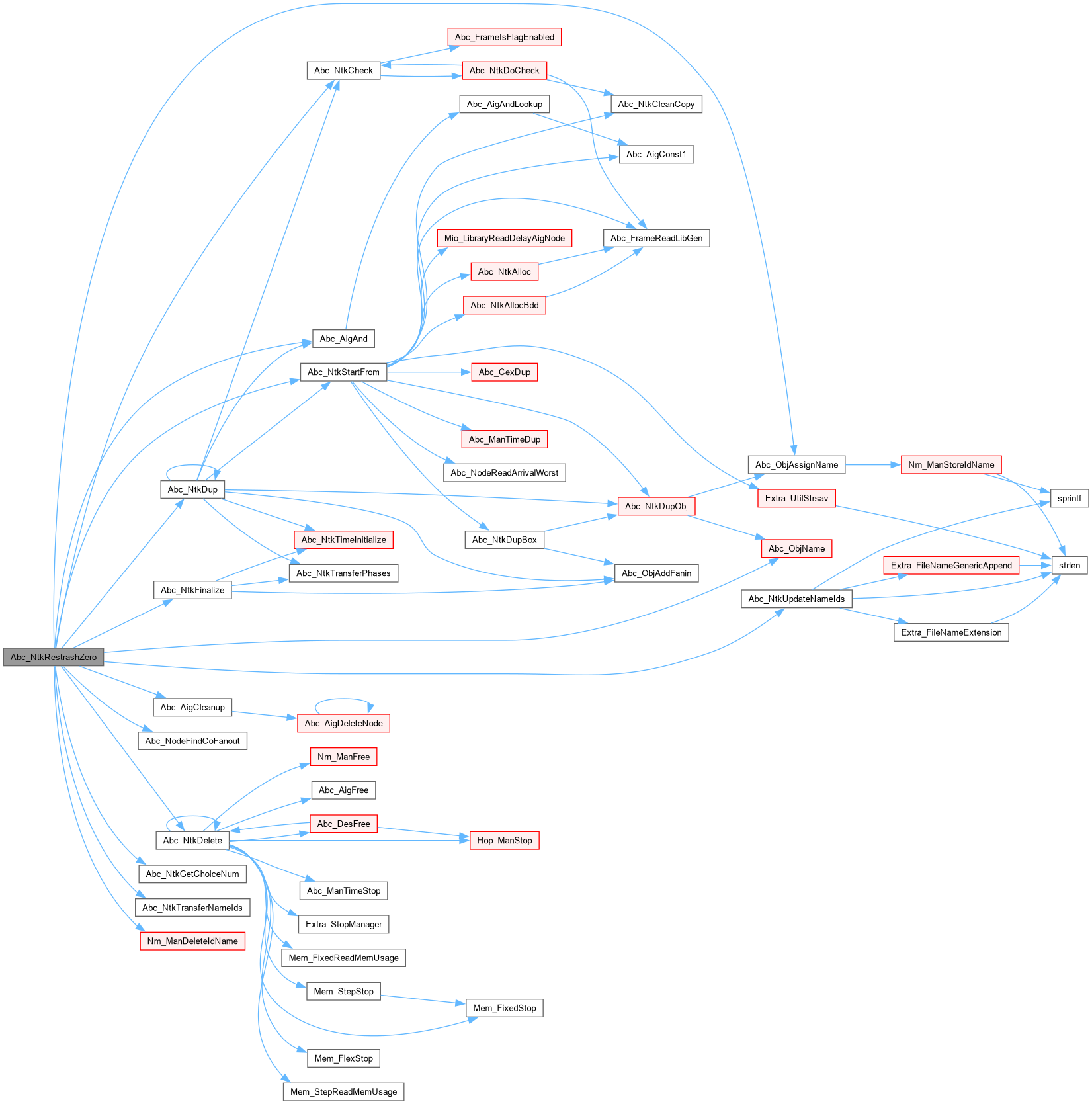

Here is the call graph for this function:

Abc_NtkStrash()

Abc_Ntk_t * Abc_NtkStrash	(	Abc_Ntk_t *	pNtk,
		int	fAllNodes,
		int	fCleanup,
		int	fRecord )

Function*************************************************************

Synopsis [Transforms logic network into structurally hashed AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 265 of file abcStrash.c.

{
    Abc_Ntk_t * pNtkAig;
    int nNodes;
    assert( Abc_NtkIsLogic(pNtk) || Abc_NtkIsStrash(pNtk) );
    // consider the special case when the network is already structurally hashed
    if ( Abc_NtkIsStrash(pNtk) )
        return Abc_NtkRestrash( pNtk, fCleanup );
    // convert the node representation in the logic network to the AIG form
    if ( !Abc_NtkToAig(pNtk) )
    {
        printf( "Converting to AIGs has failed.\n" );
        return NULL;
    }
    // perform strashing
//    Abc_NtkCleanCopy( pNtk );
    pNtkAig = Abc_NtkStartFrom( pNtk, ABC_NTK_STRASH, ABC_FUNC_AIG );
    Abc_NtkStrashPerform( pNtk, pNtkAig, fAllNodes, fRecord );
    Abc_NtkFinalize( pNtk, pNtkAig );
    // transfer name IDs
    if ( pNtk->vNameIds )
        Abc_NtkTransferNameIds( pNtk, pNtkAig );
    // print warning about self-feed latches
//    if ( Abc_NtkCountSelfFeedLatches(pNtkAig) )
//        printf( "Warning: The network has %d self-feeding latches.\n", Abc_NtkCountSelfFeedLatches(pNtkAig) );
    // perform cleanup if requested
    nNodes = fCleanup? Abc_AigCleanup((Abc_Aig_t *)pNtkAig->pManFunc) : 0;
//    if ( nNodes )
//        printf( "Warning: AIG cleanup removed %d nodes (this is not a bug).\n", nNodes );
    // duplicate EXDC
    if ( pNtk->pExdc )
        pNtkAig->pExdc = Abc_NtkStrash( pNtk->pExdc, fAllNodes, fCleanup, fRecord );
    // make sure everything is okay
    if ( !Abc_NtkCheck( pNtkAig ) )
    {
        printf( "Abc_NtkStrash: The network check has failed.\n" );
        Abc_NtkDelete( pNtkAig );
        return NULL;
    }
    return pNtkAig;
}

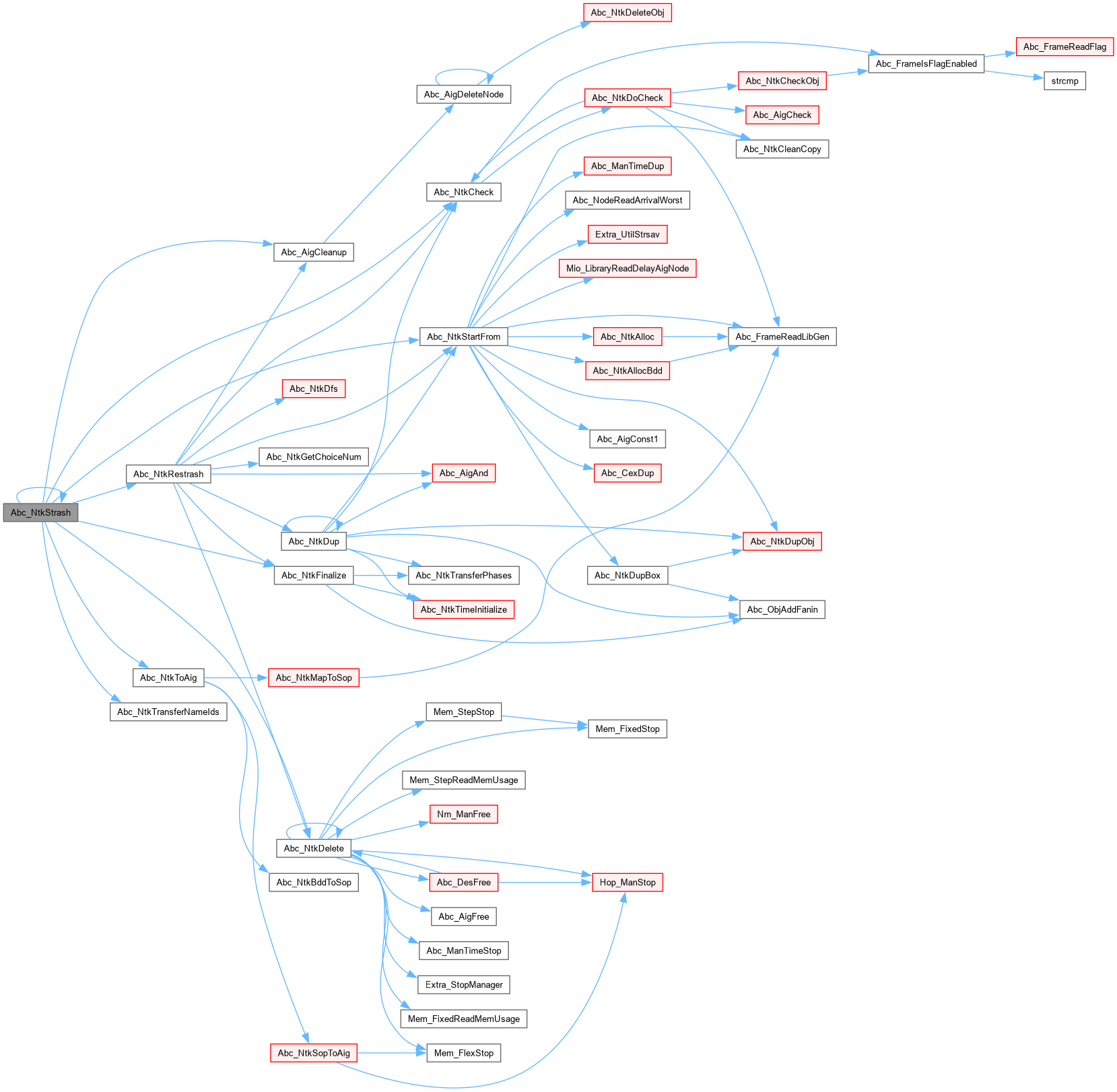

Here is the call graph for this function:

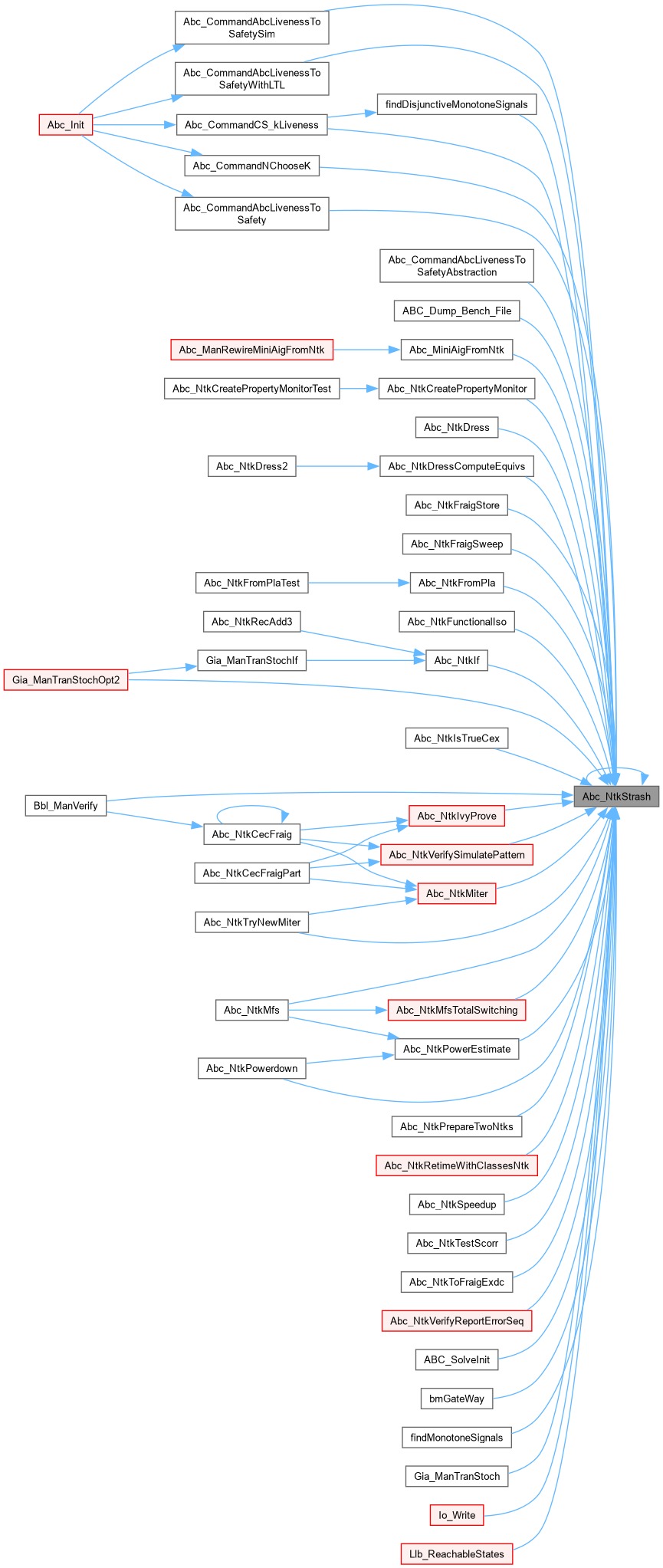

Here is the caller graph for this function:

Abc_NtkTopAnd()

Abc_Ntk_t * Abc_NtkTopAnd

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Copies the topmost levels of the network.]

Description []

SideEffects []

SeeAlso []

Definition at line 730 of file abcStrash.c.

{
    Vec_Ptr_t * vNodes, * vOrder;
    Abc_Ntk_t * pNtkAig;
    Abc_Obj_t * pObj, * pDriver, * pObjPo;
    int i, nNodes;
    assert( Abc_NtkIsStrash(pNtk) );
    // get the first PO
    pObjPo = Abc_NtkPo(pNtk, 0);
    vNodes = Abc_NodeGetSuper( Abc_ObjChild0(pObjPo) );
    assert( Vec_PtrSize(vNodes) >= 2 );
    // start the new network (constants and CIs of the old network will point to the their counterparts in the new network)
    Abc_NtkCleanCopy( pNtk );
    pNtkAig = Abc_NtkAlloc( ABC_NTK_STRASH, ABC_FUNC_AIG, 1 );
    pNtkAig->pName = Extra_UtilStrsav(pNtk->pName);
    pNtkAig->pSpec = Extra_UtilStrsav(pNtk->pSpec);
    Abc_AigConst1(pNtk)->pCopy = Abc_AigConst1(pNtkAig);
    Abc_NtkForEachPi( pNtk, pObj, i )
        Abc_NtkDupObj( pNtkAig, pObj, 1 );
    // restrash the nodes reachable from the roots
    vOrder = Abc_NtkDfsIterNodes( pNtk, vNodes );
    Vec_PtrForEachEntry( Abc_Obj_t *, vOrder, pObj, i )
        pObj->pCopy = Abc_AigAnd( (Abc_Aig_t *)pNtkAig->pManFunc, Abc_ObjChild0Copy(pObj), Abc_ObjChild1Copy(pObj) );
    Vec_PtrFree( vOrder );
    // finalize the network
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
    {
        pObjPo = Abc_NtkCreatePo(pNtkAig);
        pDriver = Abc_ObjNotCond(Abc_ObjRegular(pObj)->pCopy, Abc_ObjIsComplement(pObj));
        Abc_ObjAddFanin( pObjPo, pDriver );
        Abc_ObjAssignName( pObjPo, Abc_ObjName(pObjPo), NULL );
    }
    Vec_PtrFree( vNodes );
    // perform cleanup if requested
    if ( (nNodes = Abc_AigCleanup((Abc_Aig_t *)pNtkAig->pManFunc)) )
        printf( "Abc_NtkTopAnd(): AIG cleanup removed %d nodes (this is a bug).\n", nNodes );
    // make sure everything is okay
    if ( !Abc_NtkCheck( pNtkAig ) )
    {
        printf( "Abc_NtkStrash: The network check has failed.\n" );
        Abc_NtkDelete( pNtkAig );
        return NULL;
    }
    return pNtkAig;
}

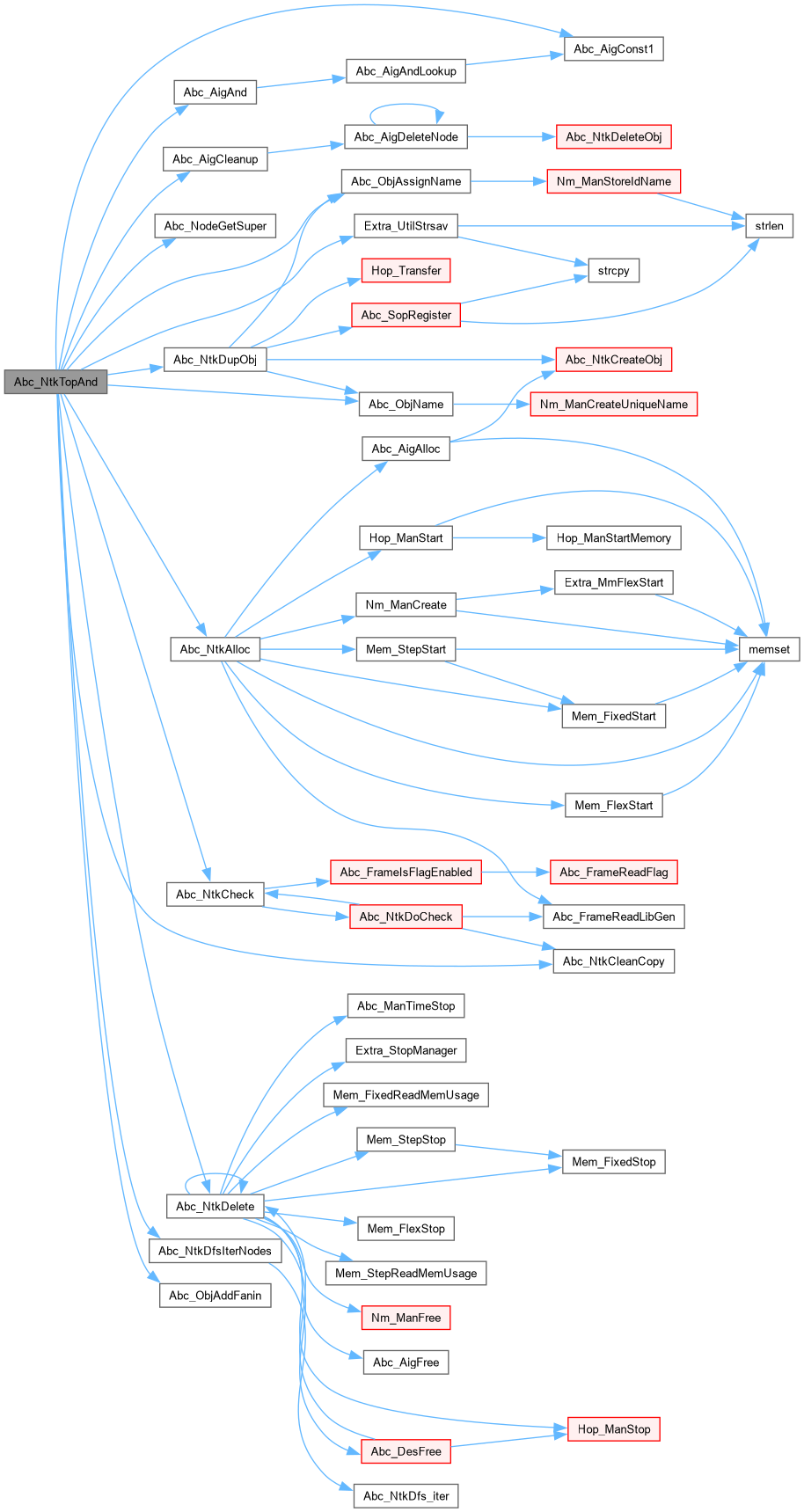

Here is the call graph for this function:

Abc_NtkTopmost()

Abc_Ntk_t * Abc_NtkTopmost	(	Abc_Ntk_t *	pNtk,
		int	nLevels )

Function*************************************************************

Synopsis [Copies the topmost levels of the network.]

Description []

SideEffects []

SeeAlso []

Definition at line 548 of file abcStrash.c.

{
    Abc_Ntk_t * pNtkNew;
    Abc_Obj_t * pObjNew, * pObj;
    int LevelCut, i;
    assert( Abc_NtkIsStrash(pNtk) );
    // get the cutoff level
    LevelCut = Abc_MaxInt( 0, Abc_AigLevel(pNtk) - nLevels );
    // start the network
    pNtkNew = Abc_NtkAlloc( ABC_NTK_STRASH, ABC_FUNC_AIG, 1 );
    pNtkNew->pName = Extra_UtilStrsav(pNtk->pName);
    // create PIs below the cut and nodes above the cut
    Abc_NtkCleanCopy( pNtk );
    Abc_AigConst1(pNtk)->pCopy = Abc_AigConst1(pNtkNew);
    Abc_NtkForEachCo( pNtk, pObj, i )
    {
        pObjNew = Abc_NtkTopmost_rec( pNtkNew, Abc_ObjFanin0(pObj), LevelCut );
        pObjNew = Abc_ObjNotCond( pObjNew, Abc_ObjFaninC0(pObj) );
        Abc_ObjAddFanin( (pObj->pCopy = Abc_NtkCreatePo(pNtkNew)), pObjNew );
    }
    // add the PO node and name
    Abc_NtkAddDummyPiNames( pNtkNew );
    Abc_NtkForEachCo( pNtk, pObj, i )
        Abc_ObjAssignName( pObj->pCopy, Abc_ObjName(pObj), NULL );
    // make sure everything is okay
    if ( !Abc_NtkCheck( pNtkNew ) )
    {
        printf( "Abc_NtkTopmost: The network check has failed.\n" );
        Abc_NtkDelete( pNtkNew );
        return NULL;
    }
    return pNtkNew;
}

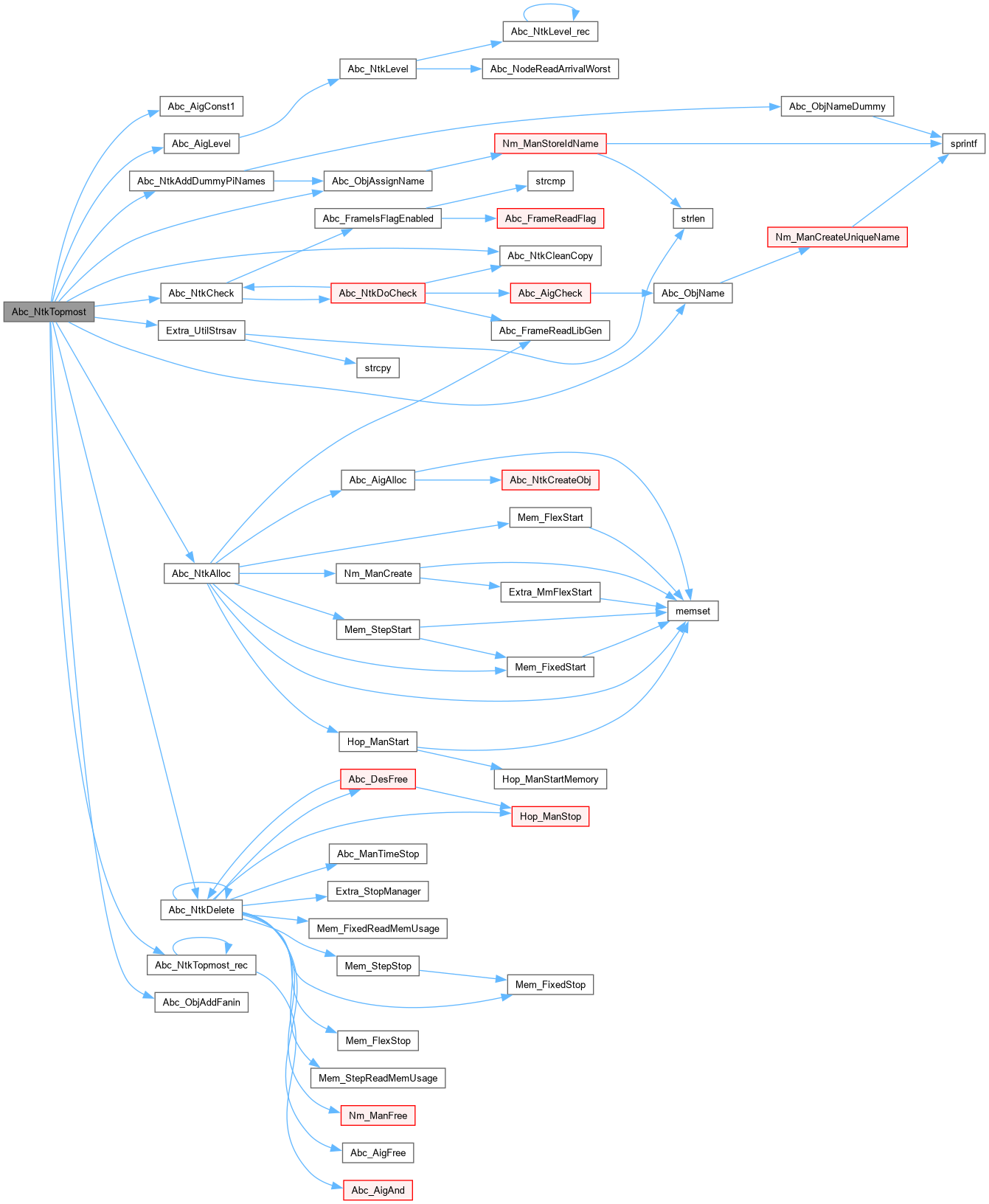

Here is the call graph for this function:

Abc_NtkTopmost_rec()

Abc_Obj_t * Abc_NtkTopmost_rec	(	Abc_Ntk_t *	pNtkNew,
		Abc_Obj_t *	pNode,
		int	LevelCut )

Function*************************************************************

Synopsis [Copies the topmost levels of the network.]

Description []

SideEffects []

SeeAlso []

Definition at line 525 of file abcStrash.c.

{
    assert( !Abc_ObjIsComplement(pNode) );
    if ( pNode->pCopy )
        return pNode->pCopy;
    if ( pNode->Level <= (unsigned)LevelCut )
        return pNode->pCopy = Abc_NtkCreatePi( pNtkNew );
    Abc_NtkTopmost_rec( pNtkNew, Abc_ObjFanin0(pNode), LevelCut );
    Abc_NtkTopmost_rec( pNtkNew, Abc_ObjFanin1(pNode), LevelCut );
    return pNode->pCopy = Abc_AigAnd( (Abc_Aig_t *)pNtkNew->pManFunc, Abc_ObjChild0Copy(pNode), Abc_ObjChild1Copy(pNode) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkWriteAig()

void Abc_NtkWriteAig	(	Abc_Ntk_t *	pNtk,
		char *	pFileName )

Function*************************************************************

Synopsis [Writes the AIG into a file for parsing.]

Description [Ordering: c0, pis, ands, pos. ]

SideEffects []

SeeAlso []

Definition at line 787 of file abcStrash.c.

{
    FILE * pFile;
    Vec_Int_t * vId2Num;
    Abc_Obj_t * pObj;
    int i, iLit;
    assert( Abc_NtkIsStrash(pNtk) );
    assert( Abc_NtkLatchNum(pNtk) == 0 );
    if ( pFileName == NULL )
        pFile = stdout;
    else
        pFile = fopen( pFileName, "w" );
    if ( pFile == NULL )
    {
        printf( "Cannot open output file.\n" );
        return;
    }
    vId2Num = Vec_IntAlloc( 2*Abc_NtkObjNumMax(pNtk) );
    Vec_IntFill( vId2Num, 2*Abc_NtkObjNumMax(pNtk), -1 );

    iLit = 0;
    Vec_IntWriteEntry( vId2Num, 2*Abc_ObjId(Abc_AigConst1(pNtk))+1, iLit++ );
    Vec_IntWriteEntry( vId2Num, 2*Abc_ObjId(Abc_AigConst1(pNtk))+0, iLit++ );
    Abc_NtkForEachPi( pNtk, pObj, i )
    {
        Vec_IntWriteEntry( vId2Num, 2*Abc_ObjId(pObj)+0, iLit++ );
        Vec_IntWriteEntry( vId2Num, 2*Abc_ObjId(pObj)+1, iLit++ );
    }
    Abc_AigForEachAnd( pNtk, pObj, i )
    {
        Vec_IntWriteEntry( vId2Num, 2*Abc_ObjId(pObj)+0, iLit++ );
        Vec_IntWriteEntry( vId2Num, 2*Abc_ObjId(pObj)+1, iLit++ );
    }
    fprintf( pFile, "{\n" );
    fprintf( pFile, "    \"%s\", ", Abc_NtkName(pNtk) );
    fprintf( pFile, "//  pi=%d  po=%d  and=%d", Abc_NtkPiNum(pNtk), Abc_NtkPoNum(pNtk), Abc_NtkNodeNum(pNtk) );
    fprintf( pFile, "\n" );
    fprintf( pFile, "    { " );
    Abc_NtkForEachPi( pNtk, pObj, i )
        fprintf( pFile, "\"%s\",", Abc_ObjName(pObj) );
    fprintf( pFile, "NULL },\n" );
    fprintf( pFile, "    { " );
    Abc_NtkForEachPo( pNtk, pObj, i )
        fprintf( pFile, "\"%s\",", Abc_ObjName(pObj) );
    fprintf( pFile, "NULL },\n" );
    fprintf( pFile, "    { " );
    Abc_AigForEachAnd( pNtk, pObj, i )
        fprintf( pFile, "%d,", Vec_IntEntry(vId2Num, 2*Abc_ObjFaninId0(pObj) + Abc_ObjFaninC0(pObj)) );
    fprintf( pFile, "0 },\n" );
    fprintf( pFile, "    { " );
    Abc_AigForEachAnd( pNtk, pObj, i )
        fprintf( pFile, "%d,", Vec_IntEntry(vId2Num, 2*Abc_ObjFaninId1(pObj) + Abc_ObjFaninC1(pObj)) );
    fprintf( pFile, "0 },\n" );
    fprintf( pFile, "    { " );
    Abc_NtkForEachPo( pNtk, pObj, i )
        fprintf( pFile, "%d,", Vec_IntEntry(vId2Num, 2*Abc_ObjFaninId0(pObj) + Abc_ObjFaninC0(pObj)) );
    fprintf( pFile, "0 },\n" );
    fprintf( pFile, "},\n" );
    if ( pFile != stdout )
        fclose( pFile );
    Vec_IntFree( vId2Num );
}

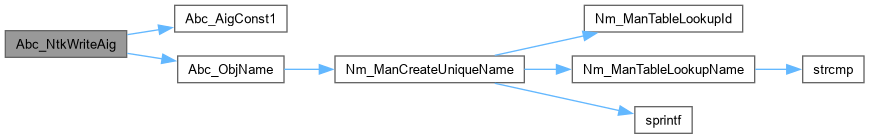

Here is the call graph for this function:
