abcSymm.c File Reference

#include "base/abc/abc.h"
#include "opt/sim/sim.h"
#include "opt/dau/dau.h"
#include "misc/util/utilTruth.h"

Include dependency graph for abcSymm.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Abc_NtkSymmetries (Abc_Ntk_t *pNtk, int fUseBdds, int fNaive, int fReorder, int fVerbose)
	DECLARATIONS ///.
void	Ntk_SymTryRandomFlips (word *pFun, word *pNpn, int nVars)
void	Ntk_SymFunDeriveNpn (word *pFun, int nVars, int *pComp)
void	Ntk_SymFunGenerate (int nVars, int fVerbose)

Function Documentation

Abc_NtkSymmetries()

ABC_NAMESPACE_IMPL_START void Abc_NtkSymmetries	(	Abc_Ntk_t *	pNtk,
		int	fUseBdds,
		int	fNaive,
		int	fReorder,
		int	fVerbose )

DECLARATIONS ///.

CFile****************************************************************

FileName [abcSymm.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Network and node package.]

Synopsis [Computation of two-variable symmetries.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

abcSymm.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 238 of file abcSymm.c.

{}

Ntk_SymFunDeriveNpn()

void Ntk_SymFunDeriveNpn	(	word *	pFun,
		int	nVars,
		int *	pComp )

Function*************************************************************

Synopsis [Find canonical form of symmetric function.]

Description []

SideEffects []

SeeAlso []

Definition at line 276 of file abcSymm.c.

{
    int i, nWords = Abc_TtWordNum(nVars);
    word * pFunB = ABC_CALLOC( word, nWords );
    Abc_TtCopy( pFunB, pFun, nWords, 1 );
    if ( Abc_TtCompareRev(pFunB, pFun, nWords) == 1 )
        Abc_TtCopy( pFunB, pFun, nWords, 0 );
    for ( i = 0; i < (1 << nVars); i++ )
    {
        Abc_TtFlip( pFun, nWords, pComp[i] );
        if ( Abc_TtCompareRev(pFunB, pFun, nWords) == 1 )
            Abc_TtCopy( pFunB, pFun, nWords, 0 );
        Abc_TtNot( pFun, nWords );
        if ( Abc_TtCompareRev(pFunB, pFun, nWords) == 1 )
            Abc_TtCopy( pFunB, pFun, nWords, 0 );
    }
    //Ntk_SymTryRandomFlips( pFun, pFunB, nVars );
    Abc_TtCopy( pFun, pFunB, nWords, 0 );
    ABC_FREE( pFunB );
}

Here is the caller graph for this function:

Ntk_SymFunGenerate()

void Ntk_SymFunGenerate	(	int	nVars,
		int	fVerbose )

Function*************************************************************

Synopsis [Generating NPN classes of all symmetric function of N variables.]

Description []

SideEffects []

SeeAlso []

Definition at line 308 of file abcSymm.c.

{
    int k, m, Class;
    int * pComp = Extra_GreyCodeSchedule( nVars );
    Vec_Mem_t * vTtMem = Vec_MemAlloc( Abc_Truth6WordNum(nVars), 12 );
    Vec_MemHashAlloc( vTtMem, 10000 );
    assert( !(nVars < 1 || nVars > 16) );
    printf( "Generating truth tables of all symmetric functions of %d variables.\n", nVars );
    for ( m = 0; m < (1 << (nVars+1)); m++ )
    {
        word * pFun;
        char Ones[100] = {0};
        for ( k = 0; k <= nVars; k++ )
            Ones[k] = '0' + ((m >> k) & 1);
        if ( fVerbose )
            printf( "%s : ", Ones );
        pFun = Abc_TtSymFunGenerate( Ones, nVars );
        if ( nVars < 6 )
            pFun[0] = Abc_Tt6Stretch( pFun[0], nVars );
        if ( fVerbose )
            Extra_PrintHex( stdout, (unsigned *)pFun, nVars );
        Ntk_SymFunDeriveNpn( pFun, nVars, pComp );
        Class = Vec_MemHashInsert( vTtMem, pFun );
        if ( fVerbose )
        {
            printf( " : NPN " );
            Extra_PrintHex( stdout, (unsigned *)pFun, nVars );
            printf( "  Class %3d", Class );
            printf( "\n" );
        }
        ABC_FREE( pFun );
    }
    printf( "The number of different NPN classes is %d.\n", Vec_MemEntryNum(vTtMem) );
    Vec_MemHashFree( vTtMem );
    Vec_MemFreeP( &vTtMem );
    ABC_FREE( pComp );
}

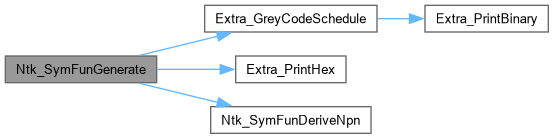

Here is the call graph for this function:

Ntk_SymTryRandomFlips()

void Ntk_SymTryRandomFlips	(	word *	pFun,
		word *	pNpn,
		int	nVars )

Function*************************************************************

Synopsis [Try different permutations.]

Description []

SideEffects []

SeeAlso []

Definition at line 253 of file abcSymm.c.

{
    int Rand[16] = { 17290, 20203, 19027, 12035, 14687, 10920, 10413, 261, 2072, 16899, 4480, 6192, 3978, 8343, 745, 1370 };
    int i, nWords = Abc_TtWordNum(nVars);
    word * pFunT = ABC_CALLOC( word, nWords );
    Abc_TtCopy( pFunT, pFun, nWords, 0 );
    for ( i = 0; i < 16; i++ )
        Abc_TtFlip( pFunT, nWords, Rand[i] % (nVars-1) );
    assert( Abc_TtCompareRev(pNpn, pFunT, nWords) != 1 );
    ABC_FREE( pFunT );
}
