absRef.c File Reference

#include "sat/bsat/satSolver2.h"
#include "abs.h"
#include "absRef.h"

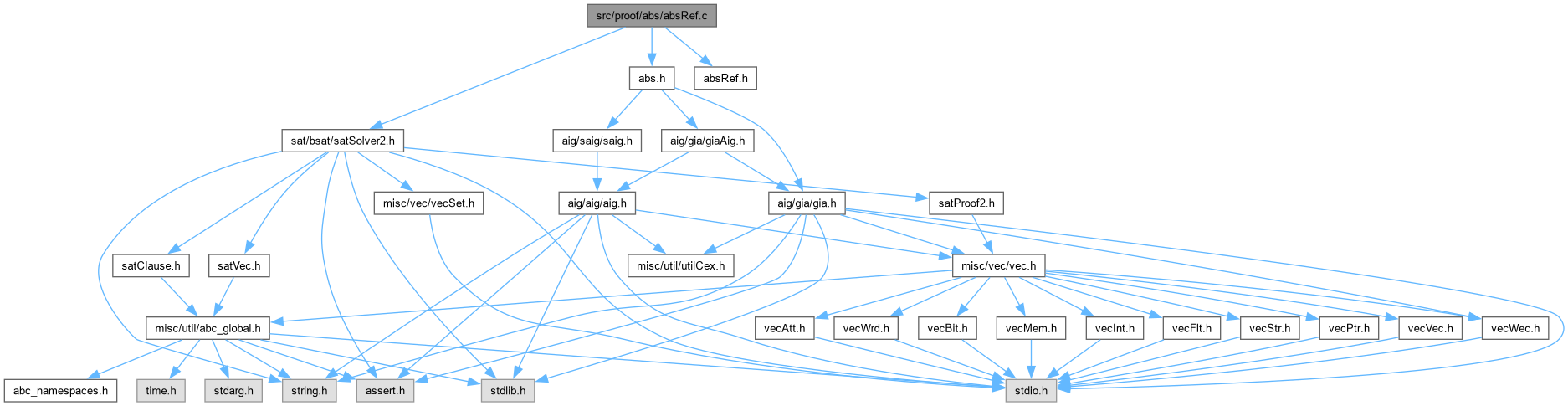

Include dependency graph for absRef.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Ga2_ManCnfAddStatic (sat_solver2 *pSat, Vec_Int_t *vCnf0, Vec_Int_t *vCnf1, int *pLits, int iLitOut, int ProofId)
	DECLARATIONS ///.
Vec_Int_t *	Ga2_ManCnfCompute (unsigned uTruth, int nVars, Vec_Int_t *vCover)

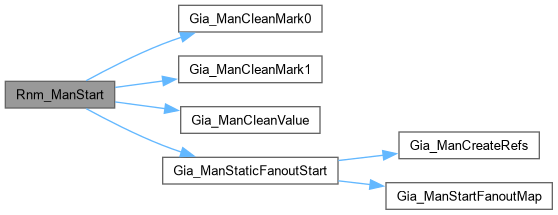

Rnm_Man_t *	Rnm_ManStart (Gia_Man_t *pGia)
	FUNCTION DEFINITIONS ///.

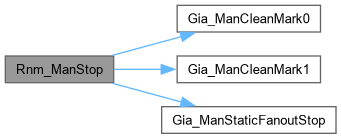

void	Rnm_ManStop (Rnm_Man_t *p, int fProfile)
double	Rnm_ManMemoryUsage (Rnm_Man_t *p)
void	Rnm_ManCollect_rec (Gia_Man_t *p, Gia_Obj_t *pObj, Vec_Int_t *vObjs, int nAddOn)
void	Rnm_ManCollect (Rnm_Man_t *p)
void	Rnm_ManCleanValues (Rnm_Man_t *p)
int	Rnm_ManSensitize (Rnm_Man_t *p)
void	Rnm_ManJustifyPropFanout_rec (Rnm_Man_t *p, Gia_Obj_t *pObj, int f, Vec_Int_t *vSelect)
void	Rnm_ManJustify_rec (Rnm_Man_t *p, Gia_Obj_t *pObj, int f, Vec_Int_t *vSelect)
void	Rnm_ManVerifyUsingTerSim (Gia_Man_t *p, Abc_Cex_t *pCex, Vec_Int_t *vMap, Vec_Int_t *vObjs, Vec_Int_t *vRes)
Vec_Int_t *	Rnm_ManRefine (Rnm_Man_t *p, Abc_Cex_t *pCex, Vec_Int_t *vMap, int fPropFanout, int fNewRefinement, int fVerbose)

Function Documentation

Ga2_ManCnfAddStatic()

ABC_NAMESPACE_IMPL_START void Ga2_ManCnfAddStatic ( sat_solver2 * pSat, Vec_Int_t * vCnf0, Vec_Int_t * vCnf1, int * pLits, int iLitOut, int ProofId )

extern

DECLARATIONS ///.

CFile****************************************************************

FileName [absRef.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Abstraction package.]

Synopsis [Refinement manager.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

absRef.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Ga2_ManCnfCompute()

Vec_Int_t * Ga2_ManCnfCompute ( unsigned uTruth, int nVars, Vec_Int_t * vCover )

extern

Function*************************************************************

Synopsis [Returns CNF of the function.]

Description []

SideEffects []

SeeAlso []

Definition at line 630 of file absGla.c.

{
    int RetValue;
    assert( nVars <= 5 );
    // transform truth table into the SOP
    RetValue = Kit_TruthIsop( &uTruth, nVars, vCover, 0 );
    assert( RetValue == 0 );
    // check the case of constant cover
    return Vec_IntDup( vCover );
}

Here is the call graph for this function:

Rnm_ManCleanValues()

void Rnm_ManCleanValues

(

Rnm_Man_t *

p

)

Definition at line 375 of file absRef.c.

{
    Gia_Obj_t * pObj;
    int i;
    Gia_ManForEachObjVec( p->vMap, p->pGia, pObj, i )
        pObj->Value = 0;
    Gia_ManForEachObjVec( p->vObjs, p->pGia, pObj, i )
        pObj->Value = 0;
}

Here is the caller graph for this function:

Rnm_ManCollect()

void Rnm_ManCollect

(

Rnm_Man_t *

p

)

Definition at line 351 of file absRef.c.

{
    Gia_Obj_t * pObj = NULL;
    int i;
    // mark const/PIs/PPIs
    Gia_ManIncrementTravId( p->pGia );
    Gia_ObjSetTravIdCurrent( p->pGia, Gia_ManConst0(p->pGia) );
    Gia_ManConst0(p->pGia)->Value = 0;
    Gia_ManForEachObjVec( p->vMap, p->pGia, pObj, i )
    {
        assert( Gia_ObjIsCi(pObj) || Gia_ObjIsAnd(pObj) );
        Gia_ObjSetTravIdCurrent( p->pGia, pObj );
        pObj->Value = 1 + i;
    }
    // collect objects
    Vec_IntClear( p->vObjs );
    Rnm_ManCollect_rec( p->pGia, Gia_ManPo(p->pGia, 0), p->vObjs, 1 + Vec_IntSize(p->vMap) );
    Gia_ManForEachObjVec( p->vObjs, p->pGia, pObj, i )
        if ( Gia_ObjIsRo(p->pGia, pObj) )
            Rnm_ManCollect_rec( p->pGia, Gia_ObjRoToRi(p->pGia, pObj), p->vObjs, 1 + Vec_IntSize(p->vMap) );
    // the last object should be a CO
    assert( Gia_ObjIsCo(pObj) );
    assert( (int)pObj->Value == Vec_IntSize(p->vMap) + Vec_IntSize(p->vObjs) );
}

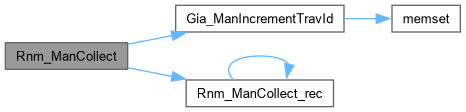

Here is the call graph for this function:

Here is the caller graph for this function:

Rnm_ManCollect_rec()

void Rnm_ManCollect_rec	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj,
		Vec_Int_t *	vObjs,
		int	nAddOn )

Function*************************************************************

Synopsis [Collect internal objects to be used in value propagation.]

Description [Resulting array vObjs contains RO, AND, PO/RI in a topo order.]

SideEffects []

SeeAlso []

Definition at line 334 of file absRef.c.

{
    if ( Gia_ObjIsTravIdCurrent(p, pObj) )
        return;
    Gia_ObjSetTravIdCurrent(p, pObj);
    if ( Gia_ObjIsCo(pObj) )
        Rnm_ManCollect_rec( p, Gia_ObjFanin0(pObj), vObjs, nAddOn );
    else if ( Gia_ObjIsAnd(pObj) )
    {
        Rnm_ManCollect_rec( p, Gia_ObjFanin0(pObj), vObjs, nAddOn );
        Rnm_ManCollect_rec( p, Gia_ObjFanin1(pObj), vObjs, nAddOn );
    }
    else if ( !Gia_ObjIsRo(p, pObj) )
        assert( 0 );
    pObj->Value = Vec_IntSize(vObjs) + nAddOn;
    Vec_IntPush( vObjs, Gia_ObjId(p, pObj) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rnm_ManJustify_rec()

void Rnm_ManJustify_rec	(	Rnm_Man_t *	p,
		Gia_Obj_t *	pObj,
		int	f,
		Vec_Int_t *	vSelect )

Definition at line 524 of file absRef.c.

{
    Rnm_Obj_t * pRnm = Rnm_ManObj( p, pObj, f );
    int i;//, Id = Gia_ObjId(p->pGia, pObj);
    if ( pRnm->fVisit )
        return;
    if ( p->fPropFanout )
        Rnm_ManJustifyPropFanout_rec( p, pObj, f, vSelect );
    else
    {
        pRnm->fVisit = 1;
        if ( Rnm_ManObj( p, pObj, 0 )->fVisitJ == 0 )
        {
            Rnm_ManObj( p, pObj, 0 )->fVisitJ = 1;
            p->nVisited++;
        }
    }
    if ( pRnm->fPPi )
    {
        assert( (int)pRnm->Prio > 0 );
        if ( p->fPropFanout )
        {
            for ( i = p->pCex->iFrame; i >= 0; i-- )
                if ( !Rnm_ManObj(p, pObj, i)->fVisit )
                    Rnm_ManJustifyPropFanout_rec( p, pObj, i, vSelect );
        }
        else
        {
            Vec_IntPush( vSelect, Gia_ObjId(p->pGia, pObj) );
//            for ( i = p->pCex->iFrame; i >= 0; i-- )
//                Rnm_ManObj(p, pObj, i)->fVisit = 1;
        }
        return;
    }
    if ( Gia_ObjIsPi(p->pGia, pObj) || Gia_ObjIsConst0(pObj) )
        return;
    if ( Gia_ObjIsRo(p->pGia, pObj) )
    {
        if ( f > 0 )
            Rnm_ManJustify_rec( p, Gia_ObjFanin0(Gia_ObjRoToRi(p->pGia, pObj)), f-1, vSelect );
        return;
    }
    if ( Gia_ObjIsAnd(pObj) )
    {
        Rnm_Obj_t * pRnm0 = Rnm_ManObj( p, Gia_ObjFanin0(pObj), f );
        Rnm_Obj_t * pRnm1 = Rnm_ManObj( p, Gia_ObjFanin1(pObj), f );
        if ( pRnm->Value == 1 )
        {
            if ( pRnm0->Prio > 0 )
                Rnm_ManJustify_rec( p, Gia_ObjFanin0(pObj), f, vSelect );
            if ( pRnm1->Prio > 0 )
                Rnm_ManJustify_rec( p, Gia_ObjFanin1(pObj), f, vSelect );
        }
        else // select one value
        {
            if ( (pRnm0->Value ^ Gia_ObjFaninC0(pObj)) == 0 && (pRnm1->Value ^ Gia_ObjFaninC1(pObj)) == 0 )
            {
                if ( pRnm0->Prio <= pRnm1->Prio ) // choice
                {
                    if ( pRnm0->Prio > 0 )
                        Rnm_ManJustify_rec( p, Gia_ObjFanin0(pObj), f, vSelect );
                }
                else
                {
                    if ( pRnm1->Prio > 0 )
                        Rnm_ManJustify_rec( p, Gia_ObjFanin1(pObj), f, vSelect );
                }
            }
            else if ( (pRnm0->Value ^ Gia_ObjFaninC0(pObj)) == 0 )
            {
                if ( pRnm0->Prio > 0 )
                    Rnm_ManJustify_rec( p, Gia_ObjFanin0(pObj), f, vSelect );
            }
            else if ( (pRnm1->Value ^ Gia_ObjFaninC1(pObj)) == 0 )
            {
                if ( pRnm1->Prio > 0 )
                    Rnm_ManJustify_rec( p, Gia_ObjFanin1(pObj), f, vSelect );
            }
            else assert( 0 );
        }
    }
    else assert( 0 );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rnm_ManJustifyPropFanout_rec()

void Rnm_ManJustifyPropFanout_rec	(	Rnm_Man_t *	p,
		Gia_Obj_t *	pObj,
		int	f,
		Vec_Int_t *	vSelect )

Function*************************************************************

Synopsis [Drive implications of the given node towards primary outputs.]

Description []

SideEffects []

SeeAlso []

Definition at line 470 of file absRef.c.

{
    Rnm_Obj_t * pRnm0, * pRnm1, * pRnm = Rnm_ManObj( p, pObj, f );
    Gia_Obj_t * pFanout = NULL;
    int i, k;//, Id = Gia_ObjId(p->pGia, pObj);
    assert( pRnm->fVisit == 0 );
    pRnm->fVisit = 1;
    if ( Rnm_ManObj( p, pObj, 0 )->fVisitJ == 0 )
    {
        Rnm_ManObj( p, pObj, 0 )->fVisitJ = 1;
        p->nVisited++;
    }
    if ( pRnm->fPPi )
    {
        assert( (int)pRnm->Prio > 0 );
        for ( i = p->pCex->iFrame; i >= 0; i-- )
            if ( !Rnm_ManObj(p, pObj, i)->fVisit )
                Rnm_ManJustifyPropFanout_rec( p, pObj, i, vSelect );
        Vec_IntPush( vSelect, Gia_ObjId(p->pGia, pObj) );
        return;
    }
    if ( (Gia_ObjIsCo(pObj) && f == p->pCex->iFrame) || Gia_ObjIsPo(p->pGia, pObj) )
        return;
    if ( Gia_ObjIsRi(p->pGia, pObj) )
    {
        pFanout = Gia_ObjRiToRo(p->pGia, pObj);
        if ( !Rnm_ManObj(p, pFanout, f+1)->fVisit )
            Rnm_ManJustifyPropFanout_rec( p, pFanout, f+1, vSelect );
        return;
    }
    assert( Gia_ObjIsRo(p->pGia, pObj) || Gia_ObjIsAnd(pObj) );
    Gia_ObjForEachFanoutStatic( p->pGia, pObj, pFanout, k )
    {
        Rnm_Obj_t * pRnmF;
        if ( pFanout->Value == 0 )
            continue;
        pRnmF = Rnm_ManObj(p, pFanout, f);
        if ( pRnmF->fPPi || pRnmF->fVisit )
            continue;
        if ( Gia_ObjIsCo(pFanout) )
        {
            Rnm_ManJustifyPropFanout_rec( p, pFanout, f, vSelect );
            continue;
        }
        assert( Gia_ObjIsAnd(pFanout) );
        pRnm0 = Rnm_ManObj( p, Gia_ObjFanin0(pFanout), f );
        pRnm1 = Rnm_ManObj( p, Gia_ObjFanin1(pFanout), f );
        if ( ((pRnm0->Value ^ Gia_ObjFaninC0(pFanout)) == 0 && pRnm0->fVisit) ||
             ((pRnm1->Value ^ Gia_ObjFaninC1(pFanout)) == 0 && pRnm1->fVisit) ||
           ( ((pRnm0->Value ^ Gia_ObjFaninC0(pFanout)) == 1 && pRnm0->fVisit) &&
             ((pRnm1->Value ^ Gia_ObjFaninC1(pFanout)) == 1 && pRnm1->fVisit) ) )
           Rnm_ManJustifyPropFanout_rec( p, pFanout, f, vSelect );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rnm_ManMemoryUsage()

double Rnm_ManMemoryUsage

(

Rnm_Man_t *

p

)

Definition at line 317 of file absRef.c.

{
    return (double)(sizeof(Rnm_Man_t) + sizeof(Rnm_Obj_t) * p->nObjsAlloc + sizeof(int) * Vec_IntCap(p->vObjs));
}

Here is the caller graph for this function:

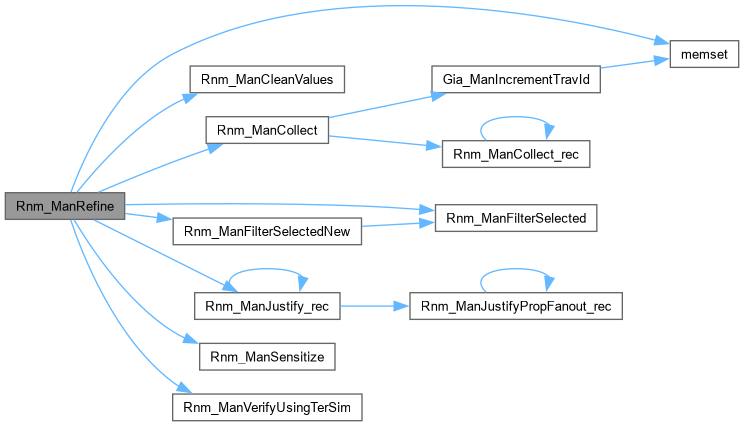

Rnm_ManRefine()

Vec_Int_t * Rnm_ManRefine	(	Rnm_Man_t *	p,
		Abc_Cex_t *	pCex,
		Vec_Int_t *	vMap,
		int	fPropFanout,
		int	fNewRefinement,
		int	fVerbose )

Function*************************************************************

Synopsis [Computes the refinement for a given counter-example.]

Description []

SideEffects []

SeeAlso []

Definition at line 673 of file absRef.c.

{
    int fVerify = 1;
    Vec_Int_t * vGoodPPis, * vNewPPis;
    abctime clk, clk2 = Abc_Clock();
    int RetValue;
    p->nCalls++;
//    Gia_ManCleanValue( p->pGia );
    // initialize
    p->pCex = pCex;
    p->vMap = vMap;
    p->fPropFanout = fPropFanout;
    p->fVerbose    = fVerbose;
    // collects used objects
    Rnm_ManCollect( p );
    // initialize datastructure
    p->nObjsFrame = 1 + Vec_IntSize(vMap) + Vec_IntSize(p->vObjs);
    p->nObjs = p->nObjsFrame * (pCex->iFrame + 1);
    if ( p->nObjs > p->nObjsAlloc )
        p->pObjs = ABC_REALLOC( Rnm_Obj_t, p->pObjs, (p->nObjsAlloc = p->nObjs + 10000) );
    memset( p->pObjs, 0, sizeof(Rnm_Obj_t) * p->nObjs );
    // propagate priorities
    clk = Abc_Clock();
    vGoodPPis = Vec_IntAlloc( 100 );
    if ( Rnm_ManSensitize( p ) ) // the CEX is not a true CEX
    {
        p->timeFwd += Abc_Clock() - clk;
        // select refinement
        clk = Abc_Clock();
        p->nVisited = 0;
        Rnm_ManJustify_rec( p, Gia_ObjFanin0(Gia_ManPo(p->pGia, 0)), pCex->iFrame, vGoodPPis );
        RetValue = Vec_IntUniqify( vGoodPPis );
//        assert( RetValue == 0 );
        p->timeBwd += Abc_Clock() - clk;
    }

    // verify (empty) refinement
    // (only works when post-processing is not applied)
    if ( fVerify )
    {
        clk = Abc_Clock();
        Rnm_ManVerifyUsingTerSim( p->pGia, p->pCex, p->vMap, p->vObjs, vGoodPPis );
        p->timeVer += Abc_Clock() - clk;
    }

    // at this point array vGoodPPis contains the set of important PPIs
    if ( Vec_IntSize(vGoodPPis) > 0 ) // spurious CEX resulting in a non-trivial refinement
    {
        // filter selected set
        if ( !fNewRefinement )  // default
            vNewPPis = Rnm_ManFilterSelected( p, vGoodPPis );
        else // this is enabled when &gla is called with -r (&gla -r)
            vNewPPis = Rnm_ManFilterSelectedNew( p, vGoodPPis );

        // replace the PPI array if necessary
        if ( Vec_IntSize(vNewPPis) > 0 ) // something to select, replace current refinement
            Vec_IntFree( vGoodPPis ), vGoodPPis = vNewPPis;
        else // if there is nothing to select, do not change the current refinement array
            Vec_IntFree( vNewPPis );
    }

    // clean values
    // we cannot do this before, because we need to remember what objects
    // belong to the abstraction when we do Rnm_ManFilterSelected()
    Rnm_ManCleanValues( p );

//    Vec_IntReverseOrder( vGoodPPis );
    p->timeTotal += Abc_Clock() - clk2;
    p->nRefines += Vec_IntSize(vGoodPPis);
    return vGoodPPis;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rnm_ManSensitize()

int Rnm_ManSensitize

(

Rnm_Man_t *

p

)

Function*************************************************************

Synopsis [Performs sensitization analysis.]

Description []

SideEffects []

SeeAlso []

Definition at line 396 of file absRef.c.

{
    Rnm_Obj_t * pRnm, * pRnm0, * pRnm1;
    Gia_Obj_t * pObj;
    int f, i, iBit = p->pCex->nRegs;
    // const0 is initialized automatically in all timeframes
    for ( f = 0; f <= p->pCex->iFrame; f++, iBit += p->pCex->nPis )
    {
        Gia_ManForEachObjVec( p->vMap, p->pGia, pObj, i )
        {
            assert( Gia_ObjIsCi(pObj) || Gia_ObjIsAnd(pObj) );
            pRnm = Rnm_ManObj( p, pObj, f );
            pRnm->Value = Abc_InfoHasBit( p->pCex->pData, iBit + i );
            if ( !Gia_ObjIsPi(p->pGia, pObj) ) // this is PPI
            {
                assert( pObj->Value > 0 );
                pRnm->Prio = pObj->Value;
                pRnm->fPPi = 1;
            }
        }
        Gia_ManForEachObjVec( p->vObjs, p->pGia, pObj, i )
        {
            assert( Gia_ObjIsRo(p->pGia, pObj) || Gia_ObjIsAnd(pObj) || Gia_ObjIsCo(pObj) );
            pRnm = Rnm_ManObj( p, pObj, f );
            assert( !pRnm->fPPi );
            if ( Gia_ObjIsRo(p->pGia, pObj) )
            {
                if ( f == 0 )
                    continue;
                pRnm0 = Rnm_ManObj( p, Gia_ObjRoToRi(p->pGia, pObj), f-1 );
                pRnm->Value = pRnm0->Value;
                pRnm->Prio  = pRnm0->Prio;
                continue;
            }
            if ( Gia_ObjIsCo(pObj) )
            {
                pRnm0 = Rnm_ManObj( p, Gia_ObjFanin0(pObj), f );
                pRnm->Value = (pRnm0->Value ^ Gia_ObjFaninC0(pObj));
                pRnm->Prio  = pRnm0->Prio;
                continue;
            }
            assert( Gia_ObjIsAnd(pObj) );
            pRnm0 = Rnm_ManObj( p, Gia_ObjFanin0(pObj), f );
            pRnm1 = Rnm_ManObj( p, Gia_ObjFanin1(pObj), f );
            pRnm->Value = (pRnm0->Value ^ Gia_ObjFaninC0(pObj)) & (pRnm1->Value ^ Gia_ObjFaninC1(pObj));
            if ( pRnm->Value == 1 )
                pRnm->Prio  = Abc_MaxInt( pRnm0->Prio, pRnm1->Prio );
            else if ( (pRnm0->Value ^ Gia_ObjFaninC0(pObj)) == 0 && (pRnm1->Value ^ Gia_ObjFaninC1(pObj)) == 0 )
                pRnm->Prio  = Abc_MinInt( pRnm0->Prio, pRnm1->Prio ); // choice
            else if ( (pRnm0->Value ^ Gia_ObjFaninC0(pObj)) == 0 )
                pRnm->Prio  = pRnm0->Prio;
            else
                pRnm->Prio  = pRnm1->Prio;
        }
    }
    assert( iBit == p->pCex->nBits );
    pRnm = Rnm_ManObj( p, Gia_ManPo(p->pGia, 0), p->pCex->iFrame );
    if ( pRnm->Value != 1 )
        printf( "Output value is incorrect.\n" );
    return pRnm->Prio;
}

Here is the caller graph for this function:

Rnm_ManStart()

Rnm_Man_t * Rnm_ManStart

(

Gia_Man_t *

pGia

)

FUNCTION DEFINITIONS ///.

FUNCTION DECLARATIONS ///.

Function*************************************************************

Synopsis [Creates a new manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 264 of file absRef.c.

{
    Rnm_Man_t * p;
    assert( Gia_ManPoNum(pGia) == 1 );
    p = ABC_CALLOC( Rnm_Man_t, 1 );
    p->pGia = pGia;
    p->vObjs = Vec_IntAlloc( 100 );
    p->vCounts = Vec_StrStart( Gia_ManObjNum(pGia) );
    p->vFanins = Vec_IntAlloc( 1000 );
//    p->vSatVars = Vec_IntAlloc( 0 );
//    p->vSat2Ids = Vec_IntAlloc( 1000 );
//    p->vIsopMem  = Vec_IntAlloc( 0 );
    p->nObjsAlloc = 10000;
    p->pObjs = ABC_ALLOC( Rnm_Obj_t, p->nObjsAlloc );
    if ( p->pGia->vFanout == NULL )
        Gia_ManStaticFanoutStart( p->pGia );
    Gia_ManCleanValue(pGia);
    Gia_ManCleanMark0(pGia);
    Gia_ManCleanMark1(pGia);
    return p;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rnm_ManStop()

void Rnm_ManStop	(	Rnm_Man_t *	p,
		int	fProfile )

Definition at line 285 of file absRef.c.

{
    if ( !p ) return;
    // print runtime statistics
    if ( fProfile && p->nCalls )
    {
        double MemGia = sizeof(Gia_Man_t) + sizeof(Gia_Obj_t) * p->pGia->nObjsAlloc + sizeof(int) * p->pGia->nTravIdsAlloc;
        double MemOther = sizeof(Rnm_Man_t) + sizeof(Rnm_Obj_t) * p->nObjsAlloc + sizeof(int) * Vec_IntCap(p->vObjs);
        abctime timeOther = p->timeTotal - p->timeFwd - p->timeBwd - p->timeVer;
        printf( "Abstraction refinement runtime statistics:\n" );
        ABC_PRTP( "Sensetization", p->timeFwd,   p->timeTotal );
        ABC_PRTP( "Justification", p->timeBwd,   p->timeTotal );
        ABC_PRTP( "Verification ", p->timeVer,   p->timeTotal );
        ABC_PRTP( "Other        ", timeOther,    p->timeTotal );
        ABC_PRTP( "TOTAL        ", p->timeTotal, p->timeTotal );
        printf( "Total calls = %d.  Average refine = %.1f. GIA mem = %.3f MB.  Other mem = %.3f MB.\n",
            p->nCalls, 1.0*p->nRefines/p->nCalls, MemGia/(1<<20), MemOther/(1<<20) );
    }

    Gia_ManCleanMark0(p->pGia);
    Gia_ManCleanMark1(p->pGia);
    Gia_ManStaticFanoutStop(p->pGia);
//    Gia_ManSetPhase(p->pGia);
//    Vec_IntFree( p->vIsopMem );
//    Vec_IntFree( p->vSatVars );
//    Vec_IntFree( p->vSat2Ids );
    Vec_StrFree( p->vCounts );
    Vec_IntFree( p->vFanins );
    Vec_IntFree( p->vObjs );
    ABC_FREE( p->pObjs );
    ABC_FREE( p );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rnm_ManVerifyUsingTerSim()

void Rnm_ManVerifyUsingTerSim	(	Gia_Man_t *	p,
		Abc_Cex_t *	pCex,
		Vec_Int_t *	vMap,
		Vec_Int_t *	vObjs,
		Vec_Int_t *	vRes )

Function*************************************************************

Synopsis [Performs refinement.]

Description []

SideEffects []

SeeAlso []

Definition at line 619 of file absRef.c.

{
    Gia_Obj_t * pObj;
    int i, f, iBit = pCex->nRegs;
    Gia_ObjTerSimSet0( Gia_ManConst0(p) );
    for ( f = 0; f <= pCex->iFrame; f++, iBit += pCex->nPis )
    {
        Gia_ManForEachObjVec( vMap, p, pObj, i )
        {
            pObj->Value = Abc_InfoHasBit( pCex->pData, iBit + i );
            if ( !Gia_ObjIsPi(p, pObj) )
                Gia_ObjTerSimSetX( pObj );
            else if ( pObj->Value )
                Gia_ObjTerSimSet1( pObj );
            else
                Gia_ObjTerSimSet0( pObj );
        }
        Gia_ManForEachObjVec( vRes, p, pObj, i ) // vRes is subset of vMap
        {
            if ( pObj->Value )
                Gia_ObjTerSimSet1( pObj );
            else
                Gia_ObjTerSimSet0( pObj );
        }
        Gia_ManForEachObjVec( vObjs, p, pObj, i )
        {
            if ( Gia_ObjIsCo(pObj) )
                Gia_ObjTerSimCo( pObj );
            else if ( Gia_ObjIsAnd(pObj) )
                Gia_ObjTerSimAnd( pObj );
            else if ( f == 0 )
                Gia_ObjTerSimSet0( pObj );
            else
                Gia_ObjTerSimRo( p, pObj );
        }
    }
    Gia_ManForEachObjVec( vMap, p, pObj, i )
        pObj->Value = 0;
    pObj = Gia_ManPo( p, 0 );
    if ( !Gia_ObjTerSimGet1(pObj) )
        Abc_Print( 1, "\nRefinement verification has failed!!!\n" );
}

Here is the caller graph for this function:
