#include "aig.h"
#include "misc/tim/tim.h"
#include "proof/fra/fra.h"

Include dependency graph for aigPart.c:

Classes
struct	Part_Man_t_

struct	Part_One_t_

Typedefs
typedef typedefABC_NAMESPACE_IMPL_START struct Part_Man_t_	Part_Man_t
	DECLARATIONS ///.

typedef struct Part_One_t_	Part_One_t

Functions
Part_Man_t *	Part_ManStart (int nChunkSize, int nStepSize)
	FUNCTION DEFINITIONS ///.

void	Part_ManStop (Part_Man_t *p)

char *	Part_ManFetch (Part_Man_t *p, int nSize)

void	Part_ManRecycle (Part_Man_t p, char pMemory, int nSize)

Part_One_t *	Part_ManMergeEntry (Part_Man_t pMan, Part_One_t p1, Part_One_t *p2, int nRefs)

Vec_Int_t *	Part_ManTransferEntry (Part_One_t *p)

Vec_Ptr_t *	Aig_ManSupports (Aig_Man_t *pMan)

void	Aig_ManSupportsTest (Aig_Man_t *pMan)

Vec_Ptr_t *	Aig_ManSupportsInverse (Aig_Man_t *p)

Vec_Ptr_t *	Aig_ManSupportsRegisters (Aig_Man_t *p)

unsigned *	Aig_ManSuppCharStart (Vec_Int_t *vOne, int nPis)

void	Aig_ManSuppCharAdd (unsigned pBuffer, Vec_Int_t vOne, int nPis)

int	Aig_ManSuppCharCommon (unsigned pBuffer, Vec_Int_t vOne)

int	Aig_ManPartitionSmartFindPart (Vec_Ptr_t vPartSuppsAll, Vec_Ptr_t vPartsAll, Vec_Ptr_t vPartSuppsBit, int nSuppSizeLimit, Vec_Int_t vOne)

void	Aig_ManPartitionPrint (Aig_Man_t p, Vec_Ptr_t vPartsAll, Vec_Ptr_t *vPartSuppsAll)

void	Aig_ManPartitionCompact (Vec_Ptr_t vPartsAll, Vec_Ptr_t vPartSuppsAll, int nSuppSizeLimit)

Vec_Ptr_t *	Aig_ManPartitionSmart (Aig_Man_t p, int nSuppSizeLimit, int fVerbose, Vec_Ptr_t *pvPartSupps)

Vec_Ptr_t *	Aig_ManPartitionSmartRegisters (Aig_Man_t *pAig, int nSuppSizeLimit, int fVerbose)

Vec_Ptr_t *	Aig_ManPartitionNaive (Aig_Man_t *p, int nPartSize)

Aig_Obj_t *	Aig_ManDupPart_rec (Aig_Man_t pNew, Aig_Man_t pOld, Aig_Obj_t pObj, Vec_Int_t vSuppMap)

Vec_Ptr_t *	Aig_ManDupPart (Aig_Man_t pNew, Aig_Man_t pOld, Vec_Int_t vPart, Vec_Int_t vSuppMap, int fInverse)

void	Aig_ManDupPartAll_rec (Aig_Man_t pNew, Aig_Man_t pOld, Aig_Obj_t *pObj)

Aig_Man_t *	Aig_ManDupPartAll (Aig_Man_t pOld, Vec_Int_t vPart)

void	Aig_ManSupportNodes_rec (Aig_Man_t p, Aig_Obj_t pObj, Vec_Int_t *vSupport)

Vec_Ptr_t *	Aig_ManSupportNodes (Aig_Man_t p, Vec_Ptr_t vParts)

Vec_Ptr_t *	Aig_ManMiterPartitioned (Aig_Man_t p1, Aig_Man_t p2, int nPartSize, int fSmart)

Aig_Man_t *	Aig_ManChoicePartitioned (Vec_Ptr_t *vAigs, int nPartSize, int nConfMax, int nLevelMax, int fVerbose)

Aig_Man_t *	Aig_ManFraigPartitioned (Aig_Man_t *pAig, int nPartSize, int nConfMax, int nLevelMax, int fVerbose)

void	Aig_ManChoiceConstructiveOne (Aig_Man_t pNew, Aig_Man_t pPrev, Aig_Man_t *pThis)

void	Aig_ManChoiceEval (Aig_Man_t *p)

Aig_Man_t *	Aig_ManChoiceConstructive (Vec_Ptr_t *vAigs, int fVerbose)

Typedef Documentation

◆ Part_Man_t

typedef typedefABC_NAMESPACE_IMPL_START struct Part_Man_t_ Part_Man_t

DECLARATIONS ///.

CFile****************************************************************

FileName [aigPart.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [AIG package.]

Synopsis [AIG partitioning package.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - April 28, 2007.]

Revision [

Id: aigPart.c,v 1.00 2007/04/28 00:00:00 alanmi Exp

]

Definition at line 32 of file aigPart.c.

◆ Part_One_t

typedef struct Part_One_t_ Part_One_t

Definition at line 43 of file aigPart.c.

Function Documentation

◆ Aig_ManChoiceConstructive()

Aig_Man_t * Aig_ManChoiceConstructive	(	Vec_Ptr_t *	vAigs,
		int	fVerbose )

Function*************************************************************

Synopsis [Constructively accumulates choices.]

Description []

SideEffects []

SeeAlso []

Definition at line 1564 of file aigPart.c.

{
    Vec_Ptr_t * vPios;
    Aig_Man_t * pNew, * pThis, * pPrev, * pTemp;
    int i;
    // start AIG with choices
    pPrev = (Aig_Man_t *)Vec_PtrEntry( vAigs, 0 );
    pNew = Aig_ManDupOrdered( pPrev );
    // create room for equivalent nodes and representatives
    assert( pNew->pReprs == NULL );
    pNew->nReprsAlloc = Vec_PtrSize(vAigs) * Aig_ManObjNumMax(pNew);
    pNew->pReprs = ABC_ALLOC( Aig_Obj_t *, pNew->nReprsAlloc );
    memset( pNew->pReprs, 0, sizeof(Aig_Obj_t *) * pNew->nReprsAlloc );
    // add other AIGs one by one
    Vec_PtrForEachEntryStart( Aig_Man_t *, vAigs, pThis, i, 1 )
    {
        Aig_ManChoiceConstructiveOne( pNew, pPrev, pThis );
        pPrev = pThis;
    }
    // derive the result of choicing
    pNew = Aig_ManRehash( pNew );
    // create the equivalent nodes lists
    Aig_ManMarkValidChoices( pNew );
    // reconstruct the network
    vPios = Aig_ManOrderPios( pNew, (Aig_Man_t *)Vec_PtrEntry( vAigs, 0 ) );
    pNew = Aig_ManDupDfsGuided( pTemp = pNew, vPios );
    Aig_ManStop( pTemp );
    Vec_PtrFree( vPios );
    // duplicate the timing manager
    pTemp = (Aig_Man_t *)Vec_PtrEntry( vAigs, 0 );
    if ( pTemp->pManTime )
        pNew->pManTime = Tim_ManDup( (Tim_Man_t *)pTemp->pManTime, 0 );
    // reset levels
    Aig_ManChoiceLevel( pNew );
    return pNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Aig_ManChoiceConstructiveOne()

void Aig_ManChoiceConstructiveOne	(	Aig_Man_t *	pNew,
		Aig_Man_t *	pPrev,
		Aig_Man_t *	pThis )

Function*************************************************************

Synopsis [Constructively accumulates choices.]

Description [pNew is a new AIG with choices under construction. pPrev is the AIG preceding pThis in the order of deriving choices. pThis is the current AIG to be added to pNew while creating choices.]

SideEffects []

SeeAlso []

Definition at line 1478 of file aigPart.c.

{
    Aig_Obj_t * pObj, * pObjNew;
    int i;
    assert( Aig_ManCiNum(pNew) == Aig_ManCiNum(pPrev) );
    assert( Aig_ManCiNum(pNew) == Aig_ManCiNum(pThis) );
    assert( Aig_ManCoNum(pNew) == Aig_ManCoNum(pPrev) );
    assert( Aig_ManCoNum(pNew) == Aig_ManCoNum(pThis) );
    // make sure the nodes of pPrev point to pNew
    Aig_ManForEachObj( pNew, pObj, i )
        pObj->fMarkB = 1;
    Aig_ManForEachObj( pPrev, pObj, i )
        assert( Aig_Regular((Aig_Obj_t *)pObj->pData)->fMarkB );
    Aig_ManForEachObj( pNew, pObj, i )
        pObj->fMarkB = 0;
    // make sure the nodes of pThis point to pPrev
    Aig_ManForEachObj( pPrev, pObj, i )
        pObj->fMarkB = 1;
    Aig_ManForEachObj( pPrev, pObj, i )
        pObj->fMarkB = 0;
    // remap nodes of pThis on top of pNew using pPrev
    pObj = Aig_ManConst1(pThis);
    pObj->pData = Aig_ManConst1(pNew);
    Aig_ManForEachCi( pThis, pObj, i )
        pObj->pData = Aig_ManCi(pNew, i);
    Aig_ManForEachCo( pThis, pObj, i )
        pObj->pData = Aig_ManCo(pNew, i);
    // go through the nodes in the topological order
    Aig_ManForEachNode( pThis, pObj, i )
        pObj->pData = Aig_And( pNew, Aig_ObjChild0Copy(pObj), Aig_ObjChild1Copy(pObj) );
    // set the inputs of POs as equivalent
    Aig_ManForEachCo( pThis, pObj, i )
    {
        pObjNew = Aig_ObjFanin0( Aig_ManCo(pNew,i) );
        // pObjNew and Aig_ObjFanin0(pObj)->pData are equivalent
        Aig_ObjSetRepr_( pNew, pObjNew, Aig_Regular((Aig_Obj_t *)Aig_ObjFanin0(pObj)->pData) );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Aig_ManChoiceEval()

void Aig_ManChoiceEval ( Aig_Man_t * p )

Function*************************************************************

Synopsis [Constructively accumulates choices.]

Description []

SideEffects []

SeeAlso []

Definition at line 1528 of file aigPart.c.

{
    Vec_Ptr_t * vSupp;
    Aig_Obj_t * pNode, * pTemp;
    int i, Counter;

    vSupp = Vec_PtrAlloc( 100 );
    Aig_ManForEachNode( p, pNode, i )
    {
        if ( !Aig_ObjIsChoice(p, pNode) )
            continue;
        Counter = 0;
        for ( pTemp = pNode; pTemp; pTemp = Aig_ObjEquiv(p, pTemp) )
            Counter++;
        printf( "Choice node = %5d. Level = %2d. Choices = %d. { ", pNode->Id, pNode->Level, Counter );
        for ( pTemp = pNode; pTemp; pTemp = Aig_ObjEquiv(p, pTemp) )
        {
            Counter = Aig_NodeMffcSupp( p, pTemp, 0, vSupp );
            printf( "S=%d N=%d L=%d  ", Vec_PtrSize(vSupp), Counter, pTemp->Level );
        }
        printf( "}\n" );
    }
    Vec_PtrFree( vSupp );
}

Here is the call graph for this function:

◆ Aig_ManChoicePartitioned()

Aig_Man_t * Aig_ManChoicePartitioned	(	Vec_Ptr_t *	vAigs,
		int	nPartSize,
		int	nConfMax,
		int	nLevelMax,
		int	fVerbose )

Function*************************************************************

Synopsis [Performs partitioned choice computation.]

Description [Assumes that each output in the second AIG cannot have more supp vars than the same output in the first AIG.]

SideEffects []

SeeAlso []

Definition at line 1247 of file aigPart.c.

{
//    extern int Cmd_CommandExecute( void * pAbc, char * sCommand );
//    extern void * Abc_FrameGetGlobalFrame();
//    extern Aig_Man_t * Fra_FraigChoice( Aig_Man_t * pManAig, int nConfMax, int nLevelMax );

    Vec_Ptr_t * vPios;
    Vec_Ptr_t * vOutsTotal, * vOuts;
    Aig_Man_t * pAigTotal, * pAigPart, * pAig, * pTemp;
    Vec_Int_t * vPart, * vPartSupp;
    Vec_Ptr_t * vParts;
    Aig_Obj_t * pObj;
    void ** ppData;
    int i, k, m, nIdMax;
    assert( Vec_PtrSize(vAigs) > 1 );

    // compute the total number of IDs
    nIdMax = 0;
    Vec_PtrForEachEntry( Aig_Man_t *, vAigs, pAig, i )
        nIdMax += Aig_ManObjNumMax(pAig);

    // partition the first AIG in the array
    pAig = (Aig_Man_t *)Vec_PtrEntry( vAigs, 0 );
    vParts = Aig_ManPartitionSmart( pAig, nPartSize, 0, NULL );

    // start the total fraiged AIG
    pAigTotal = Aig_ManStartFrom( pAig );
    Aig_ManReprStart( pAigTotal, nIdMax );
    vOutsTotal = Vec_PtrStart( Aig_ManCoNum(pAig) );

    // set the PI numbers
    Vec_PtrForEachEntry( Aig_Man_t *, vAigs, pAig, i )
        Aig_ManForEachCi( pAig, pObj, k )
            pObj->pNext = (Aig_Obj_t *)(long)k;

//    Cmd_CommandExecute( Abc_FrameGetGlobalFrame(), "unset progressbar" );

    // create the total fraiged AIG
    vPartSupp = Vec_IntAlloc( 100 ); // maps part PI num into total PI num
    Vec_PtrForEachEntry( Vec_Int_t *, vParts, vPart, i )
    {
        // derive the partition AIG
        pAigPart = Aig_ManStart( 5000 );
//        pAigPart->pName = Extra_UtilStrsav( pAigPart->pName );
        Vec_IntClear( vPartSupp );
        Vec_PtrForEachEntry( Aig_Man_t *, vAigs, pAig, k )
        {
            vOuts = Aig_ManDupPart( pAigPart, pAig, vPart, vPartSupp, 0 );
            if ( k == 0 )
            {
                Vec_PtrForEachEntry( Aig_Obj_t *, vOuts, pObj, m )
                    Aig_ObjCreateCo( pAigPart, pObj );
            }
            Vec_PtrFree( vOuts );
        }
        // derive the total AIG from the partitioned AIG
        vOuts = Aig_ManDupPart( pAigTotal, pAigPart, vPart, vPartSupp, 1 );
        // add to the outputs
        Vec_PtrForEachEntry( Aig_Obj_t *, vOuts, pObj, k )
        {
            assert( Vec_PtrEntry( vOutsTotal, Vec_IntEntry(vPart,k) ) == NULL );
            Vec_PtrWriteEntry( vOutsTotal, Vec_IntEntry(vPart,k), pObj );
        }
        Vec_PtrFree( vOuts );
        // store contents of pData pointers
        ppData = ABC_ALLOC( void *, Aig_ManObjNumMax(pAigPart) );
        Aig_ManForEachObj( pAigPart, pObj, k )
            ppData[k] = pObj->pData;
        // report the process
        if ( fVerbose )
        printf( "Part %4d  (out of %4d)  PI = %5d. PO = %5d. And = %6d. Lev = %4d.\r",
            i+1, Vec_PtrSize(vParts), Aig_ManCiNum(pAigPart), Aig_ManCoNum(pAigPart),
            Aig_ManNodeNum(pAigPart), Aig_ManLevelNum(pAigPart) );
        // compute equivalence classes (to be stored in pNew->pReprs)
        pAig = Fra_FraigChoice( pAigPart, nConfMax, nLevelMax );
        Aig_ManStop( pAig );
        // reset the pData pointers
        Aig_ManForEachObj( pAigPart, pObj, k )
            pObj->pData = ppData[k];
        ABC_FREE( ppData );
        // transfer representatives to the total AIG
        if ( pAigPart->pReprs )
            Aig_ManTransferRepr( pAigTotal, pAigPart );
        Aig_ManStop( pAigPart );
    }
    if ( fVerbose )
    printf( "                                                                                          \r" );
    Vec_VecFree( (Vec_Vec_t *)vParts );
    Vec_IntFree( vPartSupp );

//    Cmd_CommandExecute( Abc_FrameGetGlobalFrame(), "set progressbar" );

    // clear the PI numbers
    Vec_PtrForEachEntry( Aig_Man_t *, vAigs, pAig, i )
        Aig_ManForEachCi( pAig, pObj, k )
            pObj->pNext = NULL;

    // add the outputs in the same order
    Vec_PtrForEachEntry( Aig_Obj_t *, vOutsTotal, pObj, i )
        Aig_ObjCreateCo( pAigTotal, pObj );
    Vec_PtrFree( vOutsTotal );

    // derive the result of choicing
    pAig = Aig_ManRehash( pAigTotal );
    // create the equivalent nodes lists
    Aig_ManMarkValidChoices( pAig );
    // reconstruct the network
    vPios = Aig_ManOrderPios( pAig, (Aig_Man_t *)Vec_PtrEntry(vAigs,0) );
    pAig = Aig_ManDupDfsGuided( pTemp = pAig, vPios );
    Aig_ManStop( pTemp );
    Vec_PtrFree( vPios );
    // duplicate the timing manager
    pTemp = (Aig_Man_t *)Vec_PtrEntry( vAigs, 0 );
    if ( pTemp->pManTime )
        pAig->pManTime = Tim_ManDup( (Tim_Man_t *)pTemp->pManTime, 0 );
    // reset levels
    Aig_ManChoiceLevel( pAig );
    return pAig;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Aig_ManDupPart()

Vec_Ptr_t * Aig_ManDupPart	(	Aig_Man_t *	pNew,
		Aig_Man_t *	pOld,
		Vec_Int_t *	vPart,
		Vec_Int_t *	vSuppMap,
		int	fInverse )

Function*************************************************************

Synopsis [Adds internal nodes in the topological order.]

Description [Returns the array of new outputs.]

SideEffects []

SeeAlso []

Definition at line 995 of file aigPart.c.

{
    Vec_Ptr_t * vOutsTotal;
    Aig_Obj_t * pObj;
    int Entry, i;
    // create the PIs
    Aig_ManIncrementTravId( pOld );
    Aig_ManConst1(pOld)->pData = Aig_ManConst1(pNew);
    Aig_ObjSetTravIdCurrent( pOld, Aig_ManConst1(pOld) );
    if ( !fInverse )
    {
        Vec_IntForEachEntry( vSuppMap, Entry, i )
        {
            pObj = Aig_ManCi( pOld, Entry );
            pObj->pData = Aig_ManCi( pNew, i );
            Aig_ObjSetTravIdCurrent( pOld, pObj );
        }
    }
    else
    {
        Vec_IntForEachEntry( vSuppMap, Entry, i )
        {
            pObj = Aig_ManCi( pOld, i );
            pObj->pData = Aig_ManCi( pNew, Entry );
            Aig_ObjSetTravIdCurrent( pOld, pObj );
        }
        vSuppMap = NULL; // should not be useful
    }
    // create the internal nodes
    vOutsTotal = Vec_PtrAlloc( Vec_IntSize(vPart) );
    if ( !fInverse )
    {
        Vec_IntForEachEntry( vPart, Entry, i )
        {
            pObj = Aig_ManCo( pOld, Entry );
            Aig_ManDupPart_rec( pNew, pOld, Aig_ObjFanin0(pObj), vSuppMap );
            Vec_PtrPush( vOutsTotal, Aig_ObjChild0Copy(pObj) );
        }
    }
    else
    {
        Aig_ManForEachObj( pOld, pObj, i )
        {
            if ( Aig_ObjIsCo(pObj) )
            {
                Aig_ManDupPart_rec( pNew, pOld, Aig_ObjFanin0(pObj), vSuppMap );
                Vec_PtrPush( vOutsTotal, Aig_ObjChild0Copy(pObj) );
            }
            else if ( Aig_ObjIsNode(pObj) && pObj->nRefs == 0 )
                Aig_ManDupPart_rec( pNew, pOld, pObj, vSuppMap );

        }
    }
    return vOutsTotal;
}

Here is the call graph for this function:

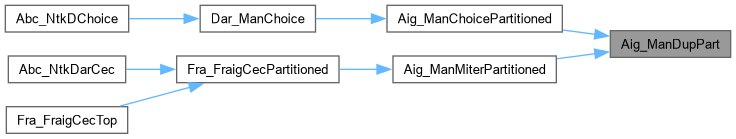

Here is the caller graph for this function:

◆ Aig_ManDupPart_rec()

Aig_Obj_t * Aig_ManDupPart_rec	(	Aig_Man_t *	pNew,
		Aig_Man_t *	pOld,
		Aig_Obj_t *	pObj,
		Vec_Int_t *	vSuppMap )

Function*************************************************************

Synopsis [Adds internal nodes in the topological order.]

Description []

SideEffects []

SeeAlso []

Definition at line 966 of file aigPart.c.

{
    assert( !Aig_IsComplement(pObj) );
    if ( Aig_ObjIsTravIdCurrent(pOld, pObj) )
        return (Aig_Obj_t *)pObj->pData;
    Aig_ObjSetTravIdCurrent(pOld, pObj);
    if ( Aig_ObjIsCi(pObj) )
    {
        assert( Vec_IntSize(vSuppMap) == Aig_ManCiNum(pNew) );
        Vec_IntPush( vSuppMap, (int)(long)pObj->pNext );
        return (Aig_Obj_t *)(pObj->pData = Aig_ObjCreateCi(pNew));
    }
    assert( Aig_ObjIsNode(pObj) );
    Aig_ManDupPart_rec( pNew, pOld, Aig_ObjFanin0(pObj), vSuppMap );
    Aig_ManDupPart_rec( pNew, pOld, Aig_ObjFanin1(pObj), vSuppMap );
    return (Aig_Obj_t *)(pObj->pData = Aig_And( pNew, Aig_ObjChild0Copy(pObj), Aig_ObjChild1Copy(pObj) ));
}

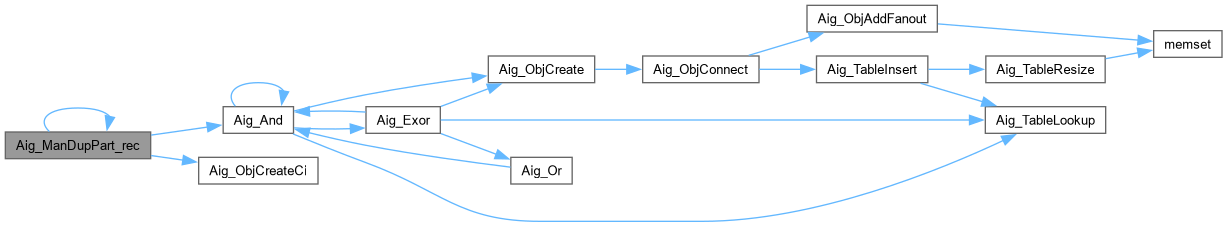

Here is the call graph for this function:

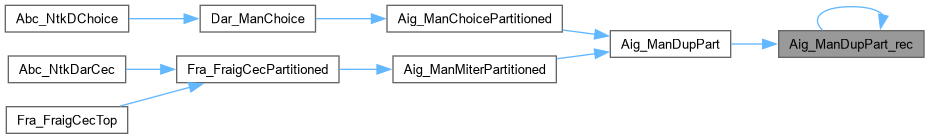

Here is the caller graph for this function:

◆ Aig_ManDupPartAll()

Aig_Man_t * Aig_ManDupPartAll	(	Aig_Man_t *	pOld,
		Vec_Int_t *	vPart )

Function*************************************************************

Synopsis [Adds internal nodes in the topological order.]

Description [Returns the array of new outputs.]

SideEffects []

SeeAlso []

Definition at line 1098 of file aigPart.c.

{
    Aig_Man_t * pNew;
    Aig_Obj_t * pObj, * pObjNew;
    int i, Entry;
    Aig_ManIncrementTravId( pOld );
    pNew = Aig_ManStart( 5000 );
    // map constant nodes
    pObj = Aig_ManConst1(pOld);
    pObjNew = Aig_ManConst1(pNew);
    pObj->pData = pObjNew;
    pObjNew->pData = pObj;
    Aig_ObjSetTravIdCurrent(pOld, pObj);
    // map all other nodes
    Vec_IntForEachEntry( vPart, Entry, i )
    {
        pObj = Aig_ManCo( pOld, Entry );
        Aig_ManDupPartAll_rec( pNew, pOld, pObj );
    }
    return pNew;
}

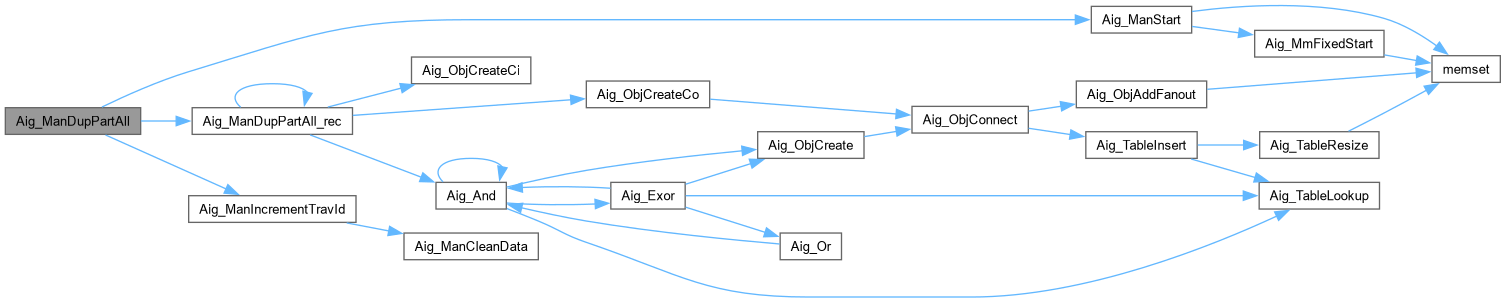

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Aig_ManDupPartAll_rec()

void Aig_ManDupPartAll_rec	(	Aig_Man_t *	pNew,
		Aig_Man_t *	pOld,
		Aig_Obj_t *	pObj )

Function*************************************************************

Synopsis [Adds internal nodes in the topological order.]

Description []

SideEffects []

SeeAlso []

Definition at line 1062 of file aigPart.c.

{
    Aig_Obj_t * pObjNew;
    assert( !Aig_IsComplement(pObj) );
    if ( Aig_ObjIsTravIdCurrent(pOld, pObj) )
        return;
    Aig_ObjSetTravIdCurrent(pOld, pObj);
    if ( Aig_ObjIsCi(pObj) )
        pObjNew = Aig_ObjCreateCi(pNew);
    else if ( Aig_ObjIsCo(pObj) )
    {
        Aig_ManDupPartAll_rec( pNew, pOld, Aig_ObjFanin0(pObj) );
        pObjNew = Aig_ObjCreateCo( pNew, Aig_ObjChild0Copy(pObj) );
    }
    else
    {
        assert( Aig_ObjIsNode(pObj) );
        Aig_ManDupPartAll_rec( pNew, pOld, Aig_ObjFanin0(pObj) );
        Aig_ManDupPartAll_rec( pNew, pOld, Aig_ObjFanin1(pObj) );
        pObjNew = Aig_And( pNew, Aig_ObjChild0Copy(pObj), Aig_ObjChild1Copy(pObj) );
    }
    pObj->pData = pObjNew;
    pObjNew->pData = pObj;
}

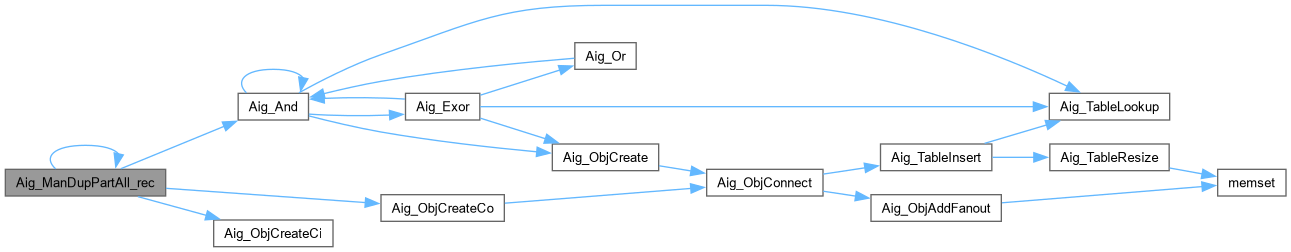

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Aig_ManFraigPartitioned()

Aig_Man_t * Aig_ManFraigPartitioned	(	Aig_Man_t *	pAig,
		int	nPartSize,
		int	nConfMax,
		int	nLevelMax,
		int	fVerbose )

Function*************************************************************

Synopsis [Performs partitioned choice computation.]

Description [Assumes that each output in the second AIG cannot have more supp vars than the same output in the first AIG.]

SideEffects []

SeeAlso []

Definition at line 1379 of file aigPart.c.

{
//    extern Aig_Man_t * Fra_FraigChoice( Aig_Man_t * pManAig, int nConfMax, int nLevelMax );

    Aig_Man_t * pAigPart, * pAigTemp;
    Vec_Int_t * vPart;
    Vec_Ptr_t * vParts;
    Aig_Obj_t * pObj;
    void ** ppData;
    int i, k;

    // partition the outputs of the AIG
    vParts = Aig_ManPartitionNaive( pAig, nPartSize );

    // start the equivalence classes
    Aig_ManReprStart( pAig, Aig_ManObjNumMax(pAig) );

    // set the PI numbers
    Aig_ManSetCioIds( pAig );

    // create the total fraiged AIG
    Vec_PtrForEachEntry( Vec_Int_t *, vParts, vPart, i )
    {
        // derive the partition AIG
        pAigPart = Aig_ManDupPartAll( pAig, vPart );
        // store contents of pData pointers
        ppData = ABC_ALLOC( void *, Aig_ManObjNumMax(pAigPart) );
        Aig_ManForEachObj( pAigPart, pObj, k )
            ppData[k] = pObj->pData;
        // report the process
        if ( fVerbose )
        printf( "Part %4d  (out of %4d)  PI = %5d. PO = %5d. And = %6d. Lev = %4d.\r",
            i+1, Vec_PtrSize(vParts), Aig_ManCiNum(pAigPart), Aig_ManCoNum(pAigPart),
            Aig_ManNodeNum(pAigPart), Aig_ManLevelNum(pAigPart) );
        // compute equivalence classes (to be stored in pNew->pReprs)
        pAigTemp = Fra_FraigChoice( pAigPart, nConfMax, nLevelMax );
        Aig_ManStop( pAigTemp );
        // reset the pData pointers
        Aig_ManForEachObj( pAigPart, pObj, k )
            pObj->pData = ppData[k];
        ABC_FREE( ppData );
        // transfer representatives to the total AIG
        if ( pAigPart->pReprs )
            Aig_ManTransferRepr( pAig, pAigPart );
        Aig_ManStop( pAigPart );
    }
    if ( fVerbose )
    printf( "                                                                                          \r" );
    Vec_VecFree( (Vec_Vec_t *)vParts );

    // clear the PI numbers
    Aig_ManCleanCioIds( pAig );

    // derive the result of choicing
    return Aig_ManDupRepr( pAig, 0 );
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Aig_ManMiterPartitioned()

Vec_Ptr_t * Aig_ManMiterPartitioned	(	Aig_Man_t *	p1,
		Aig_Man_t *	p2,
		int	nPartSize,
		int	fSmart )

Function*************************************************************

Synopsis [Create partitioned miter of the two AIGs.]

Description [Assumes that each output in the second AIG cannot have more supp vars than the same output in the first AIG.]

SideEffects []

SeeAlso []

Definition at line 1189 of file aigPart.c.

{
    Aig_Man_t * pNew;
    Aig_Obj_t * pMiter;
    Vec_Ptr_t * vMiters, * vNodes1, * vNodes2;
    Vec_Ptr_t * vParts, * vPartSupps;
    Vec_Int_t * vPart, * vPartSupp;
    int i, k;
    // partition the first manager
    if ( fSmart )
        vParts = Aig_ManPartitionSmart( p1, nPartSize, 0, &vPartSupps );
    else
    {
        vParts = Aig_ManPartitionNaive( p1, nPartSize );
        vPartSupps = Aig_ManSupportNodes( p1, vParts );
    }
    // derive miters
    vMiters = Vec_PtrAlloc( Vec_PtrSize(vParts) );
    for ( i = 0; i < Vec_PtrSize(vParts); i++ )
    {
        // get partition and its support
        vPart     = (Vec_Int_t *)Vec_PtrEntry( vParts, i );
        vPartSupp = (Vec_Int_t *)Vec_PtrEntry( vPartSupps, i );
        // create the new miter
        pNew = Aig_ManStart( 1000 );
        // create the PIs
        for ( k = 0; k < Vec_IntSize(vPartSupp); k++ )
            Aig_ObjCreateCi( pNew );
        // copy the components
        vNodes1 = Aig_ManDupPart( pNew, p1, vPart, vPartSupp, 0 );
        vNodes2 = Aig_ManDupPart( pNew, p2, vPart, vPartSupp, 0 );
        // create the miter
        pMiter = Aig_MiterTwo( pNew, vNodes1, vNodes2 );
        Vec_PtrFree( vNodes1 );
        Vec_PtrFree( vNodes2 );
        // create the output
        Aig_ObjCreateCo( pNew, pMiter );
        // clean up
        Aig_ManCleanup( pNew );
        Vec_PtrPush( vMiters, pNew );
    }
    Vec_VecFree( (Vec_Vec_t *)vParts );
    Vec_VecFree( (Vec_Vec_t *)vPartSupps );
    return vMiters;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Aig_ManPartitionCompact()

void Aig_ManPartitionCompact	(	Vec_Ptr_t *	vPartsAll,
		Vec_Ptr_t *	vPartSuppsAll,
		int	nSuppSizeLimit )

Function*************************************************************

Synopsis [Perform the smart partitioning.]

Description []

SideEffects []

SeeAlso []

Definition at line 614 of file aigPart.c.

{
    Vec_Int_t * vOne, * vPart, * vPartSupp, * vTemp;
    int i, iPart;

    if ( nSuppSizeLimit == 0 )
        nSuppSizeLimit = 200;

    // pack smaller partitions into larger blocks
    iPart = 0;
    vPart = vPartSupp = NULL;
    Vec_PtrForEachEntry( Vec_Int_t *, vPartSuppsAll, vOne, i )
    {
        if ( Vec_IntSize(vOne) < nSuppSizeLimit )
        {
            if ( vPartSupp == NULL )
            {
                assert( vPart == NULL );
                vPartSupp = Vec_IntDup(vOne);
                vPart = (Vec_Int_t *)Vec_PtrEntry(vPartsAll, i);
            }
            else
            {
                vPartSupp = Vec_IntTwoMerge( vTemp = vPartSupp, vOne );
                Vec_IntFree( vTemp );
                vPart = Vec_IntTwoMerge( vTemp = vPart, (Vec_Int_t *)Vec_PtrEntry(vPartsAll, i) );
                Vec_IntFree( vTemp );
                Vec_IntFree( (Vec_Int_t *)Vec_PtrEntry(vPartsAll, i) );
            }
            if ( Vec_IntSize(vPartSupp) < nSuppSizeLimit )
                continue;
        }
        else
            vPart = (Vec_Int_t *)Vec_PtrEntry(vPartsAll, i);
        // add the partition
        Vec_PtrWriteEntry( vPartsAll, iPart, vPart );
        vPart = NULL;
        if ( vPartSupp )
        {
            Vec_IntFree( (Vec_Int_t *)Vec_PtrEntry(vPartSuppsAll, iPart) );
            Vec_PtrWriteEntry( vPartSuppsAll, iPart, vPartSupp );
            vPartSupp = NULL;
        }
        iPart++;
    }
    // add the last one
    if ( vPart )
    {
        Vec_PtrWriteEntry( vPartsAll, iPart, vPart );
        vPart = NULL;

        assert( vPartSupp != NULL );
        Vec_IntFree( (Vec_Int_t *)Vec_PtrEntry(vPartSuppsAll, iPart) );
        Vec_PtrWriteEntry( vPartSuppsAll, iPart, vPartSupp );
        vPartSupp = NULL;
        iPart++;
    }
    Vec_PtrShrink( vPartsAll, iPart );
    Vec_PtrShrink( vPartsAll, iPart );
}

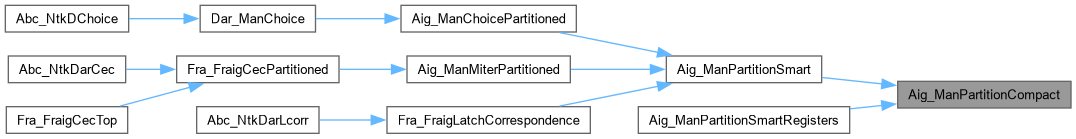

Here is the caller graph for this function:

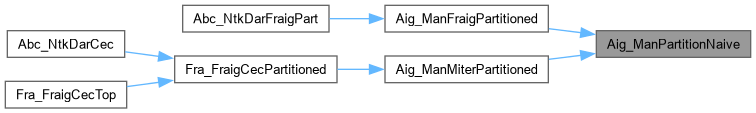

◆ Aig_ManPartitionNaive()

Vec_Ptr_t * Aig_ManPartitionNaive	(	Aig_Man_t *	p,
		int	nPartSize )

Function*************************************************************

Synopsis [Perform the naive partitioning.]

Description []

SideEffects []

SeeAlso []

Definition at line 941 of file aigPart.c.

{
    Vec_Ptr_t * vParts;
    Aig_Obj_t * pObj;
    int nParts, i;
    nParts = (Aig_ManCoNum(p) / nPartSize) + ((Aig_ManCoNum(p) % nPartSize) > 0);
    vParts = (Vec_Ptr_t *)Vec_VecStart( nParts );
    Aig_ManForEachCo( p, pObj, i )
        Vec_IntPush( (Vec_Int_t *)Vec_PtrEntry(vParts, i / nPartSize), i );
    return vParts;
}

Here is the caller graph for this function:

◆ Aig_ManPartitionPrint()

void Aig_ManPartitionPrint	(	Aig_Man_t *	p,
		Vec_Ptr_t *	vPartsAll,
		Vec_Ptr_t *	vPartSuppsAll )

Function*************************************************************

Synopsis [Perform the smart partitioning.]

Description []

SideEffects []

SeeAlso []

Definition at line 585 of file aigPart.c.

{
    Vec_Int_t * vOne;
    int i, nOutputs, Counter;

    Counter = 0;
    Vec_PtrForEachEntry( Vec_Int_t *, vPartSuppsAll, vOne, i )
    {
        nOutputs = Vec_IntSize((Vec_Int_t *)Vec_PtrEntry(vPartsAll, i));
        printf( "%d=(%d,%d) ", i, Vec_IntSize(vOne), nOutputs );
        Counter += nOutputs;
        if ( i == Vec_PtrSize(vPartsAll) - 1 )
            break;
    }
    assert( Counter == Aig_ManCoNum(p) );
//    printf( "\nTotal = %d. Outputs = %d.\n", Counter, Aig_ManCoNum(p) );
}

◆ Aig_ManPartitionSmart()

Vec_Ptr_t * Aig_ManPartitionSmart	(	Aig_Man_t *	p,
		int	nSuppSizeLimit,
		int	fVerbose,
		Vec_Ptr_t **	pvPartSupps )

Function*************************************************************

Synopsis [Perform the smart partitioning.]

Description []

SideEffects []

SeeAlso []

Definition at line 686 of file aigPart.c.

{
    Vec_Ptr_t * vPartSuppsBit;
    Vec_Ptr_t * vSupports, * vPartsAll, * vPartsAll2, * vPartSuppsAll;//, * vPartPtr;
    Vec_Int_t * vOne, * vPart, * vPartSupp, * vTemp;
    int i, iPart, iOut;
    abctime clk;

    // compute the supports for all outputs
clk = Abc_Clock();
    vSupports = Aig_ManSupports( p );
if ( fVerbose )
{
ABC_PRT( "Supps", Abc_Clock() - clk );
}
    // start char-based support representation
    vPartSuppsBit = Vec_PtrAlloc( 1000 );

    // create partitions
clk = Abc_Clock();
    vPartsAll = Vec_PtrAlloc( 256 );
    vPartSuppsAll = Vec_PtrAlloc( 256 );
    Vec_PtrForEachEntry( Vec_Int_t *, vSupports, vOne, i )
    {
        // get the output number
        iOut = Vec_IntPop(vOne);
        // find closely matching part
        iPart = Aig_ManPartitionSmartFindPart( vPartSuppsAll, vPartsAll, vPartSuppsBit, nSuppSizeLimit, vOne );
        if ( iPart == -1 )
        {
            // create new partition
            vPart = Vec_IntAlloc( 32 );
            Vec_IntPush( vPart, iOut );
            // create new partition support
            vPartSupp = Vec_IntDup( vOne );
            // add this partition and its support
            Vec_PtrPush( vPartsAll, vPart );
            Vec_PtrPush( vPartSuppsAll, vPartSupp );

            Vec_PtrPush( vPartSuppsBit, Aig_ManSuppCharStart(vOne, Aig_ManCiNum(p)) );
        }
        else
        {
            // add output to this partition
            vPart = (Vec_Int_t *)Vec_PtrEntry( vPartsAll, iPart );
            Vec_IntPush( vPart, iOut );
            // merge supports
            vPartSupp = (Vec_Int_t *)Vec_PtrEntry( vPartSuppsAll, iPart );
            vPartSupp = Vec_IntTwoMerge( vTemp = vPartSupp, vOne );
            Vec_IntFree( vTemp );
            // reinsert new support
            Vec_PtrWriteEntry( vPartSuppsAll, iPart, vPartSupp );

            Aig_ManSuppCharAdd( (unsigned *)Vec_PtrEntry(vPartSuppsBit, iPart), vOne, Aig_ManCiNum(p) );
        }
    }

    // stop char-based support representation
    Vec_PtrForEachEntry( Vec_Int_t *, vPartSuppsBit, vTemp, i )
        ABC_FREE( vTemp );
    Vec_PtrFree( vPartSuppsBit );

//printf( "\n" );
if ( fVerbose )
{
ABC_PRT( "Parts", Abc_Clock() - clk );
}

clk = Abc_Clock();
    // reorder partitions in the decreasing order of support sizes
    // remember partition number in each partition support
    Vec_PtrForEachEntry( Vec_Int_t *, vPartSuppsAll, vOne, i )
        Vec_IntPush( vOne, i );
    // sort the supports in the decreasing order
    Vec_VecSort( (Vec_Vec_t *)vPartSuppsAll, 1 );
    // reproduce partitions
    vPartsAll2 = Vec_PtrAlloc( 256 );
    Vec_PtrForEachEntry( Vec_Int_t *, vPartSuppsAll, vOne, i )
        Vec_PtrPush( vPartsAll2, Vec_PtrEntry(vPartsAll, Vec_IntPop(vOne)) );
    Vec_PtrFree( vPartsAll );
    vPartsAll = vPartsAll2;

    // compact small partitions
//    Aig_ManPartitionPrint( p, vPartsAll, vPartSuppsAll );
    Aig_ManPartitionCompact( vPartsAll, vPartSuppsAll, nSuppSizeLimit );
    if ( fVerbose )
//    Aig_ManPartitionPrint( p, vPartsAll, vPartSuppsAll );
    printf( "Created %d partitions.\n", Vec_PtrSize(vPartsAll) );

if ( fVerbose )
{
//ABC_PRT( "Comps", Abc_Clock() - clk );
}

    // cleanup
    Vec_VecFree( (Vec_Vec_t *)vSupports );
    if ( pvPartSupps == NULL )
        Vec_VecFree( (Vec_Vec_t *)vPartSuppsAll );
    else
        *pvPartSupps = vPartSuppsAll;
/*
    // converts from intergers to nodes
    Vec_PtrForEachEntry( Vec_Int_t *, vPartsAll, vPart, iPart )
    {
        vPartPtr = Vec_PtrAlloc( Vec_IntSize(vPart) );
        Vec_IntForEachEntry( vPart, iOut, i )
            Vec_PtrPush( vPartPtr, Aig_ManCo(p, iOut) );
        Vec_IntFree( vPart );
        Vec_PtrWriteEntry( vPartsAll, iPart, vPartPtr );
    }
*/
    return vPartsAll;
}

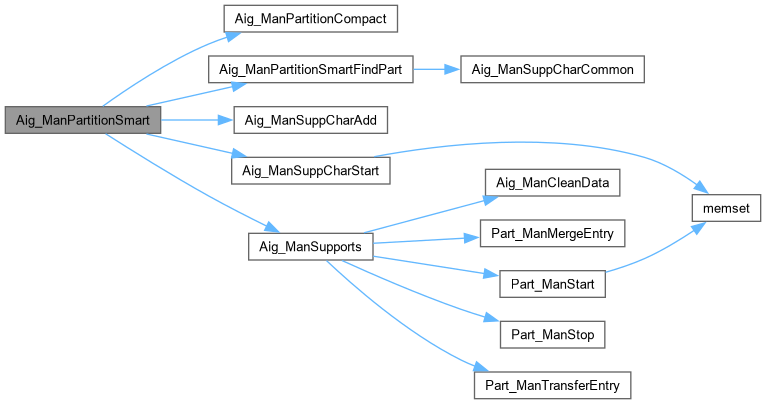

Here is the call graph for this function:

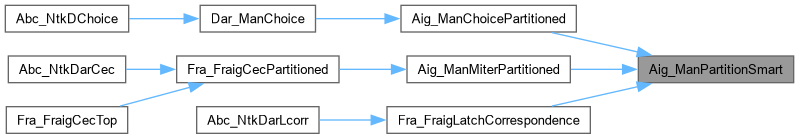

Here is the caller graph for this function:

◆ Aig_ManPartitionSmartFindPart()

int Aig_ManPartitionSmartFindPart	(	Vec_Ptr_t *	vPartSuppsAll,
		Vec_Ptr_t *	vPartsAll,
		Vec_Ptr_t *	vPartSuppsBit,
		int	nSuppSizeLimit,
		Vec_Int_t *	vOne )

Function*************************************************************

Synopsis [Find the best partition.]

Description []

SideEffects []

SeeAlso []

Definition at line 536 of file aigPart.c.

{
    Vec_Int_t * vPartSupp;//, * vPart;
    int Attract, Repulse, Value, ValueBest;
    int i, nCommon, iBest;
    iBest = -1;
    ValueBest = 0;
    Vec_PtrForEachEntry( Vec_Int_t *, vPartSuppsAll, vPartSupp, i )
    {
//        vPart = Vec_PtrEntry( vPartsAll, i );
//        if ( nSuppSizeLimit > 0 && Vec_IntSize(vPart) >= nSuppSizeLimit )
//            continue;
//        nCommon = Vec_IntTwoCountCommon( vPartSupp, vOne );
        nCommon = Aig_ManSuppCharCommon( (unsigned *)Vec_PtrEntry(vPartSuppsBit, i), vOne );
        if ( nCommon == 0 )
            continue;
        if ( nCommon == Vec_IntSize(vOne) )
            return i;
        // skip partitions whose size exceeds the limit
        if ( nSuppSizeLimit > 0 && Vec_IntSize(vPartSupp) >= 2 * nSuppSizeLimit )
            continue;
        Attract = 1000 * nCommon / Vec_IntSize(vOne);
        if ( Vec_IntSize(vPartSupp) < 100 )
            Repulse = 1;
        else
            Repulse = 1+Abc_Base2Log(Vec_IntSize(vPartSupp)-100);
        Value = Attract/Repulse;
        if ( ValueBest < Value )
        {
            ValueBest = Value;
            iBest = i;
        }
    }
    if ( ValueBest < 75 )
        return -1;
    return iBest;
}

Here is the call graph for this function:

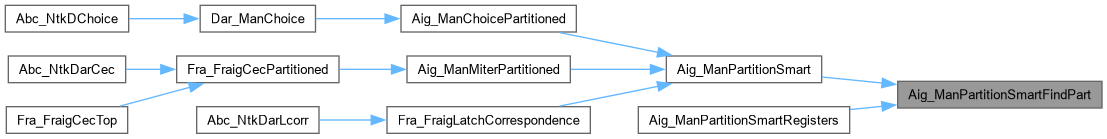

Here is the caller graph for this function:

◆ Aig_ManPartitionSmartRegisters()

Vec_Ptr_t * Aig_ManPartitionSmartRegisters	(	Aig_Man_t *	pAig,
		int	nSuppSizeLimit,
		int	fVerbose )

Function*************************************************************

Synopsis [Perform the smart partitioning.]

Description []

SideEffects []

SeeAlso []

Definition at line 811 of file aigPart.c.

{
    Vec_Ptr_t * vPartSuppsBit;
    Vec_Ptr_t * vSupports, * vPartsAll, * vPartsAll2, * vPartSuppsAll;
    Vec_Int_t * vOne, * vPart, * vPartSupp, * vTemp;
    int i, iPart, iOut;
    abctime clk;

    // add output number to each
clk = Abc_Clock();
    vSupports = Aig_ManSupportsRegisters( pAig );
    assert( Vec_PtrSize(vSupports) == Aig_ManRegNum(pAig) );
    Vec_PtrForEachEntry( Vec_Int_t *, vSupports, vOne, i )
        Vec_IntPush( vOne, i );
if ( fVerbose )
{
ABC_PRT( "Supps", Abc_Clock() - clk );
}

    // start char-based support representation
    vPartSuppsBit = Vec_PtrAlloc( 1000 );

    // create partitions
clk = Abc_Clock();
    vPartsAll = Vec_PtrAlloc( 256 );
    vPartSuppsAll = Vec_PtrAlloc( 256 );
    Vec_PtrForEachEntry( Vec_Int_t *, vSupports, vOne, i )
    {
        // get the output number
        iOut = Vec_IntPop(vOne);
        // find closely matching part
        iPart = Aig_ManPartitionSmartFindPart( vPartSuppsAll, vPartsAll, vPartSuppsBit, nSuppSizeLimit, vOne );
        if ( iPart == -1 )
        {
            // create new partition
            vPart = Vec_IntAlloc( 32 );
            Vec_IntPush( vPart, iOut );
            // create new partition support
            vPartSupp = Vec_IntDup( vOne );
            // add this partition and its support
            Vec_PtrPush( vPartsAll, vPart );
            Vec_PtrPush( vPartSuppsAll, vPartSupp );

            Vec_PtrPush( vPartSuppsBit, Aig_ManSuppCharStart(vOne, Vec_PtrSize(vSupports)) );
        }
        else
        {
            // add output to this partition
            vPart = (Vec_Int_t *)Vec_PtrEntry( vPartsAll, iPart );
            Vec_IntPush( vPart, iOut );
            // merge supports
            vPartSupp = (Vec_Int_t *)Vec_PtrEntry( vPartSuppsAll, iPart );
            vPartSupp = Vec_IntTwoMerge( vTemp = vPartSupp, vOne );
            Vec_IntFree( vTemp );
            // reinsert new support
            Vec_PtrWriteEntry( vPartSuppsAll, iPart, vPartSupp );

            Aig_ManSuppCharAdd( (unsigned *)Vec_PtrEntry(vPartSuppsBit, iPart), vOne, Vec_PtrSize(vSupports) );
        }
    }

    // stop char-based support representation
    Vec_PtrForEachEntry( Vec_Int_t *, vPartSuppsBit, vTemp, i )
        ABC_FREE( vTemp );
    Vec_PtrFree( vPartSuppsBit );

//printf( "\n" );
if ( fVerbose )
{
ABC_PRT( "Parts", Abc_Clock() - clk );
}

clk = Abc_Clock();
    // reorder partitions in the decreasing order of support sizes
    // remember partition number in each partition support
    Vec_PtrForEachEntry( Vec_Int_t *, vPartSuppsAll, vOne, i )
        Vec_IntPush( vOne, i );
    // sort the supports in the decreasing order
    Vec_VecSort( (Vec_Vec_t *)vPartSuppsAll, 1 );
    // reproduce partitions
    vPartsAll2 = Vec_PtrAlloc( 256 );
    Vec_PtrForEachEntry( Vec_Int_t *, vPartSuppsAll, vOne, i )
        Vec_PtrPush( vPartsAll2, Vec_PtrEntry(vPartsAll, Vec_IntPop(vOne)) );
    Vec_PtrFree( vPartsAll );
    vPartsAll = vPartsAll2;

    // compact small partitions
//    Aig_ManPartitionPrint( p, vPartsAll, vPartSuppsAll );
    Aig_ManPartitionCompact( vPartsAll, vPartSuppsAll, nSuppSizeLimit );
    if ( fVerbose )
//    Aig_ManPartitionPrint( p, vPartsAll, vPartSuppsAll );
    printf( "Created %d partitions.\n", Vec_PtrSize(vPartsAll) );

if ( fVerbose )
{
//ABC_PRT( "Comps", Abc_Clock() - clk );
}

    // cleanup
    Vec_VecFree( (Vec_Vec_t *)vSupports );
//    if ( pvPartSupps == NULL )
        Vec_VecFree( (Vec_Vec_t *)vPartSuppsAll );
//    else
//        *pvPartSupps = vPartSuppsAll;

/*
    // converts from intergers to nodes
    Vec_PtrForEachEntry( Vec_Int_t *, vPartsAll, vPart, iPart )
    {
        vPartPtr = Vec_PtrAlloc( Vec_IntSize(vPart) );
        Vec_IntForEachEntry( vPart, iOut, i )
            Vec_PtrPush( vPartPtr, Aig_ManCo(p, iOut) );
        Vec_IntFree( vPart );
        Vec_PtrWriteEntry( vPartsAll, iPart, vPartPtr );
    }
*/
    return vPartsAll;
}

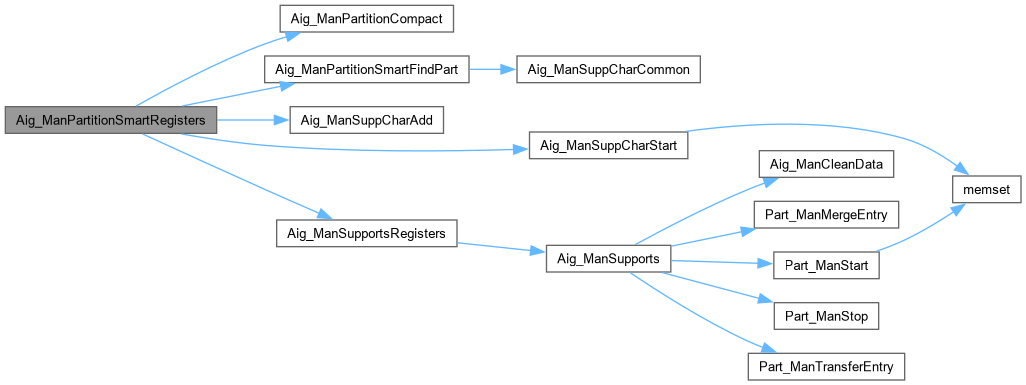

Here is the call graph for this function:

◆ Aig_ManSuppCharAdd()

void Aig_ManSuppCharAdd	(	unsigned *	pBuffer,
		Vec_Int_t *	vOne,
		int	nPis )

Function*************************************************************

Synopsis [Add to char-bases support representation.]

Description []

SideEffects []

SeeAlso []

Definition at line 496 of file aigPart.c.

{
    int i, Entry;
    Vec_IntForEachEntry( vOne, Entry, i )
    {
        assert( Entry < nPis );
        Abc_InfoSetBit( pBuffer, Entry );
    }
}

Here is the caller graph for this function:

◆ Aig_ManSuppCharCommon()

int Aig_ManSuppCharCommon	(	unsigned *	pBuffer,
		Vec_Int_t *	vOne )

Function*************************************************************

Synopsis [Find the common variables using char-bases support representation.]

Description []

SideEffects []

SeeAlso []

Definition at line 517 of file aigPart.c.

{
    int i, Entry, nCommon = 0;
    Vec_IntForEachEntry( vOne, Entry, i )
        nCommon += Abc_InfoHasBit(pBuffer, Entry);
    return nCommon;
}

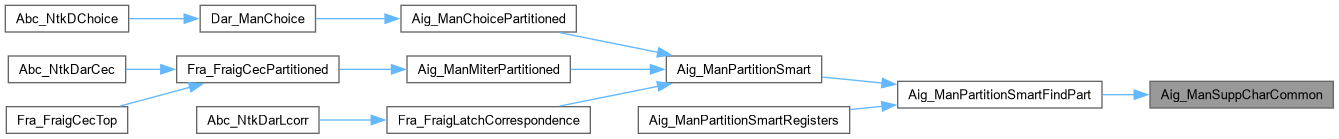

Here is the caller graph for this function:

◆ Aig_ManSuppCharStart()

unsigned * Aig_ManSuppCharStart	(	Vec_Int_t *	vOne,
		int	nPis )

Function*************************************************************

Synopsis [Start char-bases support representation.]

Description []

SideEffects []

SeeAlso []

Definition at line 470 of file aigPart.c.

{
    unsigned * pBuffer;
    int i, Entry;
    int nWords = Abc_BitWordNum(nPis);
    pBuffer = ABC_ALLOC( unsigned, nWords );
    memset( pBuffer, 0, sizeof(unsigned) * nWords );
    Vec_IntForEachEntry( vOne, Entry, i )
    {
        assert( Entry < nPis );
        Abc_InfoSetBit( pBuffer, Entry );
    }
    return pBuffer;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Aig_ManSupportNodes()

Vec_Ptr_t * Aig_ManSupportNodes	(	Aig_Man_t *	p,
		Vec_Ptr_t *	vParts )

Function*************************************************************

Synopsis [Collects internal nodes and PIs in the DFS order.]

Description []

SideEffects []

SeeAlso []

Definition at line 1156 of file aigPart.c.

{
    Vec_Ptr_t * vPartSupps;
    Vec_Int_t * vPart, * vSupport;
    int i, k, iOut;
    Aig_ManSetCioIds( p );
    vPartSupps = Vec_PtrAlloc( Vec_PtrSize(vParts) );
    Vec_PtrForEachEntry( Vec_Int_t *, vParts, vPart, i )
    {
        vSupport = Vec_IntAlloc( 100 );
        Aig_ManIncrementTravId( p );
        Aig_ObjSetTravIdCurrent( p, Aig_ManConst1(p) );
        Vec_IntForEachEntry( vPart, iOut, k )
            Aig_ManSupportNodes_rec( p, Aig_ObjFanin0(Aig_ManCo(p, iOut)), vSupport );
//        Vec_IntSort( vSupport, 0 );
        Vec_PtrPush( vPartSupps, vSupport );
    }
    Aig_ManCleanCioIds( p );
    return vPartSupps;
}

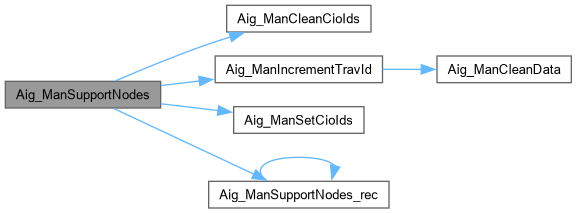

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Aig_ManSupportNodes_rec()

void Aig_ManSupportNodes_rec	(	Aig_Man_t *	p,
		Aig_Obj_t *	pObj,
		Vec_Int_t *	vSupport )

Function*************************************************************

Synopsis [Collects internal nodes in the DFS order.]

Description []

SideEffects []

SeeAlso []

Definition at line 1131 of file aigPart.c.

{
    if ( Aig_ObjIsTravIdCurrent(p, pObj) )
        return;
    Aig_ObjSetTravIdCurrent(p, pObj);
    if ( Aig_ObjIsCi(pObj) )
    {
        Vec_IntPush( vSupport, Aig_ObjCioId(pObj) );
        return;
    }
    Aig_ManSupportNodes_rec( p, Aig_ObjFanin0(pObj), vSupport );
    Aig_ManSupportNodes_rec( p, Aig_ObjFanin1(pObj), vSupport );
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Aig_ManSupports()

Vec_Ptr_t * Aig_ManSupports ( Aig_Man_t * pMan )

Function*************************************************************

Synopsis [Computes supports of the POs in the multi-output AIG.]

Description [Returns the array of integer arrays containing indices of the primary inputs for each primary output.]

SideEffects [Adds the integer PO number at end of each array.]

SeeAlso []

Definition at line 273 of file aigPart.c.

{
    Vec_Ptr_t * vSupports;
    Vec_Int_t * vSupp;
    Part_Man_t * p;
    Part_One_t * pPart0, * pPart1;
    Aig_Obj_t * pObj;
    int i, Counter = 0;
    // set the number of PIs/POs
    Aig_ManForEachCi( pMan, pObj, i )
        pObj->pNext = (Aig_Obj_t *)(long)i;
    Aig_ManForEachCo( pMan, pObj, i )
        pObj->pNext = (Aig_Obj_t *)(long)i;
    // start the support computation manager
    p = Part_ManStart( 1 << 20, 1 << 6 );
    // consider objects in the topological order
    vSupports = Vec_PtrAlloc( Aig_ManCoNum(pMan) );
    Aig_ManCleanData(pMan);
    Aig_ManForEachObj( pMan, pObj, i )
    {
        if ( Aig_ObjIsNode(pObj) )
        {
            pPart0 = (Part_One_t *)Aig_ObjFanin0(pObj)->pData;
            pPart1 = (Part_One_t *)Aig_ObjFanin1(pObj)->pData;
            pObj->pData = Part_ManMergeEntry( p, pPart0, pPart1, pObj->nRefs );
            assert( pPart0->nRefs > 0 );
            if ( --pPart0->nRefs == 0 )
                Part_ManRecycleEntry( p, pPart0 );
            assert( pPart1->nRefs > 0 );
            if ( --pPart1->nRefs == 0 )
                Part_ManRecycleEntry( p, pPart1 );
            if ( ((Part_One_t *)pObj->pData)->nOuts <= 16 )
                Counter++;
            continue;
        }
        if ( Aig_ObjIsCo(pObj) )
        {
            pPart0 = (Part_One_t *)Aig_ObjFanin0(pObj)->pData;
            vSupp = Part_ManTransferEntry(pPart0);
            Vec_IntPush( vSupp, (int)(long)pObj->pNext );
            Vec_PtrPush( vSupports, vSupp );
            assert( pPart0->nRefs > 0 );
            if ( --pPart0->nRefs == 0 )
                Part_ManRecycleEntry( p, pPart0 );
            continue;
        }
        if ( Aig_ObjIsCi(pObj) )
        {
            if ( pObj->nRefs )
            {
                pPart0 = Part_ManFetchEntry( p, 1, pObj->nRefs );
                pPart0->pOuts[ pPart0->nOuts++ ] = (int)(long)pObj->pNext;
                pObj->pData = pPart0;
            }
            continue;
        }
        if ( Aig_ObjIsConst1(pObj) )
        {
            if ( pObj->nRefs )
                pObj->pData = Part_ManFetchEntry( p, 0, pObj->nRefs );
            continue;
        }
        assert( 0 );
    }
//printf( "Memory usage = %d MB.\n", Vec_PtrSize(p->vMemory) * p->nChunkSize / (1<<20) );
    Part_ManStop( p );
    // sort supports by size
    Vec_VecSort( (Vec_Vec_t *)vSupports, 1 );
    // clear the number of PIs/POs
    Aig_ManForEachCi( pMan, pObj, i )
        pObj->pNext = NULL;
    Aig_ManForEachCo( pMan, pObj, i )
        pObj->pNext = NULL;
/*
    Aig_ManForEachCo( pMan, pObj, i )
        printf( "%d ", Vec_IntSize( Vec_VecEntryInt(vSupports, i) ) );
    printf( "\n" );
*/
//    printf( "%d \n", Counter );
    return vSupports;
}

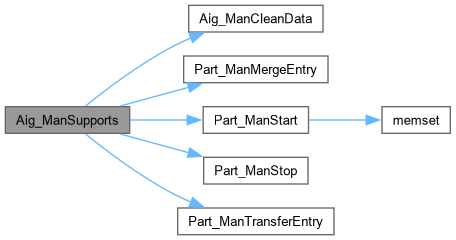

Here is the call graph for this function:

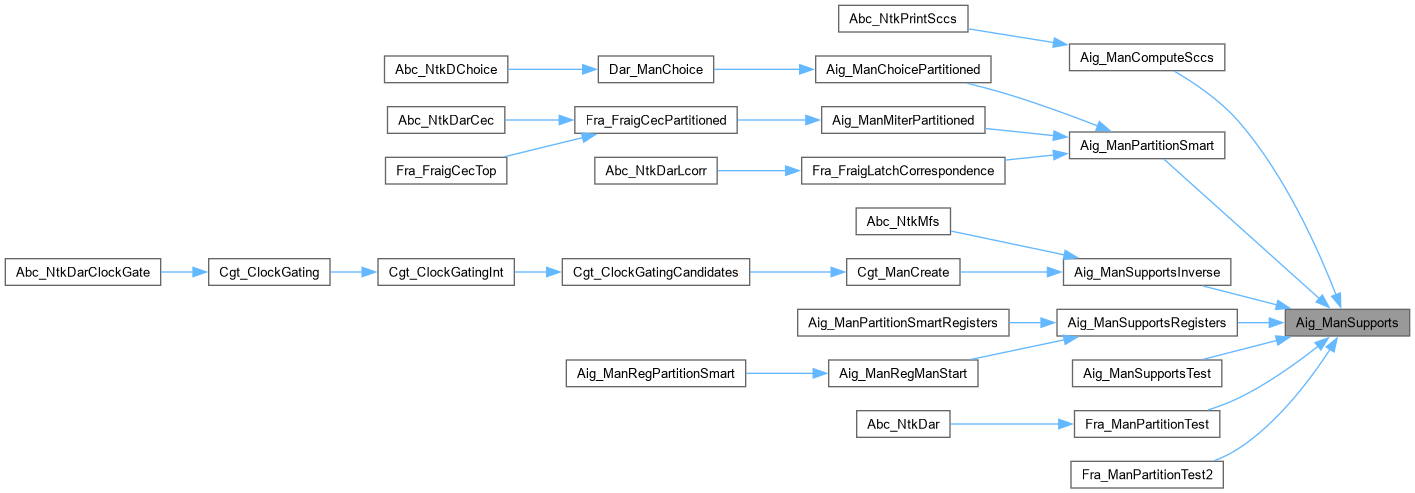

Here is the caller graph for this function:

◆ Aig_ManSupportsInverse()

Vec_Ptr_t * Aig_ManSupportsInverse ( Aig_Man_t * p )

Function*************************************************************

Synopsis [Computes the set of outputs for each input.]

Description [Returns the array of integer arrays containing indices of the primary outputsf for each primary input.]

SideEffects []

SeeAlso []

Definition at line 385 of file aigPart.c.

{
    Vec_Ptr_t * vSupps, * vSuppsInv;
    Vec_Int_t * vSupp;
    int i, k, iIn, iOut;
    // get structural supports for each output
    vSupps = Aig_ManSupports( p );
    // start the inverse supports
    vSuppsInv = Vec_PtrAlloc( Aig_ManCiNum(p) );
    for ( i = 0; i < Aig_ManCiNum(p); i++ )
        Vec_PtrPush( vSuppsInv, Vec_IntAlloc(8) );
    // transforms the supports into the inverse supports
    Vec_PtrForEachEntry( Vec_Int_t *, vSupps, vSupp, i )
    {
        iOut = Vec_IntPop( vSupp );
        Vec_IntForEachEntry( vSupp, iIn, k )
            Vec_IntPush( (Vec_Int_t *)Vec_PtrEntry(vSuppsInv, iIn), iOut );
    }
    Vec_VecFree( (Vec_Vec_t *)vSupps );
    return vSuppsInv;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Aig_ManSupportsRegisters()

Vec_Ptr_t * Aig_ManSupportsRegisters ( Aig_Man_t * p )

Function*************************************************************

Synopsis [Returns the register dependency matrix.]

Description []

SideEffects []

SeeAlso []

Definition at line 418 of file aigPart.c.

{
    Vec_Ptr_t * vSupports, * vMatrix;
    Vec_Int_t * vSupp;
    int iOut, iIn, k, m, i;
    // get structural supports for each output
    vSupports = Aig_ManSupports( p );
    // transforms the supports into the latch dependency matrix
    vMatrix = Vec_PtrStart( Aig_ManRegNum(p) );
    Vec_PtrForEachEntry( Vec_Int_t *, vSupports, vSupp, i )
    {
        // skip true POs
        iOut = Vec_IntPop( vSupp );
        iOut -= Aig_ManCoNum(p) - Aig_ManRegNum(p);
        if ( iOut < 0 )
        {
            Vec_IntFree( vSupp );
            continue;
        }
        // remove PIs
        m = 0;
        Vec_IntForEachEntry( vSupp, iIn, k )
        {
            iIn -= Aig_ManCiNum(p) - Aig_ManRegNum(p);
            if ( iIn < 0 )
                continue;
            assert( iIn < Aig_ManRegNum(p) );
            Vec_IntWriteEntry( vSupp, m++, iIn );
        }
        Vec_IntShrink( vSupp, m );
        // store support in the matrix
        assert( iOut < Aig_ManRegNum(p) );
        Vec_PtrWriteEntry( vMatrix, iOut, vSupp );
    }
    Vec_PtrFree( vSupports );
    // check that all supports are used
    Vec_PtrForEachEntry( Vec_Int_t *, vMatrix, vSupp, i )
        assert( vSupp != NULL );
    return vMatrix;
}

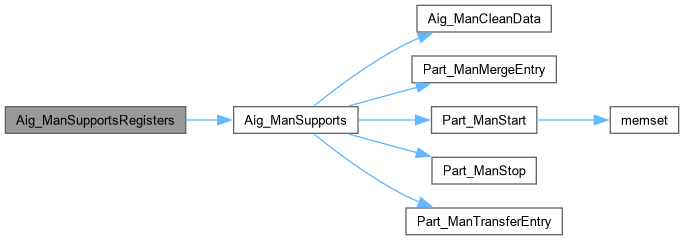

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Aig_ManSupportsTest()

void Aig_ManSupportsTest ( Aig_Man_t * pMan )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 366 of file aigPart.c.

{
    Vec_Ptr_t * vSupps;
    vSupps = Aig_ManSupports( pMan );
    Vec_VecFree( (Vec_Vec_t *)vSupps );
}

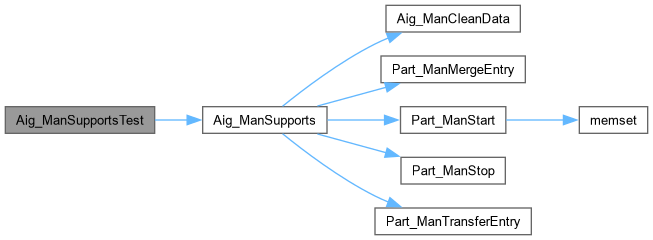

Here is the call graph for this function:

◆ Part_ManFetch()

char * Part_ManFetch	(	Part_Man_t *	p,
		int	nSize )

Function*************************************************************

Synopsis [Fetches the memory entry of the given size.]

Description []

SideEffects []

SeeAlso []

Definition at line 116 of file aigPart.c.

{
    int Type, nSizeReal;
    char * pMemory;
    assert( nSize > 0 );
    Type = Part_SizeType( nSize, p->nStepSize );
    Vec_PtrFillExtra( p->vFree, Type + 1, NULL );
    if ( (pMemory = (char *)Vec_PtrEntry( p->vFree, Type )) )
    {
        Vec_PtrWriteEntry( p->vFree, Type, Part_OneNext(pMemory) );
        return pMemory;
    }
    nSizeReal = p->nStepSize * Type;
    if ( p->nFreeSize < nSizeReal )
    {
        p->pFreeBuf = ABC_ALLOC( char, p->nChunkSize );
        p->nFreeSize = p->nChunkSize;
        Vec_PtrPush( p->vMemory, p->pFreeBuf );
    }
    assert( p->nFreeSize >= nSizeReal );
    pMemory = p->pFreeBuf;
    p->pFreeBuf  += nSizeReal;
    p->nFreeSize -= nSizeReal;
    return pMemory;
}

◆ Part_ManMergeEntry()

Part_One_t * Part_ManMergeEntry	(	Part_Man_t *	pMan,
		Part_One_t *	p1,
		Part_One_t *	p2,
		int	nRefs )

Function*************************************************************

Synopsis [Merges two entries.]

Description []

SideEffects []

SeeAlso []

Definition at line 212 of file aigPart.c.

{
    Part_One_t * p = Part_ManFetchEntry( pMan, p1->nOuts + p2->nOuts, nRefs );
    int * pBeg1 = p1->pOuts;
    int * pBeg2 = p2->pOuts;
    int * pBeg  = p->pOuts;
    int * pEnd1 = p1->pOuts + p1->nOuts;
    int * pEnd2 = p2->pOuts + p2->nOuts;
    while ( pBeg1 < pEnd1 && pBeg2 < pEnd2 )
    {
        if ( *pBeg1 == *pBeg2 )
            *pBeg++ = *pBeg1++, pBeg2++;
        else if ( *pBeg1 < *pBeg2 )
            *pBeg++ = *pBeg1++;
        else
            *pBeg++ = *pBeg2++;
    }
    while ( pBeg1 < pEnd1 )
        *pBeg++ = *pBeg1++;
    while ( pBeg2 < pEnd2 )
        *pBeg++ = *pBeg2++;
    p->nOuts = pBeg - p->pOuts;
    assert( p->nOuts <= p->nOutsAlloc );
    assert( p->nOuts >= p1->nOuts );
    assert( p->nOuts >= p2->nOuts );
    return p;
}

Here is the caller graph for this function:

◆ Part_ManRecycle()

void Part_ManRecycle	(	Part_Man_t *	p,
		char *	pMemory,
		int	nSize )

Function*************************************************************

Synopsis [Recycles the memory entry of the given size.]

Description []

SideEffects []

SeeAlso []

Definition at line 153 of file aigPart.c.

{
    int Type;
    Type = Part_SizeType( nSize, p->nStepSize );
    Vec_PtrFillExtra( p->vFree, Type + 1, NULL );
    Part_OneSetNext( pMemory, (char *)Vec_PtrEntry(p->vFree, Type) );
    Vec_PtrWriteEntry( p->vFree, Type, pMemory );
}

◆ Part_ManStart()

Part_Man_t * Part_ManStart	(	int	nChunkSize,
		int	nStepSize )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Start the memory manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 71 of file aigPart.c.

{
    Part_Man_t * p;
    p = ABC_ALLOC( Part_Man_t, 1 );
    memset( p, 0, sizeof(Part_Man_t) );
    p->nChunkSize = nChunkSize;
    p->nStepSize  = nStepSize;
    p->vMemory    = Vec_PtrAlloc( 1000 );
    p->vFree      = Vec_PtrAlloc( 1000 );
    return p;
}

Here is the call graph for this function:

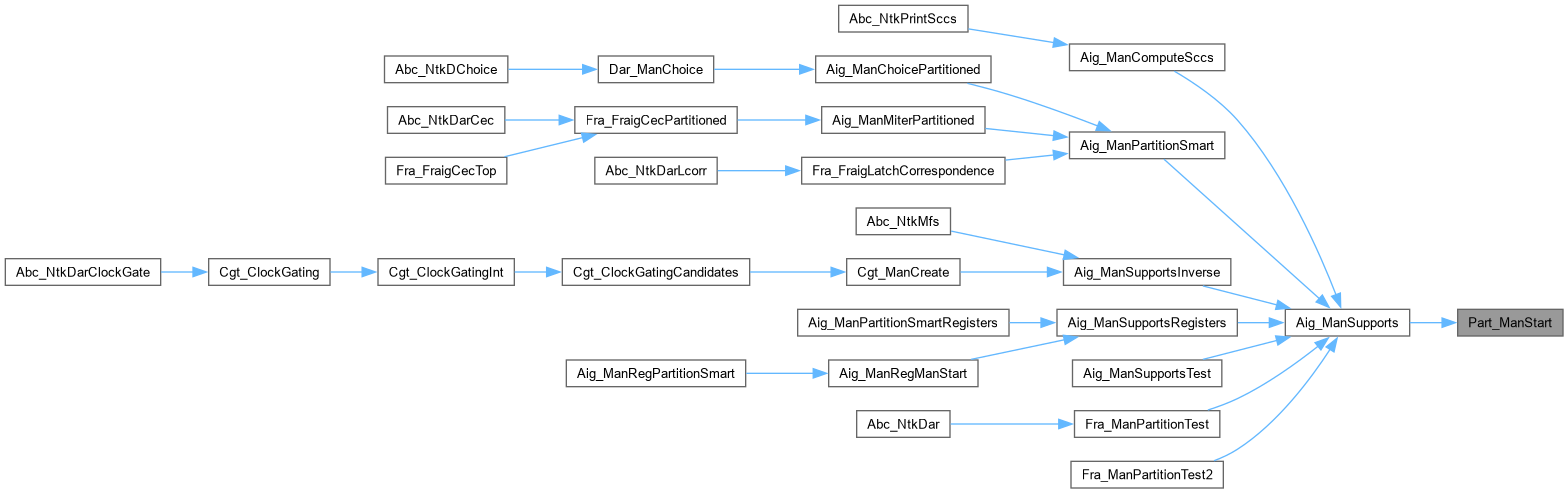

Here is the caller graph for this function:

◆ Part_ManStop()

void Part_ManStop ( Part_Man_t * p )

Function*************************************************************

Synopsis [Stops the memory manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 94 of file aigPart.c.

{
    void * pMemory;
    int i;
    Vec_PtrForEachEntry( void *, p->vMemory, pMemory, i )
        ABC_FREE( pMemory );
    Vec_PtrFree( p->vMemory );
    Vec_PtrFree( p->vFree );
    ABC_FREE( p );
}

Here is the caller graph for this function:

◆ Part_ManTransferEntry()

Vec_Int_t * Part_ManTransferEntry ( Part_One_t * p )

Function*************************************************************

Synopsis [Tranfers the entry.]

Description []

SideEffects []

SeeAlso []

Definition at line 251 of file aigPart.c.

{
    Vec_Int_t * vSupp;
    int i;
    vSupp = Vec_IntAlloc( p->nOuts );
    for ( i = 0; i < p->nOuts; i++ )
        Vec_IntPush( vSupp, p->pOuts[i] );
    return vSupp;
}

Here is the caller graph for this function:

Classes

Typedefs

Functions

Typedef Documentation

◆ Part_Man_t

◆ Part_One_t

Function Documentation

◆ Aig_ManChoiceConstructive()

◆ Aig_ManChoiceConstructiveOne()

◆ Aig_ManChoiceEval()

◆ Aig_ManChoicePartitioned()

◆ Aig_ManDupPart()

◆ Aig_ManDupPart_rec()

◆ Aig_ManDupPartAll()

◆ Aig_ManDupPartAll_rec()

◆ Aig_ManFraigPartitioned()

◆ Aig_ManMiterPartitioned()

◆ Aig_ManPartitionCompact()

◆ Aig_ManPartitionNaive()

◆ Aig_ManPartitionPrint()

◆ Aig_ManPartitionSmart()

◆ Aig_ManPartitionSmartFindPart()

◆ Aig_ManPartitionSmartRegisters()

◆ Aig_ManSuppCharAdd()

◆ Aig_ManSuppCharCommon()

◆ Aig_ManSuppCharStart()

◆ Aig_ManSupportNodes()

◆ Aig_ManSupportNodes_rec()

◆ Aig_ManSupports()

◆ Aig_ManSupportsInverse()

◆ Aig_ManSupportsRegisters()

◆ Aig_ManSupportsTest()

◆ Part_ManFetch()

◆ Part_ManMergeEntry()

◆ Part_ManRecycle()

◆ Part_ManStart()

◆ Part_ManStop()

◆ Part_ManTransferEntry()
