bacPtrAbc.c File Reference

#include "bac.h"
#include "base/abc/abc.h"
#include "map/mio/mio.h"
#include "base/main/mainInt.h"

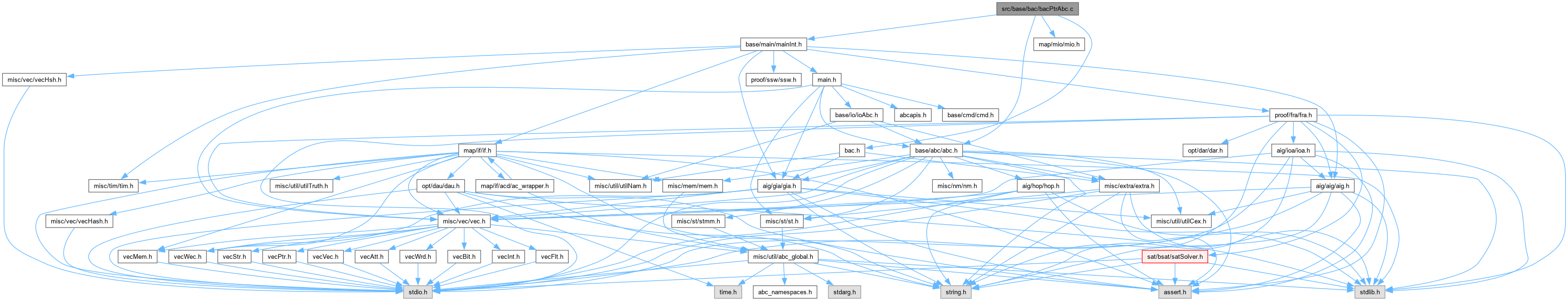

Include dependency graph for bacPtrAbc.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START char *	Ptr_HopToType (Abc_Obj_t *pObj)
	DECLARATIONS ///.
char *	Ptr_AbcObjName (Abc_Obj_t *pObj)
Vec_Ptr_t *	Ptr_AbcDeriveNode (Abc_Obj_t *pObj)
Vec_Ptr_t *	Ptr_AbcDeriveBox (Abc_Obj_t *pObj)
Vec_Ptr_t *	Ptr_AbcDeriveBoxes (Abc_Ntk_t *pNtk)
Vec_Ptr_t *	Ptr_AbcDeriveInputs (Abc_Ntk_t *pNtk)
Vec_Ptr_t *	Ptr_AbcDeriveOutputs (Abc_Ntk_t *pNtk)
Vec_Ptr_t *	Ptr_AbcDeriveNtk (Abc_Ntk_t *pNtk)
Vec_Ptr_t *	Ptr_AbcDeriveDes (Abc_Ntk_t *pNtk)
void	Ptr_ManExperiment (Abc_Ntk_t *pNtk)
int	Ptr_ManCountNtk (Vec_Ptr_t *vNtk)
int	Bac_BoxCountOutputs (Bac_Ntk_t *pNtk, char *pBoxNtk)
int	Bac_NtkDeriveFromPtr (Bac_Ntk_t *pNtk, Vec_Ptr_t *vNtk, Vec_Int_t *vMap, Vec_Int_t *vBox2Id)
Bac_Man_t *	Bac_PtrTransformToCba (Vec_Ptr_t *vDes)
Vec_Ptr_t *	Bac_NtkTransformToPtrBox (Bac_Ntk_t *p, int iBox)
Vec_Ptr_t *	Bac_NtkTransformToPtrBoxes (Bac_Ntk_t *p)
Vec_Ptr_t *	Bac_NtkTransformToPtrInputs (Bac_Ntk_t *p)
Vec_Ptr_t *	Bac_NtkTransformToPtrOutputs (Bac_Ntk_t *p)
Vec_Ptr_t *	Bac_NtkTransformToPtr (Bac_Ntk_t *p)
Vec_Ptr_t *	Bac_PtrDeriveFromCba (Bac_Man_t *p)

Function Documentation

Bac_BoxCountOutputs()

int Bac_BoxCountOutputs	(	Bac_Ntk_t *	pNtk,
		char *	pBoxNtk )

Definition at line 269 of file bacPtrAbc.c.

{
    int ModuleId = Bac_ManNtkFindId( pNtk->pDesign, pBoxNtk );
    if ( ModuleId == 0 )
        return 1;
    return Bac_NtkPoNumAlloc( Bac_ManNtk(pNtk->pDesign, ModuleId) );
}

Here is the caller graph for this function:

Bac_NtkDeriveFromPtr()

int Bac_NtkDeriveFromPtr	(	Bac_Ntk_t *	pNtk,
		Vec_Ptr_t *	vNtk,
		Vec_Int_t *	vMap,
		Vec_Int_t *	vBox2Id )

Definition at line 276 of file bacPtrAbc.c.

{
    char * pName, * pModuleName = (char *)Vec_PtrEntry(vNtk, 0);
    Vec_Ptr_t * vInputs  = (Vec_Ptr_t *)Vec_PtrEntry(vNtk, 1);
    Vec_Ptr_t * vOutputs = (Vec_Ptr_t *)Vec_PtrEntry(vNtk, 2);
    Vec_Ptr_t * vBoxes   = (Vec_Ptr_t *)Vec_PtrEntry(vNtk, 4), * vBox;
    int i, k, iObj, iTerm, NameId;
    // start network with the given name
    NameId = Abc_NamStrFindOrAdd( pNtk->pDesign->pStrs, pModuleName, NULL );
    assert( Bac_NtkNameId(pNtk) == NameId );
    // map driven NameIds into their ObjIds for PIs
    Vec_PtrForEachEntry( char *, vInputs, pName, i )
    {
        NameId = Abc_NamStrFindOrAdd( pNtk->pDesign->pStrs, pName, NULL );
        if ( Vec_IntGetEntryFull(vMap, NameId) != -1 )
            { printf( "PI with name \"%s\" is not unique module \"%s\".\n", pName, pModuleName ); return 0; }
        iObj = Bac_ObjAlloc( pNtk, BAC_OBJ_PI, -1 );
        Bac_ObjSetName( pNtk, iObj, Abc_Var2Lit2(NameId, BAC_NAME_BIN) );
        Vec_IntSetEntryFull( vMap, NameId, iObj );
        Bac_NtkAddInfo( pNtk, Abc_Var2Lit2(NameId, 1), -1, -1 );
    }
    // map driven NameIds into their ObjIds for BOs
    Vec_IntClear( vBox2Id );
    Vec_PtrForEachEntry( Vec_Ptr_t *, vBoxes, vBox, i )
    {
        char * pBoxNtk = (char *)Vec_PtrEntry(vBox, 0);
        char * pBoxName = (char *)Vec_PtrEntry(vBox, 1);
        int nOutputs = Bac_BoxCountOutputs( pNtk, pBoxNtk );
        int nInputs = Vec_PtrSize(vBox)/2 - nOutputs - 1;
        int NtkId = Bac_ManNtkFindId( pNtk->pDesign, pBoxNtk );
        assert( Vec_PtrSize(vBox) % 2 == 0 );
        assert( nOutputs > 0 && 2*(nOutputs + 1) <= Vec_PtrSize(vBox) );
        iObj = Bac_BoxAlloc( pNtk, (Bac_ObjType_t)Ptr_NameToType(pBoxNtk), nInputs, nOutputs, NtkId );
        if ( NtkId > 0 )
            Bac_NtkSetHost( Bac_ManNtk(pNtk->pDesign, NtkId), Bac_NtkId(pNtk), iObj );
        Bac_ObjSetName( pNtk, iObj, Abc_Var2Lit2(Abc_NamStrFindOrAdd(pNtk->pDesign->pStrs, pBoxName, NULL), BAC_NAME_BIN) );
        Bac_BoxForEachBo( pNtk, iObj, iTerm, k )
        {
            pName = (char *)Vec_PtrEntry( vBox, Vec_PtrSize(vBox) - 2*(nOutputs - k) + 1 );
            NameId = Abc_NamStrFindOrAdd( pNtk->pDesign->pStrs, pName, NULL );
            if ( Vec_IntGetEntryFull(vMap, NameId) != -1 )
                { printf( "Signal \"%s\" has multiple drivers in module \"%s\".\n", pName, pModuleName ); return 0; }
            Bac_ObjSetName( pNtk, iTerm, Abc_Var2Lit2(NameId, BAC_NAME_BIN) );
            Vec_IntSetEntryFull( vMap, NameId, iTerm );
        }
        Vec_IntPush( vBox2Id, iObj );
    }
    assert( Vec_IntSize(vBox2Id) == Vec_PtrSize(vBoxes) );
    // connect BIs
    Vec_PtrForEachEntry( Vec_Ptr_t *, vBoxes, vBox, i )
    {
        iObj = Vec_IntEntry( vBox2Id, i );
        Bac_BoxForEachBi( pNtk, iObj, iTerm, k )
        {
            pName = (char *)Vec_PtrEntry( vBox, 2*(k + 1) + 1 );
            NameId = Abc_NamStrFindOrAdd( pNtk->pDesign->pStrs, pName, NULL );
            if ( Vec_IntGetEntryFull(vMap, NameId) == -1 )
                printf( "Signal \"%s\" in not driven in module \"%s\".\n", pName, pModuleName );
            Bac_ObjSetFanin( pNtk, iTerm, Vec_IntGetEntryFull(vMap, NameId) );
        }
    }
    // connect POs
    Vec_PtrForEachEntry( char *, vOutputs, pName, i )
    {
        NameId = Abc_NamStrFindOrAdd( pNtk->pDesign->pStrs, pName, NULL );
        if ( Vec_IntGetEntryFull(vMap, NameId) == -1 )
            printf( "PO with name \"%s\" in not driven in module \"%s\".\n", pName, pModuleName );
        iObj = Bac_ObjAlloc( pNtk, BAC_OBJ_PO, Vec_IntGetEntryFull(vMap, NameId) );
        Bac_NtkAddInfo( pNtk, Abc_Var2Lit2(NameId, 2), -1, -1 );
    }
    // update map
    Bac_NtkForEachCi( pNtk, iObj )
        Vec_IntSetEntryFull( vMap, Bac_ObjNameId(pNtk, iObj), -1 );
    // double check
    Vec_IntForEachEntry( vMap, iObj, i )
        assert( iObj == -1 );
    assert( Bac_NtkObjNum(pNtk) == Vec_StrCap(&pNtk->vType) );
    return 1;
}

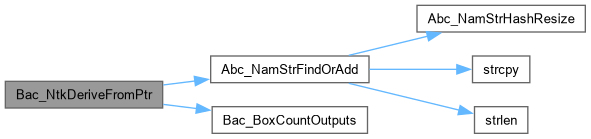

Here is the call graph for this function:

Here is the caller graph for this function:

Bac_NtkTransformToPtr()

Vec_Ptr_t * Bac_NtkTransformToPtr

(

Bac_Ntk_t *

p

)

Definition at line 448 of file bacPtrAbc.c.

{
    Vec_Ptr_t * vNtk = Vec_PtrAllocExact(5);
    Vec_PtrPush( vNtk, Bac_NtkName(p) );
    Vec_PtrPush( vNtk, Bac_NtkTransformToPtrInputs(p) );
    Vec_PtrPush( vNtk, Bac_NtkTransformToPtrOutputs(p) );
    Vec_PtrPush( vNtk, Vec_PtrAllocExact(0) );
    Vec_PtrPush( vNtk, Bac_NtkTransformToPtrBoxes(p) );
    assert( Ptr_CheckArray(vNtk) );
    return vNtk;
}

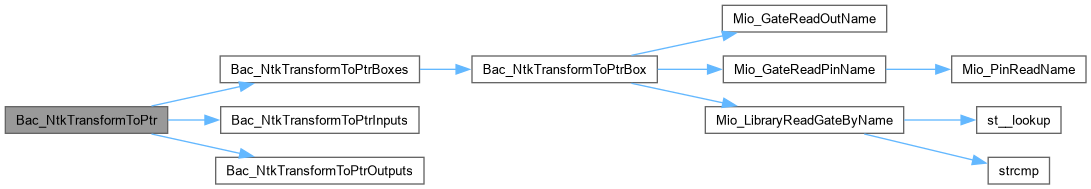

Here is the call graph for this function:

Here is the caller graph for this function:

Bac_NtkTransformToPtrBox()

Vec_Ptr_t * Bac_NtkTransformToPtrBox	(	Bac_Ntk_t *	p,
		int	iBox )

Function*************************************************************

Synopsis [Create Ptr from mapped Bac_Man_t.]

Description []

SideEffects []

SeeAlso []

Definition at line 398 of file bacPtrAbc.c.

{
    int i, iTerm, fUser = Bac_ObjIsBoxUser( p, iBox );
    Bac_Ntk_t * pBoxNtk = Bac_BoxNtk( p, iBox );
    Mio_Library_t * pLib = (Mio_Library_t *)p->pDesign->pMioLib;
    Mio_Gate_t * pGate = pLib ? Mio_LibraryReadGateByName( pLib, Bac_BoxNtkName(p, iBox), NULL ) : NULL;
    Vec_Ptr_t * vBox = Vec_PtrAllocExact( 2*Bac_BoxSize(p, iBox) );
    Vec_PtrPush( vBox, Bac_BoxNtkName(p, iBox) );
    Vec_PtrPush( vBox, Bac_ObjNameStr(p, iBox) );
    Bac_BoxForEachBi( p, iBox, iTerm, i )
    {
        Vec_PtrPush( vBox, fUser ? Bac_ObjNameStr(pBoxNtk, Bac_NtkPi(pBoxNtk, i)) : Mio_GateReadPinName(pGate, i) );
        Vec_PtrPush( vBox, Bac_ObjNameStr(p, iTerm) );
    }
    Bac_BoxForEachBo( p, iBox, iTerm, i )
    {
        Vec_PtrPush( vBox, fUser ? Bac_ObjNameStr(pBoxNtk, Bac_NtkPo(pBoxNtk, i)) : Mio_GateReadOutName(pGate) );
        Vec_PtrPush( vBox, Bac_ObjNameStr(p, iTerm) );
    }
    assert( Ptr_CheckArray(vBox) );
    return vBox;
}

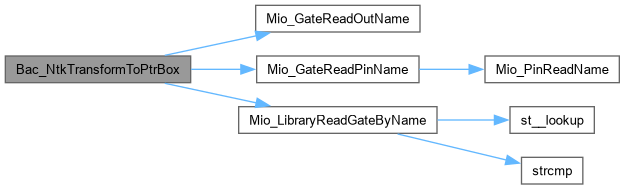

Here is the call graph for this function:

Here is the caller graph for this function:

Bac_NtkTransformToPtrBoxes()

Vec_Ptr_t * Bac_NtkTransformToPtrBoxes

(

Bac_Ntk_t *

p

)

Definition at line 420 of file bacPtrAbc.c.

{
    int iBox;
    Vec_Ptr_t * vBoxes = Vec_PtrAllocExact( Bac_NtkBoxNum(p) );
    Bac_NtkForEachBox( p, iBox )
        Vec_PtrPush( vBoxes, Bac_NtkTransformToPtrBox(p, iBox) );
    assert( Ptr_CheckArray(vBoxes) );
    return vBoxes;
}

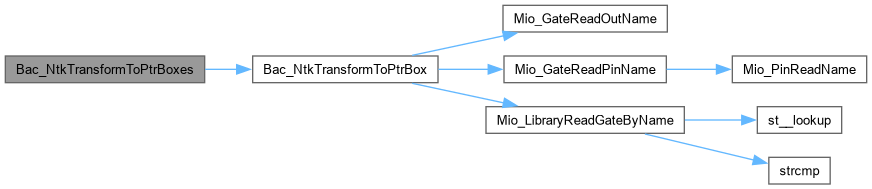

Here is the call graph for this function:

Here is the caller graph for this function:

Bac_NtkTransformToPtrInputs()

Vec_Ptr_t * Bac_NtkTransformToPtrInputs

(

Bac_Ntk_t *

p

)

Definition at line 430 of file bacPtrAbc.c.

{
    int i, iTerm;
    Vec_Ptr_t * vSigs = Vec_PtrAllocExact( Bac_NtkPiNum(p) );
    Bac_NtkForEachPi( p, iTerm, i )
        Vec_PtrPush( vSigs, Bac_ObjNameStr(p, iTerm) );
    assert( Ptr_CheckArray(vSigs) );
    return vSigs;
}

Here is the caller graph for this function:

Bac_NtkTransformToPtrOutputs()

Vec_Ptr_t * Bac_NtkTransformToPtrOutputs

(

Bac_Ntk_t *

p

)

Definition at line 439 of file bacPtrAbc.c.

{
    int i, iTerm;
    Vec_Ptr_t * vSigs = Vec_PtrAllocExact( Bac_NtkPoNum(p) );
    Bac_NtkForEachPo( p, iTerm, i )
        Vec_PtrPush( vSigs, Bac_ObjNameStr(p, iTerm) );
    assert( Ptr_CheckArray(vSigs) );
    return vSigs;
}

Here is the caller graph for this function:

Bac_PtrDeriveFromCba()

Vec_Ptr_t * Bac_PtrDeriveFromCba

(

Bac_Man_t *

p

)

Definition at line 459 of file bacPtrAbc.c.

{
    Vec_Ptr_t * vDes;
    Bac_Ntk_t * pTemp; int i;
    if ( p == NULL )
        return NULL;
    if ( p->pMioLib == NULL )
    {
        printf( "Cannot transform CBA network into Ptr because it is not mapped.\n" );
        return NULL;
    }
    Bac_ManAssignInternWordNames( p );
    vDes = Vec_PtrAllocExact( 1 + Bac_ManNtkNum(p) );
    Vec_PtrPush( vDes, p->pName );
    Bac_ManForEachNtk( p, pTemp, i )
        Vec_PtrPush( vDes, Bac_NtkTransformToPtr(pTemp) );
    assert( Ptr_CheckArray(vDes) );
    return vDes;
}

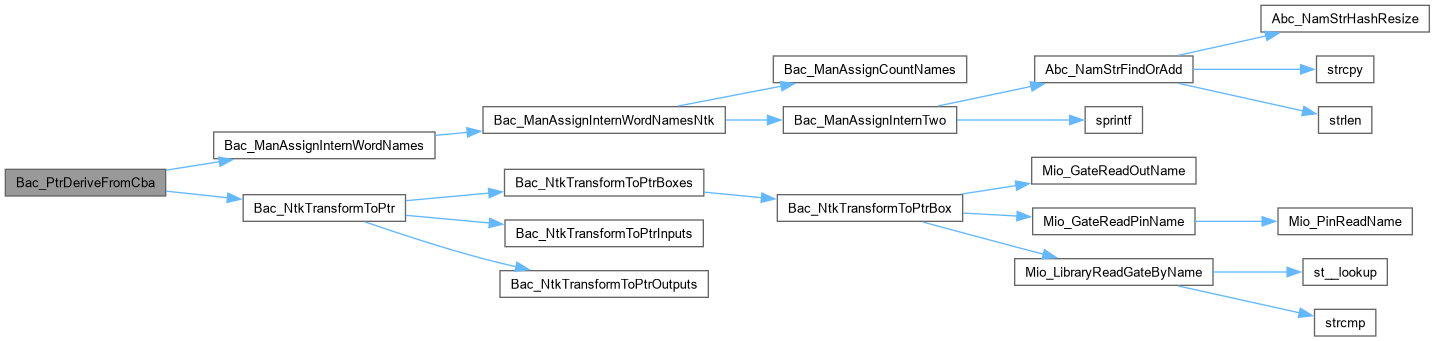

Here is the call graph for this function:

Here is the caller graph for this function:

Bac_PtrTransformToCba()

Bac_Man_t * Bac_PtrTransformToCba

(

Vec_Ptr_t *

vDes

)

Definition at line 355 of file bacPtrAbc.c.

{
    char * pName = (char *)Vec_PtrEntry(vDes, 0);
    Bac_Man_t * pNew = Bac_ManAlloc( pName, Vec_PtrSize(vDes) - 1 );
    Vec_Int_t * vMap = Vec_IntStartFull( 1000 );
    Vec_Int_t * vBox2Id = Vec_IntAlloc( 1000 );
    // create interfaces
    Bac_Ntk_t * pNtk; int i;
    Bac_ManForEachNtk( pNew, pNtk, i )
    {
        Vec_Ptr_t * vNtk = (Vec_Ptr_t *)Vec_PtrEntry(vDes, i);
        Vec_Ptr_t * vInputs = (Vec_Ptr_t *)Vec_PtrEntry(vNtk, 1);
        Vec_Ptr_t * vOutputs = (Vec_Ptr_t *)Vec_PtrEntry(vNtk, 2);
        int NameId = Abc_NamStrFindOrAdd( pNew->pStrs, (char *)Vec_PtrEntry(vNtk, 0), NULL );
        Bac_NtkAlloc( pNtk, NameId, Vec_PtrSize(vInputs), Vec_PtrSize(vOutputs), Ptr_ManCountNtk(vNtk) );
        Bac_NtkStartNames( pNtk );
    }
    // parse the networks
    Bac_ManForEachNtk( pNew, pNtk, i )
    {
        Vec_Ptr_t * vNtk = (Vec_Ptr_t *)Vec_PtrEntry(vDes, i);
        if ( !Bac_NtkDeriveFromPtr( pNtk, vNtk, vMap, vBox2Id ) )
            break;
    }
    if ( i <= Bac_ManNtkNum(pNew) )
       Bac_ManFree(pNew), pNew = NULL;
    Vec_IntFree( vBox2Id );
    Vec_IntFree( vMap );
    return pNew;
}

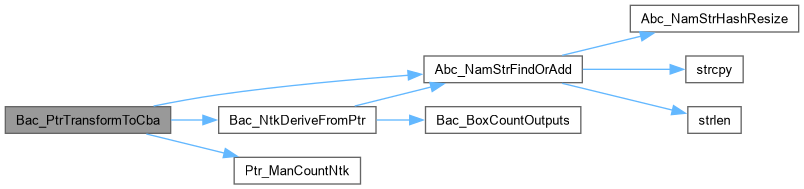

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr_AbcDeriveBox()

Vec_Ptr_t * Ptr_AbcDeriveBox

(

Abc_Obj_t *

pObj

)

Definition at line 132 of file bacPtrAbc.c.

{
    Abc_Obj_t * pNext; int i;
    Abc_Ntk_t * pNtk = Abc_ObjModel(pObj);
    Vec_Ptr_t * vBox = Vec_PtrAllocExact( 2 + 2 * Abc_ObjFaninNum(pObj) + 2 * Abc_ObjFanoutNum(pObj) );
    assert( Abc_ObjIsBox(pObj) );
    Vec_PtrPush( vBox, Abc_NtkName(pNtk) );
    Vec_PtrPush( vBox, Ptr_AbcObjName(pObj) );
    Abc_ObjForEachFanin( pObj, pNext, i )
    {
        Vec_PtrPush( vBox, Ptr_AbcObjName(Abc_NtkPi(pNtk, i)) );
        Vec_PtrPush( vBox, Ptr_AbcObjName(pNext) );
    }
    Abc_ObjForEachFanout( pObj, pNext, i )
    {
        Vec_PtrPush( vBox, Ptr_AbcObjName(Abc_NtkPo(pNtk, i)) );
        Vec_PtrPush( vBox, Ptr_AbcObjName(pNext) );
    }
    assert( Ptr_CheckArray(vBox) );
    return vBox;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr_AbcDeriveBoxes()

Vec_Ptr_t * Ptr_AbcDeriveBoxes

(

Abc_Ntk_t *

pNtk

)

Definition at line 153 of file bacPtrAbc.c.

{
    Abc_Obj_t * pObj; int i;
    Vec_Ptr_t * vBoxes = Vec_PtrAllocExact( Abc_NtkBoxNum(pNtk) + Abc_NtkNodeNum(pNtk) );
    Abc_NtkForEachBox( pNtk, pObj, i )
        Vec_PtrPush( vBoxes, Ptr_AbcDeriveBox(pObj) );
    Abc_NtkForEachNode( pNtk, pObj, i )
        Vec_PtrPush( vBoxes, Ptr_AbcDeriveNode(pObj) );
    assert( Ptr_CheckArray(vBoxes) );
    return vBoxes;
}

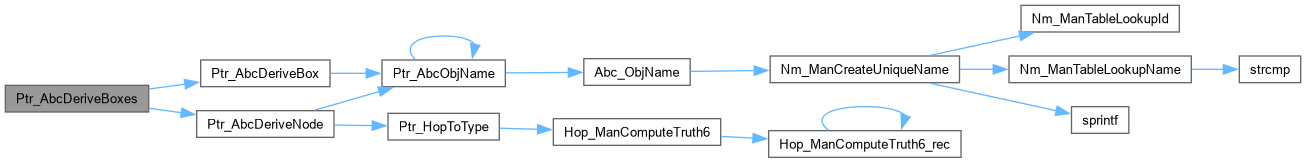

Here is the call graph for this function:

Here is the caller graph for this function:

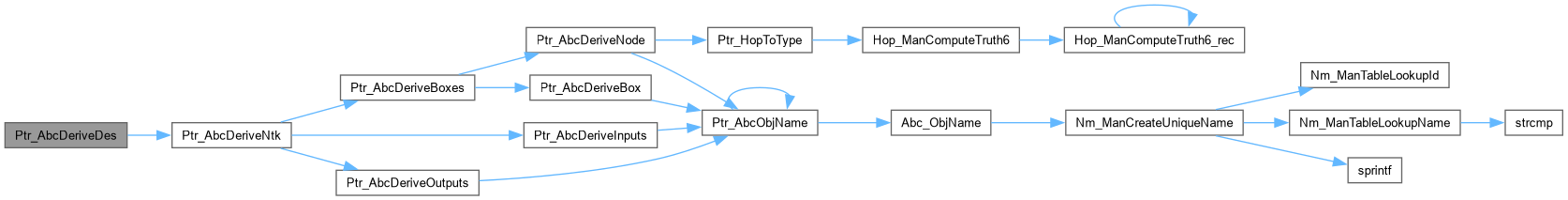

Ptr_AbcDeriveDes()

Vec_Ptr_t * Ptr_AbcDeriveDes

(

Abc_Ntk_t *

pNtk

)

Definition at line 194 of file bacPtrAbc.c.

{
    Vec_Ptr_t * vDes;
    Abc_Ntk_t * pTemp; int i;
    vDes = Vec_PtrAllocExact( 1 + Vec_PtrSize(pNtk->pDesign->vModules) );
    Vec_PtrPush( vDes, pNtk->pDesign->pName );
    Vec_PtrForEachEntry( Abc_Ntk_t *, pNtk->pDesign->vModules, pTemp, i )
        Vec_PtrPush( vDes, Ptr_AbcDeriveNtk(pTemp) );
    assert( Ptr_CheckArray(vDes) );
    return vDes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr_AbcDeriveInputs()

Vec_Ptr_t * Ptr_AbcDeriveInputs

(

Abc_Ntk_t *

pNtk

)

Definition at line 165 of file bacPtrAbc.c.

{
    Abc_Obj_t * pObj; int i;
    Vec_Ptr_t * vSigs = Vec_PtrAllocExact( Abc_NtkPiNum(pNtk) );
    Abc_NtkForEachPi( pNtk, pObj, i )
        Vec_PtrPush( vSigs, Ptr_AbcObjName(pObj) );
    assert( Ptr_CheckArray(vSigs) );
    return vSigs;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr_AbcDeriveNode()

Vec_Ptr_t * Ptr_AbcDeriveNode

(

Abc_Obj_t *

pObj

)

Definition at line 110 of file bacPtrAbc.c.

{
    Abc_Obj_t * pFanin; int i;
    Vec_Ptr_t * vNode = Vec_PtrAllocExact( 2 + 2 * (1 + Abc_ObjFaninNum(pObj)) );
    assert( Abc_ObjIsNode(pObj) );
    if ( Abc_NtkHasAig(pObj->pNtk) )
        Vec_PtrPush( vNode, Ptr_HopToType(pObj) );
    else if ( Abc_NtkHasSop(pObj->pNtk) )
        Vec_PtrPush( vNode, Ptr_SopToTypeName((char *)pObj->pData) );
    else assert( 0 );
    Vec_PtrPush( vNode, Ptr_AbcObjName(pObj) );
    assert( Abc_ObjFaninNum(pObj) <= 2 );
    Abc_ObjForEachFanin( pObj, pFanin, i )
    {
        Vec_PtrPush( vNode, (void*)(i ? "r" : "l") );
        Vec_PtrPush( vNode, Ptr_AbcObjName(pFanin) );
    }
    Vec_PtrPush( vNode, (void*)("o") );
    Vec_PtrPush( vNode, Ptr_AbcObjName(pObj) );
    assert( Ptr_CheckArray(vNode) );
    return vNode;
}

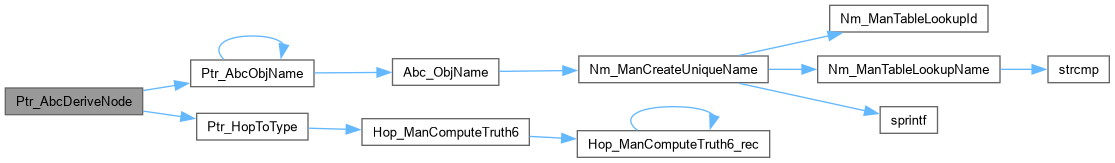

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr_AbcDeriveNtk()

Vec_Ptr_t * Ptr_AbcDeriveNtk

(

Abc_Ntk_t *

pNtk

)

Definition at line 183 of file bacPtrAbc.c.

{
    Vec_Ptr_t * vNtk = Vec_PtrAllocExact( 5 );
    Vec_PtrPush( vNtk, Abc_NtkName(pNtk) );
    Vec_PtrPush( vNtk, Ptr_AbcDeriveInputs(pNtk) );
    Vec_PtrPush( vNtk, Ptr_AbcDeriveOutputs(pNtk) );
    Vec_PtrPush( vNtk, Vec_PtrAllocExact(0) );
    Vec_PtrPush( vNtk, Ptr_AbcDeriveBoxes(pNtk) );
    assert( Ptr_CheckArray(vNtk) );
    return vNtk;
}

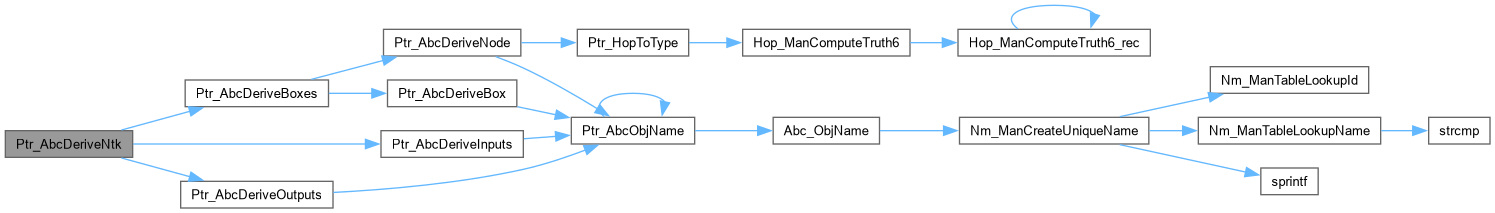

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr_AbcDeriveOutputs()

Vec_Ptr_t * Ptr_AbcDeriveOutputs

(

Abc_Ntk_t *

pNtk

)

Definition at line 174 of file bacPtrAbc.c.

{
    Abc_Obj_t * pObj; int i;
    Vec_Ptr_t * vSigs = Vec_PtrAllocExact( Abc_NtkPoNum(pNtk) );
    Abc_NtkForEachPo( pNtk, pObj, i )
        Vec_PtrPush( vSigs, Ptr_AbcObjName(pObj) );
    assert( Ptr_CheckArray(vSigs) );
    return vSigs;
}

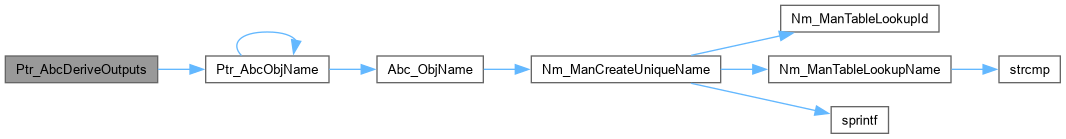

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr_AbcObjName()

char * Ptr_AbcObjName

(

Abc_Obj_t *

pObj

)

Function*************************************************************

Synopsis [Create Ptr from Abc_Ntk_t.]

Description []

SideEffects []

SeeAlso []

Definition at line 94 of file bacPtrAbc.c.

{
    if ( Abc_ObjIsNet(pObj) || Abc_ObjIsBox(pObj) )
        return Abc_ObjName(pObj);
    if ( Abc_ObjIsCi(pObj) || Abc_ObjIsNode(pObj) )
        return Ptr_AbcObjName(Abc_ObjFanout0(pObj));
    if ( Abc_ObjIsCo(pObj) )
        return Ptr_AbcObjName(Abc_ObjFanin0(pObj));
    assert( 0 );
    return NULL;
}

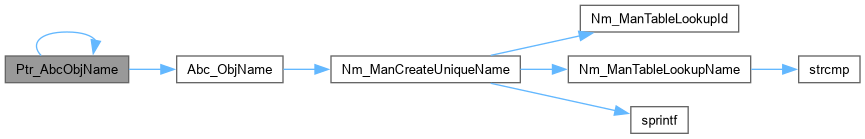

Here is the call graph for this function:

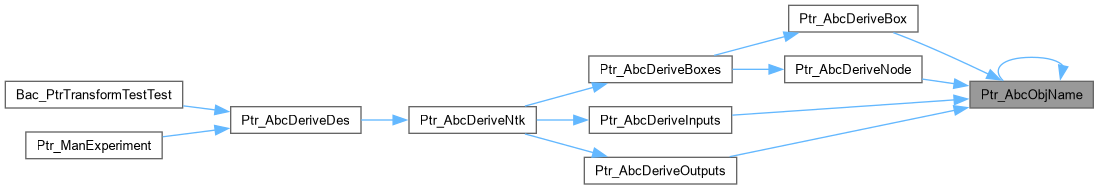

Here is the caller graph for this function:

Ptr_HopToType()

ABC_NAMESPACE_IMPL_START char * Ptr_HopToType

(

Abc_Obj_t *

pObj

)

DECLARATIONS ///.

CFile****************************************************************

FileName [bacPtrAbc.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Hierarchical word-level netlist.]

Synopsis [Simple interface with external tools.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - November 29, 2014.]

Revision [

Id

bacPtrAbc.c,v 1.00 2014/11/29 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Node type conversions.]

Description []

SideEffects []

SeeAlso []

Definition at line 47 of file bacPtrAbc.c.

{
    static word uTruth, uTruths6[3] = {
        ABC_CONST(0xAAAAAAAAAAAAAAAA),
        ABC_CONST(0xCCCCCCCCCCCCCCCC),
        ABC_CONST(0xF0F0F0F0F0F0F0F0),
    };
    assert( Abc_ObjIsNode(pObj) );
    uTruth = Hop_ManComputeTruth6( (Hop_Man_t *)Abc_ObjNtk(pObj)->pManFunc, (Hop_Obj_t *)pObj->pData, Abc_ObjFaninNum(pObj) );
/*
    if ( uTruth ==  0 )                           return "BAC_BOX_C0";
    if ( uTruth == ~(word)0 )                     return "BAC_BOX_C1";
    if ( uTruth ==  uTruths6[0] )                 return "BAC_BOX_BUF";
    if ( uTruth == ~uTruths6[0] )                 return "BAC_BOX_INV";
    if ( uTruth == (uTruths6[0] & uTruths6[1]) )  return "BAC_BOX_AND";
    if ( uTruth ==~(uTruths6[0] & uTruths6[1]) )  return "BAC_BOX_NAND";
    if ( uTruth == (uTruths6[0] | uTruths6[1]) )  return "BAC_BOX_OR";
    if ( uTruth ==~(uTruths6[0] | uTruths6[1]) )  return "BAC_BOX_NOR";
    if ( uTruth == (uTruths6[0] ^ uTruths6[1]) )  return "BAC_BOX_XOR";
    if ( uTruth ==~(uTruths6[0] ^ uTruths6[1]) )  return "BAC_BOX_XNOR";
*/
    if ( uTruth ==  0 )                           return "Const0T";
    if ( uTruth == ~(word)0 )                     return "Const1T";
    if ( uTruth ==  uTruths6[0] )                 return "BufT";
    if ( uTruth == ~uTruths6[0] )                 return "InvT";
    if ( uTruth == (uTruths6[0] & uTruths6[1]) )  return "AndT";
    if ( uTruth ==~(uTruths6[0] & uTruths6[1]) )  return "NandT";
    if ( uTruth == (uTruths6[0] | uTruths6[1]) )  return "OrT";
    if ( uTruth ==~(uTruths6[0] | uTruths6[1]) )  return "NorT";
    if ( uTruth == (uTruths6[0] ^ uTruths6[1]) )  return "XorT";
    if ( uTruth ==~(uTruths6[0] ^ uTruths6[1]) )  return "XnorT";
    assert( 0 );
    return NULL;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr_ManCountNtk()

int Ptr_ManCountNtk

(

Vec_Ptr_t *

vNtk

)

Definition at line 255 of file bacPtrAbc.c.

{
    Vec_Ptr_t * vInputs = (Vec_Ptr_t *)Vec_PtrEntry(vNtk, 1);
    Vec_Ptr_t * vOutputs = (Vec_Ptr_t *)Vec_PtrEntry(vNtk, 2);
    Vec_Ptr_t * vNodes = (Vec_Ptr_t *)Vec_PtrEntry(vNtk, 3);
    Vec_Ptr_t * vBoxes = (Vec_Ptr_t *)Vec_PtrEntry(vNtk, 4);
    Vec_Ptr_t * vBox; int i, Counter = 0;
    assert( Vec_PtrSize(vNodes) == 0 );
    Counter += Vec_PtrSize(vInputs);
    Counter += Vec_PtrSize(vOutputs);
    Vec_PtrForEachEntry( Vec_Ptr_t *, vBoxes, vBox, i )
        Counter += Vec_PtrSize(vBox)/2;
    return Counter;
}

Here is the caller graph for this function:

Ptr_ManExperiment()

void Ptr_ManExperiment

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 217 of file bacPtrAbc.c.

{
    abctime clk = Abc_Clock();
    char * pFileName = Extra_FileNameGenericAppend(pNtk->pDesign->pName, "_out.blif");
    Vec_Ptr_t * vDes = Ptr_AbcDeriveDes( pNtk );
    printf( "Converting to Ptr:  Memory = %6.3f MB  ", 1.0*Bac_PtrMemory(vDes)/(1<<20) );
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
    Bac_PtrDumpBlif( pFileName, vDes );
    printf( "Finished writing output file \"%s\".  ", pFileName );
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
    Bac_PtrFree( vDes );
}

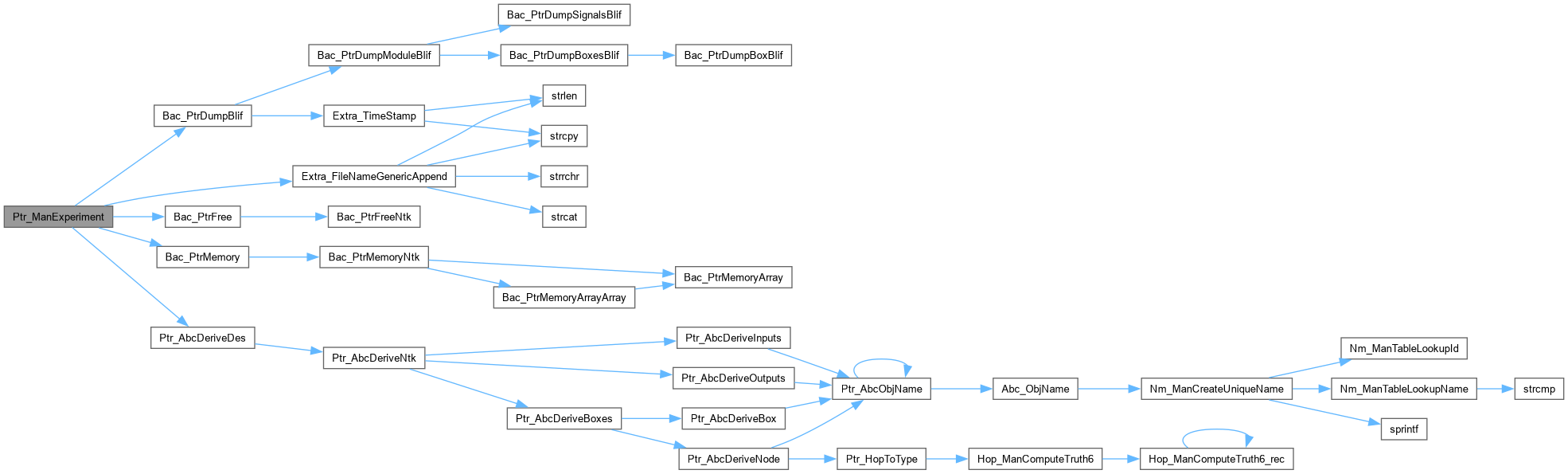

Here is the call graph for this function:
