cecCorr.c File Reference

#include "cecInt.h"

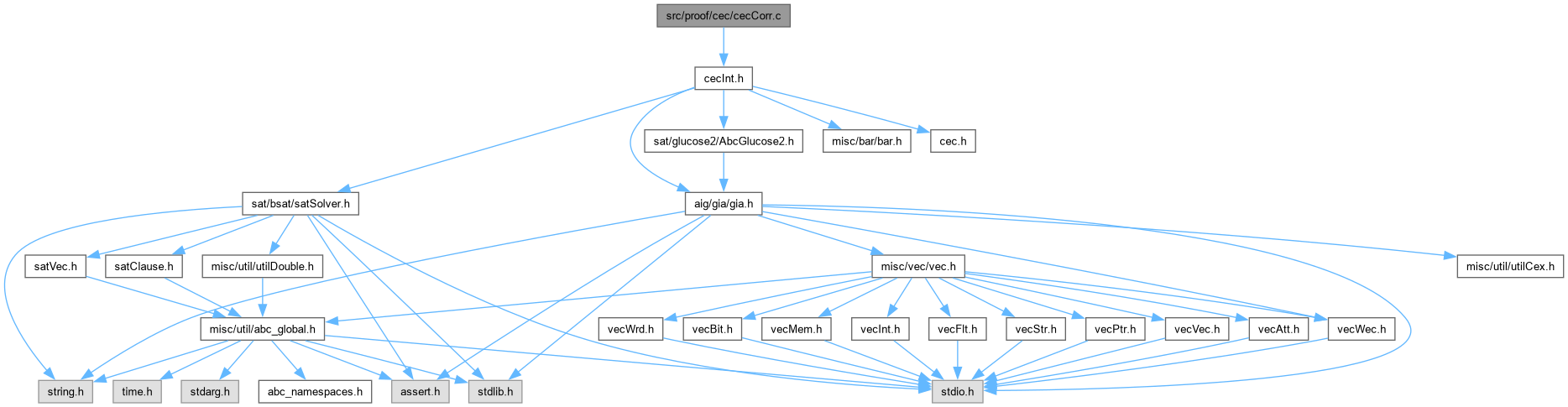

Include dependency graph for cecCorr.c:

Go to the source code of this file.

Functions
Gia_Man_t *	Gia_ManCorrSpecReduce (Gia_Man_t *p, int nFrames, int fScorr, Vec_Int_t **pvOutputs, int fRings)
Gia_Man_t *	Gia_ManCorrSpecReduceInit (Gia_Man_t *p, int nFrames, int nPrefix, int fScorr, Vec_Int_t **pvOutputs, int fRings)
void	Cec_ManStartSimInfo (Vec_Ptr_t *vInfo, int nFlops)
void	Gia_ManCorrRemapSimInfo (Gia_Man_t *p, Vec_Ptr_t *vInfo)
Vec_Int_t *	Gia_ManCorrCreateRemapping (Gia_Man_t *p)
void	Gia_ManCorrPerformRemapping (Vec_Int_t *vPairs, Vec_Ptr_t *vInfo)
int	Cec_ManLoadCounterExamplesTry (Vec_Ptr_t *vInfo, Vec_Ptr_t *vPres, int iBit, int *pLits, int nLits)
int	Cec_ManLoadCounterExamples (Vec_Ptr_t *vInfo, Vec_Int_t *vCexStore, int iStart)
int	Cec_ManLoadCounterExamples2 (Vec_Ptr_t *vInfo, Vec_Int_t *vCexStore, int iStart)
int	Cec_ManResimulateCounterExamples (Cec_ManSim_t *pSim, Vec_Int_t *vCexStore, int nFrames)
int	Cec_ManResimulateCounterExamplesComb (Cec_ManSim_t *pSim, Vec_Int_t *vCexStore)
int	Gia_ManCheckRefinements (Gia_Man_t *p, Vec_Str_t *vStatus, Vec_Int_t *vOutputs, Cec_ManSim_t *pSim, int fRings)
void	Gia_ManCorrReduce_rec (Gia_Man_t *pNew, Gia_Man_t *p, Gia_Obj_t *pObj)
Gia_Man_t *	Gia_ManCorrReduce (Gia_Man_t *p)
void	Cec_ManRefinedClassPrintStats (Gia_Man_t *p, Vec_Str_t *vStatus, int iIter, abctime Time)
	MACRO DEFINITIONS ///.
int	Cec_ManCountLits (Gia_Man_t *p)
void	Cec_ManLSCorrespondenceBmc (Gia_Man_t *pAig, Cec_ParCor_t *pPars, int nPrefs)
int	Cec_ManLSCorrAnalyzeDependence (Gia_Man_t *p, Vec_Int_t *vEquivs, Vec_Str_t *vStatus)
int	Cec_ManLSCorrespondenceClasses (Gia_Man_t *pAig, Cec_ParCor_t *pPars)
unsigned *	Cec_ManComputeInitState (Gia_Man_t *pAig, int nFrames)
void	Cec_ManPrintFlopEquivs (Gia_Man_t *p)
Gia_Man_t *	Cec_ManLSCorrespondence (Gia_Man_t *pAig, Cec_ParCor_t *pPars)
Vec_Wec_t *	Gia_ManCreateRegSupps (Gia_Man_t *p, int fVerbose)
Vec_Int_t *	Gia_ManFindStopFlops (Gia_Man_t *p, int nFlopIncFreq, int fVerbose)
Gia_Man_t *	Gia_ManDupStopsAdd (Gia_Man_t *p, Vec_Int_t *vStops)
void	Gia_ManDupStopsRem_rec (Gia_Man_t *pNew, Gia_Man_t *p, Gia_Obj_t *pObj)
Gia_Man_t *	Gia_ManDupStopsRem (Gia_Man_t *p, Vec_Int_t *vStops)
Gia_Man_t *	Gia_ManDupStopsTest (Gia_Man_t *p)

Function Documentation

Cec_ManComputeInitState()

unsigned * Cec_ManComputeInitState	(	Gia_Man_t *	pAig,
		int	nFrames )

Function*************************************************************

Synopsis [Computes new initial state.]

Description []

SideEffects []

SeeAlso []

Definition at line 1100 of file cecCorr.c.

{
    Gia_Obj_t * pObj, * pObjRo, * pObjRi;
    unsigned * pInitState;
    int i, f;
    Gia_ManRandom( 1 );
//    Abc_Print( 1, "Simulating %d timeframes.\n", nFrames );
    Gia_ManForEachRo( pAig, pObj, i )
        pObj->fMark1 = 0;
    for ( f = 0; f < nFrames; f++ )
    {
        Gia_ManConst0(pAig)->fMark1 = 0;
        Gia_ManForEachPi( pAig, pObj, i )
            pObj->fMark1 = Gia_ManRandom(0) & 1;
        Gia_ManForEachAnd( pAig, pObj, i )
            pObj->fMark1 = (Gia_ObjFanin0(pObj)->fMark1 ^ Gia_ObjFaninC0(pObj)) &
                (Gia_ObjFanin1(pObj)->fMark1 ^ Gia_ObjFaninC1(pObj));
        Gia_ManForEachRi( pAig, pObj, i )
            pObj->fMark1 = (Gia_ObjFanin0(pObj)->fMark1 ^ Gia_ObjFaninC0(pObj));
        Gia_ManForEachRiRo( pAig, pObjRi, pObjRo, i )
            pObjRo->fMark1 = pObjRi->fMark1;
    }
    pInitState = ABC_CALLOC( unsigned, Abc_BitWordNum(Gia_ManRegNum(pAig)) );
    Gia_ManForEachRo( pAig, pObj, i )
    {
        if ( pObj->fMark1 )
            Abc_InfoSetBit( pInitState, i );
//        Abc_Print( 1, "%d", pObj->fMark1 );
    }
//    Abc_Print( 1, "\n" );
    Gia_ManCleanMark1( pAig );
    return pInitState;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cec_ManCountLits()

int Cec_ManCountLits

(

Gia_Man_t *

p

)

Definition at line 759 of file cecCorr.c.

{
    int i, CounterX = 0, Counter0 = 0, Counter = 0;
    for ( i = 1; i < Gia_ManObjNum(p); i++ )
    {
        if ( Gia_ObjIsNone(p, i) )
            CounterX++;
        else if ( Gia_ObjIsConst(p, i) )
            Counter0++;
        else if ( Gia_ObjIsHead(p, i) )
            Counter++;
    }
    CounterX -= Gia_ManCoNum(p);
    return Gia_ManCiNum(p) + Gia_ManAndNum(p) - Counter - CounterX;
}

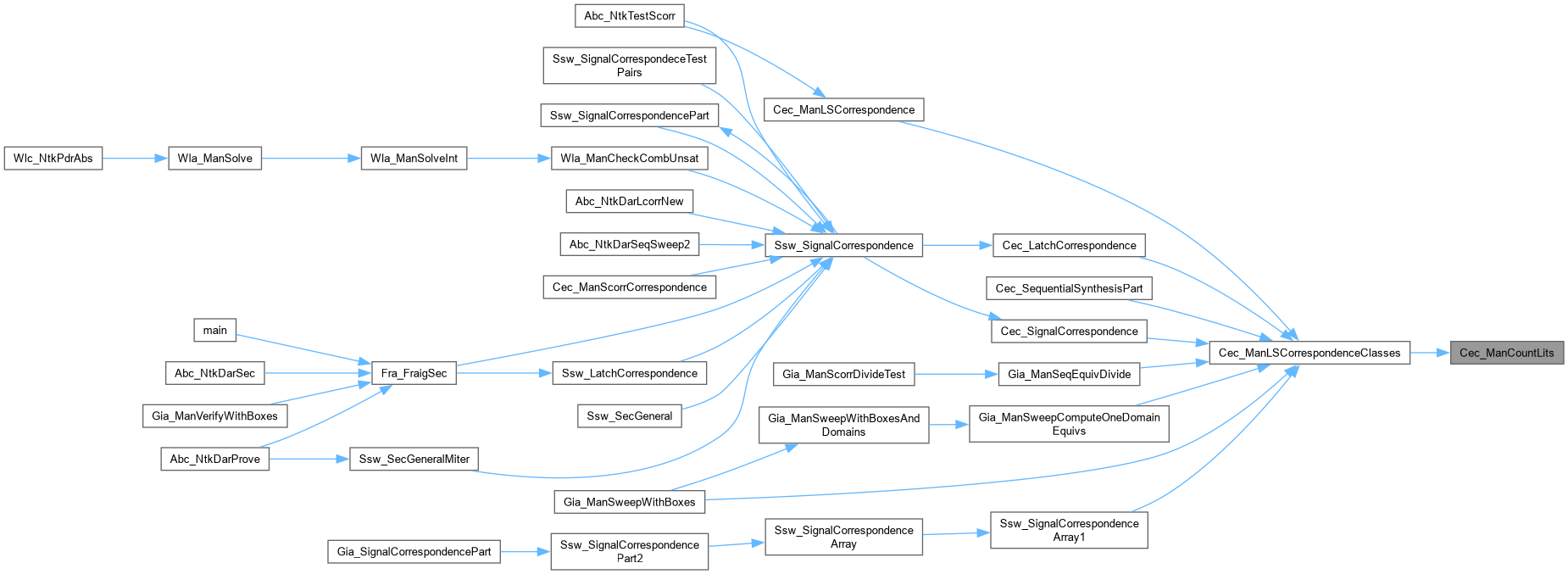

Here is the caller graph for this function:

Cec_ManLoadCounterExamples()

int Cec_ManLoadCounterExamples	(	Vec_Ptr_t *	vInfo,
		Vec_Int_t *	vCexStore,
		int	iStart )

Function*************************************************************

Synopsis [Performs bitpacking of counter-examples.]

Description []

SideEffects []

SeeAlso []

Definition at line 458 of file cecCorr.c.

{
    Vec_Int_t * vPat;
    Vec_Ptr_t * vPres;
    int nWords = Vec_PtrReadWordsSimInfo(vInfo);
    int nBits = 32 * nWords;
    int k, nSize, kMax = 0;//, iBit = 1;
    vPat  = Vec_IntAlloc( 100 );
    vPres = Vec_PtrAllocSimInfo( Vec_PtrSize(vInfo), nWords );
    Vec_PtrCleanSimInfo( vPres, 0, nWords );
    while ( iStart < Vec_IntSize(vCexStore) )
    {
        // skip the output number
        iStart++;
        // get the number of items
        nSize = Vec_IntEntry( vCexStore, iStart++ );
        if ( nSize <= 0 )
            continue;
        // extract pattern
        Vec_IntClear( vPat );
        for ( k = 0; k < nSize; k++ )
            Vec_IntPush( vPat, Vec_IntEntry( vCexStore, iStart++ ) );
        // add pattern to storage
        for ( k = 1; k < nBits; k++ )
            if ( Cec_ManLoadCounterExamplesTry( vInfo, vPres, k, (int *)Vec_IntArray(vPat), Vec_IntSize(vPat) ) )
                break;
        kMax = Abc_MaxInt( kMax, k );
        if ( k == nBits-1 )
            break;
    }
    Vec_PtrFree( vPres );
    Vec_IntFree( vPat );
    return iStart;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cec_ManLoadCounterExamples2()

int Cec_ManLoadCounterExamples2	(	Vec_Ptr_t *	vInfo,
		Vec_Int_t *	vCexStore,
		int	iStart )

Function*************************************************************

Synopsis [Performs bitpacking of counter-examples.]

Description []

SideEffects []

SeeAlso []

Definition at line 504 of file cecCorr.c.

{
    unsigned * pInfo;
    int nBits = 32 * Vec_PtrReadWordsSimInfo(vInfo);
    int k, iLit, nLits, Out, iBit = 1;
    while ( iStart < Vec_IntSize(vCexStore) )
    {
        // skip the output number
//        iStart++;
        Out = Vec_IntEntry( vCexStore, iStart++ );
//        Abc_Print( 1, "iBit = %d. Out = %d.\n", iBit, Out );
        // get the number of items
        nLits = Vec_IntEntry( vCexStore, iStart++ );
        if ( nLits <= 0 )
            continue;
        // add pattern to storage
        for ( k = 0; k < nLits; k++ )
        {
            iLit = Vec_IntEntry( vCexStore, iStart++ );
            pInfo = (unsigned *)Vec_PtrEntry( vInfo, Abc_Lit2Var(iLit) );
            if ( Abc_InfoHasBit( pInfo, iBit ) == Abc_LitIsCompl(iLit) )
                Abc_InfoXorBit( pInfo, iBit );
        }
        if ( ++iBit == nBits )
            break;
    }
//    Abc_Print( 1, "added %d bits\n", iBit-1 );
    return iStart;
}

Cec_ManLoadCounterExamplesTry()

int Cec_ManLoadCounterExamplesTry	(	Vec_Ptr_t *	vInfo,
		Vec_Ptr_t *	vPres,
		int	iBit,
		int *	pLits,
		int	nLits )

Function*************************************************************

Synopsis [Packs one counter-examples into the array of simulation info.]

Description []

SideEffects []

SeeAlso []

                               `

Definition at line 424 of file cecCorr.c.

{
    unsigned * pInfo, * pPres;
    int i;
    for ( i = 0; i < nLits; i++ )
    {
        pInfo = (unsigned *)Vec_PtrEntry(vInfo, Abc_Lit2Var(pLits[i]));
        pPres = (unsigned *)Vec_PtrEntry(vPres, Abc_Lit2Var(pLits[i]));
        if ( Abc_InfoHasBit( pPres, iBit ) &&
             Abc_InfoHasBit( pInfo, iBit ) == Abc_LitIsCompl(pLits[i]) )
             return 0;
    }
    for ( i = 0; i < nLits; i++ )
    {
        pInfo = (unsigned *)Vec_PtrEntry(vInfo, Abc_Lit2Var(pLits[i]));
        pPres = (unsigned *)Vec_PtrEntry(vPres, Abc_Lit2Var(pLits[i]));
        Abc_InfoSetBit( pPres, iBit );
        if ( Abc_InfoHasBit( pInfo, iBit ) == Abc_LitIsCompl(pLits[i]) )
            Abc_InfoXorBit( pInfo, iBit );
    }
    return 1;
}

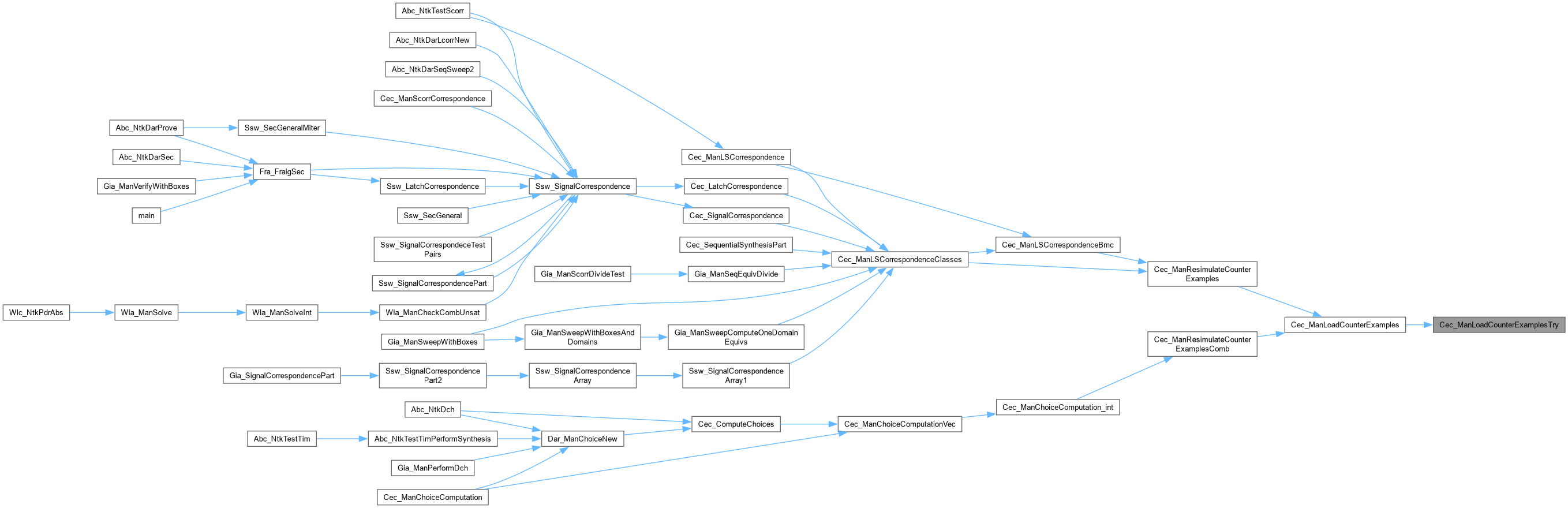

Here is the caller graph for this function:

Cec_ManLSCorrAnalyzeDependence()

int Cec_ManLSCorrAnalyzeDependence	(	Gia_Man_t *	p,
		Vec_Int_t *	vEquivs,
		Vec_Str_t *	vStatus )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 854 of file cecCorr.c.

{
    Gia_Obj_t * pObj, * pObjRo;
    int i, Iter, iObj, iRepr, fPrev, Total, Count0, Count1;
    assert( Vec_StrSize(vStatus) * 2 == Vec_IntSize(vEquivs) );
    Total = 0;
    Gia_ManForEachObj( p, pObj, i )
    {
        assert( pObj->fMark1 == 0 );
        if ( Gia_ObjHasRepr(p, i) )
            Total++;
    }
    Count0 = 0;
    for ( i = 0; i < Vec_StrSize(vStatus); i++ )
    {
        iRepr = Vec_IntEntry(vEquivs, 2*i);
        iObj = Vec_IntEntry(vEquivs, 2*i+1);
        assert( iRepr == Gia_ObjRepr(p, iObj) );
        if ( Vec_StrEntry(vStatus, i) != 1 ) // disproved or undecided
        {
            Gia_ManObj(p, iObj)->fMark1 = 1;
            Count0++;
        }
    }
    for ( Iter = 0; Iter < 100; Iter++ )
    {
        int fChanges = 0;
        Gia_ManForEachObj1( p, pObj, i )
        {
            if ( Gia_ObjIsCi(pObj) )
                continue;
            assert( Gia_ObjIsAnd(pObj) || Gia_ObjIsCo(pObj) );
//            fPrev = pObj->fMark1;
            if ( Gia_ObjIsAnd(pObj) )
                pObj->fMark1 |= Gia_ObjFanin0(pObj)->fMark1 | Gia_ObjFanin1(pObj)->fMark1;
            else
                pObj->fMark1 |= Gia_ObjFanin0(pObj)->fMark1;
//            fChanges += fPrev ^ pObj->fMark1;
        }
        Gia_ManForEachRiRo( p, pObj, pObjRo, i )
        {
            fPrev = pObjRo->fMark1;
            pObjRo->fMark1 = pObj->fMark1;
            fChanges += fPrev ^ pObjRo->fMark1;
        }
        if ( fChanges == 0 )
            break;
    }
    Count1 = 0;
    Gia_ManForEachObj( p, pObj, i )
    {
        if ( pObj->fMark1 && Gia_ObjHasRepr(p, i) )
            Count1++;
        pObj->fMark1 = 0;
    }
    printf( "%5d -> %5d (%3d)  ", Count0, Count1, Iter );
    return 0;
}

Cec_ManLSCorrespondence()

Gia_Man_t * Cec_ManLSCorrespondence	(	Gia_Man_t *	pAig,
		Cec_ParCor_t *	pPars )

Function*************************************************************

Synopsis [Top-level procedure for register correspondence.]

Description []

SideEffects []

SeeAlso []

Definition at line 1179 of file cecCorr.c.

{
    Gia_Man_t * pNew, * pTemp;
    unsigned * pInitState;
    int RetValue;
    ABC_FREE( pAig->pReprs );
    ABC_FREE( pAig->pNexts );
    if ( pPars->nPrefix == 0 )
    {
        RetValue = Cec_ManLSCorrespondenceClasses( pAig, pPars );
        if ( RetValue == 0 )
            return Gia_ManDup( pAig );
    }
    else
    {
        // compute the cycles AIG
        pInitState = Cec_ManComputeInitState( pAig, pPars->nPrefix );
        pTemp = Gia_ManDupFlip( pAig, (int *)pInitState );
        ABC_FREE( pInitState );
        // compute classes of this AIG
        RetValue = Cec_ManLSCorrespondenceClasses( pTemp, pPars );
        // transfer the class info
        pAig->pReprs = pTemp->pReprs; pTemp->pReprs = NULL;
        pAig->pNexts = pTemp->pNexts; pTemp->pNexts = NULL;
        // perform additional BMC
        pPars->fUseCSat = 0;
        pPars->nBTLimit = Abc_MaxInt( pPars->nBTLimit, 1000 );
        Cec_ManLSCorrespondenceBmc( pAig, pPars, pPars->nPrefix );
/*
        // transfer the class info back
        pTemp->pReprs = pAig->pReprs; pAig->pReprs = NULL;
        pTemp->pNexts = pAig->pNexts; pAig->pNexts = NULL;
        // continue refining
        RetValue = Cec_ManLSCorrespondenceClasses( pTemp, pPars );
        // transfer the class info
        pAig->pReprs = pTemp->pReprs; pTemp->pReprs = NULL;
        pAig->pNexts = pTemp->pNexts; pTemp->pNexts = NULL;
*/
        Gia_ManStop( pTemp );
    }
    // derive reduced AIG
    if ( pPars->fMakeChoices )
    {
        pNew = Gia_ManEquivToChoices( pAig, 1 );
//        Gia_ManHasChoices_very_old( pNew );
    }
    else
    {
//        Gia_ManEquivImprove( pAig );
        pNew = Gia_ManCorrReduce( pAig );
        pNew = Gia_ManSeqCleanup( pTemp = pNew );
        Gia_ManStop( pTemp );
        //Gia_AigerWrite( pNew, "reduced.aig", 0, 0, 0 );
    }
    // report the results
    if ( pPars->fVerbose )
    {
        Abc_Print( 1, "NBeg = %d. NEnd = %d. (Gain = %6.2f %%).  RBeg = %d. REnd = %d. (Gain = %6.2f %%).\n",
            Gia_ManAndNum(pAig), Gia_ManAndNum(pNew),
            100.0*(Gia_ManAndNum(pAig)-Gia_ManAndNum(pNew))/(Gia_ManAndNum(pAig)?Gia_ManAndNum(pAig):1),
            Gia_ManRegNum(pAig), Gia_ManRegNum(pNew),
            100.0*(Gia_ManRegNum(pAig)-Gia_ManRegNum(pNew))/(Gia_ManRegNum(pAig)?Gia_ManRegNum(pAig):1) );
    }
    if ( pPars->nPrefix && (Gia_ManAndNum(pNew) < Gia_ManAndNum(pAig) || Gia_ManRegNum(pNew) < Gia_ManRegNum(pAig)) )
        Abc_Print( 1, "The reduced AIG was produced using %d-th invariants and will not verify.\n", pPars->nPrefix );
    // print verbose info about equivalences
    if ( pPars->fVerboseFlops )
    {
        if ( pAig->vNamesIn == NULL )
            Abc_Print( 1, "Flop output names are not available. Use command \"&get -n\".\n" );
        else
            Cec_ManPrintFlopEquivs( pAig );
    }
    // copy names if present
    if ( pAig->vNamesIn )
    {
        char * pName; int i;
        pNew->vNamesIn = Vec_PtrDupStr( pAig->vNamesIn );
        Vec_PtrForEachEntryStart( char *, pNew->vNamesIn, pName, i, Gia_ManCiNum(pNew) )
            ABC_FREE( pName );
        Vec_PtrShrink( pNew->vNamesIn, Gia_ManCiNum(pNew) );
    }
    if ( pAig->vNamesOut )
    {
        char * pName; int i;
        pNew->vNamesOut = Vec_PtrDupStr( pAig->vNamesOut );
        Vec_PtrForEachEntryStart( char *, pNew->vNamesOut, pName, i, Gia_ManCoNum(pNew) )
            ABC_FREE( pName );
        Vec_PtrShrink( pNew->vNamesOut, Gia_ManCoNum(pNew) );
    }
    return pNew;
}

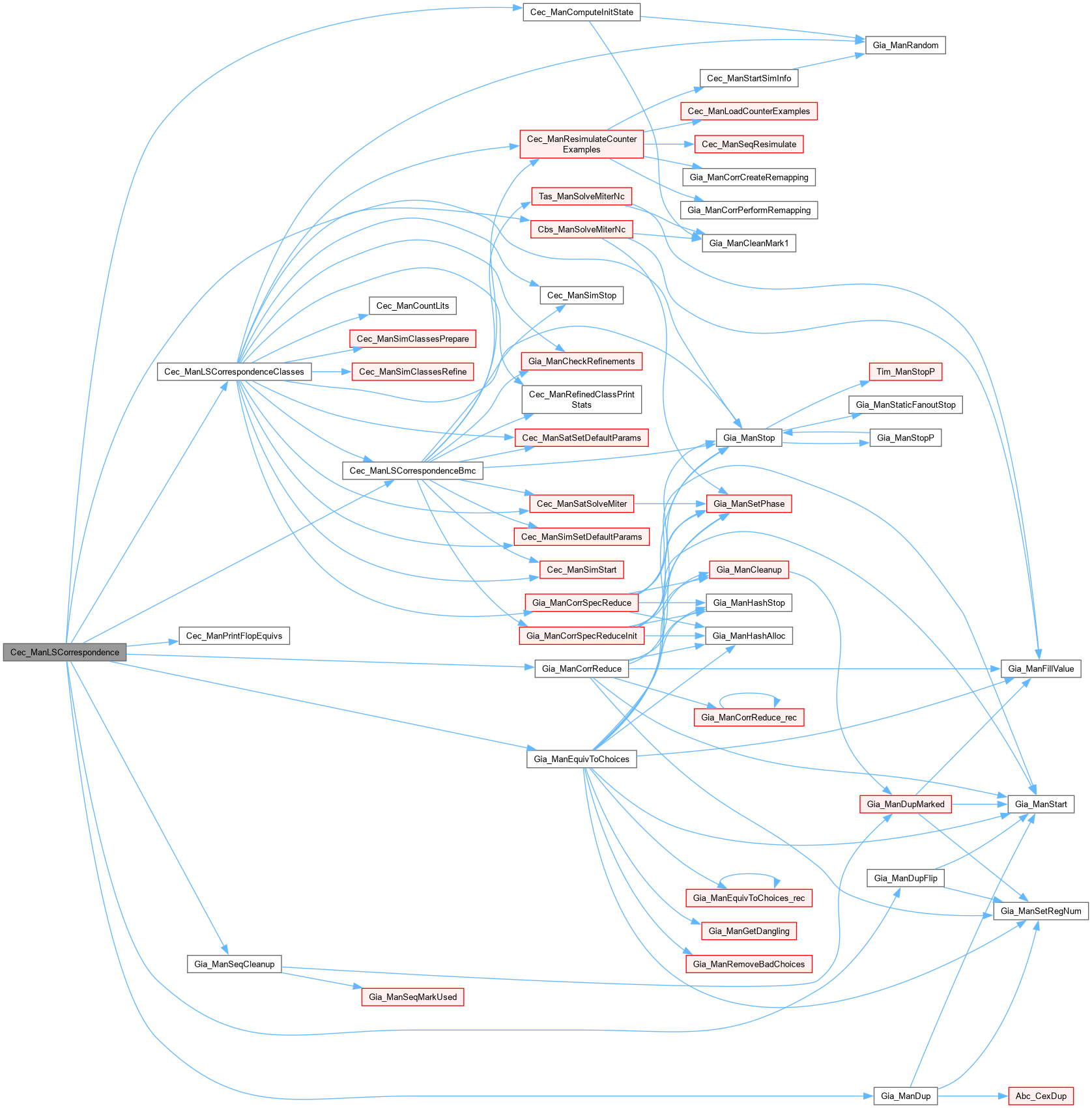

Here is the call graph for this function:

Here is the caller graph for this function:

Cec_ManLSCorrespondenceBmc()

void Cec_ManLSCorrespondenceBmc	(	Gia_Man_t *	pAig,
		Cec_ParCor_t *	pPars,
		int	nPrefs )

Function*************************************************************

Synopsis [Runs BMC for the equivalence classes.]

Description []

SideEffects []

SeeAlso []

Definition at line 786 of file cecCorr.c.

{
    Cec_ParSim_t ParsSim, * pParsSim = &ParsSim;
    Cec_ParSat_t ParsSat, * pParsSat = &ParsSat;
    Vec_Str_t * vStatus;
    Vec_Int_t * vOutputs;
    Vec_Int_t * vCexStore;
    Cec_ManSim_t * pSim;
    Gia_Man_t * pSrm;
    int fChanges, RetValue, i;
    // prepare simulation manager
    Cec_ManSimSetDefaultParams( pParsSim );
    pParsSim->nWords     = pPars->nWords;
    pParsSim->nFrames    = pPars->nRounds;
    pParsSim->fVerbose   = pPars->fVerbose;
    pParsSim->fLatchCorr = pPars->fLatchCorr;
    pParsSim->fSeqSimulate = 1;
    pSim = Cec_ManSimStart( pAig, pParsSim );
    // prepare SAT solving
    Cec_ManSatSetDefaultParams( pParsSat );
    pParsSat->nBTLimit = pPars->nBTLimit;
    pParsSat->fVerbose = pPars->fVerbose;
    fChanges = 1;
    for ( i = 0; fChanges && (!pPars->nLimitMax || i < pPars->nLimitMax); i++ )
    {
        abctime clkBmc = Abc_Clock();
        fChanges = 0;
        pSrm = Gia_ManCorrSpecReduceInit( pAig, pPars->nFrames, nPrefs, !pPars->fLatchCorr, &vOutputs, pPars->fUseRings );
        if ( Gia_ManPoNum(pSrm) == 0 )
        {
            Gia_ManStop( pSrm );
            Vec_IntFree( vOutputs );
            break;
        }
        pParsSat->nBTLimit *= 10;
        if ( pPars->fUseCSat )
            vCexStore = Tas_ManSolveMiterNc( pSrm, pPars->nBTLimit, &vStatus, 0 );
        else
            vCexStore = Cec_ManSatSolveMiter( pSrm, pParsSat, &vStatus );
        // refine classes with these counter-examples
        if ( Vec_IntSize(vCexStore) )
        {
            RetValue = Cec_ManResimulateCounterExamples( pSim, vCexStore, pPars->nFrames + 1 + nPrefs );
            Gia_ManCheckRefinements( pAig, vStatus, vOutputs, pSim, pPars->fUseRings );
            fChanges = 1;
        }
        if ( pPars->fVerbose )
            Cec_ManRefinedClassPrintStats( pAig, vStatus, -1, Abc_Clock() - clkBmc );
        // recycle
        Vec_IntFree( vCexStore );
        Vec_StrFree( vStatus );
        Gia_ManStop( pSrm );
        Vec_IntFree( vOutputs );
    }
    Cec_ManSimStop( pSim );
}

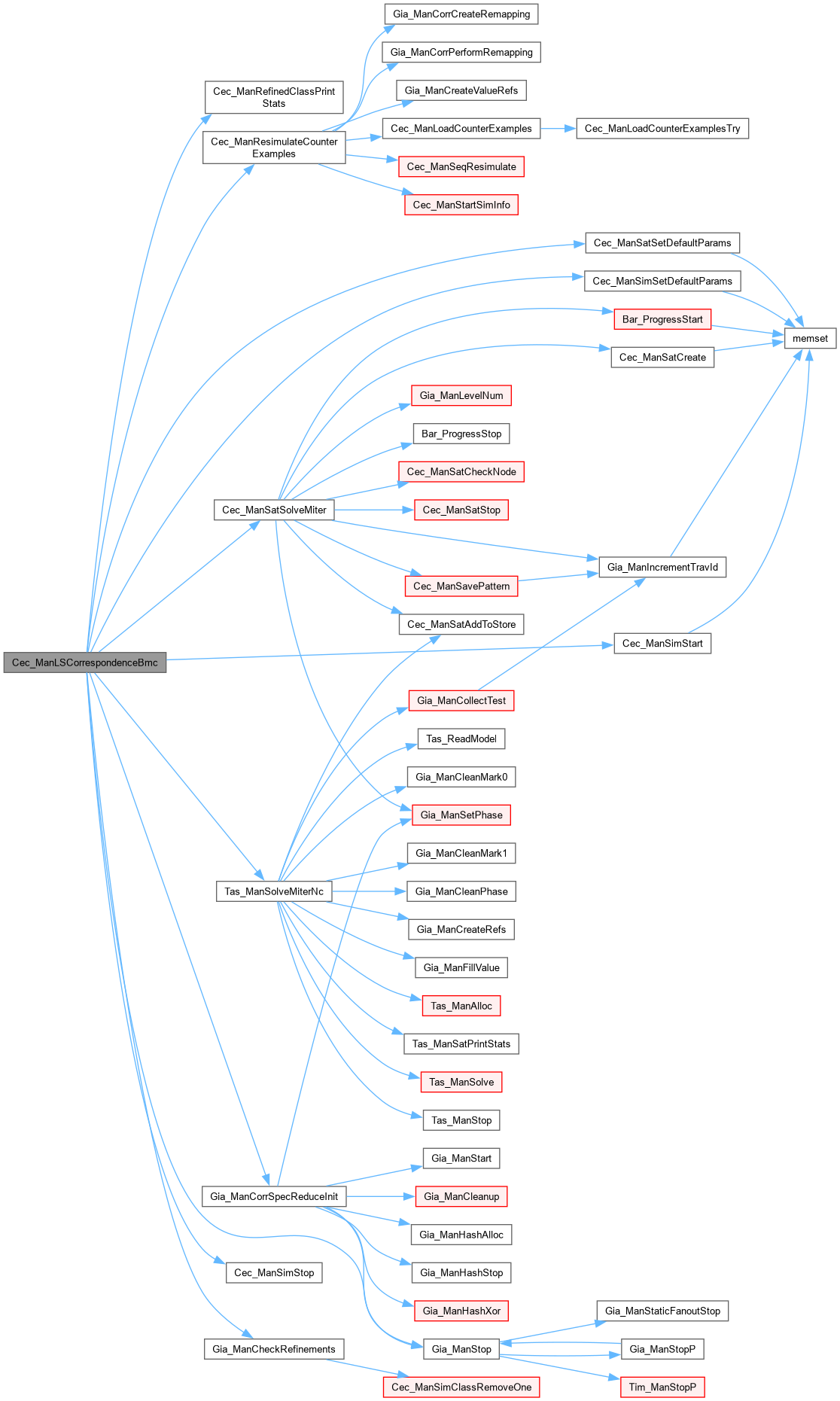

Here is the call graph for this function:

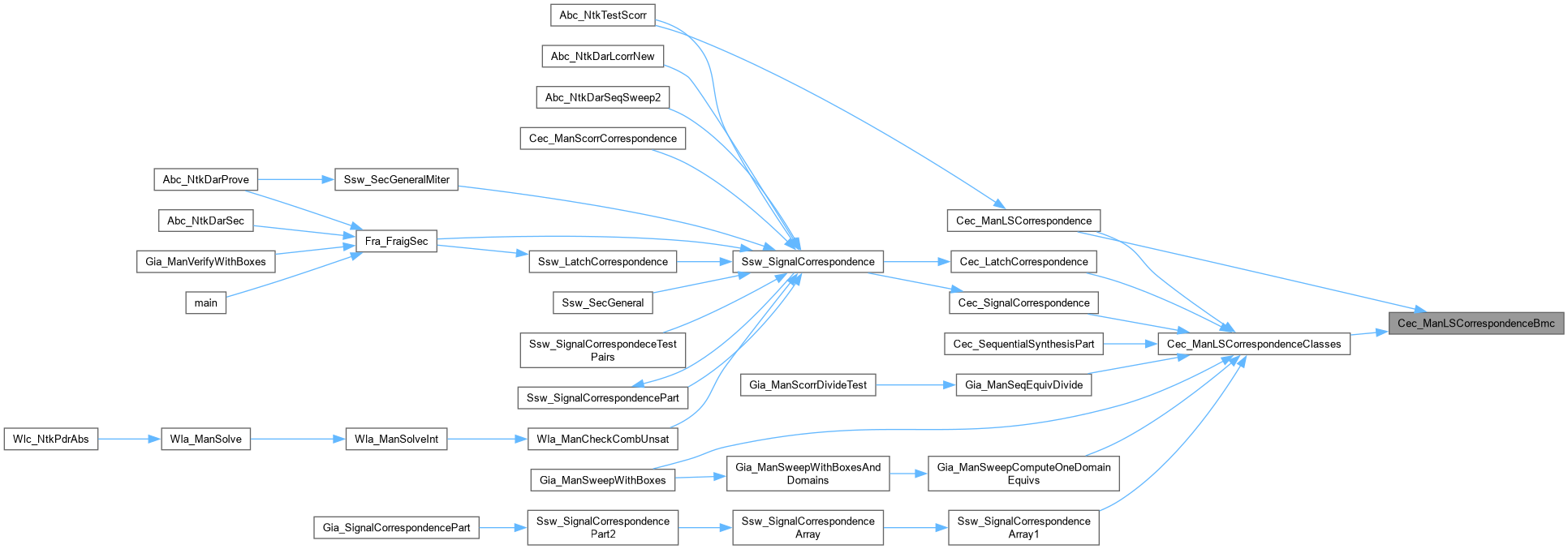

Here is the caller graph for this function:

Cec_ManLSCorrespondenceClasses()

int Cec_ManLSCorrespondenceClasses	(	Gia_Man_t *	pAig,
		Cec_ParCor_t *	pPars )

Function*************************************************************

Synopsis [Internal procedure for register correspondence.]

Description []

SideEffects []

SeeAlso []

Definition at line 924 of file cecCorr.c.

{
    int nIterMax     = 100000;
    int nAddFrames   = 1; // additional timeframes to simulate
    int fRunBmcFirst = 1;
    Vec_Str_t * vStatus;
    Vec_Int_t * vOutputs;
    Vec_Int_t * vCexStore;
    Cec_ParSim_t ParsSim, * pParsSim = &ParsSim;
    Cec_ParSat_t ParsSat, * pParsSat = &ParsSat;
    Cec_ManSim_t * pSim;
    Gia_Man_t * pSrm;
    int r, RetValue, nPrev[4] = {0};
    abctime clkTotal = Abc_Clock();
    abctime clkSat = 0, clkSim = 0, clkSrm = 0;
    abctime clk2, clk = Abc_Clock();
    if ( Gia_ManRegNum(pAig) == 0 )
    {
        Abc_Print( 1, "Cec_ManLatchCorrespondence(): Not a sequential AIG.\n" );
        return 0;
    }
    Gia_ManRandom( 1 );
    // prepare simulation manager
    Cec_ManSimSetDefaultParams( pParsSim );
    pParsSim->nWords     = pPars->nWords;
    pParsSim->nFrames    = pPars->nFrames;
    pParsSim->fVerbose   = pPars->fVerbose;
    pParsSim->fLatchCorr = pPars->fLatchCorr;
    pParsSim->fConstCorr = pPars->fConstCorr;
    pParsSim->fSeqSimulate = 1;
    // create equivalence classes of registers
    pSim = Cec_ManSimStart( pAig, pParsSim );
    if ( pAig->pReprs == NULL )
    {
        Cec_ManSimClassesPrepare( pSim, pPars->nLevelMax );
        Cec_ManSimClassesRefine( pSim );
    }
    // prepare SAT solving
    Cec_ManSatSetDefaultParams( pParsSat );
    pParsSat->nBTLimit = pPars->nBTLimit;
    pParsSat->fVerbose = pPars->fVerbose;
    // limit the number of conflicts in the circuit-based solver
    if ( pPars->fUseCSat )
        pParsSat->nBTLimit = Abc_MinInt( pParsSat->nBTLimit, 1000 );
    if ( pPars->fVerbose )
    {
        Abc_Print( 1, "Obj = %7d. And = %7d. Conf = %5d. Fr = %d. Lcorr = %d. Ring = %d. CSat = %d.\n",
            Gia_ManObjNum(pAig), Gia_ManAndNum(pAig),
            pPars->nBTLimit, pPars->nFrames, pPars->fLatchCorr, pPars->fUseRings, pPars->fUseCSat );
        Cec_ManRefinedClassPrintStats( pAig, NULL, 0, Abc_Clock() - clk );
    }
    // check the base case
    if ( fRunBmcFirst && (!pPars->fLatchCorr || pPars->nFrames > 1) )
        Cec_ManLSCorrespondenceBmc( pAig, pPars, 0 );
    if ( pPars->pFunc )
    {
        ((int (*)(void *))pPars->pFunc)( pPars->pData );
        ((int (*)(void *))pPars->pFunc)( pPars->pData );
    }
    if ( pPars->nStepsMax == 0 )
    {
        Abc_Print( 1, "Stopped signal correspondence after BMC.\n" );
        Cec_ManSimStop( pSim );
        return 1;
    }
    // perform refinement of equivalence classes
    for ( r = 0; r < nIterMax; r++ )
    {
        if ( pPars->nStepsMax == r )
        {
            Cec_ManSimStop( pSim );
            Abc_Print( 1, "Stopped signal correspondence after %d refiment iterations.\n", r );
            return 1;
        }
        clk = Abc_Clock();
        // perform speculative reduction
        clk2 = Abc_Clock();
        pSrm = Gia_ManCorrSpecReduce( pAig, pPars->nFrames, !pPars->fLatchCorr, &vOutputs, pPars->fUseRings );
        assert( Gia_ManRegNum(pSrm) == 0 && Gia_ManPiNum(pSrm) == Gia_ManRegNum(pAig)+(pPars->nFrames+!pPars->fLatchCorr)*Gia_ManPiNum(pAig) );
        clkSrm += Abc_Clock() - clk2;
        if ( Gia_ManCoNum(pSrm) == 0 )
        {
            Vec_IntFree( vOutputs );
            Gia_ManStop( pSrm );
            break;
        }
//Gia_DumpAiger( pSrm, "corrsrm", r, 2 );
        // found counter-examples to speculation
        clk2 = Abc_Clock();
        if ( pPars->fUseCSat )
            vCexStore = Cbs_ManSolveMiterNc( pSrm, pPars->nBTLimit, &vStatus, 0, 0 );
        else
            vCexStore = Cec_ManSatSolveMiter( pSrm, pParsSat, &vStatus );
        Gia_ManStop( pSrm );
        clkSat += Abc_Clock() - clk2;
        if ( Vec_IntSize(vCexStore) == 0 )
        {
            Vec_IntFree( vCexStore );
            Vec_StrFree( vStatus );
            Vec_IntFree( vOutputs );
            break;
        }
//        Cec_ManLSCorrAnalyzeDependence( pAig, vOutputs, vStatus );

        // refine classes with these counter-examples
        clk2 = Abc_Clock();
        RetValue = Cec_ManResimulateCounterExamples( pSim, vCexStore, pPars->nFrames + 1 + nAddFrames );
        Vec_IntFree( vCexStore );
        clkSim += Abc_Clock() - clk2;
        Gia_ManCheckRefinements( pAig, vStatus, vOutputs, pSim, pPars->fUseRings );
        if ( pPars->fVerbose )
            Cec_ManRefinedClassPrintStats( pAig, vStatus, r+1, Abc_Clock() - clk );
        Vec_StrFree( vStatus );
        Vec_IntFree( vOutputs );
//Gia_ManEquivPrintClasses( pAig, 1, 0 );
        if ( pPars->pFunc )
            ((int (*)(void *))pPars->pFunc)( pPars->pData );
        // quit if const is no longer there
        if ( pPars->fStopWhenGone && Gia_ManPoNum(pAig) == 1 && !Gia_ObjIsConst( pAig, Gia_ObjFaninId0p(pAig, Gia_ManPo(pAig, 0)) ) )
        {
            printf( "Iterative refinement is stopped after iteration %d\n", r );
            printf( "because the property output is no longer a candidate constant.\n" );
            Cec_ManSimStop( pSim );
            return 0;
        }
        if ( pPars->nLimitMax )
        {
            int nCur = Cec_ManCountLits(pAig);
            if ( r > 4 && nPrev[0] - nCur <= 4*pPars->nLimitMax )
            {
                printf( "Iterative refinement is stopped after iteration %d\n", r );
                printf( "because refinement does not proceed quickly.\n" );
                Cec_ManSimStop( pSim );
                ABC_FREE( pAig->pReprs );
                ABC_FREE( pAig->pNexts );
                return 0;
            }
            nPrev[0] = nPrev[1];
            nPrev[1] = nPrev[2];
            nPrev[2] = nPrev[3];
            nPrev[3] = nCur;
        }
    }
    if ( pPars->fVerbose )
        Cec_ManRefinedClassPrintStats( pAig, NULL, r+1, Abc_Clock() - clk );
    // check the overflow
    if ( r == nIterMax )
        Abc_Print( 1, "The refinement was not finished. The result may be incorrect.\n" );
    Cec_ManSimStop( pSim );
    // check the base case
    if ( !fRunBmcFirst && (!pPars->fLatchCorr || pPars->nFrames > 1) )
        Cec_ManLSCorrespondenceBmc( pAig, pPars, 0 );
    clkTotal = Abc_Clock() - clkTotal;
    // report the results
    if ( pPars->fVerbose )
    {
        ABC_PRTP( "Srm  ", clkSrm,                        clkTotal );
        ABC_PRTP( "Sat  ", clkSat,                        clkTotal );
        ABC_PRTP( "Sim  ", clkSim,                        clkTotal );
        ABC_PRTP( "Other", clkTotal-clkSat-clkSrm-clkSim, clkTotal );
        Abc_PrintTime( 1, "TOTAL",  clkTotal );
    }
    return 1;
}

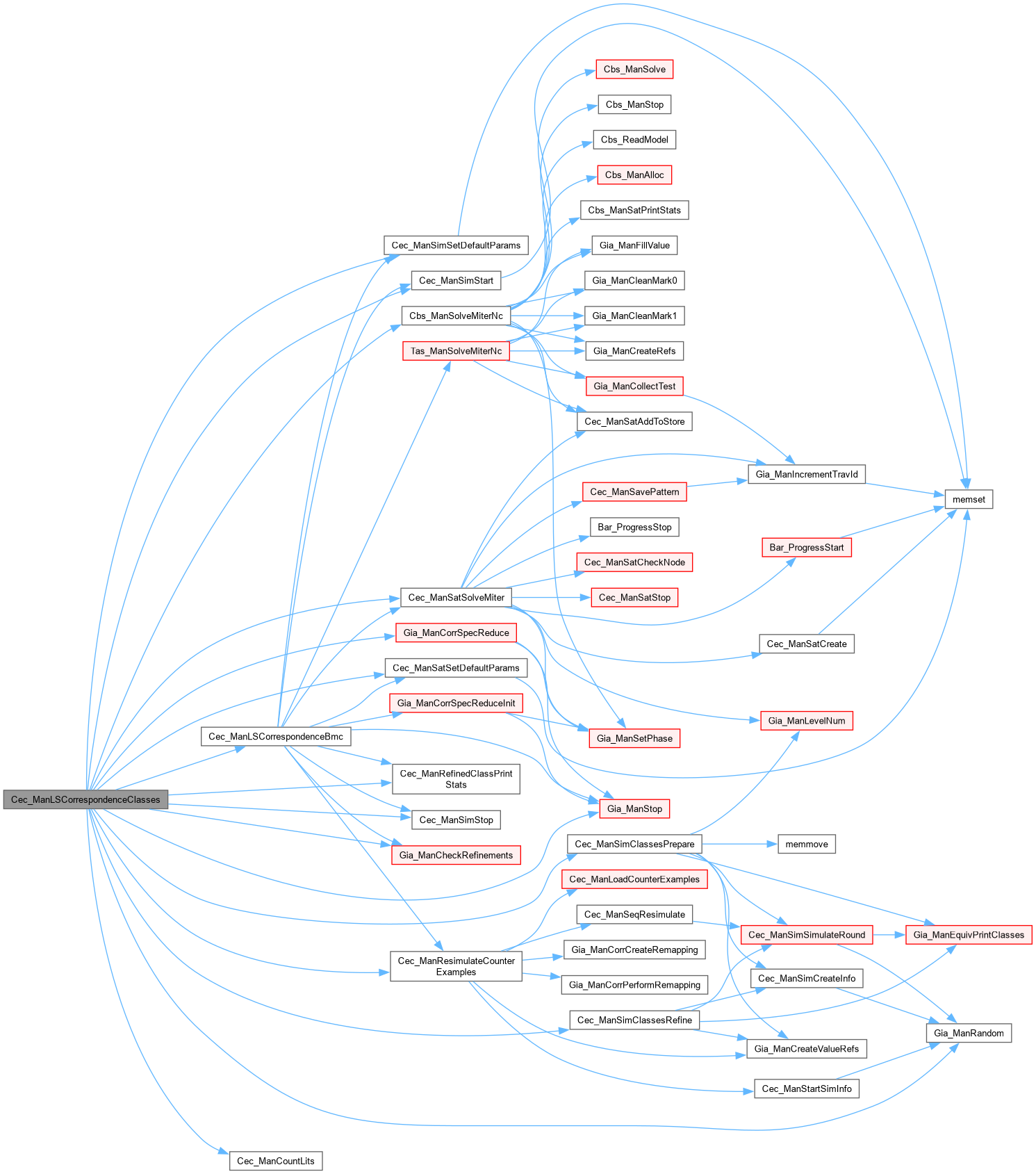

Here is the call graph for this function:

Here is the caller graph for this function:

Cec_ManPrintFlopEquivs()

void Cec_ManPrintFlopEquivs

(

Gia_Man_t *

p

)

Function*************************************************************

Synopsis [Prints flop equivalences.]

Description []

SideEffects []

SeeAlso []

Definition at line 1145 of file cecCorr.c.

{
    Gia_Obj_t * pObj, * pRepr;
    int i;
    assert( p->vNamesIn != NULL );
    Gia_ManForEachRo( p, pObj, i )
    {
        if ( Gia_ObjIsConst(p, Gia_ObjId(p, pObj)) )
            Abc_Print( 1, "Original flop %s is proved equivalent to constant.\n", Vec_PtrEntry(p->vNamesIn, Gia_ObjCioId(pObj)) );
        else if ( (pRepr = Gia_ObjReprObj(p, Gia_ObjId(p, pObj))) )
        {
            if ( Gia_ObjIsCi(pRepr) )
                Abc_Print( 1, "Original flop %s is proved equivalent to flop %s.\n",
                    Vec_PtrEntry( p->vNamesIn, Gia_ObjCioId(pObj)  ),
                    Vec_PtrEntry( p->vNamesIn, Gia_ObjCioId(pRepr) ) );
            else
                Abc_Print( 1, "Original flop %s is proved equivalent to internal node %d.\n",
                    Vec_PtrEntry( p->vNamesIn, Gia_ObjCioId(pObj) ), Gia_ObjId(p, pRepr) );
        }
    }
}

Here is the caller graph for this function:

Cec_ManRefinedClassPrintStats()

void Cec_ManRefinedClassPrintStats	(	Gia_Man_t *	p,
		Vec_Str_t *	vStatus,
		int	iIter,
		abctime	Time )

MACRO DEFINITIONS ///.

Function*************************************************************

Synopsis [Prints statistics during solving.]

Description []

SideEffects []

SeeAlso []

Definition at line 725 of file cecCorr.c.

{
    int nLits, CounterX = 0, Counter0 = 0, Counter = 0;
    int i, Entry, nProve = 0, nDispr = 0, nFail = 0;
    for ( i = 1; i < Gia_ManObjNum(p); i++ )
    {
        if ( Gia_ObjIsNone(p, i) )
            CounterX++;
        else if ( Gia_ObjIsConst(p, i) )
            Counter0++;
        else if ( Gia_ObjIsHead(p, i) )
            Counter++;
    }
    CounterX -= Gia_ManCoNum(p);
    nLits = Gia_ManCiNum(p) + Gia_ManAndNum(p) - Counter - CounterX;
    if ( iIter == -1 )
        Abc_Print( 1, "BMC : " );
    else
        Abc_Print( 1, "%3d : ", iIter );
    Abc_Print( 1, "c =%8d  cl =%7d  lit =%8d  ", Counter0, Counter, nLits );
    if ( vStatus )
    Vec_StrForEachEntry( vStatus, Entry, i )
    {
        if ( Entry == 1 )
            nProve++;
        else if ( Entry == 0 )
            nDispr++;
        else if ( Entry == -1 )
            nFail++;
    }
    Abc_Print( 1, "p =%6d  d =%6d  f =%6d  ", nProve, nDispr, nFail );
    Abc_Print( 1, "%c  ", Gia_ObjIsConst( p, Gia_ObjFaninId0p(p, Gia_ManPo(p, 0)) ) ? '+' : '-' );
    Abc_PrintTime( 1, "T", Time );
}

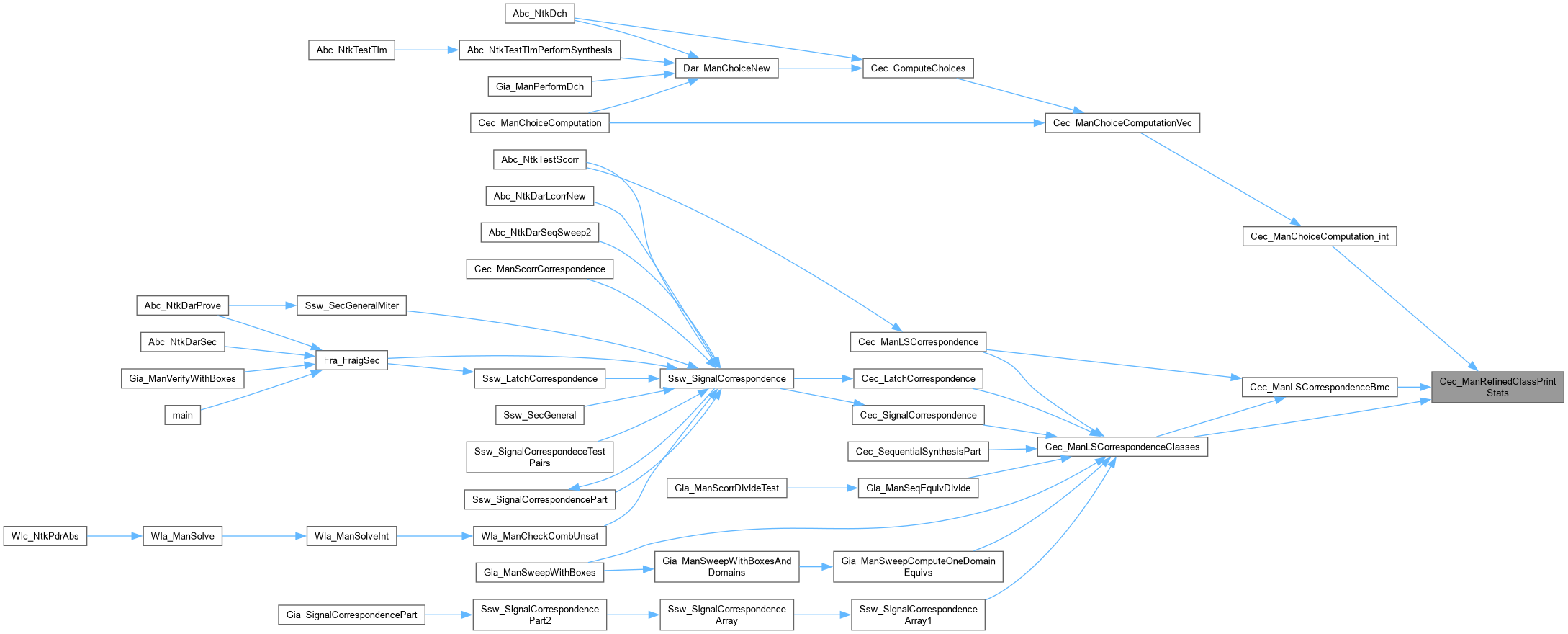

Here is the caller graph for this function:

Cec_ManResimulateCounterExamples()

int Cec_ManResimulateCounterExamples	(	Cec_ManSim_t *	pSim,
		Vec_Int_t *	vCexStore,
		int	nFrames )

Function*************************************************************

Synopsis [Resimulates counter-examples derived by the SAT solver.]

Description []

SideEffects []

SeeAlso []

Definition at line 545 of file cecCorr.c.

{
    Vec_Int_t * vPairs;
    Vec_Ptr_t * vSimInfo;
    int RetValue = 0, iStart = 0;
    vPairs = Gia_ManCorrCreateRemapping( pSim->pAig );
    Gia_ManCreateValueRefs( pSim->pAig );
//    pSim->pPars->nWords  = 63;
    pSim->pPars->nFrames = nFrames;
    vSimInfo = Vec_PtrAllocSimInfo( Gia_ManRegNum(pSim->pAig) + Gia_ManPiNum(pSim->pAig) * nFrames, pSim->pPars->nWords );
    while ( iStart < Vec_IntSize(vCexStore) )
    {
        Cec_ManStartSimInfo( vSimInfo, Gia_ManRegNum(pSim->pAig) );
        iStart = Cec_ManLoadCounterExamples( vSimInfo, vCexStore, iStart );
//        iStart = Cec_ManLoadCounterExamples2( vSimInfo, vCexStore, iStart );
//        Gia_ManCorrRemapSimInfo( pSim->pAig, vSimInfo );
        Gia_ManCorrPerformRemapping( vPairs, vSimInfo );
        RetValue |= Cec_ManSeqResimulate( pSim, vSimInfo );
//        Cec_ManSeqResimulateInfo( pSim->pAig, vSimInfo, NULL );
    }
//Gia_ManEquivPrintOne( pSim->pAig, 85, 0 );
    assert( iStart == Vec_IntSize(vCexStore) );
    Vec_PtrFree( vSimInfo );
    Vec_IntFree( vPairs );
    return RetValue;
}

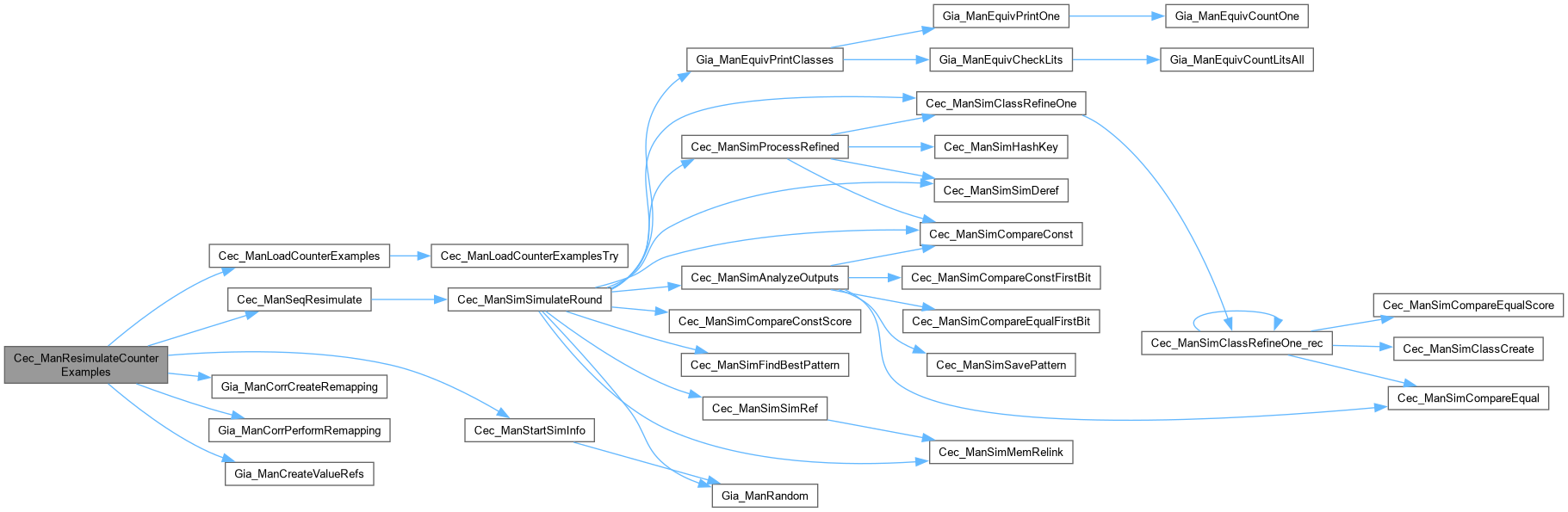

Here is the call graph for this function:

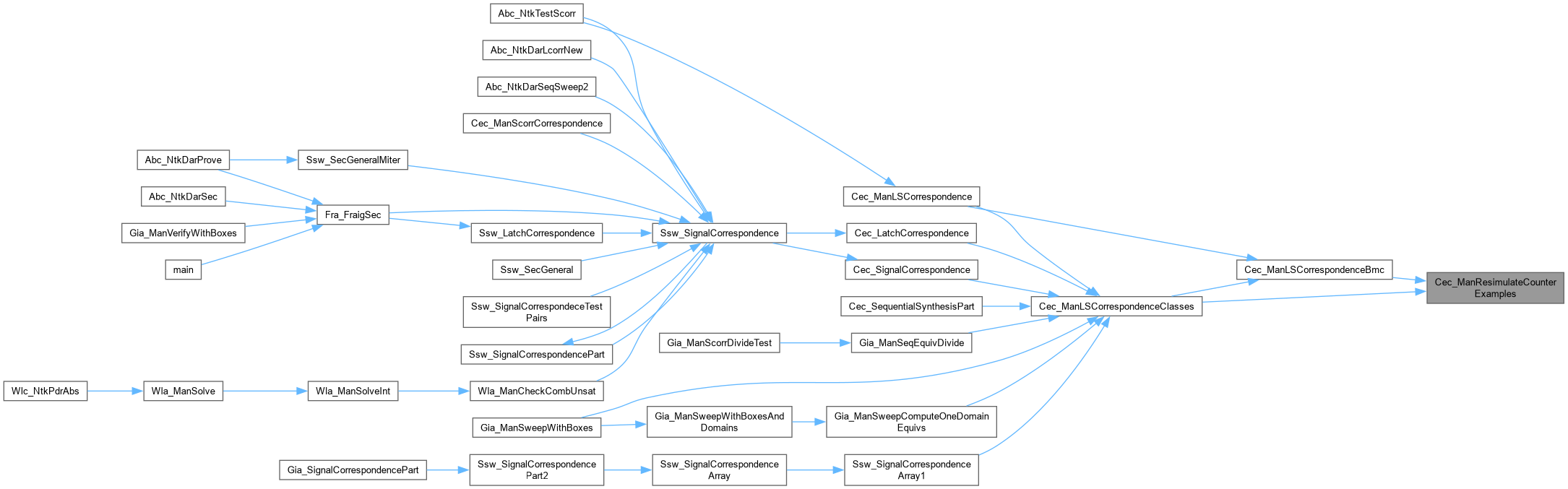

Here is the caller graph for this function:

Cec_ManResimulateCounterExamplesComb()

int Cec_ManResimulateCounterExamplesComb	(	Cec_ManSim_t *	pSim,
		Vec_Int_t *	vCexStore )

Function*************************************************************

Synopsis [Resimulates counter-examples derived by the SAT solver.]

Description []

SideEffects []

SeeAlso []

Definition at line 583 of file cecCorr.c.

{
    Vec_Ptr_t * vSimInfo;
    int RetValue = 0, iStart = 0;
    Gia_ManCreateValueRefs( pSim->pAig );
    pSim->pPars->nFrames = 1;
    vSimInfo = Vec_PtrAllocSimInfo( Gia_ManCiNum(pSim->pAig), pSim->pPars->nWords );
    while ( iStart < Vec_IntSize(vCexStore) )
    {
        Cec_ManStartSimInfo( vSimInfo, 0 );
        iStart = Cec_ManLoadCounterExamples( vSimInfo, vCexStore, iStart );
        RetValue |= Cec_ManSeqResimulate( pSim, vSimInfo );
    }
    assert( iStart == Vec_IntSize(vCexStore) );
    Vec_PtrFree( vSimInfo );
    return RetValue;
}

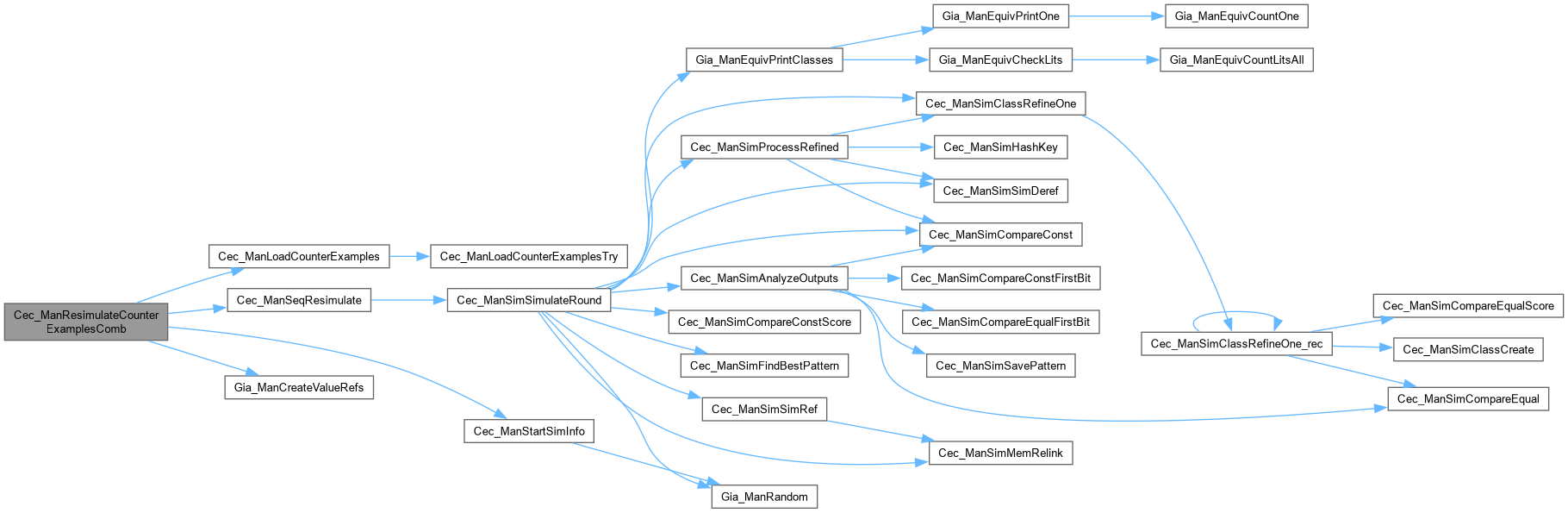

Here is the call graph for this function:

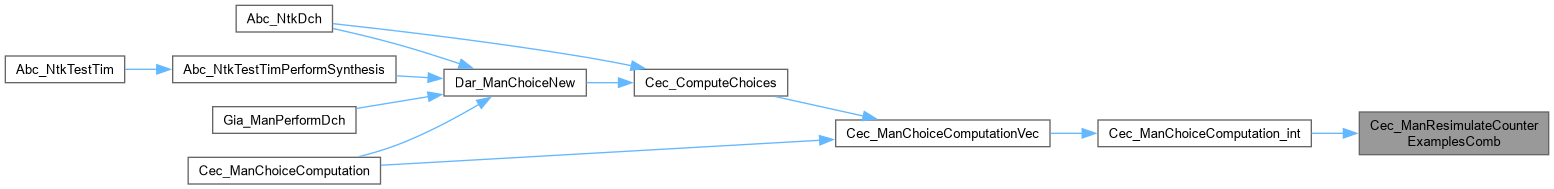

Here is the caller graph for this function:

Cec_ManStartSimInfo()

void Cec_ManStartSimInfo	(	Vec_Ptr_t *	vInfo,
		int	nFlops )

Function*************************************************************

Synopsis [Initializes simulation info for lcorr/scorr counter-examples.]

Description []

SideEffects []

SeeAlso []

Definition at line 292 of file cecCorr.c.

{
    unsigned * pInfo;
    int k, w, nWords;
    nWords = Vec_PtrReadWordsSimInfo( vInfo );
    assert( nFlops <= Vec_PtrSize(vInfo) );
    for ( k = 0; k < nFlops; k++ )
    {
        pInfo = (unsigned *)Vec_PtrEntry( vInfo, k );
        for ( w = 0; w < nWords; w++ )
            pInfo[w] = 0;
    }
    for ( k = nFlops; k < Vec_PtrSize(vInfo); k++ )
    {
        pInfo = (unsigned *)Vec_PtrEntry( vInfo, k );
        for ( w = 0; w < nWords; w++ )
            pInfo[w] = Gia_ManRandom( 0 );
    }
}

Here is the call graph for this function:

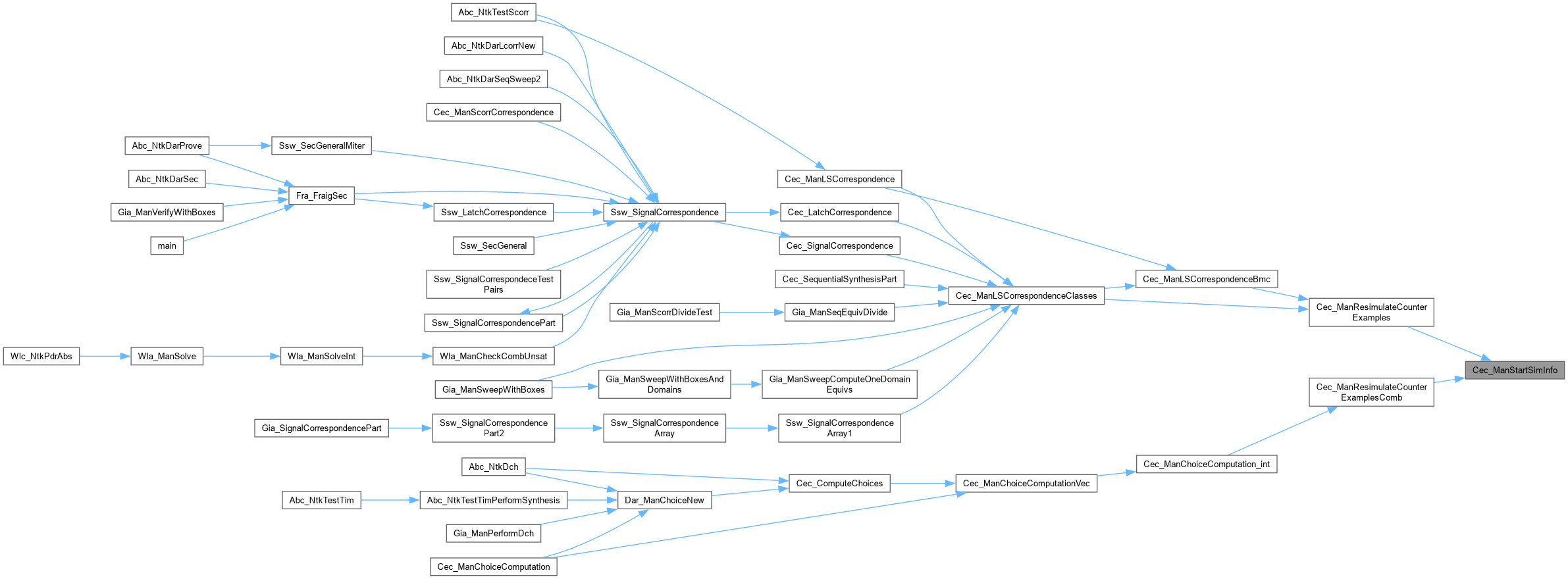

Here is the caller graph for this function:

Gia_ManCheckRefinements()

int Gia_ManCheckRefinements	(	Gia_Man_t *	p,
		Vec_Str_t *	vStatus,
		Vec_Int_t *	vOutputs,
		Cec_ManSim_t *	pSim,
		int	fRings )

Function*************************************************************

Synopsis [Updates equivalence classes by marking those that timed out.]

Description [Returns 1 if all ndoes are proved.]

SideEffects []

SeeAlso []

Definition at line 612 of file cecCorr.c.

{
    int i, status, iRepr, iObj;
    int Counter = 0;
    assert( 2 * Vec_StrSize(vStatus) == Vec_IntSize(vOutputs) );
    Vec_StrForEachEntry( vStatus, status, i )
    {
        iRepr = Vec_IntEntry( vOutputs, 2*i );
        iObj  = Vec_IntEntry( vOutputs, 2*i+1 );
        if ( status == 1 )
            continue;
        if ( status == 0 )
        {
            if ( Gia_ObjHasSameRepr(p, iRepr, iObj) )
                Counter++;
//            if ( Gia_ObjHasSameRepr(p, iRepr, iObj) )
//                Abc_Print( 1, "Gia_ManCheckRefinements(): Disproved equivalence (%d,%d) is not refined!\n", iRepr, iObj );
//            if ( Gia_ObjHasSameRepr(p, iRepr, iObj) )
//                Cec_ManSimClassRemoveOne( pSim, iObj );
            continue;
        }
        if ( status == -1 )
        {
//            if ( !Gia_ObjFailed( p, iObj ) )
//                Abc_Print( 1, "Gia_ManCheckRefinements(): Failed equivalence is not marked as failed!\n" );
//            Gia_ObjSetFailed( p, iRepr );
//            Gia_ObjSetFailed( p, iObj );
//            if ( fRings )
//            Cec_ManSimClassRemoveOne( pSim, iRepr );
            Cec_ManSimClassRemoveOne( pSim, iObj );
            continue;
        }
    }
//    if ( Counter )
//    Abc_Print( 1, "Gia_ManCheckRefinements(): Could not refine %d nodes.\n", Counter );
    return 1;
}

Here is the call graph for this function:

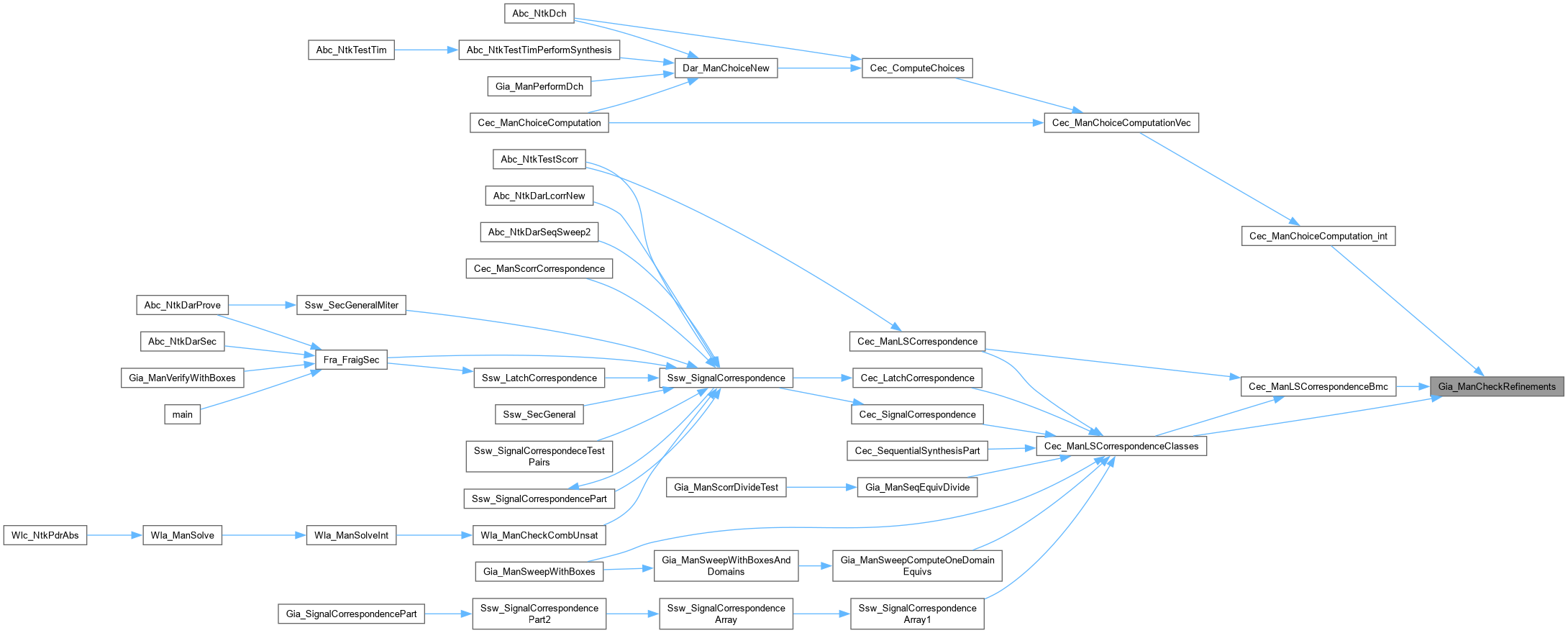

Here is the caller graph for this function:

Gia_ManCorrCreateRemapping()

Vec_Int_t * Gia_ManCorrCreateRemapping

(

Gia_Man_t *

p

)

Function*************************************************************

Synopsis [Collects information about remapping.]

Description []

SideEffects []

SeeAlso []

Definition at line 362 of file cecCorr.c.

{
    Vec_Int_t * vPairs;
    Gia_Obj_t * pObj, * pRepr;
    int i;
    vPairs = Vec_IntAlloc( 100 );
    Gia_ManForEachRo( p, pObj, i )
    {
        // skip ROs without representatives
        pRepr = Gia_ObjReprObj( p, Gia_ObjId(p,pObj) );
        if ( pRepr == NULL || Gia_ObjIsConst0(pRepr) || Gia_ObjFailed(p, Gia_ObjId(p,pObj)) )
//        if ( pRepr == NULL || Gia_ObjIsConst0(pRepr) || Gia_ObjIsFailedPair(p, Gia_ObjId(p, pRepr), Gia_ObjId(p, pObj)) )
            continue;
        assert( Gia_ObjIsRo(p, pRepr) );
//        Abc_Print( 1, "%d -> %d    ", Gia_ObjId(p,pObj), Gia_ObjId(p, pRepr) );
        // remember the pair
        Vec_IntPush( vPairs, Gia_ObjCioId(pRepr) - Gia_ManPiNum(p) );
        Vec_IntPush( vPairs, i );
    }
    return vPairs;
}

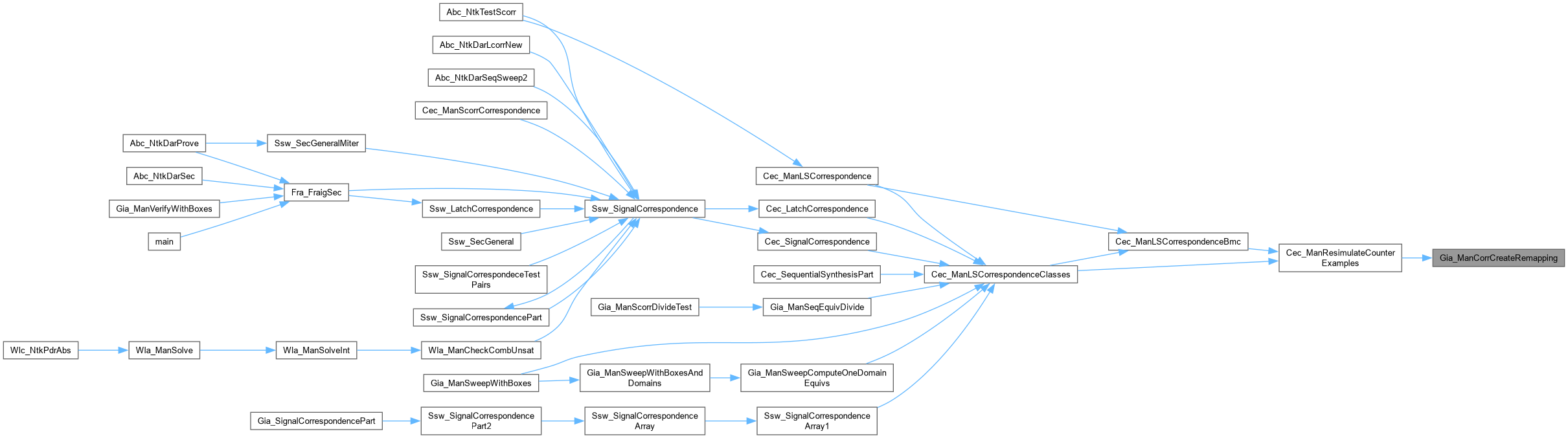

Here is the caller graph for this function:

Gia_ManCorrPerformRemapping()

void Gia_ManCorrPerformRemapping	(	Vec_Int_t *	vPairs,
		Vec_Ptr_t *	vInfo )

Function*************************************************************

Synopsis [Remaps simulation info from SRM to the original AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 395 of file cecCorr.c.

{
    unsigned * pInfoObj, * pInfoRepr;
    int w, i, iObj, iRepr, nWords;
    nWords = Vec_PtrReadWordsSimInfo( vInfo );
    Vec_IntForEachEntry( vPairs, iRepr, i )
    {
        iObj = Vec_IntEntry( vPairs, ++i );
        pInfoObj = (unsigned *)Vec_PtrEntry( vInfo, iObj );
        pInfoRepr = (unsigned *)Vec_PtrEntry( vInfo, iRepr );
        for ( w = 0; w < nWords; w++ )
        {
            assert( pInfoObj[w] == 0 );
            pInfoObj[w] = pInfoRepr[w];
        }
    }
}

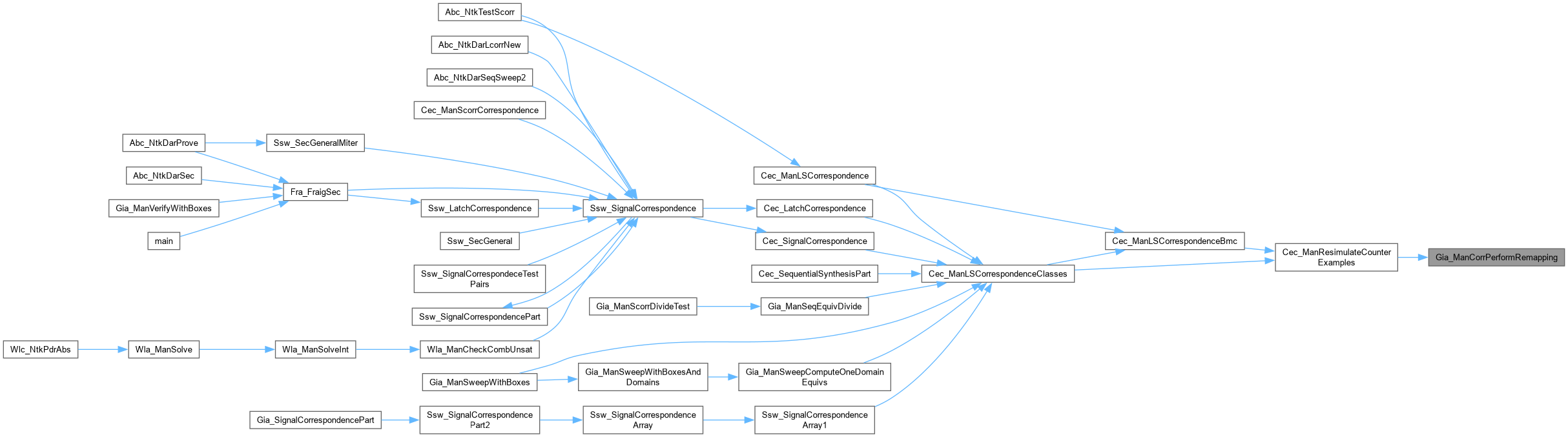

Here is the caller graph for this function:

Gia_ManCorrReduce()

Gia_Man_t * Gia_ManCorrReduce

(

Gia_Man_t *

p

)

Function*************************************************************

Synopsis [Reduces AIG using equivalence classes.]

Description []

SideEffects []

SeeAlso []

Definition at line 690 of file cecCorr.c.

{
    Gia_Man_t * pNew;
    Gia_Obj_t * pObj;
    int i;
    Gia_ManSetPhase( p );
    pNew = Gia_ManStart( Gia_ManObjNum(p) );
    pNew->pName = Abc_UtilStrsav( p->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    Gia_ManFillValue( p );
    Gia_ManConst0(p)->Value = 0;
    Gia_ManForEachCi( p, pObj, i )
        pObj->Value = Gia_ManAppendCi(pNew);
    Gia_ManHashAlloc( pNew );
    Gia_ManForEachCo( p, pObj, i )
        Gia_ManCorrReduce_rec( pNew, p, Gia_ObjFanin0(pObj) );
    Gia_ManForEachCo( p, pObj, i )
        Gia_ManAppendCo( pNew, Gia_ObjFanin0Copy(pObj) );
    Gia_ManHashStop( pNew );
    Gia_ManSetRegNum( pNew, Gia_ManRegNum(p) );
    return pNew;
}

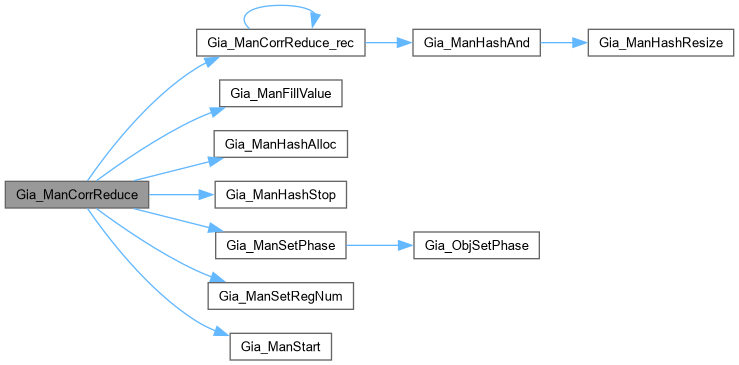

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManCorrReduce_rec()

void Gia_ManCorrReduce_rec	(	Gia_Man_t *	pNew,
		Gia_Man_t *	p,
		Gia_Obj_t *	pObj )

Function*************************************************************

Synopsis [Duplicates the AIG in the DFS order.]

Description []

SideEffects []

SeeAlso []

Definition at line 662 of file cecCorr.c.

{
    Gia_Obj_t * pRepr;
    if ( (pRepr = Gia_ObjReprObj(p, Gia_ObjId(p, pObj))) )
    {
        Gia_ManCorrReduce_rec( pNew, p, pRepr );
        pObj->Value = Abc_LitNotCond( pRepr->Value, Gia_ObjPhaseReal(pRepr) ^ Gia_ObjPhaseReal(pObj) );
        return;
    }
    if ( ~pObj->Value )
        return;
    assert( Gia_ObjIsAnd(pObj) );
    Gia_ManCorrReduce_rec( pNew, p, Gia_ObjFanin0(pObj) );
    Gia_ManCorrReduce_rec( pNew, p, Gia_ObjFanin1(pObj) );
    pObj->Value = Gia_ManHashAnd( pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManCorrRemapSimInfo()

void Gia_ManCorrRemapSimInfo	(	Gia_Man_t *	p,
		Vec_Ptr_t *	vInfo )

Function*************************************************************

Synopsis [Remaps simulation info from SRM to the original AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 323 of file cecCorr.c.

{
    Gia_Obj_t * pObj, * pRepr;
    unsigned * pInfoObj, * pInfoRepr;
    int i, w, nWords;
    nWords = Vec_PtrReadWordsSimInfo( vInfo );
    Gia_ManForEachRo( p, pObj, i )
    {
        // skip ROs without representatives
        pRepr = Gia_ObjReprObj( p, Gia_ObjId(p,pObj) );
        if ( pRepr == NULL || Gia_ObjFailed(p, Gia_ObjId(p,pObj)) )
            continue;
        pInfoObj = (unsigned *)Vec_PtrEntry( vInfo, i );
        for ( w = 0; w < nWords; w++ )
            assert( pInfoObj[w] == 0 );
        // skip ROs with constant representatives
        if ( Gia_ObjIsConst0(pRepr) )
            continue;
        assert( Gia_ObjIsRo(p, pRepr) );
//        Abc_Print( 1, "%d -> %d    ", i, Gia_ObjId(p, pRepr) );
        // transfer info from the representative
        pInfoRepr = (unsigned *)Vec_PtrEntry( vInfo, Gia_ObjCioId(pRepr) - Gia_ManPiNum(p) );
        for ( w = 0; w < nWords; w++ )
            pInfoObj[w] = pInfoRepr[w];
    }
//    Abc_Print( 1, "\n" );
}

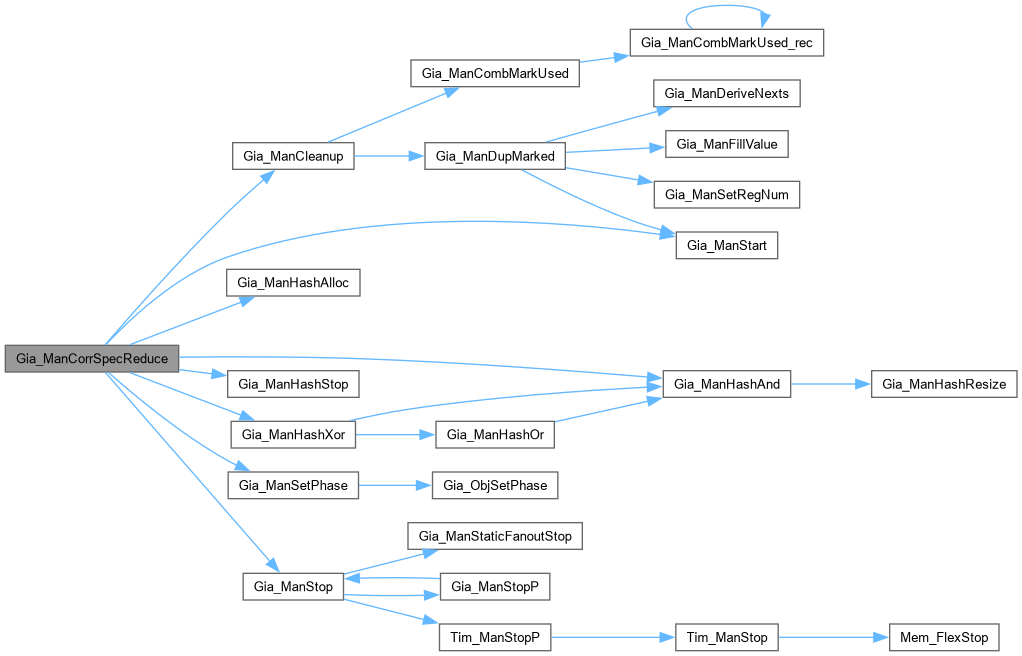

Gia_ManCorrSpecReduce()

Gia_Man_t * Gia_ManCorrSpecReduce	(	Gia_Man_t *	p,
		int	nFrames,
		int	fScorr,
		Vec_Int_t **	pvOutputs,
		int	fRings )

Function*************************************************************

Synopsis [Derives SRM for signal correspondence.]

Description []

SideEffects []

SeeAlso []

Definition at line 106 of file cecCorr.c.

{
    Gia_Man_t * pNew, * pTemp;
    Gia_Obj_t * pObj, * pRepr;
    Vec_Int_t * vXorLits;
    int f, i, iPrev, iObj, iPrevNew, iObjNew;
    assert( nFrames > 0 );
    assert( Gia_ManRegNum(p) > 0 );
    assert( p->pReprs != NULL );
    Vec_IntFill( &p->vCopies, (nFrames+fScorr)*Gia_ManObjNum(p), -1 );
    Gia_ManSetPhase( p );
    pNew = Gia_ManStart( nFrames * Gia_ManObjNum(p) );
    pNew->pName = Abc_UtilStrsav( p->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    Gia_ManHashAlloc( pNew );
    Gia_ObjSetCopyF( p, 0, Gia_ManConst0(p), 0 );
    Gia_ManForEachRo( p, pObj, i )
        Gia_ObjSetCopyF( p, 0, pObj, Gia_ManAppendCi(pNew) );
    Gia_ManForEachRo( p, pObj, i )
        if ( (pRepr = Gia_ObjReprObj(p, Gia_ObjId(p, pObj))) )
            Gia_ObjSetCopyF( p, 0, pObj, Gia_ObjCopyF(p, 0, pRepr) );
    for ( f = 0; f < nFrames+fScorr; f++ )
    {
        Gia_ObjSetCopyF( p, f, Gia_ManConst0(p), 0 );
        Gia_ManForEachPi( p, pObj, i )
            Gia_ObjSetCopyF( p, f, pObj, Gia_ManAppendCi(pNew) );
    }
    *pvOutputs = Vec_IntAlloc( 1000 );
    vXorLits = Vec_IntAlloc( 1000 );
    if ( fRings )
    {
        Gia_ManForEachObj1( p, pObj, i )
        {
            if ( Gia_ObjIsConst( p, i ) )
            {
                iObjNew = Gia_ManCorrSpecReal( pNew, p, pObj, nFrames, 0 );
                iObjNew = Abc_LitNotCond( iObjNew, Gia_ObjPhase(pObj) );
                if ( iObjNew != 0 )
                {
                    Vec_IntPush( *pvOutputs, 0 );
                    Vec_IntPush( *pvOutputs, i );
                    Vec_IntPush( vXorLits, iObjNew );
                }
            }
            else if ( Gia_ObjIsHead( p, i ) )
            {
                iPrev = i;
                Gia_ClassForEachObj1( p, i, iObj )
                {
                    iPrevNew = Gia_ManCorrSpecReal( pNew, p, Gia_ManObj(p, iPrev), nFrames, 0 );
                    iObjNew  = Gia_ManCorrSpecReal( pNew, p, Gia_ManObj(p, iObj), nFrames, 0 );
                    iPrevNew = Abc_LitNotCond( iPrevNew, Gia_ObjPhase(pObj) ^ Gia_ObjPhase(Gia_ManObj(p, iPrev)) );
                    iObjNew  = Abc_LitNotCond( iObjNew,  Gia_ObjPhase(pObj) ^ Gia_ObjPhase(Gia_ManObj(p, iObj)) );
                    if ( iPrevNew != iObjNew && iPrevNew != 0 && iObjNew != 1 )
                    {
                        Vec_IntPush( *pvOutputs, iPrev );
                        Vec_IntPush( *pvOutputs, iObj );
                        Vec_IntPush( vXorLits, Gia_ManHashAnd(pNew, iPrevNew, Abc_LitNot(iObjNew)) );
                    }
                    iPrev = iObj;
                }
                iObj = i;
                iPrevNew = Gia_ManCorrSpecReal( pNew, p, Gia_ManObj(p, iPrev), nFrames, 0 );
                iObjNew  = Gia_ManCorrSpecReal( pNew, p, Gia_ManObj(p, iObj), nFrames, 0 );
                iPrevNew = Abc_LitNotCond( iPrevNew, Gia_ObjPhase(pObj) ^ Gia_ObjPhase(Gia_ManObj(p, iPrev)) );
                iObjNew  = Abc_LitNotCond( iObjNew,  Gia_ObjPhase(pObj) ^ Gia_ObjPhase(Gia_ManObj(p, iObj)) );
                if ( iPrevNew != iObjNew && iPrevNew != 0 && iObjNew != 1 )
                {
                    Vec_IntPush( *pvOutputs, iPrev );
                    Vec_IntPush( *pvOutputs, iObj );
                    Vec_IntPush( vXorLits, Gia_ManHashAnd(pNew, iPrevNew, Abc_LitNot(iObjNew)) );
                }
            }
        }
    }
    else
    {
        Gia_ManForEachObj1( p, pObj, i )
        {
            pRepr = Gia_ObjReprObj( p, Gia_ObjId(p,pObj) );
            if ( pRepr == NULL )
                continue;
            iPrevNew = Gia_ObjIsConst(p, i)? 0 : Gia_ManCorrSpecReal( pNew, p, pRepr, nFrames, 0 );
            iObjNew  = Gia_ManCorrSpecReal( pNew, p, pObj, nFrames, 0 );
            iObjNew  = Abc_LitNotCond( iObjNew, Gia_ObjPhase(pRepr) ^ Gia_ObjPhase(pObj) );
            if ( iPrevNew != iObjNew )
            {
                Vec_IntPush( *pvOutputs, Gia_ObjId(p, pRepr) );
                Vec_IntPush( *pvOutputs, Gia_ObjId(p, pObj) );
                Vec_IntPush( vXorLits, Gia_ManHashXor(pNew, iPrevNew, iObjNew) );
            }
        }
    }
    Vec_IntForEachEntry( vXorLits, iObjNew, i )
        Gia_ManAppendCo( pNew, iObjNew );
    Vec_IntFree( vXorLits );
    Gia_ManHashStop( pNew );
    Vec_IntErase( &p->vCopies );
//Abc_Print( 1, "Before sweeping = %d\n", Gia_ManAndNum(pNew) );
    pNew = Gia_ManCleanup( pTemp = pNew );
//Abc_Print( 1, "After sweeping = %d\n", Gia_ManAndNum(pNew) );
    Gia_ManStop( pTemp );
    return pNew;
}

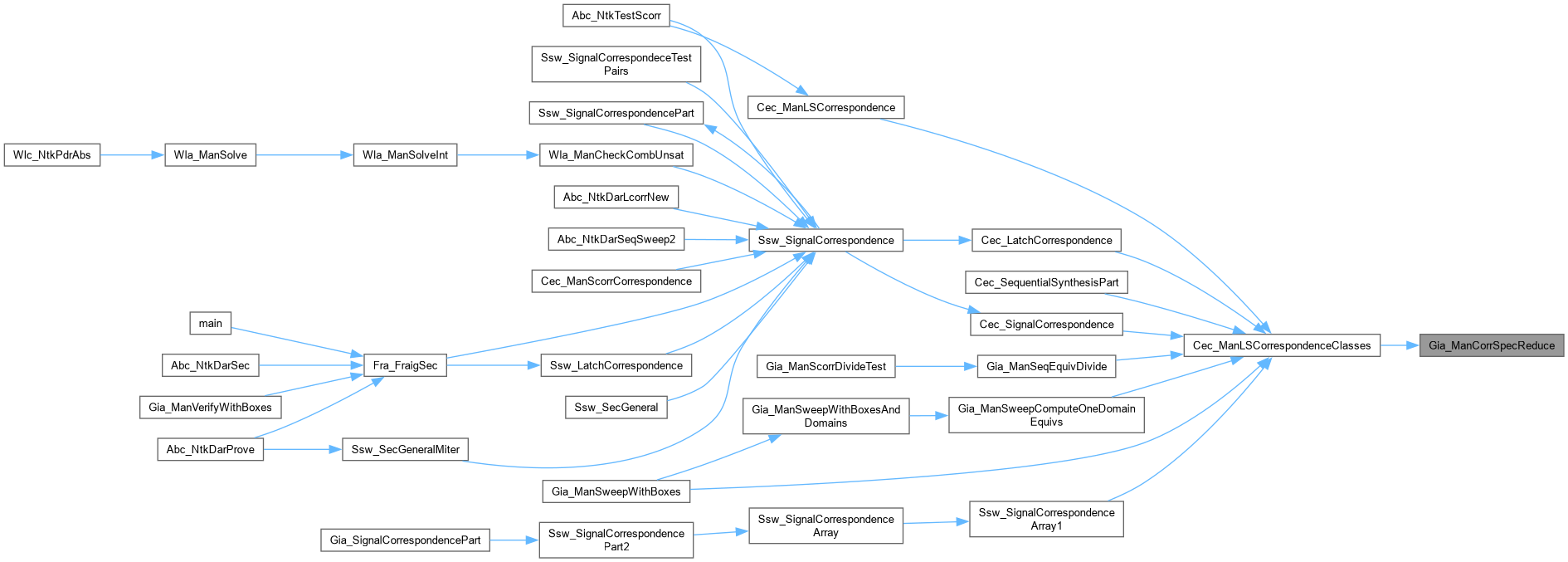

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManCorrSpecReduceInit()

Gia_Man_t * Gia_ManCorrSpecReduceInit	(	Gia_Man_t *	p,
		int	nFrames,
		int	nPrefix,
		int	fScorr,
		Vec_Int_t **	pvOutputs,
		int	fRings )

Function*************************************************************

Synopsis [Derives SRM for signal correspondence.]

Description []

SideEffects []

SeeAlso []

Definition at line 223 of file cecCorr.c.

{
    Gia_Man_t * pNew, * pTemp;
    Gia_Obj_t * pObj, * pRepr;
    Vec_Int_t * vXorLits;
    int f, i, iPrevNew, iObjNew;
    assert( (!fScorr && nFrames > 1) || (fScorr && nFrames > 0) || nPrefix );
    assert( Gia_ManRegNum(p) > 0 );
    assert( p->pReprs != NULL );
    Vec_IntFill( &p->vCopies, (nFrames+nPrefix+fScorr)*Gia_ManObjNum(p), -1 );
    Gia_ManSetPhase( p );
    pNew = Gia_ManStart( (nFrames+nPrefix) * Gia_ManObjNum(p) );
    pNew->pName = Abc_UtilStrsav( p->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    Gia_ManHashAlloc( pNew );
    Gia_ManForEachRo( p, pObj, i )
    {
        Gia_ManAppendCi(pNew);
        Gia_ObjSetCopyF( p, 0, pObj, 0 );
    }
    for ( f = 0; f < nFrames+nPrefix+fScorr; f++ )
    {
        Gia_ObjSetCopyF( p, f, Gia_ManConst0(p), 0 );
        Gia_ManForEachPi( p, pObj, i )
            Gia_ObjSetCopyF( p, f, pObj, Gia_ManAppendCi(pNew) );
    }
    *pvOutputs = Vec_IntAlloc( 1000 );
    vXorLits = Vec_IntAlloc( 1000 );
    for ( f = nPrefix; f < nFrames+nPrefix; f++ )
    {
        Gia_ManForEachObj1( p, pObj, i )
        {
            pRepr = Gia_ObjReprObj( p, Gia_ObjId(p,pObj) );
            if ( pRepr == NULL )
                continue;
            iPrevNew = Gia_ObjIsConst(p, i)? 0 : Gia_ManCorrSpecReal( pNew, p, pRepr, f, nPrefix );
            iObjNew  = Gia_ManCorrSpecReal( pNew, p, pObj, f, nPrefix );
            iObjNew  = Abc_LitNotCond( iObjNew, Gia_ObjPhase(pRepr) ^ Gia_ObjPhase(pObj) );
            if ( iPrevNew != iObjNew )
            {
                Vec_IntPush( *pvOutputs, Gia_ObjId(p, pRepr) );
                Vec_IntPush( *pvOutputs, Gia_ObjId(p, pObj) );
                Vec_IntPush( vXorLits, Gia_ManHashXor(pNew, iPrevNew, iObjNew) );
            }
        }
    }
    Vec_IntForEachEntry( vXorLits, iObjNew, i )
        Gia_ManAppendCo( pNew, iObjNew );
    Vec_IntFree( vXorLits );
    Gia_ManHashStop( pNew );
    Vec_IntErase( &p->vCopies );
//Abc_Print( 1, "Before sweeping = %d\n", Gia_ManAndNum(pNew) );
    pNew = Gia_ManCleanup( pTemp = pNew );
//Abc_Print( 1, "After sweeping = %d\n", Gia_ManAndNum(pNew) );
    Gia_ManStop( pTemp );
    return pNew;
}

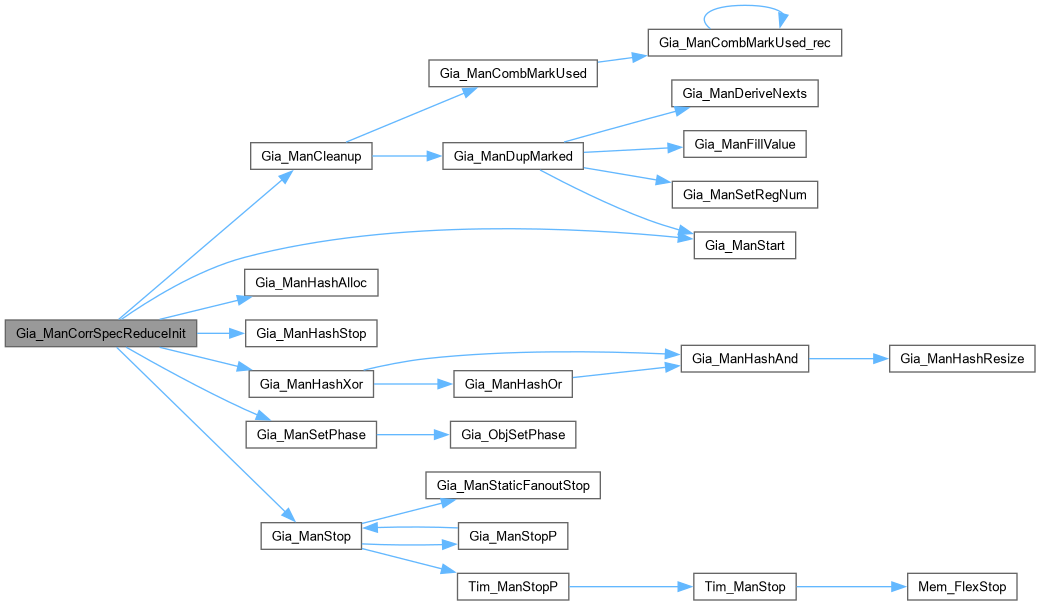

Here is the call graph for this function:

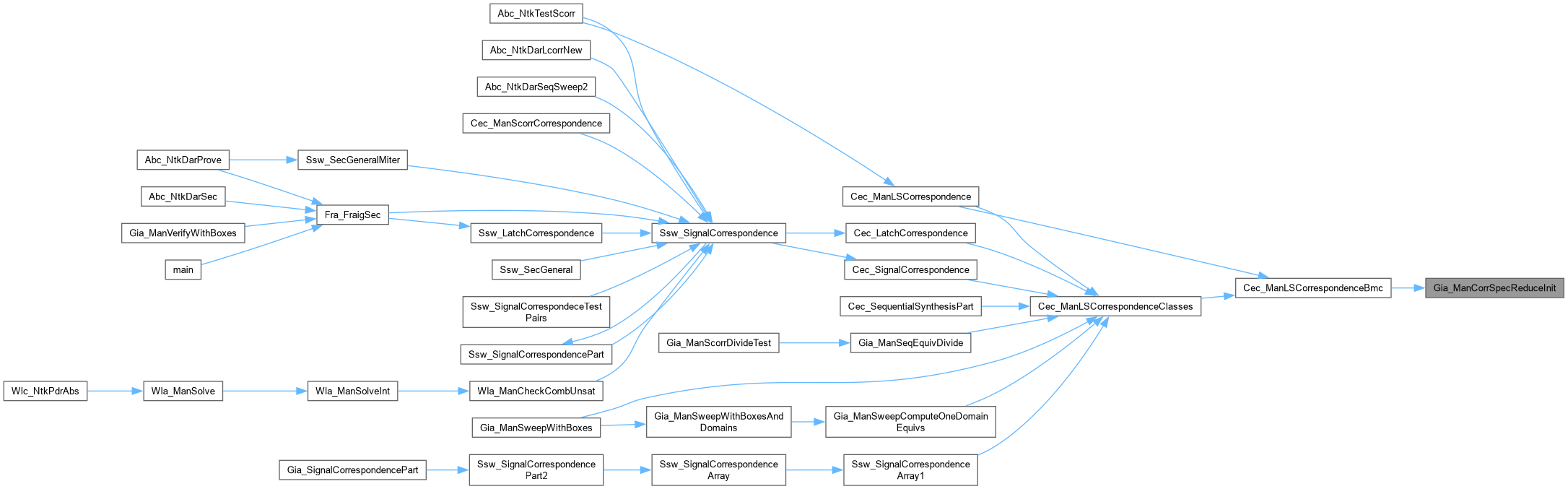

Here is the caller graph for this function:

Gia_ManCreateRegSupps()

Vec_Wec_t * Gia_ManCreateRegSupps	(	Gia_Man_t *	p,
		int	fVerbose )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 1283 of file cecCorr.c.

{
    abctime clk = Abc_Clock();
    Gia_Obj_t * pObj; int i, Id;
    Vec_Wec_t * vSuppsR = Vec_WecStart( Gia_ManRegNum(p) );
    Vec_Wec_t * vSupps  = Vec_WecStart( Gia_ManObjNum(p) );
    Gia_ManForEachRo( p, pObj, i )
        Vec_IntPush( Vec_WecEntry(vSupps, Gia_ObjId(p, pObj)), i );
    Gia_ManForEachAnd( p, pObj, Id )
        Vec_IntTwoMerge2( Vec_WecEntry(vSupps, Gia_ObjFaninId0(pObj, Id)),
                          Vec_WecEntry(vSupps, Gia_ObjFaninId1(pObj, Id)),
                          Vec_WecEntry(vSupps, Id) );
    Gia_ManForEachRi( p, pObj, i )
        Vec_IntAppend( Vec_WecEntry(vSuppsR, i), Vec_WecEntry(vSupps, Gia_ObjFaninId0p(p, pObj)) );
    Vec_WecFree( vSupps );
    if ( fVerbose )
        Abc_PrintTime( 1, "Support computation", Abc_Clock() - clk );
    return vSuppsR;
}

Here is the caller graph for this function:

Gia_ManDupStopsAdd()

Gia_Man_t * Gia_ManDupStopsAdd	(	Gia_Man_t *	p,
		Vec_Int_t *	vStops )

Definition at line 1357 of file cecCorr.c.

{
    Gia_Man_t * pNew;
    Gia_Obj_t * pObj; int i, Stop;
    Vec_Int_t * vExtras = Vec_IntAlloc( Vec_IntSize(vStops) );
    pNew = Gia_ManStart( Gia_ManObjNum(p) );
    pNew->pName = Abc_UtilStrsav( p->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    Gia_ManFillValue( p );
    Gia_ManConst0(p)->Value = 0;
    Gia_ManForEachPi( p, pObj, i )
        pObj->Value = Gia_ManAppendCi(pNew);
    Vec_IntForEachEntry( vStops, Stop, i )
        Vec_IntPush( vExtras, Gia_ManAppendCi(pNew) );
    Gia_ManForEachRo( p, pObj, i )
        pObj->Value = Gia_ManAppendCi(pNew);
    Vec_IntForEachEntry( vStops, Stop, i )
    {
        int Lit = Gia_ManCi(p, Gia_ManPiNum(p)+Stop)->Value;
        Gia_ManCi(p, Gia_ManPiNum(p)+Stop)->Value = Vec_IntEntry(vExtras, i);
        Vec_IntWriteEntry( vExtras, i, Lit );
    }
    Gia_ManForEachAnd( p, pObj, i )
        pObj->Value = Gia_ManAppendAnd( pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
    Gia_ManForEachPo( p, pObj, i )
        Gia_ManAppendCo( pNew, Gia_ObjFanin0Copy(pObj) );
    Vec_IntForEachEntry( vExtras, Stop, i )
        Gia_ManAppendCo( pNew, Stop );
    Gia_ManForEachRi( p, pObj, i )
        Gia_ManAppendCo( pNew, Gia_ObjFanin0Copy(pObj) );
    Gia_ManSetRegNum( pNew, Gia_ManRegNum(p) );
    Vec_IntFree( vExtras );
    return pNew;
}

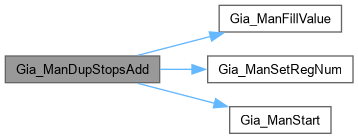

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManDupStopsRem()

Gia_Man_t * Gia_ManDupStopsRem	(	Gia_Man_t *	p,
		Vec_Int_t *	vStops )

Definition at line 1400 of file cecCorr.c.

{
    Gia_Man_t * pNew;
    Gia_Obj_t * pObj; int i;
    pNew = Gia_ManStart( Gia_ManObjNum(p) );
    pNew->pName = Abc_UtilStrsav( p->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    Gia_ManFillValue( p );
    Gia_ManConst0(p)->Value = 0;
    Gia_ManForEachPi( p, pObj, i )
        if ( i < Gia_ManPiNum(p) - Vec_IntSize(vStops) )
            pObj->Value = Gia_ManAppendCi(pNew);
    Gia_ManForEachRo( p, pObj, i )
        pObj->Value = Gia_ManAppendCi(pNew);
    Gia_ManForEachPo( p, pObj, i )
        if ( i >= Gia_ManPoNum(p) - Vec_IntSize(vStops) )
            Gia_ManDupStopsRem_rec( pNew, p, Gia_ObjFanin0(pObj) );
    Gia_ManForEachPi( p, pObj, i )
        if ( i >= Gia_ManPiNum(p) - Vec_IntSize(vStops) )
            pObj->Value = Gia_ObjFanin0Copy( Gia_ManPo(p, i - Gia_ManPiNum(p) + Gia_ManPoNum(p)) );
    Gia_ManForEachPo( p, pObj, i )
        if ( i < Gia_ManPoNum(p) - Vec_IntSize(vStops) )
            Gia_ManDupStopsRem_rec( pNew, p, Gia_ObjFanin0(pObj) );
    Gia_ManForEachRi( p, pObj, i )
        Gia_ManDupStopsRem_rec( pNew, p, Gia_ObjFanin0(pObj) );
    Gia_ManForEachPo( p, pObj, i )
        if ( i < Gia_ManPoNum(p) - Vec_IntSize(vStops) )
            Gia_ManAppendCo( pNew, Gia_ObjFanin0Copy(pObj) );
    Gia_ManForEachRi( p, pObj, i )
        Gia_ManAppendCo( pNew, Gia_ObjFanin0Copy(pObj) );
    Gia_ManSetRegNum( pNew, Gia_ManRegNum(p) );
    return pNew;
}

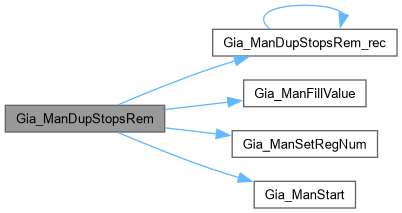

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManDupStopsRem_rec()

void Gia_ManDupStopsRem_rec	(	Gia_Man_t *	pNew,
		Gia_Man_t *	p,
		Gia_Obj_t *	pObj )

Definition at line 1391 of file cecCorr.c.

{
    if ( ~pObj->Value )
        return;
    assert( Gia_ObjIsAnd(pObj) );
    Gia_ManDupStopsRem_rec( pNew, p, Gia_ObjFanin0(pObj) );
    Gia_ManDupStopsRem_rec( pNew, p, Gia_ObjFanin1(pObj) );
    pObj->Value = Gia_ManAppendAnd( pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManDupStopsTest()

Gia_Man_t * Gia_ManDupStopsTest

(

Gia_Man_t *

p

)

Definition at line 1433 of file cecCorr.c.

{
    Vec_Int_t * vStops = Gia_ManFindStopFlops( p, 1, 1 );
    if ( vStops == NULL )
        return Gia_ManDup(p);
    Gia_Man_t * pNew1 = Gia_ManDupStopsAdd( p, vStops );
    Gia_Man_t * pNew2 = Gia_ManDupStopsRem( pNew1, vStops );
    Gia_ManStop( pNew1 );
    Vec_IntFree( vStops );
    return pNew2;
}

Here is the call graph for this function:

Gia_ManFindStopFlops()

Vec_Int_t * Gia_ManFindStopFlops	(	Gia_Man_t *	p,
		int	nFlopIncFreq,
		int	fVerbose )

Definition at line 1302 of file cecCorr.c.

{
    Vec_Int_t * vRes = NULL, * vTemp;  int i, k, Spot, Temp, nItems = 0;
    Vec_Wec_t * vSupps = Gia_ManCreateRegSupps( p, fVerbose );
    Vec_Int_t * vNexts = Vec_IntStartFull( Gia_ManRegNum(p) );
    Vec_Int_t * vAvail = Vec_IntStart( Gia_ManRegNum(p) );
    Vec_Int_t * vHeads = Vec_IntAlloc( 10 );
    Vec_WecForEachLevel( vSupps, vTemp, i ) {
        if ( Vec_IntSize(vTemp) > 2 )
            continue;
        if ( (Spot = Vec_IntFind(vTemp, i)) >= 0 )
            Vec_IntDrop( vTemp, Spot );
        if ( Vec_IntSize(vTemp) != 1 )
            continue;
        Vec_IntWriteEntry( vNexts, i, Vec_IntEntry(vTemp, 0) );
        Vec_IntWriteEntry( vAvail, Vec_IntEntry(vTemp, 0), 1 );
    }
    Vec_IntForEachEntry( vNexts, Spot, i )
        if ( Spot >= 0 && Vec_IntEntry(vAvail, i) == 0 )
            Vec_IntPush( vHeads, i );
    Vec_IntForEachEntry( vHeads, Spot, i ) {
        Gia_ManIncrementTravId( p );
        for ( k = 0, Temp = Spot; Vec_IntEntry(vNexts, Temp) >= 0; k++, Temp = Vec_IntEntry(vNexts, Temp) ) {
            if ( Gia_ObjUpdateTravIdCurrentId(p, Temp) )
                break;
            Vec_IntWriteEntry( vAvail, Temp, 1 );
        }
        if ( k > 100 )
        {
            nItems++;
            if ( vRes == NULL )
                vRes = Vec_IntAlloc( 100 );
            Gia_ManIncrementTravId( p );
            for ( k = 0, Temp = Spot; Vec_IntEntry(vNexts, Temp) >= 0; k++, Temp = Vec_IntEntry(vNexts, Temp) ) {
                if ( Gia_ObjUpdateTravIdCurrentId(p, Temp) )
                    break;
                if ( k % nFlopIncFreq == 0 )
                    Vec_IntPush( vRes, Temp );
            }
        }
        while ( Vec_IntEntry(vNexts, Spot) >= 0 )
        {
            int Next = Vec_IntEntry(vNexts, Spot);
            Vec_IntWriteEntry( vNexts, Spot, -1 );
            Spot = Next;
        }
    }
    if ( fVerbose && vRes )
        printf( "Detected %d sequence%s containing %d flops.\n", nItems, nItems > 1 ? "s":"", Vec_IntSize(vRes) );
    Vec_IntFree( vNexts );
    Vec_IntFree( vAvail );
    Vec_IntFree( vHeads );
    Vec_WecFree( vSupps );
    return vRes;
}

Here is the call graph for this function:

Here is the caller graph for this function:
