cecSweep.c File Reference

#include "cecInt.h"

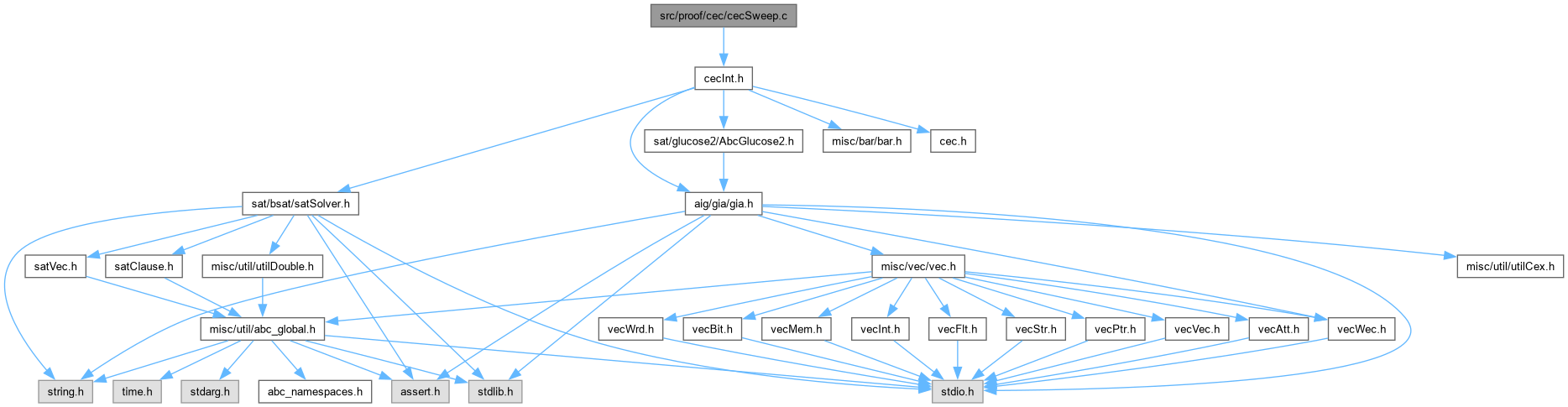

Include dependency graph for cecSweep.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Gia_Man_t *	Cec_ManFraSpecReduction (Cec_ManFra_t *p)
	DECLARATIONS ///.
int	Cec_ManFraClassesUpdate_rec (Gia_Obj_t *pObj)
void	Cec_ManFraCreateInfo (Cec_ManSim_t *p, Vec_Ptr_t *vCiInfo, Vec_Ptr_t *vInfo, int nSeries)
int	Cec_ManFraClassesUpdate (Cec_ManFra_t *p, Cec_ManSim_t *pSim, Cec_ManPat_t *pPat, Gia_Man_t *pNew)

Function Documentation

Cec_ManFraClassesUpdate()

int Cec_ManFraClassesUpdate	(	Cec_ManFra_t *	p,
		Cec_ManSim_t *	pSim,
		Cec_ManPat_t *	pPat,
		Gia_Man_t *	pNew )

Function*************************************************************

Synopsis [Updates equivalence classes using the patterns.]

Description []

SideEffects []

SeeAlso []

Definition at line 188 of file cecSweep.c.

{
    Vec_Ptr_t * vInfo;
    Gia_Obj_t * pObj, * pObjOld, * pReprOld;
    int i, k, iRepr, iNode;
    abctime clk;
clk = Abc_Clock();
    vInfo = Cec_ManPatCollectPatterns( pPat, Gia_ManCiNum(p->pAig), pSim->nWords );
p->timePat += Abc_Clock() - clk;
clk = Abc_Clock();
    if ( vInfo != NULL )
    {
        Gia_ManCreateValueRefs( p->pAig );
        for ( i = 0; i < pPat->nSeries; i++ )
        {
            Cec_ManFraCreateInfo( pSim, pSim->vCiSimInfo, vInfo, i );
            if ( Cec_ManSimSimulateRound( pSim, pSim->vCiSimInfo, pSim->vCoSimInfo ) )
            {
                Vec_PtrFree( vInfo );
                return 1;
            }
        }
        Vec_PtrFree( vInfo );
    }
p->timeSim += Abc_Clock() - clk;
    assert( Vec_IntSize(p->vXorNodes) == 2*Gia_ManCoNum(pNew) );
    // mark the transitive fanout of failed nodes
    if ( p->pPars->nDepthMax != 1 )
    {
        Gia_ManCleanMark0( p->pAig );
        Gia_ManCleanMark1( p->pAig );
        Gia_ManForEachCo( pNew, pObj, k )
        {
            iRepr = Vec_IntEntry( p->vXorNodes, 2*k );
            iNode = Vec_IntEntry( p->vXorNodes, 2*k+1 );
            if ( pObj->fMark0 == 0 && pObj->fMark1 == 1 ) // proved
                continue;
//            Gia_ManObj(p->pAig, iRepr)->fMark0 = 1;
            Gia_ManObj(p->pAig, iNode)->fMark0 = 1;
        }
        // mark the nodes reachable through the failed nodes
        Gia_ManForEachAnd( p->pAig, pObjOld, k )
            pObjOld->fMark0 |= (Gia_ObjFanin0(pObjOld)->fMark0 | Gia_ObjFanin1(pObjOld)->fMark0);
        // unmark the disproved nodes
        Gia_ManForEachCo( pNew, pObj, k )
        {
            iRepr = Vec_IntEntry( p->vXorNodes, 2*k );
            iNode = Vec_IntEntry( p->vXorNodes, 2*k+1 );
            if ( pObj->fMark0 == 0 && pObj->fMark1 == 1 ) // proved
                continue;
            pObjOld = Gia_ManObj(p->pAig, iNode);
            assert( pObjOld->fMark0 == 1 );
            if ( Gia_ObjFanin0(pObjOld)->fMark0 == 0 && Gia_ObjFanin1(pObjOld)->fMark0 == 0 )
                pObjOld->fMark1 = 1;
        }
        // clean marks
        Gia_ManForEachAnd( p->pAig, pObjOld, k )
            if ( pObjOld->fMark1 )
            {
                pObjOld->fMark0 = 0;
                pObjOld->fMark1 = 0;
            }
    }
    // set the results
    p->nAllProved = p->nAllDisproved = p->nAllFailed = 0;
    Gia_ManForEachCo( pNew, pObj, k )
    {
        iRepr = Vec_IntEntry( p->vXorNodes, 2*k );
        iNode = Vec_IntEntry( p->vXorNodes, 2*k+1 );
        pReprOld = Gia_ManObj(p->pAig, iRepr);
        pObjOld = Gia_ManObj(p->pAig, iNode);
        if ( pObj->fMark1 )
        { // proved
            assert( pObj->fMark0 == 0 );
            assert( !Gia_ObjProved(p->pAig, iNode) );
            if ( pReprOld->fMark0 == 0 && pObjOld->fMark0 == 0 )
//            if ( pObjOld->fMark0 == 0 )
            {
                assert( iRepr == Gia_ObjRepr(p->pAig, iNode) );
                Gia_ObjSetProved( p->pAig, iNode );
                p->nAllProved++;
            }
        }
        else if ( pObj->fMark0 )
        { // disproved
            assert( pObj->fMark1 == 0 );
            if ( pReprOld->fMark0 == 0 && pObjOld->fMark0 == 0 )
//            if ( pObjOld->fMark0 == 0 )
            {
                if ( iRepr == Gia_ObjRepr(p->pAig, iNode) )
                    Abc_Print( 1, "Cec_ManFraClassesUpdate(): Error! Node is not refined!\n" );
                p->nAllDisproved++;
            }
        }
        else
        { // failed
            assert( pObj->fMark0 == 0 );
            assert( pObj->fMark1 == 0 );
            assert( !Gia_ObjFailed(p->pAig, iNode) );
            assert( !Gia_ObjProved(p->pAig, iNode) );
            Gia_ObjSetFailed( p->pAig, iNode );
            p->nAllFailed++;
        }
    }
    p->nAllProvedS    += p->nAllProved;
    p->nAllDisprovedS += p->nAllDisproved;
    p->nAllFailedS    += p->nAllFailed;
    return 0;
}

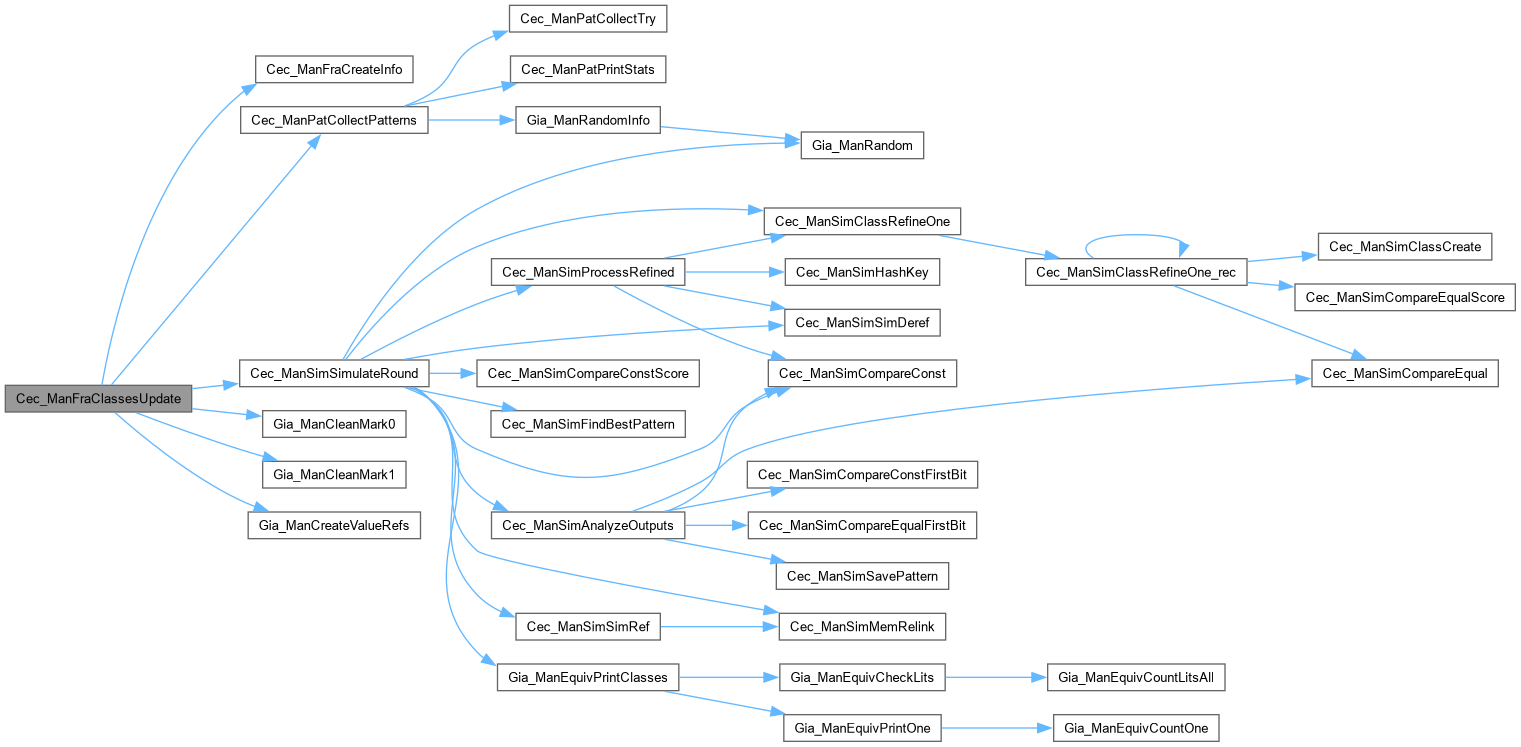

Here is the call graph for this function:

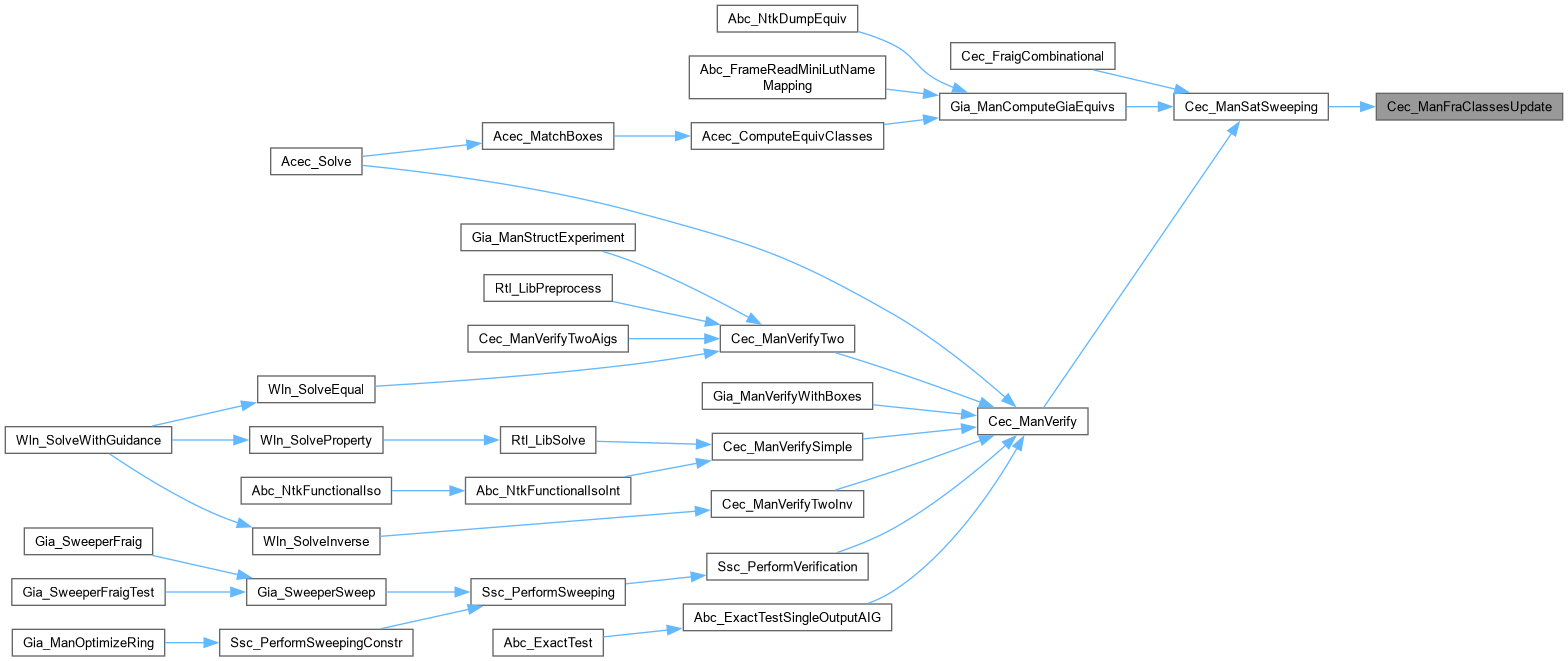

Here is the caller graph for this function:

Cec_ManFraClassesUpdate_rec()

int Cec_ManFraClassesUpdate_rec

(

Gia_Obj_t *

pObj

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 140 of file cecSweep.c.

{
    int Result;
    if ( pObj->fMark0 )
        return 1;
    if ( Gia_ObjIsCi(pObj) || Gia_ObjIsConst0(pObj) )
        return 0;
    Result = (Cec_ManFraClassesUpdate_rec( Gia_ObjFanin0(pObj) ) |
              Cec_ManFraClassesUpdate_rec( Gia_ObjFanin1(pObj) ));
    return pObj->fMark0 = Result;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cec_ManFraCreateInfo()

void Cec_ManFraCreateInfo	(	Cec_ManSim_t *	p,
		Vec_Ptr_t *	vCiInfo,
		Vec_Ptr_t *	vInfo,
		int	nSeries )

Function*************************************************************

Synopsis [Creates simulation info for this round.]

Description []

SideEffects []

SeeAlso []

Definition at line 163 of file cecSweep.c.

{
    unsigned * pRes0, * pRes1;
    int i, w;
    for ( i = 0; i < Gia_ManCiNum(p->pAig); i++ )
    {
        pRes0 = (unsigned *)Vec_PtrEntry( vCiInfo, i );
        pRes1 = (unsigned *)Vec_PtrEntry( vInfo, i );
        pRes1 += p->nWords * nSeries;
        for ( w = 0; w < p->nWords; w++ )
            pRes0[w] = pRes1[w];
    }
}

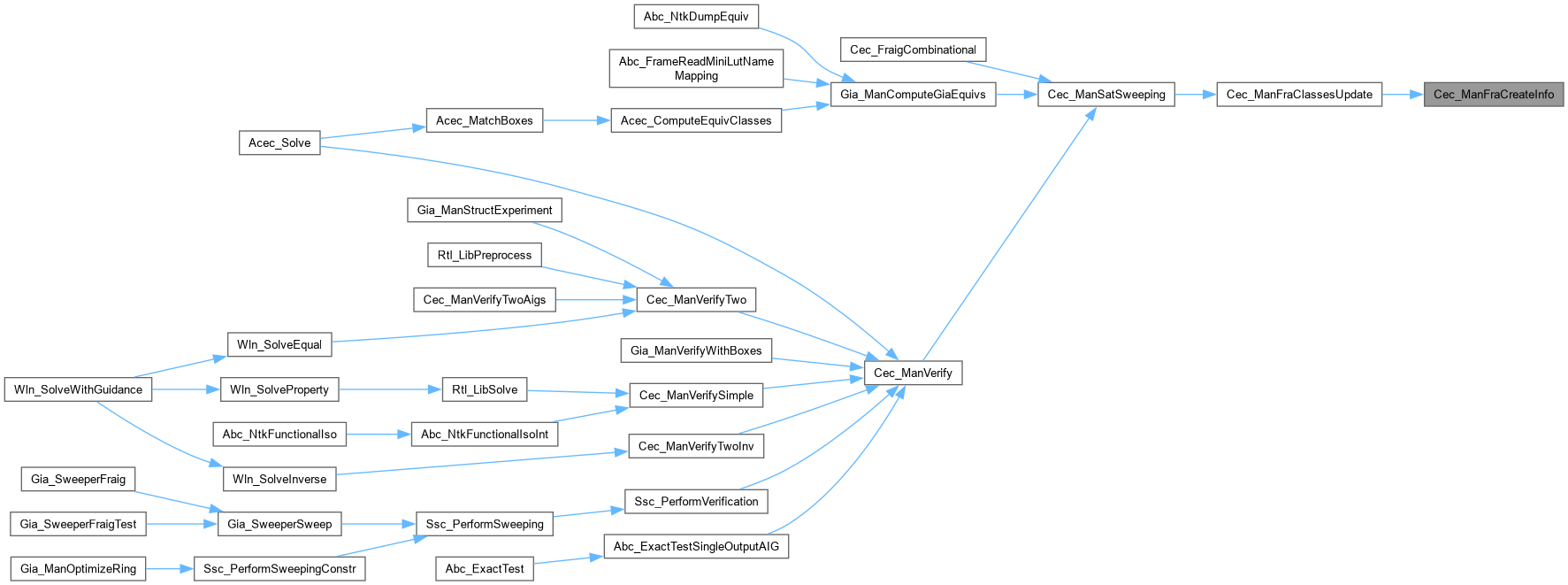

Here is the caller graph for this function:

Cec_ManFraSpecReduction()

ABC_NAMESPACE_IMPL_START Gia_Man_t * Cec_ManFraSpecReduction

(

Cec_ManFra_t *

p

)

DECLARATIONS ///.

CFile****************************************************************

FileName [cecSweep.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Combinational equivalence checking.]

Synopsis [SAT sweeping manager.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

cecSweep.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Performs limited speculative reduction.]

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file cecSweep.c.

{
    Gia_Man_t * pNew, * pTemp;
    Gia_Obj_t * pObj, * pRepr = NULL;
    int iRes0, iRes1, iRepr, iNode, iMiter;
    int i, fCompl, * piCopies, * pDepths;
    Gia_ManSetPhase( p->pAig );
    Vec_IntClear( p->vXorNodes );
    if ( p->pPars->nLevelMax )
        Gia_ManLevelNum( p->pAig );
    pNew = Gia_ManStart( Gia_ManObjNum(p->pAig) );
    pNew->pName = Abc_UtilStrsav( p->pAig->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pAig->pName );
    Gia_ManHashAlloc( pNew );
    piCopies = ABC_FALLOC( int, Gia_ManObjNum(p->pAig) );
    pDepths  = ABC_CALLOC( int, Gia_ManObjNum(p->pAig) );
    piCopies[0] = 0;
    Gia_ManForEachObj1( p->pAig, pObj, i )
    {
        if ( Gia_ObjIsCi(pObj) )
        {
            piCopies[i] = Gia_ManAppendCi( pNew );
            continue;
        }
        if ( Gia_ObjIsCo(pObj) )
            continue;
        if ( piCopies[Gia_ObjFaninId0(pObj,i)] == -1 ||
             piCopies[Gia_ObjFaninId1(pObj,i)] == -1 )
             continue;
        iRes0 = Abc_LitNotCond( piCopies[Gia_ObjFaninId0(pObj,i)], Gia_ObjFaninC0(pObj) );
        iRes1 = Abc_LitNotCond( piCopies[Gia_ObjFaninId1(pObj,i)], Gia_ObjFaninC1(pObj) );
        iNode = piCopies[i] = Gia_ManHashAnd( pNew, iRes0, iRes1 );
        pDepths[i] = Abc_MaxInt( pDepths[Gia_ObjFaninId0(pObj,i)], pDepths[Gia_ObjFaninId1(pObj,i)] );
        if ( Gia_ObjRepr(p->pAig, i) == GIA_VOID || Gia_ObjFailed(p->pAig, i) )
            continue;
        assert( Gia_ObjRepr(p->pAig, i) < i );
        iRepr = piCopies[Gia_ObjRepr(p->pAig, i)];
        if ( iRepr == -1 )
            continue;
        if ( Abc_LitRegular(iNode) == Abc_LitRegular(iRepr) )
            continue;
        if ( p->pPars->nLevelMax &&
            (Gia_ObjLevelId(p->pAig, i)  > p->pPars->nLevelMax ||
             Gia_ObjLevelId(p->pAig, Abc_Lit2Var(iRepr)) > p->pPars->nLevelMax) )
            continue;
        if ( p->pPars->fDualOut )
        {
//            if ( i % 1000 == 0 && Gia_ObjRepr(p->pAig, i) )
//                Gia_ManEquivPrintOne( p->pAig, Gia_ObjRepr(p->pAig, i), 0 );
            if ( p->pPars->fColorDiff )
            {
                if ( !Gia_ObjDiffColors( p->pAig, Gia_ObjRepr(p->pAig, i), i ) )
                    continue;
            }
            else
            {
                if ( !Gia_ObjDiffColors2( p->pAig, Gia_ObjRepr(p->pAig, i), i ) )
                    continue;
            }
        }
        pRepr = Gia_ManObj( p->pAig, Gia_ObjRepr(p->pAig, i) );
        fCompl = Gia_ObjPhaseReal(pObj) ^ Gia_ObjPhaseReal(pRepr);
        piCopies[i] = Abc_LitNotCond( iRepr, fCompl );
        if ( Gia_ObjProved(p->pAig, i) )
            continue;
        // produce speculative miter
        iMiter = Gia_ManHashXor( pNew, iNode, piCopies[i] );
        Gia_ManAppendCo( pNew, iMiter );
        Vec_IntPush( p->vXorNodes, Gia_ObjRepr(p->pAig, i) );
        Vec_IntPush( p->vXorNodes, i );
        // add to the depth of this node
        pDepths[i] = 1 + Abc_MaxInt( pDepths[i], pDepths[Gia_ObjRepr(p->pAig, i)] );
        if ( p->pPars->nDepthMax && pDepths[i] >= p->pPars->nDepthMax )
            piCopies[i] = -1;
    }
    ABC_FREE( piCopies );
    ABC_FREE( pDepths );
    Gia_ManHashStop( pNew );
    Gia_ManSetRegNum( pNew, 0 );
    pNew = Gia_ManCleanup( pTemp = pNew );
    Gia_ManStop( pTemp );
    return pNew;
}

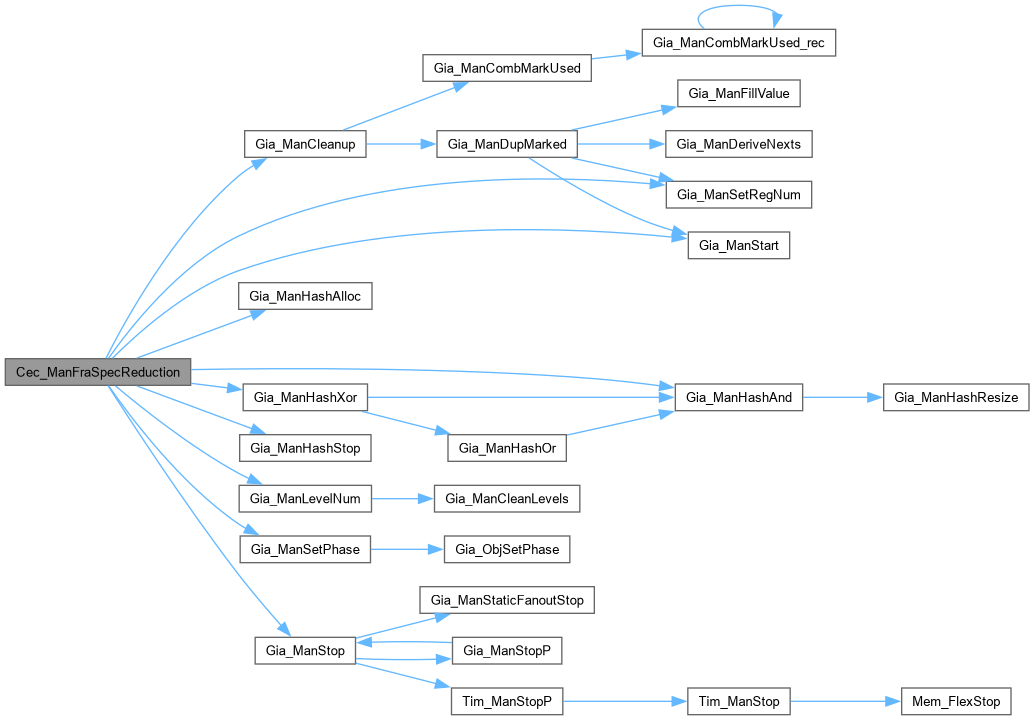

Here is the call graph for this function:

Here is the caller graph for this function:
