dchCore.c File Reference

#include "dchInt.h"

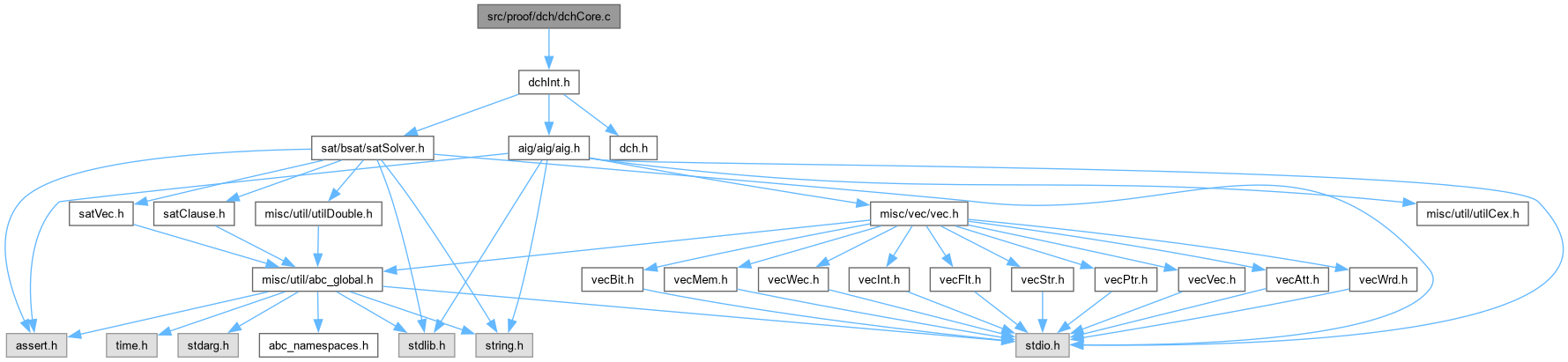

Include dependency graph for dchCore.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Dch_ManSetDefaultParams (Dch_Pars_t *p)
	DECLARATIONS ///.
int	Dch_ManReadVerbose (Dch_Pars_t *p)
Aig_Man_t *	Dch_ComputeChoices (Aig_Man_t *pAig, Dch_Pars_t *pPars)
void	Dch_ComputeEquivalences (Aig_Man_t *pAig, Dch_Pars_t *pPars)

Function Documentation

Dch_ComputeChoices()

Aig_Man_t * Dch_ComputeChoices	(	Aig_Man_t *	pAig,
		Dch_Pars_t *	pPars )

Function*************************************************************

Synopsis [Performs computation of AIGs with choices.]

Description [Takes several AIGs and performs choicing.]

SideEffects []

SeeAlso []

Definition at line 89 of file dchCore.c.

{
    Dch_Man_t * p;
    Aig_Man_t * pResult;
    abctime clk, clk2 = Abc_Clock(), clkTotal = Abc_Clock();
    // reset random numbers
    Aig_ManRandom(1);
    // start the choicing manager
    p = Dch_ManCreate( pAig, pPars );
    // compute candidate equivalence classes
clk = Abc_Clock();
    p->ppClasses = Dch_CreateCandEquivClasses( pAig, pPars->nWords, pPars->fVerbose );
p->timeSimInit = Abc_Clock() - clk;
//    Dch_ClassesPrint( p->ppClasses, 0 );
    p->nLits = Dch_ClassesLitNum( p->ppClasses );
    // perform SAT sweeping
    Dch_ManSweep( p );
    // free memory ahead of time
p->timeTotal = Abc_Clock() - clkTotal;
    Dch_ManStop( p );
    if ( pPars->fVerbose )
        Abc_PrintTime( 1, "Old choice computation time", Abc_Clock() - clk2 );
    // create choices
    ABC_FREE( pAig->pTable );
    pResult = Dch_DeriveChoiceAig( pAig, pPars->fSkipRedSupp );
    // count the number of representatives
    if ( pPars->fVerbose )
        Abc_Print( 1, "STATS:  Ands:%8d  ->%8d.  Reprs:%7d  ->%7d.  Choices =%7d.\n",
               Aig_ManNodeNum(pAig),
               Aig_ManNodeNum(pResult),
               Dch_DeriveChoiceCountReprs( pAig ),
               Dch_DeriveChoiceCountEquivs( pResult ),
               Aig_ManChoiceNum( pResult ) );
    return pResult;
}

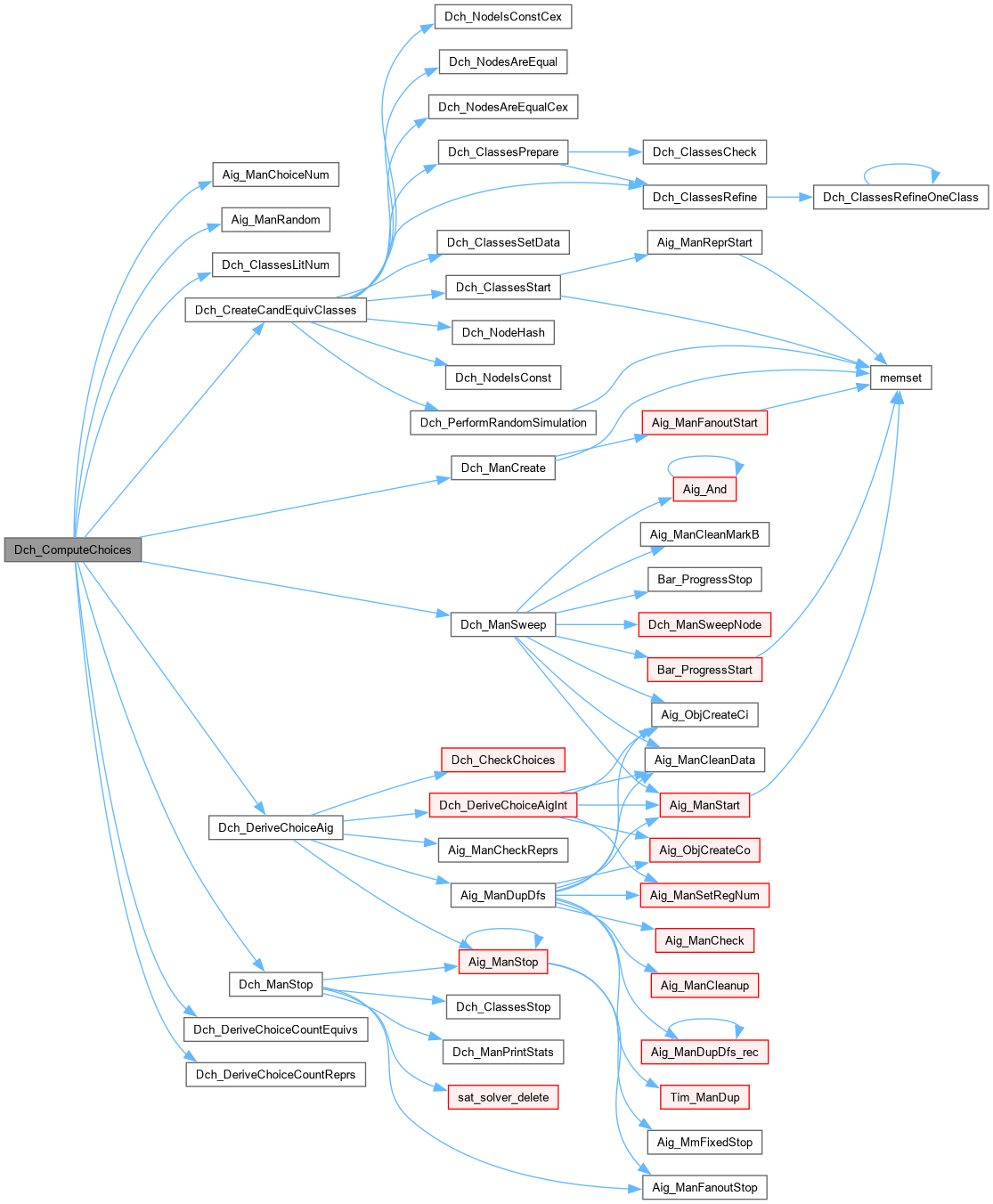

Here is the call graph for this function:

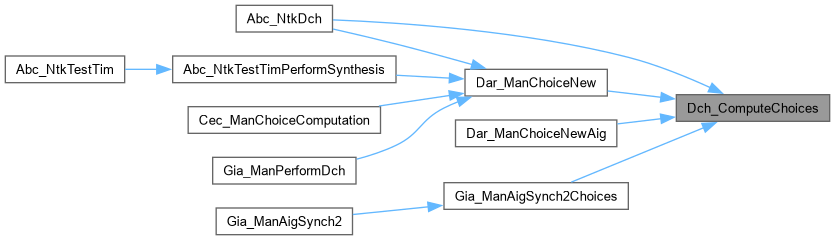

Here is the caller graph for this function:

Dch_ComputeEquivalences()

void Dch_ComputeEquivalences	(	Aig_Man_t *	pAig,
		Dch_Pars_t *	pPars )

Function*************************************************************

Synopsis [Performs computation of AIGs with choices.]

Description [Takes several AIGs and performs choicing.]

SideEffects []

SeeAlso []

Definition at line 136 of file dchCore.c.

{
    Dch_Man_t * p;
    abctime clk, clkTotal = Abc_Clock();
    // reset random numbers
    Aig_ManRandom(1);
    // start the choicing manager
    p = Dch_ManCreate( pAig, pPars );
    // compute candidate equivalence classes
clk = Abc_Clock();
    p->ppClasses = Dch_CreateCandEquivClasses( pAig, pPars->nWords, pPars->fVerbose );
p->timeSimInit = Abc_Clock() - clk;
//    Dch_ClassesPrint( p->ppClasses, 0 );
    p->nLits = Dch_ClassesLitNum( p->ppClasses );
    // perform SAT sweeping
    Dch_ManSweep( p );
    // free memory ahead of time
p->timeTotal = Abc_Clock() - clkTotal;
    Dch_ManStop( p );
}

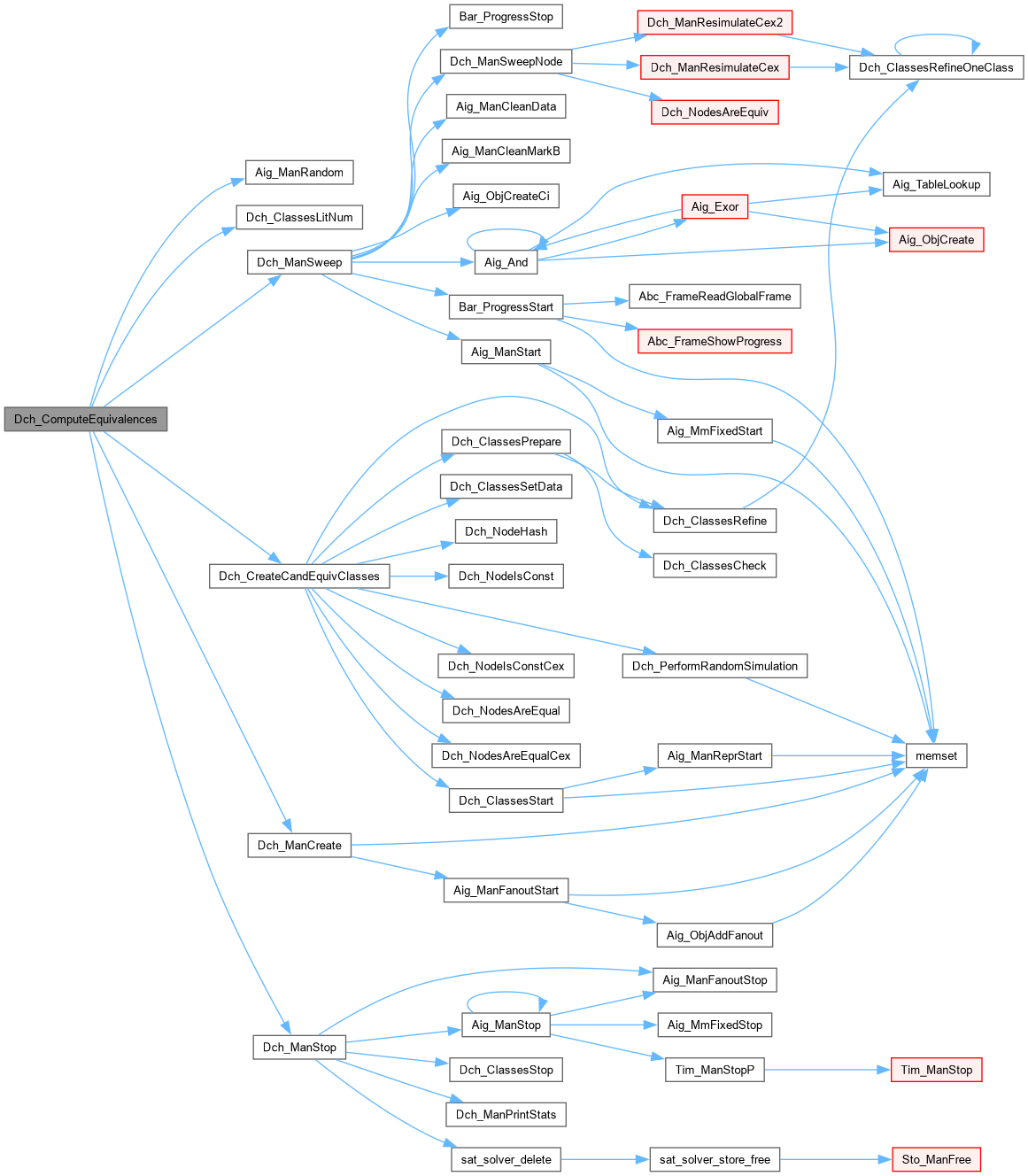

Here is the call graph for this function:

Here is the caller graph for this function:

Dch_ManReadVerbose()

int Dch_ManReadVerbose

(

Dch_Pars_t *

p

)

Function*************************************************************

Synopsis [Returns verbose parameter.]

Description []

SideEffects []

SeeAlso []

Definition at line 73 of file dchCore.c.

{
    return p->fVerbose;
}

Dch_ManSetDefaultParams()

ABC_NAMESPACE_IMPL_START void Dch_ManSetDefaultParams

(

Dch_Pars_t *

p

)

DECLARATIONS ///.

CFile****************************************************************

FileName [dchCore.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Choice computation for tech-mapping.]

Synopsis [The core procedures.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 29, 2008.]

Revision [

Id

dchCore.c,v 1.00 2008/07/29 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [This procedure sets default parameters.]

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file dchCore.c.

{
    memset( p, 0, sizeof(Dch_Pars_t) );
    p->nWords         =     8;  // the number of simulation words
    p->nBTLimit       =  1000;  // conflict limit at a node
    p->nSatVarMax     =  5000;  // the max number of SAT variables
    p->fSynthesis     =     1;  // derives three snapshots
    p->fPolarFlip     =     1;  // uses polarity adjustment
    p->fSimulateTfo   =     1;  // simulate TFO
    p->fPower         =     0;  // power-aware rewriting
    p->fLightSynth    =     0;  // uses lighter version of synthesis
    p->fSkipRedSupp   =     0;  // skips choices with redundant structural support
    p->fVerbose       =     0;  // verbose stats
    p->nNodesAhead    =  1000;  // the lookahead in terms of nodes
    p->nCallsRecycle  =   100;  // calls to perform before recycling SAT solver
}

Here is the call graph for this function:

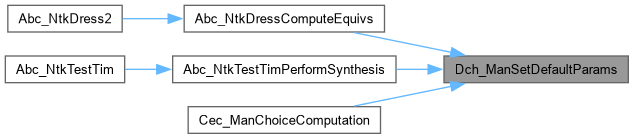

Here is the caller graph for this function:
