fraigMan.c File Reference

#include "fraigInt.h"

Include dependency graph for fraigMan.c:

Go to the source code of this file.

Functions

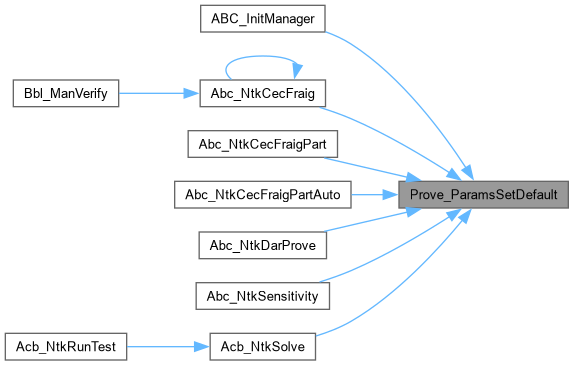

void	Prove_ParamsSetDefault (Prove_Params_t *pParams)
	FUNCTION DEFINITIONS ///.
void	Prove_ParamsPrint (Prove_Params_t *pParams)

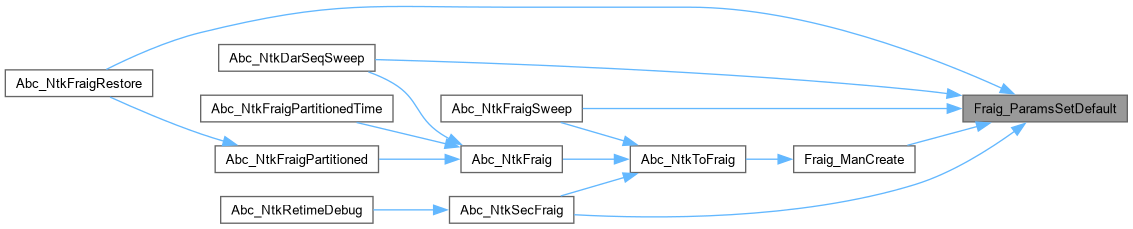

void	Fraig_ParamsSetDefault (Fraig_Params_t *pParams)
void	Fraig_ParamsSetDefaultFull (Fraig_Params_t *pParams)
Fraig_Man_t *	Fraig_ManCreate (Fraig_Params_t *pParams)
void	Fraig_ManFree (Fraig_Man_t *p)
void	Fraig_ManCreateSolver (Fraig_Man_t *p)
void	Fraig_ManPrintStats (Fraig_Man_t *p)
Fraig_NodeVec_t *	Fraig_UtilInfoAlloc (int nSize, int nWords, int fClean)
Fraig_NodeVec_t *	Fraig_ManGetSimInfo (Fraig_Man_t *p)
int	Fraig_ManCheckClauseUsingSimInfo (Fraig_Man_t *p, Fraig_Node_t *pNode1, Fraig_Node_t *pNode2)
void	Fraig_ManAddClause (Fraig_Man_t *p, Fraig_Node_t **ppNodes, int nNodes)

Variables
ABC_NAMESPACE_IMPL_START abctime	timeSelect
	DECLARATIONS ///.
abctime	timeAssign

Function Documentation

Fraig_ManAddClause()

void Fraig_ManAddClause	(	Fraig_Man_t *	p,
		Fraig_Node_t **	ppNodes,
		int	nNodes )

Function*************************************************************

Synopsis [Adds clauses to the solver.]

Description [This procedure is used to add external clauses to the solver. The clauses are given by sets of nodes. Each node stands for one literal. If the node is complemented, the literal is negated.]

SideEffects []

SeeAlso []

Definition at line 521 of file fraigMan.c.

{
    Fraig_Node_t * pNode;
    int i, fComp, RetValue;
    if ( p->pSat == NULL )
        Fraig_ManCreateSolver( p );
    // create four clauses
    Msat_IntVecClear( p->vProj );
    for ( i = 0; i < nNodes; i++ )
    {
        pNode = Fraig_Regular(ppNodes[i]);
        fComp = Fraig_IsComplement(ppNodes[i]);
        Msat_IntVecPush( p->vProj, MSAT_VAR2LIT(pNode->Num, fComp) );
//        printf( "%d(%d) ", pNode->Num, fComp );
    }
//    printf( "\n" );
    RetValue = Msat_SolverAddClause( p->pSat, p->vProj );
    assert( RetValue );
}

Here is the call graph for this function:

Fraig_ManCheckClauseUsingSimInfo()

int Fraig_ManCheckClauseUsingSimInfo	(	Fraig_Man_t *	p,
		Fraig_Node_t *	pNode1,
		Fraig_Node_t *	pNode2 )

Function*************************************************************

Synopsis [Returns 1 if A v B is always true based on the siminfo.]

Description [A v B is always true iff A' * B' is always false.]

SideEffects []

SeeAlso []

Definition at line 454 of file fraigMan.c.

{
    int fCompl1, fCompl2, i;

    fCompl1 = 1 ^ Fraig_IsComplement(pNode1) ^ Fraig_Regular(pNode1)->fInv;
    fCompl2 = 1 ^ Fraig_IsComplement(pNode2) ^ Fraig_Regular(pNode2)->fInv;

    pNode1 = Fraig_Regular(pNode1);
    pNode2 = Fraig_Regular(pNode2);
    assert( pNode1 != pNode2 );

    // check the simulation info
    if ( fCompl1 && fCompl2 )
    {
        for ( i = 0; i < p->nWordsRand; i++ )
            if ( ~pNode1->puSimR[i] & ~pNode2->puSimR[i] )
                return 0;
        for ( i = 0; i < p->iWordStart; i++ )
            if ( ~pNode1->puSimD[i] & ~pNode2->puSimD[i] )
                return 0;
        return 1;
    }
    if ( !fCompl1 && fCompl2 )
    {
        for ( i = 0; i < p->nWordsRand; i++ )
            if ( pNode1->puSimR[i] & ~pNode2->puSimR[i] )
                return 0;
        for ( i = 0; i < p->iWordStart; i++ )
            if ( pNode1->puSimD[i] & ~pNode2->puSimD[i] )
                return 0;
        return 1;
    }
    if ( fCompl1 && !fCompl2 )
    {
        for ( i = 0; i < p->nWordsRand; i++ )
            if ( ~pNode1->puSimR[i] & pNode2->puSimR[i] )
                return 0;
        for ( i = 0; i < p->iWordStart; i++ )
            if ( ~pNode1->puSimD[i] & pNode2->puSimD[i] )
                return 0;
        return 1;
    }
//    if ( fCompl1 && fCompl2 )
    {
        for ( i = 0; i < p->nWordsRand; i++ )
            if ( pNode1->puSimR[i] & pNode2->puSimR[i] )
                return 0;
        for ( i = 0; i < p->iWordStart; i++ )
            if ( pNode1->puSimD[i] & pNode2->puSimD[i] )
                return 0;
        return 1;
    }
}

Fraig_ManCreate()

Fraig_Man_t * Fraig_ManCreate

(

Fraig_Params_t *

pParams

)

Function*************************************************************

Synopsis [Creates the new FRAIG manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 184 of file fraigMan.c.

{
    Fraig_Params_t Params;
    Fraig_Man_t * p;

    // set the random seed for simulation
//    srand( 0xFEEDDEAF );
//    srand( 0xDEADCAFE );
    Aig_ManRandom( 1 );

    // set parameters for equivalence checking
    if ( pParams == NULL )
        Fraig_ParamsSetDefault( pParams = &Params );
    // adjust the amount of simulation info
    if ( pParams->nPatsRand < 128 )
        pParams->nPatsRand = 128;
    if ( pParams->nPatsRand > 32768 )
        pParams->nPatsRand = 32768;
    if ( pParams->nPatsDyna < 128 )
        pParams->nPatsDyna = 128;
    if ( pParams->nPatsDyna > 32768 )
        pParams->nPatsDyna = 32768;
    // if reduction is not performed, allocate minimum simulation info
    if ( !pParams->fFuncRed )
        pParams->nPatsRand = pParams->nPatsDyna = 128;

    // start the manager
    p = ABC_ALLOC( Fraig_Man_t, 1 );
    memset( p, 0, sizeof(Fraig_Man_t) );

    // set the default parameters
    p->nWordsRand = FRAIG_NUM_WORDS( pParams->nPatsRand );  // the number of words of random simulation info
    p->nWordsDyna = FRAIG_NUM_WORDS( pParams->nPatsDyna );  // the number of patterns for dynamic simulation info
    p->nBTLimit   = pParams->nBTLimit;    // -1 means infinite backtrack limit
    p->nSeconds   = pParams->nSeconds;    // the timeout for the final miter
    p->fFuncRed   = pParams->fFuncRed;    // enables functional reduction (otherwise, only one-level hashing is performed)
    p->fFeedBack  = pParams->fFeedBack;   // enables solver feedback (the use of counter-examples in simulation)
    p->fDist1Pats = pParams->fDist1Pats;  // enables solver feedback (the use of counter-examples in simulation)
    p->fDoSparse  = pParams->fDoSparse;   // performs equivalence checking for sparse functions (whose sim-info is 0)
    p->fChoicing  = pParams->fChoicing;   // disable accumulation of structural choices (keeps only the first choice)
    p->fTryProve  = pParams->fTryProve;   // disable accumulation of structural choices (keeps only the first choice)
    p->fVerbose   = pParams->fVerbose;    // disable verbose output
    p->fVerboseP  = pParams->fVerboseP;   // disable verbose output
    p->nInspLimit = pParams->nInspLimit;  // the limit on the number of inspections

    // start memory managers
    p->mmNodes    = Fraig_MemFixedStart( sizeof(Fraig_Node_t) );
    p->mmSims     = Fraig_MemFixedStart( sizeof(unsigned) * (p->nWordsRand + p->nWordsDyna) );
    // allocate node arrays
    p->vInputs    = Fraig_NodeVecAlloc( 1000 );    // the array of primary inputs
    p->vOutputs   = Fraig_NodeVecAlloc( 1000 );    // the array of primary outputs
    p->vNodes     = Fraig_NodeVecAlloc( 1000 );    // the array of internal nodes
    // start the tables
    p->pTableS    = Fraig_HashTableCreate( 1000 ); // hashing by structure
    p->pTableF    = Fraig_HashTableCreate( 1000 ); // hashing by function
    p->pTableF0   = Fraig_HashTableCreate( 1000 ); // hashing by function (for sparse functions)
    // create the constant node
    p->pConst1    = Fraig_NodeCreateConst( p );
    // initialize SAT solver feedback data structures
    Fraig_FeedBackInit( p );
    // initialize other variables
    p->vProj      = Msat_IntVecAlloc( 10 );
    p->nTravIds   = 1;
    p->nTravIds2  = 1;
    return p;
}

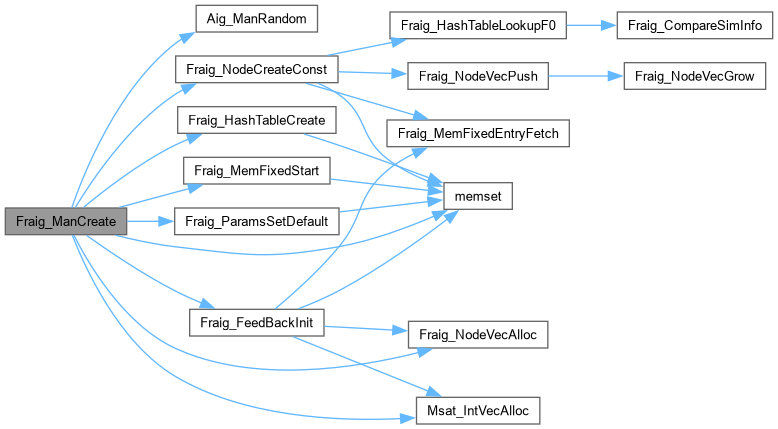

Here is the call graph for this function:

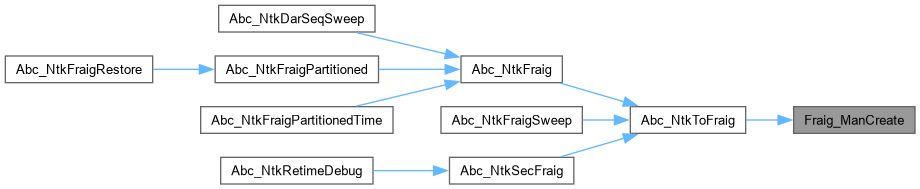

Here is the caller graph for this function:

Fraig_ManCreateSolver()

void Fraig_ManCreateSolver

(

Fraig_Man_t *

p

)

Function*************************************************************

Synopsis [Prepares the SAT solver to run on the two nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 325 of file fraigMan.c.

{
    extern abctime timeSelect;
    extern abctime timeAssign;
    assert( p->pSat == NULL );
    // allocate data for SAT solving
    p->pSat       = Msat_SolverAlloc( 500, 1, 1, 1, 1, 0 );
    p->vVarsInt   = Msat_SolverReadConeVars( p->pSat );
    p->vAdjacents = Msat_SolverReadAdjacents( p->pSat );
    p->vVarsUsed  = Msat_SolverReadVarsUsed( p->pSat );
    timeSelect = 0;
    timeAssign = 0;
}

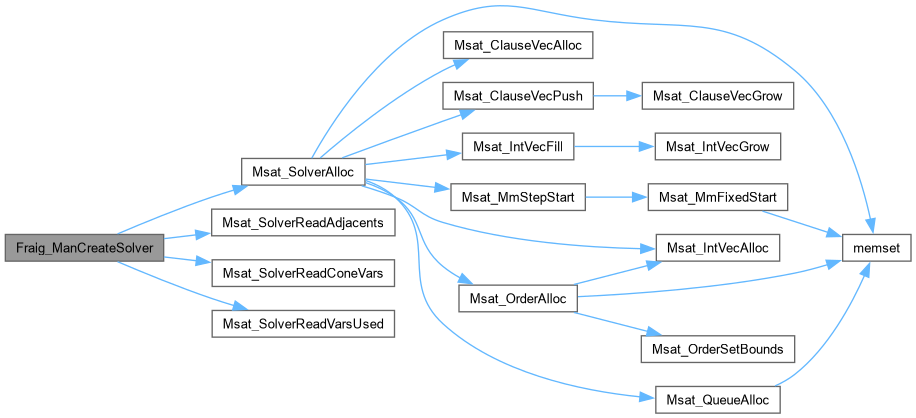

Here is the call graph for this function:

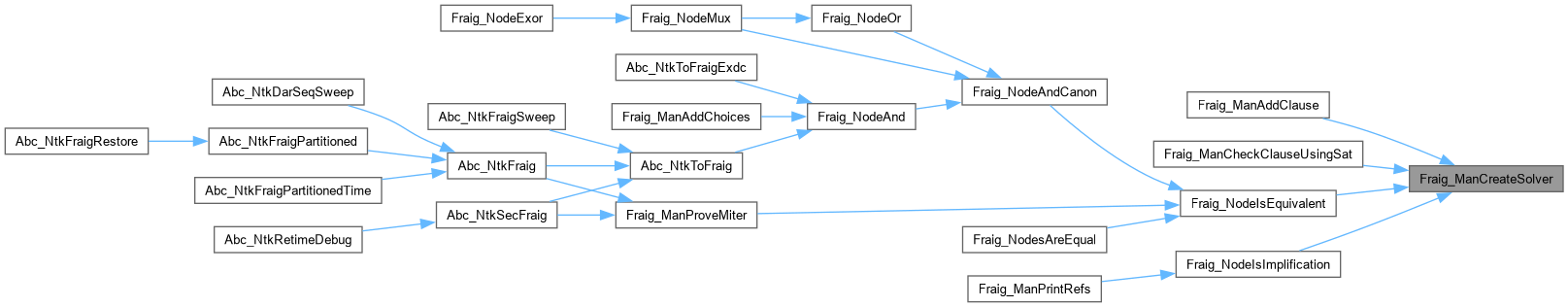

Here is the caller graph for this function:

Fraig_ManFree()

void Fraig_ManFree

(

Fraig_Man_t *

p

)

Function*************************************************************

Synopsis [Deallocates the mapping manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 262 of file fraigMan.c.

{
    int i;
    if ( p->fVerbose )
    {
        if ( p->fChoicing ) Fraig_ManReportChoices( p );
        Fraig_ManPrintStats( p );
//        Fraig_TablePrintStatsS( p );
//        Fraig_TablePrintStatsF( p );
//        Fraig_TablePrintStatsF0( p );
    }

    for ( i = 0; i < p->vNodes->nSize; i++ )
        if ( p->vNodes->pArray[i]->vFanins )
        {
            Fraig_NodeVecFree( p->vNodes->pArray[i]->vFanins );
            p->vNodes->pArray[i]->vFanins = NULL;
        }

    if ( p->vInputs )    Fraig_NodeVecFree( p->vInputs );
    if ( p->vNodes )     Fraig_NodeVecFree( p->vNodes );
    if ( p->vOutputs )   Fraig_NodeVecFree( p->vOutputs );

    if ( p->pTableS )    Fraig_HashTableFree( p->pTableS );
    if ( p->pTableF )    Fraig_HashTableFree( p->pTableF );
    if ( p->pTableF0 )   Fraig_HashTableFree( p->pTableF0 );

    if ( p->pSat )       Msat_SolverFree( p->pSat );
    if ( p->vProj )      Msat_IntVecFree( p->vProj );
    if ( p->vCones )     Fraig_NodeVecFree( p->vCones );
    if ( p->vPatsReal )  Msat_IntVecFree( p->vPatsReal );
    if ( p->pModel )     ABC_FREE( p->pModel );

    Fraig_MemFixedStop( p->mmNodes, 0 );
    Fraig_MemFixedStop( p->mmSims, 0 );

    if ( p->pSuppS )
    {
        ABC_FREE( p->pSuppS[0] );
        ABC_FREE( p->pSuppS );
    }
    if ( p->pSuppF )
    {
        ABC_FREE( p->pSuppF[0] );
        ABC_FREE( p->pSuppF );
    }

    ABC_FREE( p->ppOutputNames );
    ABC_FREE( p->ppInputNames );
    ABC_FREE( p );
}

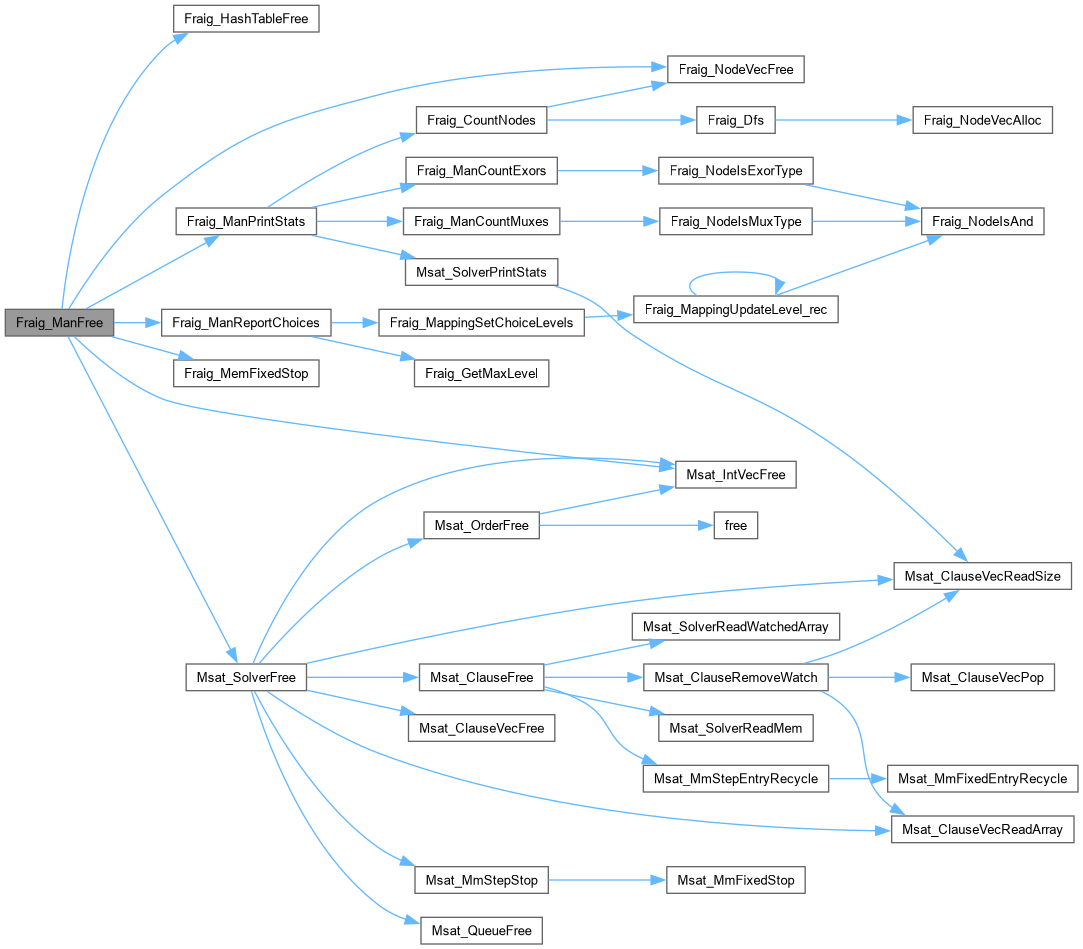

Here is the call graph for this function:

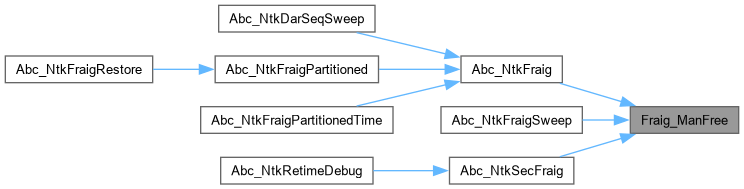

Here is the caller graph for this function:

Fraig_ManGetSimInfo()

Fraig_NodeVec_t * Fraig_ManGetSimInfo

(

Fraig_Man_t *

p

)

Function*************************************************************

Synopsis [Returns simulation info of all nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 417 of file fraigMan.c.

{
    Fraig_NodeVec_t * vInfo;
    Fraig_Node_t * pNode;
    unsigned * pUnsigned;
    int nRandom, nDynamic;
    int i, k, nWords;

    nRandom  = Fraig_ManReadPatternNumRandom( p );
    nDynamic = Fraig_ManReadPatternNumDynamic( p );
    nWords = nRandom / 32 + nDynamic / 32;

    vInfo = Fraig_UtilInfoAlloc( p->vNodes->nSize, nWords, 0 );
    for ( i = 0; i < p->vNodes->nSize; i++ )
    {
        pNode = p->vNodes->pArray[i];
        assert( i == pNode->Num );
        pUnsigned = (unsigned *)vInfo->pArray[i];
        for ( k = 0; k < nRandom / 32; k++ )
            pUnsigned[k] = pNode->puSimR[k];
        for ( k = 0; k < nDynamic / 32; k++ )
            pUnsigned[nRandom / 32 + k] = pNode->puSimD[k];
    }
    return vInfo;
}

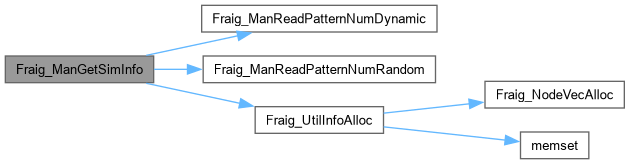

Here is the call graph for this function:

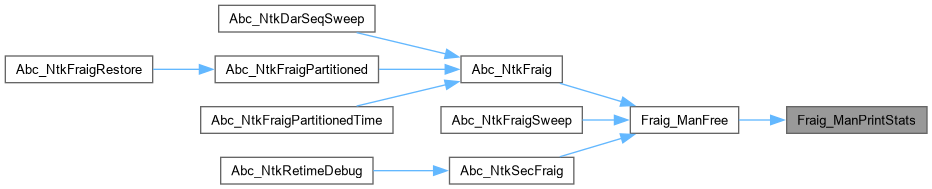

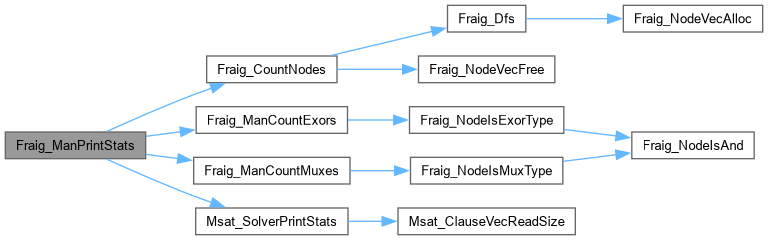

Fraig_ManPrintStats()

void Fraig_ManPrintStats

(

Fraig_Man_t *

p

)

Function*************************************************************

Synopsis [Deallocates the mapping manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 351 of file fraigMan.c.

{
    double nMemory;
    nMemory = ((double)(p->vInputs->nSize + p->vNodes->nSize) *
        (sizeof(Fraig_Node_t) + sizeof(unsigned)*(p->nWordsRand + p->nWordsDyna) /*+ p->nSuppWords*sizeof(unsigned)*/))/(1<<20);
    printf( "Words: Random = %d. Dynamic = %d. Used = %d. Memory = %0.2f MB.\n",
        p->nWordsRand, p->nWordsDyna, p->iWordPerm, nMemory );
    printf( "Proof = %d. Counter-example = %d. Fail = %d. FailReal = %d. Zero = %d.\n",
        p->nSatProof, p->nSatCounter, p->nSatFails, p->nSatFailsReal, p->nSatZeros );
    printf( "Nodes: Final = %d. Total = %d. Mux = %d. (Exor = %d.) ClaVars = %d.\n",
        Fraig_CountNodes(p,0), p->vNodes->nSize, Fraig_ManCountMuxes(p), Fraig_ManCountExors(p), p->nVarsClauses );
    if ( p->pSat ) Msat_SolverPrintStats( p->pSat );
    Fraig_PrintTime( "AIG simulation  ", p->timeSims  );
    Fraig_PrintTime( "AIG traversal   ", p->timeTrav  );
    Fraig_PrintTime( "Solver feedback ", p->timeFeed  );
    Fraig_PrintTime( "SAT solving     ", p->timeSat   );
    Fraig_PrintTime( "Network update  ", p->timeToNet );
    Fraig_PrintTime( "TOTAL RUNTIME   ", p->timeTotal );
    if ( p->time1 > 0 ) { Fraig_PrintTime( "time1", p->time1 ); }
    if ( p->time2 > 0 ) { Fraig_PrintTime( "time2", p->time2 ); }
    if ( p->time3 > 0 ) { Fraig_PrintTime( "time3", p->time3 ); }
    if ( p->time4 > 0 ) { Fraig_PrintTime( "time4", p->time4 ); }
//    ABC_PRT( "Selection ", timeSelect );
//    ABC_PRT( "Assignment", timeAssign );
    fflush( stdout );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Fraig_ParamsSetDefault()

void Fraig_ParamsSetDefault

(

Fraig_Params_t *

pParams

)

Function*************************************************************

Synopsis [Sets the default parameters of the package.]

Description [This set of parameters is tuned for equivalence checking.]

SideEffects []

SeeAlso []

Definition at line 122 of file fraigMan.c.

{
    memset( pParams, 0, sizeof(Fraig_Params_t) );
    pParams->nPatsRand  = FRAIG_PATTERNS_RANDOM;  // the number of words of random simulation info
    pParams->nPatsDyna  = FRAIG_PATTERNS_DYNAMIC; // the number of words of dynamic simulation info
    pParams->nBTLimit   = 99;                     // the max number of backtracks to perform
    pParams->nSeconds   = 20;                     // the max number of seconds to solve the miter
    pParams->fFuncRed   =  1;                     // performs only one level hashing
    pParams->fFeedBack  =  1;                     // enables solver feedback
    pParams->fDist1Pats =  1;                     // enables distance-1 patterns
    pParams->fDoSparse  =  0;                     // performs equiv tests for sparse functions
    pParams->fChoicing  =  0;                     // enables recording structural choices
    pParams->fTryProve  =  1;                     // tries to solve the final miter
    pParams->fVerbose   =  0;                     // the verbosiness flag
    pParams->fVerboseP  =  0;                     // the verbose flag for reporting the proof
    pParams->fInternal  =  0;                     // the flag indicates the internal run
    pParams->nConfLimit =  0;                     // the limit on the number of conflicts
    pParams->nInspLimit =  0;                     // the limit on the number of inspections
}

Here is the call graph for this function:

Here is the caller graph for this function:

Fraig_ParamsSetDefaultFull()

void Fraig_ParamsSetDefaultFull

(

Fraig_Params_t *

pParams

)

Function*************************************************************

Synopsis [Sets the default parameters of the package.]

Description [This set of parameters is tuned for complete FRAIGing.]

SideEffects []

SeeAlso []

Definition at line 153 of file fraigMan.c.

{
    memset( pParams, 0, sizeof(Fraig_Params_t) );
    pParams->nPatsRand  = FRAIG_PATTERNS_RANDOM;  // the number of words of random simulation info
    pParams->nPatsDyna  = FRAIG_PATTERNS_DYNAMIC; // the number of words of dynamic simulation info
    pParams->nBTLimit   = -1;                     // the max number of backtracks to perform
    pParams->nSeconds   = 20;                     // the max number of seconds to solve the miter
    pParams->fFuncRed   =  1;                     // performs only one level hashing
    pParams->fFeedBack  =  1;                     // enables solver feedback
    pParams->fDist1Pats =  1;                     // enables distance-1 patterns
    pParams->fDoSparse  =  1;                     // performs equiv tests for sparse functions
    pParams->fChoicing  =  0;                     // enables recording structural choices
    pParams->fTryProve  =  0;                     // tries to solve the final miter
    pParams->fVerbose   =  0;                     // the verbosiness flag
    pParams->fVerboseP  =  0;                     // the verbose flag for reporting the proof
    pParams->fInternal  =  0;                     // the flag indicates the internal run
    pParams->nConfLimit =  0;                     // the limit on the number of conflicts
    pParams->nInspLimit =  0;                     // the limit on the number of inspections
}

Here is the call graph for this function:

Fraig_UtilInfoAlloc()

Fraig_NodeVec_t * Fraig_UtilInfoAlloc	(	int	nSize,
		int	nWords,
		int	fClean )

Function*************************************************************

Synopsis [Allocates simulation information for all nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 389 of file fraigMan.c.

{
    Fraig_NodeVec_t * vInfo;
    unsigned * pUnsigned;
    int i;
    assert( nSize > 0 && nWords > 0 );
    vInfo = Fraig_NodeVecAlloc( nSize );
    pUnsigned = ABC_ALLOC( unsigned, nSize * nWords );
    vInfo->pArray[0] = (Fraig_Node_t *)pUnsigned;
    if ( fClean )
        memset( pUnsigned, 0, sizeof(unsigned) * nSize * nWords );
    for ( i = 1; i < nSize; i++ )
        vInfo->pArray[i] = (Fraig_Node_t *)(((unsigned *)vInfo->pArray[i-1]) + nWords);
    vInfo->nSize = nSize;
    return vInfo;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Prove_ParamsPrint()

void Prove_ParamsPrint

(

Prove_Params_t *

pParams

)

Function*************************************************************

Synopsis [Prints out the current values of CEC engine parameters.]

Description []

SideEffects []

SeeAlso []

Definition at line 89 of file fraigMan.c.

{
    printf( "CEC enging parameters:\n" );
    printf( "Fraiging enabled: %s\n", pParams->fUseFraiging? "yes":"no" );
    printf( "Rewriting enabled: %s\n", pParams->fUseRewriting? "yes":"no" );
    printf( "BDD construction enabled: %s\n", pParams->fUseBdds? "yes":"no" );
    printf( "Verbose output enabled: %s\n", pParams->fVerbose? "yes":"no" );
    printf( "Solver iterations: %d\n", pParams->nItersMax );
    printf( "Starting mitering limit: %d\n", pParams->nMiteringLimitStart );
    printf( "Multiplicative coeficient for mitering: %.2f\n", pParams->nMiteringLimitMulti );
    printf( "Starting number of rewriting iterations: %d\n", pParams->nRewritingLimitStart );
    printf( "Multiplicative coeficient for rewriting: %.2f\n", pParams->nRewritingLimitMulti );
    printf( "Starting number of conflicts in fraiging: %.2f\n", pParams->nFraigingLimitMulti );
    printf( "Multiplicative coeficient for fraiging: %.2f\n", pParams->nRewritingLimitMulti );
    printf( "BDD size limit for bailing out: %d\n", pParams->nBddSizeLimit );
    printf( "BDD reordering enabled: %s\n", pParams->fBddReorder? "yes":"no" );
    printf( "Last-gasp mitering limit: %d\n", pParams->nMiteringLimitLast );
    printf( "Total conflict limit: %d\n", (int)pParams->nTotalBacktrackLimit );
    printf( "Total inspection limit: %d\n", (int)pParams->nTotalInspectLimit );
    printf( "Parameter dump complete.\n" );
}

Prove_ParamsSetDefault()

void Prove_ParamsSetDefault

(

Prove_Params_t *

pParams

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Sets the default parameters of the package.]

Description [This set of parameters is tuned for equivalence checking.]

SideEffects []

SeeAlso []

Definition at line 46 of file fraigMan.c.

{
    // clean the parameter structure
    memset( pParams, 0, sizeof(Prove_Params_t) );
    // general parameters
    pParams->fUseFraiging         = 1;       // enables fraiging
    pParams->fUseRewriting        = 1;       // enables rewriting
    pParams->fUseBdds             = 0;       // enables BDD construction when other methods fail
    pParams->fVerbose             = 0;       // prints verbose stats
    // iterations
    pParams->nItersMax            = 6;       // the number of iterations
    // mitering
    pParams->nMiteringLimitStart  = 5000;    // starting mitering limit
    pParams->nMiteringLimitMulti  = 2.0;     // multiplicative coefficient to increase the limit in each iteration
    // rewriting (currently not used)
    pParams->nRewritingLimitStart = 3;       // the number of rewriting iterations
    pParams->nRewritingLimitMulti = 1.0;     // multiplicative coefficient to increase the limit in each iteration
    // fraiging
    pParams->nFraigingLimitStart  = 2;       // starting backtrack(conflict) limit
    pParams->nFraigingLimitMulti  = 8.0;     // multiplicative coefficient to increase the limit in each iteration
    // last-gasp BDD construction
    pParams->nBddSizeLimit        = 1000000; // the number of BDD nodes when construction is aborted
    pParams->fBddReorder          = 1;       // enables dynamic BDD variable reordering
    // last-gasp mitering
//    pParams->nMiteringLimitLast   = 1000000; // final mitering limit
    pParams->nMiteringLimitLast   = 0;       // final mitering limit
    // global SAT solver limits
    pParams->nTotalBacktrackLimit = 0;       // global limit on the number of backtracks
    pParams->nTotalInspectLimit   = 0;       // global limit on the number of clause inspects
//    pParams->nTotalInspectLimit   = 100000000;  // global limit on the number of clause inspects
}

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

timeAssign

abctime timeAssign

Definition at line 29 of file fraigMan.c.

timeSelect

ABC_NAMESPACE_IMPL_START abctime timeSelect

DECLARATIONS ///.

CFile****************************************************************

FileName [fraigMan.c]

PackageName [FRAIG: Functionally reduced AND-INV graphs.]

Synopsis [Implementation of the FRAIG manager.]

Author [Alan Mishchenko alanm.nosp@m.i@ee.nosp@m.cs.be.nosp@m.rkel.nosp@m.ey.ed.nosp@m.u]

Affiliation [UC Berkeley]

Date [Ver. 2.0. Started - October 1, 2004]

Revision [

Id

fraigMan.c,v 1.11 2005/07/08 01:01:31 alanmi Exp

]

Definition at line 28 of file fraigMan.c.
