fsimTsim.c File Reference

#include "fsimInt.h"

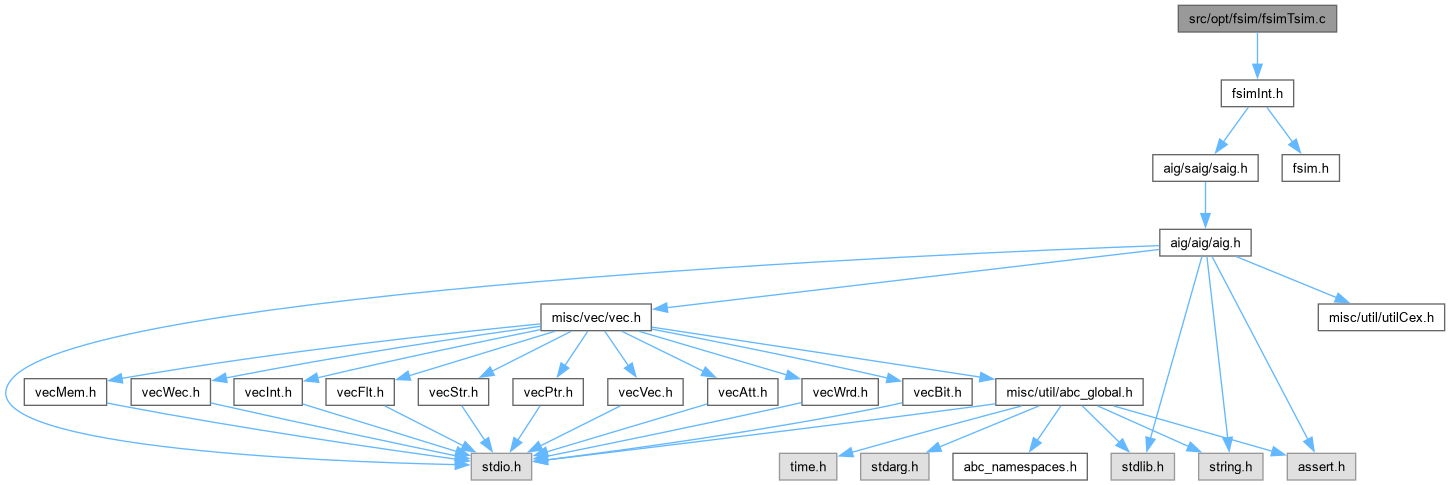

Include dependency graph for fsimTsim.c:

Go to the source code of this file.

Macros
#define	FSIM_ZER   1
	DECLARATIONS ///.
#define	FSIM_ONE   2
#define	FSIM_UND   3

Functions
int	Fsim_ManTerStateHash (unsigned *pState, int nWords, int nTableSize)
int	Fsim_ManTerStateLookup (unsigned *pState, int nWords, unsigned **pBins, int nBins)
void	Fsim_ManTerStateInsert (unsigned *pState, int nWords, unsigned **pBins, int nBins)
unsigned *	Fsim_ManTerStateCreate (unsigned *pInfo, int nPis, int nCis, int nWords)
void	Fsim_ManTerStatePrint (unsigned *pState, int nRegs)
Vec_Ptr_t *	Fsim_ManTerSimulate (Aig_Man_t *pAig, int fVerbose)

Macro Definition Documentation

FSIM_ONE

#define FSIM_ONE   2

Definition at line 31 of file fsimTsim.c.

FSIM_UND

#define FSIM_UND   3

Definition at line 32 of file fsimTsim.c.

FSIM_ZER

#define FSIM_ZER   1

DECLARATIONS ///.

CFile****************************************************************

FileName [fsimTsim.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Fast sequential AIG simulator.]

Synopsis [Varius utilities.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

fsimTsim.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 30 of file fsimTsim.c.

Function Documentation

Fsim_ManTerSimulate()

Vec_Ptr_t * Fsim_ManTerSimulate	(	Aig_Man_t *	pAig,
		int	fVerbose )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 339 of file fsimTsim.c.

{
    Fsim_Man_t * p;
    Vec_Ptr_t * vStates;
    unsigned ** pBins, * pState;
    int i, nWords, nBins;
    clock_t clk, clkTotal = clock();
    assert( Aig_ManRegNum(pAig) > 0 );
    // create manager
    clk = clock();
    p = Fsim_ManCreate( pAig );
    if ( fVerbose )
    {
        printf( "Obj = %8d (%8d). Cut = %6d. Front = %6d.  FrtMem = %7.2f MB. ",
            p->nObjs, p->nCis + p->nNodes, p->nCrossCutMax, p->nFront,
            4.0*Aig_BitWordNum(2 * p->nFront)/(1<<20) );
        ABC_PRT( "Time", clock() - clk );
    }
    // create simulation frontier
    clk = clock();
    Fsim_ManFront( p, 0 );
    if ( fVerbose )
    {
        printf( "Max ID = %8d. Log max ID = %2d.  AigMem = %7.2f MB (%5.2f byte/obj).  ",
            p->iNumber, Aig_Base2Log(p->iNumber),
            1.0*(p->pDataCur-p->pDataAig)/(1<<20),
            1.0*(p->pDataCur-p->pDataAig)/p->nObjs );
        ABC_PRT( "Time", clock() - clk );
    }
    // allocate storage for terminary states
    nWords  = Abc_BitWordNum( 2*Aig_ManRegNum(pAig) );
    vStates = Vec_PtrAlloc( 1000 );
    nBins   = Abc_PrimeCudd( 500 );
    pBins   = ABC_ALLOC( unsigned *, nBins );
    memset( pBins, 0, sizeof(unsigned *) * nBins );
    // perform simulation
    assert( p->pDataSim == NULL );
    p->pDataSim = ABC_ALLOC( unsigned, Aig_BitWordNum(2 * p->nFront) * sizeof(unsigned) );
    p->pDataSimCis = ABC_ALLOC( unsigned, Aig_BitWordNum(2 * p->nCis) * sizeof(unsigned) );
    p->pDataSimCos = ABC_ALLOC( unsigned, Aig_BitWordNum(2 * p->nCos) * sizeof(unsigned) );
    Fsim_ManTerSimInfoInit( p );
    // hash the first state
    pState = Fsim_ManTerStateCreate( p->pDataSimCis, p->nPis, p->nCis, nWords );
    Vec_PtrPush( vStates, pState );
    Fsim_ManTerStateInsert( pState, nWords, pBins, nBins );
    // perform simuluation till convergence
    for ( i = 0; ; i++ )
    {
        Fsim_ManTerSimulateRound( p );
        Fsim_ManTerSimInfoTransfer( p );
        // hash the first state
        pState = Fsim_ManTerStateCreate( p->pDataSimCis, p->nPis, p->nCis, nWords );
        Vec_PtrPush( vStates, pState );
        if ( Fsim_ManTerStateLookup(pState, nWords, pBins, nBins) )
            break;
        Fsim_ManTerStateInsert( pState, nWords, pBins, nBins );
    }
    if ( fVerbose )
    {
        printf( "Maxcut = %8d.  AigMem = %7.2f MB.  SimMem = %7.2f MB.  ",
            p->nCrossCutMax,
            p->pDataAig2? 12.0*p->nObjs/(1<<20) : 1.0*(p->pDataCur-p->pDataAig)/(1<<20),
            4.0*(Aig_BitWordNum(2 * p->nFront)+Aig_BitWordNum(2 * p->nCis)+Aig_BitWordNum(2 * p->nCos))/(1<<20) );
        ABC_PRT( "Sim time", clock() - clkTotal );
    }
    ABC_FREE( pBins );
    Fsim_ManDelete( p );
    return vStates;

}

Here is the call graph for this function:

Fsim_ManTerStateCreate()

unsigned * Fsim_ManTerStateCreate	(	unsigned *	pInfo,
		int	nPis,
		int	nCis,
		int	nWords )

Function*************************************************************

Synopsis [Inserts value into the table.]

Description []

SideEffects []

SeeAlso []

Definition at line 255 of file fsimTsim.c.

{
    unsigned * pRes;
    int i;
    pRes = (unsigned *)ABC_CALLOC( char, sizeof(unsigned) * nWords + sizeof(unsigned *) );
    for ( i = nPis; i < nCis; i++ )
        Fsim_ManTerSimInfoSet( pRes, i-nPis, Fsim_ManTerSimInfoGet(pInfo, i) );
    return pRes;
}

Here is the caller graph for this function:

Fsim_ManTerStateHash()

int Fsim_ManTerStateHash	(	unsigned *	pState,
		int	nWords,
		int	nTableSize )

Function*************************************************************

Synopsis [Computes hash value of the node using its simulation info.]

Description []

SideEffects []

SeeAlso []

Definition at line 178 of file fsimTsim.c.

{
    static int s_FPrimes[128] = {
        1009, 1049, 1093, 1151, 1201, 1249, 1297, 1361, 1427, 1459,
        1499, 1559, 1607, 1657, 1709, 1759, 1823, 1877, 1933, 1997,
        2039, 2089, 2141, 2213, 2269, 2311, 2371, 2411, 2467, 2543,
        2609, 2663, 2699, 2741, 2797, 2851, 2909, 2969, 3037, 3089,
        3169, 3221, 3299, 3331, 3389, 3461, 3517, 3557, 3613, 3671,
        3719, 3779, 3847, 3907, 3943, 4013, 4073, 4129, 4201, 4243,
        4289, 4363, 4441, 4493, 4549, 4621, 4663, 4729, 4793, 4871,
        4933, 4973, 5021, 5087, 5153, 5227, 5281, 5351, 5417, 5471,
        5519, 5573, 5651, 5693, 5749, 5821, 5861, 5923, 6011, 6073,
        6131, 6199, 6257, 6301, 6353, 6397, 6481, 6563, 6619, 6689,
        6737, 6803, 6863, 6917, 6977, 7027, 7109, 7187, 7237, 7309,
        7393, 7477, 7523, 7561, 7607, 7681, 7727, 7817, 7877, 7933,
        8011, 8039, 8059, 8081, 8093, 8111, 8123, 8147
    };
    unsigned uHash;
    int i;
    uHash = 0;
    for ( i = 0; i < nWords; i++ )
        uHash ^= pState[i] * s_FPrimes[i & 0x7F];
    return uHash % nTableSize;
}

Here is the caller graph for this function:

Fsim_ManTerStateInsert()

void Fsim_ManTerStateInsert	(	unsigned *	pState,
		int	nWords,
		unsigned **	pBins,
		int	nBins )

Function*************************************************************

Synopsis [Inserts value into the table.]

Description []

SideEffects []

SeeAlso []

Definition at line 236 of file fsimTsim.c.

{
    int Hash = Fsim_ManTerStateHash( pState, nWords, nBins );
    assert( !Fsim_ManTerStateLookup( pState, nWords, pBins, nBins ) );
    Fsim_ManTerStateSetNext( pState, nWords, pBins[Hash] );
    pBins[Hash] = pState;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Fsim_ManTerStateLookup()

int Fsim_ManTerStateLookup	(	unsigned *	pState,
		int	nWords,
		unsigned **	pBins,
		int	nBins )

Function*************************************************************

Synopsis [Inserts value into the table.]

Description []

SideEffects []

SeeAlso []

Definition at line 214 of file fsimTsim.c.

{
    unsigned * pEntry;
    int Hash;
    Hash = Fsim_ManTerStateHash( pState, nWords, nBins );
    for ( pEntry = pBins[Hash]; pEntry; pEntry = Fsim_ManTerStateNext(pEntry, nWords) )
        if ( !memcmp( pEntry, pState, sizeof(unsigned) * nWords ) )
            return 1;
    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Fsim_ManTerStatePrint()

void Fsim_ManTerStatePrint	(	unsigned *	pState,
		int	nRegs )

Function*************************************************************

Synopsis [Inserts value into the table.]

Description []

SideEffects []

SeeAlso []

Definition at line 276 of file fsimTsim.c.

{
    int i, Value, nZeros = 0, nOnes = 0, nDcs = 0;
    for ( i = 0; i < nRegs; i++ )
    {
        Value = (Aig_InfoHasBit( pState, 2 * i + 1 ) << 1) | Aig_InfoHasBit( pState, 2 * i );
        if ( Value == 1 )
            printf( "0" ), nZeros++;
        else if ( Value == 2 )
            printf( "1" ), nOnes++;
        else if ( Value == 3 )
            printf( "x" ), nDcs++;
        else
            assert( 0 );
    }
    printf( " (0=%5d, 1=%5d, x=%5d)\n", nZeros, nOnes, nDcs );
}
