giaCSat2.c File Reference

#include "gia.h"

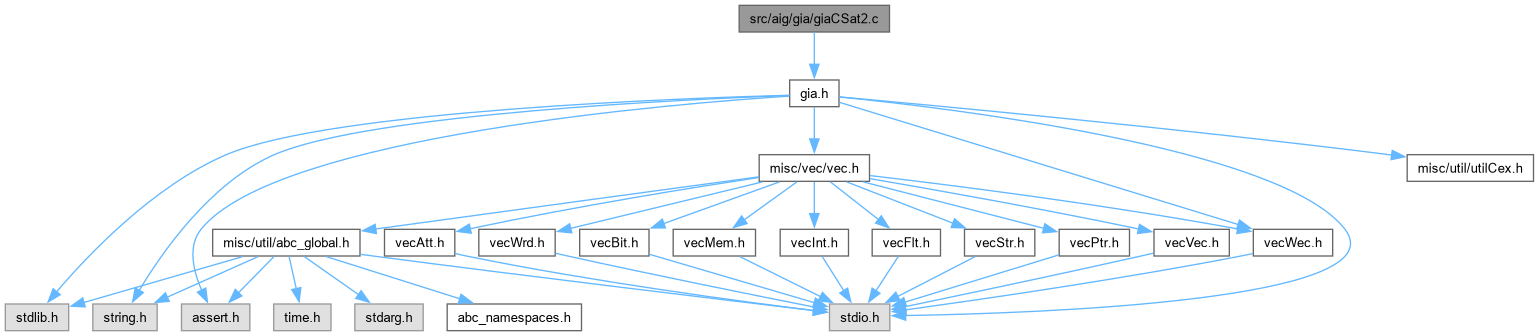

Include dependency graph for giaCSat2.c:

Go to the source code of this file.

Classes
struct	Cbs2_Par_t_
struct	Cbs2_Que_t_
struct	Cbs2_Man_t_

Macros
#define	Cbs2_QueForEachEntry(Que, iObj, i)
#define	Cbs2_ClauseForEachEntry(p, hClause, iObj, i)
#define	Cbs2_ClauseForEachEntry1(p, hClause, iObj, i)
#define	Cbs2_ObjForEachFanout(p, iObj, iFanLit)

Typedefs
typedef typedefABC_NAMESPACE_IMPL_START struct Cbs2_Par_t_	Cbs2_Par_t
	DECLARATIONS ///.
typedef struct Cbs2_Que_t_	Cbs2_Que_t
typedef struct Cbs2_Man_t_	Cbs2_Man_t

Functions
void	Cbs2_SetDefaultParams (Cbs2_Par_t *pPars)
	FUNCTION DEFINITIONS ///.
void	Cbs2_ManSetConflictNum (Cbs2_Man_t *p, int Num)
Cbs2_Man_t *	Cbs2_ManAlloc (Gia_Man_t *pGia)
void	Cbs2_ManStop (Cbs2_Man_t *p)
Vec_Int_t *	Cbs2_ReadModel (Cbs2_Man_t *p)
int	Cbs2_ManPropagate (Cbs2_Man_t *p, int Level)
int	Cbs2_ManPropagate2 (Cbs2_Man_t *p, int Level)
int	Cbs2_ManUpdateFrontier (Cbs2_Man_t *p, int iPropHeadOld, int *piDecLit)
int	Cbs2_ManSolve1_rec (Cbs2_Man_t *p, int Level)
int	Cbs2_ManSolve2_rec (Cbs2_Man_t *p, int Level)
int	Cbs2_ManSolve_rec (Cbs2_Man_t *p, int Level)
int	Cbs2_ManSolve (Cbs2_Man_t *p, int iLit)
int	Cbs2_ManSolve2 (Cbs2_Man_t *p, int iLit, int iLit2)
void	Cbs2_ManSatPrintStats (Cbs2_Man_t *p)
void	Cbs2_ObjPrintFanouts (Cbs2_Man_t *p, int iObj)
void	Cbs2_ManPrintFanouts (Cbs2_Man_t *p)
void	Cbs2_ObjCreateFanout (Cbs2_Man_t *p, int iObj, int iFan0, int iFan1)
void	Cbs2_ObjDeleteFanout (Cbs2_Man_t *p, int iObj)
void	Cbs2_ManCreateFanout_rec (Cbs2_Man_t *p, int iObj)
void	Cbs2_ManDeleteFanout_rec (Cbs2_Man_t *p, int iObj)
void	Cbs2_ManCheckFanouts (Cbs2_Man_t *p)
Vec_Int_t *	Cbs2_ManSolveMiterNc (Gia_Man_t *pAig, int nConfs, Vec_Str_t **pvStatus, int fVerbose)

Macro Definition Documentation

Cbs2_ClauseForEachEntry

#define Cbs2_ClauseForEachEntry	(		p,
			hClause,
			iObj,
			i )

Value:

    for ( i = 1; i <= Cbs2_ClauseSize(p, hClause) && (iObj = (p)->pClauses.pData[hClause+i]); i++ )

Definition at line 162 of file giaCSat2.c.

#define Cbs2_ClauseForEachEntry( p, hClause, iObj, i )               \
    for ( i = 1; i <= Cbs2_ClauseSize(p, hClause) && (iObj = (p)->pClauses.pData[hClause+i]); i++ )

Cbs2_ClauseForEachEntry1

#define Cbs2_ClauseForEachEntry1	(		p,
			hClause,
			iObj,
			i )

Value:

    for ( i = 2; i <= Cbs2_ClauseSize(p, hClause) && (iObj = (p)->pClauses.pData[hClause+i]); i++ )

Definition at line 164 of file giaCSat2.c.

#define Cbs2_ClauseForEachEntry1( p, hClause, iObj, i )                   \
    for ( i = 2; i <= Cbs2_ClauseSize(p, hClause) && (iObj = (p)->pClauses.pData[hClause+i]); i++ )

Cbs2_ObjForEachFanout

#define Cbs2_ObjForEachFanout	(		p,
			iObj,
			iFanLit )

Value:

    for ( iFanLit = Vec_IntEntry(&p->vFanout0, iObj); iFanLit; iFanLit = Vec_IntEntry(&p->vFanoutN, iFanLit) )

Definition at line 167 of file giaCSat2.c.

#define Cbs2_ObjForEachFanout( p, iObj, iFanLit )                      \
    for ( iFanLit = Vec_IntEntry(&p->vFanout0, iObj); iFanLit; iFanLit = Vec_IntEntry(&p->vFanoutN, iFanLit) )

Cbs2_QueForEachEntry

#define Cbs2_QueForEachEntry	(		Que,
			iObj,
			i )

Value:

    for ( i = (Que).iHead; (i < (Que).iTail) && ((iObj) = (Que).pData[i]); i++ )

Definition at line 159 of file giaCSat2.c.

#define Cbs2_QueForEachEntry( Que, iObj, i )                         \
    for ( i = (Que).iHead; (i < (Que).iTail) && ((iObj) = (Que).pData[i]); i++ )

Typedef Documentation

Cbs2_Man_t

typedef struct Cbs2_Man_t_ Cbs2_Man_t

Definition at line 63 of file giaCSat2.c.

Cbs2_Par_t

typedef typedefABC_NAMESPACE_IMPL_START struct Cbs2_Par_t_ Cbs2_Par_t

DECLARATIONS ///.

CFile****************************************************************

FileName [giaCSat.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis [A simple circuit-based solver.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

giaCSat.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 33 of file giaCSat2.c.

Cbs2_Que_t

typedef struct Cbs2_Que_t_ Cbs2_Que_t

Definition at line 54 of file giaCSat2.c.

Function Documentation

Cbs2_ManAlloc()

Cbs2_Man_t * Cbs2_ManAlloc

(

Gia_Man_t *

pGia

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 212 of file giaCSat2.c.

{
    Cbs2_Man_t * p;
    p = ABC_CALLOC( Cbs2_Man_t, 1 );
    p->pProp.nSize = p->pJust.nSize = p->pClauses.nSize = 10000;
    p->pProp.pData = ABC_ALLOC( int, p->pProp.nSize );
    p->pJust.pData = ABC_ALLOC( int, p->pJust.nSize );
    p->pClauses.pData = ABC_ALLOC( int, p->pClauses.nSize );
    p->pClauses.iHead = p->pClauses.iTail = 1;
    p->vModel   = Vec_IntAlloc( 1000 );
    p->vTemp    = Vec_IntAlloc( 1000 );
    p->pAig     = pGia;
    Cbs2_SetDefaultParams( &p->Pars );
    Vec_StrFill( &p->vAssign,    Gia_ManObjNum(pGia), 2 );
    Vec_StrFill( &p->vMark,      Gia_ManObjNum(pGia), 0 );
    Vec_IntFill( &p->vLevReason, 3*Gia_ManObjNum(pGia), -1 );
    Vec_IntFill( &p->vWatches,   2*Gia_ManObjNum(pGia), 0 );
    Vec_IntFill( &p->vFanout0,   Gia_ManObjNum(pGia),   0 );
    Vec_IntFill( &p->vFanoutN,   2*Gia_ManObjNum(pGia), 0 );
    Vec_IntFill( &p->vActivity,  Gia_ManObjNum(pGia), 0 );
    Vec_IntGrow( &p->vActStore,  1000 );
    Vec_IntGrow( &p->vJStore,    1000 );
    Vec_IntGrow( &p->vWatchUpds, 1000 );
    return p;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cbs2_ManCheckFanouts()

void Cbs2_ManCheckFanouts

(

Cbs2_Man_t *

p

)

Definition at line 1536 of file giaCSat2.c.

{
    Gia_Obj_t * pObj;
    int iObj;
    Gia_ManForEachObj( p->pAig, pObj, iObj )
    {
        assert( Vec_IntEntry(&p->vFanout0, iObj) == 0 );
        assert( Vec_IntEntry(&p->vFanoutN, Abc_Var2Lit(iObj, 0)) == 0 );
        assert( Vec_IntEntry(&p->vFanoutN, Abc_Var2Lit(iObj, 1)) == 0 );
    }
}

Cbs2_ManCreateFanout_rec()

void Cbs2_ManCreateFanout_rec	(	Cbs2_Man_t *	p,
		int	iObj )

Definition at line 1508 of file giaCSat2.c.

{
    Gia_Obj_t * pObj; int iFan0, iFan1;
    if ( !iObj || Gia_ObjIsTravIdCurrentId(p->pAig, iObj) )
        return;
    Gia_ObjSetTravIdCurrentId(p->pAig, iObj);
    pObj = Gia_ManObj(p->pAig, iObj);
    if ( Gia_ObjIsCi(pObj) )
        return;
    assert( Gia_ObjIsAnd(pObj) );
    iFan0 = Gia_ObjFaninId0(pObj, iObj);
    iFan1 = Gia_ObjFaninId1(pObj, iObj);
    Cbs2_ManCreateFanout_rec( p, iFan0 );
    Cbs2_ManCreateFanout_rec( p, iFan1 );
    Cbs2_ObjCreateFanout( p, iObj, iFan0, iFan1 );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cbs2_ManDeleteFanout_rec()

void Cbs2_ManDeleteFanout_rec	(	Cbs2_Man_t *	p,
		int	iObj )

Definition at line 1524 of file giaCSat2.c.

{
    Gia_Obj_t * pObj = Gia_ManObj(p->pAig, iObj); int iFan0, iFan1;
    Cbs2_ObjDeleteFanout( p, iObj );
    if ( Gia_ObjIsCi(pObj) )
        return;
    assert( Gia_ObjIsAnd(pObj) );
    iFan0 = Gia_ObjFaninId0(pObj, iObj);
    iFan1 = Gia_ObjFaninId1(pObj, iObj);
    if ( Vec_IntEntry(&p->vFanout0, iFan0) )  Cbs2_ManDeleteFanout_rec( p, iFan0 );
    if ( Vec_IntEntry(&p->vFanout0, iFan1) )  Cbs2_ManDeleteFanout_rec( p, iFan1 );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cbs2_ManPrintFanouts()

void Cbs2_ManPrintFanouts

(

Cbs2_Man_t *

p

)

Definition at line 1488 of file giaCSat2.c.

{
    Gia_Obj_t * pObj; int iObj;
    Gia_ManForEachObj( p->pAig, pObj, iObj )
        if ( Vec_IntEntry(&p->vFanout0, iObj) )
            Cbs2_ObjPrintFanouts( p, iObj );
}

Here is the call graph for this function:

Cbs2_ManPropagate()

int Cbs2_ManPropagate	(	Cbs2_Man_t *	p,
		int	Level )

Function*************************************************************

Synopsis [Propagates all variables.]

Description [Returns 1 if conflict; 0 if no conflict.]

SideEffects []

SeeAlso []

Definition at line 1103 of file giaCSat2.c.

{
    while ( 1 )
    {
        int i, k, iVar, iLit, hClause;
        Cbs2_QueForEachEntry( p->pProp, iLit, i )
        {
            if ( (hClause = Cbs2_ManPropagateOne( p, Abc_Lit2Var(iLit), Level )) )
                return hClause;
        }
        p->pProp.iHead = p->pProp.iTail;
        k = p->pJust.iHead;
        Cbs2_QueForEachEntry( p->pJust, iVar, i )
        {
            if ( Cbs2_VarIsJust(p, Gia_ManObj(p->pAig, iVar), iVar) )
                p->pJust.pData[k++] = iVar;
            else if ( (hClause = Cbs2_ManPropagateTwo( p, iVar, Level )) )
                return hClause;
        }
        if ( k == p->pJust.iTail )
            break;
        p->pJust.iTail = k;
    }
    return 0;
}

Here is the caller graph for this function:

Cbs2_ManPropagate2()

int Cbs2_ManPropagate2	(	Cbs2_Man_t *	p,
		int	Level )

Definition at line 1130 of file giaCSat2.c.

{
    int i, iLit, iFan, hClause;
    Cbs2_QueForEachEntry( p->pProp, iLit, i )
    {
        if ( (hClause = Cbs2_ManPropagateClauses(p, Level, iLit)) )
            return hClause;
        Cbs2_ObjForEachFanout( p, Abc_Lit2Var(iLit), iFan )
        {
            int iFanout = Abc_Lit2Var(iFan);
            if ( !Cbs2_VarIsAssigned(p, iFanout) )
                Cbs2_ManPropagateUnassigned( p, iFanout, Level );
            else if ( (hClause = Cbs2_ManPropagateOne(p, iFanout, Level)) )
                return hClause;
        }
        if ( (hClause = Cbs2_ManPropagateOne( p, Abc_Lit2Var(iLit), Level )) )
            return hClause;
    }
    p->pProp.iHead = p->pProp.iTail;
    return 0;
}

Here is the caller graph for this function:

Cbs2_ManSatPrintStats()

void Cbs2_ManSatPrintStats

(

Cbs2_Man_t *

p

)

Function*************************************************************

Synopsis [Prints statistics of the manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 1449 of file giaCSat2.c.

{
    printf( "CO = %8d  ", Gia_ManCoNum(p->pAig) );
    printf( "AND = %8d  ", Gia_ManAndNum(p->pAig) );
    printf( "Conf = %6d  ", p->Pars.nBTLimit );
    printf( "JustMax = %5d  ", p->Pars.nJustLimit );
    printf( "\n" );
    printf( "Unsat calls %6d  (%6.2f %%)   Ave conf = %8.1f   ",
        p->nSatUnsat, p->nSatTotal? 100.0*p->nSatUnsat/p->nSatTotal :0.0, p->nSatUnsat? 1.0*p->nConfUnsat/p->nSatUnsat :0.0 );
    ABC_PRTP( "Time", p->timeSatUnsat, p->timeTotal );
    printf( "Sat   calls %6d  (%6.2f %%)   Ave conf = %8.1f   ",
        p->nSatSat,   p->nSatTotal? 100.0*p->nSatSat/p->nSatTotal :0.0, p->nSatSat? 1.0*p->nConfSat/p->nSatSat : 0.0 );
    ABC_PRTP( "Time", p->timeSatSat,   p->timeTotal );
    printf( "Undef calls %6d  (%6.2f %%)   Ave conf = %8.1f   ",
        p->nSatUndec, p->nSatTotal? 100.0*p->nSatUndec/p->nSatTotal :0.0, p->nSatUndec? 1.0*p->nConfUndec/p->nSatUndec : 0.0 );
    ABC_PRTP( "Time", p->timeSatUndec, p->timeTotal );
    ABC_PRT( "Total time", p->timeTotal );
}

Here is the caller graph for this function:

Cbs2_ManSetConflictNum()

void Cbs2_ManSetConflictNum	(	Cbs2_Man_t *	p,
		int	Num )

Definition at line 196 of file giaCSat2.c.

{
    p->Pars.nBTLimit = Num;
}

Cbs2_ManSolve()

int Cbs2_ManSolve	(	Cbs2_Man_t *	p,
		int	iLit )

Function*************************************************************

Synopsis [Looking for a satisfying assignment of the node.]

Description [Assumes that each node has flag pObj->fMark0 set to 0. Returns 1 if unsatisfiable, 0 if satisfiable, and -1 if undecided. The node may be complemented. ]

SideEffects [The two procedures differ in the CEX format.]

SeeAlso []

Definition at line 1389 of file giaCSat2.c.

{
    int RetValue = 0;
    assert( !p->pProp.iHead && !p->pProp.iTail );
    assert( !p->pJust.iHead && !p->pJust.iTail );
    assert( p->pClauses.iHead == 1 && p->pClauses.iTail == 1 );
    p->Pars.nBTThis = p->Pars.nJustThis = p->Pars.nBTThisNc = 0;
    Cbs2_ManAssign( p, iLit, 0, 0, 0 );
    if ( !Cbs2_ManSolve_rec(p, 0) && !Cbs2_ManCheckLimits(p) )
        Cbs2_ManSaveModel( p, p->vModel );
    else
        RetValue = 1;
    Cbs2_ManCancelUntil( p, 0 );
    Cbs2_ManCleanWatch( p );
    Cbs2_ManBumpClean( p );
    p->pJust.iHead = p->pJust.iTail = 0;
    p->pClauses.iHead = p->pClauses.iTail = 1;
    p->Pars.nBTTotal += p->Pars.nBTThis;
    p->Pars.nJustTotal = Abc_MaxInt( p->Pars.nJustTotal, p->Pars.nJustThis );
    if ( Cbs2_ManCheckLimits( p ) )
        RetValue = -1;
    return RetValue;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cbs2_ManSolve1_rec()

int Cbs2_ManSolve1_rec	(	Cbs2_Man_t *	p,
		int	Level )

Function*************************************************************

Synopsis [Solve the problem recursively.]

Description [Returns learnt clause if unsat, NULL if sat or undecided.]

SideEffects []

SeeAlso []

Definition at line 1253 of file giaCSat2.c.

{
    Gia_Obj_t * pVar;
    Cbs2_Que_t * pQue = &(p->pClauses);
    int iPropHead, iJustHead, iJustTail;
    int hClause, hLearn0, hLearn1, iVar, iDecLit;
    // propagate assignments
    assert( !Cbs2_QueIsEmpty(&p->pProp) );
    if ( (hClause = Cbs2_ManPropagate( p, Level )) )
        return hClause;
    // check for satisfying assignment
    assert( Cbs2_QueIsEmpty(&p->pProp) );
    if ( Cbs2_QueIsEmpty(&p->pJust) )
        return 0;
    // quit using resource limits
    p->Pars.nJustThis = Abc_MaxInt( p->Pars.nJustThis, p->pJust.iTail - p->pJust.iHead );
    if ( Cbs2_ManCheckLimits( p ) )
        return 0;
    // remember the state before branching
    iPropHead = p->pProp.iHead;
    Cbs2_QueStore( &p->pJust, &iJustHead, &iJustTail );
    // find the decision variable
    assert( p->Pars.fUseHighest );
    iVar = Cbs2_ManDecideHighest( p );
    pVar = Gia_ManObj( p->pAig, iVar );
    assert( Cbs2_VarIsJust(p, pVar, iVar) );
    // chose decision variable using fanout count
    if ( Gia_ObjRefNum(p->pAig, Gia_ObjFanin0(pVar)) > Gia_ObjRefNum(p->pAig, Gia_ObjFanin1(pVar)) )
        iDecLit = Abc_LitNot(Gia_ObjFaninLit0(pVar, iVar));
    else
        iDecLit = Abc_LitNot(Gia_ObjFaninLit1(pVar, iVar));
    // decide on first fanin
    Cbs2_ManAssign( p, iDecLit, Level+1, 0, 0 );
    if ( !(hLearn0 = Cbs2_ManSolve1_rec( p, Level+1 )) )
        return 0;
    if ( pQue->pData[hLearn0+1] != Abc_Lit2Var(iDecLit) )
        return hLearn0;
    Cbs2_ManCancelUntil( p, iPropHead );
    Cbs2_QueRestore( &p->pJust, iJustHead, iJustTail );
    // decide on second fanin
    Cbs2_ManAssign( p, Abc_LitNot(iDecLit), Level+1, 0, 0 );
    if ( !(hLearn1 = Cbs2_ManSolve1_rec( p, Level+1 )) )
        return 0;
    if ( pQue->pData[hLearn1+1] != Abc_Lit2Var(iDecLit) )
        return hLearn1;
    hClause = Cbs2_ManResolve( p, Level, hLearn0, hLearn1 );
    Cbs2_ManBumpClause( p, hClause );
//    Cbs2_ManPrintCube( p, Level, hClause );
//    if ( Level > Cbs2_ClauseDecLevel(p, hClause) )
//        p->Pars.nBTThisNc++;
    p->Pars.nBTThis++;
    return hClause;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cbs2_ManSolve2()

int Cbs2_ManSolve2	(	Cbs2_Man_t *	p,
		int	iLit,
		int	iLit2 )

Definition at line 1412 of file giaCSat2.c.

{
    int RetValue = 0;
    assert( !p->pProp.iHead && !p->pProp.iTail );
    assert( !p->pJust.iHead && !p->pJust.iTail );
    assert( p->pClauses.iHead == 1 && p->pClauses.iTail == 1 );
    p->Pars.nBTThis = p->Pars.nJustThis = p->Pars.nBTThisNc = 0;
    Cbs2_ManAssign( p, iLit, 0, 0, 0 );
    if ( iLit2 )
    Cbs2_ManAssign( p, iLit2, 0, 0, 0 );
    if ( !Cbs2_ManSolve_rec(p, 0) && !Cbs2_ManCheckLimits(p) )
        Cbs2_ManSaveModelAll( p, p->vModel );
    else
        RetValue = 1;
    Cbs2_ManCancelUntil( p, 0 );
    Cbs2_ManCleanWatch( p );
    Cbs2_ManBumpClean( p );
    p->pJust.iHead = p->pJust.iTail = 0;
    p->pClauses.iHead = p->pClauses.iTail = 1;
    p->Pars.nBTTotal += p->Pars.nBTThis;
    p->Pars.nJustTotal = Abc_MaxInt( p->Pars.nJustTotal, p->Pars.nJustThis );
    if ( Cbs2_ManCheckLimits( p ) )
        RetValue = -1;
    return RetValue;
}

Here is the call graph for this function:

Cbs2_ManSolve2_rec()

int Cbs2_ManSolve2_rec	(	Cbs2_Man_t *	p,
		int	Level )

Definition at line 1307 of file giaCSat2.c.

{
    Gia_Obj_t * pVar;
    Cbs2_Que_t * pQue = &(p->pClauses);
    int iPropHead, iJustHead, iJustTail;
    int hClause, hLearn0, hLearn1, iVar, iDecLit, iDecLit2;
    int iPropHeadOld = p->pProp.iHead;
    // propagate assignments
    assert( !Cbs2_QueIsEmpty(&p->pProp) );
    if ( (hClause = Cbs2_ManPropagate2( p, Level )) )
        return hClause;
    // check for satisfying assignment
    assert( Cbs2_QueIsEmpty(&p->pProp) );
//    if ( Cbs2_QueIsEmpty(&p->pJust) )
//        return 0;
    if ( Cbs2_ManUpdateFrontier(p, iPropHeadOld, &iDecLit2) )
        return 0;
    // quit using resource limits
    p->Pars.nJustThis = Abc_MaxInt( p->Pars.nJustThis, p->pJust.iTail - p->pJust.iHead );
    if ( Cbs2_ManCheckLimits( p ) )
        return 0;
    // remember the state before branching
    iPropHead = p->pProp.iHead;
//    Cbs2_QueStore( &p->pJust, &iJustHead, &iJustTail );
    iJustHead = p->pJust.iHead;
    iJustTail = p->pJust.iTail;
    // find the decision variable

    assert( p->Pars.fUseHighest );
    iVar = Cbs2_ManDecideHighest( p );
    pVar = Gia_ManObj( p->pAig, iVar );
    assert( Cbs2_VarIsJust(p, pVar, iVar) );
    // chose decision variable using fanout count
    if ( Gia_ObjRefNum(p->pAig, Gia_ObjFanin0(pVar)) > Gia_ObjRefNum(p->pAig, Gia_ObjFanin1(pVar)) )
//    if ( Vec_IntEntry(&p->vActivity, Gia_ObjFaninId0(pVar, iVar)) > Vec_IntEntry(&p->vActivity, Gia_ObjFaninId1(pVar, iVar)) )
        iDecLit = Abc_LitNot(Gia_ObjFaninLit0(pVar, iVar));
    else
        iDecLit = Abc_LitNot(Gia_ObjFaninLit1(pVar, iVar));

    //iDecLit = iDecLit2;

    // decide on first fanin
    Cbs2_ManAssign( p, iDecLit, Level+1, 0, 0 );
    if ( !(hLearn0 = Cbs2_ManSolve2_rec( p, Level+1 )) )
        return 0;
    if ( pQue->pData[hLearn0+1] != Abc_Lit2Var(iDecLit) )
        return hLearn0;
    Cbs2_ManCancelUntil( p, iPropHead );
    Cbs2_QueRestore( &p->pJust, iJustHead, iJustTail );
    // decide on second fanin
    Cbs2_ManAssign( p, Abc_LitNot(iDecLit), Level+1, 0, 0 );
    if ( !(hLearn1 = Cbs2_ManSolve2_rec( p, Level+1 )) )
        return 0;
    if ( pQue->pData[hLearn1+1] != Abc_Lit2Var(iDecLit) )
        return hLearn1;
    hClause = Cbs2_ManResolve( p, Level, hLearn0, hLearn1 );
    Cbs2_ManBumpClause( p, hClause );
    //Cbs2_ManPrintCube( p, Level, hClause );
//    if ( Level > Cbs2_ClauseDecLevel(p, hClause) )
//        p->Pars.nBTThisNc++;
    p->Pars.nBTThis++;
    return hClause;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cbs2_ManSolve_rec()

int Cbs2_ManSolve_rec	(	Cbs2_Man_t *	p,
		int	Level )

Definition at line 1371 of file giaCSat2.c.

{
    return p->Pars.fUseFanout ? Cbs2_ManSolve2_rec(p, Level) : Cbs2_ManSolve1_rec(p, Level);
}

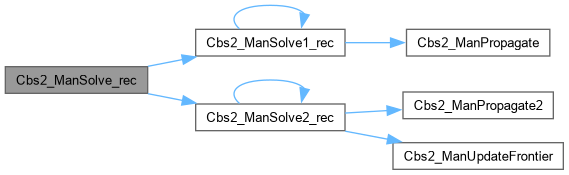

Here is the call graph for this function:

Here is the caller graph for this function:

Cbs2_ManSolveMiterNc()

Vec_Int_t * Cbs2_ManSolveMiterNc	(	Gia_Man_t *	pAig,
		int	nConfs,
		Vec_Str_t **	pvStatus,
		int	fVerbose )

Function*************************************************************

Synopsis [Procedure to test the new SAT solver.]

Description []

SideEffects []

SeeAlso []

Definition at line 1559 of file giaCSat2.c.

{
    extern void Gia_ManCollectTest( Gia_Man_t * pAig );
    extern void Cec_ManSatAddToStore( Vec_Int_t * vCexStore, Vec_Int_t * vCex, int Out );
    Cbs2_Man_t * p;
    Vec_Int_t * vCex, * vVisit, * vCexStore;
    Vec_Str_t * vStatus;
    Gia_Obj_t * pRoot;
    int i, status;
    abctime clk, clkTotal = Abc_Clock();
    assert( Gia_ManRegNum(pAig) == 0 );
//    Gia_ManCollectTest( pAig );
    // prepare AIG
    Gia_ManCreateRefs( pAig );
    //Gia_ManLevelNum( pAig );
    //Gia_ManCleanMark0( pAig );
    //Gia_ManCleanMark1( pAig );
    //Gia_ManFillValue( pAig ); // maps nodes into trail ids
    //Gia_ManSetPhase( pAig ); // maps nodes into trail ids
    // create logic network
    p = Cbs2_ManAlloc( pAig );
    p->Pars.nBTLimit = nConfs;
    // create resulting data-structures
    vStatus   = Vec_StrAlloc( Gia_ManPoNum(pAig) );
    vCexStore = Vec_IntAlloc( 10000 );
    vVisit    = Vec_IntAlloc( 100 );
    vCex      = Cbs2_ReadModel( p );
    // solve for each output
    Gia_ManForEachCo( pAig, pRoot, i )
    {
        //printf( "\nOutput %d\n", i );

        Vec_IntClear( vCex );
        if ( Gia_ObjIsConst0(Gia_ObjFanin0(pRoot)) )
        {
            if ( Gia_ObjFaninC0(pRoot) )
            {
//                printf( "Constant 1 output of SRM!!!\n" );
                Cec_ManSatAddToStore( vCexStore, vCex, i ); // trivial counter-example
                Vec_StrPush( vStatus, 0 );
            }
            else
            {
//                printf( "Constant 0 output of SRM!!!\n" );
                Vec_StrPush( vStatus, 1 );
            }
            continue;
        }
        clk = Abc_Clock();
        p->Pars.fUseHighest = 1;
        p->Pars.fUseLowest  = 0;

        Gia_ManIncrementTravId( pAig );
        Cbs2_ManCreateFanout_rec( p, Gia_ObjFaninId0p(pAig, pRoot) );
        //Cbs2_ManPrintFanouts( p );

        status = Cbs2_ManSolve( p, Gia_ObjFaninLit0p(pAig, pRoot) );
        //printf( "\n" );

        Cbs2_ManDeleteFanout_rec( p, Gia_ObjFaninId0p(pAig, pRoot) );
        //Cbs2_ManCheckFanouts( p );

/*
        if ( status == -1 )
        {
            p->Pars.fUseHighest = 0;
            p->Pars.fUseLowest  = 1;
            status = Cbs2_ManSolve( p, Gia_ObjChild0(pRoot) );
        }
*/
        Vec_StrPush( vStatus, (char)status );
        if ( status == -1 )
        {
            p->nSatUndec++;
            p->nConfUndec += p->Pars.nBTThis;
            Cec_ManSatAddToStore( vCexStore, NULL, i ); // timeout
            p->timeSatUndec += Abc_Clock() - clk;
            continue;
        }
        if ( status == 1 )
        {
            p->nSatUnsat++;
            p->nConfUnsat += p->Pars.nBTThis;
            p->timeSatUnsat += Abc_Clock() - clk;
            continue;
        }
        p->nSatSat++;
        p->nConfSat += p->Pars.nBTThis;
//        Gia_SatVerifyPattern( pAig, pRoot, vCex, vVisit );
        Cec_ManSatAddToStore( vCexStore, vCex, i );
        p->timeSatSat += Abc_Clock() - clk;
    }
    Vec_IntFree( vVisit );
    p->nSatTotal = Gia_ManPoNum(pAig);
    p->timeTotal = Abc_Clock() - clkTotal;
    if ( fVerbose )
        Cbs2_ManSatPrintStats( p );
    if ( fVerbose )
    {
//    printf( "RecCalls = %8d.  RecClause = %8d.  RecNonChro = %8d.\n", p->nRecCall, p->nRecClause, p->nRecNonChro );
    printf( "Prop1 = %d.  Prop2 = %d.  Prop3 = %d.  ClaConf = %d.   FailJ = %d.  FailC = %d.   ", p->nPropCalls[0], p->nPropCalls[1], p->nPropCalls[2], p->nClauseConf, p->nFails[0], p->nFails[1] );
    Abc_PrintTime( 1, "JFront", p->timeJFront );
    }

    Cbs2_ManStop( p );
    *pvStatus = vStatus;

//    printf( "Total number of cex literals = %d. (Ave = %d)\n",
//         Vec_IntSize(vCexStore)-2*p->nSatUndec-2*p->nSatSat,
//        (Vec_IntSize(vCexStore)-2*p->nSatUndec-2*p->nSatSat)/p->nSatSat );
    return vCexStore;
}

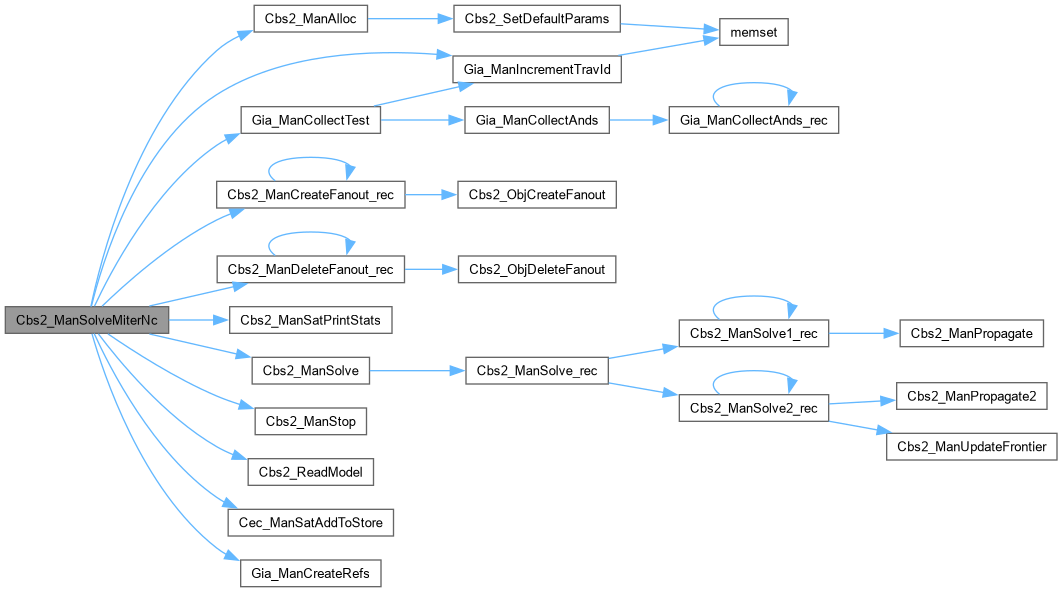

Here is the call graph for this function:

Here is the caller graph for this function:

Cbs2_ManStop()

void Cbs2_ManStop

(

Cbs2_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 249 of file giaCSat2.c.

{
    Vec_StrErase( &p->vAssign );
    Vec_StrErase( &p->vMark );
    Vec_IntErase( &p->vLevReason );
    Vec_IntErase( &p->vWatches );
    Vec_IntErase( &p->vFanout0 );
    Vec_IntErase( &p->vFanoutN );
    Vec_IntErase( &p->vActivity );
    Vec_IntErase( &p->vActStore );
    Vec_IntErase( &p->vJStore );
    Vec_IntErase( &p->vWatchUpds );
    Vec_IntFree( p->vModel );
    Vec_IntFree( p->vTemp );
    ABC_FREE( p->pClauses.pData );
    ABC_FREE( p->pProp.pData );
    ABC_FREE( p->pJust.pData );
    ABC_FREE( p );
}

Here is the caller graph for this function:

Cbs2_ManUpdateFrontier()

int Cbs2_ManUpdateFrontier	(	Cbs2_Man_t *	p,
		int	iPropHeadOld,
		int *	piDecLit )

Definition at line 1206 of file giaCSat2.c.

{
    abctime clk = Abc_Clock();
    int i, iVar, iLit, iJustTailOld = p->pJust.iTail;
    *piDecLit = -1;
    assert( Cbs2_QueIsEmpty(&p->pProp) );
    // visit old frontier nodes
    Cbs2_QueForEachEntry( p->pJust, iVar, i )
        if ( i == iJustTailOld )
            break;
        else if ( Cbs2_VarIsJust(p, Gia_ManObj(p->pAig, iVar), iVar) )
        {
            Cbs2_QuePush( &p->pJust, iVar );
            //*piDecLit = Cbs2_ManUpdateDecVar( p, iVar, *piDecLit );
        }
    // append new nodes
    p->pProp.iHead = iPropHeadOld;
    Cbs2_QueForEachEntry( p->pProp, iLit, i )
    {
        iVar = Abc_Lit2Var(iLit);
        if ( Cbs2_VarIsJust(p, Gia_ManObj(p->pAig, iVar), iVar) )
        {
            Cbs2_QuePush( &p->pJust, iVar );
            //*piDecLit = Cbs2_ManUpdateDecVar( p, iVar, *piDecLit );
        }
    }
    p->pProp.iHead = p->pProp.iTail;
    // update the head of the frontier
    p->pJust.iHead = iJustTailOld;
    // return 1 if the queue is empty
    p->timeJFront += Abc_Clock() - clk;
//printf( "%d ", p->pJust.iTail - p->pJust.iHead );
    return Cbs2_QueIsEmpty(&p->pJust);
}

Here is the caller graph for this function:

Cbs2_ObjCreateFanout()

void Cbs2_ObjCreateFanout	(	Cbs2_Man_t *	p,
		int	iObj,
		int	iFan0,
		int	iFan1 )

Definition at line 1495 of file giaCSat2.c.

{
    Vec_IntWriteEntry( &p->vFanoutN, Abc_Var2Lit(iObj, 0), Vec_IntEntry(&p->vFanout0, iFan0) );
    Vec_IntWriteEntry( &p->vFanoutN, Abc_Var2Lit(iObj, 1), Vec_IntEntry(&p->vFanout0, iFan1) );
    Vec_IntWriteEntry( &p->vFanout0, iFan0, Abc_Var2Lit(iObj, 0) );
    Vec_IntWriteEntry( &p->vFanout0, iFan1, Abc_Var2Lit(iObj, 1) );
}

Here is the caller graph for this function:

Cbs2_ObjDeleteFanout()

void Cbs2_ObjDeleteFanout	(	Cbs2_Man_t *	p,
		int	iObj )

Definition at line 1502 of file giaCSat2.c.

{
    Vec_IntWriteEntry( &p->vFanoutN, Abc_Var2Lit(iObj, 0), 0 );
    Vec_IntWriteEntry( &p->vFanoutN, Abc_Var2Lit(iObj, 1), 0 );
    Vec_IntWriteEntry( &p->vFanout0, iObj, 0 );
}

Here is the caller graph for this function:

Cbs2_ObjPrintFanouts()

void Cbs2_ObjPrintFanouts	(	Cbs2_Man_t *	p,
		int	iObj )

Function*************************************************************

Synopsis [Create fanout.]

Description []

SideEffects []

SeeAlso []

Definition at line 1479 of file giaCSat2.c.

{
    int iFanLit;
    printf( "Fanouts of node %d: ", iObj );
    Cbs2_ObjForEachFanout( p, iObj, iFanLit )
        printf( "%d ", Abc_Lit2Var(iFanLit) );
    printf( "\n" );
}

Here is the caller graph for this function:

Cbs2_ReadModel()

Vec_Int_t * Cbs2_ReadModel

(

Cbs2_Man_t *

p

)

Function*************************************************************

Synopsis [Returns satisfying assignment.]

Description []

SideEffects []

SeeAlso []

Definition at line 280 of file giaCSat2.c.

{
    return p->vModel;
}

Here is the caller graph for this function:

Cbs2_SetDefaultParams()

void Cbs2_SetDefaultParams

(

Cbs2_Par_t *

pPars

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Sets default values of the parameters.]

Description []

SideEffects []

SeeAlso []

Definition at line 185 of file giaCSat2.c.

{
    memset( pPars, 0, sizeof(Cbs2_Par_t) );
    pPars->nBTLimit    =  1000;   // limit on the number of conflicts
    pPars->nJustLimit  =   500;   // limit on the size of justification queue
    pPars->fUseHighest =     1;   // use node with the highest ID
    pPars->fUseLowest  =     0;   // use node with the highest ID
    pPars->fUseMaxFF   =     0;   // use node with the largest fanin fanout
    pPars->fUseFanout  =     1;
    pPars->fVerbose    =     1;   // print detailed statistics
}

Here is the call graph for this function:

Here is the caller graph for this function:
