cecSolve.c File Reference

#include "cecInt.h"

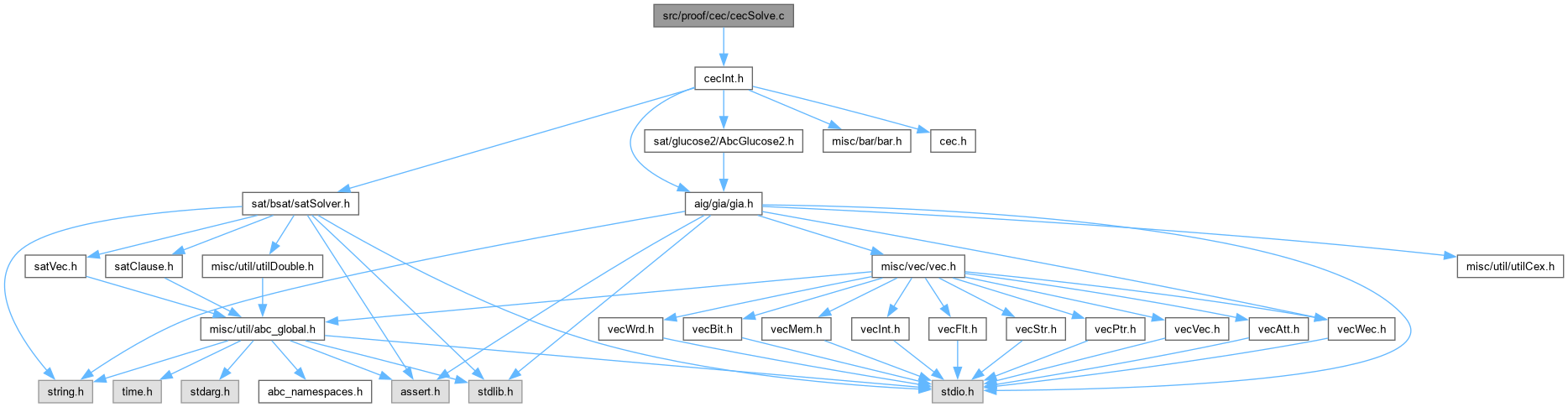

Include dependency graph for cecSolve.c:

Go to the source code of this file.

Functions
int	Cec_ObjSatVarValue (Cec_ManSat_t *p, Gia_Obj_t *pObj)
	FUNCTION DEFINITIONS ///.
void	Cec_AddClausesMux (Cec_ManSat_t *p, Gia_Obj_t *pNode)
void	Cec_AddClausesSuper (Cec_ManSat_t *p, Gia_Obj_t *pNode, Vec_Ptr_t *vSuper)
void	Cec_CollectSuper_rec (Gia_Obj_t *pObj, Vec_Ptr_t *vSuper, int fFirst, int fUseMuxes)
void	Cec_CollectSuper (Gia_Obj_t *pObj, int fUseMuxes, Vec_Ptr_t *vSuper)
void	Cec_ObjAddToFrontier (Cec_ManSat_t *p, Gia_Obj_t *pObj, Vec_Ptr_t *vFrontier)
void	Cec_CnfNodeAddToSolver (Cec_ManSat_t *p, Gia_Obj_t *pObj)
void	Cec_ManSatSolverRecycle (Cec_ManSat_t *p)
void	Cec_SetActivityFactors_rec (Cec_ManSat_t *p, Gia_Obj_t *pObj, int LevelMin, int LevelMax)
int	Cec_SetActivityFactors (Cec_ManSat_t *p, Gia_Obj_t *pObj)
int	Cec_ManSatCheckNode (Cec_ManSat_t *p, Gia_Obj_t *pObj)
int	Cec_ManSatCheckNodeTwo (Cec_ManSat_t *p, Gia_Obj_t *pObj1, Gia_Obj_t *pObj2)
Abc_Cex_t *	Cex_ManGenSimple (Cec_ManSat_t *p, int iOut)
Abc_Cex_t *	Cex_ManGenCex (Cec_ManSat_t *p, int iOut)
void	Cec_ManSatSolve (Cec_ManPat_t *pPat, Gia_Man_t *pAig, Cec_ParSat_t *pPars, Vec_Int_t *vIdsOrig, Vec_Int_t *vMiterPairs, Vec_Int_t *vEquivPairs, int f0Proved)
int	Cec_ManSatSolveExractPattern (Vec_Int_t *vCexStore, int iStart, Vec_Int_t *vPat)
void	Cec_ManSatSolveCSat (Cec_ManPat_t *pPat, Gia_Man_t *pAig, Cec_ParSat_t *pPars)
Vec_Int_t *	Cec_ManSatReadCex (Cec_ManSat_t *pSat)
void	Cec_ManSatSolveSeq_rec (Cec_ManSat_t *pSat, Gia_Man_t *p, Gia_Obj_t *pObj, Vec_Ptr_t *vInfo, int iPat, int nRegs)
Vec_Str_t *	Cec_ManSatSolveSeq (Vec_Ptr_t *vPatts, Gia_Man_t *pAig, Cec_ParSat_t *pPars, int nRegs, int *pnPats)
void	Cec_ManSatAddToStore (Vec_Int_t *vCexStore, Vec_Int_t *vCex, int Out)
void	Cec_ManSatSolveMiter_rec (Cec_ManSat_t *pSat, Gia_Man_t *p, Gia_Obj_t *pObj)
void	Cec_ManSavePattern (Cec_ManSat_t *p, Gia_Obj_t *pObj1, Gia_Obj_t *pObj2)
Vec_Int_t *	Cec_ManSatSolveMiter (Gia_Man_t *pAig, Cec_ParSat_t *pPars, Vec_Str_t **pvStatus)

Function Documentation

Cec_AddClausesMux()

void Cec_AddClausesMux	(	Cec_ManSat_t *	p,
		Gia_Obj_t *	pNode )

Function*************************************************************

Synopsis [Addes clauses to the solver.]

Description []

SideEffects []

SeeAlso []

Definition at line 64 of file cecSolve.c.

{
    Gia_Obj_t * pNodeI, * pNodeT, * pNodeE;
    int pLits[4], RetValue, VarF, VarI, VarT, VarE, fCompT, fCompE;

    assert( !Gia_IsComplement( pNode ) );
    assert( Gia_ObjIsMuxType( pNode ) );
    // get nodes (I = if, T = then, E = else)
    pNodeI = Gia_ObjRecognizeMux( pNode, &pNodeT, &pNodeE );
    // get the variable numbers
    VarF = Cec_ObjSatNum(p,pNode);
    VarI = Cec_ObjSatNum(p,pNodeI);
    VarT = Cec_ObjSatNum(p,Gia_Regular(pNodeT));
    VarE = Cec_ObjSatNum(p,Gia_Regular(pNodeE));
    // get the complementation flags
    fCompT = Gia_IsComplement(pNodeT);
    fCompE = Gia_IsComplement(pNodeE);

    // f = ITE(i, t, e)

    // i' + t' + f
    // i' + t  + f'
    // i  + e' + f
    // i  + e  + f'

    // create four clauses
    pLits[0] = toLitCond(VarI, 1);
    pLits[1] = toLitCond(VarT, 1^fCompT);
    pLits[2] = toLitCond(VarF, 0);
    if ( p->pPars->fPolarFlip )
    {
        if ( pNodeI->fPhase )               pLits[0] = lit_neg( pLits[0] );
        if ( Gia_Regular(pNodeT)->fPhase )  pLits[1] = lit_neg( pLits[1] );
        if ( pNode->fPhase )                pLits[2] = lit_neg( pLits[2] );
    }
    RetValue = sat_solver_addclause( p->pSat, pLits, pLits + 3 );
    assert( RetValue );
    pLits[0] = toLitCond(VarI, 1);
    pLits[1] = toLitCond(VarT, 0^fCompT);
    pLits[2] = toLitCond(VarF, 1);
    if ( p->pPars->fPolarFlip )
    {
        if ( pNodeI->fPhase )               pLits[0] = lit_neg( pLits[0] );
        if ( Gia_Regular(pNodeT)->fPhase )  pLits[1] = lit_neg( pLits[1] );
        if ( pNode->fPhase )                pLits[2] = lit_neg( pLits[2] );
    }
    RetValue = sat_solver_addclause( p->pSat, pLits, pLits + 3 );
    assert( RetValue );
    pLits[0] = toLitCond(VarI, 0);
    pLits[1] = toLitCond(VarE, 1^fCompE);
    pLits[2] = toLitCond(VarF, 0);
    if ( p->pPars->fPolarFlip )
    {
        if ( pNodeI->fPhase )               pLits[0] = lit_neg( pLits[0] );
        if ( Gia_Regular(pNodeE)->fPhase )  pLits[1] = lit_neg( pLits[1] );
        if ( pNode->fPhase )                pLits[2] = lit_neg( pLits[2] );
    }
    RetValue = sat_solver_addclause( p->pSat, pLits, pLits + 3 );
    assert( RetValue );
    pLits[0] = toLitCond(VarI, 0);
    pLits[1] = toLitCond(VarE, 0^fCompE);
    pLits[2] = toLitCond(VarF, 1);
    if ( p->pPars->fPolarFlip )
    {
        if ( pNodeI->fPhase )               pLits[0] = lit_neg( pLits[0] );
        if ( Gia_Regular(pNodeE)->fPhase )  pLits[1] = lit_neg( pLits[1] );
        if ( pNode->fPhase )                pLits[2] = lit_neg( pLits[2] );
    }
    RetValue = sat_solver_addclause( p->pSat, pLits, pLits + 3 );
    assert( RetValue );

    // two additional clauses
    // t' & e' -> f'
    // t  & e  -> f

    // t  + e   + f'
    // t' + e'  + f

    if ( VarT == VarE )
    {
//        assert( fCompT == !fCompE );
        return;
    }

    pLits[0] = toLitCond(VarT, 0^fCompT);
    pLits[1] = toLitCond(VarE, 0^fCompE);
    pLits[2] = toLitCond(VarF, 1);
    if ( p->pPars->fPolarFlip )
    {
        if ( Gia_Regular(pNodeT)->fPhase )  pLits[0] = lit_neg( pLits[0] );
        if ( Gia_Regular(pNodeE)->fPhase )  pLits[1] = lit_neg( pLits[1] );
        if ( pNode->fPhase )                pLits[2] = lit_neg( pLits[2] );
    }
    RetValue = sat_solver_addclause( p->pSat, pLits, pLits + 3 );
    assert( RetValue );
    pLits[0] = toLitCond(VarT, 1^fCompT);
    pLits[1] = toLitCond(VarE, 1^fCompE);
    pLits[2] = toLitCond(VarF, 0);
    if ( p->pPars->fPolarFlip )
    {
        if ( Gia_Regular(pNodeT)->fPhase )  pLits[0] = lit_neg( pLits[0] );
        if ( Gia_Regular(pNodeE)->fPhase )  pLits[1] = lit_neg( pLits[1] );
        if ( pNode->fPhase )                pLits[2] = lit_neg( pLits[2] );
    }
    RetValue = sat_solver_addclause( p->pSat, pLits, pLits + 3 );
    assert( RetValue );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cec_AddClausesSuper()

void Cec_AddClausesSuper	(	Cec_ManSat_t *	p,
		Gia_Obj_t *	pNode,
		Vec_Ptr_t *	vSuper )

Function*************************************************************

Synopsis [Addes clauses to the solver.]

Description []

SideEffects []

SeeAlso []

Definition at line 183 of file cecSolve.c.

{
    Gia_Obj_t * pFanin;
    int * pLits, nLits, RetValue, i;
    assert( !Gia_IsComplement(pNode) );
    assert( Gia_ObjIsAnd( pNode ) );
    // create storage for literals
    nLits = Vec_PtrSize(vSuper) + 1;
    pLits = ABC_ALLOC( int, nLits );
    // suppose AND-gate is A & B = C
    // add !A => !C   or   A + !C
    Vec_PtrForEachEntry( Gia_Obj_t *, vSuper, pFanin, i )
    {
        pLits[0] = toLitCond(Cec_ObjSatNum(p,Gia_Regular(pFanin)), Gia_IsComplement(pFanin));
        pLits[1] = toLitCond(Cec_ObjSatNum(p,pNode), 1);
        if ( p->pPars->fPolarFlip )
        {
            if ( Gia_Regular(pFanin)->fPhase )  pLits[0] = lit_neg( pLits[0] );
            if ( pNode->fPhase )                pLits[1] = lit_neg( pLits[1] );
        }
        RetValue = sat_solver_addclause( p->pSat, pLits, pLits + 2 );
        assert( RetValue );
    }
    // add A & B => C   or   !A + !B + C
    Vec_PtrForEachEntry( Gia_Obj_t *, vSuper, pFanin, i )
    {
        pLits[i] = toLitCond(Cec_ObjSatNum(p,Gia_Regular(pFanin)), !Gia_IsComplement(pFanin));
        if ( p->pPars->fPolarFlip )
        {
            if ( Gia_Regular(pFanin)->fPhase )  pLits[i] = lit_neg( pLits[i] );
        }
    }
    pLits[nLits-1] = toLitCond(Cec_ObjSatNum(p,pNode), 0);
    if ( p->pPars->fPolarFlip )
    {
        if ( pNode->fPhase )  pLits[nLits-1] = lit_neg( pLits[nLits-1] );
    }
    RetValue = sat_solver_addclause( p->pSat, pLits, pLits + nLits );
    assert( RetValue );
    ABC_FREE( pLits );
}

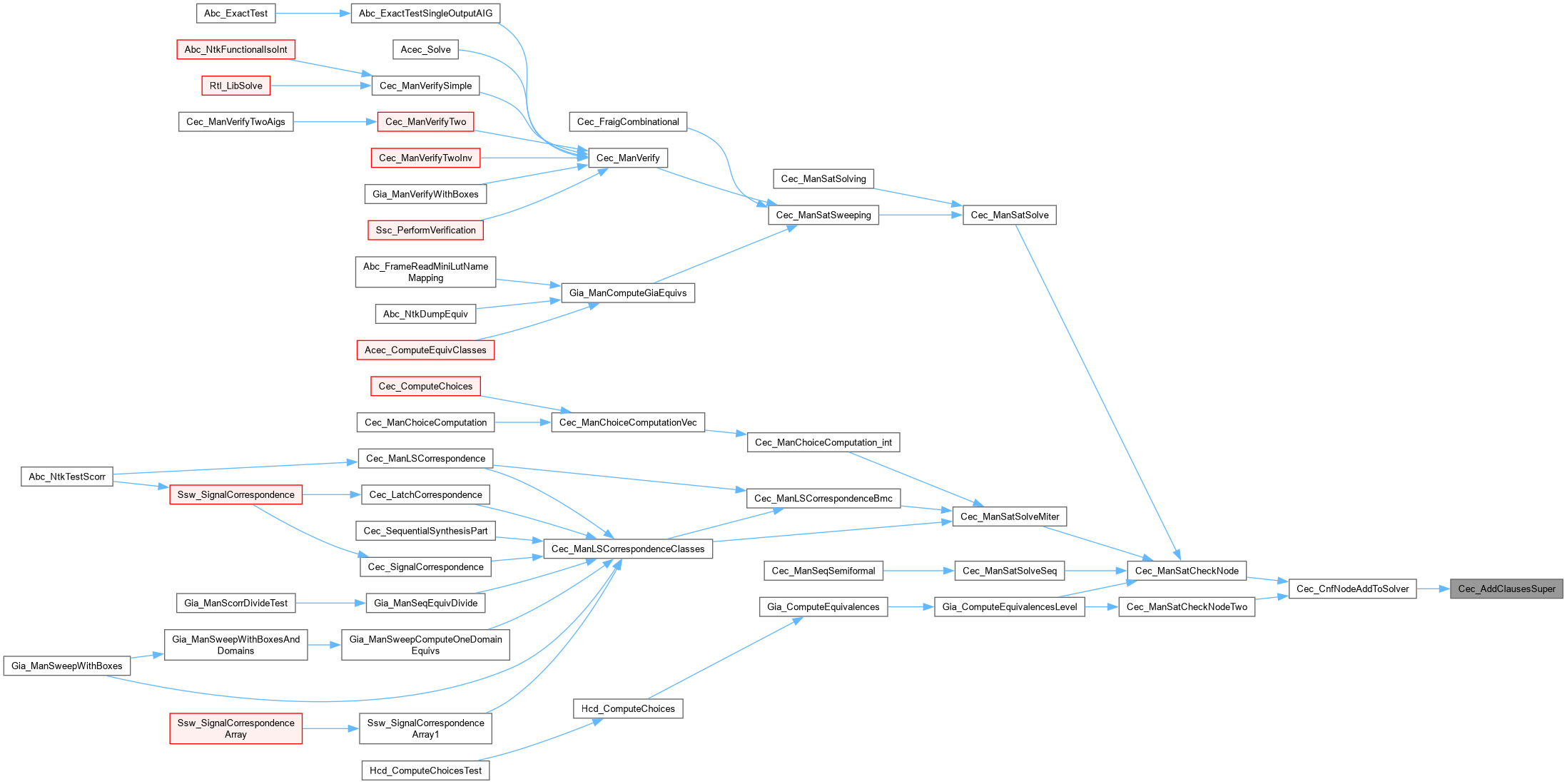

Here is the caller graph for this function:

Cec_CnfNodeAddToSolver()

void Cec_CnfNodeAddToSolver	(	Cec_ManSat_t *	p,
		Gia_Obj_t *	pObj )

Function*************************************************************

Synopsis [Updates the solver clause database.]

Description []

SideEffects []

SeeAlso []

Definition at line 306 of file cecSolve.c.

{
    Vec_Ptr_t * vFrontier;
    Gia_Obj_t * pNode, * pFanin;
    int i, k, fUseMuxes = 1;
    // quit if CNF is ready
    if ( Cec_ObjSatNum(p,pObj) )
        return;
    if ( Gia_ObjIsCi(pObj) )
    {
        Vec_PtrPush( p->vUsedNodes, pObj );
        Cec_ObjSetSatNum( p, pObj, p->nSatVars++ );
        sat_solver_setnvars( p->pSat, p->nSatVars );
        return;
    }
    assert( Gia_ObjIsAnd(pObj) );
    // start the frontier
    vFrontier = Vec_PtrAlloc( 100 );
    Cec_ObjAddToFrontier( p, pObj, vFrontier );
    // explore nodes in the frontier
    Vec_PtrForEachEntry( Gia_Obj_t *, vFrontier, pNode, i )
    {
        // create the supergate
        assert( Cec_ObjSatNum(p,pNode) );
        if ( fUseMuxes && Gia_ObjIsMuxType(pNode) )
        {
            Vec_PtrClear( p->vFanins );
            Vec_PtrPushUnique( p->vFanins, Gia_ObjFanin0( Gia_ObjFanin0(pNode) ) );
            Vec_PtrPushUnique( p->vFanins, Gia_ObjFanin0( Gia_ObjFanin1(pNode) ) );
            Vec_PtrPushUnique( p->vFanins, Gia_ObjFanin1( Gia_ObjFanin0(pNode) ) );
            Vec_PtrPushUnique( p->vFanins, Gia_ObjFanin1( Gia_ObjFanin1(pNode) ) );
            Vec_PtrForEachEntry( Gia_Obj_t *, p->vFanins, pFanin, k )
                Cec_ObjAddToFrontier( p, Gia_Regular(pFanin), vFrontier );
            Cec_AddClausesMux( p, pNode );
        }
        else
        {
            Cec_CollectSuper( pNode, fUseMuxes, p->vFanins );
            Vec_PtrForEachEntry( Gia_Obj_t *, p->vFanins, pFanin, k )
                Cec_ObjAddToFrontier( p, Gia_Regular(pFanin), vFrontier );
            Cec_AddClausesSuper( p, pNode, p->vFanins );
        }
        assert( Vec_PtrSize(p->vFanins) > 1 );
    }
    Vec_PtrFree( vFrontier );
}

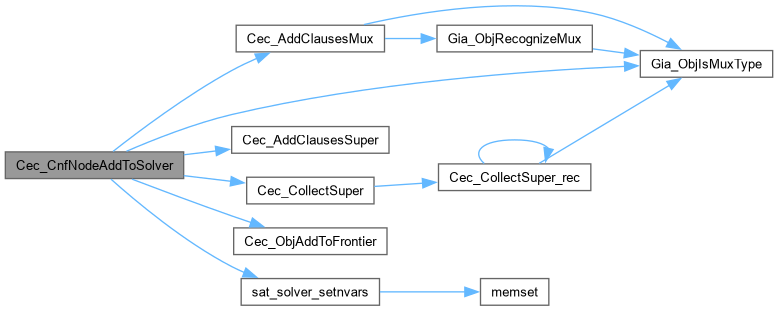

Here is the call graph for this function:

Here is the caller graph for this function:

Cec_CollectSuper()

void Cec_CollectSuper	(	Gia_Obj_t *	pObj,
		int	fUseMuxes,
		Vec_Ptr_t *	vSuper )

Function*************************************************************

Synopsis [Collects the supergate.]

Description []

SideEffects []

SeeAlso []

Definition at line 262 of file cecSolve.c.

{
    assert( !Gia_IsComplement(pObj) );
    assert( !Gia_ObjIsCi(pObj) );
    Vec_PtrClear( vSuper );
    Cec_CollectSuper_rec( pObj, vSuper, 1, fUseMuxes );
}

Here is the call graph for this function:

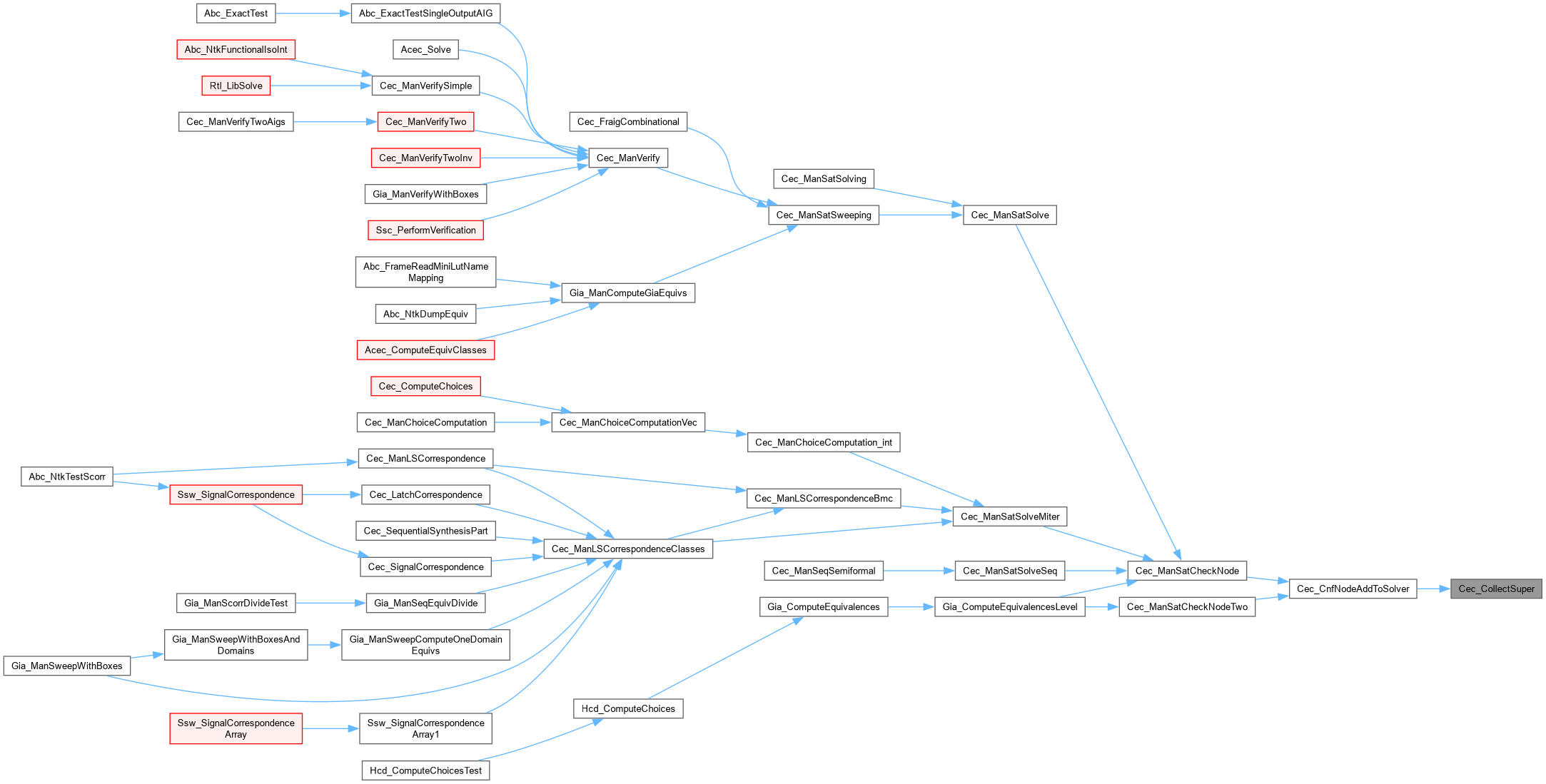

Here is the caller graph for this function:

Cec_CollectSuper_rec()

void Cec_CollectSuper_rec	(	Gia_Obj_t *	pObj,
		Vec_Ptr_t *	vSuper,
		int	fFirst,
		int	fUseMuxes )

Function*************************************************************

Synopsis [Collects the supergate.]

Description []

SideEffects []

SeeAlso []

Definition at line 236 of file cecSolve.c.

{
    // if the new node is complemented or a PI, another gate begins
    if ( Gia_IsComplement(pObj) || Gia_ObjIsCi(pObj) ||
         (!fFirst && Gia_ObjValue(pObj) > 1) ||
         (fUseMuxes && Gia_ObjIsMuxType(pObj)) )
    {
        Vec_PtrPushUnique( vSuper, pObj );
        return;
    }
    // go through the branches
    Cec_CollectSuper_rec( Gia_ObjChild0(pObj), vSuper, 0, fUseMuxes );
    Cec_CollectSuper_rec( Gia_ObjChild1(pObj), vSuper, 0, fUseMuxes );
}

Here is the call graph for this function:

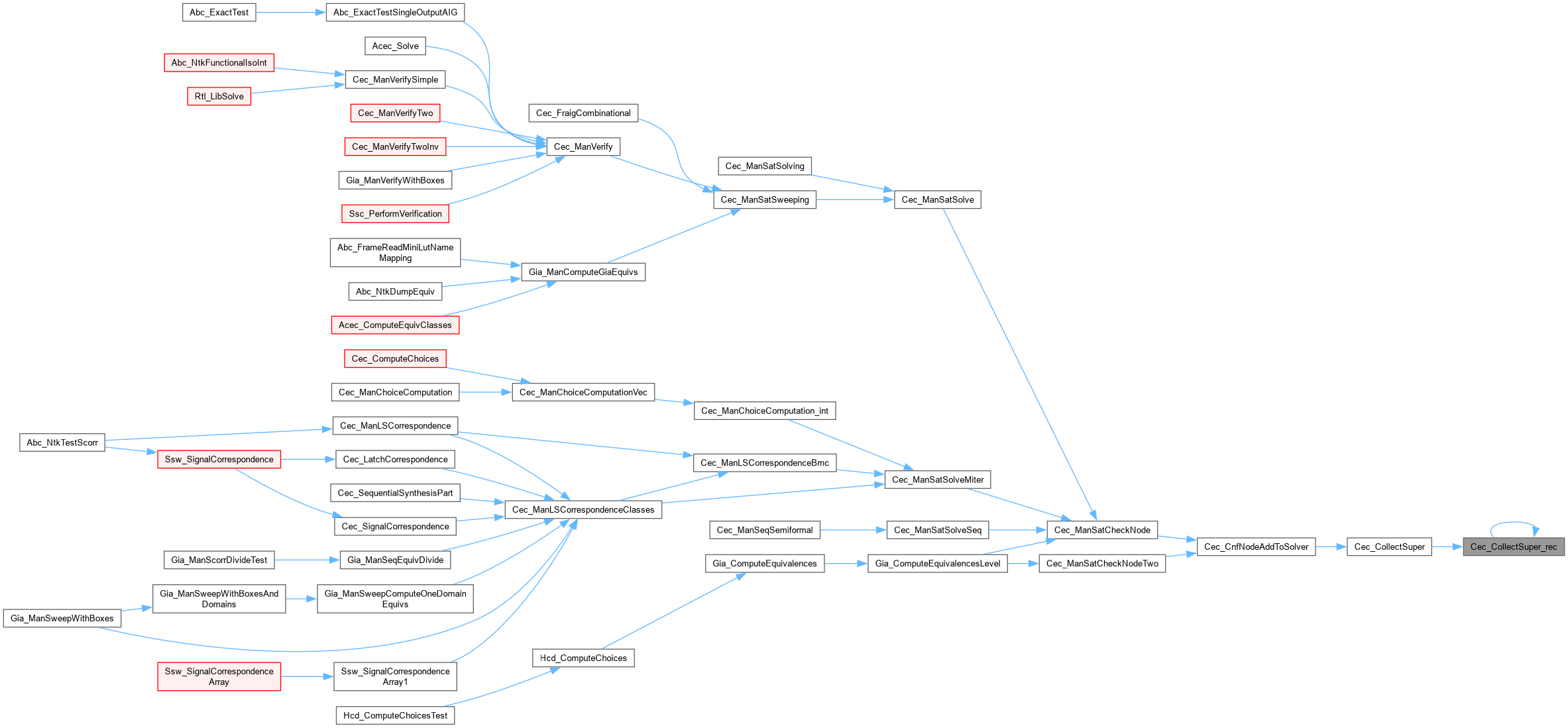

Here is the caller graph for this function:

Cec_ManSatAddToStore()

void Cec_ManSatAddToStore	(	Vec_Int_t *	vCexStore,
		Vec_Int_t *	vCex,
		int	Out )

Function*************************************************************

Synopsis [Save values in the cone of influence.]

Description []

SideEffects []

SeeAlso []

Definition at line 996 of file cecSolve.c.

{
    int i, Entry;
    Vec_IntPush( vCexStore, Out );
    if ( vCex == NULL ) // timeout
    {
        Vec_IntPush( vCexStore, -1 );
        return;
    }
    // write the counter-example
    Vec_IntPush( vCexStore, Vec_IntSize(vCex) );
    Vec_IntForEachEntry( vCex, Entry, i )
        Vec_IntPush( vCexStore, Entry );
}

Here is the caller graph for this function:

Cec_ManSatCheckNode()

int Cec_ManSatCheckNode	(	Cec_ManSat_t *	p,
		Gia_Obj_t *	pObj )

Function*************************************************************

Synopsis [Runs equivalence test for the two nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 470 of file cecSolve.c.

{
    Gia_Obj_t * pObjR = Gia_Regular(pObj);
    int nBTLimit = p->pPars->nBTLimit;
    int Lit, RetValue, status, nConflicts;
    abctime clk, clk2;

    if ( pObj == Gia_ManConst0(p->pAig) )
        return 1;
    if ( pObj == Gia_ManConst1(p->pAig) )
    {
        assert( 0 );
        return 0;
    }

    p->nCallsSince++;  // experiment with this!!!
    p->nSatTotal++;

    // check if SAT solver needs recycling
    if ( p->pSat == NULL ||
        (p->pPars->nSatVarMax &&
         p->nSatVars > p->pPars->nSatVarMax &&
         p->nCallsSince > p->pPars->nCallsRecycle) )
        Cec_ManSatSolverRecycle( p );

    // if the nodes do not have SAT variables, allocate them
clk2 = Abc_Clock();
    Cec_CnfNodeAddToSolver( p, pObjR );
//ABC_PRT( "cnf", Abc_Clock() - clk2 );
//Abc_Print( 1, "%d \n", p->pSat->size );

clk2 = Abc_Clock();
//    Cec_SetActivityFactors( p, pObjR );
//ABC_PRT( "act", Abc_Clock() - clk2 );

    // propage unit clauses
    if ( p->pSat->qtail != p->pSat->qhead )
    {
        status = sat_solver_simplify(p->pSat);
        assert( status != 0 );
        assert( p->pSat->qtail == p->pSat->qhead );
    }

    // solve under assumptions
    // A = 1; B = 0     OR     A = 1; B = 1
    Lit = toLitCond( Cec_ObjSatNum(p,pObjR), Gia_IsComplement(pObj) );
    if ( p->pPars->fPolarFlip )
    {
        if ( pObjR->fPhase )  Lit = lit_neg( Lit );
    }
//Sat_SolverWriteDimacs( p->pSat, "temp.cnf", pLits, pLits + 2, 1 );
clk = Abc_Clock();
    nConflicts = p->pSat->stats.conflicts;

clk2 = Abc_Clock();
    RetValue = sat_solver_solve( p->pSat, &Lit, &Lit + 1,
        (ABC_INT64_T)nBTLimit, (ABC_INT64_T)0, (ABC_INT64_T)0, (ABC_INT64_T)0 );
//ABC_PRT( "sat", Abc_Clock() - clk2 );

    if ( RetValue == l_False )
    {
p->timeSatUnsat += Abc_Clock() - clk;
        Lit = lit_neg( Lit );
        RetValue = sat_solver_addclause( p->pSat, &Lit, &Lit + 1 );
        assert( RetValue );
        p->nSatUnsat++;
        p->nConfUnsat += p->pSat->stats.conflicts - nConflicts;
//Abc_Print( 1, "UNSAT after %d conflicts\n", p->pSat->stats.conflicts - nConflicts );
        return 1;
    }
    else if ( RetValue == l_True )
    {
p->timeSatSat += Abc_Clock() - clk;
        p->nSatSat++;
        p->nConfSat += p->pSat->stats.conflicts - nConflicts;
//Abc_Print( 1, "SAT after %d conflicts\n", p->pSat->stats.conflicts - nConflicts );
        return 0;
    }
    else // if ( RetValue == l_Undef )
    {
p->timeSatUndec += Abc_Clock() - clk;
        p->nSatUndec++;
        p->nConfUndec += p->pSat->stats.conflicts - nConflicts;
//Abc_Print( 1, "UNDEC after %d conflicts\n", p->pSat->stats.conflicts - nConflicts );
        return -1;
    }
}

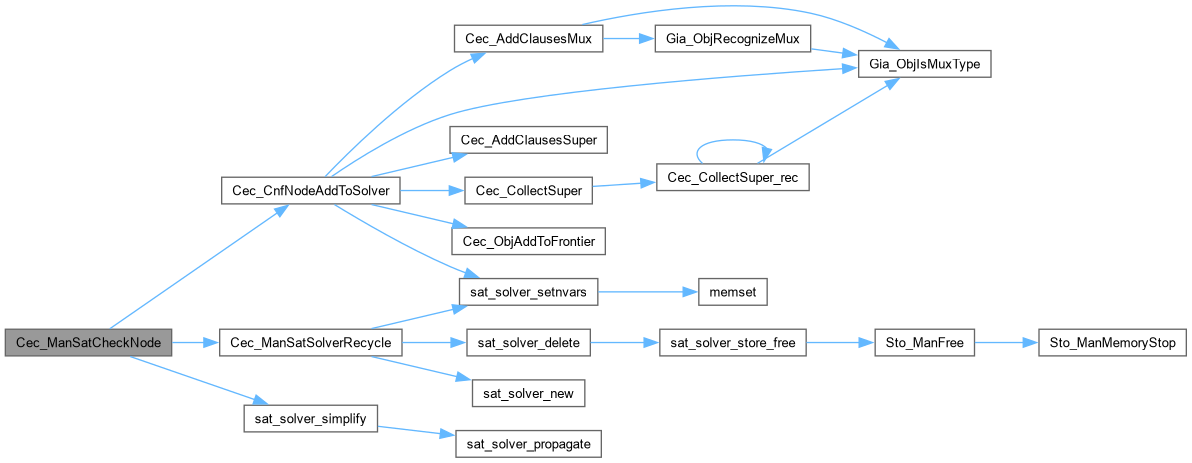

Here is the call graph for this function:

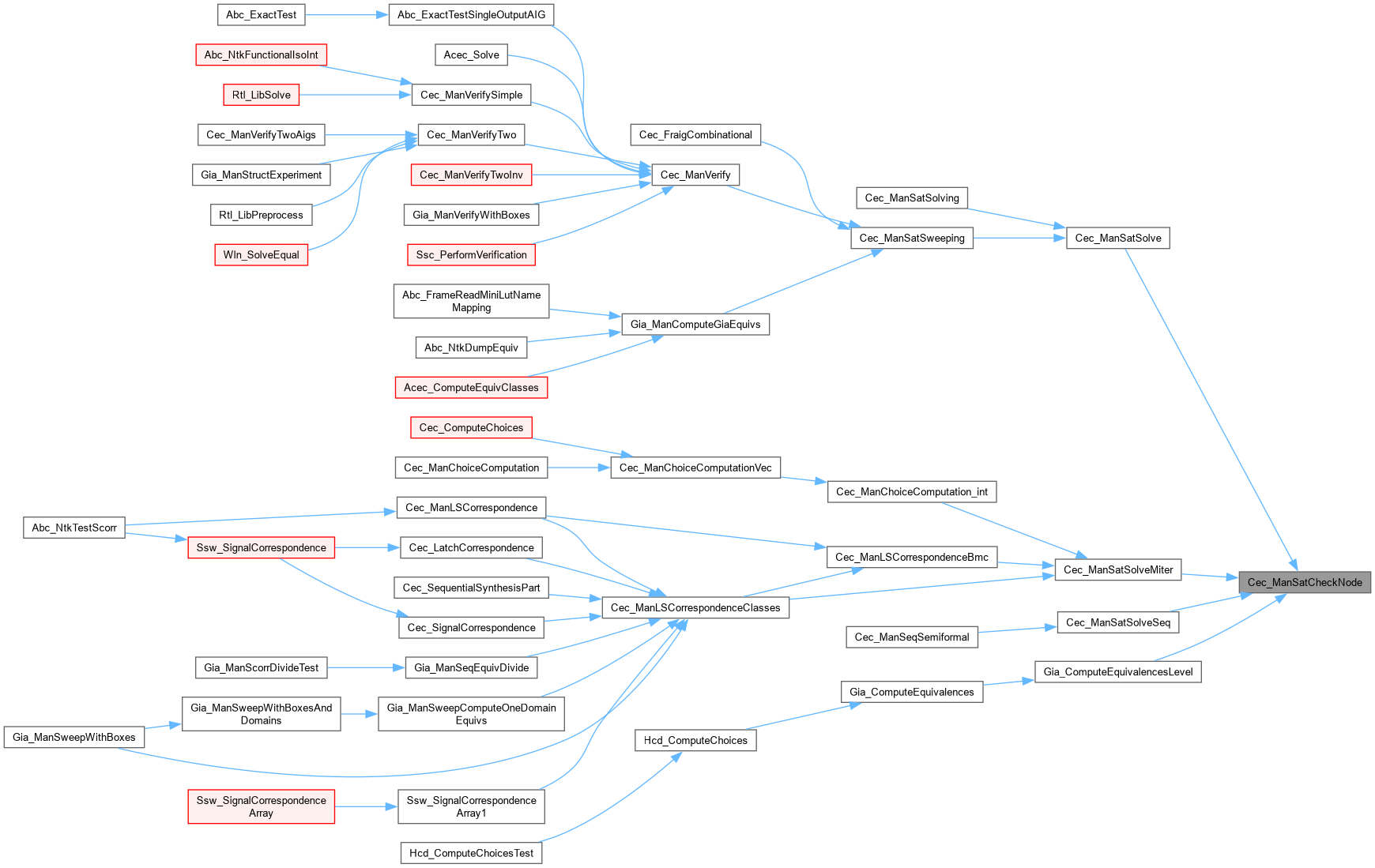

Here is the caller graph for this function:

Cec_ManSatCheckNodeTwo()

int Cec_ManSatCheckNodeTwo	(	Cec_ManSat_t *	p,
		Gia_Obj_t *	pObj1,
		Gia_Obj_t *	pObj2 )

Function*************************************************************

Synopsis [Runs equivalence test for the two nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 569 of file cecSolve.c.

{
    Gia_Obj_t * pObjR1 = Gia_Regular(pObj1);
    Gia_Obj_t * pObjR2 = Gia_Regular(pObj2);
    int nBTLimit = p->pPars->nBTLimit;
    int Lits[2], RetValue, status, nConflicts;
    abctime clk, clk2;

    if ( pObj1 == Gia_ManConst0(p->pAig) || pObj2 == Gia_ManConst0(p->pAig) || pObj1 == Gia_Not(pObj2) )
        return 1;
    if ( pObj1 == Gia_ManConst1(p->pAig) && (pObj2 == NULL || pObj2 == Gia_ManConst1(p->pAig)) )
    {
        assert( 0 );
        return 0;
    }

    p->nCallsSince++;  // experiment with this!!!
    p->nSatTotal++;

    // check if SAT solver needs recycling
    if ( p->pSat == NULL ||
        (p->pPars->nSatVarMax &&
         p->nSatVars > p->pPars->nSatVarMax &&
         p->nCallsSince > p->pPars->nCallsRecycle) )
        Cec_ManSatSolverRecycle( p );

    // if the nodes do not have SAT variables, allocate them
clk2 = Abc_Clock();
    Cec_CnfNodeAddToSolver( p, pObjR1 );
    Cec_CnfNodeAddToSolver( p, pObjR2 );
//ABC_PRT( "cnf", Abc_Clock() - clk2 );
//Abc_Print( 1, "%d \n", p->pSat->size );

clk2 = Abc_Clock();
//    Cec_SetActivityFactors( p, pObjR1 );
//    Cec_SetActivityFactors( p, pObjR2 );
//ABC_PRT( "act", Abc_Clock() - clk2 );

    // propage unit clauses
    if ( p->pSat->qtail != p->pSat->qhead )
    {
        status = sat_solver_simplify(p->pSat);
        assert( status != 0 );
        assert( p->pSat->qtail == p->pSat->qhead );
    }

    // solve under assumptions
    // A = 1; B = 0     OR     A = 1; B = 1
    Lits[0] = toLitCond( Cec_ObjSatNum(p,pObjR1), Gia_IsComplement(pObj1) );
    Lits[1] = toLitCond( Cec_ObjSatNum(p,pObjR2), Gia_IsComplement(pObj2) );
    if ( p->pPars->fPolarFlip )
    {
        if ( pObjR1->fPhase )  Lits[0] = lit_neg( Lits[0] );
        if ( pObjR2->fPhase )  Lits[1] = lit_neg( Lits[1] );
    }
//Sat_SolverWriteDimacs( p->pSat, "temp.cnf", pLits, pLits + 2, 1 );
clk = Abc_Clock();
    nConflicts = p->pSat->stats.conflicts;

clk2 = Abc_Clock();
    RetValue = sat_solver_solve( p->pSat, Lits, Lits + 2,
        (ABC_INT64_T)nBTLimit, (ABC_INT64_T)0, (ABC_INT64_T)0, (ABC_INT64_T)0 );
//ABC_PRT( "sat", Abc_Clock() - clk2 );

    if ( RetValue == l_False )
    {
p->timeSatUnsat += Abc_Clock() - clk;
        Lits[0] = lit_neg( Lits[0] );
        Lits[1] = lit_neg( Lits[1] );
        RetValue = sat_solver_addclause( p->pSat, Lits, Lits + 2 );
        assert( RetValue );
        p->nSatUnsat++;
        p->nConfUnsat += p->pSat->stats.conflicts - nConflicts;
//Abc_Print( 1, "UNSAT after %d conflicts\n", p->pSat->stats.conflicts - nConflicts );
        return 1;
    }
    else if ( RetValue == l_True )
    {
p->timeSatSat += Abc_Clock() - clk;
        p->nSatSat++;
        p->nConfSat += p->pSat->stats.conflicts - nConflicts;
//Abc_Print( 1, "SAT after %d conflicts\n", p->pSat->stats.conflicts - nConflicts );
        return 0;
    }
    else // if ( RetValue == l_Undef )
    {
p->timeSatUndec += Abc_Clock() - clk;
        p->nSatUndec++;
        p->nConfUndec += p->pSat->stats.conflicts - nConflicts;
//Abc_Print( 1, "UNDEC after %d conflicts\n", p->pSat->stats.conflicts - nConflicts );
        return -1;
    }
}

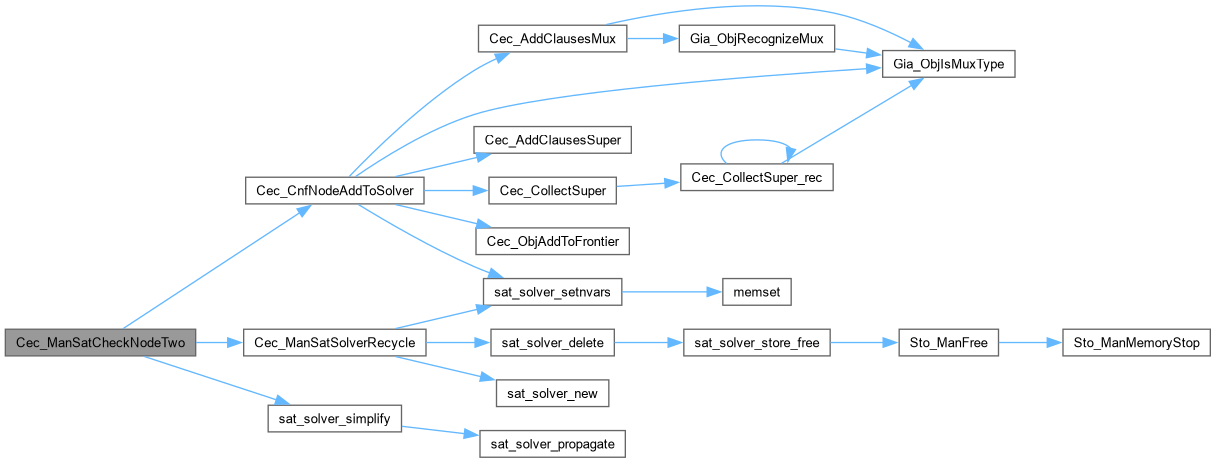

Here is the call graph for this function:

Here is the caller graph for this function:

Cec_ManSatReadCex()

Vec_Int_t * Cec_ManSatReadCex

(

Cec_ManSat_t *

pSat

)

Function*************************************************************

Synopsis [Returns the pattern stored.]

Description []

SideEffects []

SeeAlso []

Definition at line 864 of file cecSolve.c.

{
    return pSat->vCex;
}

Here is the caller graph for this function:

Cec_ManSatSolve()

void Cec_ManSatSolve	(	Cec_ManPat_t *	pPat,
		Gia_Man_t *	pAig,
		Cec_ParSat_t *	pPars,
		Vec_Int_t *	vIdsOrig,
		Vec_Int_t *	vMiterPairs,
		Vec_Int_t *	vEquivPairs,
		int	f0Proved )

Definition at line 699 of file cecSolve.c.

{
    Bar_Progress_t * pProgress = NULL;
    Cec_ManSat_t * p;
    Gia_Obj_t * pObj;
    int i, status;
    abctime clk = Abc_Clock(), clk2;
    Vec_PtrFreeP( &pAig->vSeqModelVec );
    if ( pPars->fSaveCexes )
        pAig->vSeqModelVec = Vec_PtrStart( Gia_ManCoNum(pAig) );
    // reset the manager
    if ( pPat )
    {
        pPat->iStart = Vec_StrSize(pPat->vStorage);
        pPat->nPats = 0;
        pPat->nPatLits = 0;
        pPat->nPatLitsMin = 0;
    }
    Gia_ManSetPhase( pAig );
    Gia_ManLevelNum( pAig );
    Gia_ManIncrementTravId( pAig );
    p = Cec_ManSatCreate( pAig, pPars );
    pProgress = Bar_ProgressStart( stdout, Gia_ManPoNum(pAig) );
    Gia_ManForEachCo( pAig, pObj, i )
    {
        if ( Gia_ObjIsConst0(Gia_ObjFanin0(pObj)) )
        {
            status = !Gia_ObjFaninC0(pObj);
            pObj->fMark0 = (status == 0);
            pObj->fMark1 = (status == 1);
            if ( pPars->fSaveCexes )
                Vec_PtrWriteEntry( pAig->vSeqModelVec, i, status ? (Abc_Cex_t *)(ABC_PTRINT_T)1 : Cex_ManGenSimple(p, i) );
            continue;
        }
        Bar_ProgressUpdate( pProgress, i, "SAT..." );
clk2 = Abc_Clock();
        status = Cec_ManSatCheckNode( p, Gia_ObjChild0(pObj) );
        pObj->fMark0 = (status == 0);
        pObj->fMark1 = (status == 1);
        if ( status == 1 && vIdsOrig )
        {
            int iObj1 = Vec_IntEntry(vMiterPairs, 2*i);
            int iObj2 = Vec_IntEntry(vMiterPairs, 2*i+1);
            int OrigId1 = Vec_IntEntry(vIdsOrig, iObj1);
            int OrigId2 = Vec_IntEntry(vIdsOrig, iObj2);
            assert( OrigId1 >= 0 && OrigId2 >= 0 );
            Vec_IntPushTwo( vEquivPairs, OrigId1, OrigId2 );
        }
        if ( pPars->fSaveCexes && status != -1 )
            Vec_PtrWriteEntry( pAig->vSeqModelVec, i, status ? (Abc_Cex_t *)(ABC_PTRINT_T)1 : Cex_ManGenCex(p, i) );

        if ( f0Proved && status == 1 )
            Gia_ManPatchCoDriver( pAig, i, 0 );

/*
        if ( status == -1 )
        {
            Gia_Man_t * pTemp = Gia_ManDupDfsCone( pAig, pObj );
            Gia_AigerWrite( pTemp, "gia_hard.aig", 0, 0, 0 );
            Gia_ManStop( pTemp );
            Abc_Print( 1, "Dumping hard cone into file \"%s\".\n", "gia_hard.aig" );
        }
*/
        if ( status != 0 )
            continue;
        // save the pattern
        if ( pPat )
        {
            abctime clk3 = Abc_Clock();
            Cec_ManPatSavePattern( pPat, p, pObj );
            pPat->timeTotalSave += Abc_Clock() - clk3;
        }
        // quit if one of them is solved
        if ( pPars->fCheckMiter )
            break;
    }
    p->timeTotal = Abc_Clock() - clk;
    Bar_ProgressStop( pProgress );
    if ( pPars->fVerbose )
        Cec_ManSatPrintStats( p );
    Cec_ManSatStop( p );
}

Here is the call graph for this function:

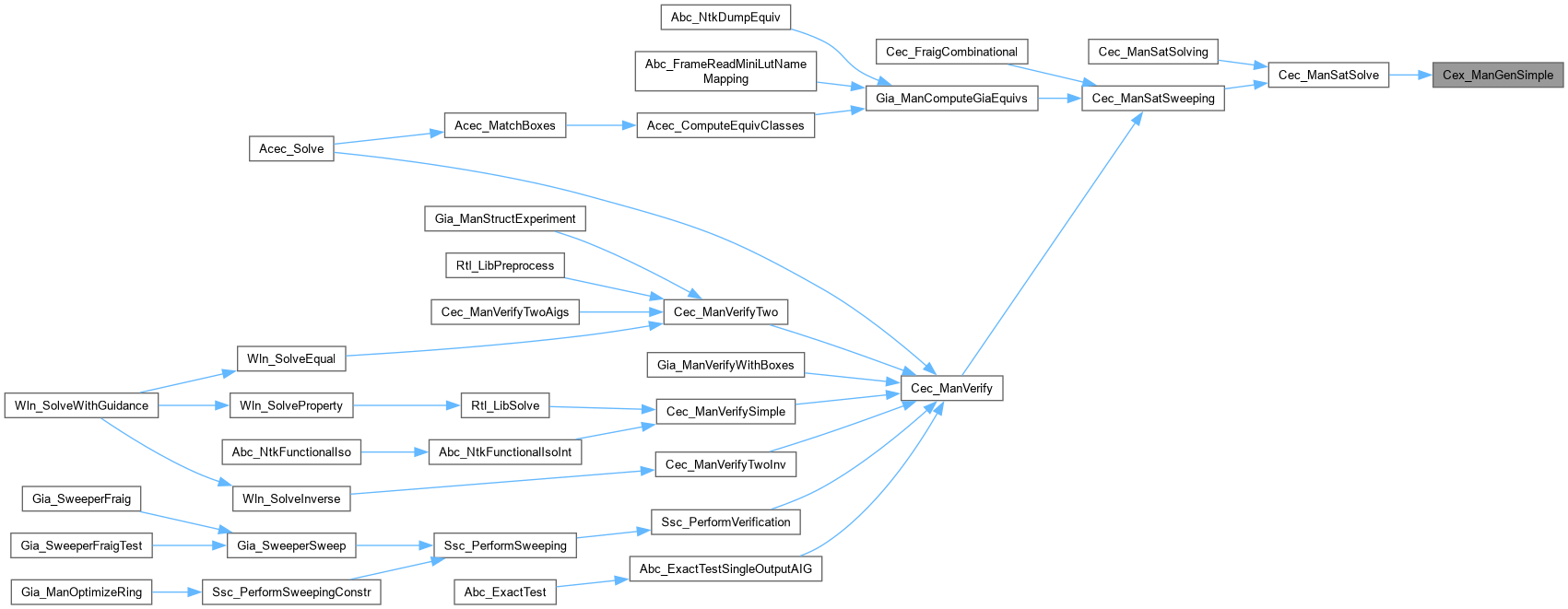

Here is the caller graph for this function:

Cec_ManSatSolveCSat()

void Cec_ManSatSolveCSat	(	Cec_ManPat_t *	pPat,
		Gia_Man_t *	pAig,
		Cec_ParSat_t *	pPars )

Definition at line 809 of file cecSolve.c.

{
    Vec_Str_t * vStatus;
    Vec_Int_t * vPat = Vec_IntAlloc( 1000 );
    Vec_Int_t * vCexStore = Cbs_ManSolveMiterNc( pAig, pPars->nBTLimit, &vStatus, 0, 0 );
    Gia_Obj_t * pObj;
    int i, status, iStart = 0;
    assert( Vec_StrSize(vStatus) == Gia_ManCoNum(pAig) );
    // reset the manager
    if ( pPat )
    {
        pPat->iStart = Vec_StrSize(pPat->vStorage);
        pPat->nPats = 0;
        pPat->nPatLits = 0;
        pPat->nPatLitsMin = 0;
    }
    Gia_ManForEachCo( pAig, pObj, i )
    {
        status = (int)Vec_StrEntry(vStatus, i);
        pObj->fMark0 = (status == 0);
        pObj->fMark1 = (status == 1);
        if ( Vec_IntSize(vCexStore) > 0 && status != 1 )
            iStart = Cec_ManSatSolveExractPattern( vCexStore, iStart, vPat );
        if ( status != 0 )
            continue;
        // save the pattern
        if ( pPat && Vec_IntSize(vPat) > 0 )
        {
            abctime clk3 = Abc_Clock();
            Cec_ManPatSavePatternCSat( pPat, vPat );
            pPat->timeTotalSave += Abc_Clock() - clk3;
        }
        // quit if one of them is solved
        if ( pPars->fCheckMiter )
            break;
    }
    assert( iStart == Vec_IntSize(vCexStore) );
    Vec_IntFree( vPat );
    Vec_StrFree( vStatus );
    Vec_IntFree( vCexStore );
}

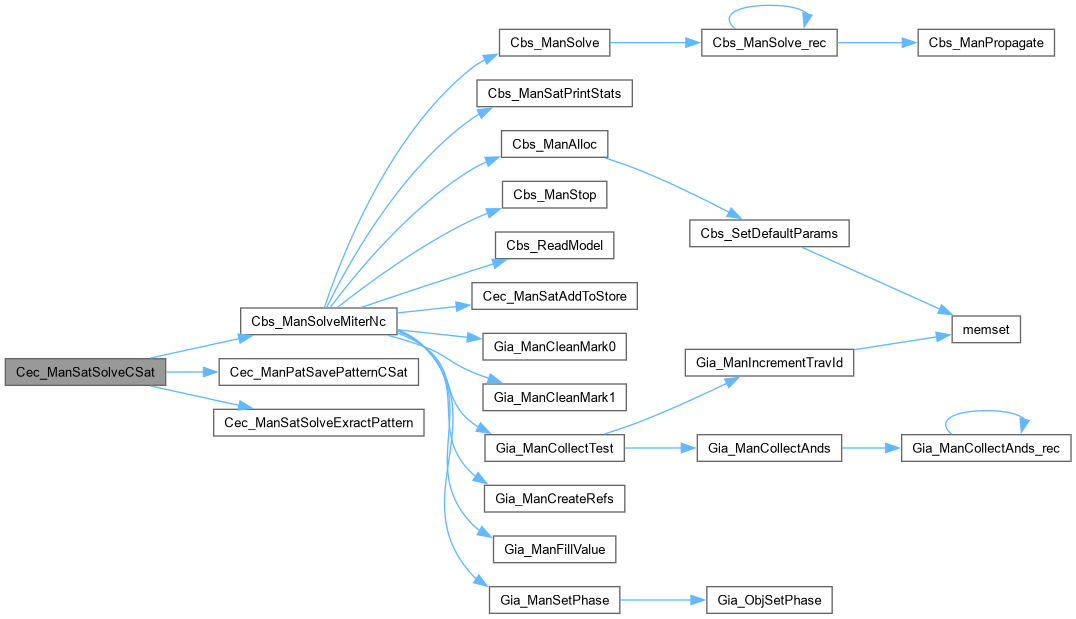

Here is the call graph for this function:

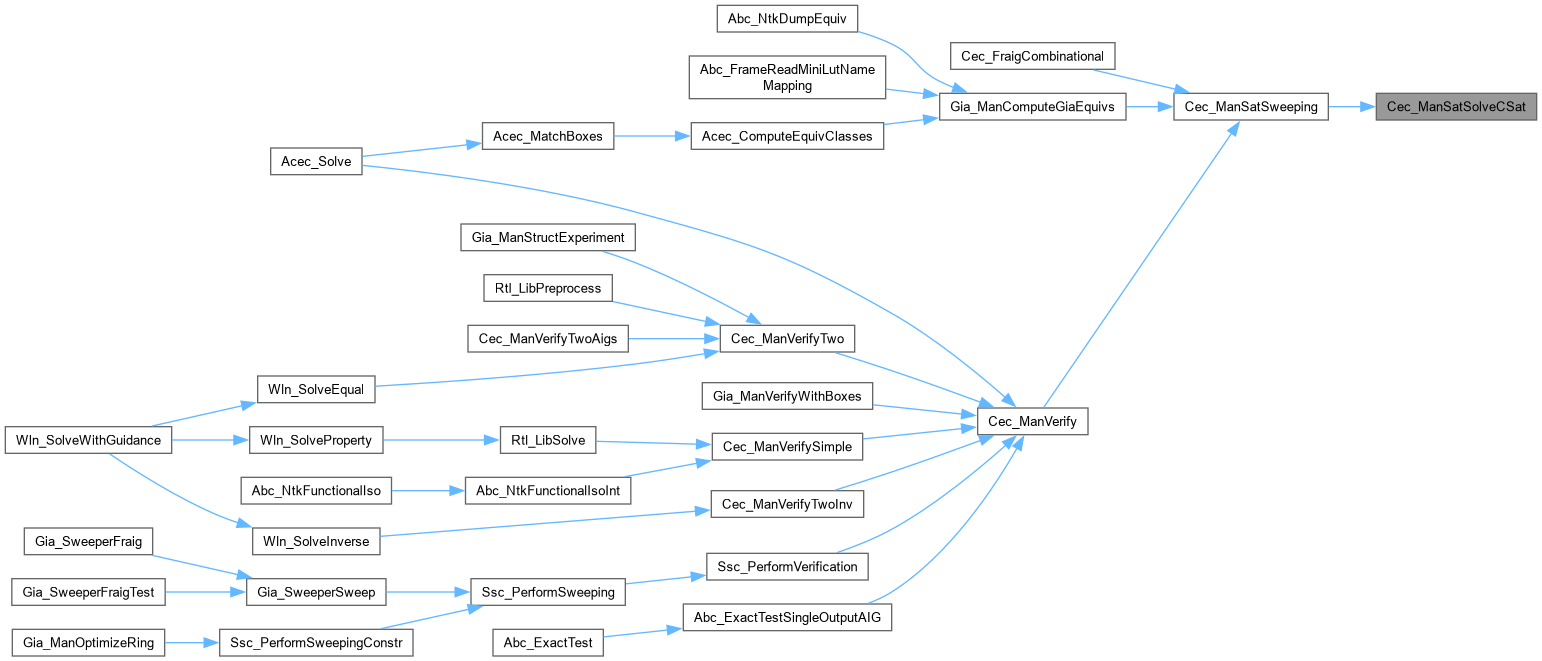

Here is the caller graph for this function:

Cec_ManSatSolveExractPattern()

int Cec_ManSatSolveExractPattern	(	Vec_Int_t *	vCexStore,
		int	iStart,
		Vec_Int_t *	vPat )

Function*************************************************************

Synopsis [Performs one round of solving for the POs of the AIG.]

Description [Labels the nodes that have been proved (pObj->fMark1) and returns the set of satisfying assignments.]

SideEffects []

SeeAlso []

Definition at line 794 of file cecSolve.c.

{
    int k, nSize;
    Vec_IntClear( vPat );
    // skip the output number
    iStart++;
    // get the number of items
    nSize = Vec_IntEntry( vCexStore, iStart++ );
    if ( nSize <= 0 )
        return iStart;
    // extract pattern
    for ( k = 0; k < nSize; k++ )
        Vec_IntPush( vPat, Vec_IntEntry( vCexStore, iStart++ ) );
    return iStart;
}

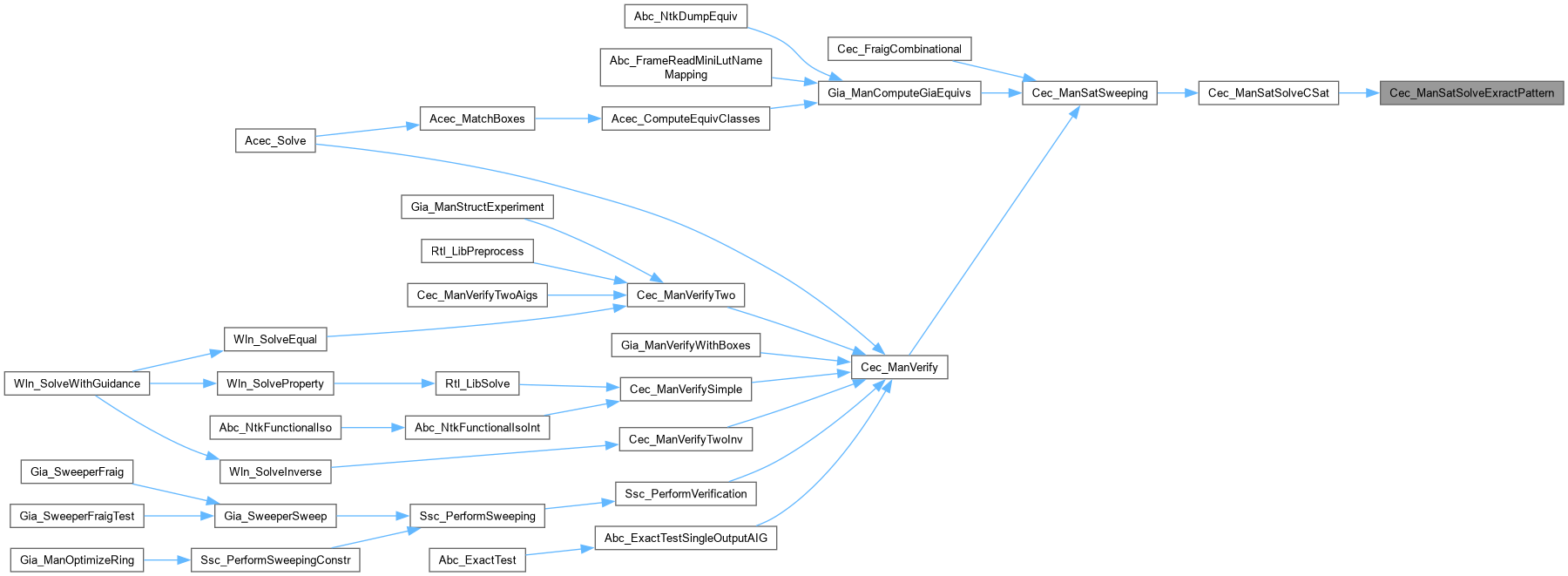

Here is the caller graph for this function:

Cec_ManSatSolveMiter()

Vec_Int_t * Cec_ManSatSolveMiter	(	Gia_Man_t *	pAig,
		Cec_ParSat_t *	pPars,
		Vec_Str_t **	pvStatus )

Function*************************************************************

Synopsis [Performs one round of solving for the POs of the AIG.]

Description [Labels the nodes that have been proved (pObj->fMark1) and returns the set of satisfying assignments.]

SideEffects []

SeeAlso []

Definition at line 1070 of file cecSolve.c.

{
    Bar_Progress_t * pProgress = NULL;
    Vec_Int_t * vCexStore;
    Vec_Str_t * vStatus;
    Cec_ManSat_t * p;
    Gia_Obj_t * pObj;
    int i, status;
    abctime clk = Abc_Clock();
    // prepare AIG
    Gia_ManSetPhase( pAig );
    Gia_ManLevelNum( pAig );
    Gia_ManIncrementTravId( pAig );
    // create resulting data-structures
    vStatus = Vec_StrAlloc( Gia_ManPoNum(pAig) );
    vCexStore = Vec_IntAlloc( 10000 );
    // perform solving
    p = Cec_ManSatCreate( pAig, pPars );
    pProgress = Bar_ProgressStart( stdout, Gia_ManPoNum(pAig) );
    Gia_ManForEachCo( pAig, pObj, i )
    {
        Vec_IntClear( p->vCex );
        Bar_ProgressUpdate( pProgress, i, "SAT..." );
        if ( Gia_ObjIsConst0(Gia_ObjFanin0(pObj)) )
        {
            if ( Gia_ObjFaninC0(pObj) )
            {
//                Abc_Print( 1, "Constant 1 output of SRM!!!\n" );
                Cec_ManSatAddToStore( vCexStore, p->vCex, i ); // trivial counter-example
                Vec_StrPush( vStatus, 0 );
            }
            else
            {
//                Abc_Print( 1, "Constant 0 output of SRM!!!\n" );
                Vec_StrPush( vStatus, 1 );
            }
            continue;
        }
        status = Cec_ManSatCheckNode( p, Gia_ObjChild0(pObj) );
        Vec_StrPush( vStatus, (char)status );
        if ( status == -1 )
        {
            Cec_ManSatAddToStore( vCexStore, NULL, i ); // timeout
            continue;
        }
        if ( status == 1 )
            continue;
        assert( status == 0 );
        // save the pattern
//        Gia_ManIncrementTravId( pAig );
//        Cec_ManSatSolveMiter_rec( p, pAig, Gia_ObjFanin0(pObj) );
        Cec_ManSavePattern( p, Gia_ObjFanin0(pObj), NULL );
//        Gia_SatVerifyPattern( pAig, pObj, p->vCex, p->vVisits );
        Cec_ManSatAddToStore( vCexStore, p->vCex, i );
    }
    p->timeTotal = Abc_Clock() - clk;
    Bar_ProgressStop( pProgress );
//    if ( pPars->fVerbose )
//        Cec_ManSatPrintStats( p );
    Cec_ManSatStop( p );
    *pvStatus = vStatus;
    return vCexStore;
}

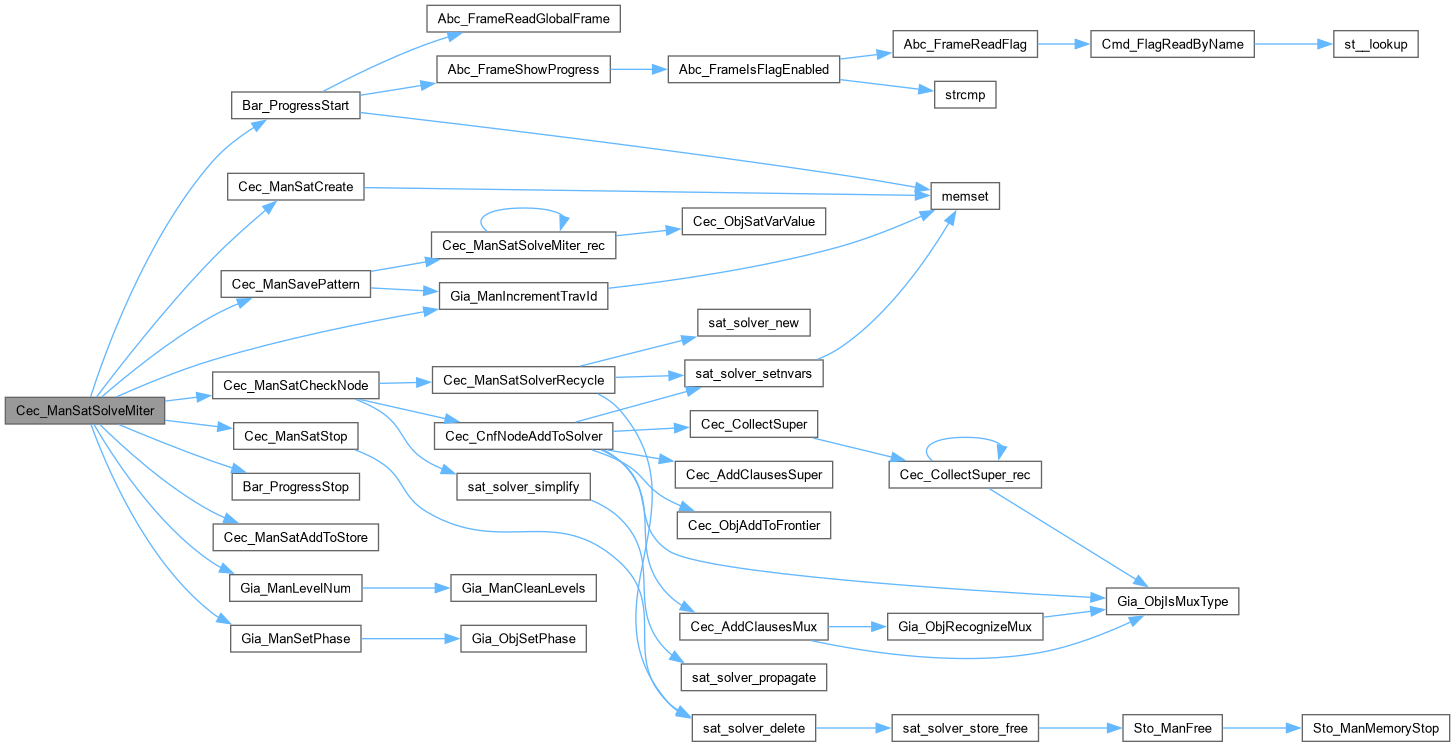

Here is the call graph for this function:

Here is the caller graph for this function:

Cec_ManSatSolveMiter_rec()

void Cec_ManSatSolveMiter_rec	(	Cec_ManSat_t *	pSat,
		Gia_Man_t *	p,
		Gia_Obj_t *	pObj )

Function*************************************************************

Synopsis [Save values in the cone of influence.]

Description []

SideEffects []

SeeAlso []

Definition at line 1022 of file cecSolve.c.

{
    if ( Gia_ObjIsTravIdCurrent(p, pObj) )
        return;
    Gia_ObjSetTravIdCurrent(p, pObj);
    if ( Gia_ObjIsCi(pObj) )
    {
        pSat->nCexLits++;
        Vec_IntPush( pSat->vCex, Abc_Var2Lit( Gia_ObjCioId(pObj), !Cec_ObjSatVarValue(pSat, pObj) ) );
        return;
    }
    assert( Gia_ObjIsAnd(pObj) );
    Cec_ManSatSolveMiter_rec( pSat, p, Gia_ObjFanin0(pObj) );
    Cec_ManSatSolveMiter_rec( pSat, p, Gia_ObjFanin1(pObj) );
}

Here is the call graph for this function:

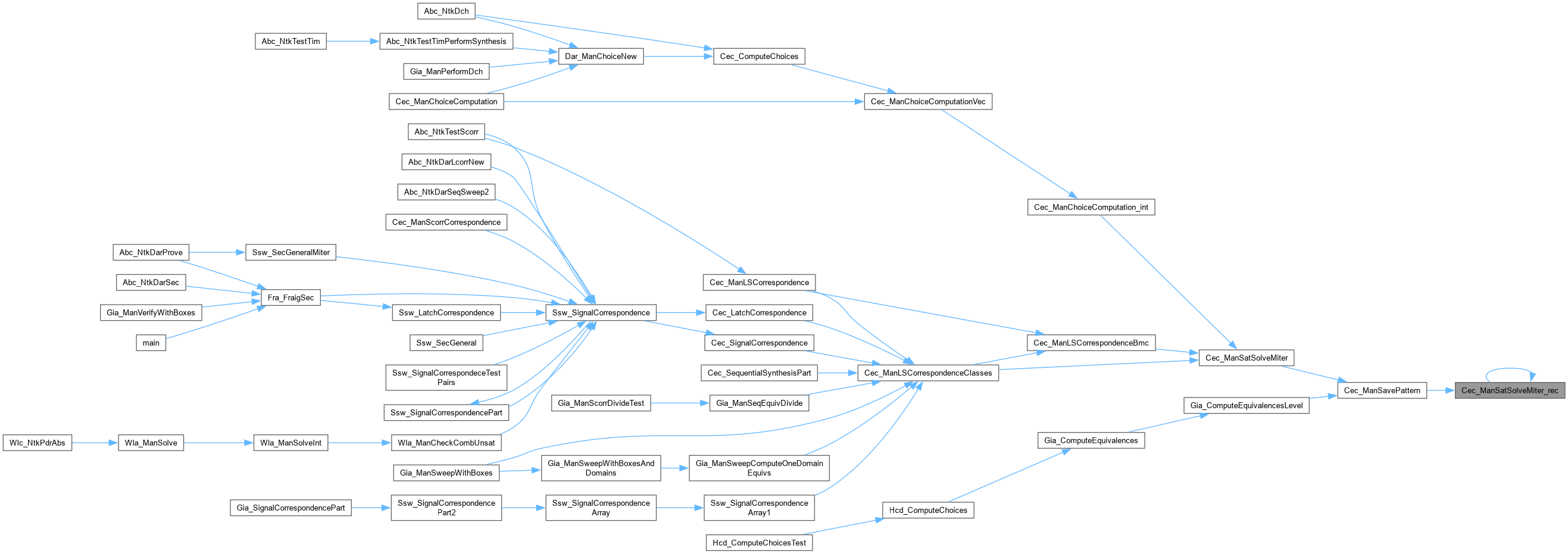

Here is the caller graph for this function:

Cec_ManSatSolverRecycle()

void Cec_ManSatSolverRecycle

(

Cec_ManSat_t *

p

)

Function*************************************************************

Synopsis [Recycles the SAT solver.]

Description []

SideEffects []

SeeAlso []

Definition at line 365 of file cecSolve.c.

{
    int Lit;
    if ( p->pSat )
    {
        Gia_Obj_t * pObj;
        int i;
        Vec_PtrForEachEntry( Gia_Obj_t *, p->vUsedNodes, pObj, i )
            Cec_ObjSetSatNum( p, pObj, 0 );
        Vec_PtrClear( p->vUsedNodes );
//        memset( p->pSatVars, 0, sizeof(int) * Gia_ManObjNumMax(p->pAigTotal) );
        sat_solver_delete( p->pSat );
    }
    p->pSat = sat_solver_new();
    sat_solver_setnvars( p->pSat, 1000 );
    p->pSat->factors = ABC_CALLOC( double, p->pSat->cap );
    // var 0 is not used
    // var 1 is reserved for const0 node - add the clause
    p->nSatVars = 1;
//    p->nSatVars = 0;
    Lit = toLitCond( p->nSatVars, 1 );
//    if ( p->pPars->fPolarFlip ) // no need to normalize const0 node (bug fix by SS on 9/17/2012)
//        Lit = lit_neg( Lit );
    sat_solver_addclause( p->pSat, &Lit, &Lit + 1 );
    Cec_ObjSetSatNum( p, Gia_ManConst0(p->pAig), p->nSatVars++ );

    p->nRecycles++;
    p->nCallsSince = 0;
}

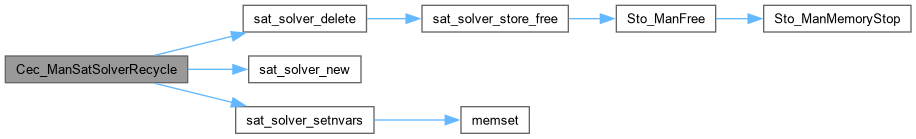

Here is the call graph for this function:

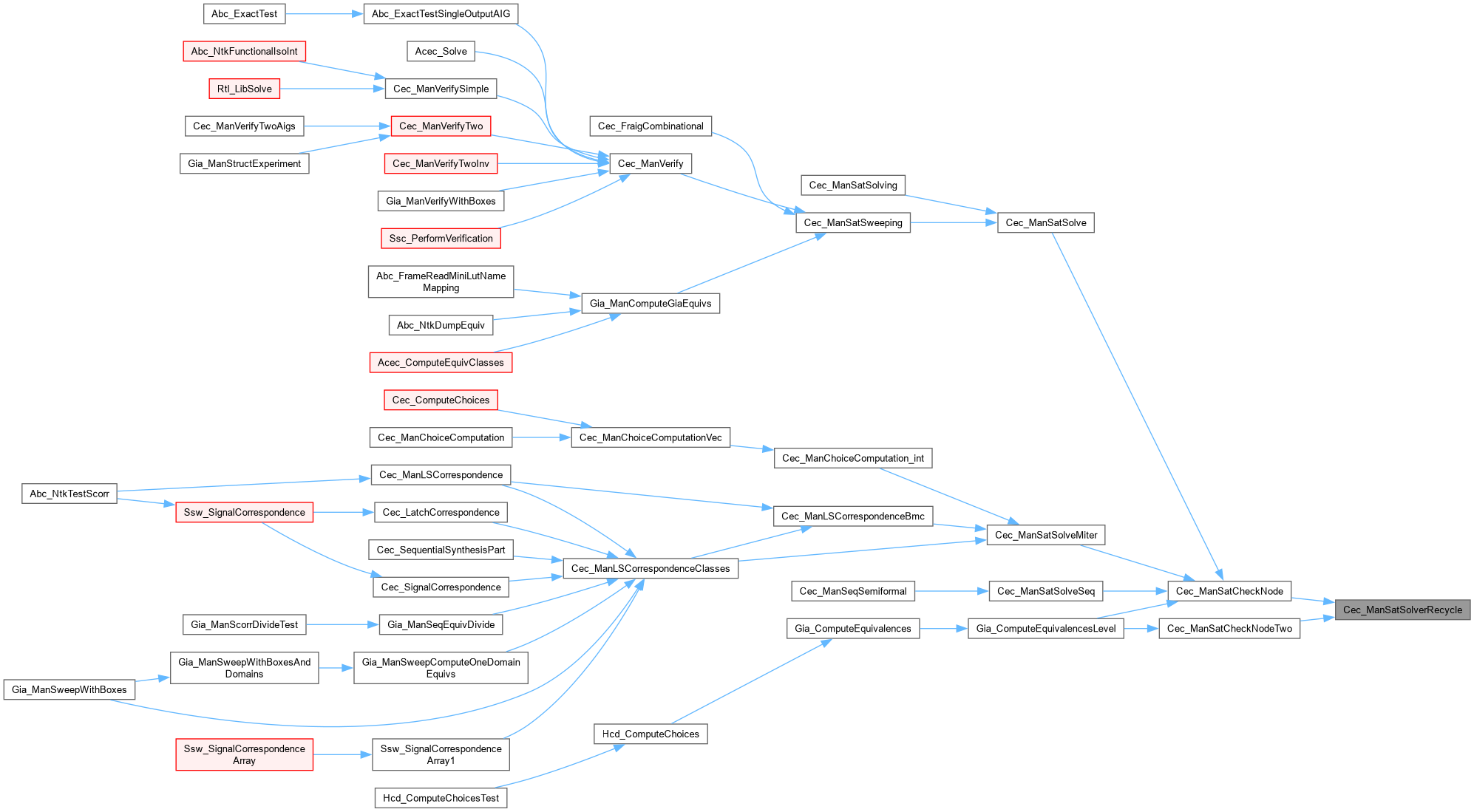

Here is the caller graph for this function:

Cec_ManSatSolveSeq()

Vec_Str_t * Cec_ManSatSolveSeq	(	Vec_Ptr_t *	vPatts,
		Gia_Man_t *	pAig,
		Cec_ParSat_t *	pPars,
		int	nRegs,
		int *	pnPats )

Function*************************************************************

Synopsis [Performs one round of solving for the POs of the AIG.]

Description [Labels the nodes that have been proved (pObj->fMark1) and returns the set of satisfying assignments.]

SideEffects []

SeeAlso []

Definition at line 911 of file cecSolve.c.

{
    Bar_Progress_t * pProgress = NULL;
    Vec_Str_t * vStatus;
    Cec_ManSat_t * p;
    Gia_Obj_t * pObj;
    int iPat = 0, nPatsInit, nPats;
    int i, status;
    abctime clk = Abc_Clock();
    nPatsInit = nPats = 32 * Vec_PtrReadWordsSimInfo(vPatts);
    Gia_ManSetPhase( pAig );
    Gia_ManLevelNum( pAig );
    Gia_ManIncrementTravId( pAig );
    p = Cec_ManSatCreate( pAig, pPars );
    vStatus = Vec_StrAlloc( Gia_ManPoNum(pAig) );
    pProgress = Bar_ProgressStart( stdout, Gia_ManPoNum(pAig) );
    Gia_ManForEachCo( pAig, pObj, i )
    {
        Bar_ProgressUpdate( pProgress, i, "SAT..." );
        if ( Gia_ObjIsConst0(Gia_ObjFanin0(pObj)) )
        {
            if ( Gia_ObjFaninC0(pObj) )
            {
//                Abc_Print( 1, "Constant 1 output of SRM!!!\n" );
                Vec_StrPush( vStatus, 0 );
            }
            else
            {
//                Abc_Print( 1, "Constant 0 output of SRM!!!\n" );
                Vec_StrPush( vStatus, 1 );
            }
            continue;
        }
        status = Cec_ManSatCheckNode( p, Gia_ObjChild0(pObj) );
//Abc_Print( 1, "output %d   status = %d\n", i, status );
        Vec_StrPush( vStatus, (char)status );
        if ( status != 0 )
            continue;
        // resize storage
        if ( iPat == nPats )
        {
            int nWords = Vec_PtrReadWordsSimInfo(vPatts);
            Vec_PtrReallocSimInfo( vPatts );
            Vec_PtrCleanSimInfo( vPatts, nWords, 2*nWords );
            nPats = 32 * Vec_PtrReadWordsSimInfo(vPatts);
        }
        if ( iPat % nPatsInit == 0 )
            iPat++;
        // save the pattern
        Gia_ManIncrementTravId( pAig );
//        Vec_IntClear( p->vCex );
        Cec_ManSatSolveSeq_rec( p, pAig, Gia_ObjFanin0(pObj), vPatts, iPat++, nRegs );
//        Gia_SatVerifyPattern( pAig, pObj, p->vCex, p->vVisits );
//        Cec_ManSatAddToStore( p->vCexStore, p->vCex );
//        if ( iPat == nPats )
//            break;
        // quit if one of them is solved
//        if ( pPars->fFirstStop )
//            break;
//        if ( iPat == 32 * 15 * 16 - 1 )
//            break;
    }
    p->timeTotal = Abc_Clock() - clk;
    Bar_ProgressStop( pProgress );
    if ( pPars->fVerbose )
        Cec_ManSatPrintStats( p );
//    Abc_Print( 1, "Total number of cex literals = %d. (Ave = %d)\n", p->nCexLits, p->nCexLits/p->nSatSat );
    Cec_ManSatStop( p );
    if ( pnPats )
        *pnPats = iPat-1;
    return vStatus;
}

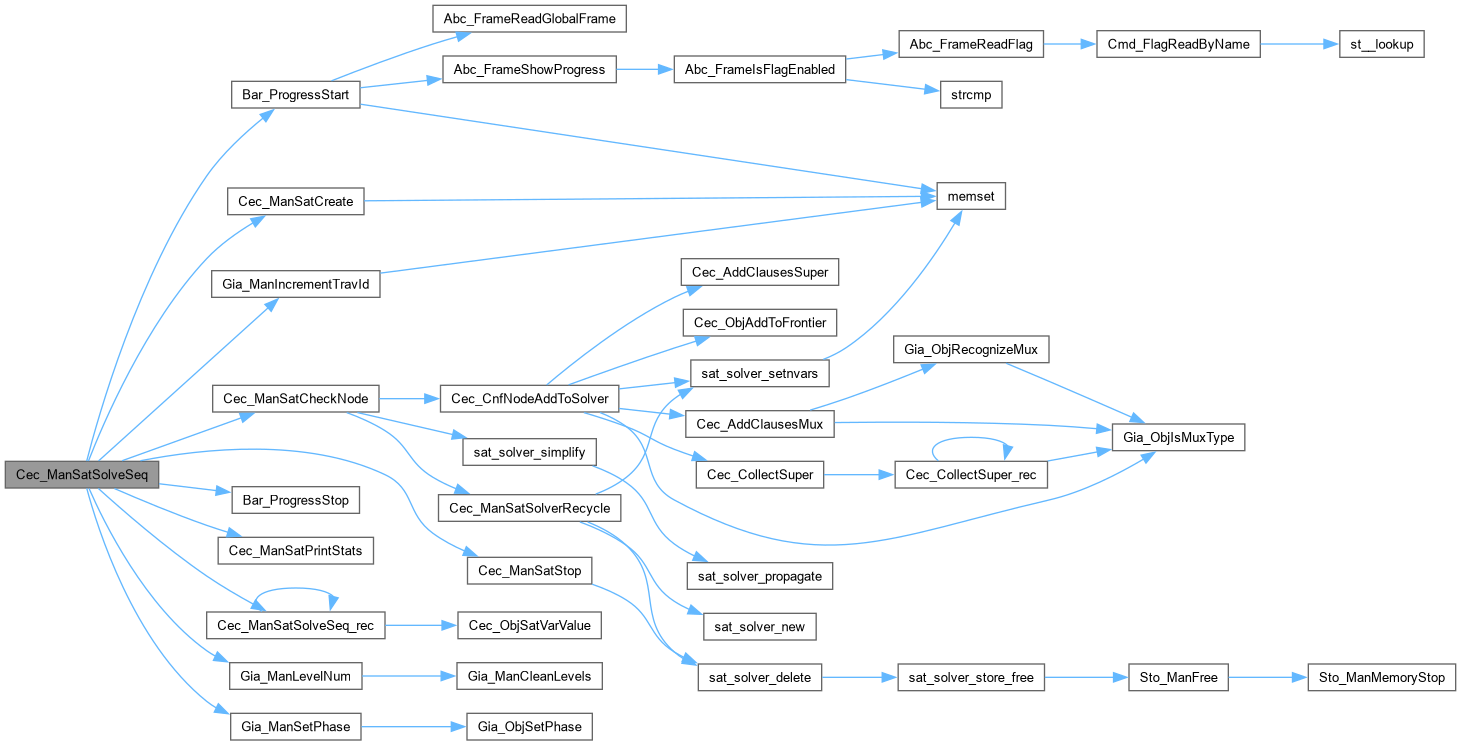

Here is the call graph for this function:

Here is the caller graph for this function:

Cec_ManSatSolveSeq_rec()

void Cec_ManSatSolveSeq_rec	(	Cec_ManSat_t *	pSat,
		Gia_Man_t *	p,
		Gia_Obj_t *	pObj,
		Vec_Ptr_t *	vInfo,
		int	iPat,
		int	nRegs )

Function*************************************************************

Synopsis [Save values in the cone of influence.]

Description []

SideEffects []

SeeAlso []

Definition at line 880 of file cecSolve.c.

{
    if ( Gia_ObjIsTravIdCurrent(p, pObj) )
        return;
    Gia_ObjSetTravIdCurrent(p, pObj);
    if ( Gia_ObjIsCi(pObj) )
    {
        unsigned * pInfo = (unsigned *)Vec_PtrEntry( vInfo, nRegs + Gia_ObjCioId(pObj) );
        if ( Cec_ObjSatVarValue( pSat, pObj ) != Abc_InfoHasBit( pInfo, iPat ) )
            Abc_InfoXorBit( pInfo, iPat );
        pSat->nCexLits++;
//        Vec_IntPush( pSat->vCex, Abc_Var2Lit( Gia_ObjCioId(pObj), !Cec_ObjSatVarValue(pSat, pObj) ) );
        return;
    }
    assert( Gia_ObjIsAnd(pObj) );
    Cec_ManSatSolveSeq_rec( pSat, p, Gia_ObjFanin0(pObj), vInfo, iPat, nRegs );
    Cec_ManSatSolveSeq_rec( pSat, p, Gia_ObjFanin1(pObj), vInfo, iPat, nRegs );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cec_ManSavePattern()

void Cec_ManSavePattern	(	Cec_ManSat_t *	p,
		Gia_Obj_t *	pObj1,
		Gia_Obj_t *	pObj2 )

Function*************************************************************

Synopsis [Save patterns.]

Description []

SideEffects []

SeeAlso []

Definition at line 1049 of file cecSolve.c.

{
    Vec_IntClear( p->vCex );
    Gia_ManIncrementTravId( p->pAig );
    Cec_ManSatSolveMiter_rec( p, p->pAig, Gia_Regular(pObj1) );
    if ( pObj2 )
    Cec_ManSatSolveMiter_rec( p, p->pAig, Gia_Regular(pObj2) );
}

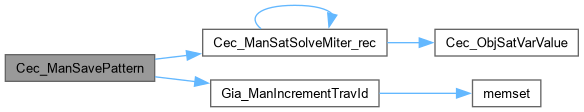

Here is the call graph for this function:

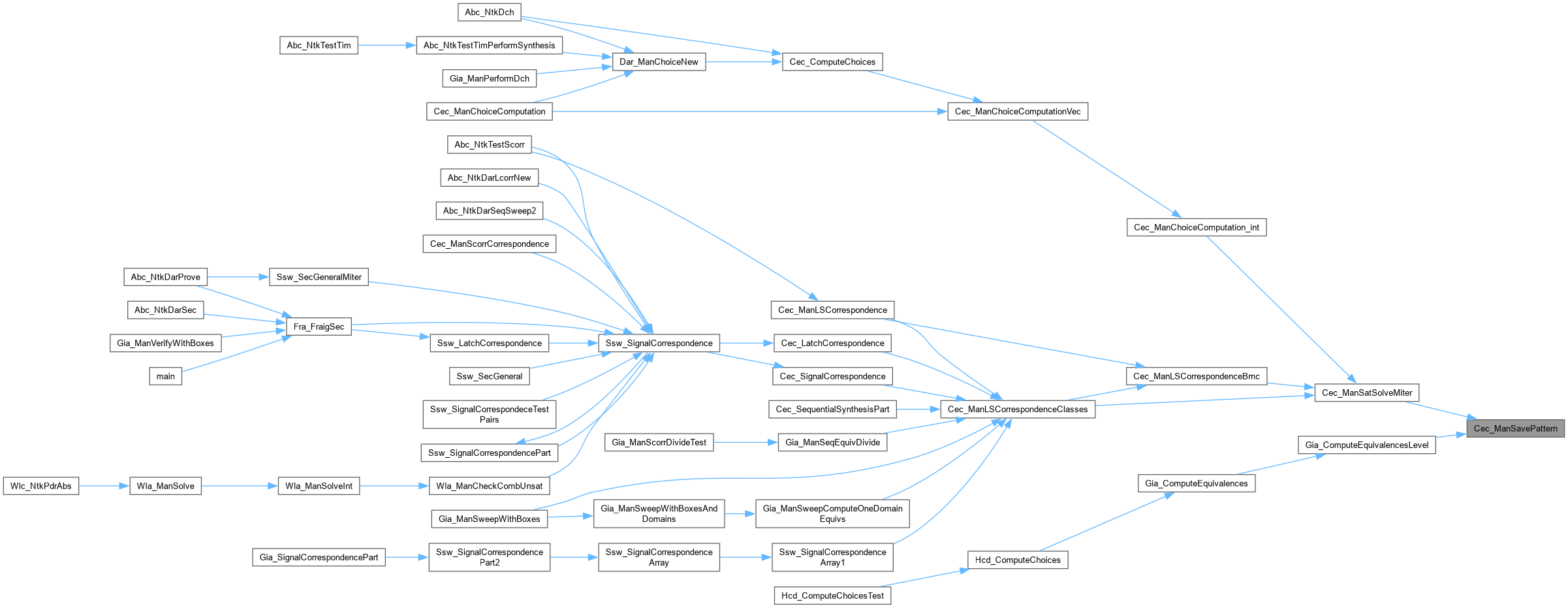

Here is the caller graph for this function:

Cec_ObjAddToFrontier()

void Cec_ObjAddToFrontier	(	Cec_ManSat_t *	p,
		Gia_Obj_t *	pObj,
		Vec_Ptr_t *	vFrontier )

Function*************************************************************

Synopsis [Updates the solver clause database.]

Description []

SideEffects []

SeeAlso []

Definition at line 281 of file cecSolve.c.

{
    assert( !Gia_IsComplement(pObj) );
    if ( Cec_ObjSatNum(p,pObj) )
        return;
    assert( Cec_ObjSatNum(p,pObj) == 0 );
    if ( Gia_ObjIsConst0(pObj) )
        return;
    Vec_PtrPush( p->vUsedNodes, pObj );
    Cec_ObjSetSatNum( p, pObj, p->nSatVars++ );
    if ( Gia_ObjIsAnd(pObj) )
        Vec_PtrPush( vFrontier, pObj );
}

Here is the caller graph for this function:

Cec_ObjSatVarValue()

int Cec_ObjSatVarValue	(	Cec_ManSat_t *	p,
		Gia_Obj_t *	pObj )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Returns value of the SAT variable.]

Description []

SideEffects []

SeeAlso []

Definition at line 48 of file cecSolve.c.

{
    return sat_solver_var_value( p->pSat, Cec_ObjSatNum(p, pObj) );
}

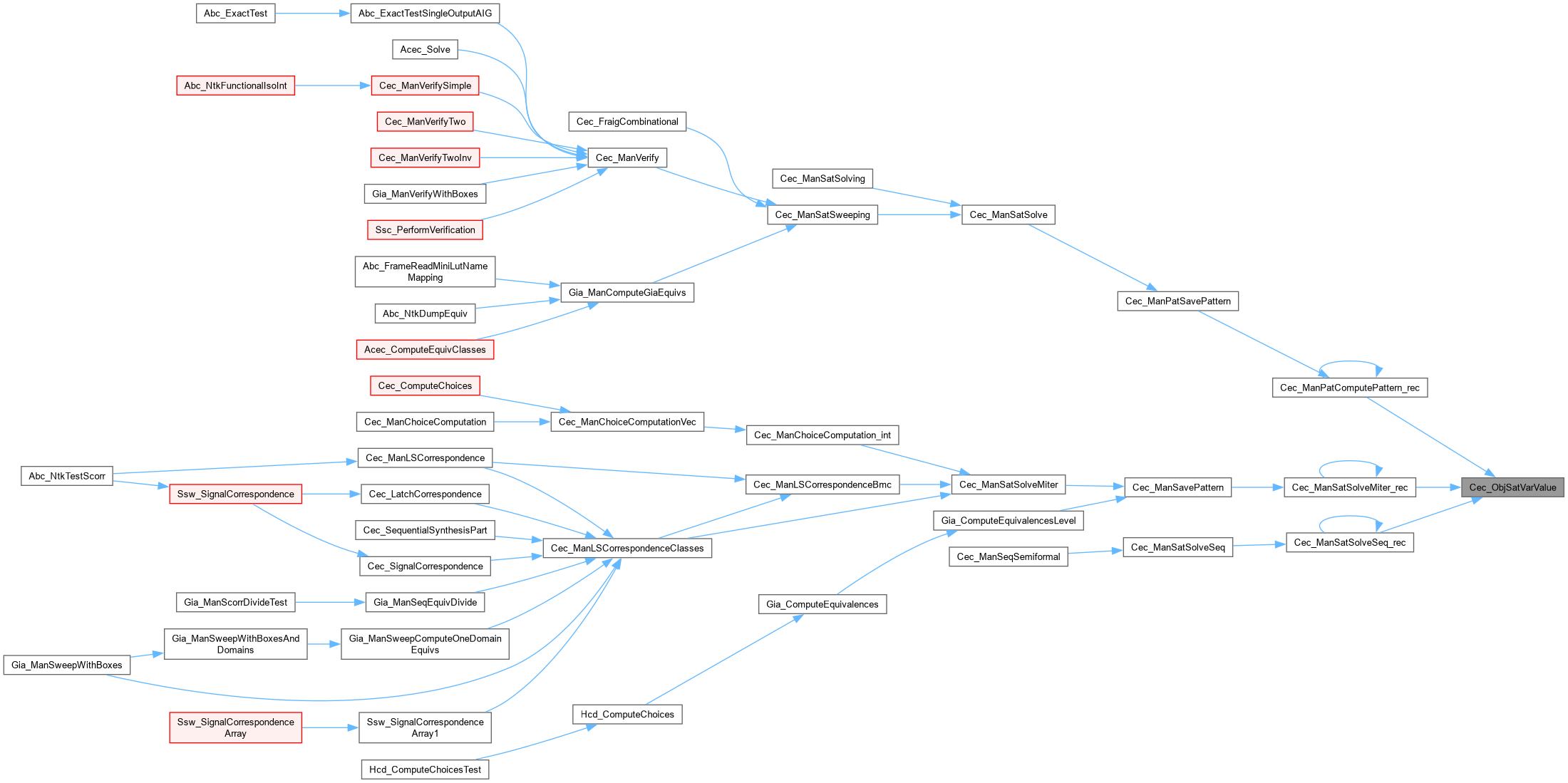

Here is the caller graph for this function:

Cec_SetActivityFactors()

int Cec_SetActivityFactors	(	Cec_ManSat_t *	p,
		Gia_Obj_t *	pObj )

Function*************************************************************

Synopsis [Sets variable activities in the cone.]

Description []

SideEffects []

SeeAlso []

Definition at line 440 of file cecSolve.c.

{
    float dActConeRatio = 0.5;
    int LevelMin, LevelMax;
    // reset the active variables
    veci_resize(&p->pSat->act_vars, 0);
    // prepare for traversal
    Gia_ManIncrementTravId( p->pAig );
    // determine the min and max level to visit
    assert( dActConeRatio > 0 && dActConeRatio < 1 );
    LevelMax = Gia_ObjLevel(p->pAig,pObj);
    LevelMin = (int)(LevelMax * (1.0 - dActConeRatio));
    // traverse
    Cec_SetActivityFactors_rec( p, pObj, LevelMin, LevelMax );
//Cec_PrintActivity( p );
    return 1;
}

Here is the call graph for this function:

Cec_SetActivityFactors_rec()

void Cec_SetActivityFactors_rec	(	Cec_ManSat_t *	p,
		Gia_Obj_t *	pObj,
		int	LevelMin,
		int	LevelMax )

Function*************************************************************

Synopsis [Sets variable activities in the cone.]

Description []

SideEffects []

SeeAlso []

Definition at line 406 of file cecSolve.c.

{
    float dActConeBumpMax = 20.0;
    int iVar;
    // skip visited variables
    if ( Gia_ObjIsTravIdCurrent(p->pAig, pObj) )
        return;
    Gia_ObjSetTravIdCurrent(p->pAig, pObj);
    // add the PI to the list
    if ( Gia_ObjLevel(p->pAig, pObj) <= LevelMin || Gia_ObjIsCi(pObj) )
        return;
    // set the factor of this variable
    // (LevelMax-LevelMin) / (pObj->Level-LevelMin) = p->pPars->dActConeBumpMax / ThisBump
    if ( (iVar = Cec_ObjSatNum(p,pObj)) )
    {
        p->pSat->factors[iVar] = dActConeBumpMax * (Gia_ObjLevel(p->pAig, pObj) - LevelMin)/(LevelMax - LevelMin);
        veci_push(&p->pSat->act_vars, iVar);
    }
    // explore the fanins
    Cec_SetActivityFactors_rec( p, Gia_ObjFanin0(pObj), LevelMin, LevelMax );
    Cec_SetActivityFactors_rec( p, Gia_ObjFanin1(pObj), LevelMin, LevelMax );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cex_ManGenCex()

Abc_Cex_t * Cex_ManGenCex	(	Cec_ManSat_t *	p,
		int	iOut )

Definition at line 684 of file cecSolve.c.

{
    Abc_Cex_t * pCex;
    int i;
    pCex = Abc_CexAlloc( 0, Gia_ManCiNum(p->pAig), 1 );
    pCex->iPo = iOut;
    pCex->iFrame = 0;
    for ( i = 0; i < Gia_ManCiNum(p->pAig); i++ )
    {
        int iVar = Cec_ObjSatNum(p, Gia_ManCi(p->pAig, i));
        if ( iVar > 0 && sat_solver_var_value(p->pSat, iVar) )
            pCex->pData[i>>5] |= (1<<(i & 31));
    }
    return pCex;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cex_ManGenSimple()

Abc_Cex_t * Cex_ManGenSimple	(	Cec_ManSat_t *	p,
		int	iOut )

Function*************************************************************

Synopsis [Performs one round of solving for the POs of the AIG.]

Description [Labels the nodes that have been proved (pObj->fMark1) and returns the set of satisfying assignments.]

SideEffects []

SeeAlso []

Definition at line 676 of file cecSolve.c.

{
    Abc_Cex_t * pCex;
    pCex = Abc_CexAlloc( 0, Gia_ManCiNum(p->pAig), 1 );
    pCex->iPo = iOut;
    pCex->iFrame = 0;
    return pCex;
}

Here is the call graph for this function:

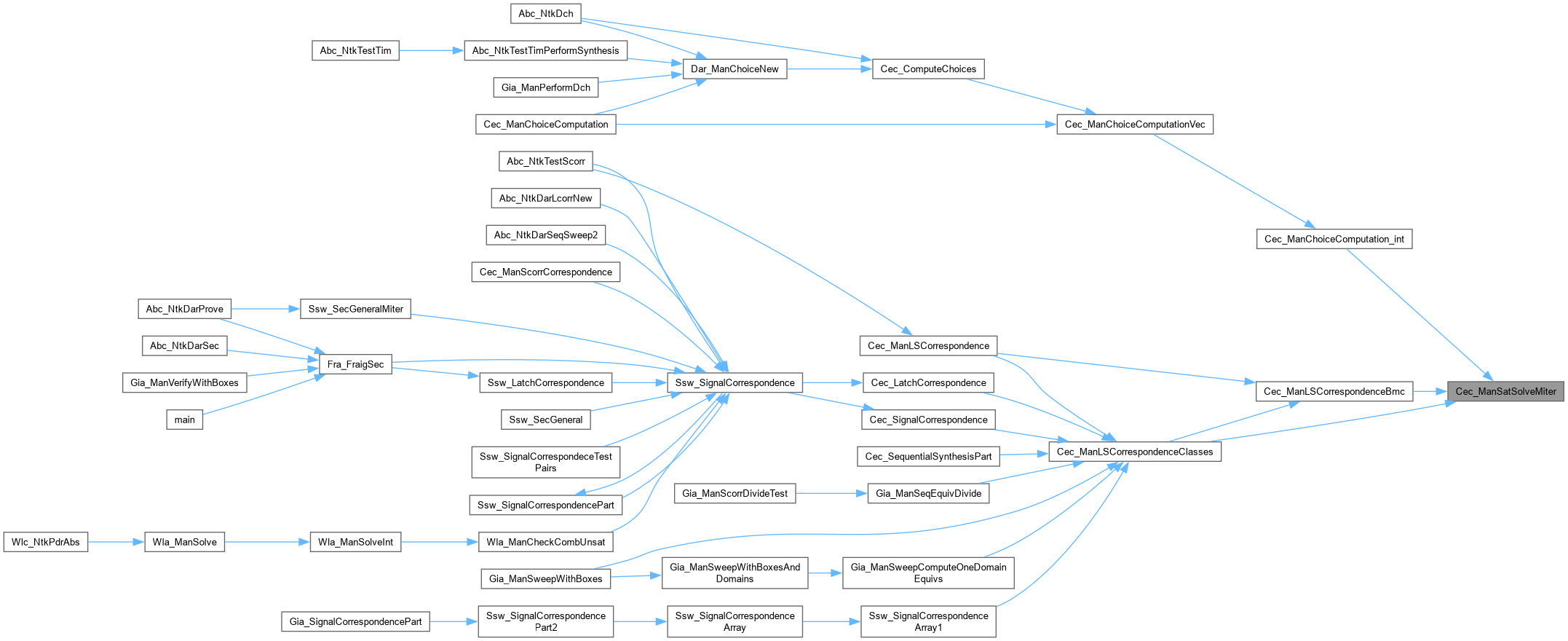

Here is the caller graph for this function:
