#include "gia.h"

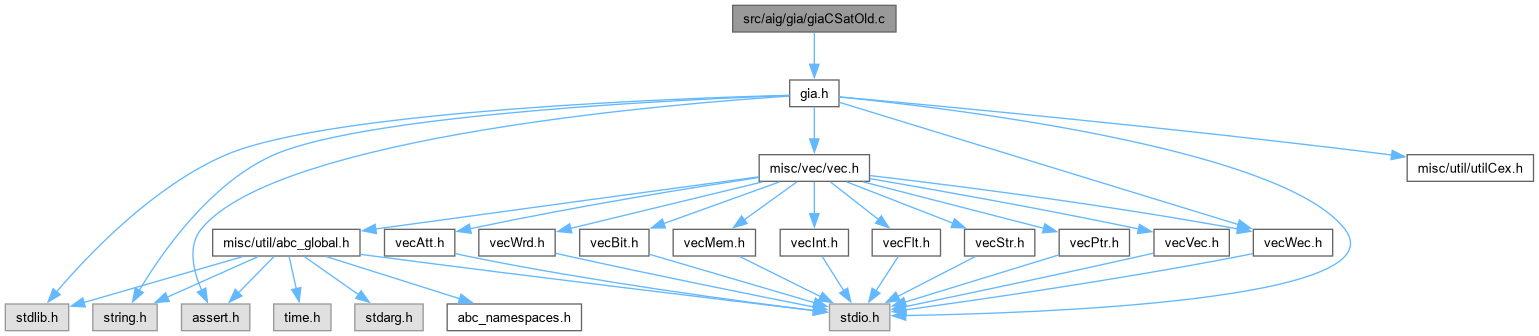

Include dependency graph for giaCSatOld.c:

Classes
struct	Cbs0_Par_t_

struct	Cbs0_Que_t_

struct	Cbs0_Man_t_

Macros
#define	Cbs0_QueForEachEntry(Que, pObj, i)

Typedefs
typedef typedefABC_NAMESPACE_IMPL_START struct Cbs0_Par_t_	Cbs0_Par_t
	DECLARATIONS ///.

typedef struct Cbs0_Que_t_	Cbs0_Que_t

typedef struct Cbs0_Man_t_	Cbs0_Man_t

Functions
void	Cbs0_SetDefaultParams (Cbs0_Par_t *pPars)
	FUNCTION DEFINITIONS ///.

Cbs0_Man_t *	Cbs0_ManAlloc ()

void	Cbs0_ManStop (Cbs0_Man_t *p)

Vec_Int_t *	Cbs0_ReadModel (Cbs0_Man_t *p)

int	Cbs0_ManPropagate (Cbs0_Man_t *p)

int	Cbs0_ManSolve_rec (Cbs0_Man_t *p)

int	Cbs0_ManSolve (Cbs0_Man_t p, Gia_Obj_t pObj)

void	Cbs0_ManSatPrintStats (Cbs0_Man_t *p)

Vec_Int_t *	Cbs_ManSolveMiter (Gia_Man_t pAig, int nConfs, Vec_Str_t *pvStatus, int fVerbose)

Macro Definition Documentation

◆ Cbs0_QueForEachEntry

#define Cbs0_QueForEachEntry	(	Que,
		pObj,
		i )

Value:

for ( i = (Que).iHead; (i < (Que).iTail) && ((pObj) = (Que).pData[i]); i++ )

Definition at line 91 of file giaCSatOld.c.

91#define Cbs0_QueForEachEntry( Que, pObj, i ) \

92 for ( i = (Que).iHead; (i < (Que).iTail) && ((pObj) = (Que).pData[i]); i++ )

Typedef Documentation

◆ Cbs0_Man_t

typedef struct Cbs0_Man_t_ Cbs0_Man_t

Definition at line 58 of file giaCSatOld.c.

◆ Cbs0_Par_t

typedef typedefABC_NAMESPACE_IMPL_START struct Cbs0_Par_t_ Cbs0_Par_t

DECLARATIONS ///.

CFile****************************************************************

FileName [giaCSat.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis [A simple circuit-based solver.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id: giaCSat.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 30 of file giaCSatOld.c.

◆ Cbs0_Que_t

typedef struct Cbs0_Que_t_ Cbs0_Que_t

Definition at line 49 of file giaCSatOld.c.

Function Documentation

◆ Cbs0_ManAlloc()

Cbs0_Man_t * Cbs0_ManAlloc ( )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 131 of file giaCSatOld.c.

{
    Cbs0_Man_t * p;
    p = ABC_CALLOC( Cbs0_Man_t, 1 );
    p->pProp.nSize = p->pJust.nSize = 10000;
    p->pProp.pData = ABC_ALLOC( Gia_Obj_t *, p->pProp.nSize );
    p->pJust.pData = ABC_ALLOC( Gia_Obj_t *, p->pJust.nSize );
    p->vModel = Vec_IntAlloc( 1000 );
    Cbs0_SetDefaultParams( &p->Pars );
    return p;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Cbs0_ManPropagate()

int Cbs0_ManPropagate ( Cbs0_Man_t * p )

Function*************************************************************

Synopsis [Propagates all variables.]

Description [Returns 1 if conflict; 0 if no conflict.]

SideEffects []

SeeAlso []

Definition at line 548 of file giaCSatOld.c.

{
    Gia_Obj_t * pVar;
    int i, k;
    while ( 1 )
    {
        Cbs0_QueForEachEntry( p->pProp, pVar, i )
        {
            if ( Cbs0_ManPropagateOne( p, pVar ) )
                return 1;
        }
        p->pProp.iHead = p->pProp.iTail;
        k = p->pJust.iHead;
        Cbs0_QueForEachEntry( p->pJust, pVar, i )
        {
            if ( Cbs0_VarIsJust( pVar ) )
                p->pJust.pData[k++] = pVar;
            else if ( Cbs0_ManPropagateTwo( p, pVar ) )
                return 1;
        }
        if ( k == p->pJust.iTail )
            break;
        p->pJust.iTail = k;
    }
    return 0;
}

Here is the caller graph for this function:

◆ Cbs0_ManSatPrintStats()

void Cbs0_ManSatPrintStats ( Cbs0_Man_t * p )

Function*************************************************************

Synopsis [Prints statistics of the manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 678 of file giaCSatOld.c.

{
    printf( "CO = %8d  ", Gia_ManCoNum(p->pAig) );
    printf( "AND = %8d  ", Gia_ManAndNum(p->pAig) );
    printf( "Conf = %6d  ", p->Pars.nBTLimit );
    printf( "JustMax = %5d  ", p->Pars.nJustLimit );
    printf( "\n" );
    printf( "Unsat calls %6d  (%6.2f %%)   Ave conf = %8.1f   ",
        p->nSatUnsat, p->nSatTotal? 100.0*p->nSatUnsat/p->nSatTotal :0.0, p->nSatUnsat? 1.0*p->nConfUnsat/p->nSatUnsat :0.0 );
    ABC_PRTP( "Time", p->timeSatUnsat, p->timeTotal );
    printf( "Sat   calls %6d  (%6.2f %%)   Ave conf = %8.1f   ",
        p->nSatSat,   p->nSatTotal? 100.0*p->nSatSat/p->nSatTotal :0.0, p->nSatSat? 1.0*p->nConfSat/p->nSatSat : 0.0 );
    ABC_PRTP( "Time", p->timeSatSat,   p->timeTotal );
    printf( "Undef calls %6d  (%6.2f %%)   Ave conf = %8.1f   ",
        p->nSatUndec, p->nSatTotal? 100.0*p->nSatUndec/p->nSatTotal :0.0, p->nSatUndec? 1.0*p->nConfUndec/p->nSatUndec : 0.0 );
    ABC_PRTP( "Time", p->timeSatUndec, p->timeTotal );
    ABC_PRT( "Total time", p->timeTotal );
}

Here is the caller graph for this function:

◆ Cbs0_ManSolve()

int Cbs0_ManSolve	(	Cbs0_Man_t *	p,
		Gia_Obj_t *	pObj )

Function*************************************************************

Synopsis [Looking for a satisfying assignment of the node.]

Description [Assumes that each node has flag pObj->fMark0 set to 0. Returns 1 if unsatisfiable, 0 if satisfiable, and -1 if undecided. The node may be complemented. ]

SideEffects []

SeeAlso []

Definition at line 646 of file giaCSatOld.c.

{
    int RetValue;
    assert( !p->pProp.iHead && !p->pProp.iTail );
    assert( !p->pJust.iHead && !p->pJust.iTail );
    p->Pars.nBTThis = p->Pars.nJustThis = 0;
    Cbs0_ManAssign( p, pObj );
    RetValue = Cbs0_ManSolve_rec( p );
    if ( RetValue == 0 && !Cbs0_ManCheckLimits(p) )
        Cbs0_ManSaveModel( p, p->vModel );
    Cbs0_ManCancelUntil( p, 0 );
    p->pJust.iHead = p->pJust.iTail = 0;
    p->Pars.nBTTotal += p->Pars.nBTThis;
    p->Pars.nJustTotal = Abc_MaxInt( p->Pars.nJustTotal, p->Pars.nJustThis );
    if ( Cbs0_ManCheckLimits( p ) )
        RetValue = -1;
//    printf( "Outcome = %2d.  Confs = %6d.  Decision level max = %3d.\n",
//        RetValue, p->Pars.nBTThis, p->DecLevelMax );
    return RetValue;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Cbs0_ManSolve_rec()

int Cbs0_ManSolve_rec ( Cbs0_Man_t * p )

Function*************************************************************

Synopsis [Solve the problem recursively.]

Description [Returns 1 if unsat or undecided; 0 if satisfiable.]

SideEffects []

SeeAlso []

Definition at line 586 of file giaCSatOld.c.

{
    Gia_Obj_t * pVar = NULL, * pDecVar;
    int iPropHead, iJustHead, iJustTail;
    // propagate assignments
    assert( !Cbs0_QueIsEmpty(&p->pProp) );
    if ( Cbs0_ManPropagate( p ) )
        return 1;
    // check for satisfying assignment
    assert( Cbs0_QueIsEmpty(&p->pProp) );
    if ( Cbs0_QueIsEmpty(&p->pJust) )
        return 0;
    // quit using resource limits
    p->Pars.nJustThis = Abc_MaxInt( p->Pars.nJustThis, p->pJust.iTail - p->pJust.iHead );
    if ( Cbs0_ManCheckLimits( p ) )
        return 0;
    // remember the state before branching
    iPropHead = p->pProp.iHead;
    Cbs0_QueStore( &p->pJust, &iJustHead, &iJustTail );
    // find the decision variable
    if ( p->Pars.fUseHighest )
        pVar = Cbs0_ManDecideHighest( p );
    else if ( p->Pars.fUseLowest )
        pVar = Cbs0_ManDecideLowest( p );
    else if ( p->Pars.fUseMaxFF )
        pVar = Cbs0_ManDecideMaxFF( p );
    else assert( 0 );
    assert( Cbs0_VarIsJust( pVar ) );
    // chose decision variable using fanout count
    if ( Gia_ObjRefNum(p->pAig, Gia_ObjFanin0(pVar)) > Gia_ObjRefNum(p->pAig, Gia_ObjFanin1(pVar)) )
        pDecVar = Gia_Not(Gia_ObjChild0(pVar));
    else
        pDecVar = Gia_Not(Gia_ObjChild1(pVar));
    // decide on first fanin
    Cbs0_ManAssign( p, pDecVar );
    if ( !Cbs0_ManSolve_rec( p ) )
        return 0;
    Cbs0_ManCancelUntil( p, iPropHead );
    Cbs0_QueRestore( &p->pJust, iJustHead, iJustTail );
    // decide on second fanin
    Cbs0_ManAssign( p, Gia_Not(pDecVar) );
    if ( !Cbs0_ManSolve_rec( p ) )
        return 0;
    p->Pars.nBTThis++;
    return 1;
}

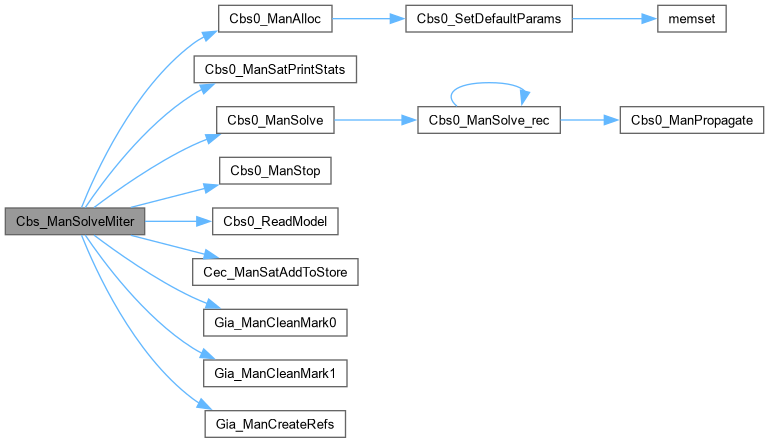

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Cbs0_ManStop()

void Cbs0_ManStop ( Cbs0_Man_t * p )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 154 of file giaCSatOld.c.

{
    Vec_IntFree( p->vModel );
    ABC_FREE( p->pProp.pData );
    ABC_FREE( p->pJust.pData );
    ABC_FREE( p );
}

Here is the caller graph for this function:

◆ Cbs0_ReadModel()

Vec_Int_t * Cbs0_ReadModel ( Cbs0_Man_t * p )

Function*************************************************************

Synopsis [Returns satisfying assignment.]

Description []

SideEffects []

SeeAlso []

Definition at line 173 of file giaCSatOld.c.

{
    return p->vModel;
}

Here is the caller graph for this function:

◆ Cbs0_SetDefaultParams()

void Cbs0_SetDefaultParams ( Cbs0_Par_t * pPars )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Sets default values of the parameters.]

Description []

SideEffects []

SeeAlso []

Definition at line 109 of file giaCSatOld.c.

{
    memset( pPars, 0, sizeof(Cbs0_Par_t) );
    pPars->nBTLimit    =  1000;   // limit on the number of conflicts
    pPars->nJustLimit  =   100;   // limit on the size of justification queue
    pPars->fUseHighest =     1;   // use node with the highest ID
    pPars->fUseLowest  =     0;   // use node with the highest ID
    pPars->fUseMaxFF   =     0;   // use node with the largest fanin fanout
    pPars->fVerbose    =     1;   // print detailed statistics
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Cbs_ManSolveMiter()

Vec_Int_t * Cbs_ManSolveMiter	(	Gia_Man_t *	pAig,
		int	nConfs,
		Vec_Str_t **	pvStatus,
		int	fVerbose )

Function*************************************************************

Synopsis [Procedure to test the new SAT solver.]

Description []

SideEffects []

SeeAlso []

Definition at line 708 of file giaCSatOld.c.

{
    extern void Cec_ManSatAddToStore( Vec_Int_t * vCexStore, Vec_Int_t * vCex, int Out );
    Cbs0_Man_t * p;
    Vec_Int_t * vCex, * vVisit, * vCexStore;
    Vec_Str_t * vStatus;
    Gia_Obj_t * pRoot;
    int i, status;
    abctime clk, clkTotal = Abc_Clock();
    assert( Gia_ManRegNum(pAig) == 0 );
    // prepare AIG
    Gia_ManCreateRefs( pAig );
    Gia_ManCleanMark0( pAig );
    Gia_ManCleanMark1( pAig );
    // create logic network
    p = Cbs0_ManAlloc();
    p->Pars.nBTLimit = nConfs;
    p->pAig   = pAig;
    // create resulting data-structures
    vStatus   = Vec_StrAlloc( Gia_ManPoNum(pAig) );
    vCexStore = Vec_IntAlloc( 10000 );
    vVisit    = Vec_IntAlloc( 100 );
    vCex      = Cbs0_ReadModel( p );
    // solve for each output
    Gia_ManForEachCo( pAig, pRoot, i )
    {
        Vec_IntClear( vCex );
        if ( Gia_ObjIsConst0(Gia_ObjFanin0(pRoot)) )
        {
            if ( Gia_ObjFaninC0(pRoot) )
            {
                printf( "Constant 1 output of SRM!!!\n" );
                Cec_ManSatAddToStore( vCexStore, vCex, i ); // trivial counter-example
                Vec_StrPush( vStatus, 0 );
            }
            else
            {
//                printf( "Constant 0 output of SRM!!!\n" );
                Vec_StrPush( vStatus, 1 );
            }
            continue;
        }
        clk = Abc_Clock();
        p->Pars.fUseHighest = 1;
        p->Pars.fUseLowest  = 0;
        status = Cbs0_ManSolve( p, Gia_ObjChild0(pRoot) );
/*
        if ( status == -1 )
        {
            p->Pars.fUseHighest = 0;
            p->Pars.fUseLowest  = 1;
            status = Cbs0_ManSolve( p, Gia_ObjChild0(pRoot) );
        }
*/
        Vec_StrPush( vStatus, (char)status );
        if ( status == -1 )
        {
            p->nSatUndec++;
            p->nConfUndec += p->Pars.nBTThis;
            Cec_ManSatAddToStore( vCexStore, NULL, i ); // timeout
            p->timeSatUndec += Abc_Clock() - clk;
            continue;
        }
        if ( status == 1 )
        {
            p->nSatUnsat++;
            p->nConfUnsat += p->Pars.nBTThis;
            p->timeSatUnsat += Abc_Clock() - clk;
            continue;
        }
        p->nSatSat++;
        p->nConfSat += p->Pars.nBTThis;
//        Gia_SatVerifyPattern( pAig, pRoot, vCex, vVisit );
        Cec_ManSatAddToStore( vCexStore, vCex, i );
        p->timeSatSat += Abc_Clock() - clk;
    }
    Vec_IntFree( vVisit );
    p->nSatTotal = Gia_ManPoNum(pAig);
    p->timeTotal = Abc_Clock() - clkTotal;
    if ( fVerbose )
        Cbs0_ManSatPrintStats( p );
    Cbs0_ManStop( p );
    *pvStatus = vStatus;
//    printf( "Total number of cex literals = %d. (Ave = %d)\n",
//         Vec_IntSize(vCexStore)-2*p->nSatUndec-2*p->nSatSat,
//        (Vec_IntSize(vCexStore)-2*p->nSatUndec-2*p->nSatSat)/p->nSatSat );
    return vCexStore;
}

Here is the call graph for this function:

Classes

Macros

Typedefs

Functions

Macro Definition Documentation

◆ Cbs0_QueForEachEntry

Typedef Documentation

◆ Cbs0_Man_t

◆ Cbs0_Par_t

◆ Cbs0_Que_t

Function Documentation

◆ Cbs0_ManAlloc()

◆ Cbs0_ManPropagate()

◆ Cbs0_ManSatPrintStats()

◆ Cbs0_ManSolve()

◆ Cbs0_ManSolve_rec()

◆ Cbs0_ManStop()

◆ Cbs0_ReadModel()

◆ Cbs0_SetDefaultParams()

◆ Cbs_ManSolveMiter()
