#include "gia.h"
#include "misc/util/utilTruth.h"
#include "misc/vec/vecHsh.h"

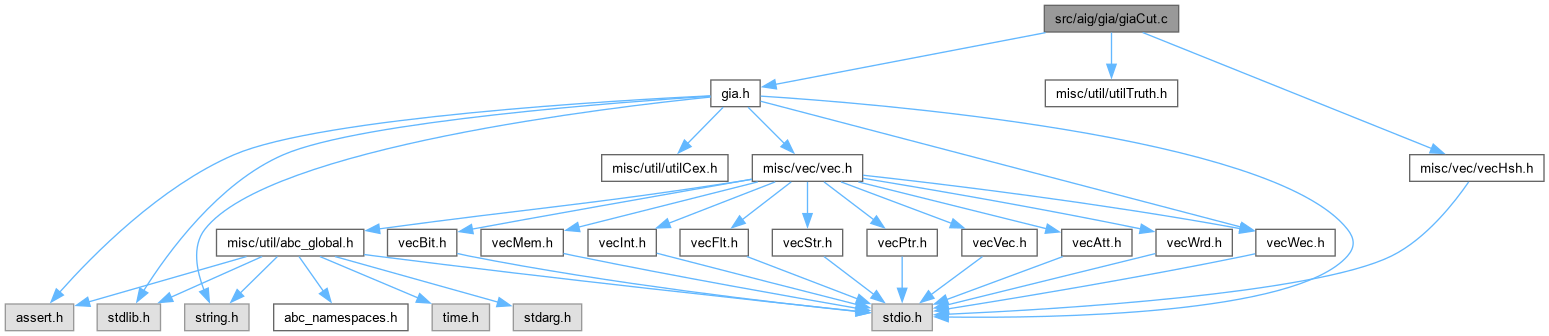

Include dependency graph for giaCut.c:

Classes
struct	Gia_Cut_t_

struct	Gia_Sto_t_

Macros
#define	GIA_MAX_CUTSIZE 8
	DECLARATIONS ///.

#define	GIA_MAX_CUTNUM 257

#define	GIA_MAX_TT_WORDS ((GIA_MAX_CUTSIZE > 6) ? 1 << (GIA_MAX_CUTSIZE-6) : 1)

#define	GIA_CUT_NO_LEAF 0xF

#define	Sdb_ForEachCut(pList, pCut, i)

Typedefs
typedef struct Gia_Cut_t_	Gia_Cut_t

typedef struct Gia_Sto_t_	Gia_Sto_t

Functions
void	Gia_StoMergeCuts (Gia_Sto_t *p, int iObj)

Gia_Sto_t *	Gia_StoAlloc (Gia_Man_t *pGia, int nCutSize, int nCutNum, int fCutMin, int fTruthMin, int fVerbose)

void	Gia_StoFree (Gia_Sto_t *p)

void	Gia_StoComputeCutsConst0 (Gia_Sto_t *p, int iObj)

void	Gia_StoComputeCutsCi (Gia_Sto_t *p, int iObj)

void	Gia_StoComputeCutsNode (Gia_Sto_t *p, int iObj)

void	Gia_StoRefObj (Gia_Sto_t *p, int iObj)

void	Gia_StoComputeCuts (Gia_Man_t *pGia)

int	Gia_StoSelectOneCut (Vec_Wec_t vCuts, int iObj, Vec_Int_t vCut, int nCutSizeMin)

Vec_Wec_t *	Gia_ManSelectCuts (Vec_Wec_t *vCuts, int nCuts, int nCutSizeMin)

Vec_Wec_t *	Gia_ManExtractCuts (Gia_Man_t *pGia, int nCutSize0, int nCuts0, int fVerbose0)

void	Gia_ManCreateWins (Gia_Man_t pGia, Vec_Wec_t vCuts)

void	Gia_ManPrintWins (Vec_Wec_t *vCuts)

void	Gia_ManPrintWinStats (Vec_Wec_t *vCuts)

void	Gia_ManExtractTest (Gia_Man_t *pGia)

void	Gia_StoCutPrint (int *pCut)

void	Gia_StoPrintCuts (Vec_Int_t *vThis, int iObj, int nCutSize)

Vec_Wec_t *	Gia_ManFilterCuts (Gia_Man_t pGia, Vec_Wec_t vStore, int nCutSize, int nCuts)

int	Gia_ManCountRefs (Gia_Man_t pGia, Vec_Int_t vLevel)

Vec_Wrd_t *	Gia_ManGenSims (Gia_Man_t *pGia)

int	Gia_ManFindSatDcs (Gia_Man_t pGia, Vec_Wrd_t vSims, Vec_Int_t *vLevel)

int	Gia_ManCollectCutDivs (Gia_Man_t p, Vec_Int_t vIns)

void	Gia_ManConsiderCuts (Gia_Man_t pGia, Vec_Wec_t vCuts)

Vec_Wec_t *	Gia_ManExploreCuts (Gia_Man_t *pGia, int nCutSize0, int nCuts0, int fVerbose0)

void	Gia_ManExploreCutsTest (Gia_Man_t *pGia, int nCutSize0, int nCuts0, int fVerbose0)

Gia_Sto_t *	Gia_ManMatchCutsInt (Gia_Man_t *pGia, int nCutSize0, int nCutNum0, int fVerbose0)

void	Gia_ManMatchCuts (Vec_Mem_t vTtMem, Gia_Man_t pGia, int nCutSize, int nCutNum, int fVerbose)

Vec_Ptr_t *	Gia_ManMatchCutsArray (Vec_Ptr_t vTtMems, Gia_Man_t pGia, int nCutSize, int nCutNum, int fVerbose)

Vec_Ptr_t *	Gia_ManMatchCutsMany (Vec_Mem_t vTtMem, Vec_Int_t vMap, int nFuncs, Gia_Man_t *pGia, int nCutSize, int nCutNum, int fVerbose)

void	Gia_ManDumpCuts (Gia_Man_t *p, int nCutSize, int nCutNum, int fVerbose)

Vec_Wrd_t *	Gia_ManCollectCutFuncs (Gia_Man_t *p, int nCutSize, int nCutNum, int fVerbose)

Vec_Int_t *	Gia_ManCountNpnClasses (Vec_Mem_t vTtMem, Vec_Int_t vMap, int nClasses, Vec_Wrd_t *vOrig)

Vec_Wrd_t *	Gia_ManMatchFilterClasses (Vec_Mem_t vTtMem, Vec_Int_t vMap, Vec_Int_t *vClassCounts, int nNumFuncs, int fVerbose)

void	Gia_ManMatchProfileFunctions (Vec_Wrd_t vBestReprs, Vec_Mem_t vTtMem, Vec_Int_t vMap, Vec_Wrd_t vFuncs, int nCutSize)

void	Gia_ManMatchCones (Gia_Man_t pBig, Gia_Man_t pSmall, int nCutSize, int nCutNum, int nNumFuncs, int nNumCones, int fVerbose)

int	Gia_ManMatchConesMinimizeTts (Vec_Wrd_t *vSims, int nVarsMax)

void	Gia_ManMatchConesOutputPrint (Vec_Ptr_t *p, int fVerbose)

void	Gia_ManMatchConesOutputFree (Vec_Ptr_t *p)

void	Gia_ManMatchConesOutput (Gia_Man_t pBig, Gia_Man_t pSmall, int nCutNum, int fVerbose)

Macro Definition Documentation

◆ GIA_CUT_NO_LEAF

#define GIA_CUT_NO_LEAF 0xF

Definition at line 36 of file giaCut.c.

◆ GIA_MAX_CUTNUM

#define GIA_MAX_CUTNUM 257

Definition at line 33 of file giaCut.c.

◆ GIA_MAX_CUTSIZE

#define GIA_MAX_CUTSIZE 8

DECLARATIONS ///.

CFile****************************************************************

FileName [giaCut.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis [Stand-alone cut computation.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id: giaCut.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 32 of file giaCut.c.

◆ GIA_MAX_TT_WORDS

#define GIA_MAX_TT_WORDS ((GIA_MAX_CUTSIZE > 6) ? 1 << (GIA_MAX_CUTSIZE-6) : 1)

Definition at line 34 of file giaCut.c.

◆ Sdb_ForEachCut

#define Sdb_ForEachCut	(	pList,
		pCut,
		i )

Value:

for ( i = 0, pCut = pList + 1; i < pList[0]; i++, pCut += pCut[0] + 2 )

Definition at line 75 of file giaCut.c.

Typedef Documentation

◆ Gia_Cut_t

typedef struct Gia_Cut_t_ Gia_Cut_t

Definition at line 38 of file giaCut.c.

◆ Gia_Sto_t

typedef struct Gia_Sto_t_ Gia_Sto_t

Definition at line 51 of file giaCut.c.

Function Documentation

◆ Gia_ManCollectCutDivs()

int Gia_ManCollectCutDivs	(	Gia_Man_t *	p,
		Vec_Int_t *	vIns )

Definition at line 920 of file giaCut.c.

{
    Gia_Obj_t * pObj; int i, Res = 0;
    Vec_Int_t * vRes = Vec_IntAlloc( 100 );
    Vec_IntSort( vIns, 0 );

    Vec_IntPush( vRes, 0 );
    Vec_IntAppend( vRes, vIns );

    Gia_ManIncrementTravId( p );
    Gia_ManIncrementTravId( p );
    Gia_ManForEachObjVec( vIns, p, pObj, i )
        Gia_ObjSetTravIdCurrent( p, pObj );

    Gia_ManForEachAnd( p, pObj, i )
        if ( Gia_ObjIsTravIdCurrent(p, pObj) )
            continue;
        else if ( Gia_ObjIsTravIdCurrent(p, Gia_ObjFanin0(pObj)) && Gia_ObjIsTravIdCurrent(p, Gia_ObjFanin1(pObj)) )
        {
            if ( !Gia_ObjIsTravIdPrevious(p, pObj) )
                Vec_IntPush( vRes, i );
            Gia_ObjSetTravIdCurrent( p, pObj );
        }
//    printf( "Divisors: " );
//    Vec_IntPrint( vRes );
    Res = Vec_IntSize(vRes);
    Vec_IntFree( vRes );
    return Res;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Gia_ManCollectCutFuncs()

Vec_Wrd_t * Gia_ManCollectCutFuncs	(	Gia_Man_t *	p,
		int	nCutSize,
		int	nCutNum,
		int	fVerbose )

Function*************************************************************

Synopsis [Function enumeration.]

Description []

SideEffects []

SeeAlso []

Definition at line 1222 of file giaCut.c.

{
    Gia_Sto_t * pSto = Gia_ManMatchCutsInt( p, nCutSize, nCutNum, 0 );
    Vec_Wrd_t * vFuncs = Vec_WrdAlloc( 1000 ); Vec_Int_t * vLevel; int i, k, * pCut;
    Vec_WecForEachLevel( pSto->vCuts, vLevel, i ) if ( Vec_IntSize(vLevel) )
        Sdb_ForEachCut( Vec_IntArray(vLevel), pCut, k ) if ( pCut[0] == nCutSize ) {
            word * pTruth = Vec_MemReadEntry( pSto->vTtMem, Abc_Lit2Var(pCut[pCut[0]+1]) );
            Vec_WrdPush( vFuncs, pTruth[0] );
        }
    Gia_StoFree( pSto );
    if ( fVerbose )
        printf( "Collected %d cut functions using the AIG with %d nodes.\n", Vec_WrdSize(vFuncs), Gia_ManAndNum(p) );
    return vFuncs;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Gia_ManConsiderCuts()

void Gia_ManConsiderCuts	(	Gia_Man_t *	pGia,
		Vec_Wec_t *	vCuts )

Definition at line 950 of file giaCut.c.

{
    Vec_Wrd_t * vSims = Gia_ManGenSims( pGia );
    Vec_Int_t * vLevel; int i;
    Gia_ManCreateRefs( pGia );
    Vec_WecForEachLevel( vCuts, vLevel, i )
    {
        printf( "Cut %3d  ", i );
        printf( "Ref = %3d : ", Vec_IntEntry(vLevel, 0) );

        Vec_IntShift( vLevel, 1 );
        printf( "Ref = %3d : ", Gia_ManCountRefs(pGia, vLevel) );
        printf( "SDC = %3d : ", Gia_ManFindSatDcs(pGia, vSims, vLevel) );
        printf( "Div = %3d : ", Gia_ManCollectCutDivs(pGia, vLevel) );
        Vec_IntPrint( vLevel );
        Vec_IntShift( vLevel, -1 );
    }
    Vec_WrdFree( vSims );
}

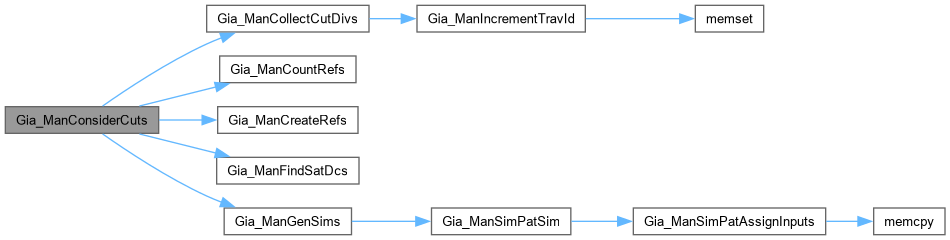

Here is the call graph for this function:

◆ Gia_ManCountNpnClasses()

Vec_Int_t * Gia_ManCountNpnClasses	(	Vec_Mem_t *	vTtMem,
		Vec_Int_t *	vMap,
		int	nClasses,
		Vec_Wrd_t *	vOrig )

Definition at line 1236 of file giaCut.c.

{
    assert( Vec_MemEntryNum(vTtMem) == Vec_IntSize(vMap) );
    Vec_Int_t * vClassCounts = Vec_IntStart( nClasses ); int i; word Func;
    Vec_WrdForEachEntry( vOrig, Func, i ) {
        int * pSpot = Vec_MemHashLookup( vTtMem, &Func );
        if ( *pSpot == -1 )
            continue;
        int iClass = Vec_IntEntry( vMap, *pSpot );
        if ( iClass == -1 )
            continue;
        assert( iClass < Vec_IntSize(vClassCounts) );
        Vec_IntAddToEntry( vClassCounts, iClass, 1 );
    }
    return vClassCounts;
}

Here is the caller graph for this function:

◆ Gia_ManCountRefs()

int Gia_ManCountRefs	(	Gia_Man_t *	pGia,
		Vec_Int_t *	vLevel )

Definition at line 887 of file giaCut.c.

{
    int i, iObj, nRefs = 0;
    Vec_IntForEachEntry( vLevel, iObj, i )
        nRefs += Gia_ObjRefNumId(pGia, iObj);
    return nRefs;
}

Here is the caller graph for this function:

◆ Gia_ManCreateWins()

void Gia_ManCreateWins	(	Gia_Man_t *	pGia,
		Vec_Wec_t *	vCuts )

Definition at line 735 of file giaCut.c.

{
    Gia_Obj_t * pObj;
    Vec_Wec_t * vWins = Vec_WecStart( Gia_ManObjNum(pGia) );
    Vec_Int_t * vTemp = Vec_IntAlloc( 100 );
    Vec_Int_t * vCut; int i, k, Obj, Cut;
    Vec_WecForEachLevel( vCuts, vCut, i )
        Vec_IntForEachEntryStart( vCut, Obj, k, 1 )
            Vec_IntPush( Vec_WecEntry(vWins, Obj), i );
    Gia_ManForEachAnd( pGia, pObj, Obj )
    {
        Vec_Int_t * vWin  = Vec_WecEntry(vWins, Obj);
        Vec_Int_t * vWin0 = Vec_WecEntry(vWins, Gia_ObjFaninId0(pObj, Obj));
        Vec_Int_t * vWin1 = Vec_WecEntry(vWins, Gia_ObjFaninId1(pObj, Obj));
        Vec_IntTwoFindCommon( vWin0, vWin1, vTemp );
        Vec_IntForEachEntry( vTemp, Cut, k )
        {
            Vec_IntPushUniqueOrder( vWin, Cut );
            Vec_IntPush( Vec_WecEntry(vCuts, Cut), Obj );
        }
    }
    Vec_WecFree( vWins );
    Vec_IntFree( vTemp );
}

Here is the caller graph for this function:

◆ Gia_ManDumpCuts()

void Gia_ManDumpCuts	(	Gia_Man_t *	p,
		int	nCutSize,
		int	nCutNum,
		int	fVerbose )

Function*************************************************************

Synopsis [Function enumeration.]

Description []

SideEffects []

SeeAlso []

Definition at line 1182 of file giaCut.c.

{
    FILE * pFile = fopen( "input.txt", "wb" ); if ( !pFile ) return;
    Gia_Sto_t * pSto = Gia_ManMatchCutsInt( p, nCutSize, nCutNum, 0 );
    Vec_Int_t * vLevel; int i, k, c, * pCut, nCuts = 0, nNodes = 0;
    Vec_WecForEachLevel( pSto->vCuts, vLevel, i ) if ( Vec_IntSize(vLevel) ) {
        if ( !Gia_ObjIsAnd(Gia_ManObj(p, i)) )
            continue;
        Sdb_ForEachCut( Vec_IntArray(vLevel), pCut, k ) {
            if ( pCut[0] == 1 )
                continue;
            fprintf( pFile, "%d ", i );
            for ( c = 1; c <= pCut[0]; c++ )
                fprintf( pFile, "%d ", pCut[c] );
            fprintf( pFile, "1\n" );
            nCuts += pCut[0];
            nNodes++;
        }
    }
    Gia_Obj_t * pObj;
    Gia_ManForEachCo( p, pObj, i ) {
        fprintf( pFile, "%d %d 0\n", Gia_ObjId(p, pObj), Gia_ObjFaninId0p(p, pObj) );
    }
    fclose( pFile );
    Gia_StoFree( pSto );
    if ( fVerbose )
        printf( "Dumped %d cuts for %d nodes into file \"input.txt\".\n", nCuts, nNodes );
}

Here is the call graph for this function:

◆ Gia_ManExploreCuts()

Vec_Wec_t * Gia_ManExploreCuts	(	Gia_Man_t *	pGia,
		int	nCutSize0,
		int	nCuts0,
		int	fVerbose0 )

Definition at line 971 of file giaCut.c.

{
    int nCutSize  =  nCutSize0;
    int nCutNum   =  64;
    int fCutMin   =  0;
    int fTruthMin =  0;
    int fVerbose  =  fVerbose0;
    Vec_Wec_t * vCutsSel;
    Gia_Sto_t * p = Gia_StoAlloc( pGia, nCutSize, nCutNum, fCutMin, fTruthMin, fVerbose );
    Gia_Obj_t * pObj;  int i, iObj;
    assert( nCutSize <= GIA_MAX_CUTSIZE );
    assert( nCutNum  <  GIA_MAX_CUTNUM  );
    // prepare references
    Gia_ManForEachObj( p->pGia, pObj, iObj )
        Gia_StoRefObj( p, iObj );
    // compute cuts
    Gia_StoComputeCutsConst0( p, 0 );
    Gia_ManForEachCiId( p->pGia, iObj, i )
        Gia_StoComputeCutsCi( p, iObj );
    Gia_ManForEachAnd( p->pGia, pObj, iObj )
        Gia_StoComputeCutsNode( p, iObj );
    if ( p->fVerbose )
    {
        printf( "Running cut computation with CutSize = %d  CutNum = %d  CutMin = %s  TruthMin = %s\n",
            p->nCutSize, p->nCutNum, p->fCutMin ? "yes":"no", p->fTruthMin ? "yes":"no" );
        printf( "CutPair = %.0f  ",         p->CutCount[0] );
        printf( "Merge = %.0f (%.2f %%)  ", p->CutCount[1], 100.0*p->CutCount[1]/p->CutCount[0] );
        printf( "Eval = %.0f (%.2f %%)  ",  p->CutCount[2], 100.0*p->CutCount[2]/p->CutCount[0] );
        printf( "Cut = %.0f (%.2f %%)  ",   p->CutCount[3], 100.0*p->CutCount[3]/p->CutCount[0] );
        printf( "Cut/Node = %.2f  ",        p->CutCount[3] / Gia_ManAndNum(p->pGia) );
        printf( "\n" );
        printf( "The number of nodes with cut count over the limit (%d cuts) = %d nodes (out of %d).  ",
            p->nCutNum, p->nCutsOver, Gia_ManAndNum(pGia) );
        Abc_PrintTime( 0, "Time", Abc_Clock() - p->clkStart );
    }
    vCutsSel = Gia_ManFilterCuts( pGia, p->vCuts, nCutSize0, nCuts0 );
    //Gia_ManConsiderCuts( pGia, vCutsSel );
    Gia_StoFree( p );
    return vCutsSel;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Gia_ManExploreCutsTest()

void Gia_ManExploreCutsTest	(	Gia_Man_t *	pGia,
		int	nCutSize0,
		int	nCuts0,
		int	fVerbose0 )

Definition at line 1011 of file giaCut.c.

{
    Vec_Wec_t * vCutSel = Gia_ManExploreCuts( pGia, nCutSize0, nCuts0, fVerbose0 );
    Vec_WecPrint( vCutSel, 0 );
    Vec_WecFree( vCutSel );
}

Here is the call graph for this function:

◆ Gia_ManExtractCuts()

Vec_Wec_t * Gia_ManExtractCuts	(	Gia_Man_t *	pGia,
		int	nCutSize0,
		int	nCuts0,
		int	fVerbose0 )

Definition at line 696 of file giaCut.c.

{
    int nCutSize  =  nCutSize0;
    int nCutNum   =  6;
    int fCutMin   =  0;
    int fTruthMin =  0;
    int fVerbose  =  fVerbose0;
    Vec_Wec_t * vCutsSel;
    Gia_Sto_t * p = Gia_StoAlloc( pGia, nCutSize, nCutNum, fCutMin, fTruthMin, fVerbose );
    Gia_Obj_t * pObj;  int i, iObj;
    assert( nCutSize <= GIA_MAX_CUTSIZE );
    assert( nCutNum  <  GIA_MAX_CUTNUM  );
    // prepare references
    Gia_ManForEachObj( p->pGia, pObj, iObj )
        Gia_StoRefObj( p, iObj );
    // compute cuts
    Gia_StoComputeCutsConst0( p, 0 );
    Gia_ManForEachCiId( p->pGia, iObj, i )
        Gia_StoComputeCutsCi( p, iObj );
    Gia_ManForEachAnd( p->pGia, pObj, iObj )
        Gia_StoComputeCutsNode( p, iObj );
    if ( p->fVerbose )
    {
        printf( "Running cut computation with CutSize = %d  CutNum = %d  CutMin = %s  TruthMin = %s\n",
            p->nCutSize, p->nCutNum, p->fCutMin ? "yes":"no", p->fTruthMin ? "yes":"no" );
        printf( "CutPair = %.0f  ",         p->CutCount[0] );
        printf( "Merge = %.0f (%.2f %%)  ", p->CutCount[1], 100.0*p->CutCount[1]/p->CutCount[0] );
        printf( "Eval = %.0f (%.2f %%)  ",  p->CutCount[2], 100.0*p->CutCount[2]/p->CutCount[0] );
        printf( "Cut = %.0f (%.2f %%)  ",   p->CutCount[3], 100.0*p->CutCount[3]/p->CutCount[0] );
        printf( "Cut/Node = %.2f  ",        p->CutCount[3] / Gia_ManAndNum(p->pGia) );
        printf( "\n" );
        printf( "The number of nodes with cut count over the limit (%d cuts) = %d nodes (out of %d).  ",
            p->nCutNum, p->nCutsOver, Gia_ManAndNum(pGia) );
        Abc_PrintTime( 0, "Time", Abc_Clock() - p->clkStart );
    }
    vCutsSel = Gia_ManSelectCuts( p->vCuts, nCuts0, nCutSize0-1 );
    Gia_StoFree( p );
    return vCutsSel;
}

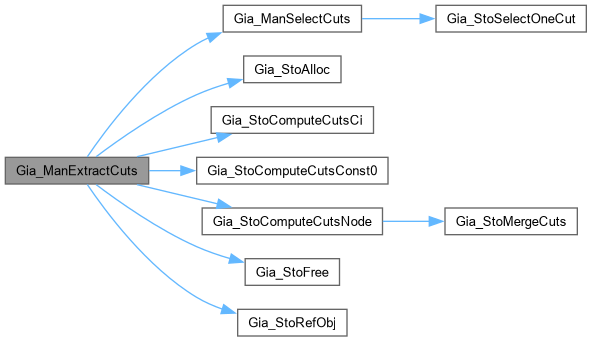

Here is the call graph for this function:

◆ Gia_ManExtractTest()

void Gia_ManExtractTest ( Gia_Man_t * pGia )

Definition at line 787 of file giaCut.c.

{
    extern Vec_Wec_t * Gia_ManExtractCuts2( Gia_Man_t * p, int nCutSize, int nCuts, int fVerbose );
    Vec_Wec_t * vCutsSel = Gia_ManExtractCuts2( pGia, 8, 10000, 1 );
    //Vec_Wec_t * vCutsSel = Gia_ManExtractCuts( pGia, 8, 10000, 1 );
    abctime clk = Abc_Clock();
    Gia_ManCreateWins( pGia, vCutsSel );
    //Gia_ManPrintWins( vCutsSel );
    Gia_ManPrintWinStats( vCutsSel );
    Vec_WecFree( vCutsSel );
    Abc_PrintTime( 0, "Creating windows", Abc_Clock() - clk );
}

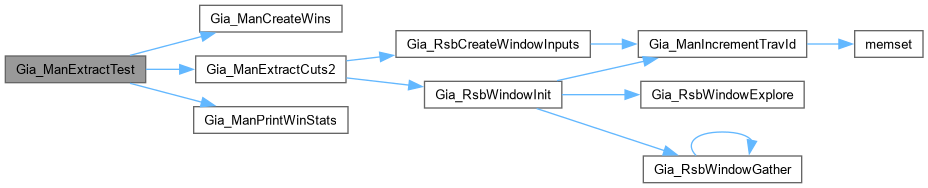

Here is the call graph for this function:

◆ Gia_ManFilterCuts()

Vec_Wec_t * Gia_ManFilterCuts	(	Gia_Man_t *	pGia,
		Vec_Wec_t *	vStore,
		int	nCutSize,
		int	nCuts )

Definition at line 827 of file giaCut.c.

{
    abctime clkStart = Abc_Clock();
    Vec_Wec_t * vCutsSel = Vec_WecAlloc( nCuts );
    Vec_Int_t * vLevel, * vCut = Vec_IntAlloc( 10 );
    Vec_Wec_t * vCuts = Vec_WecAlloc( 1000 );
    Hsh_VecMan_t * p = Hsh_VecManStart( 1000 ); int i, s;
    Vec_WecForEachLevel( vStore, vLevel, i ) if ( Vec_IntSize(vLevel) )
    {
        int v, k, * pCut, Value;
        Sdb_ForEachCut( Vec_IntArray(vLevel), pCut, k )
        {
            if ( pCut[0] < 2 )
                continue;

            for ( v = 1; v <= pCut[0]; v++ )
                if ( pCut[v] < 9 )
                    break;
            if ( v <= pCut[0] )
                continue;

            Vec_IntClear( vCut );
            Vec_IntPushArray( vCut, pCut+1, pCut[0] );
            Value = Hsh_VecManAdd( p, vCut );
            if ( Value == Vec_WecSize(vCuts) )
            {
                Vec_Int_t * vTemp = Vec_WecPushLevel(vCuts);
                Vec_IntPush( vTemp, 0 );
                Vec_IntAppend( vTemp, vCut );
            }
            Vec_IntAddToEntry( Vec_WecEntry(vCuts, Value), 0, 1 );
        }
    }
    printf( "Collected cuts = %d.\n", Vec_WecSize(vCuts) );
    for ( s = 3; s <= nCutSize; s++ )
        Vec_WecForEachLevel( vCuts, vLevel, i )
            if ( Vec_IntSize(vLevel) - 1 == s )
            {
                int * pCut = Vec_IntEntryP(vLevel, 1);
                int u, v, Value;
                for ( u = 0; u < s; u++ )
                {
                    Vec_IntClear( vCut );
                    for ( v = 0; v < s; v++ ) if ( v != u )
                        Vec_IntPush( vCut, pCut[v] );
                    assert( Vec_IntSize(vCut) == s-1 );
                    Value = Hsh_VecManAdd( p, vCut );
                    if ( Value < Vec_WecSize(vCuts) )
                        Vec_IntAddToEntry( vLevel, 0, Vec_IntEntry(Vec_WecEntry(vCuts, Value), 0) );
                }
            }
    Hsh_VecManStop( p );
    Vec_IntFree( vCut );
    // collect
    Vec_WecSortByFirstInt( vCuts, 1 );
    Vec_WecForEachLevelStop( vCuts, vLevel, i, Abc_MinInt(Vec_WecSize(vCuts), nCuts) )
        Vec_IntAppend( Vec_WecPushLevel(vCutsSel), vLevel );
    Abc_PrintTime( 0, "Cut filtering time", Abc_Clock() - clkStart );
    return vCutsSel;
}

Here is the caller graph for this function:

◆ Gia_ManFindSatDcs()

int Gia_ManFindSatDcs	(	Gia_Man_t *	pGia,
		Vec_Wrd_t *	vSims,
		Vec_Int_t *	vLevel )

Definition at line 902 of file giaCut.c.

{
    int nWords = Vec_WrdSize(pGia->vSimsPi) / Gia_ManCiNum(pGia);
    int i, w, iObj, Res = 0, Pres[256] = {0}, nMints = 1 << Vec_IntSize(vLevel);
    for ( w = 0; w < 64*nWords; w++ )
    {
        int iInMint = 0;
        Vec_IntForEachEntry( vLevel, iObj, i )
            if ( Abc_TtGetBit( Vec_WrdEntryP(vSims, iObj*nWords), w ) )
                iInMint |= 1 << i;
        Pres[iInMint]++;
    }
    for ( i = 0; i < nMints; i++ )
        Res += Pres[i] == 0;
    return Res;
}

Here is the caller graph for this function:

◆ Gia_ManGenSims()

Vec_Wrd_t * Gia_ManGenSims ( Gia_Man_t * pGia )

Definition at line 894 of file giaCut.c.

{
    Vec_Wrd_t * vSims;
    Vec_WrdFreeP( &pGia->vSimsPi );
    pGia->vSimsPi = Vec_WrdStartTruthTables( Gia_ManCiNum(pGia) );
    vSims  = Gia_ManSimPatSim( pGia );
    return vSims;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Gia_ManMatchCones()

void Gia_ManMatchCones	(	Gia_Man_t *	pBig,
		Gia_Man_t *	pSmall,
		int	nCutSize,
		int	nCutNum,
		int	nNumFuncs,
		int	nNumCones,
		int	fVerbose )

Definition at line 1297 of file giaCut.c.

{
    abctime clkStart  = Abc_Clock();
    extern void Dau_CanonicizeArray( Vec_Wrd_t * vFuncs, int nVars, int fVerbose );
    extern Vec_Mem_t * Dau_CollectNpnFunctionsArray( Vec_Wrd_t * vFuncs, int nVars, Vec_Int_t ** pvMap, int fVerbose );
    Vec_Wrd_t * vFuncs = Gia_ManCollectCutFuncs( pSmall, nCutSize, nCutNum, fVerbose );
    Vec_Wrd_t * vOrig = Vec_WrdDup( vFuncs );
    Dau_CanonicizeArray( vFuncs, nCutSize, fVerbose );
    Vec_Int_t * vMap = NULL; int n;
    Vec_Mem_t * vTtMem = Dau_CollectNpnFunctionsArray( vFuncs, nCutSize, &vMap, fVerbose );
    Vec_WrdFree( vFuncs );
    Vec_Int_t * vClassCounts = Gia_ManCountNpnClasses( vTtMem, vMap, Vec_IntEntryLast(vMap)+1, vOrig );
    Vec_Wrd_t * vBestReprs = Gia_ManMatchFilterClasses( vTtMem, vMap, vClassCounts, nNumFuncs, fVerbose );
    assert( Vec_WrdSize(vBestReprs) == nNumFuncs );
    Vec_IntFree( vClassCounts );
    printf( "Frequency profile for %d most popular classes in the small AIG:\n", nNumFuncs );
    Gia_ManMatchProfileFunctions( vBestReprs, vTtMem, vMap, vOrig, nCutSize );
    Vec_WrdFree( vOrig );
    Abc_Random( 1 );
    for ( n = 0; n < nNumCones; n++ ) {
        int nRand = Abc_Random( 0 ) % Gia_ManCoNum(pBig);
        Gia_Man_t * pCone = Gia_ManDupCones( pBig, &nRand, 1, 1 );
        Vec_Wrd_t * vCutFuncs = Gia_ManCollectCutFuncs( pCone, nCutSize, nCutNum, 0 );
        printf( "ITER %d: Considering output cone %d with %d and-nodes. ", n+1, nRand, Gia_ManAndNum(pCone) );
        printf( "Profiling %d functions of %d-cuts:\n", Vec_WrdSize(vCutFuncs), nCutSize );
        Gia_ManMatchProfileFunctions( vBestReprs, vTtMem, vMap, vCutFuncs, nCutSize );
        Vec_WrdFree( vCutFuncs );
        Gia_ManStop( pCone );
    }
    Vec_WrdFree( vBestReprs );
    Vec_IntFree( vMap );
    Vec_MemHashFree( vTtMem );
    Vec_MemFree( vTtMem );
    Abc_PrintTime( 1, "Total computation time", Abc_Clock() - clkStart );
}

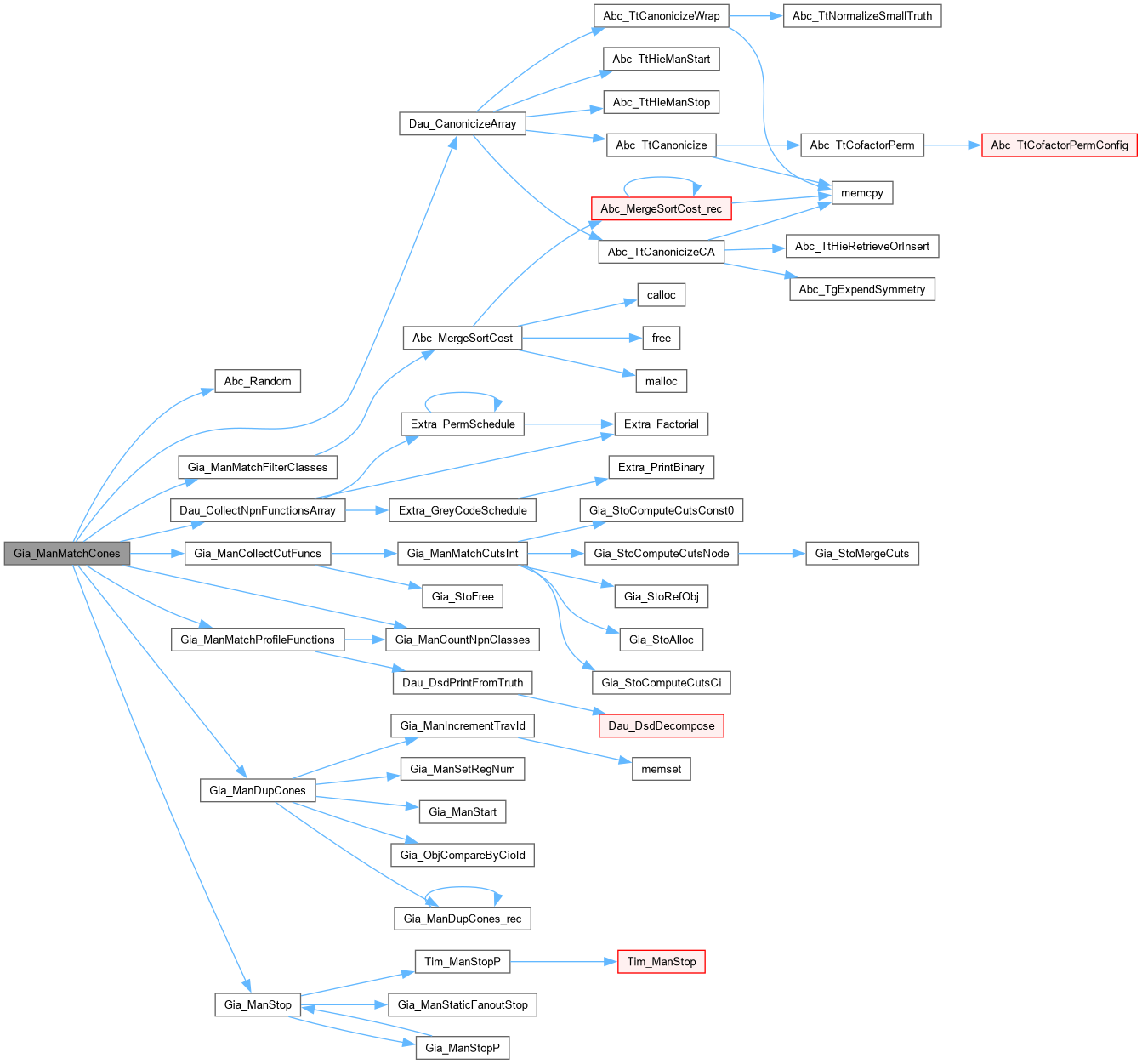

Here is the call graph for this function:

◆ Gia_ManMatchConesMinimizeTts()

int Gia_ManMatchConesMinimizeTts	(	Vec_Wrd_t *	vSims,
		int	nVarsMax )

Function*************************************************************

Synopsis [Function enumeration.]

Description []

SideEffects []

SeeAlso []

Definition at line 1344 of file giaCut.c.

{
    int nVars = 0;
    int nWordsMax = Abc_Truth6WordNum( nVarsMax ), nWords;
    int i, k = 0, nTruths = Vec_WrdSize(vSims) / nWordsMax;
    assert( nTruths * nWordsMax == Vec_WrdSize(vSims) );
    // support-minimize and find the largest supp size
    for ( i = 0; i < nTruths; i++ ) {
        word * pTruth = Vec_WrdEntryP( vSims, i * nWordsMax );
        int nVarsCur = Abc_TtMinBase( pTruth, NULL, nVarsMax, nVarsMax );
        nVars = Abc_MaxInt( nVars, nVarsCur );
    }
    // remap truth tables
    nWords = Abc_Truth6WordNum( nVars );
    for ( i = 0; i < nTruths; i++ ) {
        word * pTruth = Vec_WrdEntryP( vSims, i * nWordsMax );
        word * pTruth2 = Vec_WrdEntryP( vSims, k * nWords );
        if ( Abc_TtSupportSize(pTruth, nVars) < 3 )
            continue;
        memmove( pTruth2, pTruth, nWords * sizeof(word) );
        k++;
        if ( 0 ) {
            extern void Extra_PrintHexadecimal( FILE * pFile, unsigned Sign[], int nVars );
            printf( "Type%d : ", i );
            Extra_PrintHexadecimal( stdout, (unsigned *)pTruth2, nVars );
            printf( "\n" );
        }
    }
    Vec_WrdShrink ( vSims, k * nWords );
    return nVars;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Gia_ManMatchConesOutput()

void Gia_ManMatchConesOutput	(	Gia_Man_t *	pBig,
		Gia_Man_t *	pSmall,
		int	nCutNum,
		int	fVerbose )

Definition at line 1395 of file giaCut.c.

{
    abctime clkStart  = Abc_Clock();
    extern Vec_Mem_t * Dau_CollectNpnFunctionsArray( Vec_Wrd_t * vFuncs, int nVars, Vec_Int_t ** pvMap, int fVerbose );
    Vec_Wrd_t * vSimsPi = Vec_WrdStartTruthTables( Gia_ManCiNum(pSmall) );
    Vec_Wrd_t * vSims   = Gia_ManSimPatSimOut( pSmall, vSimsPi, 1 );
    int nVars = Gia_ManMatchConesMinimizeTts( vSims, Gia_ManCiNum(pSmall) );
    Vec_WrdFree( vSimsPi );
    if ( nVars > 10 ) {
        printf( "Some output functions have support size more than 10.\n" );
        Vec_WrdFree( vSims );
        return;
    }
    Vec_Int_t * vMap = NULL;
    Vec_Mem_t * vTtMem = Dau_CollectNpnFunctionsArray( vSims, nVars, &vMap, fVerbose );
    int nFuncs = Vec_WrdSize(vSims) / Abc_Truth6WordNum(nVars);
    assert( Vec_WrdSize(vSims) == nFuncs * Abc_Truth6WordNum(nVars) );
    Vec_WrdFree( vSims );
    printf( "Using %d output functions with the support size between 3 and %d.\n", nFuncs, nVars );
    Vec_Ptr_t * vRes = Gia_ManMatchCutsMany( vTtMem, vMap, nFuncs, pBig, nVars, nCutNum, fVerbose );
    Vec_MemHashFree( vTtMem );
    Vec_MemFree( vTtMem );
    Vec_IntFree( vMap );
    Gia_ManMatchConesOutputPrint( vRes, fVerbose );
    Gia_ManMatchConesOutputFree( vRes );
    Abc_PrintTime( 1, "Total computation time", Abc_Clock() - clkStart );
}

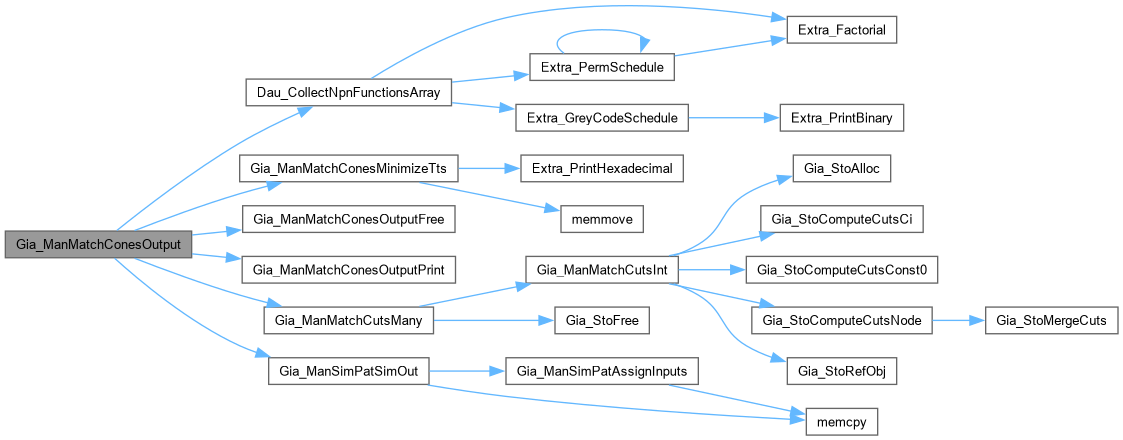

Here is the call graph for this function:

◆ Gia_ManMatchConesOutputFree()

void Gia_ManMatchConesOutputFree ( Vec_Ptr_t * p )

Definition at line 1388 of file giaCut.c.

{
    Vec_Wec_t * vCuts; int i;
    Vec_PtrForEachEntry( Vec_Wec_t *, p, vCuts, i )
        Vec_WecFree( vCuts );
    Vec_PtrFree( p );
}

Here is the caller graph for this function:

◆ Gia_ManMatchConesOutputPrint()

void Gia_ManMatchConesOutputPrint	(	Vec_Ptr_t *	p,
		int	fVerbose )

Definition at line 1375 of file giaCut.c.

{
    Vec_Wec_t * vCuts; int i;
    printf( "Nodes with matching cuts:\n" );
    Vec_PtrForEachEntry( Vec_Wec_t *, p, vCuts, i ) {
        if ( fVerbose ) {
            printf( "Type %d:\n", i );
            Vec_WecPrint( vCuts, 0 );
        }
        else
            printf( "Type %d present in %d cuts\n", i, Vec_WecSize(vCuts) );
    }
}

Here is the caller graph for this function:

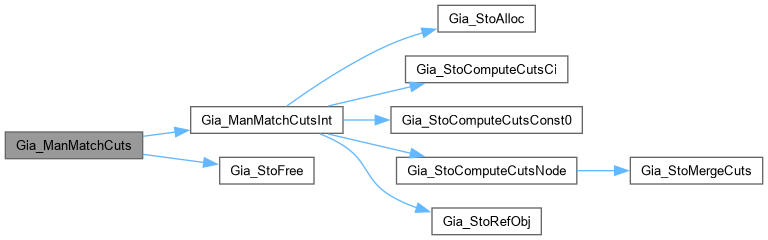

◆ Gia_ManMatchCuts()

void Gia_ManMatchCuts	(	Vec_Mem_t *	vTtMem,
		Gia_Man_t *	pGia,
		int	nCutSize,
		int	nCutNum,
		int	fVerbose )

Definition at line 1066 of file giaCut.c.

{
    Gia_Sto_t * p = Gia_ManMatchCutsInt( pGia, nCutSize, nCutNum, fVerbose );
    Vec_Int_t * vLevel; int i, j, k, * pCut;
    Vec_Int_t * vNodes = Vec_IntAlloc( 100 );
    Vec_Wec_t * vCuts = Vec_WecAlloc( 100 );
    abctime clkStart  = Abc_Clock();
    assert( Abc_Truth6WordNum(nCutSize) == Vec_MemEntrySize(vTtMem) );
    Vec_WecForEachLevel( p->vCuts, vLevel, i ) if ( Vec_IntSize(vLevel) )
    {
        Sdb_ForEachCut( Vec_IntArray(vLevel), pCut, k ) if ( pCut[0] > 1 )
        {
            word * pTruth = Vec_MemReadEntry( p->vTtMem, Abc_Lit2Var(pCut[pCut[0]+1]) );
            int * pSpot = Vec_MemHashLookup( vTtMem, pTruth );
            if ( *pSpot == -1 )
                continue;
            Vec_IntPush( vNodes, i );
            vLevel = Vec_WecPushLevel( vCuts );
            Vec_IntPush( vLevel, i );
            for ( j = 1; j <= pCut[0]; j++ )
                Vec_IntPush( vLevel, pCut[j] );
            break;
        }
    }
    printf( "Nodes with matching cuts: " );
    Vec_IntPrint( vNodes );
    if ( Vec_WecSize(vCuts) > 32 )
        Vec_WecShrink(vCuts, 32);
    Vec_WecPrint( vCuts, 0 );
    Vec_WecFree( vCuts );
    Vec_IntFree( vNodes );
    Gia_StoFree( p );
    if ( fVerbose )
        Abc_PrintTime( 1, "Cut matching time", Abc_Clock() - clkStart );
}

Here is the call graph for this function:

◆ Gia_ManMatchCutsArray()

Vec_Ptr_t * Gia_ManMatchCutsArray	(	Vec_Ptr_t *	vTtMems,
		Gia_Man_t *	pGia,
		int	nCutSize,
		int	nCutNum,
		int	fVerbose )

Definition at line 1101 of file giaCut.c.

{
    Vec_Ptr_t * vRes = Vec_PtrAlloc( Vec_PtrSize(vTtMems) );
    Gia_Sto_t * p = Gia_ManMatchCutsInt( pGia, nCutSize, nCutNum, fVerbose );
    Vec_Int_t * vLevel, * vTemp; int i, k, c, * pCut;
    abctime clkStart  = Abc_Clock();
    for ( i = 0; i < Vec_PtrSize(vTtMems); i++ )
        Vec_PtrPush( vRes, Vec_WecAlloc(100) );
    Vec_WecForEachLevel( p->vCuts, vLevel, i ) if ( Vec_IntSize(vLevel) )
    {
        Sdb_ForEachCut( Vec_IntArray(vLevel), pCut, k ) if ( pCut[0] > 1 )
        {
            Vec_Mem_t * vTtMem; int m;
            Vec_PtrForEachEntry( Vec_Mem_t *, vTtMems, vTtMem, m )
            {
                word * pTruth = Vec_MemReadEntry( p->vTtMem, Abc_Lit2Var(pCut[pCut[0]+1]) );
                int * pSpot = Vec_MemHashLookup( vTtMem, pTruth );
                if ( *pSpot == -1 )
                    continue;
                vTemp = Vec_WecPushLevel( (Vec_Wec_t *)Vec_PtrEntry(vRes, m) );
                Vec_IntPush( vTemp, i );
                for ( c = 1; c <= pCut[0]; c++ )
                    Vec_IntPush( vTemp, pCut[c] );
            }
        }
    }
    Gia_StoFree( p );
    if ( fVerbose ) {
        Vec_Wec_t * vCuts;
        printf( "Detected nodes by type:  " );
        Vec_PtrForEachEntry( Vec_Wec_t *, vRes, vCuts, i )
            printf( "Type%d = %d  ", i, Vec_WecSize(vCuts) );
        Abc_PrintTime( 1, "Cut matching time", Abc_Clock() - clkStart );
    }
    return vRes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Gia_ManMatchCutsInt()

Gia_Sto_t * Gia_ManMatchCutsInt	(	Gia_Man_t *	pGia,
		int	nCutSize0,
		int	nCutNum0,
		int	fVerbose0 )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 1030 of file giaCut.c.

{
    int nCutSize  =  nCutSize0;
    int nCutNum   =  nCutNum0;
    int fCutMin   =  1;
    int fTruthMin =  1;
    int fVerbose  =  fVerbose0;
    Gia_Sto_t * p = Gia_StoAlloc( pGia, nCutSize, nCutNum, fCutMin, fTruthMin, fVerbose );
    Gia_Obj_t * pObj;  int i, iObj;
    assert( nCutSize <= GIA_MAX_CUTSIZE );
    assert( nCutNum  <  GIA_MAX_CUTNUM  );
    // prepare references
    Gia_ManForEachObj( p->pGia, pObj, iObj )
        Gia_StoRefObj( p, iObj );
    // compute cuts
    Gia_StoComputeCutsConst0( p, 0 );
    Gia_ManForEachCiId( p->pGia, iObj, i )
        Gia_StoComputeCutsCi( p, iObj );
    Gia_ManForEachAnd( p->pGia, pObj, iObj )
        Gia_StoComputeCutsNode( p, iObj );
    if ( p->fVerbose )
    {
        printf( "Running cut computation with CutSize = %d  CutNum = %d  CutMin = %s  TruthMin = %s\n",
            p->nCutSize, p->nCutNum, p->fCutMin ? "yes":"no", p->fTruthMin ? "yes":"no" );
        printf( "CutPair = %.0f  ",         p->CutCount[0] );
        printf( "Merge = %.0f (%.2f %%)  ", p->CutCount[1], 100.0*p->CutCount[1]/p->CutCount[0] );
        printf( "Eval = %.0f (%.2f %%)  ",  p->CutCount[2], 100.0*p->CutCount[2]/p->CutCount[0] );
        printf( "Cut = %.0f (%.2f %%)  ",   p->CutCount[3], 100.0*p->CutCount[3]/p->CutCount[0] );
        printf( "Cut/Node = %.2f  ",        p->CutCount[3] / Gia_ManAndNum(p->pGia) );
        printf( "\n" );
        printf( "The number of nodes with cut count over the limit (%d cuts) = %d nodes (out of %d).  ",
            p->nCutNum, p->nCutsOver, Gia_ManAndNum(pGia) );
        Abc_PrintTime( 0, "Time", Abc_Clock() - p->clkStart );
    }
    return p;
}

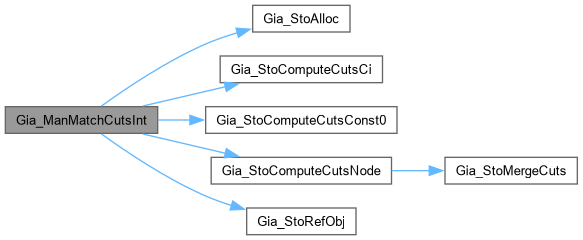

Here is the call graph for this function:

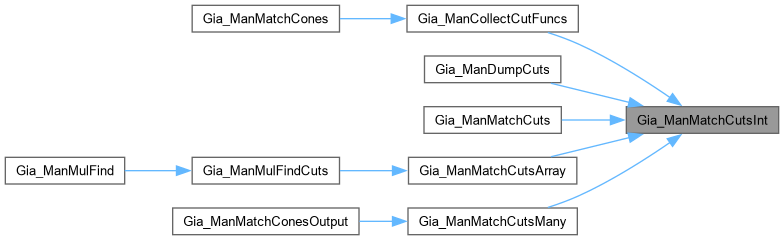

Here is the caller graph for this function:

◆ Gia_ManMatchCutsMany()

Vec_Ptr_t * Gia_ManMatchCutsMany	(	Vec_Mem_t *	vTtMem,
		Vec_Int_t *	vMap,
		int	nFuncs,
		Gia_Man_t *	pGia,
		int	nCutSize,
		int	nCutNum,
		int	fVerbose )

Definition at line 1137 of file giaCut.c.

{
    Gia_Sto_t * p = Gia_ManMatchCutsInt( pGia, nCutSize, nCutNum, fVerbose );
    Vec_Int_t * vLevel; int i, j, k, * pCut;
    abctime clkStart  = Abc_Clock();
    assert( Abc_Truth6WordNum(nCutSize) == Vec_MemEntrySize(vTtMem) );
    Vec_Ptr_t * vRes = Vec_PtrAlloc( nFuncs );
    for ( i = 0; i < nFuncs; i++ )
        Vec_PtrPush( vRes, Vec_WecAlloc(10) );
    Vec_WecForEachLevel( p->vCuts, vLevel, i ) if ( Vec_IntSize(vLevel) )
    {
        Sdb_ForEachCut( Vec_IntArray(vLevel), pCut, k ) if ( pCut[0] > 1 )
        {
            word * pTruth = Vec_MemReadEntry( p->vTtMem, Abc_Lit2Var(pCut[pCut[0]+1]) );
            assert( (pTruth[0] & 1) == 0 );
            int * pSpot = Vec_MemHashLookup( vTtMem, pTruth );
            if ( *pSpot == -1 )
                continue;
            int iFunc = vMap ? Vec_IntEntry( vMap, *pSpot ) : 0;
            assert( iFunc < nFuncs );
            Vec_Wec_t * vCuts = (Vec_Wec_t *)Vec_PtrEntry( vRes, iFunc );
            vLevel = Vec_WecPushLevel( vCuts );
            Vec_IntPush( vLevel, i );
            for ( j = 1; j <= pCut[0]; j++ )
                Vec_IntPush( vLevel, pCut[j] );
            break;
        }
    }
    Gia_StoFree( p );
    if ( fVerbose )
        Abc_PrintTime( 1, "Cut matching time", Abc_Clock() - clkStart );
    return vRes;
}

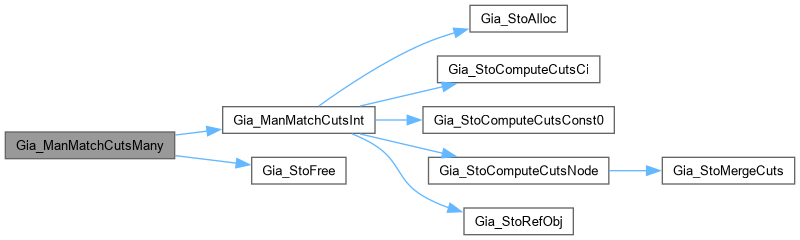

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Gia_ManMatchFilterClasses()

Vec_Wrd_t * Gia_ManMatchFilterClasses	(	Vec_Mem_t *	vTtMem,
		Vec_Int_t *	vMap,
		Vec_Int_t *	vClassCounts,
		int	nNumFuncs,
		int	fVerbose )

Definition at line 1252 of file giaCut.c.

{
    int * pPerm = Abc_MergeSortCost( Vec_IntArray(vClassCounts), Vec_IntSize(vClassCounts) );
    Vec_Wrd_t * vBest = Vec_WrdAlloc( nNumFuncs );  int i, k, Entry;
    Vec_Int_t * vMapNew = Vec_IntStartFull( Vec_IntSize(vMap) );
    for ( i = Vec_IntSize(vClassCounts)-1; i >= 0; i-- ) {
        word Best = ~(word)0;
        Vec_IntForEachEntry( vMap, Entry, k ) {
            if ( Entry != pPerm[i] )
                continue;
            if ( Best > Vec_MemReadEntry(vTtMem, k)[0] )
                 Best = Vec_MemReadEntry(vTtMem, k)[0];
            Vec_IntWriteEntry( vMapNew, k, Vec_WrdSize(vBest) );
        }
        Vec_WrdPush( vBest, Best );
        assert( ~Best );
        if ( Vec_WrdSize(vBest) == nNumFuncs )
            break;
    }
    ABC_SWAP( Vec_Int_t, *vMap, *vMapNew );
    Vec_IntFree( vMapNew );
    ABC_FREE( pPerm );
    if ( fVerbose )
        printf( "Isolated %d (out of %d) most frequently occuring classes.\n", Vec_WrdSize(vBest), Vec_IntSize(vClassCounts) );
    return vBest;
}

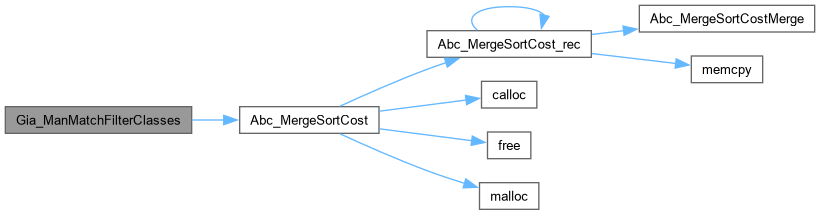

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Gia_ManMatchProfileFunctions()

void Gia_ManMatchProfileFunctions	(	Vec_Wrd_t *	vBestReprs,
		Vec_Mem_t *	vTtMem,
		Vec_Int_t *	vMap,
		Vec_Wrd_t *	vFuncs,
		int	nCutSize )

Definition at line 1278 of file giaCut.c.

{
    int BarSize = 60;
    extern void Dau_DsdPrintFromTruth( word * pTruth, int nVarsInit );
    Vec_Int_t * vCounts = Gia_ManCountNpnClasses( vTtMem, vMap, Vec_WrdSize(vBestReprs), vFuncs );
    word Repr; int c, i, MaxCount = Vec_IntFindMax( vCounts );
    Vec_WrdForEachEntry( vBestReprs, Repr, c )
    {
        int nSymb = BarSize*Vec_IntEntry(vCounts, c)/Abc_MaxInt(MaxCount, 1);
        printf( "Class%4d : ", c );
        printf( "Count =%6d   ", Vec_IntEntry(vCounts, c) );
        for ( i = 0; i < nSymb; i++ )
            printf( "*" );
        for ( i = nSymb; i < BarSize+3; i++ )
            printf( " " );
        Dau_DsdPrintFromTruth( &Repr, nCutSize );
    }
    Vec_IntFree( vCounts );
}

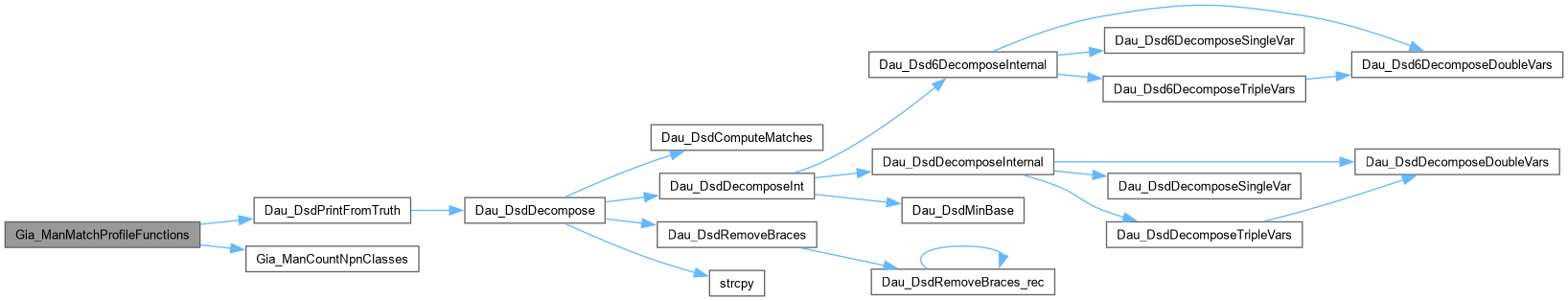

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Gia_ManPrintWins()

void Gia_ManPrintWins ( Vec_Wec_t * vCuts )

Definition at line 759 of file giaCut.c.

{
    Vec_Int_t * vCut; int i, k, Obj;
    Vec_WecForEachLevel( vCuts, vCut, i )
    {
        int nInputs = Vec_IntEntry(vCut, 0);
        printf( "Cut %5d : ", i );
        printf( "Supp = %d  ", nInputs );
        printf( "Nodes = %d  ", Vec_IntSize(vCut) - 1 - nInputs );
        Vec_IntForEachEntryStartStop( vCut, Obj, k, 1, nInputs+1 )
            printf( "%d ", Obj );
        printf( "  " );
        Vec_IntForEachEntryStart( vCut, Obj, k, nInputs+1 )
            printf( "%d ", Obj );
        printf( "\n" );
    }
}

◆ Gia_ManPrintWinStats()

void Gia_ManPrintWinStats ( Vec_Wec_t * vCuts )

Definition at line 776 of file giaCut.c.

{
    Vec_Int_t * vCut; int i, nInputs = 0, nNodes = 0;
    Vec_WecForEachLevel( vCuts, vCut, i )
    {
        nInputs += Vec_IntEntry(vCut, 0);
        nNodes += Vec_IntSize(vCut) - 1 - Vec_IntEntry(vCut, 0);
    }
    printf( "Computed %d windows with average support %.3f and average volume %.3f.\n",
        Vec_WecSize(vCuts), 1.0*nInputs/Vec_WecSize(vCuts), 1.0*nNodes/Vec_WecSize(vCuts) );
}

Here is the caller graph for this function:

◆ Gia_ManSelectCuts()

Vec_Wec_t * Gia_ManSelectCuts	(	Vec_Wec_t *	vCuts,
		int	nCuts,
		int	nCutSizeMin )

Definition at line 688 of file giaCut.c.

{
    Vec_Wec_t * vCutsSel = Vec_WecStart( nCuts );
    int i; srand( time(NULL) );
    for ( i = 0; i < nCuts; i++ )
        while ( !Gia_StoSelectOneCut(vCuts, (rand() | (rand() << 15)) % Vec_WecSize(vCuts), Vec_WecEntry(vCutsSel, i), nCutSizeMin) );
    return vCutsSel;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Gia_StoAlloc()

Gia_Sto_t * Gia_StoAlloc	(	Gia_Man_t *	pGia,
		int	nCutSize,
		int	nCutNum,
		int	fCutMin,
		int	fTruthMin,
		int	fVerbose )

Function*************************************************************

Synopsis [Incremental cut computation.]

Description []

SideEffects []

SeeAlso []

Definition at line 568 of file giaCut.c.

{
    Gia_Sto_t * p;
    assert( nCutSize < GIA_CUT_NO_LEAF );
    assert( nCutSize > 1 && nCutSize <= GIA_MAX_CUTSIZE );
    assert( nCutNum > 1 && nCutNum < GIA_MAX_CUTNUM );
    p = ABC_CALLOC( Gia_Sto_t, 1 );
    p->clkStart  = Abc_Clock();
    p->nCutSize  = nCutSize;
    p->nCutNum   = nCutNum;
    p->fCutMin   = fCutMin;
    p->fTruthMin = fTruthMin;
    p->fVerbose  = fVerbose;
    p->pGia      = pGia;
    p->vRefs     = Vec_IntAlloc( Gia_ManObjNum(pGia) );
    p->vCuts     = Vec_WecStart( Gia_ManObjNum(pGia) );
    p->vTtMem    = fCutMin ? Vec_MemAllocForTT( nCutSize, 0 ) : NULL;
    return p;
}

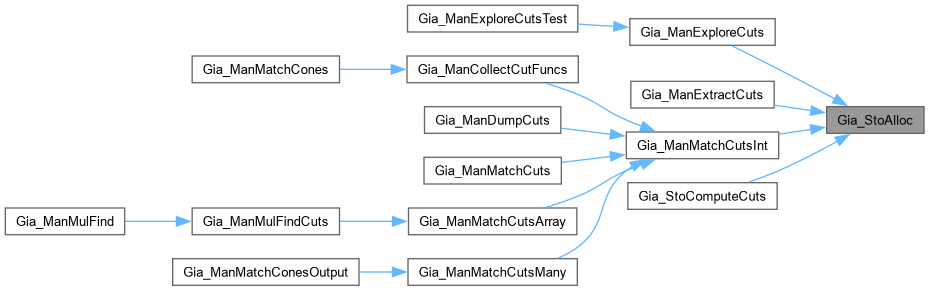

Here is the caller graph for this function:

◆ Gia_StoComputeCuts()

void Gia_StoComputeCuts ( Gia_Man_t * pGia )

Definition at line 622 of file giaCut.c.

{
    int nCutSize  =  8;
    int nCutNum   =  6;
    int fCutMin   =  0;
    int fTruthMin =  0;
    int fVerbose  =  1;
    Gia_Sto_t * p = Gia_StoAlloc( pGia, nCutSize, nCutNum, fCutMin, fTruthMin, fVerbose );
    Gia_Obj_t * pObj;  int i, iObj;
    assert( nCutSize <= GIA_MAX_CUTSIZE );
    assert( nCutNum  <  GIA_MAX_CUTNUM  );
    // prepare references
    Gia_ManForEachObj( p->pGia, pObj, iObj )
        Gia_StoRefObj( p, iObj );
    // compute cuts
    Gia_StoComputeCutsConst0( p, 0 );
    Gia_ManForEachCiId( p->pGia, iObj, i )
        Gia_StoComputeCutsCi( p, iObj );
    Gia_ManForEachAnd( p->pGia, pObj, iObj )
        Gia_StoComputeCutsNode( p, iObj );
    if ( p->fVerbose )
    {
        printf( "Running cut computation with CutSize = %d  CutNum = %d  CutMin = %s  TruthMin = %s\n",
            p->nCutSize, p->nCutNum, p->fCutMin ? "yes":"no", p->fTruthMin ? "yes":"no" );
        printf( "CutPair = %.0f  ",         p->CutCount[0] );
        printf( "Merge = %.0f (%.2f %%)  ", p->CutCount[1], 100.0*p->CutCount[1]/p->CutCount[0] );
        printf( "Eval = %.0f (%.2f %%)  ",  p->CutCount[2], 100.0*p->CutCount[2]/p->CutCount[0] );
        printf( "Cut = %.0f (%.2f %%)  ",   p->CutCount[3], 100.0*p->CutCount[3]/p->CutCount[0] );
        printf( "Cut/Node = %.2f  ",        p->CutCount[3] / Gia_ManAndNum(p->pGia) );
        printf( "\n" );
        printf( "The number of nodes with cut count over the limit (%d cuts) = %d nodes (out of %d).  ",
            p->nCutNum, p->nCutsOver, Gia_ManAndNum(pGia) );
        Abc_PrintTime( 0, "Time", Abc_Clock() - p->clkStart );
    }
    Gia_StoFree( p );
}

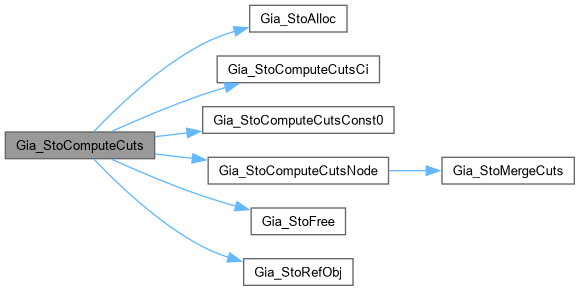

Here is the call graph for this function:

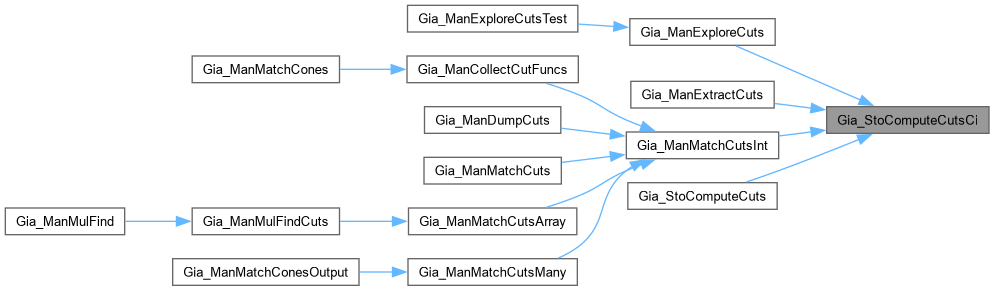

◆ Gia_StoComputeCutsCi()

void Gia_StoComputeCutsCi	(	Gia_Sto_t *	p,
		int	iObj )

Definition at line 601 of file giaCut.c.

{
    Gia_CutAddUnit( p, iObj );
}

Here is the caller graph for this function:

◆ Gia_StoComputeCutsConst0()

void Gia_StoComputeCutsConst0	(	Gia_Sto_t *	p,
		int	iObj )

Definition at line 597 of file giaCut.c.

{
    Gia_CutAddZero( p, iObj );
}

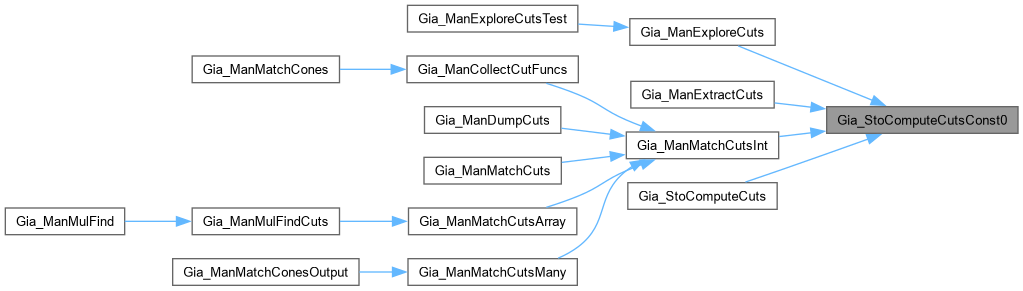

Here is the caller graph for this function:

◆ Gia_StoComputeCutsNode()

void Gia_StoComputeCutsNode	(	Gia_Sto_t *	p,
		int	iObj )

Definition at line 605 of file giaCut.c.

{
    Gia_StoMergeCuts( p, iObj );
}

Here is the call graph for this function:

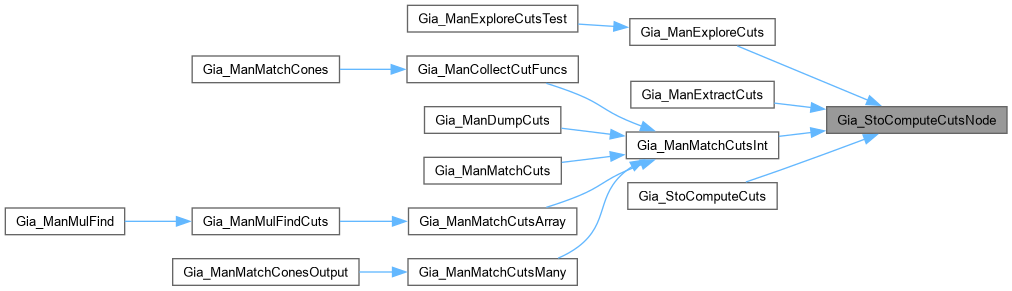

Here is the caller graph for this function:

◆ Gia_StoCutPrint()

void Gia_StoCutPrint ( int * pCut )

Function*************************************************************

Synopsis [Extract a given number of cuts.]

Description []

SideEffects []

SeeAlso []

Definition at line 811 of file giaCut.c.

{
    int v;
    printf( "{" );
    for ( v = 1; v <= pCut[0]; v++ )
        printf( " %d", pCut[v] );
    printf( " }\n" );
}

Here is the caller graph for this function:

◆ Gia_StoFree()

void Gia_StoFree ( Gia_Sto_t * p )

Definition at line 587 of file giaCut.c.

{
    Vec_IntFree( p->vRefs );
    Vec_WecFree( p->vCuts );
    if ( p->fCutMin )
        Vec_MemHashFree( p->vTtMem );
    if ( p->fCutMin )
        Vec_MemFree( p->vTtMem );
    ABC_FREE( p );
}

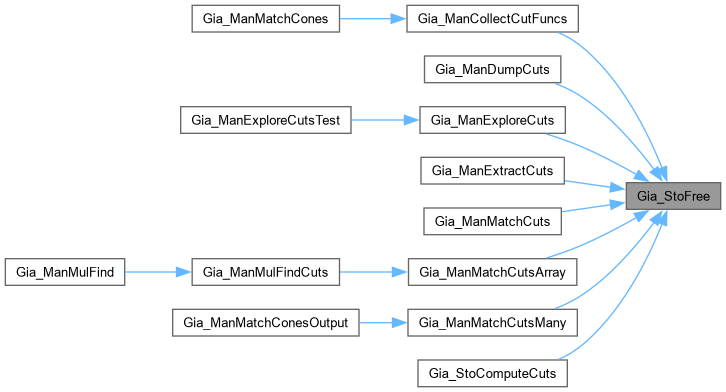

Here is the caller graph for this function:

◆ Gia_StoMergeCuts()

void Gia_StoMergeCuts	(	Gia_Sto_t *	p,
		int	iObj )

Definition at line 500 of file giaCut.c.

{
    Gia_Obj_t * pObj = Gia_ManObj(p->pGia, iObj);
    int fIsXor       = Gia_ObjIsXor(pObj);
    int nCutSize     = p->nCutSize;
    int nCutNum      = p->nCutNum;
    int fComp0       = Gia_ObjFaninC0(pObj);
    int fComp1       = Gia_ObjFaninC1(pObj);
    int Fan0         = Gia_ObjFaninId0(pObj, iObj);
    int Fan1         = Gia_ObjFaninId1(pObj, iObj);
    int nCuts0       = Gia_StoPrepareSet( p, Fan0, 0 );
    int nCuts1       = Gia_StoPrepareSet( p, Fan1, 1 );
    int i, k, nCutsR = 0;
    Gia_Cut_t * pCut0, * pCut1, ** pCutsR = p->ppCuts;
    assert( !Gia_ObjIsBuf(pObj) );
    assert( !Gia_ObjIsMux(p->pGia, pObj) );
    Gia_StoInitResult( p );
    p->CutCount[0] += nCuts0 * nCuts1;
    for ( i = 0, pCut0 = p->pCuts[0]; i < nCuts0; i++, pCut0++ )
    for ( k = 0, pCut1 = p->pCuts[1]; k < nCuts1; k++, pCut1++ )
    {
        if ( (int)(pCut0->nLeaves + pCut1->nLeaves) > nCutSize && Gia_CutCountBits(pCut0->Sign | pCut1->Sign) > nCutSize )
            continue;
        p->CutCount[1]++;
        if ( !Gia_CutMergeOrder(pCut0, pCut1, pCutsR[nCutsR], nCutSize) )
            continue;
        if ( Gia_CutSetLastCutIsContained(pCutsR, nCutsR) )
            continue;
        p->CutCount[2]++;
        if ( p->fCutMin && Gia_CutComputeTruth(p, pCut0, pCut1, fComp0, fComp1, pCutsR[nCutsR], fIsXor) )
            pCutsR[nCutsR]->Sign = Gia_CutGetSign(pCutsR[nCutsR]);
        pCutsR[nCutsR]->nTreeLeaves = Gia_CutTreeLeaves( p, pCutsR[nCutsR] );
        pCutsR[nCutsR]->CostF = Gia_CutGetCost( p, pCutsR[nCutsR] );
        nCutsR = Gia_CutSetAddCut( pCutsR, nCutsR, nCutNum );
    }
    p->CutCount[3] += nCutsR;
    p->nCutsOver += nCutsR == nCutNum-1;
    p->nCutsR = nCutsR;
    p->Pivot = iObj;
    // debug printout
    if ( 0 )
    {
        printf( "*** Obj = %4d  NumCuts = %4d\n", iObj, nCutsR );
        for ( i = 0; i < nCutsR; i++ )
            Gia_CutPrint( p, iObj, pCutsR[i] );
        printf( "\n" );
    }
    // verify
    assert( nCutsR > 0 && nCutsR < nCutNum );
    assert( Gia_CutSetCheckArray(pCutsR, nCutsR) );
    // store the cutset
    Gia_StoStoreResult( p, iObj, pCutsR, nCutsR );
    if ( nCutsR > 1 || pCutsR[0]->nLeaves > 1 )
        Gia_CutAddUnit( p, iObj );
}

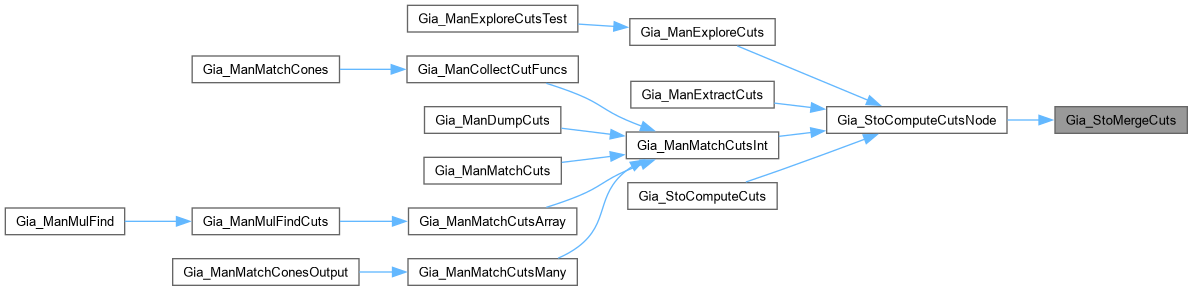

Here is the caller graph for this function:

◆ Gia_StoPrintCuts()

void Gia_StoPrintCuts	(	Vec_Int_t *	vThis,
		int	iObj,
		int	nCutSize )

Definition at line 819 of file giaCut.c.

{
    int i, * pCut;
    printf( "Cuts of node %d (size = %d):\n", iObj, nCutSize );
    Sdb_ForEachCut( Vec_IntArray(vThis), pCut, i )
        if ( !nCutSize || pCut[0] == nCutSize )
            Gia_StoCutPrint( pCut );
}

Here is the call graph for this function:

◆ Gia_StoRefObj()

void Gia_StoRefObj	(	Gia_Sto_t *	p,
		int	iObj )

Definition at line 609 of file giaCut.c.

{
    Gia_Obj_t * pObj = Gia_ManObj(p->pGia, iObj);
    assert( iObj == Vec_IntSize(p->vRefs) );
    Vec_IntPush( p->vRefs, 0 );
    if ( Gia_ObjIsAnd(pObj) )
    {
        Vec_IntAddToEntry( p->vRefs, Gia_ObjFaninId0(pObj, iObj), 1 );
        Vec_IntAddToEntry( p->vRefs, Gia_ObjFaninId1(pObj, iObj), 1 );
    }
    else if ( Gia_ObjIsCo(pObj) )
        Vec_IntAddToEntry( p->vRefs, Gia_ObjFaninId0(pObj, iObj), 1 );
}

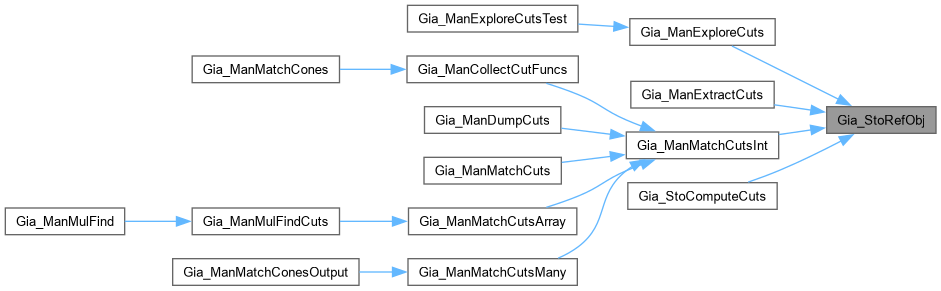

Here is the caller graph for this function:

◆ Gia_StoSelectOneCut()

int Gia_StoSelectOneCut	(	Vec_Wec_t *	vCuts,
		int	iObj,
		Vec_Int_t *	vCut,
		int	nCutSizeMin )

Function*************************************************************

Synopsis [Extract a given number of cuts.]

Description []

SideEffects []

SeeAlso []

Definition at line 671 of file giaCut.c.

{
    Vec_Int_t * vThis = Vec_WecEntry( vCuts, iObj );
    int i, v, * pCut, * pList = Vec_IntArray( vThis );
    if ( pList == NULL )
        return 0;
    Vec_IntClear( vCut );
    Sdb_ForEachCut( pList, pCut, i )
    {
        if ( pCut[0] < nCutSizeMin )
            continue;
        for ( v = 0; v <= pCut[0]; v++ )
            Vec_IntPush( vCut, pCut[v] );
        return 1;
    }
    return 0;
}

Here is the caller graph for this function:

Classes

Macros

Typedefs

Functions

Macro Definition Documentation

◆ GIA_CUT_NO_LEAF

◆ GIA_MAX_CUTNUM

◆ GIA_MAX_CUTSIZE

◆ GIA_MAX_TT_WORDS

◆ Sdb_ForEachCut

Typedef Documentation

◆ Gia_Cut_t

◆ Gia_Sto_t

Function Documentation

◆ Gia_ManCollectCutDivs()

◆ Gia_ManCollectCutFuncs()

◆ Gia_ManConsiderCuts()

◆ Gia_ManCountNpnClasses()

◆ Gia_ManCountRefs()

◆ Gia_ManCreateWins()

◆ Gia_ManDumpCuts()

◆ Gia_ManExploreCuts()

◆ Gia_ManExploreCutsTest()

◆ Gia_ManExtractCuts()

◆ Gia_ManExtractTest()

◆ Gia_ManFilterCuts()

◆ Gia_ManFindSatDcs()

◆ Gia_ManGenSims()

◆ Gia_ManMatchCones()

◆ Gia_ManMatchConesMinimizeTts()

◆ Gia_ManMatchConesOutput()

◆ Gia_ManMatchConesOutputFree()

◆ Gia_ManMatchConesOutputPrint()

◆ Gia_ManMatchCuts()

◆ Gia_ManMatchCutsArray()

◆ Gia_ManMatchCutsInt()

◆ Gia_ManMatchCutsMany()

◆ Gia_ManMatchFilterClasses()

◆ Gia_ManMatchProfileFunctions()

◆ Gia_ManPrintWins()

◆ Gia_ManPrintWinStats()

◆ Gia_ManSelectCuts()

◆ Gia_StoAlloc()

◆ Gia_StoComputeCuts()

◆ Gia_StoComputeCutsCi()

◆ Gia_StoComputeCutsConst0()

◆ Gia_StoComputeCutsNode()

◆ Gia_StoCutPrint()

◆ Gia_StoFree()

◆ Gia_StoMergeCuts()

◆ Gia_StoPrintCuts()

◆ Gia_StoRefObj()

◆ Gia_StoSelectOneCut()
