giaMulFind.c File Reference

#include "gia.h"

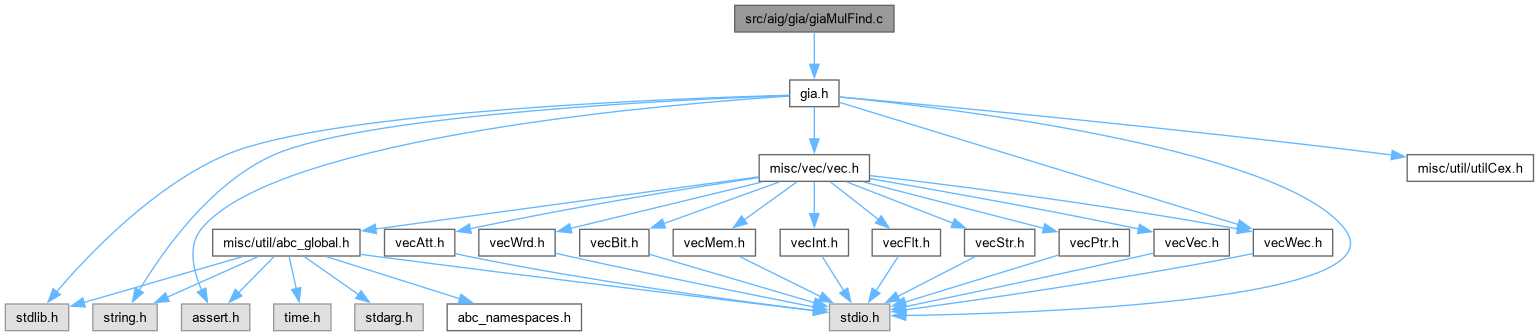

Include dependency graph for giaMulFind.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Gia_ManMulFindXors2_rec (Gia_Man_t *p, Gia_Obj_t *pObj, Vec_Int_t *vXor)
	DECLARATIONS ///.
Vec_Wec_t *	Gia_ManMulFindXors2 (Gia_Man_t *p)
int	Gia_ManMulFindMaxSize (Vec_Wec_t *vXors, Vec_Int_t *vUsed)
int	Gia_ManMulFindGetOverlap (Vec_Int_t *p1, Vec_Int_t *p2)
int	Gia_ManMulFindGetOverlap2 (Vec_Int_t *p1, Vec_Int_t *p2)
int	Gia_ManMulFindMaxOverlap (Vec_Wec_t *vXors, Vec_Int_t *vUsed, Vec_Int_t *vFound)
Vec_Wec_t *	Gia_ManMulFindSets (Gia_Man_t *p, Vec_Wec_t *vXors)
int	Gia_ManMulFindOne (Gia_Man_t *p, Vec_Wec_t *vXors, Vec_Int_t *vSet, Vec_Int_t *vMap, Vec_Int_t *vA, Vec_Int_t *vB, int fVerbose)
Vec_Wec_t *	Gia_ManMulFindAInputs2 (Gia_Man_t *p, int fVerbose)
void	Gia_ManMulFindAddEntry1 (Vec_Int_t *vPairs, int Obj)
Vec_Int_t *	Gia_ManMulFindCounts (Vec_Wec_t *vCuts4, Vec_Int_t *vSet)
int	Gia_ManMulFindNextEntry (Vec_Wec_t *vCuts4, Vec_Int_t *vSet, int Entry)
void	Gia_ManMulFindArg1 (Vec_Wec_t *vCuts4, Vec_Int_t *vSet, Vec_Int_t *vArg1)
int	Gia_ManMulFindNextEntryCount (Vec_Int_t *vCounts, int Entry0)
int	Gia_ManMulFindNextEntry2 (Vec_Wec_t *vCuts4, Vec_Int_t *vSet, int Entry, Vec_Int_t *vCounts, int *pEntry0, int *pEntry1)
void	Gia_ManMulFindArg2 (Vec_Wec_t *vCuts5, Vec_Int_t *vSet, Vec_Int_t *vArg2, int Entry0, int Entry1)
void	Gia_ManMulFindAddEntry (Vec_Int_t *vPairs, int Obj0, int Obj1)
Vec_Wec_t *	Gia_ManMulFindBInputs2 (Gia_Man_t *p, Vec_Wec_t *vCuts4, Vec_Wec_t *vCuts5, int fVerbose)
int	Gia_ManMulFindOverlap (Vec_Int_t *p1, Vec_Int_t *p2)
void	Gia_ManMulFindAssignGroup (Vec_Int_t *vTemp, int iGroup, Vec_Int_t *vMap)
Vec_Int_t *	Gia_ManMulFindGroups (Vec_Wec_t *p, int nObjs, int fUseMap)
Vec_Wec_t *	Gia_ManMulFindXors (Gia_Man_t *p, Vec_Wec_t *vCuts3, int fVerbose)
Vec_Int_t *	Gia_ManFindMulDetectOrder (Vec_Wec_t *vAll, int iStart, int iStop)
Vec_Wec_t *	Gia_ManMulFindAInputs (Gia_Man_t *p, Vec_Wec_t *vXors, int fVerbose)
Vec_Wec_t *	Gia_ManMulFindBInputs (Gia_Man_t *p, Vec_Wec_t *vCuts4, Vec_Wec_t *vCuts5, int fVerbose)
Vec_Int_t *	Gia_ManMulFindTfo (Gia_Man_t *p, Vec_Int_t *vIn0, Vec_Int_t *vIn1)
Vec_Wrd_t *	Gia_ManMulFindSimCone (Gia_Man_t *p, Vec_Int_t *vIn0, Vec_Int_t *vIn1, Vec_Wrd_t *vSim0, Vec_Wrd_t *vSim1, Vec_Int_t *vTfo)
int	Gia_ManMulFindGetArg (Vec_Wrd_t *vSim, int i, int fSigned)
void	Gia_ManMulFindSetArg (Vec_Wrd_t *vSim, int i, int iNum)
Vec_Wrd_t *	Gia_ManMulFindSim (Vec_Wrd_t *vSim0, Vec_Wrd_t *vSim1, int fSigned)
void	Gia_ManMulFindOutputs (Gia_Man_t *p, Vec_Wec_t *vTerms, int fVerbose)
Vec_Ptr_t *	Gia_ManMulFindCuts (Gia_Man_t *p, int nCutNum, int fVerbose)
Vec_Wec_t *	Gia_ManMulFindA (Gia_Man_t *p, Vec_Wec_t *vCuts3, int fVerbose)
Vec_Wec_t *	Gia_ManMulFindB (Gia_Man_t *p, Vec_Wec_t *vCuts4, Vec_Wec_t *vCuts5, int fVerbose)
void	Gia_ManMulFindPrintSet (Vec_Int_t *vSet, int fLit, int fSkipLast)
void	Gia_ManMulFindPrintOne (Vec_Wec_t *vTerms, int m, int fBooth)
void	Gia_ManMulFind (Gia_Man_t *p, int nCutNum, int fVerbose)

Function Documentation

Gia_ManFindMulDetectOrder()

Vec_Int_t * Gia_ManFindMulDetectOrder	(	Vec_Wec_t *	vAll,
		int	iStart,
		int	iStop )

Definition at line 530 of file giaMulFind.c.

{
    Vec_Int_t * vOrder = Vec_IntAlloc( iStop - iStart );
    Vec_Int_t * vUsed = Vec_IntStart( iStop ), * vTemp;
    int i, nMatches = 0, iNext = -1;
    Vec_WecForEachLevelStartStop( vAll, vTemp, i, iStart, iStop )
        if ( Vec_IntSize(vTemp) == 2 )
            nMatches++, iNext = i;
    if ( nMatches == 1 ) {
        while ( Vec_IntSize(vOrder) < iStop - iStart ) {
            Vec_IntPush( vOrder, iNext );
            Vec_IntWriteEntry( vUsed, iNext, 1 );
            nMatches = 0;
            Vec_WecForEachLevelStartStop( vAll, vTemp, i, iStart, iStop ) {
                if ( Vec_IntEntry(vUsed, i) )
                    continue;
                Vec_Int_t * vLast = Vec_WecEntry(vAll, Vec_IntEntryLast(vOrder));
                if ( Gia_ManMulFindOverlap(vTemp, vLast) == Vec_IntSize(vLast) && Vec_IntSize(vTemp) == Vec_IntSize(vLast) + 2 )
                    nMatches++, iNext = i;
            }
            if ( nMatches != 1 )
                break;
        }
    }
    Vec_IntFree( vUsed );
    if ( Vec_IntSize(vOrder) == 0 )
        Vec_IntFreeP( &vOrder );
    return vOrder;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManMulFind()

void Gia_ManMulFind	(	Gia_Man_t *	p,
		int	nCutNum,
		int	fVerbose )

Definition at line 855 of file giaMulFind.c.

{
    Vec_Ptr_t * vAll   = Gia_ManMulFindCuts( p, nCutNum, fVerbose ); int m;
    Vec_Wec_t * vCuts3 = (Vec_Wec_t *)Vec_PtrEntry(vAll, 0);
    Vec_Wec_t * vCuts4 = (Vec_Wec_t *)Vec_PtrEntry(vAll, 1);
    Vec_Wec_t * vCuts5 = (Vec_Wec_t *)Vec_PtrEntry(vAll, 2);
    Vec_Wec_t * vTermsB = Gia_ManMulFindB( p, vCuts4, vCuts5, fVerbose );
    Vec_Wec_t * vTermsA = Gia_ManMulFindA( p, vCuts3, fVerbose );
    printf( "Detected %d booth and %d non-booth multipliers.\n", Vec_WecSize(vTermsB)/3, Vec_WecSize(vTermsA)/3 );
    for ( m = 0; m < Vec_WecSize(vTermsA)/3; m++ )
        Gia_ManMulFindPrintOne( vTermsA, m, 0 );
    for ( m = 0; m < Vec_WecSize(vTermsB)/3; m++ )
        Gia_ManMulFindPrintOne( vTermsB, m, 1 );
    Vec_WecFree( vTermsB );
    Vec_WecFree( vTermsA );
    Vec_WecFree( vCuts3 );
    Vec_WecFree( vCuts4 );
    Vec_WecFree( vCuts5 );
    Vec_PtrFree( vAll );
}

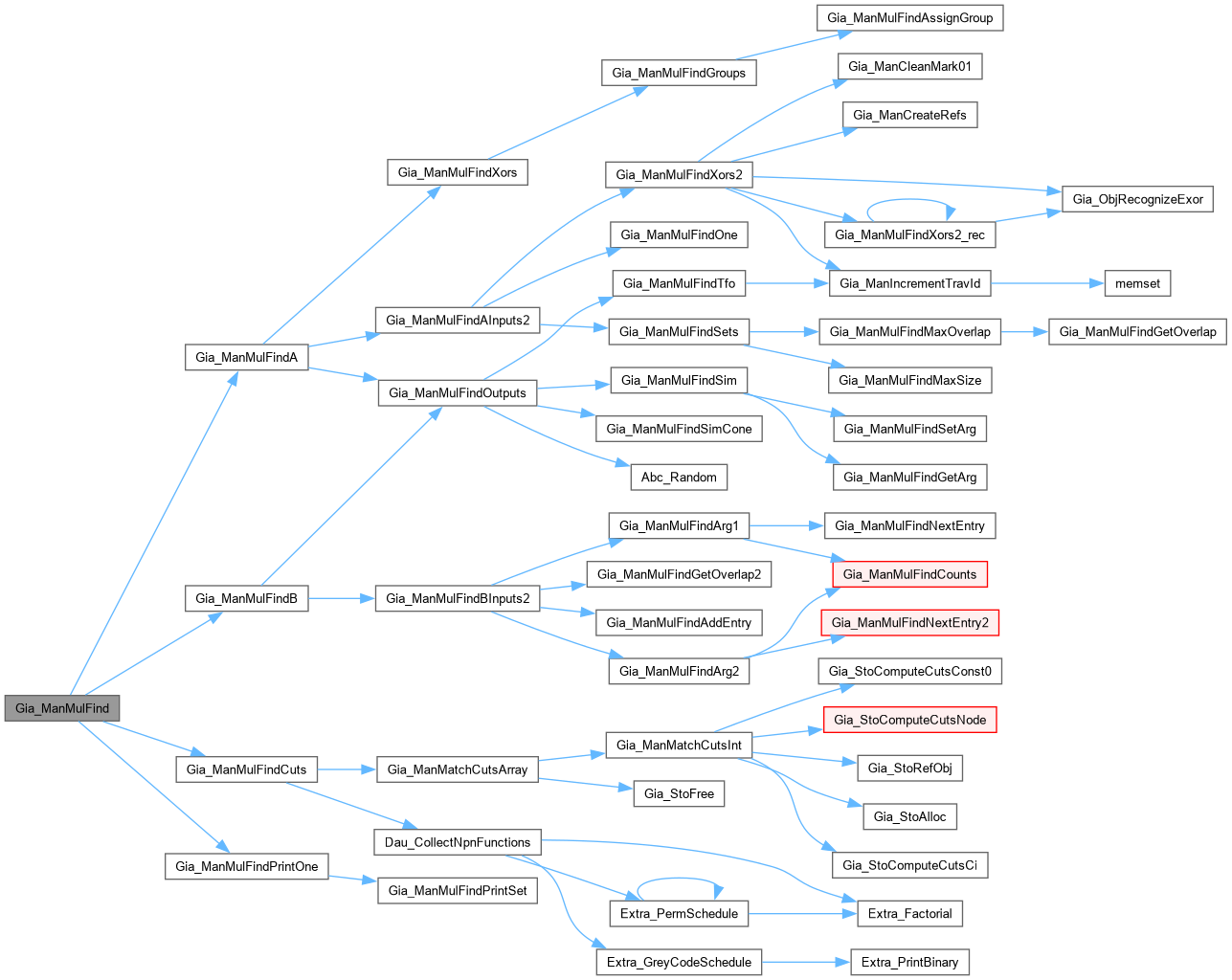

Here is the call graph for this function:

Gia_ManMulFindA()

Vec_Wec_t * Gia_ManMulFindA	(	Gia_Man_t *	p,
		Vec_Wec_t *	vCuts3,
		int	fVerbose )

Definition at line 812 of file giaMulFind.c.

{
    Vec_Wec_t * vXors = Gia_ManMulFindXors( p, vCuts3, fVerbose );
    Vec_Wec_t * vTerms = Gia_ManMulFindAInputs2( p, fVerbose );
    if ( Vec_WecSize(vTerms) )
        Gia_ManMulFindOutputs( p, vTerms, fVerbose );
    Vec_WecFree( vXors );
    return vTerms;
}

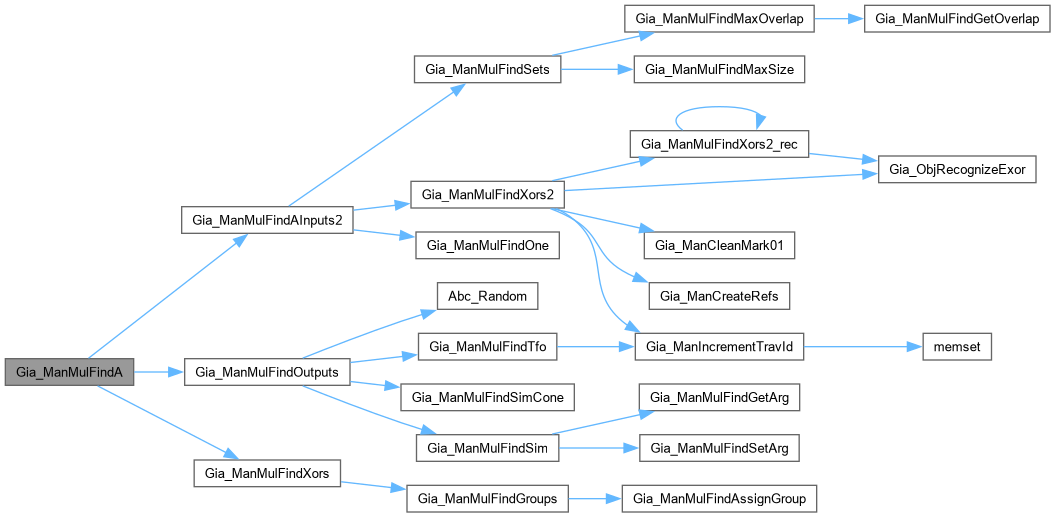

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManMulFindAddEntry()

void Gia_ManMulFindAddEntry	(	Vec_Int_t *	vPairs,
		int	Obj0,
		int	Obj1 )

Definition at line 374 of file giaMulFind.c.

{
    int Entry0, Entry1, Sum, k;
    Vec_IntForEachEntryTriple( vPairs, Entry0, Entry1, Sum, k )
        if ( Obj0 == Entry0 && Obj1 == Entry1 ) {
            Vec_IntAddToEntry( vPairs, k+2, 1 );
            break;
        }
    if ( k == Vec_IntSize(vPairs) )
        Vec_IntPushThree( vPairs, Obj0, Obj1, 1 );
}

Here is the caller graph for this function:

Gia_ManMulFindAddEntry1()

void Gia_ManMulFindAddEntry1	(	Vec_Int_t *	vPairs,
		int	Obj )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 255 of file giaMulFind.c.

{
    int Entry, Sum, k;
    Vec_IntForEachEntryDouble( vPairs, Entry, Sum, k )
        if ( Obj == Entry ) {
            Vec_IntAddToEntry( vPairs, k+1, 1 );
            break;
        }
    if ( k == Vec_IntSize(vPairs) )
        Vec_IntPushTwo( vPairs, Obj, 1 );
}

Here is the caller graph for this function:

Gia_ManMulFindAInputs()

Vec_Wec_t * Gia_ManMulFindAInputs	(	Gia_Man_t *	p,
		Vec_Wec_t *	vXors,
		int	fVerbose )

Definition at line 559 of file giaMulFind.c.

{
    Vec_Wec_t * vRes = Vec_WecAlloc( 10 );
    Vec_Wec_t * vAll = Vec_WecAlloc( Vec_WecSize(vXors)/2 );
    Gia_Obj_t * pObj; Vec_Int_t * vIns, * vOuts, * vTemp, * vIndex, * vOrder; int i, k, g, Start, Entry, Entry0, Entry1;
    Gia_ManCreateRefs( p );
    Vec_WecForEachLevelDouble( vXors, vIns, vOuts, i ) {
        vTemp = Vec_WecPushLevel( vAll );
        Gia_ManForEachObjVec( vIns, p, pObj, k )
            if ( Gia_ObjIsAnd(pObj)
                 && !Gia_ObjFaninC0(pObj) && Gia_ObjRefNum(p, Gia_ObjFanin0(pObj)) >= 4
                 && !Gia_ObjFaninC1(pObj) && Gia_ObjRefNum(p, Gia_ObjFanin1(pObj)) >= 4 )
                Vec_IntPushTwo( vTemp, Gia_ObjFaninId0p(p, pObj), Gia_ObjFaninId1p(p, pObj) );
        if ( Vec_IntSize(vTemp) == 0 )
            Vec_WecShrink(vAll, Vec_WecSize(vAll)-1);
    }
    vIndex = Gia_ManMulFindGroups( vAll, Gia_ManObjNum(p), 0 );
    Vec_IntForEachEntryStop( vIndex, Start, g, Vec_IntSize(vIndex)-1 ) {
        vOrder = Gia_ManFindMulDetectOrder( vAll, Start, Vec_IntEntry(vIndex, g+1) );
        if ( vOrder == NULL )
            continue;
        Vec_Int_t * vIn0 = Vec_WecPushLevel( vRes );
        Vec_Int_t * vIn1 = Vec_WecPushLevel( vRes );
        Vec_Int_t * vOut = Vec_WecPushLevel( vRes );
        vTemp = Vec_WecEntry( vAll, Vec_IntEntry(vOrder, 0) );
        assert( Vec_IntSize(vTemp) == 2 );
        Vec_IntPush( vIn0, Vec_IntEntry(vTemp, 0) );
        Vec_IntPush( vIn1, Vec_IntEntry(vTemp, 1) );
        Vec_IntForEachEntryStart( vOrder, Entry, i, 1 ) {
            vTemp = Vec_WecEntry( vAll, Entry );
            Vec_IntForEachEntryDouble( vTemp, Entry0, Entry1, k ) {
                if ( Vec_IntFind(vIn0, Entry0) >= 0 && Vec_IntFind(vIn1, Entry1) == -1 )
                    Vec_IntPush( vIn1, Entry1 );
                else if ( Vec_IntFind(vIn0, Entry0) == -1 && Vec_IntFind(vIn1, Entry1) >= 0 )
                    Vec_IntPush( vIn0, Entry0 );
                else
                    assert( (Vec_IntFind(vIn0, Entry0) >= 0 && Vec_IntFind(vIn1, Entry1) >= 0) ||
                            (Vec_IntFind(vIn0, Entry1) >= 0 && Vec_IntFind(vIn1, Entry0) >= 0) );
            }
        }
        Vec_IntReverseOrder( vIn0 );
        Vec_IntReverseOrder( vIn1 );
        vOut = NULL;
    }
    Vec_IntFree( vIndex );
    Vec_WecFree( vAll );
    return vRes;
}

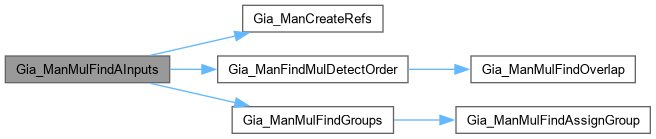

Here is the call graph for this function:

Gia_ManMulFindAInputs2()

Vec_Wec_t * Gia_ManMulFindAInputs2	(	Gia_Man_t *	p,
		int	fVerbose )

Definition at line 218 of file giaMulFind.c.

{
    Vec_Wec_t * vMuls = Vec_WecAlloc( 10 );
    Vec_Wec_t * vXors = Gia_ManMulFindXors2( p );
    Vec_Wec_t * vSets = Gia_ManMulFindSets( p, vXors );
    Vec_Int_t * vMap  = Vec_IntStart( Gia_ManObjNum(p) );
    Vec_Int_t * vA = Vec_IntAlloc( 100 );
    Vec_Int_t * vB = Vec_IntAlloc( 100 );
    Vec_Int_t * vSet; int i;
    Vec_WecForEachLevel( vSets, vSet, i )
    {
        if ( !Gia_ManMulFindOne(p, vXors, vSet, vMap, vA, vB, fVerbose) )
            continue;
        Vec_IntAppend( Vec_WecPushLevel(vMuls), vA );
        Vec_IntAppend( Vec_WecPushLevel(vMuls), vB );
        Vec_WecPushLevel(vMuls);
    }
    Vec_WecFree( vXors );
    Vec_WecFree( vSets );
    Vec_IntFree( vMap );
    Vec_IntFree( vA );
    Vec_IntFree( vB );
    return vMuls;
}

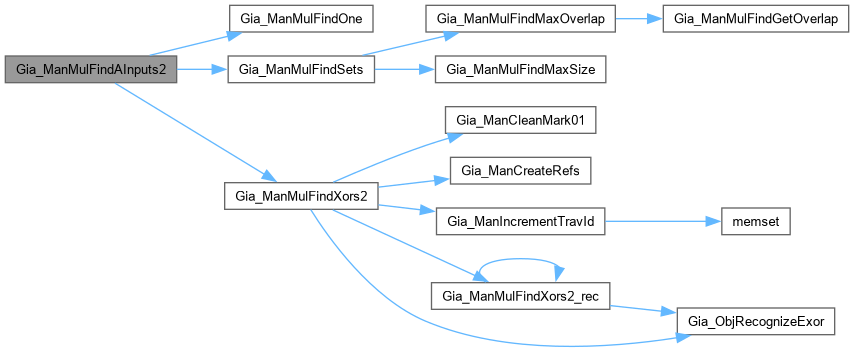

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManMulFindArg1()

void Gia_ManMulFindArg1	(	Vec_Wec_t *	vCuts4,
		Vec_Int_t *	vSet,
		Vec_Int_t *	vArg1 )

Definition at line 297 of file giaMulFind.c.

{
    Vec_Int_t * vCounts = Gia_ManMulFindCounts( vCuts4, vSet );
    int Entry = -1, Sum, k;
    Vec_IntClear( vArg1 );
    Vec_IntForEachEntryDouble( vCounts, Entry, Sum, k )
        if ( Sum == 1 ) {
            Vec_IntPush( vArg1, Entry );
            break;
        }
    assert( Entry != -1 );
    while ( (Entry = Gia_ManMulFindNextEntry(vCuts4, vSet, Entry)) != -1 )
        Vec_IntPush( vArg1, Entry );
    Vec_IntFree( vCounts );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManMulFindArg2()

void Gia_ManMulFindArg2	(	Vec_Wec_t *	vCuts5,
		Vec_Int_t *	vSet,
		Vec_Int_t *	vArg2,
		int	Entry0,
		int	Entry1 )

Definition at line 354 of file giaMulFind.c.

{
    Vec_Int_t * vCounts = Gia_ManMulFindCounts( vCuts5, vSet );
    int Entry, Sum, k, SumMin = ABC_INFINITY, SumMax = 0;
    Vec_IntForEachEntryDouble( vCounts, Entry, Sum, k ) {
        SumMin = Abc_MinInt( SumMin, Sum );
        SumMax = Abc_MaxInt( SumMax, Sum );
    }
    Vec_IntClear( vArg2 );
    Vec_IntForEachEntryDouble( vCounts, Entry, Sum, k )
        if ( Entry == Entry0 || Entry == Entry1 ) {
            Vec_IntPush( vArg2, Entry == Entry0 ? Entry1 : Entry0 );
            Vec_IntPush( vArg2, Entry );
            break;
        }
    Entry = Vec_IntEntry(vArg2, 1);
    while ( Gia_ManMulFindNextEntry2(vCuts5, vSet, Entry, vCounts, &Entry0, &Entry1) )
        Vec_IntPushTwo( vArg2, Entry0, Entry1 ), Entry = Entry1;
    Vec_IntFree( vCounts );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManMulFindAssignGroup()

void Gia_ManMulFindAssignGroup	(	Vec_Int_t *	vTemp,
		int	iGroup,
		Vec_Int_t *	vMap )

Definition at line 451 of file giaMulFind.c.

{
    int k, Obj;
    Vec_IntForEachEntry( vTemp, Obj, k ) {
        //assert( Vec_IntEntry(vMap, Obj) == -1 || Vec_IntEntry(vMap, Obj) == iGroup );
        Vec_IntWriteEntry(vMap, Obj, iGroup);
    }
    Vec_IntPush( vTemp, iGroup );
}

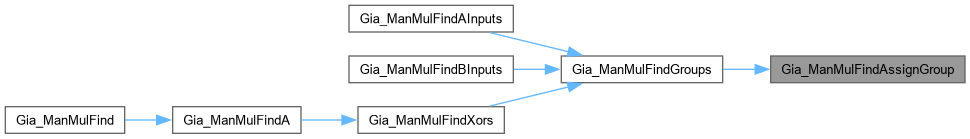

Here is the caller graph for this function:

Gia_ManMulFindB()

Vec_Wec_t * Gia_ManMulFindB	(	Gia_Man_t *	p,
		Vec_Wec_t *	vCuts4,
		Vec_Wec_t *	vCuts5,
		int	fVerbose )

Definition at line 821 of file giaMulFind.c.

{
    Vec_Wec_t * vTerms = Vec_WecAlloc( 12 );
    if ( Vec_WecSize(vCuts4) && Vec_WecSize(vCuts5) )
        vTerms = Gia_ManMulFindBInputs2( p, vCuts4, vCuts5, fVerbose );
    if ( Vec_WecSize(vTerms) )
        Gia_ManMulFindOutputs( p, vTerms, fVerbose );
    return vTerms;
}

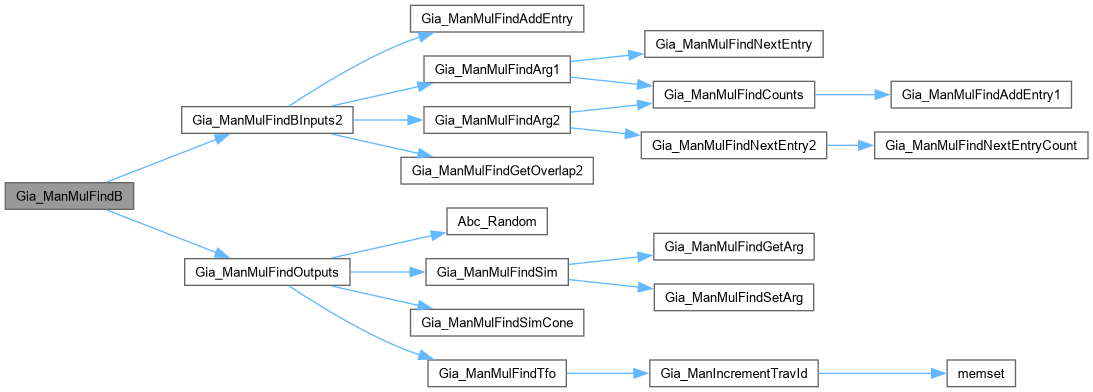

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManMulFindBInputs()

Vec_Wec_t * Gia_ManMulFindBInputs	(	Gia_Man_t *	p,
		Vec_Wec_t *	vCuts4,
		Vec_Wec_t *	vCuts5,
		int	fVerbose )

Definition at line 607 of file giaMulFind.c.

{
    Vec_Wec_t * vRes = Vec_WecAlloc( 10 );  Vec_Int_t * vTemp; int g, c, k, Obj, Start;
    Vec_Int_t * vIndex = Gia_ManMulFindGroups( vCuts4, Gia_ManObjNum(p), 0 );
    Vec_IntForEachEntryStop( vIndex, Start, g, Vec_IntSize(vIndex)-1 ) {
        Vec_Int_t * vAll = Vec_IntAlloc ( 100 );
        Vec_WecForEachLevelStartStop( vCuts4, vTemp, c, Start, Vec_IntEntry(vIndex, g+1) )
            Vec_IntForEachEntryStart( vTemp, Obj, k, 1 )
                Vec_IntPush( vAll, Obj );
        Vec_IntUniqify( vAll );
        int GroupSize = Vec_IntEntry(vIndex, g+1) - Start;
        Vec_Int_t * vCnt = Vec_IntStart( Vec_IntSize(vAll) );
        Vec_WecForEachLevelStartStop( vCuts4, vTemp, c, Start, Vec_IntEntry(vIndex, g+1) )
            Vec_IntForEachEntryStart( vTemp, Obj, k, 1 )
                Vec_IntAddToEntry( vCnt, Vec_IntFind(vAll, Obj), 1 );
        if ( Vec_IntCountEntry(vCnt, 1) != 2 || Vec_IntCountEntry(vCnt, 2) != GroupSize-1 || Vec_IntCountEntry(vCnt, GroupSize) != 2 ) {
            printf( "Detection of group %d failed.\n", g );
            continue;
        }
        Vec_Int_t * vIn1 = Vec_WecPushLevel( vRes );
        Vec_Int_t * vIn2 = Vec_WecPushLevel( vRes );
        Vec_Int_t * vOut = Vec_WecPushLevel( vRes );
        Vec_IntForEachEntry( vAll, Obj, k )
            if ( Vec_IntEntry(vCnt, k) <= 2 )
                Vec_IntPush( vIn1, Obj );
            else
                Vec_IntPush( vIn2, Obj );
        Vec_IntSort( vIn1, 0 );
        Vec_IntSort( vIn2, 0 );
        // TODO: check chain in[i] -> in[i+1]
        Vec_WecForEachLevel( vCuts5, vTemp, c ) {
            Vec_IntShift( vTemp, 1 );
            if ( Gia_ManMulFindOverlap(vTemp, vIn1) >= 2 )
                Vec_IntForEachEntryStart( vTemp, Obj, k, 1 )
                    if ( Vec_IntFind(vIn1, Obj) == -1 ) {
                        Vec_IntPushUnique(vIn2, Obj);
                    }
            Vec_IntShift( vTemp, -1 );
        }
        Vec_IntSort( vIn2, 0 );
        vOut = NULL;
    }
    Vec_IntFree( vIndex );
    return vRes;
}

Here is the call graph for this function:

Gia_ManMulFindBInputs2()

Vec_Wec_t * Gia_ManMulFindBInputs2	(	Gia_Man_t *	p,
		Vec_Wec_t *	vCuts4,
		Vec_Wec_t *	vCuts5,
		int	fVerbose )

Definition at line 385 of file giaMulFind.c.

{
    Vec_Wec_t * vRes = Vec_WecAlloc( 10 );
    Vec_Int_t * vPairs = Vec_IntAlloc( 1000 );
    Vec_Int_t * vSet = Vec_IntAlloc( 100 );
    Vec_Int_t * vCut, * vArg1, * vArg2;
    int i, j, k, n, Entry0, Entry1, Sum, Obj0, Obj1;
    Vec_WecForEachLevel( vCuts4, vCut, i )
    Vec_IntForEachEntryStart( vCut, Obj0, j, 1 )
    Vec_IntForEachEntryStart( vCut, Obj1, k, j+1 )
        Gia_ManMulFindAddEntry( vPairs, Obj0, Obj1 );
    Vec_IntForEachEntryTriple( vPairs, Entry0, Entry1, Sum, n ) {
        if ( Sum < 3 )
            continue;
        Vec_IntClear( vSet );
        Vec_WecForEachLevel( vCuts4, vCut, i )
        Vec_IntForEachEntryStart( vCut, Obj0, j, 1 )
        Vec_IntForEachEntryStart( vCut, Obj1, k, j+1 )
            if ( Obj0 == Entry0 && Obj1 == Entry1 ) {
                Vec_IntPush( vSet, i );
                Vec_IntDrop( vCut, k );
                Vec_IntDrop( vCut, j );
                j = k = Vec_IntSize(vCut);
            }
        vArg1 = Vec_WecPushLevel(vRes);
        vArg2 = Vec_WecPushLevel(vRes);
        Vec_WecPushLevel(vRes);
        Gia_ManMulFindArg1( vCuts4, vSet, vArg1 );
        // find overlapping with arg1 and remove nodes in arg1
        Vec_IntClear( vSet );
        Vec_WecForEachLevel( vCuts5, vCut, i )
            if ( Gia_ManMulFindGetOverlap2(vCut, vArg1) ) {
                k = 1;
                Vec_IntForEachEntryStart( vCut, Obj0, j, 1 )
                    if ( Vec_IntFind(vArg1, Obj0) == -1 )
                        Vec_IntWriteEntry( vCut, k++, Obj0 );
                Vec_IntShrink( vCut, k );
                Vec_IntPush( vSet, i );
            }
        Gia_ManMulFindArg2( vCuts5, vSet, vArg2, Entry0, Entry1 );
    }
    Vec_IntFree( vSet );
    Vec_IntFree( vPairs );
    return vRes;
}

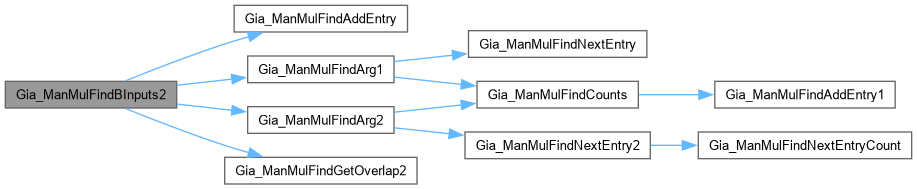

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManMulFindCounts()

Vec_Int_t * Gia_ManMulFindCounts	(	Vec_Wec_t *	vCuts4,
		Vec_Int_t *	vSet )

Definition at line 266 of file giaMulFind.c.

{
    Vec_Int_t * vCounts = Vec_IntAlloc( 10 );
    int i, k, Obj, Item;
    Vec_IntForEachEntry( vSet, Item, i ) {
        Vec_Int_t * vCut = Vec_WecEntry(vCuts4, Item);
        Vec_IntForEachEntryStart( vCut, Obj, k, 1 )
            Gia_ManMulFindAddEntry1( vCounts, Obj );
    }
    return vCounts;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManMulFindCuts()

Vec_Ptr_t * Gia_ManMulFindCuts	(	Gia_Man_t *	p,
		int	nCutNum,
		int	fVerbose )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 798 of file giaMulFind.c.

{
    extern Vec_Mem_t * Dau_CollectNpnFunctions( word * p, int nVars, int fVerbose );
    extern Vec_Ptr_t * Gia_ManMatchCutsArray( Vec_Ptr_t * vTtMems, Gia_Man_t * pGia, int nCutSize, int nCutNum, int fVerbose );
    word pTruths[3] = { ABC_CONST(0x6969696969696969), ABC_CONST(0x35C035C035C035C0), ABC_CONST(0xF335ACC0F335ACC0) };
    Vec_Ptr_t * vTtMems = Vec_PtrAlloc( 3 ); Vec_Mem_t * vTtMem; int i;
    for ( i = 0; i < 3; i++ )
        Vec_PtrPush( vTtMems, Dau_CollectNpnFunctions( pTruths+i, i+3, fVerbose ) );
    Vec_Ptr_t * vAll = Gia_ManMatchCutsArray( vTtMems, p, 5, nCutNum, fVerbose );
    Vec_PtrForEachEntry( Vec_Mem_t *, vTtMems, vTtMem, i )
        Vec_MemHashFree( vTtMem ), Vec_MemFree( vTtMem );
    Vec_PtrFree( vTtMems );
    return vAll;
}

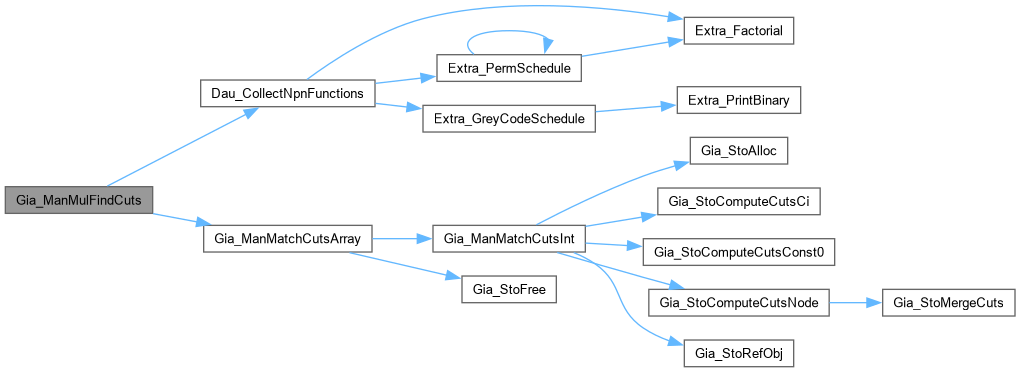

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManMulFindGetArg()

int Gia_ManMulFindGetArg	(	Vec_Wrd_t *	vSim,
		int	i,
		int	fSigned )

Definition at line 700 of file giaMulFind.c.

{
    int w, Res = 0; word Word = 0;
    Vec_WrdForEachEntry( vSim, Word, w )
        if ( (Word >> i) & 1 )
            Res |= (1 << w);
    if ( fSigned && ((Word >> i) & 1) )
        Res |= ~0 << Vec_WrdSize(vSim);
    return Res;
}

Here is the caller graph for this function:

Gia_ManMulFindGetOverlap()

int Gia_ManMulFindGetOverlap	(	Vec_Int_t *	p1,
		Vec_Int_t *	p2 )

Definition at line 100 of file giaMulFind.c.

{
    int i, k, ObjI, ObjK, Counter = 0;
    Vec_IntForEachEntry( p1, ObjI, i )
    Vec_IntForEachEntry( p2, ObjK, k )
        if ( ObjI == ObjK )
            Counter++;
    return Counter;
}

Here is the caller graph for this function:

Gia_ManMulFindGetOverlap2()

int Gia_ManMulFindGetOverlap2	(	Vec_Int_t *	p1,
		Vec_Int_t *	p2 )

Definition at line 109 of file giaMulFind.c.

{
    int i, k, ObjI, ObjK, Counter = 0;
    Vec_IntForEachEntryStart( p1, ObjI, i, 1 )
    Vec_IntForEachEntry( p2, ObjK, k )
        if ( ObjI == ObjK )
            Counter++;
    return Counter;
}

Here is the caller graph for this function:

Gia_ManMulFindGroups()

Vec_Int_t * Gia_ManMulFindGroups	(	Vec_Wec_t *	p,
		int	nObjs,
		int	fUseMap )

Definition at line 460 of file giaMulFind.c.

{
    Vec_Int_t * vIndex = Vec_IntAlloc( 100 ), * vTemp;
    Vec_Int_t * vMap = Vec_IntStartFull( nObjs ); int i, Counter, nGroups = 0;
    Vec_Int_t * vUngrouped = Vec_IntStartNatural( Vec_WecSize(p) );
    while ( Vec_IntSize(vUngrouped) ) {
        int k, Obj, Item = Vec_IntPop(vUngrouped);
        vTemp = Vec_WecEntry(p, Item);
        Gia_ManMulFindAssignGroup( vTemp, nGroups, vMap );
        int fChanges = 1;
        while ( fChanges ) {
            fChanges = 0;
            Vec_IntForEachEntry( vUngrouped, Item, i ) {
                vTemp = Vec_WecEntry(p, Item);
                Counter = 0;
                Vec_IntForEachEntry( vTemp, Obj, k )
                    if ( Vec_IntEntry(vMap, Obj) >= 0 )
                        Counter++;
                if ( Counter < 1 )
                    continue;
                Gia_ManMulFindAssignGroup( vTemp, nGroups, vMap );
                Vec_IntDrop( vUngrouped, i-- );
                fChanges = 1;
            }
        }
        nGroups++;
    }
    Vec_IntFree( vUngrouped );
    Vec_IntFree( vMap );
    if ( fUseMap )
        Vec_WecForEachLevel( p, vTemp, i )
            Vec_IntPushTwo( vTemp, i, Vec_IntPop(vTemp) );
    Vec_WecSortByLastInt( p, 0 );
    Counter = 0;
    Vec_IntPush( vIndex, 0 );
    Vec_WecForEachLevel( p, vTemp, i )
        if ( Vec_IntPop(vTemp) != Counter )
            Vec_IntPush( vIndex, i ), Counter++;
    Vec_IntPush( vIndex, Vec_WecSize(p) );
    assert( Vec_WecSize(p) == 0 || Vec_IntSize(vIndex) == nGroups + 1 );
    return vIndex;
}

Here is the call graph for this function:

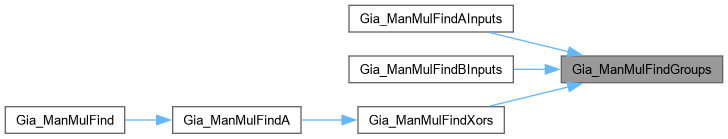

Here is the caller graph for this function:

Gia_ManMulFindMaxOverlap()

int Gia_ManMulFindMaxOverlap	(	Vec_Wec_t *	vXors,
		Vec_Int_t *	vUsed,
		Vec_Int_t *	vFound )

Definition at line 118 of file giaMulFind.c.

{
    Vec_Int_t * vLevel; int i, iBest = -1, nThisSize, nBestSize = 0;
    Vec_WecForEachLevel( vXors, vLevel, i )
        if ( !Vec_IntEntry(vUsed, i) && nBestSize < (nThisSize = Gia_ManMulFindGetOverlap(vFound, vLevel)) )
            nBestSize = nThisSize, iBest = i;
    return iBest;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManMulFindMaxSize()

int Gia_ManMulFindMaxSize	(	Vec_Wec_t *	vXors,
		Vec_Int_t *	vUsed )

Definition at line 92 of file giaMulFind.c.

{
    Vec_Int_t * vLevel; int i, iBest = -1, nBestSize = 0;
    Vec_WecForEachLevel( vXors, vLevel, i )
        if ( !Vec_IntEntry(vUsed, i) && nBestSize < Vec_IntSize(vLevel) )
            nBestSize = Vec_IntSize(vLevel), iBest = i;
    return iBest;
}

Here is the caller graph for this function:

Gia_ManMulFindNextEntry()

int Gia_ManMulFindNextEntry	(	Vec_Wec_t *	vCuts4,
		Vec_Int_t *	vSet,
		int	Entry )

Definition at line 277 of file giaMulFind.c.

{
    int i, Item;
    Vec_IntForEachEntry( vSet, Item, i ) {
        Vec_Int_t * vCut = Vec_WecEntry(vCuts4, Item);
        if ( Vec_IntSize(vCut) == 0 )
            continue;
        assert( Vec_IntSize(vCut) == 3 );
        int RetValue = -1;
        if ( Vec_IntEntry(vCut, 1) == Entry )
            RetValue = Vec_IntEntry(vCut, 2);
        if ( Vec_IntEntry(vCut, 2) == Entry )
            RetValue = Vec_IntEntry(vCut, 1);
        if ( RetValue == -1 )
            continue;
        Vec_IntClear( vCut );
        return RetValue;
    }
    return -1;
}

Here is the caller graph for this function:

Gia_ManMulFindNextEntry2()

int Gia_ManMulFindNextEntry2	(	Vec_Wec_t *	vCuts4,
		Vec_Int_t *	vSet,
		int	Entry,
		Vec_Int_t *	vCounts,
		int *	pEntry0,
		int *	pEntry1 )

Definition at line 320 of file giaMulFind.c.

{
    int i, Item;
    Vec_IntForEachEntry( vSet, Item, i ) {
        Vec_Int_t * vCut = Vec_WecEntry(vCuts4, Item);
        if ( Vec_IntSize(vCut) == 0 )
            continue;
        assert( Vec_IntSize(vCut) == 4 );
        int Entry0, Entry1, iPlace = Vec_IntFind( vCut, Entry );
        if ( iPlace == -1 )
            continue;
        if ( iPlace == 1 )
            Entry0 = Vec_IntEntry(vCut, 2), Entry1 = Vec_IntEntry(vCut, 3);
        else if ( iPlace == 2 )
            Entry0 = Vec_IntEntry(vCut, 1), Entry1 = Vec_IntEntry(vCut, 3);
        else if ( iPlace == 3 )
            Entry0 = Vec_IntEntry(vCut, 1), Entry1 = Vec_IntEntry(vCut, 2);
        else assert( 0 );
        int Count0 = Gia_ManMulFindNextEntryCount(vCounts, Entry0);
        int Count1 = Gia_ManMulFindNextEntryCount(vCounts, Entry1);
        *pEntry0 = Count0 <= Count1 ? Entry0 : Entry1;
        *pEntry1 = Count0 <= Count1 ? Entry1 : Entry0;
        // remove entries
        Vec_IntForEachEntry( vSet, Item, i ) {
            Vec_Int_t * vCut = Vec_WecEntry(vCuts4, Item);
            if ( Vec_IntSize(vCut) == 0 )
                continue;
            if ( Vec_IntFind( vCut, Entry ) >= 0 )
                Vec_IntClear( vCut );
        }
        return 1;
    }
    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManMulFindNextEntryCount()

int Gia_ManMulFindNextEntryCount	(	Vec_Int_t *	vCounts,
		int	Entry0 )

Definition at line 312 of file giaMulFind.c.

{
    int Entry, Sum, k;
    Vec_IntForEachEntryDouble( vCounts, Entry, Sum, k )
        if ( Entry == Entry0 )
            return Sum;
    return -1;
}

Here is the caller graph for this function:

Gia_ManMulFindOne()

int Gia_ManMulFindOne	(	Gia_Man_t *	p,
		Vec_Wec_t *	vXors,
		Vec_Int_t *	vSet,
		Vec_Int_t *	vMap,
		Vec_Int_t *	vA,
		Vec_Int_t *	vB,
		int	fVerbose )

Definition at line 150 of file giaMulFind.c.

{
    Vec_Int_t * vObjs = Vec_IntAlloc( 100 ); int i, j, Obj, Obj1, Obj2;
    Vec_IntForEachEntry( vSet, Obj, i )
        Vec_IntAppend( vObjs, Vec_WecEntry(vXors, Obj) );
    Vec_IntForEachEntry( vObjs, Obj, i )
        Vec_IntAddToEntry( vMap, Obj, 1 );
    Vec_IntForEachEntry( vSet, Obj, i ) {
        Vec_Int_t * vTemp = Vec_WecEntry(vXors, Obj); int k = 0;
        Vec_IntForEachEntryDouble( vTemp, Obj1, Obj2, j )
            if ( Vec_IntEntry(vMap, Obj1) > 1 || Vec_IntEntry(vMap, Obj2) > 1 )
                Vec_IntWriteEntry(vTemp, k++, Obj1), Vec_IntWriteEntry(vTemp, k++, Obj2);
        Vec_IntShrink( vTemp, k );
    }
    Vec_IntForEachEntry( vObjs, Obj, i )
        Vec_IntWriteEntry( vMap, Obj, 0 );
    Vec_IntClear( vObjs );
    Vec_IntForEachEntry( vSet, Obj, i )
        Vec_IntAppend( vObjs, Vec_WecEntry(vXors, Obj) );
    if ( Vec_IntSize(vObjs) == 0 ) {
        Vec_IntFree(vObjs);
        return 0;
    }

    Vec_IntClear( vA );
    Vec_IntClear( vB );
    Vec_IntPush( vA, Vec_IntPop(vObjs) );
    Vec_IntPush( vB, Vec_IntPop(vObjs) );
    while ( Vec_IntSize(vObjs) > 0 ) {
        int k = 0;
        Vec_IntForEachEntryDouble( vObjs, Obj1, Obj2, j ) {
            if ( Vec_IntFind(vA, Obj1) >= 0 )
                Vec_IntPushUnique(vB, Obj2);
            else if ( Vec_IntFind(vA, Obj2) >= 0 )
                Vec_IntPushUnique(vB, Obj1);
            else if ( Vec_IntFind(vB, Obj1) >= 0 )
                Vec_IntPushUnique(vA, Obj2);
            else if ( Vec_IntFind(vB, Obj2) >= 0 )
                Vec_IntPushUnique(vA, Obj1);
            else {
                Vec_IntWriteEntry(vObjs, k++, Obj1);
                Vec_IntWriteEntry(vObjs, k++, Obj2);
            }
        }
        Vec_IntShrink( vObjs, k );
    }
    Vec_IntSort( vA, 0 );
    Vec_IntSort( vB, 0 );
    Vec_IntClear( vObjs );
    Vec_IntForEachEntry( vSet, Obj, i )
        Vec_IntAppend( vObjs, Vec_WecEntry(vXors, Obj) );
    Vec_IntForEachEntryDouble( vObjs, Obj1, Obj2, j )
        if ( !((Vec_IntFind(vA, Obj1) >= 0 && Vec_IntFind(vB, Obj2) >= 0) ||
               (Vec_IntFind(vA, Obj2) >= 0 && Vec_IntFind(vB, Obj1) >= 0)) ) {
            if ( fVerbose )
            printf( "Internal verification failed.\n" );
            Vec_IntFree( vObjs );
            Vec_IntClear( vA );
            Vec_IntClear( vB );
            return 0;
        }
    if ( fVerbose )
    printf( "Generated system with %d+%d+%d=%d variables and %d equations.\n",
        Vec_IntSize(vA),Vec_IntSize(vB),Vec_IntSize(vSet),
        Vec_IntSize(vA)+Vec_IntSize(vB)+Vec_IntSize(vSet), Vec_IntSize(vObjs)/2 );
    Vec_IntFree( vObjs );
    return 1;
}

Here is the caller graph for this function:

Gia_ManMulFindOutputs()

void Gia_ManMulFindOutputs	(	Gia_Man_t *	p,
		Vec_Wec_t *	vTerms,
		int	fVerbose )

Definition at line 729 of file giaMulFind.c.

{
    Abc_Random(1);
    for ( int m = 0; m < Vec_WecSize(vTerms)/3; m++ ) {
        Vec_Int_t * vIn0 = Vec_WecEntry(vTerms, 3*m+0);
        Vec_Int_t * vIn1 = Vec_WecEntry(vTerms, 3*m+1);
        Vec_Int_t * vOut = Vec_WecEntry(vTerms, 3*m+2);
        Vec_Wrd_t * vSim0 = Vec_WrdStartRandom( Vec_IntSize(vIn0) );
        Vec_Wrd_t * vSim1 = Vec_WrdStartRandom( Vec_IntSize(vIn1) );
        Vec_Wrd_t * vSimU = Gia_ManMulFindSim( vSim0, vSim1, 0 );
        Vec_Wrd_t * vSimS = Gia_ManMulFindSim( vSim0, vSim1, 1 );
        Vec_Int_t * vTfo  = Gia_ManMulFindTfo( p, vIn0, vIn1 );
        Vec_Wrd_t * vSims = Gia_ManMulFindSimCone( p, vIn0, vIn1, vSim0, vSim1, vTfo );
        Vec_Int_t * vOutU = Vec_IntAlloc( 100 );
        Vec_Int_t * vOutS = Vec_IntAlloc( 100 );
        word Word; int w, iPlace;
        Vec_WrdForEachEntry( vSimU, Word, w ) {
            if ( (iPlace = Vec_WrdFind(vSims, Word)) >= 0 )
                Vec_IntPush( vOutU, Abc_Var2Lit(Vec_IntEntry(vTfo, iPlace), 0) );
            else if ( (iPlace = Vec_WrdFind(vSims, ~Word)) >= 0 )
                Vec_IntPush( vOutU, Abc_Var2Lit(Vec_IntEntry(vTfo, iPlace), 1) );
            else
                Vec_IntPush( vOutU, -1 );
        }
        Vec_WrdForEachEntry( vSimS, Word, w ) {
            if ( (iPlace = Vec_WrdFind(vSims, Word)) >= 0 )
                Vec_IntPush( vOutS, Abc_Var2Lit(Vec_IntEntry(vTfo, iPlace), 0) );
            else if ( (iPlace = Vec_WrdFind(vSims, ~Word)) >= 0 )
                Vec_IntPush( vOutS, Abc_Var2Lit(Vec_IntEntry(vTfo, iPlace), 1) );
            else
                Vec_IntPush( vOutS, -1 );
        }
        assert( Vec_IntSize(vOut) == 0 );
        if ( Vec_IntCountEntry(vOutU, -1) < Vec_IntSize(vOutU) ||
             Vec_IntCountEntry(vOutS, -1) < Vec_IntSize(vOutS) )
        {
            if ( Vec_IntCountEntry(vOutU, -1) < Vec_IntCountEntry(vOutS, -1) )
                Vec_IntAppend( vOut, vOutU ), Vec_IntPush(vOut, 0);
            else
                Vec_IntAppend( vOut, vOutS ), Vec_IntPush(vOut, 1);
        }
        else
        {
            Vec_IntClear(vIn0);
            Vec_IntClear(vIn1);
        }
        Vec_WrdFree( vSim0 );
        Vec_WrdFree( vSim1 );
        Vec_WrdFree( vSimU );
        Vec_WrdFree( vSimS );
        Vec_WrdFree( vSims );
        Vec_IntFree( vTfo );
        Vec_IntFree( vOutU );
        Vec_IntFree( vOutS );
    }
    Vec_WecRemoveEmpty( vTerms );
}

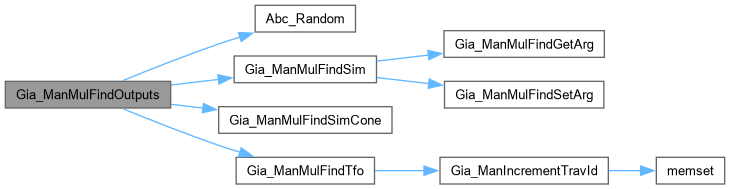

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManMulFindOverlap()

int Gia_ManMulFindOverlap	(	Vec_Int_t *	p1,
		Vec_Int_t *	p2 )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 442 of file giaMulFind.c.

{
    int i, k, ObjI, ObjK, Counter = 0;
    Vec_IntForEachEntry( p1, ObjI, i )
    Vec_IntForEachEntry( p2, ObjK, k )
        if ( ObjI == ObjK )
            Counter++;
    return Counter;
}

Here is the caller graph for this function:

Gia_ManMulFindPrintOne()

void Gia_ManMulFindPrintOne	(	Vec_Wec_t *	vTerms,
		int	m,
		int	fBooth )

Definition at line 842 of file giaMulFind.c.

{
    Vec_Int_t * vIn0 = Vec_WecEntry(vTerms, 3*m+0);
    Vec_Int_t * vIn1 = Vec_WecEntry(vTerms, 3*m+1);
    Vec_Int_t * vOut = Vec_WecEntry(vTerms, 3*m+2);
    printf( "%sooth %ssigned %d x %d: ", fBooth ? "B" : "Non-b", Vec_IntEntryLast(vOut) ? "" : "un", Vec_IntSize(vIn0), Vec_IntSize(vIn1) );
    Gia_ManMulFindPrintSet( vIn0, 0, 0 );
    printf( " * " );
    Gia_ManMulFindPrintSet( vIn1, 0, 0 );
    printf( " = " );
    Gia_ManMulFindPrintSet( vOut, 1, 1 );
    printf( "\n" );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManMulFindPrintSet()

void Gia_ManMulFindPrintSet	(	Vec_Int_t *	vSet,
		int	fLit,
		int	fSkipLast )

Definition at line 830 of file giaMulFind.c.

{
    int i, Temp, Limit = Vec_IntSize(vSet) - fSkipLast;
    printf( "{" );
    Vec_IntForEachEntryStop( vSet, Temp, i, Limit ) {
        if ( Temp == -1 )
            printf( "n/a%s", i < Limit-1 ? " ":"" );
        else
            printf( "%s%d%s", (fLit & Abc_LitIsCompl(Temp)) ? "~":"", fLit ? Abc_Lit2Var(Temp) : Temp, i < Limit-1 ? " ":"" );
    }
    printf( "}" );
}

Here is the caller graph for this function:

Gia_ManMulFindSetArg()

void Gia_ManMulFindSetArg	(	Vec_Wrd_t *	vSim,
		int	i,
		int	iNum )

Definition at line 710 of file giaMulFind.c.

{
    int w;  word * pWords = Vec_WrdArray(vSim);
    for ( w = 0; w < Vec_WrdSize(vSim); w++ )
        if ( (iNum >> w) & 1 )
            pWords[w] |= (word)1 << i;
}

Here is the caller graph for this function:

Gia_ManMulFindSets()

Vec_Wec_t * Gia_ManMulFindSets	(	Gia_Man_t *	p,
		Vec_Wec_t *	vXors )

Definition at line 126 of file giaMulFind.c.

{
    Vec_Wec_t * vSets = Vec_WecAlloc( 100 );
    Vec_Int_t * vUsed = Vec_IntStart( Vec_WecSize(vXors) );
    Vec_Int_t * vFound = Vec_IntAlloc( 100 ); int Item, k, Obj;
    while ( (Item = Gia_ManMulFindMaxSize(vXors, vUsed)) != -1 ) {
        Vec_Int_t * vTemp = Vec_WecEntry(vXors, Item);
        Vec_Int_t * vNew = Vec_WecPushLevel( vSets );
        Vec_IntPush( vNew, Item );
        Vec_IntWriteEntry( vUsed, Item, 1 );
        Vec_IntClear( vFound );
        Vec_IntAppend( vFound, vTemp );
        while ( (Item = Gia_ManMulFindMaxOverlap(vXors, vUsed, vFound)) != -1 ) {
            Vec_IntPush( vNew, Item );
            Vec_IntWriteEntry( vUsed, Item, 1 );
            vTemp = Vec_WecEntry(vXors, Item);
            Vec_IntForEachEntry( vTemp, Obj, k )
                Vec_IntPushUnique( vFound, Obj );
        }
    }
    Vec_IntFree( vUsed );
    Vec_IntFree( vFound );
    return vSets;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManMulFindSim()

Vec_Wrd_t * Gia_ManMulFindSim	(	Vec_Wrd_t *	vSim0,
		Vec_Wrd_t *	vSim1,
		int	fSigned )

Definition at line 717 of file giaMulFind.c.

{
    assert( Vec_WrdSize(vSim0) + Vec_WrdSize(vSim1) <= 30 );
    Vec_Wrd_t * vRes = Vec_WrdStart( Vec_WrdSize(vSim0) + Vec_WrdSize(vSim1) );
    for ( int i = 0; i < 64; i++ )
    {
        int a = Gia_ManMulFindGetArg( vSim0, i, fSigned );
        int b = Gia_ManMulFindGetArg( vSim1, i, fSigned );
        Gia_ManMulFindSetArg( vRes, i, a * b );
    }
    return vRes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManMulFindSimCone()

Vec_Wrd_t * Gia_ManMulFindSimCone	(	Gia_Man_t *	p,
		Vec_Int_t *	vIn0,
		Vec_Int_t *	vIn1,
		Vec_Wrd_t *	vSim0,
		Vec_Wrd_t *	vSim1,
		Vec_Int_t *	vTfo )

Definition at line 681 of file giaMulFind.c.

{
    Vec_Wrd_t * vRes = Vec_WrdAlloc( Vec_IntSize(vTfo) );
    Vec_Wrd_t * vSims = Vec_WrdStart( Gia_ManObjNum(p) );
    Gia_Obj_t * pObj; int i, Obj;
    Vec_IntForEachEntry( vIn0, Obj, i )
        Vec_WrdWriteEntry( vSims, Obj, Vec_WrdEntry(vSim0, i) );
    Vec_IntForEachEntry( vIn1, Obj, i )
        Vec_WrdWriteEntry( vSims, Obj, Vec_WrdEntry(vSim1, i) );
    Gia_ManForEachObjVec( vTfo, p, pObj, i ) {
        word Sim0 = Vec_WrdEntry(vSims, Gia_ObjFaninId0p(p, pObj) );
        word Sim1 = Vec_WrdEntry(vSims, Gia_ObjFaninId1p(p, pObj) );
        Vec_WrdWriteEntry( vSims, Gia_ObjId(p, pObj), (Gia_ObjFaninC0(pObj) ? ~Sim0 : Sim0) & (Gia_ObjFaninC1(pObj) ? ~Sim1 : Sim1) );
    }
    Vec_IntForEachEntry( vTfo, Obj, i )
        Vec_WrdPush( vRes, Vec_WrdEntry(vSims, Obj) );
    Vec_WrdFree( vSims );
    return vRes;
}

Here is the caller graph for this function:

Gia_ManMulFindTfo()

Vec_Int_t * Gia_ManMulFindTfo	(	Gia_Man_t *	p,
		Vec_Int_t *	vIn0,
		Vec_Int_t *	vIn1 )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 664 of file giaMulFind.c.

{
    Vec_Int_t * vTfo = Vec_IntAlloc( 100 );
    Gia_Obj_t * pObj; int i, Obj;
    Gia_ManIncrementTravId( p );
    Vec_IntForEachEntry( vIn0, Obj, i )
        Gia_ObjSetTravIdCurrentId( p, Obj );
    Vec_IntForEachEntry( vIn1, Obj, i )
        Gia_ObjSetTravIdCurrentId( p, Obj );
    Gia_ManForEachAnd( p, pObj, i ) {
        if ( Gia_ObjIsTravIdCurrentId(p, i) )
            continue;
        if ( Gia_ObjIsTravIdCurrentId(p, Gia_ObjFaninId0(pObj, i)) && Gia_ObjIsTravIdCurrentId(p, Gia_ObjFaninId1(pObj, i)) )
            Gia_ObjSetTravIdCurrentId( p, i ), Vec_IntPush( vTfo, i );
    }
    return vTfo;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManMulFindXors()

Vec_Wec_t * Gia_ManMulFindXors	(	Gia_Man_t *	p,
		Vec_Wec_t *	vCuts3,
		int	fVerbose )

Definition at line 502 of file giaMulFind.c.

{
    Vec_Wec_t * vXors    = Vec_WecAlloc( 10 );
    Vec_Int_t * vIndex   = Gia_ManMulFindGroups( vCuts3, Gia_ManObjNum(p), 0 );
    Vec_Int_t * vAll     = Vec_IntAlloc( 100 );
    Vec_Bit_t * vSigs[2] = { Vec_BitStart(Gia_ManObjNum(p)), Vec_BitStart(Gia_ManObjNum(p)) };
    Vec_Int_t * vTemp; int g, c, k, Obj, Start;
    Vec_IntForEachEntryStop( vIndex, Start, g, Vec_IntSize(vIndex)-1 ) {
        Vec_WecForEachLevelStartStop( vCuts3, vTemp, c, Start, Vec_IntEntry(vIndex, g+1) )
            Vec_IntForEachEntry( vTemp, Obj, k )
                if ( !Vec_BitEntry(vSigs[k==0], Obj) ) {
                    Vec_BitWriteEntry( vSigs[k==0], Obj, 1 );
                    Vec_IntPush( vAll, Obj );
                }
        Vec_Int_t * vIns  = Vec_WecPushLevel( vXors );
        Vec_Int_t * vOuts = Vec_WecPushLevel( vXors );
        Vec_IntForEachEntry( vAll, Obj, k ) {
            if ( Vec_BitEntry(vSigs[0], Obj) && !Vec_BitEntry(vSigs[1], Obj) )
                Vec_IntPush( vIns, Obj );
            if ( !Vec_BitEntry(vSigs[0], Obj) && Vec_BitEntry(vSigs[1], Obj) )
                Vec_IntPush( vOuts, Obj );
            Vec_BitWriteEntry( vSigs[0], Obj, 0 );
            Vec_BitWriteEntry( vSigs[1], Obj, 0 );
        }
        Vec_IntClear( vAll );
    }
    return vXors;
}

Here is the call graph for this function:

Here is the caller graph for this function:

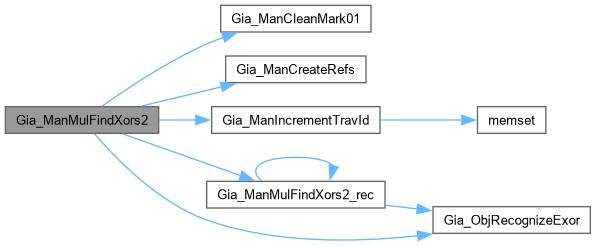

Gia_ManMulFindXors2()

Vec_Wec_t * Gia_ManMulFindXors2

(

Gia_Man_t *

p

)

Definition at line 66 of file giaMulFind.c.

{
    Vec_Wec_t * vXors = Vec_WecAlloc( 100 );
    Vec_Int_t * vTemp = Vec_IntAlloc( 100 );
    Gia_Obj_t * pObj, * pFan0, * pFan1; int i;
    Gia_ManCreateRefs( p );
    Gia_ManCleanMark01( p );
    Gia_ManForEachAnd( p, pObj, i ) {
        if ( !Gia_ObjRecognizeExor(pObj, &pFan0, &pFan1) )
            continue;
        Gia_Regular(pFan0)->fMark1 = 1;
        Gia_Regular(pFan1)->fMark1 = 1;
        pObj->fMark0 = 1;
    }
    Gia_ManForEachAnd( p, pObj, i ) {
        if ( pObj->fMark0 && !pObj->fMark1 ) {
            Gia_ManIncrementTravId( p );
            Vec_IntClear( vTemp );
            Gia_ManMulFindXors2_rec( p, pObj, vTemp );
            if ( Vec_IntSize(vTemp) > 0 )
                Vec_IntAppend( Vec_WecPushLevel(vXors), vTemp );
        }
    }
    Vec_IntFree( vTemp );
    return vXors;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManMulFindXors2_rec()

ABC_NAMESPACE_IMPL_START void Gia_ManMulFindXors2_rec	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj,
		Vec_Int_t *	vXor )

DECLARATIONS ///.

CFile****************************************************************

FileName [giaMulFind.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis [Multiplier detection.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

giaMulFind.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file giaMulFind.c.

{
    if ( !Gia_ObjIsAnd(pObj) )
        return;
    if ( Gia_ObjIsTravIdCurrent(p, pObj) )
        return;
    Gia_ObjSetTravIdCurrent(p, pObj);
    if ( !pObj->fMark0 )
    {
        if ( !Gia_ObjFaninC0(pObj) && !Gia_ObjFaninC1(pObj)
           && Gia_ObjRefNum(p, Gia_ObjFanin0(pObj)) >= 4
           && Gia_ObjRefNum(p, Gia_ObjFanin1(pObj)) >= 4 )
            Vec_IntPushTwo( vXor, Gia_ObjFaninId0p(p, pObj), Gia_ObjFaninId1p(p, pObj) );
        return;
    }
    Gia_Obj_t * pFan0, * pFan1;
    int RetValue = Gia_ObjRecognizeExor(pObj, &pFan0, &pFan1);
    assert( RetValue );
    Gia_ManMulFindXors2_rec( p, Gia_Regular(pFan0), vXor );
    Gia_ManMulFindXors2_rec( p, Gia_Regular(pFan1), vXor );
}

Here is the call graph for this function:

Here is the caller graph for this function:
