giaSatMap.c File Reference

#include "gia.h"
#include "sat/bsat/satStore.h"
#include "misc/vec/vecWec.h"
#include "misc/util/utilNam.h"
#include "map/scl/sclCon.h"

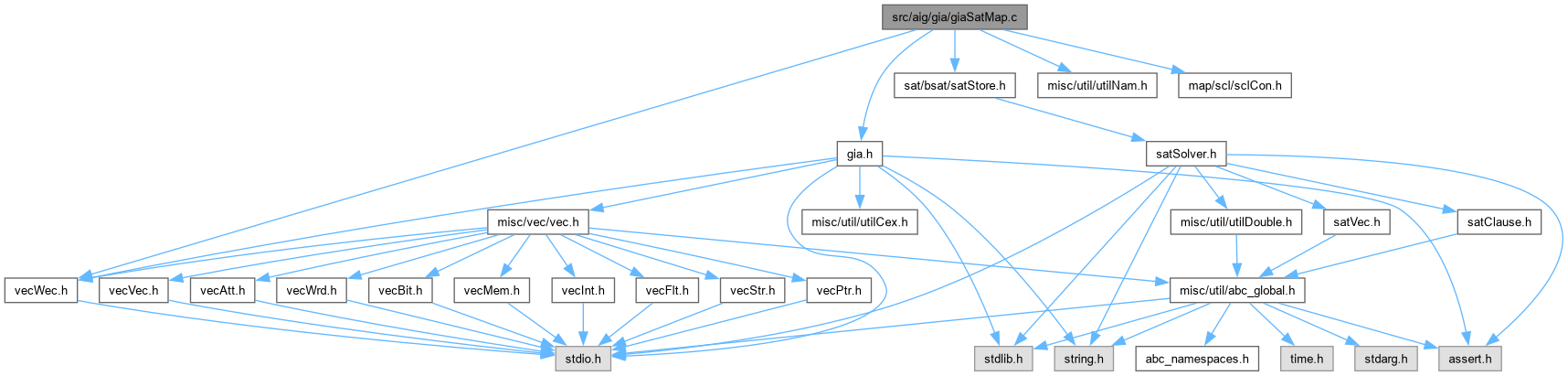

Include dependency graph for giaSatMap.c:

Go to the source code of this file.

Classes
struct	Sbm_Man_t_

Typedefs
typedef typedefABC_NAMESPACE_IMPL_START struct Sbm_Man_t_	Sbm_Man_t
	DECLARATIONS ///.

Functions
int	Sbm_ManCheckSol (Sbm_Man_t *p, Vec_Int_t *vSol)
	FUNCTION DEFINITIONS ///.
int	Sbm_ManCreateCnf (Sbm_Man_t *p)
int	Card_AddCardinConstrPairWise (Vec_Int_t *p, Vec_Int_t *vVars)
int	Card_AddCardinSolver (int LogN, Vec_Int_t **pvVars, Vec_Int_t **pvRes)
sat_solver *	Sbm_AddCardinSolver2 (int LogN, Vec_Int_t **pvVars, Vec_Int_t **pvRes)
int	Sbm_AddCardinConstrPairWise (sat_solver *p, Vec_Int_t *vVars, int K)
sat_solver *	Sbm_AddCardinSolver (int LogN, Vec_Int_t **pvVars)
void	Sbm_AddCardinConstrTest ()
Sbm_Man_t *	Sbm_ManAlloc (int LogN)
void	Sbm_ManStop (Sbm_Man_t *p)
int	Sbm_ManTestSat (void *pMan)

Typedef Documentation

Sbm_Man_t

typedef typedefABC_NAMESPACE_IMPL_START struct Sbm_Man_t_ Sbm_Man_t

DECLARATIONS ///.

CFile****************************************************************

FileName [giaSatMap.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis []

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

giaSatMap.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 36 of file giaSatMap.c.

Function Documentation

Card_AddCardinConstrPairWise()

int Card_AddCardinConstrPairWise	(	Vec_Int_t *	p,
		Vec_Int_t *	vVars )

Definition at line 350 of file giaSatMap.c.

{
    int nVars = Vec_IntSize(vVars);
    Card_AddCardinConstrRange( p, Vec_IntArray(vVars), 0, nVars - 1, &nVars );
    return nVars;
}

Here is the caller graph for this function:

Card_AddCardinSolver()

int Card_AddCardinSolver	(	int	LogN,
		Vec_Int_t **	pvVars,
		Vec_Int_t **	pvRes )

Definition at line 356 of file giaSatMap.c.

{
    int nVars = 1 << LogN;
    int nVarsAlloc = nVars + 2 * (nVars * LogN * (LogN-1) / 4 + nVars - 1);
    Vec_Int_t * vRes = Vec_IntAlloc( 1000 );
    Vec_Int_t * vVars = Vec_IntStartNatural( nVars );
    int nVarsReal = Card_AddCardinConstrPairWise( vRes, vVars );
    assert( nVarsReal == nVarsAlloc );
    Vec_IntPush( vRes, -1 );
    *pvVars = vVars;
    *pvRes  = vRes;
    return nVarsReal;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sbm_AddCardinConstrPairWise()

int Sbm_AddCardinConstrPairWise	(	sat_solver *	p,
		Vec_Int_t *	vVars,
		int	K )

Definition at line 449 of file giaSatMap.c.

{
    int nVars = Vec_IntSize(vVars);
    Sbm_AddCardinConstrRange( p, Vec_IntArray(vVars), 0, nVars - 1, &nVars );
    sat_solver_bookmark( p );
    return nVars;
}

Here is the caller graph for this function:

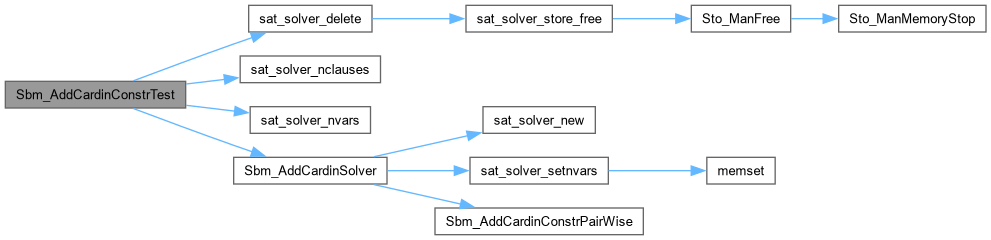

Sbm_AddCardinConstrTest()

void Sbm_AddCardinConstrTest

(

)

Definition at line 469 of file giaSatMap.c.

{
    int LogN = 3, nVars = 1 << LogN, K = 2, Count = 1;
    Vec_Int_t * vVars, * vLits = Vec_IntAlloc( nVars );
    sat_solver * pSat = Sbm_AddCardinSolver( LogN, &vVars );
    int nVarsReal = sat_solver_nvars( pSat );

    int Lit = Abc_Var2Lit( Vec_IntEntry(vVars, K), 1 );
    printf( "LogN = %d. N = %3d.   Vars = %5d. Clauses = %6d.  Comb = %d.\n", LogN, nVars, nVarsReal, sat_solver_nclauses(pSat), nVars * (nVars-1)/2 + nVars + 1 );
    while ( 1 )
    {
        int i, status = sat_solver_solve( pSat, &Lit, &Lit+1, 0, 0, 0, 0 );
        if ( status != l_True )
            break;
        Vec_IntClear( vLits );
        printf( "%3d : ", Count++ );
        for ( i = 0; i < nVars; i++ )
        {
            Vec_IntPush( vLits, Abc_Var2Lit(i, sat_solver_var_value(pSat, i)) );
            printf( "%d", sat_solver_var_value(pSat, i) );
        }
        printf( "\n" );
        status = sat_solver_addclause( pSat, Vec_IntArray(vLits), Vec_IntArray(vLits) + nVars );
        if ( status == 0 )
            break;
    }

    sat_solver_delete( pSat );
    Vec_IntFree( vVars );
    Vec_IntFree( vLits );
}

Here is the call graph for this function:

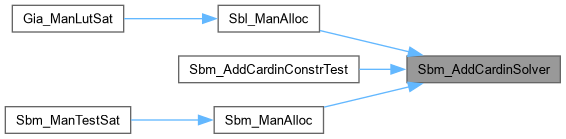

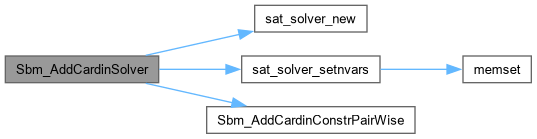

Sbm_AddCardinSolver()

sat_solver * Sbm_AddCardinSolver	(	int	LogN,
		Vec_Int_t **	pvVars )

Definition at line 456 of file giaSatMap.c.

{
    int nVars = 1 << LogN;
    int nVarsAlloc = nVars + 2 * (nVars * LogN * (LogN-1) / 4 + nVars - 1), nVarsReal;
    Vec_Int_t * vVars = Vec_IntStartNatural( nVars );
    sat_solver * pSat = sat_solver_new();
    sat_solver_setnvars( pSat, nVarsAlloc );
    nVarsReal = Sbm_AddCardinConstrPairWise( pSat, vVars, 2 );
    assert( nVarsReal == nVarsAlloc );
    *pvVars = vVars;
    return pSat;
}

Here is the call graph for this function:

Here is the caller graph for this function:

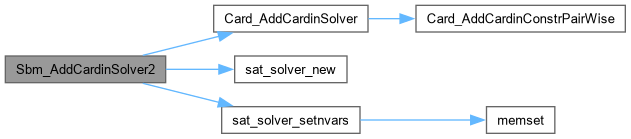

Sbm_AddCardinSolver2()

sat_solver * Sbm_AddCardinSolver2	(	int	LogN,
		Vec_Int_t **	pvVars,
		Vec_Int_t **	pvRes )

Definition at line 369 of file giaSatMap.c.

{
    Vec_Int_t * vVars = NULL;
    Vec_Int_t * vRes  = NULL;
    int nVarsReal = Card_AddCardinSolver( LogN, &vVars, &vRes ), i, size;
    sat_solver * pSat = sat_solver_new();
    sat_solver_setnvars( pSat, nVarsReal );
    for ( i = 0, size = Vec_IntEntry(vRes, i++); i < Vec_IntSize(vRes); i += size, size = Vec_IntEntry(vRes, i++) )
        sat_solver_addclause( pSat, Vec_IntEntryP(vRes, i), Vec_IntEntryP(vRes, i+size) );
    if ( pvVars ) *pvVars = vVars;
    if ( pvRes )  *pvRes  = vRes;
    return pSat;
}

Here is the call graph for this function:

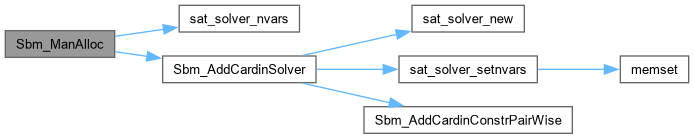

Sbm_ManAlloc()

Sbm_Man_t * Sbm_ManAlloc

(

int

LogN

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 512 of file giaSatMap.c.

{
    Sbm_Man_t * p = ABC_CALLOC( Sbm_Man_t, 1 );
    p->pSat = Sbm_AddCardinSolver( LogN, &p->vCardVars );
    p->LogN = LogN;
    p->FirstVar  = sat_solver_nvars( p->pSat );
    // window
    p->vRoots    = Vec_IntAlloc( 100 );
    p->vCuts     = Vec_WecAlloc( 1000 );
    p->vObjCuts  = Vec_WecAlloc( 1000 );
    p->vSolCuts  = Vec_IntAlloc( 100 );
    p->vCutGates = Vec_IntAlloc( 100 );
    p->vCutAreas = Vec_WrdAlloc( 100 );
    // solver
    p->vAssump   = Vec_IntAlloc( 100 );
    p->vPolar    = Vec_IntAlloc( 100 );
    // timing
    p->vArrs     = Vec_IntAlloc( 100 );
    p->vReqs     = Vec_IntAlloc( 100 );
    // internal
    p->vLit2Used = Vec_IntAlloc( 100 );
    p->vDelays   = Vec_IntAlloc( 100 );
    p->vReason   = Vec_IntAlloc( 100 );
    return p;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sbm_ManCheckSol()

int Sbm_ManCheckSol	(	Sbm_Man_t *	p,
		Vec_Int_t *	vSol )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Verify solution. Create polarity and assumptions.]

Description []

SideEffects []

SeeAlso []

Definition at line 85 of file giaSatMap.c.

{
    //int K = Vec_IntSize(vSol) - 1;
    int i, j, Lit, Cut;
    int RetValue = 1;
    Vec_Int_t * vCut;
    // clear polarity and assumptions
    Vec_IntClear( p->vPolar );
    // mark used literals
    Vec_IntFill( p->vLit2Used, Vec_WecSize(p->vObjCuts) + p->nInputs, 0 );
    Vec_IntForEachEntry( p->vSolCuts, Cut, i )
    {
        if ( Cut < 0 ) // input inverter variable
        {
            Vec_IntWriteEntry( p->vLit2Used, -Cut, 1 );
            Vec_IntPush( p->vPolar, -Cut );
            continue;
        }
        Vec_IntPush( p->vPolar, p->FirstVar + Cut );
        vCut = Vec_WecEntry( p->vCuts, Cut );
        Lit = Vec_IntEntry( vCut, 0 ) - p->LitShift; // obj literal
        if ( Vec_IntEntry(p->vLit2Used, Lit) )
            continue;
        Vec_IntWriteEntry( p->vLit2Used, Lit, 1 );
        Vec_IntPush( p->vPolar, Lit ); // literal variable
    }
    // check that the output literals are used
    Vec_IntForEachEntry( p->vRoots, Lit, i )
    {
        if ( Vec_IntEntry(p->vLit2Used, Lit) == 0 )
            printf( "Output literal %d has no cut.\n", Lit ), RetValue = 0;
    }
    // check internal nodes
    Vec_IntForEachEntry( p->vSolCuts, Cut, i )
    {
        if ( Cut < 0 )
            continue;
        vCut = Vec_WecEntry( p->vCuts, Cut );
        Vec_IntForEachEntryStart( vCut, Lit, j, 1 )
            if ( Lit - p->LitShift < 0 )
            {
                assert( Abc_LitIsCompl(Lit) );
                if ( Vec_IntEntry(p->vLit2Used, Vec_WecSize(p->vObjCuts) + Abc_Lit2Var(Lit)-1) == 0 )
                    printf( "Inverter of input %d of cut %d is not mapped.\n", Abc_Lit2Var(Lit)-1, Cut ), RetValue = 0;
            }
            else if ( Vec_IntEntry(p->vLit2Used, Lit - p->LitShift) == 0 )
                printf( "Internal literal %d of cut %d is not mapped.\n", Lit - p->LitShift, Cut ), RetValue = 0;
        // create polarity
        Vec_IntPush( p->vPolar, p->FirstVar + Cut ); // cut variable
    }
    return RetValue;
}

Here is the caller graph for this function:

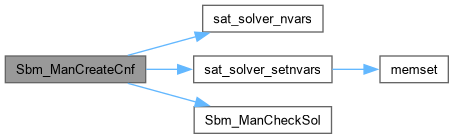

Sbm_ManCreateCnf()

int Sbm_ManCreateCnf

(

Sbm_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 149 of file giaSatMap.c.

{
    int i, k, Lit, Lits[2], value;
    Vec_Int_t * vLits, * vCutOne, * vLitsPrev;
    // sat_solver_rollback( p->Sat );
    if ( !Sbm_ManCheckSol(p, p->vSolCuts) )
        return 0;
    // increase var count
    assert( p->FirstVar == sat_solver_nvars(p->pSat) );
    sat_solver_setnvars( p->pSat, sat_solver_nvars(p->pSat) + Vec_WecSize(p->vCuts) );
    // iterate over arrays containing obj-lit cuts (neg-obj-lit cut-lits followed by pos-obj-lit cut-lits)
    vLitsPrev = NULL;
    Vec_WecForEachLevel( p->vObjCuts, vLits, i )
    {
        assert( Vec_IntSize(vLits) >= 2 );
        value = sat_solver_addclause( p->pSat, Vec_IntArray(vLits), Vec_IntLimit(vLits)  );
        assert( value );
/*
        // for each cut, add implied nodes
        Lits[0] = Abc_LitNot( Vec_IntEntry(vLits, 0) );
        assert( Lits[0] < 2*p->FirstVar );
        Vec_IntForEachEntryStart( vLits, Lit, k, 1 )
        {
            assert( Lit >= 2*p->FirstVar );
            Lits[1] = Abc_LitNot( Lit );
            value = sat_solver_addclause( p->pSat, Lits, Lits + 2 );
            assert( value );
            //printf( "Adding clause %d + %d.\n", Lits[0], Lits[1]-2*p->FirstVar );
        }
*/
        //printf( "\n" );
        // create invertor exclusivity clause
        if ( i & 1 )
        {
            Lits[0] = Abc_LitNot( Vec_IntEntryLast(vLits) );
            Lits[1] = Abc_LitNot( Vec_IntEntryLast(vLitsPrev) );
            value = sat_solver_addclause( p->pSat, Lits, Lits + 2 );
            assert( value );
            //printf( "Adding exclusivity clause %d + %d.\n", Lits[0]-2*p->FirstVar, Lits[1]-2*p->FirstVar );
        }
        vLitsPrev = vLits;
    }
    // add inverters
    Vec_WecForEachLevel( p->vCuts, vCutOne, i )
        Vec_IntForEachEntry( vCutOne, Lit, k )
            if ( Abc_Lit2Var(Lit)-1 < p->nInputs ) // input
            {
                assert( k > 0 );
                Lits[0] = Abc_Var2Lit( Vec_WecSize(p->vObjCuts) + Abc_Lit2Var(Lit)-1, 0 );
                Lits[1] = Abc_Var2Lit( p->FirstVar + i, 1 );
                value = sat_solver_addclause( p->pSat, Lits, Lits + 2 );
                assert( value );
            }
            else // internal node
            {
                Lits[0] = Abc_Var2Lit( Lit-p->LitShift, 0 );
                Lits[1] = Abc_Var2Lit( p->FirstVar + i, 1 );
                value = sat_solver_addclause( p->pSat, Lits, Lits + 2 );
                assert( value );
            }

    sat_solver_set_polarity( p->pSat, Vec_IntArray(p->vPolar), Vec_IntSize(p->vPolar) );
    return 1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sbm_ManStop()

void Sbm_ManStop

(

Sbm_Man_t *

p

)

Definition at line 538 of file giaSatMap.c.

{
    sat_solver_delete( p->pSat );
    Vec_IntFree( p->vCardVars );
    // internal
    Vec_IntFree( p->vRoots );
    Vec_WecFree( p->vCuts );
    Vec_WecFree( p->vObjCuts );
    Vec_IntFree( p->vSolCuts );
    Vec_IntFree( p->vCutGates );
    Vec_WrdFree( p->vCutAreas );
    // internal
    Vec_IntFree( p->vAssump );
    Vec_IntFree( p->vPolar );
    // internal
    Vec_IntFree( p->vArrs );
    Vec_IntFree( p->vReqs );
    // internal
    Vec_IntFree( p->vLit2Used );
    Vec_IntFree( p->vDelays );
    Vec_IntFree( p->vReason );
    ABC_FREE( p );
}

Here is the call graph for this function:

Here is the caller graph for this function:

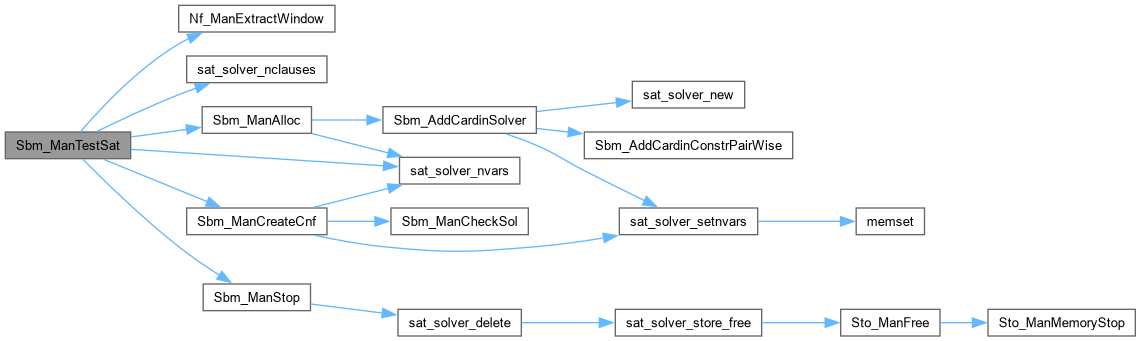

Sbm_ManTestSat()

int Sbm_ManTestSat

(

void *

pMan

)

Definition at line 562 of file giaSatMap.c.

{
    abctime clk = Abc_Clock(), clk2;
    int i, k, Lit, LogN = 7, nVars = 1 << LogN, status, Root;
    Sbm_Man_t * p = Sbm_ManAlloc( LogN );
    word InvArea = 0;
    int fKeepTrying = 1;
    int StartSol;
    // derive window
    extern int Nf_ManExtractWindow( void * pMan, Vec_Int_t * vRoots, Vec_Wec_t * vCuts, Vec_Wec_t * vObjCuts, Vec_Int_t * vSolCuts, Vec_Int_t * vCutGates, Vec_Wrd_t * vCutAreas, word * pInvArea, int StartVar, int nVars );
    p->nInputs = Nf_ManExtractWindow( pMan, p->vRoots, p->vCuts, p->vObjCuts, p->vSolCuts, p->vCutGates, p->vCutAreas, &InvArea, p->FirstVar, nVars );
    p->LitShift = 2*p->nInputs+2;
    assert( Vec_WecSize(p->vObjCuts) + p->nInputs <= nVars );

    // print-out
//    Vec_WecPrint( p->vCuts, 0 );
//    printf( "\n" );
//    Vec_WecPrint( p->vObjCuts, 0 );
//    printf( "\n" );
    Vec_IntPrint( p->vSolCuts );
    printf( "All clauses = %d.  Multi clauses = %d.  Binary clauses = %d.  Other clauses = %d.\n",
        sat_solver_nclauses(p->pSat), Vec_WecSize(p->vObjCuts), Vec_WecSizeSize(p->vCuts),
        sat_solver_nclauses(p->pSat) - Vec_WecSize(p->vObjCuts) - Vec_WecSizeSize(p->vCuts) );

    // creating CNF
    if ( !Sbm_ManCreateCnf(p) )
        return 0;

    // create assumptions
    // cardinality
    Vec_IntClear( p->vAssump );
    Vec_IntPush( p->vAssump, -1 );
    // unused variables
    for ( i = Vec_WecSize(p->vObjCuts) + p->nInputs; i < nVars; i++ )
        Vec_IntPush( p->vAssump, Abc_Var2Lit(i, 1) );
    // root variables
    Vec_IntForEachEntry( p->vRoots, Root, i )
        Vec_IntPush( p->vAssump, Abc_Var2Lit(Root, 0) );
//    Vec_IntPrint( p->vAssump );

    StartSol = Vec_IntSize(p->vSolCuts);
//    StartSol = 30;
    while ( fKeepTrying && StartSol-fKeepTrying > 0 )
    {
        printf( "Trying to find mapping with %d gates.\n", StartSol-fKeepTrying );
    //    for ( i = Vec_IntSize(p->vSolCuts)-5; i < nVars; i++ )
    //        Vec_IntPush( p->vAssump, Abc_Var2Lit(Vec_IntEntry(p->vCardVars, i), 1) );
        Vec_IntWriteEntry( p->vAssump, 0, Abc_Var2Lit(Vec_IntEntry(p->vCardVars, StartSol-fKeepTrying), 1) );
        // solve the problem
        clk2 = Abc_Clock();
        status = sat_solver_solve( p->pSat, Vec_IntArray(p->vAssump), Vec_IntLimit(p->vAssump), 0, 0, 0, 0 );
        if ( status == l_True )
        {
            word AreaNew = 0;
            int Count = 0;
            printf( "AND Lits = %d.  Inputs = %d.  Vars = %d.  All vars = %d.\n", Vec_WecSize(p->vObjCuts), p->nInputs, Vec_WecSize(p->vObjCuts) + p->nInputs, nVars );
//            for ( i = 0; i < nVars; i++ )
//                printf( "%d", sat_solver_var_value(p->pSat, i) );
//            printf( "\n" );
            for ( i = 0; i < nVars; i++ )
                if ( sat_solver_var_value(p->pSat, i) )
                {
                    printf( "%d=%d ", i, sat_solver_var_value(p->pSat, i) );
                    Count++;
                    if ( i >= Vec_WecSize(p->vObjCuts) )
                        AreaNew += InvArea;
                }
            printf( "Count = %d\n", Count );
//            for ( i = p->FirstVar; i < sat_solver_nvars(p->pSat); i++ )
//                printf( "%d", sat_solver_var_value(p->pSat, i) );
//            printf( "\n" );
            Count = 1;
            for ( i = p->FirstVar; i < sat_solver_nvars(p->pSat); i++ )
                if ( sat_solver_var_value(p->pSat, i) )
                {
                    Vec_Int_t * vCutOne = Vec_WecEntry(p->vCuts, i-p->FirstVar);
                    printf( "%2d : Cut %3d  (Gate %2d)  ", Count, i-p->FirstVar, Vec_IntEntry(p->vCutGates, i-p->FirstVar) );
                    Vec_IntForEachEntry( vCutOne, Lit, k )
                        printf( "%d(%d) ", Lit - 2*(p->nInputs+1), Abc_Lit2Var(Lit) );
                    printf( "\n" );
                    Count++;
                    AreaNew += Vec_WrdEntry(p->vCutAreas, i-p->FirstVar);
                }
            printf( "Area = %7.2f\n", Scl_Int2Flt((int)AreaNew) );
        }
        if ( status == l_False )
            printf( "UNSAT " ), fKeepTrying = 0;
        else if ( status == l_True )
            printf( "SAT   " ), fKeepTrying++;
        Abc_PrintTime( 1, "Time", Abc_Clock() - clk2 );
        Abc_PrintTime( 1, "Total time", Abc_Clock() - clk );
        printf( "\n" );
    }
    Sbm_ManStop( p );
    return 1;
}

Here is the call graph for this function:
