giaSatoko.c File Reference

#include "gia.h"
#include "sat/cnf/cnf.h"
#include "misc/extra/extra.h"
#include "sat/satoko/satoko.h"

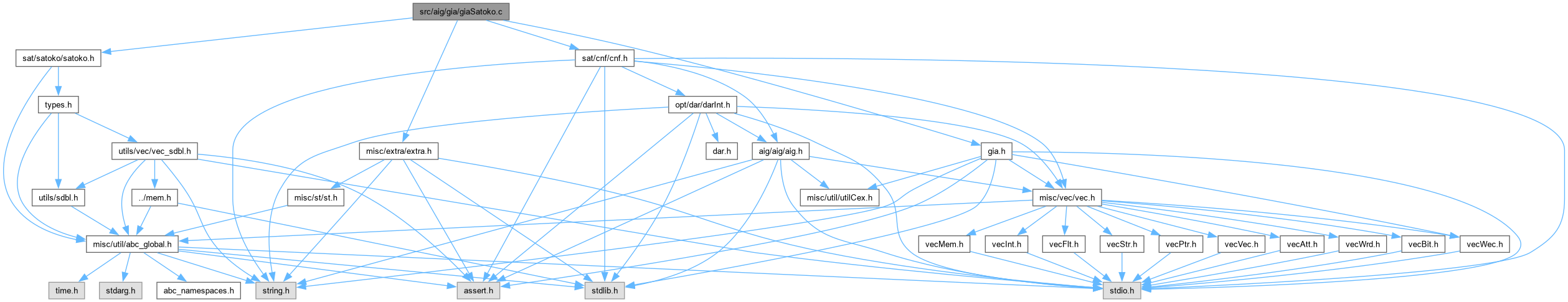

Include dependency graph for giaSatoko.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Gia_ManCollectVars_rec (int Var, Vec_Int_t *vMapping, Vec_Int_t *vRes, Vec_Bit_t *vVisit)
	DECLARATIONS ///.
Vec_Int_t *	Gia_ManCollectVars (int Root, Vec_Int_t *vMapping, int nVars)
void	Gia_ManSatokoReport (int iOutput, int status, abctime clk)
satoko_t *	Gia_ManSatokoFromDimacs (char *pFileName, satoko_opts_t *opts)
void	Gia_ManSatokoDimacs (char *pFileName, satoko_opts_t *opts)
satoko_t *	Gia_ManSatokoInit (Cnf_Dat_t *pCnf, satoko_opts_t *opts)
satoko_t *	Gia_ManSatokoCreate (Gia_Man_t *p, satoko_opts_t *opts)
int	Gia_ManSatokoCallOne (Gia_Man_t *p, satoko_opts_t *opts, int iOutput)
void	Gia_ManSatokoCall (Gia_Man_t *p, satoko_opts_t *opts, int fSplit, int fIncrem)

Function Documentation

Gia_ManCollectVars()

Vec_Int_t * Gia_ManCollectVars	(	int	Root,
		Vec_Int_t *	vMapping,
		int	nVars )

Definition at line 62 of file giaSatoko.c.

{
    Vec_Int_t * vRes = Vec_IntAlloc( 100 );
    Vec_Bit_t * vVisit = Vec_BitStart( nVars );
    assert( Vec_IntEntry(vMapping, Root) );
    Gia_ManCollectVars_rec( Root, vMapping, vRes, vVisit );
    Vec_BitFree( vVisit );
    return vRes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManCollectVars_rec()

ABC_NAMESPACE_IMPL_START void Gia_ManCollectVars_rec	(	int	Var,
		Vec_Int_t *	vMapping,
		Vec_Int_t *	vRes,
		Vec_Bit_t *	vVisit )

DECLARATIONS ///.

CFile****************************************************************

FileName [giaSatoko.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis [Interface to Satoko solver.]

Author [Alan Mishchenko, Bruno Schmitt]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

giaSatoko.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 48 of file giaSatoko.c.

{
    int * pCut, i;
    if ( Vec_BitEntry(vVisit, Var) )
        return;
    Vec_BitWriteEntry(vVisit, Var, 1);
    if ( Vec_IntEntry(vMapping, Var) ) // primary input or constant 0
    {
        pCut = Vec_IntEntryP( vMapping, Vec_IntEntry(vMapping, Var) );
        for ( i = 1; i <= pCut[0]; i++ )
            Gia_ManCollectVars_rec( pCut[i], vMapping, vRes, vVisit );
    }
    Vec_IntPush( vRes, Var );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManSatokoCall()

void Gia_ManSatokoCall	(	Gia_Man_t *	p,
		satoko_opts_t *	opts,
		int	fSplit,
		int	fIncrem )

Definition at line 214 of file giaSatoko.c.

{
    int fUseCone = 1;
    Gia_Man_t * pOne;
    Gia_Obj_t * pRoot;
    Vec_Int_t * vCone;
    int i, iLit, status;
    if ( fIncrem )
    {
        abctime clk = Abc_Clock();
        Cnf_Dat_t * pCnf = (Cnf_Dat_t *)Mf_ManGenerateCnf( p, 8, 0, 0, fUseCone, 0 );
        satoko_t * pSat = Gia_ManSatokoInit( pCnf, opts );
        Gia_ManForEachCo( p, pRoot, i )
        {
            abctime clk = Abc_Clock();
            iLit = Abc_Var2Lit( i+1, 0 );
            satoko_assump_push( pSat, iLit );
            if ( fUseCone )
            {
                vCone = Gia_ManCollectVars( i+1, pCnf->vMapping, pCnf->nVars );
                satoko_mark_cone( pSat, Vec_IntArray(vCone), Vec_IntSize(vCone) );
                printf( "Cone has %6d vars (out of %6d).  ", Vec_IntSize(vCone), pCnf->nVars );
                status = satoko_solve( pSat );
                satoko_unmark_cone( pSat, Vec_IntArray(vCone), Vec_IntSize(vCone) );
                Vec_IntFree( vCone );
            }
            else
            {
                status = satoko_solve( pSat );
            }
            satoko_assump_pop( pSat );
            Gia_ManSatokoReport( i, status, Abc_Clock() - clk );
        }
        Cnf_DataFree( pCnf );
        satoko_destroy( pSat );
        Abc_PrintTime( 1, "Total time", Abc_Clock() - clk );
        return;
    }
    if ( fSplit )
    {
        abctime clk = Abc_Clock();
        Gia_ManForEachCo( p, pRoot, i )
        {
            pOne = Gia_ManDupDfsCone( p, pRoot );
            Gia_ManSatokoCallOne( pOne, opts, i );
            Gia_ManStop( pOne );
        }
        Abc_PrintTime( 1, "Total time", Abc_Clock() - clk );
        return;
    }
    Gia_ManSatokoCallOne( p, opts, -1 );
}

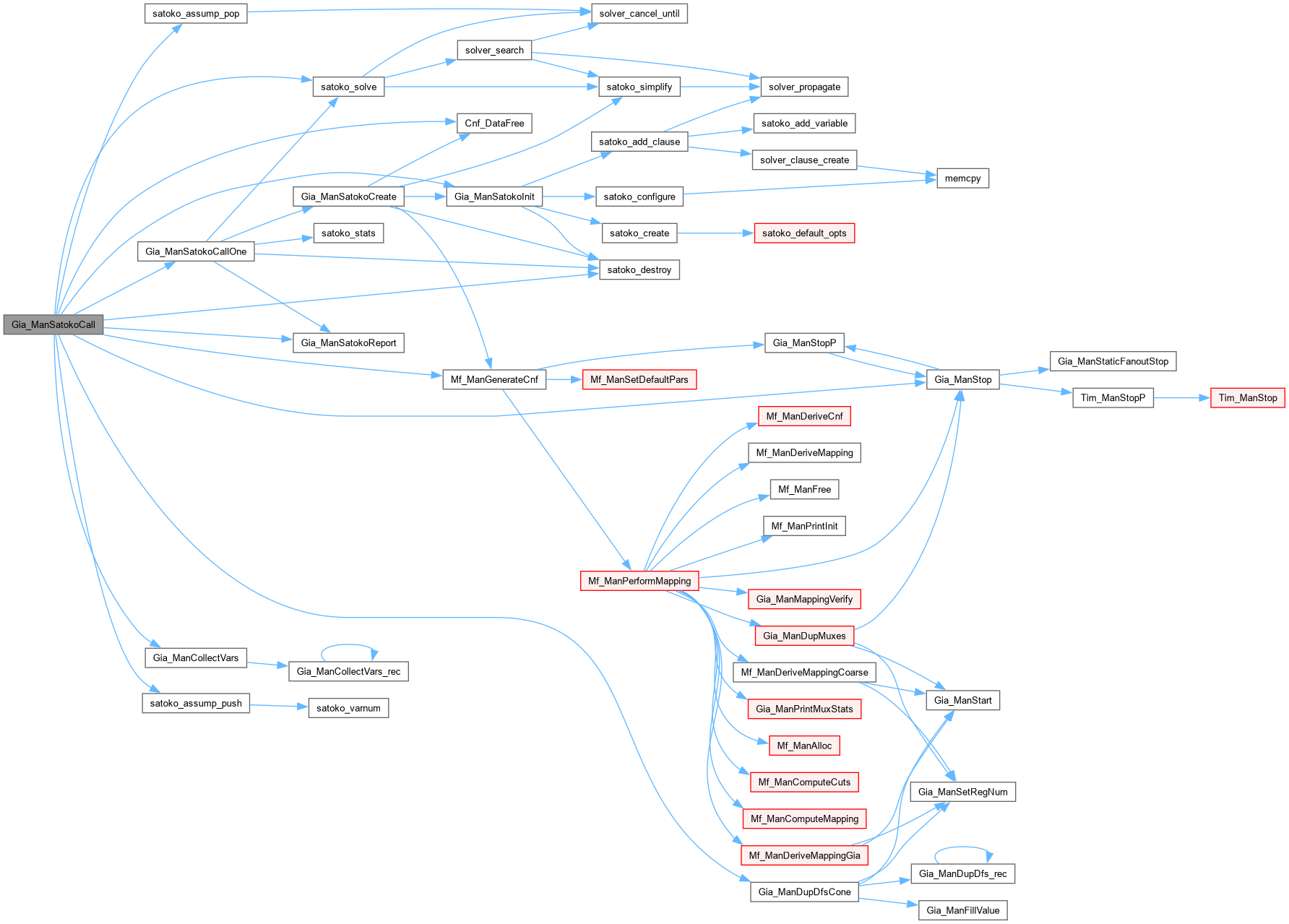

Here is the call graph for this function:

Gia_ManSatokoCallOne()

int Gia_ManSatokoCallOne	(	Gia_Man_t *	p,
		satoko_opts_t *	opts,
		int	iOutput )

Definition at line 199 of file giaSatoko.c.

{
    abctime clk = Abc_Clock();
    satoko_t * pSat;
    int status = SATOKO_UNSAT, Cost = 0;
    pSat = Gia_ManSatokoCreate( p, opts );
    if ( pSat )
    {
        status = satoko_solve( pSat );
        Cost = satoko_stats(pSat)->n_conflicts;
        satoko_destroy( pSat );
    }
    Gia_ManSatokoReport( iOutput, status, Abc_Clock() - clk );
    return Cost;
}

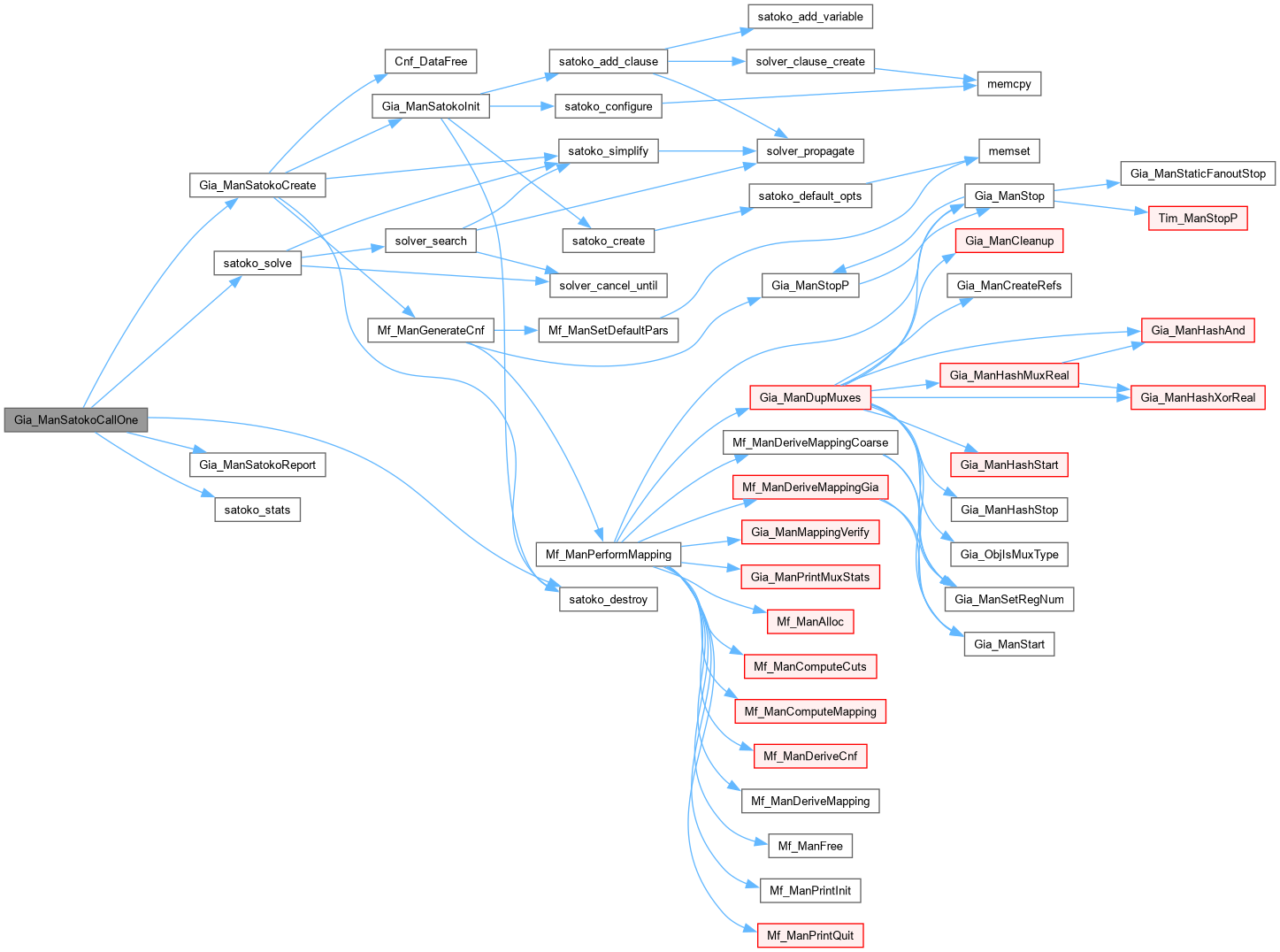

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManSatokoCreate()

satoko_t * Gia_ManSatokoCreate	(	Gia_Man_t *	p,
		satoko_opts_t *	opts )

Definition at line 188 of file giaSatoko.c.

{
    Cnf_Dat_t * pCnf = (Cnf_Dat_t *)Mf_ManGenerateCnf( p, 8, 0, 1, 0, 0 );
    satoko_t * pSat = Gia_ManSatokoInit( pCnf, opts );
    int status = pSat ? satoko_simplify(pSat) : SATOKO_OK;
    Cnf_DataFree( pCnf );
    if ( status == SATOKO_OK )
        return pSat;
    satoko_destroy( pSat );
    return NULL;
}

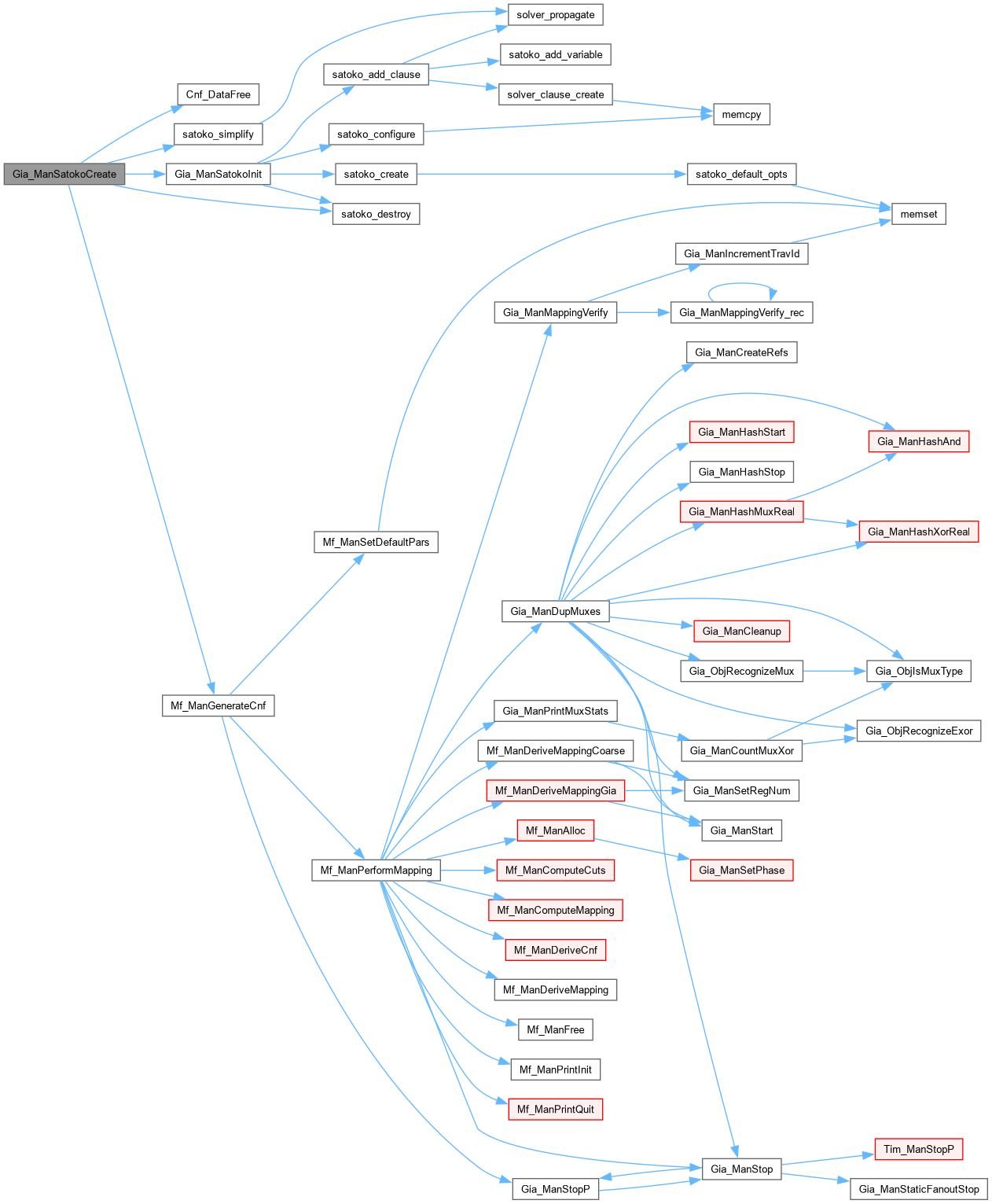

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManSatokoDimacs()

void Gia_ManSatokoDimacs	(	char *	pFileName,
		satoko_opts_t *	opts )

Definition at line 148 of file giaSatoko.c.

{
    abctime clk = Abc_Clock();
    int status = SATOKO_UNSAT;
    satoko_t * pSat = Gia_ManSatokoFromDimacs( pFileName, opts );
    if ( pSat )
    {
        status = satoko_solve( pSat );
        satoko_destroy( pSat );
    }
    Gia_ManSatokoReport( -1, status, Abc_Clock() - clk );
}

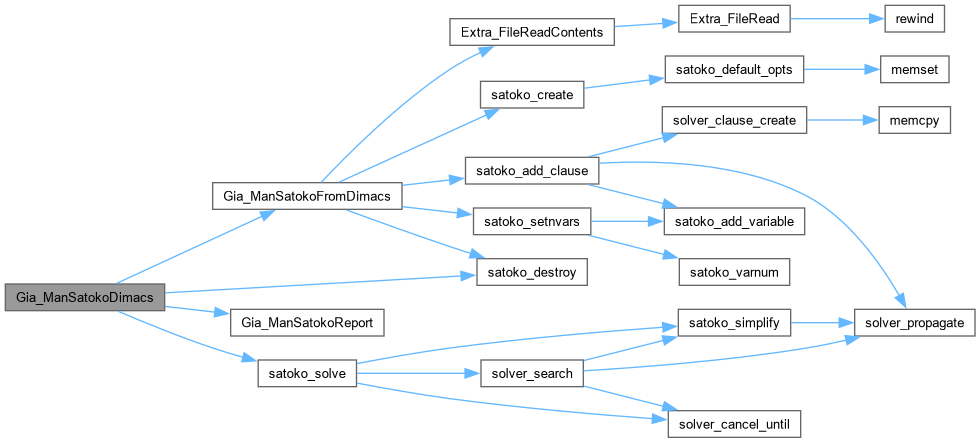

Here is the call graph for this function:

Gia_ManSatokoFromDimacs()

satoko_t * Gia_ManSatokoFromDimacs	(	char *	pFileName,
		satoko_opts_t *	opts )

Definition at line 99 of file giaSatoko.c.

{
    satoko_t * pSat = satoko_create();
    char * pBuffer = Extra_FileReadContents( pFileName );
    Vec_Int_t * vLits = Vec_IntAlloc( 100 );
    char * pTemp; int fComp, Var, VarMax = 0;
    for ( pTemp = pBuffer; *pTemp; pTemp++ )
    {
        if ( *pTemp == 'c' || *pTemp == 'p' )
        {
            while ( *pTemp != '\n' )
                pTemp++;
            continue;
        }
        while ( *pTemp == ' ' || *pTemp == '\t' || *pTemp == '\r' || *pTemp == '\n' )
            pTemp++;
        fComp = 0;
        if ( *pTemp == '-' )
            fComp = 1, pTemp++;
        if ( *pTemp == '+' )
            pTemp++;
        Var = atoi( pTemp );
        if ( Var == 0 ) {
            if ( Vec_IntSize(vLits) > 0 )
            {
                satoko_setnvars( pSat, VarMax+1 );
                if ( !satoko_add_clause( pSat, Vec_IntArray(vLits), Vec_IntSize(vLits) ) )
                {
                    satoko_destroy(pSat);
                    Vec_IntFree( vLits );
                    ABC_FREE( pBuffer );
                    return NULL;
                }
                Vec_IntClear( vLits );
            }
        }
        else
        {
            Var--;
            VarMax = Abc_MaxInt( VarMax, Var );
            Vec_IntPush( vLits, Abc_Var2Lit(Var, fComp) );
        }
        while ( *pTemp >= '0' && *pTemp <= '9' )
            pTemp++;
    }
    ABC_FREE( pBuffer );
    Vec_IntFree( vLits );
    return pSat;
}

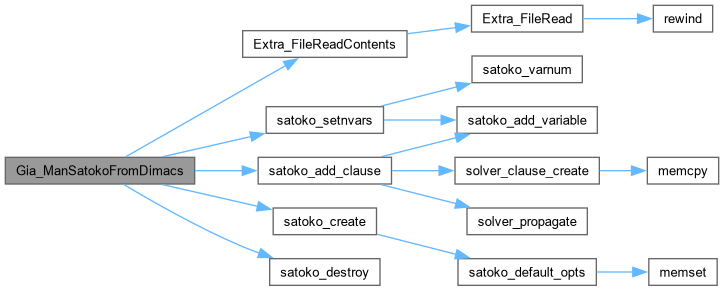

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManSatokoInit()

satoko_t * Gia_ManSatokoInit	(	Cnf_Dat_t *	pCnf,
		satoko_opts_t *	opts )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 172 of file giaSatoko.c.

{
    satoko_t * pSat = satoko_create();
    int i;
    //sat_solver_setnvars( pSat, p->nVars );
    for ( i = 0; i < pCnf->nClauses; i++ )
    {
        if ( !satoko_add_clause( pSat, pCnf->pClauses[i], pCnf->pClauses[i+1]-pCnf->pClauses[i] ) )
        {
            satoko_destroy( pSat );
            return NULL;
        }
    }
    satoko_configure(pSat, opts);
    return pSat;
}

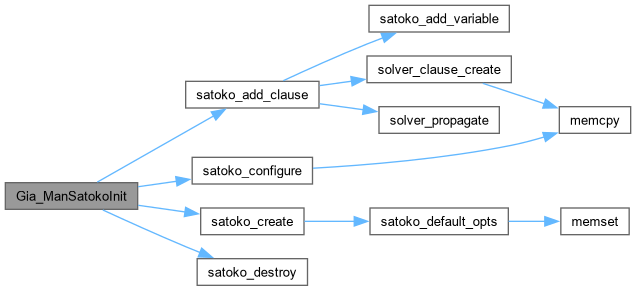

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManSatokoReport()

void Gia_ManSatokoReport	(	int	iOutput,
		int	status,
		abctime	clk )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 83 of file giaSatoko.c.

{
    if ( iOutput >= 0 )
        Abc_Print( 1, "Output %6d : ", iOutput );
    else
        Abc_Print( 1, "Total: " );

    if ( status == SATOKO_UNDEC )
        Abc_Print( 1, "UNDECIDED      " );
    else if ( status == SATOKO_SAT )
        Abc_Print( 1, "SATISFIABLE    " );
    else
        Abc_Print( 1, "UNSATISFIABLE  " );

    Abc_PrintTime( 1, "Time", clk );
}

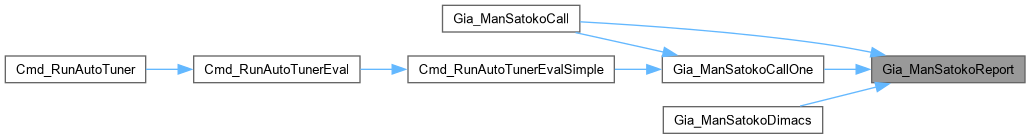

Here is the caller graph for this function:
