giaSweep.c File Reference

#include "gia.h"
#include "giaAig.h"
#include "proof/dch/dch.h"
#include "misc/tim/tim.h"
#include "proof/cec/cec.h"

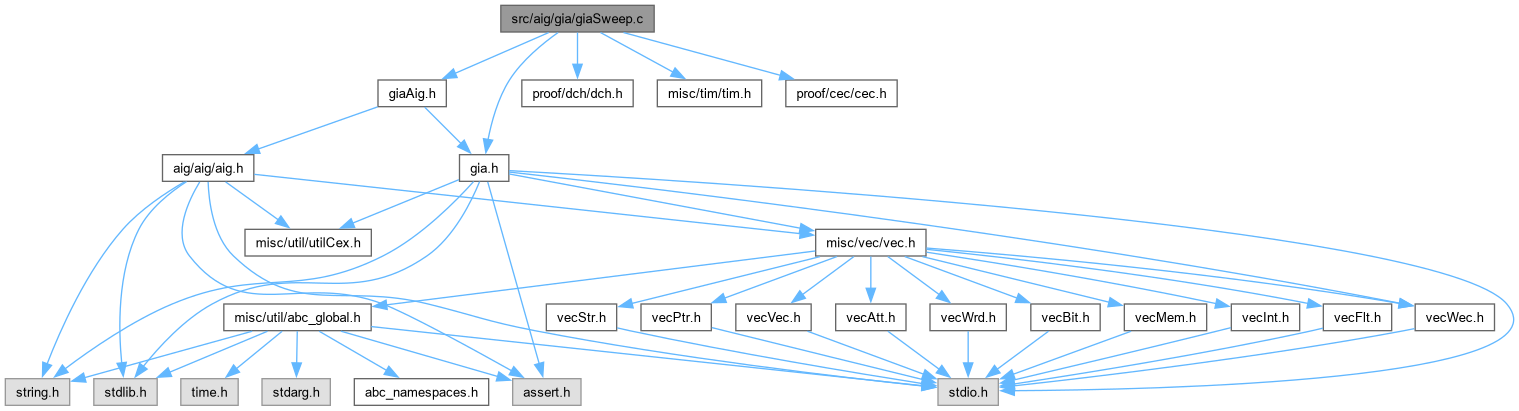

Include dependency graph for giaSweep.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Gia_ManMarkSeqGiaWithBoxes_rec (Gia_Man_t *p, Gia_Obj_t *pObj, Vec_Int_t *vRoots)
	DECLARATIONS ///.
void	Gia_ManMarkSeqGiaWithBoxes (Gia_Man_t *p, int fSeq)
Gia_Man_t *	Gia_ManDupWithBoxes (Gia_Man_t *p, int fSeq)
int	Gia_ManFraigCheckCis (Gia_Man_t *p, Gia_Obj_t *pObj)
Gia_Obj_t *	Gia_ManFraigMarkCis (Gia_Man_t *p, Gia_Obj_t *pObj, int fMark)
Gia_Obj_t *	Gia_ManFraigMarkCos (Gia_Man_t *p, Gia_Obj_t *pObj, int fMark)
Gia_Obj_t *	Gia_ManFraigMarkAnd (Gia_Man_t *p, Gia_Obj_t *pObj)
Gia_Man_t *	Gia_ManFraigCreateGia (Gia_Man_t *p)
int	Gia_ObjFanin0CopyRepr (Gia_Man_t *p, Gia_Obj_t *pObj, int *pReprs)
int	Gia_ObjFanin1CopyRepr (Gia_Man_t *p, Gia_Obj_t *pObj, int *pReprs)
Gia_Man_t *	Gia_ManFraigReduceGia (Gia_Man_t *p, int *pReprs)
Vec_Int_t *	Gia_ManComputeCarryOuts (Gia_Man_t *p)
void	Gia_ManCheckIntegrityWithBoxes (Gia_Man_t *p)
int *	Gia_ManFraigSelectReprs (Gia_Man_t *p, Gia_Man_t *pClp, int fVerbose, int pFlopTypes[3])
void	Gia_ManFraigSweepPerform (Gia_Man_t *p, void *pPars)
Gia_Man_t *	Gia_ManFraigSweepSimple (Gia_Man_t *p, void *pPars)
void	Gia_ManSweepComputeOneDomainEquivs (Gia_Man_t *p, Vec_Int_t *vRegClasses, int iDom, void *pParsS, int fConst, int fEquiv, int fVerbose)
Gia_Man_t *	Gia_ManSweepWithBoxesAndDomains (Gia_Man_t *p, void *pParsS, int fConst, int fEquiv, int fVerbose, int fVerbEquivs)
Gia_Man_t *	Gia_ManSweepWithBoxes (Gia_Man_t *p, void *pParsC, void *pParsS, int fConst, int fEquiv, int fVerbose, int fVerbEquivs)

Function Documentation

Gia_ManCheckIntegrityWithBoxes()

void Gia_ManCheckIntegrityWithBoxes

(

Gia_Man_t *

p

)

Function*************************************************************

Synopsis [Checks integriting of complex flops and carry-chains.]

Description []

SideEffects []

SeeAlso []

Definition at line 441 of file giaSweep.c.

{
    Gia_Obj_t * pObj;
    Vec_Int_t * vCarryOuts;
    int i, nCountReg = 0, nCountCarry = 0;
    if ( p->pManTime == NULL )
        return;
    ABC_FREE( p->pRefs );
    Gia_ManCreateRefs( p );
    for ( i = Gia_ManPoNum(p) - Gia_ManRegBoxNum(p); i < Gia_ManPoNum(p); i++ )
    {
        pObj = Gia_ObjFanin0( Gia_ManPo(p, i) );
        assert( Gia_ObjIsCi(pObj) );
        if ( Gia_ObjRefNum(p, pObj) > 1 )
            nCountReg++;
    }
    vCarryOuts = Gia_ManComputeCarryOuts( p );
    Gia_ManForEachObjVec( vCarryOuts, p, pObj, i )
        if ( Gia_ObjRefNum(p, pObj) > 1 )
            nCountCarry++;
    Vec_IntFree( vCarryOuts );
    if ( nCountReg || nCountCarry )
        printf( "Warning: AIG with boxes has internal fanout in %d complex flops and %d carries.\n", nCountReg, nCountCarry );
    ABC_FREE( p->pRefs );
}

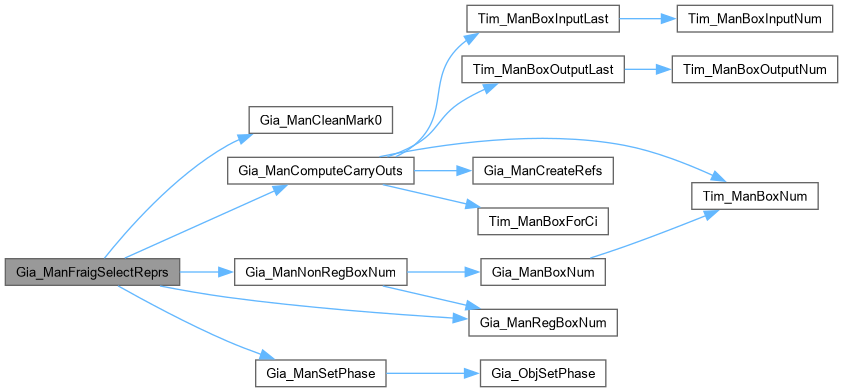

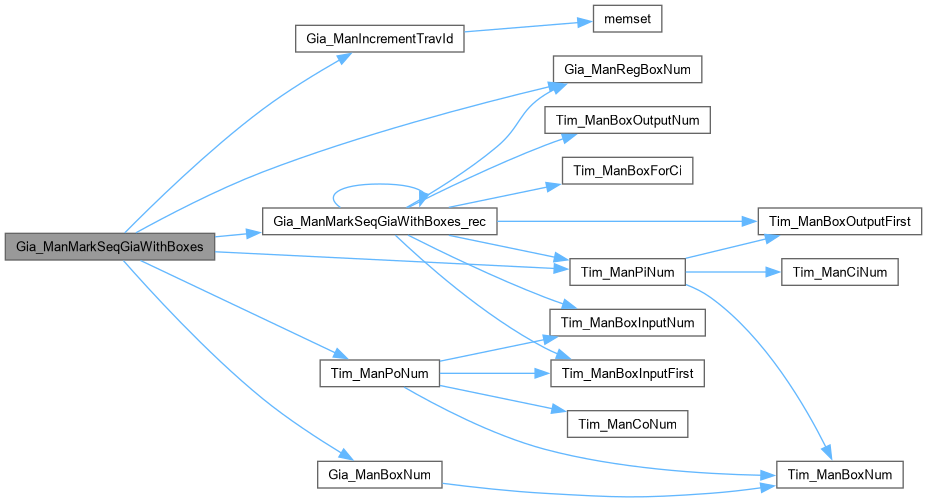

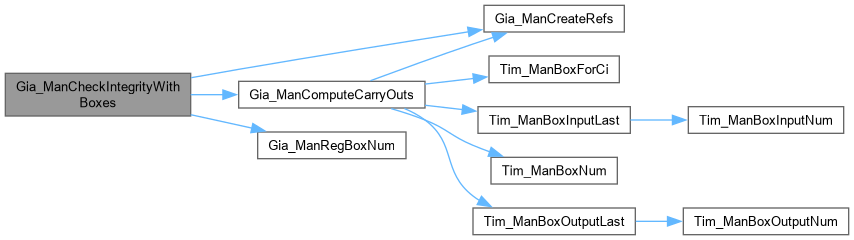

Here is the call graph for this function:

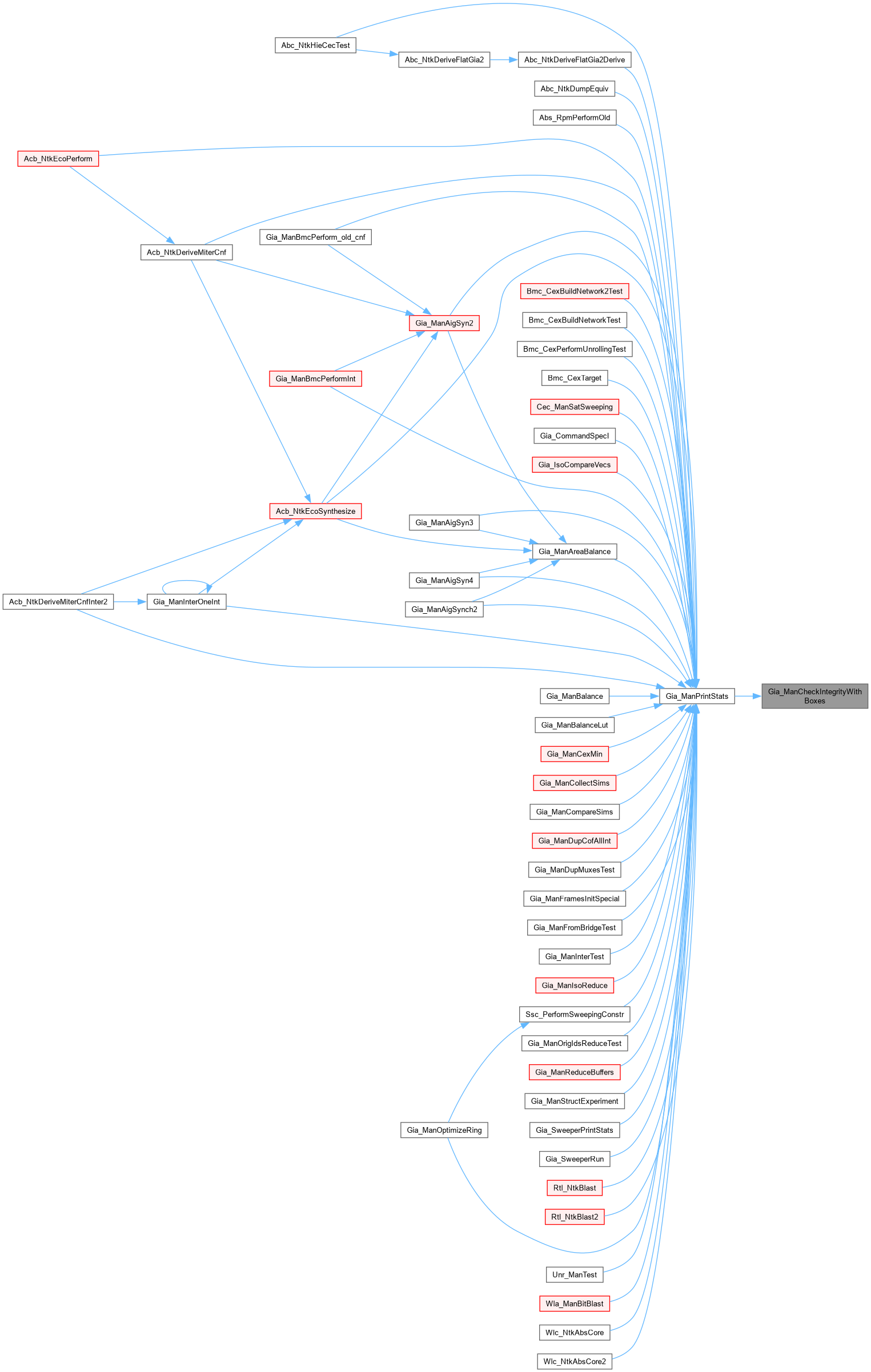

Here is the caller graph for this function:

Gia_ManComputeCarryOuts()

Vec_Int_t * Gia_ManComputeCarryOuts

(

Gia_Man_t *

p

)

Function*************************************************************

Synopsis [Compute the set of CIs representing carry-outs of boxes.]

Description []

SideEffects []

SeeAlso []

Definition at line 385 of file giaSweep.c.

{
    Gia_Obj_t * pObj;
    Tim_Man_t * pManTime = (Tim_Man_t *)p->pManTime;
    int i, iLast, iBox, nBoxes =  Tim_ManBoxNum( pManTime );
    Vec_Int_t * vCarryOuts = Vec_IntAlloc( nBoxes );

    // Create and populate reference count (and free later) only if not already
    // done.
    int createRefs = (p->pRefs == NULL);
    if (createRefs) {
        Gia_ManCreateRefs( p );
    }

    for ( i = 0; i < nBoxes; i++ )
    {
        iLast = Tim_ManBoxInputLast( pManTime, i );
        pObj = Gia_ObjFanin0( Gia_ManCo(p, iLast) );
        if ( !Gia_ObjIsCi(pObj) )
            continue;
        iBox = Tim_ManBoxForCi( pManTime, Gia_ObjCioId(pObj) );
        if ( iBox == -1 )
            continue;
        assert( Gia_ObjIsCi(pObj) );
        if ( Gia_ObjCioId(pObj) == Tim_ManBoxOutputLast(pManTime, iBox) ) {
            Vec_IntPush( vCarryOuts, Gia_ObjId(p, pObj) );

            // We have identified a carry connection. Check if the carry out
            // of the destination box is unconnected. If so then add it to
            // the carry list as well.
            iLast = Tim_ManBoxOutputLast(pManTime, i);
            pObj = Gia_ManCi(p, iLast);
            if ( Gia_ObjRefNum(p, pObj) == 0 ) {
                Vec_IntPush( vCarryOuts, Gia_ObjId(p, pObj) );
            }
        }
    }

    if (createRefs) {
        ABC_FREE( p->pRefs );
    }

    return vCarryOuts;
}

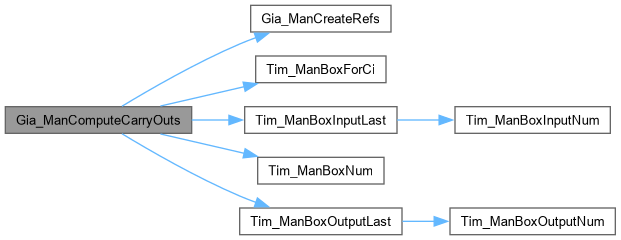

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManDupWithBoxes()

Gia_Man_t * Gia_ManDupWithBoxes	(	Gia_Man_t *	p,
		int	fSeq )

Definition at line 124 of file giaSweep.c.

{
    Tim_Man_t * pManTime = (Tim_Man_t *)p->pManTime;
    Gia_Man_t * pNew;
    Gia_Obj_t * pObj;
    Vec_Int_t * vBoxesLeft;
    int curCi, curCo, nBoxIns, nBoxOuts;
    int i, k, iShift, nMarked;
    assert( Gia_ManBoxNum(p) > 0 );
    // mark useful boxes
    Gia_ManMarkSeqGiaWithBoxes( p, fSeq );
    // duplicate marked entries
    pNew = Gia_ManStart( Gia_ManObjNum(p) );
    pNew->pName = Abc_UtilStrsav( p->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    Gia_ManConst0(p)->Value = 0;
    Gia_ManForEachObj1( p, pObj, i )
    {
        if ( !Gia_ObjIsTravIdCurrent(p, pObj) )
            continue;
        if ( Gia_ObjIsCi(pObj) )
            pObj->Value = Gia_ManAppendCi(pNew);
        else if ( Gia_ObjIsAnd(pObj) )
            pObj->Value = Gia_ManAppendAnd( pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
        else if ( Gia_ObjIsCo(pObj) )
            pObj->Value = Gia_ManAppendCo( pNew, Gia_ObjFanin0Copy(pObj) );
        else assert( 0 );
    }
    assert( !Gia_ManHasDangling(pNew) );
    // collect remaining flops
    if ( fSeq )
    {
        pNew->vRegClasses = Vec_IntAlloc( Gia_ManRegBoxNum(p) );
        if ( p->vRegInits )
            pNew->vRegInits = Vec_IntAlloc( Gia_ManRegBoxNum(p) );
        iShift = Gia_ManPoNum(p) - Gia_ManRegBoxNum(p);
        for ( i = 0; i < Gia_ManRegBoxNum(p); i++ )
            if ( Gia_ObjIsTravIdCurrent(p, Gia_ManCo(p, iShift + i)) )
            {
                Vec_IntPush( pNew->vRegClasses, Vec_IntEntry(p->vRegClasses, i) );
                if ( p->vRegInits )
                    Vec_IntPush( pNew->vRegInits, Vec_IntEntry(p->vRegInits, i) );
            }
    }
    else
    {
        if ( p->vRegClasses )
            pNew->vRegClasses = Vec_IntDup( p->vRegClasses );
        if ( p->vRegInits )
            pNew->vRegInits = Vec_IntDup( p->vRegInits );
    }
    // collect remaining boxes
    vBoxesLeft = Vec_IntAlloc( Gia_ManBoxNum(p) );
    curCi = Tim_ManPiNum(pManTime);
    curCo = 0;
    for ( i = 0; i < Gia_ManBoxNum(p); i++ )
    {
        nBoxIns = Tim_ManBoxInputNum(pManTime, i);
        nBoxOuts = Tim_ManBoxOutputNum(pManTime, i);
        nMarked = 0;
        for ( k = 0; k < nBoxIns; k++ )
            nMarked += Gia_ObjIsTravIdCurrent( p, Gia_ManCo(p, curCo + k) );
        for ( k = 0; k < nBoxOuts; k++ )
            nMarked += Gia_ObjIsTravIdCurrent( p, Gia_ManCi(p, curCi + k) );
        curCo += nBoxIns;
        curCi += nBoxOuts;
        // check presence
        assert( nMarked == 0 || nMarked == nBoxIns + nBoxOuts );
        if ( nMarked )
            Vec_IntPush( vBoxesLeft, i );
    }
    curCo += Tim_ManPoNum(pManTime);
    assert( curCi == Gia_ManCiNum(p) );
    assert( curCo == Gia_ManCoNum(p) );
    // update timing manager
    pNew->pManTime = Gia_ManUpdateTimMan2( p, vBoxesLeft, Gia_ManRegBoxNum(p) - Gia_ManRegBoxNum(pNew) );
    // update extra STG
    assert( p->pAigExtra != NULL );
    assert( pNew->pAigExtra == NULL );
    pNew->pAigExtra = Gia_ManUpdateExtraAig2( p->pManTime, p->pAigExtra, vBoxesLeft );
    assert( Gia_ManCiNum(pNew) == Tim_ManPiNum((Tim_Man_t*)pNew->pManTime) + Gia_ManCoNum(pNew->pAigExtra) );
    Vec_IntFree( vBoxesLeft );
    pNew->nAnd2Delay = p->nAnd2Delay;
    return pNew;
}

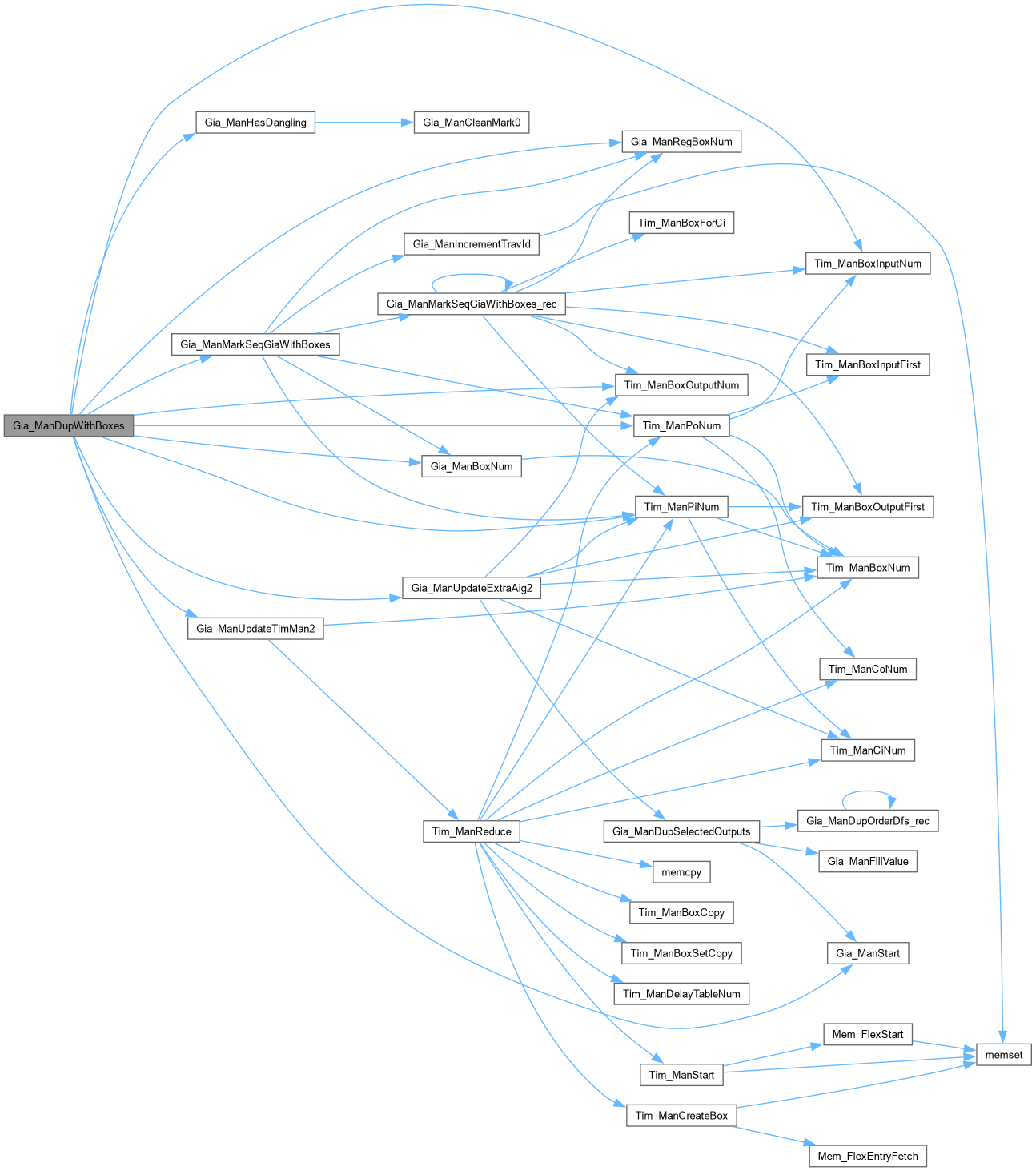

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManFraigCheckCis()

int Gia_ManFraigCheckCis	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj )

Function*************************************************************

Synopsis [Mark GIA nodes that feed into POs.]

Description []

SideEffects []

SeeAlso []

Definition at line 221 of file giaSweep.c.

{
    for ( assert( Gia_ObjIsCi(pObj) ); Gia_ObjIsCi(pObj); pObj-- )
        if ( Gia_ObjIsTravIdCurrent(p, pObj) )
            return 1;
    return 0;
}

Here is the caller graph for this function:

Gia_ManFraigCreateGia()

Gia_Man_t * Gia_ManFraigCreateGia

(

Gia_Man_t *

p

)

Definition at line 255 of file giaSweep.c.

{
    Vec_Int_t * vBoxPres;
    Gia_Man_t * pNew;
    Gia_Obj_t * pObj;
    int i, fLabelPos;
    assert( p->pManTime != NULL );
    // start marks
    Gia_ManIncrementTravId( p );
    Gia_ObjSetTravIdCurrent( p, Gia_ManConst0(p) );
    vBoxPres = Vec_IntAlloc( 1000 );
    // mark primary outputs
    fLabelPos = 1;
    pObj = Gia_ManObj( p, Gia_ManObjNum(p) - 1 );
    assert( Gia_ObjIsCo(pObj) );
    while ( Gia_ObjIsCo(pObj) )
    {
        pObj = Gia_ManFraigMarkCos( p, pObj, fLabelPos );
        if ( Gia_ObjIsAnd(pObj) )
            pObj = Gia_ManFraigMarkAnd( p, pObj );
        assert( Gia_ObjIsCi(pObj) );
        fLabelPos = Gia_ManFraigCheckCis(p, pObj);
        pObj = Gia_ManFraigMarkCis( p, pObj, fLabelPos );
        Vec_IntPush( vBoxPres, fLabelPos );
    }
    Vec_IntPop( vBoxPres );
    Vec_IntReverseOrder( vBoxPres );
    assert( Gia_ObjIsConst0(pObj) );
    // mark primary inputs
    Gia_ManForEachObj1( p, pObj, i )
        if ( Gia_ObjIsCi(pObj) )
            Gia_ObjSetTravIdCurrent( p, pObj );
        else
            break;
    // duplicate marked entries
    pNew = Gia_ManStart( Gia_ManObjNum(p) );
    pNew->pName = Abc_UtilStrsav( p->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    Gia_ManConst0(p)->Value = 0;
    Gia_ManForEachObj1( p, pObj, i )
    {
        if ( !Gia_ObjIsTravIdCurrent(p, pObj) )
            continue;
        if ( Gia_ObjIsCi(pObj) )
            pObj->Value = Gia_ManAppendCi(pNew);
        else if ( Gia_ObjIsAnd(pObj) )
            pObj->Value = Gia_ManAppendAnd( pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
        else if ( Gia_ObjIsCo(pObj) )
            pObj->Value = Gia_ManAppendCo( pNew, Gia_ObjFanin0Copy(pObj) );
        else assert( 0 );
    }
    // update timing manager
    pNew->pManTime = Gia_ManUpdateTimMan( p, vBoxPres );
    // update extra STG
    assert( p->pAigExtra != NULL );
    assert( pNew->pAigExtra == NULL );
    pNew->pAigExtra = Gia_ManUpdateExtraAig( p->pManTime, p->pAigExtra, vBoxPres );
    Vec_IntFree( vBoxPres );
//    assert( Gia_ManPiNum(pNew) == Tim_ManCiNum(pNew->pManTime) );
//    assert( Gia_ManPoNum(pNew) == Tim_ManCoNum(pNew->pManTime) );
//    assert( Gia_ManPiNum(pNew) == Tim_ManPiNum(pNew->pManTime) + Gia_ManPoNum(pNew->pAigExtra) );
    return pNew;
}

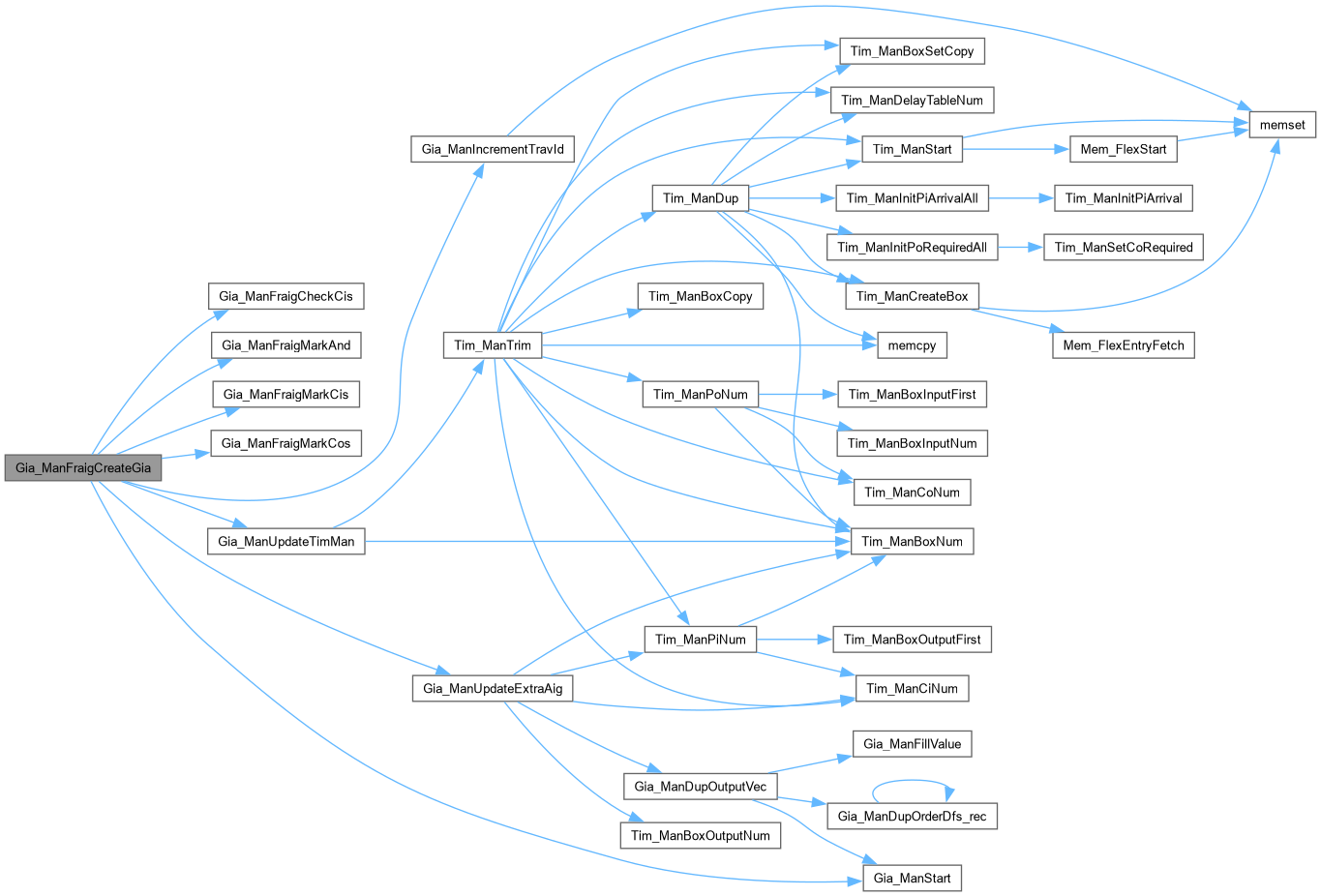

Here is the call graph for this function:

Gia_ManFraigMarkAnd()

Gia_Obj_t * Gia_ManFraigMarkAnd	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj )

Definition at line 245 of file giaSweep.c.

{
    for ( assert( Gia_ObjIsAnd(pObj) ); Gia_ObjIsAnd(pObj); pObj-- )
        if ( Gia_ObjIsTravIdCurrent(p, pObj) )
        {
            Gia_ObjSetTravIdCurrent( p, Gia_ObjFanin0(pObj) );
            Gia_ObjSetTravIdCurrent( p, Gia_ObjFanin1(pObj) );
        }
    return pObj;
}

Here is the caller graph for this function:

Gia_ManFraigMarkCis()

Gia_Obj_t * Gia_ManFraigMarkCis	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj,
		int	fMark )

Definition at line 228 of file giaSweep.c.

{
    for ( assert( Gia_ObjIsCi(pObj) ); Gia_ObjIsCi(pObj); pObj-- )
        if ( fMark )
            Gia_ObjSetTravIdCurrent( p, pObj );
    return pObj;
}

Here is the caller graph for this function:

Gia_ManFraigMarkCos()

Gia_Obj_t * Gia_ManFraigMarkCos	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj,
		int	fMark )

Definition at line 235 of file giaSweep.c.

{
    for ( assert( Gia_ObjIsCo(pObj) ); Gia_ObjIsCo(pObj); pObj-- )
        if ( fMark )
        {
            Gia_ObjSetTravIdCurrent( p, pObj );
            Gia_ObjSetTravIdCurrent( p, Gia_ObjFanin0(pObj) );
        }
    return pObj;
}

Here is the caller graph for this function:

Gia_ManFraigReduceGia()

Gia_Man_t * Gia_ManFraigReduceGia	(	Gia_Man_t *	p,
		int *	pReprs )

Definition at line 346 of file giaSweep.c.

{
    Gia_Man_t * pNew;
    Gia_Obj_t * pObj;
    int i;
    assert( pReprs != NULL );
    assert( Gia_ManRegNum(p) == 0 );
    pNew = Gia_ManStart( Gia_ManObjNum(p) );
    pNew->pName = Abc_UtilStrsav( p->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    Gia_ManFillValue( p );
    Gia_ManHashAlloc( pNew );
    Gia_ManForEachObj( p, pObj, i )
    {
        if ( Gia_ObjIsAnd(pObj) )
            pObj->Value = Gia_ManHashAnd( pNew, Gia_ObjFanin0CopyRepr(p, pObj, pReprs), Gia_ObjFanin1CopyRepr(p, pObj, pReprs) );
        else if ( Gia_ObjIsCi(pObj) )
            pObj->Value = Gia_ManAppendCi( pNew );
        else if ( Gia_ObjIsCo(pObj) )
            pObj->Value = Gia_ManAppendCo( pNew, Gia_ObjFanin0CopyRepr(p, pObj, pReprs) );
        else if ( Gia_ObjIsConst0(pObj) )
            pObj->Value = 0;
        else assert( 0 );
    }
    Gia_ManHashStop( pNew );
    return pNew;
}

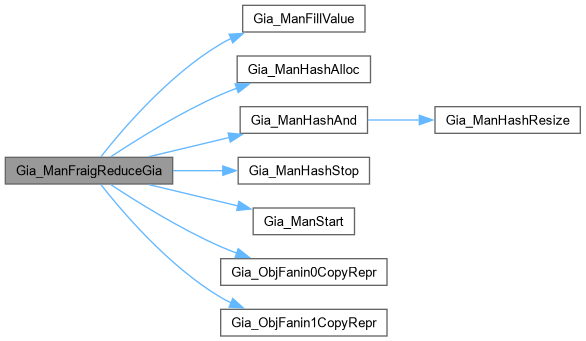

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManFraigSelectReprs()

int * Gia_ManFraigSelectReprs	(	Gia_Man_t *	p,
		Gia_Man_t *	pClp,
		int	fVerbose,
		int	pFlopTypes[3] )

Function*************************************************************

Synopsis [Computes representatives in terms of the original objects.]

Description []

SideEffects []

SeeAlso []

Definition at line 478 of file giaSweep.c.

{
    Gia_Obj_t * pObj;
    Vec_Int_t * vCarryOuts;
    Tim_Man_t * pManTime = (Tim_Man_t *)p->pManTime;
    int * pReprs   = ABC_FALLOC( int, Gia_ManObjNum(p) );
    int * pClp2Gia = ABC_FALLOC( int, Gia_ManObjNum(pClp) );
    int i, iLitClp, iLitClp2, iReprClp, fCompl;
    int nConsts = 0, nReprs = 0;
    assert( pManTime != NULL );
    // count the number of equivalent objects
    Gia_ManForEachObj1( pClp, pObj, i )
    {
        if ( Gia_ObjIsCo(pObj) )
            continue;
        if ( i == Gia_ObjReprSelf(pClp, i) )
            continue;
        if ( Gia_ObjReprSelf(pClp, i) == 0 )
            nConsts++;
        else
            nReprs++;
    }
    if ( fVerbose )
        printf( "Computed %d const objects and %d other objects.\n", nConsts, nReprs );
    nConsts = nReprs = 0;

    // mark flop input boxes
    Gia_ManCleanMark0( p );
    for ( i = Gia_ManPoNum(p) - Gia_ManRegBoxNum(p); i < Gia_ManPoNum(p); i++ )
    {
        pObj = Gia_ObjFanin0( Gia_ManPo(p, i) );
        assert( Gia_ObjIsCi(pObj) );
        pObj->fMark0 = 1;
    }
    // mark connects between last box inputs and first box outputs
    vCarryOuts = Gia_ManComputeCarryOuts( p );
    Gia_ManForEachObjVec( vCarryOuts, p, pObj, i )
        pObj->fMark0 = 1;
    if ( fVerbose )
        printf( "Fixed %d flop inputs and %d box/box connections (out of %d non-flop boxes).\n",
            Gia_ManRegBoxNum(p), Vec_IntSize(vCarryOuts), Gia_ManNonRegBoxNum(p) );
    Vec_IntFree( vCarryOuts );

    // collect equivalent node info
    pFlopTypes[0] = pFlopTypes[1] = pFlopTypes[2] = 0;
    Gia_ManForEachRo( pClp, pObj, i )
    {
        Gia_Obj_t * pRepr = Gia_ObjReprObj(pClp, i);
        if ( pRepr && pRepr != pObj )
        {
            if ( pRepr == Gia_ManConst0(pClp) )
                pFlopTypes[0]++;
            else if ( Gia_ObjIsRo(pClp, pRepr) )
                pFlopTypes[1]++;
        }
    }

    // compute representatives
    pClp2Gia[0] = 0;
    Gia_ManSetPhase( pClp );
    Gia_ManForEachObj1( p, pObj, i )
    {
        if ( Gia_ObjIsCo(pObj) )
            continue;
        if ( Gia_ObjIsCi(pObj) && pObj->fMark0 ) // skip CI pointed by CO
            continue;
        assert( Gia_ObjIsCi(pObj) || Gia_ObjIsAnd(pObj) );
        iLitClp = Gia_ObjValue(pObj);
        if ( iLitClp == -1 )
            continue;
        iReprClp = Gia_ObjReprSelf( pClp, Abc_Lit2Var(iLitClp) );
        if ( pClp2Gia[iReprClp] == -1 )
            pClp2Gia[iReprClp] = i;
        else
        {
            iLitClp2 = Gia_ObjValue( Gia_ManObj(p, pClp2Gia[iReprClp]) );
            assert( Gia_ObjReprSelf(pClp, Abc_Lit2Var(iLitClp)) == Gia_ObjReprSelf(pClp, Abc_Lit2Var(iLitClp2)) );
            fCompl  = Abc_LitIsCompl(iLitClp) ^ Abc_LitIsCompl(iLitClp2);
            fCompl ^= Gia_ManObj(pClp, Abc_Lit2Var(iLitClp))->fPhase;
            fCompl ^= Gia_ManObj(pClp, Abc_Lit2Var(iLitClp2))->fPhase;
            pReprs[i] = Abc_Var2Lit( pClp2Gia[iReprClp], fCompl );
            assert( Abc_Lit2Var(pReprs[i]) < i );
            if ( pClp2Gia[iReprClp] == 0 )
                nConsts++;
            else
                nReprs++;
        }
    }
    ABC_FREE( pClp2Gia );
    Gia_ManForEachCi( p, pObj, i )
        pObj->fMark0 = 0;
    if ( fVerbose )
        printf( "Found %d const objects and %d other objects.\n", nConsts, nReprs );
    return pReprs;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManFraigSweepPerform()

void Gia_ManFraigSweepPerform	(	Gia_Man_t *	p,
		void *	pPars )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 585 of file giaSweep.c.

{
    Aig_Man_t * pNew;
    pNew = Gia_ManToAigSimple( p );
    assert( Gia_ManObjNum(p) == Aig_ManObjNum(pNew) );
    Dch_ComputeEquivalences( pNew, (Dch_Pars_t *)pPars );
    Gia_ManReprFromAigRepr( pNew, p );
    Aig_ManStop( pNew );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManFraigSweepSimple()

Gia_Man_t * Gia_ManFraigSweepSimple	(	Gia_Man_t *	p,
		void *	pPars )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 606 of file giaSweep.c.

{
    Gia_Man_t * pNew;
    assert( p->pManTime == NULL || Gia_ManBoxNum(p) == 0 );
    Gia_ManFraigSweepPerform( p, pPars );
    pNew = Gia_ManEquivReduce( p, 1, 0, 0, 0 );
    if ( pNew == NULL )
        pNew = Gia_ManDup(p);
    Gia_ManTransferTiming( pNew, p );
    return pNew;
}

Here is the call graph for this function:

Gia_ManMarkSeqGiaWithBoxes()

void Gia_ManMarkSeqGiaWithBoxes	(	Gia_Man_t *	p,
		int	fSeq )

Definition at line 87 of file giaSweep.c.

{
    // CI order: real PIs + flop outputs + box outputs
    // CO order: box inputs + real POs + flop inputs
    Tim_Man_t * pManTime = (Tim_Man_t *)p->pManTime;
    Vec_Int_t * vRoots;
    Gia_Obj_t * pObj;
    int nRealCis = Tim_ManPiNum(pManTime);
    int nRealCos = Tim_ManPoNum(pManTime);
    int i, nRegs = fSeq ? Gia_ManRegBoxNum(p) : 0;
    assert( Gia_ManRegNum(p) == 0 );
    assert( Gia_ManBoxNum(p) > 0 );
    // mark the terminals
    Gia_ManIncrementTravId( p );
    Gia_ObjSetTravIdCurrent( p, Gia_ManConst0(p) );
    for ( i = 0; i < nRealCis - nRegs; i++ )
        Gia_ObjSetTravIdCurrent( p, Gia_ManPi(p, i) );
    // collect flops reachable from the POs
    vRoots = Vec_IntAlloc( Gia_ManRegBoxNum(p) );
    for ( i = Gia_ManPoNum(p) - nRealCos; i < Gia_ManPoNum(p) - nRegs; i++ )
    {
        Gia_ObjSetTravIdCurrent( p, Gia_ManPo(p, i) );
        Gia_ManMarkSeqGiaWithBoxes_rec( p, Gia_ObjFanin0(Gia_ManPo(p, i)), vRoots );
    }
    // collect flops reachable from roots
    if ( fSeq )
    {
        Gia_ManForEachObjVec( vRoots, p, pObj, i )
        {
            assert( Gia_ObjIsCo(pObj) );
            Gia_ObjSetTravIdCurrent( p, pObj );
            Gia_ManMarkSeqGiaWithBoxes_rec( p, Gia_ObjFanin0(pObj), vRoots );
        }
        //printf( "Explored %d flops\n", Vec_IntSize(vRoots) );
    }
    Vec_IntFree( vRoots );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManMarkSeqGiaWithBoxes_rec()

ABC_NAMESPACE_IMPL_START void Gia_ManMarkSeqGiaWithBoxes_rec	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj,
		Vec_Int_t *	vRoots )

DECLARATIONS ///.

CFile****************************************************************

FileName [giaSweep.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis [Sweeping of GIA manager.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

giaSweep.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Mark GIA nodes that feed into POs.]

Description [Returns the array of classes of remaining registers.]

SideEffects []

SeeAlso []

Definition at line 48 of file giaSweep.c.

{
    Tim_Man_t * pManTime = (Tim_Man_t *)p->pManTime;
    int i, iBox, nBoxIns, nBoxOuts, iShift, nRealCis;
    if ( Gia_ObjIsTravIdCurrent(p, pObj) )
        return;
    Gia_ObjSetTravIdCurrent(p, pObj);
    if ( Gia_ObjIsAnd(pObj) )
    {
        Gia_ManMarkSeqGiaWithBoxes_rec( p, Gia_ObjFanin0(pObj), vRoots );
        Gia_ManMarkSeqGiaWithBoxes_rec( p, Gia_ObjFanin1(pObj), vRoots );
        return;
    }
    assert( Gia_ObjIsCi(pObj) );
    nRealCis = Tim_ManPiNum(pManTime);
    if ( Gia_ObjCioId(pObj) < nRealCis )
    {
        int nRegs = Gia_ManRegBoxNum(p);
        int iFlop = Gia_ObjCioId(pObj) - (nRealCis - nRegs);
        assert( iFlop >= 0 && iFlop < nRegs );
        pObj = Gia_ManCo( p, Gia_ManPoNum(p) - nRegs + iFlop );
        Vec_IntPush( vRoots, Gia_ObjId(p, pObj) );
        return;
    }
    // get the box
    iBox = Tim_ManBoxForCi( pManTime, Gia_ObjCioId(pObj) );
    nBoxIns = Tim_ManBoxInputNum(pManTime, iBox);
    nBoxOuts = Tim_ManBoxOutputNum(pManTime, iBox);
    // mark all outputs
    iShift = Tim_ManBoxOutputFirst(pManTime, iBox);
    for ( i = 0; i < nBoxOuts; i++ )
        Gia_ObjSetTravIdCurrent(p, Gia_ManCi(p, iShift + i));
    // traverse from inputs
    iShift = Tim_ManBoxInputFirst(pManTime, iBox);
    for ( i = 0; i < nBoxIns; i++ )
        Gia_ObjSetTravIdCurrent(p, Gia_ManCo(p, iShift + i));
    for ( i = 0; i < nBoxIns; i++ )
        Gia_ManMarkSeqGiaWithBoxes_rec( p, Gia_ObjFanin0(Gia_ManCo(p, iShift + i)), vRoots );
}

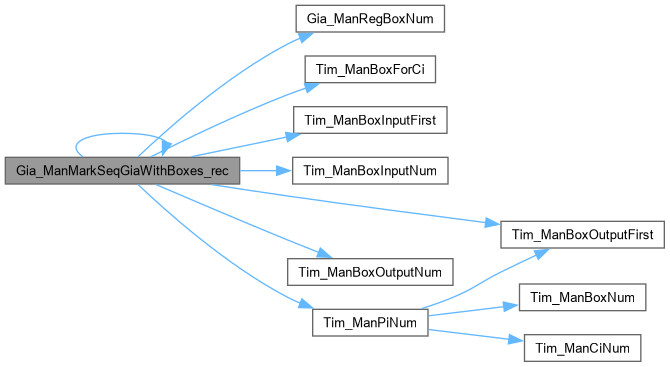

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManSweepComputeOneDomainEquivs()

void Gia_ManSweepComputeOneDomainEquivs	(	Gia_Man_t *	p,
		Vec_Int_t *	vRegClasses,
		int	iDom,
		void *	pParsS,
		int	fConst,
		int	fEquiv,
		int	fVerbose )

Function*************************************************************

Synopsis [Computes equivalences for one clock domain.]

Description []

SideEffects []

SeeAlso []

Definition at line 629 of file giaSweep.c.

{
    Gia_Man_t * pNew;
    Gia_Obj_t * pObj;
    Vec_Int_t * vPerm;
    int i, Class, nFlops;
    int nDoms = Vec_IntFindMax(vRegClasses);
    assert( iDom >= 1 && iDom <= nDoms );
    assert( p->pManTime == NULL );
    assert( Gia_ManRegNum(p) > 0 );
    // create required flop permutation
    vPerm = Vec_IntAlloc( Gia_ManRegNum(p) );
    Vec_IntForEachEntry( vRegClasses, Class, i )
        if ( Class != iDom )
            Vec_IntPush( vPerm, i );
    nFlops = Vec_IntSize( vPerm );
    Vec_IntForEachEntry( vRegClasses, Class, i )
        if ( Class == iDom )
            Vec_IntPush( vPerm, i );
    nFlops = Vec_IntSize(vPerm) - nFlops;
    assert( Vec_IntSize(vPerm) == Gia_ManRegNum(p) );
    // derive new AIG
    pNew = Gia_ManDupPermFlop( p, vPerm );
    assert( Gia_ManObjNum(pNew) == Gia_ManObjNum(p) );
    Vec_IntFree( vPerm );
    // perform computation of equivalences
    pNew->nRegs = nFlops;
    if ( pParsS )
        Cec_ManLSCorrespondenceClasses( pNew, (Cec_ParCor_t *)pParsS );
    else
        Gia_ManSeqCleanupClasses( pNew, fConst, fEquiv, fVerbose );
    pNew->nRegs = Gia_ManRegNum(p);
    // make new point to old
    Gia_ManForEachObj( p, pObj, i )
    {
        assert( !Abc_LitIsCompl(pObj->Value) );
        Gia_ManObj(pNew, Abc_Lit2Var(pObj->Value))->Value = Abc_Var2Lit(i, 0);
    }
    // transfer
    Gia_ManDupRemapEquiv( p, pNew );
    Gia_ManStop( pNew );
}

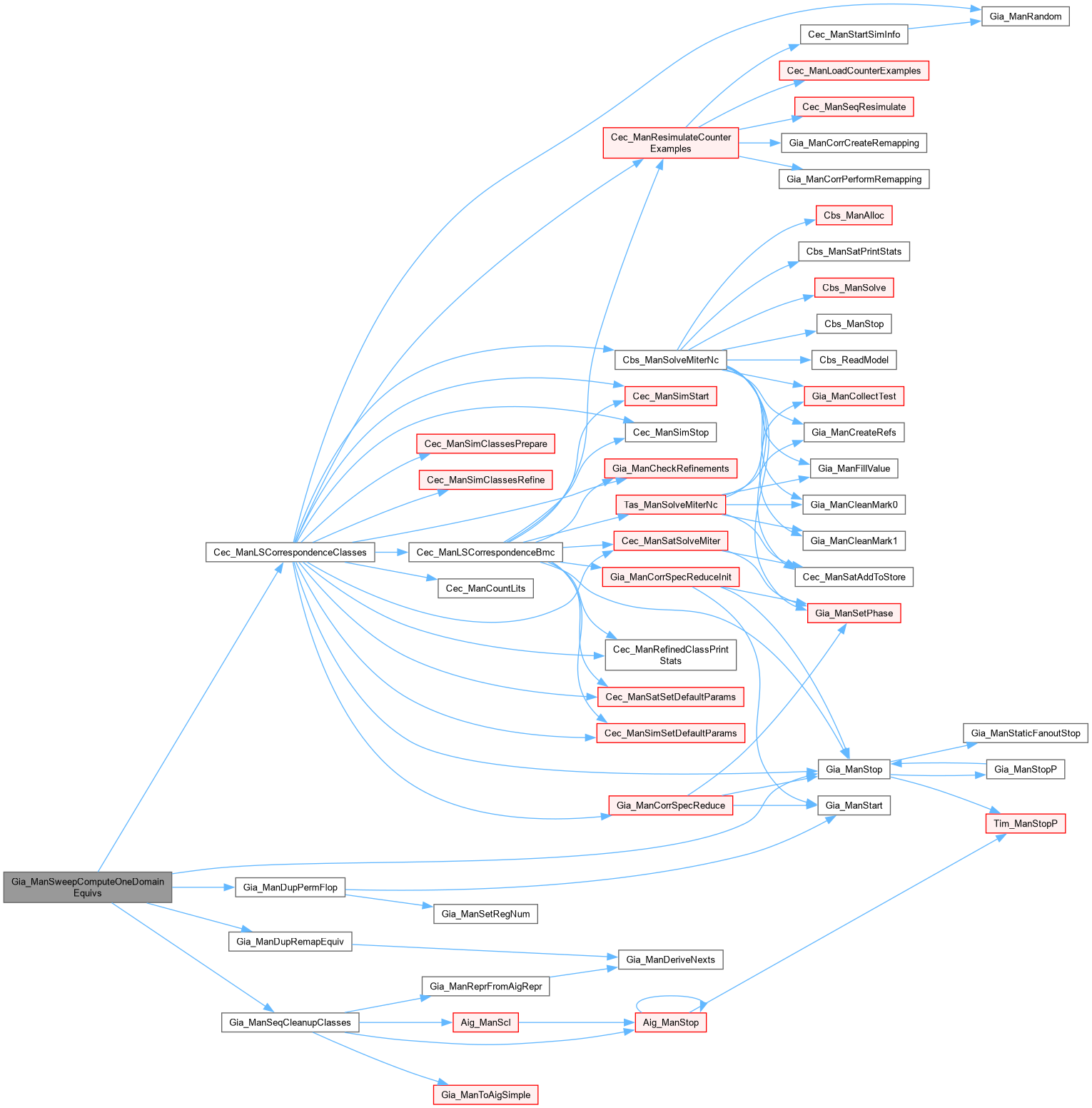

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManSweepWithBoxes()

Gia_Man_t * Gia_ManSweepWithBoxes	(	Gia_Man_t *	p,
		void *	pParsC,
		void *	pParsS,
		int	fConst,
		int	fEquiv,
		int	fVerbose,
		int	fVerbEquivs )

Function*************************************************************

Synopsis [Reduces root model with scorr.]

Description []

SideEffects []

SeeAlso []

Definition at line 739 of file giaSweep.c.

{
    Gia_Man_t * pClp, * pNew, * pTemp;
    int * pReprs, pFlopTypes[3] = {0};
    int nFlopsNew, nFlops;
    assert( Gia_ManRegNum(p) == 0 );
    assert( p->pAigExtra != NULL );
    // consider seq synthesis with multiple clock domains
    if ( pParsC == NULL && Gia_ManClockDomainNum(p) > 1 )
        return Gia_ManSweepWithBoxesAndDomains( p, pParsS, fConst, fEquiv, fVerbose, fVerbEquivs );
    // order AIG objects
    pNew = Gia_ManDupUnnormalize( p );
    if ( pNew == NULL )
        return NULL;
    Gia_ManTransferTiming( pNew, p );
    nFlops = Vec_IntCountEntry(pNew->vRegClasses, 1);
    // find global equivalences
    pClp = Gia_ManDupCollapse( pNew, pNew->pAigExtra, NULL, pParsC ? 0 : 1 );
    //Gia_DumpAiger( pClp, p->pSpec, 1, 1 );
    // compute equivalences
    if ( pParsC )
        Gia_ManFraigSweepPerform( pClp, pParsC );
    else if ( pParsS )
        Cec_ManLSCorrespondenceClasses( pClp, (Cec_ParCor_t *)pParsS );
    else
        Gia_ManSeqCleanupClasses( pClp, fConst, fEquiv, fVerbose );
    // transfer equivalences
    pReprs = Gia_ManFraigSelectReprs( pNew, pClp, fVerbose, pFlopTypes );
    Gia_ManStop( pClp );
    // reduce AIG
    Gia_ManTransferTiming( p, pNew );
    pNew = Gia_ManFraigReduceGia( pTemp = pNew, pReprs );
    Gia_ManTransferTiming( pNew, p );
    Gia_ManStop( pTemp );
    ABC_FREE( pReprs );
    // derive new AIG
    pNew = Gia_ManDupWithBoxes( pTemp = pNew, pParsC ? 0 : 1 );
    Gia_ManStop( pTemp );
    // report
    nFlopsNew = Vec_IntCountEntry(pNew->vRegClasses, 1);
    pFlopTypes[2] = nFlops - nFlopsNew - (pFlopTypes[0] + pFlopTypes[1]);
    if ( fVerbEquivs )
    {
        printf( "Domain %2d : %5d -> %5d :  ", 1, nFlops, nFlopsNew );
        printf( "EqConst =%4d.  EqFlop =%4d.  Dangling =%4d.  Unused =%4d.\n",
            pFlopTypes[0], pFlopTypes[1], Abc_MaxInt(0, pFlopTypes[2]), Abc_MaxInt(0, -pFlopTypes[2]) );
    }
    // normalize the result
    pNew = Gia_ManDupNormalize( pTemp = pNew, 0 );
    Gia_ManTransferTiming( pNew, pTemp );
    Gia_ManStop( pTemp );
    // check integrity
    //Gia_ManCheckIntegrityWithBoxes( pNew );
    return pNew;
}

Here is the call graph for this function:

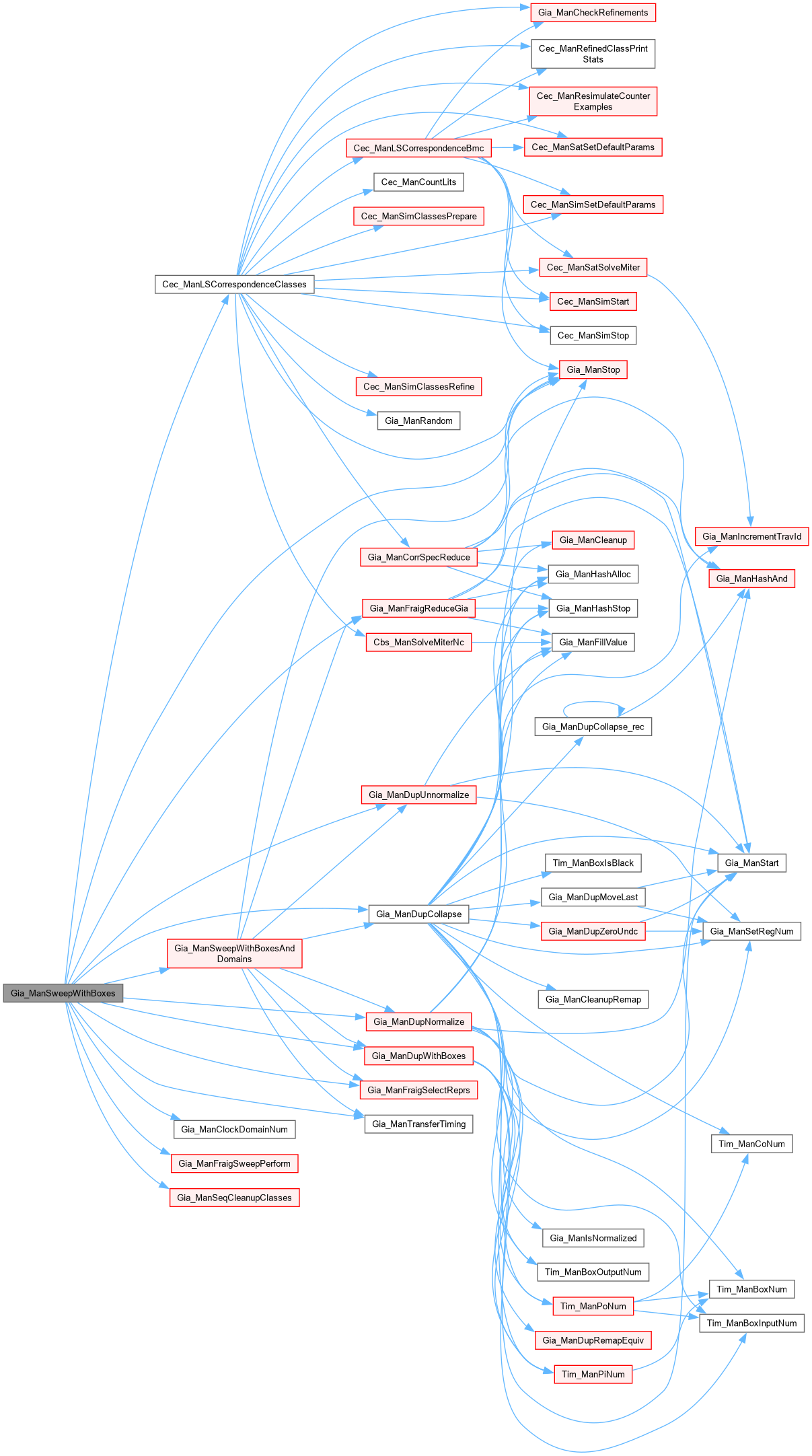

Gia_ManSweepWithBoxesAndDomains()

Gia_Man_t * Gia_ManSweepWithBoxesAndDomains	(	Gia_Man_t *	p,
		void *	pParsS,
		int	fConst,
		int	fEquiv,
		int	fVerbose,
		int	fVerbEquivs )

Definition at line 671 of file giaSweep.c.

{
    Gia_Man_t * pClp, * pNew, * pTemp;
    int nDoms = Vec_IntFindMax(p->vRegClasses);
    int * pReprs, iDom, pFlopTypes[3] = {0};
    assert( Gia_ManRegNum(p) == 0 );
    assert( p->pAigExtra != NULL );
    assert( nDoms > 1 );
    // order AIG objects
    pNew = Gia_ManDupUnnormalize( p );
    if ( pNew == NULL )
        return NULL;
    Gia_ManTransferTiming( pNew, p );
    // iterate over domains
    for ( iDom = 1; iDom <= nDoms; iDom++ )
    {
        int nFlopsNew, nFlops = Vec_IntCountEntry(pNew->vRegClasses, iDom);
        if ( nFlops < 2 )
            continue;
        // find global equivalences
        pClp = Gia_ManDupCollapse( pNew, pNew->pAigExtra, NULL, 1 );
        //Gia_DumpAiger( pClp, p->pSpec, iDom, 2 );
        //Gia_ManPrintStats( pClp, NULL );
        // compute equivalences
        Gia_ManSweepComputeOneDomainEquivs( pClp, pNew->vRegClasses, iDom, pParsS, fConst, fEquiv, fVerbose );
        // transfer equivalences
        pReprs = Gia_ManFraigSelectReprs( pNew, pClp, fVerbose, pFlopTypes );
        Gia_ManStop( pClp );
        // reduce AIG
        Gia_ManTransferTiming( p, pNew );
        pNew = Gia_ManFraigReduceGia( pTemp = pNew, pReprs );
        Gia_ManTransferTiming( pNew, p );
        Gia_ManStop( pTemp );
        ABC_FREE( pReprs );
        // derive new AIG
        pNew = Gia_ManDupWithBoxes( pTemp = pNew, 1 );
        Gia_ManStop( pTemp );
        // report
        nFlopsNew = Vec_IntCountEntry(pNew->vRegClasses, iDom);
        pFlopTypes[2] = nFlops - nFlopsNew - (pFlopTypes[0] + pFlopTypes[1]);
        if ( fVerbEquivs )
        {
            printf( "Domain %2d : %5d -> %5d :  ", iDom, nFlops, nFlopsNew );
            printf( "EqConst =%4d.  EqFlop =%4d.  Dangling =%4d.  Unused =%4d.\n",
                pFlopTypes[0], pFlopTypes[1], Abc_MaxInt(0, pFlopTypes[2]), Abc_MaxInt(0, -pFlopTypes[2]) );
            //Gia_ManPrintStats( pNew, NULL );
        }
    }
    // normalize the result
    pNew = Gia_ManDupNormalize( pTemp = pNew, 0 );
    Gia_ManTransferTiming( pNew, pTemp );
    Gia_ManStop( pTemp );
    // check integrity
    //Gia_ManCheckIntegrityWithBoxes( pNew );
    return pNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ObjFanin0CopyRepr()

int Gia_ObjFanin0CopyRepr	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj,
		int *	pReprs )

Function*************************************************************

Synopsis [Duplicates the AIG in the DFS order.]

Description []

SideEffects []

SeeAlso []

Definition at line 330 of file giaSweep.c.

{
    int fanId = Gia_ObjFaninId0p( p, pObj );
    if ( pReprs[fanId] == -1 )
        return Gia_ObjFanin0Copy( pObj );
    assert( Abc_Lit2Var(pReprs[fanId]) < Gia_ObjId(p, pObj) );
    return Abc_LitNotCond( Gia_ObjValue(Gia_ManObj(p, Abc_Lit2Var(pReprs[fanId]))), Gia_ObjFaninC0(pObj) ^ Abc_LitIsCompl(pReprs[fanId]) );
}

Here is the caller graph for this function:

Gia_ObjFanin1CopyRepr()

int Gia_ObjFanin1CopyRepr	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj,
		int *	pReprs )

Definition at line 338 of file giaSweep.c.

{
    int fanId = Gia_ObjFaninId1p( p, pObj );
    if ( pReprs[fanId] == -1 )
        return Gia_ObjFanin1Copy( pObj );
    assert( Abc_Lit2Var(pReprs[fanId]) < Gia_ObjId(p, pObj) );
    return Abc_LitNotCond( Gia_ObjValue(Gia_ManObj(p, Abc_Lit2Var(pReprs[fanId]))), Gia_ObjFaninC1(pObj) ^ Abc_LitIsCompl(pReprs[fanId]) );
}

Here is the caller graph for this function:
