giaSwitch.c File Reference

#include "giaAig.h"
#include "base/main/main.h"

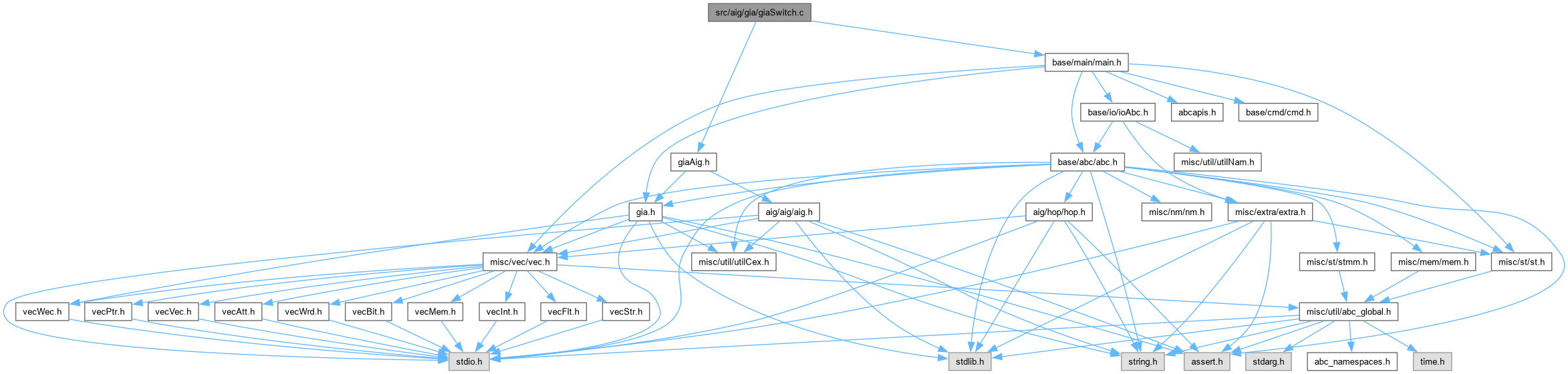

Include dependency graph for giaSwitch.c:

Go to the source code of this file.

Classes
struct	Gia_ParSwi_t_
struct	Gia_ManSwi_t_

Typedefs
typedef typedefABC_NAMESPACE_IMPL_START struct Gia_ParSwi_t_	Gia_ParSwi_t
	DECLARATIONS ///.
typedef struct Gia_ManSwi_t_	Gia_ManSwi_t

Functions
void	Gia_ManSetDefaultParamsSwi (Gia_ParSwi_t *p)
	FUNCTION DEFINITIONS ///.
Gia_ManSwi_t *	Gia_ManSwiCreate (Gia_Man_t *pAig, Gia_ParSwi_t *pPars)
void	Gia_ManSwiDelete (Gia_ManSwi_t *p)
float	Gia_ManSwiComputeSwitching (int nOnes, int nSimWords)
float	Gia_ManSwiComputeProbOne (int nOnes, int nSimWords)
Vec_Int_t *	Gia_ManSwiSimulate (Gia_Man_t *pAig, Gia_ParSwi_t *pPars)
Vec_Int_t *	Gia_ManComputeSwitchProbs (Gia_Man_t *pGia, int nFrames, int nPref, int fProbOne)
Vec_Int_t *	Gia_ManComputeSwitchProbs2 (Gia_Man_t *pGia, int nFrames, int nPref, int fProbOne, int nRandPiFactor)
Vec_Int_t *	Saig_ManComputeSwitchProbs (Aig_Man_t *pAig, int nFrames, int nPref, int fProbOne)
float	Gia_ManEvaluateSwitching (Gia_Man_t *p)
float	Gia_ManComputeSwitching (Gia_Man_t *p, int nFrames, int nPref, int fProbOne)
Vec_Flt_t *	Gia_ManPrintOutputProb (Gia_Man_t *p)

Typedef Documentation

Gia_ManSwi_t

typedef struct Gia_ManSwi_t_ Gia_ManSwi_t

Definition at line 45 of file giaSwitch.c.

Gia_ParSwi_t

typedef typedefABC_NAMESPACE_IMPL_START struct Gia_ParSwi_t_ Gia_ParSwi_t

DECLARATIONS ///.

CFile****************************************************************

FileName [giaSwitch.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis [Computing switching activity.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

giaSwitch.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 32 of file giaSwitch.c.

Function Documentation

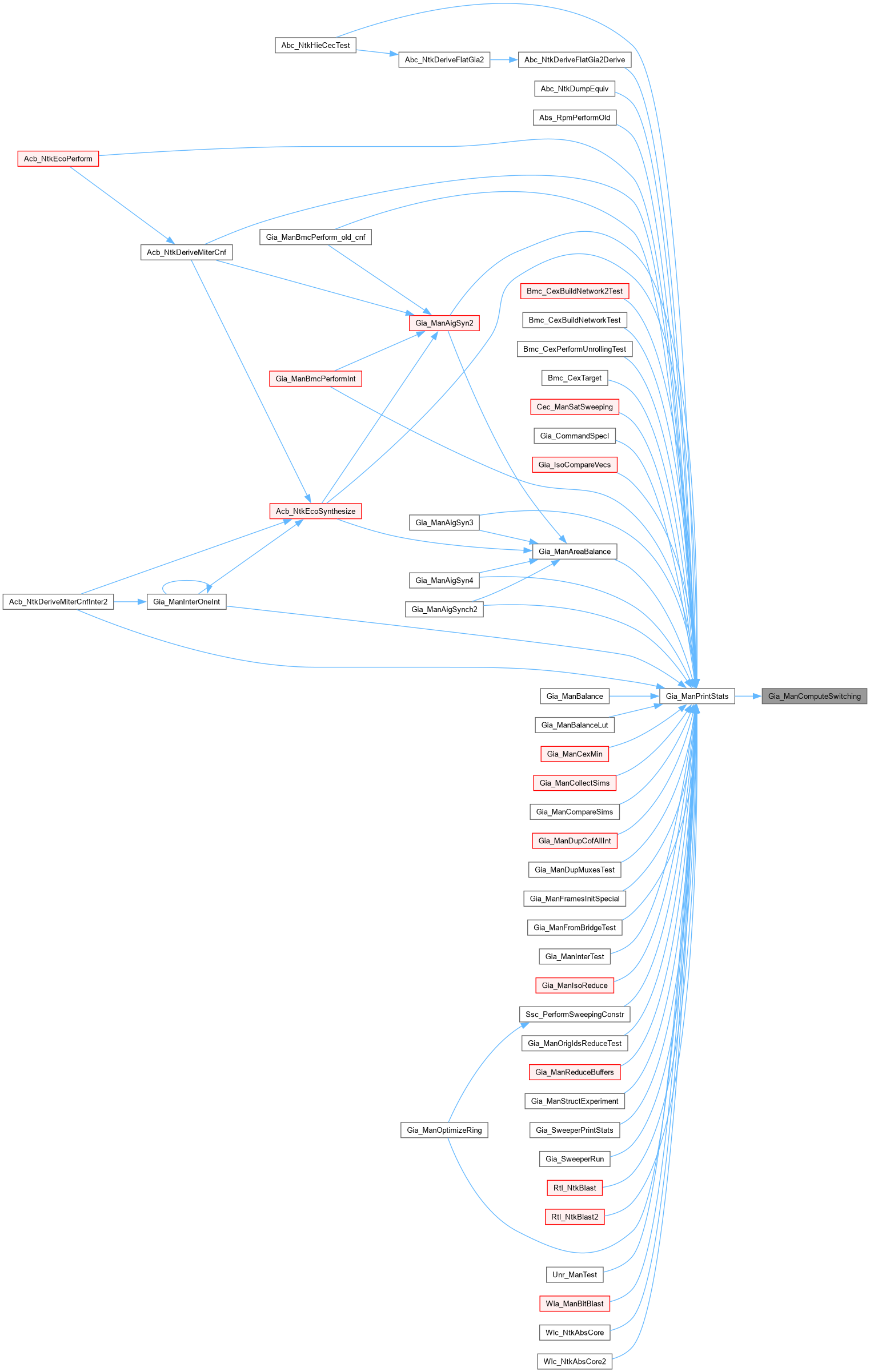

Gia_ManComputeSwitching()

float Gia_ManComputeSwitching	(	Gia_Man_t *	p,
		int	nFrames,
		int	nPref,
		int	fProbOne )

Function*************************************************************

Synopsis [Computes probability of switching (or of being 1).]

Description []

SideEffects []

SeeAlso []

Definition at line 808 of file giaSwitch.c.

{
    Vec_Int_t * vSwitching = Gia_ManComputeSwitchProbs( p, nFrames, nPref, fProbOne );
    float * pSwi = (float *)Vec_IntArray(vSwitching), SwiTotal = 0;
    Gia_Obj_t * pObj;
    int i, k, iFan;
    if ( Gia_ManHasMapping(p) )
    {
        Gia_ManForEachLut( p, i )
            Gia_LutForEachFanin( p, i, iFan, k )
                SwiTotal += pSwi[iFan];
    }
    else
    {
        Gia_ManForEachAnd( p, pObj, i )
            SwiTotal += pSwi[Gia_ObjFaninId0(pObj, i)] + pSwi[Gia_ObjFaninId1(pObj, i)];
    }
    if ( 0 )
    {
        Gia_ManForEachObj( p, pObj, i )
        {
            printf( "Switch %6.2f  ", pSwi[i] );
            Gia_ObjPrint( p, pObj );
        }
    }
    Vec_IntFree( vSwitching );
    return SwiTotal;
}

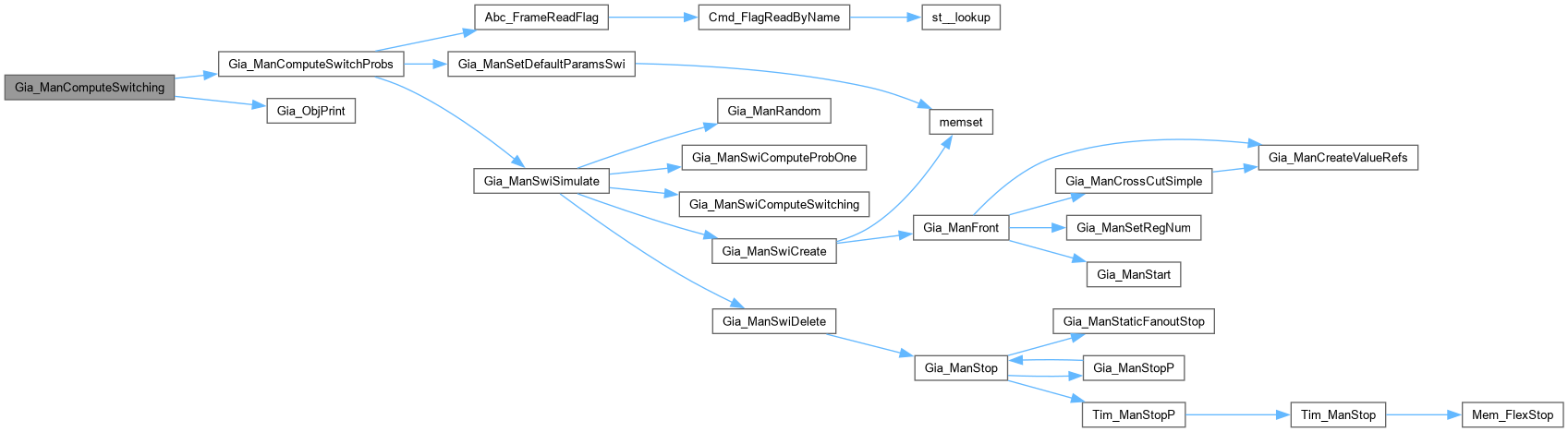

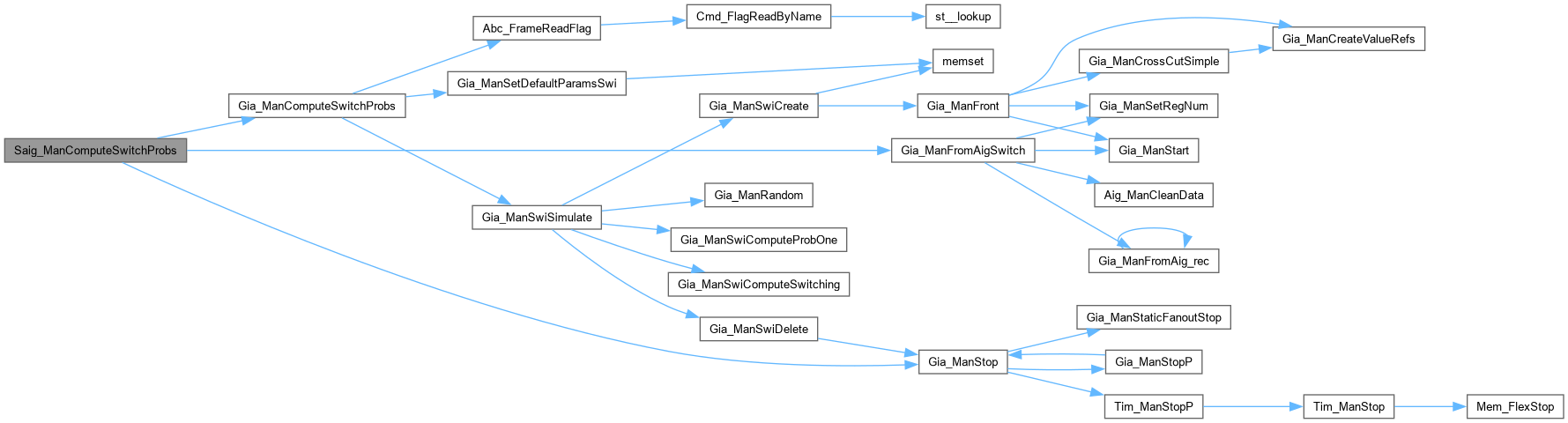

Here is the call graph for this function:

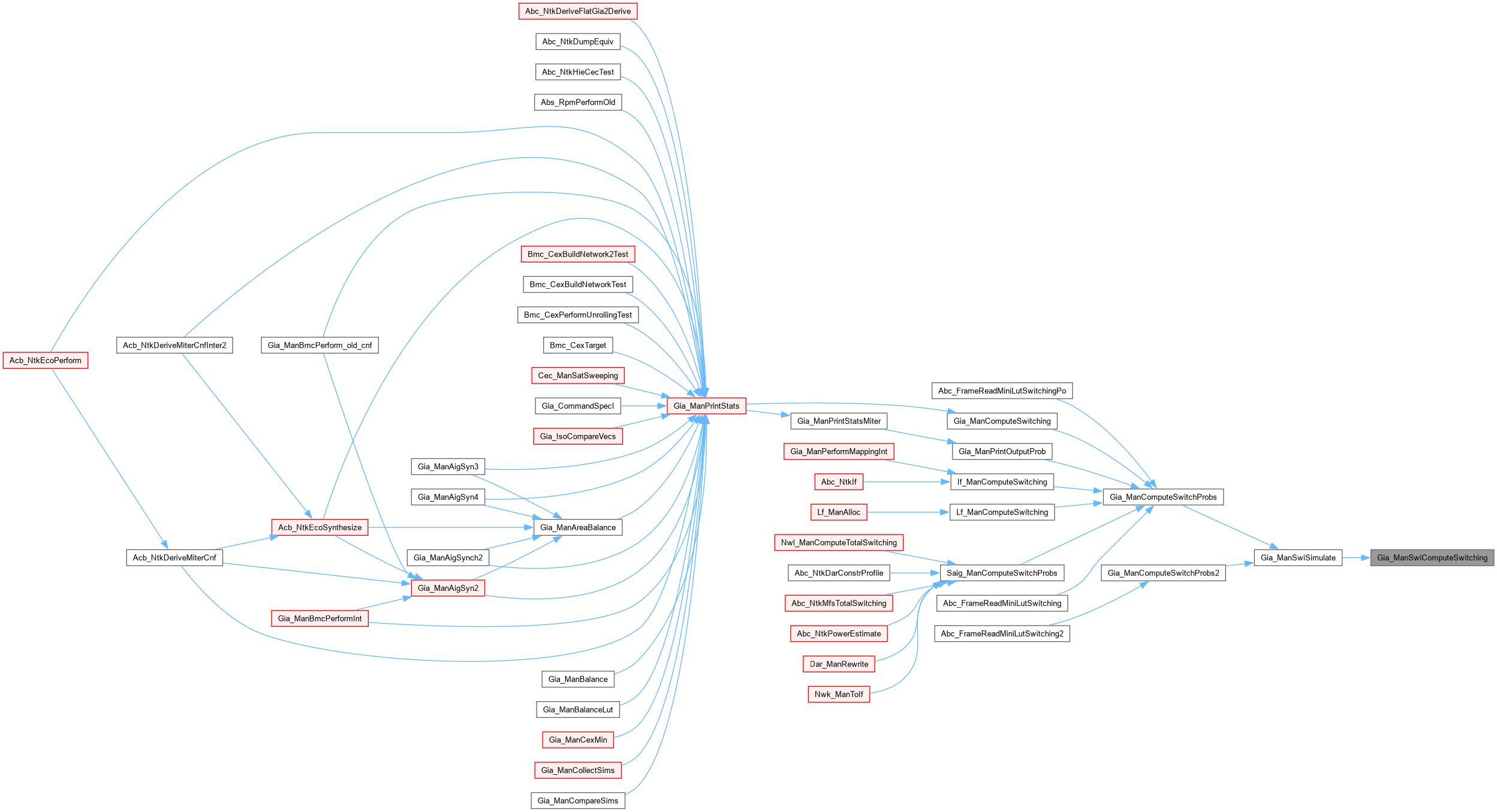

Here is the caller graph for this function:

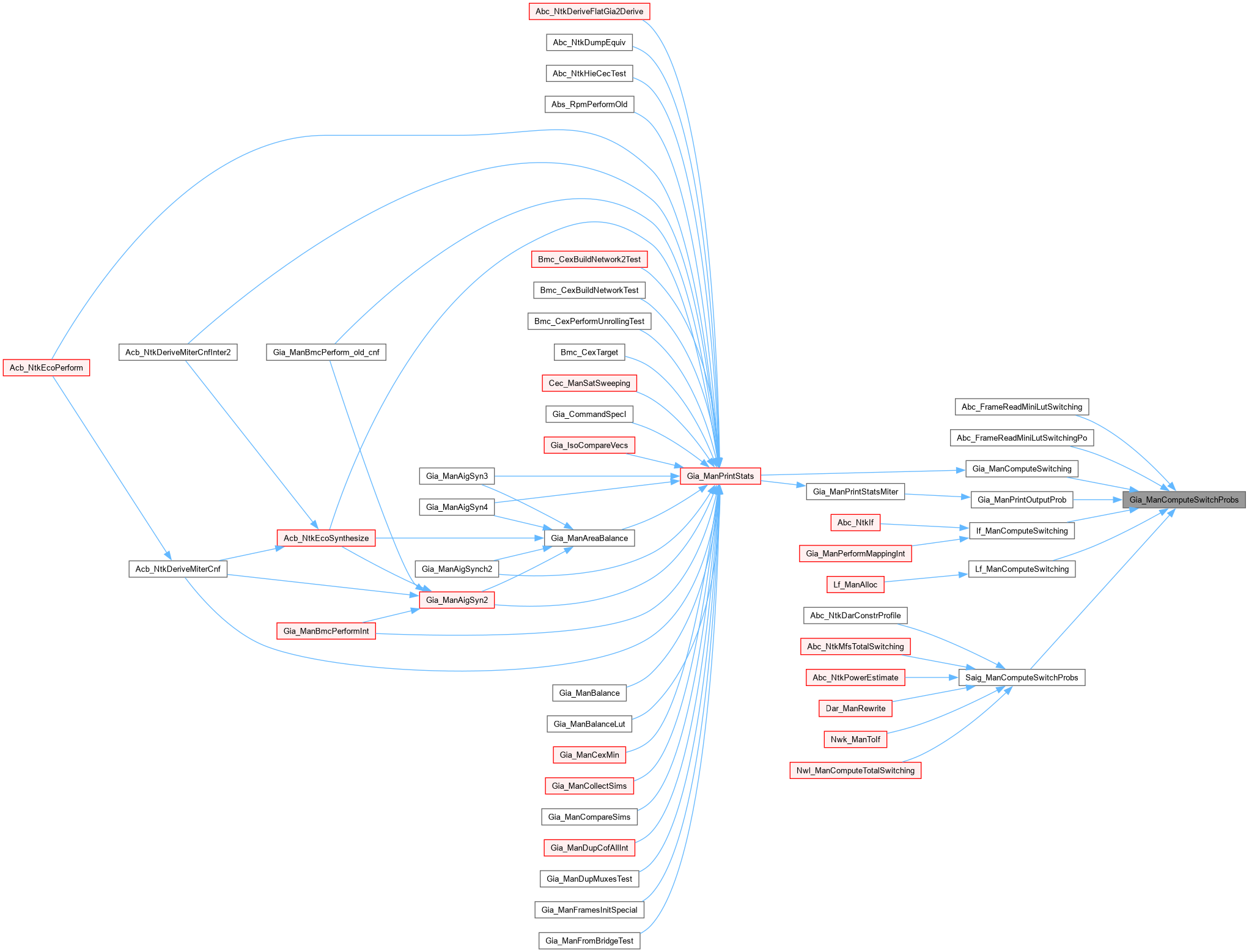

Gia_ManComputeSwitchProbs()

Vec_Int_t * Gia_ManComputeSwitchProbs	(	Gia_Man_t *	pGia,
		int	nFrames,
		int	nPref,
		int	fProbOne )

Function*************************************************************

Synopsis [Computes probability of switching (or of being 1).]

Description []

SideEffects []

SeeAlso []

Definition at line 658 of file giaSwitch.c.

{
    Gia_ParSwi_t Pars, * pPars = &Pars;
    // set the default parameters
    Gia_ManSetDefaultParamsSwi( pPars );
    // override some of the defaults
    pPars->nIters   = nFrames;  // set number of total timeframes
    if ( Abc_FrameReadFlag("seqsimframes") )
        pPars->nIters = atoi( Abc_FrameReadFlag("seqsimframes") );
    pPars->nPref    = nPref;    // set number of first timeframes to skip
    // decide what should be computed
    if ( fProbOne )
    {
        // if the user asked to compute propability of 1, we do not need transition information
        pPars->fProbOne   = 1;  // enable computing probabiblity of being one
        pPars->fProbTrans = 0;  // disable computing transition probability
    }
    else
    {
        // if the user asked for transition propabability, we do not need to compute probability of 1
        pPars->fProbOne   = 0;  // disable computing probabiblity of being one
        pPars->fProbTrans = 1;  // enable computing transition probability
    }
    // perform the computation of switching activity
    return Gia_ManSwiSimulate( pGia, pPars );
}

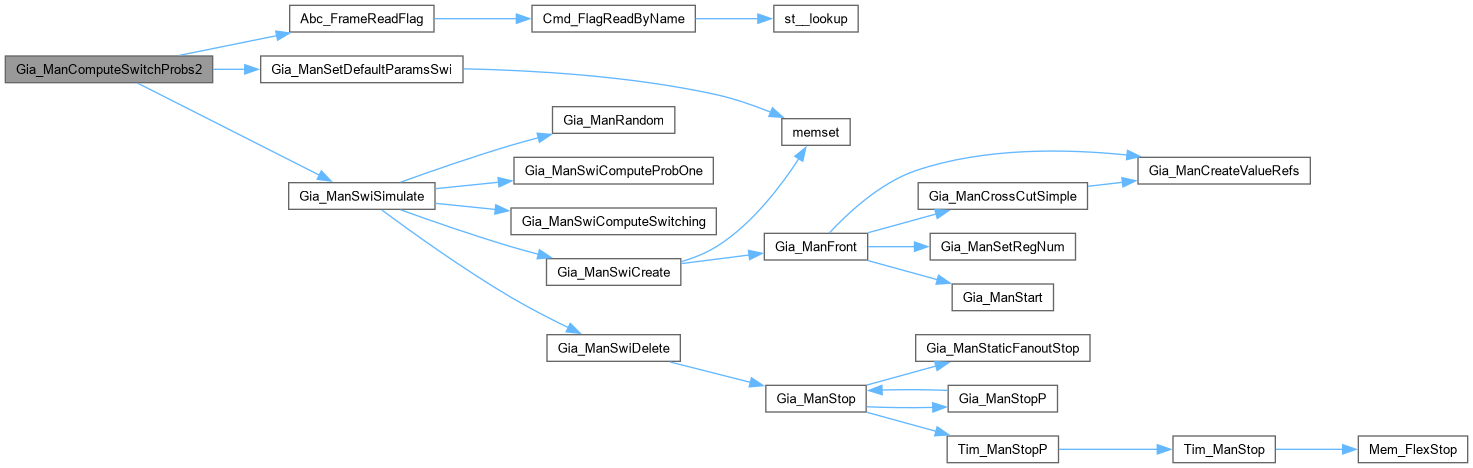

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManComputeSwitchProbs2()

Vec_Int_t * Gia_ManComputeSwitchProbs2	(	Gia_Man_t *	pGia,
		int	nFrames,
		int	nPref,
		int	fProbOne,
		int	nRandPiFactor )

Definition at line 684 of file giaSwitch.c.

{
    Gia_ParSwi_t Pars, * pPars = &Pars;
    // set the default parameters
    Gia_ManSetDefaultParamsSwi( pPars );
    pPars->nRandPiFactor = nRandPiFactor;
    // override some of the defaults
    pPars->nIters   = nFrames;  // set number of total timeframes
    if ( Abc_FrameReadFlag("seqsimframes") )
        pPars->nIters = atoi( Abc_FrameReadFlag("seqsimframes") );
    pPars->nPref    = nPref;    // set number of first timeframes to skip
    // decide what should be computed
    if ( fProbOne )
    {
        // if the user asked to compute propability of 1, we do not need transition information
        pPars->fProbOne   = 1;  // enable computing probabiblity of being one
        pPars->fProbTrans = 0;  // disable computing transition probability
    }
    else
    {
        // if the user asked for transition propabability, we do not need to compute probability of 1
        pPars->fProbOne   = 0;  // disable computing probabiblity of being one
        pPars->fProbTrans = 1;  // enable computing transition probability
    }
    // perform the computation of switching activity
    return Gia_ManSwiSimulate( pGia, pPars );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManEvaluateSwitching()

float Gia_ManEvaluateSwitching

(

Gia_Man_t *

p

)

Function*************************************************************

Synopsis [Computes probability of switching (or of being 1).]

Description []

SideEffects []

SeeAlso []

Definition at line 746 of file giaSwitch.c.

{
    Gia_Obj_t * pObj;
    float SwitchTotal = 0.0;
    int i;
    assert( p->pSwitching );
    ABC_FREE( p->pRefs );
    Gia_ManCreateRefs( p );
    Gia_ManForEachObj( p, pObj, i )
        SwitchTotal += (float)Gia_ObjRefNum(p, pObj) * p->pSwitching[i] / 255;
    return SwitchTotal;
}

Here is the call graph for this function:

Gia_ManPrintOutputProb()

Vec_Flt_t * Gia_ManPrintOutputProb

(

Gia_Man_t *

p

)

Function*************************************************************

Synopsis [Determine probability of being 1 at the outputs.]

Description []

SideEffects []

SeeAlso []

Definition at line 848 of file giaSwitch.c.

{
    Vec_Flt_t * vSimData;
    Gia_Man_t * pDfs = Gia_ManDup( p );
    assert( Gia_ManObjNum(pDfs) == Gia_ManObjNum(p) );
    vSimData = (Vec_Flt_t *)Gia_ManComputeSwitchProbs( pDfs, (Gia_ManRegNum(p) ? 16 : 1), 0, 1 );
    Gia_ManStop( pDfs );
    return vSimData;
}

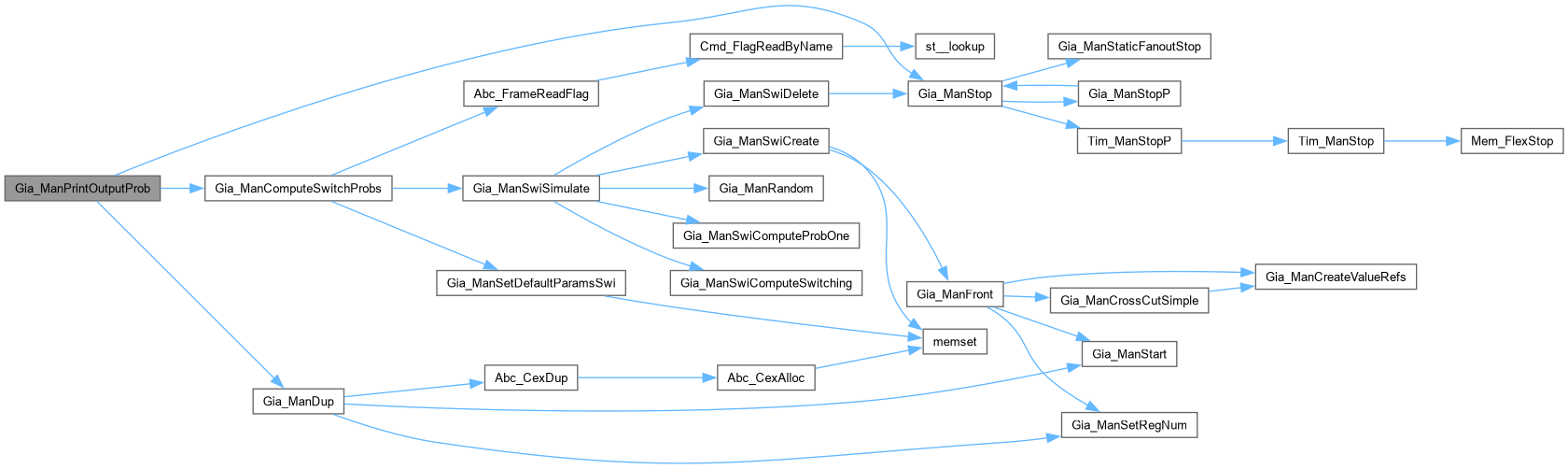

Here is the call graph for this function:

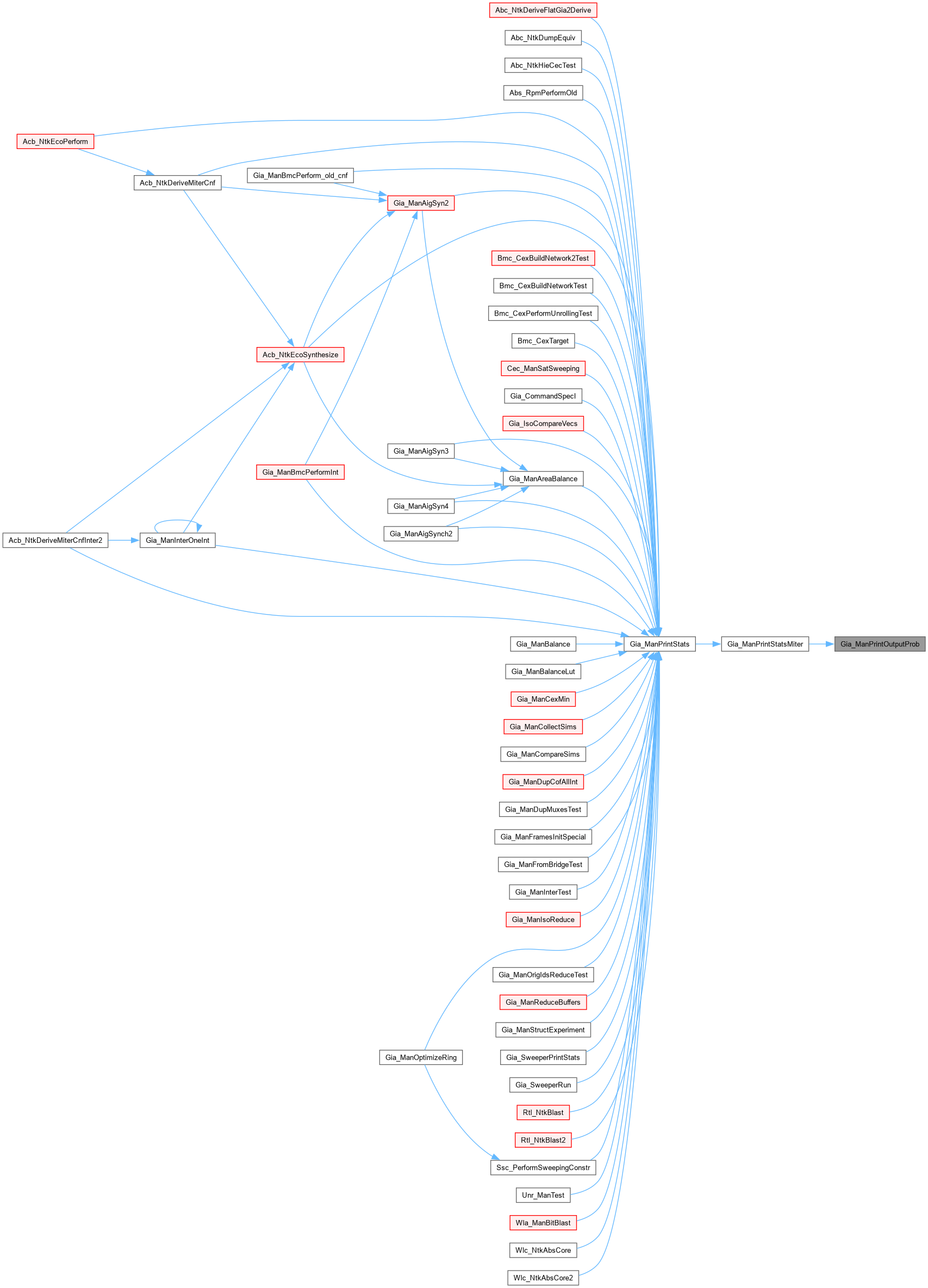

Here is the caller graph for this function:

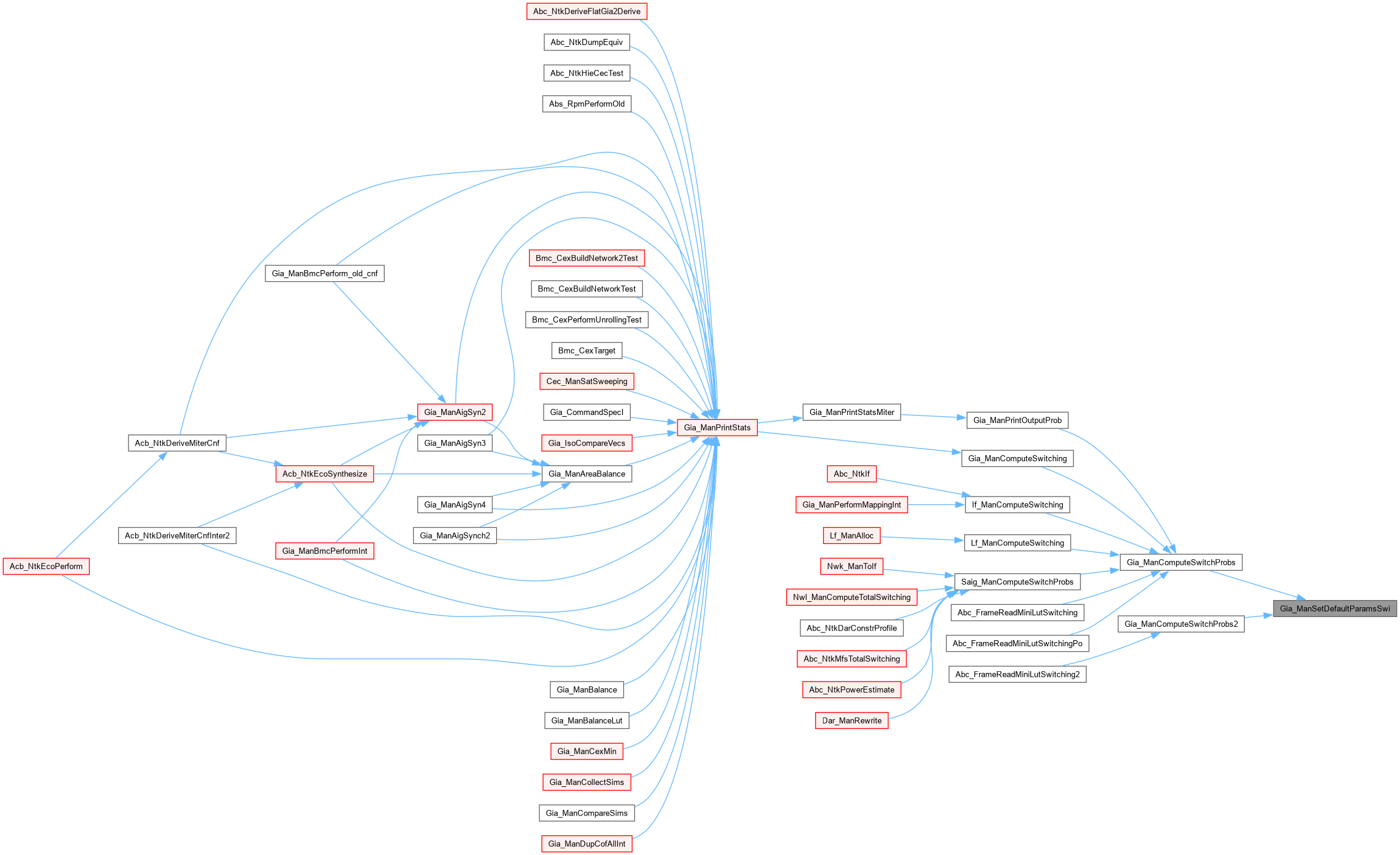

Gia_ManSetDefaultParamsSwi()

void Gia_ManSetDefaultParamsSwi

(

Gia_ParSwi_t *

p

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [This procedure sets default parameters.]

Description []

SideEffects []

SeeAlso []

Definition at line 77 of file giaSwitch.c.

{
    memset( p, 0, sizeof(Gia_ParSwi_t) );
    p->nWords        =  10;  // the number of machine words of simulatation data
    p->nIters        =  48;  // the number of all timeframes to simulate
    p->nPref         =  16;  // the number of first timeframes to skip when computing switching
    p->nRandPiFactor =   0;  // primary input transition probability (-1=3/8; 0=1/2; 1=1/4; 2=1/8, etc)
    p->fProbOne      =   0;  // compute probability of signal being one (if 0, compute probability of switching)
    p->fProbTrans    =   1;  // compute signal transition probability (if 0, compute transition probability using probability of being one)
    p->fVerbose      =   0;  // enables verbose output
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManSwiComputeProbOne()

float Gia_ManSwiComputeProbOne	(	int	nOnes,
		int	nSimWords )

Function*************************************************************

Synopsis [Computes switching activity of one node.]

Description [Uses the formula: Switching = 2 * nOnes * nZeros / (nTotal ^ 2) ]

SideEffects []

SeeAlso []

Definition at line 539 of file giaSwitch.c.

{
    int nTotal = 32 * nSimWords;
    return (float)nOnes / nTotal;
}

Here is the caller graph for this function:

Gia_ManSwiComputeSwitching()

float Gia_ManSwiComputeSwitching	(	int	nOnes,
		int	nSimWords )

Function*************************************************************

Synopsis [Computes switching activity of one node.]

Description [Uses the formula: Switching = 2 * nOnes * nZeros / (nTotal ^ 2) ]

SideEffects []

SeeAlso []

Definition at line 522 of file giaSwitch.c.

{
    int nTotal = 32 * nSimWords;
    return (float)2.0 * nOnes / nTotal * (nTotal - nOnes) / nTotal;
}

Here is the caller graph for this function:

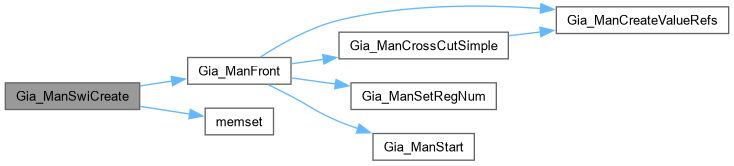

Gia_ManSwiCreate()

Gia_ManSwi_t * Gia_ManSwiCreate	(	Gia_Man_t *	pAig,
		Gia_ParSwi_t *	pPars )

Function*************************************************************

Synopsis [Creates fast simulation manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 100 of file giaSwitch.c.

{
    Gia_ManSwi_t * p;
    p = ABC_ALLOC( Gia_ManSwi_t, 1 );
    memset( p, 0, sizeof(Gia_ManSwi_t) );
    p->pAig   = Gia_ManFront( pAig );
    p->pPars  = pPars;
    p->nWords = pPars->nWords;
    p->pDataSim = ABC_ALLOC( unsigned, p->nWords * p->pAig->nFront );
    p->pDataSimCis = ABC_ALLOC( unsigned, p->nWords * Gia_ManCiNum(p->pAig) );
    p->pDataSimCos = ABC_ALLOC( unsigned, p->nWords * Gia_ManCoNum(p->pAig) );
    p->pData1 = ABC_CALLOC( int, Gia_ManObjNum(pAig) );
    return p;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManSwiDelete()

void Gia_ManSwiDelete

(

Gia_ManSwi_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 126 of file giaSwitch.c.

{
    Gia_ManStop( p->pAig );
    ABC_FREE( p->pData1 );
    ABC_FREE( p->pDataSim );
    ABC_FREE( p->pDataSimCis );
    ABC_FREE( p->pDataSimCos );
    ABC_FREE( p );
}

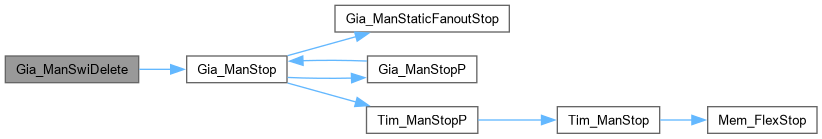

Here is the call graph for this function:

Here is the caller graph for this function:

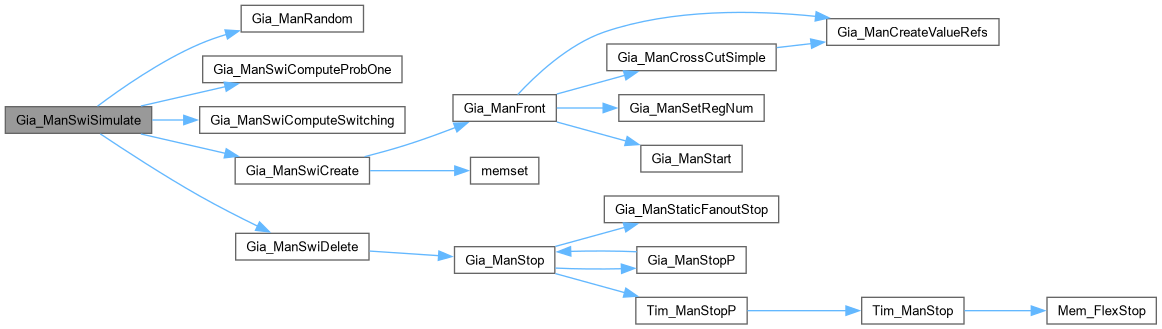

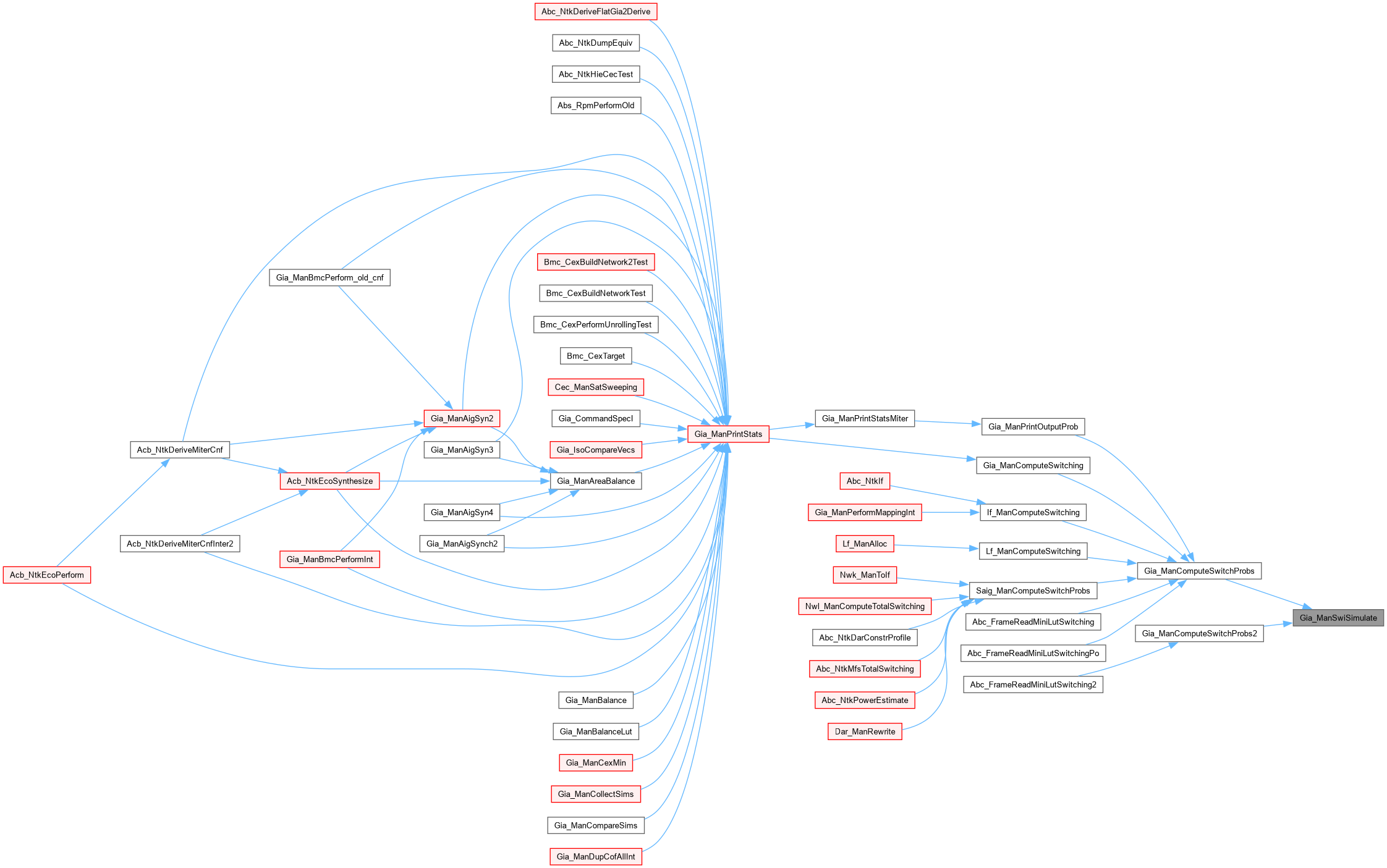

Gia_ManSwiSimulate()

Vec_Int_t * Gia_ManSwiSimulate	(	Gia_Man_t *	pAig,
		Gia_ParSwi_t *	pPars )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 556 of file giaSwitch.c.

{
    Gia_ManSwi_t * p;
    Gia_Obj_t * pObj;
    Vec_Int_t * vSwitching;
    float * pSwitching;
    int i;
    abctime clk, clkTotal = Abc_Clock();
    if ( pPars->fProbOne && pPars->fProbTrans )
        printf( "Conflict of options: Can either compute probability of 1, or probability of switching by observing transitions.\n" );
    // create manager
    clk = Abc_Clock();
    p = Gia_ManSwiCreate( pAig, pPars );
    if ( pPars->fVerbose )
    {
        printf( "Obj = %8d (%8d). F = %6d. ",
            pAig->nObjs, Gia_ManCiNum(pAig) + Gia_ManAndNum(pAig), p->pAig->nFront );
        printf( "AIG = %7.2f MB. F-mem = %7.2f MB. Other = %7.2f MB.  ",
            12.0*Gia_ManObjNum(p->pAig)/(1<<20),
            4.0*p->nWords*p->pAig->nFront/(1<<20),
            4.0*p->nWords*(Gia_ManCiNum(p->pAig) + Gia_ManCoNum(p->pAig))/(1<<20) );
        ABC_PRT( "Time", Abc_Clock() - clk );
    }
    // perform simulation
    Gia_ManRandom( 1 );
    Gia_ManSwiSimInfoInit( p );
    for ( i = 0; i < pPars->nIters; i++ )
    {
        Gia_ManSwiSimulateRound( p, i >= pPars->nPref );
        if ( i == pPars->nIters - 1 )
            break;
        if ( pPars->fProbTrans )
            Gia_ManSwiSimInfoTransferShift( p, pPars->nRandPiFactor );
        else
            Gia_ManSwiSimInfoTransfer( p, pPars->nRandPiFactor );
    }
    if ( pPars->fVerbose )
    {
        printf( "Simulated %d frames with %d words. ", pPars->nIters, pPars->nWords );
        ABC_PRT( "Simulation time", Abc_Clock() - clkTotal );
    }
    // derive the result
    vSwitching = Vec_IntStart( Gia_ManObjNum(pAig) );
    pSwitching = (float *)vSwitching->pArray;
    if ( pPars->fProbOne )
    {
        Gia_ManForEachObj( pAig, pObj, i )
            pSwitching[i] = Gia_ManSwiComputeProbOne( p->pData1[i], pPars->nWords*(pPars->nIters-pPars->nPref) );
        Gia_ManForEachCo( pAig, pObj, i )
        {
            if ( Gia_ObjFaninC0(pObj) )
                pSwitching[Gia_ObjId(pAig,pObj)] = (float)1.0-pSwitching[Gia_ObjId(pAig,Gia_ObjFanin0(pObj))];
            else
                pSwitching[Gia_ObjId(pAig,pObj)] = pSwitching[Gia_ObjId(pAig,Gia_ObjFanin0(pObj))];
        }
    }
    else if ( pPars->fProbTrans )
    {
        Gia_ManForEachObj( pAig, pObj, i )
            pSwitching[i] = Gia_ManSwiComputeSwitching( p->pData1[i], pPars->nWords*(pPars->nIters-pPars->nPref) );
    }
    else
    {
        Gia_ManForEachObj( pAig, pObj, i )
            pSwitching[i] = Gia_ManSwiComputeSwitching( p->pData1[i], pPars->nWords*(pPars->nIters-pPars->nPref) );
    }
/*
    printf( "PI: " );
    Gia_ManForEachPi( pAig, pObj, i )
        printf( "%d=%d (%f)  ", i, p->pData1[Gia_ObjId(pAig,pObj)], pSwitching[Gia_ObjId(pAig,pObj)] );
    printf( "\n" );

    printf( "LO: " );
    Gia_ManForEachRo( pAig, pObj, i )
        printf( "%d=%d (%f)  ", i, p->pData1[Gia_ObjId(pAig,pObj)], pSwitching[Gia_ObjId(pAig,pObj)] );
    printf( "\n" );

    printf( "PO: " );
    Gia_ManForEachPo( pAig, pObj, i )
        printf( "%d=%d (%f)  ", i, p->pData1[Gia_ObjId(pAig,pObj)], pSwitching[Gia_ObjId(pAig,pObj)] );
    printf( "\n" );

    printf( "LI: " );
    Gia_ManForEachRi( pAig, pObj, i )
        printf( "%d=%d (%f)  ", i, p->pData1[Gia_ObjId(pAig,pObj)], pSwitching[Gia_ObjId(pAig,pObj)] );
    printf( "\n" );
*/
    Gia_ManSwiDelete( p );
    return vSwitching;

}

Here is the call graph for this function:

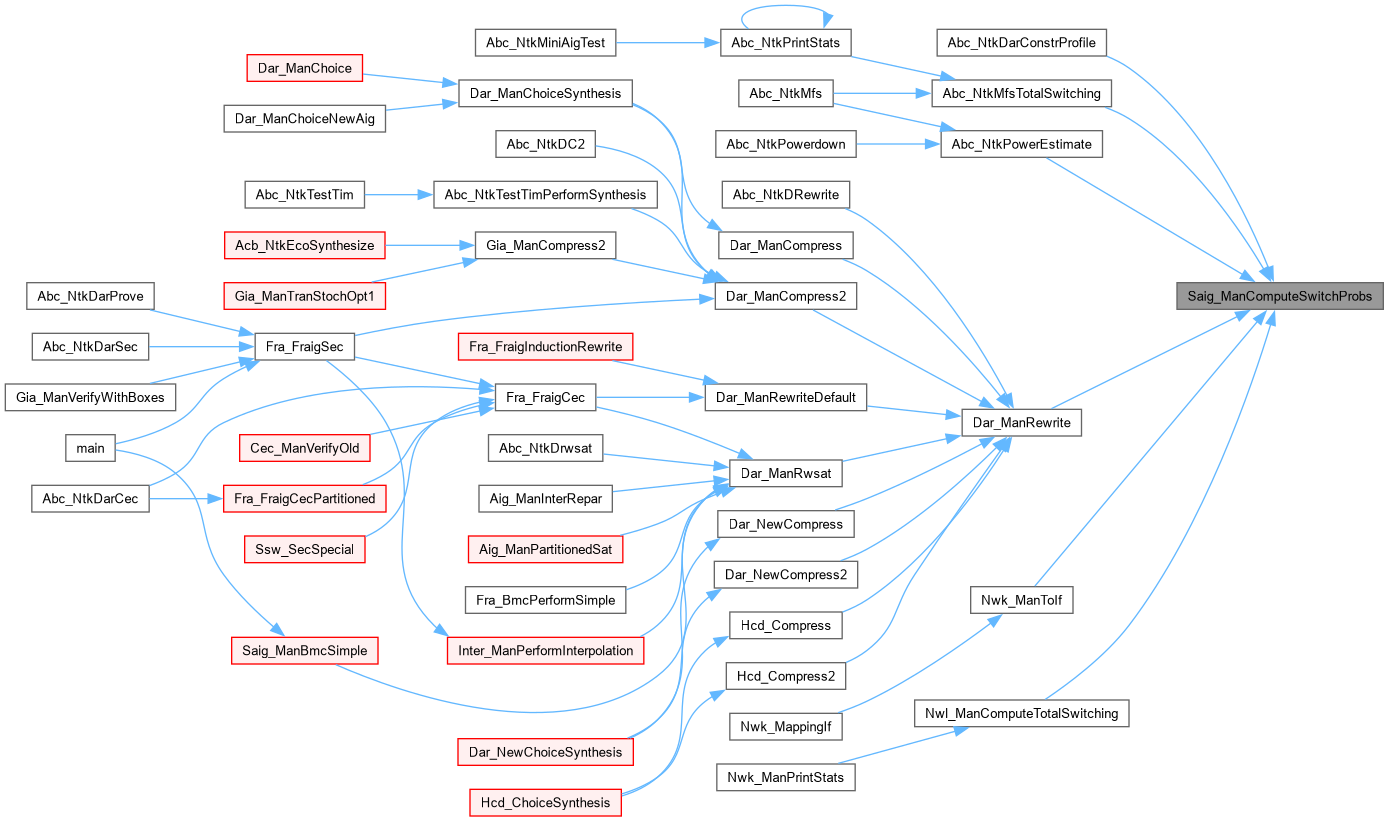

Here is the caller graph for this function:

Saig_ManComputeSwitchProbs()

Vec_Int_t * Saig_ManComputeSwitchProbs	(	Aig_Man_t *	pAig,
		int	nFrames,
		int	nPref,
		int	fProbOne )

Definition at line 711 of file giaSwitch.c.

{
    Vec_Int_t * vSwitching, * vResult;
    Gia_Man_t * p;
    Aig_Obj_t * pObj;
    int i;
    // translate AIG into the intermediate form (takes care of choices if present!)
    p = Gia_ManFromAigSwitch( pAig );
    // perform the computation of switching activity
    vSwitching = Gia_ManComputeSwitchProbs( p, nFrames, nPref, fProbOne );
    // transfer the computed result to the original AIG
    vResult = Vec_IntStart( Aig_ManObjNumMax(pAig) );
    Aig_ManForEachObj( pAig, pObj, i )
    {
//        if ( Aig_ObjIsCo(pObj) )
//            printf( "%d=%f\n", i, Abc_Int2Float( Vec_IntEntry(vSwitching, Abc_Lit2Var(pObj->iData)) ) );
        Vec_IntWriteEntry( vResult, i, Vec_IntEntry(vSwitching, Abc_Lit2Var(pObj->iData)) );
    }
    // delete intermediate results
    Vec_IntFree( vSwitching );
    Gia_ManStop( p );
    return vResult;
}

Here is the call graph for this function:

Here is the caller graph for this function:
