ioReadBlif.c File Reference

#include "ioAbc.h"
#include "base/main/main.h"
#include "map/mio/mio.h"

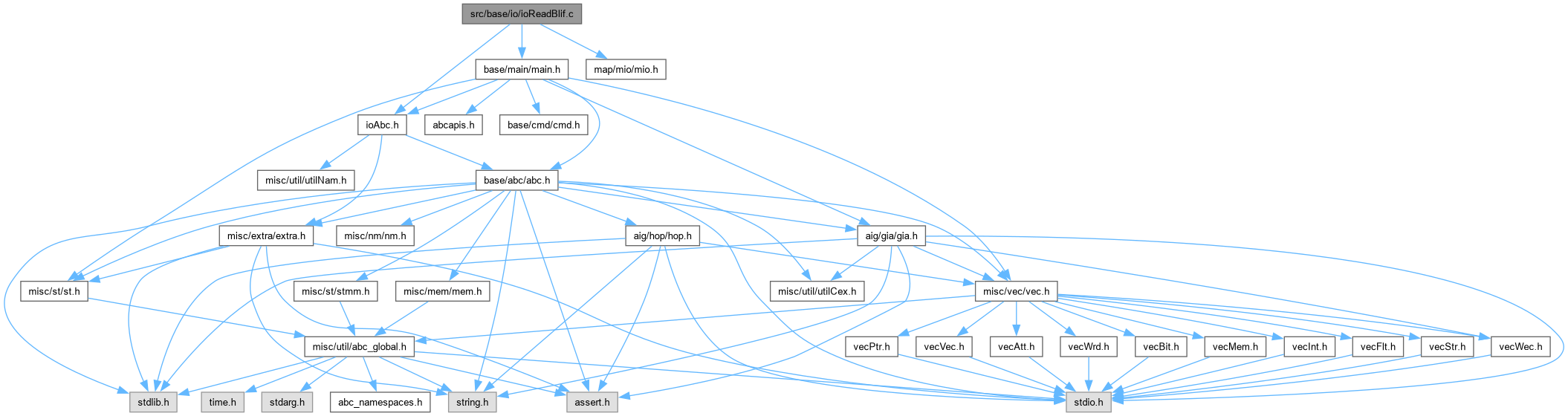

Include dependency graph for ioReadBlif.c:

Go to the source code of this file.

Classes
struct	Io_ReadBlif_t_

Typedefs
typedef typedefABC_NAMESPACE_IMPL_START struct Io_ReadBlif_t_	Io_ReadBlif_t
	DECLARATIONS ///.

Functions
Abc_Ntk_t *	Io_ReadBlif (char *pFileName, int fCheck)
	FUNCTION DEFINITIONS ///.
int	Io_ReadBlifReorderFormalNames (Vec_Ptr_t *vTokens, Mio_Gate_t *pGate, Mio_Gate_t *pTwin)
int	Io_ReadFindCiId (Abc_Ntk_t *pNtk, Abc_Obj_t *pObj)
int	Io_ReadFindCoId (Abc_Ntk_t *pNtk, Abc_Obj_t *pObj)
int	Io_ReadBlifNetworkConnectBoxesOneBox (Io_ReadBlif_t *p, Abc_Obj_t *pBox, stmm_table *tName2Model)
int	Io_ReadBlifNetworkConnectBoxesOne (Io_ReadBlif_t *p, Abc_Ntk_t *pNtk, stmm_table *tName2Model)

Typedef Documentation

Io_ReadBlif_t

typedef typedefABC_NAMESPACE_IMPL_START struct Io_ReadBlif_t_ Io_ReadBlif_t

DECLARATIONS ///.

CFile****************************************************************

FileName [ioReadBlif.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Command processing package.]

Synopsis [Procedures to read BLIF files.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

ioReadBlif.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 35 of file ioReadBlif.c.

Function Documentation

Io_ReadBlif()

Abc_Ntk_t * Io_ReadBlif	(	char *	pFileName,
		int	fCheck )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Reads the (hierarchical) network from the BLIF file.]

Description []

SideEffects []

SeeAlso []

Definition at line 113 of file ioReadBlif.c.

{
    Io_ReadBlif_t * p;
    Abc_Ntk_t * pNtk;

    // start the file
    p = Io_ReadBlifFile( pFileName );
    if ( p == NULL )
        return NULL;

    // read the hierarchical network
    pNtk = Io_ReadBlifNetwork( p );
    if ( pNtk == NULL )
    {
        Io_ReadBlifFree( p );
        return NULL;
    }
    pNtk->pSpec = Extra_UtilStrsav( pFileName );
    Io_ReadBlifCreateTiming( p, pNtk );
    Io_ReadBlifFree( p );

    // make sure that everything is okay with the network structure
    if ( fCheck && !Abc_NtkCheckRead( pNtk ) )
    {
        printf( "Io_ReadBlif: The network check has failed.\n" );
        Abc_NtkDelete( pNtk );
        return NULL;
    }
    return pNtk;
}

Here is the call graph for this function:

Io_ReadBlifNetworkConnectBoxesOne()

int Io_ReadBlifNetworkConnectBoxesOne	(	Io_ReadBlif_t *	p,
		Abc_Ntk_t *	pNtk,
		stmm_table *	tName2Model )

Function*************************************************************

Synopsis [Connect the boxes in the hierarchy of networks.]

Description []

SideEffects []

SeeAlso []

Definition at line 1597 of file ioReadBlif.c.

{
    Abc_Obj_t * pBox;
    int i;
    // go through the boxes
    Abc_NtkForEachBlackbox( pNtk, pBox, i )
        if ( Io_ReadBlifNetworkConnectBoxesOneBox( p, pBox, tName2Model ) )
            return 1;
    Abc_NtkFinalizeRead( pNtk );
    return 0;
}

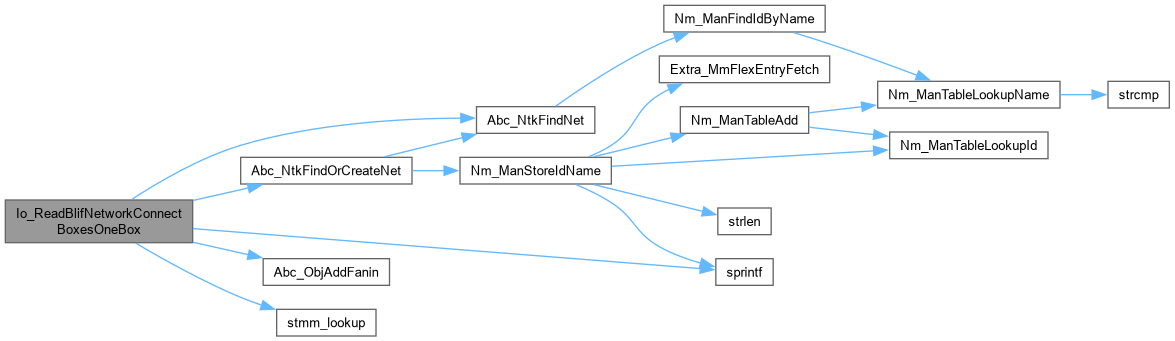

Here is the call graph for this function:

Io_ReadBlifNetworkConnectBoxesOneBox()

int Io_ReadBlifNetworkConnectBoxesOneBox	(	Io_ReadBlif_t *	p,
		Abc_Obj_t *	pBox,
		stmm_table *	tName2Model )

Function*************************************************************

Synopsis [Connect one box.]

Description []

SideEffects []

SeeAlso []

Definition at line 1437 of file ioReadBlif.c.

{
    Vec_Ptr_t * pNames;
    Abc_Ntk_t * pNtkModel;
    Abc_Obj_t * pObj, * pNet;
    char * pName = NULL, * pActual;
    int i, Length, Start = -1;

    // get the model for this box
    pNames = (Vec_Ptr_t *)pBox->pData;
    if ( !stmm_lookup( tName2Model, (char *)Vec_PtrEntry(pNames, 0), (char **)&pNtkModel ) )
    {
        p->LineCur = (int)(ABC_PTRINT_T)pBox->pCopy;
        sprintf( p->sError, "Cannot find the model for subcircuit %s.", (char*)Vec_PtrEntry(pNames, 0) );
        Io_ReadBlifPrintErrorMessage( p );
        return 1;
    }

    // create the fanins of the box
    Abc_NtkForEachPi( pNtkModel, pObj, i )
        pObj->pCopy = NULL;
    if ( Abc_NtkPiNum(pNtkModel) == 0 )
        Start = 1;
    else
    {
        Vec_PtrForEachEntryStart( char *, pNames, pName, i, 1 )
        {
            pActual = Io_ReadBlifCleanName(pName);
            if ( pActual == NULL )
            {
                p->LineCur = (int)(ABC_PTRINT_T)pBox->pCopy;
                sprintf( p->sError, "Cannot parse formal/actual name pair \"%s\".", pName );
                Io_ReadBlifPrintErrorMessage( p );
                return 1;
            }
            Length = pActual - pName - 1;
            pName[Length] = 0;
            // find the PI net with this name
            pObj = Abc_NtkFindNet( pNtkModel, pName );
            if ( pObj == NULL )
            {
                p->LineCur = (int)(ABC_PTRINT_T)pBox->pCopy;
                sprintf( p->sError, "Cannot find formal input \"%s\" as an PI of model \"%s\".", pName, (char*)Vec_PtrEntry(pNames, 0) );
                Io_ReadBlifPrintErrorMessage( p );
                return 1;
            }
            // get the PI
            pObj = Abc_ObjFanin0(pObj);
            // quit if this is not a PI net
            if ( !Abc_ObjIsPi(pObj) )
            {
                pName[Length] = '=';
                Start = i;
                break;
            }
            // remember the actual name in the net
            if ( pObj->pCopy != NULL )
            {
                p->LineCur = (int)(ABC_PTRINT_T)pBox->pCopy;
                sprintf( p->sError, "Formal input \"%s\" is used more than once.", pName );
                Io_ReadBlifPrintErrorMessage( p );
                return 1;
            }
            pObj->pCopy = (Abc_Obj_t *)pActual;
            // quit if we processed all PIs
            if ( i == Abc_NtkPiNum(pNtkModel) )
            {
                Start = i+1;
                break;
            }
        }
    }
    // create the fanins of the box
    Abc_NtkForEachPi( pNtkModel, pObj, i )
    {
        pActual = (char *)pObj->pCopy;
        if ( pActual == NULL )
        {
            p->LineCur = (int)(ABC_PTRINT_T)pBox->pCopy;
            sprintf( p->sError, "Formal input \"%s\" of model %s is not driven.", pName, (char*)Vec_PtrEntry(pNames, 0) );
            Io_ReadBlifPrintErrorMessage( p );
            return 1;
        }
        pNet = Abc_NtkFindOrCreateNet( pBox->pNtk, pActual );
        Abc_ObjAddFanin( pBox, pNet );
    }
    Abc_NtkForEachPi( pNtkModel, pObj, i )
        pObj->pCopy = NULL;

    // create the fanouts of the box
    Abc_NtkForEachPo( pNtkModel, pObj, i )
        pObj->pCopy = NULL;
    Vec_PtrForEachEntryStart( char *, pNames, pName, i, Start )
    {
        pActual = Io_ReadBlifCleanName(pName);
        if ( pActual == NULL )
        {
            p->LineCur = (int)(ABC_PTRINT_T)pBox->pCopy;
            sprintf( p->sError, "Cannot parse formal/actual name pair \"%s\".", pName );
            Io_ReadBlifPrintErrorMessage( p );
            return 1;
        }
        Length = pActual - pName - 1;
        pName[Length] = 0;
        // find the PO net with this name
        pObj = Abc_NtkFindNet( pNtkModel, pName );
        if ( pObj == NULL )
        {
            p->LineCur = (int)(ABC_PTRINT_T)pBox->pCopy;
            sprintf( p->sError, "Cannot find formal output \"%s\" as an PO of model \"%s\".", pName, (char*)Vec_PtrEntry(pNames, 0) );
            Io_ReadBlifPrintErrorMessage( p );
            return 1;
        }
        // get the PO
        pObj = Abc_ObjFanout0(pObj);
        if ( pObj->pCopy != NULL )
        {
            p->LineCur = (int)(ABC_PTRINT_T)pBox->pCopy;
            sprintf( p->sError, "Formal output \"%s\" is used more than once.", pName );
            Io_ReadBlifPrintErrorMessage( p );
            return 1;
        }
        pObj->pCopy = (Abc_Obj_t *)pActual;
    }
    // create the fanouts of the box
    Abc_NtkForEachPo( pNtkModel, pObj, i )
    {
        pActual = (char *)pObj->pCopy;
        if ( pActual == NULL )
        {
            p->LineCur = (int)(ABC_PTRINT_T)pBox->pCopy;
            sprintf( p->sError, "Formal output \"%s\" of model %s is not driven.", pName, (char*)Vec_PtrEntry(pNames, 0) );
            Io_ReadBlifPrintErrorMessage( p );
            return 1;
        }
        pNet = Abc_NtkFindOrCreateNet( pBox->pNtk, pActual );
        Abc_ObjAddFanin( pNet, pBox );
    }
    Abc_NtkForEachPo( pNtkModel, pObj, i )
        pObj->pCopy = NULL;

    // remove the array of names, assign the pointer to the model
    Vec_PtrForEachEntry( char *, (Vec_Ptr_t *)pBox->pData, pName, i )
        ABC_FREE( pName );
    Vec_PtrFree( (Vec_Ptr_t *)pBox->pData );
    pBox->pData = pNtkModel;
    return 0;
}

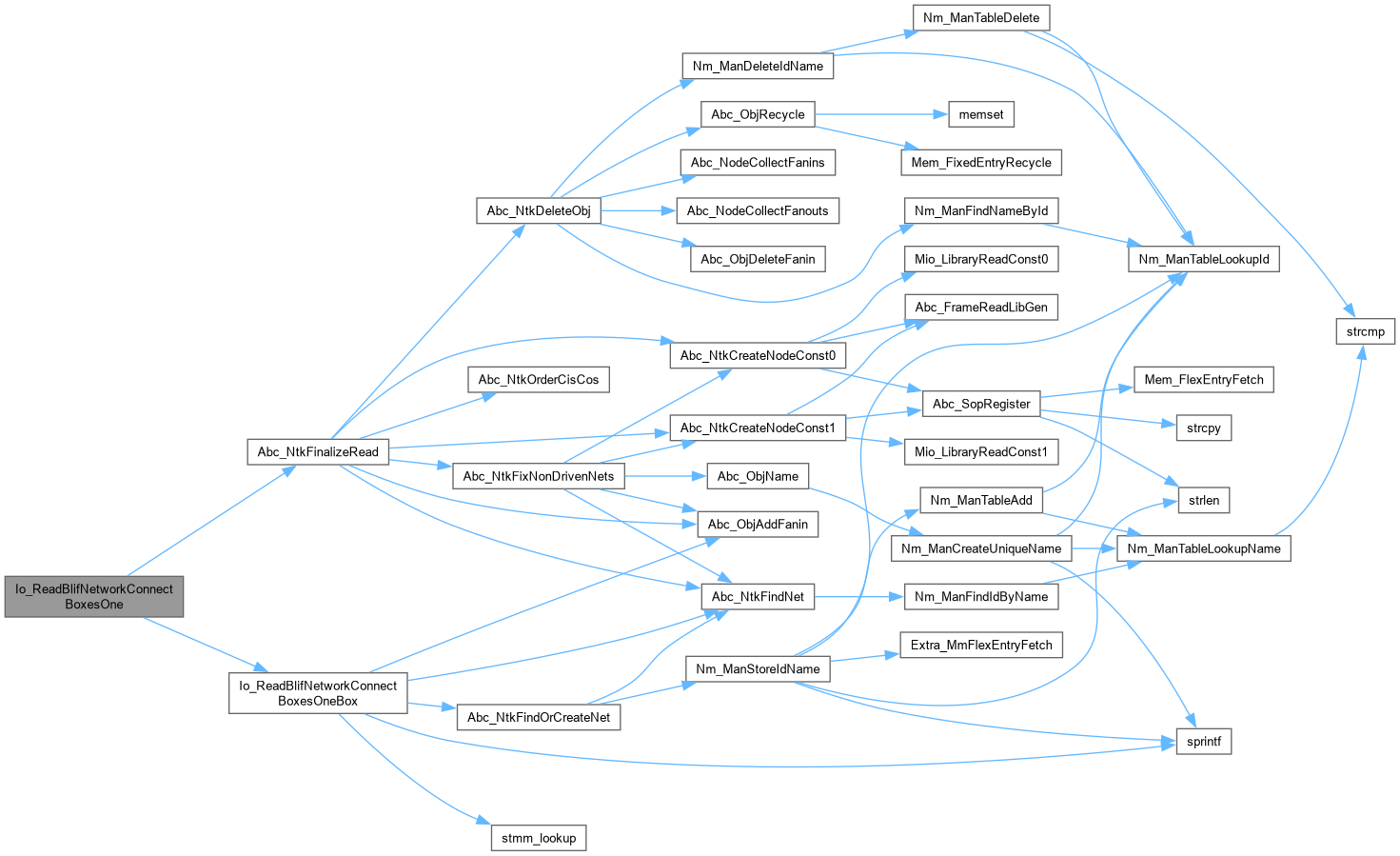

Here is the call graph for this function:

Here is the caller graph for this function:

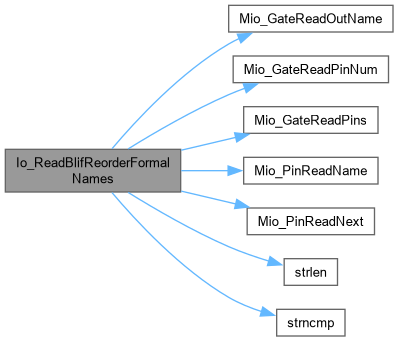

Io_ReadBlifReorderFormalNames()

int Io_ReadBlifReorderFormalNames	(	Vec_Ptr_t *	vTokens,
		Mio_Gate_t *	pGate,
		Mio_Gate_t *	pTwin )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 561 of file ioReadBlif.c.

{
    Mio_Pin_t * pGatePin;
    char * pName, * pNamePin;
    int i, k, nSize, Length;
    nSize = Vec_PtrSize(vTokens);
    if ( pTwin == NULL )
    {
        if ( nSize - 3 != Mio_GateReadPinNum(pGate) )
            return 0;
    }
    else
    {
        if ( nSize - 3 != Mio_GateReadPinNum(pGate) && nSize - 4 != Mio_GateReadPinNum(pGate) )
            return 0;
    }
    // check if the names are in order
    for ( pGatePin = Mio_GateReadPins(pGate), i = 0; pGatePin; pGatePin = Mio_PinReadNext(pGatePin), i++ )
    {
        pNamePin = Mio_PinReadName(pGatePin);
        Length = strlen(pNamePin);
        pName = (char *)Vec_PtrEntry(vTokens, i+2);
        if ( !strncmp( pNamePin, pName, Length ) && pName[Length] == '=' )
            continue;
        break;
    }
    if ( pTwin == NULL )
    {
        if ( i == Mio_GateReadPinNum(pGate) )
            return 1;
        // reorder the pins
        for ( pGatePin = Mio_GateReadPins(pGate), i = 0; pGatePin; pGatePin = Mio_PinReadNext(pGatePin), i++ )
        {
            pNamePin = Mio_PinReadName(pGatePin);
            Length = strlen(pNamePin);
            for ( k = 2; k < nSize; k++ )
            {
                pName = (char *)Vec_PtrEntry(vTokens, k);
                if ( !strncmp( pNamePin, pName, Length ) && pName[Length] == '=' )
                {
                    Vec_PtrPush( vTokens, pName );
                    break;
                }
            }
        }
        pNamePin = Mio_GateReadOutName(pGate);
        Length = strlen(pNamePin);
        for ( k = 2; k < nSize; k++ )
        {
            pName = (char *)Vec_PtrEntry(vTokens, k);
            if ( !strncmp( pNamePin, pName, Length ) && pName[Length] == '=' )
            {
                Vec_PtrPush( vTokens, pName );
                break;
            }
        }
        if ( Vec_PtrSize(vTokens) - nSize != nSize - 2 )
            return 0;
        Vec_PtrForEachEntryStart( char *, vTokens, pName, k, nSize )
            Vec_PtrWriteEntry( vTokens, k - nSize + 2, pName );
        Vec_PtrShrink( vTokens, nSize );
    }
    else
    {
        if ( i != Mio_GateReadPinNum(pGate) ) // expect the correct order of input pins in the network with twin gates
            return 0;
        // check the last two entries
        if ( nSize - 3 == Mio_GateReadPinNum(pGate) ) // only one output is available
        {
            pNamePin = Mio_GateReadOutName(pGate);
            Length = strlen(pNamePin);
            pName = (char *)Vec_PtrEntry(vTokens, nSize - 1);
            if ( !strncmp( pNamePin, pName, Length ) && pName[Length] == '=' ) // the last entry is pGate
            {
                Vec_PtrPush( vTokens, NULL );
                return 1;
            }
            pNamePin = Mio_GateReadOutName(pTwin);
            Length = strlen(pNamePin);
            pName = (char *)Vec_PtrEntry(vTokens, nSize - 1);
            if ( !strncmp( pNamePin, pName, Length ) && pName[Length] == '=' ) // the last entry is pTwin
            {
                pName = (char *)Vec_PtrPop( vTokens );
                Vec_PtrPush( vTokens, NULL );
                Vec_PtrPush( vTokens, pName );
                return 1;
            }
            return 0;
        }
        if ( nSize - 4 == Mio_GateReadPinNum(pGate) ) // two outputs are available
        {
            pNamePin = Mio_GateReadOutName(pGate);
            Length = strlen(pNamePin);
            pName = (char *)Vec_PtrEntry(vTokens, nSize - 2);
            if ( !(!strncmp( pNamePin, pName, Length ) && pName[Length] == '=') )
                return 0;
            pNamePin = Mio_GateReadOutName(pTwin);
            Length = strlen(pNamePin);
            pName = (char *)Vec_PtrEntry(vTokens, nSize - 1);
            if ( !(!strncmp( pNamePin, pName, Length ) && pName[Length] == '=') )
                return 0;
            return 1;
        }
        assert( 0 );
    }
    return 1;
}

Here is the call graph for this function:

Io_ReadFindCiId()

int Io_ReadFindCiId	(	Abc_Ntk_t *	pNtk,
		Abc_Obj_t *	pObj )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 1043 of file ioReadBlif.c.

{
    Abc_Obj_t * pTemp;
    int i;
    Abc_NtkForEachCi( pNtk, pTemp, i )
        if ( pTemp == pObj )
            return i;
    return -1;
}

Io_ReadFindCoId()

int Io_ReadFindCoId	(	Abc_Ntk_t *	pNtk,
		Abc_Obj_t *	pObj )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 1103 of file ioReadBlif.c.

{
    Abc_Obj_t * pTemp;
    int i;
    Abc_NtkForEachPo( pNtk, pTemp, i )
        if ( pTemp == pObj )
            return i;
    return -1;
}
