ioReadPlaMo.c File Reference

#include "ioAbc.h"
#include "misc/util/utilTruth.h"

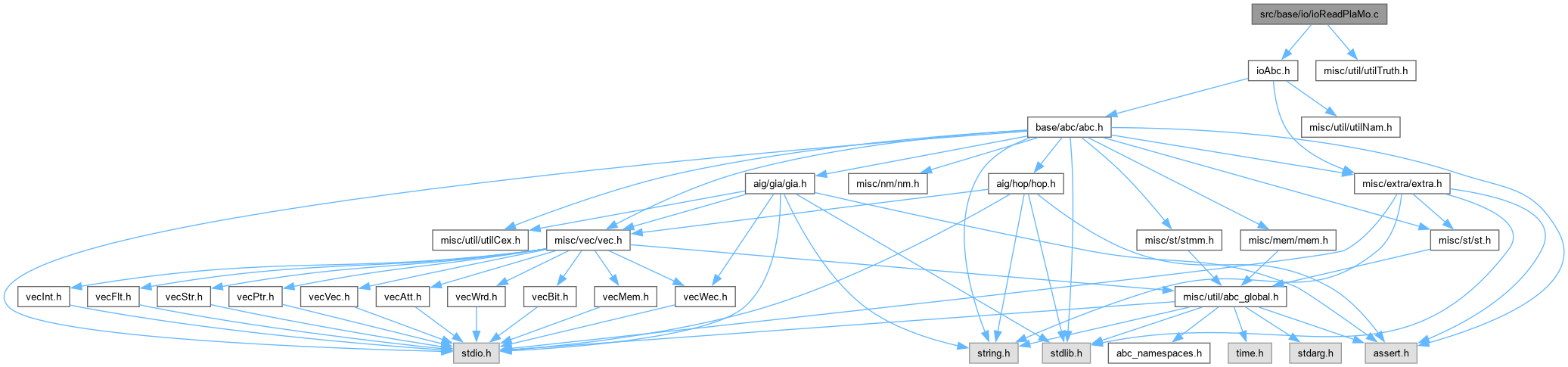

Include dependency graph for ioReadPlaMo.c:

Go to the source code of this file.

Classes
struct	Mop_Man_t_

Typedefs
typedef typedefABC_NAMESPACE_IMPL_START struct Mop_Man_t_	Mop_Man_t
	DECLARATIONS ///.

Functions
Mop_Man_t *	Mop_ManAlloc (int nIns, int nOuts, int nCubes)
	FUNCTION DEFINITIONS ///.
void	Mop_ManStop (Mop_Man_t *p)
char *	Mop_ManLoadFile (char *pFileName)
int	Mop_ManReadParams (char *pBuffer, int *pnIns, int *pnOuts)
Mop_Man_t *	Mop_ManRead (char *pFileName)
void	Mop_ManPrintOne (Mop_Man_t *p, int iCube)
void	Mop_ManPrint (Mop_Man_t *p)
Vec_Int_t *	Mop_ManCollectStats (Mop_Man_t *p)
int	Mop_ManRemoveIdentical (Mop_Man_t *p, Vec_Int_t *vGroup)
Vec_Int_t *	Mop_ManCompatiblePairs (Vec_Int_t *vPairs, int nObjs)
Vec_Int_t *	Mop_ManFindDist1Pairs (Mop_Man_t *p, Vec_Int_t *vGroup)
int	Mop_ManMergeDist1Pairs (Mop_Man_t *p, Vec_Int_t *vGroup, Vec_Int_t *vGroupPrev, Vec_Int_t *vStats, int nLimit)
int	Mop_ManMergeDist1Pairs2 (Mop_Man_t *p, Vec_Int_t *vGroup, Vec_Int_t *vGroupPrev)
int	Mop_ManMergeDist1All (Mop_Man_t *p, Vec_Wec_t *vGroups, Vec_Int_t *vStats, int nLimit)
int	Mop_ManMergeContainTwo (Mop_Man_t *p, Vec_Int_t *vGroup, Vec_Int_t *vGroup2)
int	Mop_ManMergeContainAll (Mop_Man_t *p, Vec_Wec_t *vGroups)
void	Mop_ManReduce2 (Mop_Man_t *p)
void	Mop_ManReduce (Mop_Man_t *p)
Vec_Wec_t *	Mop_ManCubeCount (Mop_Man_t *p)
Abc_Ntk_t *	Mop_ManDerive (Mop_Man_t *p, char *pFileName)
Abc_Ntk_t *	Mop_ManTest (char *pFileName, int fMerge, int fVerbose)

Typedef Documentation

Mop_Man_t

typedef typedefABC_NAMESPACE_IMPL_START struct Mop_Man_t_ Mop_Man_t

DECLARATIONS ///.

CFile****************************************************************

FileName [ioReadPlaMo.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Command processing package.]

Synopsis [Procedure to read network from file.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

ioReadPlaMo.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 30 of file ioReadPlaMo.c.

Function Documentation

Mop_ManAlloc()

Mop_Man_t * Mop_ManAlloc	(	int	nIns,
		int	nOuts,
		int	nCubes )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 64 of file ioReadPlaMo.c.

{
    Mop_Man_t * p   = ABC_CALLOC( Mop_Man_t, 1 );
    p->nIns         = nIns;
    p->nOuts        = nOuts;
    p->nWordsIn     = Abc_Bit6WordNum( 2 * nIns );
    p->nWordsOut    = Abc_Bit6WordNum( nOuts );
    p->vWordsIn     = Vec_WrdStart( 2 * p->nWordsIn * nCubes );
    p->vWordsOut    = Vec_WrdStart( 2 * p->nWordsOut * nCubes );
    p->vCubes       = Vec_IntAlloc( 2 * nCubes );
    p->vFree        = Vec_IntAlloc( 2 * nCubes );
    return p;
}

Here is the caller graph for this function:

Mop_ManCollectStats()

Vec_Int_t * Mop_ManCollectStats

(

Mop_Man_t *

p

)

Function*************************************************************

Synopsis [Count how many times each variable appears in the input parts.]

Description []

SideEffects []

SeeAlso []

Definition at line 309 of file ioReadPlaMo.c.

{
    int i, v, iCube, nVars = 32 * p->nWordsIn;
    Vec_Int_t * vStats = Vec_IntStart( nVars );
    Vec_IntForEachEntry( p->vCubes, iCube, i )
    {
        word * pCube = Mop_ManCubeIn(p, iCube);
        int nOutLits = Mop_ManCountOnes( Mop_ManCubeOut(p, iCube), p->nWordsOut );
        for ( v = 0; v < nVars; v++ )
            if ( Abc_TtGetQua(pCube, v) )
                Vec_IntAddToEntry( vStats, v, nOutLits );
    }
    return vStats;
}

Here is the caller graph for this function:

Mop_ManCompatiblePairs()

Vec_Int_t * Mop_ManCompatiblePairs	(	Vec_Int_t *	vPairs,
		int	nObjs )

Definition at line 409 of file ioReadPlaMo.c.

{
    int i, Entry, Entry2;
    Vec_Int_t * vCounts = Vec_IntStart( nObjs );
    Vec_Int_t * vPairsNew = Vec_IntAlloc( Vec_IntSize(vPairs) );
    Vec_IntForEachEntry( vPairs, Entry, i )
        Vec_IntAddToEntry( vCounts, Entry, 1 );
    // include pairs which have those that appear only once
    Vec_IntForEachEntryDouble( vPairs, Entry, Entry2, i )
        if ( Vec_IntEntry(vCounts, Entry) == 1 || Vec_IntEntry(vCounts, Entry2) == 1 )
        {
            if ( Vec_IntEntry(vCounts, Entry) == 1 )
                Vec_IntPushTwo( vPairsNew, Entry, Entry2 );
            else
                Vec_IntPushTwo( vPairsNew, Entry2, Entry );
            Vec_IntWriteEntry( vCounts, Entry, -1 );
            Vec_IntWriteEntry( vCounts, Entry2, -1 );
        }
    // add those remaining pairs that are both present
    Vec_IntForEachEntryDouble( vPairs, Entry, Entry2, i )
        if ( Vec_IntEntry(vCounts, Entry) > 0 && Vec_IntEntry(vCounts, Entry2) > 0 )
        {
            Vec_IntPushTwo( vPairsNew, Entry, Entry2 );
            Vec_IntWriteEntry( vCounts, Entry, -1 );
            Vec_IntWriteEntry( vCounts, Entry2, -1 );
        }
    // add remaining pairs
    Vec_IntForEachEntryDouble( vPairs, Entry, Entry2, i )
        if ( Vec_IntEntry(vCounts, Entry) > 0 || Vec_IntEntry(vCounts, Entry2) > 0 )
        {
            if ( Vec_IntEntry(vCounts, Entry) > 0 )
                Vec_IntPushTwo( vPairsNew, Entry, Entry2 );
            else
                Vec_IntPushTwo( vPairsNew, Entry2, Entry );
            Vec_IntWriteEntry( vCounts, Entry, -1 );
            Vec_IntWriteEntry( vCounts, Entry2, -1 );
        }
    Vec_IntFree( vCounts );
    // verify the result
    if ( 0 )
    {
        Vec_Int_t * vTemp1 = Vec_IntDup( vPairs );
        Vec_Int_t * vTemp2 = Vec_IntDup( vPairsNew );
        Vec_IntUniqify( vTemp1 );
        Vec_IntUniqify( vTemp2 );
        assert( Vec_IntEqual( vTemp1, vTemp2 ) );
        Vec_IntFree( vTemp1 );
        Vec_IntFree( vTemp2 );
    }
    return vPairsNew;
}

Here is the caller graph for this function:

Mop_ManCubeCount()

Vec_Wec_t * Mop_ManCubeCount

(

Mop_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 721 of file ioReadPlaMo.c.

{
    int i, k, iCube;
    Vec_Wec_t * vOuts = Vec_WecStart( p->nOuts );
    Vec_IntForEachEntry( p->vCubes, iCube, i )
    if ( iCube != -1 )
    {
        word * pCube = Mop_ManCubeOut( p, iCube );
        for ( k = 0; k < p->nOuts; k++ )
            if ( Abc_TtGetBit( pCube, k ) )
                Vec_WecPush( vOuts, k, iCube );
    }
    return vOuts;
}

Here is the caller graph for this function:

Mop_ManDerive()

Abc_Ntk_t * Mop_ManDerive	(	Mop_Man_t *	p,
		char *	pFileName )

Definition at line 735 of file ioReadPlaMo.c.

{
    int i, k, c, iCube;
    char Symb[4] = { '-', '0', '1', '?' };     // cube symbols
    Vec_Str_t * vSop  = Vec_StrAlloc( 1000 );  // storage for one SOP
    Vec_Wec_t * vOuts = Mop_ManCubeCount( p ); // cube count for each output
    Abc_Ntk_t * pNtk  = Abc_NtkAlloc( ABC_NTK_LOGIC, ABC_FUNC_SOP, 1 );
    pNtk->pName = Extra_UtilStrsav( pFileName );
    pNtk->pSpec = Extra_UtilStrsav( pFileName );
    for ( i = 0; i < p->nIns; i++ )
        Abc_NtkCreatePi(pNtk);
    for ( i = 0; i < p->nOuts; i++ )
    {
        Vec_Int_t * vThis = Vec_WecEntry( vOuts, i );
        Abc_Obj_t * pPo   = Abc_NtkCreatePo(pNtk);
        Abc_Obj_t * pNode = Abc_NtkCreateNode(pNtk);
        Abc_ObjAddFanin( pPo, pNode );
        if ( Vec_IntSize(vThis) == 0 )
        {
            pNode->pData = Abc_SopRegister( (Mem_Flex_t *)pNtk->pManFunc, " 0\n" );
            continue;
        }
        for ( k = 0; k < p->nIns; k++ )
            Abc_ObjAddFanin( pNode, Abc_NtkPi(pNtk, k) );
        Vec_StrClear( vSop );
        Vec_IntForEachEntry( vThis, iCube, c )
        {
            word * pCube = Mop_ManCubeIn( p, iCube );
            for ( k = 0; k < p->nIns; k++ )
                Vec_StrPush( vSop, Symb[Abc_TtGetQua(pCube, k)] );
            Vec_StrAppend( vSop, " 1\n" );
        }
        Vec_StrPush( vSop, '\0' );
        pNode->pData = Abc_SopRegister( (Mem_Flex_t *)pNtk->pManFunc, Vec_StrArray(vSop) );
    }
    Vec_StrFree( vSop );
    Vec_WecFree( vOuts );
    Abc_NtkAddDummyPiNames( pNtk );
    Abc_NtkAddDummyPoNames( pNtk );
    return pNtk;
}

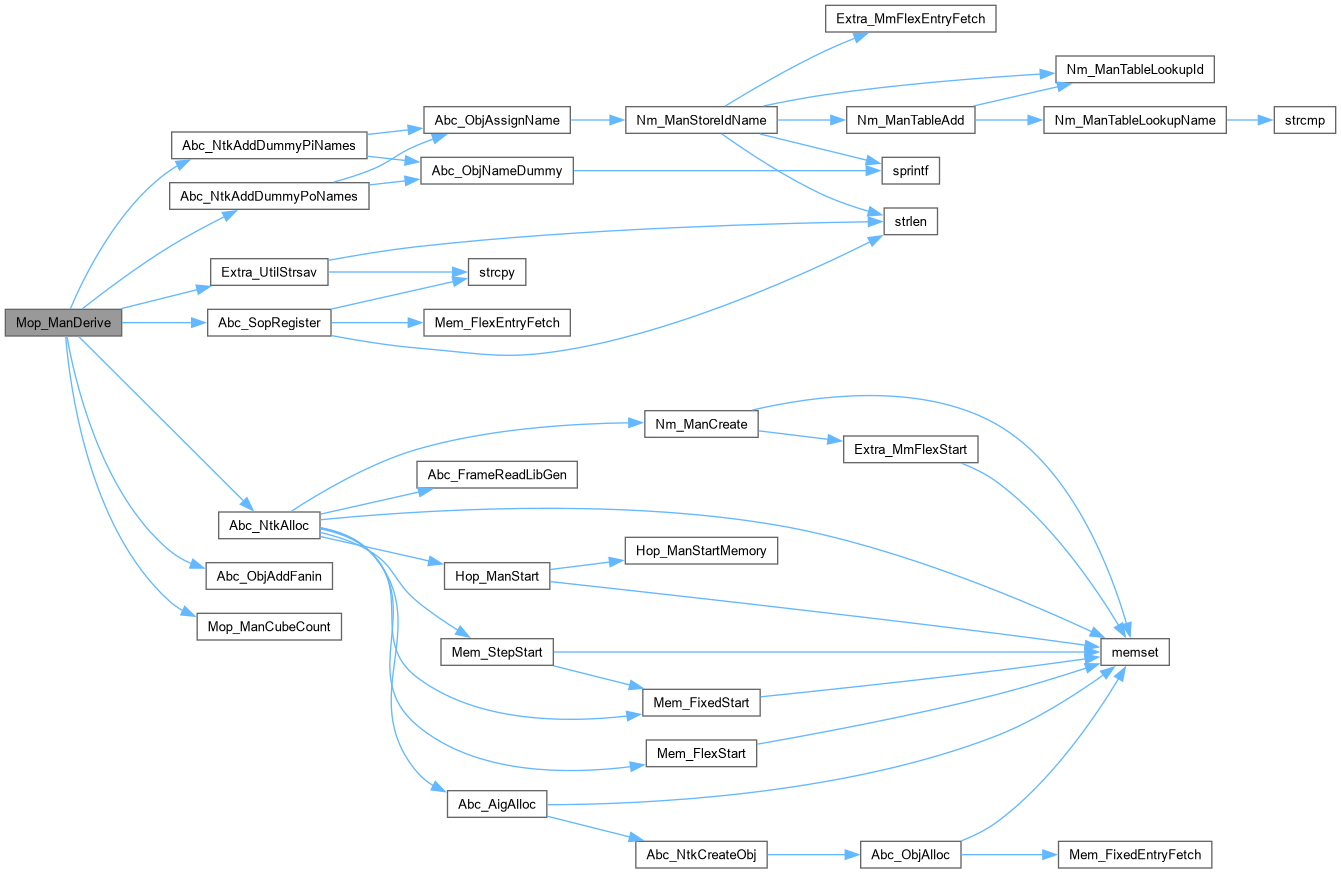

Here is the call graph for this function:

Here is the caller graph for this function:

Mop_ManFindDist1Pairs()

Vec_Int_t * Mop_ManFindDist1Pairs	(	Mop_Man_t *	p,
		Vec_Int_t *	vGroup )

Definition at line 461 of file ioReadPlaMo.c.

{
    int c1, c2, iCube1, iCube2;
    Vec_Int_t * vPairs = Vec_IntAlloc( 100 );
    Vec_IntForEachEntry( vGroup, iCube1, c1 )
    {
        word * pCube1Out, * pCube1 = Mop_ManCubeIn( p, iCube1 );
        Vec_IntForEachEntryStart( vGroup, iCube2, c2, c1+1 )
        {
            word * pCube2Out, * pCube2 = Mop_ManCubeIn( p, iCube2 );
            if ( !Mop_ManCheckDist1(pCube1, pCube2, p->nWordsIn) )
                continue;
            pCube1Out = Mop_ManCubeOut( p, iCube1 );
            pCube2Out = Mop_ManCubeOut( p, iCube2 );
            if ( !memcmp(pCube1Out, pCube2Out, sizeof(word)*p->nWordsOut) )
                Vec_IntPushTwo( vPairs, c1, c2 );
        }
    }
    return vPairs;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Mop_ManLoadFile()

char * Mop_ManLoadFile

(

char *

pFileName

)

Function*************************************************************

Synopsis [Reads the file into a character buffer.]

Description []

SideEffects []

SeeAlso []

Definition at line 97 of file ioReadPlaMo.c.

{
    FILE * pFile;
    int nFileSize, RetValue;
    char * pContents;
    pFile = fopen( pFileName, "rb" );
    if ( pFile == NULL )
    {
        Abc_Print( -1, "Mop_ManLoadFile(): The file is unavailable (absent or open).\n" );
        return NULL;
    }
    fseek( pFile, 0, SEEK_END );
    nFileSize = ftell( pFile );
    if ( nFileSize == 0 )
    {
        Abc_Print( -1, "Mop_ManLoadFile(): The file is empty.\n" );
        return NULL;
    }
    pContents = ABC_ALLOC( char, nFileSize + 10 );
    rewind( pFile );
    RetValue = fread( pContents, nFileSize, 1, pFile );
    fclose( pFile );
    strcpy( pContents + nFileSize, "\n" );
    return pContents;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Mop_ManMergeContainAll()

int Mop_ManMergeContainAll	(	Mop_Man_t *	p,
		Vec_Wec_t *	vGroups )

Definition at line 637 of file ioReadPlaMo.c.

{
    Vec_Int_t * vGroup, * vGroup2;
    int i, k, Count = 0;
    Vec_WecForEachLevel( vGroups, vGroup, i )
    {
        Count += Mop_ManRemoveIdentical( p, vGroup );
        Vec_WecForEachLevelStart( vGroups, vGroup2, k, i+1 )
            Count += Mop_ManMergeContainTwo( p, vGroup, vGroup2 );
    }
    return Count;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Mop_ManMergeContainTwo()

int Mop_ManMergeContainTwo	(	Mop_Man_t *	p,
		Vec_Int_t *	vGroup,
		Vec_Int_t *	vGroup2 )

Definition at line 606 of file ioReadPlaMo.c.

{
    int w, c1, c2, iCube1, iCube2, Count = 0;
    Vec_IntForEachEntry( vGroup, iCube1, c1 )
    {
        word * pCube1Out, * pCube1 = Mop_ManCubeIn( p, iCube1 );
        Vec_IntForEachEntry( vGroup2, iCube2, c2 )
        if ( iCube2 != -1 )
        {
            word * pCube2Out, * pCube2 = Mop_ManCubeIn( p, iCube2 );
            if ( !Mop_ManCheckContain(pCube2, pCube1, p->nWordsIn) )
                continue;
            pCube1Out = Mop_ManCubeOut( p, iCube1 );
            pCube2Out = Mop_ManCubeOut( p, iCube2 );
            for ( w = 0; w < p->nWordsOut; w++ )
                pCube2Out[w] &= ~pCube1Out[w];
            for ( w = 0; w < p->nWordsOut; w++ )
                if ( pCube2Out[w] )
                    break;
            if ( w < p->nWordsOut ) // has output literals
                continue;
            // remove larger cube
            Vec_IntWriteEntry( vGroup2, c2, -1 );
            Vec_IntPush( p->vFree, iCube2 );
            Count++;
        }
    }
    if ( Count )
        Map_ManGroupCompact( vGroup2 );
    return Count;
}

Here is the caller graph for this function:

Mop_ManMergeDist1All()

int Mop_ManMergeDist1All	(	Mop_Man_t *	p,
		Vec_Wec_t *	vGroups,
		Vec_Int_t *	vStats,
		int	nLimit )

Definition at line 583 of file ioReadPlaMo.c.

{
    Vec_Int_t * vGroup;
    int i, nEqual, nReduce, Count = 0;
    Vec_WecForEachLevelReverse( vGroups, vGroup, i )
    {
        if ( Vec_IntSize(vGroup) == 0 )
            continue;
        if ( i == 0 )
        {
            printf( "Detected constant-1 cover.\n" );
            fflush( stdout );
            return -1;
        }
        nEqual  = Mop_ManRemoveIdentical( p, vGroup );
        nReduce = Mop_ManMergeDist1Pairs( p, vGroup, Vec_WecEntry(vGroups, i-1), vStats, nLimit );
        //Mop_ManMergeDist1Pairs2( p, vGroup, Vec_WecEntry(vGroups, i-1) );
        Count  += nEqual + nReduce;
        //printf( "Group %3d : Equal =%5d. Reduce =%5d.\n", i, nEqual, nReduce );
    }
    return Count;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Mop_ManMergeDist1Pairs()

int Mop_ManMergeDist1Pairs	(	Mop_Man_t *	p,
		Vec_Int_t *	vGroup,
		Vec_Int_t *	vGroupPrev,
		Vec_Int_t *	vStats,
		int	nLimit )

Definition at line 482 of file ioReadPlaMo.c.

{
    Vec_Int_t * vPairs    = Mop_ManFindDist1Pairs( p, vGroup );
    Vec_Int_t * vPairsNew = Mop_ManCompatiblePairs( vPairs, Vec_IntSize(vGroup) );
    int nCubes = Vec_IntSize(vGroup) + Vec_IntSize(vGroupPrev);
    int w, i, c1, c2, iCubeNew, iVar;
    // move cubes to the previous group
    word * pCube, * pCube1, * pCube2;
    Vec_Int_t * vToFree = Vec_IntAlloc( Vec_IntSize(vPairsNew) );
    Vec_IntForEachEntryDouble( vPairsNew, c1, c2, i )
    {
        pCube1 = Mop_ManCubeIn( p, Vec_IntEntry(vGroup, c1) );
        pCube2 = Mop_ManCubeIn( p, Vec_IntEntry(vGroup, c2) );
        assert( Mop_ManCheckDist1(pCube1, pCube2, p->nWordsIn) );

        // skip those cubes that have frequently appearing variables
        iVar = Mop_ManFindDiffVar( pCube1, pCube2, p->nWordsIn );
        if ( Vec_IntEntry( vStats, iVar ) > nLimit )
            continue;
        Vec_IntPush( vToFree, c1 );
        Vec_IntPush( vToFree, c2 );

        iCubeNew  = Vec_IntPop( p->vFree );
        pCube  = Mop_ManCubeIn( p, iCubeNew );
        for ( w = 0; w < p->nWordsIn; w++ )
            pCube[w] = pCube1[w] & pCube2[w];

        pCube  = Mop_ManCubeOut( p, iCubeNew );
        pCube1 = Mop_ManCubeOut( p, Vec_IntEntry(vGroup, c1) );
        pCube2 = Mop_ManCubeOut( p, Vec_IntEntry(vGroup, c2) );

        assert( !memcmp(pCube1, pCube2, sizeof(word)*p->nWordsOut) );
        for ( w = 0; w < p->nWordsOut; w++ )
            pCube[w] = pCube1[w];

        Vec_IntPush( vGroupPrev, iCubeNew );
    }
//    Vec_IntForEachEntry( vPairsNew, c1, i )
    Vec_IntForEachEntry( vToFree, c1, i )
    {
        if ( Vec_IntEntry(vGroup, c1) == -1 )
            continue;
        Vec_IntPush( p->vFree, Vec_IntEntry(vGroup, c1) );
        Vec_IntWriteEntry( vGroup, c1, -1 );
    }
    Vec_IntFree( vToFree );
    if ( Vec_IntSize(vPairsNew) > 0 )
        Map_ManGroupCompact( vGroup );
    Vec_IntFree( vPairs );
    Vec_IntFree( vPairsNew );
    return nCubes - Vec_IntSize(vGroup) - Vec_IntSize(vGroupPrev);
}

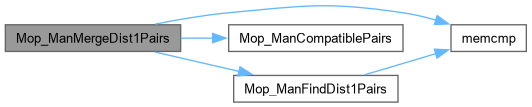

Here is the call graph for this function:

Here is the caller graph for this function:

Mop_ManMergeDist1Pairs2()

int Mop_ManMergeDist1Pairs2	(	Mop_Man_t *	p,
		Vec_Int_t *	vGroup,
		Vec_Int_t *	vGroupPrev )

Definition at line 535 of file ioReadPlaMo.c.

{
    int w, c1, c2, iCube1, iCube2, Count = 0;
    Vec_IntForEachEntry( vGroup, iCube1, c1 )
    if ( iCube1 != -1 )
    {
        word * pCube1Out, * pCube1 = Mop_ManCubeIn( p, iCube1 );
        Vec_IntForEachEntryStart( vGroup, iCube2, c2, c1+1 )
        if ( iCube2 != -1 )
        {
            word * pCube2Out, * pCube2 = Mop_ManCubeIn( p, iCube2 );
            if ( !Mop_ManCheckDist1(pCube1, pCube2, p->nWordsIn) )
                continue;
            pCube1Out = Mop_ManCubeOut( p, iCube1 );
            pCube2Out = Mop_ManCubeOut( p, iCube2 );
            assert( memcmp(pCube1Out, pCube2Out, sizeof(word)*p->nWordsOut) );
            if ( Mop_ManCheckContain(pCube1Out, pCube2Out, p->nWordsOut) ) // pCube1 has more outputs
            {
                // update the input part
                for ( w = 0; w < p->nWordsIn; w++ )
                    pCube2[w] &= pCube1[w];
                // sharp the output part
                for ( w = 0; w < p->nWordsOut; w++ )
                    pCube1Out[w] &= ~pCube2Out[w];
                // move to another group
                Vec_IntPush( vGroupPrev, iCube2 );
                Vec_IntWriteEntry( vGroup, c2, -1 );
                Count++;
            }
            else if ( Mop_ManCheckContain(pCube2Out, pCube1Out, p->nWordsOut) ) // pCube2 has more outputs
            {
                // update the input part
                for ( w = 0; w < p->nWordsIn; w++ )
                    pCube1[w] &= pCube2[w];
                // sharp the output part
                for ( w = 0; w < p->nWordsOut; w++ )
                    pCube2Out[w] &= ~pCube1Out[w];
                // move to another group
                Vec_IntPush( vGroupPrev, iCube1 );
                Vec_IntWriteEntry( vGroup, c1, -1 );
                Count++;
            }
        }
    }
    if ( Count )
        Map_ManGroupCompact( vGroup );
    return Count;
}

Here is the call graph for this function:

Mop_ManPrint()

void Mop_ManPrint

(

Mop_Man_t *

p

)

Definition at line 220 of file ioReadPlaMo.c.

{
    int i, iCube;
    printf( ".%d\n", p->nIns );
    printf( ".%d\n", p->nOuts );
    Vec_IntForEachEntry( p->vCubes, iCube, i )
        Mop_ManPrintOne( p, iCube );
    printf( ".e\n" );
}

Here is the call graph for this function:

Mop_ManPrintOne()

void Mop_ManPrintOne	(	Mop_Man_t *	p,
		int	iCube )

Definition at line 207 of file ioReadPlaMo.c.

{
    int k;
    char Symb[4] = { '-', '0', '1', '?' };
    word * pCubeIn  = Mop_ManCubeIn( p, iCube );
    word * pCubeOut = Mop_ManCubeOut( p, iCube );
    for ( k = 0; k < p->nIns; k++ )
        printf( "%c", Symb[Abc_TtGetQua(pCubeIn, k)] );
    printf( " " );
    for ( k = 0; k < p->nOuts; k++ )
        printf( "%d", Abc_TtGetBit(pCubeOut, k) );
    printf( "\n" );
}

Here is the caller graph for this function:

Mop_ManRead()

Mop_Man_t * Mop_ManRead

(

char *

pFileName

)

Definition at line 147 of file ioReadPlaMo.c.

{
    Mop_Man_t * p;
    int nIns, nOuts, nCubes, iCube;
    char * pToken, * pBuffer = Mop_ManLoadFile( pFileName );
    if ( pBuffer == NULL )
        return NULL;
    nCubes = Mop_ManReadParams( pBuffer, &nIns, &nOuts );
    if ( nCubes == -1 )
        return NULL;
    p = Mop_ManAlloc( nIns, nOuts, nCubes );
    // get the first cube
    pToken = strtok( pBuffer, "\n" );
    while ( pToken )
    {
        while ( Mop_ManIsSpace(*pToken) )
            pToken++;
        if ( Mop_ManIsSopSymb(*pToken) )
            break;
        pToken = strtok( NULL, "\n" );
    }
    // read cubes
    for ( iCube = 0; pToken && Mop_ManIsSopSymb(*pToken); iCube++ )
    {
        char * pTokenCopy = pToken;
        int i, o, nVars[2] = {nIns, nOuts};
        word * pCube[2] = { Mop_ManCubeIn(p, iCube), Mop_ManCubeOut(p, iCube) };
        for ( o = 0; o < 2; o++ )
        {
            while ( Mop_ManIsSpace(*pToken) )
                pToken++;
            for ( i = 0; i < nVars[o]; i++, pToken++ )
            {
                if ( !Mop_ManIsSopSymb(*pToken) )
                {
                    printf( "Cannot read cube %d (%s).\n", iCube+1, pTokenCopy );
                    ABC_FREE( pBuffer );
                    Mop_ManStop( p );
                    return NULL;
                }
                if ( o == 1 )
                {
                    if ( *pToken == '1' )
                        Abc_TtSetBit( pCube[o], i );
                }
                else if ( *pToken == '0' )
                    Abc_TtSetBit( pCube[o], 2*i );
                else if ( *pToken == '1' )
                    Abc_TtSetBit( pCube[o], 2*i+1 );
            }
        }
        assert( iCube < nCubes );
        Vec_IntPush( p->vCubes, iCube );
        pToken = strtok( NULL, "\n" );
    }
    for ( ; iCube < 2 * nCubes; iCube++ )
        Vec_IntPush( p->vFree, iCube );
    ABC_FREE( pBuffer );
    return p;
}

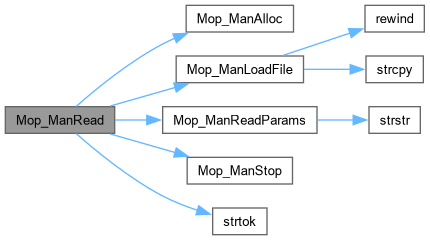

Here is the call graph for this function:

Here is the caller graph for this function:

Mop_ManReadParams()

int Mop_ManReadParams	(	char *	pBuffer,
		int *	pnIns,
		int *	pnOuts )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 134 of file ioReadPlaMo.c.

{
    char * pIns  = strstr( pBuffer, ".i " );
    char * pOuts = strstr( pBuffer, ".o " );
    char * pStr  = pBuffer; int nCubes = 0;
    if ( pIns == NULL || pOuts == NULL )
        return -1;
    *pnIns  = atoi( pIns + 2 );
    *pnOuts = atoi( pOuts + 2 );
    while ( *pStr )
        nCubes += (*pStr++ == '\n');
    return nCubes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Mop_ManReduce()

void Mop_ManReduce

(

Mop_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 686 of file ioReadPlaMo.c.

{
    abctime clk = Abc_Clock();
    Vec_Int_t * vGroup, * vGroup2;
    int i, k, nOutLits, nOutLits2, nEqual = 0, nContain = 0;
    Vec_Wec_t * vGroups = Mop_ManCreateGroups( p );
    // initial stats
    nOutLits = Mop_ManCountOutputLits( p );
    // check identical cubes within each group
    Vec_WecForEachLevel( vGroups, vGroup, i )
        nEqual += Mop_ManRemoveIdentical( p, vGroup );
    // check contained cubes
    Vec_WecForEachLevel( vGroups, vGroup, i )
        Vec_WecForEachLevelStart( vGroups, vGroup2, k, i+1 )
            nContain += Mop_ManMergeContainTwo( p, vGroup, vGroup2 );
    // final stats
    nOutLits2 = Mop_ManCountOutputLits( p );
    Mop_ManUnCreateGroups( p, vGroups );
    Vec_WecFree( vGroups );
    // report
    printf( "Total = %d. Reduced %d equal and %d contained cubes. Output lits: %d -> %d.   ", Vec_IntSize(p->vCubes), nEqual, nContain, nOutLits, nOutLits2 );
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Mop_ManReduce2()

void Mop_ManReduce2

(

Mop_Man_t *

p

)

Definition at line 649 of file ioReadPlaMo.c.

{
    abctime clk = Abc_Clock();
    int nCubes  = Vec_IntSize(p->vCubes);
    Vec_Int_t * vStats = Mop_ManCollectStats( p );
    Vec_Wec_t * vGroups = Mop_ManCreateGroups( p );
    int nLimit    = ABC_INFINITY; // 5 * Vec_IntSum(vStats) / Vec_IntSize(vStats) + 1;
    int nOutLits  = Mop_ManCountOutputLits( p );
    int Count1    = Mop_ManMergeContainAll( p, vGroups );
    int Count2    = Mop_ManMergeDist1All( p, vGroups, vStats, nLimit );
    int Count3    = Mop_ManMergeContainAll( p, vGroups );
    int Count4    = Mop_ManMergeDist1All( p, vGroups, vStats, nLimit );
    int Count5    = Mop_ManMergeContainAll( p, vGroups );
    int Removed   = Mop_ManUnCreateGroups( p, vGroups );
    int nOutLits2 = Mop_ManCountOutputLits( p );
    Vec_WecFree( vGroups );
//Vec_IntPrint( vStats );
    Vec_IntFree( vStats );
    assert( Removed == Count1 + Count2 + Count3 );
    // report
    printf( "Cubes: %d -> %d.  C = %d.  M = %d.  C = %d.  M = %d.  C = %d.  Output lits: %d -> %d.   ",
        nCubes, Vec_IntSize(p->vCubes), Count1, Count2, Count3, Count4, Count5, nOutLits, nOutLits2 );
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
}

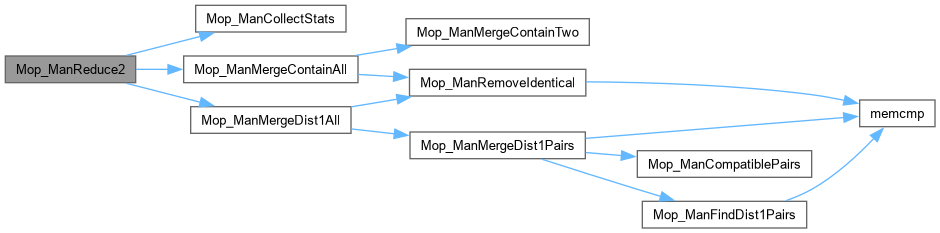

Here is the call graph for this function:

Here is the caller graph for this function:

Mop_ManRemoveIdentical()

int Mop_ManRemoveIdentical	(	Mop_Man_t *	p,
		Vec_Int_t *	vGroup )

Definition at line 381 of file ioReadPlaMo.c.

{
    int w, c1, c2, iCube1, iCube2, nEqual = 0;
    Vec_IntForEachEntry( vGroup, iCube1, c1 )
    if ( iCube1 != -1 )
    {
        word * pCube1Out, * pCube1 = Mop_ManCubeIn( p, iCube1 );
        Vec_IntForEachEntryStart( vGroup, iCube2, c2, c1+1 )
        if ( iCube2 != -1 )
        {
            word * pCube2Out, * pCube2 = Mop_ManCubeIn( p, iCube2 );
            if ( memcmp(pCube1, pCube2, sizeof(word)*p->nWordsIn) )
                continue;
            // merge cubes
            pCube1Out = Mop_ManCubeOut( p, iCube1 );
            pCube2Out = Mop_ManCubeOut( p, iCube2 );
            for ( w = 0; w < p->nWordsOut; w++ )
                pCube1Out[w] |= pCube2Out[w];
            Vec_IntWriteEntry( vGroup, c2, -1 );
            Vec_IntPush( p->vFree, iCube2 );
            nEqual++;
        }
    }
    if ( nEqual )
        Map_ManGroupCompact( vGroup );
    return nEqual;
}

Here is the call graph for this function:

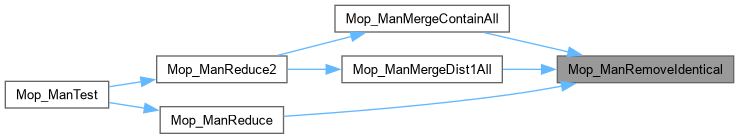

Here is the caller graph for this function:

Mop_ManStop()

void Mop_ManStop

(

Mop_Man_t *

p

)

Definition at line 77 of file ioReadPlaMo.c.

{
    Vec_WrdFree( p->vWordsIn );
    Vec_WrdFree( p->vWordsOut );
    Vec_IntFree( p->vCubes );
    Vec_IntFree( p->vFree );
    ABC_FREE( p );
}

Here is the caller graph for this function:

Mop_ManTest()

Abc_Ntk_t * Mop_ManTest	(	char *	pFileName,
		int	fMerge,
		int	fVerbose )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 788 of file ioReadPlaMo.c.

{
    Abc_Ntk_t * pNtk = NULL;
    Mop_Man_t * p = Mop_ManRead( pFileName );
    if ( p == NULL )
        return NULL;
    Mop_ManRemoveEmpty( p );
    //Mop_ManPrint( p );
    if ( fMerge )
        Mop_ManReduce2( p );
    else
        Mop_ManReduce( p );
    //Mop_ManPrint( p );
    pNtk = Mop_ManDerive( p, pFileName );
    Mop_ManStop( p );
    return pNtk;
}

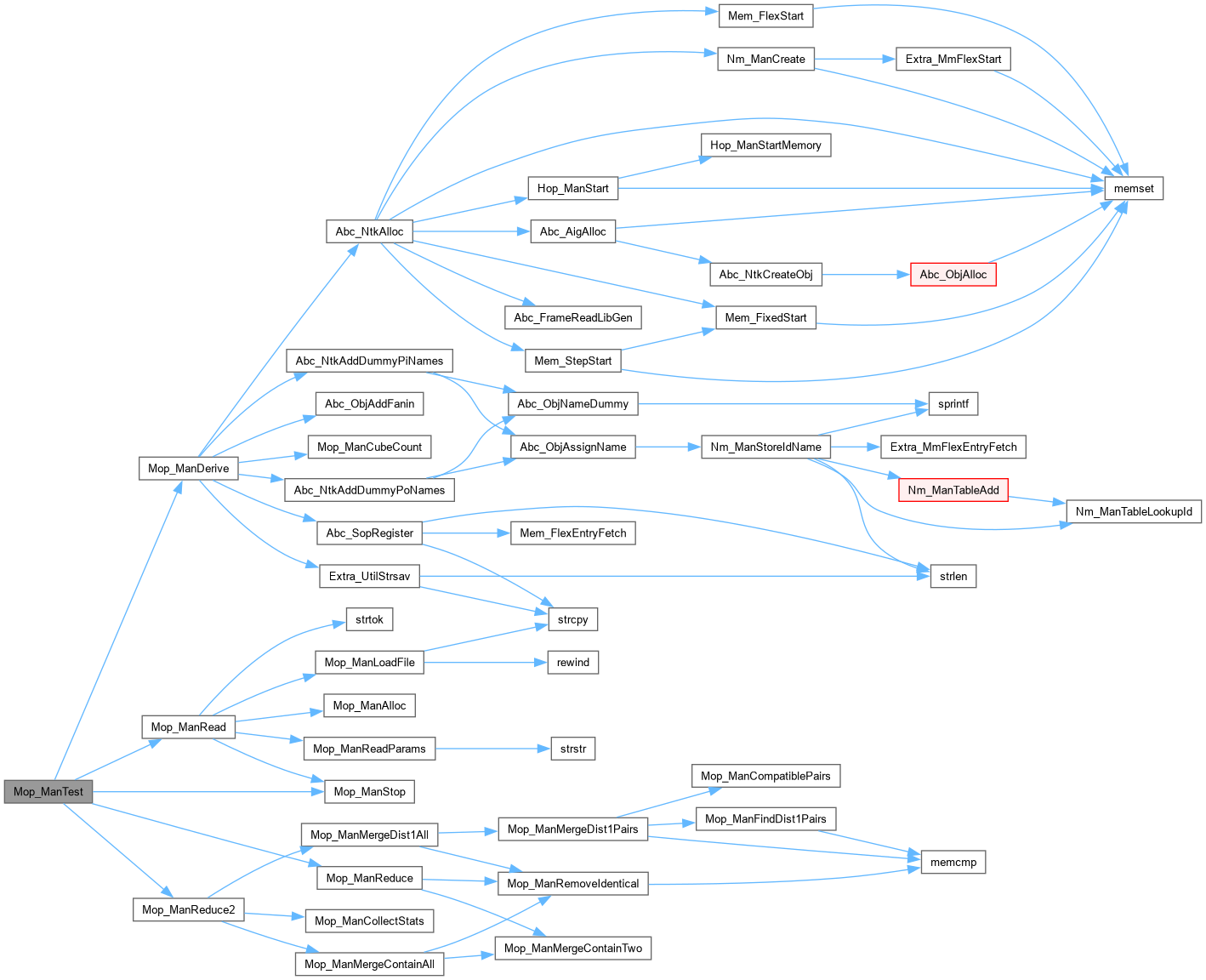

Here is the call graph for this function:
