ioReadVerilog.c File Reference

#include "ioAbc.h"
#include "base/ver/ver.h"

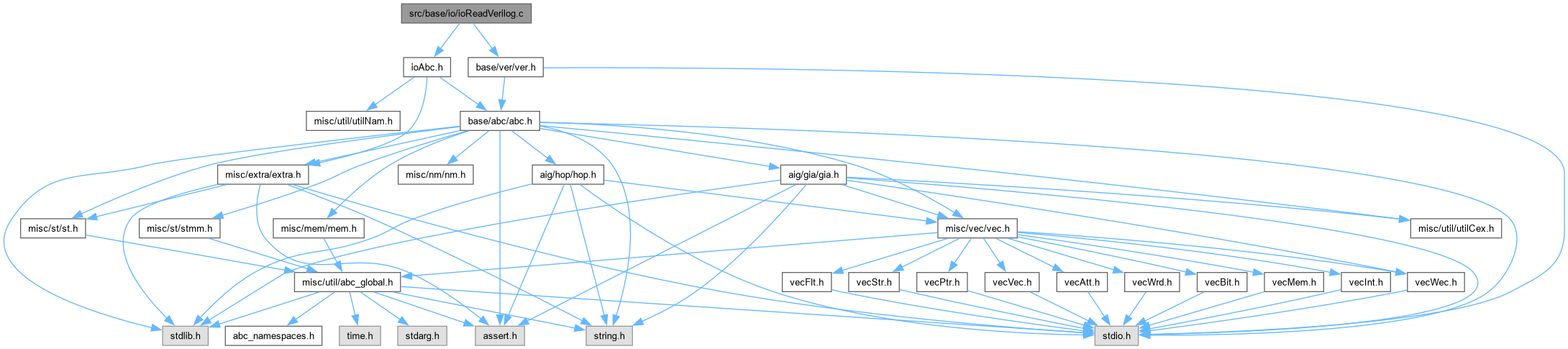

Include dependency graph for ioReadVerilog.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Abc_Ntk_t *	Io_ReadVerilog (char *pFileName, int fCheck)
	DECLARATIONS ///.

Function Documentation

Io_ReadVerilog()

ABC_NAMESPACE_IMPL_START Abc_Ntk_t * Io_ReadVerilog	(	char *	pFileName,
		int	fCheck )

DECLARATIONS ///.

CFile****************************************************************

FileName [ioReadVerilog.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Command processing package.]

Synopsis [Procedure to read network from file.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

ioReadVerilog.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Reads hierarchical design from the Verilog file.]

Description []

SideEffects []

SeeAlso []

Definition at line 48 of file ioReadVerilog.c.

{
    Abc_Ntk_t * pNtk, * pTemp;
    Abc_Des_t * pDesign;
    int i, RetValue;

    // parse the verilog file
    pDesign = Ver_ParseFile( pFileName, NULL, fCheck, 1 );
    if ( pDesign == NULL )
        return NULL;

    // detect top-level model
    RetValue = Abc_DesFindTopLevelModels( pDesign );
    pNtk = (Abc_Ntk_t *)Vec_PtrEntry( pDesign->vTops, 0 );
    if ( RetValue > 1 )
    {
        printf( "Warning: The design has %d root-level modules: ", Vec_PtrSize(pDesign->vTops) );
        Vec_PtrForEachEntry( Abc_Ntk_t *, pDesign->vTops, pTemp, i )
            printf( " %s", Abc_NtkName(pTemp) );
        printf( "\n" );
        printf( "The first one (%s) will be used.\n", pNtk->pName );
    }

    // extract the master network
    pNtk->pDesign = pDesign;
    pDesign->pManFunc = NULL;

    // verify the design for cyclic dependence
    assert( Vec_PtrSize(pDesign->vModules) > 0 );
    if ( Vec_PtrSize(pDesign->vModules) == 1 )
    {
//        printf( "Warning: The design is not hierarchical.\n" );
        Abc_DesFree( pDesign, pNtk );
        pNtk->pDesign = NULL;
        pNtk->pSpec = Extra_UtilStrsav( pFileName );
    }
    else
    {
        // check that there is no cyclic dependency
        Abc_NtkIsAcyclicHierarchy( pNtk );
    }

//Io_WriteVerilog( pNtk, "_temp.v" );
//    Abc_NtkPrintBoxInfo( pNtk );
    return pNtk;
}

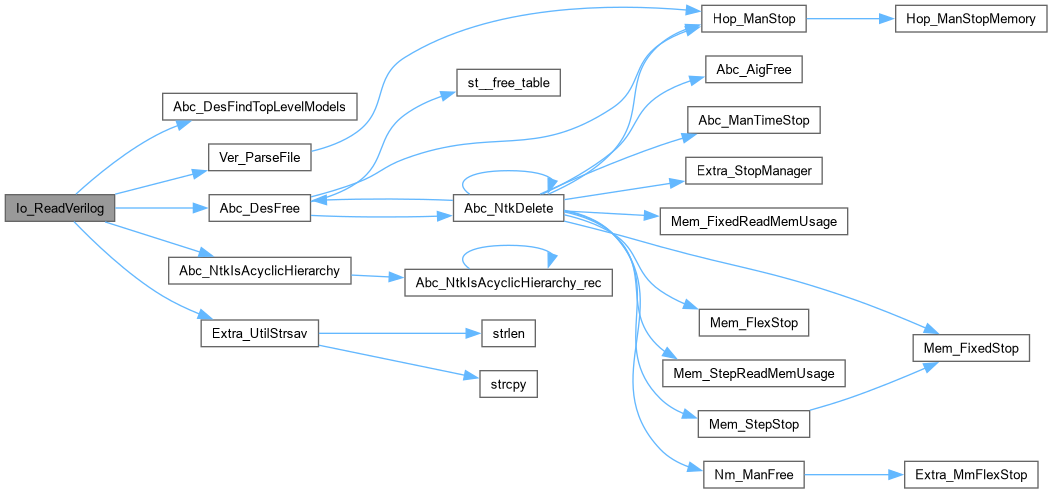

Here is the call graph for this function:

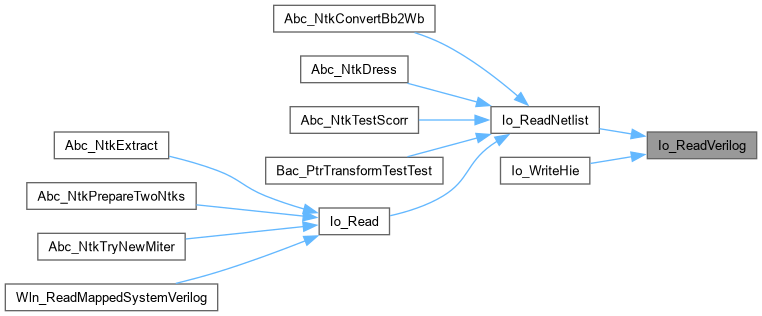

Here is the caller graph for this function:
