ioUtil.c File Reference

#include "ioAbc.h"
#include "base/main/main.h"
#include "misc/util/utilTruth.h"

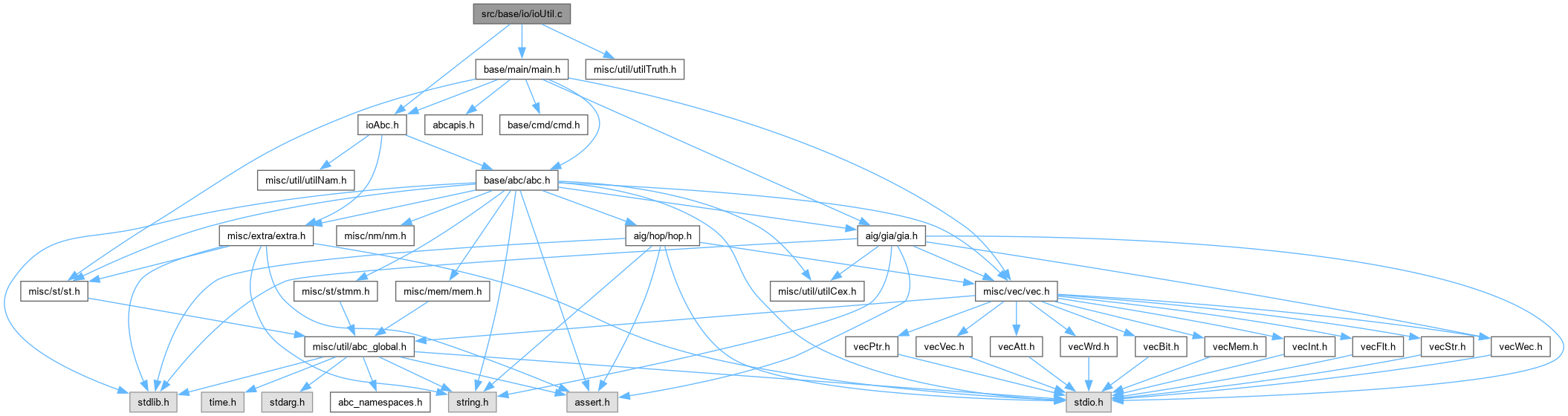

Include dependency graph for ioUtil.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Io_FileType_t	Io_ReadFileType (char *pFileName)
	DECLARATIONS ///.
Abc_Ntk_t *	Io_ReadNetlist (char *pFileName, Io_FileType_t FileType, int fCheck)
Vec_Ptr_t *	temporaryLtlStore (Abc_Ntk_t *pNtk)
void	updateLtlStoreOfNtk (Abc_Ntk_t *pNtk, Vec_Ptr_t *tempLtlStore)
Abc_Ntk_t *	Io_Read (char *pFileName, Io_FileType_t FileType, int fCheck, int fBarBufs)
void	Io_Write (Abc_Ntk_t *pNtk, char *pFileName, Io_FileType_t FileType)
void	Io_WriteHie (Abc_Ntk_t *pNtk, char *pBaseName, char *pFileName)
Abc_Obj_t *	Io_ReadCreatePi (Abc_Ntk_t *pNtk, char *pName)
Abc_Obj_t *	Io_ReadCreatePo (Abc_Ntk_t *pNtk, char *pName)
Abc_Obj_t *	Io_ReadCreateLatch (Abc_Ntk_t *pNtk, char *pNetLI, char *pNetLO)
Abc_Obj_t *	Io_ReadCreateResetLatch (Abc_Ntk_t *pNtk, int fBlifMv)
Abc_Obj_t *	Io_ReadCreateNode (Abc_Ntk_t *pNtk, char *pNameOut, char *pNamesIn[], int nInputs)
Abc_Obj_t *	Io_ReadCreateConst (Abc_Ntk_t *pNtk, char *pName, int fConst1)
Abc_Obj_t *	Io_ReadCreateInv (Abc_Ntk_t *pNtk, char *pNameIn, char *pNameOut)
Abc_Obj_t *	Io_ReadCreateBuf (Abc_Ntk_t *pNtk, char *pNameIn, char *pNameOut)
FILE *	Io_FileOpen (const char *FileName, const char *PathVar, const char *Mode, int fVerbose)
void	Io_TransformSF2PLA (char *pNameIn, char *pNameOut)
void	Io_TransformROM2PLA (char *pNameIn, char *pNameOut)
Vec_Ptr_t *	Io_ConvertNumsToSop (Vec_Wec_t *vNums, int nVars)
Vec_Ptr_t *	Io_ConvertNumsToSopMulti (Vec_Wec_t *vNums, int nVars)
Vec_Ptr_t *	Io_FileReadCnf (char *pFileName, int fMulti)

Function Documentation

Io_ConvertNumsToSop()

Vec_Ptr_t * Io_ConvertNumsToSop	(	Vec_Wec_t *	vNums,
		int	nVars )

Function*************************************************************

Synopsis [Reads CNF from file.]

Description []

SideEffects []

SeeAlso []

Definition at line 987 of file ioUtil.c.

{
    Vec_Ptr_t * vSops = Vec_PtrAlloc(1);
    Vec_Int_t * vLevel; int i, k, Num;
    int nSize = (nVars + 3)*Vec_WecSize(vNums);
    char * pStr = ABC_ALLOC( char, nSize+1 );
    memset( pStr, '-', nSize );
    pStr[nSize] = 0;
    Vec_WecForEachLevel( vNums, vLevel, i )
    {
        char * pCube = pStr + (nVars + 3)*i;
        Vec_IntForEachEntry( vLevel, Num, k )
            pCube[Abc_Lit2Var(Num)] = '0' + Abc_LitIsCompl(Num);
        pCube[nVars+0] = ' ';
        pCube[nVars+1] = '0';
        pCube[nVars+2] = '\n';
    }
    Vec_PtrPush( vSops, pStr );
    return vSops;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Io_ConvertNumsToSopMulti()

Vec_Ptr_t * Io_ConvertNumsToSopMulti	(	Vec_Wec_t *	vNums,
		int	nVars )

Definition at line 1007 of file ioUtil.c.

{
    Vec_Ptr_t * vSops = Vec_PtrAlloc( Vec_WecSize(vNums) );
    Vec_Int_t * vLevel; int i, k, Num;
    Vec_WecForEachLevel( vNums, vLevel, i )
    {
        char * pCube = ABC_ALLOC( char, nVars + 4 );
        memset( pCube, '-', nVars );
        Vec_IntForEachEntry( vLevel, Num, k )
            pCube[Abc_Lit2Var(Num)] = '0' + Abc_LitIsCompl(Num);
        pCube[nVars+0] = ' ';
        pCube[nVars+1] = '0';
        pCube[nVars+2] = '\n';
        pCube[nVars+3] = '\0';
        Vec_PtrPush( vSops, pCube );
    }
    return vSops;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Io_FileOpen()

FILE * Io_FileOpen	(	const char *	FileName,
		const char *	PathVar,
		const char *	Mode,
		int	fVerbose )

Function*************************************************************

Synopsis [Provide an fopen replacement with path lookup]

Description [Provide an fopen replacement where the path stored in pathvar MVSIS variable is used to look up the path for name. Returns NULL if file cannot be opened.]

SideEffects []

SeeAlso []

Definition at line 828 of file ioUtil.c.

{
    char * t = 0, * c = 0, * i;

    if ( PathVar == 0 )
    {
        return fopen( FileName, Mode );
    }
    else
    {
        if ( (c = Abc_FrameReadFlag( (char*)PathVar )) )
        {
            char ActualFileName[4096];
            FILE * fp = 0;
            t = Extra_UtilStrsav( c );
            for (i = strtok( t, ":" ); i != 0; i = strtok( 0, ":") )
            {
#ifdef WIN32
                _snprintf ( ActualFileName, 4096, "%s/%s", i, FileName );
#else
                snprintf ( ActualFileName, 4096, "%s/%s", i, FileName );
#endif
                if ( ( fp = fopen ( ActualFileName, Mode ) ) )
                {
                    if ( fVerbose )
                    fprintf ( stdout, "Using file %s\n", ActualFileName );
                    ABC_FREE( t );
                    return fp;
                }
            }
            ABC_FREE( t );
            return 0;
        }
        else
        {
            return fopen( FileName, Mode );
        }
    }
}

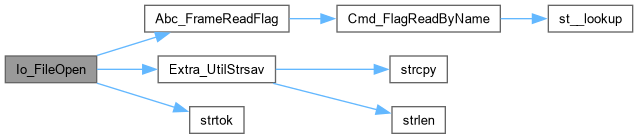

Here is the call graph for this function:

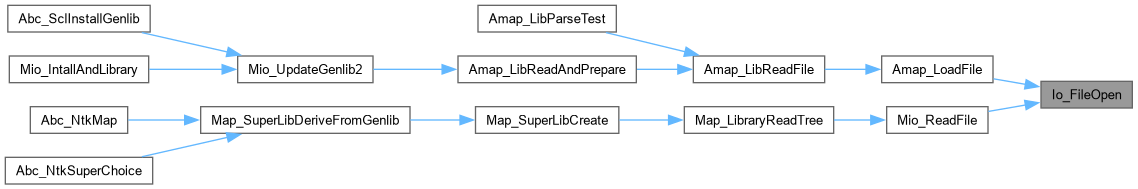

Here is the caller graph for this function:

Io_FileReadCnf()

Vec_Ptr_t * Io_FileReadCnf	(	char *	pFileName,
		int	fMulti )

Definition at line 1025 of file ioUtil.c.

{
    Vec_Ptr_t * vSops = NULL;
    Vec_Wec_t * vNums = Vec_WecAlloc( 100 );
    Vec_Int_t * vLevel;
    char * pThis, pLine[10000];
    int nVars = -1, nClas = -1;
    FILE * pFile = fopen( pFileName, "rb" );
    if ( pFile == NULL ) {
        printf( "Cannot open file \"%s\" for reading.\n", pFileName );
        return NULL;
    }
    while ( fgets( pLine, 10000, pFile ) )
    {
        if ( pLine[0] == 'c' )
            continue;
        if ( pLine[0] == 'p' )
        {
            pThis = strtok(pLine+1, " \t\n\r");
            if ( strcmp(pThis, "cnf") )
            {
                Vec_PtrFree( vSops );
                Vec_WecFree( vNums );
                fclose( pFile );
                printf( "Wrong file format.\n" );
                return NULL;
            }
            pThis = strtok(NULL, " \t\n\r");
            nVars = atoi(pThis);
            pThis = strtok(NULL, " \t\n\r");
            nClas = atoi(pThis);
            continue;
        }
        pThis = strtok(pLine, " \t\n\r");
        if ( pThis == NULL )
            continue;
        vLevel = Vec_WecPushLevel( vNums );
        while ( pThis ) {
            int fComp, Temp = atoi(pThis);
            if ( Temp == 0 )
                break;
            fComp = Temp < 0;
            Temp  = Temp < 0 ? -Temp : Temp;
            Temp -= 1;
            assert( Temp < nVars );
            Vec_IntPush( vLevel, Abc_Var2Lit(Temp, fComp) );
            pThis = strtok(NULL, " \t\n\r");
        }
    }
    fclose( pFile );
    if ( nClas != Vec_WecSize(vNums) )
        printf( "Warning: The number of clauses (%d) listed is different from the actual number (%d).\n", nClas, Vec_WecSize(vNums) );
    //Vec_WecPrint( vNums, 0 );
    if ( fMulti )
        vSops = Io_ConvertNumsToSopMulti(vNums, nVars);
    else
        vSops = Io_ConvertNumsToSop(vNums, nVars);
    Vec_WecFree( vNums );
    return vSops;
}

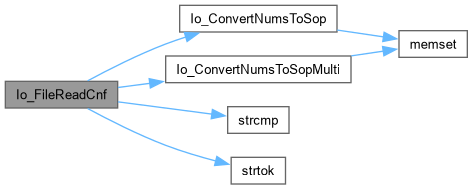

Here is the call graph for this function:

Io_Read()

Abc_Ntk_t * Io_Read	(	char *	pFileName,
		Io_FileType_t	FileType,
		int	fCheck,
		int	fBarBufs )

Function*************************************************************

Synopsis [Read the network from a file.]

Description []

SideEffects []

SeeAlso []

Definition at line 241 of file ioUtil.c.

{
    Abc_Ntk_t * pNtk, * pTemp;
    Vec_Ptr_t * vLtl;
    // get the netlist
    pNtk = Io_ReadNetlist( pFileName, FileType, fCheck );
    if ( pNtk == NULL )
        return NULL;
    vLtl = temporaryLtlStore( pNtk );
    if ( !Abc_NtkIsNetlist(pNtk) )
        return pNtk;
    // derive barbufs
    if ( fBarBufs )
    {
        pNtk = Abc_NtkToBarBufs( pTemp = pNtk );
        Abc_NtkDelete( pTemp );
        assert( Abc_NtkIsLogic(pNtk) );
        return pNtk;
    }
    // flatten logic hierarchy
    assert( Abc_NtkIsNetlist(pNtk) );
    if ( Abc_NtkWhiteboxNum(pNtk) > 0 )
    {
        pNtk = Abc_NtkFlattenLogicHierarchy( pTemp = pNtk );
        Abc_NtkDelete( pTemp );
        if ( pNtk == NULL )
        {
            fprintf( stdout, "Flattening logic hierarchy has failed.\n" );
            return NULL;
        }
    }
    // convert blackboxes
    if ( Abc_NtkBlackboxNum(pNtk) > 0 )
    {
        printf( "Hierarchy reader converted %d instances of blackboxes.\n", Abc_NtkBlackboxNum(pNtk) );
        pNtk = Abc_NtkConvertBlackboxes( pTemp = pNtk );
        Abc_NtkDelete( pTemp );
        if ( pNtk == NULL )
        {
            fprintf( stdout, "Converting blackboxes has failed.\n" );
            return NULL;
        }
    }
    // consider the case of BLIF-MV
    if ( Io_ReadFileType(pFileName) == IO_FILE_BLIFMV )
    {
        pNtk = Abc_NtkStrashBlifMv( pTemp = pNtk );
        Abc_NtkDelete( pTemp );
        if ( pNtk == NULL )
        {
            fprintf( stdout, "Converting BLIF-MV to AIG has failed.\n" );
            return NULL;
        }
        return pNtk;
    }
    // convert the netlist into the logic network
    pNtk = Abc_NtkToLogic( pTemp = pNtk );
    if( vLtl )
        updateLtlStoreOfNtk( pNtk, vLtl );
    Abc_NtkDelete( pTemp );
    if ( pNtk == NULL )
    {
        fprintf( stdout, "Converting netlist to logic network after reading has failed.\n" );
        return NULL;
    }
    return pNtk;
}

Here is the call graph for this function:

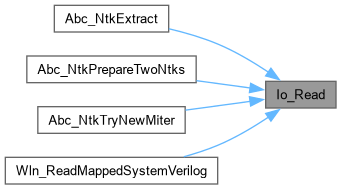

Here is the caller graph for this function:

Io_ReadCreateBuf()

Abc_Obj_t * Io_ReadCreateBuf	(	Abc_Ntk_t *	pNtk,
		char *	pNameIn,
		char *	pNameOut )

Function*************************************************************

Synopsis [Create an inverter or buffer for the given net.]

Description [Assumes that the nets already exist.]

SideEffects []

SeeAlso []

Definition at line 804 of file ioUtil.c.

{
    Abc_Obj_t * pNet, * pNode;
    pNet  = Abc_NtkFindNet(pNtk, pNameIn);     assert( pNet );
    pNode = Abc_NtkCreateNodeBuf(pNtk, pNet);
    pNet  = Abc_NtkFindNet(pNtk, pNameOut);    assert( pNet );
    Abc_ObjAddFanin( pNet, pNode );
    return pNet;
}

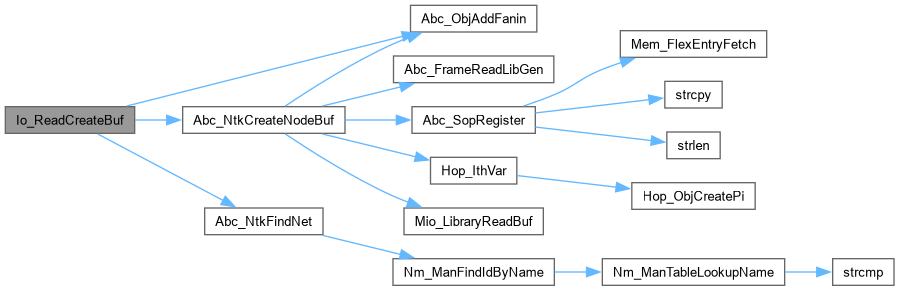

Here is the call graph for this function:

Io_ReadCreateConst()

Abc_Obj_t * Io_ReadCreateConst	(	Abc_Ntk_t *	pNtk,
		char *	pName,
		int	fConst1 )

Function*************************************************************

Synopsis [Create a constant 0 node driving the net with this name.]

Description [Assumes that the net already exists.]

SideEffects []

SeeAlso []

Definition at line 763 of file ioUtil.c.

{
    Abc_Obj_t * pNet, * pTerm;
    pTerm = fConst1? Abc_NtkCreateNodeConst1(pNtk) : Abc_NtkCreateNodeConst0(pNtk);
    pNet  = Abc_NtkFindNet(pNtk, pName);    assert( pNet );
    Abc_ObjAddFanin( pNet, pTerm );
    return pTerm;
}

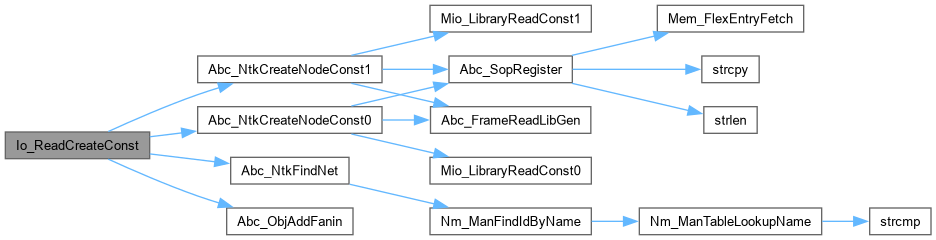

Here is the call graph for this function:

Io_ReadCreateInv()

Abc_Obj_t * Io_ReadCreateInv	(	Abc_Ntk_t *	pNtk,
		char *	pNameIn,
		char *	pNameOut )

Function*************************************************************

Synopsis [Create an inverter or buffer for the given net.]

Description [Assumes that the nets already exist.]

SideEffects []

SeeAlso []

Definition at line 783 of file ioUtil.c.

{
    Abc_Obj_t * pNet, * pNode;
    pNet  = Abc_NtkFindNet(pNtk, pNameIn);     assert( pNet );
    pNode = Abc_NtkCreateNodeInv(pNtk, pNet);
    pNet  = Abc_NtkFindNet(pNtk, pNameOut);    assert( pNet );
    Abc_ObjAddFanin( pNet, pNode );
    return pNode;
}

Here is the call graph for this function:

Io_ReadCreateLatch()

Abc_Obj_t * Io_ReadCreateLatch	(	Abc_Ntk_t *	pNtk,
		char *	pNetLI,
		char *	pNetLO )

Function*************************************************************

Synopsis [Create a latch with the given input/output.]

Description [By default, the latch value is unknown (ABC_INIT_NONE).]

SideEffects []

SeeAlso []

Definition at line 669 of file ioUtil.c.

{
    Abc_Obj_t * pLatch, * pTerm, * pNet;
    // get the LI net
    pNet = Abc_NtkFindOrCreateNet( pNtk, pNetLI );
    // add the BO terminal
    pTerm = Abc_NtkCreateBi( pNtk );
    Abc_ObjAddFanin( pTerm, pNet );
    // add the latch box
    pLatch = Abc_NtkCreateLatch( pNtk );
    Abc_ObjAddFanin( pLatch, pTerm  );
    // add the BI terminal
    pTerm = Abc_NtkCreateBo( pNtk );
    Abc_ObjAddFanin( pTerm, pLatch );
    // get the LO net
    pNet = Abc_NtkFindOrCreateNet( pNtk, pNetLO );
    Abc_ObjAddFanin( pNet, pTerm );
    // set latch name
    Abc_ObjAssignName( pLatch, pNetLO, "L" );
    return pLatch;
}

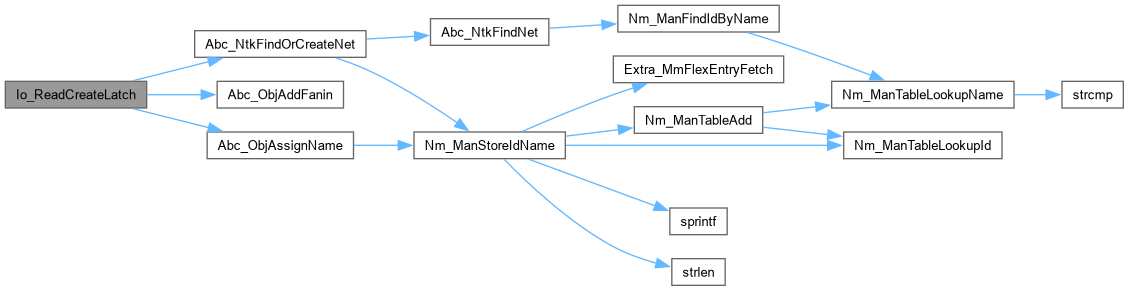

Here is the call graph for this function:

Here is the caller graph for this function:

Io_ReadCreateNode()

Abc_Obj_t * Io_ReadCreateNode	(	Abc_Ntk_t *	pNtk,
		char *	pNameOut,
		char *	pNamesIn[],
		int	nInputs )

Function*************************************************************

Synopsis [Create node and the net driven by it.]

Description []

SideEffects []

SeeAlso []

Definition at line 734 of file ioUtil.c.

{
    Abc_Obj_t * pNet, * pNode;
    int i;
    // create a new node
    pNode = Abc_NtkCreateNode( pNtk );
    // add the fanin nets
    for ( i = 0; i < nInputs; i++ )
    {
        pNet = Abc_NtkFindOrCreateNet( pNtk, pNamesIn[i] );
        Abc_ObjAddFanin( pNode, pNet );
    }
    // add the fanout net
    pNet = Abc_NtkFindOrCreateNet( pNtk, pNameOut );
    Abc_ObjAddFanin( pNet, pNode );
    return pNode;
}

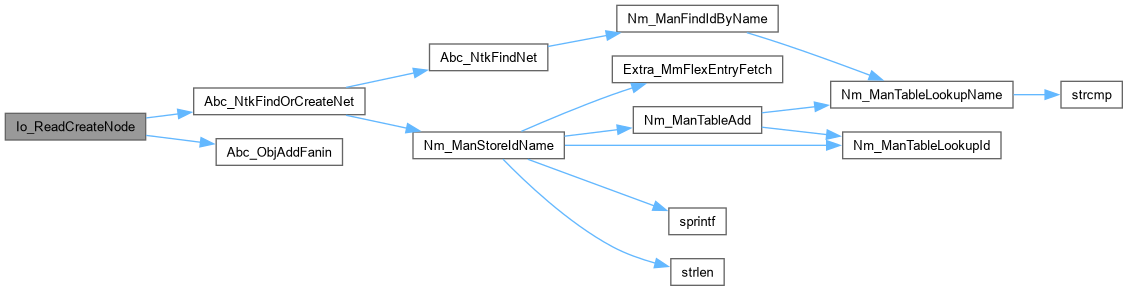

Here is the call graph for this function:

Io_ReadCreatePi()

Abc_Obj_t * Io_ReadCreatePi	(	Abc_Ntk_t *	pNtk,
		char *	pName )

Function*************************************************************

Synopsis [Creates PI terminal and net.]

Description []

SideEffects []

SeeAlso []

Definition at line 619 of file ioUtil.c.

{
    Abc_Obj_t * pNet, * pTerm;
    // get the PI net
    pNet  = Abc_NtkFindNet( pNtk, pName );
    if ( pNet )
        printf( "Warning: PI \"%s\" appears twice in the list.\n", pName );
    pNet  = Abc_NtkFindOrCreateNet( pNtk, pName );
    // add the PI node
    pTerm = Abc_NtkCreatePi( pNtk );
    Abc_ObjAddFanin( pNet, pTerm );
    return pTerm;
}

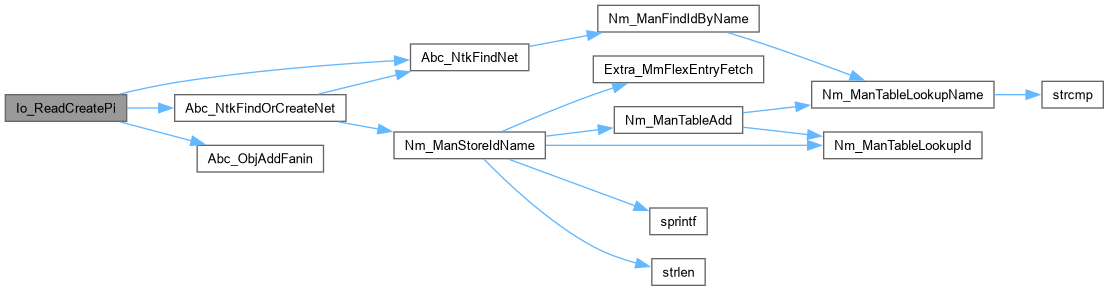

Here is the call graph for this function:

Io_ReadCreatePo()

Abc_Obj_t * Io_ReadCreatePo	(	Abc_Ntk_t *	pNtk,
		char *	pName )

Function*************************************************************

Synopsis [Creates PO terminal and net.]

Description []

SideEffects []

SeeAlso []

Definition at line 644 of file ioUtil.c.

{
    Abc_Obj_t * pNet, * pTerm;
    // get the PO net
    pNet  = Abc_NtkFindNet( pNtk, pName );
    if ( pNet && Abc_ObjFaninNum(pNet) == 0 )
        printf( "Warning: PO \"%s\" appears twice in the list.\n", pName );
    pNet  = Abc_NtkFindOrCreateNet( pNtk, pName );
    // add the PO node
    pTerm = Abc_NtkCreatePo( pNtk );
    Abc_ObjAddFanin( pTerm, pNet );
    return pTerm;
}

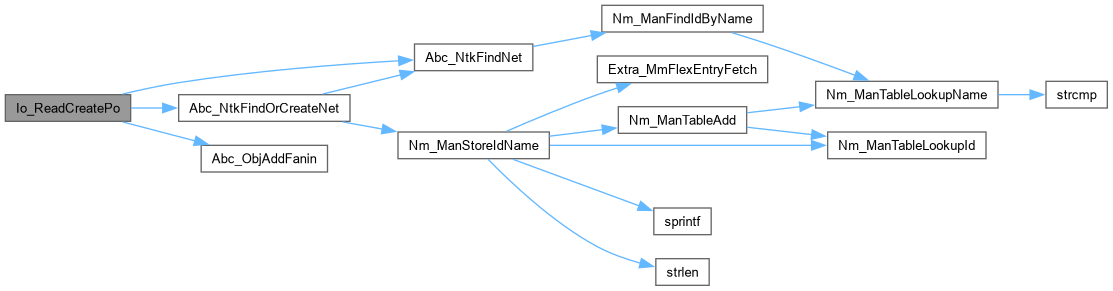

Here is the call graph for this function:

Io_ReadCreateResetLatch()

Abc_Obj_t * Io_ReadCreateResetLatch	(	Abc_Ntk_t *	pNtk,
		int	fBlifMv )

Function*************************************************************

Synopsis [Create the reset latch with data=1 and init=0.]

Description []

SideEffects []

SeeAlso []

Definition at line 702 of file ioUtil.c.

{
    Abc_Obj_t * pLatch, * pNode;
    Abc_Obj_t * pNetLI, * pNetLO;
    // create latch with 0 init value
//    pLatch = Io_ReadCreateLatch( pNtk, "_resetLI_", "_resetLO_" );
    pNetLI = Abc_NtkCreateNet( pNtk );
    pNetLO = Abc_NtkCreateNet( pNtk );
    Abc_ObjAssignName( pNetLI, Abc_ObjName(pNetLI), NULL );
    Abc_ObjAssignName( pNetLO, Abc_ObjName(pNetLO), NULL );
    pLatch = Io_ReadCreateLatch( pNtk, Abc_ObjName(pNetLI), Abc_ObjName(pNetLO) );
    // set the initial value
    Abc_LatchSetInit0( pLatch );
    // feed the latch with constant1- node
//    pNode = Abc_NtkCreateNode( pNtk );
//    pNode->pData = Abc_SopRegister( (Extra_MmFlex_t *)pNtk->pManFunc, "2\n1\n" );
    pNode = Abc_NtkCreateNodeConst1( pNtk );
    Abc_ObjAddFanin( Abc_ObjFanin0(Abc_ObjFanin0(pLatch)), pNode );
    return pLatch;
}

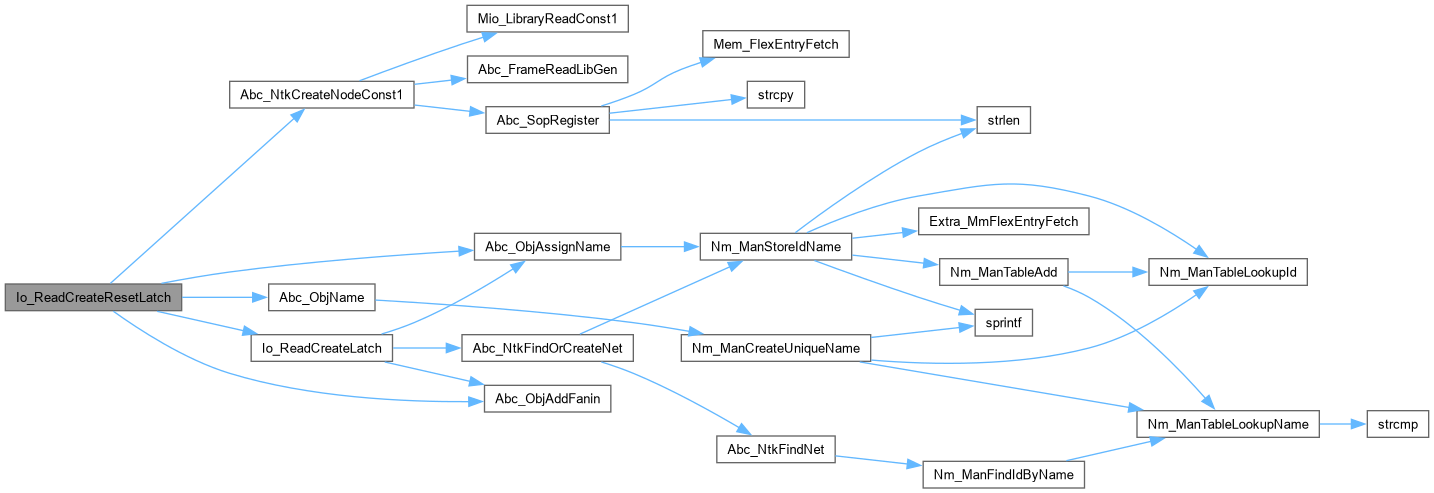

Here is the call graph for this function:

Io_ReadFileType()

ABC_NAMESPACE_IMPL_START Io_FileType_t Io_ReadFileType

(

char *

pFileName

)

DECLARATIONS ///.

CFile****************************************************************

FileName [ioUtil.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Command processing package.]

Synopsis [Procedures to write the network in BENCH format.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

ioUtil.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Returns the file type.]

Description []

SideEffects []

SeeAlso []

Definition at line 47 of file ioUtil.c.

{
    char * pExt;
    if ( pFileName == NULL )
        return IO_FILE_NONE;
    pExt = Extra_FileNameExtension( pFileName );
    if ( pExt == NULL )
        return IO_FILE_NONE;
    if ( !strcmp( pExt, "aig" ) )
        return IO_FILE_AIGER;
    if ( !strcmp( pExt, "baf" ) )
        return IO_FILE_BAF;
    if ( !strcmp( pExt, "bblif" ) )
        return IO_FILE_BBLIF;
    if ( !strcmp( pExt, "blif" ) )
        return IO_FILE_BLIF;
    if ( !strcmp( pExt, "bench" ) )
        return IO_FILE_BENCH;
    if ( !strcmp( pExt, "cnf" ) )
        return IO_FILE_CNF;
    if ( !strcmp( pExt, "dot" ) )
        return IO_FILE_DOT;
    if ( !strcmp( pExt, "edif" ) )
        return IO_FILE_EDIF;
    if ( !strcmp( pExt, "eqn" ) )
        return IO_FILE_EQN;
    if ( !strcmp( pExt, "gml" ) )
        return IO_FILE_GML;
    if ( !strcmp( pExt, "list" ) )
        return IO_FILE_LIST;
    if ( !strcmp( pExt, "mv" ) )
        return IO_FILE_BLIFMV;
    if ( !strcmp( pExt, "pla" ) )
        return IO_FILE_PLA;
    if ( !strcmp( pExt, "smv" ) )
        return IO_FILE_SMV;
    if ( !strcmp( pExt, "v" ) )
        return IO_FILE_VERILOG;
    return IO_FILE_UNKNOWN;
}

Here is the call graph for this function:

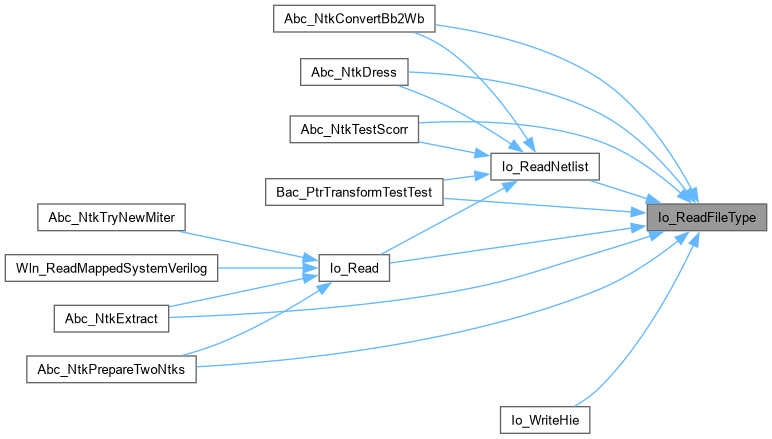

Here is the caller graph for this function:

Io_ReadNetlist()

Abc_Ntk_t * Io_ReadNetlist	(	char *	pFileName,
		Io_FileType_t	FileType,
		int	fCheck )

Function*************************************************************

Synopsis [Read the network from a file.]

Description []

SideEffects []

SeeAlso []

Definition at line 99 of file ioUtil.c.

{
    FILE * pFile;
    Abc_Ntk_t * pNtk;
    if ( FileType == IO_FILE_NONE || FileType == IO_FILE_UNKNOWN )
    {
        fprintf( stdout, "Generic file reader requires a known file extension to open \"%s\".\n", pFileName );
        return NULL;
    }
    // check if the file exists
    pFile = fopen( pFileName, "r" );
    if ( pFile == NULL )
    {
        fprintf( stdout, "Cannot open input file \"%s\". ", pFileName );
        if ( (pFileName = Extra_FileGetSimilarName( pFileName, ".blif", ".bench", ".pla", ".baf", ".aig" )) )
            fprintf( stdout, "Did you mean \"%s\"?", pFileName );
        fprintf( stdout, "\n" );
       return NULL;
    }
    fclose( pFile );
    // read the AIG
    if ( FileType == IO_FILE_AIGER || FileType == IO_FILE_BAF || FileType == IO_FILE_BBLIF )
    {
        if ( FileType == IO_FILE_AIGER )
            pNtk = Io_ReadAiger( pFileName, fCheck );
        else if ( FileType == IO_FILE_BAF )
            pNtk = Io_ReadBaf( pFileName, fCheck );
        else // if ( FileType == IO_FILE_BBLIF )
            pNtk = Io_ReadBblif( pFileName, fCheck );
        if ( pNtk == NULL )
        {
            fprintf( stdout, "Reading AIG from file has failed.\n" );
            return NULL;
        }
        return pNtk;
    }
    // read the new netlist
    if ( FileType == IO_FILE_BLIF )
//        pNtk = Io_ReadBlif( pFileName, fCheck );
        pNtk = Io_ReadBlifMv( pFileName, 0, fCheck );
    else if ( Io_ReadFileType(pFileName) == IO_FILE_BLIFMV )
        pNtk = Io_ReadBlifMv( pFileName, 1, fCheck );
    else if ( FileType == IO_FILE_BENCH )
        pNtk = Io_ReadBench( pFileName, fCheck );
    else if ( FileType == IO_FILE_EDIF )
        pNtk = Io_ReadEdif( pFileName, fCheck );
    else if ( FileType == IO_FILE_EQN )
        pNtk = Io_ReadEqn( pFileName, fCheck );
    else if ( FileType == IO_FILE_PLA )
        pNtk = Io_ReadPla( pFileName, 0, 0, 0, 0, fCheck );
    else if ( FileType == IO_FILE_VERILOG )
        pNtk = Io_ReadVerilog( pFileName, fCheck );
    else
    {
        fprintf( stderr, "Unknown file format.\n" );
        return NULL;
    }
    if ( pNtk == NULL )
    {
        fprintf( stdout, "Reading network from file has failed.\n" );
        return NULL;
    }

    if ( fCheck && (Abc_NtkBlackboxNum(pNtk) || Abc_NtkWhiteboxNum(pNtk)) && pNtk->pDesign )
    {

        int i, fCycle = 0;
        Abc_Ntk_t * pModel;
//        fprintf( stdout, "Warning: The network contains hierarchy.\n" );
        Vec_PtrForEachEntry( Abc_Ntk_t *, pNtk->pDesign->vModules, pModel, i )
                if ( !Abc_NtkIsAcyclicWithBoxes( pModel ) )
                    fCycle = 1;
        if ( fCycle )
        {
            Abc_NtkDelete( pNtk );
            return NULL;
        }
    }
    return pNtk;
}

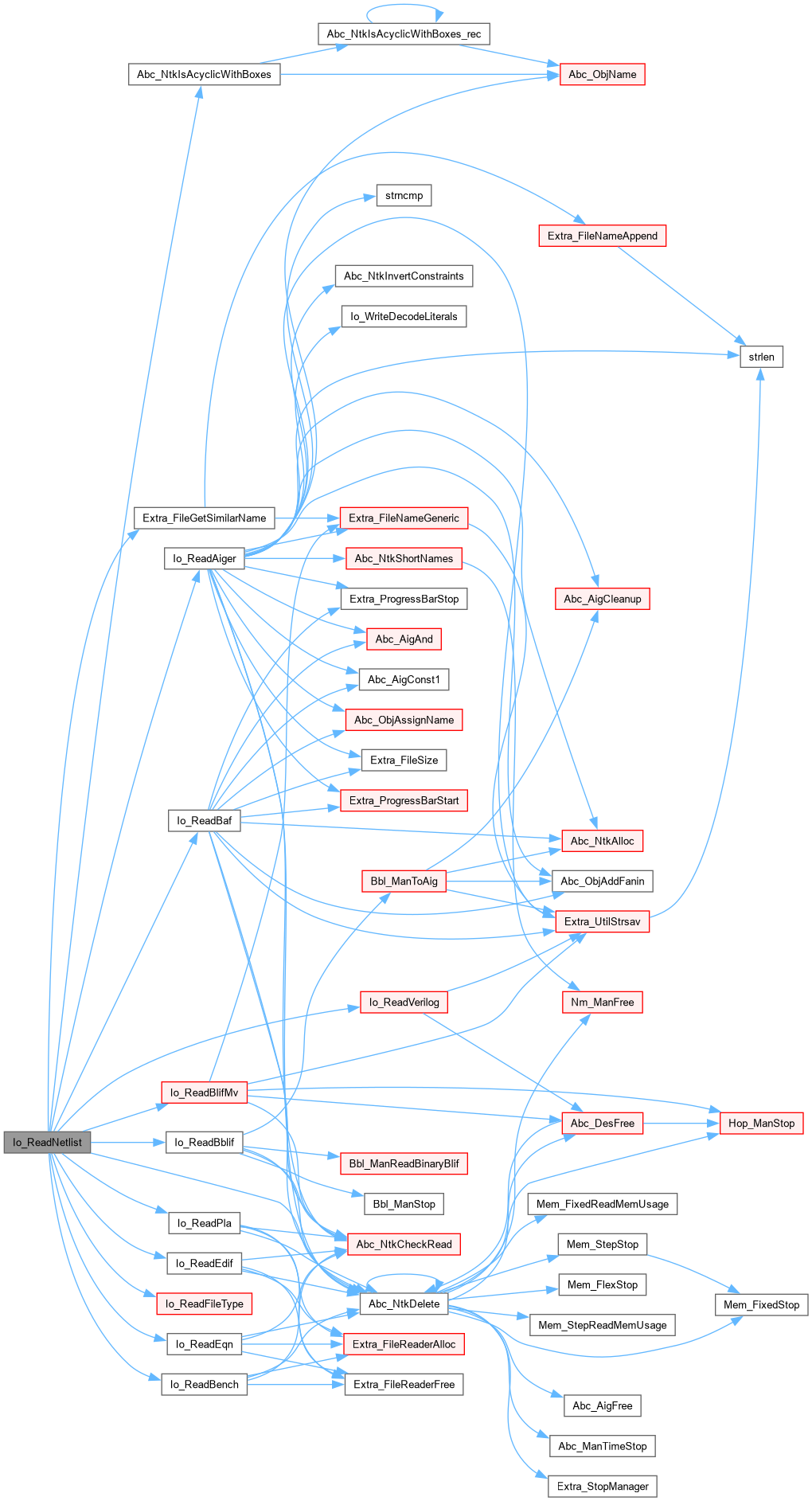

Here is the call graph for this function:

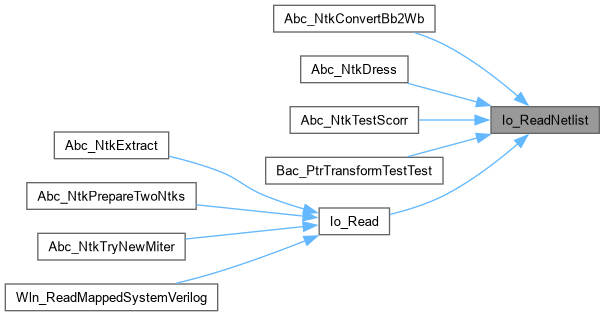

Here is the caller graph for this function:

Io_TransformROM2PLA()

void Io_TransformROM2PLA	(	char *	pNameIn,
		char *	pNameOut )

Function*************************************************************

Synopsis [Tranform SF into PLA.]

Description []

SideEffects []

SeeAlso []

Definition at line 935 of file ioUtil.c.

{
    FILE * pFileOut = fopen( pNameOut, "wb" );
    if ( pFileOut == NULL ) {
        printf( "Cannot open file \"%s\" for writing.\n", pNameOut );
        return;
    }
    int nWords = -1;
    Vec_Wrd_t * vData = Vec_WrdReadHex( pNameIn, &nWords, 0 );
    if ( vData == NULL ) {
        fclose( pFileOut );
        return;
    }
    //Vec_WrdDumpHex( "temp.txt", vData, 1, 1 );
    int v, i, nLines = Vec_WrdSize(vData) / nWords;
    int nIns = Abc_Base2Log(nLines), nOuts;
    assert( nLines * nWords == Vec_WrdSize(vData) );
    word * pTemp = ABC_CALLOC( word, nWords );
    for ( i = 0; i < nLines; i++ )
        Abc_TtOr( pTemp, pTemp, Vec_WrdEntryP(vData, nWords*i), nWords );
    for ( nOuts = nWords*64; nOuts > 0; nOuts-- )
        if ( Abc_TtGetBit(pTemp, nOuts-1) )
            break;
    ABC_FREE( pTemp );
    assert( nOuts > 0 );
    fprintf( pFileOut, ".i %d\n", nIns );
    fprintf( pFileOut, ".o %d\n", nOuts );
    fprintf( pFileOut, ".p %d\n", nLines );
    fprintf( pFileOut, ".type fr\n" );
    for ( i = 0; i < nLines; i++ ) {
        word * pData = Vec_WrdEntryP(vData, nWords*i);
        for ( v = 0; v < nIns; v++ )
            fprintf( pFileOut, "%d", (i >> v) & 1 );
        fprintf( pFileOut, " " );
        for ( v = 0; v < nOuts; v++ )
            fprintf( pFileOut, "%d", Abc_TtGetBit(pData, v) );
        fprintf( pFileOut, "\n" );
    }
    fprintf( pFileOut, ".e\n\n" );
    fclose( pFileOut );
}

Io_TransformSF2PLA()

void Io_TransformSF2PLA	(	char *	pNameIn,
		char *	pNameOut )

Function*************************************************************

Synopsis [Tranform SF into PLA.]

Description []

SideEffects []

SeeAlso []

Definition at line 879 of file ioUtil.c.

{
    int fStart = 0, Size = 1000000;
    char * pBuffer, * pToken;
    FILE * pFileIn  = fopen( pNameIn,  "rb" );
    FILE * pFileOut = fopen( pNameOut, "wb" );
    if ( pFileIn == NULL )
    {
        if ( pFileOut ) fclose( pFileOut );
        printf( "Cannot open file \"%s\" for reading.\n", pNameIn );
        return;
    }
    if ( pFileOut == NULL )
    {
        if ( pFileIn )  fclose( pFileIn );
        printf( "Cannot open file \"%s\" for writing.\n", pNameOut );
        return;
    }
    pBuffer = ABC_ALLOC( char, Size );
    fprintf( pFileOut, ".type fd\n" );
    while ( fgets(pBuffer, Size, pFileIn) )
    {
        if ( strstr(pBuffer, "END_SDF") )
            break;
        if ( strstr(pBuffer, "SDF") )
        {
            char * pRes = fgets(pBuffer, Size, pFileIn);
            assert( pRes != NULL );
            if ( (pToken = strtok( pBuffer, " \t\r\n" )) )
                fprintf( pFileOut, ".i %d\n", atoi(pToken) );
            if ( (pToken = strtok( NULL, " \t\r\n" )) )
                fprintf( pFileOut, ".o %d\n", atoi(pToken) );
            if ( (pToken = strtok( NULL, " \t\r\n" )) )
                fprintf( pFileOut, ".p %d\n", atoi(pToken) );
            fStart = 1;
        }
        else if ( fStart )
            fprintf( pFileOut, "%s", pBuffer );
    }
    fprintf( pFileOut, ".e\n" );
    fclose( pFileIn );
    fclose( pFileOut );
    ABC_FREE( pBuffer );
}

Here is the call graph for this function:

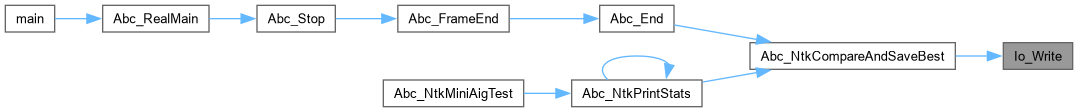

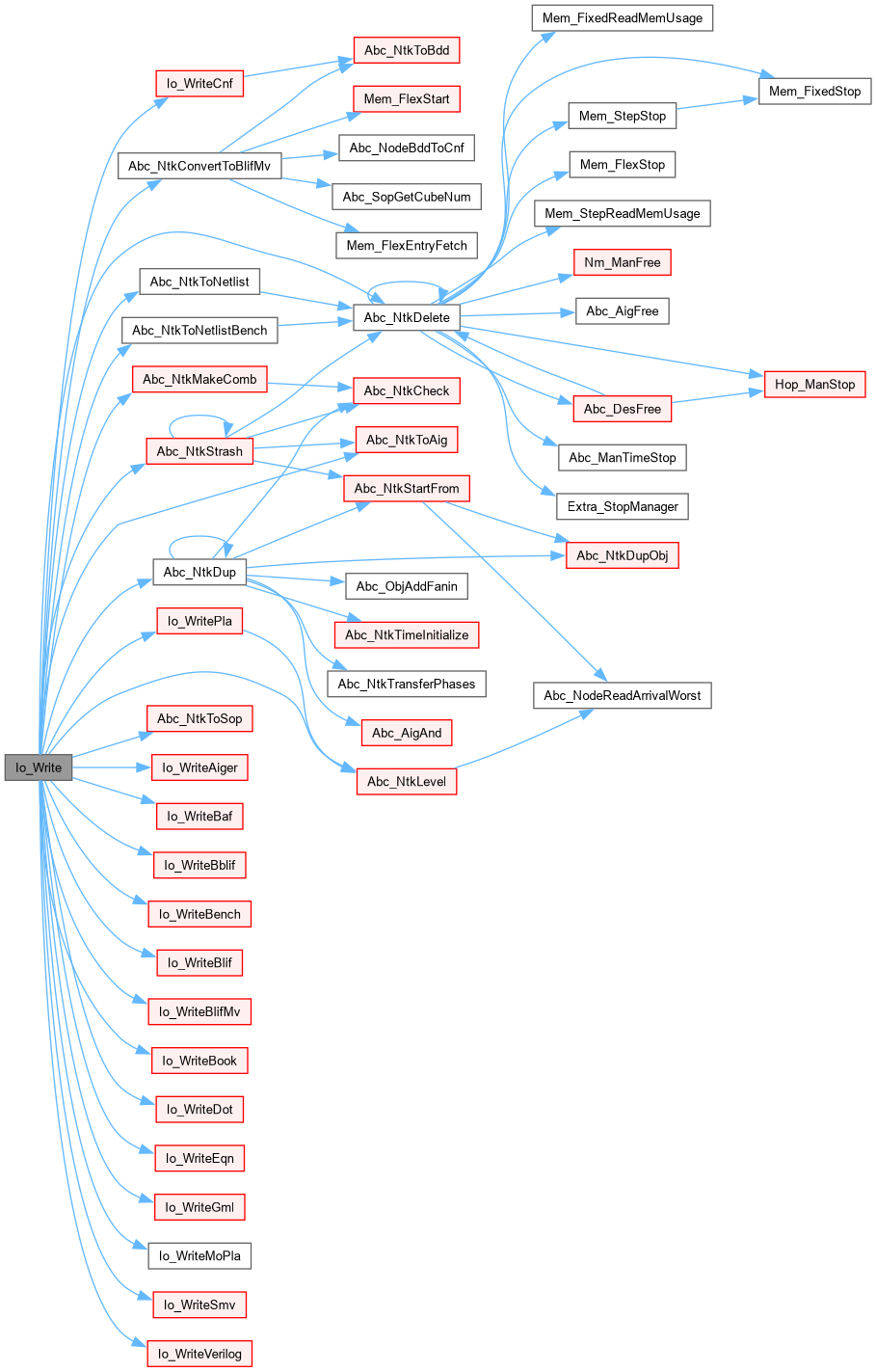

Io_Write()

void Io_Write	(	Abc_Ntk_t *	pNtk,
		char *	pFileName,
		Io_FileType_t	FileType )

Function*************************************************************

Synopsis [Write the network into file.]

Description []

SideEffects []

SeeAlso []

Definition at line 320 of file ioUtil.c.

{
    Abc_Ntk_t * pNtkTemp, * pNtkCopy;
    // check if the current network is available
    if ( pNtk == NULL )
    {
        fprintf( stdout, "Empty network.\n" );
        return;
    }
    // check if the file extension if given
    if ( FileType == IO_FILE_NONE || FileType == IO_FILE_UNKNOWN )
    {
        fprintf( stdout, "The generic file writer requires a known file extension.\n" );
        return;
    }
    // write the AIG formats
    if ( FileType == IO_FILE_AIGER || FileType == IO_FILE_BAF )
    {
        if ( !Abc_NtkIsStrash(pNtk) )
        {
            fprintf( stdout, "Writing this format is only possible for structurally hashed AIGs.\n" );
            return;
        }
        if ( FileType == IO_FILE_AIGER )
            Io_WriteAiger( pNtk, pFileName, 1, 0, 0 );
        else //if ( FileType == IO_FILE_BAF )
            Io_WriteBaf( pNtk, pFileName );
        return;
    }
    // write non-netlist types
    if ( FileType == IO_FILE_CNF )
    {
        Io_WriteCnf( pNtk, pFileName, 0 );
        return;
    }
    if ( FileType == IO_FILE_DOT )
    {
        Io_WriteDot( pNtk, pFileName );
        return;
    }
    if ( FileType == IO_FILE_GML )
    {
        Io_WriteGml( pNtk, pFileName );
        return;
    }
    if ( FileType == IO_FILE_BBLIF )
    {
        if ( !Abc_NtkIsLogic(pNtk) )
        {
            fprintf( stdout, "Writing Binary BLIF is only possible for logic networks.\n" );
            return;
        }
        if ( !Abc_NtkHasSop(pNtk) )
            Abc_NtkToSop( pNtk, -1, ABC_INFINITY );
        Io_WriteBblif( pNtk, pFileName );
        return;
    }
/*
    if ( FileType == IO_FILE_BLIFMV )
    {
        Io_WriteBlifMv( pNtk, pFileName );
        return;
    }
*/
    // convert logic network into netlist
    if ( FileType == IO_FILE_PLA )
    {
        if ( Abc_NtkLevel(pNtk) > 1 )
        {
            fprintf( stdout, "PLA writing is available for collapsed networks.\n" );
            return;
        }
        if ( Abc_NtkIsComb(pNtk) )
            pNtkTemp = Abc_NtkToNetlist( pNtk );
        else
        {
            fprintf( stdout, "Latches are written into the PLA file at PI/PO pairs.\n" );
            pNtkCopy = Abc_NtkDup( pNtk );
            Abc_NtkMakeComb( pNtkCopy, 0 );
            pNtkTemp = Abc_NtkToNetlist( pNtk );
            Abc_NtkDelete( pNtkCopy );
        }
        if ( !Abc_NtkToSop( pNtkTemp, 1, ABC_INFINITY ) )
            return;
    }
    else if ( FileType == IO_FILE_MOPLA )
    {
        pNtkTemp = Abc_NtkStrash( pNtk, 0, 0, 0 );
    }
    else if ( FileType == IO_FILE_BENCH )
    {
        if ( !Abc_NtkIsStrash(pNtk) )
        {
            fprintf( stdout, "Writing traditional BENCH is available for AIGs only (use \"write_bench\").\n" );
            return;
        }
        pNtkTemp = Abc_NtkToNetlistBench( pNtk );
    }
    else if ( FileType == IO_FILE_SMV )
    {
        if ( !Abc_NtkIsStrash(pNtk) )
        {
            fprintf( stdout, "Writing traditional SMV is available for AIGs only.\n" );
            return;
        }
        pNtkTemp = Abc_NtkToNetlistBench( pNtk );
    }
    else
        pNtkTemp = Abc_NtkToNetlist( pNtk );

    if ( pNtkTemp == NULL )
    {
        fprintf( stdout, "Converting to netlist has failed.\n" );
        return;
    }

    if ( FileType == IO_FILE_BLIF )
    {
        if ( !Abc_NtkHasSop(pNtkTemp) && !Abc_NtkHasMapping(pNtkTemp) )
            Abc_NtkToSop( pNtkTemp, -1, ABC_INFINITY );
        Io_WriteBlif( pNtkTemp, pFileName, 1, 0, 0 );
    }
    else if ( FileType == IO_FILE_BLIFMV )
    {
        if ( !Abc_NtkConvertToBlifMv( pNtkTemp ) )
            return;
        Io_WriteBlifMv( pNtkTemp, pFileName );
    }
    else if ( FileType == IO_FILE_BENCH )
        Io_WriteBench( pNtkTemp, pFileName );
    else if ( FileType == IO_FILE_BOOK )
        Io_WriteBook( pNtkTemp, pFileName );
    else if ( FileType == IO_FILE_PLA )
        Io_WritePla( pNtkTemp, pFileName );
    else if ( FileType == IO_FILE_MOPLA )
        Io_WriteMoPla( pNtkTemp, pFileName );
    else if ( FileType == IO_FILE_EQN )
    {
        if ( !Abc_NtkHasAig(pNtkTemp) )
            Abc_NtkToAig( pNtkTemp );
        Io_WriteEqn( pNtkTemp, pFileName );
    }
    else if ( FileType == IO_FILE_SMV )
        Io_WriteSmv( pNtkTemp, pFileName );
    else if ( FileType == IO_FILE_VERILOG )
    {
        if ( !Abc_NtkHasAig(pNtkTemp) && !Abc_NtkHasMapping(pNtkTemp) )
            Abc_NtkToAig( pNtkTemp );
        Io_WriteVerilog( pNtkTemp, pFileName, 0, 0 );
    }
    else
        fprintf( stderr, "Unknown file format.\n" );
    Abc_NtkDelete( pNtkTemp );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Io_WriteHie()

void Io_WriteHie	(	Abc_Ntk_t *	pNtk,
		char *	pBaseName,
		char *	pFileName )

Function*************************************************************

Synopsis [Write the network into file.]

Description []

SideEffects []

SeeAlso []

Definition at line 486 of file ioUtil.c.

{
    Abc_Ntk_t * pNtkTemp, * pNtkResult, * pNtkBase = NULL;
    int i;
    // check if the current network is available
    if ( pNtk == NULL )
    {
        fprintf( stdout, "Empty network.\n" );
        return;
    }

    // read the base network
    assert( Abc_NtkIsStrash(pNtk) || Abc_NtkIsLogic(pNtk) );
    if ( Io_ReadFileType(pBaseName) == IO_FILE_BLIF )
        pNtkBase = Io_ReadBlifMv( pBaseName, 0, 1 );
    else if ( Io_ReadFileType(pBaseName) == IO_FILE_BLIFMV )
        pNtkBase = Io_ReadBlifMv( pBaseName, 1, 1 );
    else if ( Io_ReadFileType(pBaseName) == IO_FILE_VERILOG )
        pNtkBase = Io_ReadVerilog( pBaseName, 1 );
    else
        fprintf( stderr, "Unknown input file format.\n" );
    if ( pNtkBase == NULL )
        return;

    // flatten logic hierarchy if present
    if ( Abc_NtkWhiteboxNum(pNtkBase) > 0 && pNtk->nBarBufs == 0 )
    {
        pNtkBase = Abc_NtkFlattenLogicHierarchy( pNtkTemp = pNtkBase );
        Abc_NtkDelete( pNtkTemp );
        if ( pNtkBase == NULL )
            return;
    }

    // reintroduce the boxes into the netlist
    if ( pNtk->nBarBufs > 0 )
    {
        // derive the netlist
        pNtkResult = Abc_NtkToNetlist( pNtk );
        pNtkResult = Abc_NtkFromBarBufs( pNtkBase, pNtkTemp = pNtkResult );
        Abc_NtkDelete( pNtkTemp );
        if ( pNtkResult )
            printf( "Hierarchy writer replaced %d barbufs by hierarchy boundaries.\n", pNtk->nBarBufs );
    }
    else if ( Io_ReadFileType(pBaseName) == IO_FILE_BLIFMV )
    {
        if ( Abc_NtkBlackboxNum(pNtkBase) > 0 )
        {
            printf( "Hierarchy writer does not support BLIF-MV with blackboxes.\n" );
            Abc_NtkDelete( pNtkBase );
            return;
        }
        // convert the current network to BLIF-MV
        assert( !Abc_NtkIsNetlist(pNtk) );
        pNtkResult = Abc_NtkToNetlist( pNtk );
        if ( !Abc_NtkConvertToBlifMv( pNtkResult ) )
        {
            Abc_NtkDelete( pNtkBase );
            return;
        }
        // reintroduce the network
        pNtkResult = Abc_NtkInsertBlifMv( pNtkBase, pNtkTemp = pNtkResult );
        Abc_NtkDelete( pNtkTemp );
    }
    else if ( Abc_NtkBlackboxNum(pNtkBase) > 0 )
    {
        // derive the netlist
        pNtkResult = Abc_NtkToNetlist( pNtk );
        pNtkResult = Abc_NtkInsertNewLogic( pNtkBase, pNtkTemp = pNtkResult );
        Abc_NtkDelete( pNtkTemp );
        if ( pNtkResult )
            printf( "Hierarchy writer reintroduced %d instances of blackboxes.\n", Abc_NtkBlackboxNum(pNtkBase) );
    }
    else
    {
        printf( "Warning: The output network does not contain blackboxes.\n" );
        pNtkResult = Abc_NtkToNetlist( pNtk );
    }
    Abc_NtkDelete( pNtkBase );
    if ( pNtkResult == NULL )
        return;

    // write the resulting network
    if ( Io_ReadFileType(pFileName) == IO_FILE_BLIF )
    {
        if ( pNtkResult->pDesign )
        {
            Vec_PtrForEachEntry( Abc_Ntk_t *, pNtkResult->pDesign->vModules, pNtkTemp, i )
                if ( !Abc_NtkHasSop(pNtkTemp) && !Abc_NtkHasMapping(pNtkTemp) )
                    Abc_NtkToSop( pNtkTemp, -1, ABC_INFINITY );
        }
        else
        {
            if ( !Abc_NtkHasSop(pNtkResult) && !Abc_NtkHasMapping(pNtkResult) )
                Abc_NtkToSop( pNtkResult, -1, ABC_INFINITY );
        }
        Io_WriteBlif( pNtkResult, pFileName, 1, 0, 0 );
    }
    else if ( Io_ReadFileType(pFileName) == IO_FILE_VERILOG )
    {
        if ( pNtkResult->pDesign )
        {
            Vec_PtrForEachEntry( Abc_Ntk_t *, pNtkResult->pDesign->vModules, pNtkTemp, i )
                if ( !Abc_NtkHasAig(pNtkTemp) && !Abc_NtkHasMapping(pNtkTemp) )
                    Abc_NtkToAig( pNtkTemp );
        }
        else
        {
            if ( !Abc_NtkHasAig(pNtkResult) && !Abc_NtkHasMapping(pNtkResult) )
                Abc_NtkToAig( pNtkResult );
        }
        Io_WriteVerilog( pNtkResult, pFileName, 0, 0 );
    }
    else if ( Io_ReadFileType(pFileName) == IO_FILE_BLIFMV )
    {
        Io_WriteBlifMv( pNtkResult, pFileName );
    }
    else
        fprintf( stderr, "Unknown output file format.\n" );

    Abc_NtkDelete( pNtkResult );
}

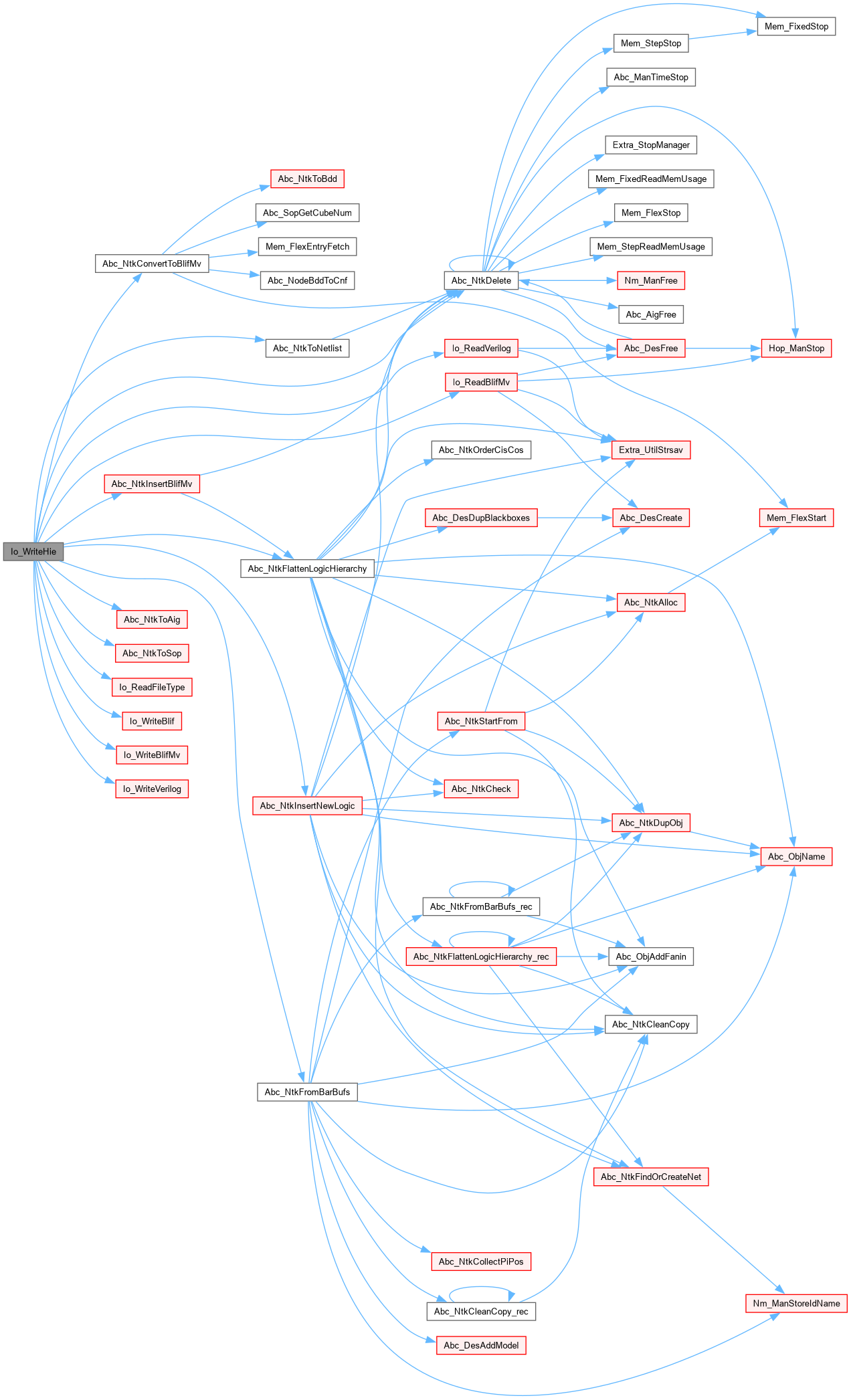

Here is the call graph for this function:

temporaryLtlStore()

Vec_Ptr_t * temporaryLtlStore

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 191 of file ioUtil.c.

{
    Vec_Ptr_t *tempStore;
    char *pFormula;
    int i;

    if( pNtk && Vec_PtrSize( pNtk->vLtlProperties ) > 0 )
    {
        tempStore = Vec_PtrAlloc( Vec_PtrSize( pNtk->vLtlProperties ) );
        Vec_PtrForEachEntry( char *, pNtk->vLtlProperties, pFormula, i )
            Vec_PtrPush( tempStore, pFormula );
        assert( Vec_PtrSize( tempStore ) == Vec_PtrSize( pNtk->vLtlProperties ) );
        return tempStore;
    }
    else
        return NULL;
}

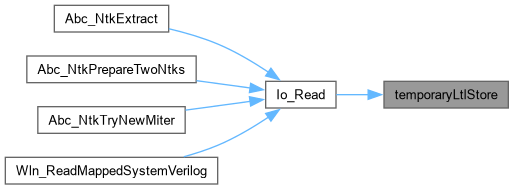

Here is the caller graph for this function:

updateLtlStoreOfNtk()

void updateLtlStoreOfNtk	(	Abc_Ntk_t *	pNtk,
		Vec_Ptr_t *	tempLtlStore )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 220 of file ioUtil.c.

{
    int i;
    char *pFormula;

    assert( tempLtlStore != NULL );
    Vec_PtrForEachEntry( char *, tempLtlStore, pFormula, i )
        Vec_PtrPush( pNtk->vLtlProperties, pFormula );
}

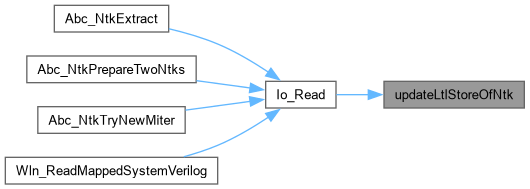

Here is the caller graph for this function:
