ioWriteBaf.c File Reference

#include "ioAbc.h"

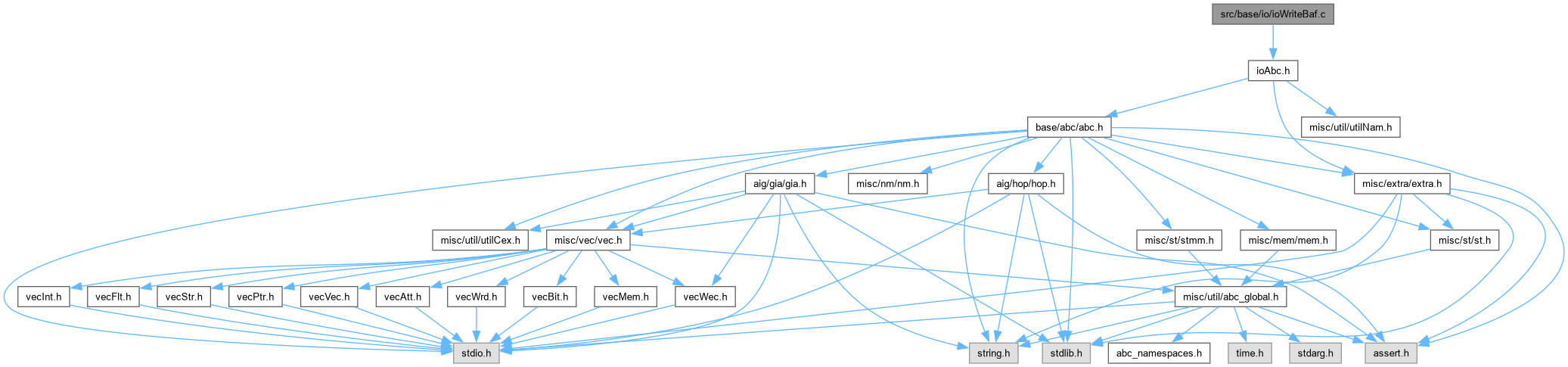

Include dependency graph for ioWriteBaf.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Io_WriteBaf (Abc_Ntk_t *pNtk, char *pFileName)
	DECLARATIONS ///.

Function Documentation

Io_WriteBaf()

ABC_NAMESPACE_IMPL_START void Io_WriteBaf	(	Abc_Ntk_t *	pNtk,
		char *	pFileName )

DECLARATIONS ///.

CFile****************************************************************

FileName [ioWriteBaf.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Command processing package.]

Synopsis [Procedures to write AIG in the binary format.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

ioWriteBaf.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Writes the AIG in the binary format.]

Description []

SideEffects []

SeeAlso []

Definition at line 84 of file ioWriteBaf.c.

{
    ProgressBar * pProgress;
    FILE * pFile;
    Abc_Obj_t * pObj;
    int i, nNodes, nAnds, nBufferSize;
    unsigned * pBufferNode;
    assert( Abc_NtkIsStrash(pNtk) );
    // start the output stream
    pFile = fopen( pFileName, "wb" );
    if ( pFile == NULL )
    {
        fprintf( stdout, "Io_WriteBaf(): Cannot open the output file \"%s\".\n", pFileName );
        return;
    }

    // write the comment
    fprintf( pFile, "# BAF (Binary Aig Format) for \"%s\" written by ABC on %s\n", pNtk->pName, Extra_TimeStamp() );

    // write the network name
    fprintf( pFile, "%s%c", pNtk->pName, 0 );
    // write the number of PIs
    fprintf( pFile, "%d%c", Abc_NtkPiNum(pNtk), 0 );
    // write the number of POs
    fprintf( pFile, "%d%c", Abc_NtkPoNum(pNtk), 0 );
    // write the number of latches
    fprintf( pFile, "%d%c", Abc_NtkLatchNum(pNtk), 0 );
    // write the number of internal nodes
    fprintf( pFile, "%d%c", Abc_NtkNodeNum(pNtk), 0 );

    // write PIs
    Abc_NtkForEachPi( pNtk, pObj, i )
        fprintf( pFile, "%s%c", Abc_ObjName(pObj), 0 );
    // write POs
    Abc_NtkForEachPo( pNtk, pObj, i )
        fprintf( pFile, "%s%c", Abc_ObjName(pObj), 0 );
    // write latches
    Abc_NtkForEachLatch( pNtk, pObj, i )
    {
        fprintf( pFile, "%s%c", Abc_ObjName(pObj), 0 );
        fprintf( pFile, "%s%c", Abc_ObjName(Abc_ObjFanin0(pObj)), 0 );
        fprintf( pFile, "%s%c", Abc_ObjName(Abc_ObjFanout0(pObj)), 0 );
    }

    // set the node numbers to be used in the output file
    Abc_NtkCleanCopy( pNtk );
    nNodes = 1;
    Abc_NtkForEachCi( pNtk, pObj, i )
        pObj->pCopy = (Abc_Obj_t *)(ABC_PTRINT_T)nNodes++;
    Abc_AigForEachAnd( pNtk, pObj, i )
        pObj->pCopy = (Abc_Obj_t *)(ABC_PTRINT_T)nNodes++;

    // write the nodes into the buffer
    nAnds = 0;
    nBufferSize = Abc_NtkNodeNum(pNtk) * 2 + Abc_NtkCoNum(pNtk);
    pBufferNode = ABC_ALLOC( unsigned, nBufferSize );
    pProgress = Extra_ProgressBarStart( stdout, nBufferSize );
    Abc_AigForEachAnd( pNtk, pObj, i )
    {
        Extra_ProgressBarUpdate( pProgress, nAnds, NULL );
        pBufferNode[nAnds++] = (((int)(ABC_PTRINT_T)Abc_ObjFanin0(pObj)->pCopy) << 1) | (int)Abc_ObjFaninC0(pObj);
        pBufferNode[nAnds++] = (((int)(ABC_PTRINT_T)Abc_ObjFanin1(pObj)->pCopy) << 1) | (int)Abc_ObjFaninC1(pObj);
    }

    // write the COs into the buffer
    Abc_NtkForEachCo( pNtk, pObj, i )
    {
        Extra_ProgressBarUpdate( pProgress, nAnds, NULL );
        pBufferNode[nAnds] = (((int)(ABC_PTRINT_T)Abc_ObjFanin0(pObj)->pCopy) << 1) | (int)Abc_ObjFaninC0(pObj);
        if ( Abc_ObjFanoutNum(pObj) > 0 && Abc_ObjIsLatch(Abc_ObjFanout0(pObj)) )
            pBufferNode[nAnds] = (pBufferNode[nAnds] << 2) | ((int)(ABC_PTRINT_T)Abc_ObjData(Abc_ObjFanout0(pObj)) & 3);
        nAnds++;
    }
    Extra_ProgressBarStop( pProgress );
    assert( nBufferSize == nAnds );

    // write the buffer
    fwrite( pBufferNode, 1, sizeof(int) * nBufferSize, pFile );
    fclose( pFile );
    ABC_FREE( pBufferNode );
}

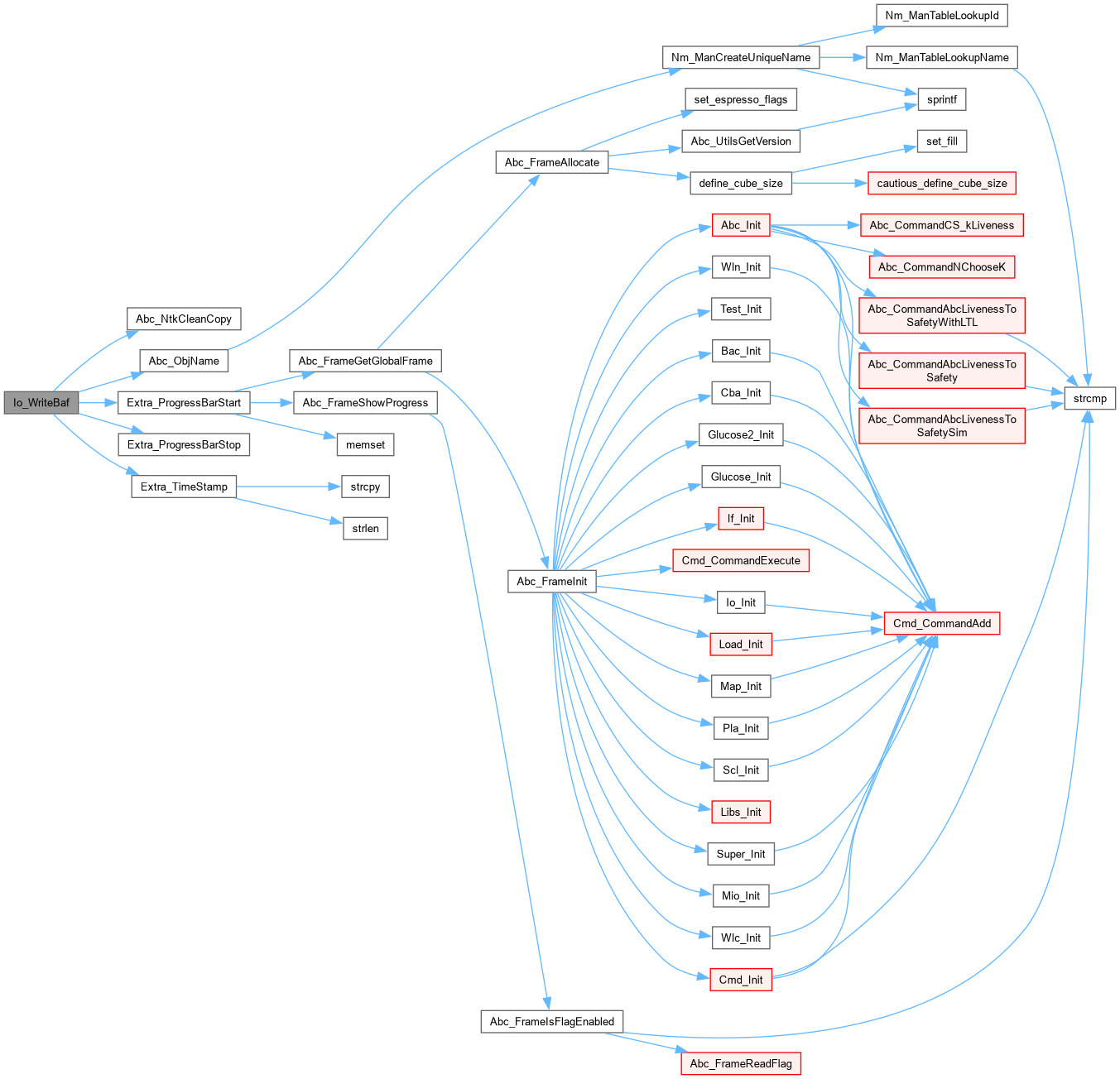

Here is the call graph for this function:

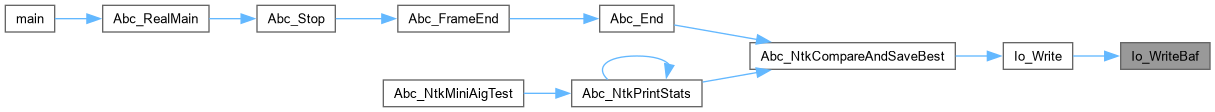

Here is the caller graph for this function:
